CTK481/491-ES-1

USER’S GUIDE

GUÍA DEL USUARIO

ES

CTK481_ES_cover1.p65 03.10.7, 2:59 PMPage 1 Adobe PageMaker 6.5J/PPC

625A-E-002A

GUIDELINES LAID DOWN BY FCC RULES FOR USE OF THE UNIT IN THE U.S.A. (not applicable to other areas).

NOTICE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15

of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio communications. However,

there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the equipment off and on, the user

is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

FCC WARNING

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s

authority to operate the equipment.

Important!

Please note the following important information before using this product.

• Before using the optional AD-5 Adaptor to power the unit, be sure to check the AC Adap-

tor for any damage first. Carefully check the power cord for breakage, cuts, exposed wire

and other serious damage. Never let children use an AC adaptor that is seriously dam-

aged.

• Never attempt to recharge batteries.

• Do not use rechargeable batteries.

• Never mix old batteries with new ones.

• Use recommended batteries or equivalent types.

• Always make sure that positive (+) and negative (–) poles are facing correctly as indicated

near the battery compartment.

• Replace batteries as soon as possible after any sign they are getting weak.

• Do not short-circuit the battery terminals.

• The product is not intended for children under 3 years.

• Use only CASIO AD-5 adaptor.

• The AC adaptor is not a toy.

• Be sure to disconnect the AC adaptor before cleaning the product.

CASIO ELECTRONICS CO., LTD.

Unit 6, 1000

North Circular Road

London NW2 7JD, U.K.

This mark is valid in the EU countries only.

Please keep all information for future reference.

CTK481_E_CE.p65 03.10.7, 2:58 PMPage 2 Adobe PageMaker 6.5J/PPC

E-1

Safety Precautions

Congratulations on your selection of the

CASIO electronic musical instrument.

•Before using the instrument, be sure to

carefully read through the instructions

contained in this manual.

•Please keep all information for future ref-

erence.

Symbols

Various symbols are used in this user’s guide

and on the product itself to ensure that the

product is used safely and correctly, and to

prevent injury to the user and other persons

as well as damage to property. Those sym-

bols along with their meanings are shown

below.

DANGER

This symbol indicates information that, if

ignored or applied incorrectly, creates the

danger of death or serious personal injury.

WARNING

This indication stipulates matters that have

the risk of causing death or serious injury

if the product is operated incorrectly while

ignoring this indication.

CAUTION

This indication stipulates matters that have

the risk of causing injury as well as mat-

ters for which there is the likelihood of

occurrence of physical damage only if the

product is operated incorrectly while ig-

noring this indication.

Symbol Examples

This triangle symbol ( ) means

that the user should be careful.

(The example at left indicates

electrical shock caution.)

This circle with a line through it

() means that the indicated ac-

tion must not be performed. In-

dications within or nearby this

symbol are specifically prohib-

ited. (The example at left indi-

cates that disassembly is prohib-

ited.)

The black dot ( ) means that the

indicated action must be per-

formed. Indications within this

symbol are actions that are spe-

cifically instructed to be per-

formed. (The example at left indi-

cates that the power plug must be

unplugged from the electrical

socket.)

625A-E-003A

CTK481_E01-07.p65 03.10.7, 2:58 PMPage 1 Adobe PageMaker 6.5J/PPC

E-2

625A-E-004A

AC Adaptor

Misuse of the AC adaptor’s electric

cord can damage or break it, creat-

ing the risk of fire and electric shock.

Always make sure you observe the

following precautions.

•Never place heavy objects on the

cord or subject it to heat.

•Never try to modify the cord or

subject it to excessive bending.

•Never twist or stretch the cord.

•Should the electric cord or plug

become damaged, contact your

original retailer or authorized

CASIO Service Provider.

AC Adaptor

Never touch the AC adaptor while

your hands are wet.

Doing so creates the risk of electric

shock.

Batteries

Misuse of batteries can cause them

to leak, resulting in damage to

nearby objects, or to explode, creat-

ing the risk of fire and personal in-

jury. Always make sure you observe

the following precautions.

•Never try to take batteries apart

or allow them to become shorted.

•Never expose batteries to heat or

dispose of them by incineration.

•Never mix old batteries with new

ones.

•Never mix batteries of different

types.

•Do not charge the batteries.

•Make sure the positive (+) and

negative (–) ends of the batteries

are facing correctly.

DANGER

Alkaline Batteries

Perform the following steps imme-

diately if fluid leaking from alka-

line batteries ever gets into your

eyes.

1. Do not rub your eyes! Rinse them

with water.

2. Contact your physician immedi-

ately.

Leaving alkaline battery fluid in

your eyes can lead to loss of sight.

WARNING

Smoke, Strange Odor, Overheating

Continued use of the product while

it is emitting smoke, a strange odor,

or heat creates the risk of fire and

electric shock. Take the following

steps immediately.

1. Turn off power.

2. If you are using the AC adaptor

for power, unplug it from the wall

outlet.

3. Contact your original retailer or

an authorized CASIO Service Pro-

vider.

AC Adaptor

Misuse of the AC adaptor creates

the risk of fire and electric shock.

Always make sure you observe the

following precautions.

•Be sure to use only the AC adap-

tor that is specified for this prod-

uct.

•Use only a power source whose

voltage is within the rating

marked on the AC adaptor.

•Do not overload electrical outlets

and extension cords.

CTK481_E01-07.p65 03.10.7, 2:58 PMPage 2 Adobe PageMaker 6.5J/PPC

E-3

Plastic Bags

Never place the plastic bag the prod-

uct comes in over your head or in

your mouth. Doing so creates the

risk of suffocation.

Particular care concerning this pre-

caution is required where small chil-

dren are present.

Keep off of the product and stand.*

Climbing onto the product or stand

can cause it to tip over or become

damaged. Particular care concern-

ing this precaution is required

where small children are present.

Location

Avoid locating the product on an

unstable stand, on an uneven sur-

face, or any other unstable location.

An unstable location can cause the

product to fall over, creating the risk

of personal injury.

Do not incinerate the product.

Never throw the product into fire.

Doing so can cause it to explode,

creating the risk of fire and personal

injury.

Water and Foreign Matter

Water, other liquids, and foreign

matter (such as pieces of metal) get-

ting into the product create the risk

of fire and electric shock. Take the

following steps immediately.

1. Turn off power.

2. If you are using the AC adaptor

for power, unplug it from the wall

outlet.

3. Contact your original retailer or

an authorized CASIO Service Pro-

vider.

Disassembly and Modification

Never try to take this product apart

or modify it in any way. Doing so

creates the risk of electric shock,

burn injury, or other personal in-

jury. Leave all internal inspection,

adjustment, and maintenance up to

your original retailer or authorized

CASIO Service Provider.

Dropping and Impact

Continued use of this product after

it has been damaged by dropping

or subjecting it to strong impact cre-

ates the risk of fire and electric

shock. Take the following steps im-

mediately.

1. Turn off power.

2. If you are using the AC adaptor

for power, unplug it from the wall

outlet.

3. Contact your original retailer or

an authorized CASIO Service Pro-

vider.

625A-E-005A

CTK481_E01-07.p65 03.10.7, 2:58 PMPage 3 Adobe PageMaker 6.5J/PPC

E-4

625A-E-006A

Cleaning

Before cleaning the product, always

unplug the AC adaptor from the

wall outlet first. Leaving the AC

adaptor plugged in creates the risk

of damage to the AC adaptor, fire,

and electric shock.

Batteries

Misuse of batteries can cause them

to leak resulting in damage to

nearby objects, or to explode, creat-

ing the risk of fire and personal in-

jury. Always make sure you observe

the following precautions.

•Use only batteries that are speci-

fied for use with this product.

•Remove batteries from the prod-

uct if you do not plan to use it for

a long time.

Connectors

Connect only the specified devices

and equipment to the product’s con-

nectors. Connection of a non-speci-

fied device or equipment creates the

risk of fire and electric shock.

Location

Avoid the following locations for

this product. Such locations create

the risk of fire and electric shock.

•Areas subject to high humidity

or large amounts of dust.

•In food preparation areas or other

areas subject to oil smoke.

•Near air conditioning equipment,

on a heated carpet, in areas ex-

posed to direct sunlight, inside of

a vehicle parked in the sun, or

any other area that subjects the

product to high temperatures.

CAUTION

AC Adaptor

Misuse of the AC adaptor creates

the risk of fire and electric shock.

Always make sure you observe the

following precautions.

•Do not locate the electric cord

near a stove or other sources of

heat.

•Never pull on the cord when un-

plugging from the electrical out-

let. Always grasp the AC adap-

tor when unplugging.

AC Adaptor

Misuse of the AC adaptor creates

the risk of fire and electric shock.

Always make sure you observe the

following precautions.

•Insert the AC adaptor into the

wall outlet as far as it will go.

•Unplug the AC adaptor from the

wall outlet during lightening

storms or before leaving on a trip

or other long-term absence.

•At least once a year, unplug the

AC adaptor from the wall outlet

and wipe away any dust that is

built up in the area around the

prongs of the plug.

Relocating the Product

Before relocating the product, al-

ways unplug the AC adaptor from

the wall outlet and disconnect all

other cables and connecting cords.

Leaving cords connected creates the

risk of damage to the cords, fire,

and electric shock.

CTK481_E01-07.p65 03.10.7, 2:58 PMPage 4 Adobe PageMaker 6.5J/PPC

E-5

IMPORTANT!

When using batteries, be sure to replace them or shift to one

of the alternate power sources whenever you notice any of

the following symptoms.

• Dim power indicator

• Instrument does not turn on

• Display that is flickering, dim, or difficult to read

• Abnormally low speaker/headphone volume

• Distortion of sound output

• Occasional interruption of sound when playing at high vol-

ume

• Sudden power failure when playing at high volume

• Flickering or dimming of the display when playing at high

volume

• Continued sound output even after you release a key

• A tone that is totally different from the one that is selected

• Abnormal rhythm pattern and Song Bank play

• Loss of power, sound distortion, or low volume when play-

ing from a connected computer or MIDI device

<CTK-491 only>

• Distortion of microphone input

• Dim power supply indicator when a microphone is used

• Sudden power failure when using the microphone

Display Screen

•Never push on the display

screen’s LCD panel or subject it

to strong impact. Doing so can

cause the LCD panel’s glass to

crack, creating the risk of personal

injury.

•Should the LCD panel ever crack

or break, never touch the liquid

inside of the panel. LCD panel

liquid can cause skin irritation.

•Should LCD panel liquid ever get

inside your mouth, immediately

wash out your mouth with water

and contact your physician.

•Should LCD panel liquid ever get

into your eyes or onto your skin,

rinse with clear water for at least

15 minutes, and then contact a

physician.

Sound Volume

Do not listen to music at very loud

volumes for long periods. Particu-

lar care concerning this precaution

is required when using headphones.

High volume settings can damage

your hearing.

Heavy Objects

Never place heavy object on top of

the product.

Doing so can make the product top

heavy, causing the product to tip

over or the object to fall from it,

creating the risk of personal injury.

Correct Stand* Assembly

An incorrectly assembled stand can

tip over, causing the product to fall

and creating the risk of personal in-

jury.

Make sure you assemble the stand

correctly, following the assembly

instructions that come with it. Make

sure you mount the product on the

stand correctly.

*Stand is available as an option.

625A-E-007B

CTK481_E01-07.p65 03.10.7, 2:58 PMPage 5 Adobe PageMaker 6.5J/PPC

E-6

625A-E-008A

Introduction

Congratulations upon your selection of this CASIO musical instrument. This keyboard provides

you with the following features and functions.

❐100 tones

• Choose from among orchestral sounds, synthesized sounds, and more.

❐100 rhythms

• 100 versatile rhythms help to add plenty of life to all your keyboard performances.

❐Auto Accompaniment

• Simply play a chord and the corresponding rhythm, bass and chord parts play automatically.

❐100-tune Song Bank

• A wide selection of favorites including “ODE TO JOY” and “JINGLE BELLS” is yours for your

listening enjoyment or play along fun. A simple operation cuts out the melody part or accom-

paniment part of the tune, allowing you to play along on the keyboard.

❐Musical Information System

• A big LCD screen graphically shows you fingerings, keyboard keys to be pressed, and notes,

making keyboard play more informative and enjoyable than ever before.

❐MIDI compatibility

• Connecting to another MIDI device lets you sound notes on both this keyboard and the

connected device by playing on this keyboard. You can even playback commercially avail-

able pre-recorded MIDI data.

CTK481_E01-07.p65 03.10.7, 2:58 PMPage 6 Adobe PageMaker 6.5J/PPC

E-7

625A-E-009B

Contents

Safety Precautions ................E-1

Introduction ...........................E-6

Contents.................................E-7

General Guide ........................E-8

Rear Panel ................................................. E-9

Using the Display .....................................E-10

Song Bank

Quick Reference .................. E-11

Playing Back a Song Bank Tune ............. E-11

Power Supply.......................E-13

Using batteries .........................................E-13

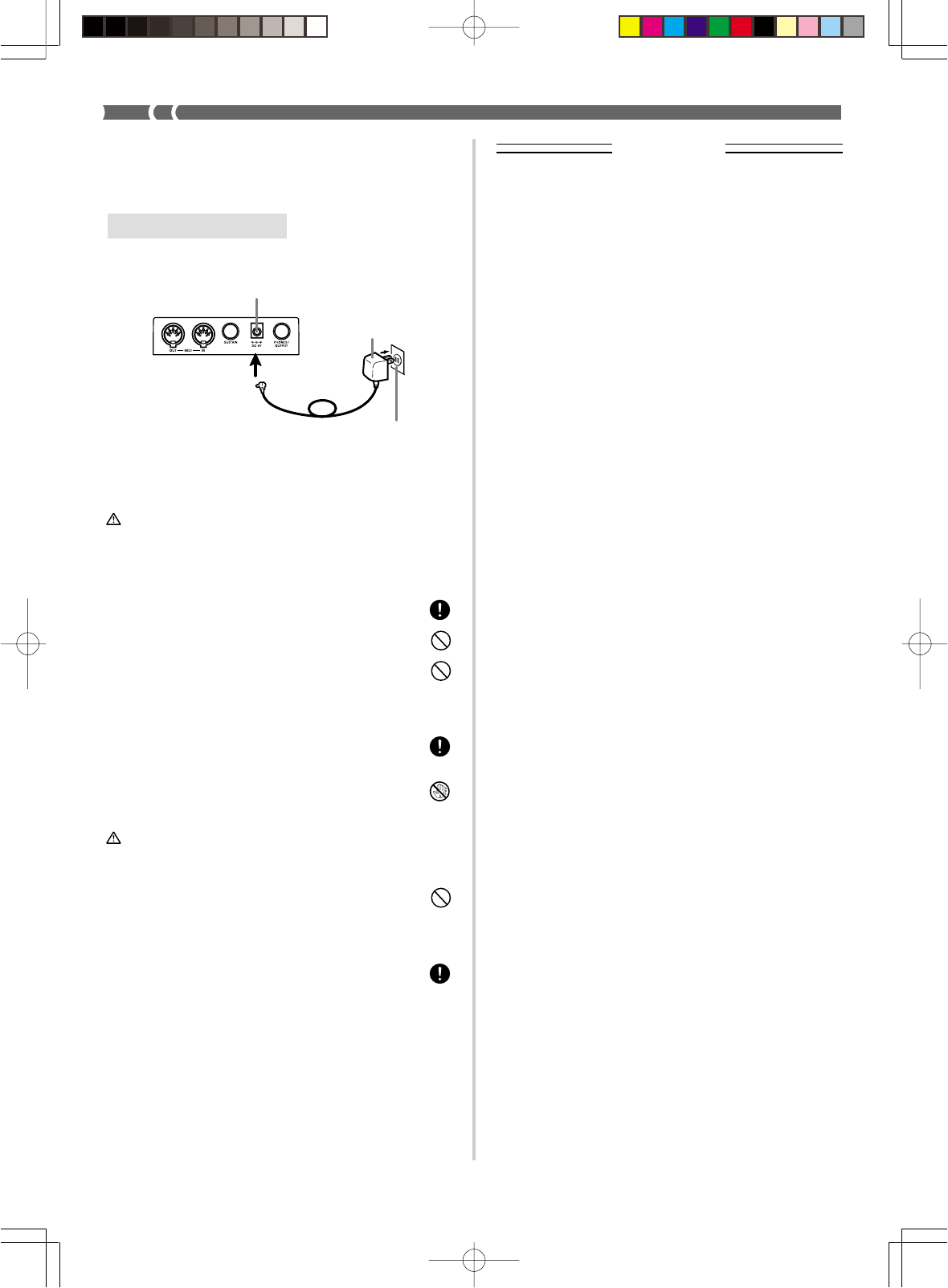

Using the AC Adaptor ..............................E-14

Auto Power Off.........................................E-14

Settings ....................................................E-14

Connections.........................E-15

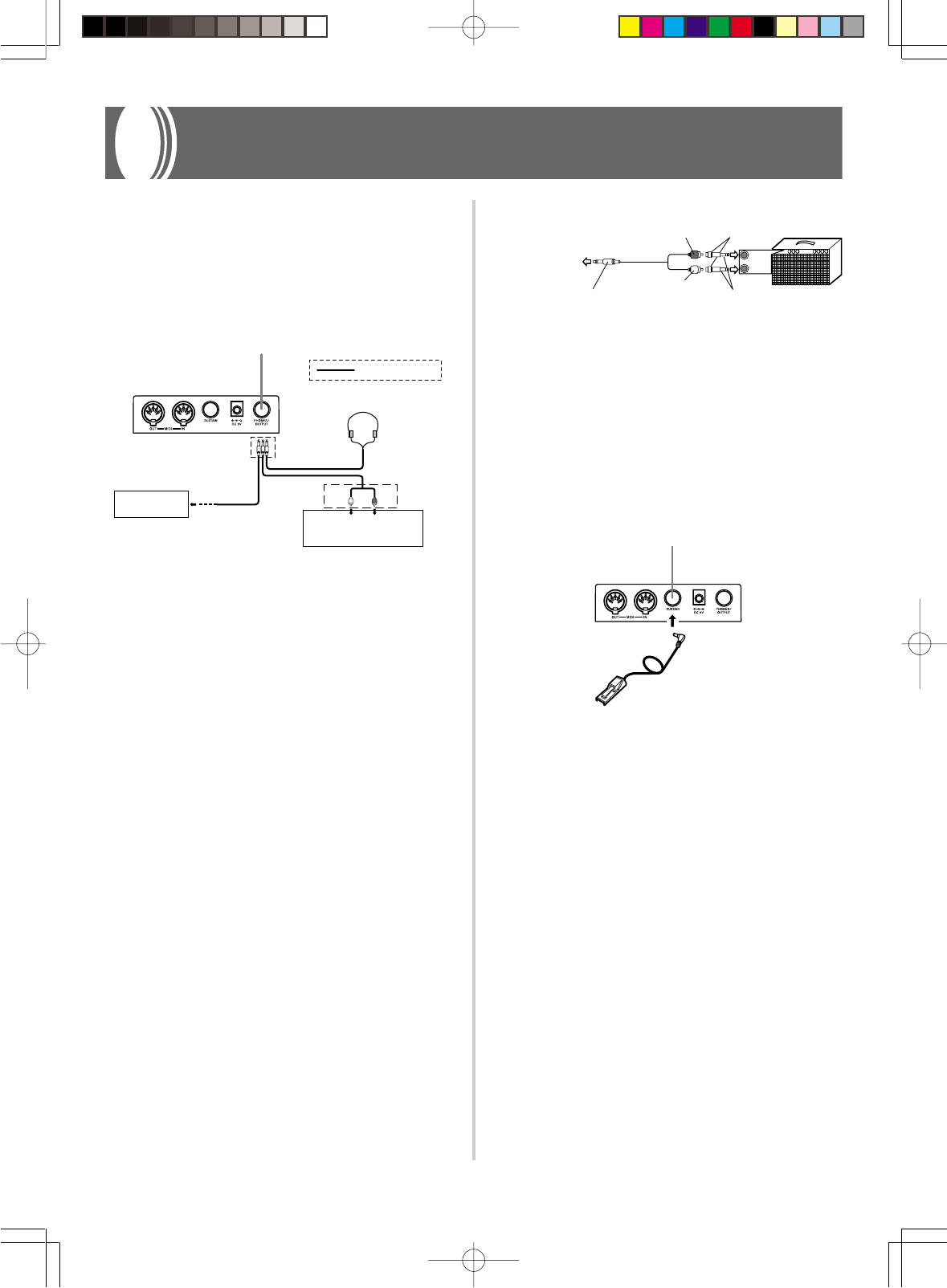

Phones/Output Terminal ..........................E-15

Sustain jack Terminal ...............................E-15

Accessories and Options .........................E-15

Basic Operations .................E-16

Playing the Keyboard...............................E-16

Selecting a Tone ......................................E-16

Using the Microphone Jack

(CTK-491 only) ........................................E-17

Auto Accompaniment .........E-18

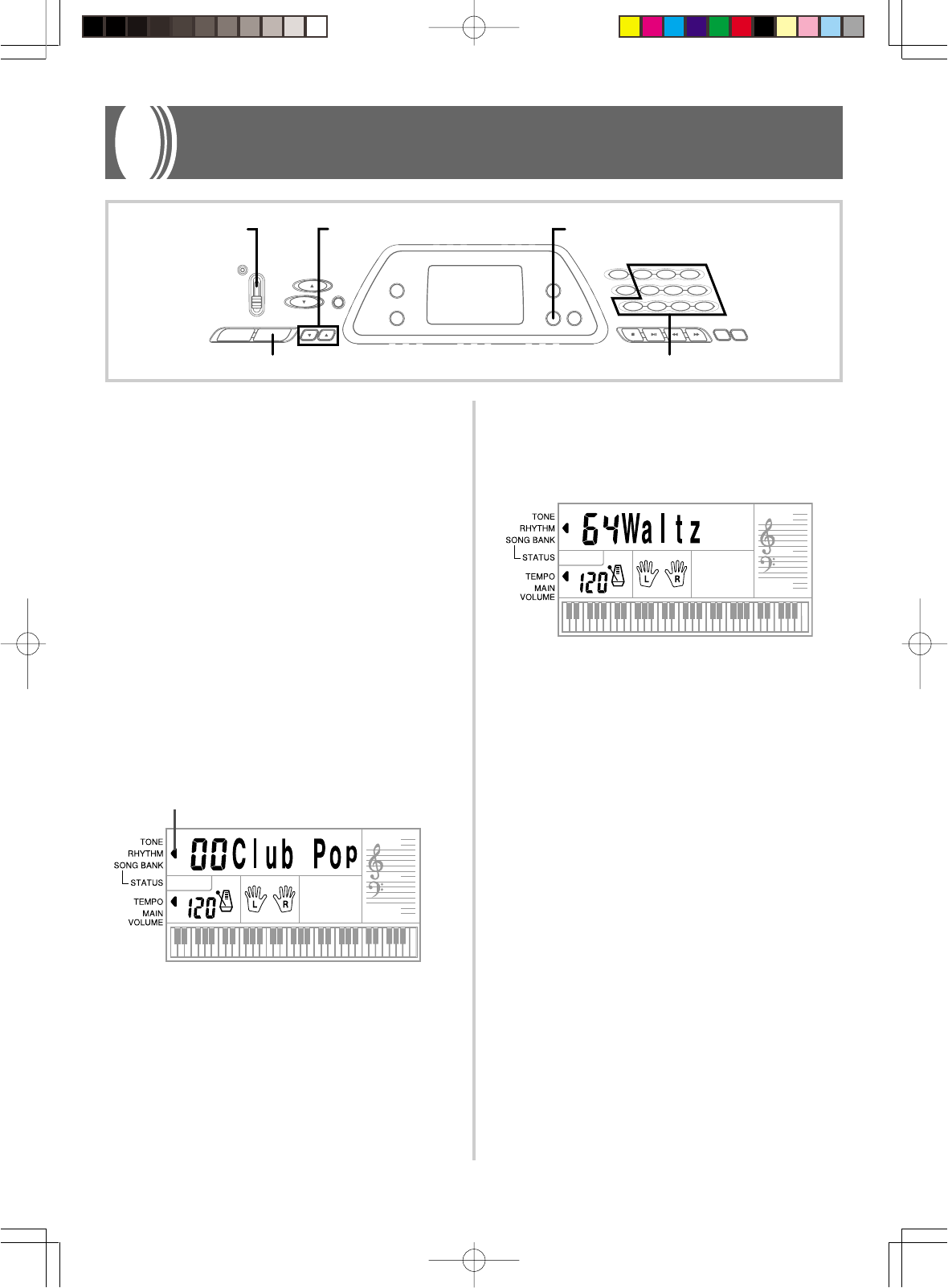

Selecting a Rhythm ..................................E-18

Playing a Rhythm .....................................E-18

Adjusting the Tempo ................................E-19

Using Auto Accompaniment .....................E-19

Using a Fill-in Pattern ..............................E-21

Synchro Starting Accompaniment

with Rhythm Play .....................................E-21

Adjusting the Accompaniment Volume ....E-21

Using the Song Bank ..........E-22

Playing Back a Song Bank Tune .............E-22

Song Bank Mode Display ........................E-23

Adjusting the Tempo of a Song Bank Tune ...

E-23

Changing the Tone of a Song Bank

Tune’s Melody ..........................................E-24

Playing Along with a Song Bank Tune ..... E-24

Applause Sound ......................................E-25

Playing Back All Song Bank Tunes

in Succession ...........................................E-25

Using the Chord Book ........E-26

Looking Up a Chord

Using the Chord Book..............................E-27

Keyboard Settings...............E-29

Transposing the Keyboard .......................E-29

Tuning the Keyboard ...............................E-30

MIDI.......................................E-31

What is MIDI? ..........................................E-31

General MIDI ...........................................E-31

Changing MIDI Settings ...........................E-32

Troubleshooting ..................E-34

Specifications ......................E-36

Care of your keyboard ........E-37

Appendix ............................... A-1

Tone List.....................................................A-1

Note Table ..................................................A-2

Fingered Chord Chart ................................A-4

Percussion Instrument List ........................A-5

MIDI Implementation Chart

CTK481_E01-07.p65 03.10.7, 2:58 PMPage 7 Adobe PageMaker 6.5J/PPC

E-8

8

D

9

6

FJH

G I K

F

5 07 B

AC E

4

31

2

*

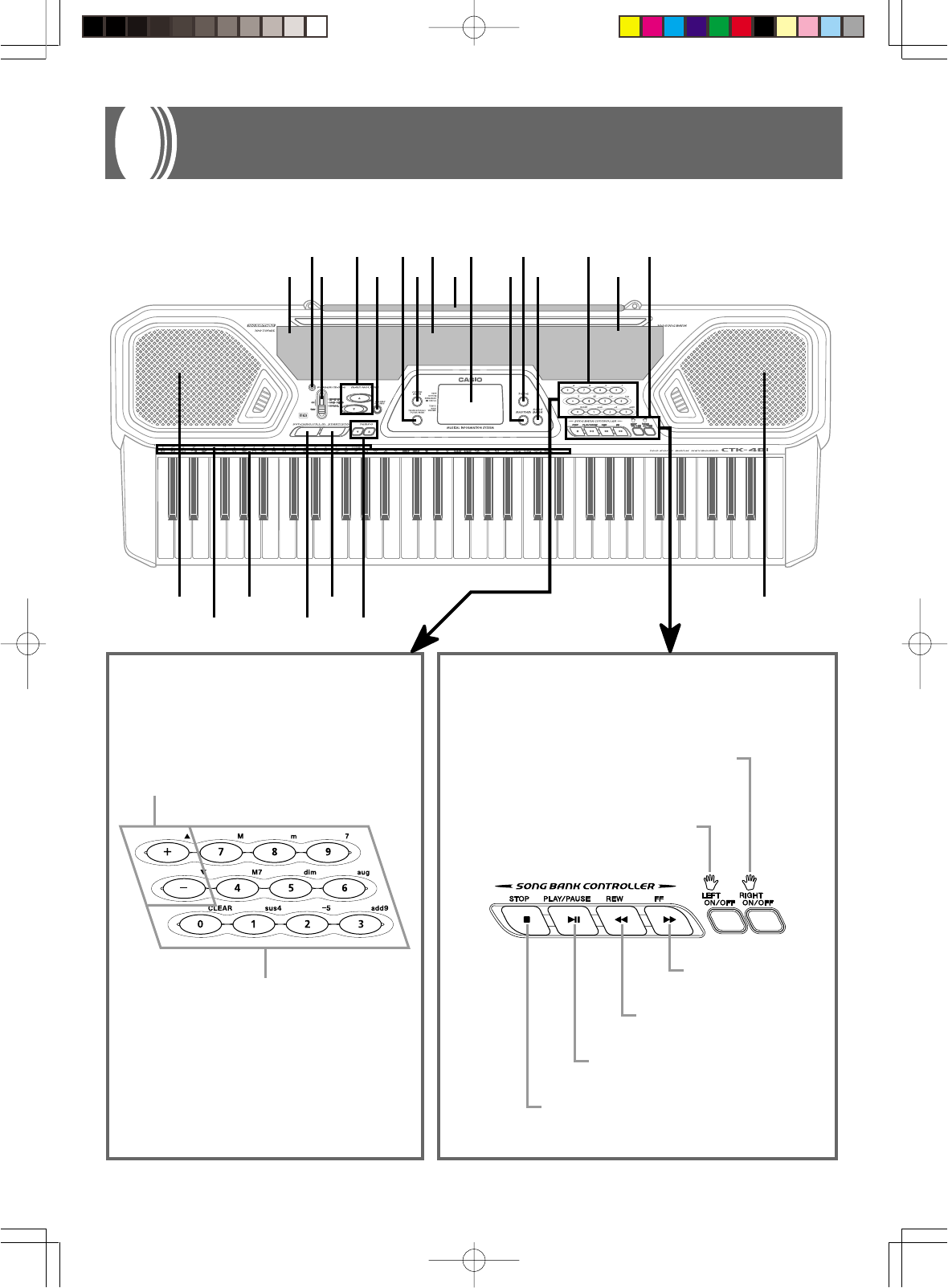

General Guide

EE

EE

ESONG BANK CONTROLLER

625A-E-010A

•Key, button, and other names are indicated in the text of this manual using bold type.

REW button

LEFT ON/OFF button

(ACCOMP)

PLAY/PAUSE button

FF button

STOP button

Number buttons/

Chord specification buttons

•For input of numbers to change

displayed settings.

•For input of chord specification

data when using the Chord

Book.

[+]/[–] buttons

•Negative values can be changed only

by using [+] and [–] to increase and

decrease the displayed value.

CC

CC

C

RIGHT ON/OFF button

(MELODY)

CTK481_E08_17.p65 03.10.7, 2:58 PMPage 8 Adobe PageMaker 6.5J/PPC

E-9

*

Attachment of the Score Stand

Insert both ends of the music stand provided with

the keyboard into the two holes on the top surface.

LMIDI OUT terminal

MMIDI IN terminal

NSUSTAIN jack terminal

ODC 9V jack

PPHONES/OUTPUT terminal

<CTK-491 only>

QMIC IN jack

RMIC VOLUME

1Rhythm list

2Power indicator

3POWER/MODE switch

4MAIN VOLUME buttons

5ACCOMP VOLUME button

6TRANSPOSE/TUNE/MIDI button

7CHORD BOOK button

8Tone list

9Display

0RHYTHM button

ATONE button

BSONG BANK button

CNumber buttons (Chord specification buttons)

DSong bank list

ESONG BANK CONTROLLER

(PLAY/PAUSE, STOP, REW, FF, LEFT ON/OFF, RIGHT ON/OFF)

FSpeaker

GChord name

HPercussion instrument list

ISYNCHRO/FILL-IN button

JSTART/STOP button

KTEMPO buttons

Rear Panel

• CTK-481 • CTK-491

625A-E-011B

❚

NOTE

•Illustrations in this User’s Guide shows the CTK-481.

NL M N O PLQ R MO P

CTK481_E08_17.p65 03.10.7, 2:58 PMPage 9 Adobe PageMaker 6.5J/PPC

E-10

1

An indicator appears next to the type of setting you are currently performing (TONE, RHYTHM,

SONG BANK).

2

Tone number, rhythm number, song number, keyboard settings value

3

Rhythm, auto-accompaniment, Song Bank tune beats

4

Tone name, rhythm name, song name, mode name, keyboard settings name

5

Musical staff representation of notes and chords you play on the keyboard. A pedal indicator ( )

appears when the keyboard's pedal is depressed. An octave indicator ( ) appears when you

play notes in the range from C6 to C7 to indicate that their actual notation is one octave higher

than that shown on display.

6

Uses a graphic keyboard to show notes and chords played on the keyboard or played during Song

Bank tune playback

7

Auto-accompaniment, Song Bank, chord book chord names

8

Dots indicate fingerings during Song Bank playback. “L” and “R” indicate left-hand and right-

hand parts.

9

Rhythm, auto-accompaniment, Song Bank tune tempo

10

Rhythm, auto-accompaniment, Song Bank tune tempo; volume setting

11

Song Bank controller indicators

❚

NOTE

•Display examples shown in this User’s Guide are intended for illustrative purposes only. The actual text and values that appear on the

display may differ from the examples shown in this User’s Guide.

Using the Display

•This is how the display appears

while the Song Bank is in use.

625A-E-012A

4

1

25

11

3

7

8

9

6

10

CTK481_E08_17.p65 03.10.7, 2:58 PMPage 10 Adobe PageMaker 6.5J/PPC

E-11

4.

Use the Song Bank list to find the tune you want

to play back, and then use the number buttons

to input the tune’s two-digit number.

Example: To select “62 ODE TO JOY”, input 6 and then

2.

5.

Press the PLAY/PAUSE button to start play of the

tune.

•The tune plays in an endless loop, re-starting after it

reaches the end.

•The display shows the keyboard keys (on the graphic

keyboard), fingerings (with the fingering indicators),

musical notes (on the staff), and chord names.

A selection of 100 Song Bank tunes comes built-in for your

listening pleasure or play along fun. A simple operation cuts

out the melody part or accompaniment part of the tune, al-

lowing you to play along on the keyboard. See "Using the

Song Bank" on page E-22 for details on playing along with

Song Bank tunes.

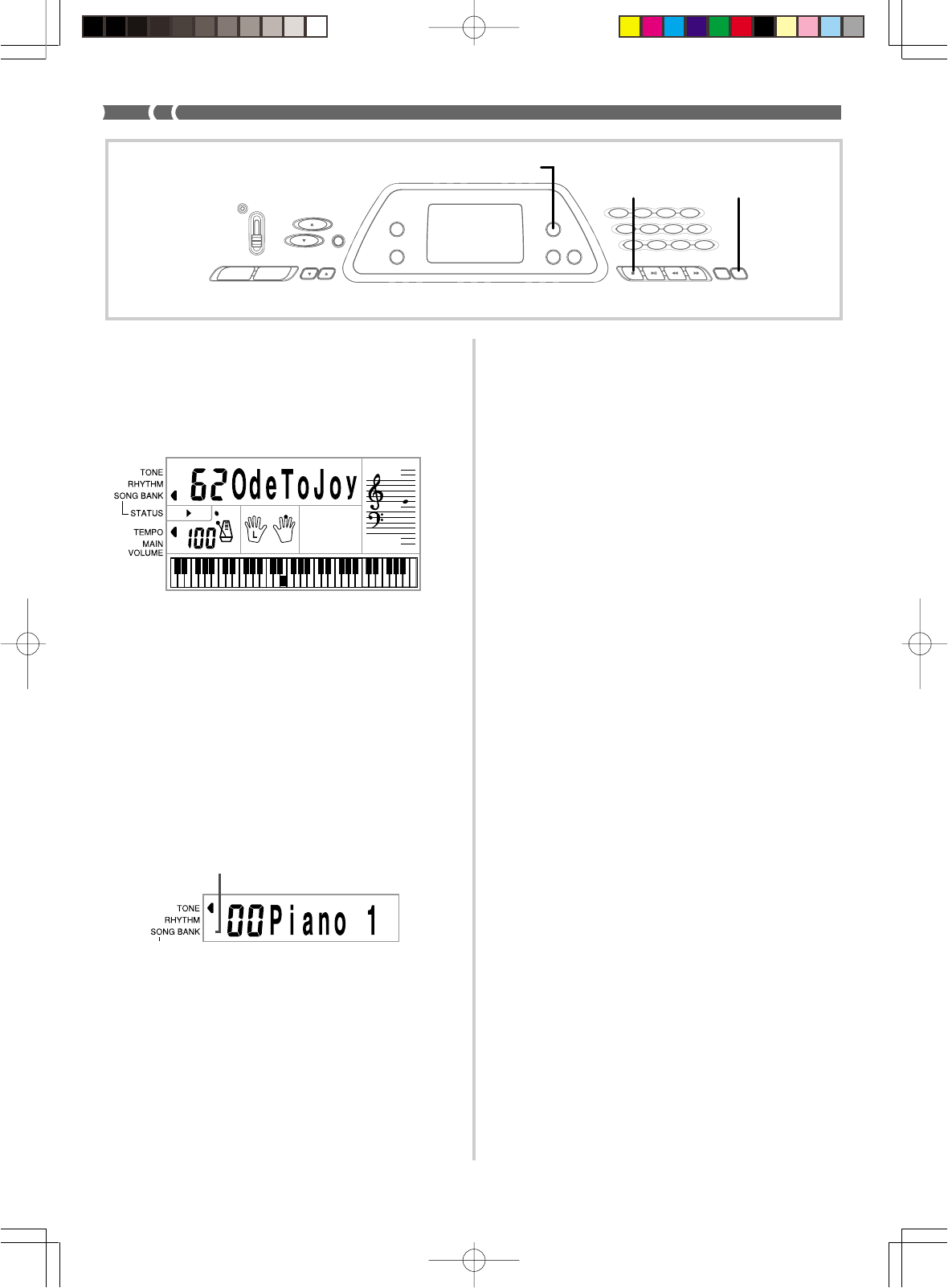

Playing Back a Song Bank Tune

To play back a Song Bank tune

1.

Set the POWER/MODE switch to NORMAL.

2.

Use the MAIN VOLUME buttons to lower the

keyboard volume to a relatively low level.

3.

Press the SONG BANK button to enter the Song

Bank Mode.

Song Bank Quick Reference

625A-E-013A

Appears when SONG BANK button is pressed

Staff displayKeyboard keys used

Fingers used

Chord name

MAIN VOLUME

POWER/MODE PLAY/PAUSE

SONG BANK

Number buttons

CTK481_E08_17.p65 03.10.7, 2:58 PMPage 11 Adobe PageMaker 6.5J/PPC

E-12

6.

Press the RIGHT ON/OFF button to turn off the

right-hand melody part and try playing along on

the keyboard.

•The display’s graphic keyboard and fingering indi-

cators show you the melody notes to play.

7.

Press the RIGHT ON/OFF button again to turn

the melody part back on.

•You can also turn the accompaniment part on and off

by pressing the LEFT ON/OFF button.

8.

Press the STOP button to stop playback of the

Song Bank tune.

9.

Press the TONE button to exit the Song Bank

Mode and return to the tone and rhythm selec-

tion screen.

❚

NOTE

•You can also perform the following operations during play of a

Song Bank tune.

•Pause: Press the PLAY/PAUSE button.

•Fast Forward: Press the FF (fast forward) button.

•Rewind: Press the REW (rewind) button.

625A-E-014A

Indicator turns off

STOP RIGHT ON/OFF

TONE

CTK481_E08_17.p65 03.10.7, 2:58 PMPage 12 Adobe PageMaker 6.5J/PPC

E-13

Important Battery Information

■

The following shows the approximate battery life.

Alkaline batteries .............. 4 hours*

Manganese batteries .......... 2 hours*

*The above value is standard battery life at normal tem-

perature, with the keyboard volume at medium setting.

Temperature extremes or playing at very loud volume

settings can shorten battery life.

■

Any of the following symptoms indicate low battery pow-

er. Replace batteries as soon as possible whenever any of

the following occurs.

•Dim power indicator

•Instrument does not turn on

•Display that is flickering, dim, or difficult to read

•Abnormally low speaker/headphone volume

•Distortion of sound output

•Occasional interruption of sound when playing at high

volume

•Sudden power failure when playing at high volume

•Flickering or dimming of the display when playing at

high volume

•Continued sound output even after you release a key

•A tone that is totally different from the one that is se-

lected

•Abnormal rhythm pattern and Song Bank play

•Loss of power, sound distortion, or low volume when

playing from a connected computer or MIDI device

<CTK-491 only>

•Distortion of microphone input

•Dim power supply indicator when a microphone is

used

•Sudden power failure when using the microphone

WARNING

Misuse of batteries can cause them to leak, resulting in damage

to nearby objects, or to explode, creating the risk of fire and per-

sonal injury. Always make sure you observe the following pre-

cautions.

•Never try to take batteries apart or allow them to become

shorted.

•Never expose batteries to heat or dispose of them by in-

cineration.

•Never mix old batteries with new ones.

•Never mix batteries of different types.

•Do not charge the batteries.

•Make sure the positive (+) and negative (–) ends of the

batteries are facing correctly.

CAUTION

Misuse of batteries can cause them to leak resulting in damage

to nearby objects, or to explode, creating the risk of fire and per-

sonal injury. Always make sure you observe the following pre-

cautions.

•Use only batteries that are specified for use with this prod-

uct.

•Remove batteries from the product if you do not plan to

use it for a long time.

Power Supply

625A-E-015B

Tab

This keyboard can be powered by current from a standard

household wall outlet (using the specified AC adaptor) or by

batteries. Always make sure you turn the keyboard off when-

ever you are not using it.

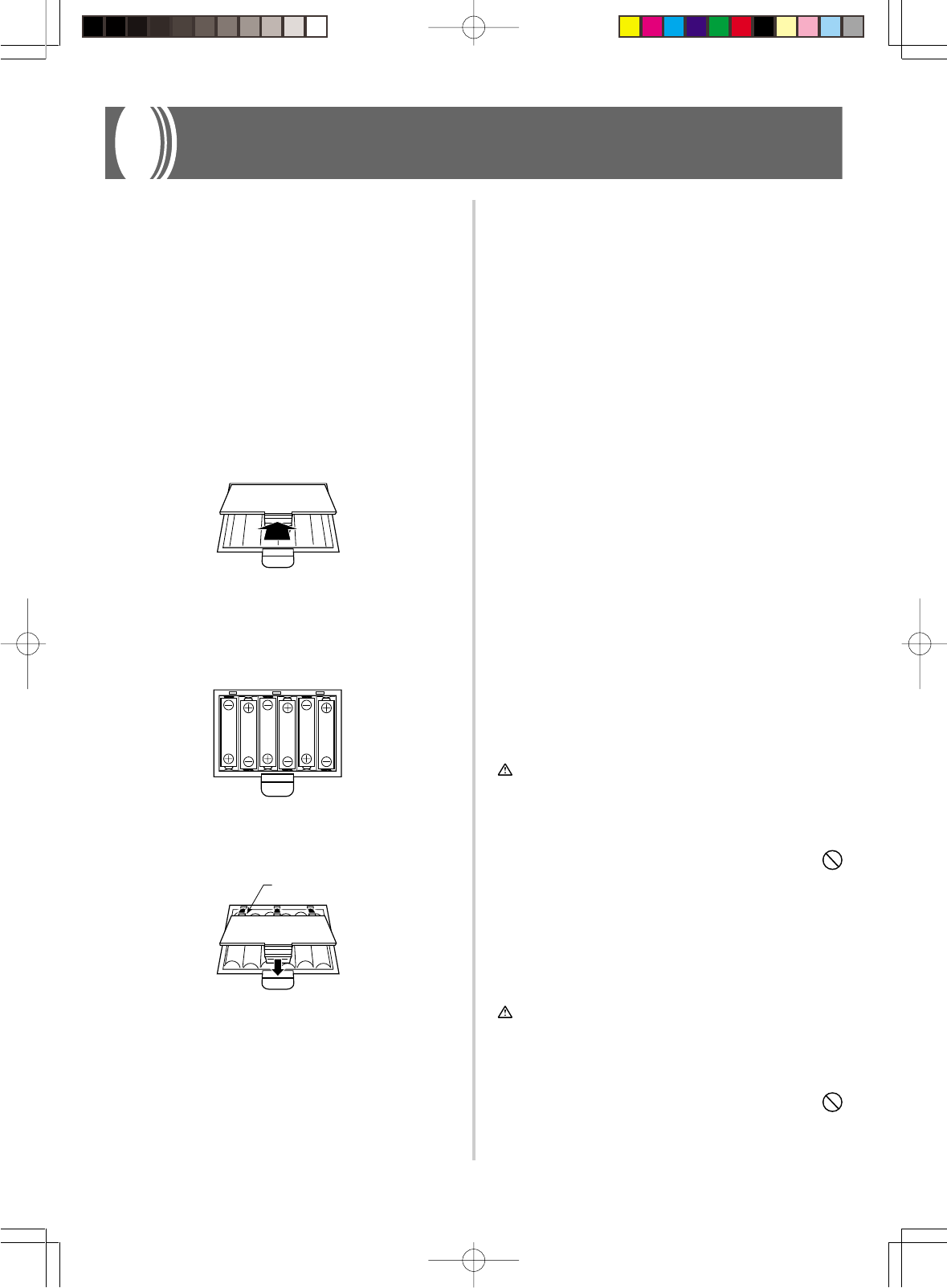

Using batteries

Always make sure you turn off the keyboard before loading

or replacing batteries.

To load batteries

1.

Remove the battery compartment cover.

2.

Load 6 AA-size batteries into the battery com-

partment.

•Make sure that the positive (+) and negative (–) ends

are facing correctly.

3.

Insert the tabs on the battery compartment cov-

er into the holes provided and close the cover.

The keyboard may not function correctly if you load or re-

place batteries with power turned on. If this happens, turn-

ing the keyboard off and then back on again should return

functions back to normal.

CTK481_E08_17.p65 03.10.7, 2:58 PMPage 13 Adobe PageMaker 6.5J/PPC

E-14

IMPORTANT!

•Make sure that the keyboard is turned off before connect-

ing or disconnecting the AC adaptor.

•Using the AC adaptor for a long time can cause it to be-

come warm to touch. This is normal and does not indicate

malfunction.

Auto Power Off

When you are using battery power, keyboard power turns

off automatically whenever you leave it on without perform-

ing any operation for about 6 minutes. When this happens,

use the POWER/MODE switch to turn power back on.

❚

NOTE

•Auto Power Off is disabled (it does not function) when you are

using the AC adaptor to power the keyboard.

To disable Auto Power Off

Hold down the TONE button while turning on the keyboard

to disable Auto Power Off.

❚

NOTE

•When Auto Power Off is disabled, the keyboard does not turn

off automatically no matter how long it is left with no operation

being performed.

•Auto Power Off is automatically enabled whenever you turn on

keyboard power.

Settings

All keyboard settings are returned to their initial defaults

whenever keyboard power is turned back on after being

turned off by operation of the POWER/MODE switch or Auto

Power Off.

Using the AC Adaptor

Make sure that you use only the AC adaptor specified for

this keyboard.

Specified AC Adaptor: AD-5

[Rear Panel]

Also note the following important warnings and precautions

when using the AC adaptor.

WARNING

Misuse of the AC adaptor creates the risk of fire and electric shock.

Always make sure you observe the following precautions.

•Be sure to use only the AC adaptor that is specified for this

product.

•Use only a power source whose voltage is within the rat-

ing marked on the AC adaptor.

•Do not overload electrical outlets and extension cords.

•Never place heavy objects on the cord or subject it to

heat.

•Never try to modify the cord or subject it to excessive

bending.

•Never twist or stretch the cord.

•Should the electric cord or plug become damaged, con-

tact your original retailer or authorized CASIO Service

Provider.

•Never touch the AC adaptor while your hands are wet.

Doing so creates the risk of electric shock.

CAUTION

Misuse of the AC adaptor creates the risk of fire and electric shock.

Always make sure you observe the following precautions.

•

Do not locate the electric cord near a stove or other sourc-

es of heat.

•Never pull on the cord when unplugging from the electri-

cal outlet. Always grasp the AC adaptor when unplug-

ging.

•Insert the AC adaptor into the wall outlet as far as it will

go.

•Unplug the AC adaptor from the wall outlet during light-

ening storms or before leaving on a trip or other long-

term absence.

•At least once a year, unplug the AC adaptor from the wall

outlet and wipe away any dust that is built up in the area

around the prongs of the plug.

AC adaptor AD-5

AC output

DC 9V jack

625A-E-016A

CTK481_E08_17.p65 03.10.7, 2:58 PMPage 14 Adobe PageMaker 6.5J/PPC

E-15

[Connection Example]

❚

NOTE

•You can also connect the keyboard’s MIDI terminal to a com-

puter or sequencer. See “MIDI” on page E-31 for details.

LEFT RIGHT

AUX IN or similar terminal

of audio amplifier

White Red

PIN plug

Stereo standard

plug

PHONES/OUTPUT Terminal

Keyboard amp,

guitar amp,etc.

1

2

3

Audio connection

Connections

Phones/Output Terminal

Before connecting phones or other external equipment, be

sure to first turn down the volume settings of the keyboard

and the connected equipment. You can then adjust volume

to the desired level after connections are complete.

[Rear Panel]

Connecting Phones (Figure 1)

Connecting phones cuts off output from the keyboard’s built-

in speakers, so you can play even late at night without dis-

turbing anyone.

Audio Equipment (Figure 2)

Connect the keyboard to a audio equipment using a com-

mercially available connecting cord with a standard plug on

one end and two PIN plugs on the other end. Note that the

standard plug you connect to the keyboard must be a stereo

plug, otherwise you will be able to output only one of stereo

channels. In this configuration, you normally set the input

selector of the audio equipment to the terminal (usually

marked AUX IN or something similar) where the cord from

the keyboard is connected. See the user documentation that

comes with your audio equipment for full details.

Musical Instrument Amplifier (Figure 3)

Use a commercially available connecting cord* to connect the

keyboard to a musical instrument amplifier.

*Be sure to use a connecting cord that has a stereo standard

plug on the end you connect to the keyboard, and a con-

nector that provides dual channel (left and right) input to

the amplifier to which you are connecting. The wrong type

of connector at either end can cause one of the stereo chan-

nels to be lost.

When connected to a musical instrument amplifier, set the

volume of the keyboard to a relatively low level and make

output volume adjustments using the amplifier’s controls.

INPUT 1

INPUT 2

PIN jack

PIN plug (red)

PIN plug (white)

Stereo standard plug Keyboard or

guitar amp

To keyboard’s

PHONES/OUTPUT

terminal

Standard plug

625A-E-017A

Sustain jack Terminal

You can connect an optional sustain pedal (SP-2, SP-10, or

SP-20) to the SUSTAIN jack terminal to enable the capabili-

ties described below.

Sustain Pedal

•With piano tones, depressing the pedal causes notes to lin-

ger, much like a piano’s damper pedal.

•With organ tones, depressing the pedal causes notes to con-

tinue to sound until the pedal is released.

Accessories and Options

Use only the accessories and options specified for this key-

board. Use of non-authorized items creates the danger of fire,

electrical shock, and personal injury.

SUSTAIN jack Terminal

SP-20

CTK481_E08_17.p65 03.10.7, 2:58 PMPage 15 Adobe PageMaker 6.5J/PPC

E-16

BASS PIANO

This section provides information on performing basic key-

board operations.

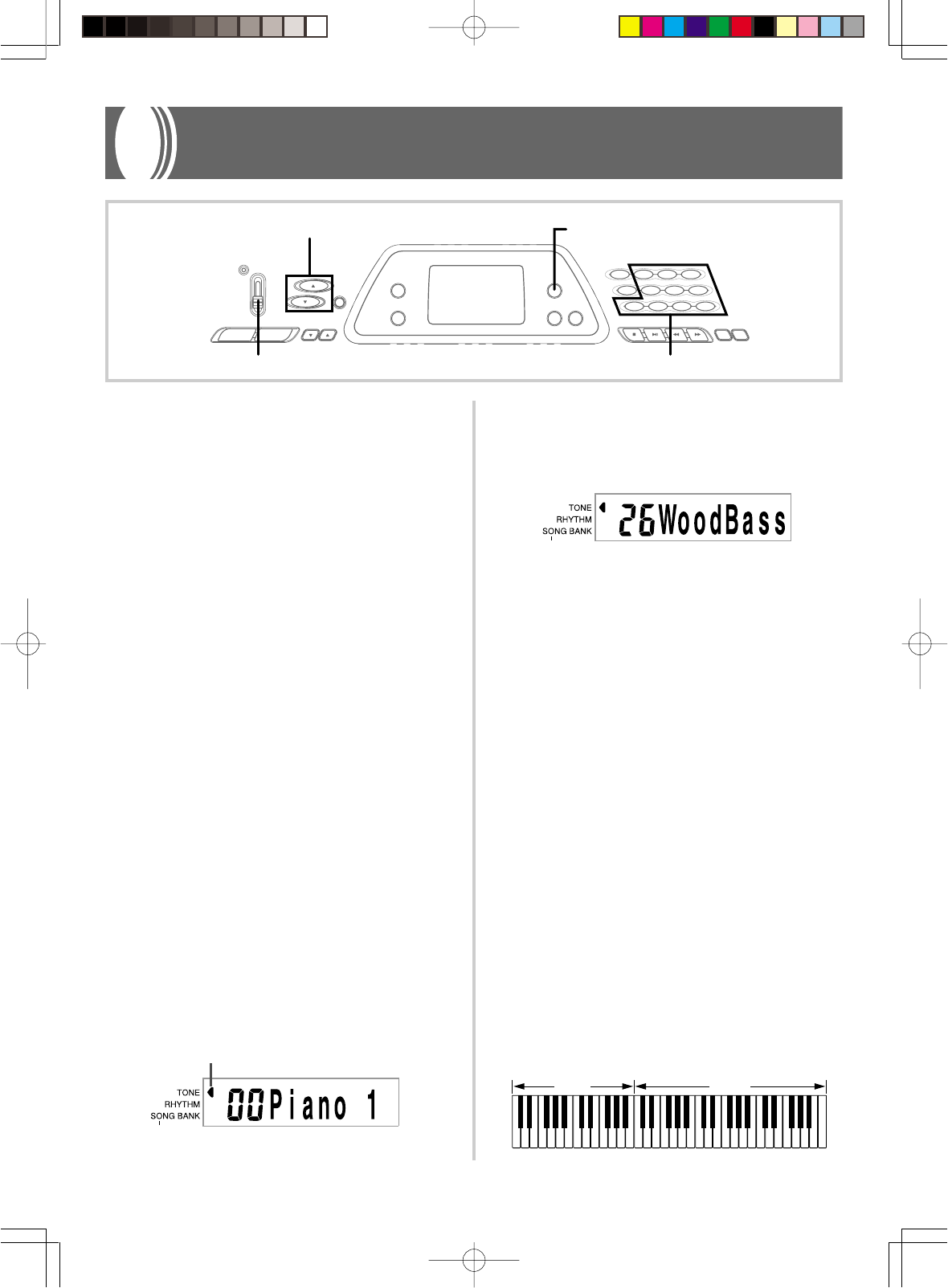

Playing the Keyboard

To play the keyboard

1.

Set the POWER/MODE switch to NORMAL.

2.

Use the MAIN VOLUME buttons to lower the

keyboard volume.

•It’s always a good idea to set the keyboard volume at

a relatively low level before playing.

•Pressing [왖] or [왔] causes the current volume setting

to appear on the display. Press [왖] or [왔] again to

change the setting.

3.

Play something on the keyboard.

Selecting a Tone

This keyboard comes with 100 built-in tones. Use the follow-

ing procedure to select the tone you want to use.

To select a tone

1.

Find the tone you want to use in the keyboard’s

tone list and note its tone number.

2.

Press the TONE button.

Basic Operations

3.

Use the number buttons to input the two digit

tone number for the tone you want to select.

Example: To select “26 WOOD BASS”, input 2 and then

6 .

•Now notes played on the keyboard will be played

using an acoustical wood bass sound.

❚

NOTE

•Always input both digits for the tone number, including a lead-

ing zero (if any). If you input one digit and stop, the display will

automatically clear your input after a few seconds.

•You can also increment the displayed tone number by press-

ing [+] and decrement it by pressing [–].

•The names of tone numbers 60 through 89 are not marked on

the keyboard console. See the “Tone List” (page A-1) for de-

tails.

•Sound effect tones such as 77 VEHICLE sound best when you

keep a keyboard key depressed.

Combination tones

The following describes the two types of combination tones

that are available.

Layered Tones (Tone Numbers: 80 through 89)

Example: 80 STR PIANO

This tone layers a strings tone with a piano tone so they both

sound when a keyboard key is pressed.

Split Tones (Tone Numbers: 90 through 96)

Example: 90 BASS/PIANO

This tone splits the keyboard so one range is assigned a bass

tone and another range is assigned a piano tone.

625A-E-018B

Appears when TONE button is pressed

MAIN VOLUME

POWER/MODE

TONE

Number buttons

CTK481_E08_17.p65 03.10.7, 2:58 PMPage 16 Adobe PageMaker 6.5J/PPC

E-17

625A-E-019B

Percussion sounds

Example: 99 PERCUSSION

This tone assigns various percussion sounds to the keyboard.

See the “Percussion Instrument List” on page A-5 for full de-

tails.

Sound Effect Tones

With sound effect tones 77 through 79, the type of sound pro-

duced depends on the octave where the key you press is lo-

cated. When 78 PHONE is selected available sound types are

PUSH TONE 1, PUSH TONE 2, RING 1, RING 2, and BUSY

SIGNAL.

Polyphony

The term polyphony refers to the maximum number of notes

you can play at the same time. The keyboard has 12-note po-

lyphony, which includes the notes you play as well as the

rhythms and auto-accompaniment patterns that are played

by the keyboard. This means that when a rhythm or auto-

accompaniment pattern is being played by the keyboard, the

number of notes (polyphony) available for keyboard play is

reduced. Also note that some of the tones offer only 6-note

polyphony.

❚

NOTE

•When rhythm or auto accompaniment is playing, the number

of sounds simultaneously played is reduced.

Digital Sampling

A number of the tones that are available with this keyboard

have been recorded and processed using a technique called

digital sampling. To ensure a high level of tonal quality, sam-

ples are taken in the low, mid, and high ranges and then com-

bined to provide you with sounds that are amazingly close

to the originals. You may notice very slight differences in

volume or sound quality for some tones when you play them

at different positions on the keyboard. This is an unavoid-

able result of multiple sampling, and it is not a sign of mal-

function.

Using the Microphone Jack

(CTK-491 only)

Connecting a commercially available microphone to the MIC

IN jack makes it possible to sing along with the keyboard’s

built-in tunes or with output from a MIDI device. When con-

necting a microphone, be sure to first adjust the MIC VOL-

UME to a relatively low setting, and then adjust to the level

you want after connecting.

1.

When connecting a microphone, we recommend

that you set the MIC VOLUME to a very low lev-

el.

2.

Turn on the microphone’s ON/OFF switch.

3.

Use the MIC VOLUME to adjust microphone

volume to the level you want.

IMPORTANT!

•Be sure to use the microphone’s ON/OFF switch to turn off

the microphone and to disconnect the microphone from

the keyboard whenever you are not using it.

Required Microphone Specifications

•Microphone Type : Metal shielded

(microphone body)

•Microphone and Cord

Connector : Cannon type (3-prong)

•Keyboard Jack Connector : Standard plug (monaural)

IMPORTANT!

•Connection to the MIDI terminal of an external device can

cause static in the microphone signal. Use of a Cannon

type microphone with a metal-shielded body helps to pre-

vent static.

•Be sure to disconnect the microphone from the keyboard

whenever you are not using it.

Howling (Feedback Noise)

Any of the following conditions can cause howling (feedback

noise).

•Covering the head of the microphone with your hand

•Positioning the microphone too near to a speaker

Should howling occur, try grasping the microphone further

away from the head, and move away from any nearby speak-

er.

Static Noise

Fluorescent lighting can cause static noise in the microphone

signal. When this happens, move away from the lighting you

suspect may be causing the static.

Microphone

Cannon type (3-prong)

Microphone ON/OFF switch

MIC VOLUME dial

High

Low

CTK481_E08_17.p65 03.10.7, 2:58 PMPage 17 Adobe PageMaker 6.5J/PPC

E-18

3.

Use the number buttons to input the two digit

rhythm number for the rhythm you want to se-

lect.

Example: To select “64 WALTZ”, input 6 and then 4.

❚

NOTE

•“00 CLUB POP” is the initial default rhythm setting whenever

you turn on keyboard power.

•You can also increment the displayed rhythm number by press-

ing [+] and decrement it by pressing [–].

Playing a Rhythm

Use the following procedure to start and stop rhythm play.

To play a rhythm

1.

Set the POWER/MODE switch to NORMAL.

2.

Press the START/STOP button to start play of the

currently selected rhythm.

3.

To stop rhythm play, press the START/STOP but-

ton again.

❚

NOTE

•All of the keyboard keys are melody keys while the POWER/

MODE switch is set to NORMAL.

This keyboard automatically plays bass and chord parts in

accordance with the chords you finger. The bass and chord

parts are played using sounds and tones that are automati-

cally selected to select the rhythm you are using. All of this

means that you get full, realistic accompaniments for the

melody notes you play with your right hand, creating the

mood of an one-person ensemble.

Selecting a Rhythm

This keyboard provides you with 100 exciting rhythms that

you can select using the following procedure.

To select a rhythm

1.

Find the rhythm you want to use in the keyboard’s

rhythm list and note its rhythm number.

2.

Press the RHYTHM button.

Auto Accompaniment

625A-E-020A

Appears when RHYTHM button is pressed

POWER/MODE TEMPO

START/STOP

RHYTHM

Number buttons

CTK481_E18_21.p65 03.10.7, 2:58 PMPage 18 Adobe PageMaker 6.5J/PPC

E-19

Using Auto Accompaniment

The following procedure describes how to use the keyboard’s

Auto Accompaniment feature. Before starting, you should

first select the rhythm you want to use and set the tempo of

the rhythm to the value you want.

To use Auto Accompaniment

1.

Set the POWER/MODE switch to CASIO

CHORD or FINGERED.

Adjusting the Tempo

You can adjust the tempo of rhythm play within a range of

20 to 255 beats per minute. The tempo setting is applied to

Auto Accompaniment chord play, and song bank operations.

To adjust the tempo

Use the TEMPO buttons (왖 / 왔) to adjust the tempo.

왖 : Increases the tempo value.

왔 : Decreases the tempo value.

Example: Hold down the 왔 button until the tempo value 110

is on the display.

❚

NOTE

•Pressing both TEMPO buttons (왖 and 왔) at the same time

resets the tempo to the default value of the currently selected

rhythm.

About the Graphic Metronome

The graphic metronome appears on the display along with

the tempo value and beat of a rhythm or built-in tune. The

graphic metronome helps you keep in time as you play along

with a rhythm or built-in tune.

625A-E-021A

Graphic metronome

Beat

Tempo value

2.

Press the START/STOP button to start play of the

currently selected rhythm.

3.

Play a chord.

•The actual procedure you should use to play a chord

depends on the current POWER/MODE switch po-

sition. Refer to the following pages for details on

chord play.

CASIO CHORD ........................... This page

FINGERED ................................... Page E-20

4.

To stop Auto Accompaniment play, press the

START/STOP button again.

CASIO CHORD

This method of chord play makes it possible for anyone to

easily play chords, regardless of previous musical knowledge

and experience. The following describes the CASIO CHORD

“Accompaniment keyboard” and “Melody keyboard”, and

tells you how to play CASIO CHORDs.

CASIO CHORD Accompaniment Keyboard and

Melody Keyboard

Chord name

Basic fingering of current chord

(May be different from chord actually

being played on the keyboard.)

Melody keyboard

Accompaniment

keyboard

❚

NOTE

•The accompaniment keyboard can be used for playing chords

only.

No sound will be produced if you try playing single melody notes

on the accompaniment keyboard.

CTK481_E18_21.p65 03.10.7, 2:58 PMPage 19 Adobe PageMaker 6.5J/PPC

E-20

❚

NOTE

•It makes no difference whether you press black or white keys

to the right of a major chord key when playing minor and sev-

enth chords.

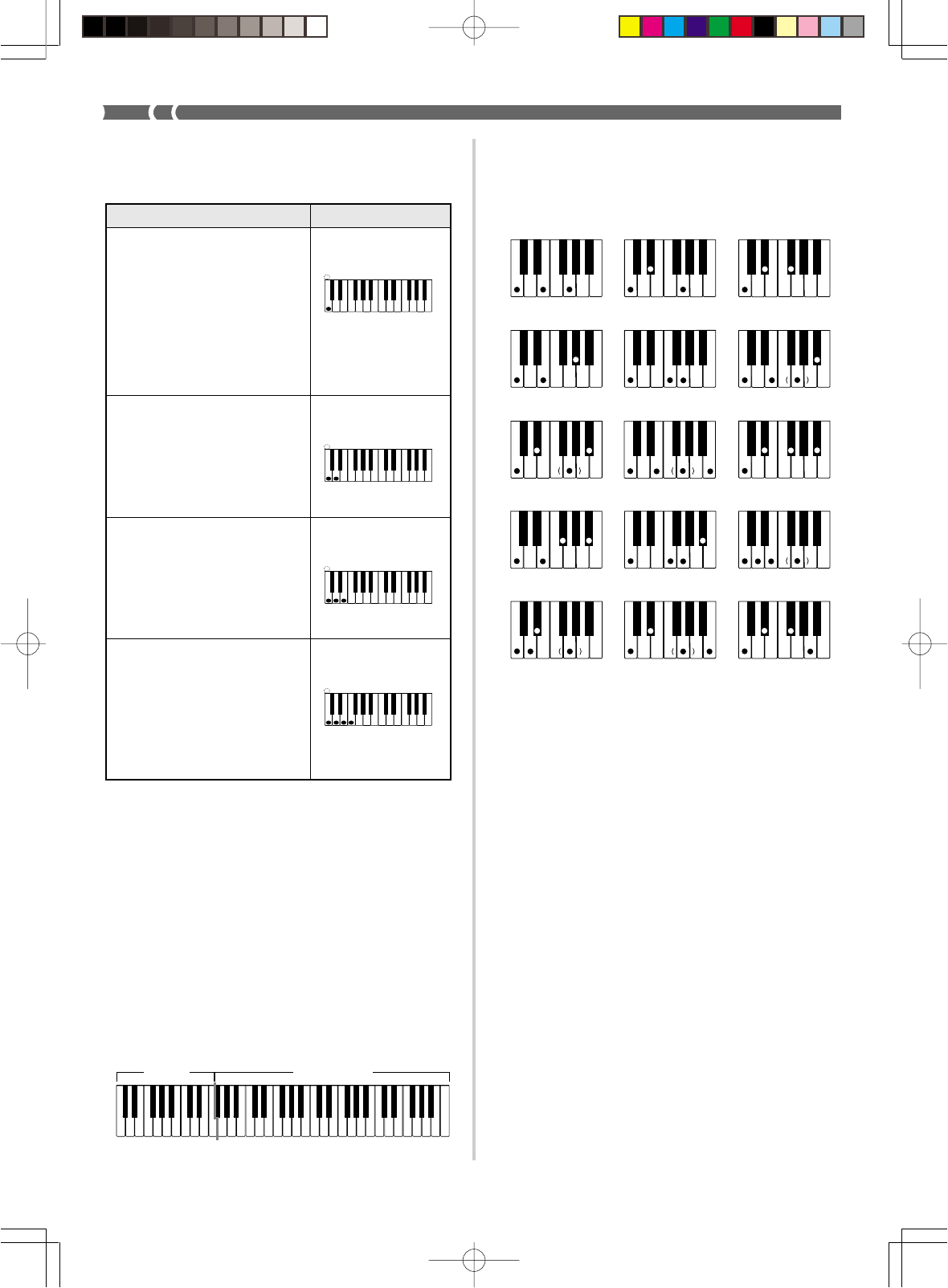

FINGERED

FINGERED provides you with a total of 15 different chord

types. The following describes the FINGERED “Accompa-

niment keyboard” and “Melody keyboard”, and tells you how

to play a C-root chord using FINGERED.

FINGERED Accompaniment Keyboard and Mel-

ody Keyboard

Major chords

Major chord names are marked

above the keys of the accompa-

niment keyboard. Note that the

chord produced when you press

an accompaniment keyboard

does not change octave, regard-

less of which key you use to play

it.

Minor chords (m)

To play a minor chord, keep the

major chord key depressed and

press any other accompaniment

keyboard key located to the right

of the major chord key.

Seventh chords (7)

To play a seventh chord, keep the

major chord key depressed and

press any other two accompani-

ment keyboard keys located to

the right of the major chord key.

Minor seventh chords (m7)

To play a minor seventh chord,

keep the major chord key de-

pressed and press any other three

accompaniment keyboard keys

located to the right of the major

chord key.

ExampleChord Types

Melody keyboard

Accompaniment

keyboard

625A-E-022A

Chord Types

CASIO CHORD accompaniment lets you play four types of

chords with minimal fingering.

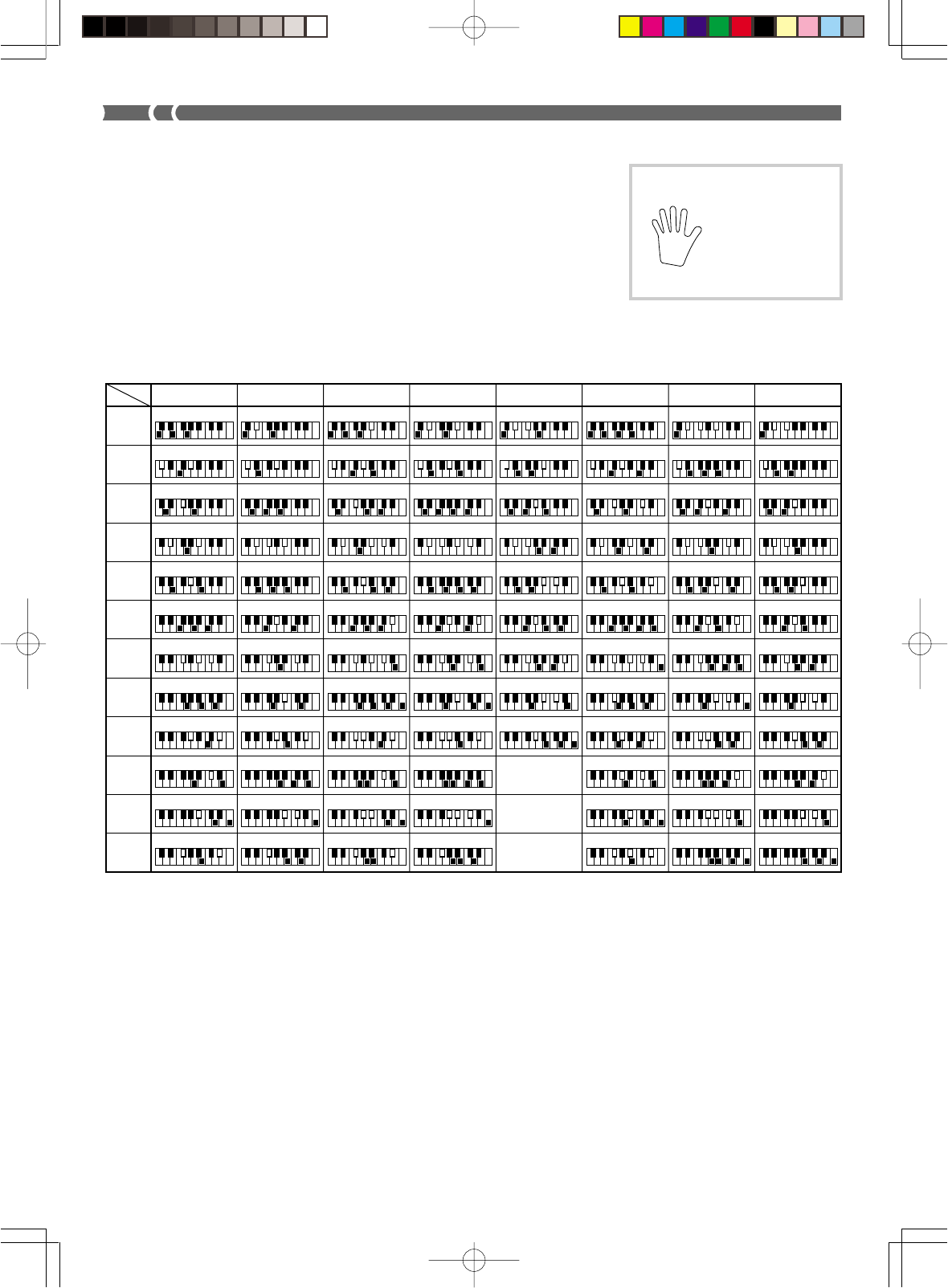

See the “Fingered Chord Chart” on page A-4 for details on

playing chords with other roots.

*1: Inverted fingerings cannot be used. The lowest note is the

root.

*2: The same chord can be played without pressing the 5th

G.

❚

NOTE

•Except for the chords specified in note*1 above, inverted fin-

gerings (i.e. playing E-G-C or G-C-E instead of C-E-G) will pro-

duce the same chords as the standard fingering.

•Except for the exception specified in note*2 above, all of the

keys that make up a chord must be pressed. Failure to press

even a single key will not play the desired FINGERED chord.

❚

NOTE

•The accompaniment keyboard can be used for playing chords

only. No sound will be produced if you try playing single melo-

dy notes on the accompaniment keyboard.

C

Caug *1

Cm7 *2

C75 *1

Cmadd9 *2

Cm

Csus4

Cmaj7 *2

C7sus4

CmM7 *2

Cdim

C7 *2

Cm75

Cadd9 *2

Cdim7 *1

C minor seventh (Cm7)

CCDE FF

#

E

#

GA



AB

B



CCDE F

E

#

C seventh (C7)

CCDE FF

#

E

#

GA



AB

B



CCDE F

E

#

C minor (Cm)

CCDE FF

#

E

#

GA



AB

B



CCDE F

E

#

CCDE FF

#

E

#

GA



AB

B



CCDE F

E

#

C Major (C)

CTK481_E18_21.p65 03.10.7, 2:58 PMPage 20 Adobe PageMaker 6.5J/PPC

E-21

Using a Fill-in Pattern

Fill-in patterns let you momentarily change the rhythm pat-

tern to add some interesting variation to your performances.

The following procedure describes how to use the Fill-in fea-

ture.

To insert a fill-in

1.

Press the START/STOP button to start rhythm

play.

2.

Press the SYNCHRO/FILL-IN button to insert a

fill-in pattern for the rhythm you are using.

Synchro Starting Accompaniment

with Rhythm Play

You can set up the keyboard to start rhythm play at the same

time you play the accompaniment on the keyboard.

The following procedure describes how to use synchro start.

Before starting, you should first select the rhythm you want

to use, set the tempo, and use the POWER/MODE switch to

select the chord play method you want to use (CASIO

CHORD, FINGERED).

To use synchro start

1.

Press the SYNCHRO/FILL-IN button to put the

keyboard into synchro start standby.

2.

Play a chord on the accompaniment keyboard

and the rhythm pattern starts to play automati-

cally.

625A-E-023A

ACCOMP VOLUME [+]/[–]

START/STOPSYNCHRO/FILL-IN

Number buttons

Flash

❚

NOTE

•If the POWER/MODE switch is set to NORMAL, only the rhythm

plays (without a chord) when you play on the accompaniment

keyboard.

•To cancel synchro start standby, press the SYNCHRO/FILL-IN

button one more time.

Adjusting the Accompaniment Volume

You can adjust the volume of the accompaniment parts as a

value in the range of 0 (minimum) to 9.

1.

Press the ACCOMP VOLUME button.

2.

Use the number buttons or the [+]/[–] buttons

to change the current volume setting value.

Example: 5

❚

NOTE

•The current accompaniment volume value that appears in Step

1 automatically clears from the display if you do not input any-

thing within about five seconds.

•Pressing [+] and [–] buttons at the same time automatically

sets an accompaniment volume of 7.

Current accompaniment volume setting

CTK481_E18_21.p65 03.10.7, 2:58 PMPage 21 Adobe PageMaker 6.5J/PPC

E-22

❚

NOTE

•“00 A WHOLE NEW WORLD (ALADDIN’S THEME)” is the ini-

tial default Song Bank tune setting whenever you turn on key-

board power.

•You can also increment the displayed tune number by press-

ing [+] and decrement is by pressing [–].

•Before advancing to the next step, which actually starts play-

back, you can adjust the tempo (page E-19), select a tone (page

E-16) for the melody part, or turn off the left-hand or right-hand

part (page E-24).

5.

Press the PLAY/PAUSE button to start play of the

tune.

6.

Press the STOP button to stop playback of the

Song Bank tune.

A selection of 100 Song Bank tunes comes built-in for your

listening enjoyment or play along fun. You can turn off the

left-hand or right-hand part to practice with the remaining

part, and the display even shows you what keys to press and

which fingers you should use.

Playing Back a Song Bank Tune

To play back a Song Bank tune

1.

Set the POWER/MODE switch to NORMAL,

FINGERED, or CASIO CHORD.

2.

Adjust the main volume and accomp volume.

3.

Press the SONG BANK button to enter the Song

Bank Mode.

4.

Use the Song Bank list to find the tune you want

to play back, and then use the number buttons

to input the tune’s two-digit number.

Example: To select “49 ALOHA OE”, input 4 and then 9.

Using the Song Bank

625A-E-024A

Appears when SONG BANK button is pressed

Song NameSong Number

Aloha Oe

Appears when PLAY/PAUSE button is pressed

Keyboard keys used

Fingers used

Staff display

Chord name

REWPLAY/PAUSE

POWER/MODE TEMPO SONG BANK

STOP FF

Number buttons

CTK481_E22_25.p65 03.10.7, 2:58 PMPage 22 Adobe PageMaker 6.5J/PPC

E-23

To pause Song Bank tune play

1.

While a Song Bank tune is playing, press the

PLAY/PAUSE button to pause it.

2.

To resume play, press PLAY/PAUSE again.

To fast reverse during playback

1.

While playback is in progress, hold down the

REW button.

•Beeps sound during fast reverse to give you an idea

of where you are located in the tune.

1 beep: indicates a change to anther measure.

2 beeps: indicates the beginning of the tune.

2.

To resume normal playback, release the REW

button.

To fast forward during playback

1.

While playback is in progress, hold down the FF

button.

•Beeps sound during fast forward to give you an idea

of where you are located in the tune.

1 beep: indicates a change to anther measure.

3 beeps: indicates the ending of the tune.

2.

To resume normal playback, release the FF but-

ton.

Song Bank Mode Display

In the Song Bank Mode, the display shows a variety of infor-

mation about the tune being played.

[Playback Display]

❚

NOTE

•Chord names are not displayed for Songs 80 through 99.

Adjusting the Tempo of a Song Bank

Tune

To change the tempo of a Song Bank tune

The tempo can be set within a range of 20 to 255 beats per

minute. The tempo setting can be adjusted while the tune is

stopped, playing back, or paused.

Use the TEMPO buttons [왖/왔] to adjust the tempo.

왖

: each press increases the value

왔

: each press decreases the value

❚

NOTE

•Pressing both the [왖] and [왔] TEMPO buttons at the same

time returns the tempo setting to the preset value for the cur-

rently selected tune.

•Song Bank tunes 80 through 99 are arranged so their tempos

change part way through the tunes. If you use the above pro-

cedure to change the tempo setting while one of these tunes is

playing, however, the tempo you set is used for the entire tune

without any change part way through.

625A-E-025A

The indicator “왗왗” appears while a

fast reverse operation is in progress.

The indicator “왘왘” appears while a

fast forward operation is in progress.

Tune tempo

Notes played Fingers used

Keyboard keys used Chord name Staff display

The indicator “ II ” appears while a

tune play is paused.

❚

NOTE

•Each time you select a new Song Bank tune, the tone, tempo,

and rhythm that is programmed for the tune are automatically

selected. You can change a tune’s tone and tempo during play-

back, but you cannot change the rhythm.

•You can also adjust the accompaniment volume (page E-21)

for tunes 00 through 79.

CTK481_E22_25.p65 03.10.7, 2:58 PMPage 23 Adobe PageMaker 6.5J/PPC

E-24

Changing the Tone of a Song Bank

Tune’s Melody

You can select any one of the keyboard’s 100 tones to be used

to play the melody part of a Song Bank tune. The tone setting

can be changed while the tune is stopped or playing back.

1.

While a song is playing back, press the TONE

button.

2.

Find the tone you want in the Tone List, and then

use the number buttons or the [+] and [–] but-

tons to specify the tone number.

Example: To select “30 VIOLIN”, input 3 and then 0.

❚

NOTE

•Pressing both the [+] and [–] buttons at the same time selects

“00 PIANO 1”.

•With two-hand tunes (80 to 99), you can select tones for both

the left hand part and right hand part.

•To return a Song Bank tune to its original settings, simply se-

lect that tune again.

To play along with a Song Bank tune

1.

Perform steps 1 through 4 under “To play back a

Song Bank tune” on page E-22 to select the song

you want to play along with.

2.

Press the RIGHT ON/OFF or LEFT ON/OFF but-

ton for the part you want to turn off.

•Press the RIGHT ON/OFF button to turn off the right

hand (melody) part, or the LEFT ON/OFF button to

turn off the left hand (accompaniment) part.

•The on/off status of each part is indicated by letters

(L and R) that appear inside the hand graphics on the

display. A part is turned on when its letter is dis-

played, and turned off when its letter is not displayed.

Playing Along with a Song Bank

Tune

Each Song Bank tune has a left-hand (accompaniment) part

and a right-hand (melody) part. You can turn off the left-hand

part or right-hand part of a Song Bank tune and play along

with the remaining part on the keyboard.

625A-E-026A

LEFT ON/OFFPLAY/PAUSE

RHYTHM

TONE

STOP RIGHT ON/OFF

[+]/[–]

Number buttons

Melody

Left-hand notes

Auto-

accompaniment

Auto-accompani-

ment (percussion,

bass, chords)

Tune

Numbers

Accompaniment

Type

Left-hand

Part

Right-hand

Part

00 to 79

Piano Solo

80 to 99

Right-hand notes

CTK481_E22_25.p65 03.10.7, 2:58 PMPage 24 Adobe PageMaker 6.5J/PPC

E-25

Applause Sound

Whenever you turn off the left hand or right hand part of a

Song Bank tune and play it back, an applause sound is pro-

duced when the tune reaches the end.

To turn off the applause sound

Press the STOP button and the LEFT ON/OFF or

RIGHT ON/OFF button at the same time.

•Pressing the STOP button and the LEFT ON/OFF or RIGHT

ON/OFF button at the same time again turns the applause

sound back on.

Playing Back All Song Bank Tunes

in Succession

1.

Use the TONE or RHYTHM button to change to

any mode other than the Song Bank Mode.

•Make sure a dot is not on the display next to the SONG

BANK indicator.

2.

Press the PLAY/PAUSE button to start playback

of the Song Bank tunes starting from tune 00.

3.

To stop Song Bank tune playback, press the STOP

button.

•Pausing playback automatically cancels consecutive

playback of all Song Bank tunes. Re-starting playback

causes repeat playback of the current tune only.

3.

Press the PLAY/PAUSE button to start play of the

Song Bank Tune.

•Only the part (melody or accompaniment) that is

turned on is played, so you can play the other part on

the keyboard.

•The keys you should press are indicated on the dis-

play’s graphic keyboard.

•You can press the RIGHT ON/OFF and LEFT ON/

OFF buttons to turn parts on and off while playback

is in progress.

4.

To end playback, press the STOP button.

Auto-accompaniment Tunes (Tune Numbers 00

to 79)

During playback of these tunes in the Song Bank Mode, the

chord specification method for the left hand is always FIN-

GERED for these tunes, regardless of the POWER/MODE

switch setting.

Two-hand Tunes (Tune Numbers 80 to 99)

During playback of these tunes in the Song Bank Mode, the

entire keyboard functions as a melody, regardless of the POW-

ER/MODE switch setting.

❚

NOTE

•With two-hand tunes (80 to 99), you cannot turn off both the

left-hand and right-hand parts at the same time. Turning off a

part causes the other part to turn on automatically.

•The selected Song Bank tune continues to repeat until you stop

playback by pressing the STOP button.

•The accompaniment volume setting (page E-21) affects auto-

accompaniment tunes (00 to 79) only.

•Chord names are not displayed during playback of two-hand

tunes (80 to 99).

•Turning off both the left-hand and right-hand parts of the auto-

accompaniment tunes (00 to 79) results in obbligato accompa-

niment being played.

625A-E-027A

Indicator turns off.

CTK481_E22_25.p65 03.10.7, 2:58 PMPage 25 Adobe PageMaker 6.5J/PPC

E-26

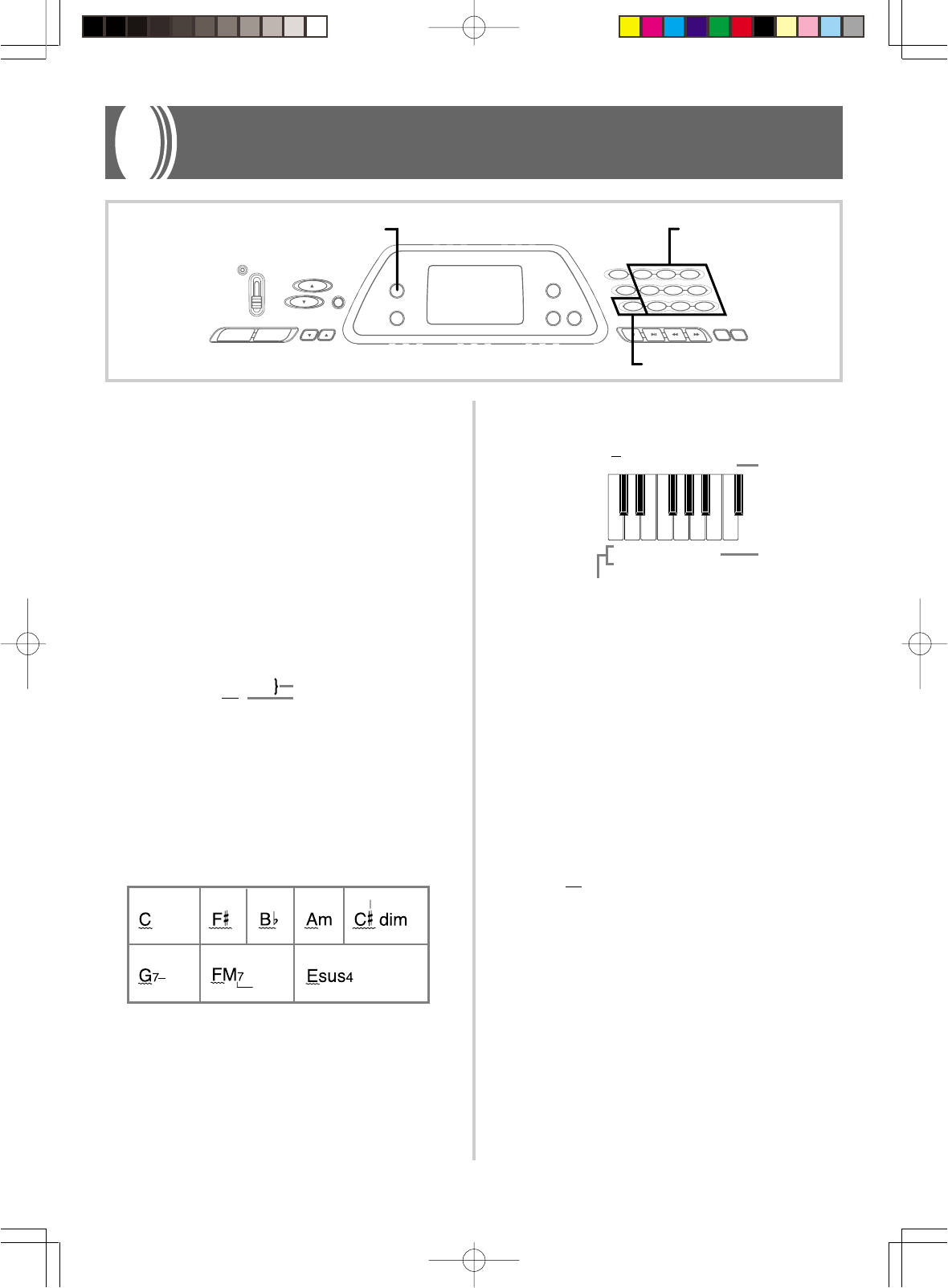

Chord Names

Chords are named using upper-case letters from A through

G, which indicate the root note of the chord. If the root note

is a sharp or flat, the chord itself is sharp or flat. A chord

name may also be followed by a degree number or other sym-

bols that indicate certain characteristics about the chord.

<Examples>

The Chord Book feature of this keyboard makes it possible

for you to look up information about chords quickly and eas-

ily. Simply input the name of the chord and the keyboard

keys you should press, the fingers you should use, and the

notes that make up the chord appear on the display along

with the chord name.

What is a chord?

A chord is made up of a root note, upon which is stacked a

number of other notes. A variety of different chords can be

created by changing the notes stacked onto a root.

<Example: C chord>

Inverted Forms

There are a number of different ways to play the same chord.

A form that is different from the basic form but still produces

the same chord is called an “inverted form.”

<Example: C chord>

All of the following are C chords.

Black keys

White keys

























Using the Chord Book









Stacked notes

Root

Major seventh Sus fourth

Seventh

Root

Root

Degree Degree

Root Root Root Root Root

Root

Sharp Flat Minor

Sharp

Diminished

<Note Names>

B





C

C

(D )

E

(D )

F

(G )

A

(G )

B

(A )

DEFGA C









625A-E-028A

CHORD BOOK

CLEAR

Sharps and flats can be referred to using either

of the names shown here. The names in the

upper row of this illustration are used by this

keyboard, because they are the names that are

most commonly used in musical notation.

Chord specification

buttons

CTK481_E26_30.p65 03.10.7, 2:58 PMPage 26 Adobe PageMaker 6.5J/PPC

E-27

5.

Check to make sure that the chord name on the

display is the one you want. If it isn’t, repeat the

above from step 2.

6.

If the chord is correct, you can see its fingering

on the graphic keyboard. Try playing the chord

on the keyboard.

<Example>

❚

NOTE

•The fingering that appears on the display is one standard fin-

gering. You can also use other fingerings to match the size of

your hands or to make it easier to progress from or to neigh-

boring chords.

•You can also use the [+] and [–] buttons to change the dis-

played chord name.

•The tone used to sound chords you play on the accompani-

ment keyboard while using the Chord Book is the same tone

used by the accompaniment part of the rhythm that was se-

lected before you entered the Chord Book mode. Depending

on the rhythm that was selected, some of the notes that make

up a chord may be omitted when you play the chord on the

accompaniment keyboard in the Chord Book Mode. This is due

to the internal chord conversion function, arrangements, and

polyphony limitations. Because of this, you should always play

the chords indicated on the display on the melody keyboard

(the range that does not have chord names printed above the

keys).

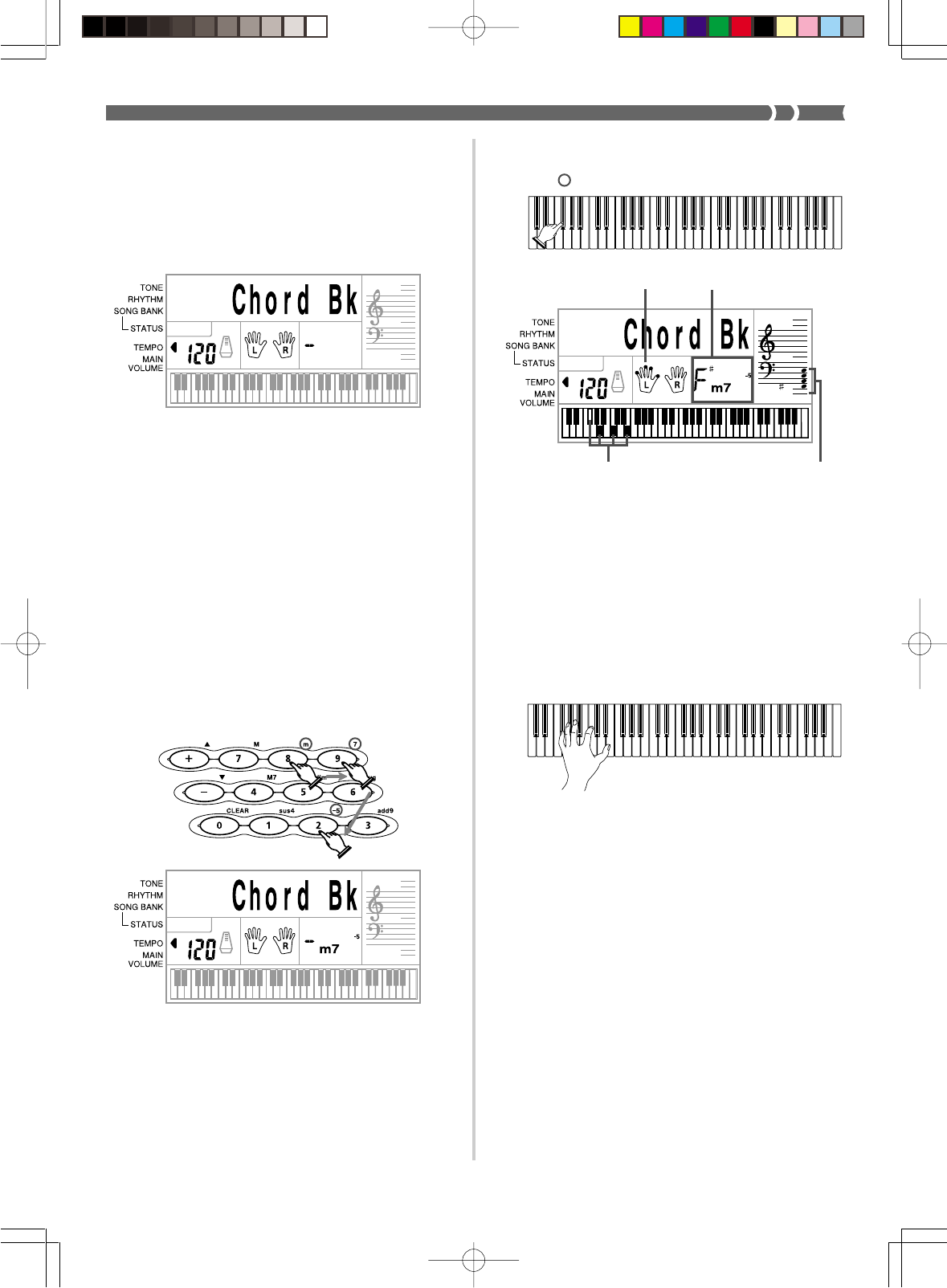

Looking Up a Chord Using the Chord

Book

1.

Press the CHORD BOOK button to enter the

Chord Book mode.

2.

Press the CLEAR button.

•This step is necessary to clear any previously input

chord name.

3.

If the chord name you plan to input is a non-

major chord, use the chord specification but-

tons to specify the chord type.

•Chord types are indicated by the small letters above

the chord specifications buttons.

•Non-major chords include minor, seventh, sustained,

etc. chords.

•See page E-28 for details on the chord specification

buttons.

•Skip step 3 if you want to input a major chord name.

<Example: F



m7-5>

4.

Press the accompaniment keyboard key that cor-

responds to the root note of the chord.

•A dash appears in place of the chord name if the chord

cannot be recognized by the keyboard.

•To specify F, for example, press the F key.

•The key you press is indicated on the graphic key-

board and the corresponding chord sounds.

CDEFGABCDEF

CEFABCE

625A-E-029A

Keyboard keys used

Chord name

Staff display

Fingers used

<Example: F



m7-5>

CTK481_E26_30.p65 03.10.7, 2:58 PMPage 27 Adobe PageMaker 6.5J/PPC

E-28

Chord Name Modifier Keys

major C

(C major)

minor Cm

(C minor)

aug Caug

(C augmened) C+5

Csus4

sus 4 (C sustained

fourth)

dim Cdim

(C diminished)

C°

7th C7

(C seventh)

CM7

M7 (C major

Cmaj7 C∆7

seventh)

Cm7

minor 7 (C minor

seventh)

CmM7

minor M7 (C minor

Major

seventh)

Cm7-5

minor7-5 (C minor Cø

seventh

flat five)

Chord

Type

Symbol

and

Name

Reference Modifier

Key C7sus4

7sus 4 (C seventh

sus fourth)

add 9 Cadd9

(C add ninth)

Cm add9

m add 9 (C minor

add ninth)

C7-5

7th-5 (C seventh C75

flat five)

Cdim7

dim7 (C diminished

seventh)

Chord

Type

Symbol

and

Name

Reference Modifier

Key

625A-E-030A

❚

NOTE

•Since the chord fingerings that appear on the display are se-

lected to allow chord play within the accompaniment keyboard,

inverted chord forms (page E-26) are often suggested. Invert-

ed chord forms are useful to help you learn how to play chord

variations that make it possible to move from one chord to an-

other with minimal hand movement. These forms come in handy

when using FINGERED Auto Accompaniment play.

•While a chord name is on the display, you can press keys on

the accompaniment keyboard to find out the fingerings of the

same chord with a different root.

•You can also scroll through chord names using the [+] and [–]

buttons.

•Chord fingerings that appear on the display are formed using

only the keys within the range of the accompaniment keyboard

(leftmost 18 keys). Chords that cannot be formed using the

keys within this range are not displayed.

CTK481_E26_30.p65 03.10.7, 2:58 PMPage 28 Adobe PageMaker 6.5J/PPC

E-29

Transposing the Keyboard

Transpose lets you raise and lower the overall key of the key-

board in semitone units. If you want to play an accompani-

ment for a vocalist who sings in a key that’s different from

the keyboard, for example, simply use transpose to change

the key of the keyboard.

To transpose the keyboard

1.

Press the TRANSPOSE/TUNE/MIDI button un-

til the transpose screen appears on the display.

2.

Use [+] and [–] to change the transpose setting

of the keyboard.

Example: To transpose the keyboard five semitones up-

wards.

Keyboard Settings

625A-E-031A

TRANSPOSE/TUNE/MIDI [+]/[–]

❚

NOTE

•The keyboard can be transposed within a range of –6 to +5.

•The default transpose setting is “0” when keyboard power is

turned on.

•If you leave the transpose screen on the display for about five

seconds without doing anything, the screen is automatically

cleared.

•The transpose setting also affects Auto Accompaniment.

•Playing back a Song Bank tune automatically returns the trans-

pose setting to its standard default of “0”.

CTK481_E26_30.p65 03.10.7, 2:58 PMPage 29 Adobe PageMaker 6.5J/PPC

E-30

Tuning the Keyboard

The tuning feature lets you fine tune the keyboard to match

the tuning of another musical instrument.

To tune the keyboard

1.

Press the TRANSPOSE/TUNE/MIDI button twice

to display the tuning screen.

2.

Use [+] and [–] to change the tuning setting of

the keyboard.

Example: To lower the tuning by 20.

TRANSPOSE/TUNE/MIDI [+]/[–]

625A-E-032A

❚

NOTE

•The keyboard can be tuned within a range of –50 cents to +50

cents.

*100 cents is equivalent to one semitone.

•The default tuning setting is “00” when keyboard power is turned

on.

•If you leave the tuning screen on the display for about five sec-

onds without doing anything, the screen is automatically

cleared.

•The tuning setting also affects Auto Accompaniment.

•Playing back a Song Bank tune automatically returns the tun-

ing setting to its standard default of “00”.

CTK481_E26_30.p65 03.10.7, 2:58 PMPage 30 Adobe PageMaker 6.5J/PPC

E-31

MIDI

What is MIDI?

The letters MIDI stand for Musical Instrument Digital Inter-

face, which is the name of a worldwide standard for digital

signals and connectors that makes it possible to exchange

musical data between musical instruments and computers

(machines) produced by different manufacturers. MIDI com-

patible equipment can exchange keyboard key press, key re-

lease, tone change, and other data as messages.

Though you do not need any special knowledge about MIDI

to use this keyboard as a stand-alone unit, MIDI operations

require a bit of specialized knowledge. This section provides

you with an overview of MIDI that will help to get you go-

ing.

MIDI Connections

MIDI messages are send out through the MIDI OUT termi-

nal of one machine to the MIDI IN terminal of another ma-

chine over a MIDI cable. To send a message from this key-

board to another machine, for example, you must use a MIDI

cable to connect the MIDI OUT terminal of this keyboard to

the MIDI IN terminal of the other machine. To send MIDI

messages back to this keyboard, you need to use a MIDI ca-

ble to connect the other machine’s MIDI OUT terminal to the

MIDI IN terminal of this keyboard.

To use a computer or other MIDI device to record and play-

back the MIDI data produced by this keyboard, you must

connect the MIDI IN and MIDI OUT terminals of both ma-

chines in order to send and receive data.

MIDI Channels

MIDI allows you to send the data for multiple parts at the

same time, with each part being sent over a separate MIDI

channel. There are 16 MIDI channels, numbered 1 through

16, and MIDI channel data is always included whenever you

exchange data (key press etc.).

Both the sending machine and the receiving machine must

be set to the same channel for the receiving unit to correctly

receive and play data. If the receiving machine is set to Chan-

nel 2, for example, it receives only MIDI Channel 2 data, and

all other channels are ignored.

With this keyboard, messages received over MIDI Channels

1, 2, 3, 4, and 10 can be used for multi-timbre play of up to

five different instrument parts. The tone and volume settings

for these five channels must be controlled by messages sent

from an external device.

When sending operation of this keyboard to an external de-

vice, Channel 1 should be selected as the MIDI send channel.

General MIDI

General MIDI standardizes MIDI data for all sound source

types, regardless of manufacturer. General MIDI specifies

such factors as tone numbering, drum sounds, and available

MIDI channels for all sound sources. This standard makes it

possible for all MIDI equipment to reproduce the same nu-

ances when playing General MIDI data, regardless of the

manufacturer of the sound source.

Though the sound source of this keyboard is not General

MIDI compatible, you can still connect the keyboard to a com-

puter or other MIDI equipment to playback General MIDI

data that is widely available in stores, over computer net-

works, and from other sources.

❚

NOTE

•General MIDI data made up of a large number of parts may not

play correctly on this keyboard.

•You will have most success playing back General MIDI data

that has few parts and is made up of data on channels 1, 2, 3,

4, and 10.

Messages

There is a wide variety of messages defined under the MIDI

standard, and this section details the particular messages that

can be sent and received by this keyboard.

NOTE ON/OFF

This message sends data when a key is pressed (NOTE ON)

or released (NOTE OFF).

A NOTE ON/OFF message include a note number (to indi-

cate note whose key is being pressed or released) and veloc-

ity (keyboard pressure as a value from 1 to 127).

NOTE ON velocity is always used to determine the relative

volume of the note. This keyboard does not receive NOTE

OFF velocity data.

Whenever you press or release a key on this keyboard, the

corresponding NOTE ON or NOTE OFF message is sent by

constant velocity from the MIDI OUT terminal.

❚

NOTE

•The pitch of a note depends on the tone that is being used, as

shown in the Note Table on page A-2. Whenever this keyboard

receives a note number that is outside its range for that tone,

the same tone in the nearest available octave is substituted.

625A-E-033A

MIDI sequencer

MIDI IN MIDI OUT

MIDI IN MIDI OUT

CTK481_E31_33.p65 03.10.7, 2:58 PMPage 31 Adobe PageMaker 6.5J/PPC

E-32

625A-E-034A

PROGRAM CHANGE

This is the tone selection message. PROGRAM CHANGE can

contain tone data within the range of 0 to 127.

A PROGRAM CHANGE message (0 to 99) is sent out through

this keyboard’s MIDI OUT terminal whenever you manual-

ly change its tone number. Receipt of a PROGRAM CHANGE

message from an external machine changes the tone setting

of this keyboard (this page).

This keyboard can send tone data within the range of 00 to

99 and receive tone data within the range of 0 to 127.

PITCH BEND

This message carries pitch bend information for smoothly

sliding the pitch upwards or downwards during keyboard

play. This keyboard does not send pitch bend data, but is can

receive such data.

CONTROL CHANGE

This message adds effects such as vibrato and volume changes

applied during keyboard play.

CONTROL CHANGE data includes a control number (to

identify the effect type) and a control value (to specify the

on/off status and depth of the effect).

The following is a list of data that can be received using

CONTROL CHANGE.

Effect Control Number

VOLUME 7

HOLD1 *64

MODULATION 1

*Pressing the foot pedal causes the sustain effect (HOLD1) to

be sent (control number 64).

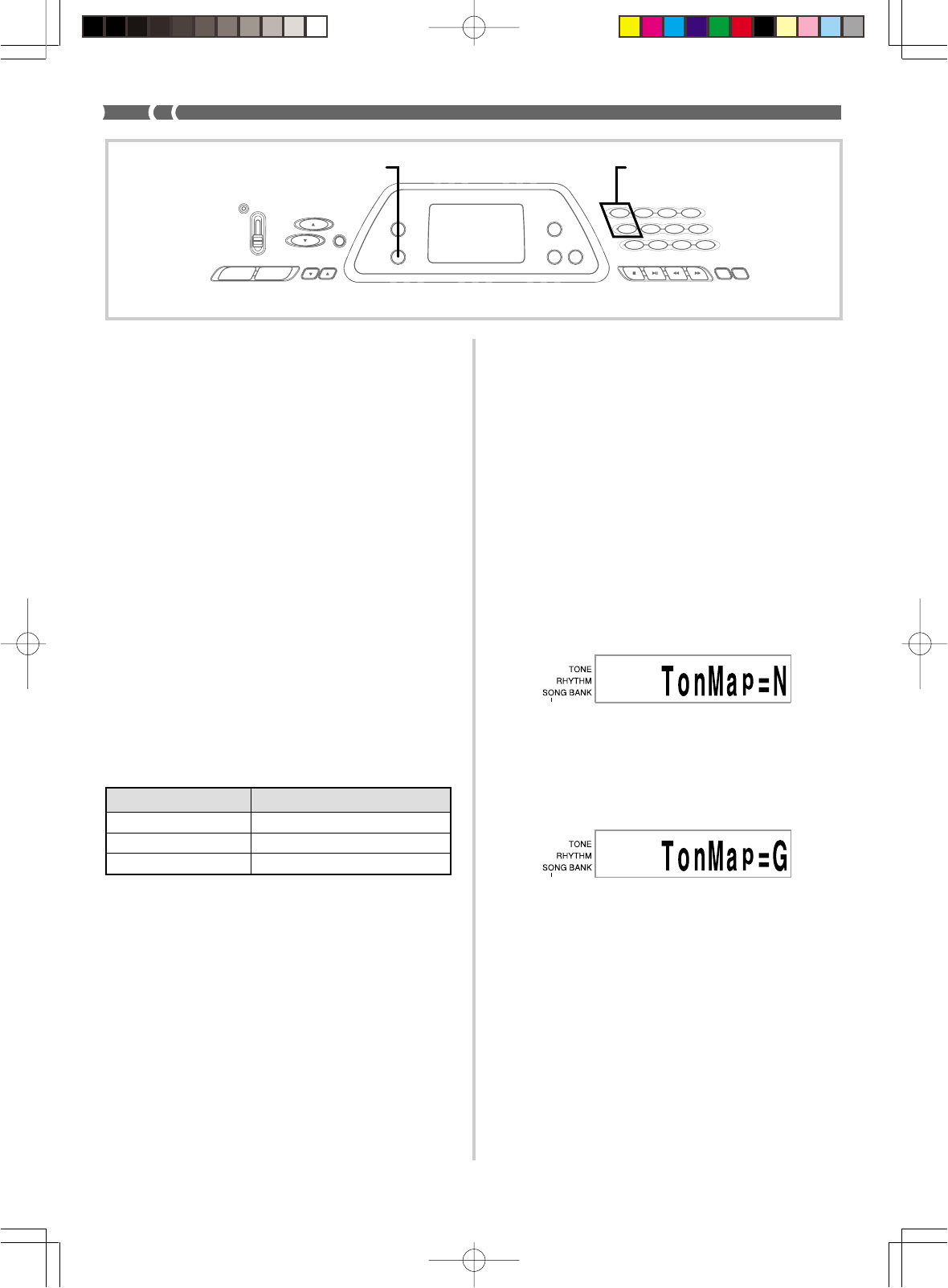

Changing MIDI Settings

This keyboard lets you change the settings of two MIDI pa-

rameters: TONE MAP and KEYBOARD CHANNEL.

To change MIDI parameters

1.

Press the TRANSPOSE/TUNE/MIDI button ei-

ther three or four times to select the parameter

you want.

Press the TRANSPOSE/TUNE/MIDI button three

times: KEYBOARD CHANNEL

Press the TRANSPOSE/TUNE/MIDI button four times:

TONE MAP

Example: To select the TONE MAP parameter.

2.

Use [+] and [–] to change the setting of the pa-

rameter.

Example: To change the TONE MAP parameter value

to “G” (GM).

•If you accidentally go past parameter you want, keep

pressing the TRANSPOSE/TUNE/MIDI button un-

til parameter you want reappears on the display.

•If you leave the parameter selection screen on the dis-

play for about five seconds without doing anything,

the parameter selection screen is automatically

cleared.

TRANSPOSE/TUNE/MIDI [+]/[–]

CTK481_E31_33.p65 03.10.7, 2:58 PMPage 32 Adobe PageMaker 6.5J/PPC

E-33

Parameters and Their Displays

■

KEYBOARD CHANNEL (Basic Channel) (Default: 01)

This parameter specifies the keyboard MIDI message send

channel.

■

TONE MAP G/N (Default: N)

N: This setting specifies the normal tone map, which allows

receipt of a program change value in the range of 0 to 99.

Only tones that correspond to the 100 built-in tones of this

keyboard can be played, and tone numbers outside this

range are ignored.

G: This setting specifies the General MIDI tone map, which

allows receipt of a program change value in the range of 0

to 127. Each of the 128 General MIDI tones is automati-

cally assigned to one of the keyboard’s 100 built-in tones

as shown on page A-2. Select this setting when you want

to listen to General MIDI data from a computer or other

external equipment.

❚

NOTE

•Playing a Song Bank tune causes all MIDI parameters to re-

vert to their default settings.

•Song Bank data cannot be sent as MIDI data.

•MIDI messages cannot be received while the keyboard is in

the Song Bank Mode.

625A-E-035A

CTK481_E31_33.p65 03.10.7, 2:58 PMPage 33 Adobe PageMaker 6.5J/PPC

E-34

625A-E-036B

See page

Pages E-13, 14

Page E-16

Page E-16

Page E-16

Pages E-13, 14

Page E-21

Pages E-29, 30

Action

1. Correctly attach the AC adaptor,

make sure that batteries poles (+/

–) are facing correctly, and check to

make sure that batteries are not

dead.

2. Set the POWER/MODE switch to

the NORMAL position.

3. Use the MAIN VOLUME buttons to

increase volume.

4. Normal play is not possible on the

accompaniment keyboard while the

POWER/MODE switch is set to

CASIO CHORD or FINGERED.

Change the POWER/MODE switch

setting to NORMAL.

Replace the batteries with a set of new

ones or use the AC adaptor.

Use the ACCOMP VOLUME button to

increase the volume.

Change the transpose or tuning pa-

rameter value to 0 or 00.

Problem

No keyboard Sound

Any of the following symptoms

while using battery power.

•Dim power indicator

•Instrument does not turn on

•Display that is flickering,

dim, or difficult to read

•Abnormally low speaker/

headphone volume

•Distortion of sound output

•Occasional interruption of

sound when playing at high

volume

•Sudden power failure when

playing at high volume

•Flickering or dimming of the

display when playing at high

volume

•Continued sound output

even after you release a key

•A tone that is totally different

from the one that is selected

•Abnormal rhythm pattern

and Song Bank play

•Loss of power, sound distor-

tion, or low volume when

playing from a connected

computer or MIDI device

<CTK-491 only>

•Distortion of microphone in-

put

•Dim power supply indicator

when a microphone is used

•Sudden power failure when

using the microphone

Auto Accompaniment does not

sound.

The key or tuning does not

match when playing along with

another instrument.

Possible Cause

1. Power supply problem.

2. Power is not turned on.

3. Volume setting is too low.

4. The POWER/MODE switch is in

the CASIO CHORD or FINGERED

position.

Low battery power

Auto accompaniment volume is set to

0.

The tuning or transpose parameter is

set to a value other than 0 or 00.

Troubleshooting

CTK481_E34_37.p65 03.10.7, 2:58 PMPage 34 Adobe PageMaker 6.5J/PPC

E-35

See page

Page E-24

Page E-21

Page E-31

Page E-33

See the docu-

mentation

that comes

with your

computer or

sequencer.

Page E-17

Page E-17

Page E-17

Page E-17

Action

1. Check the display to see if the indi-

cator for one of the parts is not dis-

played. If so, press the part’s but-

ton (LEFT ON/OFF, RIGHT ON/

OFF) to turn it on.

2. Adjust accompaniment volume.

Connect MIDI cables properly.

Change TONE MAP parameter to

“G”.

Turn off the MIDI THRU function on

the computer or turn off LOCAL

CONTROL on the keyboard.

1. Use a full metal shielded Cannon

type microphone.

2. Move the microphone away from

source of the static.

1. Increase the microphone volume

setting.

2. Change the microphone on/off

switch setting to ON.

Problem

Missing Song Bank tune.

No sound is produced when

playing MIDI data from a com-

puter.

The bass notes of General MIDI

data being played back by a

computer are one octave too

low.

Playing on the keyboard pro-

duces an unnatural sound when

connected to a computer.

Static noise when a microphone

is connected.

No microphone sound

Possible Cause

1. Left-hand or right-hand part is

turned off.

2. Accompaniment volume is set to 0.

MIDI cables are not connected proper-

ly.

TONE MAP is turned “N”.

The computer’s MIDI THRU function

is turned on.

1. Use of a microphone that is a differ-

ent from the type that is recom-

mended.

2. Use of the microphone in the vicin-

ity of fluorescent lighting.

1. Microphone volume setting is too

low.

2. Microphone on/off switch is set to

OFF.

625A-E-037B

CTK481_E34_37.p65 03.10.7, 2:58 PMPage 35 Adobe PageMaker 6.5J/PPC

E-36

625A-E-038B

Specifications

Model: CTK-481/CTK-491

Keyboard: 61 standard-size keys, 5 octaves

Tones: 100

Polyphony: 12 notes maximum (6 for certain tones)

Auto Accompaniment

Rhythm Patterns: 100

Tempo: Variable (236 steps, = 20 to 255)

Chords: 2 fingering methods (CASIO CHORD, FINGERED)

Rhythm Controller: START/STOP, SYNCHRO/FILL-IN

Accomp Volume: 0 to 9 (10 steps)

Song Bank

Tunes: 100

Controllers: PLAY/PAUSE, STOP, REW, FF, LEFT ON/OFF (ACCOMP), RIGHT ON/OFF

(MELODY)

Display

Name display: TONE, RHYTHM, SONG BANK name/number, keyboard settings name/value

Tempo: Tempo value, metronome, synchro standby, beat indicator, volume setting

Chord: Chord name, Chord form

Fingering: Fingering indicators, parts

Song Bank Status: PLAY, PAUSE, REW, FF

Staff: 5 octaves with sharp and flat indications, pedal symbol, octave symbol

Keyboard: 5 octaves

MIDI: 5 multi-timbre receive

Other Functions

Transpose: 12 steps (–6 semitones to +5 semitones)

Tuning: Variable (A4 = approximately 440Hz ±50 cents)

Volume: 0 to 9 (10 steps)

Terminals

MIDI Terminals: IN, OUT

Sustain Terminal: Standard jack

Phones/Output Terminal: Stereo standard jack (Output is monaural.)

Output Impedance: 78액

Output Voltage: 4V (RMS) MAX

Power Supply Terminal: 9V DC

<CTK-491 only>

Microphone In: Standard jack (with microphone volume dial)

Input impedance: 40kΩ

Input sensitivity: 10mV

Power Supply: Dual power supply system

Batteries: 6 AA-size batteries

Battery Life: Approximately 4 hours continuous operation on alkaline batteries

Approximately 2 hours continuous operation on manganese batteries

AC Adaptor: AD-5

Auto Power Off: Turns power off approximately 6 minutes after last key operation. Enabled under

battery power only, can be disabled manually.

Speaker Output: 2.0W + 2.0W

Power Consumption: 9V 7.7W

Dimensions: 95.6 x 35.3 x 12.5 cm (37 11/16 x 13 15/16 x 4 15/16 inch)

Weight: Approximately 4.0kg (8.8lbs) (without batteries)

CTK481_E34_37.p65 03.10.7, 2:58 PMPage 36 Adobe PageMaker 6.5J/PPC

E-37

Avoid heat, humidity or direct sunlight.

Do not overexpose the instrument to direct sunlight, or place it near an air conditioner, or in any extremely hot place.

Do not use near a TV or radio.

This instrument can cause video or audio interference with TV and radio reception. If this happens, move the instrument away

from the TV or radio.

Do not use lacquer, thinner or similar chemicals for cleaning.

Clean the keyboard with a soft cloth dampened in a weak solution of water and a neutral detergent. Soak the cloth in the solution

and squeeze until it is almost dry.

Avoid use in areas subjected to temperature extremes.

Extreme heat can cause figures on the LCD screen to become dim and difficult to read. This condition should correct itself when

the keyboard is brought back to normal temperature.

❚

NOTE

•You may notice lines in the finish of the case of this keyboard. These lines are a result of the molding process used to shape the plastic

of the case. They are not cracks or breaks in the plastic, and are no cause for concern.

Care of your keyboard

625A-E-039A

CTK481_E34_37.p65 03.10.7, 2:58 PMPage 37 Adobe PageMaker 6.5J/PPC

A-1

625A-E-079A

Appendix/Apéndice

Tone List

Lista de sonidos

SYNTH-SOUND

60 SYN-LEAD 1

61 SYN-LEAD 2

62 SYN-LEAD 3

63 SYN-CALLIOPE

64 SYN-PAD 1

65 SYN-PAD 2

66 SYN-PAD 3

67 GLASS HMCA

68 COUNTRY FARM

69 SYN-BASS

70 PEARL DROP

71 COSMIC SOUND

72 SOUNDTRACK

73 SPACE PAD

74 VOICE BASS

75 APPLAUSE

76 SYNTH-SFX

77 VEHICLE

78 PHONE

79 FUNNY

LAYER

80 STR PIANO

81 STR E.PIANO

82 CHOIR E.P

83 CHOIR ORGAN

84 STR GUITAR

85 STR HARP

86 BRASS STR

87 VIB PAD

88 12 STR GTR

89 CHOIR STR

CTK481_ES_APPENDIX.p65 03.10.7, 2:59 PMPage 1 Adobe PageMaker 6.5J/PPC

A-2

625A-E-080A

(1): Tone number

(2): Maximum polyphony

(3): Range type

(4): Corresponding General MIDI Number

(1): Número de sonido

(2): Polifonía máxima

(3): Tipo de gama

(4): Correspondiente al número de la MIDI general

Note Table

Tabla de notas

00 12 A 000

01 12 A 001

02 6 A 003

03 6 A 002

04 12 A 004

05 12 A 005

06 6 A 008

07 6 A 009

08 12 A 006

09 12 A 007

(1) (2) (3) (4)

10 12 A 016

11 12 A 017

12 12 A 018

13 6 A 015

14 12 A 019

15 6 A 104

16 12 A 020

17 6 A 021

18 12 A 023

19 12 A 022

(1) (2) (3) (4)

20 12 A 024

21 12 A 025

22 12 A 026

23 12 A 027

24 12 A 028

25 12 A

029, 030, 031, 084

26 12 B 032

27 12 B 033, 034, 035

28 12 B 036, 037

29 12 A 105

(1) (2) (3) (4)

30 12 A 040, 041

31 12 B 042, 043

32 12 A 045, 046, 047

33 12 A 048, 055

34 12 A 049

35 6 A 044

36 12 A 050

37 6 A 051

38 12 A 091, 052

39 12 A 053

(1) (2) (3) (4)

40 12 A 056

41 12 B 058

42 6 A 057

43 12 B 060

44 6 B 059

45 12 B 061

46 6 B 069

47 12 B 062

48 6 B 063, 083

49 6 B 070

(1) (2) (3) (4)

50 12 A 064

51 12 A 065

52 12 A 066, 067

53 12 A 068

54 12 A 071

55 12 C 072

56 12 A 073

57 12 A 074, 079

58 12 A 075, 076, 077

59 12 A 078

(1) (2) (3) (4)

60 12 A 087

61 6 A 081, 086

62 12 A 080

63 6 A 082

64 6 A 089

65 6 A 090

66 6 A 095

67 6 A 092, 093, 098

68 6 A 054, 085, 094

69 12 B 038

(1) (2) (3) (4)

70 6 A 096

71 6 A 103

72 6 A 097

73 6 A 101

74 12 B 039

75 12 D 126, 127

76 6 A 102

77 6 D 125

78 12 D 124

79 6 D 123

(1) (2) (3) (4)

80 6 A 106

81 6 A 088, 107

82 6 A 108

83 6 A 109

84 6 A 099, 110

85 6 A 111

86 6 B 112

87 6 A 113

88 6 A 114

89 6 A 115

(1) (2) (3) (4)

90 12 E 100, 116

91 6 E 117

92 12 E 118

93 12 E 119

94 12 E 120

95 12 E 121

96 12 E 122

97 12 A 010, 011, 014

98 12 A 012, 013

99 12 D

(1) (2) (3) (4)

CTK481_ES_APPENDIX.p65 03.10.7, 2:59 PMPage 2 Adobe PageMaker 6.5J/PPC

A-3

........Range in which same note is

played in nearest octave as a result

of transpose and MIDI data receive

operation.

(When receiving MIDI data)

........Gama en la que la misma nota se

ejecuta en la octava más cercana

como un resultado de la transposición

y operación de recepción de datos MIDI.

(Al recibir datos MIDI)

........Range of keyboard play

........Gama de ejecución de teclado

*1 With received MIDI data, notes are played one

octave lower.

*1 Con los datos MIDI recibidos, las notas se

ejecutan en una octava inferior.

*2 With received MIDI data, notes are played one

octave higher.

*2 Con los datos MIDI recibidos, las notas se

ejecutan en una octava más alta.

.

.......Playable range

(When receiving MIDI data)

........Gama ejecutable

(Al recibir datos MIDI)

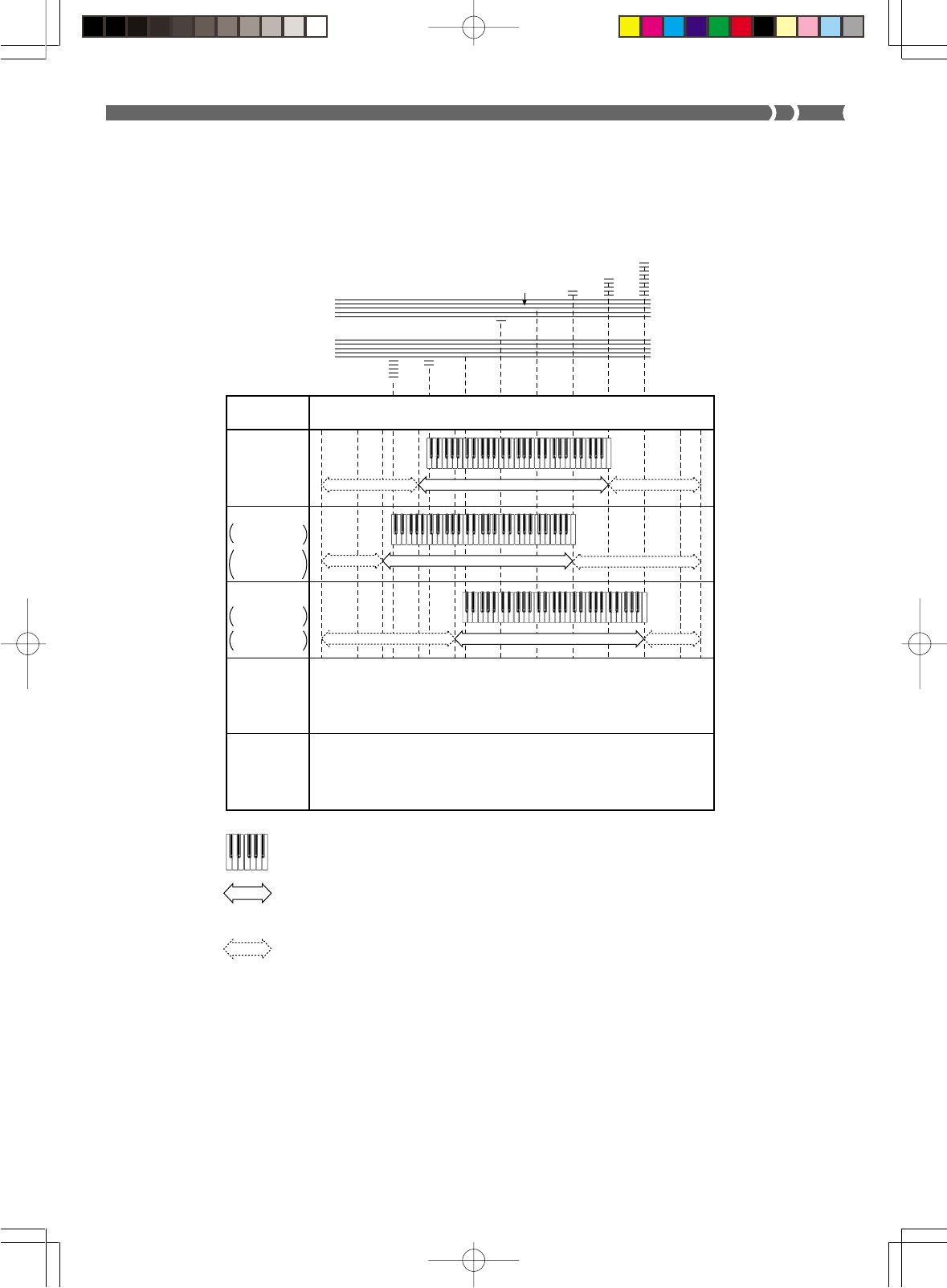

Range Type

Tipo de gama

C-1

A

(

Standard type

)

(

Tipo estándar

)

E

(SPLIT)

(División)

D

(Sound Effect)

(

Efecto de sonido

)

C9C8C7C6C5C4C3C2C1C0

A0 A1 A2

G9

C*2

















A=440Hz

No scale for tones.

Sin escala para los sonidos.

Scale changes in accordance with tone.

La escala cambia de acuerdo con el sonido.

“55 PICCOLO”

only

Solamente

“55 PICCOLO”

B*1

Low pitch

instruments

Instrumentos

de altura

tonal baja

•See the illustration below for a description of range types (A through E).

•Corresponding General MIDI numbers are General MIDI numbers in effect when the tone map setting is “G”.

•Vea la ilustración siguiente para una descripción de los tipos de gama (A a E).

•Los números de la MIDI general correspondiente son los números de la MIDI general que se encuentran en efecto cuando el

ajuste del mapa de sonidos es “G”.

625A-E-081A

CTK481_ES_APPENDIX.p65 03.10.7, 2:59 PMPage 3 Adobe PageMaker 6.5J/PPC

A-4

625A-E-082A

Fingered Chord Chart

Cuadros de acordes Fingered

This table shows the left-hand fingerings (including inverted forms) for a number of

often-used chords. These fingering indications also appear on the keyboard’s display.

Chords marked with asterisk (*) cannot be played in the Fingered Mode on this key-

board.

Esta tabla muestra las digitaciones (incluyendo las formas invertidas) para varios de

los acordes más a menudo usados. Estas indicaciones de digitación también aparecen

sobre la presentación del teclado.

En este teclado, los acordes marcados con asterisco (*) no pueden ejecutarse en el

modo de digitación.

1

2

3

4

5

: Left hand finger

numbers

:Números de los

dedos de la mano

izquierda

M m 7 m7 dim7

C

D

E

F

G

A

B

C

(D )





F

(G )



E

(D )



A

(G )





B

(A )



Chord

Type

Root

[5, 3, 1]

[5, 3, 1]

[5, 3, 1]

[5, 3, 1]

[5, 3, 1]

[5, 3, 1]

[5, 3, 1]

[5, 3, 1]

[5, 3, 1]

[5, 3, 1]

[5, 3, 1]

[5, 2, 1]

[5, 3, 1]

[5, 3, 1]

[5, 3, 1]

[5, 3, 1]

[5, 3, 1]

[5, 3, 1]

[5, 3, 1]

[5, 3, 1]

[5, 3, 1]

[5, 3, 1]

[5, 3, 1]

[5, 2, 1]

[5, 3, 2, 1]

[5, 3, 2, 1]

[5, 3, 2, 1]

[5, 3, 2, 1]

[5, 3, 2, 1]

[5, 3, 2, 1]

[5, 3, 2, 1]

[5, 3, 2, 1]

[5, 4, 2, 1]

[5, 4, 2, 1]

[5, 4, 2, 1]

[5, 3, 2, 1]

[5, 3, 2, 1]

[5, 3, 2, 1]

[5, 3, 2, 1]

[5, 3, 2, 1]

[5, 3, 2, 1]

[5, 3, 2, 1]

[5, 3, 2, 1]

[5, 3, 2, 1]

[5, 4, 2, 1]

[5, 3, 2, 1]

[5, 3, 2, 1]

[5, 3, 2, 1]

[5, 3, 2, 1]

[5, 3, 2, 1]

[5, 3, 2, 1]

[5, 3, 2, 1]

[5, 3, 2, 1]

[5, 3, 2, 1]

[5, 4, 2, 1]

[5, 4, 2, 1]

[5, 3, 2, 1]

*

*

*

M7 m7-5 dim

[5, 3, 2, 1]

[5, 3, 2, 1]

[5, 3, 2, 1]

[5, 3, 2, 1]

[5, 3, 2, 1]

[5, 3, 2, 1]

[5, 3, 2, 1]

[5, 4, 2, 1]

[5, 4, 2, 1]

[5, 4, 2, 1]

[5, 4, 2, 1]

[5, 3, 2, 1]

[5, 3, 2, 1]

[5, 3, 2, 1]

[5, 3, 2, 1]

[5, 3, 2, 1]

[5, 3, 2, 1]

[5, 3, 2, 1]

[5, 3, 2, 1]

[5, 3, 2, 1]

[5, 4, 2, 1]

[5, 4, 2, 1]

[5, 4, 2, 1]

[5, 4, 2, 1]

[5, 3, 2]

[5, 3, 2]

[5, 3, 2]

[5, 3, 2]

[5, 3, 2]

[5, 3, 2]

[5, 3, 2]

[5, 3, 2]

[5, 3, 2]

[5, 3, 2]

[5, 3, 2]

[5, 3, 2]

CTK481_ES_APPENDIX.p65 03.10.7, 2:59 PMPage 4 Adobe PageMaker 6.5J/PPC

A-5

Percussion Instrument List

Lista de instrumentos de percusión

•PERCUSSION (tone 99) assigns 39 percussion sound to the keyboard as illustrated below.

The sound assigned to each key are indicated above the keyboard.

•PERCUSSION (sonido 99) asigna 39 sonidos de percusión al teclado como se ilustra debajo.

Los sonidos asignados a cada tecla se indican sobre el teclado.

*

COWBELL

CRASH CYMBAL 2

CLAVES

RIDE CYMBAL 2

HIGH BONGO

LOW BONGO

MUTE HIGH CONGA

OPEN HIGH CONGA

LOW CONGA

HIGH TIMBALE

OPEN HI-HAT

LOW-MID TOM

HIGH-MID TOM

CRASH CYMBAL 1

HIGH TOM

RIDE CYMBAL 1

CHINESE CYMBAL

RIDE BELL

TAMBOURINE

SPLASH CYMBAL

BASS DRUM

SIDE STICK

ACOUSTIC SNARE

HAND CLAP

ELECTRIC SNARE

LOW FLOOR TOM

CLOSED HI-HAT

HIGH FLOOR TOM

PEDAL HI-HAT

LOW TOM

LOW TIMBALE

HIGH AGOGO

LOW AGOGO

CABASA

MARACAS

VOICE BASS DRUM

VOICE SNARE

VOICE CLOSED HI-HAT

VOICE OPEN HI-HAT

H

HM

LM

H

L

L

V

V

V

V

*No sound is produced when the keys in this range are

pressed.

*Cuando se presionan las teclas en esta gama no se produce

ningún sonido.

aug sus4

C

D

E

F

G

A

B

C

(D )



F

(G )



E

(D )



A

(G )



B

(A )



Chord

Type

Root

[5, 3, 1]

[5, 3, 1]

[5, 3, 1]

[5, 3, 1]

[5, 3, 1]

[5, 3, 1]

[5, 3, 1]

[5, 3, 1]

[5, 3, 1]

[5, 2, 1]

[5, 2, 1]

[5, 2, 1]

[5, 2, 1]

[5, 2, 1]

[5, 2, 1]

[5, 2, 1]

[5, 2, 1]

[5, 2, 1]

[5, 3, 1] [5, 2, 1]

[5, 2, 1]

[5, 2, 1]

*

*

7 sus4 m add9 m M7 7-5 add9

[5, 3, 2, 1]

[5, 3, 2, 1]

[5, 3, 2, 1]

[5, 3, 2, 1]

[5, 3, 2, 1]

[5, 3, 2, 1]

[5, 3, 2, 1]

[5, 3, 2, 1]

[5, 4, 2, 1]

[5, 4, 2, 1]

[5, 4, 2, 1]

[5, 3, 2, 1]

[4, 3, 2, 1]

[4, 3, 2, 1]

[4, 3, 2, 1]

[4, 3, 2, 1]

[4, 3, 2, 1]

[4, 3, 2, 1]

[4, 3, 2, 1]

[4, 3, 2, 1]

[4, 3, 2, 1]

[4, 3, 2, 1]

[4, 3, 2, 1]

[5, 3, 2, 1]

[5, 3, 2, 1]

[5, 3, 2, 1]

[5, 3, 2, 1]

[5, 3, 2, 1]

[5, 3, 2, 1]

[5, 3, 2, 1]

[5, 3, 2, 1]

[5, 4, 2, 1]

[5, 4, 2, 1]

[5, 4, 2, 1]

[5, 4, 2, 1]

[5, 3, 2, 1]

[5, 4, 2, 1]

[4, 3, 2, 1]

[5, 3, 2, 1]

[5, 3, 2, 1]

[5, 3, 2, 1]

[5, 3, 2, 1]

[5, 3, 2, 1]

[5, 3, 2, 1]

[5, 3, 2, 1]

[5, 3, 2, 1]

[5, 4, 2, 1]

[4, 3, 2, 1]

[4, 3, 2, 1]

[4, 3, 2, 1]

[4, 3, 2, 1]

[4, 3, 2, 1]

[4, 3, 2, 1]

[4, 3, 2, 1]

[4, 3, 2, 1]

[4, 3, 2, 1]

[5, 4, 2, 1] [4, 3, 2, 1]

[4, 3, 2, 1]

[5, 3, 2, 1]

625A-E-083A

CTK481_ES_APPENDIX.p65 03.10.7, 2:59 PMPage 5 Adobe PageMaker 6.5J/PPC

625A-E-084A

























CTK481_ES_APPENDIX.p65 03.10.7, 2:59 PMPage 6 Adobe PageMaker 6.5J/PPC

625A-E-085A

























CTK481_ES_APPENDIX.p65 03.10.7, 2:59 PMPage 7 Adobe PageMaker 6.5J/PPC

Function ...

Basic

Channel

Mode

Note

Number:

Velocity

After

Touch

Pitch Bender

Control

Change

Program

Default

Changed

Default

Messages

Altered

True voice

Note ON

Note OFF

Key’s

Ch’s

1

6,38

7

10

11

64

100,101

120

121

1

1-16

Mode 3

X

❊❊❊❊❊❊❊❊❊❊❊❊❊❊

36-96

❊❊❊❊❊❊❊❊❊❊❊❊❊❊

O

9nH v = 75,100 *2

X

9nH v = 0

X

X

X

X

X

X

X

X

O

X

X

X

O

0-99

1-4, 10

1-4, 10

Mode 3

X

❊❊❊❊❊❊❊❊❊❊❊❊❊❊

0-127

36-96 *1

O

9nH v = 1-127

X

9nH v = 0,8nH v = *3

X

X

O

O

X

O

X

X

O

X

X

X

O

0-127 *4

*1: Depends on tone

*3 = no relation

Modulation

Data entry

Volume

Pan

Expression

Hold1

RPN LSB, MSB

All sound off

Reset all controller

Transmitted Recognized Remarks

MIDI Implementation Chart Version: 1.0

Model CTK-481/CTK-491

625A-E-086B

CTK481_ES_MIDI CHART.p65 03.10.7, 2:59 PMPage 2 Adobe PageMaker 6.5J/PPC

Control

Change

Program

Change:

System Exclusive

System

Common

System

Real Time

Aux

Messages

Remarks

True #

: Song Pos

: Song Sel

: Tune

: Clock

:

Commands

:

Local ON/OFF

:

All notes OFF

:

Active Sense

:

Reset

1

6,38

7

10

11

64

100,101

120

121

X

X

X

X

X

O

X

X

X

O

0-99

❊❊❊❊❊❊❊❊❊❊❊❊❊❊

X

X

X

X

X

X

X

X

X

X

O

X

O

X

X

O

X

X

X

O

0-127 *4

❊❊❊❊❊❊❊❊❊❊❊❊❊❊

X

X

X

X

X

X

X

X

X

X

Modulation

Data entry

Volume

Pan

Expression

Hold1

RPN LSB, MSB

All sound off

Reset all controller

V(Velocity)=100 when note on data when the main volume value of this unit is 9

to 2, and V=75 when the main volume value is 1 or 0.

Depends on GM tone map setting (page E-32, S-32).

*2:

*4:

Mode 1 : OMNI ON, POLY

Mode 3 : OMNI OFF, POLY

Mode 2 : OMNI ON, MONO

Mode 4 : OMNI OFF, MONO

O

: Yes

X

: No

625A-E-087A
