1
E
Digital Camera
User’s Guide
Thank you for purchasing this CASIO product.
• Before using it, be sure to read the precautions
contained in this User’s Guide.
• Keep the User’s Guide in a safe place for future
reference.
• For the most up-to-date information about this
product, visit the official EXILIM
Website at http://www.exilim.com/.
EX-Z11
K829PCM1DMX
2UNPACKING
UNPACKING
As you unpack your camera, check to make sure that all items shown below are included. If anything is missing, contact your original
retailer.
Digital Camera Rechargeable Lithium Ion Battery
(NP-20) Battery Charger (BC-11L)
AC Power Cord *Strap
USB Cable AV Cable CD-ROM Basic Reference
*The shape of the AC power cord
plug varies according to country or
geographic area.
Attach strap here.
To attach the strap to the camera.
3CONTENTS
CONTENTS
UNPACKING 2
QUICK START BASICS 9
First, charge the battery . . . . . . . . . . . . . . . . . . . . . . 9
Configuring Display Language, Date,
and Time Settings . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Using a Memory Card . . . . . . . . . . . . . . . . . . . . . . . 13
Shooting a Snapshot . . . . . . . . . . . . . . . . . . . . . . . . 15
Viewing Snapshots . . . . . . . . . . . . . . . . . . . . . . . . . 17
Shooting a Movie . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Viewing a Movie . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Deleting a File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
INTRODUCTION 21
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Read this first! . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Precautions during Use . . . . . . . . . . . . . . . . . . . . . 25
GETTING READY 34
Charging the Battery . . . . . . . . . . . . . . . . . . . . . . . . 34
■To charge the battery 34
■To load the battery 36
■Replacing the Battery 39
■Battery Precautions 39
Using the Camera in another Country . . . . . . . . . . 40
Turning Power On and Off . . . . . . . . . . . . . . . . . . . 41
Using a Memory Card . . . . . . . . . . . . . . . . . . . . . . . 44
■Supported Memory Cards 44
■Loading a Memory Card into the Camera 46
■Replacing the Memory Card 47
■Formatting a Memory Card 48
Using On-screen Menus . . . . . . . . . . . . . . . . . . . . . 49
Configuring Monitor Screen Settings . . . . . . . . . . 51
■Selecting a Screen Layout 51
■Turning Display Information On and Off 55
If you lose your way... . . . . . . . . . . . . . . . . . . . . . . . 56
B
4CONTENTS
SHOOTING A SNAPSHOT 57
Holding the Camera Correctly . . . . . . . . . . . . . . . . 57
Shooting a Snapshot . . . . . . . . . . . . . . . . . . . . . . . . 58
■Specifying Image Size 61
■Specifying Image Quality 63
■Using the easy Mode 64
■Snapshot Shooting Precautions 66
■Auto Focus Restrictions 67
Shooting with Zoom . . . . . . . . . . . . . . . . . . . . . . . . 67
Using Flash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Using the Self-Timer . . . . . . . . . . . . . . . . . . . . . . . . 75
Using Continuous Shutter . . . . . . . . . . . . . . . . . . . 77
Adding Audio to a Snapshot . . . . . . . . . . . . . . . . . 79
SHOOTING A MOVIE 81
Movie Image Quality . . . . . . . . . . . . . . . . . . . . . . . . 81
Shooting a Movie . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
■Movie Recording Precautions 83
USING BEST SHOT 84
Reducing the Effects of Hand and Subject
Movement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Taking Bright Images without Flash . . . . . . . . . . . 91
Shooting Images of Business Cards
and Documents (Business Shot) . . . . . . . . . . . . . . 92
Restoring an Old Photograph. . . . . . . . . . . . . . . . . 94
B
5CONTENTS
ADVANCED SETTINGS 97
Changing the Focus Mode . . . . . . . . . . . . . . . . . . . 97
■Using Auto Focus 98
■Using Macro Focus 99
■Using Fixed Focus (Pan Focus) 104
■Using Infinity Focus 104
■Using Manual Focus 104
Correcting Image Brightness (EV Shift) . . . . . . . 106
Controlling White Balance . . . . . . . . . . . . . . . . . . 108
Specifying ISO Sensitivity . . . . . . . . . . . . . . . . . . 110
Specifying the Metering Mode . . . . . . . . . . . . . . . 112
Using the Camera’s Filter Effects . . . . . . . . . . . . 113
Controlling Image Sharpness . . . . . . . . . . . . . . . . 114
Controlling Color Saturation . . . . . . . . . . . . . . . . 114
Adjusting Image Contrast . . . . . . . . . . . . . . . . . . . 115
Date Stamping Snapshots . . . . . . . . . . . . . . . . . . 115
Using the On-screen Histogram to
Check Exposure. . . . . . . . . . . . . . . . . . . . . . . . . . . 116
Other Useful Recording Functions . . . . . . . . . . . 118
■Using Key Customize to Assign Functions
[W] and [X]119
■Displaying an On-screen Grid 120
■Displaying the Image You Just Recorded
(Image Review) 120
■Using Icon Help 121
■Using Mode Memory to Configure Power
On Default Settings 122
■Resetting the Camera to Its
Initial Factory Defaults 124
VIEWING SNAPSHOTS
AND MOVIES 125
Viewing a Snapshot . . . . . . . . . . . . . . . . . . . . . . . . 125
■Listening to the Audio of an Audio Snapshot 126
Viewing a Movie . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
Playing a Slideshow on the Camera . . . . . . . . . . 129
Viewing Camera Images on a TV . . . . . . . . . . . . . 131
Zooming the Displayed Image . . . . . . . . . . . . . . . 134
Using the 12-image Screen . . . . . . . . . . . . . . . . . . 135
Using the Calendar Screen . . . . . . . . . . . . . . . . . . 136
B
6CONTENTS
EDITING IMAGES 137
Resizing a Snapshot . . . . . . . . . . . . . . . . . . . . . . . 137
Cropping a Snapshot . . . . . . . . . . . . . . . . . . . . . . 138
Keystone Correction . . . . . . . . . . . . . . . . . . . . . . . 139
Using Color Restoration to Correct the Color
of an Old Photograph . . . . . . . . . . . . . . . . . . . . . . 140
Editing the Date and Time of an Image . . . . . . . . 142
Rotating an Image . . . . . . . . . . . . . . . . . . . . . . . . . 143
Editing a Movie on the Camera . . . . . . . . . . . . . . 144
Creating a Snapshot of a Movie Frame
(MOTION PRINT) . . . . . . . . . . . . . . . . . . . . . . . . . . 147
USING AUDIO 149
Adding Audio to a Snapshot . . . . . . . . . . . . . . . . 149
Recording Audio Only (Voice Recording) . . . . . . 151
MANAGING YOUR FILES 153
Files and Folders . . . . . . . . . . . . . . . . . . . . . . . . . . 153
Protecting a File Against Deletion . . . . . . . . . . . . 154
Using the FAVORITE Folder . . . . . . . . . . . . . . . . . 156
Copying Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158
DELETING FILES 160
Deleting a Specific File . . . . . . . . . . . . . . . . . . . . . 160
Deleting All Files . . . . . . . . . . . . . . . . . . . . . . . . . . 161
Deleting FAVORITE Folder Snapshots . . . . . . . . 161
B
7CONTENTS
OTHER SETTINGS 162
Configuring Camera Sound Settings. . . . . . . . . . 162
Turning the Startup Screen On or Off . . . . . . . . . 163
Specifying the File Name Serial Number
Generation Rule . . . . . . . . . . . . . . . . . . . . . . . . . . . 164
Changing the Camera Date and Time Setting. . . 165
Using World Time . . . . . . . . . . . . . . . . . . . . . . . . . 168
■Configuring World Time Settings 168
Changing the Display Language . . . . . . . . . . . . . 169
Changing the USB Port Protocol . . . . . . . . . . . . . 170
[ ] (REC) and [ ] (PLAY) Button
Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
Formatting Built-in Memory . . . . . . . . . . . . . . . . . 172
PRINTING 173
Types of Printing . . . . . . . . . . . . . . . . . . . . . . . . . . 173
Using Professional Print Service . . . . . . . . . . . . . 174
Using Your Printer to Print Images . . . . . . . . . . . 174
Using DPOF to Specify Images to
be Printed and the Number of Copies . . . . . . . . . 177
■Date Stamping 180
Supported Protocols . . . . . . . . . . . . . . . . . . . . . . . 181
USING THE CAMERA
WITH A COMPUTER 182
What you can do . . . . . . . . . . . . . . . . . . . . . . . . . . 182
Using the Camera with a Windows Computer . . 183
■Viewing and Storing Images on a Computer 186
■Transfer of Images from the Camera
and Management of Images on the Computer 192
■Playing Movies 194
■Transferring Images to the Camera 194
■Viewing User Documentation (PDF) Files 198
■User Registration 198
■Exiting the CD-ROM Menu 198
Using the Camera with a Macintosh . . . . . . . . . . 199
■Viewing and Storing Images on a Macintosh 200
■Transfer of Images from the Camera
and Management of Images on Your Macintosh 203
■Playing Movies 204
■Viewing User Documentation (PDF Files) 204
■Registering as a User 204
Reading Files Directly from a Memory Card . . . . 205
Memory Card Data . . . . . . . . . . . . . . . . . . . . . . . . . 206
B
8CONTENTS
APPENDIX 209

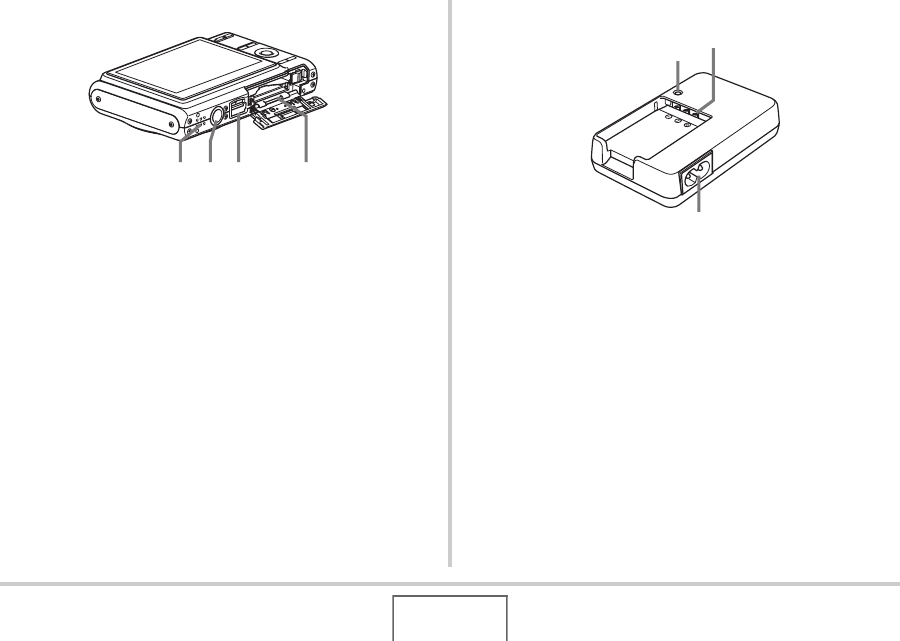

General Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . 209
Monitor Screen Contents . . . . . . . . . . . . . . . . . . . 211
Menu Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . 214
Indicator Lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . 218
■Battery Charger Lamp Reference 219
Troubleshooting Guide . . . . . . . . . . . . . . . . . . . . . 220
■Finding the Problem and Fixing It 220
■If you have problems installing the USB driver... 224
■Display Messages 225
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . 227
B
9QUICK START BASICS
QUICK START BASICS
(page 34)
■Using the Battery Charger to Charge
1. Load the battery into the battery charger.
2. Plug the battery charger into a household
power outlet.
First, charge the battery
[CHARGE] lamp lights red during charging.
[CHARGE] lamp goes out when charging is complete.
• It takes about 90 minutes to achieve a full charge.
10 QUICK START BASICS
■Loading the Battery into the Camera
1. Open the battery cover.
2. Load the battery into the camera.
3. Close the battery cover.
While pressing lightly on
the cover, slide it in the
direction indicated by the
arrow to open.
11 QUICK START BASICS
(pages 165, 169)
The settings on this page are required the first time you turn on
the camera after purchasing it.
•If you make a mistake when configuring the language, date,
and time settings, you can change the settings (pages 165,
169).
1. Press [ON/OFF] to turn on the camera.
2. Use [S], [T], [W], and [X] to select the
language you want and then press [SET].
3. Use [S], [T], [W], and [X] to select the area
where you will use the camera and then press
[SET].
4. Use [S] and [T] to select the city where you
will use the camera and then press [SET].
5. Use [S] and [T] to select the summer time
(DST) setting you want and then press [SET].
Configuring Display Language, Date, and Time Settings
[SET]
[]
[]
[][]
[ON/OFF] (Power)
[BS]
B
12 QUICK START BASICS
6. Use [S] and [T] to select the date format and then press [SET].
Example: December 19, 2007
7. Set the date and the time.
Use [W] and [X] to select the setting you want (year, month, day, hour, minute) and then use [S] and [T] to change the setting.
To switch between 12-hour and 24-hour format, press [BS].
8. When all the settings are the way you want, press [SET].
9. Press [ON/OFF] to turn off the camera.
•After finishing this procedure, advance to the procedure on the next page.
To display the date like this: Select this option:
07/12/19 YY/MM/DD
19/12/07 DD/MM/YY
12/19/07 MM/DD/YY
13 QUICK START BASICS
(page 44)
■Loading a Memory Card into the Camera
When a memory card is loaded, the camera stores images you
shoot on the card.
NOT
E
•Though the camera has built-in memory, using a memory
card provides additional capacity you can use to store more
images, high-quality and large-size images, and longer
movies.
•The camera will store images in its built-in memory if there
is no memory card loaded. If you prefer to use built-in
memory, skip this procedure and go to “Shooting a
Snapshot” on page 15.
•For information about memory card capacity, see page
227.
1. Open the battery cover.
2. Load a memory card into the camera.
With the front of the memory card facing upwards (towards
the monitor screen side of the camera), slide it into the card
slot and press until it clicks securely into place.
3. Close the battery cover.
Using a Memory Card
While pressing lightly on the
cover, slide it in the
direction indicated by the
arrow to open.
MEMORY
CARD
MEMORY
CARD
Front Back
14 QUICK START BASICS
■Formatting a Memory Card
Before you can use a memory card with your camera, you must
format it.
IMPORTANT!
•Formatting a memory card that already has snapshots or
other files on it, will delete its contents. Normally you do not
need to format a memory card again. However, if storing to
a card has slowed down or if you notice any other
abnormality, re-format the card.
•Be sure to perform the following procedure on the camera
to format the memory card.
1. Press [ON/OFF] to turn on the camera.
2. Press [MENU].
3. Use [W] and [X] to select the “Set Up” tab.
4. Use [T] to select “Format” and then press [X].
5. Press [S] to select “Format” and then press
[SET].
•To cancel formatting, select “Cancel” and then press
[SET].
•Wait until the “Busy... Please wait...” message disappears
from the monitor screen before doing anything else.
“Set Up” Tab
[ON/OFF] (Power)
[MENU]
B
15 QUICK START BASICS
(page 57)
1. Press [ ] to turn on the camera.
This enters the REC mode and displays “ ” (Auto icon)
on the monitor screen.
2. Point the camera at the subject.
3. While taking care to keep the camera still, half-
press the shutter button.
When the image is in focus, the camera will beep, the operation
lamp will light green, and the focus frame will turn green.
4. Continuing to keep the camera still, press the
shutter button all the way down.
The recorded image will remain on the display for about one
second, and then it will be stored in memory. After that, the
camera will be ready to shoot the next image.
Shooting a Snapshot
AWB
ISO
15:37
N
2
EV
123
Auto icon
Focus Frame
Shutter Button
[] (REC)
Monitor Screen
Operation Lamp
B
16 QUICK START BASICS
Snapshot Image Size and Image Quality
Your camera lets you select from among various image size
and quality settings. Note that image size and quality
settings affect how many images can be stored in memory.
•You can change the image size and quality settings as
required to shoot a smaller or lower-resolution image for
attachment to an e-mail message, for publishing on a
website, etc. You can also select an image size that suits
the size of paper you plan to use for printing your images.
For details, see pages 61, 63, and 227.
How do I half-press the shutter button?
The shutter button is designed to stop about half way down
when you press it lightly. Stopping at this point is called a
“half-press”. When you half-press the shutter button, the
camera automatically adjusts exposure and focuses on the
subject it is currently pointed at.
Mastering how much pressure is required for a half-press
and a full-press of the shutter button is an important
technique for good-looking images.
Half-press
Press lightly
until the
button stops.
Beep-beep! Click!
Full-press
All the way
17 QUICK START BASICS
(page 125)
1. Press [ ] to enter the PLAY mode.
If there are multiple images in memory, use [W] and [X] to
scroll through them.
■To return to the REC mode
Press [ ].
■Fully pressing the shutter button without
waiting for Auto Focus
Fully pressing the shutter button without waiting for Auto
Focus to operate will record using Quick Shutter (page 103).
Quick Shutter lets you capture exactly the moment you want.
•With Quick Shutter, the camera uses high-speed Auto
Focus, which means you can capture quick moving action
more easily. Note, however, that some images may be out
of focus when Quick Shutter is used.
•Whenever possible, take a little extra time to half-press
the shutter button in order to ensure proper focus.
Viewing Snapshots
[ ] (PLAY)
[W][X]
18 QUICK START BASICS
(page 81)
1. Press [ ] to enter the REC mode.
2. Press [BS] (BEST SHOT).
3. Use [S], [T], [W], and [X] to select the “ ”
(Movie) scene and then press [SET].
“ ” (movie icon) remains on the monitor screen.
4. Press the shutter button to start shooting the
movie.
•Audio is also recorded during movie recording.
5. Press the shutter button again to stop
recording.
Shooting a Movie
Movie Icon
Remaining Recording Time
Recording Time
[] (REC)
Movie Recording Screen
Shutter Button
[BS]
Movie Image Quality
Your camera lets you select from among three image quality
settings (HQ, Normal, LP) for movies. For best camera
performance, use the “HQ” (High Quality) setting for movie
recording.
Movie quality is a standard that determines the detail,
smoothness, and clarity of the image during playback.
Reducing image quality let’s you shoot longer, so you can
switch to “Normal” or “LP” conserve remaining memory
capacity if you start to run low.
For details, see pages 81 and 228.
B
19 QUICK START BASICS
(page 127)
The film-like frame that appears on the monitor screen indicates
that this is an image from a movie.
1. Press [ ] to enter the PLAY mode.
2. Use [W] and [X] to select the movie you want
to play.
When scrolling through images, a movie is displayed on the
monitor screen by showing its first frame.
3. Press [SET] to start playback.
The monitor screen will return to the image selection screen
in step 2 after the end of the movie is reached.
•During movie playback, you can adjust volume, skip
forward and back, and perform other operations (page
128).
■To return to the REC mode
Press [ ].
Viewing a Movie
[ ] (PLAY)
[W] [X]
[SET]
“ ” Movie icon
B
20 QUICK START BASICS
(page 160)
You can use the following procedure to delete files you have
transferred to your computer’s hard disk, images you have
printed, or files you simply no longer need. This frees up
memory for recording more images.
1. Press [ ].
2. Press [T] ( ).
3. Use [W] and [X] to select the snapshot or
movie you want to delete.
4. Press [S] to select “Delete”.
•To cancel the delete operation, select “Cancel”.
5. Press [SET].
This deletes the selected snapshot or movie.
•If you want to delete more, repeat the above procedure
from step 3.
•To quit the delete operation, press [MENU].
Deleting a File
[] (PLAY)
[W] [X]
[T] ( )
[S]
[SET]
B
21 INTRODUCTION
INTRODUCTION
■BEST SHOT for beautiful shots simply by
selecting a sample image built into the
camera
Simply select the scene that is
similar to what you want to shoot
(Night Scene Portrait, Flower,
etc.), for instant camera setups.
A dedicated [BS] button gives
you direct access to the BEST
SHOT library of sample scenes.
■Direct Mode Power On
■A powerful collection of useful recording
features
•Hand movement and subject movement reduction using high
shutter speed (page 89)
•High-sensitivity recording avoids dark images, even when the
flash is not being used (page 91)
•Quick Shutter, which helps you capture exactly the moment
you want (page 103)
•Movie recording (Motion JPEG Standard) (page 81)
Features
Example: Select for
beautiful
portraits. To record, press [ ] to
power up in the REC mode.
To view images, press [ ]
to power up in the PLAY
mode.
22 INTRODUCTION
■Powerful Print Features
•DPOF feature for easy specification of date stamping and the
number of copies (page 177)
•Timestamp feature that stamps the date into the image data
(page 115)
•Support for PictBridge and USB DIRECT-PRINT for easy at-
home printing on a printer that supports one of these
standards, without a computer (page 174)
■LCD Panel
The liquid crystal panel of the monitor screen uses high-
precision technology that provides a pixel yield in excess of
99.99%.
This means that some pixels may not light or may remain lit at all
times. This is due to the characteristics of the liquid crystal
panel, and does not indicate malfunction.
Read this first!
B
23 INTRODUCTION
■Copyrights
Except for your own personal enjoyment, unauthorized use of
image, movie, audio, or music files without permission of the
copyright holder is strictly prohibited by copyright laws and
international treaties. Also, regardless of whether such files are
purchased or obtained for free, posting them on the Internet or
distributing them to third parties without permission of the
copyright holder is strictly prohibited by copyright laws and
international treaties. Note that CASIO COMPUTER CO., LTD.
shall not be held liable for any misuse of this product that
infringes on the copyrights of others or that violates copyright
laws.
The trademarks and registered trademarks shown below are
used in an editorial fashion in the explanatory text of this manual
without trademark ™ or registered trademark ® symbols. No
infringement on trademarks is intended.
•The SDHC Logo is a trademark.
•Microsoft, Windows, Internet Explorer, Windows Media,
Windows Vista, and DirectX are either registered trademarks
or trademarks of Microsoft Corporation in the United States
and/or other countries.
•Macintosh, Mac OS, QuickTime, and iPhoto are trademarks
of Apple Inc. in the United States and/or other countries.
•MultiMediaCard is a trademark of Infineon Technologies AG
of Germany, and licensed to the MultiMediaCard Association
(MMCA).
•MMCplus is a trademark of the MultiMediaCard Association.
•Adobe and Reader are either registered trademarks or
trademarks of Adobe Systems Incorporated in the United
States and/or other countries.
•HOTALBUM and the HOT ALBUM logo are registered
trademarks or trademarks of Konica Minolta Photo Imaging,
Inc., and licensed to HOTALBUMcom, Inc.
•EXILIM, Photo Loader, and Photo Transport are registered
trademarks or trademarks of CASIO COMPUTER CO., LTD.
•Photo Loader with HOT ALBUM was developed based on
HOT ALBUM, which is copyrighted by HOTALBUMcom, Inc.,
and Photo Loader, which is copyrighted by CASIO
COMPUTER CO., LTD. All copyrights and other rights revert
to original copyright holders.
•All other company or product names mentioned herein are
registered trademarks or trademarks of their respective
companies.
Any and all unauthorized commercial copying, distribution, and
copying of the bundled software over a network are prohibited.
B
24 INTRODUCTION
•The contents of this manual are subject to change without
notice.
•The content of this manual has been checked at each step
of the production process. Please contact us if you notice
anything that is questionable, erroneous, etc.
•Any copying of the contents of this manual, either in part or
its entirety, is forbidden. Except for your own personal use,
and other use of the contents of this manual without the
permission of CASIO COMPUTER CO., LTD. is forbidden
under copyright laws.
•CASIO COMPUTER CO., LTD. shall not be held liable for
any damages or loss suffered by you or any third party due
to the use or malfunction of this product.
•CASIO COMPUTER CO., LTD. shall not be held liable for
any damages or loss suffered by you or any third party due
to the use of Photo Loader with HOT ALBUM and/or Photo
Transport.
•CASIO COMPUTER CO., LTD. shall not be held liable for
any damages or loss caused by deletion of memory contents
due to malfunction, repair, or any other reason.
•Note that the example screens and product illustrations
shown in this manual may differ somewhat by the screens
and configuration of the actual camera.
25 INTRODUCTION
■Take test shots before shooting the final
shot.
•Before shooting your final image, shoot a test shot to ensure
that the camera is recording correctly.
■Avoid Use While In Motion
•Never use the camera to record or play back images while
operating an automobile or other vehicle, or while walking.
Looking at the monitor while in motion creates the risk of
serious accident.
■Directly Viewing the Sun or Bright Light
•Never look at the sun or any other bright light through the
cameras viewfinder. Doing so can damage your eyesight.
■Flash
•Never use the flash unit in areas where flammable or
explosive gas may be present. Such conditions create the risk
of fire and explosion.
•Never fire the flash in the direction of a person operating a
motor vehicle. Doing so can interfere with the drivers vision
and creates the risk of accident.
•Never fire the flash too close to the eyes of the subject. Doing
so creates the risk of loss of eyesight.
Precautions during Use
26 INTRODUCTION
■Display Panel
•Do not apply strong pressure to the LCD panel surface or
subject it to strong impact. Doing so can cause the display
panel glass to crack.
•Should the display panel ever become cracked, never touch
any of the liquid inside the panel. Doing so creates the risk of
skin inflammation.
•Should display panel liquid ever get into your mouth,
immediately rinse your mouth out and contact your physician.
•Should display panel liquid ever get into your eyes or onto
your skin, immediately rinse with clean water for at least 15
minutes and contact your physician.
■Connections
•Never plug any devices that are not specified for use with this
camera into connectors. Connecting a non-specified device
creates the risk of fire and electric shock.
■Transport
•Never operate the camera inside of an aircraft or anywhere
else where operation of such devices is restricted. Improper
use creates the risk of serious accident.
■Smoke, abnormal odor, overheating, and
other abnormalities
•Continued use of the camera while it is emitting smoke or
strange odor, or while it is overheating creates the risk of fire
and electric shock. Immediately perform the following steps
whenever any of the above symptoms are present.
1. Turn off the camera.
2. Remove the battery from the camera, taking care to
protect yourself against burn injury.
3. Contact your dealer or nearest CASIO authorized service
center.
27 INTRODUCTION
■Water and Foreign Matter
•Water, other liquids, or foreign matter (especially metal)
getting inside the camera creates the risk of fire and electric
shock. Immediately perform the following steps whenever any
of the above symptoms are present. Particular care is
required when using the camera where it is raining or
snowing, near the ocean or other body of water, or in a
bathroom.
1. Turn off the camera.
2. Remove the battery from the camera.
3. Contact your dealer or nearest CASIO authorized service
center.
■Dropping and Rough Treatment
•Continued use of the camera after it is damaged by dropping
or other rough treatment creates the risk of fire and electric
shock. Immediately perform the following steps whenever any
of the above symptoms are present.
1. Turn off the camera.
2. Remove the battery from the camera.
3. Contact your dealer or nearest CASIO authorized service
center.
■Keep Away From Fire
•Never expose the camera to fire, which can cause it to
explode and creates the risk of fire and electric shock.
28 INTRODUCTION
■Disassembly and Modification
•Never try to take the camera apart or modify it in any way.
Doing so creates the risk of electric shock, burn injury, and
other personal injury. Be sure to leave all internal inspection,
maintenance, and repair up to your dealer or nearest CASIO
authorized service center.
■Locations To Be Avoided
•Never leave the camera in any of the following types of
locations. Doing so creates the risk of fire and electric shock.
– Areas subject to large amounts of humidity or dust
– Food preparation areas or other locations where oil smoke
is present
– Near heaters, on a heated carpet, in areas exposed to
direct sunlight, in a closed vehicle parked in the sun, or
other areas subject to very high temperatures
•Never place the camera on an unstable surface, on a high
shelf, etc. Doing so can cause the camera to fall, creating the
risk of personal injury.
■Backing Up Important Data
•Always keep backup copies of important data in camera
memory by transferring it to a computer or other storage
device. Note that data can be deleted in the case of camera
malfunction, repair, etc.
■Memory Protection
•Whenever replacing the battery, be sure to follow the correct
procedure as described in the documentation that comes with
the camera. Incorrectly replacing the battery can result in
corruption or loss of data in camera memory.
29 INTRODUCTION
■Rechargeable Battery
•Use only the specified charger unit or the specified device to
charge the battery. Attempting to charge the battery by an
unauthorized means creates the risk of battery overheating,
fire, and explosion.
•Do not expose or immerse the battery in fresh water or salt
water. Doing so can damage the battery, and cause
deterioration of its performance and loss of service life.
•This battery is intended for use with a CASIO Digital Camera
only. Use with any other device creates the risk of the battery
damage, or deterioration of battery performance and service
life.
•Failure to observe any of the following precautions creates
the risk of battery overheating, fire, and explosion.
– Never use or leave the battery near open flame.
– Do not expose batteries to heat or fire.
– Make sure the battery is oriented correctly when it is
connected to the charger unit.
– Never carry or store the battery together with items that can
conduct electricity (necklaces, pencil lead, etc.)
– Never disassemble the battery, pierce it with a needle, or
expose it to strong impact (hit it with a hammer, step on it,
etc.), and never apply solder to it. Never place the battery
into a microwave oven, heater, high-pressure generating
device, etc.
•Should you ever notice leakage, strange odor, heat
generation, discoloration, deformation, or any other abnormal
condition while using, charging, or storing a battery,
immediately remove it from the camera or charger unit and
keep it away from open flame.
•Do not use or leave the battery under direct sunlight, in an
automobile parked in the sun, or in any other area subject to
high temperatures. Doing so can damage the battery, and
cause deterioration of its performance and loss of service life.
•If the battery charging does not end normally within the
specified charging time, stop charging anyway and contact
your local CASIO authorized service center. Continued
charging creates the risk of battery overheating, fire, and
explosion.
•Battery fluid can damage your eyes. Should battery fluid get
into your eyes accidentally, immediately rinse them with clean
tap water and then consult a physician.
•Be sure to read the user documentation that comes with the
camera and special charger unit before using or charging the
battery.
30 INTRODUCTION
•If a battery is to be used by young children, make sure that a
responsible adult makes them aware of the precautions and
proper handling instructions, and make sure that they handle
battery correctly.
•Should fluid from a battery accidentally get onto clothing or
your skin, immediately rinse it off with clean tap water.
Prolonged contact with battery fluid can cause skin irritation.
■Battery Life
•Battery continuous operation times provided in this manual
represent the approximate amount of time before the camera
turns off due to low battery power when being powered by the
special battery under normal temperature (23°C (73°F)). They
do not guarantee that you will be able to achieve the indicated
level of operation. Actual battery life is greatly affected by
ambient temperature, battery storage conditions, the amount
of time spent in storage, etc.
•Leaving the camera on can run down battery and cause the
low battery warning to appear. Turn off the camera whenever
you are not using it.
•The low battery warning indicates that the camera is about to
turn off due to low battery power. Charge the battery as soon
as possible. Leaving low or dead batteries in the camera can
lead to battery leakage and data corruption.
31 INTRODUCTION
■Data Error Precautions
•Your digital camera is manufactured using precision digital
components. Any of the following creates the risk of
corruption of data in camera memory.
– Removing the battery or memory card from the camera
while the camera is performing an operation
– Removing the memory card from the camera while the
operation lamp is flashing green after turning off the
camera
– Disconnecting the USB cable while a data communication
operation is being performed
– Using a battery that is low
– Other abnormal operations
Any of the above conditions can cause an error message to
appear on the monitor screen (page 225). Perform the action
indicated by the message that appears.
■Operating Environment
•The operating temperature range of the camera is 0°C to
40°C (32°F to 104°F).
•Do not place the camera in any of the following locations.
– In an area exposed to direct sunlight, or large amounts of
moisture or dust
– Near an air conditioner or in other areas subjected to
extreme temperature or humidity
– Inside of a motor vehicle on a hot day, or in an area
subjected to strong vibration
32 INTRODUCTION
■Condensation
•Sudden and extreme temperature changes, such as when the
camera is moved from the outdoors on a cold winter day into
a warm room, can cause water droplets called “condensation”
to form on the interior and the exterior of the camera. Note
that condensation can cause malfunction of the camera. To
avoid condensation, place the camera into a plastic bag
before subjecting it to sudden temperature change. Wait until
the air in the bag has had enough time to become acclimated
to the new temperature before removing the camera. After
that, open the battery cover and leave it open for a few hours.
■Power Supply
•Use only the special rechargeable lithium ion battery (NP-20)
to power this camera. Use of any other type of battery is not
supported.
•The camera does not have a separate battery for the clock.
The date and time settings of the camera are cleared about
one day after power is cut off from the battery. If this happens,
be sure to reconfigure these settings after power is restored
(page 165).
■Lens
•Never apply too much force when cleaning the surface of the
lens. Doing so can scratch the lens surface and cause
malfunction.
•You may sometimes notice some distortion in certain types of
images, such as a slight bend in lines that should be straight.
This is due to the characteristics of lens, and does not
indicate malfunction of the camera.
33 INTRODUCTION
■Caring for your camera
•Fingerprints, dirt, and other foreign matter on the lens surface
can interfere with proper operation of the camera. Avoid
touching the lens surface. To clean the lens surface, use a
blower to blow off dust or foreign matter and then wipe with a
soft, dry cloth.
•Fingerprints, dirt, and other foreign matter on the flash can
interfere with proper operation of the camera. Avoid touching
the flash. If the flash becomes dirty, wipe it clean with a soft,
dry cloth.
•To clean the camera, wipe it with a soft, dry cloth.
■Monitor Screen Images
•The images that normally appear on the monitor screen
during image playback are smaller than normal, and so you
cannot see all of the detail of the actual image. Your camera
has an image zoom feature (page 134) which you can use to
enlarge the monitor screen image. You can use this feature
for on-the-spot checks of important images.
■Other Precautions
•The camera becomes slightly warm during use. This is normal
and does not indicate malfunction.
34 GETTING READY
GETTING READY
Your camera is powered by a rechargeable lithium ion battery
(NP-20).
IMPORTANT!
•Use of any type of battery other than NP-20 is not
supported.
To charge the battery
1. Correctly positioning the positive and
negative terminals of the battery, load the
battery into the battery charger.
•Making sure that the positive and negative contacts are
aligned correctly, load the battery into the battery charger.
Note that the battery will not charge properly if it is not
positioned correctly in the battery charger.
Charging the Battery
The battery is not fully charged when you use the camera for
the first time after purchasing it. You need to charge the
battery before using the camera for the first time.
35 GETTING READY
2. Plug the battery charger into a household
power outlet.
This will cause the [CHARGE] lamp to turn red.
•It takes about 90 minutes to achieve a full charge. Actual
charging time depends on current battery capacity,
remaining power, and charging conditions.
When charging is complete
The [CHARGE] lamp will go out. Unplug the power cord from the
power outlet and then remove the battery from the charger.
If the [CHARGE] lamp does not light red
Charging cannot be performed because ambient temperature or
temperature of the charger is too hot or too cold. Wait until the
camera returns to normal temperature. When the camera
returns to a temperature where charging can be performed, the
[CHARGE] lamp will light red.
If the [CHARGE] lamp flashes red
The battery is faulty or the battery is loaded in the charger
incorrectly. Remove the battery from the charger and check if its
contacts are dirty. If they are, wipe them off with dry cloth and
then reload the battery into the charger. When experiencing
charging problems, also check to make sure that the power cord
is not disconnected from the power outlet or charger.
[CHARGE] lamp
If an error still continues to occur after you perform the above
steps, it could mean that the battery is faulty. Contact your
nearest CASIO authorized service center.
36 GETTING READY
IMPORTANT!
•Use the special charger (BC-11L) to charge the special
lithium ion battery (NP-20). Never use any other type of
charger device. Attempting to use a different charger can
result in unexpected accident.
•Charging the battery while it is still warm immediately after
removing it from the camera can result in only partial
charging. Give the battery time to cool before charging it.
•Battery discharges slightly even when it is left without
loading it into the camera. Because of this, it is
recommended that you charge the battery immediately
before you need to use it.
•Charging the battery may cause interference with TV and
radio reception. If this happens, plug the charger into an
outlet that is further away from the TV or radio.
To load the battery
1. Open the battery cover.
While pressing the battery cover, slide it in the direction
indicated by the arrow.
37 GETTING READY
2. Load the battery into the camera.
With the EXILIM logo on the battery facing upwards (in the
direction of the monitor screen), hold the stopper in the
direction indicated by the arrow as you slide the battery into
the camera. Press the battery in until the stopper secures it
in place.
3. Close the battery cover.
Swing the battery cover closed, and then slide it securely
into place as you press it against the camera.
■Battery Life and Number of Images between
Charges
See page 231 for details.
■Battery Power Conservation Tips
•When you do not need to use the flash, select “ ” (flash off)
for the flash setting (page 71).
•Enable the Auto Power Off and the Sleep features to protect
against wasting battery power when you forget to turn off the
camera (page 43).
NP-20 Stopper
38 GETTING READY
■Checking Remaining Battery Power
As battery power is consumed, a battery indicator on the monitor
screen indicates remaining power as shown below.
“ ” indicates that battery power is low. Charge the battery as
soon as possible.
Recording is not possible when “ ” is indicated. Charge the
battery immediately.
IMPORTANT!
•Due to differences in the power requirements of each
mode, the battery indicator may show a lower level in the
PLAY mode than what it shows in the REC mode. This is
normal, and does not indicate malfunction.
•Leaving the camera for about one day with no power
supplied while the battery is dead will cause its date and
time settings to be cleared. You will have to re-configure
the settings after power is restored.
Remaining
Power High Low
Battery
Indicator
Indicator
Color
Light
blue Orange Red Red
39 GETTING READY
Replacing the Battery
1. Open the battery cover.
2. With the camera oriented with its monitor
screen facing upwards as shown in the
illustration, slide the stopper in the direction
indicated by the arrow and hold it there.
•This will cause the battery to come out part way.
3. While still holding the stopper, pull the battery
out the rest of the way.
4. Load a new battery.
Battery Precautions
■Precautions during Use
•Operation provided by a battery under cold conditions is
always less than operation under normal temperatures. This
is due to the characteristics of the battery, not the camera.
•Charge the battery in an area where the temperature is within
the range of 5°C to 35°C (41°F to 95°F). Charging outside this
temperature range can cause charging to take longer than
normal or even cause charging to fail.
•If a battery provides only very limited operation following a full
charge, it probably means that the battery has reached the
end of its service life. Replace the battery with a new one.
Stopper
40 GETTING READY
■Storage Precautions
•Though a rechargeable lithium ion battery provides high
capacity in a compact configuration, long-term storage while
charged can cause it to deteriorate.
– If you do not plan to use a battery for some time, fully use
up its charge before storing it.
– Always remove the battery from the camera when you are
not using it. Leaving a battery in the camera can cause it to
discharge and go dead, which will require longer charging
when you need to use the camera.
– Store batteries in a cool, dry place (20°C (68°F) or lower).
Note the following precautions.
•The bundled battery charger is designed for operation with
any power supply in the range of 100V to 240V AC, 50/60Hz.
Note, however, that the shape of the power cord plug
depends on each country or geographic area. Before taking
the camera and charger along on a trip, check with travel
agent about the power supply requirements in your
destination(s).
•Do not connect the battery charger to a power supply through
a voltage converter or similar device. Doing so can lead to
malfunction.
■Extra Batteries
Taking along extra fully charged batteries (NP-20) is
recommended while on a trip in order to avoid not being able to
shoot images due to the battery going dead.
Using the Camera in another Country
41 GETTING READY
■Turning Power On
To turn power on and enter the REC mode
Press [ON/OFF] (Power) or [ ] (REC).
To turn power on and enter the PLAY mode
Press [ ] (PLAY).
Pressing a button causes the operation lamp to light green
momentarily and turns on power.
IMPORTANT!
•Pressing [ON/OFF] or [ ] (REC) to turn on power also
causes the lens to extend. Take care there is nothing
pressing against or hitting the lens. Holding the lens with
your hand so it cannot extend creates the risk of
malfunction.
NOT
E
•Pressing [ ] (PLAY) while in the REC mode switches to
the PLAY mode. The lens retracts about 10 seconds after
switching modes.
•Auto Power Off (page 43) will turn off power automatically if
you do not perform any operation for a preset amount of
time. If this happens, turn power back on.
Turning Power On and Off
Operation Lamp
[] (PLAY) [] (REC)
[ON/OFF] (Power)
42 GETTING READY
■Turning Power Off
Press [ON/OFF] (Power).
NOT
E
•You can configure the camera so power does not turn on
when you press [ ] (REC) or [ ] (PLAY). You can
also configure the camera to turn off when you press [ ]
(REC) or [ ] (PLAY) (page 171).
Turning On Power for the First Time
The first time you load a battery into the camera, a screen
appears for configuring screen text language, date, and time
settings. Use the procedure under “Configuring Display
Language, Date, and Time Settings” (page 11) to configure
the settings correctly.
IMPORTANT!
•Failure to set the date and time will cause the wrong
date and time data to be recorded with images.
•If you make a mistake when configuring the language,
date, and time settings, you can change the settings
(pages 165, 169).
43 GETTING READY
■Battery Power Conservation Features
This camera is equipped with a sleep function and auto power
off function to conserve battery power. You can configure these
settings in the REC mode as described below.
•Sleep and Auto Power Off always operate as described below
in the PLAY mode, regardless of their current PLAY mode
settings.
– Sleep does not function in the PLAY mode.
– The Auto Power Off trigger time is always five minutes.
1. Press [MENU].
2. Use [W] and [X] to select the “Set Up” tab.
3. Use [S] and [T] to select the item you want to
configure (“Sleep” or “Auto Power Off”) and
then press [X].
4. Use [S] and [T] to select the sleep or Auto
Power Off trigger time and then press [SET].
Selecting “Off” for the sleep setting disables the sleep
feature.
NOT
E
•When both sleep and Auto Power Off have the same time
settings, Auto Power Off takes priority.
•Sleep and Auto Power Off are disabled under the following
conditions.
– When there is a connection between the camera and
computer or other device
– During Voice Recording playback or recording
– During movie recording and playback
Feature
Name Description Settings
Sleep
The monitor screen turns off (goes
into a sleep state) if no operation is
performed for a preset amount of
time. Press any button to turn the
monitor screen back on.
30 sec
1 min
2 min
Off
Auto Power
Off
Power turns off if no operation is
performed for a preset amount of
time.
1 min
2 min
5 min
44 GETTING READY
You can store images you shoot with the camera on a memory
card. It is up to you to purchase a commercially available
memory card. In addition to memory card storage, the camera
also has built-in memory, which is enough to hold a few
snapshots or a short movie. Use built-in memory for test
purposes, emergency use, etc.
NOT
E
•Images can be copied between the camera’s built-in
memory and a memory card (page 158).
•The following data is stored in built-in memory. It cannot be
copied to a memory card.
– BEST SHOT mode user image information
– FAVORITE folder
– Mode memory settings
– Start-up screen image
Supported Memory Cards
Your camera supports use of the
following types of memory cards.
SD Memory Card
SDHC Memory Card
MMC (MultiMediaCard)
MMCplus (MultiMediaCardplus)
•For information about memory card
capacity, see page 227.
Memory Used for Storage
Images recorded while a memory card is loaded are saved to
the memory card. When no memory card is loaded, images are
saved in built-in memory.
•Note that you cannot save images in built-in memory while a
memory card is loaded in the camera.
Using a Memory Card
45 GETTING READY
IMPORTANT!
•See the instructions that come with the memory card for
information about how to use it.
•Certain types of cards can slow down processing speeds. If
you are using a slow memory card, you may not be able to
record a movie using the “HQ” image quality setting.
Because of this, use of a memory card with a maximum
transfer speed of at least 10MB per second is
recommended.
•Certain types of memory cards take longer to record data,
which can cause movie frames to be dropped. “ ” and
“ ” flash on the monitor screen during recording to let
you know when a frame has been dropped. Use of a
memory card with a maximum transfer speed of at least
10MB per second is recommended.
•SD memory cards and SDHC memory cards have a write
protect switch. Use it when you need to guard against
accidentally deleting data. Note, however, if you write
protect a memory card you must then turn write protection
off whenever you want to record to the card, format it, or
delete any of its images.
•Electrostatic charge, electrical noise, and other
phenomena can cause data to become corrupted or even
lost. Make sure that you always back up important data on
other media (CD-R, CD-RW, MO disk, hard disk, etc.).
46 GETTING READY
Loading a Memory Card into the Camera
IMPORTANT!
•Make sure you always turn off the camera before loading or
removing a memory card.
•Be sure to orient the card correctly when loading it. Never
try to force a memory card into the slot when you feel
resistance.
1. Open the battery cover.
While pressing the battery cover, slide it in the direction
indicated by the arrow.
2. Load a memory card into the camera.
Positioning the memory card so its front is facing upwards
(towards the monitor screen side of the camera), slide it into
the card slot all the way in until you hear it click securely into
place.
3. Close the battery cover.
Swing the battery cover closed, and then slide it securely
into place as you press it against the camera.
MEMORY
CARD
MEMORY
CARD
Front Back
47 GETTING READY
Replacing the Memory Card
1. Remove the memory card from the camera.
Press the memory card and then release it, so it comes part
way out. Pull the card out the rest of the way by hand.
2. Load the other memory card.
IMPORTANT!
•Never insert anything besides a supported memory card
(page 44) into the memory card slot.
•Should water or any foreign object ever get into the card
slot, immediately turn off the camera, remove the battery,
and contact your retailer or nearest CASIO authorized
service center.
•Never remove a card from the camera while the operation
lamp is flashing green. Doing so can cause the image save
operation to fail and even damage the memory card.
MEMORY
CARD
48 GETTING READY
Formatting a Memory Card
Before using a new memory card for the first time, you need to
format it. Once you format a memory card, you will not need to
format it each time you use it.
Formatting a memory card that already has files on it will delete
its contents.
IMPORTANT!
•Note that data deleted by a memory card format operation
cannot be recovered. Double-check to make sure that you
really want to delete all the contents of the memory card
before proceeding with the format operation.
•Even if the file data on a memory card is protected (page
154), formatting the card will delete all its data.
•Be sure to use the camera to format a memory card.
Formatting a memory card on a computer and then using it
in the camera can slow down data processing by the
camera. In the case of an SD memory card or SDHC
memory card, formatting on a computer can result in non-
conformity with the SD format, causing problems with
compatibility, operation, etc.
1. Load the memory card you want to format into
the camera.
2. Turn on the camera and press [MENU].
3. On the “Set Up” tab, select “Format” and then
press [X].
4. Use [S] and [T] to select “Format” and then
press [SET] to start formatting.
After formatting is complete, enter the PLAY mode and
check to make sure the “There are no files.” message
appears on the monitor screen.
•To exit the format operation without formatting, select
“Cancel”.
49 GETTING READY
■Memory Card Precautions
•If a memory card starts to behave abnormally, you can restore
normal operation by reformatting it. However, it is
recommended that you always take along more than one
memory card whenever using the camera far away from the
home or office.
•If you experience problems while trying to playback recorded
images, try re-formatting the memory card.
•As you record data to and delete data from a memory card a
number of times, it loses its ability to retain data. Because of
this, periodic re-formatting of a memory card is
recommended.
•Make sure that the battery is charged fully before starting a
formatting operation. Formatting may not be performed
correctly and the memory card may be damaged if the
camera powers down while formatting is in progress.
•Never open the battery cover while formatting is in progress.
Doing so can damage the memory card.
The following are menu operations you will need to use to
configure camera settings. Take a few moments to become
familiar with them.
•See “Menu Reference” on page 214 for information about
menu contents.
Example Menu Screen
Press [MENU] to display the
menu screen.
•Menu contents are different in
the REC mode and PLAY
mode. This screen shows a
REC mode menu.
Using On-screen Menus
Tabs
Settings
50 GETTING READY
Menu Screen Operation Buttons
The following is the procedure for menu operations in the REC
mode.
1. In the REC mode, press [MENU].
This displays the menu screen.
2. Use [W] and [X] to select the tab where the
item you want to configure is located.
Here, we will select the “REC” tab.
3. Use [S] and [T] to
select the item you
want to configure and
then press [X].
Example: Select “Focus” and
then press [X].
4. Use [S] and [T] to select the setting you want.
5. Apply the setting.
•Pressing [SET] applies the selected setting and exits the
menu screen.
•Pressing [W] instead of [SET] applies the selected setting
and returns to the menu screen. You can then continue
configuring other settings, if you want.
•To select another tab, press [W], use [S] to return to the
tab and then use [W] and [X] to switch to another tab.
IMPORTANT!
•Entering the easy mode (page 64) changes display
contents to four menu items each, using larger size
characters. The easy mode also displays simple onscreen
help.
[W] [X]Select tabs. [X] is also used to apply a setting.
[S] [T]Select a setting option.
[SET] Applies the selected settings.
[MENU] Exits the menu screen.
51 GETTING READY
You can use the display menu to configure various monitor
screen settings.
Selecting a Screen Layout
The contents of the layout setting menu depend on whether the
camera is in the REC mode or the PLAY mode.
■REC Mode Screen Layout
For the REC mode, the screen layout settings let you select the
layout of icons.
1. In the REC mode, press [MENU].
2. Use [W] and [X] to select the “Set Up” tab.
3. Use [S] and [T] to select “ Panel” and then
press [X].
4. Use [S] and [T] to select the setting you want,
and then press [SET].
Configuring Monitor Screen Settings Panel
setting Description
On
Pressing [SET] in
the REC mode
while “On” is
selected will
cause the top icon
of the Operation
Panel to become
highlighted (selected). You can then use the
Operation panel to change settings. Since there
are few icons superimposed on the displayed
image, they do not interfere with recording.
52 GETTING READY
All screen shots in this manual show what appears when the
Operation Panel is turned on.
Panel (Operation Panel)
1Image Size/Quality*1 (pages 61, 63)
2Flash Mode (page 71)
3Self-timer (page 75)
4Anti Shake (page 89)
5ISO sensitivity (page 110)
6White balance (page 108)
7EV shift (page 106)
8easy Mode (page 64)
9Date/Time*2,*3 (page 165)
Off
With this option,
the image being
composed
completely fills the
monitor screen.
This setting is best
when you want to
display the subject on a large 16:9 aspect ratio
monitor screen (page 62). Icons are
superimposed on the displayed image.
Panel
setting Description 1
9
5
3
4
7
8
2
6
53 GETTING READY
*1 Image quality cannot be changed using Panel (Operation
Panel).
*2 You can select date or time display.
*3 You can use the “Date Style” to select either month/day or
day/month for date display (page 167).
The time display format is always 24 hours, regardless of the
current settings of the camera’s “Adjust” (page 166).
The following procedure shows how to use Panel (Operation
Panel).
1. In the REC mode,
press [SET].
This highlights (selects) the
top icon of the Operation
Panel.
2. Use [S] and [T] to select the icon of the
setting you want to change.
3. Use [W] and [X] to change the setting.
•If you want to configure other settings, repeat steps 2 and
3.
4. After all the settings are the way you want,
press [SET].
•This will apply the settings and return to normal operation
(no Operation Panel icon selected).
IMPORTANT!
•Panel (Operation Panel) is not displayed while Voice
Recording is being used.
54 GETTING READY
■PLAY Mode Screen Layout
The PLAY mode screen layout settings let you select how
display images are shown on the monitor screen.
1. In the PLAY mode, press [MENU].
2. Use [W] and [X] to select the “Set Up” tab.
3. Use [S] and [T] to select “ Display” and
then press [X].
4. Use [S] and [T] to select the setting you want,
and then press [SET].
Display
setting Description
Wide
With this setting,
the display image
is the maximum
possible size that
allows the entire
image to be
displayed
horizontally. With some aspect ratios, the top and
bottom of the image will be cut off.
4:3
With this setting,
100% of the
display image is
always visible. With
some aspect
ratios, black bands
may appear above
and below, or to the left and right of the image.
55 GETTING READY
Turning Display Information On and Off
You can turn display information on and off by pressing [S]
(DISP). You can configure separate settings for the REC mode
and PLAY mode.
IMPORTANT!
•You cannot turn display information on or off while an audio
snapshot record operation is standing by or in progress.
•The following shows the display information options
available during voice recording.
Display
Information
Setting
Description
Show
Turns on display
of camera setting
and other
information.
+Histogram
Turns on display
of camera setting
and other
indicators, along
with a histogram
(page 116).
Hide
Turns off display
of all information.
In this voice
recording
mode:
You can select these display
information options:
REC mode Display information or monitor screen off
PLAY mode Display information or hide information
Display
Information
Setting
Description
56 GETTING READY
Perform one of the following operations if you find that you have
gotten lost while performing button operations during recording
or playback.
REC mode
PLAY mode
If you lose your way...
Current Screen To return to the normal snapshot
or movie recording screen, press:
Menu screen [MENU] or [ ]
BEST SHOT screen [BS] or [ ]
“There are no files.”
screen Press [ ].
PLAY mode screen Press [ ].
Current Screen To return to the normal playback
screen
Menu screen [MENU] or [ ]
REC mode screen Press [ ]
Delete screen Press [ ]. You could also select
“Cancel” and then press [SET].
57 SHOOTING A SNAPSHOT
SHOOTING A SNAPSHOT
Holding the camera with one hand can result in accidental hand
movement. Hold the camera securely with both hands when
shooting snapshots.
•To protect against accidentally dropping the camera, attach
the wrist strap and make sure it is around your fingers or wrist
while you are operating the camera.
•The supplied strap is intended for use with this camera only.
Never use it for any other purpose.
•Never swing the camera around by its strap.
IMPORTANT!
•Take care that your fingers and the strap do not cover any
of the areas indicated in the illustration.
Holding the Camera Correctly
Horizontal Vertical
Hold the camera as shown in the
illustration, with your arms firmly
against your sides.
Hold the camera so the
flash is above the lens.
Flash Microphone
Self-timer Lamp Lens
58 SHOOTING A SNAPSHOT
NOT
E
•Good-looking images are impossible if you move the
camera when you press the shutter button or while the
Auto Focus operation is being performed. Holding the
camera correctly, carefully press the shutter button and
take care that you do not move the camera as the shutter
releases. This is especially important when available
lighting is low, which slows down the shutter speed.
1. Press [ ] (REC) to
enter the REC mode.
Confirm that the subject
(people, scenery, etc.) and
the Auto icon “ ” are
displayed on the monitor
screen.
If any icon other than the
Auto icon “ ” is displayed,
switch to “Auto” (page 84).
Shooting a Snapshot
AWB
ISO
15:37
N
2
EV
123
Focus Frame
Auto Icon
Remaining Snapshot
Memory Capacity
59 SHOOTING A SNAPSHOT
2. Focus the image.
While the focus frame is aligned with the subject, half-press
the shutter button.
Auto Focus will focus the image automatically, and the focus
frame and operation lamp will turn green. The aperture,
shutter speed, and ISO sensitivity also will be set
automatically.
3. Shoot the image.
When the image is focused, press the shutter button the rest
of the way.
This will shoot the snapshot and save it to the memory card
or the camera’s built-in memory.
Shutter Button
Operation Lamp
Shutter Button
60 SHOOTING A SNAPSHOT
NOT
E
•The aperture value indicates the size of the opening that
lets light into the camera. A larger aperture value indicates
a smaller opening. The camera adjusts this setting
automatically.
•Shutter speed indicates the amount of time that light is
allowed into the camera. A slower shutter speed means
that light is allowed in for a longer time. Shutter speed is
indicated on the monitor screen as seconds (1/1000
second, etc.) The camera adjusts this setting automatically.
If the image does not focus...
If the focus frame stays red and the operation lamp is flashing
green, it means that the image is not in focus (because the
subject is too close, etc.). Point the camera at the subject and try
to focus again.
.
Checking a Snapshot
A snapshot will remain on the monitor screen for a short while
after you shoot it and then disappear when the camera gets
ready for the next image.
Perform the following operation to view a snapshot after you
shoot it.
Press [ ].
This will display the snapshot you just shot.
Use [W] and [X] to scroll through other images in memory.
To return to the REC mode, press [ ].
61 SHOOTING A SNAPSHOT
■Fully pressing the shutter button without
waiting for Auto Focus
You can shoot snapshots by pressing the shutter button all the
way without waiting for Auto Focus. What the camera does in
this case depends on whether Quick Shutter (page 103) is on or
off.
When Quick Shutter is turned on
High-speed Auto Focus is enabled, which helps you capture
exactly the moment you want. Quick Shutter comes in handy
when shooting a fast-moving subject.
•Some images may be out of focus when Quick Shutter is
used.
•Quick Shutter is turned on as the initial factory default setting.
When Quick Shutter is turned off
Normal Auto Focus is performed and then the image is
recorded.
•If you keep the shutter button depressed, images will continue
to be shot without focus.
•Whenever possible, take a little extra time to half-press the
shutter button in order to ensure proper focus.
Specifying Image Size
A digital camera image is a collection of small dots (pixels).
The size of an image indicates how many pixels it contains, and
is expressed as horizontal pixels × vertical pixels. The initial
factory default image size setting is 7M (3072 × 2304 pixels).
Note that a larger image takes up more memory.
•For information about image size, image quality, and number
of images that can be stored, see page 227.
This setting applies to snapshots only.
•For information about movie image size, see page 81.
1. In the REC mode, press [SET].
2. Use [S] and [T] to select the top option
(Image Size).
3. Use [W] and [X] to select an image size and
then press [SET].
62 SHOOTING A SNAPSHOT
NOT
E
•You also can change the image size setting using the
menu that appears when you press [MENU] (pages 49,
215).
•The following information changes on the display during
the image size selection operation.
– Image size in megabytes (M) (3M, etc.)
– Image size in pixels (2048 × 1536, etc.)
– Optimum print paper size
•Selecting 3:2 (3072 × 2048 pixels) records images with an
aspect ratio of 3:2, which matches the standard aspect ratio
(3:2) of print paper.
•The letters “HDTV” stand for “High Definition Television”. An
HDTV screen has an aspect ratio of 16:9, which makes them
wider than the usual 4:3 aspect ratio of television screens of
the past. Your camera can record images that are compatible
with the aspect ratio of an HDTV screen.
•VGA (640 × 480 pixels) is the optimum size when attaching
images to e-mail.
•Print paper sizes should be thought of as rough estimates
only (200 dpi print resolution).
Image Size (Pixels) Print Paper Size
Larger
Smaller
7M 3072 × 2304 A3 Print
3:2 3072 × 2048 A3 Print
16:9 3072 × 1728 HDTV
5M 2560 × 1920 A3 Print
3M 2048 × 1536 A4 Print
2M 1600 × 1200 3.5" × 5" Print
VGA 640 × 480 E-Mail
63 SHOOTING A SNAPSHOT
Specifying Image Quality
Your camera lets you select “Fine” (maximum image quality),
“Normal”, or “Economy” (maximum memory economy) for the
image quality setting. The initial setting is “Normal”. Select “Fine”
if you want to give priority to image quality, or “Economy” to give
priority to the number of images you can store in memory.
•For information about image size, image quality, and number
of images that can be stored, see page 227.
This setting applies to snapshots only.
•For information about movie image quality, see page 81.
1. In the REC mode, press [MENU].
2. On the “Quality” tab, select “ Quality” and
then press [X].
3. Use [S] and [T] to select the image quality
setting you want and then press [SET].
NOT
E
•The “Fine” setting helps to bring out details when shooting
a finely detailed image of nature that includes dense tree
branches or leaves, or an image of a complex pattern.
64 SHOOTING A SNAPSHOT
Using the easy Mode
The easy mode eliminates troublesome setups. This mode is
recommended for those who are new to digital imaging.
1. In the REC mode, press [SET].
2. Use [S] and [T] to select the second option
from the bottom (easy mode).
3. Use [W] and [X] to select “ ON” and then
press [SET].
This enters the easy mode.
4. Focus the image.
While the focus frame is aligned with the subject, half-press
the shutter button.
5. Shoot the image.
When the image is focused, press the shutter button the rest
of the way.
NOT
E
•You also can change the easy mode setting using the
menu that appears when you press [MENU] (pages 49,
214).
■Using the easy Menu
The easy menu contains flash, self-timer, and image size
settings, plus an item for exiting the easy mode.
While the camera is in the easy mode, all the other settings
(besides Self-timer, Image Size, and easy Mode) on the REC
tab menu (page 214) and Quality tab menu (page 215) are fixed
at preset optimum values. Any settings you configured on these
tabs are not used in the easy mode.
IMPORTANT!
•To use the Set Up tab menu (page 216), you need to exit
the easy mode. To do this, select the “easy Mode” item in
step 2 of the following procedure, and then select in
step 3. After that, you can use the Setup tab menu as you
normally do.
65 SHOOTING A SNAPSHOT
1. Press [MENU].
The easy menu displays
larger text than standard
menus.
2. Use [S] and [T] to select the menu item you
want, and then press [SET].
3. Use [S] and [T] to select the setting you want,
and then press [SET].
•An asterisk (*) indicates reset default settings.
•See the following sections for full details about the
“Flash”, “Self-timer”, or “Image Size” settings.
– Using the Flash (page 71)
– Using the Self-timer (page 75)
– Specifying Image Size (page 61)
•The following are the settings you can select for “easy
Mode”.
•On-screen pop-up help text provides a brief explanation
of each setting.
Menu Item: Available Settings:
Flash (Auto Flash)* / (Flash On) /
(Flash Off)
Self-timer (10-second self-timer) / *
Image Size * / /
easy Mode / *
Exit Menu Exit the easy menu
To do this: Select this
setting:
Stay in the easy mode, without switching
to another recording type
Switch from the easy mode to a standard
recording type
66 SHOOTING A SNAPSHOT
Snapshot Shooting Precautions
■Operation
•Never open the battery cover while the operation lamp is
flashing green. Doing so can result in incorrect storage of the
image you just shot, damage to other images stored in
memory, malfunction of the camera, etc.
•If unneeded light is shining directly onto the lens, shade the
lens with your hand when shooting an image.
■Monitor Screen when Shooting Snapshots
•The image that appears on the monitor screen is for image
composition. The actual image will be recorded at the quality
set for the image quality setting.
•Subject brightness conditions can cause monitor screen
response to slow and can cause digital noise in the monitor
screen image.
■Shooting Indoors under Fluorescent
Lighting
•Minute flickering of fluorescent lighting can affect the
brightness or color of an image.
67 SHOOTING A SNAPSHOT
Auto Focus Restrictions
•Proper focus may not be possible when shooting the following
types of subjects.
– Solid color wall or other very low contrast subject
– Strongly back lit subject
– Very shiny subject
– Blinds or other subject with a repeating horizontal pattern
– Multiple subjects at varying distances from the camera
– Subject in a dark location
– Fast-moving subject
– Subjects outside the focus range of the camera
•Proper focus may not be possible if the camera is moved
while shooting.
•An image may be out of focus even though the operation
lamp is lit green and the focus frame is green.
If you cannot focus properly, try using focus lock (page 102)
or manual focus (page 104).
Your camera provides you with 3X optical zoom (which changes
the lens focal distance), which can be used in combination with
digital zoom (which digitally process the center portion of the
image to enlarge it) for total zoom capabilities of 12 - 45.2X.
IMPORTANT!
•Generally speaking, the higher the digital zoom factor, the
coarser the image that is recorded. However, digital zoom
can be used up to a certain point without causing
deterioration of the image.
•Digital zoom is not supported while “Timestamp” (page
115) is turned on.
1. Enter the REC mode.
Shooting with Zoom
[ ][ ] Zoom button
68 SHOOTING A SNAPSHOT
2. Press the zoom button to change the zoom
factor.
– For more information, see “Optical Zoom and Digital
Zoom Switch Point” on page 69.
3. Press the shutter button to shoot.
NOT
E
•Performing a zoom operation changes the lens aperture.
•Use of a tripod is recommended to protect against hand
movement when using the telephoto setting (zoom in).
•Optical zoom is disabled while shooting a movie. Digital
zoom only is available while shooting a movie. Make sure
you select the optical zoom setting you want to use before
you press the shutter button to start shooting your movie.
To do this: Press this side of the
zoom button:
Enlarge the subject and narrow
the range [ ] (telephoto)
Reduce the size of the subject
and broaden the range [ ] (wide angle)
Wide Angle Telephoto
69 SHOOTING A SNAPSHOT
■Optical Zoom and Digital Zoom Switch Point
If you hold down the [ ] side of the zoom button in step 2 of
the above procedure, the zoom operation will stop when the
optical zoom factor reaches its maximum. Momentarily releasing
the zoom button and then holding down its [ ] side will switch
to digital zoom, which you can use to set an even higher zoom
factor.
•When the zoom pointer moves past the maximum limit of
optical zoom. Also, the zoom bar indicates the approximate
zoom factor.
● Zoom Values for Each Image Size
Digital Zoom Indicator
Zoom Bar
Focus Range
(Displayed when shooting
with Auto Focus, macro, or
manual focus.)
7M 1X 3X 12X
3:2 1X 3X 12X
16:9 1X 3X 12X
5M 1X 3.6X 14.2X
3M 1X 4.5X 17.9X
2M 1X 5.7X 22.6X
VGA 1X 14.2X 45.2X
1X 12X to 45.2X*
Zoom Pointer
(Indicates current
zoom.)
Image Deterioration Point
Image starts to deteriorate from here.
*Point factor depends on image size.
Undeteriorated Image Quality
Range
Deteriorated Image Quality
Range
3X to 14.2X*
Optical/Digital Switch Point
Undeteriorated Image
Quality Range
Deteriorated Image
Quality Range
70 SHOOTING A SNAPSHOT
•The image deterioration point depends on the image size
(page 62). The smaller the image size, the higher the zoom
factor you can use before reaching the image deterioration
point.
•Though digital zoom generally causes a deterioration of
image quality, some digital zoom without image deterioration
is possible with image sizes of “5M (2560 × 1920 pixels)” and
smaller. The range in which you can use digital zoom without
image deterioration is indicated on the display. The
deterioration point depends on the image size.
•The digital zoom range of the zoom indicator is shown on the
monitor screen only while “Digital Zoom” is turned on.
■Turning Off Digital Zoom
You can turn off digital zoom if you want to use optical zoom
only. This will help to avoid deteriorated images due to
accidentally switching over from optical zoom to digital zoom
when shooting snapshots.
1. In the REC mode, press [MENU].
2. On the “REC” tab, select “Digital Zoom” and
then press [X].
3. Use [S] and [T] to select “Off” and then press
[SET].
•If you want to show the entire digital zoom range, select
“On” here.
71 SHOOTING A SNAPSHOT
Perform the following steps to select the flash mode you want to
use.
Approximate Flash Range (ISO Sensitivity: Auto)
•The flash range changes in accordance with optical zoom.
1. In the REC mode, press [SET].
2. Use [S] and [T] to select the second option
from the top (Flash).
3. Use [W] and [X] to
select the flash
setting you want and
then press [SET].
This causes an indicator
identifying the selected flash
mode to appear on the
monitor screen.
4. Press the shutter button to shoot.
Using Flash
Flash Setting Description
Auto Flash Flash fires automatically in accordance with
exposure (amount of light and brightness)
conditions.
•Initial factory default setting.
Flash Off Flash does not fire.
Flash On Flash always fires.
•This setting can be used to brighten a
subject that normally comes out dark due
to daylight or backlight (daylight synchro
flash).
Soft Flash Always use soft flash, regardless of
exposure conditions.
•Use this setting when you want to
suppress the flash to avoid reflection, etc.
Red Eye Flash fires automatically in accordance
same conditions as Auto Flash. This setting
can be used to reduce the red eye effect that
occurs in images of people shot with flash.
Wide Angle : 0.1 m to 3.5 m (0.3' to 11.5')
Telephoto : 0.6 m to 1.9 m (2.0' to 6.2')
72 SHOOTING A SNAPSHOT
NOT
E
•When operation panel setting is turned off (page 51), you
can cycle through the flash modes by pressing [T]
().
IMPORTANT!
•When using flash, take care
that the flash window is not
blocked by your fingers or
the camera strap.
Red-eye reduction
Using the flash to shoot at night or in a dimly lit room can cause
red spots inside the eyes of people who are in the image. This is
caused when the light from the flash reflects off of the retina of
the eye. When red-eye reduction is selected as the flash mode,
the camera fires a pre-flash to cause the irises in the eyes of any
people in the image to close, which reduces the chance of red
eye.
IMPORTANT!
•Note the following important points when using red-eye
reduction.
– Red-eye reduction does not work unless the people in
the image are looking directly at the camera (flash).
Before pressing the shutter button, call out to the
subjects so they all look at the camera.
– Red-eye reduction may not work very well if the subjects
are located far away from the camera.
Flash
73 SHOOTING A SNAPSHOT
■Checking the Flash Mode
The current flash mode is indicated on the monitor screen and
by the operation lamp when you half-press the shutter button.
•You will not be able to take another flash snapshot until the
operating lamp stops flashing orange, which indicates that
charging is complete.
■Changing the Flash Intensity
1. In the REC mode, press [MENU].
2. On the “Quality” tab, select “Flash Intensity”
and then press [X].
3. Use [S] and [T] to select the flash intensity
setting you want and then press [SET].
You can set one of five levels, from –2 (weakest) to +2
(strongest).
IMPORTANT!
•Flash intensity may not change when the subject is too far
away or too close.
N
2
“ ” indicates flash will fire.
Operation Lamp
Flashes orange while the flash is charging.
74 SHOOTING A SNAPSHOT
■Using Flash Assist
The subject in an image will look too dark if flash intensity is not
enough to reach a subject that is too far away. When this
happens, you can use flash assist to supplement the brightness
of the subject so it appears as if flash illumination was sufficient.
Flash assist is turned on as the initial factory default setting.
Use the following procedure to turn off flash assist when you do
not want to use it.
1. In the REC mode, press [MENU].
2. On the “Quality” tab, select “Flash Assist” and
then press [X].
3. Use [S] and [T] to select “Off” and then press
[SET].
When you want to use flash assist, select “Auto” here.
IMPORTANT!
•Flash assist may not produce the desired result for some
types of subjects.
•Any of the following can result in the flash assist effect
being canceled out.
– Changing the flash intensity (page 73)
– Correcting brightness (EV shift) (page 106)
– Changing ISO sensitivity (page 110)
– Changing the contrast setting (page 115)
Flash assist not used Flash assist used
75 SHOOTING A SNAPSHOT
■Flash Precautions
•The desired effect may not be obtained when the subject is
too far away or too close.
•Flash charging time depends on operating conditions (battery
condition, ambient temperature, etc.) With a fully charged
battery, it takes anywhere from a few seconds to 7 seconds.
•Shooting with flash turned off when lighting is dim results in a
slow shutter speed, which can cause image blur due to hand
movement. Secure the camera with a tripod, etc.
•With red eye reduction, the flash is fired automatically in
accordance with exposure. It does not fire in areas where
lighting is bright.
•The presence of outdoor sunlight, fluorescent lighting, or
some other light source can cause abnormal image colors.
With the self-timer, pressing the shutter button starts a timer,
and the shutter is released and the image is shot after a fixed
amount of time.
Using the Self-Timer
Self-Timer Type Description
10 sec 10-second self-timer
2 sec
2-second self-timer
•When shooting under conditions that
slow down the shutter speed, you can
use this setting to prevent blur due to
hand movement.
X3
(Triple Self-timer)
This option shoots three images: one
image 10 seconds after the shutter button
is pressed, the next image one second
after the camera gets ready to shoot after
the first image, and the final image one
second after the camera gets ready to
shoot after the second image.
Off Self-timer is disabled.
10
s
2
s
x3
76 SHOOTING A SNAPSHOT
1. In the REC mode, press [SET].
2. Use [S] and [T] to select the third option from
the top (Self-timer).
3. Use [W] and [X] to
select the self-timer
type and then press
[SET].
This causes an indicator
identifying the selected self-
timer type to appear on the
monitor screen.
4. Press the shutter button to shoot.
NOT
E
•You also can change the self-timer setting using the menu
that appears when you press [MENU] (pages 49, 214).
Using the Self-timer to Shoot an Image
•The image is not shot right
away after you press the
shutter button. Instead,
shooting starts after the
preset time elapses. The
self-timer lamp flashes
while the countdown is
being performed.
•You can interrupt an
ongoing self-timer
countdown by fully pressing the shutter button while the
self-timer lamp is flashing red.
Self-timer Lamp
77 SHOOTING A SNAPSHOT
NOT
E
•The indicator “1sec” appears on the monitor screen
between Triple Self-timer shots. How long it takes for the
camera to get ready to shoot again after it shoots an image
depends on the image size and quality settings, whether or
not a memory card is loaded in the camera, and the flash
charge condition.
•You cannot use the any self-timer to shoot with continuous
shutter mode.
•The Triple Self-timer cannot be used when performing the
following recording operations.
– Recording with certain BEST SHOT scenes (Business
Cards and Documents, Whiteboard, etc., Old Photo,
Movie)
You can configure the camera to record only a single snapshot
each time the shutter button is pressed, or to keep recording as
long as the shutter button remains depressed (and there is
enough memory available to store the images).
1. In the REC mode, press [MENU].
2. On the “REC” tab, select “Continuous” and
then press [X].
3. Use [S] and [T] to select “On” and then press
[SET].
This causes “ ” to appear on the monitor screen.
•With “Off”, the snapshots are recorded one at a time.
4. Press the shutter button to shoot.
•Images continue to be shot as long as you keep the
shutter button depressed. Releasing the shutter button
stops shooting.
Using Continuous Shutter
78 SHOOTING A SNAPSHOT
IMPORTANT!
•The speed of continuous shutter recording depends on the
type of memory card loaded in the camera. When shooting
to built-in memory, continuous shutter shooting is relatively
slow.
•Turning off the camera automatically turns off the
Continuous Shutter mode.
•Starting a continuous shutter operation causes the
exposure and focus settings to be fixed at the levels for the
first image. The same settings are applied to all
subsequent images.
•Continuous shutter cannot be used in combination with any
of the following features.
– Some BEST SHOT scenes (Business Cards and
Documents, Whiteboard, etc., Old Photo, Movie, Voice
Recording)
•When using a continuous shutter mode, keep the camera
still until all recording is finished.
•A continuous shutter operation may stop part way through
if memory capacity runs low.
•The continuous shutter rate depends on the current image
size and image quality settings.
•You cannot use the self-timer in combination with
continuous shutter mode.
79 SHOOTING A SNAPSHOT
You can add an audio recording to snapshots, if you want. Use
this feature to add a verbal explanation or a description of the
mood to a snapshot, or to capture the sounds of the people in
the snapshot.
•You can record up to about 30 seconds of audio for a single
snapshot.
■Turning on Audio Snapshot
1. In the REC mode, press [MENU].
2. On the “REC” tab, select “Audio Snap” and
then press [X].
3. Use [S] and [T] to select “On” and then press
[SET].
■Recording Audio for a Snapshot
1. Press the shutter
button to shoot.
This monitor screen will
show the image you just
shot, along with the “ ”
icon.
•If you do not want to
record audio at this time,
press [MENU]. This will
display the monitor screen for shooting the next image.
2. Press the shutter button to start audio
recording.
3. Press the shutter button again to stop audio
recording.
Recording will stop automatically after about 30 seconds if
you do not press the shutter button.
•To turn off the audio snapshot feature, select “Off” in step
3 of the procedure under “Turning on Audio Snapshot”.
Adding Audio to a Snapshot
Remaining Recording Time
80 SHOOTING A SNAPSHOT
Playing Back Snapshot Audio
Audio snapshots in the PLAY mode are indicated by the “ ”
icon.
Press [SET] while an audio snapshot is displayed to play back
its audio.
•For information about the playback operation, see page 126.
IMPORTANT!
•Take care that you do not
block the camera’s
microphone with your
fingers while recording.
•Good recording results are
not possible when the
camera is too far away from
what you are trying to
record.
NOT
E
•After transferring an audio snapshot to your computer’s
hard disk, you can play back the audio using Windows
Media Player (page 194).
•The following shows the formats used for storing audio
snapshot data.
– Image Data: JPEG (.JPG extension)
– Audio Data: WAVE/ADPCM (.WAV extension)
– Approximate Audio File Size: 165 KB (30-second
recording at 5.5KB per second)
•You cannot turn off the monitor screen by pressing [S]
(DISP) while audio recording is in progress.
•Audio snapshot capabilities are disabled while shooting
with the Triple Self-timer or with a continuous shutter mode.
You can, however, add audio to such a snapshot after you
record it (page 149).
Microphone
81 SHOOTING A MOVIE
SHOOTING A MOVIE
Before shooting a movie, you should specify a movie image
quality setting. Movie image quality is a standard that
determines the detail, smoothness, and clarity of a movie during
playback. Shooting with the high-quality (HQ) setting will result
in better image quality, but it also shortens the amount of time
you can shoot.
•Each movie can be up to 10 minutes long. Movie recording
stops automatically after 10 minutes of recording.
1. In the REC mode, press [MENU].
2. On the “Quality” tab, select “ Quality” and
then press [X].
3. Use [S] and [T] to select the quality setting
you want and then press [SET].
Movie File Formats
Movies are recorded in Motion JPEG standard AVI format.
Movies you shoot with your camera can be played back on a
computer using the following software.
– Windows Media Player
– Macintosh QuickTime
Movie Size
The following shows the approximate movie file size for a one-
minute movie.
Movie Image Quality
Quality Pixels Approximate
Data Rate Frame Rate
HQ 640 × 480
pixels
10.2 Megabits/
second
30 frames/
second
Normal 512 × 384
pixels
6.1 Megabits/
second
30 frames/
second
LP 320 × 240
pixels
2.45 Megabits/
second
15 frames/
second
Image Quality Approximate Size
HQ 72.8 MB
Normal 43.6 MB
LP 17.5 MB
82 SHOOTING A MOVIE
Audio is also recorded while you shoot a movie. Audio is
monaural.
1. In the REC mode, press [BS].
2. Use [S], [T], [W], and [X] to select the “ ”
(Movie) scene and then press [SET].
This causes “ ” to appear on the monitor screen.
3. Press the shutter
button to start
shooting the movie.
•“ ” is displayed while
movie recording is in
progress.
4. Press the shutter button again to stop
shooting.
Each movie can be up to 10 minutes long. Movie recording
stops automatically after 10 minutes of recording. Movie
recording also will stop automatically if memory becomes
full before you stop movie recording by pressing the shutter
button.
Shooting a Movie
Recording Time
Remaining Recording Time
83 SHOOTING A MOVIE
Movie Recording Precautions
•You cannot use flash while shooting a movie.
•The camera also records audio. Note the following points
when shooting a movie.
– Take care that the microphone is not blocked by your
fingers, etc.
– Good results are not possible when the camera is too far
away from what you are trying to record.
– Operating camera buttons while shooting can cause button
noise to be picked up in the audio.
•Shooting a very bright subject can cause a vertical band to
appear in the monitor screen image. This does not indicate
malfunction. The band will be recorded in the case of a movie.
•Certain types of memory cards take longer to record data,
which can cause movie frames to be dropped. “ ” and
“ ” flash on the monitor screen during recording to let you
know when a frame has been dropped. Use of a memory card
with a maximum transfer speed of at least 10MB per second
is recommended.
•Optical zoom is disabled while shooting a movie. Digital zoom
only is available while shooting a movie. If you want to use a
particular optical zoom setting, make sure you select it before
you press the shutter button to start movie recording (page
68).
•The effects of camera movement in an image become more
pronounced when you shoot close up or a large zoom factor.
Because of this, use of a tripod is recommended under these
conditions.
•When the subject is outside the camera’s focus range,
focusing is not possible and the image will be out of focus.
Microphone
84 USING BEST SHOT
USING BEST SHOT
With BEST SHOT, you simply select the sample scene that is
like the one you are trying to shoot, and the camera sets up
automatically. Even difficult backlight scenes (which result in the
main subject being too dark if set up improperly) come out
looking great!
■Some Sample Scenes
■Selecting a Sample Scene
1. In the REC mode,
press [BS].
This enters the BEST SHOT
mode and displays a screen
showing thumbnails of 15
sample scenes.
•The currently selected
sample scene is the one
with the red boundary
around it.
•The initial default selection
is “ ” (Auto).
•Portrait •Scenery
•Night Scene •Night Scene Portrait
Scene Number
Red Boundary
Scene Name
85 USING BEST SHOT
2. Use [S], [T], [W], and [X] to move the
boundary to select the scene you want to
select.
•Pressing [S] or [T] while the red boundary is at the edge
of the screen will scroll to the next screen of BEST SHOT
scenes.
•Pressing the zoom button will display text that explains
the settings configured by the selected scene (page 87).
Press the zoom button again to return to the scene
selection screen.
•To return to “Auto”, select Scene 1, which is “ ” (Auto).
Pressing [MENU] while the scene selection screen or
scene description text is on the monitor screen will cause
the red boundary to jump directly to “ ” (Auto).
3. Press [SET] to apply the settings of the
selected scene and return to the recording
screen.
•The settings of the scene you selected remain in effect
until you select a different scene.
•To select a different BEST SHOT scene, repeat the
above procedure from step 1.
4. Press the shutter button.
•While the “ ” (Movie) scene is selected, pressing the
shutter button starts and stops movie recording.
86 USING BEST SHOT
IMPORTANT!
•Night Scene, Fireworks scenes use slow shutter speeds.
Since a slow shutter speed increases the chance of digital
noise in the image, the camera automatically performs a
digital noise reduction process on slow shutter images.
Because of this, such images take longer to store after you
press the shutter button. Do not perform any key operation
while an image is being stored. Also, it is a good idea to
use a tripod to avoid image blur due to camera movement
when shooting at slow shutter speeds.
•Your camera includes a sample scene that optimizes
settings for auction site images. Images you record using
the auction site sample scene are stored in a special folder
so you can easily find them on your computer (page 207).
•BEST SHOT scenes were not shot using this camera.
•Images shot using a BEST SHOT scene may not produce
the results you expected due to shooting conditions and
other factors.
•You can change the camera settings that are made when
you select a BEST SHOT scene. Note, however, that the
BEST SHOT settings revert to their defaults when you
select another BEST SHOT scene or turn off the camera. If
you think you will later need to use a particular camera
setup you configured, save it as a BEST SHOT user setup
(page 88).
87 USING BEST SHOT
Displaying Detailed Information about a BEST
SHOT Scene
To display detailed information
about a BEST SHOT scene,
select it with the red boundary
on the scene selection screen
and then press the zoom
button.
The following are the different operations you can perform
while the scene description screen is on the display.
•To return to the scene selection screen, press the zoom
button again.
•To scroll through available BEST SHOT scenes, use [W] and
[X].
•To select the currently displayed scene and configure the
camera with its settings, press [SET].
NOT
•If you select a scene by pressing [SET] while the
description screen is displayed, the same description
scene will appear the next time you press [BS] to view
BEST SHOT sample scenes.
88 USING BEST SHOT
■Creating Your Own BEST SHOT Scenes
You can use the procedure below to save the setups of
snapshots that you shot as BEST SHOT scenes. After that, you
can recall a setup whenever you want to use it.
1. In the REC mode, press [BS].
2. Use [S], [T], [W], and [X] to select “BEST
SHOT” (Register User Scene) and then press
[SET].
3. Use [W] and [X] to select the snapshot whose
setup you want to register.
4. Use [S] and [T] to select “Save” and then
press [SET].
Your BEST SHOT scene will be assigned the name “Recall
User Scene”, along with a scene number.
IMPORTANT!
•Formatting the camera’s built-in memory (page 172)
deletes all the user BEST SHOT scene files.
NOT
E
•You can check the settings of the currently selected BEST
SHOT scene by displaying the camera’s setting menus and
looking at its settings.
•User scenes are assigned numbers in the sequence: U1,
U2, and so on.
•The following are the settings that are included in a user
scenes:
Focus, EV Shift, White Balance, Flash, ISO, Metering,
Flash Intensity, Flash Assist, Filter, Sharpness, Saturation,
Contrast
•You can store up to 999 BEST SHOT user scenes.
•User snapshot scenes are stored in camera built-in
memory in the folder named “SCENE” (page 206).
89 USING BEST SHOT
Deleting a BEST SHOT User Scene
Perform the following steps when you want to delete a BEST
SHOT user scene.
1. In the REC mode, press [BS].
2. Press the zoom button to display its
explanation screen.
3. Use [W] and [X] to select the BEST SHOT user
scene you want to delete.
4. Press [T] ( ).
5. Use [S] and [T] to select “Delete” and then
press [SET].
This will delete the BEST SHOT user scene you selected
and display the next screen (either the next user scene or
the Register User Scene).
6. Use [W] and [X] to select another scene and
then press [SET].
•This returns to the recording state.
You can turn on the camera’s Anti Shake feature to reduce
image blur due to subject movement or hand movement when
shooting a moving subject using telephoto, when shooting a
fast-moving subject, or when shooting under dim lighting
conditions.
You can turn on Anti Shake using BEST SHOT or by performing
a Panel operation.
■Turning on Anti Shake Using BEST SHOT
1. In the REC mode, press [BS].
2. Use [S], [T], [W], and [X] to select the “Anti
Shake” scene and then press [SET].
Anti Shake will remain selected until you select a different
BEST SHOT scene.
Reducing the Effects of Hand and
Subject Movement
90 USING BEST SHOT
■Turning on Anti Shake Using the Panel
(Operation Panel)
1. In the REC mode, press [SET].
2. Use [S] and [T] to select the fourth option
from the top (Anti Shake).
3. Use [W] and [X] to select “Auto” and then
press [SET].
•This turns on Anti Shake and displays “ ” on the
monitor screen.
•In this case, Anti Shake will remain on until you turn it off
on the Panel.
NOT
E
•You also can change the anti shake setting using the menu
that appears when you press [MENU] (pages 49, 214).
IMPORTANT!
•Anti Shake will not work unless the ISO setting (page 110)
is set to “Auto”.
•Though “ ” (Anti Shake) is displayed on the monitor
screen following an automatic flash operation using the
“Auto Flash” or “Red Eye” setting, or while the flash setting
is “Flash On” or “Soft Flash”, Anti Shake is disabled.
•Shooting with Anti Shake can cause an image to appear
somewhat coarser than normal and can cause slight
deterioration of image resolution.
•Anti Shake may not be able to eliminate the effects of hand
or subject movement when movement is severe.
•Anti Shake may not work with a very low shutter speed. If
this happens, use a tripod to stabilize the camera.
•The camera sometimes performs an automatic noise
reduction operation to reduce digital noise in images
recorded under certain lighting conditions. This operation
causes the camera to take longer than normal to store the
image and be ready for the next shot.
91 USING BEST SHOT
The BEST SHOT “High Sensitivity” scene makes it possible for
you to take natural looking images without using the flash, even
when lighting is low
1. In the REC mode, press [BS].
2. Use [S], [T], [W], and [X] to select the “High
Sensitivity” scene and then press [SET].
3. Press the shutter button to shoot the image.
High Sensitivity will remain selected until you select a
different BEST SHOT scene.
IMPORTANT!
•High Sensitivity is disabled following an automatic flash
operation using the “Auto Flash” or “Red Eye” setting, or
while the flash setting is “Flash On” or “Soft Flash”.
•Shooting with High Sensitivity can cause an image to
appear somewhat coarser than normal and can cause
slight deterioration of image resolution.
•The desirable level of image brightness may not be
possible under very dark conditions.
•When shooting with slow shutter speeds, use a tripod to
protect against the effects of hand movement.
•The camera sometimes performs an automatic noise
reduction operation to reduce digital noise in images
recorded under certain lighting conditions. This operation
causes the camera to take longer than normal to store the
image and be ready for the next shot.
Taking Bright Images without Flash
Normal Snapshot (With flash) Snapshot with High Sensitivity
92 USING BEST SHOT
Shooting a business card, document, whiteboard, or similarly
shaped object from an angle can cause the subject to appear
misshaped in the resulting image. The BEST SHOT Business
Shot scenes correct the shape of rectangular objects so they
appear natural.
BEST SHOT has two Business Shot scenes from which to
choose.
■Selecting a Business Shot Scene
1. In the REC mode, press [BS].
2. Use [S], [T], [W], and [X] to select the
“Business cards and documents” or the
“White board, etc.” scene and then press
[SET].
Whichever you select will remain in effect until you select a
different BEST SHOT scene.
Shooting Images of Business Cards
and Documents (Business Shot)
Before Keystone Correction After Keystone Correction
•Business cards and
documents
•White board, etc.
93 USING BEST SHOT
■Shooting an Image Using a Business Shot
Scene
1. After selecting either
of the BEST SHOT
Business Shot
scenes, compose the
image and press the
shutter button to
shoot.
This displays a screen that shows all of the rectangular
shapes in the image that qualify as candidates for keystone
correction.
A red boundary will surround the currently selected
correction candidate. If there is a black boundary, it means
that the black boundary is indicating a second possible
candidate. If there is no second candidate (black boundary),
jump directly to step 3.
•If the camera is unable to detect any keystone correction
candidate at all, the message “Cannot correct image!” will
appear on the monitor screen momentarily and then the
camera will save the image as-is (uncorrected).
2. Use [W] and [X] to select the candidate you
want to use for correction.
3. Use [S] and [T] to select “Correct” and then
press [SET].
This will correct the image and store the resulting
(corrected) image.
•To cancel the correction operation, select “Cancel”.
94 USING BEST SHOT
IMPORTANT!
•Make sure the entire object you are trying to shoot (correct)
is enclosed within the monitor screen. The camera will not
be able to detect the shape of the object correctly unless it
is enclosed entirely within the monitor screen.
•Correction will not be possible if the subject is the same
color as its background. Make sure the object is against a
background that allows its outline to stand out.
•Digital zoom is disabled while shooting with a Business
Shot scene. However, you can use optical zoom.
•The maximum Business Shot image size is 2M (1600 ×
1200 pixels), even if the camera is configured for a larger
image size. When the camera is configured to record
images smaller than 2M (1600 × 1200 pixels), Business
Shot scenes will produce images in accordance with the
currently specified image size.
With Old Photo, you can record the image of an old, faded
photograph and then use the camera’s built-in advanced digital
camera technology to restore it.
■Before Recording with Old Photo
•Make sure the entire photograph you are trying to record is
enclosed within the monitor screen.
•Make sure the photograph is against a background that
allows its outline to stand out, and that it fills the monitor
screen to the maximum extent possible.
•Make sure that light is not reflecting off the surface of the
original photograph when recording it.
•If the old photograph is portrait orientation, be sure to
compose the image with the camera in landscape (horizontal)
orientation.
Restoring an Old Photograph
95 USING BEST SHOT
NOT
E
•When the camera is at an angle to the photograph you are
recording, the shape of the photograph may appear
distorted in the recorded image. Auto keystone correction
corrects for this distortion, which means that a photograph
appears normal even if you record it at an angle.
■Selecting the Old Photo Scene
1. In the REC mode, press [BS].
2. Use [S], [T], [W], and [X] to select the “Old
Photo” scene and then press [SET].
“Old Photo” will remain selected until you select a different
BEST SHOT scene.
■Recording an Image with Old Photo
1. Press the shutter
button to shoot the
image.
•This displays a
photograph contour
confirmation screen and
then saves the original
recorded image. An error message will appear (page
225), without displaying the photograph contour
confirmation screen, if the camera is unable to find the
contour of the photograph.
2. Use [W] and [X] to select the candidate you
want to correct.
3. Use [S] and [T] to select “Trim” and then
press [SET].
This displays a cropping boundary on the monitor screen.
•To cancel the correction operation, select “Cancel”.
96 USING BEST SHOT
4. Use the zoom button
to change the
cropping boundary to
the desired size.
5. Use [S], [T], [W], and [X] to move the
selection boundary to the desired location and
then press [SET].
The camera will correct color automatically and save the
corrected image.
•If you do not want a border around the resulting image,
select and area that is smaller than the original image.
•To cancel the restoration operation at any point and save
the image as-is, press [MENU].
IMPORTANT!
•Digital zoom is disabled while recording with Old Photo.
However, you can use optical zoom.
•When recording the image of a photograph, the camera will
not be able to recognize the shape of the photograph in the
following cases.
– When part of the photograph extends outside of the
monitor screen
– When the subject is the same color as the background it
is placed upon
•The maximum Old Photo image size is 2M (1600 × 1200
pixels). When the camera is configured to record images
smaller than 2M (1600 × 1200 pixels), Old Photo will
produce images in accordance with the currently specified
image size.
•Under certain conditions, restored colors may not produce
the desired results.
97 ADVANCED SETTINGS
ADVANCED SETTINGS
Your camera provides you with the five focus modes described below. The initial factory default focus mode is Auto Focus.
*“Focus Range” indicates distance from the lens surface.
Changing the Focus Mode
Focus Mode Description Focus Range*
Auto
Focus
Automatic focus when the shutter button is half-pressed.
During movie recording, the Auto Focus Mode is disabled
and the camera switches to the Pan Focus Mode
automatically.
Auto adjustment
(Approximately 40 cm to (1.3' to ))
•Minimum distance position varies with optical zoom.
Macro
(Close-up)
Used for close-up shooting. Macro Focus becomes fixed
focus while shooting a movie.
Auto adjustment (10 cm to 50 cm (3.9" to 19.7"))
•Minimum distance position varies with optical zoom.
Pan
Focus
Fixed focus for relatively wide-range focusing. Use Pan
Focus (PF) under conditions where Auto Focus is difficult.
Fixed distance
•Focus range varies with optical zoom position.
Infinity
Focus
Focus is fixed at infinity. Use this mode when shooting
scenery and other faraway images.
Infinity
Manual
Focus
Focus is performed manually. •Focus range varies with optical zoom factor.
Optical Zoom Factor Range
1X 10 cm to (0.3' to )
3X 60 cm to (2.0' to )
98 ADVANCED SETTINGS
Perform the following steps to change the focus mode.
1. In the REC mode, press [MENU].
2. On the “REC” tab, select “Focus” and then
press [X].
3. Use [S] and [T] to
select the focus mode
setting you want and
then press [SET].
An icon appears on the
monitor screen to indicate
the current focus mode.
•See the following pages
of this section for details
about shooting with each
focus mode.
Using Auto Focus
1. Align the monitor screen’s focus frame with
the subject you want to focus and then half-
press the shutter button.
This camera will perform the focus operation.
You can tell if the image is in focus by checking the
operation lamp and the focus frame color.
Focus Mode Icon
Status Operation Lamp Focus Frame
Focusing
Complete Lit Green Green
Not Focused Flashing Green Red
ISO100
ISO100
F3.1
F3.1
1/60
1/60
AWB
ISO
15:37
N
2
EV
123
Focus Frame
Operation Lamp
99 ADVANCED SETTINGS
2. When the image is focused, press the shutter
button the rest of the way to shoot.
IMPORTANT!
•During movie recording, the Auto Focus Mode is disabled
and the camera switches to the Pan Focus Mode
automatically.
NOT
E
•When proper focusing is not possible because the subject
is closer than the Auto Focus range, the camera will switch
to the Macro Focus range automatically (Auto Macro).
•Whenever you perform an optical zoom operation while
shooting with Auto Focus, a value will appear on the
monitor screen as shown below to tell you the focus range.
Example: cm –
* will be replaced by the actual focus range value.
Using Macro Focus
1. Half-press the shutter button to focus the
image.
The focus operation is the same as that for Auto Focus.
2. When the image is focused, press the shutter
button the rest of the way to shoot.
IMPORTANT!
•Use of the flash along with Macro Focus can cause the light
of the flash to become blocked, which can produce
unwanted lens shadows in your image.
•Macro Focus becomes fixed focus while shooting a movie.
100 ADVANCED SETTINGS
NOT
E
•When Macro Focus cannot focus properly because the
subject is too far away, the camera will switch to the Auto
Focus range automatically (Auto Macro).
•Whenever you perform an optical zoom operation while
shooting with Macro Focus, values will appear on the
monitor screen as shown below to tell you the focus range.
Example: cm – cm
* will be replaced by the actual focus range values.
101 ADVANCED SETTINGS
Auto Focus and Macro Focus Shooting Tips
Changing the Auto Focus Area
Use the following procedure to change the metering area used for
Auto Focus (AF).
1. In the REC mode, press [MENU].
2. On the “REC” tab, select “AF Area” and then press
[X].
3. Use [S] and [T] to select the setting you want and
then press [SET].
To do this: Select this
setting:
Use a small area in the center of the screen for
metering
•This setting is best when you want to use focus
lock (page 102).
Spot
When the shutter button is half-pressed, have the
camera automatically select one or more of nine
possible focus frames
•If the camera is able to focus on multiple
points, all applicable focus frames turn green.
Multi
NOT
•When you select “ Multi” as the focus area, nine
focus frames appear on the monitor screen. The
camera will automatically determine the optimum
focus frame(s), which will change to green on the
monitor screen.
Spot Multi
Focus Frame Focus Frame
102 ADVANCED SETTINGS
Using Focus Lock
“Focus lock” is the name of a technique you can use when you
want to shoot an image in which the subject to be focused on is
not within the focus frame in the center of the screen.
•Use focus lock with “ Spot” focus.
1. Align the monitor
screen’s focus frame
with the subject you
want to focus on and
then half-press the
shutter button.
2. Keeping the shutter
button half-pressed,
re-compose the
image as you like.
3. When the image is focused, press the shutter
button the rest of the way to shoot.
NOT
•Focus lock also causes exposure (AE) to be locked.
ISO100
ISO100
F3.1
F3.1
1/60
1/60
AWB
ISO
15:37
N
2
EV
123
Focus Frame
Subject to be focused on
ISO100
ISO100
F3.1
F3.1
1/60
1/60
AWB
ISO
15:37
N
2
EV
123
103 ADVANCED SETTINGS
Quick Shutter
If you press the shutter button all the way without waiting for
Auto Focus while Quick Shutter is turned on, the camera will
record the image using a high-speed focus operation that is
much faster than normal Auto Focus. This helps to avoid
missing a special moment while you wait for the camera to
Auto Focus.
•Some images may be out of focus when Quick Shutter is
used.
1. In the REC mode, press [MENU].
2. On the “REC” tab, select “Quick Shutter” and
then press [X].
3. Use [S] and [T] to select the setting you
want and then press [SET].
4. Press the shutter button all the way down
without pausing.
Pressing the shutter button all the way without pausing at
the halfway type will record with Quick Shutter, without
performing the normal Auto Focus operation.
To do this: Select this setting:
Turn on Quick Shutter On
Turn off Quick Shutter Off
104 ADVANCED SETTINGS
Using Fixed Focus (Pan Focus)
Pan Focus (PF) fixes focus for a relatively wide focus range,
which means you can shoot without waiting for the Auto Focus
operation to finish.
1. When you are ready to shoot, press the
shutter button all the way, without pausing.
Using Infinity Focus
As its name suggests, Infinity Focus fixes focus at infinity ( ).
Use this mode when shooting scenery and other faraway
subjects. Infinity Focus also comes in handy when shooting from
a car or train window, or when shooting scenery or other
subjects that are difficult to focus properly with Auto Focus.
1. While Infinity Focus is selected as the focus
mode, press the shutter button to shoot.
Using Manual Focus
With Manual Focus, the camera
automatically enlarges the
subject on the monitor screen,
which helps you manually adjust
focus. Manual focus can be used
for shoot such images as moving
trains. Before the train arrives,
manually focus on an electric
pole or some other object. Then
when the train passes the object
you focused on, you can shoot
without worrying about focus.
1. While Manual focus is selected as the focus
mode, compose the image on the monitor
screen so the subject you want to focus on is
within the yellow boundary.
Yellow Boundary
105 ADVANCED SETTINGS
2. Use [W] and [X] to focus the image, as you
view the results on the monitor screen.
At this time the image that is within the boundary will enlarge
and fill the monitor screen, which aids in focusing.
•The monitor screen will return to step 1 if you do not
perform any operation for about two seconds.
3. Press the shutter button to shoot.
NOT
E
•Whenever you perform an optical zoom operation (page
67) while shooting with manual focus, a value will appear
on the monitor screen as shown below to tell you the
focusing range.
Example: MF cm –
* will be replaced by the actual focus range values.
IMPORTANT!
•While Manual Focus is selected as the focus mode, the [W]
and [X] keys are used to adjust the focus setting. Any other
functions assigned to the [W] and [X] keys with Key
Customize (page 119) are not performed when you press
the keys during manual focus.
For this: Press this button:
Closer focus [W]
More distant focus [X]
106 ADVANCED SETTINGS
You can manually adjust an image’s exposure value (EV value)
before shooting it. This feature helps to achieve better results
when shooting a backlit subject, a strongly lit subject indoors, or
a subject that is against a dark background.
Exposure Compensation Value: –2.0EV to +2.0EV
Unit: 1/3EV
1. In the REC mode, press [SET].
2. Use [S] and [T] to
select the third option
from the bottom (EV
Shift).
3. Use [W] and [X] to adjust the exposure
compensation value.
[X]: Increases the EV value. A higher EV value is best used
for light-colored subjects and backlit subjects.
*Increasing the EV value also works well with the
BEST SHOT “Backlight” scene.
[W]: Decreases the EV value. A lower EV value is best for
dark-color subjects and for shooting outdoors on a
clear day.
To cancel exposure compensation, adjust the value until it
becomes 0.0.
Correcting Image Brightness (EV
Shift)
EV Shift Value
B
107 ADVANCED SETTINGS
4. After the EV value is the way you want, press
[SET] to apply it.
The exposure compensation value you set remains in effect
until you change it.
IMPORTANT!
•When shooting under very dark or very bright conditions,
you may not be able to obtain satisfactory results even
after performing exposure compensation.
NOT
E
•You also can change the EV Shift setting using the menu
that appears when you press [MENU] (pages 49, 215).
•Performing an EV shift operation while using multi-pattern
metering will cause the metering mode to switch
automatically to center weighted metering. The metering
mode will return to multi-pattern metering when you change
the exposure compensation value to 0.0 (page 112).
•You can use the key customization feature to configure the
[W] and [X] buttons so they control EV shift (page 119).
This comes in handy when adjusting exposure
compensation while viewing the on-screen histogram
(page 116).
B
108 ADVANCED SETTINGS
Shooting on a cloudy day can give your subject a blue cast,
while shooting under white fluorescent lighting can give your
subject a green cast. White balance corrects for different types
of lighting so the colors in your images always look natural.
1. In the REC mode, press [SET].
2. Use [S] and [T] to select the fourth option
from the bottom (White Balance).
3. Use [W] and [X] to select the white balance
setting you want and then press [SET].
Controlling White Balance To do this: Select this
setting:
Let the camera adjust white balance
automatically Auto WB
Shoot outdoors on a clear day Daylight
Shoot outdoors on an overcast rainy day, in
the shade, etc. Overcast
Shoot in the shadow of a building, in the
shade of trees, etc. on a clear day Shade
Suppress color cast when shooting under
white or day white fluorescent lighting
Day White
Fluorescent
Suppress color cast when shooting under
daylight fluorescent lighting
Daylight
Fluorescent
Suppress the appearance of light bulb
lighting Tungsten
Manually adjust white balance to suit a
particular light source
•For details, see “Configuring the White
Balance Setting Manually” (page 109).
Manual WB
AWB
N
D
MWB
109 ADVANCED SETTINGS
NOT
E
•You also can change the white balance setting using the
menu that appears when you press [MENU] (pages 49,
215).
•When “Auto” is selected for the white balance setting, the
camera automatically determines the white point of the
subject. Certain subject colors and light source conditions
can cause problems when the camera tries to determine
the white point, which makes proper white balance
adjustment impossible. If this happens, select the white
balance setting that matches you shooting conditions
(Daylight, Overcast, etc.)
•You can use the key customization feature to configure the
[W] and [X] buttons so they control the white balance
setting (page 119).
•To select “Auto” with the control key (when the control key
is configured to select the auto white balance setting),
scroll through the settings until “ ” appears on the
monitor screen.
■Configuring the White Balance Setting
Manually
Under complex lighting conditions, the preset white balance
settings may not be able to produce natural looking colors.
When this happens, you can configure the white balance setting
manually for particular lighting conditions. Note that you will
need to have a plain white sheet of paper on hand when
performing the following procedure.
1. In the REC mode, press [SET].
2. Use [S] and [T] to select the fourth option
from the bottom (White Balance).
3. Use [W] and [X] to select “ Manual WB”.
This will display the subject that the lens is aimed at on the
monitor screen using the current manual white balance
settings. If you want to use the current settings, jump
directly to step 5.
AWB
MWB
110 ADVANCED SETTINGS
4. Under the lighting conditions you plan to use
when shooting, point the camera at a blank
white piece of paper so it fills the entire
monitor screen and then press the shutter
button.
The camera will adjust white balance settings for the current
conditions, and display “Complete” when it is finished.
5. Press [SET] to register the white balance
settings and return to the shooting screen.
•The white balance setting is retained even if you turn off
the camera.
ISO sensitivity is a value that expresses sensitivity to light. A
larger value indicates higher sensitivity, which is better for
shooting when available lighting is dim. If you want to use faster
shutter speeds, you should use a higher ISO sensitivity value.
Under certain conditions, a fast shutter speed in combination
with a high ISO sensitivity setting can cause digital noise, which
makes an image appear rough. For clean, good-quality images,
use the lowest possible ISO sensitivity setting.
1. In the REC mode, press [SET].
2. Use [S] and [T] to select the fifth option from
the top (ISO Sensitivity).
White sheet of paper
Specifying ISO Sensitivity
111 ADVANCED SETTINGS
3. Use [W] and [X] to select the setting you want
and then press [SET].
NOT
E
•You also can change the ISO sensitivity setting using the
menu that appears when you press [MENU] (pages 49,
215).
IMPORTANT!
•Using flash with high ISO sensitivity can cause problems
with subjects that close to the camera.
•“Auto” ISO sensitivity always is used for movies, regardless
of the current ISO sensitivity setting.
•You can use the key customization feature to configure the
[W] and [X] buttons so they control the ISO sensitivity
setting (page 119).
To shoot with this level of
sensitivity:
Select this
setting:
Automatically selected by camera. Auto
Low
High
ISO 50
ISO 100
ISO 200
ISO 400
112 ADVANCED SETTINGS
The metering mode determines what part of the subject is
metered for exposure.
1. In the REC mode, press [MENU].
2. On the “Quality” tab, select “Metering” and
then press [X].
3. Use [S] and [T] to select the setting you want
and then press [SET].
Multi (Multi Metering)
Multi-pattern metering divides the image into
sections and measures the light in each
section for a balanced exposure reading. The
camera automatically determines shooting
conditions according to the measured lighting pattern, and
makes exposure settings accordingly. This type of metering
provides error-free exposure settings for a wide range of
shooting conditions.
Center Weighted
Center weighted metering concentrates on the
center of the focus area to measure light. Use
this metering method when you want to exert
some control over exposure, without leaving
settings totally up to the camera.
Spot
Spot metering takes readings at a very small
area. Use this metering method when you
want exposure to be set according to the
brightness of a particular subject, without
being affected by surrounding conditions.
Specifying the Metering Mode
113 ADVANCED SETTINGS
IMPORTANT!
•The metering mode will change to “Center Weighted”
automatically if you change the EV shift value (page 106) to
anything other than 0.0 while “Multi” is selected. The
metering mode will change back to “Center Weighted”
when the EV shift value is changed back to 0.0.
•When “Multi” is selected as the metering mode, the
icon will not be displayed on the monitor screen when you
return to the REC mode information display (page 211).
NOT
E
•You can use the key customization feature to configure the
[W] and [X] buttons so they control the metering mode
setting (page 119).
The camera’s filter feature lets you add color tints to your images
as you shoot them. The color effect look just like what you would
get by installing a color filter on the lens of the camera.
1. In the REC mode, press [MENU].
2. On the “Quality” tab, select “Filter” and then
press [X].
3. Use [S] and [T] to select the setting you want
and then press [SET].
Available filter settings are: Off, B/W, Sepia, Red, Green,
Blue, Yellow, Pink, and Purple
Using the Camera’s Filter Effects
114 ADVANCED SETTINGS
Use the following procedure to adjust the sharpness of subject
outlines in your images.
1. In the REC mode, press [MENU].
2. On the “Quality” tab, select “Sharpness” and
then press [X].
3. Use [S] and [T] to select the setting you want
and then press [SET].
You can specify one of five sharpness settings from +2
(sharpest) to –2 (least sharp).
Use the following procedure to adjust the saturation of colors in
your images.
1. In the REC mode, press [MENU].
2. On the “Quality” tab, select “Saturation” and
then press [X].
3. Use [S] and [T] to select the setting you want
and then press [SET].
You can specify one of five saturation settings from +2
(most saturated) to –2 (least saturated).
Controlling Image Sharpness Controlling Color Saturation
115 ADVANCED SETTINGS
i
Use the following procedure to adjust the contrast of your
images.
1. In the REC mode, press [MENU].
2. On the “Quality” tab, select “Contrast” and
then press [X].
3. Use [S] and [T] to select the setting you want
and then press [SET].
You can specify one of five contrast settings from +2 (most
contrast between light and dark) to –2 (least contrast
between light and dark).
You can have the snapshot’s recording date only, or date and
time stamped in the lower right corner of the image.
1. In the REC mode, press [MENU].
2. On the “Set Up” tab, select “Timestamp” and
then press [X].
3. Use [S] and [T] to select the setting you want
and then press [SET].
Example: December 24, 2007, 1:25 p.m.
Adjusting Image Contrast Date Stamping Snapshots
To do this: Select this setting:
Display the date only (2007/12/24) Date
Display the date and time (2007/
12/24 1:25pm) Date&Time
Display nothing Off
116 ADVANCED SETTINGS
IMPORTANT!
•Even if you do not stamp the date and/or time with
Timestamp, you can do so later using the DPOF function
and the printing software function (page 180).
•Once date and time information is stamped in a print, it
cannot be edited or deleted.
•Use the “Date Style” setting (page 167) to specify the Year/
Month/Day format of the date.
•The recording date and time are determined in accordance
with the camera’s clock settings (pages 11, 165) when the
snapshot is recorded.
•Digital zoom is not supported while date stamping is turned
on.
•Date stamping is not supported for the following types of
images.
– Some BEST SHOT images (Business cards and
documents, White board, etc., Old Photo)
The on-screen histogram that provides a graphic representation
of the current exposure of the image. You can also display the
histogram in the PLAY mode for information about the exposure
levels of images.
1. Press [S] (DISP) as many times as necessary
to display the histogram (page 55).
NOT
•You can use key customization to configure the [W] and [X]
buttons so they control the EV shift setting. Then you can
perform EV shift while viewing the results on the on-screen
histogram (page 119).
Using the On-screen Histogram to
Check Exposure
Histogram
117 ADVANCED SETTINGS
■How to Use the Histogram
A histogram is a graph that represents the lightness of an image
in terms of the number of pixels. The vertical axis indicates the
number of pixels, while the horizontal axis indicates lightness. If
the histogram appears too lopsided for some reason, you can
use EV shift to move it left or right in order to achieve better
balance. Optimum exposure can be achieved by EV shifting so
the graph is as close to the center as possible. For snapshots,
you can even display individual histograms for R (red), G
(green), and B (blue). These lines can be used to determine
whether there is too much or too little of each of the color
components in an image.
Example Histograms
A histogram towards the left side
results when the overall image is
dark. A histogram that is too far to the
left may result in “black out” of the
dark areas of an image, as shown in
the nearby image.
A histogram towards the right side
results when the overall image is
light. A histogram that is too far to the
right may result in “white out” of the
light areas of an image, as shown in
the nearby image.
An overall well-balanced histogram
results when the overall image is at
optimal lightness.
118 ADVANCED SETTINGS
IMPORTANT!
•A centered histogram does not necessarily guarantee
optimum exposure. If you intentionally want to over expose
or under expose the image, you may not want a centered
histogram.
•Due to the limitations of exposure compensation, you may
not be able to achieve an optimum histogram configuration.
•Use of the flash and certain shooting conditions can cause
the histogram to indicate exposure that is different from the
actual exposure of the image when it was shot.
The following functions are also available in the REC mode to
help make your digital image more efficient and enjoyable.
•Assign functions to the [W] and [X] keys
•Display an on-screen grid for easy image composition
•Review an image you just recorded
•Register initial power up settings
•Reset settings
Other Useful Recording Functions
119 ADVANCED SETTINGS
Using Key Customize to Assign
Functions [W] and [X]
Key Customize lets you assign any one of the five functions
listed below to the [W] and [X] keys. Once you do, you will be
able to use the assigned functions while shooting snapshots or
movies, without going through the menus. For details about
each of the functions, see the referenced page numbers.
1. In the REC mode, press [MENU].
2. On the “REC” tab, select “L/R Key”, and then
press [X].
3. Use [S] and [T] to select the function you
want to assign and then press [SET].
After you assign a function, you can control its setting using
the [W] and [X] keys.
Selecting “Off” leaves the [W] and [X] keys with no function
assigned.
When this function is
assigned:
You can use [W] and [X] to do
this:
Metering (page 112) Change the metering setting
EV Shift (page 106) Perform EV shifting for
exposure compensation
White Balance (page 108) Change the white balance
setting
ISO (page 110) Change the ISO sensitivity
setting
Self-timer (page 75) Select the self-timer time
120 ADVANCED SETTINGS
Displaying an On-screen Grid
The on-screen grid can be displayed on the REC mode monitor
screen for easy alignment when composing images.
1. In the REC mode, press [MENU].
2. On the “REC” tab, select “Grid” and then
press [X].
3. Use [S] and [T] to select the setting you want
and then press [SET].
Displaying the Image You Just Recorded
(Image Review)
When you purchase your camera, it is initially configured with
the Image Review feature turned on. Image Review displays the
image you just recorded so you can check it.
1. In the REC mode, press [MENU].
2. On the “REC” tab, select “Review” and then
press [X].
3. Use [S] and [T] to select the setting you want
and then press [SET].
To to this: Select this setting:
Display the grid On
Hide the grid Off
To configure the camera to do this
after an image is recorded:
Select this
setting:
Display the image for about one second On
Nothing Off
121 ADVANCED SETTINGS
Using Icon Help
Icon help displays guidance text about an icon when you select it
on the monitor screen while in the REC mode (page 211).
•Icon help text is displayed for the following functions:
Recording mode, metering, flash mode, white balance, self-
timer, EV shift. Note, however, that metering, white balance,
self-timer and EV shift icon help text appears only when
“Metering”, “White Balance”, “Self-timer” or “EV shift”
respectively is assigned to the [W] and [X] keys with the key
customization feature (page 119).
1. In the REC mode, press [MENU].
2. On the “REC” tab, select “Icon Help” and then
press [X].
3. Use [S] and [T] to select the setting you want
and then press [SET].
IMPORTANT!
•The icons listed below do not appear on the display while
icon help is turned off.
– Flash mode icon (page 71)
– White balance icon (page 108)
– Metering mode icon (page 112)
To do this: Select this
setting:
Display icon help text next to the icon of
a function when you select the function On
Turn off icon help Off
AWB
122 ADVANCED SETTINGS
Using Mode Memory to Configure Power
On Default Settings
You can configure the camera so it saves certain settings in
“mode memory” whenever it is turned off, and restores the
settings the next time you turn the camera back on. This keeps
you from having to configure the camera each time you turn it off
and on.
See step 4 of the setting procedure below for information about
the settings you can save with mode memory.
1. In the REC mode, press [MENU].
2. On the “REC” tab, select “Memory” and then
press [X].
3. Use [S] and [T] to select the item you want to
configure and then press [X].
4. Use [S] and [T] to select the setting you want
and then press [SET].
To do this: Select this
setting:
Save the current setting when the
camera turned off, and restore it when
the camera is turned back on
On
Restore the optimum default when the
camera is turned on Off
123 ADVANCED SETTINGS
*1 “On” restores the selected BEST SHOT scene when the
camera is turned back on. “Off” exits BEST SHOT when the
camera is turned off.
*2 Optical zoom position only.
IMPORTANT!
•Turning the camera off while mode memory for the BEST
SHOT mode is on will restore the settings of the BEST
SHOT scene what was selected when you last turned off
the camera. This is true, regardless of any of the mode
memory on/off settings of each individual setting, except for
Zoom Position.
Setting Mode
Memory On Mode Memory Off
BEST SHOT*1
Setting at
power off
Exits BEST SHOT
when camera is
turned off.
Flash Auto
Focus Auto
White Balance Auto
ISO Auto
AF Area Spot
Metering Multi
Self-timer Off
Flash Intensity 0
Digital Zoom On
MF Position
Focus mode before
manual focus was
selected.
Zoom Position*2Full wide
124 ADVANCED SETTINGS
Resetting the Camera to Its Initial
Factory Defaults
Use the following procedure when you want to return to the
camera to its initial factory default settings, which are the ones
that are configured when you first purchase the camera. See
“Menu Reference” on page 214 for the initial factory default
setting for each menu item.
1. Press [MENU].
2. On the “Set Up” tab, select “Reset” and then
press [X].
3. Use [S] and [T] to select “Reset” and then
press [SET].
•To cancel the procedure without resetting, select
“Cancel”.
IMPORTANT!
•The following are not initialized when you reset the camera
(page 216).
– Home Time setup
– World Time setup
– Adjust
– Date Style
– Language
– Video Out
125 VIEWING SNAPSHOTS AND MOVIES
VIEWING SNAPSHOTS AND MOVIES
Use the following procedure to view snapshots on the camera’s
monitor screen.
1. Press [ ] to enter the
PLAY mode.
•This will display one of the snapshots in memory, along with
some information about the settings used to shoot it (page
213).
•The file type icon that appears at the top of the monitor
screen depends on the type of file (snapshot, movie,
audio only, etc) that is currently displayed.
– : Snapshot (page 125)
– : Movie (page 127)
– : Audio snapshot (page 126)
•See page 55 information about how to hide the image
information and view the image alone.
Viewing a Snapshot
[]
File Type Folder/File Names
Image Quality
Image Size
Date and Time
126 VIEWING SNAPSHOTS AND MOVIES
2. Use [W] and [X] to scroll between images.
Press [X] to scroll forward and [W] to scroll back.
NOT
E
•Holding down [W] or [X] scrolls at high speed.
•The image that initially appears when scrolling may appear
to be a bit rough at first, but it will soon be replaced by an
image with better definition. Note that if you copy an image
from another type of digital camera, only a rough image
may be shown on the monitor screen.
To switch to the REC mode
Press [ ].
Listening to the Audio of an Audio
Snapshot
You can use the following procedure to play the audio of an
audio snapshot. An audio snapshot is indicated by the “ ” file
type icon.
1. Enter the PLAY mode
and then use [W] and
[X] to display the
audio snapshot
whose audio you want
to play.
2. Press [SET] to play the snapshot’s audio from
the camera’s built-in speaker.
[X][X]
[W][W]
127 VIEWING SNAPSHOTS AND MOVIES
Audio Playback Controls
You can adjust volume while playback is in progress or paused
only.
Use the following procedure to view a movie on the camera’s
monitor screen.
1. Enter the PLAY mode and then use [W] and
[X] to display the movie you want to play.
•Check the file type icon. The file type icon of a movie is
“ ” (Movie) icon (page 213).
The film-like frame that appears on the monitor screen
indicates that this is an image from a movie.
2. Press [SET] to start playback.
•The monitor screen will return to the selection screen in
step 1 after the end of the movie is reached.
To do this: Do this:
Fast forward or fast reverse
playback Hold down [X] or [W].
Pause or restart playback Press [SET].
Adjust volume Press [T] and then use [S]
and [T].
Change on-screen indicators Press [S] (DISP).
Stop playback Press [MENU].
Viewing a Movie
File Type Folder Name/File Name
Recording Time
Quality
128 VIEWING SNAPSHOTS AND MOVIES
To switch to the REC mode
Press [ ].
Movie Playback Controls
IMPORTANT!
•Playback may not be possible for movies not recorded with
this camera.
To do this: Do this:
Fast forward or fast reverse playback.
•Each press of either button increases
the speed of the fast forward or fast
reverse operation up to three steps.
Hold down [X] or
[W].
Return from fast forward/fast reverse to
normal playback Press [SET].
Pause or restart playback Press [SET].
When paused, scroll forward or back
frame-by-frame
•Hold down either button to scroll non-
stop.
Press [X] or [W].
Adjust volume
•Volume can be adjusted only while
movie playback is in progress.
Press [T] and
then use [S] and
[T].
Toggle on-screen indicators on or off Press [S] (DISP).
Zoom in up to 3.5X
•While an image is zoomed, you can use
[S] [T] [W] and [X] to move around and
view the parts of the image that do not
fit on the monitor screen.
Press the zoom
button ( ).
Stop playback Press [MENU].
To do this: Do this:
129 VIEWING SNAPSHOTS AND MOVIES
The slideshow feature lets you play the files stored in memory in
sequence, automatically.
You can configure the slideshow so it plays the files the way you
want.
1. In the PLAY mode, press [MENU].
2. On the “PLAY” tab, select “Slideshow” and
then press [X].
3. Configure the slideshow settings.
Use [S] and [T] to select an item and then configure it as
described below.
Playing a Slideshow on the Camera Images
(Select the
files you want
to include in
the
slideshow.)
•All images: Includes all snapshots, movies,
and audio in memory.
• Only: Includes snapshots and audio
snapshots only.
• Only: Includes movies only.
•One Image: Includes only one specific
image (selected using [W] and [X]).
•Favorites: Includes snapshots in the
FAVORITE folder (page 156).
Time (Specify
the time of the
slideshow,
from start to
finish.)
Use [W] and [X] to select one of the following
times (in minutes): 1, 2, 3, 4, 5, 10, 15, 30,
60.
Interval
(Select the
interval
between
slides.)
Use [W] and [X] to select a value from 1 to 30
seconds, or “MAX”.
– If you specify a value from 1 to 30
seconds, images change at the
specified interval, but the audio portion
of movies and audio snapshots will
continue to play until the end,
regardless of the interval setting.
– When “MAX” is selected, only the first
frame of each movie is displayed,
without any playback of the audio.
130 VIEWING SNAPSHOTS AND MOVIES
4. Use [S] and [T] to select “Start” and then
press [SET] to start the slideshow.
The slideshow is performed in accordance with the settings
you configured above.
•You can also scroll through images during a slide show
by pressing [X] (forward) and [W] (back).
•During audio playback, you can adjust volume by
pressing [T] and then using [S] and [T].
To stop a slideshow
Press [SET]. This will return to the PLAY mode.
•Pressing [MENU] instead of [SET] stops the slideshow and
returns to the menu screen.
•Pressing [ ] instead of [SET] stops the slideshow and
switches to the REC mode.
Effect (Select
a special
effect.)
Use [S] and [T] to select the effect you
want.
•Pattern 1, 2, 3, 4: Applies preset effects in
sequence.
•Random: Applies preset effects (Pattern 1,
2, 3, 4) in random sequence.
•Off: No effect applied.
– The “Effect” setting is disabled when
“Favorites” is selected for “Images”, or
when the “Interval” setting is “MAX”, “1”
or “2”.
131 VIEWING SNAPSHOTS AND MOVIES
IMPORTANT!
•All button operations are disabled while the slideshow is
switching from one image to another. Wait until an image is
stopped on the display before performing a button
operation. If a button does not work, wait a bit and try
again.
NOT
E
•Selecting a movie when “One Image” is selected for
“Images” and then selecting a movie for the slideshow will
cause the movie to play back repeatedly within the time
specified by the slideshow “Time” setting.
•In image copied from a computer or an image recorded
with a different type of digital camera may remain on the
screen longer than the time specified by “Interval”.
Use the procedure below to view snapshots and movies on a TV
screen.
1. Use the AV cable that comes with the camera
to connect the camera to a TV.
Viewing Camera Images on a TV
Yellow
VIDEO IN Jack
(Yellow)
White
TV
AUDIO IN Jacks
(White)
AV Cable
USB/AV
connector
Video Audio
Making sure that the T mark on the camera is aligned with
the S mark of the AV cable plug, connect the cable to the
camera.
B
132 VIEWING SNAPSHOTS AND MOVIES
•When connecting the bundled AV cable to the camera’s
USB/AV port, insert the plug into the port until you feel it
click securely into place. Failure to insert the plug fully
can result in poor communication or malfunction of the
connected components.
•Some metal of the plug is visible
even when the plug is inserted
correctly.
2. Turn on the TV and select its video input
mode.
If the TV has more than one video input, select the one
where the camera is connected.
3. Press [ ] to turn on the camera and enter the
PLAY mode.
When the camera turns on in the PLAY mode, an image will
appear on the TV screen. The camera’s monitor screen will
not turn on.
•Pressing [ON/OFF] or [ ] will not turn on the camera.
4. Now you can perform the applicable operation
on the camera for the type of file you want to
play.
To turn off the camera
You can turn off the camera by pressing the camera’s [ON/OFF]
button.
IMPORTANT!
•When connecting to a TV to display images, be sure to
configure the camera’s [ ] (REC) and [ ] (PLAY)
buttons for “Power On” or “Power On/Off” (page 171).
•All icons and indicators that appear on the monitor screen
also appear on the TV screen.
You can use [S] (DISP) to change the display contents.
•Audio is monaural.
•Certain TVs may cut off part of the images.
•Audio is initially output by the camera at maximum volume.
When you first start displaying images, set the TV volume
control at a relatively low level and then adjust it as
required.
B
133 VIEWING SNAPSHOTS AND MOVIES
NOT
E
•You can use the camera to connect to a DVD recorder or
video deck and record images from the camera. There are
various different methods you can use in order to connect
to another device when recording images. The following
describes one method for connection using the AV cable
that comes with the camera.
– DVD recorder or video deck: Connect to the VIDEO IN
and AUDIO IN terminals.
– Camera: Connect to the USB/AV connector
You can play a slideshow of snapshots and movies on the
camera and record it on a DVD or video tape. You can
record movies by selecting “ Only” for the slideshow
“Images” setting (page 129). When recording to DVD
recorder or video deck, you can turn off display information
(page 55) so indicators and other information is not
recorded along with the image.
To view the image that is being recorded, connect a TV or
other monitor to the DVD recorder or video deck that is
connected to the camera. For information about connecting
a monitor to the DVD recorder or video deck and about how
to record, see the user documentation that comes with the
DVD recorder or video deck you are using.
■Selecting the Screen Aspect Ratio and Video
Output System
You can use the procedure in this section to select either NTSC
or PAL as the video output system. You can also specify an
aspect ratio of 4:3 or 16:9.
1. Press [MENU].
2. On the “Set Up” tab, select “Video Out” and
then press [X].
3. Use [S] and [T] to select the setting you want
and then press [SET].
For this type of TV: Select this video
output system:
Standard aspect ratio screen NTSC
TV (Japan, U.S., and other countries) NTSC 4:3
Wide aspect ratio screen NTSC TV
(Japan, U.S., and other countries) NTSC 16:9
Standard aspect ratio screen PAL TV
(Europe and other areas) PAL 4:3
Wide aspect ratio screen PAL TV
(Europe and other areas) PAL 16:9
134 VIEWING SNAPSHOTS AND MOVIES
IMPORTANT!
•Select the aspect ratio (4:3 or 16:9) that matches the type
of TV you plan to use. You may also need to configure the
aspect ratio setting on your TV as well. Incorrect aspect
ratio settings on the camera and/or the TV can result in
abnormal image display.
•Images will not display correctly unless the camera’s video
signal output setting matches the video signal system of
the TV or other video equipment.
•Images will not display correctly on a TV or video
equipment that is not NTSC or PAL.
Perform the following procedure to zoom the image currently on
the monitor screen up to eight times its normal size.
1. In the PLAY mode, use [W] and [X] to display
the snapshot you want to zoom.
2. Press the zoom
button ( ).
Each press of this button
zooms the image more.
You can use [S], [T], [W],
and [X] to move to a
different part of the image
after zooming.
Zooming the Displayed Image
Image Area
Zoom Factor
Part of the image that is
currently displayed.
135 VIEWING SNAPSHOTS AND MOVIES
To zoom back out, press the zoom button ( ).
•If display indicators are turned on, an indicator in the lower
right corner of the monitor screen shows what part of the
zoomed image is currently displayed.
To return to image to normal size
Press [MENU] or [BS].
IMPORTANT!
•Depending on the image size, some images may not be
able to be zoomed to the full 8 times normal size.
You can use the procedure below to display a screen that shows
12 images.
1. In the PLAY mode,
press the zoom button
().
This displays the 12-image
screen with a selection
boundary around the last
image that was on the
monitor screen.
2. Select the image you want.
•Use [W] and [X] to scroll between 12-image screens.
•To view the full-screen version of a particular image, use
[S], [T], [W], and [X] to move the selection boundary to it
and then press [SET].
Using the 12-image Screen
Selection Boundary
136 VIEWING SNAPSHOTS AND MOVIES
Use the following procedure to display a calendar, which shows
the first image recorded on each date of a particular month. This
screen helps to make searching for an image quicker and
easier.
1. In the PLAY mode,
press the zoom button
( ) twice.
This displays the calendar
screen.
•You can also display the
calendar by pressing
[MENU], selecting the
“PLAY” tab, selecting
“Calendar”, and then
pressing [X] to display the
calendar.
•To exit the calendar screen, press [MENU] or [BS].
2. Use [S], [T], [W], and [X] to move the
selection boundary to the date whose image
you want to view and then press [SET].
This will display the first image recorded on that date.
NOT
E
•The year and month on the calendar is displayed using the
same format as you selected for the “Date Style” setting
(page 168).
IMPORTANT!
•Note following points about how certain editing functions of
the camera affect the date with which the image is
associated on the calendar screen.
Using the Calendar Screen
Selection Boundary
Year/Month
Performing this type of
editing operation:
Will associate the resulting
image with this date:
Keystone, Color
Correction, Resize,
Trimming, Copy, MOTION
PRINT
The date that the editing
operation was performed
Editing the date and time
of an image
The date that the original
image was recorded
137 EDITING IMAGES
EDITING IMAGES
You can reduce the size of a snapshot and save the result as a
separate snapshot. The original snapshot is also retained. You
can resize a snapshot to any one of the following sizes.
*M stands for “Mega”, which means “million”.
1. In the PLAY mode, press [MENU].
2. On the “PLAY” tab, select “Resize” and then
press [X].
3. Use [W] and [X] to scroll through images and
display the one you want to resize.
4. Use [S] and [T] to select an image size, and
then press [SET].
•When you select an image size, it will start to cycle
through the following information:
Image Size Number of Pixels Print Size .
The print size indicates the optimum paper size for
printing a snapshot of the selected image size.
5. After you press [SET] in step 4 to resize the
image, the monitor screen returns to step 3.
From there you can repeat steps 3 and 4 to
resize another image if you want.
To exit the resize operation, select “Cancel”.
Resizing a Snapshot
Image Size (Pixels) Print Size
Larger
Smaller
5M*2560 × 1920 A3 Print
3M 2048 × 1536 A4 Print
VGA 640 × 480
E-Mail
•Optimum size for an image
to be attached to e-mail.
138 EDITING IMAGES
IMPORTANT!
•You cannot resize a VGA (640 × 480 pixels) size image.
•Resizing a snapshot shot with an aspect ratio of 16:9 or 3:2
will cause the left and right sides of the image to be cut off.
The aspect ratio of the resulting image will be 4:3.
•The recording date of the resized version of the snapshot
will be the same as the recording date of the original
snapshot.
You can crop a snapshot to trim parts you do not need, and save
the result in a separate file. The original snapshot is also
retained.
1. In the PLAY mode, use [W] and [X] to scroll
through images and display the snapshot you
want to crop.
2. Press [MENU].
3. On the “PLAY” tab,
select “Trimming” and
then press [X].
•This operation can be
performed only while a
snapshot is on the monitor
screen.
Cropping a Snapshot
Represents
Snapshot Area
Zoom Factor
Part of image that is
currently displayed.
139 EDITING IMAGES
4. Use the zoom button to zoom, and [S], [T],
[W], and [X] to move around the zoomed
image to display the part you want to extract.
5. Press [SET] to extract the displayed part and
save it as a separate file.
•To exit the cropping procedure at any time before you
press [SET], press [MENU].
IMPORTANT!
•The image produced by cropping a 3:2 or 16:9 image will
have an aspect ratio of 4:3.
•The recording date of the extracted image will be the same
as the recording date of the original snapshot.
Use the following procedure to correct the snapshot of a
blackboard, document, poster, photograph, or other rectangular
object that is out of square because it was recorded at an angle.
Performing keystone correction on an image causes a new
(corrected) 2M (1600 × 1200 pixels) size image to be stored as a
separate file.
1. In the PLAY mode, use [W] and [X] to scroll
through images and display the snapshot you
want to correct.
2. Press [MENU].
3. On the “PLAY” tab, select “Keystone” and
then press [X].
This displays screen that shows all of the rectangular
shapes in the image that qualify as candidates for keystone
correction.
•Note that the above step is possible only when there is a
snapshot displayed on the monitor screen.
Keystone Correction
140 EDITING IMAGES
4. Use [W] and [X] to
select the candidate
you want to correct.
5. Use [S] and [T] to select “Correct” and then
press [SET].
•Select “Cancel” to exit the procedure without performing
keystone correction.
IMPORTANT!
•If the original image is smaller than 2M (1600 × 1200
pixels) size, the new (corrected) version will be the same
size as the original one.
•When you display a corrected image on the camera’s
monitor screen, the date and time indicate when the image
was originally recorded, not when the image was corrected.
Color restoration let you correct the old color of a photograph
shot with a digital camera. This function is useful for correcting
existing old photographs, posters, etc.
•Performing color restoration on an image causes a new
(restored) 2M (1600 × 1200 pixels) size image to be stored as
a separate file.
1. In the PLAY mode, use [W] and [X] to scroll
through images and display the snapshot you
want to correct.
2. Press [MENU].
3. On the “PLAY” tab, select “Color Correction”
and then press [X].
4. Use [W] and [X] to select the photograph
candidate you want.
5. Use [S] and [T] to select “Trim”, and then
press [SET].
This displays a cropping boundary on the monitor screen.
•To exit color restoration without storing anything, select
“Cancel”.
Using Color Restoration to Correct the
Color of an Old Photograph
141 EDITING IMAGES
6. Use the zoom button to change the cropping
boundary to the desired size.
7. Use [S], [T], [W], and [X] to move the
selection boundary to the desired location and
then press [SET].
The camera will correct color automatically and save the
corrected image.
•If you do not want a border around the resulting image,
select and area that is smaller than the original image.
•To exit color restoration without saving anything, press
[MENU].
IMPORTANT!
•If the original image is smaller than 2M (1600 × 1200
pixels) size, the new (restored) version will be the same
size as the original one.
•When you display a restored image on the camera’s
monitor screen, the date and time indicate when the image
was originally recorded, not when the image was corrected.
NOT
E
•If you want to record the image of an old photograph with
this camera and restore the resulting image, see “Restoring
an Old Photograph” on page 94.
142 EDITING IMAGES
Use the procedure in this section to change the date and time of
a previously recorded image.
1. In the PLAY mode, use [W] and [X] to display
the image whose date and time you want to
edit.
2. Press [MENU].
3. On the “PLAY” tab, select “Date/Time” and
then press [X].
4. Set the date and the time you want.
5. When all the settings are the way you want,
press [SET] to apply them.
•After editing the time and date, display the image to
confirm that the date and time are correct.
IMPORTANT!
•The date and time stamped into an image using the Time
Stamp feature cannot be edited (page 115).
•You cannot edit the date and time of a image that is
protected. Unprotect the image and then edit the date and
time.
•You can specify any date in the range of January 1, 1980 to
December 31, 2049.
Editing the Date and Time of an Image
To do this: Do this:
Change the value at the cursor
location Press [S] or [T].
Move the cursor between settings Press [W] or [X].
Toggle between 12-hour and 24-
hour timekeeping Press [BS].
143 EDITING IMAGES
Perform the following procedure to rotate the image currently on
the monitor screen. This feature comes in handy with a snapshot
that you shot using portrait (vertical) orientation. After rotating a
snapshot, you can return it to its original orientation, if you want.
•Note that this procedure does not actually change the image
data. It simply alters how the snapshot is displayed on the
camera’s monitor screen.
1. In the PLAY mode, press [MENU].
2. On the “PLAY” tab, select “Rotation” and then
press [X].
•This operation can be performed only while a snapshot is
on the monitor screen.
3. Use [W] and [X] to select the snapshot whose
display image you want to rotate.
4. Use [S] and [T] to select “Rotate” and then
press [SET].
•Each press of [SET] will rotate the displayed image 90
degrees left.
5. When the displayed image is at the orientation
you want, press [MENU].
IMPORTANT!
•You cannot rotate an image that is protected. To rotate a
protected snapshot, first remove its protection (page 154).
•Zoomed images cannot be rotated.
•The original (unrotated) version of a snapshot’s image will
be displayed on the 12-image screen and the calendar
screen.
Rotating an Image
144 EDITING IMAGES
You can perform the following cut operations on the camera to
edit movies you have recorded.
IMPORTANT!
•When you edit a movie, only the result is saved. The
original movie is not retained. Once you perform an editing
operation, you will not be able to undo it.
•A movie that is shorter than five seconds cannot be edited.
•The movie editing operation is supported only for movies
that were recorded with this camera.
•You will not be able to edit a movie if the amount of
remaining memory capacity is less than the size of the
movie file you want to edit. If there is not enough memory
available, delete any files you no longer need to free up
more.
•Cutting a movie into two parts or splicing of two movies in
to a single movies cannot be performed on the camera.
Editing a Movie on the Camera
Operation Description
Cut
(To-Point Cut)
Cuts everything from the current
location to the beginning of the movie.
Cut
(Point-To-Point Cut) Cuts everything between two points.
Cut
(From-Point Cut)
Cuts everything from the current
location to the end of the movie.
145 EDITING IMAGES
1. Play back the movie you want to edit.
2. Press [SET] to pause
playback.
•Check to make sure that
“ ” (cut icon) is
displayed on the monitor
screen. If it isn’t, press
[SET] again.
3. Press [T].
•You could also perform the following steps in place of
steps 1 through 3 above.
1In the PLAY mode, select the movie you want to edit
and then press [MENU].
2On the “PLAY” tab, select “Movie Editing” and then
press [X].
4. Use [S] and [T] to select the cut operation
and then press [SET].
•To cancel movie editing, select “Cancel” and then press
[SET]. This will return to the paused movie playback
screen.
5. Select the frame
(point) where you
want to cut the movie.
•To cancel the cut operation, press [MENU]. This will
return to the screen in step 3.
Cut icon To do this: Press this button:
Fast forward or fast reverse
playback [X] or [W]
Pause or unpause movie playback [SET]
Scroll paused playback one frame
forward or back [X] or [W]
Cut range (red)
146 EDITING IMAGES
6. Press [T] to perform the required cut
operation(s).
7. In response to the confirmation message that
appears, use [S] and [T] to select “Yes” and
then press [SET].
•To cancel movie editing, select “No” instead of “Yes” and
then press [SET]. This will return to the paused movie
playback screen.
•The selected cut operation will take considerable time to
complete. Wait until the “Busy... Please wait...” message
disappears from the monitor screen before performing
any operation on the camera. Note that a cut operation
can take a very long time if the movie being edited is long.
For this type of cut
operation: Do this:
Cut
(To-Point Cut)
Select the point up to which you
want to cut and then press [T].
Cut
(From-Point Cut)
Select the point from which you
want to cut and then press [T].
Cut
(Point-To-Point Cut)
1.Select the start point of the
center segment and then
press [T].
2.Select the end point of the
center segment and then
press [T].
147 EDITING IMAGES
MOTION PRINT lets you capture a movie frame and use it to
create a snapshot. The snapshot you create can be either of the
two formats described below.
1. In the PLAY mode, use [W] and [X] to scroll
through images and display the movie that
contains the frame you want to use.
2. Press [MENU].
3. On the “PLAY” tab, select “MOTION PRINT”,
and then press [X].
4. Use [S] and [T] to select either “9 frames” or
“1 frame”.
Creating a Snapshot of a Movie Frame
(MOTION PRINT)
9-frame Snapshot
(2M 1600 × 1200
pixels)
This format puts the selected movie
frame in the center, the four frames that
precede it along top and the four frames
that follow it along the bottom.
1-frame Snapshot
(VGA 640 × 480
pixels)
This format creates a snapshot using the
selected movie frame only.
148 EDITING IMAGES
5. Use [W] and [X] to scroll through the movie
frames and search for the one you want to use
as the image of the snapshot.
•Holding down [W] or [X] scrolls at high speed.
6. After displaying the movie frame you want,
press [SET].
•If you selected “9 frames” in step 4, the camera will create
a 9-frame snapshot with the frame you selected in step 6
in the center.
•If you selected “1 frame” in step 4, the camera will create
a snapshot of the frame you selected in step 6.
IMPORTANT!
•MOTION PRINT is not possible using a movie that was
recorded on a different type of camera.
149 USING AUDIO
USING AUDIO
The dubbing feature of your camera lets you add audio to a
snapshot after you shoot it. A snapshot that includes audio
(regardless of whether the audio was recorded on the spot or
added later) is indicated by the “ ” icon.
You can re-record a snapshot’s audio whenever you want.
You can record up to about 30 seconds of audio for a snapshot.
1. In the PLAY mode, use [W] and [X] to scroll
through images and display the snapshot to
which you want to add audio.
2. Press [MENU].
3. On the “PLAY” tab,
select “Dubbing” and
then press [X].
•This operation can be
performed only while a
snapshot is on the monitor
screen.
4. Press the shutter button to start audio
recording.
5. Press the shutter button again to stop audio
recording.
Recording will stop automatically after about 30 seconds if
you do not press the shutter button.
To play back snapshot audio
Perform the steps under “Listening to the Audio of an Audio
Snapshot” on page 126.
Adding Audio to a Snapshot
150 USING AUDIO
■Re-recording Snapshot Audio
IMPORTANT!
•Note that you cannot restore the original audio once you
delete or re-record the audio of a snapshot.
1. In the PLAY mode, use [W] and [X] to scroll
through images and display the snapshot
whose audio you want to re-record.
2. Press [MENU].
3. On the “PLAY” tab, select “Dubbing” and then
press [X].
4. Use [S] and [T] to select “Delete” and then
press [SET].
•If you just want to delete the audio of the snapshot
without re-recording anything, press [MENU] here and
skip the rest of this procedure.
5. Press the shutter button to start audio
recording.
This deletes the previous recording and replaces it with the
new one.
6. Press the shutter button again to stop audio
recording.
Recording will stop automatically after about 30 seconds if
you do not press the shutter button.
NOT
E
•Your camera supports the following audio data formats.
– Audio Format: WAVE/ADPCM (.WAV extension)
– Approximate Audio File Size: 165KB (30-second
recording at 5.5KB per second)
•See page 80 for recording precautions.
151 USING AUDIO
Voice Recording lets you record audio only, without a snapshot
or movie.
Using built-in memory only, you get up to about 24 minutes of
Voice Recording.
1. In the REC mode, press [BS].
2. Use [S], [T], [W], and
[X] to select “Voice
Recording” and then
press [SET].
This causes “ ” to appear
on the monitor screen.
3. Press the shutter button to start recording.
•The operation lamp flashes green while recording is in
progress.
•Pressing [SET] during recording will insert a marker into
the recording. During later playback, you will be able to
jump to the markers in the recording.
4. Press the shutter button again to stop audio
recording and return to the screen in step 3.
•Recording also will stop automatically if memory
becomes full.
5. Now you can repeat steps 3 and 4 to record
more, or you can exit this procedure by
pressing [BS] and selecting another BEST
SHOT scene.
When exiting this procedure, select “Auto” for normal image
recording.
Recording Audio Only (Voice
Recording)
Remaining Recording Time
Recording Time
B
152 USING AUDIO
NOT
E
•You can also play back Voice Recording data on your
computer using Windows Media Player or QuickTime.
•Your camera supports the following audio data formats.
– Audio Data: WAVE/ADPCM (.WAV extension)
– Approximate Audio File Size: 165 KB (30-second
recording at 5.5KB per second)
•See page 80 for recording precautions.
■Playing Back Voice Recording Data
1. Enter the PLAY mode, and then use [W] and
[X] to display the Voice Recording file you
want to play.
“ ” is displayed in place of an image for a Voice
Recording file.
2. Press [SET] to start
playback.
Voice Recording Playback Controls
To do this: Do this:
Fast forward or fast reverse playback. Hold down [X] or [W].
Pause or restart playback Press [SET].
Jump to a marker in the audio data
while playback is paused. Press [X] or [W].
Adjust volume
•You can adjust volume only while
playback is in progress or paused.
Press [T] and then
use [S] and [T].
Toggle on-screen indicators on or off Press [S] (DISP).
Stop playback Press [MENU].
153 MANAGING YOUR FILES
MANAGING YOUR FILES
Your camera treats each snapshot, movie, and Voice Recording, as a separate file.
You can delete, protect, and copy files as required.
Files are grouped in folders that are created automatically by the camera.
Files and folders have their own unique names, which are assigned automatically by the camera.
•For details about how folders are organized in memory, see “Memory Folder Structure” (page 206).
Files and Folders
Name and Maximum Number Allowed Example
File Each folder can contain up to 9999 files named CIMG0001 through CIMG9999. The
extension on the file name depends on the file type.
•If a folder already contains 9999 files, recording another file will cause a new
folder to be created automatically.
26th file name:
Folders Folders are named from 100CASIO* to 999CASIO*
•There can be up to 900 folders.
*The BEST SHOT mode (page 84) includes a sample scene that optimizes
settings for auction site images. Images recorded with the Auction scene are
stored in a folder named “100_AUCT”.
100th folder name:
ExtensionSerial number
(4 digits)
100CASIO
Serial number (3 digits)
*
154 MANAGING YOUR FILES
NOT
E
•You can view folder and file names on your computer. For
details about how file names are displayed on the camera’s
monitor screen, see page 211.
•The total number of folders and files that is allowed
depends on the image size and quality, and capacity of the
memory card being used for storage.
You can protect an important file to ensure that it cannot be
deleted accidentally.
IMPORTANT!
•Note that even if a file is protected, it will be deleted if you
perform the format operation (pages 14, 48, 172).
■Protecting a Specific File
1. In the PLAY mode, press [MENU].
2. On the “PLAY” tab, select “Protect” and then
press [X].
3. Use [W] and [X] to scroll through images until
the one you want to protect is on the monitor
screen.
Protecting a File Against Deletion
155 MANAGING YOUR FILES
4. Use [S] and [T] to
select “On” and then
press [SET].
An image that is protected is
indicated by the “ ” icon.
5. Now you can repeat steps 3 and 4 to protect
another image or exit this procedure by
pressing [MENU].
To unprotect a specific file
Perform the procedure under “Protecting a Specific File”, but in
step 4 select “Off” instead of “On”.
■Protecting All Files in Memory
1. In the PLAY mode, press [MENU].
2. On the “PLAY” tab, select “Protect” and then
press [X].
3. Use [S] and [T] to select “All Files : On” and
then press [SET].
This protects all files currently in memory.
4. Press [MENU].
To unprotect all files in memory
Perform the procedure under “Protecting All Files in Memory”,
but in step 3 select “All Files : Off” instead of “All Files : On”.
156 MANAGING YOUR FILES
The FAVORITE folder is located in the camera’s built-in
memory, and you can use it to store personal snapshots that you
do not want displayed during normal PLAY mode operations.
FAVORITE folder snapshots remain in camera memory, even if
you change to a different memory card.
IMPORTANT!
•The FAVORITE folder can be used for snapshots only.
Saving an audio snapshot in the FAVORITE folder will save
the snapshot part only.
■Copying a File to the FAVORITE Folder
1. In the PLAY mode, press [MENU].
2. On the “PLAY” tab, select “Favorites” and
then press [X].
3. Use [S] and [T] to select “Save” and then
press [SET].
4. Use [W] and [X] to select the snapshot you
want to copy to the FAVORITE folder.
5. Use [S] and [T] to select “Save”, and then
press [SET].
This saves a copy of the snapshot to the FAVORITE folder.
6. Now you can repeat steps 4 and 5 to save
another image, or press [MENU] twice to exit
this procedure.
IMPORTANT!
•The snapshot copied to the FAVORITE folder is converted
to QVGA size (320 × 240 pixels). A snapshot in the
FAVORITE folder cannot be restored to its original size.
•Snapshots in the FAVORITE folder cannot be copied to a
memory card.
NOT
•The number of snapshots that can be stored in the
FAVORITE folder depends on the image quality of each
one, and how much built-in memory capacity is remaining.
Using the FAVORITE Folder
157 MANAGING YOUR FILES
■Viewing Snapshots in the FAVORITE Folder
1. In the PLAY mode, press [MENU].
2. On the “PLAY” tab, select “Favorites” and
then press [X].
3. Use [S] and [T] to select “Show” and then
press [SET].
4. Use [W] and [X] to
scroll through the
snapshots in the
FAVORITE folder.
5. After you are finished viewing the FAVORITE
folder snapshots, press [MENU] twice to exit
this procedure.
Perform the following steps to view FAVORITE folder
contents on your computer.
1. Remove the memory card from the camera.
2. Connect the camera to the computer.
3. Perform the required operations on your
computer to navigate to the camera’s memory
and display the FAVORITE folder contents.
FAVORITE folder icon
File Name
158 MANAGING YOUR FILES
Files can be copied from the camera’s built-in memory to a
memory card, or from a memory card to built-in memory.
This makes it possible, for example, to perform the following
steps and copy a file from your memory card to another person’s
memory card.
1Copy the file from your memory card to the camera’s built-in
memory.
2Remove your memory card and insert the other person’s
memory card.
3Copy the file from built-in memory to the other memory card.
IMPORTANT!
•You can copy snapshots, movies, audio snapshots, or
Voice Recording files you recorded with your camera.
•You cannot copy a snapshot that is in the FAVORITE
folder.
•When a copied file image appears on the full-month
calendar screen, it is displayed on the date that it was
copied (page 136).
■Copying All Files in Built-in Memory to a
Memory Card
The following operation copies all files from built-in memory to a
memory card. You cannot copy files individually.
1. Load the memory card to which you want to
copy the files into the camera.
2. Turn on the camera, enter the PLAY mode and
then press [MENU].
3. On the “PLAY” tab, select “Copy” and then
press [X].
4. Use [S] and [T] to select “Built-in Card”
and then press [SET].
This starts the copy operation. Wait until the “Busy... Please
wait...” message disappears from the monitor screen before
performing any operation on the camera.
•After the copy operation is complete, the last file copied
will be displayed on the monitor screen.
Copying Files
159 MANAGING YOUR FILES
■Copying a Single File from a Memory Card to
Built-in Memory
With this procedure, files must be copied one-by-one.
1. Load the memory card that contains the file
you want to copy into the camera.
2. Turn on the camera, enter the PLAY mode and
then press [MENU].
3. On the “PLAY” tab, select “Copy” and then
press [X].
4. Use [S] and [T] to select “Card Built-in”
and then press [SET].
5. Use [W] and [X] to select the file you want to
copy.
6. Use [S] and [T] to select “Copy” and then
press [SET].
This starts the copy operation. Wait until the “Busy... Please
wait...” message disappears from the monitor screen before
performing any operation on the camera.
•The copied image reappears on the monitor screen after
the copy operation is complete.
7. Now you can repeat steps 5 and 6 to copy
another file, or you can exit this procedure by
pressing [MENU].
NOT
•Files are copied to the folder in built-in memory whose
name has the largest serial number.
160 DELETING FILES
DELETING FILES
You can delete files you no longer need, or after you transfer
them to your computer’s hard disk or print them. This frees up
memory for new files.
You can delete one specific file, or you can delete all files
currently in memory.
Here we will explain the different file delete procedures,
including how to delete snapshots from the FAVORITE folders.
IMPORTANT!
•Remember that a file delete operation cannot be undone.
Always make sure that you really no longer need a file
before deleting it.
•A protected file cannot be deleted. To delete a protected
file, first remove its protection (page 154).
•Deleting an audio snapshot deletes both the snapshot and
the audio file.
1. In the PLAY mode,
press [T] ( ).
2. Use [W] and [X] to scroll through the images
until the one for the file you want to delete is
on the monitor screen.
3. Use [S] and [T] to select “Delete” and then
press [SET].
•To exit the delete operation without deleting anything,
select “Cancel”.
4. Now you can repeat steps 2 and 3 to delete
another file.
•You can exit this procedure by pressing [MENU].
Deleting a Specific File
161 DELETING FILES
1. In the PLAY mode, press [T] ( ).
2. Use [S] and [T] to select “All Files Delete”
and then press [SET].
3. In response to the confirmation message that
appears, use [S] and [T] to select “Yes”.
•To cancel the delete operation, select “No” instead of
“Yes”.
4. Press [SET].
•This deletes all of the files and displays the message
“There are no files.”
You can delete a single snapshot, or you can delete all the
snapshots currently in the FAVORITE folder.
1. In the PLAY mode, press [MENU].
2. On the “PLAY” tab, select “Favorites” and
then press [X].
3. Use [S] and [T] to select “Show” and then
press [SET].
4. Press [T] ( ).
5. Use the procedures under “Deleting a Specific
File” and “Deleting All Files” to delete the
snapshots you want.
•You can exit this procedure by pressing [MENU] twice.
Deleting All Files Deleting FAVORITE Folder Snapshots
162 OTHER SETTINGS
OTHER SETTINGS
Your camera lets you configure the following sound settings.
•Type of sound and volume for shutter release and other
operations
•Volume level for movie and Voice Recording playback
■Selecting the Operation Sound
1. Press [MENU].
2. On the “Set Up” tab, select “Sounds” and then
press [X].
3. Use [S] and [T] to select the operation whose
sound you want to configure (Startup, Half
Shutter, Shutter, Operation) and then press
[X].
4. Use [S] and [T] to select the setting you want
and then press [SET].
■Setting the Operation Tone Volume Level
1. Press [MENU].
2. On the “Set Up” tab, select “Sounds” and then
press [X].
3. Use [S] and [T] to select “ Operation”.
4. Use [W] and [X] to specify the playback
volume setting you want and then press [SET].
•You can set the volume to one of eight levels in the range
of 0 (lowest) to 7 (highest).
•Setting a volume level of 0 mutes the sound.
NOT
•The volume setting you configure here is also applied to
video output (page 131).
Configuring Camera Sound Settings
To do this: Select this setting:
Sound one of the built-in
sounds (1 through 5) Sound 1 - 5
Turn sound off Off
B
163 OTHER SETTINGS
■Setting the Playback Volume Level
You can use this procedure to set the playback volume level for
movies and audio snapshots, independent of the operation tone
volume.
1. Press [MENU].
2. On the “Set Up” tab, select “Sounds” and then
press [X].
3. Use [S] and [T] to select “ Play”.
4. Use [W] and [X] to specify the operation tone
volume setting you want and then press [SET].
•You can set the volume to one of eight levels in the range
of 0 (lowest) to 7 (highest).
•Setting a volume level of 0 mutes the sound.
IMPORTANT!
•The volume setting you configure here does not affect the
video output (page 131).
You can configure the camera to display a startup screen of an
image you recorded, whenever you turn it on.
•Even if you configure startup screen settings in the PLAY
mode, the startup screen does not appear when turn on the
camera by pressing [ ] (PLAY).
1. Press [MENU].
2. On the “Set Up” tab, select “Startup” and then
press [X].
3. Use [W] and [X] to scroll through the images
until the one you want to use as the startup
screen is on the monitor screen.
4. Use [S] and [T] to select the setting you want
and then press [SET].
Turning the Startup Screen On or Off
To do this: Select this setting:
Use the selected image as the
startup screen On
Turn off the startup screen Off
B
164 OTHER SETTINGS
NOT
E
•The following are the types of images that you can select
for the startup screen.
– Special startup screen images built into the camera
– Snapshots
– Audio snapshots (Audio does not play.)
•Only one startup screen image can be in effect at any time.
To change the startup screen to another image, simply
overwrite the current image with the new one.
•Formatting built-in memory (page 172) will delete the
current startup screen image.
Use the following procedure to specify the rule that governs
generation of the serial number used in file names (page 153).
1. Press [MENU].
2. On the “Set Up” tab, select “File No.” and then
press [X].
3. Use [S] and [T] to select the setting you want
and then press [SET].
Specifying the File Name Serial
Number Generation Rule
B
165 OTHER SETTINGS
When changing the date and time setting, be sure to do so for
your Home City (the location where you normally use the
camera). If you already have your Home City setting configured
correctly, you can use the procedure under “Setting the Date
and Time for Your Home City” (page 166) to change the current
time setting only, if you want.
IMPORTANT!
•Changing the time and date setting without correctly
configuring your Home City setting first will cause all of the
World Time (page 168) dates and times to be off.
■Selecting Your Home City
1. Press [MENU].
2. On the “Set Up” tab, select “World Time” and
then press [X].
This displays the current World Time settings.
To have the camera do this:
Select
this
setting:
Remember the numbers used for files. Files will
be named using the next sequential number,
even if files are deleted or if a blank memory card
is loaded.
•If a memory card is loaded that already has
files stored on it and the largest sequential
number in the existing file names is greater
than the largest sequential number
remembered by the camera, numbering of new
files will start from the largest sequential
number in the existing file names plus 1.
Continue
Restart the serial number from 0001 whenever all
files are deleted or when the memory card is
replaced with a blank one.
•If a memory card is loaded that already has
files stored on it, numbering of new files will
start from the largest sequential number in the
existing file names number plus 1.
Reset
Changing the Camera Date and Time
Setting
B
166 OTHER SETTINGS
3. Use [S] and [T] to select “Home” and then
press [X].
4. Use [S] and [T] to select “City” and then
press [X].
5. Use [S], [T], [W], and [X] to select the area
where your Home City is located and then
press [SET].
6. Use [S] and [T] to select your home city and
then press [SET].
7. After the setting is the way you want, press
[SET] to exit the setting screen.
■Setting the Date and Time for Your Home
City
1. Press [MENU].
2. On the “Set Up” tab, select “Adjust” and then
press [X].
3. Set the date and the time.
4. After all of the settings are the way you want,
press [SET] to exit the setting screen.
To do this: Do this:
Move the cursor between settings Press [W] or [X].
Change the setting at the cursor
location Press [S] or [T].
Toggle between 12-hour and 24-hour
format Press [BS].
167 OTHER SETTINGS
■Changing the Date Format
You can select from among three different formats for the date.
1. Press [MENU].
2. On the “Set Up” tab, select “Date Style” and
then press [X].
3. Use [S] and [T] to select the setting you want
and then press [SET].
Example: December 19, 2007
NOT
E
•This setting also affects the Operation Panel date format as
shown below (page 52).
To display the date like this: Select this format:
07/12/19 YY/MM/DD
19/12/07 DD/MM/YY
12/19/07 MM/DD/YY
When this date format setting
is selected:
The Operation Panel
date appears as:
YY/MM/DD or MM/DD/YY MM/DD
DD/MM/YY DD/MM
168 OTHER SETTINGS
You can use the World Time screen to view the current time in
zone that is different from your Home City when you go on a trip,
etc. World Time displays the current time in 162 cities in 32 time
zones around the globe.
Configuring World Time Settings
1. Press [MENU].
2. On the “Set Up” tab, select “World Time” and
then press [X].
3. Use [S] and [T] to select “World” and then
press [X].
4. Use [S] and [T] to
select “City” and then
press [X].
•To configure the summer
time setting, use [S] and
[T] to select “DST” and
then select “On”.
•Summer time is used in some areas to advance the
current time setting by one hour during the summer
months.
•Use of summer time depends on the local customs and
laws.
5. Use [S], [T], [W], and [X] to select the area
where the city you want to view is located and
then press [SET].
6. Use [S] and [T] to select the city you want
and then press [SET].
7. After the setting is the way you want, press
[SET] to exit the setting screen.
Using World Time
169 OTHER SETTINGS
■Switching between the Home Time and
World Time Screens
1. Press [MENU].
2. On the “Set Up” tab, select “World Time” and
then press [X].
3. Use [S] and [T] to select “World” for the
World Time screen, or “Home” for the Home
Time screen.
4. After selecting the screen you want, press
[SET] to exit the setting screen.
You can use the procedure below to select a display text
language.
•The number and types of languages depend on the
geographic area where the camera was marketed.
1. Press [MENU].
2. On the “Set Up” tab, select “Language” and
then press [X].
3. Use [S], [T], [W], and [X] to select the setting
you want and then press [SET].
Changing the Display Language
170 OTHER SETTINGS
You can use the procedure below to change the USB
communication protocol that is used when exchanging data with
a computer, printer, or other external device. Select the protocol
that suits the device to which you are connecting.
1. Press [MENU].
2. On the “Set Up” tab, select “USB” and then
press [X].
3. Use [S] and [T] to select the setting you want
and then press [SET].
Changing the USB Port Protocol
When you want to connect to this type
of device:
Select this
setting:
Computer or a printer that supports USB
DIRECT-PRINT (page 174)
With this setting, the computer sees the
camera as an external storage device.
Use this setting for normal transfer of
images from the camera to a computer
(using the bundled Photo Loader with
HOT ALBUM application).
Mass Storage
(USB DIRECT-
PRINT)
Printer that supports PictBridge (page
174)
This setting simplifies the transfer of
image data to the connected device.
PTP
(PictBridge)
B
171 OTHER SETTINGS
You configure the camera so it does not turn on when you press
the [ ] (REC) or [ ] (PLAY) button, or to turn off when you
press the [ ] (REC) or [ ] (PLAY) button.
1. Press [MENU].
2. On the “Set Up” tab, select “REC/PLAY” and
then press [X].
3. Use [S] and [T] to select the setting you want
and then press [SET].
NOT
E
•With “Power On/Off”, the camera turns off when you press
[ ] (REC) in the REC mode or [ ] (PLAY) in the PLAY
mode.
•The initial factory default for this setting is “Power On”.
•Change this setting to anything besides “Disable” before
connecting to a TV for image viewing.
[ ] (REC) and [ ] (PLAY) Button
Settings
To configure the button to do
this when pressed: Select this setting:
Turn on the camera Power On
Turn on or turn off the camera Power On/Off
Do not turn on the camera Disable
172 OTHER SETTINGS
Formatting built-in memory deletes any data stored in it.
IMPORTANT!
•Note that data deleted by a format operation cannot be
recovered. Check to make sure you do not need any of the
data in built-in memory before you format it.
•Formatting built-in memory also deletes the following.
– Protected images
– FAVORITE folder images
– BEST SHOT mode user setups
– Startup screen
•Make sure that the battery is charged fully before starting a
formatting operation. Formatting may not be performed
correctly and the camera may stop operating normally if the
camera powers down while formatting is in progress.
•Never open the battery cover while formatting is in
progress. Doing so can cause the camera to stop operating
normally.
1. Check to make sure there is no memory card
loaded in the camera.
•If there is a memory card loaded in the camera, remove it.
2. Press [MENU].
3. On the “Set Up” tab, select “Format” and then
press [X].
4. Use [S] and [T] to select “Format” and then
press [SET].
This formats built-in memory.
•To exit the format operation without formatting, select
“Cancel”.
•Entering the PLAY mode after formatting the built-in
memory will cause the message “There are no files.” to
appear.
Formatting Built-in Memory
173 PRINTING
PRINTING
There are three different methods you can use for printing images.
Types of Printing
Professional
Print Service
(page 174)
Take the memory card that contains the images you want to print to a
professional print service.
•You can use DPOF settings to specify which images you want to print,
the number of copies, and date stamp settings before taking the card in
for printing.
Printing at
Home
Printing on a Printer (page 174) Print on a printer that supports PictBridge or USB DIRECT-PRINT, or on a
printer equipped with a memory card slot.
•You can use DPOF settings to specify which images you want to print,
the number of copies, and date stamp settings before printing.
Printing with a Computer ■Windows Computer
Install the software (Photo Loader with HOT ALBUM) that comes bundled
with the camera.
See “Using the Camera with a Windows Computer” on page 183.
■Macintosh
After transferring the images to your Macintosh, use commercially
available software to print.
See “Using the Camera with a Macintosh” on page 199.
B
174 PRINTING
■Printing Precautions
•See the documentation that comes with your printer for
information about print quality and paper settings.
•Contact the manufacturer of your printer to find out if it
supports PictBridge or USB DIRECT-PRINT, for new printer
versions, etc.
•Never disconnect cables or perform any camera operation
while printing is in progress. Doing so can cause a printer
error.
Take a memory card that contains the images you want to print
to the professional print service. Before taking in a memory card,
you can use the camera’s DPOF settings (page 177) to specify
which images you want printed, the number of copies, and
whether or not the images should include a date stamp.
If your printer is either of the types described below, you can use
it to print without going through a computer.
– Printer equipped with a card slot for the type of memory
card you are using
– Printer that support PictBridge or USB DIRECT-PRINT
■Printing on a Printer with a Memory Card
Slot
Remove a memory card from the camera and insert it directly
into the printer’s memory card slot. Depending on what type of
printer you are using, it also may be able to read the settings
(images to be printed, number of copies, date stamping) you
configure with the camera’s DPOF settings (page 177). For
details, see the user documentation that comes with your printer.
Using Professional Print Service
Using Your Printer to Print Images
B
175 PRINTING
■Printing on a Printer that Supports
PictBridge or USB DIRECT-PRINT
You can connect the camera directly to a PictBridge or USB
DIRECT-PRINT compliant printer and print images without going
through a computer.
•The camera also allows easy connection to a printer. Before
connecting to a printer, be sure to perform the following
procedure first.
1. Press [MENU].
2. On the “Set Up” tab, select “USB” and then
press [X].
3. Use [S] and [T] to select the setting that suits
your printer and then press [SET].
4. Check the battery level indicator to make sure
that the battery is fully charged, and then turn
off the camera.
•If battery power is low, replace the battery.
•The camera does not draw power over the USB cable.
5. Use the USB cable that comes with the camera
to connect the camera to a printer.
•When connecting the bundled USB cable to the camera’s
USB/AV port, insert the plug into the port until you feel it
click securely into place. Failure to insert the plug fully
can result in poor communication or malfunction of the
connected components.
For this type of printer: Select this setting:
USB DIRECT-PRINT compatible Mass Storage
PictBridge compatible PTP
USB
USB Port
USB Cable
USB/AV connector
Making sure that the T mark on the camera is aligned with
the S mark of the USB cable plug, connect the cable to the
camera.
B
176 PRINTING
•Some metal of the plug is visible
even when the plug is inserted
correctly.
•Take care when connecting the USB
cable to the camera or your printer.
USB ports and cable plugs are
shaped for proper positioning.
6. Turn on the printer.
7. Load paper into the printer.
8. Turn on the camera.
This displays a print menu on
the camera’s monitor screen.
9. Use [S] and [T] to select “Paper Size” and
then press [X].
10.
Use [S] and [T] to select a paper size and
then press [SET].
•The following are the available paper sizes.
3.5" × 5", 5" × 7", 4" × 6", A4, 8.5" × 11", By Printer
•Selecting “By Printer” prints using a paper size selected
on the printer.
•Available paper settings depend on the connected
printer. For full details, see the user documentation that
comes with your printer.
11.
Use [S] and [T] to specify the print option
you want.
If you want to print a specific image:
Select “1 Image” and then press [SET]. After that, use [W]
and [X] to display the image you want to print.
If you want to print multiple images:
Select “DPOF Printing” and then press [SET]. Next, use
the DPOF settings (page 177) to specify the images you
want to select.
•To toggle date stamping on
and off, press [BS]. The
date stamp will be printed
when “On” is indicated on
the monitor screen.
B
177 PRINTING
12.
Use [S] and [T] to select “Print” and then
press [SET].
Printing will start and the message “Busy... Please wait...”
will appear on the monitor screen. The message will
disappear after a short while, even though printing is still
being performed. Pressing any camera button will cause the
printing status message to re-appear.
The print menu screen will re-appear when printing is
complete.
•If you selected “1 Image” in step 11, you can repeat the
procedure from step 11 to print other images, if you want.
13.
After printing is complete, turn off the camera
and then disconnect the USB cable from the
camera.
DPOF (Digital Print Order Format) lets you specify
which images you want to print, the number of
copies, and whether date stamping is turned on or
off. The settings you configure are recorded on the
memory card. After configuring settings you can
use the memory card to print on a home printer that supports
DPOF or take the memory card to a professional print service.
With DPOF, you can configure settings while viewing the actual
images on the camera’s monitor screen, so there is no need to
recall hard-to-remember files names, etc.
IMPORTANT!
•Some printers may ignore time stamp settings or may not
support DPOF at all. Check the user documentation that
comes with your printer for details.
•Certain print service providers may not support DPOF or
may support different printing protocols. In this case, you
will need to perform printing in accordance with the
instructions provided by the print service you are using.
Using DPOF to Specify Images to be
Printed and the Number of Copies
178 PRINTING
■Configuring DPOF Settings Individually for
Each Image
1. In the PLAY mode, press [MENU].
2. On the “PLAY” tab,
select “DPOF
Printing” and then
press [X].
3. Use [S] and [T] to select “Select images” and
then press [X].
4. Use [W] and [X] to scroll through the images
until the one you want to print is on the
monitor screen.
5. Use [S] and [T] to specify the number of
copies.
•You can specify up to 99 for the number of copies.
Specify 0 if you do not want to print the image.
6. If you want to include the date in the image,
press [BS] to toggle date stamping on and off.
•To turn off date stamping, press [BS] so “Off” is
displayed.
•Repeat steps 4 through 6 to configure settings for other
images, if you want.
7. After everything is the way you want, press
[SET] to save the settings.
179 PRINTING
■Configuring the Same DPOF Settings for All
the Images
1. In the PLAY mode, press [MENU].
2. On the “PLAY” tab, select “DPOF Printing”
and then press [X].
3. Use [S] and [T] to select “All images” and
then press [X].
4. Use [S] and [T] to specify the number of
copies.
•You can specify up to 99 for the number of copies.
Specify 0 if you do not want to print.
5. If you want to include the date in the images,
press [BS] to toggle date stamping on and off.
•To turn off date stamping, press [BS] so “Off” is
displayed.
6. After everything is the way you want, press
[SET] to save the settings.
Clear DPOF settings when you no longer need them!
DPOF settings are not cleared automatically after printing is
complete. This means that if you perform another printing
operation without clearing DPOF settings, printing will be
performed in accordance with the last settings you configured. If
you no longer need the currently configured DPOF settings, use
the procedure under “Configuring the Same DPOF Settings for
All the Images” to change the number of copies setting for all the
images to 00.
Tell your print service about your DPOF settings!
If you take a memory card to a professional print service, be
sure to tell them that it includes DPOF settings for the images to
be printed and the number of copies. If you don’t, the print
service may print all the images without regard to your DPOF
settings, or they may ignore your date stamp setting.
180 PRINTING
Date Stamping
You can use any one of the following three methods to include
the recording date in the printout of an image.
•Configure DPOF settings on the camera to specify date
stamping (page 177)
– If an image already has the date or time stamped into it
using the camera’s Date Stamping feature, turning on
DPOF date stamping will cause the two dates to be
stamped in the same location. Be sure to turn off DPOF
date stamping when printing an image that is stamped with
the camera’s Date Stamping function.
– Some printers may ignore time stamp settings or may not
support DPOF at all. Check the user documentation that
comes with your printer for details.
– Note that some professional print services do not support
DPOF printing. Check with your service before ordering
prints.
•The camera’s Date Stamping feature stamps the date and
time directly into the image data (page 115).
•You can insert dates using the bundled Photo Loader
with HOT ALBUM (page 183) software (Windows only).
•Request date stamping when ordering prints from a
professional print service
– Some print services do not support date printing. Check
with your service for more information.
181 PRINTING
Your camera supports the protocols described below.
■PictBridge and USB DIRECT-PRINT
•PictBridge
Camera and Imaging Products Association
(CIPA)
•USB DIRECT-PRINT
Seiko Epson Corporation
■PRINT Image Matching III
Using image editing software and printing on a
printer that also supports PRINT Image Matching
III makes it possible to use information about
shooting conditions that is recorded with the
image, and produce exactly the type of image you
want.
PRINT Image Matching and PRINT Image Matching III are
trademarks of Seiko Epson Corporation.
■Exif Print
Printing on a printer that also supports Exif
Print (Exif 2.2) uses information about
shooting conditions recorded with the image
to enhance printed image quality.
Contact your printer manufacturer for information about models
that support Exif Print, printer upgrades, etc.
Supported Protocols
B
182 USING THE CAMERA WITH A COMPUTER
USING THE CAMERA WITH A COMPUTER
Connecting the camera to a computer provides you with the
capabilities described below.
*You can also transfer images to a computer for viewing and
storage without connecting the camera, by removing the
memory card from the camera and reading the contents of the
card with your computer (page 205).
What you can do
View and
store images*
You can use your computer to view camera
images and for long-term storage of images.
•With some versions of Windows you need
to install the USB driver that comes
bundled with the camera.
•Installation of a USB driver is not required
for the Apple Macintosh.
Manage, edit,
and print
images
You can use the software that comes
bundled with the camera to perform various
operations with the images stored on your
computer’s hard disk.
•Refer to the explanations later in this
section and install the required software on
your computers.
Transfer
images to the
camera
On a Windows computer (only), you can
transfer images from your computer to
camera memory.
•You can even transfer images that were
not originally recorded with the camera.
You can capture (cut) a portion of the
image (web page, map, etc.) currently on
your computer screen and transfer it to
camera memory.
B
183 USING THE CAMERA WITH A COMPUTER
The procedures you need to perform when using the camera
with your computer and when using the bundled software are
different for Windows and the Macintosh.
•Windows users should refer to “Using the Camera with a
Windows Computer” on page 183.
•Macintosh users should refer to “Using the Camera with a
Macintosh” on page 199.
Install the required software in accordance with what version of
Windows you are running and what you want to do.
Using the Camera with a Windows
Computer
Objective Windows
Version Install this software: See
page:
•Viewing
images on
a computer
•Storing
images on
a computer
Vista/XP/
2000/Me
–
(USB driver not required.) –
98SE/98
USB driver Type B
(USB driver. Be sure to
install this driver.) 186
Transfer of
images from
the camera
and
management
of images on
the computer
Vista/XP/
2000
Photo Loader with HOT
ALBUM 3.1
DirectX 9.0c (When DirectX
9.0 or higher is not installed
on the computer already.)
192
184 USING THE CAMERA WITH A COMPUTER
Play movies
Vista/XP/
2000/Me/
98SE/98
DirectX 9.0c
Windows 2000/98SE/98
Users of the above
operating systems also
need to install DirectX 9.0c
if DirectX 9.0 or greater is
not already installed on your
system (page 193).
•Windows Media Player is
not included on the CD-
ROM that comes bundled
with the camera, but it is
included with Windows.
Use the Windows Media
Player application that is
installed with Windows
for playback.
194
Edit movies
Vista/XP/
2000/Me/
98SE/98
–
•Use commercial software
as required.
–
Transfer
images to the
camera
Vista/XP/
2000/Me/
98SE/98
Photo Transport 1.0
194
Objective Windows
Version Install this software: See
page:
View the
User’s Guide
XP/2000/
Me/98SE
Adobe Reader 6.0
(Not required if already
installed.)
198
98
–
•If your computer does not
have Adobe Reader or
Adobe Acrobat Reader
installed already, go to
the Adobe Systems
Incorporated website to
download and install
Acrobat Reader 5.0.5.
–
Objective Windows
Version Install this software: See
page:
185 USING THE CAMERA WITH A COMPUTER
■Computer System Requirements for
Bundled Software
Computer system requirements are different for each of the
applications. Be sure to check the requirements for the particular
application you are trying to use. Note that the values provided
here are minimum requirements for running each application.
Actual requirements are greater, depending on the number of
images and the sizes of the images being handled.
USB driver Type B
•Installation is not required in the case of Windows Vista, XP,
2000, and Me.
•Correct operation is not guaranteed on a computer that has
been upgraded from Windows 95 or 3.1.
Photo Loader with HOT ALBUM 3.1
DirectX 9.0c
Photo Transport 1.0
Adobe Reader 6.0
IMPORTANT!
•For details about the minimum system requirements for
each software application, see the “Read me” files on the
CD-ROM that comes bundled with the camera.
HD :At least 2GB
Other: DirectX 9.0 or higher
HD: 65MB for installation (18MB on hard disk)
Memory : At least 64MB
HD : At least 2MB
CPU : Pentium
Memory : 32MB
HD : 60MB
Other : Internet Explorer 5.01 or higher
186 USING THE CAMERA WITH A COMPUTER
Viewing and Storing Images on a
Computer
You can view and store images (snapshot and movie files) on
your computer by connecting to the camera.
•Depending on what version of Windows your computer is
running, you may need to install the USB driver from the
bundled CD-ROM first.
General Procedure
■Installing the USB Driver (Windows 98SE
and 98 Only)
The following operation shows how to install the USB driver on a
computer running Windows 98. The procedure for Windows
98SE is slightly different, but the general flow is the same.
1. Set the bundled CD-ROM into the CD-ROM
drive of your computer.
•This will display the menu screen.
2. On the menu screen, click the “English” tab.
•You could also click another language, if you prefer.
1) If your computer is running Windows 98SE or 98, install the USB
driver (page 186). If your computer is running Windows Vista,
XP, 2000, or Me, proceed directly to step 2.
2) Connecting the camera to your computer (page 187).
3) View and copy the images you want (page 189).
Do not try to establish a connection between the camera
and computer before installing the USB driver on the
computer.
If you do, the computer will not be able to recognize the
camera.
If your computer is running Windows 98SE or 98, be sure to
install the USB driver.
Do not connect the camera to your computer without installing
the USB driver first.
187 USING THE CAMERA WITH A COMPUTER
3. Click “USB driver B” to select it and then click
“Install”.
4. Follow the instructions that appear on the
dialog box and click “Next”.
5. When the final screen is reached, click
“Finish”.
•Depending on the version of Windows that your computer
is running, a message may appear telling you to restart
your computer. If your computer displays such a
message, restart.
6. To exit the installer, click [Exit] to close the
CD-ROM menu and then remove the CD-ROM
from your computer.
•Depending on what version of Windows your computer is
running, your computer may restart automatically. If this
happens, the CD-ROM menu may re-appear after the
restart. Click “Exit” to exit the CD-ROM menu and then
remove the CD-ROM from your computer.
■Connecting the Camera to Your Computer
the First Time
1. Make sure the camera’s battery is fully
charged.
2. Turn on the camera, and then press [MENU].
•It makes no difference whether the camera is in the REC
mode or the PLAY mode.
3. Select the “Set Up” tab, select “USB”, and
then press [S]
4. Use [S] and [T] to select “Mass Storage”, and
then press [SET].
188 USING THE CAMERA WITH A COMPUTER
5. Turn off the camera, and connect the USB
cable that comes bundled with the camera to
the camera’s USB/AV connector and your
computer’s USB port.
•When connecting the bundled USB cable to the camera’s
USB/AV port, insert the plug into the port until you feel it
click securely into place. Failure to insert the plug fully
can result in poor communication or malfunction of the
connected components.
•Some metal of the plug is visible
even when the plug is inserted
correctly.
•Take care when connecting the USB
cable to the camera or your
computer. USB ports and cable plugs
are shaped for proper positioning.
6. Turn on the camera.
Camera-Computer Connection
Pressing the camera’s [ON/OFF] button puts it into the USB
mode, which is indicated by the camera’s operation lamp lighting
green. In this mode, your computer recognizes the memory card
loaded in the camera (or the camera’s built-in memory if it does
not have a memory card loaded) as a removable disk.
From now on, you will not have to perform steps 3 through 5 in
the above procedure when you connect the camera to your
computer (unless you change the camera’s USB settings for
some reason).
•With some Windows setups, you may see a guidance
message appear on your display to let you know about the
new removable disk. If this happens, simply close the
guidance message dialog box.
USB Port USB Cable
Making sure that the T mark on the camera is
aligned with the S mark of the USB cable plug,
connect the cable to the camera.
USB/AV connector
B
189 USING THE CAMERA WITH A COMPUTER
IMPORTANT!
•Never disconnect the USB cable without exiting the USB
mode first. Doing so can corrupt image data. See
“Disconnect the camera from the computer” on page 192
for the correct steps you need to perform to disconnect the
camera from the computer safely.
■Connecting the Camera to Your Computer
after the First Time
Since you need to install the USB driver and configure menu
settings only the first time you connect the camera to your
computer, later connections are much simpler.
1. Turn off the camera, and connect the USB
cable that comes bundled with the camera to
the camera and your computer.
2. Turn on the camera.
Pressing the camera’s [ON/OFF] button puts it into the USB
mode, which is indicated by the camera’s operation lamp
lighting green.
■Viewing Camera Images on Your Computer
After connecting the camera to your computer, you can view
camera images on your computer screen.
1. Windows XP users: Click “Start” and then “My
Computer”.
Windows Vista users: Click “Start” and then
“Computer”.
Windows 2000/Me/98SE/98 users: Double-
click “My Computer”.
2. Double-click “Removable Disk”.
•Your computer recognizes the memory card loaded in the
camera (or built-in memory if there is no card) as a
removable disk.
3. Double-click the “DCIM” folder.
4. Double-click the folder that contains the image
you want to view.
190 USING THE CAMERA WITH A COMPUTER
5. Double-click the file that contains the image
you want to view.
This displays the image.
•For information about file names, see “Memory Folder
Structure” on page 206.
NOT
E
•An image that was rotated on the camera will be displayed
on your computer screen in its original (unrotated)
orientation.
■Saving an Image on Your Computer
In order to work on an image or put it into an album, you must
first save it to your computer. To save a camera image to your
computer, you must first establish a connection between them.
1. Windows XP users: Click “Start” and then “My
Computer”.
Windows Vista users: Click “Start” and then
“Computer”.
Windows 2000/Me/98SE/98 users: Double-
click “My Computer”.
2. Double-click “Removable Disk”.
•Your computer recognizes the memory card loaded in the
camera (or built-in memory if there is no card) as a
removable disk.
3. Right-click the “DCIM” folder.
4. On the shortcut menu that appears, click
“Copy”.
191 USING THE CAMERA WITH A COMPUTER
5. Windows XP users: Click “Start” and then “My
Documents”.
Windows Vista users: Click “Start” and then
“Documents”.
Windows 2000/Me/98SE/98 users: Double-
click “My Documents” to open it.
•If you already have a “DCIM” folder in “My Documents”,
the next step will overwrite it. If you want to keep the
existing “DCIM” folder, you need to change its name or
move it to a different location before performing the next
step.
6. On the “My Document” “Edit” menu, select
“Paste”.
This will paste the “DCIM” folder (and all the image files it
contains) into your “My Documents” folder. You now have a
copy of the files that are in camera memory on your
computer.
IMPORTANT!
•Never use your computer to modify, delete, move, or
rename any image files that are in the camera’s built-in
memory or memory card. Doing so can cause problems
with the camera’s image management data, which will
make it impossible to play back images on the camera and
can drastically alter remaining memory capacity. Whenever
you want to modify, delete, move, or rename an image, do
so only on images that are stored on your computer.
•Never unplug the USB cable or operate the camera while
viewing or storing images. Doing so can cause data to
become corrupted.
192 USING THE CAMERA WITH A COMPUTER
■Disconnect the camera from the computer
Windows Vista/XP/98SE/98 Users
Press the camera’s [ON/OFF] button. After making sure that the
camera’s operation lamp is not lit green, disconnect the camera
from the computer.
Windows 2000/Me Users
Click card services in the task tray on your computer screen, and
disable the drive number assigned to the camera. Next,
disconnect the USB cable from the camera, and then turn off the
camera.
Transfer of Images from the Camera and
Management of Images on the Computer
To manage images on your computer, you need to install the
Photo Loader with HOT ALBUM application from the CD-ROM
that comes with the camera.
Photo Loader with HOT ALBUM lets you import images from the
camera to your computer automatically, to arrange images by
recording date, and to display images in a calendar format.
■Installing Photo Loader with HOT ALBUM
1. Start up your computer, and place the bundled
CD-ROM into its CD-ROM drive.
•Normally, this should cause the menu screen to appear
automatically. If your computer does not display the menu
screen automatically, navigate to the CD-ROM on your
computer and then double-click the “MENU.exe” file.
2. On the menu screen, click the “Language”
down arrow button and then select the
language you want.
3. Click “Photo Loader with HOT ALBUM 3.1” to
select it and then click “Read me.”
•“Read me” files contain important information about
installation, including installation conditions and computer
system requirements.
193 USING THE CAMERA WITH A COMPUTER
4. Click “Install” for Photo Loader with HOT
ALBUM.
5. Follow the instructions that appear on your
computer screen to install Photo Loader with
HOT ALBUM.
Checking Your Computer’s DirectX Version
In order to manage images using Photo Loader with HOT
ALBUM, your computer also needs to have Microsoft DirectX 9.0
or higher installed. You can check the installed version of
Microsoft DirectX using your PC’s DirectX Diagnostic Tool.
1. On your computer, click “Start”, “All
Programs”, “Accessories”, “System Tools”
and then “System Information”.
2. On the “Tools” menu, select “DirectX
Diagnostic Tool”.
3. On the “System” tab, check to make sure that
the “DirectX Version” is 9.0 or higher.
4. Click “Exit” to exit the DirectX Diagnostic
Tool.
•If your PC already has Microsoft DirectX 9.0 or higher
installed, you do not need to install Microsoft DirectX 9.0c
from the bundled CD-ROM.
•If your computer does not have Microsoft DirectX 9.0 or
higher installed, install Microsoft DirectX 9.0c from the
bundled CD-ROM.
194 USING THE CAMERA WITH A COMPUTER
Playing Movies
Windows Media Player, which is already installed on most
computers, can be used for movie playback. To play back a
movie, first copy the movie to your computer and then double-
click the movie file.
■Movie Playback Precautions
•Be sure to move the movie data to the hard disk of your PC
before trying to play it. Proper movie playback may not be
possible for data accessed over a network, from a memory
card, etc.
•Proper movie playback may not be possible on some
computers. If you experience problems, try the following.
– Try recording movies with a quality setting of “Normal” or
“LP”.
– Try upgrading Windows Media Player to the latest version.
– Quit any other applications you have running, and stop
resident applications.
Even if proper playback is not possible on the computer, you can
use the AV cable that comes bundled with the camera to
connect to the video input terminal a TV or computer and play
back movies that way.
Transferring Images to the Camera
In order to return images from your computer memory back to
the camera, install Photo Transport on your computer from the
CD-ROM that comes with the camera.
■Installing Photo Transport
1. Start up your computer, and place the bundled
CD-ROM into its CD-ROM drive.
•Normally, this should cause the menu screen to appear
automatically. If your computer does not display the menu
screen automatically, navigate to the CD-ROM on your
computer and then double-click the “MENU.exe” file.
2. On the menu screen, click the “Language”
down arrow button and then select the
language you want.
•Regardless of the language you select, the English
version of Photo Transport is installed.
3. Click “Photo Transport” to select it and then
click “Read me.”
•“Read me” files contain important information about
installation, including installation conditions and computer
system requirements.
195 USING THE CAMERA WITH A COMPUTER
4. Click “Install” for Photo Transport.
5. Follow the instructions that appear on your
computer screen to install Photo Transport.
■Transferring image files to the camera
1. First, connect the camera to your computer.
•See page 187 for information about connecting the
camera to your computer.
2. On your computer, click “Start”, “All
Programs”, “Casio” and then “Photo
Transport”.
This starts up Photo Transport.
3. Drop the image data you want to transfer to
the camera onto the Photo Transport Transfer
button.
Move your mouse pointer to the image file you want to
transfer, and then hold down your mouse button. Keeping
your mouse button depressed, drag the mouse pointer and
the image file along with it to the Photo Transport Transfer
button, and then release the mouse button.
Transfer button
Help button
Settings button Exit button
196 USING THE CAMERA WITH A COMPUTER
4. Follow the instructions that appear on the
display to transfer the image file to the
camera.
•The image transfer method and detailed image settings
used depend on the Photo Transport settings. For details,
see Photo Transport help (page 197).
IMPORTANT!
•You cannot transfer movies to the camera.
•Only image files of the following formats can be transferred
to the camera: JPG, JPEG, JPE, and BMP. The transfer
operation converts BMP files to JPEG format.
■Transferring screen captures to the camera
1. First, connect the camera to your computer.
•See page 187 for information about connecting the
camera to your computer.
2. On your computer, click “Start”, “All
Programs”, “Casio” and then “Photo
Transport”.
This starts up Photo Transport.
3. Display the screen whose screen capture you
want to transfer.
4. Click the Photo Transport Capture button.
Capture button
197 USING THE CAMERA WITH A COMPUTER
5. Use your mouse to select the area of the
screen you want to capture.
Move your mouse pointer to the upper left corner of the area
you want to capture and then hold down your mouse button.
Keeping your mouse button depressed, drag the pointer
down to the right corner of the area and then release the
mouse button.
6. Follow the instructions that appear on the
display to transfer a capture of the selected
area to the camera.
•The image transfer method and detailed image settings
used depend on the Photo Transport settings. For details,
see Photo Transport help (page 197).
IMPORTANT!
•The transfer operation converts screen captures to JPEG
format.
■Photo Transport Setup and Help
Clicking the Settings button will display a dialog box that you can
use to configure image transfer settings, to specify the transfer
method, etc. For detailed information about the setup,
operational procedures, and troubleshooting, click the Help
button.
Capture area
198 USING THE CAMERA WITH A COMPUTER
Viewing User Documentation (PDF) Files
1. Start up your computer, and place the bundled
CD-ROM into its CD-ROM drive.
•Normally, this should cause the menu screen to appear
automatically. If your computer does not display the menu
screen automatically, navigate to the CD-ROM on your
computer and then double-click the “MENU.exe” file.
2. On the menu screen, click the “Language”
down arrow button and then select the
language you want.
3. Click “Manual” to select it and then click
“Camera”.
IMPORTANT!
•You must have Adobe Reader or Adobe Acrobat Reader
installed on your computer in order to view the contents of
a PDF file. If you do not already have Adobe Reader or
Adobe Acrobat Reader installed, install Adobe Reader from
the bundled CD-ROM.
User Registration
You can perform user registration over the Internet. To do so, of
course, you need to be able to connect to the Internet with your
computer.
1. Click the “Register” button.
•This starts up your Web browser and accesses the user
registration website. Follow the instructions that appear
on your computer screen to register.
Exiting the CD-ROM Menu
On the CD-ROM menu, click “Exit”.
199 USING THE CAMERA WITH A COMPUTER
Install the required software in accordance with what version of
the Macintosh OS you are running and what you want to do.
Using the Camera with a Macintosh
Objective OS
Version Install this software: See
page:
•Viewing
images on
your
Macintosh
•Storing
images on
your
Macintosh
OS 9/OS X •USB driver not required. 200
Transfer of
images from
the camera
and
management
of images on
your
Macintosh
OS 9 •Use commercially
available software. 203
OS X
•Use iPhoto, which comes
bundled with your
operating system.
203
Play movies OS 9/OS X
•You can playback with
QuickTime, which comes
bundled with your
operating system.
204
View the
User’s Guide OS 9/OS X
•Use Adobe Reader or
Adobe Acrobat Reader,
which comes bundled with
your operating system.
204
Objective OS
Version Install this software: See
page:
200 USING THE CAMERA WITH A COMPUTER
Viewing and Storing Images on a
Macintosh
You can view and store images (snapshot and movie files) on
your Macintosh by connecting to the camera.
IMPORTANT!
•Connection is not supported to a Macintosh running Mac
OS 8.6 or lower, or Mac OS X 10.0. Connection is
supported to a Macintosh running Mac OS 9 or OS X (10.1,
10.2, 10.3, 10.4) only. Use the standard USB driver that
comes with the operating system for connection.
■Connecting the Camera to Your Macintosh
the First Time
1. Make sure the camera’s battery is fully
charged.
2. Turn on the camera, and then press [MENU].
•It makes no difference whether the camera is in a REC
mode or the PLAY mode.
3. Select the “Set Up” tab, select “USB”, and
then press [X].
4. Use [S] and [T] to select “Mass Storage”, and
then press [SET].
5. Turn off the camera, and connect the USB
cable that comes bundled with the camera to
the camera’s USB/AV connector and your
computer’s USB port.
201 USING THE CAMERA WITH A COMPUTER
•When connecting the bundled USB cable to the camera’s
USB/AV port, insert the plug into the port until you feel it
click securely into place. Failure to insert the plug fully
can result in poor communication or malfunction of the
connected components.
•Some metal of the plug is visible
even when the plug is inserted
correctly.
•Take care when connecting the USB
cable to the camera or your
computer. USB ports and cable plugs
are shaped for proper positioning.
6. Turn on the camera.
Camera-Macintosh Connection
Pressing the camera’s [ON/OFF] button puts it into the USB
mode, which is indicated by the camera’s operation lamp lighting
green. In this mode, your Macintosh recognizes the memory
card loaded in the camera (or the camera’s built-in memory if it
does not have a memory card loaded) as a drive.
The appearance of the drive icon depends on the Mac OS
version you are using.
From now on, you will not have to perform steps 3 through 5 in
the above procedure when you connect the camera to your
Macintosh (unless you change the camera’s USB settings for
some reason).
IMPORTANT!
•Never disconnect the USB cable without exiting the USB
mode first. Doing so can corrupt image data. See
“Disconnect the camera from the Macintosh” on page 203
for the correct steps you need to perform to disconnect the
camera from the Macintosh safely.
USB Port USB Cable
Making sure that the T mark on the camera is
aligned with the S mark of the USB cable plug,
connect the cable to the camera.
USB/AV connector
B
202 USING THE CAMERA WITH A COMPUTER
■Connecting the Camera to Your Macintosh
after the First Time
Since you need to configure menu settings only the first time you
connect the camera to your Macintosh, later connections are
much simpler.
1. Turn off the camera, and connect the USB
cable that comes bundled with the camera to
the camera and your Macintosh.
2. Turn on the camera.
Pressing the camera’s [ON/OFF] button puts it into the USB
mode, which is indicated by the camera’s operation lamp
lighting green.
■Viewing Camera Images on Your Macintosh
After connecting the camera to your Macintosh, you can view
camera images on your Macintosh screen.
1. Double-click the camera’s drive icon.
2. Double-click the “DCIM” folder.
3. Double-click the folder that contains the image
you want to view.
4. Double-click the file that contains the image
you want to view.
This displays the image.
IMPORTANT!
•Do not leave the same image displayed on your Macintosh
screen for a long time. Doing so can cause image “burn in”.
NOT
•An image that was rotated on the camera will be displayed
on your Macintosh screen in its original (unrotated)
orientation.
■Saving an Image on Your Macintosh
In order to work on an image to put it into an album, you must
first save it to your Macintosh. To save a camera image to your
Macintosh, you must first establish a connection between them.
1. Double-click the camera’s drive icon.
2. Drop the “DCIM” folder into the folder where
you want to store it.
This copies the “DCIM” folder to the folder on your
Macintosh.
203 USING THE CAMERA WITH A COMPUTER
IMPORTANT!
•Never use your computer to modify, delete, move, or
rename any image files that are in the camera’s built-in
memory or memory card. Doing so can cause problems
with the camera’s image management data, which will
make it impossible to play back images on the camera and
can drastically alter remaining memory capacity. Whenever
you want to modify, delete, move, or rename an image, do
so only on images that have been copied to your
Macintosh.
•Never unplug the USB cable or operate the camera while
viewing or storing images. Doing so can cause data to
become corrupted.
■Disconnect the camera from the Macintosh
1. On your Macintosh screen, drag the camera
drive to Trash.
2. Press the camera’s [ON/OFF] button. After
making sure that the camera’s operation lamp
is not lit, disconnect the camera from the
Macintosh.
Transfer of Images from the Camera and
Management of Images on Your
Macintosh
If you are running Mac OS X, you can manage snapshots using
iPhoto, which comes bundled with your operating system.
NOT
E
•If you are running Mac OS 9, use commercially available
software.
204 USING THE CAMERA WITH A COMPUTER
Playing Movies
You can use QuickTime, which comes bundled with your
operating system, to play back movies. To play back a movie,
first copy the movie to your Macintosh and then double-click the
movie file.
■Movie Playback Precautions
Proper movie playback may not be possible on some Macintosh
models. If you experience problems, try the following.
– Change the movie image quality setting to “Normal” or
“LP”.
– Upgrade to the latest version of QuickTime.
– Shut down other applications that are running.
Even if proper playback is not possible on your Macintosh, you
can use the AV cable that comes bundled with the camera to
connect to the video input terminal a TV or Macintosh and play
back movies that way.
IMPORTANT!
•Be sure to move the movie data to the hard disk of your
Macintosh before trying to play it. Proper movie playback
may not be possible for data accessed over a network,
from a memory card, etc.
Viewing User Documentation (PDF Files)
You must have Adobe Reader or Adobe Acrobat Reader
installed on your computer in order to view the contents of a
PDF file. If you don’t, go to the Adobe Systems Incorporated
website and install Acrobat Reader.
1. On the CD-ROM, open the “Manual” folder.
2. Open the “Digital Camera” folder and then
open the folder for the language whose user’s
guide you want to view.
3. Open the file named “camera_xx.pdf”.
•“xx” is the language code (Example: camera_e.pdf is for
English.)
Registering as a User
Internet registration only is supported. Visit the following CASIO
website to register:
http://world.casio.com/qv/register/
205 USING THE CAMERA WITH A COMPUTER
The method you should use to read files from a memory card
depends on the type of computer you have. Some typical
examples are shown below. After you connect, use the same
procedures as those that you use when the camera is connected
to your computer.
■If your computer has a memory card slot
Insert the camera’s memory card directly into the slot.
■If your computer has a PC card slot
Use a commercially available PC card adapter (for SD memory
card, SDHC memory card, MMC, and MMCplus) to insert the
memory card into the slot. For full details, see the user
documentation that comes with the PC card adapter and your
computer.
■Other types of computers
Use either of the method described below.
– Use a commercially
available SD memory
card/ SDHC memory
card reader/writer. See
the user
documentation that
comes with the SD memory card/ SDHC memory card
reader/writer for details about how to use it.
– Use a commercially available PC card reader/writer in
combination with a commercially available PC card adapter
(for SD memory card, SDHC memory card, MMC, and
MMCplus). See the user documentation that comes with
the PC card reader/writer and PC card adapter for details
about how to use them.
Reading Files Directly from a Memory
Card
206 USING THE CAMERA WITH A COMPUTER
The camera stores images you shoot and other data in
accordance with the Design Rule for Camera File System
(DCF).
■About DCF
DCF is a system that defines both image file formats and the
structure of the folders that store data. This makes it possible for
a digital camera, printer, or other DCF-compliant device to
display or print image data from another DCF device.
■Memory Folder Structure
(DCIM Folder)
(Recording Folder)
(Image File)
(Movie File)
(Audio File)
(Audio Snapshot Image File)
(Audio Snapshot Audio File)
(Recording Folder)
(Recording Folder)
(DPOF File Folder)
(DPOF File)
(BEST SHOT Folder)
(User Setup File)
(User Setup File)
(FAVORITE Folder)
(Recording File)
(Recording File)
(Startup Screen File)
Memory Card Data
DCIM
100CASIO*
1
CIMG0002.AVI
CIMG0003.WAV
CIMG0004.WAV
101CASIO*
1
102CASIO*
1
MISC
AUTPRINT.MRK
SCENE*
2
UEZ11001.JPE
UEZ11002.JPE
FAVORITE*
2
STARTING.JPG*
2
207 USING THE CAMERA WITH A COMPUTER
*1 The BEST SHOT mode includes a sample scene that
optimizes settings for auction site images. Images recorded
with the Auction scene are stored in a folder named
“100_AUCT”.
*2 Indicates files that can be created in built-in memory only.
Folder and File Contents
•DCIM Folder
Folder that contains all of the camera files
•Recording Folder
Folder that contains files recorded with the camera
•Image File
File of an image shot with the camera. Extension is “JPG”.
•Movie File
File of a movie shot with the camera. Extension is “AVI”.
•Audio File
Audio recording file. Extension is “WAV”.
•Audio Snapshot Image File
Image file of an audio snapshot. Extension is “JPG”.
•Audio Snapshot Audio File
Audio recording file of an audio snapshot. Extension is
“WAV”.
•DPOF File Folder
Folder that contains DPOF files, etc.
•BEST SHOT Folder
Folder that contains BEST SHOT user setup files
•User Setup File
File of a BEST SHOT user setup
•FAVORITE Folder
Folder that contains Favorites image files. Size of images is
320 × 240 pixels.
•Startup Screen File
File for storing the startup screen image. This file is created
when you specify an image for use as the startup screen
image.
■Supported Image Files
•Image files shot with this camera
•DCF-compliant image files
Even if an image is DCF-compliant, this camera still may not be
able to display it. When displaying an image recorded on
another camera, it may take a long time for the image to appear
on this camera’s monitor screen.
208 USING THE CAMERA WITH A COMPUTER
■Built-in Memory and Memory Card Data
Handling Precautions
•When saving camera data to a computer hard disk, MO disk,
or other medium, be sure to transfer the entire DCIM folder
and its contents. Changing the name of the DCIM to a date or
something similar after you copy it to your computer is a good
way to keep track of multiple DCIM folders. When moving the
folder back to the camera, however, be sure to change its
name back to DCIM. This camera does not recognize any
folder name besides DCIM.
All of the other folders inside the DCIM folder must also have
their original names if you transfer them back to the camera.
•Folders and files must be stored in accordance with the
“Memory Folder Structure” shown on page 206 in order for the
camera to be able to recognize them correctly.
209 APPENDIX
APPENDIX
The numbers in parentheses indicate the pages where each part
is explained.
■Camera
Front
Back
General Guide
1Shutter (page 59)
2[ON/OFF] (Power)
(page 41)
3Self-timer Lamp
(pages 57, 75, 218)
4Microphone
(pages 57, 80, 83)
5Lens
6Flash (page 71)
5
3
4
2
1
6
7Operation Lamp
(pages 41, 59, 218)
8Zoom Button
(pages 67, 134, 135)
9Strap Hole (page 2)
bk [ ] (REC) Button
(pages 41, 171)
bl Control Button
([S], [T], [W], [X])
bm [SET] Button
bn [BS] Button (page 84)
bo [MENU] Button (page 49)
bp [ ] (PLAY) Button
(pages 41, 171)
bq Monitor Screen (page 51)
897
bq
bk
bl
bmbo bn
bp
[S]
[W]
[T]
[X]
[SET]
B
210 APPENDIX
Bottom
br Battery/Memory Card Slots (pages 34, 46)
bs USB/AV Connector (pages 175, 188, 200)
bt Tripod Hole
Use this hole when attaching to a tripod.
ck Speaker (page 126)
■Battery Charger
1[CHARGE] lamp
2Contacts
3AC jack
brbsbtck
3
2
1
211 APPENDIX
The monitor screen uses various indicators, icons, and values to keep you informed of the camera’s status.
•The sample screens in this section are intended to show you the locations of all the indicators and figures that can appear on the
monitor screen in various modes. They do not represent screens that actually appear on the camera.
Monitor Screen Contents
■Snapshot Recording Mode
Panel : On
Panel : Off
bl
bp
9
bk
bn
bo
bq
bm
brbs
bt
ck
67 83542
cl
bm
1
br
bs
bm
8
91bn2bk345 6
bq
bt bo
cl
ck
bl
7
1Focus Mode (page 97)
2Continuous Shutter Mode
(page 77)
3Recording Mode
4Digital zoom indicator (page 69)
5Metering Mode (page 112)
6Remaining Snapshot Memory
Capacity (page 227)
7Snapshot Image Size (page 61)
8Snapshot Image Quality (page 63)
9Flash Mode (page 71)
bk Self-timer Mode (page 75)
bl Anti Shake Indicator (page 89)
bm ISO Sensitivity (page 110)
bn White Balance Setting (page 108)
bo Exposure Compensation
(page 106)
bp easy Mode (page 64)
bq Date/Time (page 165)
br Shutter Speed (page 60)
bs Aperture Value (page 60)
bt Battery Level Indicator (page 38)
ck Histogram (page 116)
cl Focus Frame (pages 58, 101)
IMPORTANT!
•The aperture value, shutter speed, and ISO sensitivity will all turn orange
if any one of them is not correct when the shutter button is half-pressed.
212 APPENDIX
■Movie Recording Mode
Panel : On
Panel : Off
1 2
7
85
3
4
6
45 1
7 6
8
2
3
1Recording Mode
2Remaining Movie Memory Capacity (page 81)
3Movie Image Quality (page 81)
4Focus Mode (page 97)
5White Balance Setting (page 108)
6Exposure Compensation (page 106)
7Battery Level Indicator (page 38)
8Histogram (page 116)
213 APPENDIX
■Snapshot Playback Mode
1File Type (page 125)
2Protect Indicator (page 154)
3Folder Name/File Name
(page 153)
4Snapshot Image Quality
(page 63)
5Snapshot Image Size
(page 61)
6ISO Sensitivity (page 110)
7Aperture Value (page 60)
8Shutter Speed (page 60)
9Date/Time (page 165)
bk Metering Mode (page 112)
bl White Balance Setting
(page 108)
bm Flash Mode (page 71)
bn Recording Mode
bo Battery Level Indicator
(page 38)
bp Histogram (page 116)
bq Exposure Compensation
(page 106)
321
bp
bq
bo blbkbmbn
4
7
5
8
9
6
■Movie Playback Mode
1File Type (page 127)
2Protect Indicator (page 154)
3Folder Name/File Name
(page 153)
4Movie Recording Time
(page 127)
5Movie Image Quality
(page 81)
6Date/Time (page 165)
7Battery Level Indicator
(page 38)
1
4
5
7
23
6
214 APPENDIX
The tables in this section show the items that appears on the
menus that appear on the monitor screen when you press
[MENU]. The items included on the menus depend on whether
the camera is in the REC mode or PLAY mode.
•An asterisk (*) indicates reset default settings.
■REC Mode
REC Tab Menu
Menu Reference
Focus (Auto Focus)* / Macro /
(Pan Focus) / (Infinity) /
(Manual Focus)
Continuous On / Off*
Self-timer 10 sec / 2 sec / X3 / Off*
Anti Shake Auto / Off*
AF Area Spot* / Multi
easy Mode On / Off*
L/R Key Metering / EV Shift / White Balance / ISO /
Self-timer / Off*
Quick Shutter On* / Off
Audio Snap On / Off*
Grid On / Off*
Digital Zoom On* / Off
Review On* / Off
Icon Help On* / Off
Memory BEST SHOT: On / Off*
Flash: On* / Off
Focus: On / Off*
White Balance: On / Off*
ISO: On / Off*
AF Area: On* / Off
Metering: On / Off*
Self-timer: On / Off*
Flash Intensity: On / Off*
Digital Zoom: On* / Off
MF Position: On / Off*
Zoom Position: On / Off*
215 APPENDIX
Quality Tab Menu
Size 7M (3072 × 2304)* / 3:2 (3072 × 2048) /
16:9 (3072 × 1728) / 5M (2560 × 1920) /
3M (2048 × 1536) / 2M (1600 × 1200) /
VGA (640 × 480)
Quality
(Snapshots)
Fine / Normal* / Economy
Quality
(Movies)
HQ* / Normal / LP
EV Shift –2.0 / –1.7 / –1.3 / –1.0 / –0.7 / –0.3 / 0.0* /
+0.3 / +0.7 / +1.0 / +1.3 / +1.7 / +2.0
White Balance Auto* / (Daylight) / (Overcast) /
(Shade) / (Day White Fluorescent) /
(Daylight Fluorescent) / (Tungsten) /
Manual
ISO Auto* / ISO 50 / ISO 100 / ISO 200 / ISO 400
Metering Multi* / Center weighted / Spot
Filter Off* / B/W / Sepia / Red / Green / Blue / Yellow /
Pink / Purple
Sharpness +2 / +1 / 0* / –1 / –2
N
D
Saturation +2 / +1 / 0* / –1 / –2
Contrast +2 / +1 / 0* / –1 / –2
Flash Intensity +2 / +1 / 0* / –1 / –2
Flash Assist Auto* / Off
216 APPENDIX
Set Up Tab Menu
Panel On* / Off
Display Wide* / 4:3
Sounds Startup* / Half Shutter / Shutter / Operation /
Operation / Play
Startup On (Selectable image) / Off*
File No. Continue* / Reset
World Time Home* / World
Home Time setup (city, DST, etc.)
World Time setup (city, DST, etc.)
Timestamp Date / Date&Time / Off*
Adjust Time setting
Date Style YY/MM/DD / DD/MM/YY / MM/DD/YY
Language Changes the screen text language.
•The number and types of languages depend
on the geographic area where the camera
was marketed.
Sleep 30 sec / 1 min* / 2 min / Off
Auto Power Off 1 min* / 2 min / 5 min
REC / PLAY Power On* / Power On/Off / Disable
USB Mass Storage (USB DIRECT-PRINT)* /
PTP (PictBridge)
Video Out NTSC 4:3* / NTSC 16:9 / PAL 4:3 / PAL 16:9
Format Format / Cancel*
Reset Reset / Cancel*
B
217 APPENDIX
■PLAY Mode
PLAY Tab Menu
“Set Up” Tab
•The contents of the “Set Up” tab are the same in the REC
mode and PLAY mode.
Slideshow Start* / Images / Time / Interval / Effect /
Cancel
Calendar –
MOTION PRINT 9 frames* / 1 frame / Cancel
Movie Editing Cut (Before) /
Cut (Between) /
Cut (After) / Cancel*
Keystone –
Color Correction –
Favorites Show* / Save / Cancel
DPOF Printing Select images* / All images / Cancel
Protect On* / All Files : On / Cancel
Date/Time –
Rotation Rotate* / Cancel
Resize 5M (2560 × 1920)* / 3M (2048 × 1536) /
VGA (640 × 480) / Cancel
Trimming –
Dubbing –
Copy Built-in Card* / Card Built-in / Cancel
B
218 APPENDIX
The camera has lamps: an Operation Lamp and an Self-timer
Lamp. These Lamps light and flash to indicate the current
operational status of the camera.
■REC Mode
Indicator Lamps
Operation Lamp
Self-timer Lamp
Operation Lamp Meaning
Color Status
Green
Lit
Operational (Power on, recording enabled). /
Auto Focus operation was successful. / LCD is
off or in sleep state.
Flashing
Storing movie or processing image. / Image is
being stored. / Cannot Auto Focus. / Card is
being formatted. / Powering down.
Red
Lit Memory card is locked. / Cannot create folder. /
Memory is full. / Write error.
Flashing
Memory card problem. / Memory card is
unformatted. / BEST SHOT setup cannot be
registered. / Low battery alert.
Amber Flashing Flash is charging.
Self-timer Lamp Meaning
Color Status
Red Flashing Self-timer countdown.
219 APPENDIX
IMPORTANT!
•Never remove the memory card from the camera while the
operation lamp is flashing green. Doing so will cause the
image you shot to be lost.
■PLAY mode
Battery Charger Lamp Reference
The battery charger has a [CHARGE] lamp that lights or flashes
in accordance with the battery charger operation that is being
performed.
Operation Lamp Meaning
Color Status
Green
Lit Operational (Power on, recording enabled).
Flashing
One of the following operations is in progress:
Delete, DPOF, protect, copy, format, resize,
trimming, adding audio to snapshot, keystone
correction, color correction, MOTION PRINT,
movie editing, power down.
Red
Lit Memory card is locked / Cannot create folder. /
Memory is full. / Write error.
Flashing Memory card problem. / Memory card is
unformatted. / Low battery alert.
[CHARGE] lamp Meaning
Lit Red Charging
Flashing Red Battery charger or battery abnormality
Off Charging complete or charge standby state
(Ambient temperature is too high or too low.)
[CHARGE] lamp
220 APPENDIX
Finding the Problem and Fixing It
Troubleshooting Guide
Problem Possible Causes and Action
Power Supply
Power does not turn on. 1) The battery may not be oriented correctly (page 36).
2) The battery may be dead. Charge the battery (page 34). If the battery goes dead soon after being
charged, it means the battery has reached the end of its life and needs to be replaced. Purchase a
separately available CASIO NP-20 rechargeable lithium ion battery.
Camera suddenly powers
down.
1) Auto Power Off may have activated (page 43). Turn power back on.
2) The battery may be dead. Charge the battery (page 34).
Power does not turn off.
Nothing happens when a
button is pressed.
Remove the battery from the camera and then reinsert it.
Image Recording
Image is not recorded when
the shutter button is pressed.
1) If the camera is in the PLAY mode, press [ ] (REC) to enter the REC mode.
2) If the flash is charging, wait until the charge operation finishes.
3) If the message “Memory Full” appears, transfer images to your computer, delete images you no longer
need, or use a different memory card.
Auto Focus does not focus
properly.
1) If the lens is dirty, clean it off.
2) The subject may not be in the center of the focus frame when you compose the image.
3) The subject you are shooting may not be a type that is not compatible with Auto Focus (page 67). Use
manual focus (page 104).
4) You may be moving the camera when shooting. Try shooting with Anti Shake (page 89) or use a tripod.
5) You may be using Quick Shutter and pressing the shutter button all the way, resulting in poor focus.
Half-press the shutter button and allow enough time for Auto Focus to focus.
The subject is out of focus in
the recorded image.
The image may not be focused properly. When composing the image, make sure the subject is located
inside the focus frame.
B
221 APPENDIX
The flash does not fire. 1) If “ ” (Flash Off) is selected as the flash mode, change to another mode (page 71).
2) If the battery is dead, charge it (page 34).
3) If a BEST SHOT scene that uses the “ ” (Flash Off) flash mode is selected, change to a different
flash mode (page 71) or select a different BEST SHOT scene (page 84).
Camera powers down during
self-timer countdown.
The battery may be dead. Charge the battery (page 34).
The monitor screen image is
out of focus.
1) You may be using Manual Focus and have not focused the image. Focus the image (page 104).
2) You may be using the macro mode for scenery or portraits. Use Auto Focus for scenery and
portrait shots (page 98).
3) You may be trying to use Auto Focus or the Infinity Mode when shooting a close-up shot. Use the
Macro Mode for close ups (page 99).
There is a vertical line on the
monitor screen.
Shooting a very brightly lit subject can cause a vertical band to appear in the monitor screen image. This is
a CCD phenomenon known as “vertical smear”, and does not indicate malfunction of the camera. Note that
vertical smear is not recorded with the image in the case of a snapshot, but it is recorded in the case of a
movie.
There is digital noise in
images.
1) Sensitivity may have been increased automatically for a dark subject, which increases the chance of
digital noise. Use a light or some other means to illuminate the subject.
2) You may be attempting to shoot in a dark location while “ ” (Flash Off) is selected as the flash mode,
which can increase digital noise and make images appear coarse. In this case, change to a different
flash mode (page 71) or use lights for illumination.
3) Flash assist may be enabled for snapshots, which can cause an increase in digital noise. Use a light or
some other means to illuminate the subject.
An image I shot was not
saved.
1) Camera power may have been turned off before the save operation was complete, which will result in
the image not being saved. When the battery indicator shows “ ”, charge the battery as soon as
possible (page 34).
2) You may have removed the memory card from the camera before the save operation was complete,
which will result in the image not being saved. Do not remove the memory card before the save
operation is complete.
Problem Possible Causes and Action
222 APPENDIX
Though available lighting is
bright, the faces of people in
the image are dark.
Not enough light is reaching the subjects. Change the flash mode setting to “ ” (Flash On) for daylight
synchro flash (page 71), or use adjust EV shift to the + side (page 106).
Subjects are too bright when
shooting images in a
seashore or ski area.
Sunlight reflected by water, sand, or snow, can cause underexposure of images. Change the flash mode
setting to “ ” (Flash On) for daylight synchro flash (page 71), or use adjust EV shift to the + side (page
106).
Digital zoom does not work.
The zoom bar indicates zoom
only up to a zoom factor of
3.0.
1) The digital zoom setting may be turned off. Turn on digital zoom (page 70).
2) Time stamping may be turned on, which will cause digital zoom to be disabled. Turn off time stamping
(page 115).
The image is out of focus
during movie recording.
1) Focusing is not possible because the subject is outside the focus range. Shoot within the allowable
range.
2) The subject you are shooting may be difficult to focus (page 67).
3) The lens may be dirty. Clean the lens (page 32).
Playback
The color of the playback
image is different from what
appears on the monitor
screen when shooting.
Sunlight or light from another source may be shining directly into the lens when you are shooting. Position
the camera so sunlight does not shine directly into the lens.
Images are not displayed. This camera cannot display non-DCF images recorded onto a memory card using another digital camera.
I can’t edit images (resizing,
trimming, keystone correction,
color restoration, rotation,
date/time editing).
Note that you cannot edit the following types of imagess.
•Images created with MOTION PRINT
•Movies
•Images recorded with another camera
Problem Possible Causes and Action
B
223 APPENDIX
Other
The wrong date and time are
displayed.
The date and time setting is wrong. Set the correct date and time (page 165).
The messages on the display
are in the wrong language.
The wrong display language is selected. Change the display language setting (page 169).
I can’t transfer images over a
USB connection.
1) The USB cable may not be connected securely. Check all connections.
2) USB driver may not be installed. Install the USB driver (page 186).
3) The USB driver may have been installed incorrectly. Reinstall the USB driver correctly (page 186).
4) The wrong USB communication protocol may be selected. Select the correct USB communication
protocol in accordance with the type of device you are connecting (page 170).
5) If the camera is not turned on, turn it on.
Display language setting
screen appears when the
camera is turned on.
1) You did not configure initial settings after purchasing the camera or the battery may have been left with
a dead battery. Check the camera setup (pages 11, 165).
2) There may be a problem with the camera’s built-in memory management area. If this is the case,
perform the reset operation to initialize the camera’s setup (page 124). After that, configure each setting.
If the language selection screen does not re-appear when you turn the camera on, it means that the
camera’s built-in memory management area has been restored.
If the same message appears after you turn power back on, contact your retailer or a CASIO service
center.
Problem Possible Causes and Action
224 APPENDIX
If you have problems installing the USB driver...
You may not be able to install the USB driver properly if you use the USB cable to connect the camera to a computer running Windows
98SE/98 before installing the USB driver from the bundled CD-ROM, or if you have another type of driver installed.
This will make it impossible for the computer to recognize the camera when it is connected. If this happens, you will need to re-install the
camera’s USB driver.
For information about how to re-install the USB driver, see the USB driver’s “Read me” file on the CD-ROM that comes bundled with the
camera.
225 APPENDIX
Display Messages
Battery is low. Battery power is low.
Cannot correct
image!
Keystone correction of the image cannot be
performed for some reason. The image will be
stored as-is, without correction (page 93).
Cannot find the
file.
The image you specified with the slideshow
“Images” setting cannot be found. Change the
“Images” setting (page 129) and try again.
Cannot register
any more files.
•You are attempting to save a BEST SHOT
scene when there are already 999 scenes
in the “SCENE” folder (page 88).
•You are attempting to copy a FAVORITE
file when the “FAVORITE” folder already
contains 9999 files (page 156).
Card ERROR There is something wrong with the memory
card. Turn off the camera, remove the memory
card, and then reload it into the camera. If this
message re-appears when you turn the
camera back on, format the memory card
(page 48).
•Formatting the memory card deletes all
its files. Before formatting, try transferring
recoverable files to a computer or some
other storage device.
IMPORTANT!
Check
connections!
•You are attempting to connect the camera
to a printer while the camera’s USB settings
are not compatible with the USB system of
the printer (page 174).
•You are attempting to connect to a
computer that does not have a USB driver
installed (page 186).
Files could not
be saved
because battery
is low.
Battery power is low, so an image file could not
be saved.
Folder cannot be
created.
You are trying to record a file while there are
already 9,999 files stored in the 999th folder. If
you want to record more, delete files you no
longer need (page 160).
LENS ERROR This message appears and the camera turns
off whenever lens performs some unexpected
operation. If the same message appears after
you turn power back on, contact your retailer
or a CASIO service center.
Load paper! The printer ran out of paper while printing.
Memory Full Memory is full with images you recorded and/
or of files saved by editing operations. Delete
files you no longer need (page 160).
No Favorites file! The FAVORITE folder does not contain any
files.
Printing Error An error occurred while printing.
•The printer is turned off.
•The printer generated an error, etc.
226 APPENDIX
Record Error Image compression could not be performed for
some reason during image data storage.
Shoot the image again.
Replenish ink! During printing, the printer is running low on
ink or is out of ink.
RETRY POWER
ON
If the lens comes into contact with some
obstacle, this message appears and the
camera turns off. Take action to remove the
obstacle, and try turning on power again.
SYSTEM ERROR Your camera system is corrupted. Contact
your retailer or an authorized CASIO service
center.
The card is
locked.
The LOCK switch of the SD memory card or
SDHC memory card loaded in the camera is in
the locked position. You cannot store images
to or delete images from a memory card that is
locked.
There are no
files.
There are no files in built-in memory or on the
memory card.
There are no
printing images.
Set up DPOF.
There are currently no files specified for
printing. Configure the required DPOF settings
(page 177).
There is no
image to
register.
The setup you are trying to save is for an
image that cannot be saved as a user BEST
SHOT scene.
This card is not
formatted.
The memory card loaded in the camera is not
formatted. Format the memory card (page 48).
This file cannot
be played.
The file you are trying to access is corrupted or
is a type that cannot be displayed by this
camera.
This function
cannot be used.
You attempted to copy images from built-in
memory to a memory card while there is no
memory card loaded in the camera (page
158).
This function is
not supported
for this file.
The function you are trying to use cannot be
performed for some reason.
227 APPENDIX
■Main Specifications
Product Type . . . . . . . Digital Camera
Model . . . . . . . . . . . . EX-Z11
■Camera Functions
Image Files
Format . . . . . . . . . . . . . . . .Snapshots:
JPEG (Exif Version 2.2); DCF (Design
Rule for Camera File System) 1.0
standard; DPOF compliant
Movies: Motion JPEG AVI format
Audio: WAV
Recording Media . . . . . . . .Built-in Memory 8.0 MB
SDHC Memory Card
SD Memory Card
MMC (MultiMediaCard)
MMCplus (MultiMediaCardplus)
Storage Capacity
•Snapshots
Specifications
Image Size
(Pixels)
Quality
Approximate
Image File
Size
Approximate
Built-in Memory
(8.0MB)
Capacity
Approximate SD
Memory Card
*
(256MB)
Capacity
7M
(3072 ×
2304)
Fine 4.32 MB 1 image 55 images
Normal 2.4 MB 3 images 97 images
Economy 1.44 MB 5 images 158 images
3:2
(3072 ×
2048)
Fine 3.84 MB 2 images 61 images
Normal 2.2 MB 3 images 105 images
Economy 1.28 MB 5 images 176 images
16:9
(3072 ×
1728)
Fine 3.24 MB 2 images 72 images
Normal 2.1 MB 3 images 110 images
Economy 1.08 MB 6 images 206 images
5M
(2560 ×
1920)
Fine 3.0 MB 2 images 78 images
Normal 2.0 MB 3 images 116 images
Economy 1.0 MB 7 images 221 images
3M
(2048 ×
1536)
Fine 1.92 MB 4 images 121 images
Normal 1.28 MB 5 images 180 images
Economy 640 KB 11 images 348 images
228 APPENDIX
•Movies
*The number of image values is approximate and are provided
for reference only. The actual number of images you may be
able to record may be less than that indicated on the monitor
screen.
*Image files sizes are approximate and are provided for
reference only. Actual image file sizes vary depending on
subject type.
2M
(1600 ×
1200)
Fine 1.17 MB 6 images 196 images
Normal 780 KB 9 images 286 images
Economy 390 KB 17 images 529 images
VGA
(640 × 480)
Fine 360 KB 20 images 624 images
Normal 240 KB 30 images 937 images
Economy 120 KB 57 images 1740 images
Image Size
(Pixels)
Quality
Approximate
Image File
Size
Approximate
Built-in Memory
(8.0MB)
Capacity
Approximate SD
Memory Card
*
(256MB)
Capacity
Quality
(Pixels)
Maximum
Recording
Time Per
File
Approximate
Data Rate
(Frame Rate)
Approximate
Recording Time
for Builtin
Memory 8.0 MB
Approximate
Recording Time
for SD Memory
Card
*
256MB
HQ
640 × 480
10
minutes
10.2
Megabits/
second (30
frames/
second)
6 seconds 3 minutes,
15 seconds
Normal
512 × 384
10
minutes
6.1 Megabits/
second (30
frames/
second)
10 seconds 5 minutes,
27 seconds
LP
320 × 240
10
minutes
2.45
Megabits/
second (15
frames/
second)
26 seconds 13 minutes,
34 seconds
229 APPENDIX
*Based on Matsushita Electric Industrial Co., Ltd. products.
The number of images you can save depends on the type of
memory card you are using.
*To determine the number of images that can be stored on a
memory card of a different capacity, multiply the capacities in
the table by the appropriate value.
Delete. . . . . . . . . . . . . . . . .Single-file, all files (with protection)
Effective Pixels . . . . . . . . .7.2 million
Imaging Element . . . . . . . .1/2.5-inch square pixel color CCD
(Total pixels: 7.41 million)
Lens/Focal Distance . . . . .Lenses:
F3.1 (W) to 5.9 (T); f=6.3 (W) to 18.9mm
(T) (equivalent to approximately 38 (W)
to 114mm (T) for 35mm film)
6 lenses in 5 groups, with aspherical lans
Zoom . . . . . . . . . . . . . . . . .3X optical zoom; 4X digital zoom
(Image Size: 7M (3072 × 2304pixels))
(12X in combination with optical zoom)
Focusing . . . . . . . . . . . . . .Contrast Detection Auto Focus
Focus Modes:
Auto Focus, Macro mode, Pan Focus,
Infinity mode, manual focus
AF Area: spot, multi
Approximate Focus Range (from lens surface)
Auto Focus:
40 cm to (1.3' to )
Macro:
10 cm to 50 cm (3.9" to 19.7")
Infinity Mode:
Manual:
10 cm to (3.9" to )
•Using optical zoom causes the above
ranges to change.
Exposure Control . . . . . . . Light Metering:
Multi-pattern, center-weighted, spot by
CCD
Exposure: Program AE
Exposure Compensation:
–2EV to +2EV (in 1/3EV steps)
Shutter . . . . . . . . . . . . . . . CCD electronic shutter; mechanical
shutter
Snapshot mode (Auto):
1/2 to 1/2000 second
•Shutter speed is different for the
following BEST SHOT scenes.
Night Scene: 4 to 1/2000 second
Fireworks: 2 seconds (fixed)
Aperture . . . . . . . . . . . . . . F3.1/4.4 auto switching
•Using optical zoom causes the aperture
to change.
White Balance. . . . . . . . . . Auto WB, fixed (6 modes), manual
switching
230 APPENDIX
Sensitivity. . . . . . . . . . . . . .Snapshots:
Auto, ISO 50, ISO 100, ISO 200, ISO 400
•Maximum sensitivity is ISO 800 when
the BEST SHOT Anti Shake or High
Sensitivity scene is being used.
Movies: Auto
Self-timer . . . . . . . . . . . . . .10 seconds, 2 seconds, Triple Selftimer
Built-in Flash . . . . . . . . . . .Flash Modes:
Auto Flash, ON, OFF, Red eye reduction,
Soft Flash
Flash Range:
Wide Angle Optical Zoom:
0.1 to 3.5 meters (0.3' to 11.5')
Telephoto Optical Zoom:
0.6 to 1.9 meters (2.0' to 6.2')
*ISO Sensitivity: “Auto”
*Depends on zoom factor.
Recording Functions . . . . .Snapshot; audio snapshot; macro; self-
timer; Continuous shutter; BEST SHOT
mode; movie with audio; Voice
Recording
•Audio recording is monaural.
Audio Recording Time . . . .Audio Snapshot:
Approximately 30 seconds maximum per
Voice Recording:
Approximately 24 minutes with built-in
memory
After Recording:
Approximately 30 seconds maximum per
Monitor Screen . . . . . . . . . 2.6-inch Wide TFT color LCD
114,960 pixels (479 × 240 pixels)
Viewfinder . . . . . . . . . . . . . Monitor Screen
Timekeeping Functions. . . Built-in quartz digital clock
Date and Time:
Recorded with image data, Time stamp
Auto Calendar: To 2049
World Time:
City; Date; Time; Summer time;
162 cities in 32 time zones
Input/Output Terminals . . . USB/AV connector
USB . . . . . . . . . . . . . . . . . USB 2.0 (Full-Speed) compatible
Microphone . . . . . . . . . . . Monaural
Speaker . . . . . . . . . . . . . . Monaural
B
231 APPENDIX
■Power Requirements
Power Requirements. . . . . . . Lithium ion rechargeable battery
(NP-20) × 1
Approximate Battery Life:
The values below indicate the amount of time under the
conditions defined below, until power automatically turns off due
to battery failure. They do not guarantee that you will be able to
achieve this level of operation. Low temperatures shorten
battery life.
Supported Battery: NP-20 (Rated Capacitance: 700mAh)
Storage Medium: SD Memory Card
*1 Number of Shots (CIPA Standard)
•Temperature: 23°C (73°F)
•Monitor Screen: On
•Zoom operation between full wide to full telephoto every 30
seconds, during which two images are recorded, one image
with flash; power turned off and back on every time 10 images
are recorded.
*2 Continuous Snapshot Playback Conditions
•Temperature: 23°C (73°F)
•Scroll one image about every 10 seconds
*3 Voice recording times are based on continuous recording.
•The above values are based a new battery, starting from a full
charge. Repeated charging shortens battery life.
•Frequency of flash, zoom, and Auto Focus usage, and the
time the camera is on greatly affects recording time and
number of shots values.
Operation Approximate Battery Life
Number of Shots (CIPA Standard)*1230 shots
Continuous Snapshot Playback*2260 minutes
Continuous Movie Recording 105 minutes
Continuous Voice Recording*3260 minutes
232 APPENDIX
Power Consumption . . . . .3.7 V DC Approximately 4.0 W
Dimensions . . . . . . . . . . . .95.4 (W) × 60.6 (H) × 19.6 (D) mm
(3.8"(W) × 2.4"(H) × 0.77"(D))
(excluding projections; 16.2 mm (0.64")
at thinnest point)
Weight . . . . . . . . . . . . . . . .Approximately 122 g (4.3 oz)
(excluding battery and accessories)
Bundled Accessories . . . . .Rechargeable lithium ion battery (NP-
20); Battery charger (BC-11L); AC power
cord; USB cable; AV Cable; Strap; CD-
ROM; Basic Reference
■Rechargeable Lithium Ion Battery (NP-20)
Rated Voltage . . . . . . . . . .3.7 V
Rated Capacitance . . . . . .700 mAh
Operating Temperature . . .0 to 40°C (32 to 104°F)
Dimensions . . . . . . . . . . . .33.0 (W) × 50.0 (H) × 4.7 (D) mm
(1.3"(W) × 2.0"(H) × 0.19"(D))
Weight . . . . . . . . . . . . . . . .Approximately 16 g (0.56 oz)
■Battery Charger (BC-11L)
Power Requirement . . . . . 100 to 240V AC, 80mA, 50/60Hz
Output . . . . . . . . . . . . . . . . 4.2V DC, 600 mA
Charging Temperature . . . 5°C to 35°C (41°F to 95°F)
Chargeable Battery type . . Rechargeable lithium ion battery (NP-20)
Full Charge Times. . . . . . . Approximately 90 minutes
Dimensions . . . . . . . . . . . . 55 (W) × 20 (H) × 86 (D) mm
(2.2"(W) × 0.79"(H) × 3.4"(D))
(excluding projections)
Weight. . . . . . . . . . . . . . . . Approximately 58 g (2.0 oz)
•Power cord precautions for use in Singapore
The power cord set is not supplied. The power cord used
must comply with relevant national and/or international
standards.
B
233
CASIO COMPUTER CO.,LTD.
6-2, Hon-machi 1-chome
Shibuya-ku, Tokyo 151-8543, Japan
MA0705-BM10
