E-1

Contents

Important Information ..............................................................2

Sample Operations ...................................................................2

Initializing the Calculator .........................................................2

Safety Precautions ...................................................................2

Handling Precautions ...............................................................2

Removing the Hard Case .........................................................3

Turning Power On and Off .......................................................3

Adjusting Display Contrast .....................................................3

Key Markings ............................................................................3

Reading the Display .................................................................4

Using Menus .............................................................................5

Specifying the Calculation Mode ...........................................5

Configuring the Calculator Setup ...........................................5

Inputting Expressions and Values ..........................................7

Recurring Decimal Calculations ............................................9

Toggling Calculation Results ................................................13

Basic Calculations ..................................................................13

Prime Factorization ................................................................17

Remainder Calculations ........................................................18

Function Calculations ............................................................18

Statistical Calculations (STAT) ..............................................22

Creating a Number Table from Two Functions (TABLE) .....25

Calculation Ranges, Number of Digits, and Precision ........26

Errors .......................................................................................27

Before Assuming Malfunction of the Calculator..................29

Replacing the Battery .............................................................29

Specifications .........................................................................30

Frequently Asked Questions .................................................30

E-2

Important Information

• The displays and illustrations (such as key markings) shown in this User’s

Guide are for illustrative purposes only, and may differ somewhat from the

actual items they represent.

• The contents of this manual are subject to change without notice.

• In no event shall CASIO Computer Co., Ltd. be liable to anyone for special,

collateral, incidental, or consequential damages in connection with or

arising out of the purchase or use of this product and items that come with

it. Moreover, CASIO Computer Co., Ltd. shall not be liable for any claim of

any kind whatsoever by any other party arising out of the use of this product

and the items that come with it.

• Be sure to keep all user documentation handy for future reference.

Sample Operations

Sample operations in this manual are indicated by a icon. Unless

specifically stated, all sample operations assume that the calculator is in its

initial default setup. Use the procedure under “Initializing the Calculator” to

return the calculator to its initial default setup.

For information about the B, b, v, and V marks that are shown

in the sample operations, see “Configuring the Calculator Setup”.

Initializing the Calculator

Perform the following procedure when you want to initialize the calculator

and return the calculation mode and setup to their initial default settings.

Note that this operation also clears all data currently in calculator memory.

!9(CLR) 3(All) =(Yes)

Safety Precautions

Battery

• Keep batteries out of the reach of small children.

• Use only the type of battery specified for this calculator in this manual.

Handling Precautions

• Even if the calculator is operating normally, replace the battery at least

once every three years (LR44 (GPA76)).

A dead battery can leak, causing damage to and malfunction of the

calculator. Never leave a dead battery in the calculator. Do not try using

the calculator while the battery is completely dead.

• The battery that comes with the calculator discharges slightly during

shipment and storage. Because of this, it may require replacement

sooner than the normal expected battery life.

• Do not use an oxyride battery* or any other type of nickel-based

primary battery with this product. Incompatibility between such

batteries and product specifications can result in shorter battery life

and product malfunction.

• Avoid use and storage of the calculator in areas subjected to

temperature extremes, and large amounts of humidity and dust.

• Do not subject the calculator to excessive impact, pressure, or

bending.

E-3

• Never try to take the calculator apart.

• Use a soft, dry cloth to clean the exterior of the calculator.

• Whenever discarding the calculator or batteries, be sure to do so in

accordance with the laws and regulations in your particular area.

* Company and product names used in this manual may be registered

trademarks or trademarks of their respective owners.

Removing the Hard Case

Before using the calculator, slide its hard

case downwards to remove it, and then affix

the hard case to the back of the calculator

as shown in the illustration nearby.

Turning Power On and Off

Press O to turn on the calculator.

Press 1A(OFF) to turn off the calculator.

Auto Power Off

Your calculator will turn off automatically if you do not perform any operation

for about 10 minutes. If this happens, press the O key to turn the calculator

back on.

Adjusting Display Contrast

Display the CONTRAST screen by performing the following key operation:

1N(SETUP) c7( ]CONT '). Next, use d and e to adjust

contrast. After the setting is the way you want, press A.

Important: If adjusting display contrast does not improve display readability,

it probably means that battery power is low. Replace the battery.

Key Markings

Pressing the 1 or S key followed by a second

key performs the alternate function of the second key.

The alternate function is indicated by the text printed

above the key.

The following shows what the different colors of the

alternate function key text mean.

If key marking text

is this color: It means this:

Yellow Press 1 and then the key to access the

applicable function.

Red Press S and then the key to input the

applicable variable, constant, or symbol.

sin–1 D

s

Alternate function

Keycap function

E-4

Reading the Display

The display of the calculator shows expressions you input, calculation results,

and various indicators.

Input expression Indicators

Calculation result

• If a ' indicator appears on the right side of the calculation result, it means

the displayed calculation result continues to the right. Use e and d to

scroll the calculation result display.

• If a g indicator appears on the right side of the input expression, it means

the displayed calculation continues to the right. Use e and d to scroll the

input expression display. Note that if you want to scroll the input expression

while both the ' and g indicators are displayed, you will need to press A

first and then use e and d to scroll.

Display indicators

This

indicator: Means this:

S

The keypad has been shifted by pressing the 1 key. The

keypad will unshift and this indicator will disappear when

you press a key.

A

The alpha input mode has been entered by pressing the

S key. The alpha input mode will be exited and this

indicator will disappear when you press a key.

M There is a value stored in independent memory.

STO

The calculator is standing by for input of a variable name to

assign a value to the variable. This indicator appears after

you press 1t(STO).

RCL

The calculator is standing by for input of a variable name to

recall the variable’s value. This indicator appears after you

press t.

STAT The calculator is in the STAT Mode.

7 The default angle unit is degrees.

8 The default angle unit is radians.

9 The default angle unit is grads.

FIX A fixed number of decimal places is in effect.

SCI A fixed number of significant digits is in effect.

Math Natural Display is selected as the display format.

$`

Calculation history memory data is available and can be

replayed, or there is more data above/below the current

screen.

Disp The display currently shows an intermediate result of a

multi-statement calculation.

Important: For some type of calculation that takes a long time to execute,

the display may show only the above indicators (without any value) while it

performs the calculation internally.

Math Math

E-5

Using Menus

Some of the calculator’s operations are performed using menus. Pressing

N or w, for example, will display a menu of applicable functions.

The following are the operations you should use to navigate between

menus.

• You can select a menu item by pressing the number key that corresponds

to the number to its left on the menu screen.

• The $ indicator in the upper right corner of a menu means there is another

menu below the current one. The ` indicator means another menu above.

Use c and f to switch between menus.

• To close a menu without selecting anything, press A.

Specifying the Calculation Mode

When you want to perform this type of

operation:

Perform this key

operation:

General calculations N1(COMP)

Statistical and regression calculations N2(STAT)

Generate a number table based on one or

two functions

N3(TABLE)

Note: The initial default calculation mode is the COMP Mode.

Configuring the Calculator Setup

First perform the following key operation to display the setup menu:

1N(SETUP). Next, use c and f and the number keys to configure

the settings you want.

Underlined ( ___ ) settings are initial defaults.

1MthIO 2LineIO Specifies the display format.

Natural Display (MthIO) causes fractions,

irrational numbers, and other expressions to be

displayed as they are written on paper.

MthIO: Selects MathO or LineO. MathO displays

input and calculation results using the same format as they are written on

paper. LineO displays input the same way as MathO, but calculation results

are displayed in linear format.

Linear Display (LineIO) causes fractions and

other expressions to be displayed in a single line.

Note: • The calculator switches to Linear Display automatically whenever

you enter the STAT Mode. • In this manual, the B symbol next to a

sample operation indicates Natural Display (MathO), while the b symbol

indicates Linear Display.

3Deg 4Rad 5Gra Specifies degrees, radians or grads as the angle

unit for value input and calculation result display.

Note: In this manual, the v symbol next to a sample operation indicates

degrees, while the V symbol indicates radians.

Math

E-6

6Fix 7Sci 8Norm Specifies the number of digits for display of a

calculation result.

Fix: The value you specify (from 0 to 9) controls the number of decimal

places for displayed calculation results. Calculation results are rounded off

to the specified digit before being displayed.

Example: b 100 ÷ 7 = 14.286 (Fix 3)

14.29 (Fix 2)

Sci: The value you specify (from 1 to 10) controls the number of significant

digits for displayed calculation results. Calculation results are rounded off to

the specified digit before being displayed.

Example: b 1 ÷ 7 = 1.4286 × 10

–1

(Sci 5)

1.429 × 10

–1

(Sci 4)

Norm: Selecting one of the two available settings ( Norm 1 , Norm 2)

determines the range in which results will be displayed in non-exponential

format. Outside the specified range, results are displayed using exponential

format.

Norm 1: 10

–2

| x |, | x | 10

10

Norm 2: 10

–9

| x |, | x | 10

10

Example: b 1 ÷ 200 = 5 × 10

–3

(Norm 1)

0.005 (Norm 2)

c1ab/c c2 d/c Specifies either mixed fraction (ab/c) or improper

fraction (d/c) for display of fractions in calculation results.

c3STAT 1ON ; 2OFF Specifies whether or not to display a FREQ

(frequency) column in the STAT Mode Stat Editor.

c4TABLE 1f(x) ; 2f(x),g(x) Specifies whether to use function f(x)

only or the two functions f(x) and g(x) in the TABLE Mode.

c5Rdec 1ON ; 2OFF Specifies whether or not to display calculation

results using recurring decimal form.

c6Disp 1Dot ; 2Comma Specifies whether to display a dot or

a comma for the calculation result decimal point. A dot is always displayed

during input.

Note: When dot is selected as the decimal point, the separator for multiple

results is a comma (,). When comma is selected, the separator is a

semicolon (;).

c7]CONT ' Adjusts display contrast. See “Adjusting Display

Contrast” for details.

Initializing Calculator Settings

Perform the following procedure to initialize the calculator, which returns the

calculation mode to COMP and returns all other settings, including setup

menu settings, to their initial defaults.

19(CLR) 1(Setup) =(Yes)

E-7

Inputting Expressions and Values

Basic Input Rules

Calculations can be input in the same form as they are written. When you

press = the priority sequence of the input calculation will be evaluated

automatically and the result will appear on the display.

4 × sin30 × (30 + 10 × 3) = 120

4 *s 30 )*( 30 + 10 * 3 )=

*

1

*

2

*

3

*

1

Input of the closing parenthesis is required for sin, sinh, and other functions

that include parentheses.

*

2

These multiplication symbols ( × ) can be omitted. A multiplication symbol

can be omitted when it occurs immediately before an opening parenthesis,

immediately before sin or other function that includes parentheses,

immediately before the Ran# (random number) function, or immediately

before a variable (A, B, C, D, E, F, M, X, Y), π or

e .

*

3

The closing parenthesis immediately before the = operation can be

omitted.

Input example omitting **

2

and )*

3

operations in the above

example.

4 s 30 )( 30 + 10 * 3 =

Note: • If the calculation becomes longer than the screen width during

input, the screen will scroll automatically to the right and the ] indicator will

appear on the display. When this happens, you can scroll back to the left by

using d and e to move the cursor. • When Linear Display is selected,

pressing f will cause the cursor to jump to the beginning of the calculation,

while c will jump to the end. • When Natural Display is selected, pressing

e while the cursor is at the end of the input calculation will cause it to jump

to the beginning, while pressing d while the cursor is at the beginning will

cause it to jump to the end. • You can input up to 99 bytes for a calculation.

Each numeral, symbol, or function normally uses one byte. Some functions

require three to 13 bytes. • The cursor will change shape to k when there are

10 bytes or less of allowed input remaining. If this happens, end calculation

input and then press =.

Calculation Priority Sequence

The priority sequence of input calculations is evaluated in accordance with the

rules below. When the priority of two expressions is the same, the calculation

is performed from left to right.

1st Parenthetical expressions

2nd Functions that require an argument to the right and a closing

parenthesis “)” following the argument.

3rd Functions that come after the input value (

x 2

, x 3

, x –1

, x !, °’ ”, °,

r

,

g

,

%), powers (

x ^), roots ( ")

4th Fractions

Math

Math

E-8

5th

Negative sign (–)

Note: When squaring a negative value (such as –2), the value

being squared must be enclosed in parentheses ( (- 2 )w

=). Since

x 2

has a higher priority than the negative sign,

inputting - 2 w= would result in the squaring of 2 and then

appending a negative sign to the result. Always keep the priority

sequence in mind, and enclose negative values in parentheses

when required.

6th STAT Mode estimated values ( m, n, m1

, m2

)

7th Multiplication where the multiplication sign is omitted

8th Permutation ( n P r ), combination ( n C r )

9th Multiplication (×), division ( ÷) , remainder calculations (÷R)

10th Addition, subtraction (+, –)

Inputting with Natural Display

Selecting Natural Display makes it possible to input and display fractions and

certain functions (log,

x 2

, x 3

, x ^, ), #, ", x −1

, 10 ^, e ^, Abs) just as they

are written in your textbook.

2 + '

2

1 + '

2

B

' 2 +! 2 ee 1 +! 2 =

Important: • Certain types of expressions can cause the height of a

calculation formula to be greater than one display line. The maximum

allowable height of a calculation formula is two display screens (31 dots × 2).

Further input will become impossible if the height of the calculation you are

inputting exceeds the allowable limit. • Nesting of functions and parentheses

is allowed. Further input will become impossible if you nest too many functions

and/or parentheses. If this happens, divide the calculation into multiple parts

and calculate each part separately.

Note: When you press = and obtain a calculation result using Natural

Display, part of the expression you input may be cut off. If you need to view

the entire input expression again, press A and then use d and e to

scroll the input expression.

Using Values and Expressions as Arguments

(Natural Display only)

A value or an expression that you have already input can be used as the

argument of a function. After you have input 7

6, for example, you can make

it the argument of ', resulting in 7

6

'

.

To input 1 + 7

6 and then change it to 1 + 7

6

'

B

1 + 7 ' 6

dddd1Y(INS)

Math

Math

Math

E-9

!

As shown above, the value or expression to the right of the cursor after

1Y(INS) are pressed becomes the argument of the function that is

specified next. The range encompassed as the argument is everything up

to the first open parenthesis to the right, if there is one, or everything up to

the first function to the right (sin(30), log2(4), etc.)

This capability can be used with the following functions: ', &, 1

6( "), 1l( $), 1i( %), !, 6, 1!( #), D.

Overwrite Input Mode (Linear Display only)

You can select either insert or overwrite as the input mode, but only while

Linear Display is selected. In the overwrite mode, text you input replaces the

text at the current cursor location. You can toggle between the insert and

overwrite modes by performing the operations: 1Y(INS). The cursor

appears as “

I ” in the insert mode and as “ ” in the overwrite mode.

Note: Natural Display always uses the insert mode, so changing display

format from Linear Display to Natural Display will automatically switch to

the insert mode.

Correcting and Clearing an Expression

To delete a single character or function: Move the cursor so it is directly to

the right of the character or function you want to delete, and then press Y.

In the overwrite mode, move the cursor so it is directly under the character

or function you want to delete, and then press Y.

To insert a character or function into a calculation: Use d and e to

move the cursor to the location where you want to insert the character or

function and then input it. Be sure always to use the insert mode if Linear

Display is selected.

To clear all of the calculation you are inputting: Press A.

Recurring Decimal Calculations

Your calculator uses a recurring decimal when you input a value. Calculation

results also can be displayed using recurring decimal form whenever

applicable.

Inputting a Recurring Decimal

When inputting a recurrent decimal, press a!( k ) before inputting its

period (repetend) and then input the period up to the ending value. To input

the recurring decimal 0.909090.... (0.90), perform the following operation:

“0 .a!( k ) 90”.

Important: • If the value starts with an integer part (like: 12.3123123...), do

not include the integer part when inputting the period (12.312). • Recurring

decimal input is possible only when Natural Display is selected.

To input 0.33333... (0.3) B

0 .

a!( k )

Math

Math

Math

E-10

3

To input 1.428571428571... (1.428571) B

1 .a!( k )

428571

To calculate 1.021 + 2.312 B

1 .a!( k ) 021e+

2 .a!( k ) 312=

Calculation result displayed as recurring

decimal value: f

Note: • You can specify up to 14 decimal places for the recurring decimal

period. If you input more than 14 decimal places, the value will be treated as

a terminating decimal and not a recurring decimal. • Recurring decimal value

input can be performed regardless of the Rdec setting on the setup menu.

Displaying a Calculation Result as a Recurring

Decimal Value

Calculation results that can be displayed as recurring decimal values will be

displayed as such when ON is selected for the Rdec setting on the setup

menu. Pressing the f key will cycle between the available calculation result

formats as shown below.

Fraction Recurring Decimal

Decimal Value According to Display (Norm, Fix, Sci) Settings

Or

Decimal Value According to Display (Norm, Fix, Sci) Settings

Recurring Decimal Fraction

7

1 = 0.142857 = 0.1428571429 (Norm 1) B

1 ' 7 =

Display as recurring decimal: f

Decimal value according to Norm 1 setting: f

Math

Math

Math

Math

Math

Math

Math

Math

E-11

Return to initial display format (fraction): f

1 ÷ 7 = 7

1 = 0.142857 = 0.1428571429 (Norm 1) B

1 / 7 !=

Display as fraction: f

Display as recurring decimal: f

Return to initial display format (Norm 1): f

7

1 = 0.142857 = 0.1428571429 (Norm 1) b

1 ' 7 =

Display as recurring decimal: f

Decimal value according to Norm 1 setting: f

Return to initial display format (fraction): f

1 ÷ 7 = 0.1428571429 (Norm 1) = 0.142857 = 7

1 b

1 / 7 =

Display as fraction: f

Math

Math

Math

Math

Math

E-12

Display as recurring decimal: f

Return to initial display format (Norm 1): f

Conditions for Displaying a Calculation Result as a

Recurring Decimal

If a calculation result satisfies the following conditions, pressing f will

display it as a recurring decimal value.

• The total number of digits used in the mixed fraction (including integer,

numerator, denominator, and separator symbol) must be no more than 10.

• The data size of value to be displayed as the recurring decimal must be no

larger than 99 bytes. Each value and the decimal point require one byte,

and each digit of the period requires one byte. The following, for example,

would require of total of 8 bytes (4 bytes for the values, 1 byte for the decimal

point, 3 bytes for the period): 0.123

Note: For information about switching the display format of a calculation

result when OFF is selected for the Rdec setting on the setup menu, see

“Toggling Calculation Results”.

Recurring Decimal Examples

0.3 + 0.45 = 0.78 B

0 .a!( k ) 3 e+

0 .a!( k ) 45 =f

1.6 + 2.8 = 4.5 B

1 .a!( k ) 6 e+

2 .a!( k ) 8 =f

To confirm the following: 0.123 = 999

123 , 0.1234 = 9999

1234 ,

0.12345 = 99999

12345 B

123 ' 999 =f

1234 ' 9999 =f

12345 ' 99999 =f

Math

Math

Math

Math

Math

E-13

Toggling Calculation Results

While Natural Display is selected, each press of f will toggle the currently

displayed calculation result between its fraction form and decimal form, its

' form and decimal form, or its π form and decimal form.

π ÷ 6 = 1

6π = 0.5235987756 B

15( π ) / 6 = 1

6

π

f 0.5235987756

(

'

2 + 2) × '

3 = '

6 + 2'

3 = 5.913591358 B

(! 2 e+ 2 )*! 3 = '

'

6 + 2

'

3 f 5.913591358

While Linear Display is selected, each press of f will toggle the currently

displayed calculation result between its decimal form and fraction form.

1 ÷ 5 = 0.2 = 1

5 b

1 / 5 =

0.2 f 1 {5

1 –

4

5 = 1

5 = 0.2 b

1 - 4 ' 5 =

1 {5 f 0.2

Important: • Depending on the type of calculation result that is on the display

when you press the f key, the conversion process may take some time

to perform. • With certain calculation results, pressing the f key will not

convert the displayed value. • When ON is selected for Rdec on the setup

menu, pressing f will switch the calculation result to recurring decimal form.

For details, see “Recurring Decimal Calculations”. • You cannot switch from

decimal form to mixed fraction form if the total number of digits used in the

mixed fraction (including integer, numerator, denominator, and separator

symbols) is greater than 10.

Note: With Natural Display (MathO), pressing 1= instead of = after

inputting a calculation will display the calculation result in decimal form.

Pressing f after that will switch the calculation result to recurring decimal

form, fraction form or π form. The ' form of the result will not appear in

this case.

Basic Calculations

Fraction Calculations

Note that the input method for fractions is different, depending upon whether

you are using Natural Display or Linear Display.

2 + 1 = 7

3 2 6 B 2 ' 3 e+ 1 ' 2 =

7

6

or ' 2 c 3 e+' 1 c 2 =

7

6

b 2 ' 3 + 1 ' 2 = 7 {6

E-14

1 = 1

2 2

4 − 3 B 4 -1'( () 3 e 1 c 2 =

1

2

b 4 - 3 ' 1 ' 2 = 1 {2

Note: • Mixing fractions and decimal values in a calculation while Linear

Display is selected will cause the result to be displayed as a decimal value.

• Fractions in calculation results are displayed after being reduced to their

lowest terms.

To switch a calculation result between improper fraction and mixed

fraction form: Perform the following key operation: 1f(

<

)

To switch a calculation result between fraction and decimal form:

Press f.

Percent Calculations

Inputting a value and pressing 1((%) causes the input value to become

a percent.

150 × 20% = 30 150 * 20 1((%) = 30

Calculate what percentage of 880 is 660. (75%)

660 / 880 1((%) =

75

Increase 2500 by 15%. (2875)

2500 + 2500 * 15 1((%) =

2875

Discount 3500 by 25%. (2625)

3500 - 3500 * 25 1((%) =

2625

Degree, Minute, Second (Sexagesimal) Calculations

Performing an addition or subtraction operation between sexagesimal values,

or a multiplication or division operation between a sexagesimal value and a

decimal value will cause the result to be displayed as a sexagesimal value.

You also can convert between sexagesimal and decimal. The following

is the input format for a sexagesimal value: {degrees} $ {minutes} $

{seconds} $.

Note: You must always input something for the degrees and minutes, even

if they are zero.

2°20´30˝ + 39´30˝ = 3°00´00˝

2 $ 20 $ 30 $+ 0 $ 39 $ 30 $=

3°0´0˝

Convert 2°15´18˝ to its decimal equivalent.

2 $ 15 $ 18 $=

2°15´18˝

(Converts sexagesimal to decimal.) $ 2.255

(Converts decimal to sexagesimal.) $ 2°15´18˝

Multi-Statements

You can use the colon character (:) to connect two or more expressions and

execute them in sequence from left to right when you press =.

E-15

3 + 3 : 3 × 3 3 + 3 SW(:) 3 * 3 = 6

= 9

Using Engineering Notation

A simple key operation transforms a displayed value to engineering notation.

Transform the value 1234 to engineering notation, shifting the

decimal point to the right.

1234 =

1234

W 1.234×10

3

W 1234×10

0

Transform the value 123 to engineering notation, shifting the decimal

point to the left.

123 =

123

1W( ← ) 0.123×10

3

1W( ← ) 0.000123×10

6

Calculation History

In the COMP Mode, the calculator remembers up to approximately 200 bytes

of data for the newest calculation. You can scroll through calculation history

contents using f and c.

1 + 1 = 2 1 + 1 = 2

2 + 2 = 4 2 + 2 = 4

3 + 3 = 6 3 + 3 = 6

(Scrolls back.) f 4

(Scrolls back again.) f 2

Note: Calculation history data is all cleared whenever you press O, when

you change to a different calculation mode, when you change the display

format, or whenever you perform any reset operation.

Replay

While a calculation result is on the display, you can press d or e to edit

the expression you used for the previous calculation.

4 × 3 + 2.5 = 14.5 b 4 * 3 + 2.5 = 14.5

4 × 3 − 7.1 = 4.9 (Continuing) dYYYY- 7.1 = 4.9

Note: If you want to edit a calculation when the ' indicator is on the right

side of a calculation result display (see “Reading the Display”), press A

and then use d and e to scroll the calculation.

Answer Memory (Ans)/Previous Answer Memory

(PreAns)

The last calculation result obtained is stored in Ans (answer) memory. The

calculation result obtained prior to the last one is stored in PreAns (previous

answer) memory. Displaying the result of a new calculation will move current

Ans memory contents to PreAns memory and store the new calculation

E-16

results in Ans memory. PreAns memory can be used only in the COMP

Mode. PreAns memory contents are cleared whenever the calculator enters

another mode from the COMP Mode.

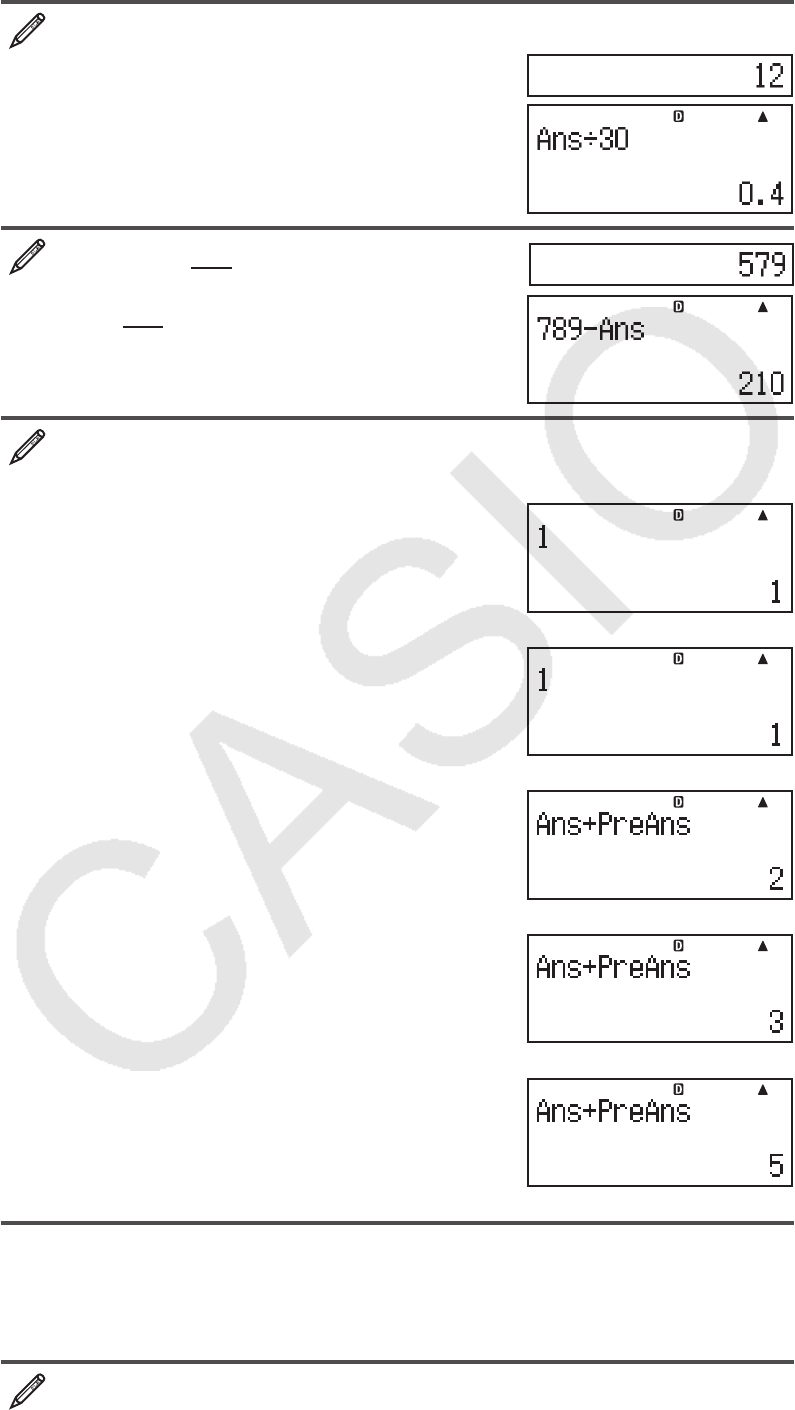

To divide the result of 3 × 4 by 30 b

3 * 4 =

(Continuing) / 30 =

123 + 456 = 579 B

123 + 456 =

789 – 579 = 210

(Continuing) 789 -G=

For Tk+2 = Tk+1 + Tk (Fibonacci sequence), determine the sequence

from T1 to T5. Note however, that T1 = 1 and T2 = 1. B

T

1 = 1 1 =

(Ans = T1 = 1)

T

2 = 1 1 =

(Ans = T2 = 1, PreAns = T1 = 1)

T

3 = T2 + T1 = 1 + 1

G+SG(PreAns) =

(Ans = T3 = 2, PreAns = T2 = 1)

T

4 = T3 + T2 = 2 + 1 =

(Ans = T4 = 3, PreAns = T3 = 2)

T

5 = T4 + T3 = 3 + 2 =

Result: The sequence is {1, 1, 2, 3, 5}.

Variables (A, B, C, D, E, F, X, Y)

Your calculator has eight preset variables named A, B, C, D, E, F, X, and Y. You

can assign values to variables and also use the variables in calculations.

To assign the result of 3 + 5 to variable A

3 + 5 1t(STO) y(A)

8

Math

Math

Math

Math

Math

Math

E-17

To multiply the contents of variable A by 10

(Continuing) Sy(A) * 10 =

80

To recall the contents of variable A (Continuing) ty(A) 8

To clear the contents of variable A 0 1t(STO) y(A) 0

Independent Memory (M)

You can add calculation results to or subtract results from independent

memory. The “M” appears on the display when there is any value other than

zero stored in independent memory.

To clear the contents of M 0 1t(STO) l(M) 0

To add the result of 10 × 5 to M (Continuing) 10 * 5 l 50

To subtract the result of 10 + 5 from M

(Continuing) 10 + 5 1l(M–) 15

To recall the contents of M (Continuing) tl(M) 35

Note: Variable M is used for independent memory.

Clearing the Contents of All Memories

Ans memory, independent memory, and variable contents are retained even

if you press A, change the calculation mode, or turn off the calculator.

PreAns memory contents are retained even if you press A and turn off the

calculator without exiting the COMP Mode. Perform the following procedure

when you want to clear the contents of all memories.

!9(CLR) 2(Memory) =(Yes)

Prime Factorization

In the COMP Mode, you can factor a positive integer up to 10 digits into

prime factors up to three digits.

To perform prime factorization on 1014

1014 =

!e(FACT)

When you perform prime factorization on a value that includes a factor that

is prime number with more than three digits, the part that cannot be factored

will be enclosed in parentheses on the display.

To perform prime factorization on 4104676 (= 2

2

× 1013

2

)

!e(FACT)

Any one of the following operations will exit prime factorization result display.

• Pressing !e(FACT) or =.

• Pressing any of the following keys: . or e.

• Using the setup menu to change the angle unit setting (Deg, Rad, Gra) or

the display digits setting (Fix, Sci, Norm).

E-18

Note: • You will not be able to execute prime factorization while a decimal

value, fraction, or negative value calculation result is displayed. Trying to

do so will cause a math error (Math ERROR). • You will not be able to

execute prime factorization while the result of a calculation that uses Pol,

Rec, ÷R is displayed.

Remainder Calculations

You can use the ÷R function in order to obtain the quotient and remainder

in a division calculation.

To calculate the quotient and remainder of 5 ÷ 2

B 5 !D(÷R) 2 =

Quotient Remainder

b 5 !D(÷R) 2 =

Quotient Remainder

Note: • Only the quotient value of a ÷R calculation is stored in Ans memory.

• Assigning the result of a remainder division calculation to a variable will

assign the quotient value only. Performing the operation 5 !D(÷R)

2 !t(STO))(X) (which assigns the result of 5÷R2 to X) will assign

a value of 2 to X. • If a ÷R calculation is part of a multi-step calculation, only

the quotient is passed on to the next operation. (Example: 10 + 17 !D

(÷R) 6 = → 10 + 2) • Operation of the f and e keys is disabled while a

remainder division result is on the display.

Cases when Remainder Division becomes

Non-remainder Division

If either of the following conditions exists when you perform a remainder

division operation, the calculation will be treated as normal (non-remainder)

division.

• When either the dividend or the divisor is a very large value

Example: 20000000000 !D(÷R) 17 =

→ Calculated as: 20000000000 ÷ 17

• When the quotient is not a positive integer, or if the remainder is not a

positive integer or positive fractional value

Example: - 5 !D(÷R) 2 = → Calculated as: –5 ÷ 2

Function Calculations

For actual operations using each function, see the “Examples” section

following the list below.

π

π

: π is displayed as 3.141592654, but π = 3.14159265358980 is used for

internal calculations.

e : e is displayed as 2.718281828, but e = 2.71828182845904 is used for

internal calculations.

Math

E-19

sin, cos, tan, sin

−1

, cos

−1

, tan

−1

: Trigonometric functions. Specify the

angle unit before performing calculations. See 1.

sinh, cosh, tanh, sinh

−1

, cosh

−1

, tanh

−1

: Hyperbolic functions. Input a

function from the menu that appears when you press w. The angle unit

setting does not affect calculations. See 2.

°,

r

,

g

: These functions specify the angle unit. ° specifies degrees,

r

radians,

and

g

grads. Input a function from the menu that appears when you perform

the following key operation: 1G(DRG '). See 3.

$, %

: Exponential functions. Note that the input method is different

depending upon whether you are using Natural Display or Linear Display.

See 4.

log

: Logarithmic function. Use the l key to input log

a

b as log ( a , b ). Base

10 is the default setting if you do not input anything for

a . The & key also

can be used for input, but only while Natural Display is selected. In this

case, you must input a value for the base. See 5.

ln

: Natural logarithm to base e . See 6.

x 2

, x 3

, x ^, ), #, ", x −1

: Powers, power roots, and reciprocals. Note

that the input methods for

x ^, ), #, and " are different depending upon

whether you are using Natural Display or Linear Display. See 7.

Note: The following functions cannot be input in consecutive sequence: x 2

,

x 3

, x ^, x −1

. If you input 2 ww, for example, the final w will be ignored. To

input 2

2

2, input 2 w, press the d key, and then press w( B).

Pol, Rec : Pol converts rectangular coordinates to polar coordinates, while

Rec converts polar coordinates to rectangular coordinates. See 8.

Pol(

x , y ) = ( r , ) Rec( r , ) = ( x , y )

Rectangular Polar

Coordinates (Rec) Coordinates (Pol)

Specify the angle unit before

performing calculations.

The calculation result for

r and

and for

x and y are each assigned

respectively to variables X and Y.

Calculation result

θ

is displayed

in the range of −180°

θ

180°.

x ! : Factorial function. See 9.

Abs : Absolute value function. Note that the input method is different

depending upon whether you are using Natural Display or Linear Display.

See 10.

Ran# : Generates a 3-digit pseudo random number that is less than 1. The

result is displayed as a fraction when Natural Display is selected. See 11 .

RanInt# : For input of the function of the form RanInt#( a , b ), which

generates a random integer within the range of

a to b . See 12.

n P r , n C r : Permutation ( n P r ) and combination ( n C r ) functions. See 13 .

Rnd : The argument of this function is made a decimal value and then

rounded in accordance with the current number of display digits setting

(Norm, Fix, or Sci). With Norm 1 or Norm 2, the argument is rounded off

to 10 digits. With Fix and Sci, the argument is rounded off to the specified

digit. When Fix 3 is the display digits setting, for example, the result of

10 ÷ 3 is displayed as 3.333, while the calculator maintains a value of

3.33333333333333 (15 digits) internally for calculation. In the case of

E-20

Rnd(10÷3) = 3.333 (with Fix 3), both the displayed value and the calculator’s

internal value become 3.333. Because of this a series of calculations will

produce different results depending on whether Rnd is used (Rnd(10÷3) × 3

= 9.999) or not used (10 ÷ 3 × 3 = 10.000). See 14 .

GCD, LCM: GCD determines the greatest common divisor of two values,

while LCM determines the least common multiple. See 15 .

Int: Extracts the integer part of a value. See 16 .

Intg: Determines the largest integer that does not exceed a value. See 17 .

Note: Using functions can slow down a calculation, which may delay display

of the result. Do not perform any subsequent operation while waiting for the

calculation result to appear. To interrupt an ongoing calculation before its

result appears, press A.

Examples

sin 30°= 0.5 bv s 30 )= 0.5

sin

−1

0.5 = 30° bv 1s(sin

−1

) 0.5 )= 30

sinh 1 = 1.175201194 wb(sinh) 1 )= 1.175201194

cosh

–1

1 = 0 wf(cosh

−1

) 1 )= 0

π /2 radians = 90°, 50 grads = 45° v

(15( π ) / 2 )1G(DRG ') c(

r

) = 90

50 1G(DRG ') d(

g

) = 45

To calculate e 5

× 2 to three significant digits (Sci 3)

1N(SETUP) 7(Sci) 3

B 1i( %) 5 e* 2 =

2.97×10

2

b 1i( %) 5 )* 2 = 2.97×10

2

log

10

1000 = log 1000 = 3 l 1000 )= 3

log

2

16 = 4 l 2 1)(,) 16 )= 4

B & 2 e 16 = 4

To calculate ln 90 (= log

e

90) to three significant digits (Sci 3)

1N(SETUP) 7(Sci) 3 i 90 )= 4.50×10

0

1.2 × 10

3

= 1200 B 1.2 * 10 6 3 = 1200

(1+1)

2+2

= 16 B ( 1 + 1 )6 2 + 2 = 16

(5

2

)

3

= 15625 ( 5 x)W= 15625

32

5 = 2 B 16( ") 5 e 32 = 2

b 5 16( ") 32 )= 2

To calculate

'

2 × 3(= 3

'

2 = 4.242640687...) to three decimal

places (Fix 3)

1N(SETUP) 6(Fix) 3 B ! 2 e* 3 =

3'

2

1= 4.243

b ! 2 )* 3 = 4.243

1

2

3

4

5

6

7

E-21

To convert rectangular coordinates ('

2, '

2) to polar coordinates

v

B 1+(Pol) ! 2 e1)(,) ! 2 e)= r=2, =45

b 1+(Pol) ! 2 )1)(,) ! 2 ))= r= 2

= 45

To convert polar coordinates ('

2, 45°) to rectangular coordinates

v

B 1-(Rec) ! 2 e1)(,) 45 )=

X=1, Y=1

(5 + 3) ! = 40320 ( 5 + 3 )1E( x !) = 40320

|2 – 7| × 2 = 10

B D 2 - 7 e* 2 =

10

b D 2 - 7 )* 2 = 10

To obtain three random three-digit integers

1000 1.(Ran#) = 459

= 48

= 117

(Results shown here are for illustrative purposes only. Actual results will differ.)

To generate random integers in the range of 1 to 6

S.(RanInt) 1 1)(,) 6 )= 2

= 6

= 1

(Results shown here are for illustrative purposes only. Actual results will differ.)

To determine the number of permutations and combinations

possible when selecting four people from a group of 10

Permutations: 10 1*( n P r ) 4 = 5040

Combinations: 10 1/( n C r ) 4 = 210

To perform the following calculations when Fix 3 is selected for the

number of display digits: 10 ÷ 3 × 3 and Rnd(10 ÷ 3) × 3 b

1N(SETUP) 6(Fix) 3 10 / 3 * 3 = 10.000

10(Rnd) 10 / 3 )* 3 = 9.999

To determine the greatest common divisor of 28 and 35

S*(GCD) 28 1)(,) 35 )= 7

To determine the least common multiple of 9 and 15

S/(LCM) 9 1)(,) 15 )= 45

To extract the integer part of –3.5

S+(Int)- 3.5 )= –3

To determine the largest integer that does not exceed –3.5

S-(Intg)- 3.5 )= –4

8

9

10

11

12

13

14

15

16

17

E-22

Statistical Calculations (STAT)

To start a statistical calculation, perform the key operation N2(STAT)

to enter the STAT Mode and then use the screen that appears to select the

type of calculation you want to perform.

To select this type of statistical calculation:

(Regression formula shown in parentheses) Press this key:

Single-variable (X) 1(1-VAR)

Paired-variable (X, Y), linear regression (

y = A + B x ) 2(A+BX)

Paired-variable (X, Y), quadratic regression

(

y = A + B x + C x 2

) 3( _+CX

2

)

Paired-variable (X, Y), logarithmic regression

(

y = A + Bln x ) 4(ln X)

Paired-variable (X, Y),

e exponential regression

(

y = A e B

x ) 5(

e ^X)

Paired-variable (X, Y),

ab exponential regression

(

y = AB

x

) 6(A

• B^X)

Paired-variable (X, Y), power regression (

y = A x B

) 7(A

• X^B)

Paired-variable (X, Y), inverse regression

(

y = A + B/ x ) 8(1/X)

Pressing any of the above keys ( 1 to 8) displays the Stat Editor.

Note: When you want to change the calculation type after entering the

STAT Mode, perform the key operation 11(STAT) 1(Type) to display

the calculation type selection screen.

Inputting Data

Use the Stat Editor to input data. Perform the following key operation to

display the Stat Editor: 11(STAT) 2(Data).

The Stat Editor provides 40 rows for data input when there is an X column

only or when there are X and Y columns, 20 rows when there are X and FREQ

columns, or 26 rows when there are X, Y, and FREQ columns.

Note: Use the FREQ (frequency) column to input the quantity (frequency) of

identical data items. Display of the FREQ column can be turned on (displayed)

or off (not displayed) using the Stat Format setting on the setup menu.

To select linear regression and input the following data:

(170, 66), (173, 68), (179, 75)

N2(STAT) 2(A+BX)

170 = 173 = 179 =ce

66 = 68 = 75 =

1

STAT

STAT

STAT

E-23

Important: • All data currently input in the Stat Editor is deleted whenever

you exit the STAT Mode, switch between the single-variable and a paired-

variable statistical calculation type, or change the Stat Format setting on the

setup menu. • The following operations are not supported by the Stat Editor:

m, 1m(M–), 1t(STO). Pol, Rec, ÷R, and multi-statements also

cannot be input with the Stat Editor.

To change the data in a cell: In the Stat Editor, move the cursor to the cell

that contains the data you want to change, input the new data, and then

press =.

To delete a line: In the Stat Editor, move the cursor to the line that you want

to delete and then press Y.

To insert a line: In the Stat Editor, move the cursor to the location where

you want to insert the line and then perform the following key operation:

11(STAT) 3(Edit) 1(Ins).

To delete all Stat Editor contents: In the Stat Editor, perform the following

key operation: 11(STAT) 3(Edit) 2(Del-A).

Obtaining Statistical Values from Input Data

To obtain statistical values, press A while in the Stat Editor and then

recall the statistical variable ( σ x , Σ x 2

, etc.) you want. Supported statistical

variables and the keys you should press to recall them are shown below.

For single-variable statistical calculations, the variables marked with an

asterisk (*) are available.

Sum: Σ x 2

*, Σ x *, Σ y 2

, Σ y , Σ xy , Σ x 3

, Σ x 2

y , Σ x 4

11(STAT) 3(Sum) 1

to

8

Number of Items:

n *, Mean: o*, p, Population Standard Deviation: σ x *,

σ y , Sample Standard Deviation: s x *, s y

11(STAT) 4(Var) 1

to

7

Minimum Value: minX*, minY, Maximum Value: maxX*, maxY

11(STAT) 5(MinMax) 1

to

2

(When the single-variable statistical calculation is selected)

11(STAT) 6(MinMax) 1

to

4

(When a paired-variable statistical calculation is selected)

First Quartile: Q1, Median: med, Third Quartile: Q3

11(STAT) 5(MinMax) 3 to 5

(When the single-variable statistical calculation is selected.)

Regression Coefficients: A, B, Correlation Coefficient:

r , Estimated

Values:

m, n

11(STAT) 5(Reg) 1

to

5

Regression Coefficients for Quadratic Regression: A, B, C, Estimated

Values:

m1

, m2

, n

11(STAT) 5(Reg) 1

to

6

• See the table at the beginning of this section of the manual for the regression

formulas.

•

m, m1

, m2

and n are not variables. They are commands of the type that take

an argument immediately before them. See “Calculating Estimated Values”

for more information.

To input the single-variable data x = {1, 2, 2, 3, 3, 3, 4, 4, 5}, using

the FREQ column to specify the number of repeats for each items

({ x n

; freq

n

} = {1;1, 2;2, 3;3, 4;2, 5;1}), and calculate the mean and

population standard deviation.

2

E-24

1N(SETUP) c3(STAT) 1(ON)

N2(STAT) 1(1-VAR)

1 = 2 = 3 = 4 = 5 =ce

1 = 2 = 3 = 2 =

A11(STAT) 4(Var) 2( o) =

A11(STAT) 4(Var) 3( σ x ) =

Results: Mean: 3 Population Standard Deviation: 1.154700538

To calculate the linear regression and logarithmic regression

correlation coefficients for the following paired-variable data and

determine the regression formula for the strongest correlation: ( x ,

y ) = (20, 3150), (110, 7310), (200, 8800), (290, 9310). Specify Fix

3 (three decimal places) for results.

1N(SETUP) c3(STAT) 2(OFF)

1N(SETUP) 6(Fix) 3

N2(STAT) 2(A + BX)

20 = 110 = 200 = 290 =ce

3150 = 7310 =8800 = 9310 =

A11(STAT) 5(Reg) 3(r) =

A11(STAT) 1(Type) 4(In X)

A11(STAT) 5(Reg) 3(r) =

A11(STAT) 5(Reg) 1(A) =

A11(STAT) 5(Reg) 2(B) =

Results: Linear Regression Correlation Coefficient: 0.923

Logarithmic Regression Correlation Coefficient: 0.998

Logarithmic Regression Formula:

y = –3857.984 + 2357.532ln x

Calculating Estimated Values

Based on the regression formula obtained by paired-variable statistical

calculation, the estimated value of

y can be calculated for a given x -value.

The corresponding

x -value (two values, x 1

and x 2

, in the case of quadratic

regression) also can be calculated for a value of

y in the regression formula.

To determine the estimate value for y when x = 160 in the

regression formula produced by logarithmic regression of the data

in 3. Specify Fix 3 for the result. (Perform the following operation

after completing the operations in 3.)

A 160 11(STAT) 5(Reg) 5( n) =

Result: 8106.898

Important: Regression coefficient, correlation coefficient, and estimated

value calculations can take considerable time when there are a large number

of data items.

STAT

3

STAT FIX

4

E-25

Creating a Number Table from Two

Functions (TABLE)

TABLE generates a number table based on one or two functions. You can

use the function f(x) or the two functions f(x) and g(x). See “Configuring the

Calculator Setup” for more information.

Perform the following steps to generate a number table.

1. Press N3(TABLE) to enter the TABLE Mode.

2. Use the X variable to input two functions, one in the format f(x) and the

other in the format g(x).

• Be sure to input the X variable ( S)(X)) when generating a number

table. Any variable other than X is handled as a constant.

• If you are using a single function, input a function in the format f(x) only.

• Pol and Rec cannot be input in the function.

3. In response to the prompts that appear, input the values you want to use,

pressing = after each one.

For this prompt: Input this:

Start? Input the lower limit of X (Default = 1).

End? Input the upper limit of X (Default = 5).

Note: Make sure that the End value is always

greater than the Start value.

Step? Input the increment step (Default = 1).

Note: The Step specifies by how much the Start

value should be sequentially incremented as the

number table is generated. If you specify Start = 1

and Step = 1, X sequentially will be assigned the

values 1, 2, 3, 4, and so on to generate the number

table until the End value is reached.

• Inputting the Step value and pressing = generates and displays the

number table in accordance with the parameters you specified.

• Pressing A while the number table screen is displayed will return to

the function input screen in step 2.

To generate a number table for the functions

f

(x) = x2 + 2

1 and

g(x) = x2 − 2

1 for the range –1 x 1, incremented in steps of 0.5

B

N3(TABLE)

1N(SETUP)c4(TABLE)2(f(x),g(x))

S)(X) x+ 1 ' 2

=

• Pressing = without inputting anything for g(x) will generate a number

table based on f(x) only.

S)(X) x- 1 ' 2

=-1 =1 =0.5 =

Math

E-26

Note: • The maximum number of rows in the generated number table depends

on the setup menu table setting. Up to 30 rows are supported for the “f(x)”

setting, while 20 rows are supported for the “f(x),g(x)” setting. • You can

use the number table screen for viewing values only. Table contents cannot

be edited. • The number table generation operation causes the contents of

variable X to be changed.

Important: The function you input for number table generation is deleted

whenever you display the setup menu in the TABLE Mode and switch between

Natural Display and Linear Display.

Calculation Ranges, Number of Digits,

and Precision

The calculation range, number of digits used for internal calculation, and

calculation precision depend on the type of calculation you are performing.

Calculation Range and Precision

Calculation Range ± 1 × 10

–99

to ± 9.999999999 × 10

99

or 0

Number of Digits for Internal

Calculation 15 digits

Precision In general, ± 1 at the 10th digit for a single

calculation. Precision for exponential

display is ± 1 at the least significant digit.

Errors are cumulative in the case of

consecutive calculations.

Function Calculation Input Ranges and Precision

Functions Input Range

sin

x/cos x

DEG 0 | x | 9 × 10

9

RAD 0 | x | 157079632.7

GRA 0 | x | 1 × 10

10

tan x

DEG Same as sin

x , except when | x | = (2 n –1) × 90.

RAD Same as sin

x , except when | x | = (2 n –1) × π /2.

GRA Same as sin

x , except when | x | = (2 n –1) × 100.

sin

–1

x / cos

–1

x 0 | x | 1

tan

–1

x 0 | x | 9.999999999 × 10

99

sinh x 0 | x | 230.2585092

cosh

x

sinh

–1

x 0 | x | 4.999999999 × 10

99

cosh

–1

x 1 x 4.999999999 × 10

99

tanh x 0 | x | 9.999999999 × 10

99

tanh

–1

x 0 | x | 9.999999999 × 10

–1

log x /ln x 0 x 9.999999999 × 10

99

10

x –9.999999999 × 10

99

x 99.99999999

e x –9.999999999 × 10

99

x 230.2585092

'

x 0

x 1 × 10

100

E-27

x 2 | x | 1 × 10

50

x –1 | x | 1 × 10

100

; x G 0

3

'

x | x | 1 × 10

100

x ! 0

x 69 ( x is an integer)

n P r 0

n 1 × 10

10

, 0 r n ( n , r are integers)

1 {

n !/( n – r )!} 1 × 10

100

n C r 0

n 1 × 10

10

, 0 r n ( n , r are integers)

1 n !/ r ! 1 × 10

100

or 1 n !/( n – r )! 1 × 10

100

Pol( x , y ) | x | , | y | 9.999999999 × 10

99

x2

+

y2 9.999999999 × 10

99

Rec( r , ) 0

r 9.999999999 × 10

99

, : Same as sin x

°’ ” | a | , b , c 1 × 10

100

; 0 b , c The display seconds value

is subject to an error of ±1 at the second decimal place.

| x | 1 × 10

100

Decimal ↔ Sexagesimal Conversions

0°0´0˝ | x | 9999999°59´59˝

x y

x 0: –1 × 10

100

y log x 100

x = 0: y 0

x 0: y = n , m

2n+1 ( m , n are integers)

However: –1 × 10

100

y log | x | 100

x

'

y

y 0: x G 0, –1 × 10

100

1/ x log y 100

y = 0: x 0

y 0: x = 2 n +1, 2n+1

m ( m G 0; m , n are integers)

However: –1 × 10

100

1/ x log | y | 100

a

b /

c

Total of integer, numerator, and denominator must be 10

digits or less (including division marks).

RanInt#(

a , b ) a b ;

| a |

,

| b | 1 × 10

10

; b – a 1 × 10

10

• Precision is basically the same as that described under “Calculation Range

and Precision”, above.

•

x y

,

x

'

y,

3

', x !, n P r , n C r type functions require consecutive internal

calculation, which can cause accumulation of errors that occur with each

calculation.

• Error is cumulative and tends to be large in the vicinity of a function’s singular

point and inflection point.

• The range for calculation results that can be displayed in π form when using

Natural Display is |

x | 10

6

. Note, however, that internal calculation error

can make it impossible to display some calculation results in π form. It also

can cause calculation results that should be in decimal form to appear in

π form.

Errors

The calculator will display an error message whenever an error occurs for

any reason during a calculation. There are two ways to exit an error message

display: Pressing d or e to display the location of the error, or pressing

A to clear the message and calculation.

E-28

Displaying the Location of an Error

While an error message is displayed, press d or e to return to the

calculation screen. The cursor will be positioned at the location where

the error occurred, ready for input. Make the necessary corrections to the

calculation and execute it again.

When you input 14 ÷ 0 × 2 = by mistake instead of 14 ÷10 × 2 =

B

14 / 0 * 2 =

e (or d)

d 1 =

Clearing the Error Message

While an error message is displayed, press A to return to the calculation

screen. Note that this also clears the calculation that contained the error.

Error Messages

Math ERROR

Cause: • The intermediate or final result of the calculation you are performing

exceeds the allowable calculation range. • Your input exceeds the allowable

input range (particularly when using functions). • The calculation you are

performing contains an illegal mathematical operation (such as division

by zero).

Action: • Check the input values, reduce the number of digits, and try

again. • When using independent memory or a variable as the argument of a

function, make sure that the memory or variable value is within the allowable

range for the function.

Stack ERROR

Cause: The calculation you are performing has caused the capacity of the

numeric stack or the command stack to be exceeded.

Action: • Simplify the calculation expression so it does not exceed the

capacity of the stack. • Try splitting the calculation into two or more parts.

Syntax ERROR

Cause: There is a problem with the format of the calculation you are

performing.

Action: Make necessary corrections.

Insufficient MEM Error

Cause: An attempt to generate a number table in the TABLE Mode whose

conditions cause it to exceed the maximum number of allowable rows. The

maximum number of rows is 30 when “f(x)” is selected for the setup menu

table setting and 20 when “f(x),g(x)” is selected.

Action: Narrow the table calculation range by changing the Start, End, and

Step values, and try again.

E-29

Argument ERROR

Cause: A non-integer argument was input for the random number function

(RanInt#).

Action: Input only integers for the argument.

Before Assuming Malfunction of the

Calculator...

Perform the following steps whenever an error occurs during a calculation

or when calculation results are not what you expected. If one step does not

correct the problem, move on to the next step.

Note that you should make separate copies of important data before

performing these steps.

1. Check the calculation expression to make sure that it does not contain any

errors.

2. Make sure that you are using the correct mode for the type of calculation

you are trying to perform.

3. If the above steps do not correct your problem, press the O key. This will

cause the calculator to perform a routine that checks whether calculation

functions are operating correctly. If the calculator discovers any abnormality,

it automatically initializes the calculation mode and clears memory contents.

For details about initialized settings, see “Configuring the Calculator Setup”.

4. Initialize all modes and settings by performing the following operation:

19(CLR) 1(Setup) =(Yes).

Replacing the Battery

A low battery is indicated by a dim display, even if contrast is adjusted, or by

failure of figures to appear on the display immediately after you turn on the

calculator. If this happens, replace the battery with a new one.

Important: Removing the battery will cause all of the calculator’s memory

contents to be deleted.

1. Press 1A(OFF) to turn off the calculator. Screw

• To ensure that you do not accidentally turn on power

while replacing the battery, slide the hard case onto the

front of the calculator.

2. Remove the cover as shown in the illustration and replace

the battery, taking care that its plus (+) and minus (–) ends

are facing correctly.

3. Replace the cover.

4. Initialize the calculator: O19(CLR) 3(All) =(Yes)

• Do not skip the above step!

E-30

Specifications

Power Requirements:

Built-in solar cell; button battery LR44 (GPA76) × 1

Approximate Battery Life:

3 years (based on one hour of operation per day)

Operating Temperature: 0°C to 40°C (32°F to 104°F)

Dimensions: 11.1 (H) × 80 (W) × 162 (D) mm

3

/

8

(H) × 3

1

/

8

(W) × 6

3

/

8

(D)

Approximate Weight: 95 g (3.4 oz) including the battery

Frequently Asked Questions

k How can I perform input and display results the same way I did on a

model that does not have Natural Textbook Display?

Perform the following key operation: 1N(SETUP) 2(LineIO). See

“Configuring the Calculator Setup” on page E-5 for more information.

k How can I change a fraction form result to decimal form?

How can I change a fraction form result produced by a division

operation to decimal form?

See “Toggling Calculation Results” on page E-13 for the procedure.

k What is the difference between Ans memory, PreAns memory,

independent memory, and variable memory?

Each of these types of memory acts like “containers” for temporary storage

of a single value.

Ans Memory: Stores the result of the last calculation performed. Use this

memory to carry the result of one calculation on to the next.

PreAns Memory: Stores the result of calculation before the last one.

PreAns memory can be used only in the COMP Mode.

Independent Memory: Use this memory to totalize the results of multiple

calculations.

Variables: This memory is helpful when you need to uses the same value

multiple times in one or more calculations.

k What is the key operation to take me from the STAT Mode or TABLE

Mode to a mode where I can perform arithmetic calculations?

Press N1(COMP).

k How can I return the calculator to its initial default settings?

Perform the following operation: 19(CLR) 1(Setup) =(Yes)

k When I execute a function calculation, why do I get a calculation result

that is completely different from older CASIO calculator models?

With a Natural Textbook Display model, the argument of a function that

uses parentheses must be followed by a closing parenthesis. Failing to

press ) after the argument to close the parentheses may cause unwanted

values or expressions to be included as part of the argument.

Example: (sin 30) + 15 v

Older (S-VPAM) Model: s 30 + 15 = 15.5

Natural Textbook Display Model: b s 30 )+ 15 = 15.5

Failure to press ) here as shown below will result in calculation of sin 45.

s 30 + 15 = 0.7071067812

CASIO COMPUTER CO., LTD.

6-2, Hon-machi 1-chome

Shibuya-ku, Tokyo 151-8543, Japan

SA1111-A

© 2012 CASIO COMPUTER CO., LTD.
