ANSWERING MACHINE

WITH CORDLESS

TELEPHONE

EASY TO USE

OWNER'S GUIDE

TC-520

VOLUME MEMORY FLASH

MEMO CONV

LO BATT

PLAY

MESSAGE

4GHI

7PRS

5JKL 6MNO

3DEF

2ABC

8TUV 9WXY

0OPER

FAST FWD

REWIND

TONE

CHANNEL REDIAL(PAUSE)

HOLD SCREEN

REMOTE

TALK

PAGE

SAVE ERASE

MIC

PLAY/PAUSE SPEAKERPHONE

TIME

F FWD

REW SAVE

HOLD

ERASE

MEMO

RECORD

PAGE

CHARGING

LINE IN USE

25 CHANNEL TIME/DAY STAMP

3939

PAGE

U.S. Pats.

4,120,583 4,686,622

4,121,284 4,825,364

4,371,923 4,829,419

4,396,976 4,896,260

4,531,182 4,942,516

Technical Specifications

FCC Registration No:

Frequency Control: Crystal

Operation Mode: FM

Ringer Equivalence: 0.002B

Jack: RJ11

Transmit Frequency

Handset: 48.7 to 49.5, 49.6 to 49.9 MHz

Base Unit: 43.7 to 44.4, 46.6 to 46.9 MHz

Receive Frequency

Handset: 43.7 to 44.4, 46.6 to 46.9 MHz

Base Unit: 48.7 to 49.5, 49.6 to 49.9 MHz

Power Source

Handset: Replaceable NiCad Batteries

Base Unit: AC9V 600mA

Battery Life

Standby: 7 days

Talk: 6 hours

Recharging Time: 12-15 hours (with power off)

The TC-520 is hearing aid compatible.

Design and specifications subject to change

without notice.

CASIO PHONEMATE, INC.

20665 Manhattan Place

Torrance CA 90501

M2S1 4/96

Printed in Malaysia

3838

PAGE TABLE OF CONTENTS

Important Safety Instructions............................ 2

Important Cordless Telephone Information ...... 3

INITIAL SETUP

Installation ........................................................ 4

Record an Outgoing Message .......................... 6

Check your Outgoing Message ........................ 6

Set Time & Day Stamp..................................... 7

Talking Clock .................................................... 7

Operating Information....................................... 8

Switch Settings................................................. 9

Tone/Pulse ............................................. 9

Power Saver Ringer On-Off.................... 9

Base Ringer On-Off ................................ 9

Programmable Ring Select............................... 9

MESSAGES - from Base Unit

Call Screening ................................................ 10

Message Indicator .......................................... 10

Play Messages ............................................... 11

Rewind Messages .......................................... 11

Fast Forward Messages................................. 11

Replay Messages ........................................... 11

Pause Message Playback .............................. 12

Automatic Erase (Tape Reset) ....................... 12

Save Messages .............................................. 12

Erase Messages............................................. 12

Answering a Call During Message Playback .. 13

Memo Record ................................................. 13

Paging the Handset from the Base Unit ......... 14

HANDSET OPERATION

Charging the Batteries.................................... 14

Low Battery Indicator ..................................... 14

Handset Message Waiting Indicator ............... 14

Handset Volume Control ................................ 15

3737

PAGE

ACCESSORIES

Description

Lightning Arrestor - Helps protect telephone answering machines

from damage caused by lightning strikes to the telephone line.

Recommended for areas prone to electrical storms.

30 Minute Microcassette - For recording outgoing and incoming

messages.

Rechargeable Battery Pack - For Model TC-520.

AC Adapter - For Model TC-520.

Touchtone Dialer - Activates the beeperless remote operation in

areas where true touchtone is not available or from cellular phones.

Modular Duplex T-Adapter - Converts a single modular telephone

jack to a double jack.

Modular Two Line T-Adapter - Splits one RJ14 two line jack into

two RJ11 single line jacks.

A+A1 Light Control - When using this answering machine with a

business phone system, this accessory enables the in-use indicator

at a receptionist's console to light when the phone is off-hook.

Part No. Price Qty. Total

2700140 $19.95

2601008 $5.95

3201010 $15.00

1601061 $13.50

2001018 $19.95

2700156 $5.95

2700135 $5.95

2701180 $6.95

To order accessories for your TC-520 answering machine, simply cut out this

order form, fill in the appropriate information and send it with payment (check,

money order or credit card information) to:

CASIO PHONEMATE Parts Department

8805 Kelso Drive

Baltimore, MD 21221

or Call: 1-800-322-9995

Name_______________________________________________________________

Street Address _______________________________________________________

City ___________________________ State __________Zip Code ______________

Signature ______________________________ Telephone ____________________

Expiration Date

Card No.

VISA MasterCard

VISA and Master Card orders ONLY call toll free 1-800-322-9995 or use

this form to order. CASIO PHONEMATE, Parts Dept., 8805 Kelso Drive,

Baltimore, MD 21221

Enclosed is my check/money order for the total amount.

Please charge my credit card.

Subtotal

CA & MD residents

add applicable

sales tax

All orders add

shipping and

handling

Total

Please fill in the quantity and total price of the items that you are requesting. Figure the total and send a check or money order

for the proper amount. We do not accept C.O.D. orders. Allow 15 working days for delivery. Prices subject to change without

notice. Returns subject to 20% restocking charge upon approval.

$3.50

GENERAL

3636

PAGE FCC REQUIREMENTS

USER INSTRUCTIONS

1. This equipment complies with Part 68 of the FCC rules. On the bottom of this equipment is a label

that contains, among other information, the FCC registration number and Ringer Equivalence Number

(REN) for this equipment. If requested, provide this information to your telephone company.

2. The REN is useful to determine the quantity of devices you may connect to your telephone line and

still have all of those devices ring when your number is called. In most, but not all areas, the sum of

the RENs of all devices should not exceed five (5.0). To be certain of the number of devices you may

connect to your line, as determined by the REN, you should call your local telephone company to

determine the maximum REN for your calling area.

3. If your answering machine causes harm to the telephone network, the telephone company may

discontinue your service temporarily. If possible, they will notify you in advance. But if advance notice

isn't practical, you will be notified as soon as possible. You will be advised of your right to file a

complaint with the FCC.

4. Your telephone company may make changes in its facilities, equipment, operations, or procedures

that could affect the proper operation of your equipment. If they do, you will be given advance notice

so as to give you an opportunity to maintain uninterrupted service.

5. If there is a problem with this unit, the telephone company may ask you to disconnect this equipment

from the network until the problem has been corrected or you are sure that the equipment is not

malfunctioning.

6. Repairs can only be made by the manufacturer or an authorized service agency. Unauthorized

repairs void registration and warranty. Contact seller or manufacturer for details of permissible user-

performed routine repairs, and where and how to have other than routine repairs made.

7. This equipment may not be used on coin service provided by the telephone company. Connection to

party lines is subject to state tariffs. (Contact your state public utility commission or corporation

commission for information.) Jack: RJ11 Ringer Equivalence:

CASIO PHONEMATE, Inc. 20665 Manhattan Place, Torrance, CA 90501

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment generates, uses, and can radiate radio

frequency energy and, if not installed and used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or television reception,

which can be determined by turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

λ Reorient or relocate the receiving antenna.

λ Increase the separation between the equipment and receiver.

λ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

λ Consult the dealer or an experienced radio/TV technician for help.

Any changes made by the user not approved by CASIO PHONEMATE can void the user’s authority to

operate the equipment.

GENERAL

3535

PAGE

GENERAL

EXTRA HELP

Should you have additional questions, please call CASIO PHONEMATE's Help Line at

(310) 320-9810 (West Coast) or (410) 686-2885 (East Coast) for assistance.

The beep tones are a warning alarm to let you know:

1. That the handset is out of communication range with the base unit. Move the

handset closer to your base unit.

2. That the base unit had some problem like a power failure. Return the handset to

the base unit for 5 seconds and make sure all cords are connected correctly.

You hear continuous short beeps instead of a dial tone when using the cordless handset.

Interference Noise is heard.

1. The handset is too far from the base unit.

2. The cordless handset is picking up interference from one of several sources: electrical

appliances such as radio, TV, fluorescent lights, etc. Move the base unit to reduce interference.

3. Press CHANNEL to select another channel.

No Page Tone is heard at the Handset.

1. Check the AC ADAPTER and telephone cord connection.

2. You may have had a power failure. Return the handset to the base unit for 5 seconds

to reset the Digital Security Code.

A beep is heard each time the handset is returned to the base unit.

This is normal operation. The handset is updating the security code.

Unplug the AC ADAPTER PLUG from the back of the TC-520 for 10 seconds. Remove the

batteries from the handset. Plug the AC Adapter back into the base station and re-insert the

batteries in the handset. Return the handset to the base unit for 10 seconds.

If these actions do not remedy the problem, call the CASIO PHONEMATE Helpline. The helpline

staff can often resolve problems or recommend service when needed. Unless you live close to a

CASIO PHONEMATE Service Center, you may need to mail your machine to CASIO PHONEMATE

for repair. You should:

1. Package the unit in its original box or a comparable package.

2. Include a clear and specific explanation of the problem.

3. Include your name, address, and phone number.

4. Provide a legible photocopy of the dated store receipt for warranty purposes.

After several attempts the TC-520 will not operate properly.

20665 Manhattan Place

Torrance, CA 90501

(310) 328-6453

8805 Kelso Drive

Baltimore, MD 21221

(410) 391-0974

FACTORY

SERVICE

CENTERS

3434

PAGE ROUBLESHOOTING

GENERAL

ANSWERING MACHINE

Messages were not erased after playback.

1. Press ERASE during message playback or within 7 seconds after the last message has played.

2. Do not press SAVE.

3. After a power failure, the entire tape may play. See page 30 for power failure recovery.

When calling in, the beep tone after your outgoing message seems too long.

Each recorded message will lengthen the beep tone while the tape repositions itself to accept the

next message. This is normal operation for single-cassette answering machines. Play and erase

messages frequently to keep this delay short.

There is an operator recording or a dial tone between messages.

The caller hung up without leaving a message.

No sound from the speaker.

Check the VOLUME CONTROL. It may have been turned down.

You are unable to retrieve your messages using a touchtone phone.

See "Remote Operation," page 27-29.

The sound is distorted during playback or the TC-520 automatically shuts off and

begins beeping.

Check the tape. It may be damaged or worn. Also clean the tape head and capstan

(See "Cleaning" page 31.)

If this does not remedy the problem, you may need to replace the tape.

The LINE IN-USE INDICATOR flashes rapidly.

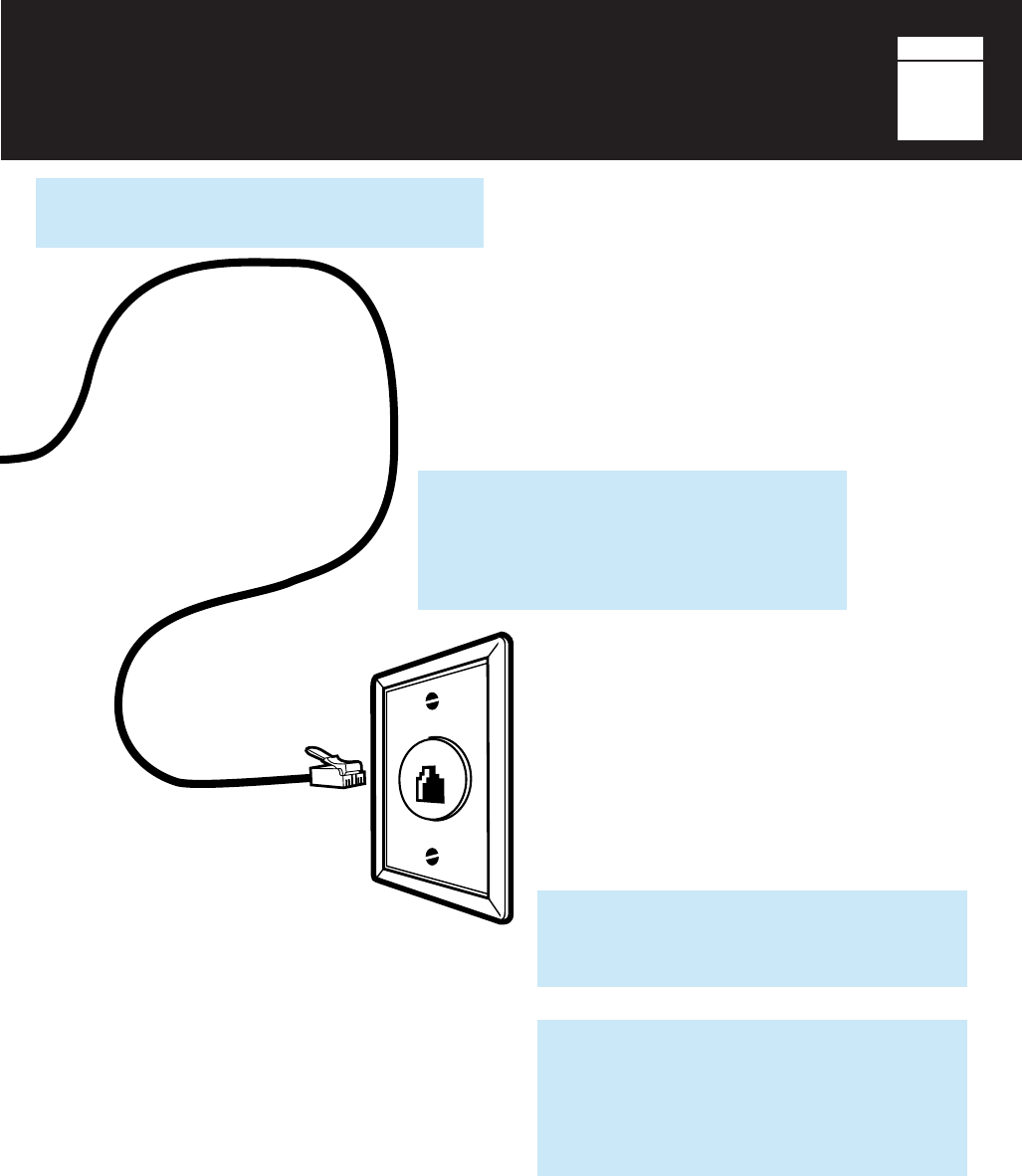

Connect the telephone cord to the wall jack.

The handset does not ring.

1. Check the ringer switch and make sure it is not set to "POWER SAVER."

2. Check AC ADAPTER and telephone cord connection.

3. Was the battery pack charged for at least 12-15 hours? Is the LOW BATTERY INDICATOR on?

HANDSET

No Dial Tone is heard when calling out.

1. Was the battery pack charged for at least 12-15 hours? Is the LOW BATTERY INDICATOR

flashing?

2. Check the AC adapter connection.

3. Check the telephone cord connection.

4. Check the connection of the battery pack. See page 32.

3333

PAGE

LIMITED WARRANTY

FACTORY

SERVICE

CENTERS

20665 Manhattan Place

Torrance, CA 90501

(310) 328-6453

8805 Kelso Drive

Baltimore, MD 21221

(410) 391-0974

GENERAL

IMPORTANT!

SALES SLIP OR EVIDENCE OF PURCHASE DATE REQUIRED

This limited warranty gives you specific legal rights; you may also have other rights which vary

from state to state.

The limited warranty is extended only to the original consumer of a CASIO PHONEMATE

product and is valid only with respect to consumers within the United States of America and

Canada. Subject to the following conditions, should this product prove defective by reason of

improper workmanship of material:

During the period of one (1) year from the date of original purchase, CASIO PHONEMATE will

repair or, at its option, replace the product without charge for parts or labor. If CASIO

PHONEMATE elects to replace the product, such replacement may be accomplished with a

factory-reconditioned unit.

This limited warranty does not apply: (a) to any product damaged by accident, misuse, improper

line voltage, lightning, fire, water, or other acts of nature, (b) if the product is altered or repaired

by anyone other than CASIO PHONEMATE, INC. or one of its authorized warranty stations or if

the FCC-approved connector plugs are removed. This limited warranty does not cover tapes or

broken or marred cabinets.

Except to the extent prohibited by applicable law, all implied warranties made by CASIO

PHONEMATE in connection with this product are limited in duration to a period of one (1) year

from the date of original purchase, and no warranties, whether expressed or implied, shall apply

to this product after said period.

Should this product prove defective in workmanship or material, the consumer’s sole remedies

shall be such repair or replacement as is herein-above provided. Under no circumstances shall

CASIO PHONEMATE be liable for any loss or damage, direct, consequential, or incidental

arising out of the use of or inability to use this product.

Some states do not allow limitations on how long an implied warranty lasts or the exclusion or

limitation of incidental or consequential damages, so the above limitations or exclusion may not

apply to you.

In order to obtain warranty service, you must provide evidence of purchase date. For your con-

venience, keep the dealer’s dated bill of sale or delivery ticket as evidence of the purchase date.

To obtain the name of the authorized CASIO PHONEMATE service facility,

call CASIO PHONEMATE ’s HelpLine at

(410) 686-2885 or (310) 320-9810.

If you live in an area that is highly susceptible to electrical storms, you may want to purchase a

Lightning Arrestor. The Lightning Arrestor attaches to your answering machine and if lightning

causes a surge through your phone line, the arrestor will help suppress the surge of electricity

which may cause damage to your unit.

To purchase your Lightning Arrestor, use the attached Accessory Order Form or call CASIO

PHONEMATE ’s Parts Department toll free: 1-800-322-9995.

3232

PAGE

Red Wire

Black Wire

REMOVING/REPLACING

MICROCASSETTE

If it becomes necessary to remove or replace

the microcassette be sure to play messages

first.

1Gently lift the tape out from the left side.

INSTALL

a new microcassette.

BATTERY

INSTALLATION

THIS UNIT IS SHIPPED WITH THE

HANDSET BATTERY PACK

INSTALLED.

3Press

ON/OFF

to turn the machine on.

RE-RECORD

your outgoing message

(see page 6).

If it becomes necessary to replace the battery

pack:

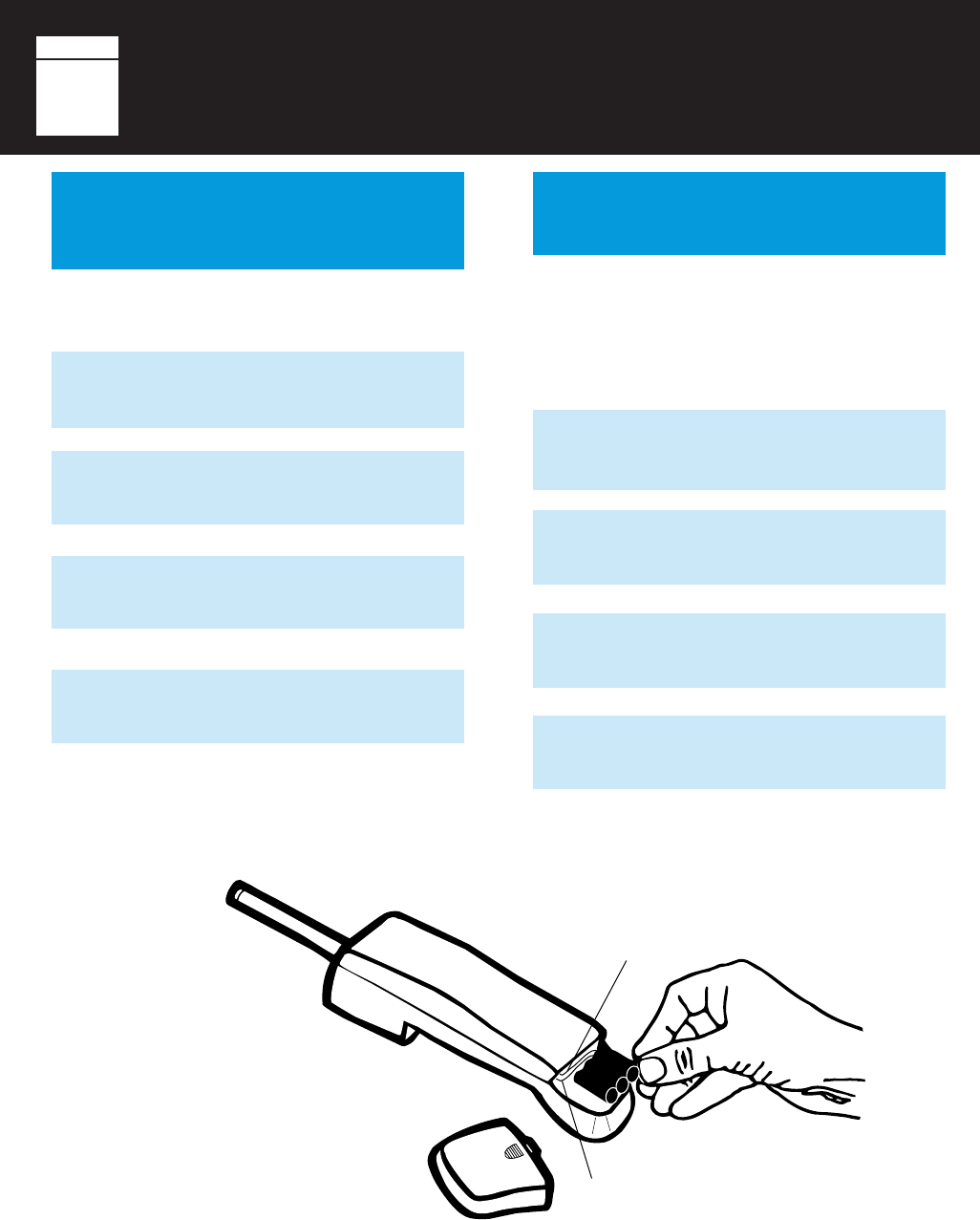

1Press down on the battery compartment

cover and slide it toward the bottom of the

handset.

2Install the new battery pack with the red

wire on the right side of the black wire

(see drawing.)

3Replace the battery cover by sliding it up

from the bottom.

4Place the handset in the base unit and

charge the battery pack for 12-15 hours.

WARNING: Use only NiCad

Rechargeable Battery Pack

(3.6 volts 250 - 300 mAh.)

MICROCASSETTE &

BATTERY INSTALLATION

GENERAL

3131

PAGE

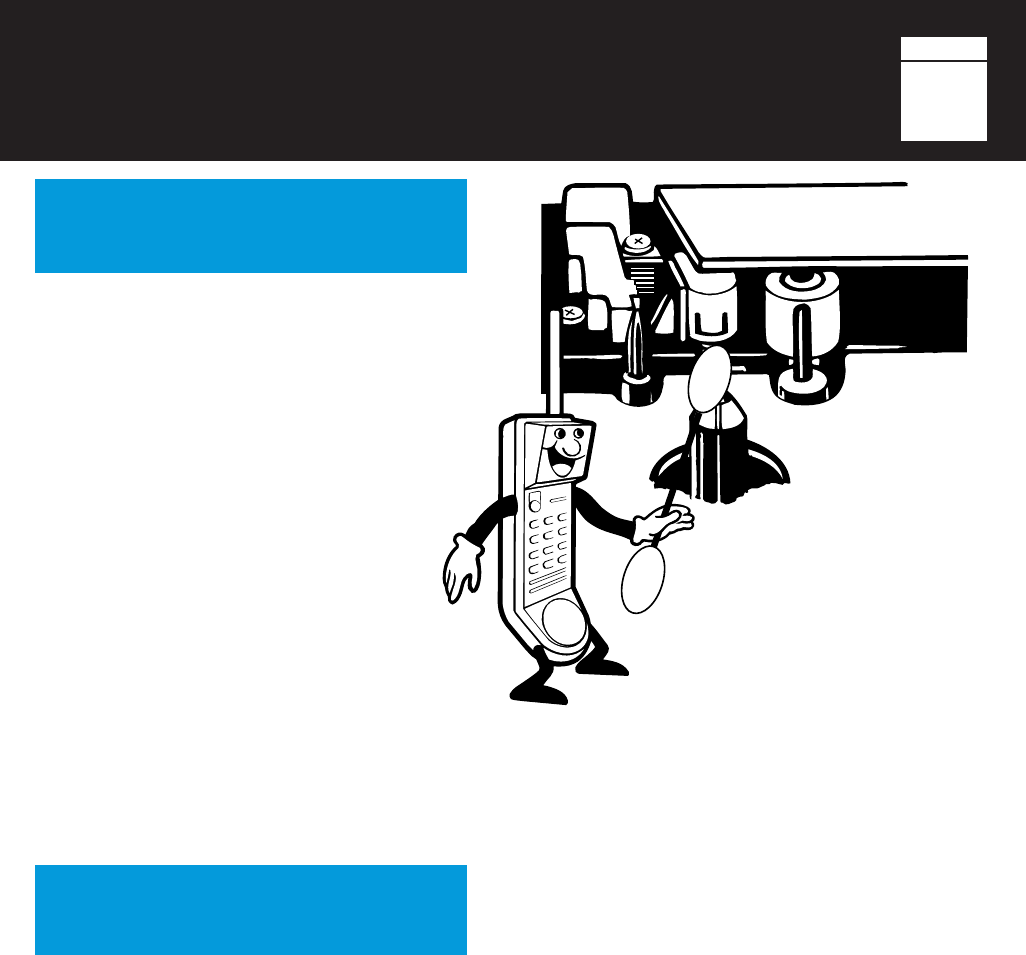

CLEANING

THE BASE UNIT

CAUTION: Play messages before cleaning

and then disconnect the TC-520 from the

power outlet.

To assure high performance, periodically

clean the tape heads and capstan whenever

you notice an accumulation of dust and red-

brown oxide particles. Use a cotton swab

moistened with isopropyl alcohol. Be sure no

alcohol touches rubber parts, as it tends to dry

and eventually crack the rubber. Use a damp

cloth or sponge to clean the cabinet. A mild

soap, like dishwashing detergent, will help

remove grease or oil. Do not spray cleaners

directly onto the machine. Cleaners should

only be used on the plastic surfaces. If they

get into the mechanism or speaker, they may

damage the machine.

CLEANING

THE HANDSET

CAUTION: Disconnect the TC-520 from the

power outlet before cleaning.

Clean the battery charging contacts on the base

unit and the handset with a soft cloth once a

month. Clean the antenna, and the plastic

cabinet of the base unit and the handset, with a

soft cloth only. Do not use excess water or

cleaning liquid of any kind.

CLEANING GENERAL

3030

PAGE

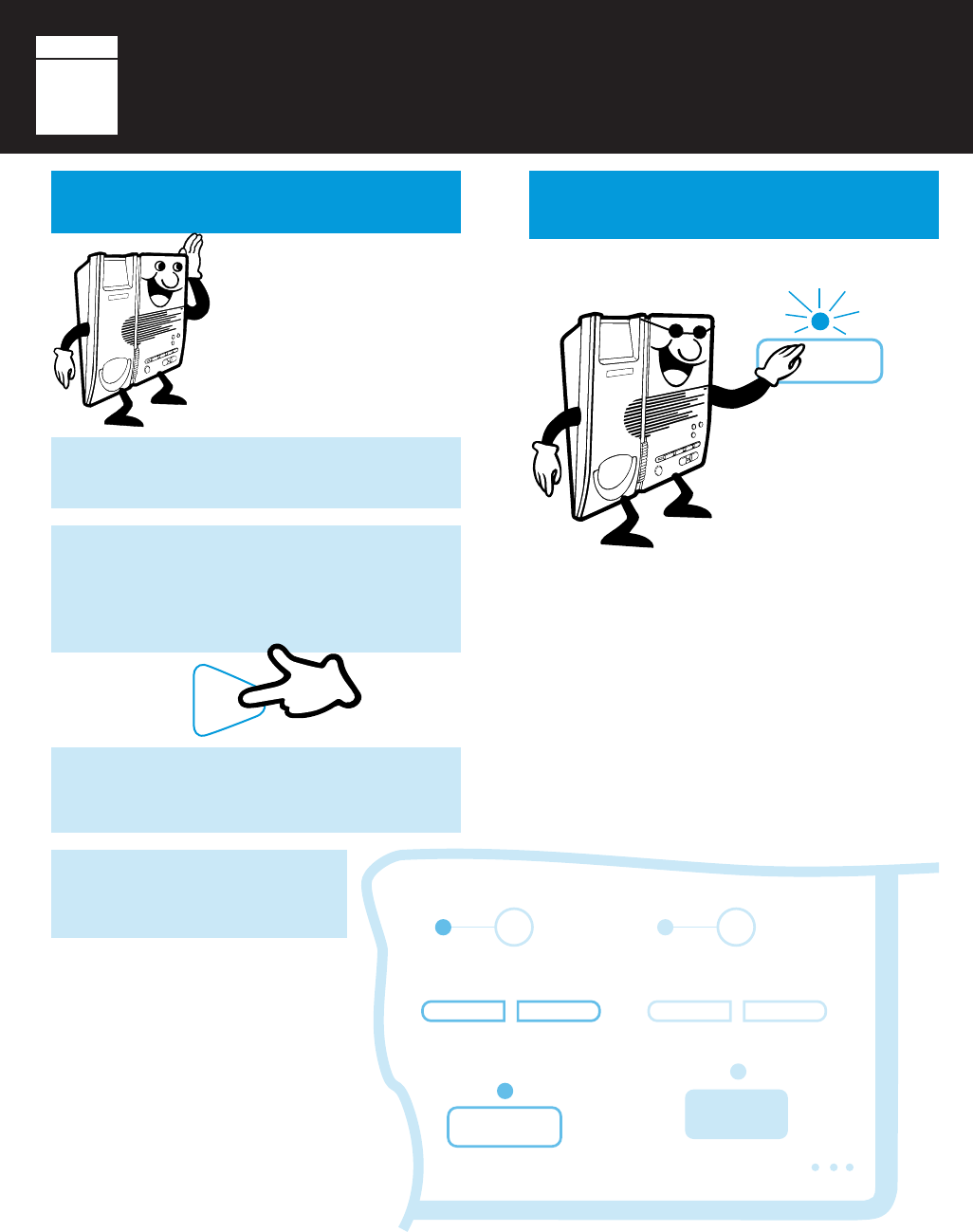

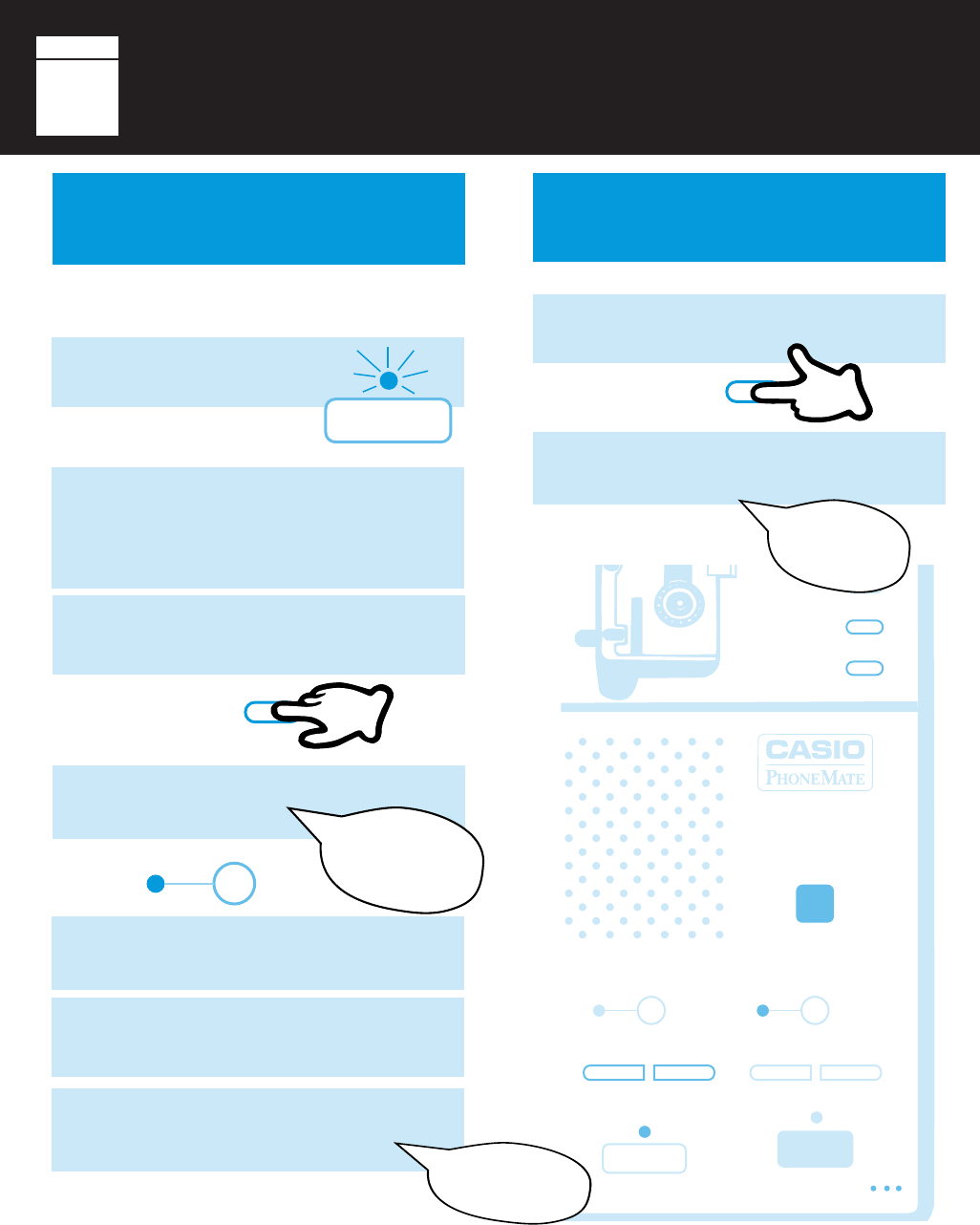

POWER FAILURE

RECOVERY

If the power failure exceeds 3 minutes, the

MESSAGE RECORD

and

SPEAKERPHONE INDICATORS

will

flash rapidly at the base unit.

This indicates that you need to check your

messages and reset the time/day and ring

select settings.

Autodial memory is protected from a power

failure for approximately 24 hours. After 24

hours it will be necessary to re-program the

autodial numbers.

POWER FAILURE

RECOVERY FROM THE

BASE UNIT

2Press

SAVE

to save your messages.

1Press

PLAY/PAUSE

to play any

messages that were recorded.

TWO-LINE

INSTALLATION

Two-line installations may require a 2-line

T-adapter for the TC-520 to operate correctly.

The T-adapter allows you to connect your

machine to Line 1 or Line 2. The TC-520 will

only answer one line.

GENERAL

MULTI-LINE

INSTALLATION

Installations with more than two lines, such as

business PBX or Key Systems, may require a

separate RJ11 jack for answering machines.

Please contact your telephone equipment

provider for additional information.

PLAY/PAUSE

SAVE

HOLD

2If you do not wish to save messages,

press

ON/OFF

twice to reset the unit.

The

MESSAGE INDICATOR

will

light.

POWER FAILURE & TWO

LINE INSTALLATION

2929

PAGE

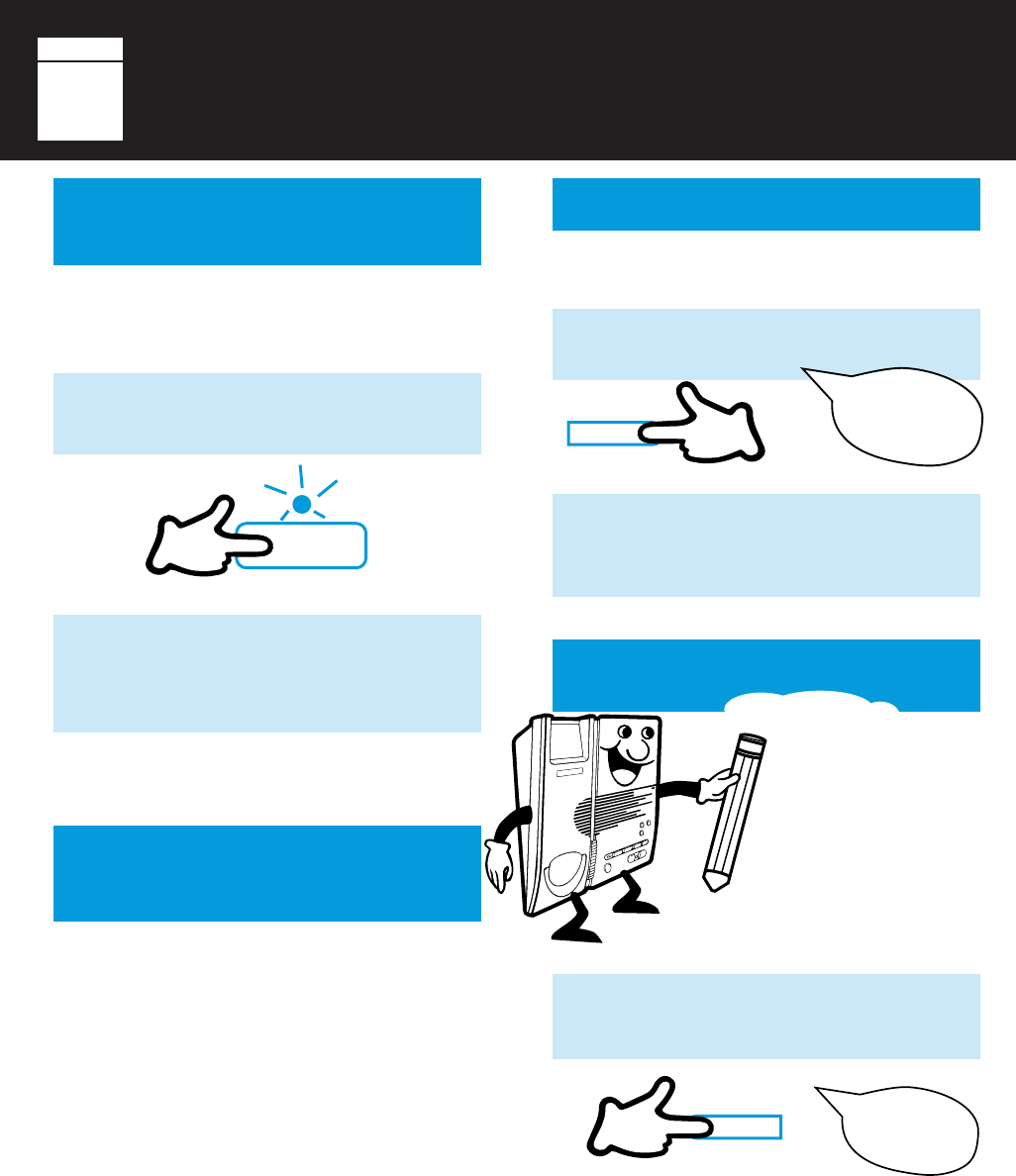

REMOTE ROOM

MONITOR

You can call the TC-520 and listen to the activity

in your home or office.

After 30 seconds you will hear:

Enter

remote line.

MESSAGE RETRIEVAL

WHEN TAPE IS FULL

When the message

tape is full, the TC-

520 will no longer

take messages.

Callers trying to

leave a message

will hear a series of

beeps. To retrieve

messages when

the tape is full:

CONTINUED

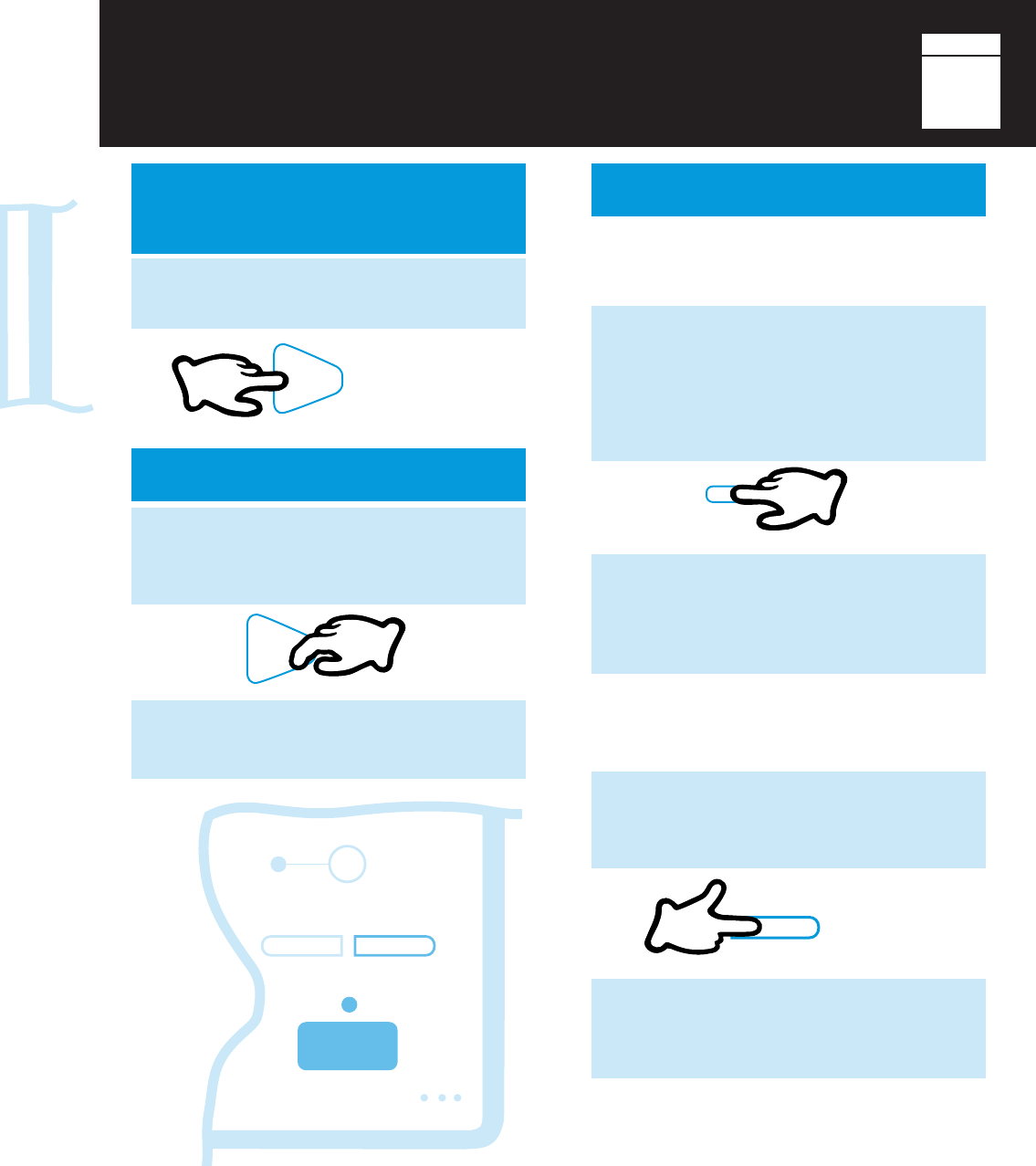

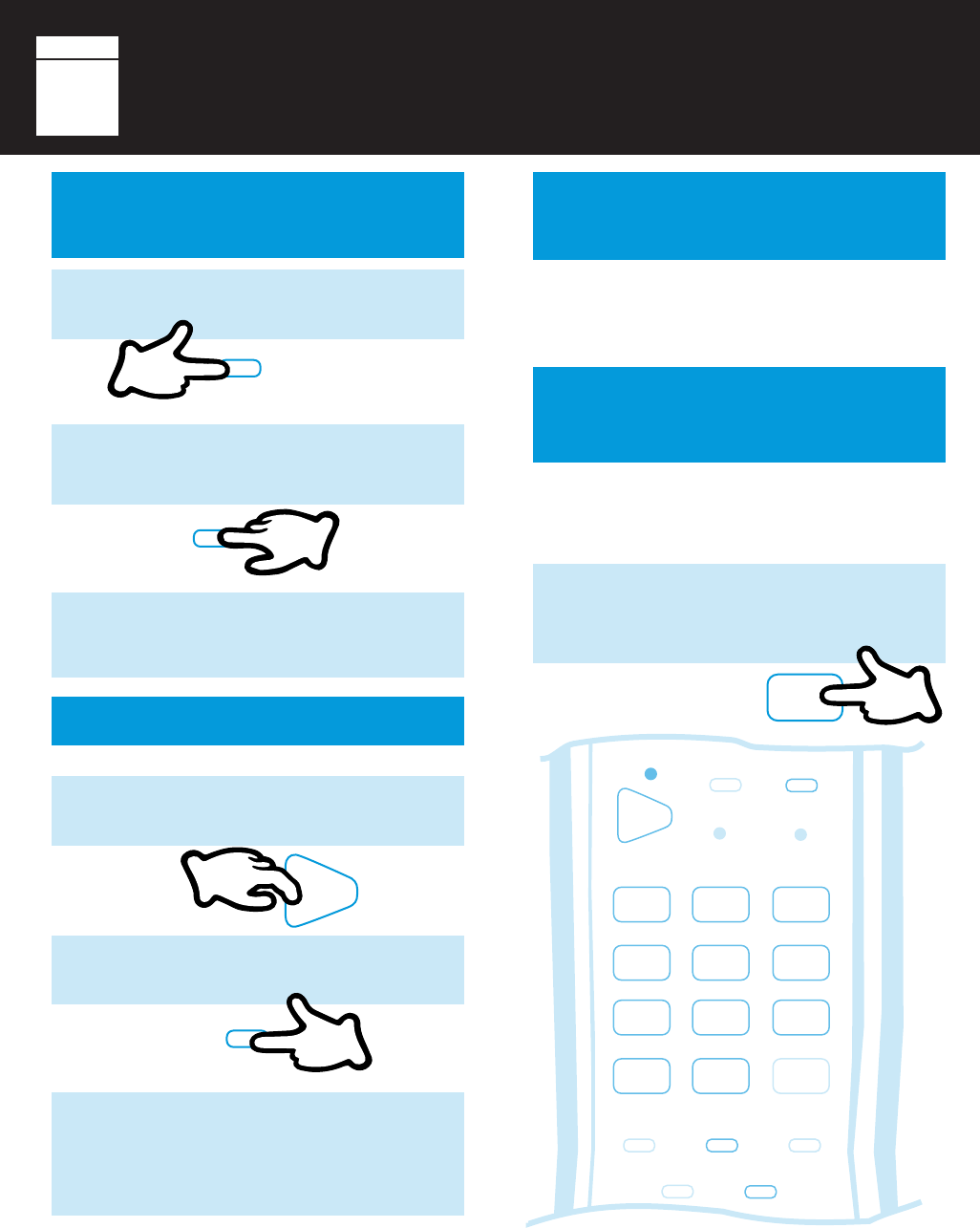

1Press

on a touchtone keypad. You will

hear a beep. Listen to the activity in your

home or office.

WXYZ

3Enter

again to use the remote room

monitor for another 30 seconds.

I'm full!

REMOTE TURN ON

If you leave your home or office without turning

the TC-520 on, you can do so from any

telephone.

Call and let your phone ring 15 times.

The TC-520 will automatically answer

and you will hear your outgoing

message. Hang up or retrieve messages

by entering your remote access number

after the beep.

REMOTE

Select another option or hang up.

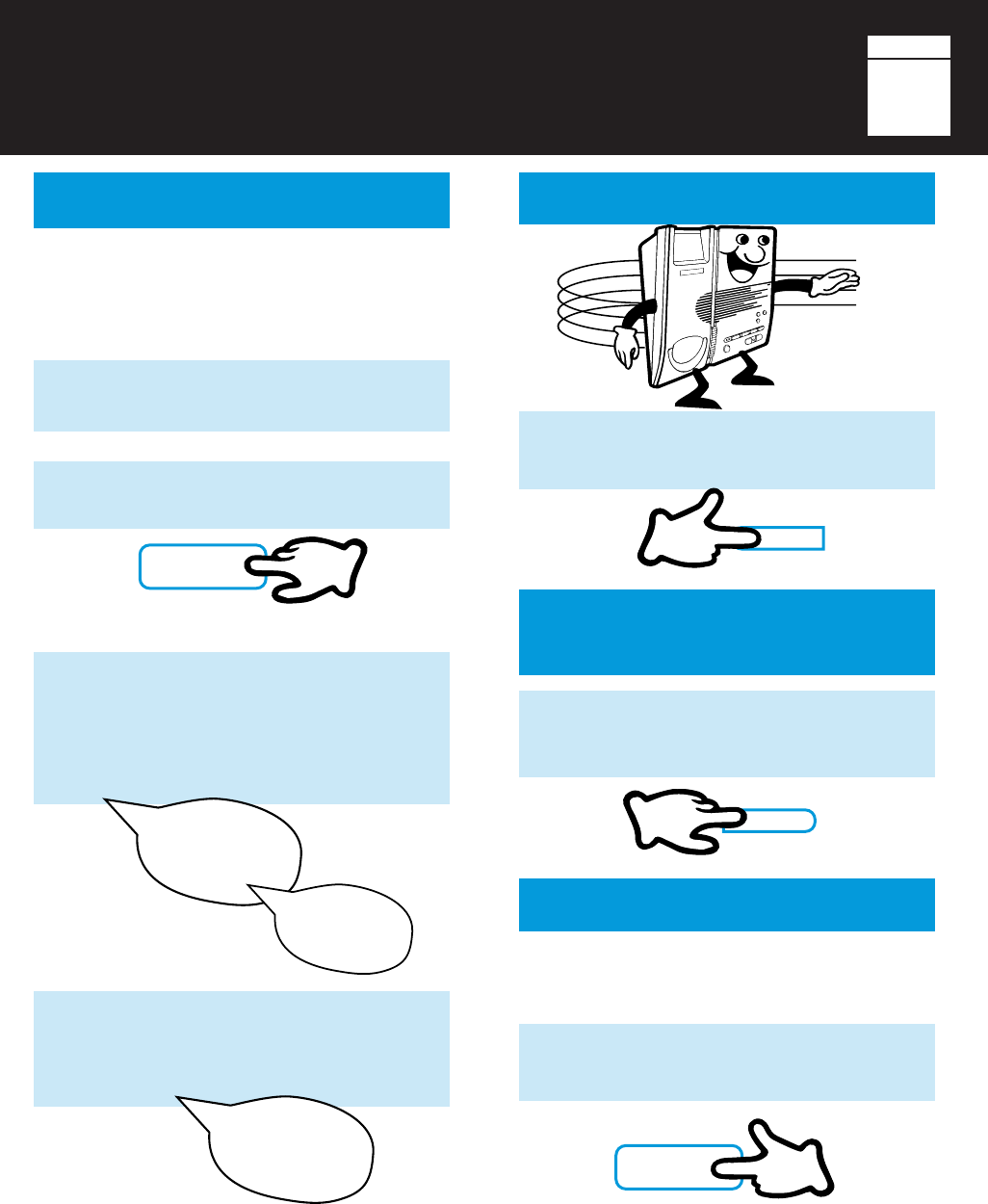

1Call and let the TC-520 answer. You will

hear:

Message

tape is full.

3The tape rewinds and all messages on

the tape are played. After the last

message has played, choose other

remote options or hang up to reset the

machine.

ENTER

your 3-digit remote access

number during the series of beeps.

2828

PAGE

ERASE MESSAGES

REMOTE OPERATION

REMOTE VOICE MENU

After all messages play, the TC-520 lists the

remote menu. You can select a remote option

immediately after hearing the option, or hang up

and messages will be erased.

2The TC-520 will replay your messages.

Select another option or hang up.

1Press

on a touchtone keypad. You will

hear:

I will replay

messages.

REPLAY MESSAGES

1Hang up after all messages play. The

TC-520 will reset to record new

messages. Once a new message has

been recorded, all old messages will be

lost.

Enter

to REPLAY messages.

Enter

to ERASE messages.

Enter

to SAVE messages.

Enter

to REMOTE LINE.

AUTOMATIC ERASE

(RESET)

1Press

on the keypad. You will hear:

I will erase

messages.

DEF

NOTE: If the unit does not respond when you enter your

access number, wait three seconds and re-enter the number

during the short pause between the beeps.

Select another option or hang up.

SAVE MESSAGES

1Press

on a touchtone keypad. You will

hear:

I will save

messages.

2Select another option or hang up.

PQRS

REMOTE

2727

PAGE

REMOTE OPERATION REMOTE

RETRIEVE MESSAGES

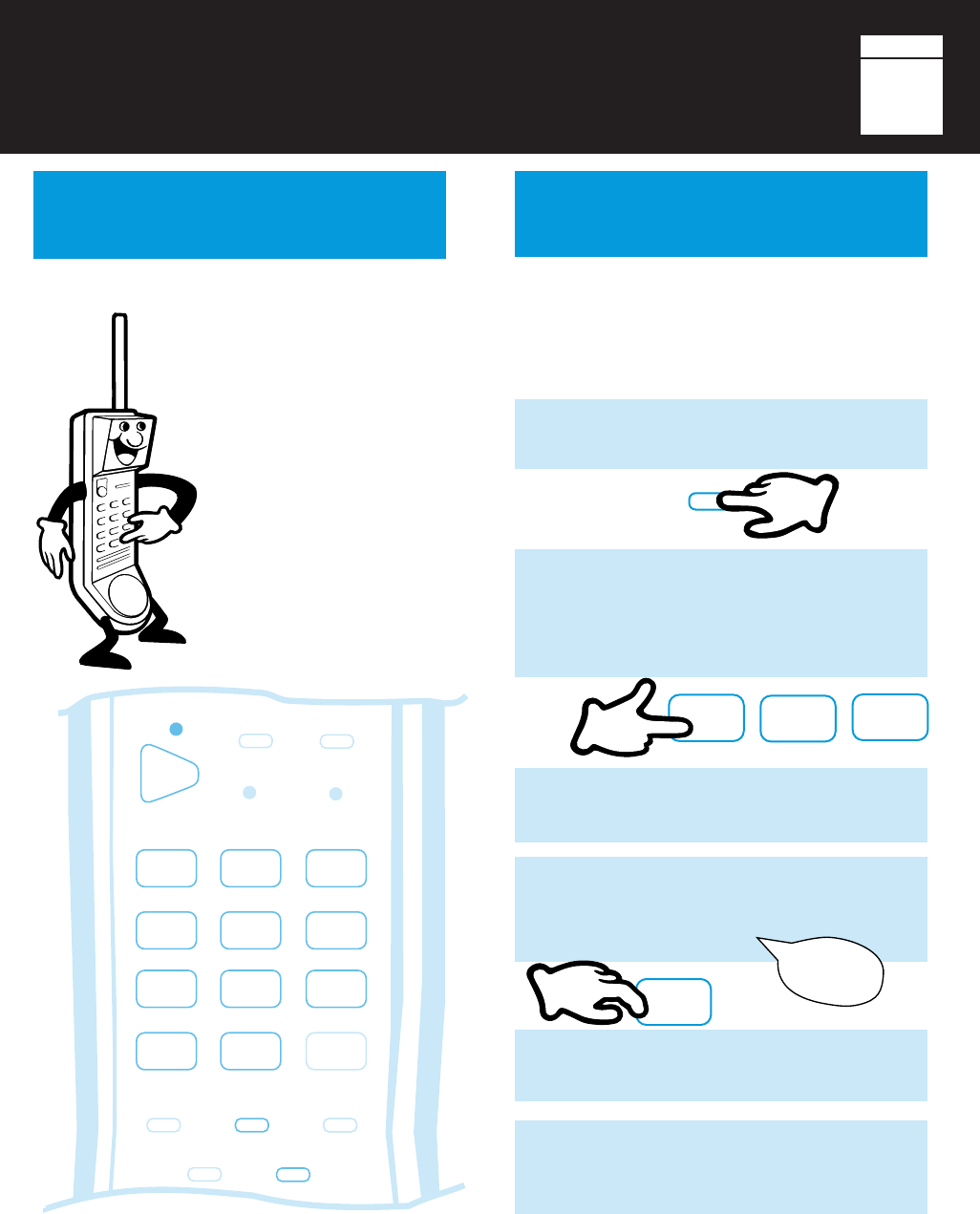

1Call the answering machine and listen to

your outgoing message.

ENTER

your 3-digit remote access

number after the beep.

3The tape rewinds and your messages will

be played.

4After all messages play, you will hear the

voice menu. Select another option or

hang up.

You can use Remote Operation from most

touchtone or cellular phones to retrieve, replay,

erase and save messages. The 3-digit Remote

Access Number is printed on the inside of the

TC-520 cassette lid.

If you call from a rotary or pulse telephone, use

CASIO PHONEMATE's “Touchtone Dialer.” Use

the accessory order form on page 37 to order

one.

ABC

DEF

GHI

JKL

MNO

PRS

TUV

WXY

MIC

SPEAKERPHONE

SAVE

HOLD

ERASE

MEMO

RECORD

VOLUME MEMORY FLASHFLASH

MEMO CONV

LO BATT

PLAY

MESSAGE

GHI

PRS

JKL

MNO

DEF

ABC

TUV

WXY

OPER

FAST FWD

REWIND

TONE

CHANNEL REDIAL (PAUSE)

HOLD SCREEN

REMOTE

TALK

ERASE

SAVE

PAGE

2626

PAGE

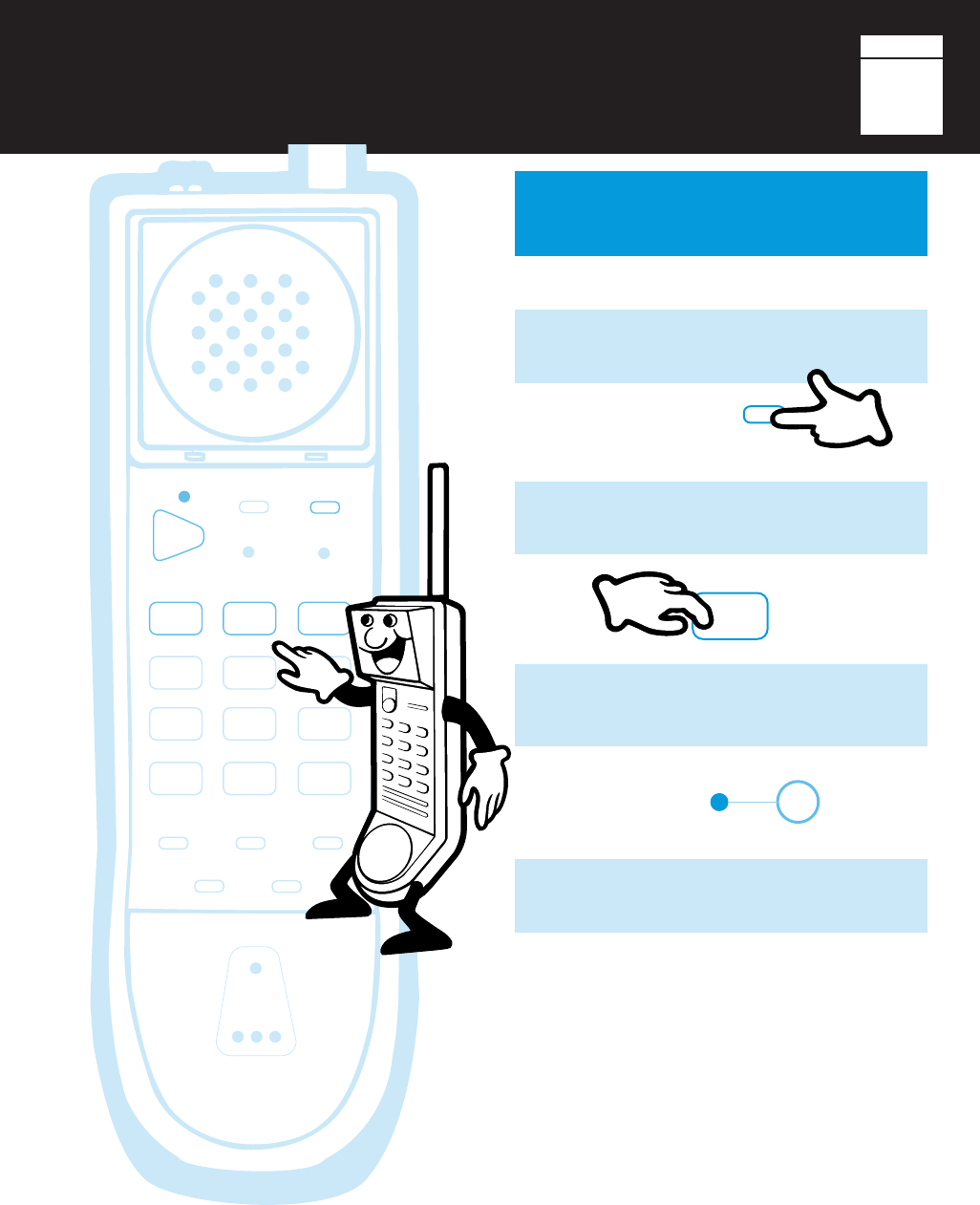

The speakerphone allows you to conduct phone

conversations without using the handset.

TO ANSWER AN

INCOMING CALL

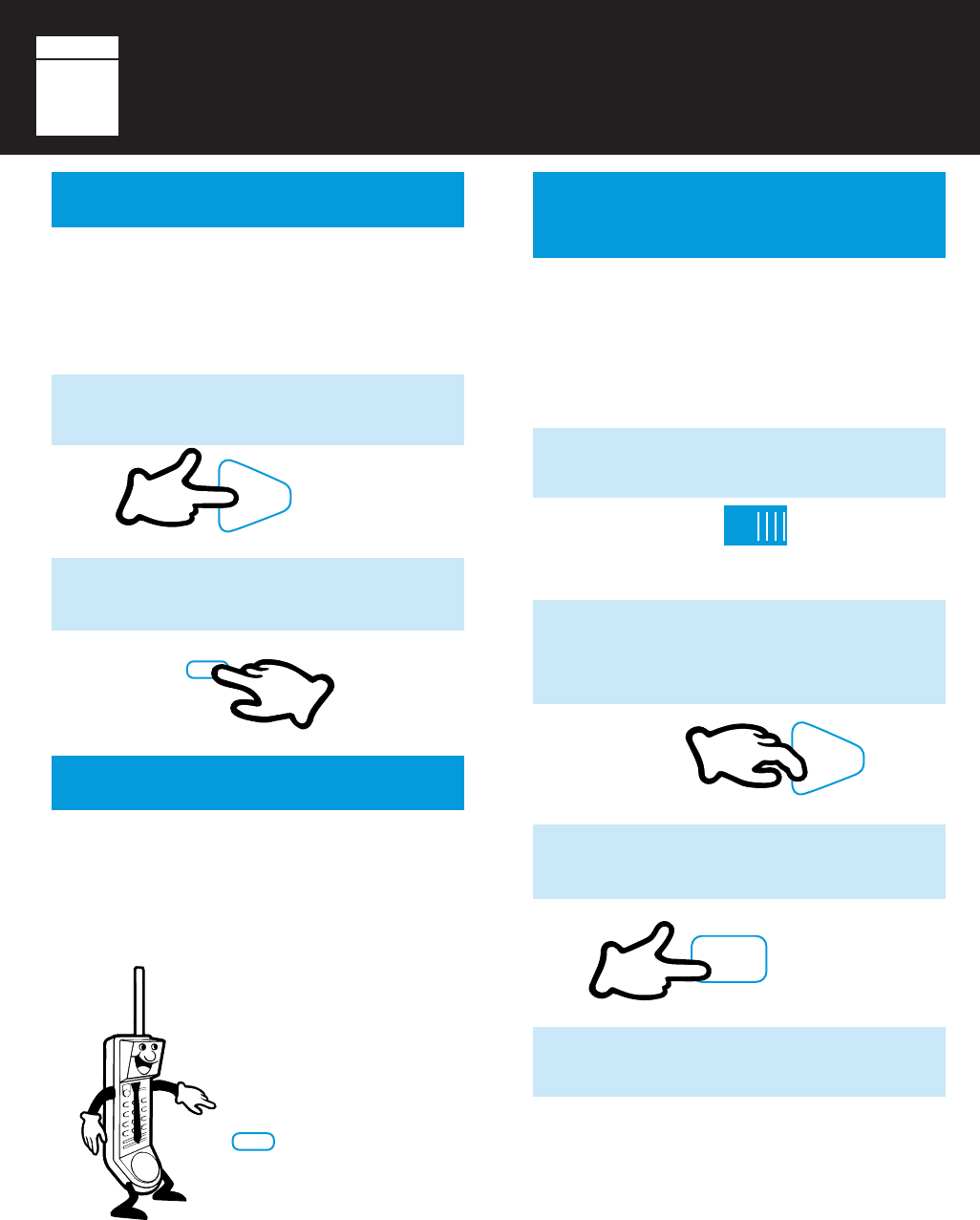

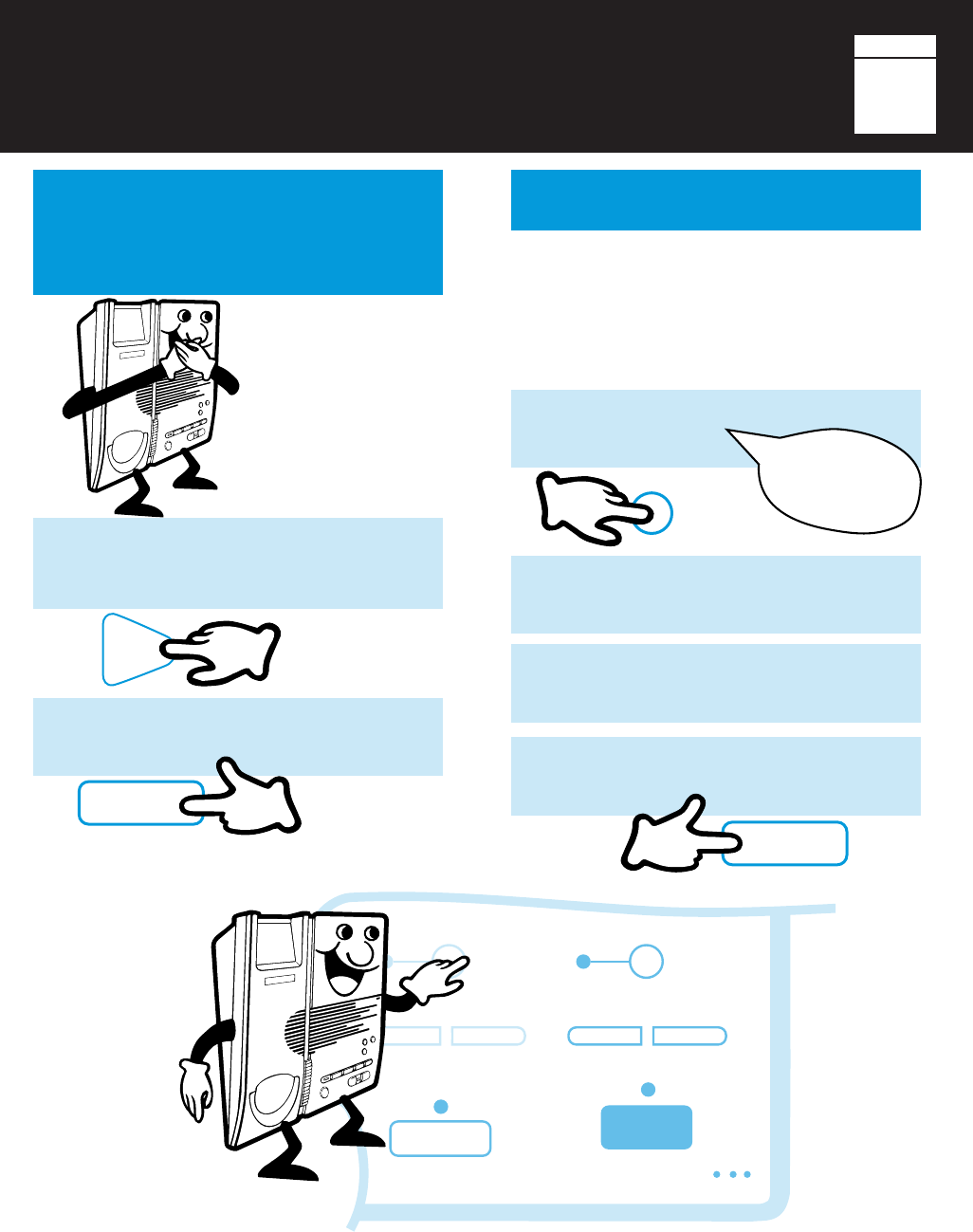

2Adjust the

VOLUME CONTROL

3Speak into the microphone. You will hear

the outside party through the speaker. If

you wish to speak through the cordless

handset, you may pick it up and press

TALK

4Press

SPEAKERPHONE

again to

hang up or hang up the cordless handset

if you have been using it.

3Press

HOLD

on the handset.

SPEAKERPHONE & PAGING

BASE

1Press

SPEAKERPHONE

TALK

TO SWITCH FROM

HANDSET TO

SPEAKERPHONE

Pick up the handset.

Press

TALK

and enter the telephone

number on the keypad.

HOLD

3To cancel the page, press

SCREEN/

REMOTE

PAGE

1Press

SCREEN/REMOTE

2Press

PAGE

(

) on the cordless

handset. You will hear two beeps from

the base unit.

SCREEN

REMOTE

PAGING THE BASE

FROM THE HANDSET

0OPER

PAGE

5Adjust the

VOLUME CONTROL

Speak into the microphone. You will hear

the outside party through the speaker.

6Press

SPEAKERPHONE

again to

hang up.

4Press

SPEAKERPHONE

. The

handset will automatically turn off.

SPEAKERPHONE

2525

PAGE

PROGRAMMABLE

PAUSE

Pause is convenient for use on a business

telephone system (i.e.: PBX) when an 8 or 9

must be dialed to reach an outside phone line.

This feature can also be used for a long

distance service where you have to wait for a

second dial tone before you continue dialing.

Each time

PAUSE

is pressed it will provide a

2-second pause when dialing. If an 8-second

pause is required, press

PAUSE

four times

when storing autodial numbers. Each pause

counts as one digit when storing autodial

numbers.

6Press an autodial location (0-9 on the

keypad).

7Repeat steps 1-6 to continue or press

MEMORY

to exit the programming

mode.

EXAMPLE #2

To store a telephone number with an access

number, for example 555-1234 (pause for dial

tone) 56789.

1Press

MEMORY

HANDSET

EXAMPLE #1

To store an outside number with a business

phone system, for example 9 (pause) 555-1234.

1Press

MEMORY

4Enter the telephone number. For example,

555-1234.

5Press

MEMORY

REDIAL (PAUSE)

3Press

REDIAL (PAUSE)

WXY

Press

to get an outside line.

MEMORY

7Repeat steps 2-6 to continue or press

MEMORY

to exit the programming

mode.

6Press an autodial location (0-9 on the

keypad).

5Press

MEMORY

4Enter the access number 56789, for

example.

REDIAL (PAUSE)

3Press

REDIAL (PAUSE)

. If a longer

pause is necessary, press

REDIAL

(PAUSE)

again.

2Enter the telephone number, for example

555-1234.

MEMORY

2424

PAGE

VOLUME MEMORY FLASHFLASH

MEMO CONV

LO BATT

PLAY

MESSAGE

GHI

PRS

JKL

MNO

DEF

ABC

TUV

WXY

OPER

FAST FWD

REWIND

TONE

CHANNEL REDIAL (PAUSE)

HOLD SCREEN

REMOTE

TALK

ERASE

SAVE

PAGE

TO CHECK STORED

NUMBERS

Press

SCREEN/REMOTE

2Press

MEMORY

USING AUTODIAL

To place a call using autodial:

Press

TALK

Press

MEMORY

ERASE AUTODIAL

NUMBERS

To erase autodial numbers, store a new number

in the autodial location you wish to erase (see

page 23.) For example, you may store a one

digit number to erase an old phone number.

HANDSET AUTODIAL (CONTINUED)

SCREEN

REMOTE

MEMORY

3Press an

AUTODIAL LOCATION

A synthesized voice will confirm the

stored number.

TALK

MEMORY

3Press the autodial station number you

wish to dial (0-9 on the keypad.) The

TC-520 will dial your number

automatically. NOTE: To redial the same number

again, press

TALK

and then press

REDIAL

TO PROGRAM TONE/

PULSE IN AUTODIAL

Store frequently dialed mixed tone/pulse

numbers in the autodial memory. Follow

instructions on page 23 for storing autodial

numbers.

1Press

TONE

( on the keypad) to

switch from pulse to tone.

Example: 555-1212 3457

(tone)(pulse)

TONE

2323

PAGE

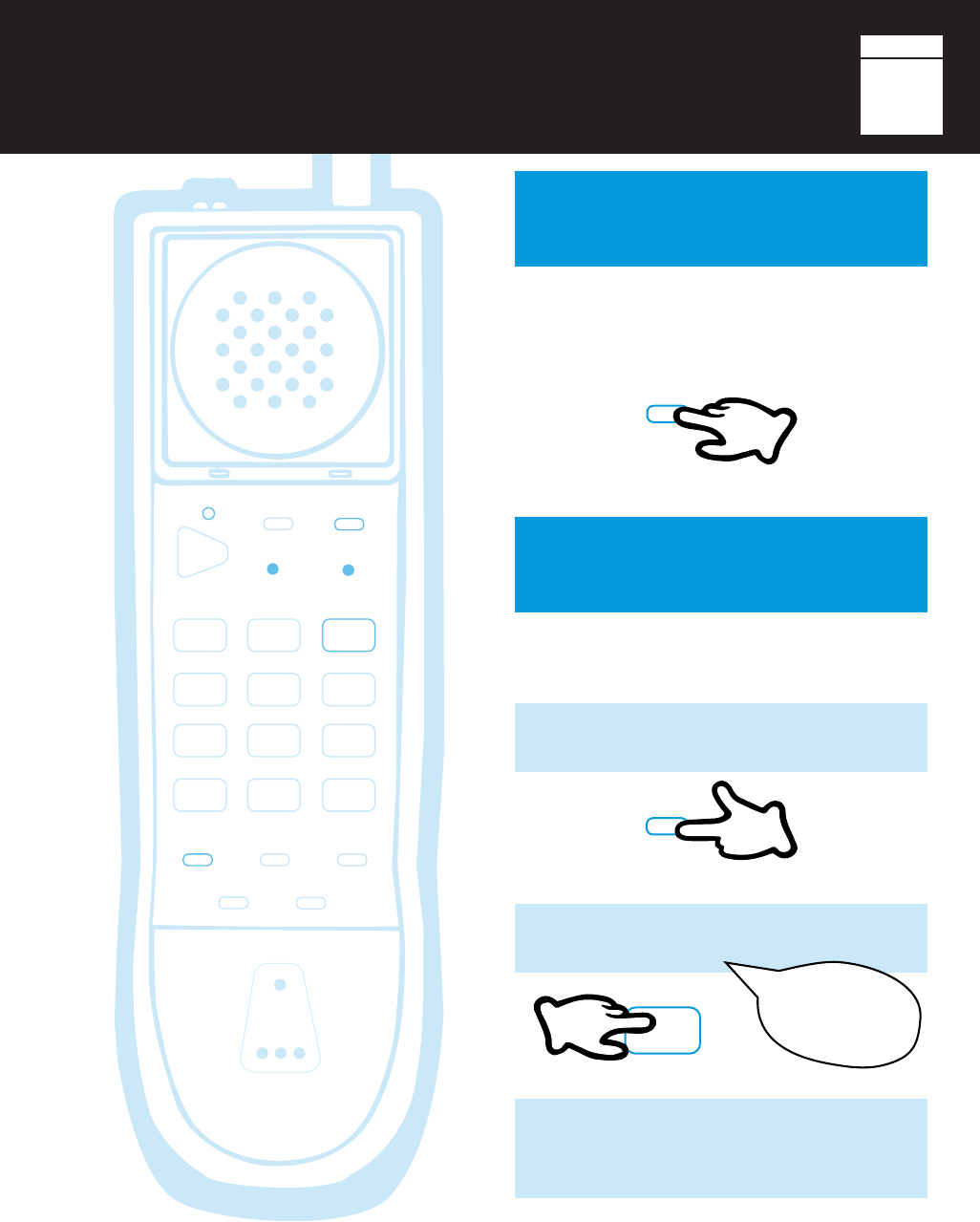

AUTODIAL WITH

VOICE CHECK

You may store up to 10 of your most frequently

dialed numbers in autodial memory. Autodial

numbers can be up to 15 digits each. The base

unit must be connected to the electrical wall

outlet with the AC Adapter and the Talk Indicator

must be off.

2Enter one of the telephone numbers you

want to store in the autodial memory by

dialing it on the keypad. You will hear a

confirmation tone each time you press a

button.

6The TC-520 will automatically exit the

autodial program mode. NOTE: If you do not

press a key, the unit will exit the programming mode

7 seconds after the last command was entered.

5Continue steps 1-4 until you have entered

all your autodial numbers.

3Press

MEMORY

4Press a keypad number (0-9) as the

autodial location for that number. A

synthesized voice will confirm your stored

number.

AUTODIAL

VOLUME MEMORY FLASHFLASH

MEMO CONV

LO BATT

PLAY

MESSAGE

GHI

PRS

JKL

MNO

DEF

ABC

TUV

WXY

OPER

FAST FWD

REWIND

TONE

CHANNEL REDIAL (PAUSE)

HOLD SCREEN

REMOTE

TALK

ERASE

SAVE

PAGE

1Press

MEMORY

. You will hear a

confirmation tone.

MEMORY

JKL

551-1111

HANDSET

AUTODIAL MEMORY

BACKUP

CASIO PHONEMATE's memory back up system

in the base unit maintains autodial numbers for

up to 3 minutes with no

batteries installed. If you

want to relocate the base

unit, unplug the AC Adapter

from the wall outlet. If you

unplug the AC Adapter

Plug from the base unit,

you will lose all autodial

memory.

2222

PAGE

REDIAL

The TC-520 remembers the last number you

dialed. The redial memory will hold up to 15

digits. Every time you dial a new telephone

number, the redial memory is updated with that

new number.

1Press

TALK

and wait for a dial tone.

Press

REDIAL

PULSE/TONE MIXED

DIALING

If you live in a pulse or rotary dialing area, you

can use

TONE

to access a long distance

service (i.e. Sprint or MCI), bank by phone, or

any other service that requires touchtone dialing

from your cordless handset. Press

TONE

( )

on the handset to change from pulse to tone

mode temporarily when you are dialing.

1Set the

TONE/PULSE SWITCH

the base unit to Pulse.

HANDSET

TALK

REDIAL (PAUSE)

If you subscribe to a call waiting service and you

receive another call while using the phone,

press

FLASH

to answer the second call. Press

FLASH

again to return to the first call.

FLASH

may also be used on a business

phone system (CENTREX, PBX) for transferring

calls.

FLASH

TONE PULSE

4Dial the tone numbers. NOTE: The “tone” mode

can be canceled by pressing

TALK

or returning the

handset to the base unit.

3Press

TONE

( on the keypad.) NOTE:

You do not have to change the

TONE/PULSE

SWITCH

at the base unit.

*TONE

2Press

TALK

and wait for dial tone. Dial

your local telephone number and wait for

the line to connect. (You dialed your call

in pulse mode.)

TALK

REDIAL, FLASH & MIXED

DIALING

2121

PAGE

HOLD

You may place a call on hold while using the

speakerphone or cordless handset.

2To continue your phone conversation,

press

TALK, HOLD,

SPEAKERPHONE

or pick up an

extension phone connected to the same

line.

WHILE USING THE SPEAKERPHONE

1Press

HOLD/SAVE

on the base unit.

The

SPEAKERPHONE

INDICATOR

will flash. NOTE: You can

place a call on hold for up to 5 minutes.

IF YOU DIALED A

WRONG NUMBER

1Press

TALK

twice (“off” and “on.”) Wait

for dial tone and dial the correct number.

TO RECEIVE A CALL

MIC

SPEAKERPHONE

SAVE

HOLD

ERASE

MEMO

RECORD

TALK

WHILE USING THE CORDLESS HANDSET

SAVE

HOLD

2To continue your phone conversation,

press

SPEAKERPHONE, TALK,

HOLD

or pick up an extension phone

connected to the same line.

1Press

HOLD

to place a call on hold. The

TALK INDICATOR

on the handset

and

CHARGING LINE IN-USE

INDICATOR

on the base unit will flash.

NOTE: You can place a call on hold for up to 5

minutes. Do not return the handset to the cradle

because you will disconnect the caller.

HOLD

HANDSET

& BASE

2To hang up, press

TALK

on the handset

or return the handset to the base unit.

1When the phone rings, pick up the

cordless handset and press

TALK

press

SPEAKERPHONE

. Speak to

the caller.

TALK

2020

PAGE TELEPHONE OPERATION

ALARM

The TC-520 cordless

handset operates like any

other telephone handset.

You can use it in the yard,

at the pool, at the

mailbox, or any place

within the operating range

of the base unit. If you

move out of the base

unit's operating range, you

will hear a warning tone.

Move closer to the base

unit to deactivate the

alarm. If you remain out of

range for too long, the

TC-520 will disconnect

from the line.

HANDSET

MEMO CONV

LO BATT

PLAY

MESSAGE

DEF

ABC

HOLD SCREEN

REMOTE

TALK

If the handset loses its security code you will

also hear an alarm tone. To reset this security

code place the handset in the base unit for a few

seconds. Pick up the handset and try your call

again.

Interference from other appliances may also

cause the alarm to sound. To prevent

interference, move the base unit to another

location and fully extend the base unit antenna.

When the handset is in the

TALK

mode and is

returned to the base unit, it will automatically

return to the “Standby” mode and disconnect the

call. It is not necessary to press

TALK

disconnect the call. In the "Standby Mode" the

INDICATORS

will not be lit.

STANDBY MODE

TO PLACE A CALL

1Pick up the handset and press

TALK

2Wait for dial tone and dial the phone

number. NOTE: The

CHARGING/LINE IN-USE

INDICATOR

on the base lights to show the handset

is in use.

3To hang up, press

TALK

or return the

handset to the base unit. NOTE: When you

return the handset to the base unit, you are hanging

up the phone (Standby Mode.) The TC-520 is now

ready to receive a call and the Charging/Line In-Use

Indicator lights to show the battery is charging.

1919

PAGE

CONVERSATION

RECORD

The TC-520 allows you to record important

telephone conversations.

1Press

SCREEN/REMOTE

during your

phone conversation.

SCREEN

REMOTE

2Press

CONV

(

on the keypad.)

CONV

2ABC

3When the

RECORD INDICATOR

stops flashing, the TC-520 will begin

recording.

4Press

CONV

again to end the recording.

MEMO

RECORD

NOTE: In certain states, it is unlawful and

may lead to criminal penalties to record any

telephone conversation without prior

consent of all parties.

HANDSET

& CONVERSATION RECORD

VOLUME MEMORY FLASHFLASH

MEMO CONV

LO BATT

PLAY

MESSAGE

4GHI

7PRS

5JKL 6MNO

3DEF

2ABC

8TUV 9WXY

0OPER

FAST FWD

REWIND

TONE

CHANNEL REDIAL (PAUSE)

HOLD SCREEN

REMOTE

TALK

ERASE

SAVE

PAGE

1818

PAGE

RECORD A MEMO

You can record a memo up to five minutes in

length. Recorded memos will be played along

with the incoming messages in the order in

which they were recorded.

HANDSET

1Be sure the

TALK INDICATOR

is not

lit. (The handset is in the Standby mode.)

TALK

2Press

SCREEN/REMOTE

Press

MEMO

(

on keypad.)

SCREEN

REMOTE

5Begin speaking into the handset.

6Press

MEMO

to end the recording. You

will hear a confirmation tone.

4When the

RECORD INDICATOR

stops flashing and you hear:

Please record

message.

MEMO

MESSAGE PLAYBACK, MEMO

ANSWER A CALL

DURING PLAYBACK

If a call comes in while you

are playing your messages

through the handset, the

answering machine will not

answer the call, but your

phone will ring.

1Press

TALK

to answer the incoming

call.

TALK

2To hang up and continue listening to your

messages, press

TALK

3Press

SCREEN/REMOTE

SCREEN

REMOTE

4Press

PLAY

(

on the keypad) to listen

to messages.

PLAY

3DEF

1717

PAGE

CALL SCREENING

When the phone rings, the TC-520 will answer

the call. You may use the handset to screen

your phone calls.

HANDSET

1Be sure the

MESSAGE

INDICATOR

on the base unit is on.

PLAY/PAUSE

2Press

SCREEN/REMOTE

to listen

from the cordless handset. You will hear

the TC-520 play your outgoing message

and your caller leave a message.

SCREEN

REMOTE

4To hang up, press

TALK

or return the

handset to the base unit. The tape will

automatically reset to answer new calls.

3To speak to the caller, press

TALK

The unit will stop recording. NOTE: DO

NOT press ON/OFF on the base unit as you may

disconnect your caller.

TALK

VOLUME MEMORY FLASHFLASH

MEMO CONV

LO BATT

PLAY

MESSAGE

4GHI

7PRS

5JKL 6MNO

3DEF

2ABC

8TUV 9WXY

0OPER

FAST FWD

REWIND

TONE

CHANNEL REDIAL (PAUSE)

HOLD SCREEN

REMOTE

TALK

ERASE

SAVE

PAGE

CALL SCREENING

1616

PAGE

PLAYING MESSAGES &

REWIND

Press

REWIND

( key) during

playback. Each time

REWIND

( key)

is pressed, the tape will rewind for

several seconds.

SAVE MESSAGES

Messages will be saved within 7 seconds after

you hear the last message. The TC-520 will

automatically reset to answer new calls, after

saving messages.

1Press

SAVE

(

on the keypad.)

I will save

messages.

Messages may be erased within 7 seconds after

hearing the last message.

1Press

ERASE

(

on the keypad.)

I will erase

messages.

AUTOMATIC ERASE

(Tape Reset)

The TC-520 is designed to automatically record

new messages over old ones. To automatically

erase messages, DO NOT press SAVE (key 4)

during message playback or within 7 seconds

after the last message is heard.

HANDSET

GHI

SAVE

MNO

ERASE

REPLAY ALL

MESSAGES

1Press

PLAY

(

on the keypad) after the

last message is played.

PLAY

3DEF

FAST FORWARD

1Press

FAST FWD

(

key) to move

quickly through messages. Each time

FAST FWD

(

key) is pressed, the

tape will fast forward for several seconds.

FAST FWD

REWIND

TONE

1515

PAGE

HANDSET VOLUME

CONTROL

VOLUME

RETRIEVE MESSAGES

FROM HANDSET

You can play messages through the handset.

Make sure the handset is in the Standby mode

and the base unit is “on.”

Press

PLAY

(

on the keypad) to play

your messages. You will hear:

Hello, you have

two messages.

SCREEN

REMOTE

PLAY

3DEF

3The tape will rewind and play your

messages along with the time/day stamp.

NOTE: If you hang up during handset message

retrieval, all messages will be saved.

VOLUME MEMORY FLASHFLASH

MEMO CONV

LO BATT

PLAY

MESSAGE

GHI

PRS

JKL

MNO

DEF

ABC

TUV

WXY

OPER

FAST FWD

REWIND

TONE

CHANNEL REDIAL (PAUSE)

HOLD SCREEN

REMOTE

TALK

ERASE

SAVE

PAGE

HANDSET

YING MESSAGES

Press

VOLUME

to change the volume level of

the handset. Press

VOLUME

up to four times

to increase the sound level. Press

VOLUME

fifth time and the sound level returns to normal.

Press

SCREEN/REMOTE

. You will

hear a confirmation tone.

1414

PAGE

PAGING THE HANDSET

FROM THE

BASE UNIT

LOW BATTERY

INDICATOR

HANDSET

HANDSET MESSAGE

WAITING INDICATOR

In the "Standby Mode," if you have messages,

the

MESSAGE INDICATOR

flashes for 7

seconds after the handset is used. (In the

"Standby Mode" the

TALK INDICATOR

not lit.)

LO BATT

When the battery pack needs

recharging, the

LO BATT

INDICATOR

(Low Battery)

on the handset will flash. You

may also notice a reduction in

the quality of your cordless handset

communications. Return the cordless handset to

the base unit when the

LO BATT

INDICATOR

is flashing.

NOTE: The batteries can be recharged many times, but if you

get a low battery indication even after 12-15 hours of charging,

you should replace the battery pack.

BATTERIES - The TC-520 is shipped

with the handset battery pack installed. If it

becomes necessary to remove or replace the

batteries see page 32.

To page the handset from

the base unit, the handset

must be in the “Standby”

mode (the

TALK

INDICATOR

is not lit.)

1Press

PAGE

on the base unit. You will

hear the handset ring, if the ringer switch

is set to ON.

PAGING, BATTERY & PLA

MESSAGE

TALK

PAGE

CHARGING

LINE IN USE

2Place the handset in the base unit. The

CHARGING/LINE IN-USE

INDICATOR

on the base unit lights to

indicate the TC-520 is charging.

1Check the AC Adapter to see that it is

connected correctly.

Charge the batteries for 12-15 hours before

using the cordless handset for the first time. The

handset is always charging while it is in the base

unit and cannot be overcharged.

CHARGING THE

BATTERIES

PAGE

2To cancel the page press

PAGE

1313

PAGE

ANSWERING A CALL

DURING MESSAGE

PLAYBACK You can record a memo for another household

member or a reminder for yourself. A memo can

be recorded up to 5 minutes in length and

played at the machine or in remote operation. It

will be stamped with the time and day it was

recorded.

BASE

If you receive an

incoming call during

message playback:

1Pickup the handset and press

TALK

press

SPEAKERPHONE

on the base

unit. The tape stops playing messages.

MEMO RECORD

MIC

PLAY/PAUSE SPEAKERPHONE

F FWD

REW SAVE

HOLD

ERASE

MEMO

RECORD

PAGE

CHARGING

LINE IN USE

TALK

2After completing your call, press

PLAY/

PAUSE

to listen to messages.

PLAY/PAUSE

4Press

PLAY/PAUSE

to listen to the

memo.

PLAY/PAUSE

3Press

MEMO

again after you finish

speaking.

2Begin speaking about 6-8" from the

microphone.

Record

message after

the tone.

MEMO

Press

MEMO

1212

PAGE PLAYING MESSAGES

PAUSE MESSAGE

PLAYBACK

You can temporarily pause message playback

up to 5 minutes. The TC-520 will not answer

calls or record phone messages in the “pause”

mode.

Press

PLAY/PAUSE

during message

playback. The

MESSAGE

INDICATOR

will flash slowly.

SAVE MESSAGES

You can save all messages during message

playback or up to 7 seconds after the last

message has played.

BASE

PLAY/PAUSE

2Press

PLAY/PAUSE

again to resume

listening to messages. NOTE: If you leave the

TC-520 in “pause” mode, it will automatically reset to

answer calls after 5 minutes and all messages will be

saved.

AUTOMATIC ERASE

(Tape Reset)

If you do not save or erase messages, the

TC-520 will automatically reset to record new

messages over the old messages. To ensure

message erasure, press ERASE within 7

seconds after the last message is heard.

1Press

SAVE

. You will hear:

I will save

messages.

SAVE

HOLD

2All messages will be saved after the last

message has played. Note: All messages will

be played, even if you press

SAVE

before hearing

the last message.

NOTE: All messages will be played, even if you press

ERASE

before hearing the last message. NOTE: If you change your

mind, you can press

SAVE

within 7 seconds after hearing, "

will erase messages

," to save all messages.

I will erase

messages.

ERASE

1Press

ERASE

. You will hear a beep.

All messages will be erased after the last

message has been played. You will hear:

ERASE MESSAGES

You can

ERASE

all messages during

message playback

or up to 7 seconds

after the last

message has

played.

1111

PAGE

PLAY MESSAGES

When messages have been recorded the

MESSAGE INDICATOR

flashes. A

synthesized voice will announce the time and

day each message was received if the time/day

stamp has been set.

1Adjust the

VOLUME CONTROL

(located on the right side.)

2Press

PLAY/PAUSE

3The tape will reset to the beginning of

your first message and then play your

messages. A synthesized voice will

announce the time and day each

message was received if the time/day

stamp has been set.

Hi, this is Sue,

give me a

call...

Thursday,

6:35 pm

4After the last message is played, the tape

will automatically reset unless you press

SAVE

ERASE

. New messages will

be recorded over the old messages.

That was your

last message.

REWIND (REW )

BASE

PLAY/PAUSE

REPLAY MESSAGES

After the tape resets, messages that have not

been erased can be replayed as long as no new

messages have been received.

Press

PLAY/PAUSE

FAST FORWARD

(F FWD)

1Press and hold

F FWD

. The tape will

fast forward as long as the button is

pressed.

F FWD

1Press and hold

REW

. The tape will

rewind as long as the button is pressed.

REW

YING MESSAGES

1010

PAGE

When your phone rings,

the TC-520 will answer the

call (be sure the base unit

is on.) You can hear your

outgoing message and

your caller's message

through the speaker in the

base unit.

BASE CALL SCREENING & PLA

MESSAGE INDICATOR

The

MESSAGE INDICATOR

has four

settings:

1. ON = the answering machine is on.

2. OFF = the answering machine is off.

3. NEW MESSAGE INDICATOR =

the light flashes rapidly when new messages

have been recorded and not played.

4. SAVED MESSAGE INDICATOR = the light

flashes slowly when messages have been

played and saved or when pausing message

playback.

PLAY/PAUSE

MIC

PLAY/PAUSE SPEAKERPHONE

F FWD

REW SAVE

HOLD

ERASE

MEMO

RECORD

PAGE

CHARGING

LINE IN USE

CALL SCREENING

1Adjust the

VOLUME CONTROL

(located on the right side.)

2Pick up the cordless handset and press

TALK

or press

SPEAKERPHONE

on the base if you want to speak to your

caller. The machine will automatically

stop recording.

3To hang up, press

TALK

or return the

handset to the base unit. The tape will

automatically reset to record new calls.

4To screen calls from the

cordless handset, see page

17.

TALK

PAGE

GENERAL

Set these switches before using the TC-520.

SWITCH SETTINGS

TONE/PULSE

The TC-520 is shipped with the

HANDSET

RINGER SWITCH

(located on the side of the

handset) set to "off". When the ringer is "off", the

POWER SAVER

is "on" and battery power is

conserved. Turn the handset ringer on before use.

3Press

TIME

after the desired setting is

announced. You will hear two beeps.

The TC-520 will now answer calls using

the programmed setting.

This switch (located on the back of the base

unit) tells the TC-520 to dial out with either

touchtone or pulse signals to match the service

you have with your local telephone company.

The TC-520 is shipped with the

TONE/

PULSE SWITCH

in the Pulse position. If you

have touchtone service, set this switch to tone.

PULSE = for Rotary dialing or Pulse systems

TONE = for Touchtone systems

POWER SAVER/

RINGER ON-OFF

When you hear:

= The TC-520 will answer on the second ring.

2-4 (Tollsaver) = The TC-520 will answer calls

in the tollsaver mode:

Second ring = new messages

Fourth ring = no new messages

= The TC-520 will answer on the fourth ring.

2Press

F FWD

within 10 seconds of

pressing

TIME

. Each time you press

F FWD

a synthesized voice will

announce the new setting.

F FWD

1Press and hold

TIME

(about 2 seconds)

until you hear a beep.

TIME

The TC-520 is preset to answer on the 4th ring.

The unit may be programmed to answer on the

second or fourth ring, or to answer using the

Tollsaver (2-4) setting. When calling to check for

messages, tollsaver will help eliminate toll charges

by letting you know if there are any new

messages before the TC-520 answers. If there

are no new messages, you can hang up before

the fourth ring to avoid unnecessary toll charges.

PROGRAMMABLE

RING SELECT

1Press and hold

TIME

until you hear a

beep.

The TC-520 is shipped with the base unit ringer

"ON". To turn the ringer ON or OFF:

BASE RINGER ON-OFF

2Press

ON/OFF

(under the cassette lid).

A "beep" indicates the base unit ringer is

OFF. A "ring" indicates the ringer is ON.

RINGER ON - When the ringer is ON, the

handset will ring when an incoming call or

paging signal is received. The rechargeable

batteries will last up to seven days in this mode

(the Power Saver Switch is OFF.)

POWER SAVER (PWR SAVER) ON - When

an incoming call is received the handset will not

ring, but all other handset functions will operate.

The rechargeable batteries will last up to 2

months in this mode (the ringer is OFF.)

TIME

3Press

TIME

when finished.

PAGE

GENERAL

MOVING THE TC-520

To relocate the TC-520, unplug the AC ADAPTER from the wall outlet for no more than 3

minutes. CAUTION: If the AC ADAPTER PLUG is disconnected from the back of the TC-520, all

memory (time/day setting, autodial numbers, last number redial) will be erased.

SINGLE TAPE SYSTEM

The TC-520 is a single cassette answering machine. Your outgoing and incoming messages are

stored on one microcassette. With this design, it is normal operation for the tape to reset before

callers can leave a message. If you have several long messages on the tape, it could take a few

seconds for the tape to reposition itself and for the TC-520 to record new messages. The caller

will hear a continuous tone while the tape resets.

AUTO EXTENSION DISCONNECT

You can answer a call from any extension phone connected to the same line as the TC-520. Pick

up any extension phone after the TC-520 has answered the call. The unit will automatically stop

playing your outgoing message or recording a message. If it does not stop, quickly tap the hook-

switch on the extension phone without disconnecting the caller.

CHANGING CHANNELS

After TALK is pressed, the TC-520 selects the best available channel. If you hear noise or

interference while using the TC-520, press CHANNEL on the handset to change channels.

CHARGING/LINE IN-USE INDICATOR

The CHARGING/LINE IN-USE INDICATOR lights when someone is using an extension

phone or the cordless handset. The indicator reduces unwanted interruptions.

OPERATING

INFORMATION

PAGE

SET TIME & DAY

Set the current time

and day. The TC-

520 will "stamp"

each message with

the time and day.

TIME & DAY STAMP

6Press

F FWD

to advance the minutes or

REW

to reverse the minutes. Press and

hold the appropriate button to advance or

reverse the minutes in 10 minute blocks.

Press

TIME SET

(under the lid.) You

will hear:

5Press

TIME SET

again to set the

minutes. The minutes will be announced.

7Press

TIME SET

to end. The day and

time will be announced.

Monday,

10:34 PM

Wednesday,

3:35 PM

TALKING CLOCK

A synthesized voice will announce the time and

day.

Press

TIME

to hear the current time and

day. NOTE: If you hear three beeps, reset the time.

TIME

BASE

TIME SET

Sunday

4Press

F FWD

to advance the hour or

REW

to reverse the hour.

1:00 PM

3Press

TIME SET

again.

12:00 AM

2Press and hold

F FWD

to move the day

forward or

REW

to reverse the day.

F FWD

Monday

PAGE

MIC

PLAY/PAUSE

ON/OFF

SPEAKERPHONE

TIME

F FWD

REW SAVE

HOLD

ERASE

MEMO

RECORD

PAGE

CHARGING

LINE IN USE

25 CHANNEL TIME/DAY STAMP

TIME SET

OUTGOING

MESSAGE

RECORD

RECORD/CHECK THE

OUTGOING MESSAGE

RECORD AN OUTGOING

MESSAGE

You can record an outgoing message up to 60

seconds in length. The outgoing message is

recorded on the microcassette.

2Set the

VOLUME CONTROL

the midpoint (located on right side of

TC-520.) NOTE: The sound level is automatically

adjusted when the outgoing message is played over

the phone line.

1Be sure the

MESSAGE

INDICATOR

is lit.

3Press and hold

OUTGOING

MESSAGE RECORD

(under the

cassette lid.)

4When the

RECORD INDICATOR

lights and you hear:

Record new

greeting after

the tone.

5Begin speaking about 6 - 8" from the

microphone.

6Press

OUTGOING MESSAGE

RECORD

again after you have finished

speaking. The tape will rewind.

7The outgoing message replays

automatically and the TC-520 resets to

answer phone calls. You will hear:

Hi, you have

reached...

CHECK YOUR

OUTGOING MESSAGE

You can listen to your outgoing message anytime.

PLAY/PAUSE

MEMO

RECORD

BASE

OUTGOING

MESSAGE

RECORD

1Press

OUTGOING MESSAGE

RECORD

briefly.

OUTGOING

MESSAGE

RECORD

2The TC-520 will play your outgoing

message and reset to answer new calls.

Hi, you have

reached...

PAGE

If you have touchtone service, switch the

TONE/PULSE SWITCH

TONE

(See page 9.)

Fully extend the base unit antenna for

clear reception. Before use, place the

handset in the base unit for 12-15 hours

to charge the batteries. The TC-520 is

ready to record your outgoing message.

Turn the page.

PLUG

the TC-520's telephone cord into

a telephone wall jack. If the telephone

cord is not connected to the wall jack, the

LINE IN-USE INDICATOR

will flash

rapidly.

3Set the

HANDSET RINGER SWITCH

to "ringer on" before use.

GENERAL

PAGE

TONE PULSE

TO WALL JACK

USE ONLY WITH

ADAPTOR M/N-65

INSTALLATION

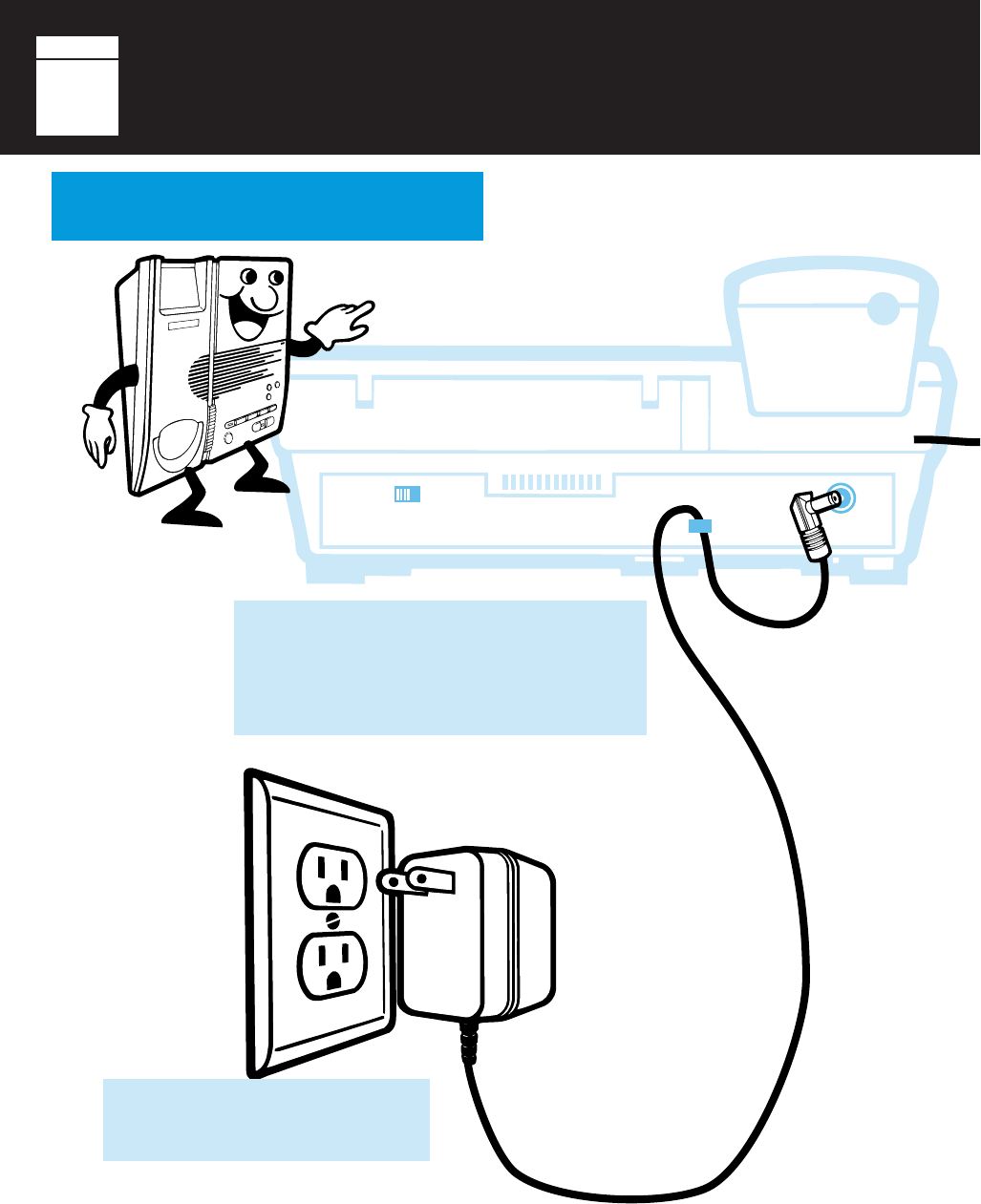

CONNECT YOUR TC-520

GENERAL

PLUG

the AC Adapter into an

electrical wall outlet.

CONNECT

the AC Adapter Plug into

the AC Adapter Outlet on the back of

the TC-520.

LOOP

the cord through

the Cord Holder to prevent accidental

disconnection.

PAGE

Charge the Handset Batteries Before Using the Cordless Telephone

The batteries lose their charge during shipping and storage. Be sure to charge the batteries before you use the

TC-520 cordless telephone. Place the handset in the base unit. The CHARGING/LINE IN-USE INDICATOR will

light. Leave the handset in the base unit for 12-15 hours. (See page 14.)

GENERAL

Interference Information

Cordless telephone equipment generates and receives radio waves and, if not installed and used properly, may pick

up interference. To prevent interference:

Avoid locations such as heating appliances, electrical equipment (e.g., fluorescent lamp, TV, radio,

refrigerator, computer), places subject to direct sunlight, excessive dust, moisture, vibration, etc.

Locate the base unit in a high place in the house (such as the second floor) in order to receive the most

effective communication range. Fully extend the base unit antenna.

Notice: This cordless telephone uses radio communications between the handset and the base unit,

and may not ensure privacy of communication. Other devices including other cordless telephones

may interfere with the operation of this cordless telephone or cause noise during operation. Cordless

telephones must not cause interference to any licensed radio service.

WARNING

To prevent fire or shock hazard, do not expose the set to rain or moisture.

To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only.

CAUTION

1. Use batteries only intended for recharging. Use only the following battery pack:

Nickel-Cadmium Rechargeable, 3.6 volts, 250-300 mAh.

2. Do not dispose of the battery(ies) in a fire. The cell may explode.

Check with local codes for special disposal instructions.

3. Do not open or mutilate the battery(ies.) Released electrolyte is corrosive

and may cause damage to the eyes or skin. It may be toxic if swallowed.

4. Exercise care when handling the battery(ies) in order not to short the

battery(ies) with conducting materials such as rings, bracelets, and keys.

The battery or conductor may overheat and cause burns.

Digital Security Code

The Digital Security Coding System automatically resets a new personal security code to one of over 256

combinations every time you return the TC-520 handset to the base unit. (Whenever the handset is returned to the

base unit you will hear a beep.) The security code prevents unauthorized use of your telephone line, false rings

and false dialing. (US. Patent No. 5,073,932)

Ultra Clear® Noise Reduction Circuit

The TC-520 is equipped with Ultra Clear® Noise Reduction Circuitry (Compander Circuit). It reduces background

noise—reception is superior to conventional cordless telephones.

25 Channels with Optimum Channel Memory (OCMTM )

The TC-520 has 25 channels with Optimum Channel Memory. Optimum Channel Memory provides fast and clear

channel selection. The scanning circuit scans all 25 channels in your neighborhood to find the best available

channel. Once it finds the clear channels it selects and remembers the three best ones. When you press “Talk” to

call out or receive a call, the unit automatically provides you with the best channel. Whenever you place the

handset in the base unit for 2 seconds or more, the unit updates its memory. Press CHANNEL if you wish to

change channels manually. (U.S. Patents 5,197,093 & 5,418,839)

Ni-Cd

CONTAINS: NICKEL-CADMIUM

RECHARGEABLE BATTERY.

MUST BE RECYCLED OR

DISPOSED OF PROPERLY.

IMPORTANT CORDLESS

TELEPHONE INFORMATION

PAGE

INSTALLATION INSTRUCTIONS

1. Never install telephone wiring during a lightning storm.

2. Never install telephone jacks in wet locations unless the jack is specifically designed for

wet locations.

3. Never touch uninsulated telephone wires or terminals unless the telephone line has been

disconnected at the network interface.

4. Use caution when installing or modifying telephone lines.

When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire,

electric shock and injury to persons, including the following:

1. Read and understand all instructions.

2. Follow all warnings and instructions marked on the product.

3. Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a

damp cloth for cleaning.

4. Do not use this product near water, for example, near a bath tub, wash bowl, kitchen sink, or laundry tub, in a

wet basement, or near a swimming pool.

5. Do not place this product on an unstable cart, stand, or table. The product may fall, causing serious damage to

the product.

6. Slots and openings in the cabinet and the back or bottom are provided for ventilation, to protect it from

overheating, these openings must not be blocked or covered. The openings should never be blocked by placing

the product on the bed, sofa, rug, or other similar surface. This product should never be placed near or over a

radiator or heat register. This product should not be placed in an enclosed environment unless proper ventilation

is provided.

7. Do not allow anything to rest on the power cord. Do not locate this product where the cord will be abused by

persons walking on it.

8. Do not overload wall outlets and extension cords as this can result in the risk of fire or electric shock.

9. Never push objects of any kind into this product through cabinet slots as they may touch dangerous voltage

points or short out parts that could result in a risk of fire or electric shock. Never spill liquid of any kind on the

product.

10. To reduce the risk of electric shock, do not disassemble this product, but take it to a qualified serviceman when

some service or repair work is required. Opening or removing covers may expose you to dangerous voltages or

other risks. Incorrect re-assembly can cause electric shock when the appliance is subsequently used.

11. Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following

conditions:

A. When the power supply cord or plug is damaged or frayed.

B. If liquid has been spilled into the product.

C. If the product has been exposed to rain or water.

D. If the product does not operate normally by following the operating instructions. Adjust only those controls,

that are covered by the operating instructions because improper adjustment of other controls may result in

damage and will often require extensive work by a qualified technician to restore the product to normal

operation.

E. If the product has been dropped or the cabinet has been damaged.

F. If the product exhibits a distinct change in performance.

12. Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of

electric shock from lightning.

13. Do not use the telephone to report a gas leak near the leak.

SAVE THESE INSTRUCTIONS

GENERAL IMPORTANT SAFETY

INSTRUCTIONS

PAGE

ADDITIONAL INFORMATION

MESSAGES - from Handset

Retrieve Messages from the Handset ............ 15

Rewind Messages .......................................... 16

Fast Forward Messages ................................. 16

Replay All Messages ...................................... 16

Save Messages .............................................. 16

Erase Messages............................................. 16

Automatic Erase (Tape Reset) ....................... 16

Call Screening ................................................ 17

Answer a Call During Playback ...................... 18

Record a Memo .............................................. 18

Conversation Record...................................... 19

TELEPHONE OPERATION

Alarm .............................................................. 20

Standby Mode ................................................ 20

To Place a Call ............................................... 20

If You Dialed a Wrong Number....................... 21

To Receive a Call ........................................... 21

Hold ................................................................ 21

Redial ............................................................. 22

Flash .............................................................. 22

Pulse/Tone Mixed Dialing............................... 22

AUTODIAL

Autodial Memory Backup ............................... 23

Autodial with Voice Check .............................. 23

To Check Stored Number............................... 24

Using Autodial ................................................ 24

Erase Autodial ................................................ 24

To Program Tone/Pulse in Autodial................ 24

Programmable Pauses ................................... 25

SPEAKERPHONE & PAGING

To Answer an Incoming Call........................... 26

To Switch from Handset to Speakerphone ..... 26

Paging the Base Unit from the Handset ......... 26

Retrieve Messages......................................... 27

Remote Voice Menu ....................................... 28

Automatic Erase (Reset) ................................ 28

Replay Messages ........................................... 28

Erase Messages............................................. 28

Save Messages.............................................. 28

Remote Room Monitor ................................... 29

Remote Turn On ............................................ 29

Message Retrieval When Tape is Full ............ 29

REMOTE OPERATION

Power Failure Recovery ................................. 30

Power Failure Recovery from the Base Unit .. 30

Two-Line Installation ...................................... 30

Multi-Line Installation...................................... 30

Cleaning the Base Unit................................... 31

Cleaning the Handset ..................................... 31

Removing/Replacing Microcassette ............... 32

Battery Installation .......................................... 32

Limited Warranty ............................................ 33

Troubleshooting.............................................. 34

FCC Requirements......................................... 36

Accessory Order Form ................................... 37

GENERAL

Casio Tc 520 Users Manual TC520.PM5

tc520 e1980a7b-e934-472a-b54f-8b87180378e3 Casio Answering Machine TC-520 User Guide |

Navigation menu

Versions of this User Manual:

Views

Navigation
