Basic Operations

This section provides an overview of the

watch and its operations.

Note

●The illustrations included in this

manual have been created to

facilitate explanation. An

illustration may differ somewhat

from the item it represents.

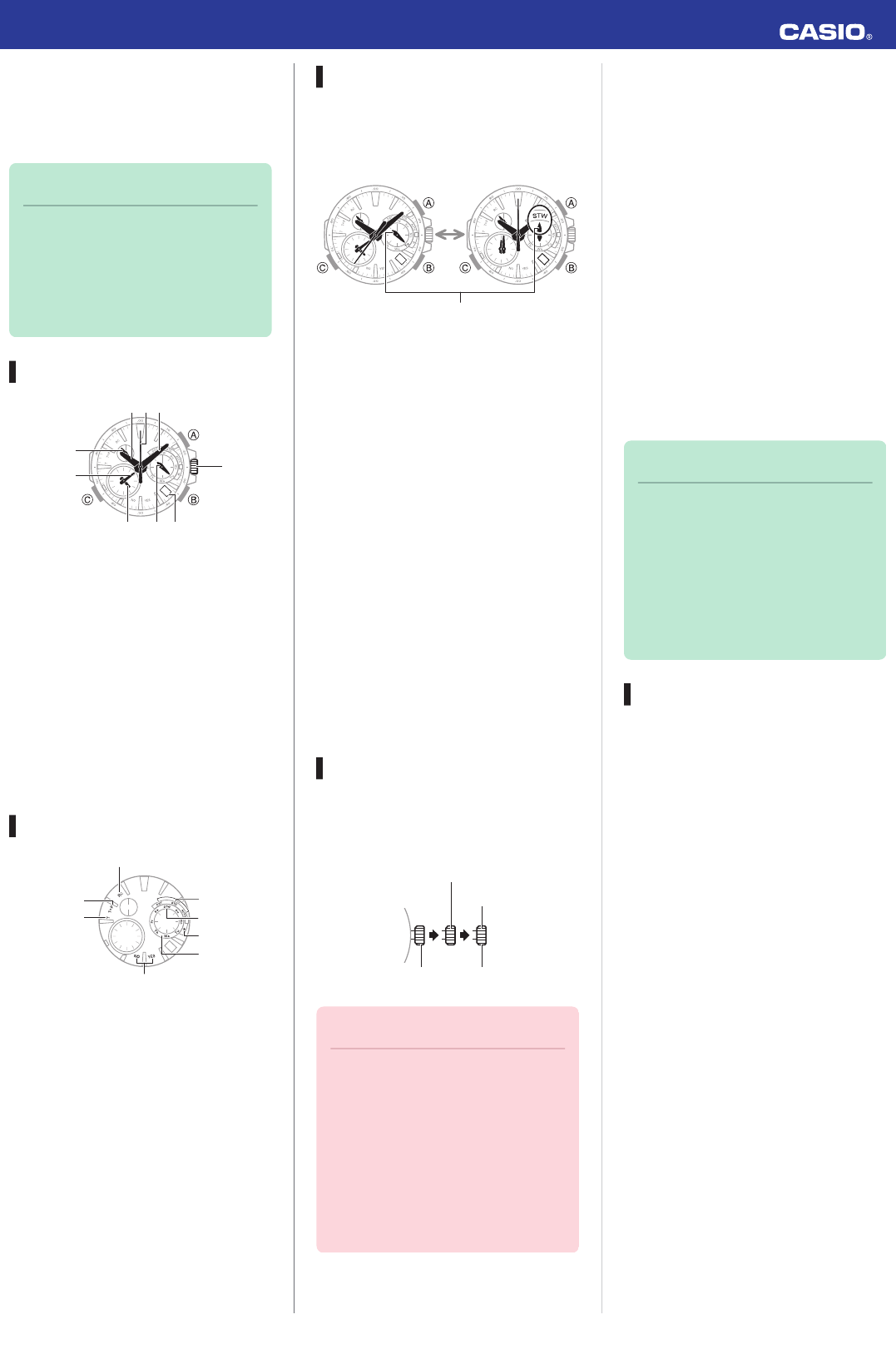

General Guide

30

③①②

⑤

④

⑥⑦⑧

⑨

AHour hand

BSecond hand

CMinute hand

D24-hour hand

ESmall minute hand

FSmall hour hand

GMode hand

HDay indicator

ICrown

Watch Face Items

①

②

③

④

⑧

⑤

⑥

⑦

ATime calibration reception in

progress

BGPS signal time information and

position information acquisition in

progress

CGPS signal time information

reception in progress

DSignal receive result

ESummer time setting

FStopwatch Mode

GAirplane Mode

HDay of the week

MA1409-EA © 2014 CASIO COMPUTER CO., LTD.

Navigating Between Modes

This watch has a Timekeeping Mode and

a Stopwatch Mode.

30

30

C

Mode hand

Stopwatch ModeTimekeeping Mode

Timekeeping Mode:

Normally the mode hand points to the

current day of the week.

In the Airplane Mode, the mode hands

points to h.

Stopwatch Mode:

The mode hand always points to “STW”,

even in the Airplane Mode.

Use the (C) button to navigate between

modes.

●Hold down (C) for at least two seconds

to return to the Timekeeping Mode.

●Holding down (C) for four seconds or

longer will enter or exit the Airplane

Mode.

l Using the Watch on an Aircraft

Using the Crown

Depending on the operation you want to

perform, pull out the crown to the first or

second click and then rotate it.

Normal position

Second click

First click

Crown

Important!

●To prevent loss of water

resistance and/or damage due

to impact, be sure to push the

crown in to its normal position

after you are finished using it.

●When pushing the crown back

in, take care not to apply too

much force.

●Fast Forward/Fast Reverse

After pulling out the crown, rotating it

quickly in succession in either direction

will start a fast forward or fast reverse

operation. While a fast forward operation

is in progress, quickly rotating the crown

in succession again will increase the

speed even further.

●The fast reverse operation speed is

fixed and cannot be changed.

●Stopping Fast Forward/Fast

Reverse

Rotate the crown in the direction

opposite that of the ongoing operation or

press any button.

Note

●If you do not perform any

operation for about two minutes

after pulling out the crown,

crown operations will

automatically become disabled.

If that happens, push the crown

back in and then pull it out again.

Solar Charging

What is solar charging?

This watch runs on power supplied from

a rechargeable (secondary) battery that

is charged by a solar panel. The solar

panel is integrated into the face of the

watch, and power is generated

whenever the face is exposed to light.

●This watch uses a special

rechargeable (secondary) battery.

ーThe watch’s battery will not charge if

the watch’s temperature is less than

approximately -10°C (14°F) or

greater than approximately 60°C

(140°F).

ーOver-discharge will occur if the

watch is not charged within

approximately three months after it

stops operation due to low battery

power. Charging may not be

possible after over-discharge

occurs.

Operation Guide 5412

1

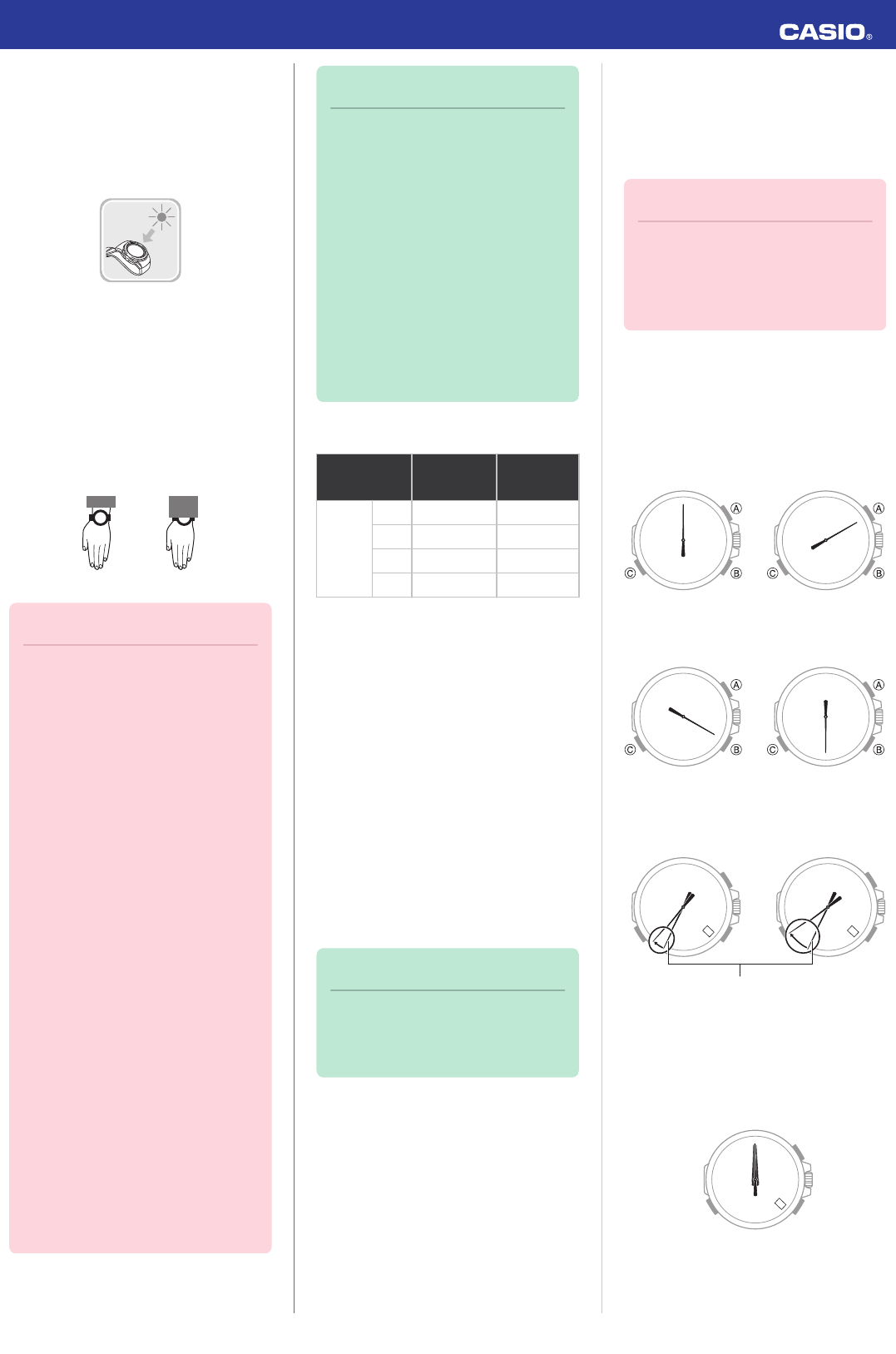

Charging the Watch

When you are not wearing the watch, put

it in a location where it is exposed to

bright light.

While you are wearing the watch, make

sure that its face (solar panel) is not

blocked from the light by the sleeve of

your clothing. Power generation

efficiency is reduced even when the face

of the watch is blocked only partially.

NOYES

Important!

●If the second hand stops for

some time after the watch is

continuously exposed to light, it

could mean that charging is not

possible due to over-discharge.

Request chargeable

(secondary) battery

replacement by your original

retailer or authorized CASIO

service center.

●Depending on light intensity and

local conditions, the watch may

become hot to the touch when

exposed to light for charging.

Take care to avoid burn injury

after charging. Also, avoid

charging the watch under high-

temperature conditions like the

ones described below.

ーOn the dashboard of a vehicle

parked in the sun

ーNear an incandescent light

bulb or other source of heat

ーUnder direct sunlight or in

other hot areas for long

periods

Note

●Exposing the watch face to light

after the battery goes dead will

cause the second hand to

revolve counterclockwise until it

stops at second 57. This

indicates charging has started.

●A fully charged watch can

operate for approximately

seven months without further

charging. Watch operation will

stop approximately 20 days

after the battery goes low.

Charging Times

Light Intensity Charge

Level 1

Charge

Level 2

High

p

Low

A8 hours 27 hours

B26 hours 102 hours

C41 hours 165 hours

D450 hours -

Charge Level 1:

Time from dead battery until hand

movement starts

Charge Level 2:

Time from hand movement starts until a

full charge

Light Intensity

ASunny day, outdoors (50,000 lux)

BSunny day, near a window (10,000

lux)

COvercast day, near a window (5,000

lux)

DIndoor fluorescent lighting (500 lux)

Note

●Actual charging time depends

on the local charging

environment.

Checking the Charge Level

The charge level is indicated by watch

hand movement. Functions become

disabled as battery power goes low.

Important!

●Should battery go low or go

dead, expose the face (solar

panel) to light as soon as

possible.

Immediately after pressing (C) to enter to

the Timekeeping Mode, the second hand

will move to one of the positions below to

indicate the battery charge level.

●Battery Charged

2 o'clock12 o'clock

●Low Battery Power

6 o'clock4 o'clock

Also, the second hand jumps at two-

second or five-second intervals.

30

30

Five-second intervalsTwo-second intervals

Second hand

●Above right figures indicate a lower

battery charge.

●Dead Battery

All hands are stopped.

1

Operation Guide 5412

2

Power Saving Function

Leaving the watch in a dark location for

about one hour between the hours of 10

p.m. and 6 a.m. will cause the second

hand to stop, and the watch will enter

Level 1 power saving. If the watch is left

in this condition for six or seven days, all

hands will stop and the watch will enter

Level 2 power saving.

Level 1:

Basic timekeeping functions are

operational.

Level 2:

Only the day indicator is operational.

Note

●Note that the watch also may

enter the power saving state if its

face is blocked from light by your

sleeve while you are wearing it.

●The watch will enter power

saving from the Timekeeping

Mode only.

●Recovering from Power Saving

Operation

Press any button or place the watch in a

well-lit area to recover from power

saving.

Time Adjustment (GPS,

Time Calibration Signal)

The watch’s time, day, and Home City

(time zone) settings can be configured in

accordance with a received GPS signal

or time calibration signal.

●GPS signal position information: Used

to update Home City (time zone), time,

and day settings.

●GPS signal time information: Used to

update time and day settings.

●Time calibration signal: Used to update

time and day settings.

Important!

●Before trying to receive GPS

signal time information and/or a

time calibration signal, first use

GPS to acquire position

information and configure

Home Time (time zone)

settings.

●Put the watch into the Airplane

Mode whenever you are inside

an aircraft or in any other area

where radio wave reception is

prohibited or restricted.

l Using the Watch on an

Aircraft

Note

●Areas where time calibration

signal reception is supported

are limited. When the watch in

an area where time calibration

signal reception is not

supported, adjust time and day

settings based on GPS signals.

l Time Calibration Signal

Reception Ranges

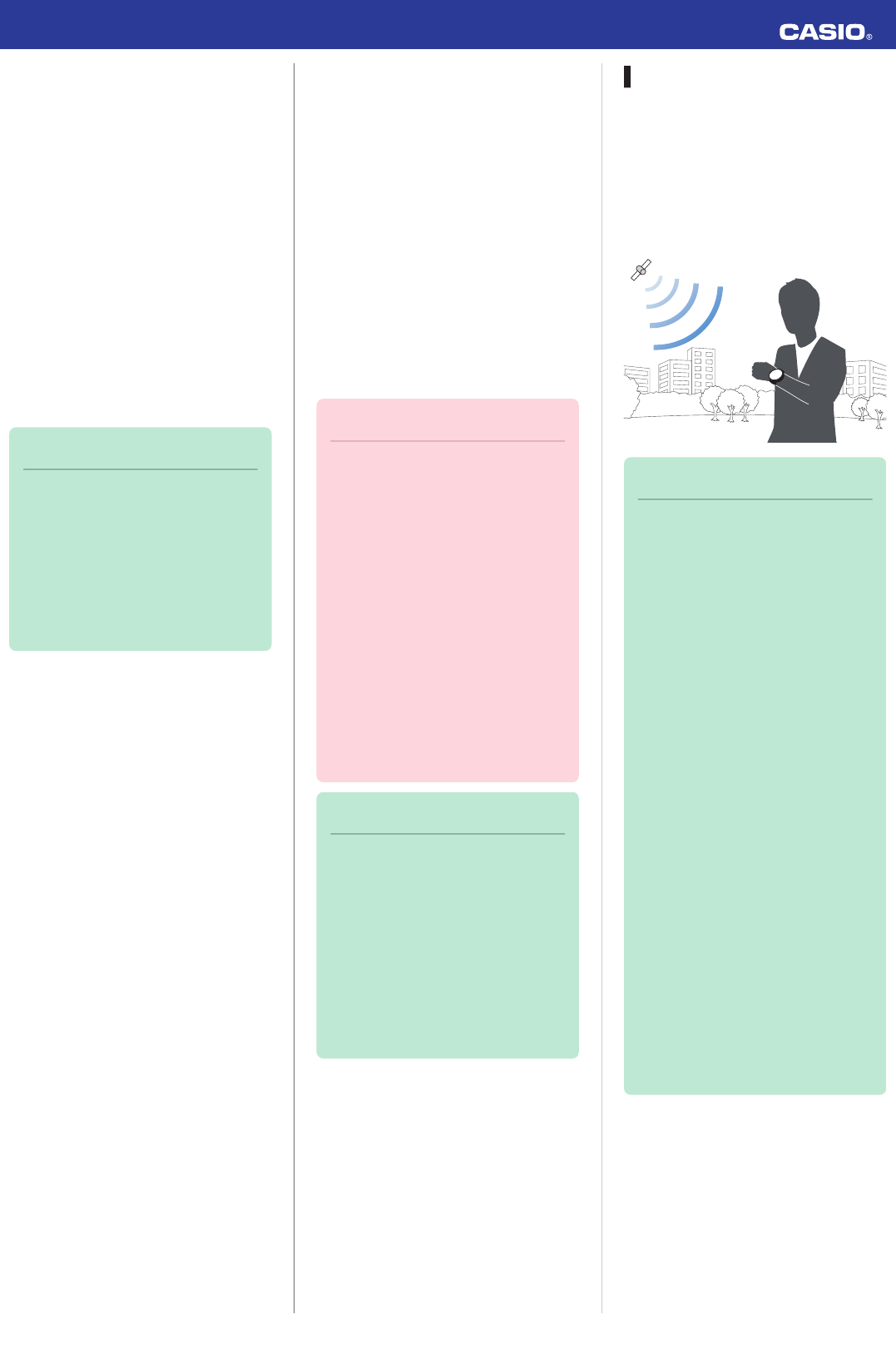

Time Adjustment Using GPS

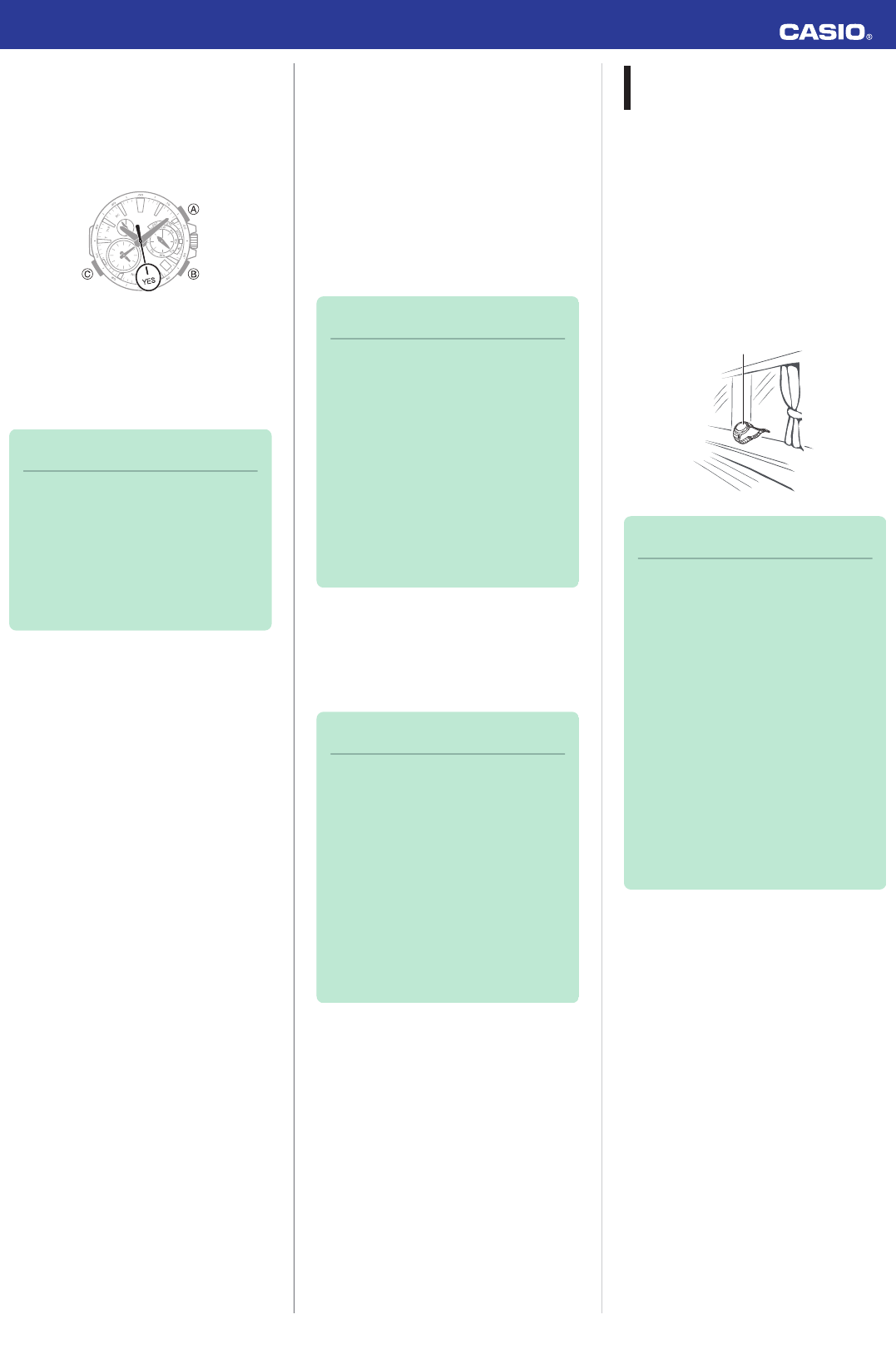

Appropriate Signal Reception

Location

GPS signal reception is possible

outdoors where the sky is visible and not

blocked by buildings, trees, or other

objects.

Note

●In areas where reception is

poor, keep the watch face

oriented upwards and do not

move the watch.

●When the watch is set up for

auto receive, take care to avoid

covering the watch face with the

sleeve of your clothing.

●GPS signal reception is not

possible in the areas described

below.

ーWhere the sky is not visible

ーIndoors (Reception may be

possible near a window.)

ーNear wireless communication

equipment or other devices

that generate magnetism.

●You may experience GPS signal

reception problems in the areas

described below.

ーWhere the view of the sky

above is narrow

ーNear trees or buildings

ーNear a train station, airport, or

other congested areas

Operation Guide 5412

3

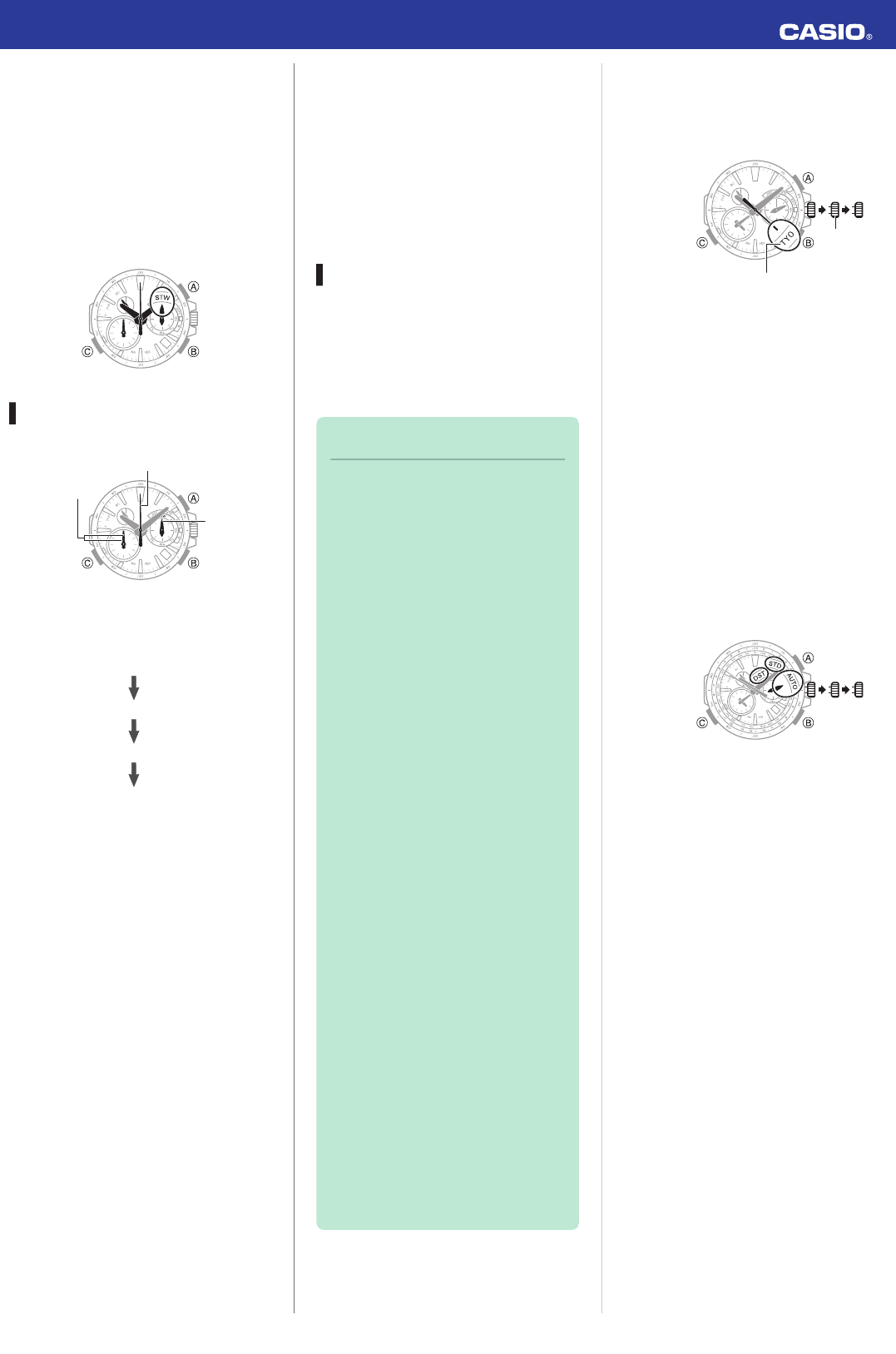

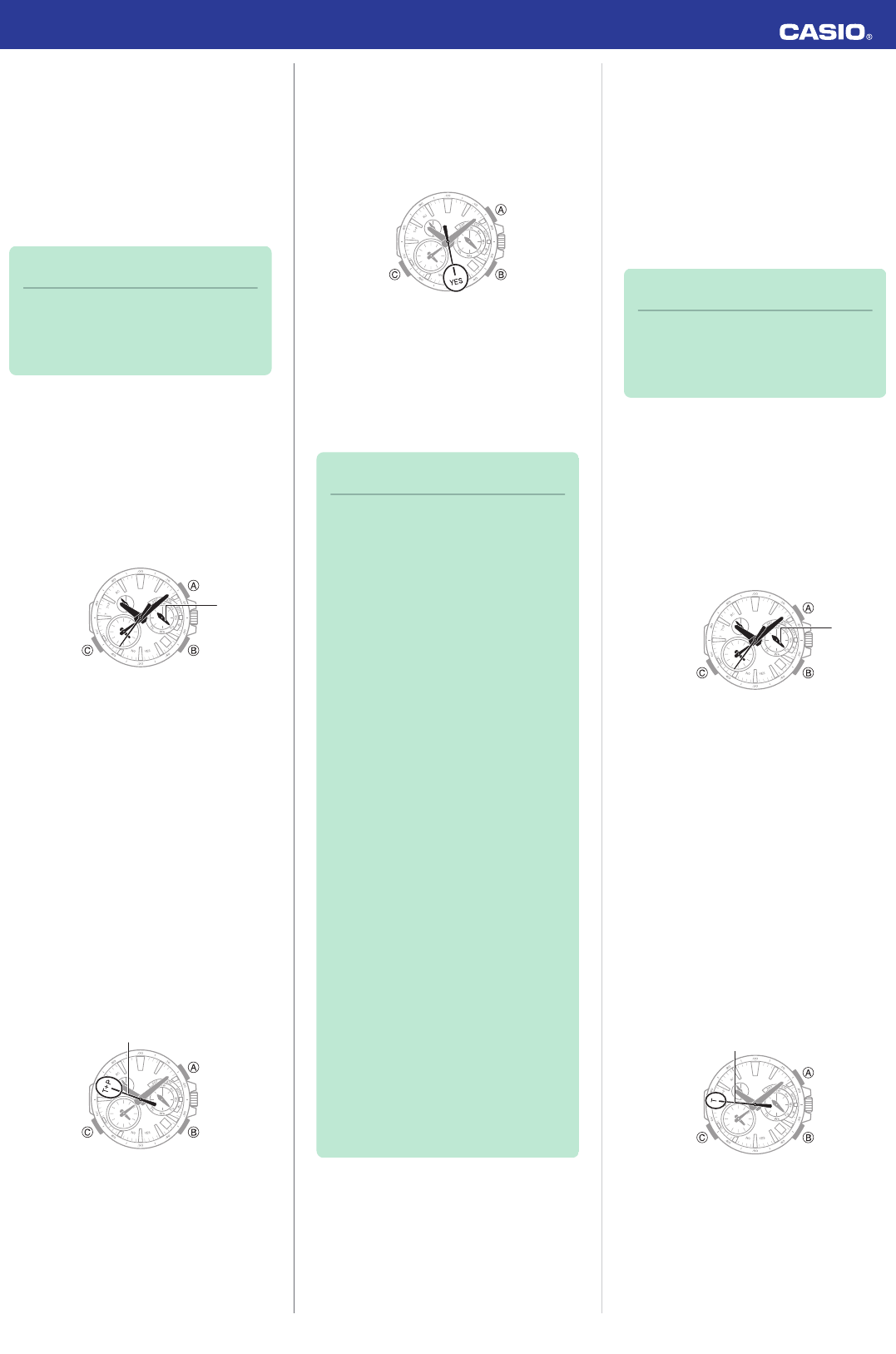

Acquiring GPS Position

Information Manually

You can use a button operation to

acquire GPS position information and

adjust your Home City (time zone), time,

and day settings in accordance with your

current location.

Note

●GPS signal reception requires

large amounts of power.

Perform it only when necessary.

Getting ready

The receive operation is performed only

while the watch is in the Timekeeping

Mode (normal timekeeping).

●Normally the mode hand points to the

current day of the week.

l Navigating Between Modes

30

Mode

hand

1. Move to a location appropriate for

signal reception and orient the watch

so its display is pointed straight up at

the sky.

2. Hold down (B) for at least three

seconds. Release the button as soon

as the second hand points to “T+P”.

●The second hand will move in the

following sequence: “YES” or

“NO” n “T (TIME)” n “T+P”.

●This indicates that position

information acquisition has

started.

30

Second hand

●If position information acquisition

is successful, the second hand will

move to “YES” and then the watch

will automatically adjust its time

and day settings.

30

●If position information acquisition

fails for some reason, the second

hand will move to “NO” and then

the watch will indicate the current

time and day without adjusting

them.

Note

●Reception takes anywhere from

about 30 seconds to about two

minutes.

●It can take as long as 13 minutes

when leap second information is

included.

●You may experience location

information acquisition

problems when you are in the

vicinity of a time zone

borderline.

The watch’s time and day will

not be indicated correctly if the

Home City (Time Zone) setting

is not right for your location.

Perform position information

acquisition in a representative

city in your time zone or in a

location that is well within the

time zone. Or you can perform a

time information receive

operation to adjust time and day

settings after configuring Home

City (Time Zone) and summer

time settings manually.

l Selecting a Time Zone

l Acquiring GPS Time

Information Manually

Acquiring GPS Time Information

Manually

You can use a button operation on the

watch to receive GPS signal time

information. When the receive operation

is successful, the watch’s Home City

(time zone), day, and time settings will be

adjusted accordingly.

Note

●GPS signal reception requires

large amounts of power.

Perform it only when necessary.

Getting ready

The receive operation is performed only

while the watch is in the Timekeeping

Mode (normal timekeeping).

●Normally the mode hand points to the

current day of the week.

l Navigating Between Modes

30

Mode

hand

1. Move to a location appropriate for

signal reception and orient the watch

so its display is pointed straight up at

the sky.

2. Hold down (B) for at least one

second. Release the button as soon

as the second hand points to “T

(TIME)”.

●The second hand will move in the

following sequence: “YES” or

“NO” n “T (TIME)”.

●This indicates that time

information receipt has started.

30

Second hand

Operation Guide 5412

4

●If information acquisition is

successful, the second hand will

move to “YES”, and then the watch

will automatically adjust its time

and day settings.

30

●If reception fails for some reason,

the second hand will move to “NO”

and then the watch will indicate the

current time and day without

adjusting them.

Note

●Reception takes anywhere from

about seven seconds to about

one minute.

●It can take as long as 13 minutes

when leap second information is

included.

Auto GPS Signal Receive

When the conditions below are satisfied,

the watch will automatically receive a

GPS signal. If any time information

receive is successful, the watch will no

longer attempt to receive a signal for the

rest of the day.

●Time data

●Watch is in the Timekeeping Mode

(normal timekeeping).

●Current time is between 6:00 a.m. and

10:00 p.m.

●Light (near a window on a clear day)

continually shining on the face of the

watch for about one to two minutes.

●Time calibration signal reception was

not successful during the previous

evening.

●Position information

●Watch is in the Timekeeping Mode

(normal timekeeping).

●The watch exited the Airplane Mode.

●Current time is between 6:00 a.m. and

10:00 p.m.

●Light (near a window on a clear day)

continually shining on the face of the

watch for about one to two minutes.

Note

●The time information receive

operation takes anywhere from

about seven seconds to one

minute, while position

information acquisition takes

anywhere from about 30

seconds to two minutes.

●The receive operation can take

as long as 13 minutes when leap

second information is included.

Leap seconds

A GPS signal received on or around June

1 or December 1 each year may also

include leap second information.

Note

●The receive operation can take

as long as 13 minutes when leap

second information is included.

●Once leap second information is

successfully received, the

watch will not make any attempt

to receive it again until the next

leap second information is sent

(the following June 1 or

December 1).

Time Adjustment Using a

Time Calibration Signal

Appropriate Signal Reception

Location

A time calibration signal can be received

while the watch is near a window.

●Keep metal objects away from the

watch.

●Do not move the watch.

●Do not perform any operation on the

watch.

12 o'clock

Note

●You may experience time

calibration signal reception

problems in the areas described

below.

ーAmong or near buildings

ーWhile riding in a vehicle

ーNear household appliances,

office machines, mobile

phones, etc.

ーOn a construction site, in an

airport, or any other location

where radio wave

interference occurs

ーNear high-voltage lines

ーIn mountainous areas or

behind a mountain

Operation Guide 5412

5

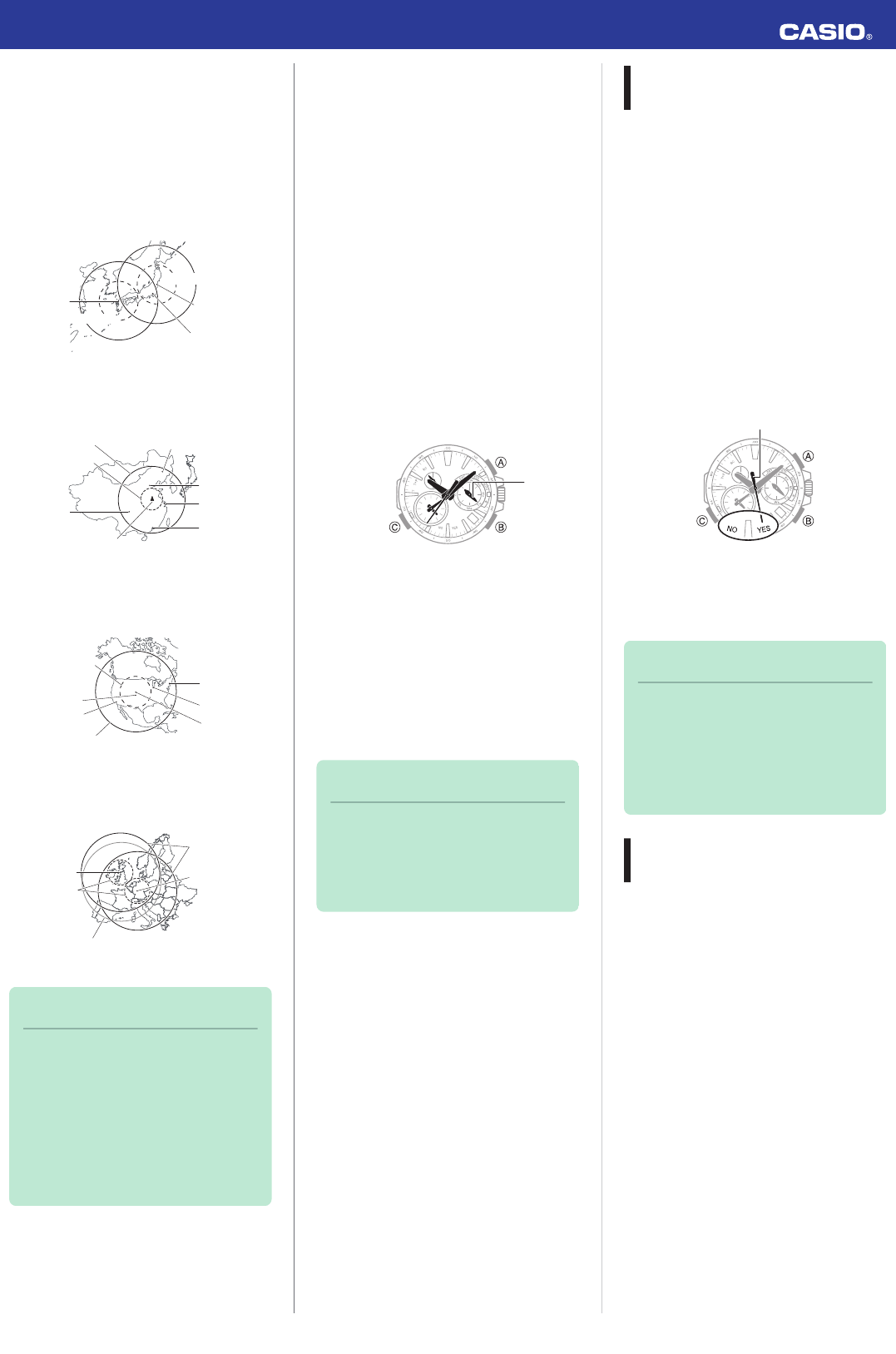

Time Calibration Signal Reception

Ranges

Time calibration signal reception is

supported in the areas shown below.

●Japan Time Calibration Signal

(JJY)

500 kilometers

500 kilometers

1,000 kilometers

1,000 kilometers To k y o

Fukushima

Fukuoka/

Saga

●

Chinese Time Calibration Signal

(BPC)

500 kilometers

1,500 kilometers

Chengdu

Shangqiu

Hong Kong

Shanghai

Beijing

Changchun

●U.S. Time Calibration Signal

(WWVB)

600 miles

(1,000 kilometers)

2,000 miles (3,000 kilometers)

Los Angeles

Denver

Fort Collins

Chicago

New York

●U.K. (MSF) and German (DCF77)

Time Calibration Signal

The Anthorn signal is receivable within this area.

500 kilometers

1,500 kilometers

Mainflingen

Anthorn

Note

●Even if you are within the normal

reception range of a time

calibration signal, reception

may be made impossible by the

following factors: geographic

contours, weather, the season,

the time of day, wireless noise.

Auto Time Calibration Signal

Receive

An automatic time calibration signal

receive operation is performed and the

time and day settings are adjusted

between midnight and 5:00 a.m. Once a

signal receive operation is successful, no

more auto receive operations are

performed that day.

The receive operation is performed only

while the watch is in the Timekeeping

Mode (normal timekeeping).

●Normally the mode hand points to the

current day of the week.

l Navigating Between Modes

30

Mode

hand

Place the watch near a window or some

other location appropriate for signal

reception.

●The second hand points to “RC” while

time calibration reception in progress.

●When the receive operation is

successful, the time and day settings

will be adjusted automatically.

Note

●Reception takes anywhere from

about two minute to about 10

minutes. It can take as long as

20 minutes.

Checking the Receive

Operation Result

You can use the procedure below to

check the result of the last GPS or time

calibration signal receive operation.

Getting ready

Enter the Timekeeping Mode.

l Navigating Between Modes

1. Press (B).

The second hand will move and

indicate the receive operation result.

“YES”: Receive successful

“NO”: Receive failed

30

Second hand

2. Press (B) or do not perform any

operation for one or two seconds to

return to the current time.

Note

●Even if there was a successful

receive operation, the second

hand will point to “NO” if you

adjusted the time setting

manually.

Signal Reception

Precautions

●GPS signal and time calibration signal

reception will not be possible under

any of the watch conditions described

below.

ーWhile battery power is low

ーWhile the watch is in the Airplane

Mode or Stopwatch Mode

ーWhen power saving is at Level 2

(GPS signal reception also is not

possible at Level 1.)

ーWhile the crown is pulled out

ーWhile the stopwatch is measuring

elapsed time

ーWhile the temperature of the watch

is less than approximately -10°C

(14°F) or greater than approximately

60°C (140°F)

Operation Guide 5412

6

●Note that an internal decoding process

the watch performs after it receives a

signal may cause the time setting to be

slightly off (by less than one second).

●If the receive operation is successful,

the time and day settings will be

adjusted automatically in accordance

with the Home City (time zone) and

summer time settings. Summer time

will not be applied correctly in the

cases described below.

ーWhen the summer time start date

and time, end date and time, or other

rules are changed by authorities

ーWhen position information cannot

be acquired correctly

ーWhen position information can be

acquired, but it is wrong because the

watch is located near a time zone

boundary, etc.

●As of December 2013, China does not

observe summer time. If China starts to

observe summer time in the future, the

time displayed by the watch for China

may not be correct.

●When the watch is unable to adjust its

time in accordance with a calibration

signal for some reason, average

timekeeping accuracy is within ±15

seconds per month.

Using the Watch on an

Aircraft

Enter the Airplane Mode when in an

aircraft or anywhere else where GPS or

time calibration signal reception is

restricted.

Entering the Watch Airplane

Mode

Holding down (C) for about four seconds

to enter the watch’s Airplane Mode. The

mode hand will move to the Airplane

mark.

30

Airplane mark

●Each time the (C) button is held down

for about four seconds, the watch

enters or exits the Airplane Mode.

World Time

World Time lets you look up the current

time in any one of 27 cities and 40 time

zones around the globe.

Getting ready

Enter the Timekeeping Mode.

l Navigating Between Modes

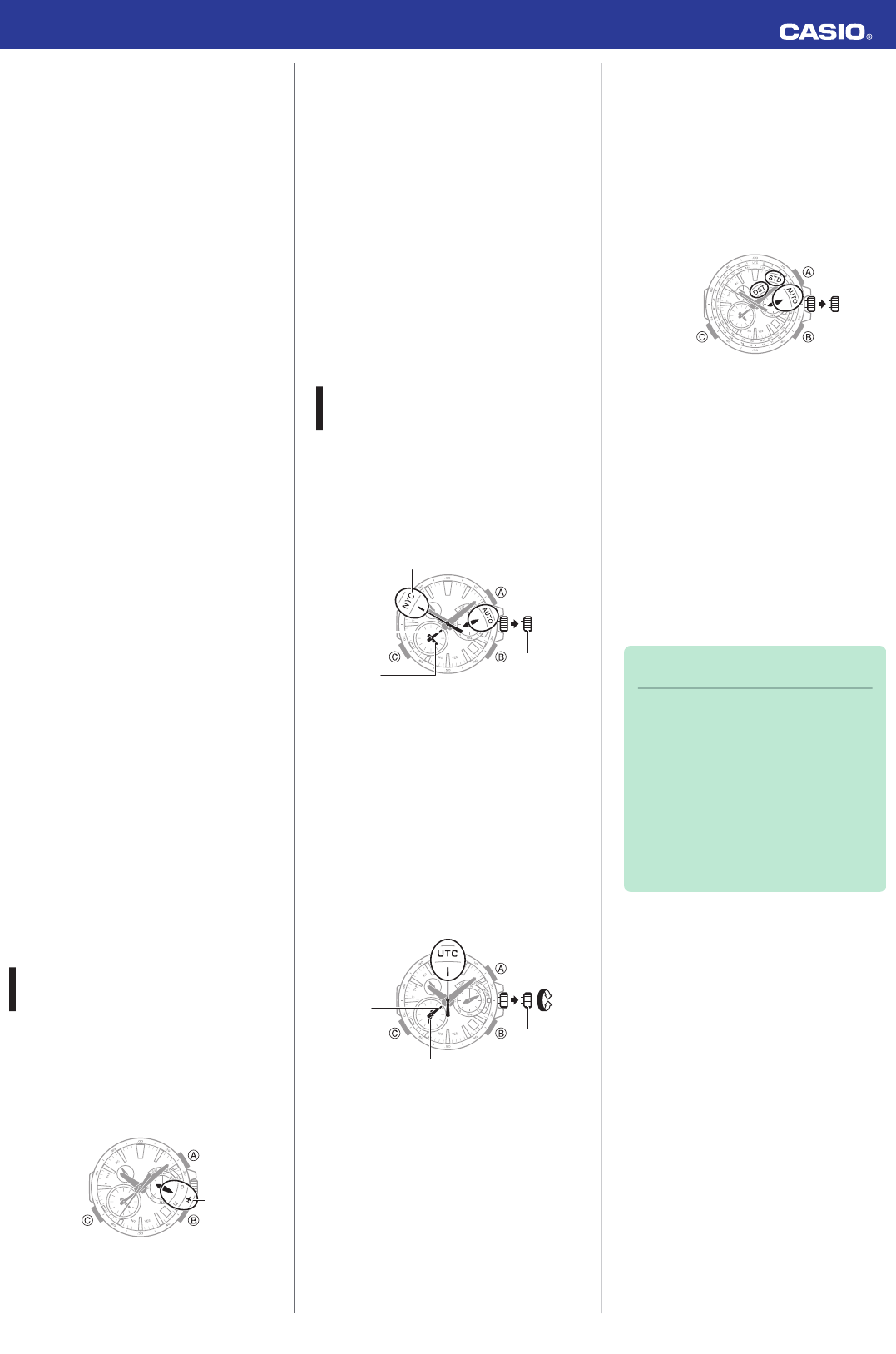

Checking the Time in

Another Zone

1. Pull out the crown to the first click.

The hands of the watch will move to

the current time in the currently

selected World Time City.

30

Time zone

Crown

Small

minute hand

Small hour

hand

2. Rotate the crown to change the time

zone.

The small hour hand and small

minute hand indicate the current

time in the selected time zone.

●Hold down the (B) button for about

one second to display UTC

(Universal Time Coordinated)

time.

30

Small

Minute

Hand

Small Hour Hand

Crown

3. Hold down the (A) button for about

one second to change the summer

time setting.

●Each press of (A) cycles through

available settings in the sequence

shown below.

“AT (AUTO)” n “STD” n “DST”

30

●“AT (AUTO)”

The watch switches between

standard time and summer time

automatically.

●“STD”

The watch always indicates

standard time.

●“DST”

The watch always indicates

summer time.

4. Push the crown back in.

Note

●When a time zone for which

there is no city name displayed

is selected, use “STD” or “DST”

for the summer time setting.

●You cannot switch between

“STD” and “DST” while “UTC” is

selected as the Home City (time

zone).

Operation Guide 5412

7

Stopwatch

The stopwatch measures elapsed time in

units of 1/20 (0.05) seconds up to 23

minutes, 59.95 seconds (24 minutes).

Getting ready

Enter the Stopwatch Mode.

l Navigating Between Modes

30

Measuring Elapsed Time

30

Mode hand

Stopwatch

1/20 (0.05)-second

Stopwatch minutes

and seconds

1. Use the operations below to

measure elapsed time.

A

A

A

AStop

Resume

Stop

Start

●The stopwatch 1/20 (0.05)-second

hand will move for the first 30

seconds after an elapsed time

measurement operation is started,

and then stop. When the elapsed

time measurement operation is

stopped, the hand will move to the

appropriate position to indicate the

final 1/20 (0.05)-second count.

2. Press (B) to reset the elapsed time to

all zeroes.

3. Press (C) to return to the

Timekeeping Mode.

Adjusting Time Settings

Manually

You can use the procedure below to

adjust the watch’s time and day settings

when GPS and time calibration signal

reception is not possible for some

reason.

Selecting a Time Zone

Use the procedure in this section to

select a city (time zone) to use as your

Home City. If you are in an area that

observes summer time, you can also

enable or disable summer time.

Note

●The initial factory default

summer time setting for all cities

(time zones) is “AT (AUTO)”.

With this setting, the watch

automatically switches between

summer time and standard time

as required. The “AT (AUTO)”

setting lets you use the watch

without worrying about

changing the summer time

setting.

●When performing a manual

operation to select a time zone

for which there is no city name

displayed, use “STD” or “DST”

for the summer time setting.

●In the cases described below,

receiving GPS position

information will automatically

cause “AT (AUTO)” to be

selected for the summer time

setting.

ーWhen the time zone of the

current receive operation is

different from the watch’s time

zone setting prior to the

receive operation.

ーWhen the time zone is

unchanged, but the acquired

position information is for a

geographic area with different

summer time rules (start date,

end date)

1. Pull out the crown to the second click.

The second hand will move to the

currently selected time zone.

30

Crown

Time zone

2. Rotate the crown to change the time

zone.

●You can also select a time zone

whose name is not indicated on

the face of the watch.

●For information about time zones,

see the “City (Time Zone) List”.

3. Hold down (A) for about one second

to change the summer time setting.

●Each press of (A) cycles through

available settings in the sequence

shown below.

“AT (AUTO)” n “STD” n “DST”

30

●“AT (AUTO)”

The watch switches between

standard time and summer time

automatically.

●“STD”

The watch always indicates

standard time.

●“DST”

The watch always indicates

summer time.

4. Push the crown back in to its normal

position.

Operation Guide 5412

8

Summer Time

Summer time, which is also known as

Daylight Saving Time (DST), advances

the time setting one hour, 30 minutes, or

some other amount of time from standard

time (STD) during the summer months.

Whether or not and how summer time is

used depends on your country or local

area. Summer time is not used in some

countries and local areas.

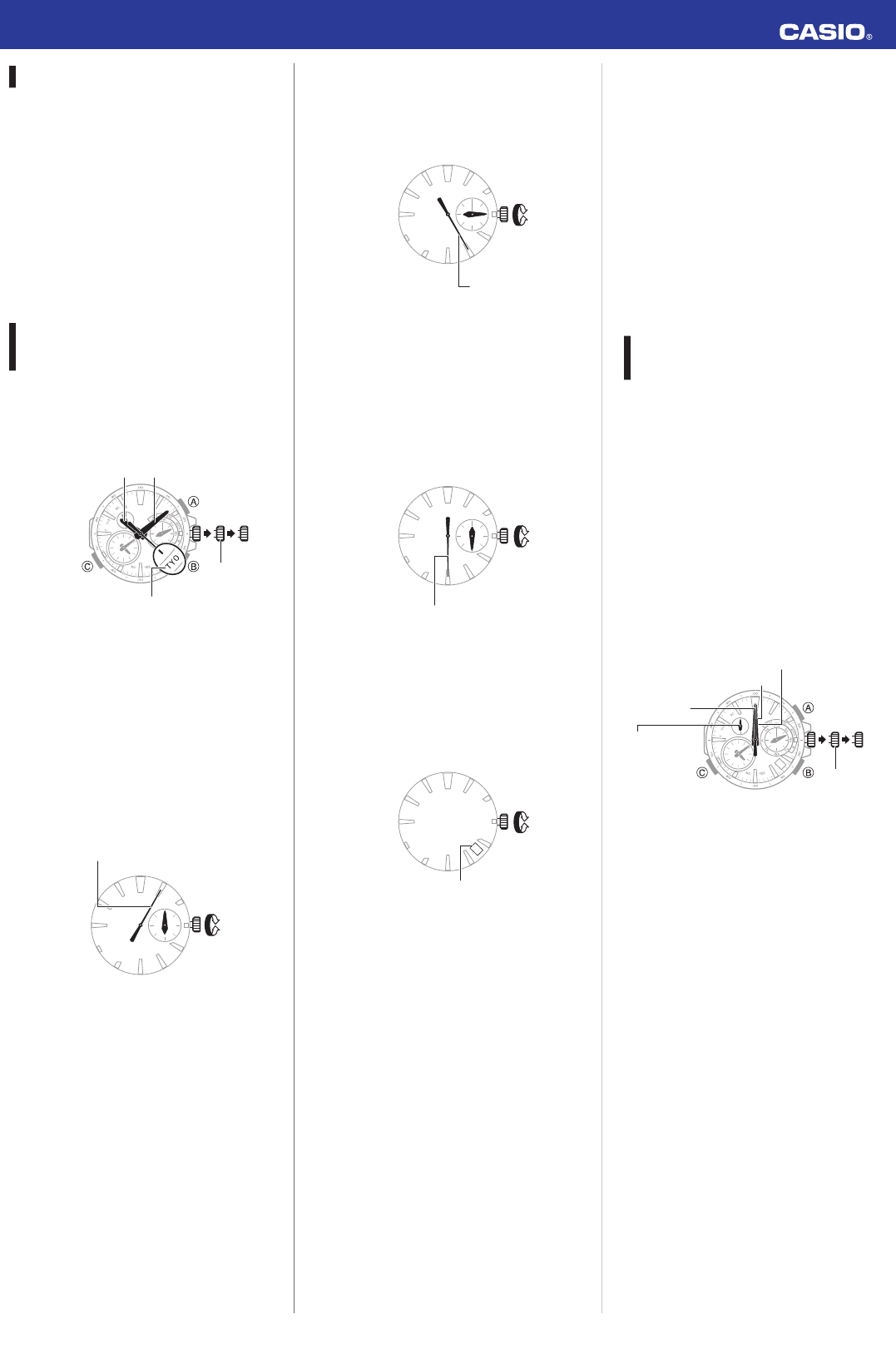

Adjusting the Time and Day

Setting

1. Pull out the crown to the second click.

The second hand will move to the

currently selected time zone.

30

Time zone

Crown

MinutesHours

2. Hold down (C) for about 10 seconds.

This causes the second hand to

move to 12 o’clock and enables the

hour and minute setting operation.

3. Rotate the crown to adjust the hour

and minute settings.

4. Press (C).

This enables the year 10’s digit

setting operation.

80

90 30

40

20

50

70

10

60

00

＋

−

Year (10’s digit)

5. Rotate the crown to move the second

hand to the desired setting for the

year ten’s digit.

6. Press (C).

This enables the year one’s digit

setting operation.

8

93

4

2

57

1

6

0

＋

−

Year (1’s digit)

7. Rotate the crown to move the second

hand to the desired setting for the

year one’s digit.

8. Press (C).

This changes to the month setting

operation.

＋

−

8

9

10

4

2

5

7

11 1

6

12

3

Month

9. Rotate the crown to change the

month.

10. Press (C).

This changes to the day setting

operation.

30

＋

−

Day

11. Rotate the crown to change the day.

12. On a time signal at the top of a

minute, push the crown back in.

Adjusting Hand and Day

Indicator Alignment

Strong magnetism or impact can cause

the time indicated by the hands and the

day indicator to go out of alignment. If this

happens, adjust hand and day indicator

alignment.

●The watch performs alignment of the

hour hand, minute hand, second hand,

and 24-hour hand automatically.

Adjusting Hand and Day

Indicator Alignment

1. Pull out the crown to the second click.

2. Hold down (B) for about five

seconds, until the second hand

moves to 12 o’clock.

This will start auto alignment of the

hour hand, minute hand, second

hand, and 24-hour hand.

●After auto alignment is complete,

the hands should be in the

positions shown below.

30

Crown

24-hour

hand

Hour hand

Minute hand

Second

hand

●If the 24-hour hand is off by 12

hours, hold down (A) for about two

seconds. The 24-hour hand will

move to 12 o’clock.

Operation Guide 5412

9

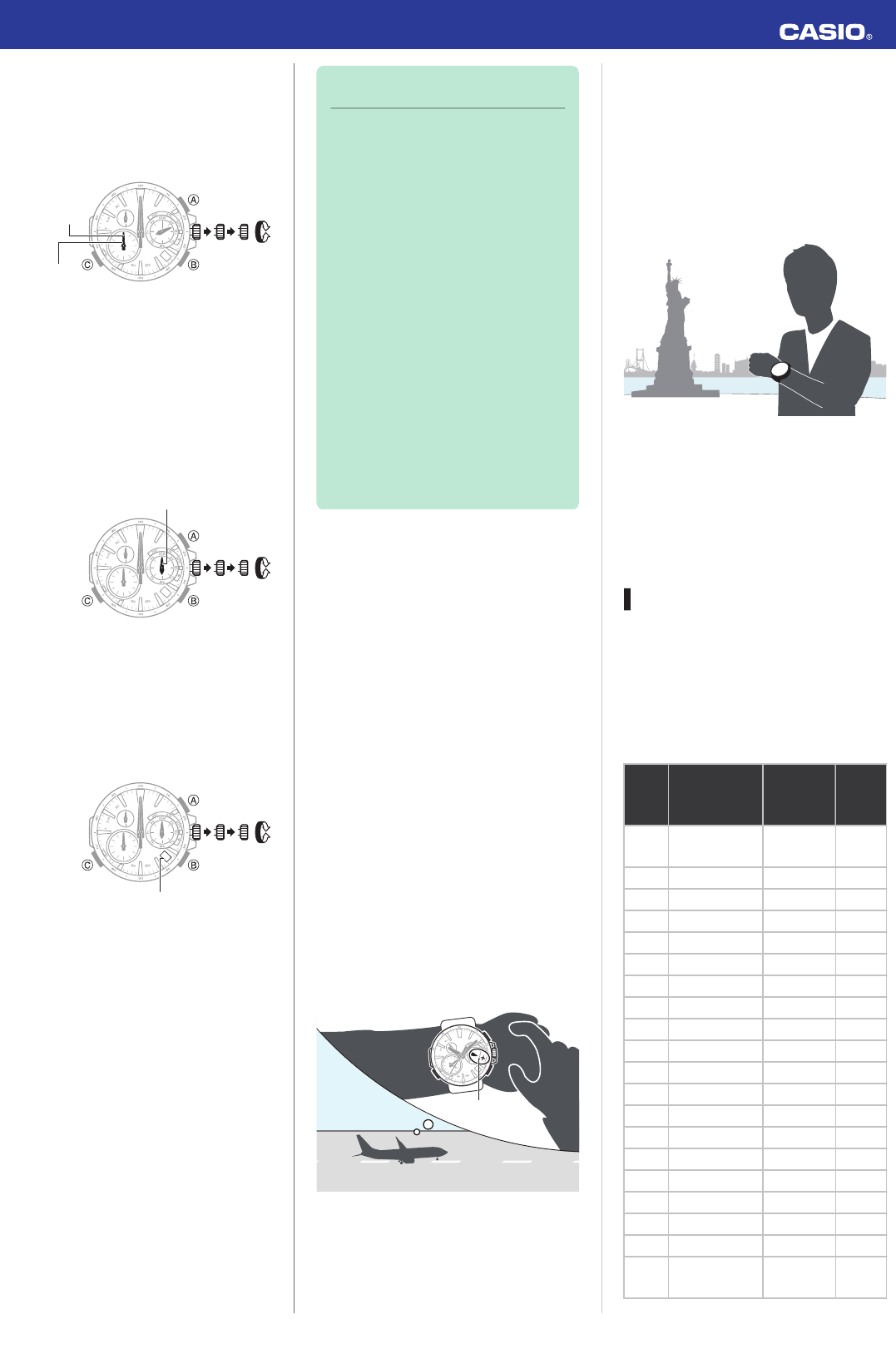

3. Press (C).

Confirm that the small hour hand and

small minute hand are stopped at 12

o’clock.

30

Small Minute

Hand

Small Hour

Hand

4. If the small hour hand and small

minute hand are not at 12 o’clock,

rotate the crown to align them

correctly.

5. Press (C).

Confirm that the mode hand is

stopped at 12 o’clock.

30

Mode hand

6. If the mode hand is not at 12 o’clock,

rotate the crown to align it correctly.

7. Press (C).

Confirm that the day indicator shows

1.

1

Day

8. If 1 is not shown for the day, rotate the

crown until 1 is shown.

9. Push the crown back in.

Note

●Leaving the crown pulled out for

more than approximately 30

minutes without performing any

operation will automatically

cause the adjustment operation

to become disabled. If this

happens, push the crown back

in to its normal position and then

pull it out gain to restart the

procedure from the beginning.

Pushing the crown in to its

normal position part way

through the alignment

procedure will cause the hands

to return to their normal position.

Any alignment you performed

up to that point will be applied.

Moving To Another Time

Zone

Use the procedure below to easily

change day and time settings of the

watch to a destination location.

●Any time you perform a GPS signal

receive operation, the watch may try to

acquire leap second information. A

leap second information receive

operation can take as long as 13

minutes. Make sure the watch is

sufficiently charged before performing

a GPS signal receive operation after

you arrive at your destination.

●Prior to Takeoff

1. Enter the watch’s Airplane Mode

when instructed to do so by airline

personnel.

30

Airplane mark

●After Arriving

1. Exit the Airplane Mode.

2. Perform a GPS signal position

acquisition operation, which will

adjust the watch’s time setting to

your current location.

l Using the Watch on an Aircraft

l Acquiring GPS Position

Information Manually

Other Information

City (Time Zone) List

A time zone for which no city name is

displayed by the watch is indicated in the

table below by a hyphen (-) in the “City

Code” column. The “City Name” column

will contain the name of a representative

city in that zone.

City

code City Name

Second

Hand

Position

UTC

Offset

UTC Coordinated

Universal Time Second 0 0

LON London Second 2 0

PAR Paris Second 4 +1

ATH Athens Second 6 +2

JED Jeddah Second 8 +3

- (Tehran) Second 9 +3.5

DXB Dubai Second 10 +4

- (Kabul) Second 11 +4.5

- (Karachi) Second 12 +5

DEL Delhi Second 13 +5.5

- (Kathmandu) Second 14 +5.75

DAC Dhaka Second 15 +6

- (Yangon) Second 16 +6.5

BKK Bangkok Second 17 +7

HKG Hong Kong Second 19 +8

- (Eucla) Second 21 +8.75

TYO Tokyo Second 22 +9

- (Adelaide) Second 23 +9.5

SYD Sydney Second 24 +10

-(Lord Howe

Island) Second 25 +10.5

Operation Guide 5412

10

City

code City Name

Second

Hand

Position

UTC

Offset

NOU Noumea Second 26 +11

-(Norfolk

Island) Second 27 +11.5

WLG Wellington Second 28 +12

-(Chatham

Islands) Second 30 +12.75

TBU Nuku’alofa Second 31 +13

CXI Kiritimati Second 33 +14

BAR Baker Island Second 36 -12

PPG Pago Pago Second 38 -11

HNL Honolulu Second 40 -10

-(Marquesas

Islands) Second 41 -9.5

ANC Anchorage Second 42 -9

LAX Los Angeles Second 44 -8

DEN Denver Second 46 -7

CHI Chicago Second 48 -6

NYC New York Second 50 -5

- (Venezuela) Second 51 -4.5

SCL Santiago Second 52 -4

- (St. John’s) Second 53 -3.5

RIO Rio de Janeiro Second 54 -3

FEN Fernando de

Noronha Second 55 -2

RAI Praia Second 56 -1

●The contents of the above table are

current as of December 2013.

Summer Time Table

When “AT (AUTO)” is selected for a city

that observes summer time, switching

between standard time and summer time

will be performed automatically at the

timing shown in the table below.

Note

●If the summer time start and end

dates for your current location

have been changed from those

indicated in the table, you will

need switch between “STD” and

“DST” manually.

●In the case of a time zone for

which no city name is displayed,

you can automatically switch

between standard time and

summer time by acquiring GPS

position information.

City Name Summer Time

Start

Summer Time

End

London 1:00 a.m., last

Sunday in March

2:00 a.m., last

Sunday in

October

Paris 2:00 a.m., last

Sunday in March

3:00 a.m., last

Sunday in

October

Athens 3:00 a.m., last

Sunday in March

4:00 a.m., last

Sunday in

October

Sydney

2:00 a.m., first

Sunday in

October

3:00 a.m., first

Sunday in April

Wellington

2:00 a.m., last

Sunday in

September

3:00 a.m., first

Sunday in April

Anchorage

2:00 a.m.,

second Sunday

in March

2:00 a.m., first

Sunday in

November

Los

Angeles

2:00 a.m.,

second Sunday

in March

2:00 a.m., first

Sunday in

November

Denver

2:00 a.m.,

second Sunday

in March

2:00 a.m., first

Sunday in

November

Chicago

2:00 a.m.,

second Sunday

in March

2:00 a.m., first

Sunday in

November

New York

2:00 a.m.,

second Sunday

in March

2:00 a.m., first

Sunday in

November

Santiago

Midnight, end of

second Saturday

in October

Midnight, end of

second Saturday

in March

Rio de

Janeiro

Midnight, start of

third Sunday in

October

Midnight, start of

third Sunday in

February, or

midnight, start of

fourth Sunday in

February

●The contents of the above table are

current as of December 2013.

Function Limitations

●How temperature affects watch

functions

This functions below are disabled while

the temperature of the watch is less than

approximately -10°C (14°F) or greater

than approximately 60°C (140°F).

●GPS signal and time calibration signal

receive operation

●Solar charging

●Hand and day indicator alignment

adjustment

Troubleshooting

Signal Reception (GPS)

Q1 The watch cannot

perform a receive

operation.

Is the watch’s battery charged?

YES

Signal reception is not possible

while battery power is low. Keep

the watch exposed to light until it

recharges sufficiently.

Is the watch in the Timekeeping Mode

(not Airplane Mode)?

YES

Signal reception is not possible

while the watch is in the Stopwatch

Mode or Airplane Mode. Enter the

Timekeeping Mode (not Airplane

Mode).

After checking the above, the watch

still cannot perform a receive

operation.

GPS signal reception is not

possible under the conditions

described below.

●During power saving

●While the crown is pulled out

●While the watch temperature is

less than approximately -10°C

(14°F) or more than

approximately 60°C (140°F)

Q2 The second hand

remains at “T+P” or “T

(TIME)” during the signal

receive operation.

The watch may be receiving leap second

information.

l Leap seconds

Operation Guide 5412

11

Q3 The signal receive

operation always fails.

Is the watch in a location that is

appropriate for signal reception?

YES

Check your surroundings and

move the watch to a location

where signal reception is better.

l Appropriate Signal Reception

Location

Is the face of the watch pointed

straight upwards at the sky?

Minimize movement of the watch

while the receive operation is in

progress.

When the watch is set up for auto

receive, take care to avoid

covering the watch face with the

sleeve of your clothing.

Q4 Signal reception should

have been successful,

but the watch’s time and/

or day is wrong.

Is your Home City (time zone) setting

correct for your location?

YES

Change your Home City (time

zone) setting so it correctly

indicates your location.

l Acquiring GPS Position

Information Manually

l Selecting a Time Zone

After checking the above, the time

and/or day settings is still wrong.

Adjust time and day settings

manually.

Signal Reception (Time

Calibration Signal)

Q1 The watch cannot

perform a receive

operation.

Is the watch’s battery charged?

YES

Signals reception is not possible

while battery power is low. Keep

the watch exposed to light until it

recharges sufficiently.

Is the watch in the Timekeeping Mode

(not Airplane Mode)?

YES

Signal reception is not possible

while the watch is in the Stopwatch

Mode or Airplane Mode. Enter the

Timekeeping Mode (not Airplane

Mode).

Is your Home City (time zone) setting

correct for your location?

YES

The watch will not indicate the

correct time if the Home City (time

zone) setting is wrong. Change

your Home City (time zone) setting

so it correctly indicates your

location.

l Acquiring GPS Position

Information Manually

l Selecting a Time Zone

After checking the above, the watch

still cannot perform a receive

operation.

Time calibration signal reception

is not possible under the

conditions described below.

●When watch is at Level 2 power

saving

●When the crown is pulled out

●While the watch temperature is

less than approximately -10°C

(14°F) or more than

approximately 60°C (140°F)

If successful reception is not

possible for some reason, you can

adjust the time and day settings

manually.

Q2 The signal receive

operation always fails.

Is the watch in a location that is

appropriate for signal reception?

YES

Check your surroundings and

move the watch to a location

where signal reception is better.

l Appropriate Signal Reception

Location

Did you avoid touching the watch

while the receive operation was in

progress?

YES

Minimize movement of the watch

and do not perform any watch

operations while a receive

operation is in progress.

Is the signal transmitter in your area

transmitting a signal?

The transmitter of the time

calibration may not be transmitting

a signal.

Try again later.

Hand Movement and

Indications

Q1 I don’t know what mode

the watch is in.

Hold down (C) for at least two seconds to

return to the Timekeeping Mode.

●Take care not to hold down the (C)

button too long. Holding down the (C)

button for about four seconds will enter

or exit the Airplane Mode.

l Navigating Between Modes

30

Operation Guide 5412

12

Q2 The second hand is

jumping at two-second or

five-second intervals.

Battery power is low. Keep the watch

exposed to light until it recharges

sufficiently.

l Charging the Watch

Q3 All hands are stopped

and buttons do not work.

The battery is dead. Keep the watch

exposed to light until it recharges

sufficiently.

l Charging the Watch

Q4 The hands suddenly start

moving at high speed.

This is due to one of the reasons below,

and does not indicate malfunction.

Simply wait until normal hand movement

resumes.

●The watch is recovering from a power

saving state.

l Power Saving Function

●The hands are moving to their new

positions following a GPS signal or

time calibration signal receive

operation.

l Time Adjustment (GPS, Time

Calibration Signal)

Q5 Hands are stopped and

buttons do not work.

The watch is in the charge recovery

mode. Wait until the recovery process is

complete (for about 15 minutes). The

watch will recover more quickly if you

place it in a brightly lit location.

Q6 The current time

displayed by the watch is

off by a few hours.

The city (time zone) setting is not correct.

Select the correct setting.

l Acquiring GPS Position Information

Manually

l Selecting a Time Zone

Q7 The current time

indicated by the watch is

off by one hour or 30

minutes

The summer time setting is not correct.

Select the correct setting.

l Acquiring GPS Position Information

Manually

l Selecting a Time Zone

Q8 Hands and/or the day

indicator is out of

alignment.

Strong magnetism or impact may cause

the hands of the watch to go out of

alignment. Correct hand position

alignment.

l Adjusting Hand and Day Indicator

Alignment

Crown Operations

Q1 Nothing happens when I

rotate the crown.

If you do not perform any operation for

about two minutes after pulling out the

crown (approximately 30 minutes in the

case of hand and day indicator alignment

operations), crown operations will

automatically become disabled. Push

the crown back in to its normal position

and then pull it out again.

l Using the Crown

Operation Guide 5412

13
