PX850-ES-1B

USER’S GUIDE

GUÍA DEL USUARIO

Please keep all information for future reference.

Guarde toda información para tener como referencia futura.

Safety Precautions

Before trying to use the Digital Piano, be sure to

read the separate “Safety Precautions”.

Precauciones de seguridad

Antes de intentar usar el piano, asegúrese de

leer las “Precauciones de seguridad” separadas.

EnglishEspañol

PX-850

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Important!

Please note the following important information before using this product.

• Before using the AD-E24250LW Adaptor to power the unit, be sure to check the AC Adaptor for any damage first. Carefully check the power

cord for breakage, cuts, exposed wire and other serious damage. Never let children use an AC adaptor that is seriously damaged.

• The product is not intended for children under 3 years.

• Use only CASIO AD-E24250LW adaptor.

• The AC adaptor is not a toy.

• Be sure to disconnect the AC adaptor before cleaning the product.

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other.

A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the

provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit

from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the

apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury

from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as

power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been

exposed to rain or moisture, does not operate normally, or has been dropped.

The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the

apparatus.

The power indicator being unlit does not mean the apparatus is completely disconnected from the MAINS.

When you need to have the apparatus completely disconnected from the MAINS, you must unplug the power cord. For that purpose, locate

the apparatus in a way that secures easy access to the power cord.

NOTICE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment

generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If

this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and

on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

FCC WARNING

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the

equipment.

Declaration of Conformity

Model Number: PX-850

Trade Name: CASIO COMPUTER CO., LTD.

Responsible party: CASIO AMERICA, INC.

Address: 570 MT. PLEASANT AVENUE, DOVER, NEW JERSEY 07801

Telephone number: 973-361-5400

This device complies with Part 15 of the FCC Rules, Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that

may cause undesired operation.

Manufacturer:

CASIO COMPUTER CO., LTD.

6-2, Hon-machi 1-chome, Shibuya-ku, Tokyo 151-8543, Japan

Responsible within the European Union:

CASIO EUROPE GmbH

Casio-Platz 1, 22848 Norderstedt, Germany

This mark applies in EU countries only.

Declaration of Conformity According to EU Directive

E-1

English

Contents

General Guide ................................... E-2

FUNCTION Button............................................................ E-3

Saving Settings and Using Operation Lock......................E-3

Power Outlet...................................... E-4

Turning Power On or Off ..................................................E-4

Playing with Different Tones ........... E-5

Selecting and Playing a Tone........................................... E-5

Adjusting Acoustic Piano Sound Characteristics..............E-7

Layering Two Tones .........................................................E-7

Using Effects .................................................................... E-8

Using the Digital Piano’s Pedals.......................................E-9

Using the Metronome .......................................................E-9

Playing a Piano Duet ......................................................E-10

Playing Back a Song ...................... E-12

Playing Back All of the Built-in Songs............................. E-12

Playing Back a Specific Music Library Song .................. E-13

Practicing with a Music Library Song.............................. E-13

Playing Back Audio Data Stored on

a USB Flash Drive .......................................................... E-14

Recording and Playback ................ E-15

Recording to Built-in Song Memory (Song Recorder) ....E-15

Using the SONG RECORDER Button............................E-16

Recording to a USB Flash Drive (Audio Recorder) ........E-18

Configuring Settings with the

Keyboard ......................................... E-21

To configure settings with the keyboard .........................E-21

Keyboard Keys Used for Configuring Settings ............... E-22

Parameter List ................................................................ E-23

Tone selection.............................................................E-23

Reverb ........................................................................ E-23

Chorus ........................................................................E-23

Brilliance .....................................................................E-23

Layer balance .............................................................E-23

Tempo (TEMPO)......................................................... E-23

Song select (SONG SELECT) .................................... E-23

Song volume ............................................................... E-23

Metronome beat (METRONOME BEAT) ....................E-23

Metronome volume ..................................................... E-23

Keyboard key (Transpose)..........................................E-24

Keyboard tuning (Tuning) ...........................................E-24

Octave shift................................................................. E-24

Temperament..............................................................E-24

Temperament select ................................................... E-24

Temperament Base note ............................................ E-24

Touch response (TOUCH RESPONSE).....................E-24

USB device mode .......................................................E-24

Send channel..............................................................E-24

Local control................................................................ E-24

Operation tone ............................................................ E-25

Back up ....................................................................... E-25

Operation lock .............................................................E-25

USB flash drive mode .................................................E-25

Format.........................................................................E-25

Save ............................................................................E-25

Load ............................................................................E-25

Delete..........................................................................E-25

USB Flash Drive .............................. E-26

Storing Standard Audio Data (WAV Files) to

a USB Flash Drive ..........................................................E-26

Connecting a USB Flash Drive to and

Detaching It from the Digital Piano .................................E-27

Formatting a USB Flash Drive ........................................E-28

Saving a Recorded Song to a USB Flash Drive .............E-29

Loading Song Data from a USB Flash Drive into

Digital Piano Memory......................................................E-30

Deleting Data from a USB Flash Drive ...........................E-31

Simple Play Back of a Song on a USB Flash Drive........E-32

Error Indicators ...............................................................E-33

Connecting to a Computer............. E-35

Minimum Computer System Requirements ....................E-35

Connecting the Digital Piano to Your Computer .............E-35

Using MIDI ......................................................................E-36

Transferring Song Data with a Computer .......................E-36

Reference......................................... E-47

Troubleshooting ..............................................................E-47

Product Specifications ....................................................E-48

Operating Precautions ....................................................E-49

Appendix............................................ A-1

Tone List...........................................................................A-1

Song List...........................................................................A-1

MIDI Implementation Chart

Getting Ready ........................................................................................................E-39

Assembling the Stand .................................................. E-39

To connect the cable.................................................... E-43

To install the music stand...............................................E-43

Opening and Closing the Piano Lid

............................... E-44

Power Outlet ................................................................ E-45

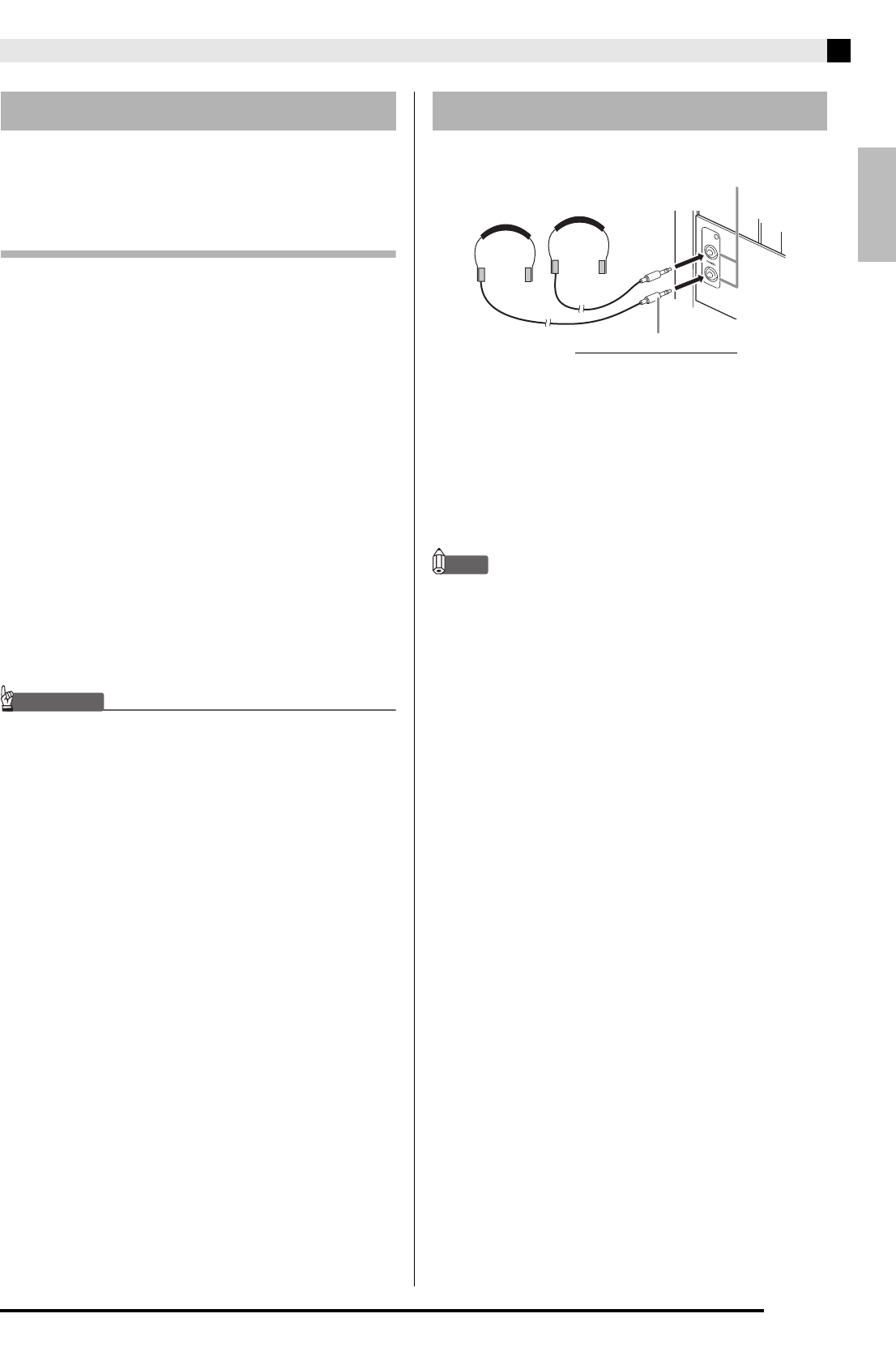

Connecting Headphones ............................................. E-45

Connecting Audio Equipment or an Amplifier .............. E-46

Bundled and Optional Accessories.............................. E-46

Company and product names used in this manual may

be registered trademarks of others.

E-2

General Guide

21 3 4 5 6 8 97

bl bm

Front

Bottom

Rear

General Guide

E-3

English

*CAUTION

•Make sure that the cover is fully open whenever you are playing on the keyboard. A partially open cover can

suddenly close unexpectedly and pinch your fingers.

NOTE

•The names shown here are always indicated in bold when they appear within the text of this manual.

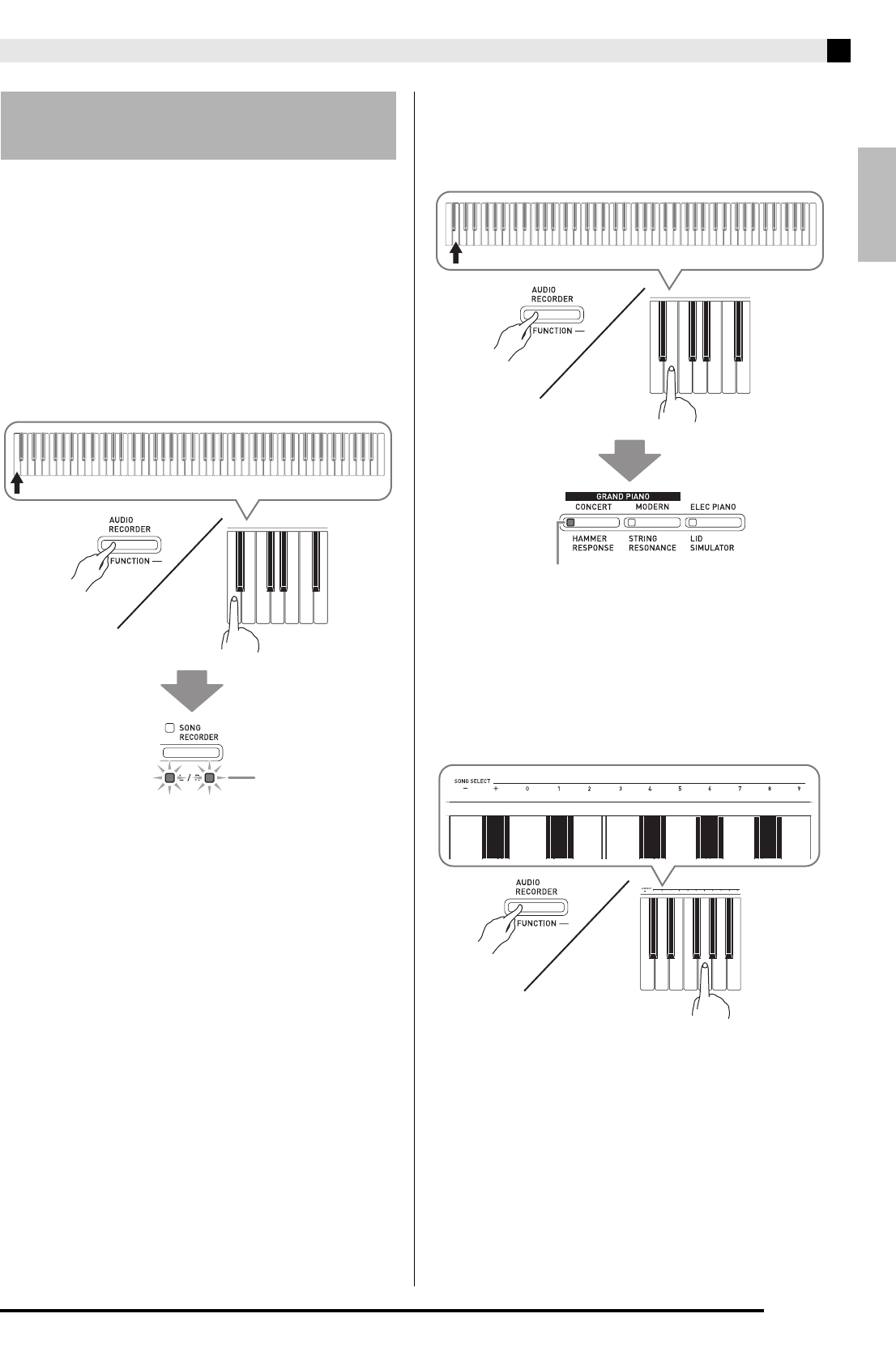

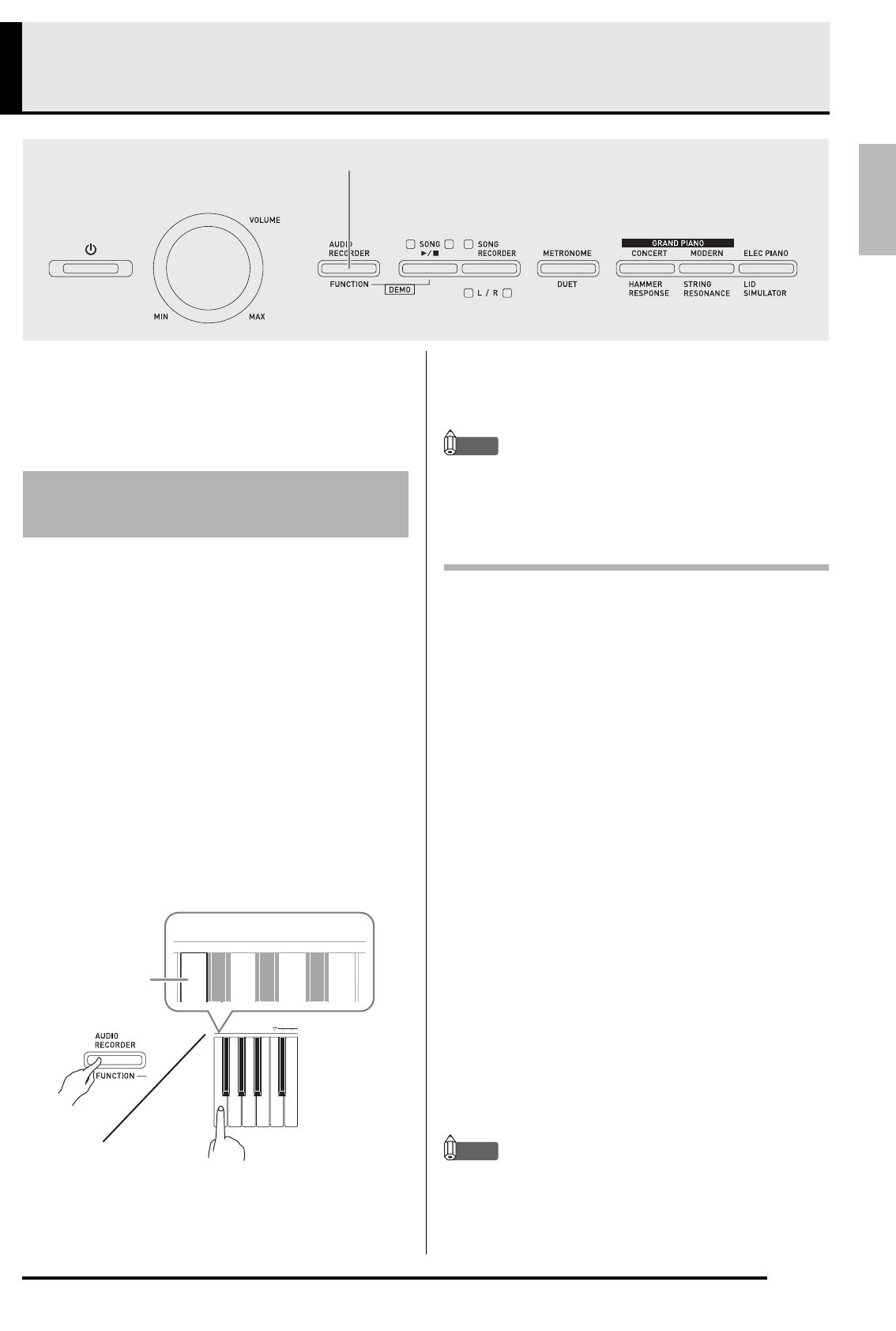

The FUNCTION button is used when configuring a variety of different Digital Piano settings. The following are

FUNCTION button basics.

zTo change a setting, hold down the FUNCTION button as you

press the keyboard key that is assigned the setting you want to

select.

Example: “To select a tone” on page E-5

NOTE

•For details about operations and settings, see “Configuring

Settings with the Keyboard” on page E-21.

Your Digital Piano lets you save its current settings and lock its buttons to protect against operation errors. For

details, see “Parameter List” on pages E-23 - E-25.

FUNCTION Button

Saving Settings and Using Operation Lock

1P (POWER) button

2VOLUME controller

3AUDIO RECORDER, FUNCTION button

4SONG a button

5SONG RECORDER (L/R) button

6METRONOME, DUET button

7GRAND PIANO (CONCERT),

HAMMER RESPONSE button

8GRAND PIANO (MODERN),

STRING RESONANCE button

9ELEC PIANO, LID SIMULATOR button

bk Pedal connector

bl USB flash drive port

bm USB port

bn DC 24V terminal

bo LINE OUT R, L/MONO jacks

bp PHONES jacks

bq Power lamp

E-4

Power Outlet

After you finish assembling the stand, turn on the

Digital Piano. For details, see “Getting Ready” on page

E-39.

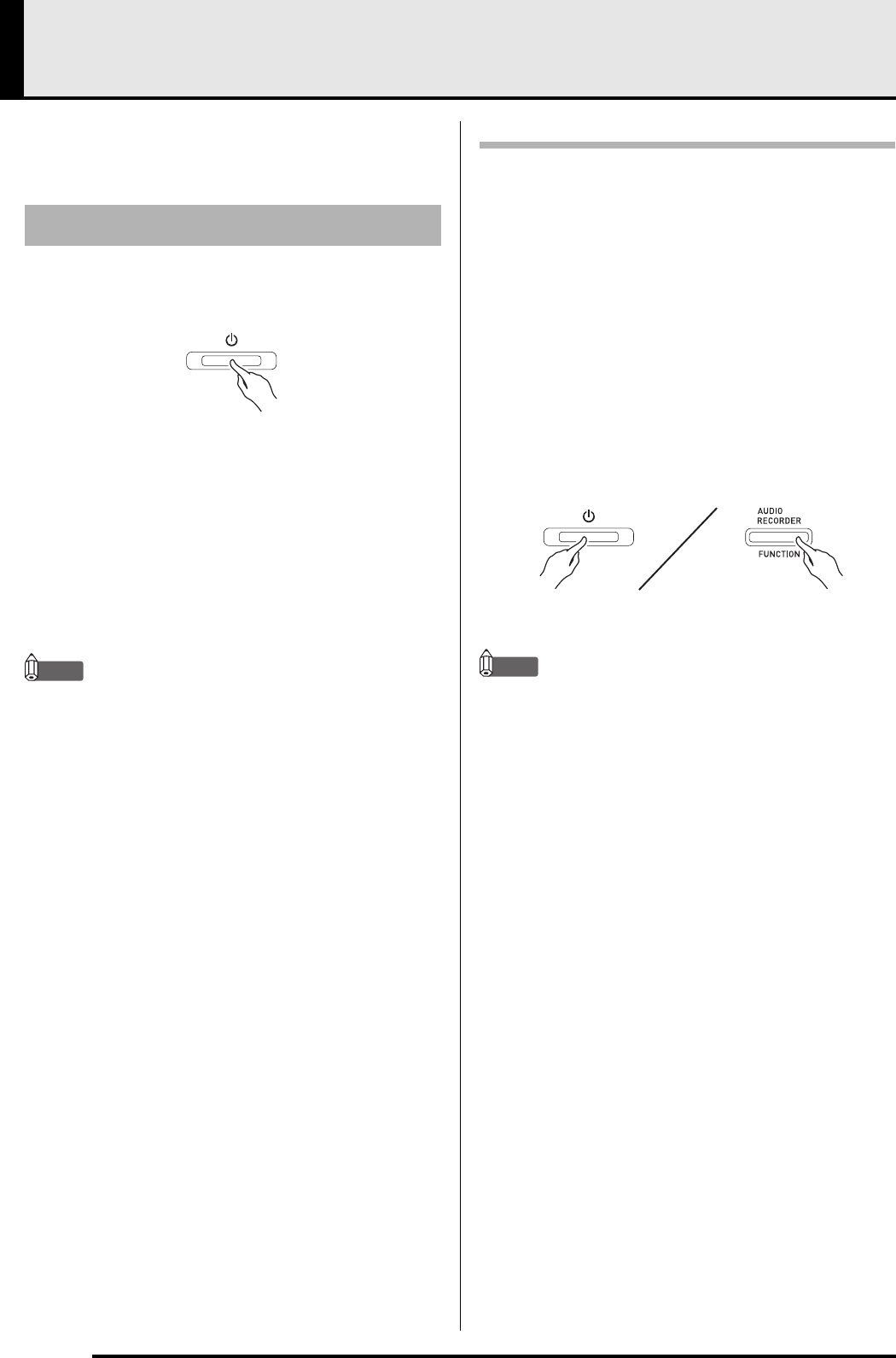

Press the P (POWER) button to turn on

Digital Piano power.

•This causes the P (POWER) button to light.

•When you turn on the Digital Piano, it performs a

power up operation in order to initialize its system.

During system initialization the tone button lamps

cycle on and off in the sequence for about five

seconds to let you know that system initialization is

in progress.

To turn off the Digital Piano, hold down the

P (POWER) button until its light goes out.

NOTE

•Pressing the P (POWER) button to turn off power

actually puts the Digital Piano into a standby state.

Minute amounts of current continue to flow within

the Digital Piano in the standby state. If you do not

plan to use the Digital Piano for a long time or if

there is a lightning storm in your area, be sure to

unplug the AC adaptor from the power outlet.

Auto Power Off

This Digital Piano is designed to turn off automatically

to avoid wasting power after no operation is

performed for a preset amount of time. The Auto

Power Off trigger time is about four hours.

•You also can use the procedure below to temporarily

suspend Auto Power Off.

■To disable Auto Power Off

While the Digital Piano is turned on, press the

P (POWER) button to turn it off.

While holding down the FUNCTION button,

press the P (POWER) button to turn on the

Digital Piano.

•Auto Power Off will be disabled at this time.

NOTE

•Turning off the Digital Piano after performing the

above steps will re-enable Auto Power Off.

Turning Power On or Off

E-5

English

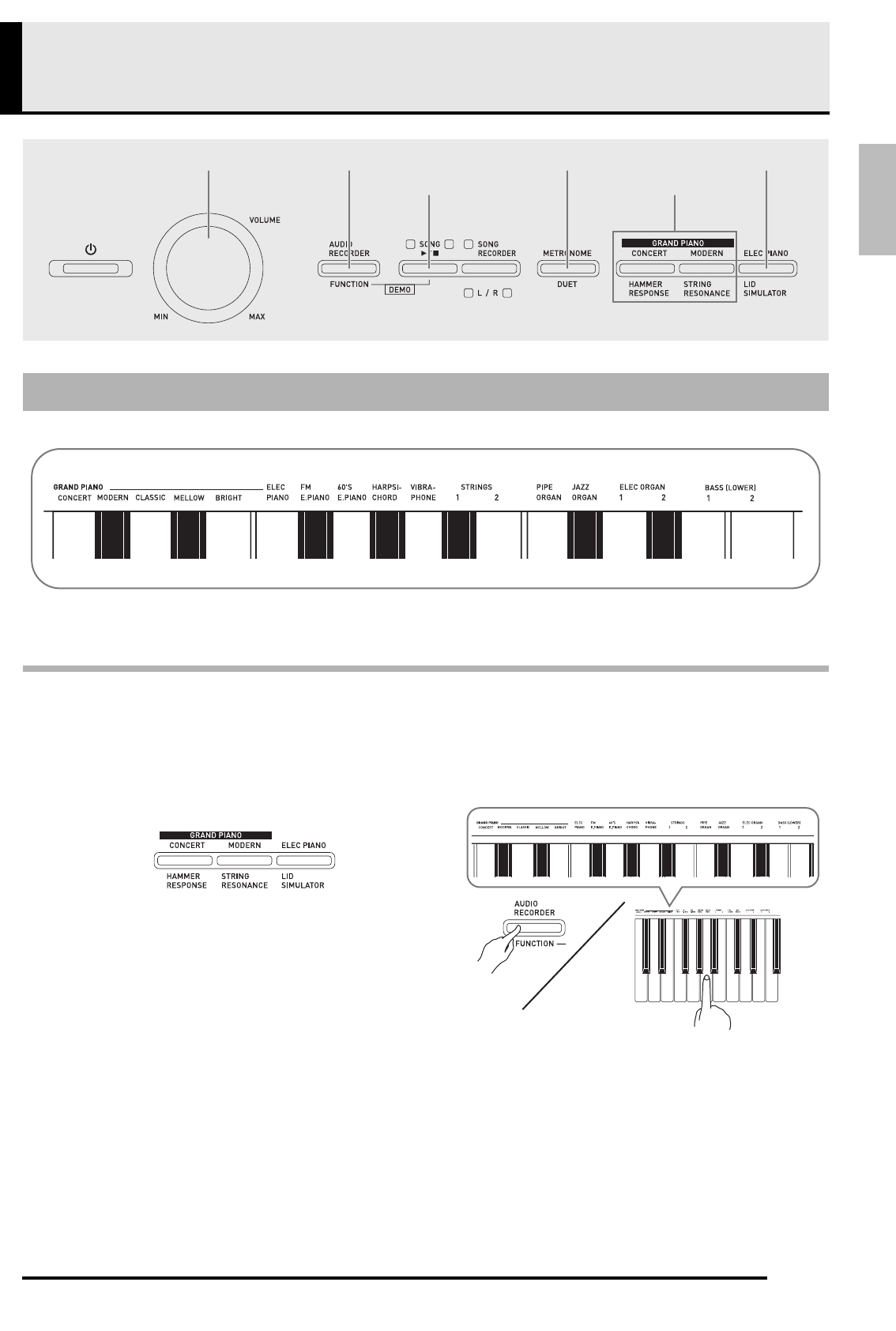

Playing with Different Tones

The Digital Piano comes with 18 built-in tones.

•The names of the tones are marked above the keyboard keys to which they are assigned.

To select a tone

Select the tone you want.

Selecting and Playing a Tone

SONG a

FUNCTION METRONOME ELEC PIANO

GRAND PIANO

VOLUME

zTo select GRAND PIANO (CONCERT or

MODERN) or ELEC PIANO

•Press one of the GRAND PIANO buttons

(CONCERT or MODERN) or the ELEC PIANO

button to select the one you want.

•The button lamp of the selected tone will light.

zTo select one of the other tones

•While holding down the FUNCTION button,

press the keyboard key that corresponds to the

tone you want to select.

E-6

Playing with Different Tones

Use the VOLUME controller to adjust the

volume.

NOTE

•Of the Digital Piano’s 18 built-in tones, the first five

are grand piano tone. Each tone has its own

distinctive merits, so you should select the tone that

suits the song you are playing along with or your

own personal preferences. The CONCERT and

MODERN tones are assigned to buttons for quick

and easy selection.

*Feature that applies computer morphing

technology to enable seamless changes between

sounds sampled at various dynamics from a full

concert grand piano.

Bass Tones (BASS 1, BASS 2)

Selecting either of the two BASS (LOWER) tones (1 or

2) in step 1 of the above procedure will assign the

selected bass tone to the low range (left side) of the

keyboard. The high range (right side) will be assigned

the tone that was selected when you pressed the

BASS 1 or BASS 2 key.

•BASS 1 and BASS 2 let you effectively split the

keyboard between two different tones.

NOTE

•To return the keyboard to a single tone, select any

tone other than BASS 1 or BASS 2.

•You cannot select BASS 1 or BASS 2 when recording

to Track 2.

Tone Name Characteristics

CONCERT This is a full concert grand piano tone

that uses Linear Morphing* for

dynamic and natural tone changes.

This tone is designed to reproduce

damper, resonance, and other piano

nuances, which makes it ideal for

virtually any type of piano

performance.

MODERN This tone provides a bright grand piano

sound. The volume and timbre of this

tone is quick to respond to different

keyboard pressures, and it has

relatively strong reverb. This tone is a

good choice for dynamic and lively

performances.

CLASSIC This is a natural piano tone that closely

resembles the sound of an acoustic

piano. Though reverb and other flashy

effects are subdued for this tone,

resonance is more pronounced, which

enables expression of delicate nuances.

This tone is a good choice for lesson

and practice sessions.

MELLOW Warm and mellow piano tone

BRIGHT Bright and clear piano tone

Split Point

Low Range High Range

BASS 2 PIPE ORGAN

(Currently selected tone.)

English

Playing with Different Tones

E-7

The tones of your Digital Piano have built-in elements

that give them the characteristic reverberation of an

acoustic piano. Each of these elements can be

individually adjusted to one of four levels.

zHAMMER RESPONSE

zSTRING RESONANCE

zLID SIMULATOR

NOTE

•Opening or closing the Digital Piano’s lid does not

affect the LID SIMULATOR setting.

While holding down the FUNCTION button,

press the button that corresponds to the

element whose setting you want to change.

•Each press of the button cycles to the next option for

that setting. The Digital Piano emits a beep pattern

that indicates the currently selected option:

One beep: Option 1 3 Two beeps: Option 2 3

Three beeps: Option 3 3 Four beeps: Option 4 3

One beep: Option 1, etc.

•The lamp of each button lights whenever the

standard setting of its element is selected.

NOTE

•In addition to the above, piano tones also have a

KEY OFF SIMULATOR.

zKEY OFF SIMULATOR

Use the following procedure to layer two tones, so they

sound at the same time.

When specifying two tones for layering, first tone you

select will be the main tone, while the second tone will

be the layered tone.

While holding down the FUNCTION button,

press down the keyboard key for the first tone

you want to layer and then the key for the

second tone.

Example:

First press the

HARPSICHORD

key and then

the STRINGS 1 key.

To unlayer the keyboard, select another tone

by pressing the GRAND PIANO button or by

using the procedure under “Selecting and

Playing a Tone” (page E-5).

NOTE

•You cannot layer the BASS 1 or BASS 2 tone with

another tone.

•You cannot perform the layer operation when

recording to Track 2.

Adjusting Acoustic Piano

Sound Characteristics

Controls the time deviation between when a key is

pressed and when the note actually sounds.

Settings

1: Fast 2: Grand piano feel 3: Slightly slower 4: Slow

Adjusts the characteristic reverberation (string

resonance) of an acoustic piano.

You can select a reverberation setting that matches

the song being played or your own personal

preference.

Settings

1: Suppressed 2: Slightly suppressed

3: Reverberation 4: Strong reverberation

Adjusts how sound resonates in accordance with the

opening state of a grand piano lid.

Settings

1: Lid closed 2: Lid opened slightly 3: Lid fully open

4: Lid removed

Causes notes to decay when keyboard keys are

released.

Layering Two Tones

HARPSICHORD

STRINGS 1

E-8

Playing with Different Tones

To adjust the volume balance between

two layered tones

While holding down the FUNCTION button,

use the keyboard keys shown below to adjust

the volume of the layered tones.

•To return the volume setting to its initial default, hold

down the FUNCTION button and press both of the

keys at the same time.

While holding down the FUNCTION button,

use the Reverb or Chorus keyboard key to

cycle through the available settings.

•Each press of the Reverb or Chorus keyboard key

causes the Digital Piano to beep according to which

setting is selected, as shown in the table below.

•Reverb

•Chorus

■About DSP

DSP makes it possible to digitally produce complex

acoustic effects. The DSP is assigned to each tone

whenever you turn on Digital Piano power.

C1 C2 C3 C4 C5 C6 C7 C8

Initial default (Center)

Volume of the main tone

(First tone you selected)

Volume of the layered tone

(Second tone you selected)

Using Effects

Reverb : Makes your notes resonate.

Chorus: Adds more breadth to your notes.

Number of Beeps Setting

1 (long)

1 (short)

Off (OFF)

Room

Small Hall

Large Hall

Stadium

Number of Beeps Setting

1 (long)

1 (short)

Off (OFF)

Light Chorus

Medium Chorus

Deep Chorus

Flanger (whooshing effect)

ChorusReverb

English

Playing with Different Tones

E-9

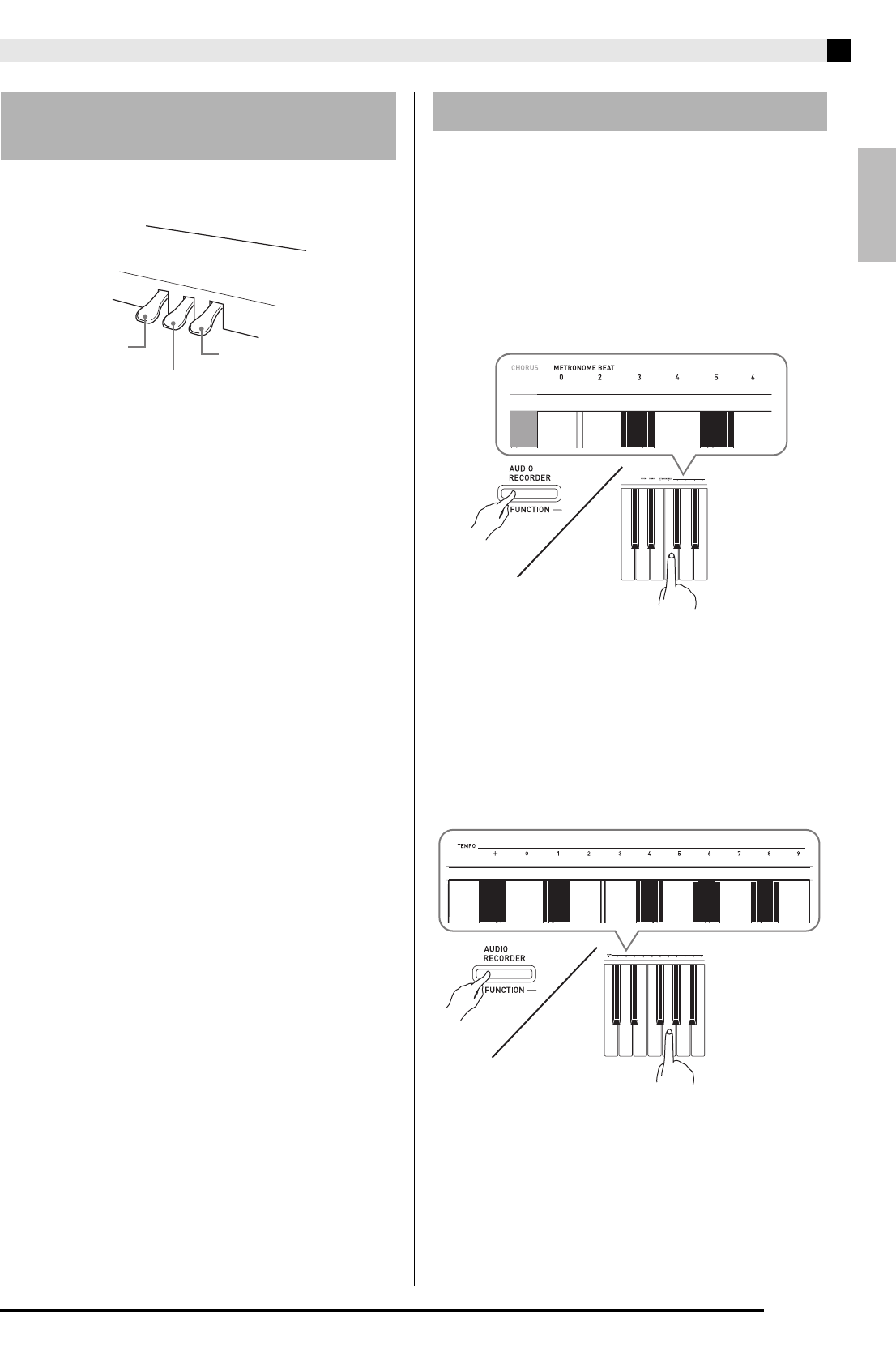

Your Digital Piano comes equipped with three pedals:

damper, soft, and sostenuto

Pedal Functions

zDamper Pedal

Pressing the damper pedal while playing will cause the

notes you play to reverberate for a long time.

•When a GRAND PIANO tone (CONCERT,

MODERN, CLASSIC, MELLOW, BRIGHT) is

selected as the tone, pressing this pedal will cause

notes to reverberate (with damper resonance) just

like the damper pedal on an acoustic grand piano.

Half-pedal operation (pressing the pedal part way)

is also supported.

zSoft Pedal

Pressing this pedal while playing suppresses notes

played on the keyboard after the pedal was pressed,

and makes them sound softer.

zSostenuto Pedal

Only the notes of the keys that are depressed when this

pedal is pressed are sustained until the pedal is

released.

Press the METRONOME button.

•This starts the metronome.

•The lamp above the SONG a button flash in time

with the metronome beat.

To change the beat, hold down the

FUNCTION button as you press one of the

METRONOME BEAT keys to select a beat

setting.

•You can specify beats per measure value of 0, 2, 3, 4,

5, or 6. Specifying 0 as the setting plays a straight

click, without any chime. This setting lets you

practice with a steady beat.

While holding down the FUNCTION button,

use the TEMPO keys to specify a tempo

value in the range of 20 to 255 beats per

minute.

•Each press of the + or – key raises or lowers the

tempo value by 1.

•You can use the value input keys (0 to 9) to enter a

specific three-digit. Be sure to input all three digits.

Example: To enter “96”, press keys 0, 9, 6.

Using the Digital Piano’s

Pedals

Soft pedal Damper pedal

Sostenuto pedal

Using the Metronome

E-10

Playing with Different Tones

Press the METRONOME button or SONG

a button to turn off the metronome.

NOTE

•To return the tempo setting to the default tempo of

the currently selected Music Library tune, press the

+ and – keys at the same time in step 3. Pressing +

and – while recording will return the tempo value to

120.

To adjust the metronome volume

You can perform the following procedure at any time,

regardless of whether or not the metronome is

sounding.

While holding down the FUNCTION button,

use the METRONOME VOLUME keys to

specify a volume value in the range of 0 to 42.

•For details about using the keyboard keys for

settings, see “Keyboard Keys Used for Configuring

Settings” on page E-22.

•Each press of the T orS key raises or lowers the

metronome volume value by 1.

NOTE

•To return to the initial default setting, press T and

S at the same time.

You can use the Duet Mode to split the Digital Piano’s

keyboard in the center so two people can play a duet.

The left and right side keyboards have virtually the

same range. The left pedal operates as the left side

damper pedal, while the right pedal is the right side

damper pedal.

The Duet Mode is the perfect way to conduct lessons,

with the teacher playing on the left side as the student

playing the same song on the right side.

NOTE

•Only the damper pedal for the right side keyboard

supports half-pedal operations.

Select the piano tone you want to use for the

duet.

Example: GRAND PIANO (MODERN)

While holding down the FUNCTION button,

press the METRONOME button to toggle

duet on (lamp lit) and off (lamp unlit).

IMPORTANT!

• You cannot use the Duet Mode while recording

(page E-15).

Playing a Piano Duet

C3 C4 C5 C6 C3 C4 C5 C6

Keyboard

Split point

Left keyboard Right keyboard

(middle C)(middle C)

Pedals

Left side damper pedal

Left and right side damper pedal

Right side damper pedal

English

Playing with Different Tones

E-11

Changing the Octaves of the duet

keyboards

You can change the ranges of the left and right

keyboards in octave units from their initial default

settings. This comes in handy, for example, if the initial

default range is not enough when one person is

playing the left hand part and another person is

playing the right hand part.

While holding down the FUNCTION and

METRONOME buttons, press the keyboard

C key that you want located at C4 (middle C)

of the left keyboard.

•This will sound the note assigned to C4 and change

the octave of the left keyboard.

Example: Press the keyboard key of the leftmost C (C4)

will assign the range shown below.

While holding down the FUNCTION and

METRONOME buttons, press the keyboard

C key that you want located at C4 (middle C)

of the right keyboard.

•This will sound the note assigned to C4 and change

the octave of the right keyboard.

NOTE

•You can return the keyboards to their initial default

ranges by exiting and then re-entering the Duet

Mode.

C4 C5 C6 C7 C3 C4 C5 C6

Left keyboard Right keyboard

(Pressed key)

1 octave higher than initial

setting

Unchanged

E-12

Playing Back a Song

Your Digital Piano comes with a Music Library of 60

built-in tunes. You can play all 60 tunes in sequence,

from beginning to end.

While holding down the FUNCTION button,

press the SONG a button.

•This will start repeat demo playback of the built-in

songs in sequence, from 01 through 60.

•You can play along with a song on the keyboard as it

is playing. The tone assigned to the keyboard is the

one that is preset for the song that is playing.

To change demo playback to a different song,

hold down the FUNCTION button as you use

the SONG SELECT keys to specify a song

number.

•Each press of the + or – key raises or lowers the song

number by 1.

•You can use the value input keys (0 to 9) to enter a

specific two-digit song number. Be sure to input both

digits.

Example: To select song 08, enter 0 and then 8.

Press the SONG a button again to stop

built-in song play.

NOTE

•The tune selection and playback stop operations

described above are the only operations that are

possible during demo tune play.

SONG a

AUDIO RECORDER, FUNCTION SONG RECORDER

Playing Back All of the Built-in

Songs

English

Playing Back a Song

E-13

The Music Library includes both built-in songs (01 to

60), plus songs (61 to 70) that have been saved to

Digital Piano memory from a computer*. You can use

the procedure below to select one of these songs and

play it back.

*You can download music data from the Internet and

then transfer it from your computer to Digital Piano

memory. See “Transferring Song Data with a

Computer” on page E-36 for more information.

Find the song number of the song you want to

play in the song list on page A-1.

To specify a song, hold down the FUNCTION

button as you use the SONG SELECT

keyboard keys to specify a song number.

•For information about how to perform this step, see

the note under step 2 of the procedure under

“Playing Back All of the Built-in Songs” on page E-12.

Press the SONG a button.

•This starts the playback of the song.

To stop playback, press the SONG a

button again.

•Playback will stop automatically when the end of the

song is reached.

NOTE

•Pressing the + and – keyboard keys at the same time

will select song number 01.

•You also can adjust the playback tempo and volume

of the song. See “Configuring Settings with the

Keyboard” on page E-21 for more information.

You can turn off the left hand part or right hand part of

a song and play along on the Digital Piano.

NOTE

•The Music Library includes a number of duets.

While a duet is selected, you can turn off the first

piano (Primo) or second piano (Secondo) tone and

play along with the song.

PREPARATION

•Select the song you want to practice and adjust the

tempo. See “Configuring Settings with the

Keyboard” on page E-21.

•A number of tunes have tempo changes part way

through in order to produce specific musical effects.

While holding down the FUNCTION button,

press the SONG RECORDER (L/R) button to

select the part you want to turn off.

•Pressing a button toggles its part on (button lamp on)

and off (button lamp off).

Press the SONG a button.

•This starts playback, without the part you turned off

in step 1.

Play the missing part on the keyboard.

To stop playback, press the SONG a

button again.

Playing Back a Specific Music

Library Song Practicing with a Music Library

Song

Left hand Right hand

Both parts on Right hand

part off Left hand

part off

E-14

Playing Back a Song

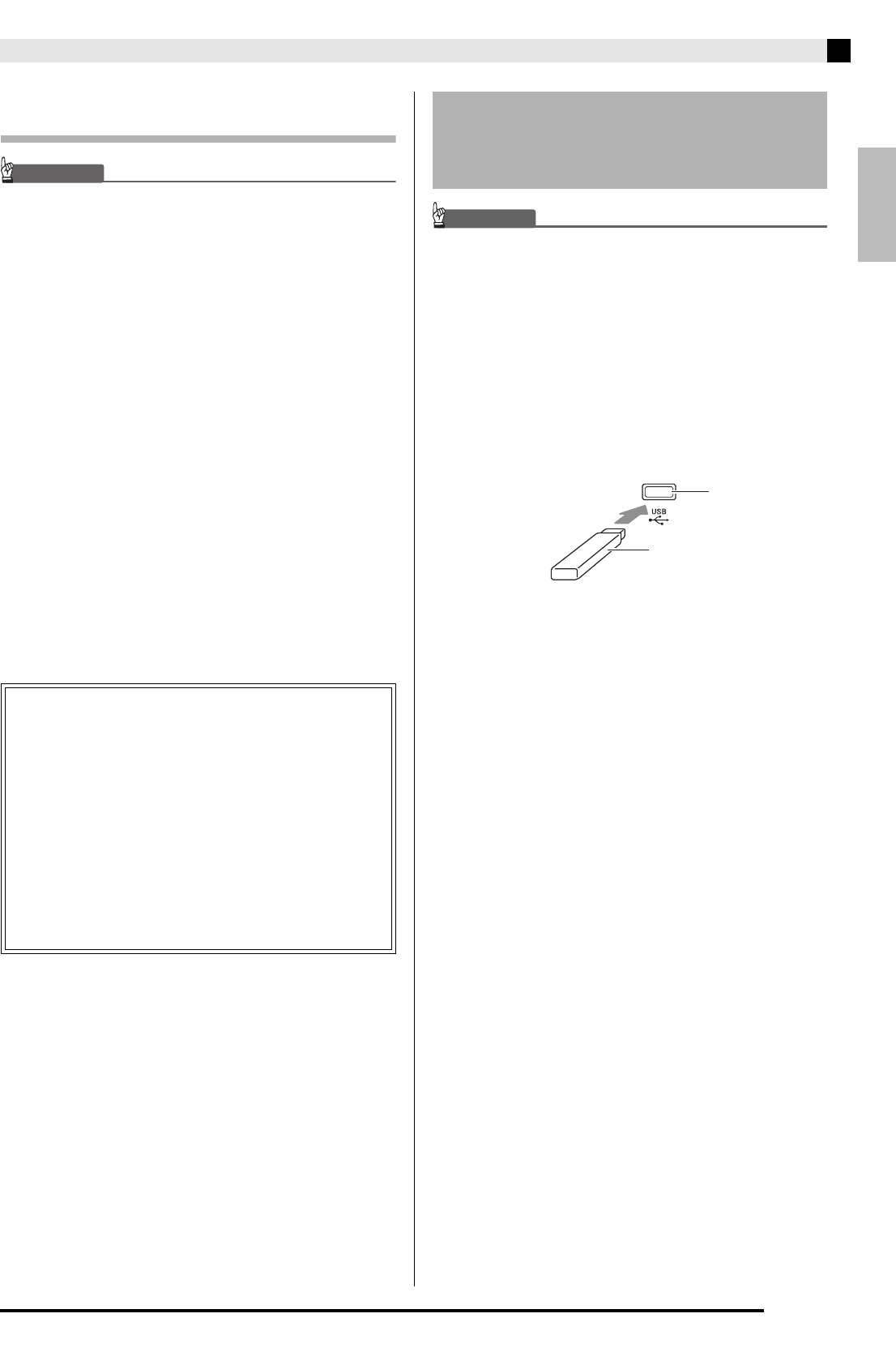

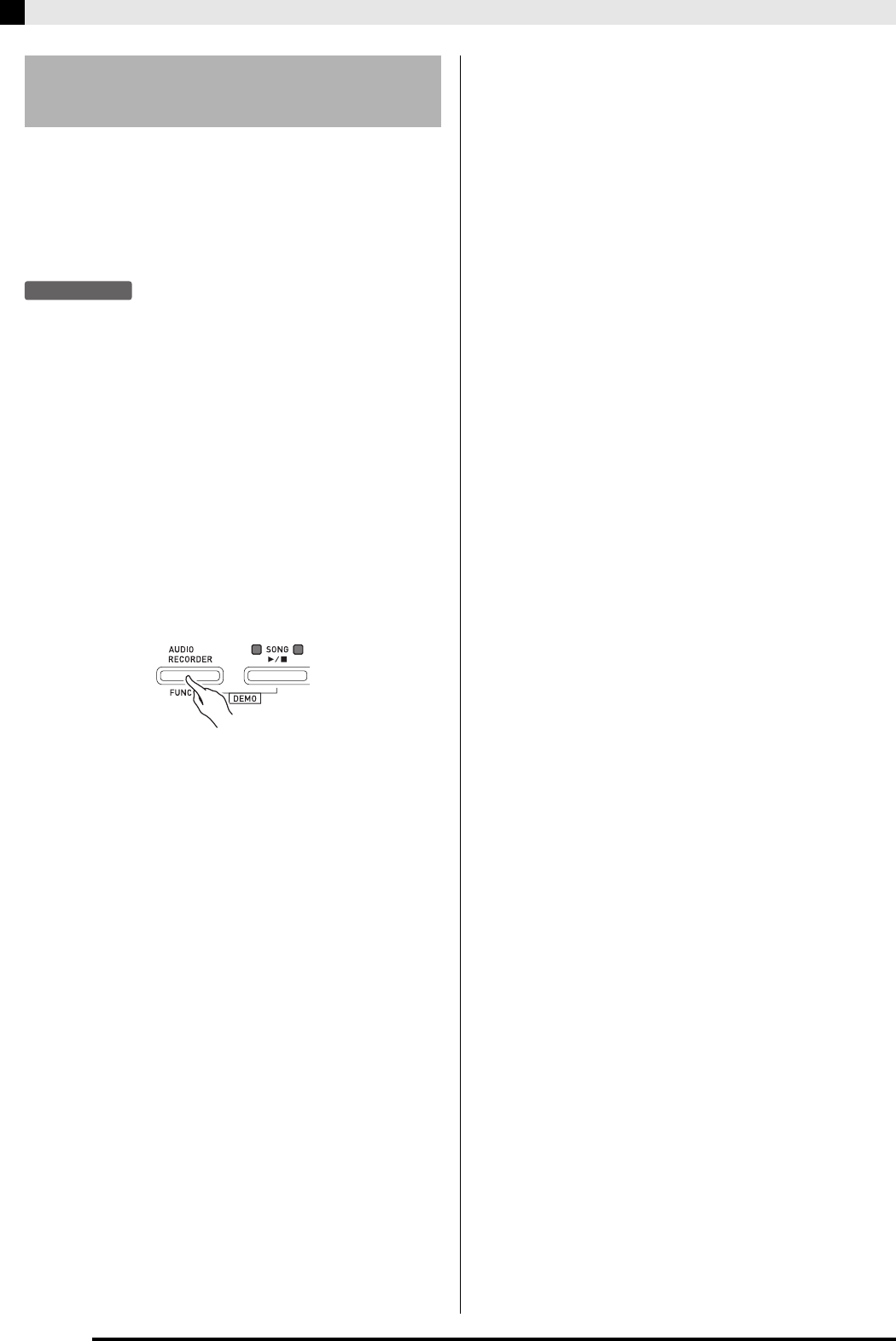

You can use your Digital Piano to play back audio data

(WAV files*) stored on a commercially available USB

flash drive.

See “USB Flash Drive” on page E-26 for more

information.

*Linear PCM, 16bit, 44.1 kHz, Stereo

PREPARATION

•Prepare a USB flash drive that contains data

recorded to it using the Digital Piano’s Audio

Recorder. See “Recording to a USB Flash Drive

(Audio Recorder)” on page E-18 for more

information.

•You can also use a computer to save audio data

(WAV file) to the USB Flash Drive for playback. See

“Storing Standard Audio Data (WAV Files) to a USB

Flash Drive” on page E-26 for more information.

•Insert the USB flash drive that contains the data you

want to play back into your Digital Piano’s USB

flash drive port.

Press the AUDIO RECORDER button.

•This causes the two SONG a button indicator

lamps to light.

Press the SONG RECORDER button so its

lamp is lit.

Hold down the FUNCTION button as you use

the SONG SELECT keyboard keys to select

the song you want.

•Pressing the plus (+) key scrolls forward through

song file names (WAV01, WAV02, etc.). Pressing the

minus (–) key scrolls backward.

•You also can use the number (0 through 9) keyboard

keys to directly select a file by inputting its number.

The Digital Piano will beep if there is no file on the

USB flash drive that corresponds to the number you

input.

Press the AUDIO RECORDER button and

SONG a button at the same time.

•This will start playback of the selected song.

To stop playback of the song, press the

SONG a button.

Playing Back Audio Data

Stored on a USB Flash Drive

E-15

English

Recording and Playback

You can use the Song Recorder to record what you play

on the Digital Piano to built-in song memory. When a

commercially available USB flash drive is inserted in

the Digital Piano’s USB flash drive port, audio data is

recorded to and played back from the USB flash drive

(Audio Recorder).

Tracks

A track is a container of recorded data, and a song

consists of two tracks: Track 1 and Track 2. You can

record each track separately and then combine them so

they play back together as a single song.

Memory Capacity

•You can record approximately 5,000 notes in Digital

Piano memory.

•The SONG RECORDER button lamp will flash at

high speed when memory runs low.

•Recording stops automatically if the number of

notes in memory exceeds the maximum.

Recorded Data

•Keyboard play

•Tone used

•Pedal operations

•Reverb and chorus settings (Track 1 only)

•Tempo setting (Track 1 only)

•Layer setting (Track 1 only)

•Split setting (Track 1 only)

•Temperament and base note settings (Track 1 only)

•Octave shift setting (Track 1 only)

Recording Data Storage

•Starting a new recording deletes any data that was

previously recorded in memory.

•Should power fail during recording, all of the data in

the track you are recording will be deleted.

IMPORTANT!

• CASIO COMPUTER CO., LTD. takes no

responsibility for any damages, lost profits, or claims

by third parties arising from the deletion of recorded

data due to malfunction, repair, or for any other

reason.

SONG aMETRONOME

AUDIO RECORDER, FUNCTION SONG RECORDER

Recording to Built-in Song

Memory (Song Recorder)

Track 1 Record While playing

back. . .

Track 2 Record

Song

E-16

Recording and Playback

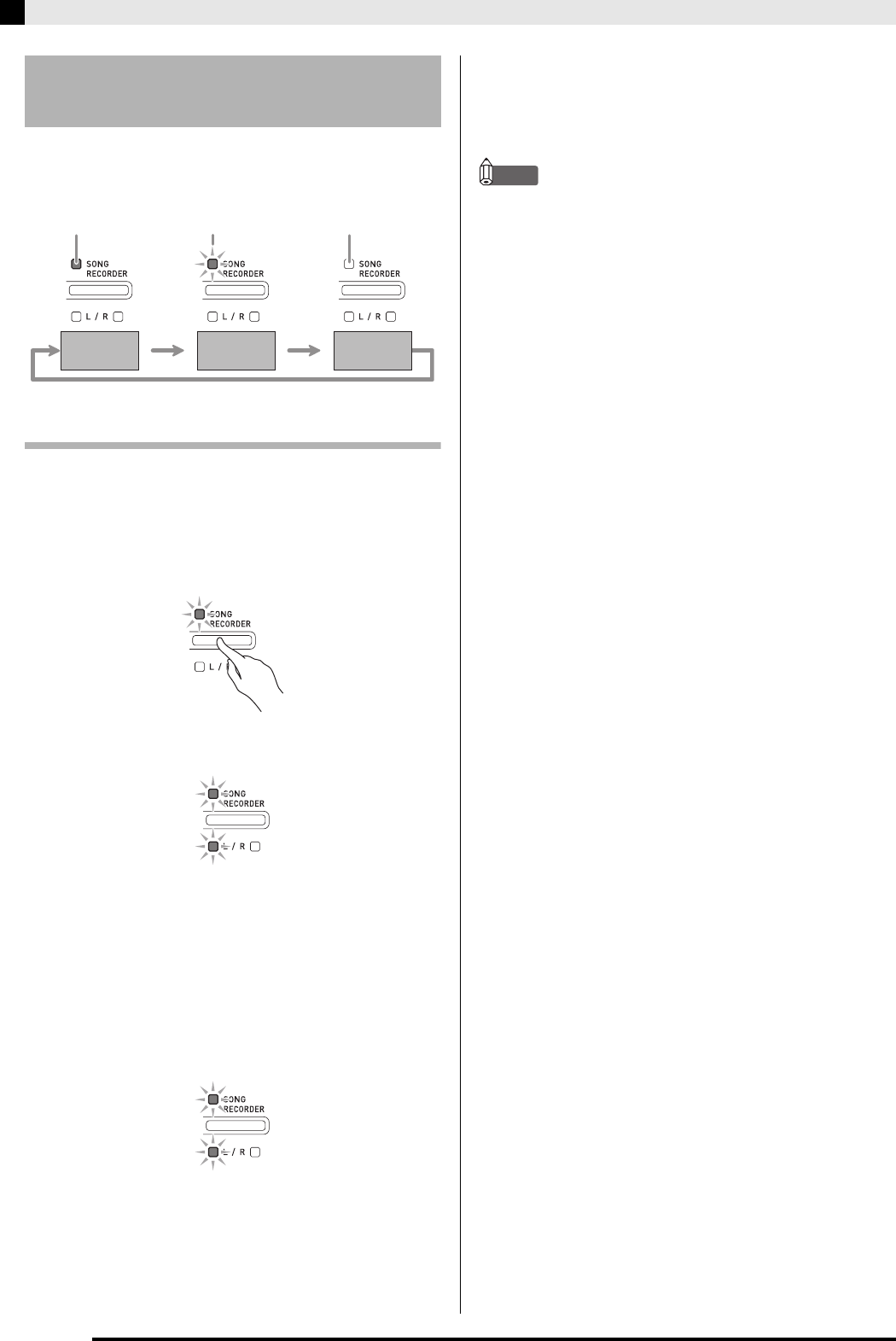

Each press of the SONG RECORDER button cycles

through the recording options in the sequence shown

below.

Recording to a Specific Song Track

After recording to either of the tracks of a song, you can

record to the other track while listening to playback

what you recorded in the first track.

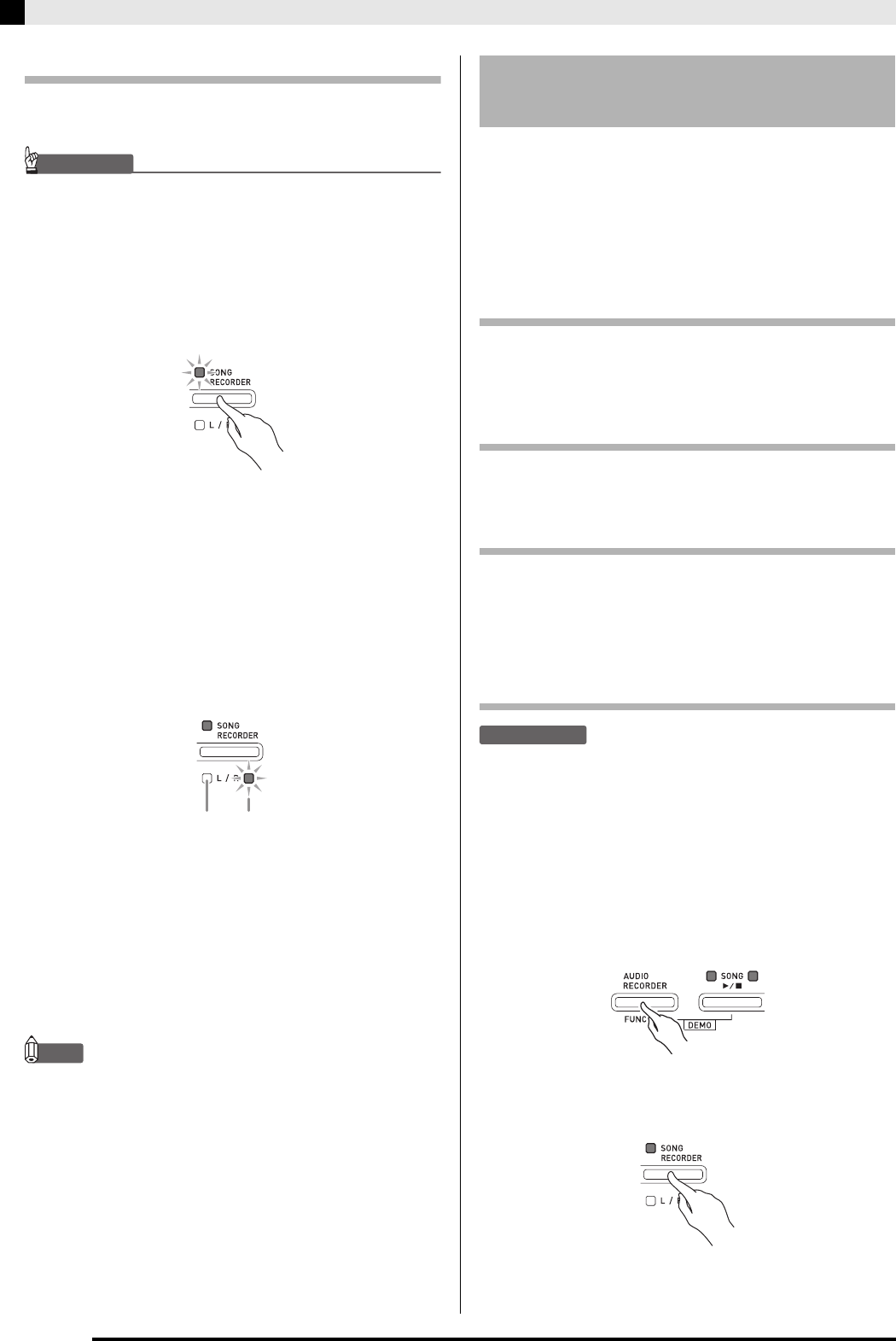

Press the SONG RECORDER button twice

so its lamp is flashing.

•At this time the L lamp will flash to indicate that the

Digital Piano is standing by for recording to Track 1.

While holding down the FUNCTION button,

press the SONG RECORDER (L/R) button to

select the track you want to record.

•Make sure that the indicator lamp for the record track

is flashing.

Track 1: L lamp

Track 2: R lamp

Example: Track 1 selected

Select the tone and effects (Track 1 only) you

want to use in your recording.

•Tone (page E-5)

•Effects (page E-8)

NOTE

•If you want the metronome to sound while you are

recording, configure the beat and tempo settings,

and then press the METRONOME button. See

“Using the Metronome” on page E-9 for more

information.

Start playing something on the keyboard.

•Recording will start automatically.

To stop recording, press the SONG a

button.

•This will cause the SONG RECORDER button lamp

and the lamp of the track you recorded to change

from flashing to lit.

•To play back the track you just recorded, press the

SONG a button.

After you are finished recording or playing

back, press the SONG RECORDER button

so its lamp goes out.

Using the SONG RECORDER

Button

Lit Flashing Off

Playback

Standby

Record

Standby Normal

English

Recording and Playback

E-17

Recording to One Track while Listening

to Playback of the Other Track

Press the SONG RECORDER button so its

lamp is lit.

While holding down the FUNCTION button,

press the SONG RECORDER (L/R) button to

select the track you want to play back while

recording.

Press the SONG RECORDER button so its

lamp is flashing.

•This will cause the L lamp to flash.

While holding down the FUNCTION button,

press the SONG RECORDER (L/R) button to

select the track you want to record.

•Make sure that the indicator lamp for the record track

is flashing.

Example: To listen to playback of Track 1 as you record

to Track 2

Select the tone and effects (Track 1 only) you

want to use for your recording.

Press the SONG a button or play

something on the keyboard.

•This will start both playback of the recorded track

and recording to the other track.

To stop recording, press the SONG a

button.

Playing Back from Digital Piano Memory

Press the SONG RECORDER button so its

lamp is lit.

NOTE

•When a song has something recorded in both tracks,

you can turn off one track and play back just the

other track, if you want.

Press the SONG a button.

•This starts playback of the song and/or track you

selected.

NOTE

•You can change the tempo setting as a track is

playing.

•Press the SONG a button again to stop playback.

Lit (Play) Flashing (Record Standby)

E-18

Recording and Playback

Deleting Recorded Data

The following procedure deletes a specific track of a

song.

IMPORTANT!

• The procedure below deletes all of the data of the

selected track. Note that the delete operation cannot

be undone. Check to make sure you really do not

need the data in Digital Piano memory before you

perform the following steps.

Press the SONG RECORDER button twice

so its lamp is flashing.

While holding down the FUNCTION button,

press the SONG RECORDER (L/R) button to

select the track you want to delete.

Press the SONG RECORDER button until its

lamp is lit.

•This will cause the lamp of the track you selected in

step 2 of this procedure to flash.

Example: If you selected Track 2 for deletion

Once again, hold down the FUNCTION

button as you press the SONG RECORDER

button.

•This deletes the selected track and enters playback

standby.

•To cancel the delete operation at any time, press the

SONG RECORDER button twice so its lamp is unlit.

NOTE

•Only the Digital Piano’s SONG RECORDER (L/R)

button are operational from step 3 until you actually

perform the delete operation in step 4. No other

button operation can be performed.

Anything played on the Digital Piano is recorded to the

USB flash drive as audio data (WAV files*). If you play

along on the Digital Piano as you play back data stored

in song memory, the memory playback and your

keyboard play are both recorded to USB flash drive.

*Linear PCM, 16bit, 44.1 kHz, Stereo

Recording Capacity

•99 files (No. 01 to No. 99)

•Approximately 25 minutes maximum recording per

file.

Recorded Data

•Anything played on the Digital Piano is recorded.

•Individual part recording is not supported.

Recording Data Storage

Each new recording of audio data to a USB flash drive

is automatically assigned a new file name, so existing

data is not overwritten.

Recording Digital Piano Play

(Audio Recorder)

PREPARATION

•Be sure to format the USB flash drive on the Digital

Piano before using it. See “USB Flash Drive” on page

E-26 for more information.

Insert the USB flash drive into the Digital

Piano’s USB flash drive port.

Press the AUDIO RECORDER button.

•This causes the two SONG a button indicator

lamps to light.

Press the SONG RECORDER button so its

lamp is lit.

Off Flashing: Delete standby

Recording to a USB Flash

Drive (Audio Recorder)

English

Recording and Playback

E-19

Start playing something on the keyboard.

•The SONG RECORDER button lamp will flash once

or twice to indicate that recording to the USB flash

drive has started.

NOTE

•Do not remove the USB flash drive from the USB

flash drive port while the two SONG a lamps are

flashing or lit. Doing so will interrupt recording and

may corrupt data.

To stop recording, press the AUDIO

RECORDER button.

•The two SONG a button lamps will flash four

times to let you know that audio recording is

complete.

Recording Digital Piano Play as Data

Recorded in Song Memory Plays Back

(Audio Recorder)

Press the AUDIO RECORDER button.

•This causes the two SONG a button indicator

lamps to light.

Press the SONG RECORDER button so its

lamp is lit.

Press the SONG a button.

•This will start playback of the current song memory

contents. Play along on the Digital Piano.

To stop recording, press the AUDIO

RECORDER button.

•The two SONG a button lamps will flash four

times to let you know that audio recording is

complete.

Playing Back Data Recorded on a USB

Flash Drive

Press the AUDIO RECORDER button.

•This causes the two SONG a button indicator

lamps to light.

Press the SONG RECORDER button so its

lamp is lit.

Press the AUDIO RECORDER button and

SONG a button at the same time.

•This starts playback of the last song you recorded.

To select a file and play it

Hold down the FUNCTION button as you use the

SONG SELECT keyboard keys to select the song you

want.

•Press the minus (–) keyboard key to scroll back

through songs in reverse chronological order.

•Press the plus (+) keyboard to key scrolls forward.

•You also can use the number keyboard keys

(0 through 9) to inputting a two-digit file number (01

to 99) and directly select a file (TAKE01.WAV,

TAKE02.WAV, etc.). The keyboard will beep if there

is no file on the USB flash drive that corresponds to

the number you input.

To stop playback of the song, press the

SONG a button.

E-20

Recording and Playback

Deleting an Audio File from a USB Flash

Drive

Files can be deleted one at a time.

IMPORTANT!

• The procedure below deletes all of the data of the

selected track. Note that the delete operation cannot

be undone. Check to make sure you really do not

need the data in Digital Piano memory before you

perform the following steps.

Press the AUDIO RECORDER button.

•This causes the two SONG a button indicator

lamps to light.

Press the SONG RECORDER button twice

so its lamp is flashing.

If you want to delete the last file you

recorded, jump directly to step 4.

To select a file and delete it

Hold down the FUNCTION button as you use the

SONG SELECT keyboard keys to select the song you

want.

•Press the minus (–) keyboard key to scroll back

through songs in reverse chronological order.

•Press the plus (+) keyboard to key scrolls forward.

•You also can use the number keyboard keys

(0 through 9) to inputting a two-digit file number (01

to 99) and directly select a file (TAKE01.WAV,

TAKE02.WAV, etc.). The keyboard will beep if there

is no file on the USB flash drive that corresponds to

the number you input.

Hold down the SONG RECORDER button

until both the L and R lamps flash.

Once again, hold down the FUNCTION

button as you press the SONG RECORDER

button.

•The Digital Piano will enter the song recorder

playback mode after file deletion is complete.

•To cancel the delete operation at any time, press the

SONG RECORDER button twice so its lamp is unlit.

NOTE

•When you record a new file, it is always

automatically assigned the next new file number in

the sequence of files currently on the USB flash

drive, even if a previous number is unused (because

a file was deleted). For example, if a USB flash drive

contains files numbered 01, 02, 04, 07, 08, the next

file recorded to the USB flash drive will be assigned

file number 09.

E-21

English

Configuring Settings with the Keyboard

In addition to selecting tones and Music Library tunes,

you also can use the FUNCTION button in

combination with the keyboard keys to configure

effect, keyboard touch, and other settings.

Use the “Parameter List” on pages E-23 -

E-25 to find the setting you want to configure,

and note its details.

Use “Keyboard Keys Used for Configuring

Settings” on page E-22 to find the location on

the keyboard for configuring the setting you

want.

While holding down the FUNCTION button,

press the keyboard key for the setting you

want to configure.

•The Digital Piano will sound an operation tone after it

configures the setting.

Example: To lower the transpose setting by one

semitone

Release the FUNCTION button to complete

the setting procedure.

NOTE

•You can configure the Digital Piano so no operation

tone sounds in step 3. For details, see “bt Operation

tone” under “Parameter List” on pages E-23 - E-25.

Keyboard Setting Operation Types

There are four types of operations that you can perform

while configuring settings with the keyboard keys:

Type A, Type B, Type C, and Type D.

Example: Pressing the STRINGS keyboard key to select the

STRINGS 1 tone

•Holding down a key raises or lowers the setting at

high speed.

•To return to the initial default setting, press both

keys at the same time.

Example: To enter “120”, press keys 1, 2, 0.

•When you press a key, the Digital Piano will beep to

let you know which setting is selected.

•A long beep indicates that the applicable setting is

turned off.

Example: While reverb is turned off, pressing the Reverb

keyboard key twice will cause the Digital Piano

to beep twice, which indicates that the Small Hall

setting is selected.

NOTE

•You can find out what operation type applies to each

setting by checking the “Operation Type” in the

“Parameter List” on pages E-23 - E-25.

FUNCTION

To configure settings with the

keyboard

Transpose T key

Type A : Direct input

Type B: Raising or lowering a setting using the + and

– or T and S keyboard keys

Type C: Value input using the numeric keys (0 to 9)

Type D: Toggling or cycling through settings by

pressing a keyboard key

E-22

Configuring Settings with the Keyboard

•The numbers 1 through cq correspond to the same numbers in the “Parameter List” on pages E-23 - E-25.

Keyboard Keys Used for Configuring Settings

  

 

−





OFF

[Left keyboard]

[Overall]

[Center keyboard]

[Right keyboard]

5Tempo/Temperament select

bmSong volume

boBrilliance

bnMetronome volume

1Keyboard key (Transpose)

2Keyboard tuning (Tuning)

3Octave shift

6Song select/Base note 7Tone selection

bpUSB device mode

bqLayer balance

blTouch response

brSend channel

bsLocal control

btOperation tone

ckBack up

clOperation lock

4Temperament

bkMetronome beat

8Reverb

9Chorus

cmUSB flash drive mode

cnFormat

coSave

cpLoad

cqDelete

Configuring Settings with the Keyboard

E-23

English

■Tones

■Song/Metronome

Parameter List

Parameter Settings

Operation

Type

(page E-21)

Description Remarks

7Tone selection See page E-5.

Default: GRAND

PIANO

(CONCERT)

A Assigns a tone to the keyboard.

(page E-5)

8Reverb Off (OFF), 1 to 4

Default: 2

DSpecifies the reverb of notes.

(page E-8)

9Chorus Off (OFF), 1 to 4

Default: 2

D Controls the breadth of notes.

(page E-8)

bo Brilliance –3 to 0 to 3

Default: 0

BSpecifies the brilliance of notes.

Pressing [+] makes notes brighter

and harder. Pressing [–] makes

notes mellower and softer.

• To return the setting to its initial default (0),

press [+] and [–] at the same time.

bq Layer balance –24 to 0 to 24

Default: 0

B Specifies the volume balance

between the main tone and the

layered tone. (page E-8)

Parameter Settings

Operation

Type

(page E-21)

Description Remarks

5Tempo (TEMPO) 20 to 255

Default: 120

B (+/–)

C (0 to 9)

Specifies the tempo of Music

Library songs, the metronome,

recording and playback, etc.

(page E-9)

• Always enter three digits when using the

number keys (0 to 9) to input a value.

Example: To input 90, enter 0, 9, 0 (leading

zero required).

• During recording, pressing + and – at the

same time sets a value of 120.

6Song select

(SONG SELECT)

01 to 70

Default: 01

B (+/–)

C (0 to 9)

Selects a Music Library tune.

(page E-13)

• Always enter two-digits when using the

number keys (0 to 9) to input a value.

Example: To input 8, enter 0, 8 (leading

zero required).

• This setting cannot be changed while

recording.

bm Song volume 00 to 42

Default: 42

B Sets the volume level of Music

Library playback.

• This setting cannot be changed while

recording.

bk Metronome beat

(METRONOME

BEAT)

0, 2, 3, 4, 5, 6

Default: 4

ASpecifies the metronome beat.

(page E-9)

• The metronome beat setting cannot be

changed while playback of a Music Library

tune is in progress.

bn Metronome

volume

00 to 42

Default: 36

B Specifies the metronome volume.

(page E-10)

E-24

Configuring Settings with the Keyboard

■Keyboard

■MIDI and Other Settings

Parameter Settings

Operation Type

(page E-21)

Description Remarks

1Keyboard key

(Transpose)

–12 to 0 to 12

Default: 0

B Raises or lowers the tuning of

the Digital Piano in semitone

steps.

• The transpose setting cannot be

configured while Music Library

playback is in progress or while in

the Duet Mode.

• Raising the key of the Digital Piano

can cause notes the highest part of

the range to become distorted.

2Keyboard tuning

(Tuning)

415.5Hz to 440.0Hz

to 465.9Hz

Default: 440.0Hz

BRaises or lowers the overall

pitch of the Digital Piano in

0.1Hz steps from the standard

pitch of A4 = 440.0Hz.

• The pitch setting cannot be changed

while playback of a Music Library

tune is in progress.

3Octave shift –2 to 0 to 2

Default: 0

B Change the range of the

keyboard in octave units.

• You can configure octave shift

settings for the main tone part and

layered tone part.

• You cannot configure octave shift

settings for split tone parts.

Temperament

select

Temperament

Base note

Temperament:

00 to 16

Base note:

–, +, 0 to 9 (C to B)

Defaults:

Temperament: 00

(Equal Temperament)

Base note

: C

Hold down

FUNCTION as you

press each of the

following keyboard

keys.

1. TEMPERAMENT

(4)

2. TEMPERAMENT

SELECT (5)

3. BASE NOTE (6)

You can change the scale

(tuning system) of the

keyboard from standard equal

temperament to another tuning

that is more suitable for

playing Indian music, Arabic

music, classical pieces, etc.

00: Equal / 01: Pure Major / 02: Pure

Minor / 03: Pythagorean /

04: Kirnberger 3 / 05: Werckmeister /

06: Mean-Tone / 07: Rast / 08: Bayati /

09: Hijaz / 10: Saba / 11: Dashti /

12: Chahargah / 13: Segah /

14: Gurjari Todi / 15: Chandrakauns /

16: Charukeshi

–: C / +: C#/ 0: D / 1: Eb/ 2: E / 3: F /

4: F#/ 5: G / 6: Ab/ 7: A / 8: Bb/ 9: B

bl Touch response

(TOUCH

RESPONSE)

Off (OFF), 1 to 3

Default: 2

A Specifies the relative touch of

the keyboard keys.

Setting a smaller value causes

lighter touch to produce more

powerful sound.

Parameter Settings

Operation

Type

(page E-21)

Description Remarks

bp USB device

mode

MIDI, Storage

Default: MIDI

–

The Digital Piano enters the MIDI

mode automatically when it is

connected to a computer by a USB

cable. Select storage when saving

Recorder memory song data to a

computer or when loading

computer song data to Digital

Piano memory. (page E-36)

• While Storage is selected for this setting, the

GRAND PIANO (CONCERT, MODERN)

and ELEC PIANO button lamps flash, and

all other lamps are unlit.

• All Digital Piano operations are disabled at

this time.

• Each press of the USB device mode

keyboard key toggles between the MIDI

and storage modes.

br Send channel 01 to 16

Default: 01

BSpecifies one of the MIDI channels

(1 through 16) as the Send channel,

which is used for sending MIDI

messages to an external device.

bs Local control Off, On

Default: On

D Selecting “Off” for Local control

cuts off the Digital Piano’s sound

source, so no sound is produced by

the Digital Piano when keys are

pressed.

• The local control setting cannot be changed

while playback of a Music Library tune is in

progress.

Configuring Settings with the Keyboard

E-25

English

bt Operation tone Off, On

Default: On

DSelecting “Off” disables sounding

of the operation tone whenever a

keyboard key is pressed while the

FUNCTION is depressed.

• This setting is retained even when the

Digital Piano is turned off.

• The operation tone setting cannot be

changed while Music Library playback is in

progress, while the metronome is

sounding, and during recording.

ck Back up Off, On

Default: Off

D When “On” is selected for this

setting, the Digital Piano will

remember its current settings*1,

and restore them when it is turned

on again.

When “Off” is selected, settings*2

are reset to their initial defaults

whenever the Digital Piano is

turned on.

The following settings are not

remembered.

•Duet Mode

•Tune LR (part)

•Local control

Except for the operation tone

on/off setting.

• The back up setting cannot be changed

while Music Library playback is in

progress, while the metronome is

sounding, in the Duet Mode, and during

recording.

cl Operation lock Off, On

Default: Off

DSelecting “On” for this setting locks

the Digital Piano’s buttons (except

for the P (POWER) button and the

buttons required for unlock), so no

operation can be performed.

Turn on operation lock when you

want to protect against

unintentional button operations.

• The operation lock setting cannot be

changed while Music Library playback is in

progress, while the metronome is

sounding, and during recording.

cm USB flash drive

mode

Off, On

Default: Off

–

USB flash drive mode.

cn Format Off, On

Default: Off

–

Formats a USB flash drive.

co Save Off, On

Default: Off

–

Stores data to a USB flash drive.

cp Load Off, On

Default: Off

–

Loads data from a USB flash drive to Digital Piano song memory.

cq Delete Off, On

Default: Off

–

Deletes USB flash drive data.

Parameter Settings

Operation

Type

(page E-21)

Description Remarks

E-26

USB Flash Drive

Your Digital Piano supports the following USB flash

drive operations.

zUSB flash drive formatting

zData storage to a USB flash drive

zUSB flash drive data loading to Digital Piano

memory

zDelete data from a USB flash drive

zEasy play back of song data from a USB flash drive

■Save and Load Data Formats and Capacities

*Can be converted to a standard MIDI file (SMI

format 0, file name extension .MID) and saved.

Performing a record operation with the Digital Piano’s

audio recorder creates a folder named AUDIO on the

USB flash drive. WAV files are stored in the AUDIO

folder, automatically assigning them names from

TAKE01.WAV to TAKE99.WAV. You also can connect

a USB flash drive to a computer and change the names

of audio data (WAV) files to the format

“TAKEXX.WAV”*, and move them to the AUDIO

folder. Then you will be able to play them back on the

Digital Piano.

*XX = 01 to 99

SONG a

FUNCTION

•Song data recorded with the Digital Piano’s song

recorder is on a USB flash drive as MIDI files

(SMF format 0).

•Standard audio data from a computer (WAV files)

can also be stored on a USB flash drive and

played back on the Digital Piano.

•Digital Piano play can be recorded directly to a

USB flash drive. For details, see “Recording to a

USB Flash Drive (Audio Recorder)” (page E-18).

•MIDI files and CASIO format files stored on a

USB flash drive can be loaded into the Digital

Piano’s Music Library (61 to 70).

Data Type Description

(File Name Extension)

Supported

Operations

Save to

USB

flash

drive

Load

from

USB

flash

drive

User songs

(page E-36)

One of the following two

types of music data

1. CASIO format data

(CM2)

2. Standard MIDI files

(MID)

SMF Format 0 or

Format 1

–O

Songs

recorded

with song

recorder

(page E-15)

Song data recorded on

this Digital Piano (MID)

O*–

Storing Standard Audio Data

(WAV Files) to a USB Flash

Drive

English

USB Flash Drive

E-27

USB Flash Drive and USB Flash Drive

Port Handling Precautions

IMPORTANT!

• Be sure to observe the precautions provided in the

documentation that comes with the USB flash drive.

• Avoid using a USB flash drive under the following

conditions. Such conditions can corrupt data stored

on the USB flash drive.

• Areas subjected to high temperature, high

humidity, or corrosive gas

• Areas subjected to strong electrostatic charge and

digital noise

• Never remove the USB flash drive while data is

being written to or loaded from it. Doing so can

corrupt the data on the USB flash drive and damage

the USB flash drive port.

• Never insert anything besides a USB flash drive into

the USB flash drive port. Doing so creates the risk of

malfunction.

• A USB flash drive can become warm after very long

use. This is normal and does not indicate

malfunction.

• Static electricity conducted to the USB flash drive

port from your hand or from a USB flash drive can

cause malfunction of the Digital Piano. If this

happens, turn the Digital Piano off and then back on

again.

IMPORTANT!

• Never plug any other device besides a USB flash

drive into the USB flash drive port.

■To insert a USB flash drive

As shown in the illustration below, insert the

USB flash drive into the Digital Piano’s USB

flash drive port.

•Carefully push the USB flash drive in as far as it will

go. Do not use undue force when inserting the USB

flash drive.

■To remove a USB flash drive

Check to confirm that there is no data

exchange operation being performed, and

then pull the USB flash drive straight out.

Copyrights

You are allowed to use recordings for your own

personal use. Any reproduction of an audio or music

format file, without the permission of its copyright

holder, is strictly prohibited under copyright laws

and international treaties. Also, making such files

available on the Internet or distributing them to third

parties, regardless of whether such activities are

conducted with or without compensation, is strictly

prohibited under copyright laws and international

treaties. CASIO COMPUTER CO., LTD. shall not be

held in any way liable for any use of this Digital

Piano that is illegal under copyright laws.

Connecting a USB Flash Drive

to and Detaching It from the

Digital Piano

USB flash drive

USB flash drive port

E-28

USB Flash Drive

IMPORTANT!

• Be sure to format a USB flash drive on the Digital

Piano before using it for the first time.

• Before formatting a USB flash drive, make sure it

does not have any valuable data stored on it.

• The format operation performed by this Digital Piano

is a “quick format”. If you want to completely delete

all of the data in USB flash drive, format it on your

computer or some other device.

This Digital Piano supports USB flash drives formatted

to FAT32. If your USB flash drive is formatted to a

different file system, use the Windows format function

to reformat it to FAT32. Do not use quick format.

Insert the USB flash drive you want to format

into the Digital Piano’s USB flash drive port.

While holding down the FUNCTION button,

press the keyboard key that corresponds to

the USB flash drive mode.

•This will cause the L/R lamps to flash.

While holding down the FUNCTION button,

press the format keyboard key.

•This will cause the SONG RECORDER button lamp

to light.

•To cancel the format operation, hold down the

FUNCTION button as you press the USB flash drive

mode key.

Press the SONG a button.

•This starts formatting.

•When formatting is complete, the L/R lamps will go

out to indicate that the USB flash drive mode has

been exited.

NOTE

•Formatting a large-capacity USB flash drive can take

several minutes.

Formatting a USB Flash Drive

Flashing

Lit

Flashing

Flashing Off

Formatting

started

Formatting

complete

English

USB Flash Drive

E-29

Use the procedure below to save data you recorded on

the Digital Piano to a USB flash drive as a MIDI file

(SMF format 0).

Insert the USB flash drive into the Digital

Piano’s USB flash drive port.

While holding down the FUNCTION button,

press the keyboard key that corresponds to

the USB flash drive mode.

•This will cause the L/R lamps to flash.

While holding down the FUNCTION button,

press the save keyboard key.

•This will cause the GRAND PIANO (CONCERT)

button lamp to light.

•To exit the data save operation, hold down the

FUNCTION button as you press the USB flash drive

mode key.

Hold down the FUNCTION button as you use

the SONG SELECT keyboard keys to select

a song number (61 to 70).

•The Digital Piano will emit a short beep if you specify

a correct song number, and a long beep if the song

number is not correct.

Saving a Recorded Song to a

USB Flash Drive

Flashing

Lit

E-30

USB Flash Drive

Press the SONG a button.

•This starts the data save operation.

•When saving is complete, the L/R lamps will go out

to indicate that the USB flash drive mode has been

exited.

■USB Flash Drive Data (File) Storage

Locations

The above procedure stores piano data in a folder

named MUSICLIB on the USB flash drive.

•The MUSICLIB folder is created automatically when

you format the USB flash drive on the Digital Piano

(page E-28).

•Note that files not in the MUSICLIB folder cannot be

loaded or deleted by this Digital Piano.

•The “MUSICLIB” folder contains sub-folders named

“61” through “70”. Data is saved in the sub-folder

whose name corresponds to the song number you

specify in step 4 of the procedure above.

You can use the procedure below to load user song

data (page E-36) from a USB flash drive to the Digital

Piano’s Music Library (song numbers 61 to 70). After

that, you can play back the user song or use it for

lesson play.

On your computer, copy the file you want to

load to one of the numbered sub-folders (61

through 70) inside the “MUSICLIB” folder on

the USB flash drive.

•The number names of the sub-folders correspond to

the Digital Piano’s user song numbers (61 to 70).

Insert the USB flash drive into the Digital

Piano’s USB flash drive port.

While holding down the FUNCTION button,

press the keyboard key that corresponds to

the USB flash drive mode.

•This will cause the L/R lamps to flash.

While holding down the FUNCTION button,

press the load keyboard key.

•This will cause the GRAND PIANO (MODERN)

button lamp to light.

•To cancel the load operation, hold down the

FUNCTION button as you press the USB flash drive

mode key.

Loading Song Data from a

USB Flash Drive into Digital

Piano Memory

Flashing Off

Save started Save complete

Flashing

Lit

English

USB Flash Drive

E-31

Hold down the FUNCTION button as you use

the SONG SELECT keyboard keys to select

a song number (61 to 70).

•The Digital Piano will emit a short beep if you specify

a correct song number, and a long beep if the song

number is not correct.

•Selecting song number 00 will batch load the 10 files

from 61 through 70 to the Digital Piano’s song

memory.

Press the SONG a button.

•This starts loading of the data to the Music Library

user song area.

•When loading is complete, the L/R lamps will go out

to indicate that the USB flash drive mode has been

exited.

You can use the procedure below to delete song data

stored in the “MUSICLIB” folder on a USB flash drive.

Insert the USB flash drive into the Digital

Piano’s USB flash drive port.

While holding down the FUNCTION button,

press the keyboard key that corresponds to

the USB flash drive mode.

•This will cause the L/R lamps to flash.

While holding down the FUNCTION button,

press the delete keyboard key.

•This will cause the ELEC PIANO button lamp to

light.

•To exit the data delete operation, hold down the

FUNCTION button as you press the USB flash drive

mode key.

Flashing Off

Loading start Loading complete

Deleting Data from a USB

Flash Drive

Flashing

Lit

E-32

USB Flash Drive

Hold down the FUNCTION button as you use

the SONG SELECT keyboard keys to select

a song number (61 to 70).

•The Digital Piano will emit a short beep if you specify

a correct song number, and a long beep if the song

number is not correct.

Press the SONG a button.

•This starts deletion of the selected data.

•When deleting is complete, the L/R lamps will go out

to indicate that the USB flash drive mode has been

exited.

You can use the procedure below to play back a user

song (page E-36) stored on a USB flash drive without

loading the song into Digital Piano Music Library

memory (song numbers 61 to 70).

On your computer, copy the data you want to

play back on the Digital Piano into the

MUSICLIB folder on the USB flash drive.

•Of the song data in the MUSICLIB folder, you can

select any of the first 99 songs, sorted in file name

sequence, for playback.

Insert the USB flash drive into the Digital

Piano’s USB flash drive port.

While holding down the FUNCTION button,

press the keyboard key that corresponds to

the USB flash drive mode.

•This will cause the L/R lamps to flash.

Press the SONG a button.

•This will start playback of the song data.

•Press the SONG a button again to stop playback.

To change to another song, hold down the

FUNCTION button as you use the SONG

SELECT plus (+) and minus (–) keyboard

keys to select the song you want to hear.

•Pressing the plus (+) or minus (–) key scrolls through

song file names.

•You can use the value input keys (0 to 9) to enter a

specific two-digit song number.

Example: To select song 08, enter 0 and then 8.

To exit the USB flash drive song playback

function, hold down the FUNCTION button as

you press the USB flash drive mode key.

Flashing Off

Delete start Delete complete

Simple Play Back of a Song on

a USB Flash Drive

USB Flash Drive

E-33

English

The following shows how the lamps indicate the error type when an error occurs due to data transfer failure or

some other reason.

Error Indicators

Lamps Error Type Cause Action

No Media

1. The USB flash drive is

not connected to the

Digital Piano’s USB

flash drive port.

1. Correctly plug the USB

flash drive into the USB

flash drive port.

2. The USB flash drive

was removed while

some operation was in

progress.

2. Do not remove the USB

flash drive while any

operation is in

progress.

3. The USB flash drive is

write-protected.

3. Unprotect the USB

flash drive.

4. The USB flash drive has

anti-virus software.

4. Use a USB flash drive

that does not have anti-

virus software.

No File

There is no loadable file in

the “MUSICLIB” folder or

no playable file in the

“AUDIO” folder.

Move the file you want to

load into the “MUSICLIB”

folder or the file you want

to play into the “AUDIO”

folder (pages E-26 and

E-29).

No Data

You are attempting to save

data to a USB flash drive

when there is no data to

save.

Record something before

performing a save

operation.

Read Only

A read-only file with the

same name you are trying

to use is already stored on

USB flash drive.

• Change the name and

then save the new data.

• Remove the read-only

attribute from the existing

USB flash drive file and

overwrite it with the new

data.

• Use a different USB flash

drive.

Media Full

There is not enough space

available on the USB flash

drive.

Delete some of the files on

the USB flash drive to

make room for new data

(page E-31) or use a

different USB flash drive.

File Full

1. There are too many

files on the USB flash

drive.

1. Delete some of the files

on the USB flash drive

to make room for new

data.

2. There is a file named

TAKE99.WAV in the

“AUDIO” folder.

2. Delete the WAV file in

the “AUDIO” folder.

Not SMF01

You are attempting to play

back SMF Format 2 song

data.

This Digital Piano

supports playback of SMF

Format 0 or Format 1 only.

Size Over

The data on the USB flash

drive is too big to play.

This Digital Piano

supports playback of song

data files with a maximum

size of

65 kbytes.

E-34

USB Flash Drive

Wrong Data

1. The USB flash drive

data is corrupted.

—

2. USB flash drive

contains data that is not

supported by this

Digital Piano.

Convert

There is not enough

Digital Piano memory

available to convert a song

recorder song to SMF data

and store it on the USB

flash drive.

Reduce the size of the song

data.

Example:

Delete any tracks that are

not required.

Format

1. The USB flash drive

format is not

compatible with this

Digital Piano.

1. Format the USB flash

drive on the Digital

Piano.

2. The USB flash drive is

corrupted.

2. Use a different USB

flash drive.

Media R/W

The USB flash drive is

corrupted.

Use a different USB flash

drive.

Lamps Error Type Cause Action

E-35

English

Connecting to a Computer

You can connect the Digital Piano to a computer and

exchange MIDI data between them. You can send play

data from the Digital Piano to commercially available

music software running on your computer, or you can

send MIDI data from your computer to the Digital

Piano for playback.

The following shows the minimum computer system

requirements for sending and receiving MIDI data.

Check to make sure that your computer complies with

these requirements before connecting the Digital Piano

to it.

zOperating System

Windows® XP (SP2 or later)*1

Windows Vista® *2

Windows® 7*3

Mac OS® X (10.3.9, 10.4.11, 10.5.X, 10.6.X, 10.7.X)

zUSB port

IMPORTANT!

• Never connect to a computer that does not conform

to the above requirements. Doing so can cause

problems with your computer.

IMPORTANT!

• Make sure you follow the steps of the procedure

below exactly. Connecting incorrectly can make data

send and receive impossible.

Turn off the Digital Piano and then start up

your computer.

•Do not start up the music software on your computer

yet!

After starting up your computer, use a

commercially available USB cable to connect

it to the Digital Piano.

Turn on the Digital Piano.

•If this is the first time you are connecting the Digital

Piano to your computer, the driver software required

to send and receive data will be installed on your

computer automatically.

Start up commercially available music

software on your computer.

Configure the music software settings to

select one of the following as the MIDI device.

•For information about how to select the MIDI device,

see the user documentation that comes with the

music software you are using.

IMPORTANT!

• Be sure to turn on the Digital Piano first before

starting up your computer’s music software.

NOTE

•Once you are able to connect successfully, there is no

problem with leaving the USB cable connected when

you turn off your computer and/or Digital Piano.

•For detailed specifications and connections that

apply to MIDI data send and receive by this Digital

Piano, see the latest support information provided

by the website at the following URL.

http://world.casio.com/

Minimum Computer System

Requirements

*1: Windows XP Home Edition

Windows XP Professional (32-bit)

*2: Windows Vista (32-bit)

*3: Windows 7 (32-bit, 64-bit)

Connecting the Digital Piano

to Your Computer

CASIO USB-MIDI : (For Windows Vista, Windows 7,

Mac OS X)

USB Audio Device: (For Windows XP)

Computer USB port

A connector

Digital Piano USB port

B connector

USB cable

(A-B type)

E-36

Connecting to a Computer

What is MIDI?

The letters MIDI stand for Musical Instrument Digital

Interface, which is the name of a worldwide standard

for digital signals and connectors that makes it possible

to exchange musical data between musical instruments

and computers (machines) produced by different

manufacturers.

NOTE

•For detailed information about MIDI

Implementation, visit the CASIO website at:

http://world.casio.com/.

See “Send channel” and “Local control” on page E-24.

Use the procedures in this section to transfer Recorder

memory data to a computer for storage, and to load

songs to user song memory (Music Library 61 to 70).

IMPORTANT!

• Turning off the Digital Piano while data is being

saved or loaded can cause all data currently stored

in Digital Piano memory (recorded songs, etc.) to be

deleted. Take care so power is not turned off

accidentally during data save and load operations. If

data is deleted, it will take longer than normal for the

Digital Piano to power up the next time you turn it on

(page E-4).

Perform steps 1 through 3 of the procedure

under “Connecting the Digital Piano to Your

Computer” on page E-35.

Change the Digital Piano’s USB device mode

to storage.

•While holding down the FUNCTION button, press

the keyboard key that corresponds to the USB device

mode.

•After this setting is changed, the GRAND PIANO

(CONCERT, MODERN) and ELEC PIANO button

lamps flash, and all other lamps are unlit.

•See “USB device mode” on page E-24 for more

information.

On your computer, perform the required

operation to display your computer’s storage

devices.

•The memory of this Digital Piano will appear as

“PIANO” under “Devices with Removable Storage”.

Using MIDI

Transferring Song Data with a

Computer

If your computer is

running this operating

system:

Do this:

Windows XP Double-click “My Computer”.

Windows Vista,

Windows 7

Double-click “Computer”.

Mac OS Skip step 3 and double-click

“PIANO” on your Mac

desktop.

English

Connecting to a Computer

E-37

Double-click “PIANO”.

•“PIANO” contains folders named “MUSICLIB” and

“RECORDER”.

•To transfer a user song to the Digital Piano from your

computer, open the “MUSICLIB” folder and put the

song into one of the numbered subfolders (61

through 70). Each subfolder corresponds to a Music

Library number: Subfolder 61 to Music Library 61,

and so on.

•The files in the “RECORDER” folder are songs that

have been recorded with the Digital Piano’s recorder

function. You can move files from the “RECORDER”

folder to another location on your computer, and you

can return recorded song files to the Digital Piano by

placing them into the “RECORDER” folder.

*Before starting a store or load operation, first check

the file name extension to ensure it matches the ones

shown in this column.

In the case of a song recorded with the Digital

Piano’s recorder function, change its file name to one

of the names and extensions shown in this column.

IMPORTANT!

• The initial default configuration for Windows XP,

Windows Vista, and Windows 7 is to hide file name

extensions. Perform one of the following operations

on your computer to show file name extensions.

•To show file name extensions under Windows XP

•To show file name extensions under Windows Vista

or Windows 7

■To load a song into user song memory

(Music Library 61 to 70)

Data Type Folder

Name File Name and Extension*

User songs MUSICLIB .MID: SMF format data

(format 0/1)

.CM2: CASIO original

format data

Recorder

memory data

RECORDER BIDREC01.CSR: CASIO

original format data

1. Open the folder you want.

2. On the [Tools] menu, click [Folder Options].

3. Click the [View] tab. In the [Advanced settings] list,

clear the check box next to [Hide extensions for

known file types].

4. Click [OK].

1. Open Folder Options by clicking the [Start] button,

clicking [Control Panel], clicking [Appearance and

Personalization], and then clicking [Folder Options].

2. Click the [View] tab. Under [Advanced settings]

clear the [Hide extensions for known file types]

check box.

3. Click [OK].

1. Open the MUSICLIB folder.

2. Copy the song file (.MID or .CM2) to the number-

named subfolder (61 to 70) whose name matches the

number of the Music Library location to which you

want to load the song.

•If there are two files with the filename extensions

.MID and .CM2 in the MUSICLIB folder, only the

.MID data will be loaded into user song memory.

E-38

Connecting to a Computer

■To transfer Recorder memory data between

the Digital Piano and your computer

To transfer the Digital Piano’s current Recorder

memory data to your computer, copy the contents of

the RECORDER folder to your computer.

To return Recorder data you previously saved to your

computer back to Recorder memory, copy it back to the

RECORDER folder (and replace the current

RECORDER folder contents).

After the file copy operation is complete,

return the USB device mode to MIDI.

•If you are using a Macintosh, perform the eject

operation (drag them to the trash can).

•While holding down the FUNCTION button, press

the applicable keyboard key. See “USB device mode”

on page E-24 for more information.

•Returning the USB device mode to MIDI will load the

contents of MUSICLIB into user song memory and

the contents of RECORDER into Recorder memory.

IMPORTANT!

• A data conversion error is indicated when both of the

SONG a button lamps, and the GRAND PIANO

(CONCERT, MODERN) and ELEC PIANO button

lamps are all lit, and all other lamps are unlit.

Copyrights

The rights of creators and copyright holders of music,

images, computer programs, databases, and other

data are protected by copyright laws. You are allowed

to reproduce such works for personal or non-

commercial use only. For any other purpose, all

reproduction (including data format conversion),

modification, transfer of reproductions, distribution

over a network, or any other use without permission

of the copyright holder exposes you to claims for

damages and criminal prosecution for copyright

infringement and violation of the author’s personal

rights. Be sure to reproduce and otherwise use

copyrighted works only in accordance with applicable

E-39

English

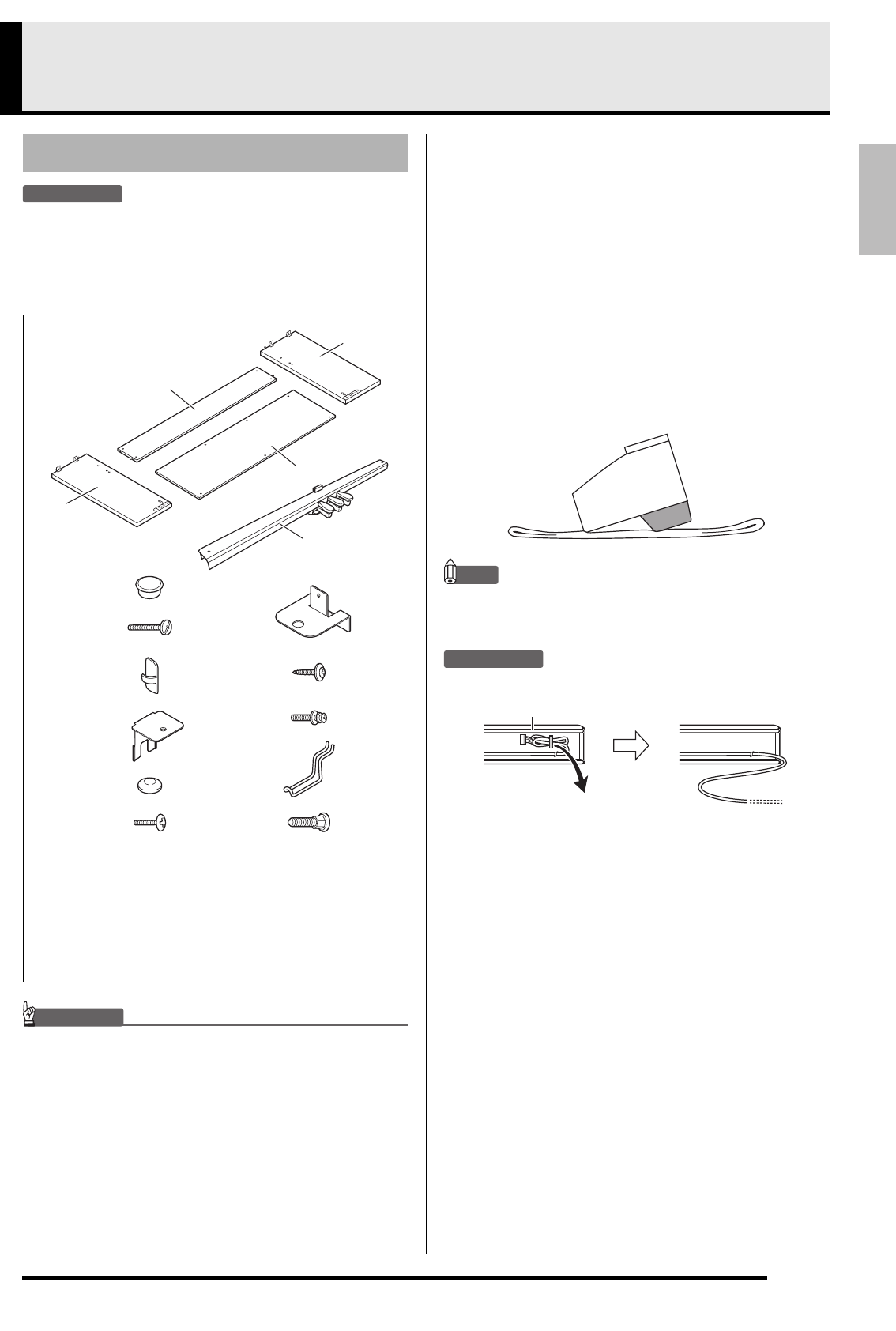

Getting Ready

PREPARATION

•Before starting assembly, check to make sure that

you have all the parts shown below.

•This stand does not include any of the tools required

for assembly. It is up to you to prepare a large

Philips head (+) screwdriver for assembly.

IMPORTANT!

• Do not use any screws other than those that come

with the stand. Doing so risks damage to the stand

and/or Digital Piano.

• You can find the screws in a plastic bag inside of the

packing material.

• If anything is missing or damaged, contact your local

CASIO service provider.

*CAUTION

•The stand should be assembled by two people

working together.

•The stand should be assembled on a flat surface.

•Do not remove the tape securing the keyboard cover

in place until assembly is complete. Removing the

tape can cause the keyboard cover to open and close

during assembly, creating the risk of personal injury

to your hands and fingers.

•Take care that you do not pinch your fingers

between parts when assembling them.

•When placing the Digital Piano on the floor, be sure

to place it on something soft (a blanket, cushion,

etc.). Do not place the Digital Piano directly onto the

floor.

NOTE

•Be sure to follow the proper procedure when

assembling the stand.

PREPARATION

•Pull the pedal unit cable out from the pedal unit E.

Assembling the Stand

ASide panel ........................... ×1

BSide panel ........................... ×1

CBack board .......................... ×1

DScrew caps.......................... ×6

EPedal unit ............................ ×1

FScrews ................................ ×2

GClips .................................... ×2

HBrackets .............................. ×2

IScrew caps ......................... ×2

JScrews ................................ ×4

KBack board .......................... ×1

LBrackets .............................. ×2

MScrews ................................ ×4

NScrews ................................ ×3

OHeadphones hook............... ×1

PScrew .................................. ×1

E-40

Getting Ready

Remove the four screws (two on each end)

from back board C.

Attach side panels A and B to back board

C. Secure side panels A and B to the back

board C using the screws you removed in

step 1.

•Attach the side panels so the side of the back board C

where the joint connectors are inserted is facing

towards the back of the stand.

•If you have trouble inserting a screw into a joint

connector screw hole, use a screwdriver to adjust the

joint connector by rotating it.

3-1.

If you plan to locate the piano and stand

where it is not against a wall, you need to

extend the anti-tip brackets at the base of

side panels A and B. Remove the two

screws (one on the outside of each side

panel) that hold the brackets, and then slide

the brackets as shown in the illustration. After

extending the anti-tip brackets, reinstall the

screws that secure them in place, but do not

tighten the screws fully at this time.

[Inside of side panels]

3-2.

If you plan to locate the piano and stand

against a wall, loosen the two screws (one on

the outside of each side panel) that secure

the brackets. You do not need to remove the

screws in this case.

•In this case, you do not need to remove the screws.

Just loosen them.

Joint

connectors

English

Getting Ready

E-41

Insert angle brackets H into the gap between

the anti-tipping bracket and the side panel.

From the outside of side panels A and B,

temporarily tighten the screws you loosened

in step 3, above.

Mount pedal unit E onto angle brackets H,

which you installed in step 5, above.

Mount brackets L onto both ends of the

pedal unit E.

Use the screws F to securely fix the brackets

L to the pedal unit E.

After adjusting the position (height) of pedal

unit

, fully tighten the screws that you

temporarily tightened in step 5, above.

10.

Secure the back board K to the back board

•Screw the screws M into the four holes in the back

board K.

E-42

Getting Ready

11.

Go around to the front of the Digital Piano

and securely tighten the three screws N

shown in the illustration below.

12.

Mount the piano onto the stand. Position the

piano so the dowels on the top edges of side

panels

and

enter the dowel holes on the

bottom of the piano.

•Note that there is nothing anchoring the piano to the

stand at this time. Take care to ensure that the piano

does not fall off the stand.

13.

Use the screws

to securely fix the brackets

at the top of side panels

and

to the

bottom of the piano.

14.

After checking to make sure the six screws

that secure side panels A and B are fully

tightened, cover the heads of the screws with

screw caps D.

15.

With the two screw caps I, cover the heads

of the screws that you fully tightened in

step 8.

English

Getting Ready

E-43

16.

Install the headphones hook O.

Making sure that the pedal unit cable plug is

oriented as shown in the illustration below,

plug it into the pedal connector on the bottom

of the piano.

•Press the plug fully into the connector as far as it will

go.

•Use the clips G to secure the pedal cable to two

locations on side panel B.

Insert the plug of the AC adaptor that comes

with the Digital Piano into its power terminal

(DC 24V).

Plug the power cord of the AC adaptor that

comes with the Digital Piano into a household

power outlet as shown in the illustration

below.

Install the music stand by inserting its pegs

into the holes in the top of the piano.

(16-1) Insert the headphones hook O into the two holes

on the bottom of the piano.

(16-2) Use the screw P to secure the headphones hook

in place.

To connect the cable

16-2

16-1

To install the music stand

AC adaptor plug

Supplied AC adaptor

Household power outlet

AC adaptor

Power cord

E-44

Getting Ready

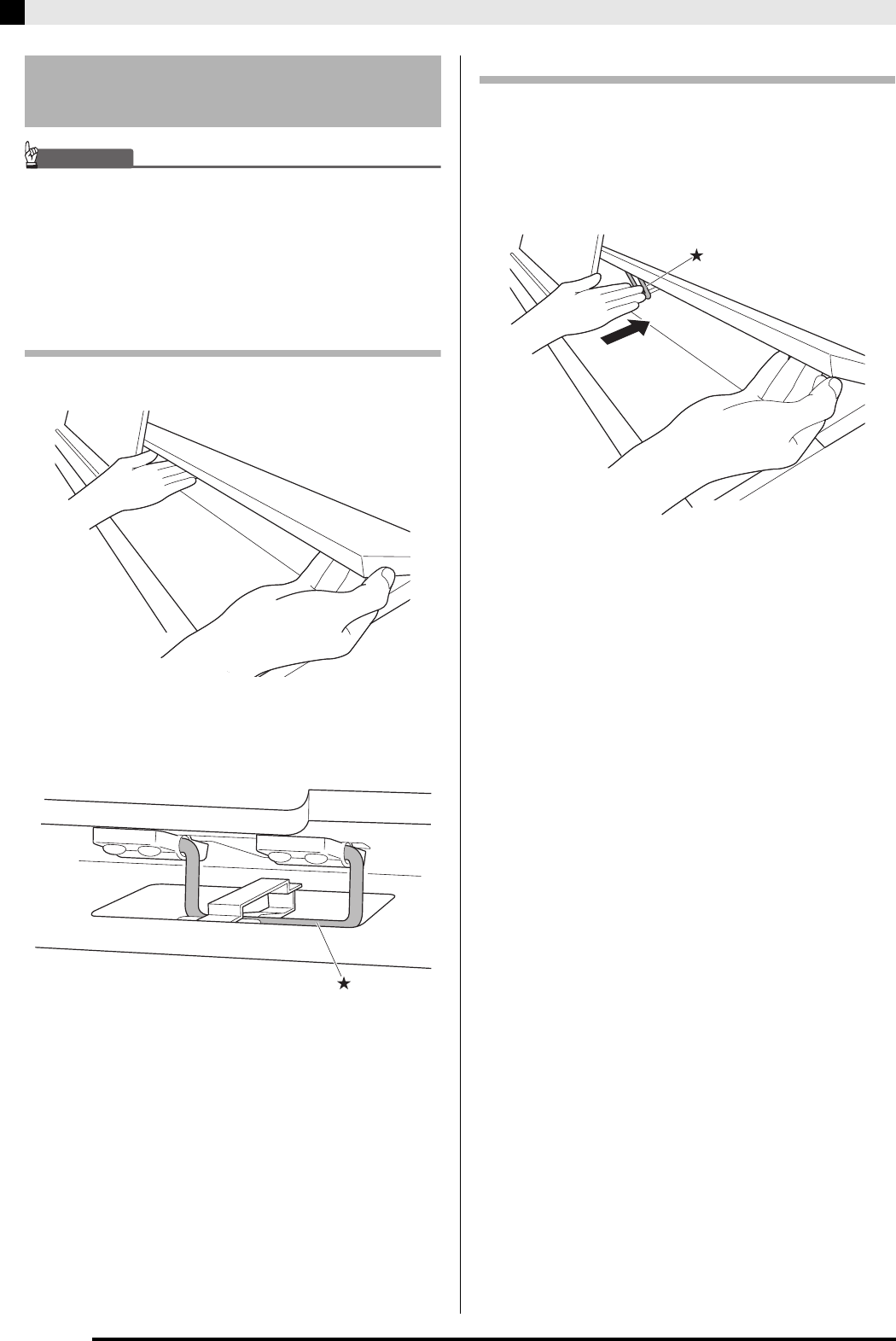

IMPORTANT!

• Use both hands whenever opening or closing the lid,

and take care that you do not close it on your fingers.

• Do not open the lid too wide. Doing so creates the

risk of damage to the cover and Digital Piano.

• Stand in front of the Digital Piano on the right side

when opening or closing the lid.

To open the lid

Lift up the lid as shown in the illustration.

•The lid has a support bracket (indicated by the star 

in the illustration) attached to its inside surface.

Check to make sure that the support bracket is

standing up fully.

To close the lid

Carefully lift up slightly on the lid.

Use the fingers of your left hand to press

back on the support bracket () as you

slowly and carefully lower the lid.

Opening and Closing the

Piano Lid

English

Getting Ready

E-45

Your Digital Piano runs on standard household power.

Be sure to turn off power whenever you are not using

the Digital Piano.

Using an AC Adaptor

Use only the AC adaptor (JEITA Standard, with unified

polarity plug) that comes with this Digital Piano. Use

of a different type of AC adaptor can cause

malfunction of the Digital Piano.

Specified AC Adaptor: AD-E24250LW

•Use the supplied power cord to connect the AC

adaptor.

■About the AC adaptor that comes with the

Digital Piano

Note the following important precautions to avoid

damage to the AC adaptor and power cord.

•Never pull on the cord with excessive force.

•Never repeatedly pull on the cord.

•Never twist the cord at the base of the plug or

connector.

•Before moving the Digital Piano, be sure to unplug

the AC adaptor from the power outlet.

•Loop and bundle the power cord, but never wind it

around the AC adaptor.

IMPORTANT!

• Never connect the AC adaptor that comes with this

Digital Piano to any other device besides this Digital

Piano. Doing so creates the risk of malfunction.

• Make sure the Digital Piano is turned off before

plugging in or unplugging the AC adaptor.

• The AC adaptor will become warm to the touch after

very long use. This is normal and does not indicate

malfunction.

• Use the AC adaptor so its label surface is pointed

downwards. The AC adaptor becomes prone to

emitting electromagnetic waves when the label

surface is facing upwards.

Connect commercially available headphones to the

PHONES jacks. Connecting headphones to either of

the PHONES jack cuts off output to the speakers,

which means you can practice even late at night

without bothering others. To protect your hearing,

make sure that you do not set the volume level too high

when using headphones.

NOTE

•Be sure to push the headphones plug into the

PHONES jacks as far as it will go. If you don’t, you

may hear sound from only one side of the

headphones.

•If the plug of the headphones you are using does not

match the PHONES jacks, use the applicable

commercially available adaptor plug.

•If you are using headphones that require an adaptor

plug, make sure you do not leave the adaptor

plugged in when you unplug the headphones. If you

do, nothing will sound from the speakers when you

play.

Power Outlet Connecting Headphones

PHONES jacks

Front

Stereo standard plug

E-46

Getting Ready

You can connect audio equipment or a music amplifier

to the Digital Piano and then play through external

speakers for more powerful volume and better sound

quality.

IMPORTANT!

• The Digital Piano automatically adjusts sound output

to optimize for headphone output (when headphones

are connected) or built-in speaker output (when

headphones are not connected). This also will cause

a change in the output quality from the Digital

Piano’s LINE OUT R and L/MONO jacks.

• Whenever connecting a device to the Digital Piano,

first use the VOLUME controller to set the volume to

a low level. After connecting, you can adjust the

volume to the level you want.

• Whenever you connect any device to the Digital

Piano, be sure to read the user documentation that

comes with the device.

Connecting to Audio Equipment 1

Use commercially available cables to connect the

external audio equipment to the Digital Piano’s LINE

OUT jacks as shown in Figure 1. LINE OUT R jack

output is right channel sound, while LINE OUT L/

MONO jack output is left channel sound. It is up to

you to purchase connecting cables like the ones shown

in the illustration for connection of audio equipment.

Normally in this configuration you must set the audio

equipment’s input selector to the setting that specifies

the terminal (such as AUX IN) to which the piano is

connected. Use the Digital Piano’s VOLUME controller

to adjust the volume level.

Connecting to a Musical Instrument

Amplifier 2

Use commercially available cables to connect the

amplifier to the Digital Piano’s LINE OUT jacks as

shown in Figure 2. LINE OUT R jack output is right

channel sound, while LINE OUT L/MONO jack

output is left channel sound. Connecting to the LINE

OUT L/MONO jack only outputs a mixture of both

channels. It is up to you to purchase connecting cable

like the one shown in the illustration for connection of

the amplifier. Use the Digital Piano’s VOLUME

controller to adjust the volume level.

IMPORTANT!

• When using the LINE OUT jacks, also connect

headphones to the PHONES jack. This will switch

the LINE OUT output to appropriate sound quality.

Use only accessories that are specified for use with this

Digital Piano.

Use of unauthorized accessories creates the risk of fire,

electric shock, and personal injury.

NOTE

•You can get information about accessories that are

sold separately for this product from the CASIO

catalog available from your retailer, and from the

CASIO website at the following URL.

http://world.casio.com/

Connecting Audio Equipment

or an Amplifier

INPUT 1

INPUT 2

Guitar amplifier

Keyboard amplifier, etc.

Standard plug

To either of the Digital Piano’s LINE OUT jacks

RIGHT (Red)

LEFT (White)

Audio amplifier AUX IN jack, etc.

Pin plug

Bundled and Optional

Accessories

E-47

English

Reference

Troubleshooting

Problem Cause Action See

Page

No sound is produced when I

press a keyboard key.

1. The VOLUME controller is set to

“MIN”.

1. Rotate the VOLUME controller more towards

“MAX”.

) E-6

2. Headphones or an adaptor plug is

plugged into one of the PHONES

jacks.

2. Disconnect whatever is connected to the

PHONES jacks.

) E-45

3. MIDI Local control is turned off. 3. Turn on the Local control setting. ) E-24

The pitch of the Digital Piano

is off.

1. The Digital Piano’s key setting is

something other than “440.0Hz”.

1. Change the key setting to “440.0Hz”, or turn

Digital Piano power off and then back on

again.

) E-24

2. Digital Piano tuning is incorrect. 2. Adjust Digital Piano tuning, or turn the Digital

Piano off and then back on again.

) E-24

3. Octave shift is enabled. 3. Change the octave shift setting to 0. ) E-24

4. A non-standard temperament

setting is being used.

4. Change the temperament setting to

“00: Equal”, which is the standard modern

tuning.

) E-24

Nothing happens when I

press a pedal.

The pedal unit cable is not connected. Connect the cable correctly. ) E-43

Tones and/or effects sound

strange. Turning power off

and then back on again does

not eliminate the problem.

Example:

Note intensity does

not change even though I

alter key pressure.

The “Back up” feature is turned on. Turn off “Back up”. Next, turn power off and then

back on again.

) E-25

I cannot transfer data after

connecting the Digital Piano

to a computer.

– 1. Check to make sure that the USB cable is

connected to the Digital Piano and computer,

and that the correct device is selected with

your computer’s music software.

) E-35

2. Turn off the Digital Piano and then exit the

music software on your computer. Next, turn

the Digital Piano back on and then restart the

music software on your computer.

I cannot store data to a USB

flash drive or load data from a

USB flash drive.

– See “Error Indicators”. ) E-33

It takes a long time before I

can use the Digital Piano after

I turn it on.

Digital Piano memory data was

corrupted because a data transfer

operation with a computer was in

progress the last time you turned off

the Digital Piano. When this happens,

the Digital Piano performs a memory

format operation the next time you turn

it on. You cannot perform any other

operation while a format operation is in

progress.

It takes about 20 seconds after you turn on

power to perform the memory format operation.

Wait until the format operation is complete. Note

that you should take care to avoid turning off the

Digital Piano while a data transfer operation with

a computer is in progress.

) E-36

A tone’s quality and volume

sounds slightly different

depending where it is played

on the keyboard.

This is an unavoidable result of the digital sampling process,* and does not indicate malfunction.

*Multiple digital samples are taken for the low range, middle range, and high range of the original

musical instrument. Because of this, there may be very slight differences in tonal quality and

volume between sample ranges.

When I press a button, the

note that is sounding cuts out

momentarily or there is a

slight change in how effects

are applied.

This happens when the sounds of multiple parts are sounding at the same time while using layer,

using the Duet Mode, playing back a built-in tune, recording, etc. Pressing a button when one of

these conditions exists will cause the effect setting that is built into the tone to change automatically,

which causes notes to cut out momentarily or causes a slight change in how effects are being

applied.

E-48

Reference

•Specifications and designs are subject to change without notice.

Product Specifications

Model PX-850BK

Keyboard 88-key piano keyboard, with Touch Response

Maximum Polyphony 256 notes

Tones 18

• Layer (excluding bass tones)

• Split (Low-range bass tones only)

Effects Brilliance (–3 to 0 to 3), Reverb (4 types), Chorus (4 types), DSP, Damper Resonance,

Hammer response, String resonance, Lid simulator, Key Off Simulator

Metronome • Beats: 0, 2, 3, 4, 5, 6

• Tempo Range: 20 to 255

Duet Adjustable tone range (–1 to 2 octaves)

Music Library • Number of Songs: 60, User Songs: 10 (Up to approximately 90KB per song, approximately 900KB for 10

songs)*

*Based on 1KB = 1024 bytes, 1MB = 10242 bytes

• Song volume: Adjustable

• Part On/Off: L, R

Song Recorder • Functions: Real-time recording, playback

• Number of Song: 1

• Number of Tracks: 2

• Capacity: Approximately 5,000 notes total

• Recorded Data Protection: Built-in flash memory

Audio Recorder • Real-time recording and playback to USB flash drive*

*Linear PCM, 16bit, 44.1 kHz, stereo .WAV format

• Songs: 99 files

• Approximately 25 minutes maximum recording per file.

Pedals Damper (with half-pedal operation), Soft, Sostenuto

Other Functions • Touch Select: 3 types, Off

• Transpose: 2 octaves (–12 to 0 to 12)

• Tuning: 415.5Hz to 440.0Hz to 465.9Hz (variable)

• Temperament

• Octave shift

• Operation Lock

MIDI 16-channel multi-timbre receive

USB Flash Drive SMF playback, data storage, data loading, USB flash drive format, delete data, play back of audio data

Inputs/Outputs • PHONES jacks: Stereo standard jacks × 2

• Power: 24V DC

•LINE OUT R, L/MONO jacks: Standard jacks × 2

Output impedance: 2.3KΩ

Output voltage: 1.8V (RMS) MAX

• USB port : Type B

• USB flash drive port : Type A

• Pedal connector

Speakers

12cm × 2 +

5cm × 2 (Output 20W + 20W)

Power Requirements AC Adaptor: AD-E24250LW

• Auto Power Off: Approximately 4 hours after last operation. Auto Power Off can be disabled.

Power Consumption 24V = 20W

Dimensions Digital Piano and Stand: 136.7 (W) × 29.9 (D) × 83.7 (H) cm (53 7/8 × 11 × 32 15/16 inch)

Weight Digital Piano and Stand: approximately 35.5kg (78.3 lbs)

English

Reference

E-49

Be sure to read and observe the following operating

precautions.

■Location

Avoid the following locations for this product.

•Areas exposed to direct sunlight and high humidity

•Areas subjected to temperature extremes

•Near a radio, TV, video deck, or tuner

The above devices will not cause malfunction of the

product, but the product can cause interference in

the audio or video of a nearby device.

■User Maintenance

•Never use benzine, alcohol, thinner, or other

chemical agents to clean the product.

•To clean the product or its keyboard, wipe with a

soft cloth moistened in a weak solution of water and

a mild neutral detergent. Wring all excess moisture

from the cloth before wiping.

■Included and Optional Accessories

Use only accessories that are specified for use with this

product. Use of unauthorized accessories creates the

risk of fire, electric shock, and personal injury.

■Weld Lines

Lines may be visible on the exterior of the product.

These are “weld lines” that result from the plastic

molding process. They are not cracks or scratches.

■Musical Instrument Etiquette

Always be aware of others around you whenever using

this product. Be especially careful when playing late at

night to keep the volume at levels that do not disturb

others. Other steps you can take when playing late at

night are closing the window and using headphones.

•Any reproduction of the contents of this manual,

either in part or its entirety, is prohibited. Except for

your own, personal use, any other use of the

contents of this manual without the consent of

CASIO is prohibited under copyright laws.

•IN NO EVENT SHALL CASIO BE LIABLE FOR

ANY DAMAGES WHATSOEVER (INCLUDING,

WITHOUT LIMITATION, DAMAGES FOR LOSS

OF PROFITS, BUSINESS INTERRUPTION, LOSS

OF INFORMATION) ARISING OUT OF THE USE

OF OR INABILITY TO USE THIS MANUAL OR

PRODUCT, EVEN IF CASIO HAS BEEN ADVISED

OF THE POSSIBILITY OF SUCH DAMAGES.

•The contents of this manual are subject to change

without notice.

■AC Adaptor Handling Precautions

•Use a power outlet that is easily accessible so you

can unplug the AC adaptor when a malfunction

occurs or whenever else you need to do so.

•The AC adaptor is intended for indoor use only. Do

not use it where it might be exposed to splashing or

moisture. Do not place any container, such as a

flower vase, that contains liquid on the AC adaptor.

•Store the AC adaptor in a dry place.

•Use the AC adaptor in an open, well-ventilated area.

•Never cover the AC adaptor with newspaper, a table

cloth, a curtain, or any other similar item.

•Unplug the AC adaptor from the power outlet if you

do not plan to use the Digital Piano for a long time.

•Never try to repair the AC adaptor or modify it in

any way.

•AC adaptor operating environment

Temperature: 0 to 40°C

Humidity: 10% to 90% RH

•Output polarity:

Operating Precautions

E-50

Reference

AC Adaptor Handling Precautions

Model: AD-E24250LW

1. Read these instructions.

2. Keep these instructions on hand.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this product near water.

6. Clean only with a dry cloth.

7. Do not install near radiators, heat registers, stoves, or any other source of heat (including amplifiers).

8. Use only attachments and accessories specified by the manufacturer.

9. Refer all servicing to qualified service personnel. Servicing is required after any of the following occurs:

when the product is damaged, when the power supply cord or plug is damaged, when liquid is spilled into

the product, when a foreign object falls into the product, when the product is exposed to rain or moisture,

when the product does not operate normally, when the product is dropped.

10. Do not allow the product to be exposed to dripping or splashing liquid. Do not place any object containing

liquid on the product.

11. Do not allow the electrical load output to exceed the label rating.

12. Make sure the surrounding area is dry before plugging into a power source.

13. Make sure the product is oriented correctly.

14. Unplug the product during lightning storms or when you do not plan to use it for a long time.

15. Do not allow product ventilation openings to become blocked. Install the product in accordance with the

manufacturer’s instructions.

16. Take care the power cord is located where it will not be stepped upon or bent severely, particularly in

locations close to plugs and convenience receptacles, and in locations where it exits from the product.

17. The AC adaptor should be plugged into a power outlet as close to the product as possible to allow

immediate disconnection of the plug in case of emergency.

The symbol below is an alert indicating un-insulated hazardous voltage inside the product’s enclosure, which

may be sufficient to constitute the risk of electric shock to users.

’

The symbol below is an alert indicating the presence of important operating and maintenance (servicing)

instructions in the documentation that accompanies the product.

A-1

Appendix/Apéndice

Tone List/Lista de tonos

Tone Name/

Nombre de tonos

Program Change/

Cambio de programa

Bank Select MSB/

MSB de selección de

banco

GRAND PIANO CONCERT 0 0

GRAND PIANO MODERN 0 1

GRAND PIANO CLASSIC 0 2

GRAND PIANO MELLOW

0 3

GRAND PIANO BRIGHT

ELEC PIANO 4 0

FM E.PIANO 5 0

60’S E.PIANO 4 1

HARPSICHORD 6 0

VIBRAPHONE 11 0

STRINGS 1 49 0

STRINGS 2 48 0

PIPE ORGAN 19 0

JAZZ ORGAN 17 0

ELEC ORGAN 1 16 0

ELEC ORGAN 2 16 1

BASS (LOWER) 1 32 0

BASS (LOWER) 2 32 1

Song List/Lista de canciones

No./NºSong Name/Nombre de canciones

01 Nocturne Op.9-2

02 Fantaisie-Impromptu Op.66

03 Étude Op.10-3 “Chanson de l’adieu”

04 Étude Op.10-5 “Black Keys”

05 Étude Op.10-12 “Revolutionary”

06 Étude Op.25-9 “Butterflies”

07 Prélude Op.28-7

08 Valse Op.64-1 “Petit Chien”

09 Valse Op.64-2

10 Moments Musicaux 3

11 Impromptu Op.90-2

12 Marche Militaire 1 (Duet)

13 Frühlingslied [Lieder Ohne Worte Heft 5]

14 Fröhlicher Landmann [Album für die Jugend]

15 Von fremden Ländern und Menschen [Kinderszenen]

16 Träumerei [Kinderszenen]

17 Tambourin

Menuet BWV Anh.114 [Clavierbüchlein der Anna Magdalena Bach]

19 Inventio 1 BWV 772

20 Inventio 8 BWV 779

21 Inventio 13 BWV 784

22 Praeludium 1 BWV 846 [Das Wohltemperierte Klavier 1]

23 Le Coucou

24 Gavotte

25 Sonatina Op.36-1 1st Mov.

26 Sonatine Op.20-1 1st Mov.

27 Sonate K.545 1st Mov.

28 Sonate K.331 3rd Mov. “Turkish March”

29 Rondo K.485

30 Für Elise

31 Marcia alla Turca

32 Sonate Op.13 “Pathétique” 1st Mov.

33 Sonate Op.13 “Pathétique” 2nd Mov.

34 Sonate Op.13 “Pathétique” 3rd Mov.

35 Sonate Op.27-2 “Moonlight” 1st Mov.

36 Rhapsodie 2

37 Waltz Op.39-15 (Duet)

38 Liebesträume 3

39 Blumenlied

40 La Prière d’une Vierge

41 Csikos Post

42 Humoresque Op.101-7

43 Melodie [Lyrische Stücke Heft 2]

44 Sicilienne Op.78

45 Berceuse [Dolly] (Duet)

46 Arabesque 1

47 La Fille aux Cheveux de Lin [Préludes]

48 Passepied [Suite bergamasque]

49 Gymnopédie 1

50 Je Te Veux

51 Salut d’Amour

52 The Entertainer

53 Maple Leaf Rag

54 L’arabesque [25 Etüden Op.100]

55 La Styrienne [25 Etüden Op.100]

56 Ave Maria [25 Etüden Op.100]

57 Le retour [25 Etüden Op.100]

58 La chevaleresque [25 Etüden Op.100]

59 No.13 [Études de Mécanisme Op.849]

60 No.26 [Études de Mécanisme Op.849]

Function Transmitted Recognized Remarks

Basic

Channel

1 - 16

Default

Changed

Note

Number

0 - 127 0 - 127

0 - 127*1True voice

After

Touch

Control

Change

Pitch Bender

Key’s

Ch’s

Velocity

9nH v = 1 - 127

8nH v = 0 - 127

9nH v = 1 - 127

9nH v = 0,

8nH v = 0 - 127

Note ON

Note OFF

Mode

Mode 3

Default

Messages

Altered

0, 32

6, 38

Bank select

Modulation

Portamento Time

Data entry LSB, MSB*2

Volume

Pan

Expression

DSP Parameter0*2

DSP Parameter1*2

DSP Parameter2*2

DSP Parameter3*2

Damper

Portamento Switch

Sostenuto

Soft pedal

Model PX-850 Version : 1.0

*1 : Depends on tone

*1 : Depende del tono

MIDI Implementation Chart

Program

Change

0 - 127:True #

System Exclusive

System

Common

: Song Pos

: Song Sel

: Tune

Aux

Messages

Remarks

: Local ON/OFF

: All notes OFF

: Active Sense

: Reset

System

Real Time

: Clock

: Commands

100, 101

120

121

Vibrato rate

Vibrato depth

Vibrato delay

DSP Parameter4*2

DSP Parameter5*2

DSP Parameter6*2

DSP Parameter7*2

Portamento Control

High resolution velocity prefix

Reverb send

Chorus send

RPN LSB, MSB*2

All sound off

Reset all controller

Mode 1 : OMNI ON, POLY

Mode 3 : OMNI OFF, POLY

Mode 2 : OMNI ON, MONO

Mode 4 : OMNI OFF, MONO

O : Yes

X : No

*2: For details, see MIDI Implementation at http://world.casio.com/.

*2: Si desea más información, vea Implementación MIDI en http://world.casio.com/.

This recycle mark indicates that the packaging conforms to

the environmental protection legislation in Germany.

Esta marca de reciclaje indica que el empaquetado se

ajusta a la legislación de protección ambiental en Alemania.

MA1207-B Printed in China

Casio PX850 PX850_e User Manual To The 1e898c0f 33b2 4d6a B039 Bcfa88b20b98

Navigation menu

Versions of this User Manual:

Views

Navigation
