EN/ES

CTK2500-ES-1A

USER’S GUIDE

Safety Precautions

Before trying to use the Digital Keyboard, be sure to read the separate “Safety Precautions”.

Please keep all information for future reference.

GUÍA DEL USUARIO

Precauciones de seguridad

Antes de intentar usar el teclado digital, asegúrese de leer las “Precauciones de seguridad” separadas.

Guarde toda la información para futuras consultas.

CTK-2500

CTK-2550

About Music Score data

You can use a computer to download music score data from the CASIO Website. For more information, visit the

URL below.

http://world.casio.com/

Acerca de los datos de partituras

Puede utilizar un ordenador (computadora) para descargar los datos de partituras desde el sitio web de CASIO.

Para obtener más información, visite la siguiente URL.

http://world.casio.com/

EnglishEspañol

This recycle mark indicates that the packaging conforms to

the environmental protection legislation in Germany.

Esta marca de reciclaje indica que el empaquetado se

ajusta a la legislación de protección ambiental en Alemania.

MA1607-A Printed in China

CTK2500-ES-1A.indd 1 2016/07/26 16:32:04

Important!

Please note the following important information before using this product.

• Before using the optional AD-E95100L Adaptor to power the unit, be sure to check the AC Adaptor for any damage first.

Carefully check the power cord for breakage, cuts, exposed wire and other serious damage. Never let children use an AC

adaptor that is seriously damaged.

•Never attempt to recharge batteries.

• Do not use rechargeable batteries.

•Never mix old batteries with new ones.

• Use recommended batteries or equivalent types.

• Always make sure that positive (+) and negative (–) poles are facing correctly as indicated near the battery compartment.

• Replace batteries as soon as possible after any sign they are getting weak.

• Do not short-circuit the battery terminals.

• The product is not intended for children under 3 years.

• Use only CASIO AD-E95100L adaptor.

• The AC adaptor is not a toy.

• Be sure to disconnect the AC adaptor before cleaning the product.

NOTICE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the

FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee

that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct

the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

FCC CAUTION

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to

operate the equipment.

Declaration of Conformity

Model Number: CTK-2500/CTK-2550

Trade Name: CASIO COMPUTER CO., LTD.

Responsible party: CASIO AMERICA, INC.

Address: 570 MT. PLEASANT AVENUE, DOVER, NEW JERSEY 07801

Telephone number: 973-361-5400

This device complies with Part 15 of the FCC Rules, Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including

interference that may cause undesired operation.

●Any reproduction of the contents of this manual, either in part or its entirety, is prohibited. Except for your own, personal

use, any other use of the contents of this manual without the consent of CASIO is prohibited under copyright laws.

●IN NO EVENT SHALL CASIO BE LIABLE FOR ANY DAMAGES WHATSOEVER (INCLUDING, WITHOUT LIMITATION,

DAMAGES FOR LOSS OF PROFITS, BUSINESS INTERRUPTION, LOSS OF INFORMATION) ARISING OUT OF THE

USE OF OR INABILITY TO USE THIS MANUAL OR PRODUCT, EVEN IF CASIO HAS BEEN ADVISED OF THE

POSSIBILITY OF SUCH DAMAGES.

●The contents of this manual are subject to change without notice.

●The actual appearance of the product may be different from that shown in the illustrations in this User’s Guide.

●Company and product names used in this manual may be registered trademarks of others.

Manufacturer:

CASIO COMPUTER CO., LTD.

6-2, Hon-machi 1-chome, Shibuya-ku, Tokyo 151-8543, Japan

Responsible within the European Union:

Casio Europe GmbH

Casio-Platz 1, 22848 Norderstedt, Germany

www.casio-europe.com

Declaration of Conformity According to EU Directive

CTK2500-ES-1A.indd 2 2016/07/26 16:32:04

English

EN-1

General Guide EN-2

Timeout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . EN-4

Using the 10-key Pad (bm) . . . . . . . . . . . . . . . . . . . EN-4

Using the FUNCTION Button (br) . . . . . . . . . . . . . EN-4

Getting Ready to Play EN-7

Preparing the Music Stand . . . . . . . . . . . . . . . . . . . EN-7

Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . EN-7

Playing the Digital Keyboard EN-8

Turning on Power and Playing . . . . . . . . . . . . . . . . EN-8

Playing the Demo Songs. . . . . . . . . . . . . . . . . . . . . EN-8

Using Headphones . . . . . . . . . . . . . . . . . . . . . . . . . EN-8

Using the Metronome . . . . . . . . . . . . . . . . . . . . . . . EN-8

Controlling the Keyboard Sounds EN-9

Select from a variety of musical instrument

sounds . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . EN-9

Using VIRTUAL HALL. . . . . . . . . . . . . . . . . . . . . . EN-10

Using a Pedal . . . . . . . . . . . . . . . . . . . . . . . . . . . . EN-10

Playing in the Dance Music Mode EN-11

Dance Music Mode . . . . . . . . . . . . . . . . . . . . . . . . EN-11

Switch Keyboard Functions. . . . . . . . . . . . . . . . . . EN-11

Using the Dance Music Mode . . . . . . . . . . . . . . . . EN-12

Creating a Build Up. . . . . . . . . . . . . . . . . . . . . . . . EN-12

Dance Music Mode Settings . . . . . . . . . . . . . . . . . EN-13

Playing Built-in Songs EN-13

Playing Back a Particular Song. . . . . . . . . . . . . . . EN-13

Using Built-in Songs to Master Keyboard

Play EN-15

Lesson Lite . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . EN-15

Settings You Can Use During Lesson Lite . . . . . . EN-15

Using Auto Accompaniment EN-16

Playing the Rhythm Part only . . . . . . . . . . . . . . . . EN-16

Playing All Parts . . . . . . . . . . . . . . . . . . . . . . . . . . EN-16

Using Auto Accompaniment Effectively . . . . . . . . EN-18

Using One-Touch Preset. . . . . . . . . . . . . . . . . . . . EN-18

Linking with an Application (APP Function) EN-19

APP Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . EN-19

Downloading the Special App . . . . . . . . . . . . . . . . EN-19

Preparing the APP Function for Use . . . . . . . . . . . EN-19

Using the App in the Play Mode . . . . . . . . . . . . . . EN-19

Using the App in the Store Mode . . . . . . . . . . . . . EN-20

Playing Saved Data (Songs). . . . . . . . . . . . . . . . . EN-20

Deleting Saved Data (Songs) . . . . . . . . . . . . . . . . EN-20

Error Messages. . . . . . . . . . . . . . . . . . . . . . . . . . . EN-21

Connecting External Devices EN-21

Connecting to Audio Equipment . . . . . . . . . . . . . . .EN-21

Reference EN-22

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . .EN-22

Returning the Digital Keyboard

to Its Factory Default Settings . . . . . . . . . . . . . . .EN-23

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . .EN-24

Operating Precautions . . . . . . . . . . . . . . . . . . . . . .EN-25

Appendix A-1

Tone List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1

Drum Assignment List. . . . . . . . . . . . . . . . . . . . . . . . . A-4

Rhythm List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-5

Song List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-6

Dance Music Mode List . . . . . . . . . . . . . . . . . . . . . . . A-6

Fingering Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-7

Chord Example List . . . . . . . . . . . . . . . . . . . . . . . . . . A-8

Contents

Included Accessories

●Music Stand

●Leaflets

•Safety Precautions

•Other (Warranty, etc.)

Items included as accessories are subject to change without notice.

Separately Available Accessories

•You can get information about accessories that are

separately for this product from the CASIO

catalog available from your retailer, and from the

CASIO website at the following URL.

http://world.casio.com/

CTK2500-ES-1A.indd 3 2016/07/26 16:32:04

EN-2

• Illustrations in this User’s Guide show the CTK-2500.

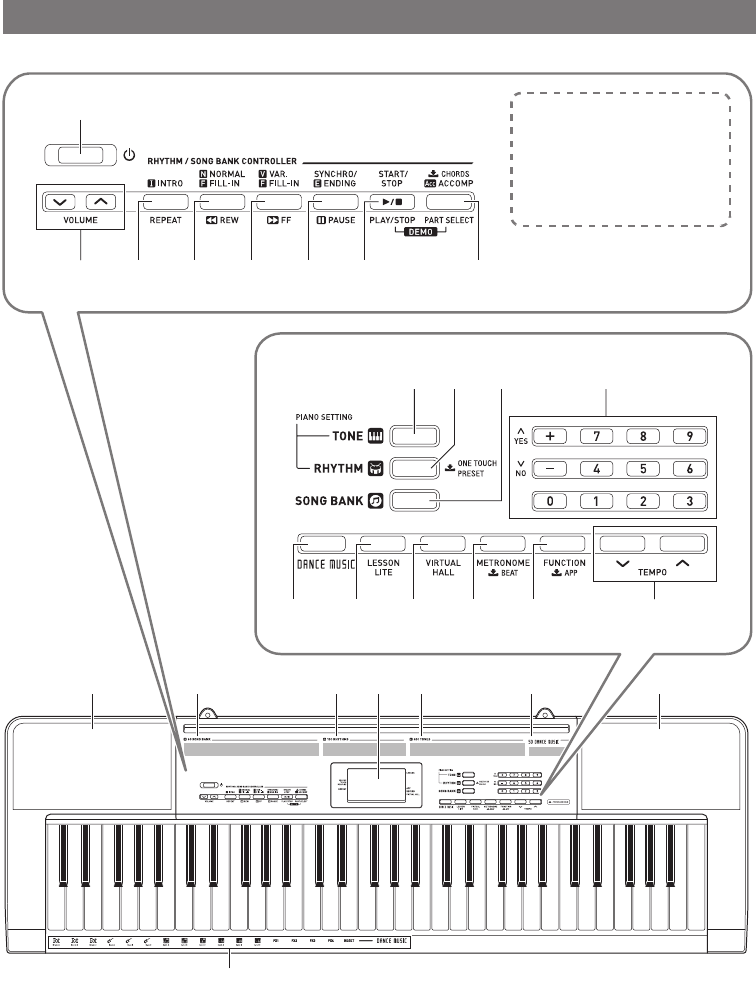

General Guide

bm9 bk bl

bo bp bq brbn

4 5 6 7 8

bt ck cl cm cn co bt

The following explains the

meaning of the $ symbol that

appears on the product console

and with the key names below.

$: Indicates a function that is

enabled by holding down

the button for some time.

CTK2500-ES-1A.indd 4 2016/07/26 16:32:04

English

EN-3

General Guide

■Back

■Display

1P(Power) button ☞EN-8

2VOLUME button ☞EN-8

3INTRO, REPEAT button ☞EN-14, 15, 18

4NORMAL, FILL-IN, sREW button ☞EN-14, 18

5VAR., FILL-IN, dFF button ☞EN-13, 18

6SYNCHRO/ENDING, kPAUSE button ☞EN-13, 18

7START/STOP, PLAY/STOP button

☞EN-13, 14, 16, 20

8$CHORDS, ACCOMP, PART SELECT button

☞EN-14, 16

9TONE button ☞EN-9, 14

bk RHYTHM, $ONE TOUCH PRESET button

☞EN-16, 18

bl SONG BANK button ☞EN-13, 20

bm Number buttons, [–]/[+] keys ☞EN-4

bn DANCE MUSIC button ☞EN-12

bo LESSON LITE button ☞EN-15

bp VIRTUAL HALL button ☞EN-10

bq METRONOME, $BEAT button ☞EN-8

br FUNCTION, $APP button ☞EN-4, 19

bs TEMPO buttons ☞EN-9, 14

bt Speakers

ck Song Bank list

cl Rhythm list

cm Display

cn Tone list

co Dance Music Track list

cp Dance Music tone

cr cs ct

cq SUSTAIN jack ☞EN-10

cr AUDIO IN jack ☞EN-19, 21

cs DC 9.5V terminal ☞EN-7

ct PHONES/OUTPUT jack ☞EN-8, 21

12 3

bk983



Tone, rhythm, song bank indicators

Number, setting name/status display

Indicators

Volume, Tempo, measure

I N F V E (Auto Accompaniment Types)

indicators*, Acc (Auto Accompaniment)

indicator

Dance Music Mode indicator

Beat display

Chord name

Pattern phrase keyboard/chord keyboard

Part, fingering display

*I:Intro, N:Normal, F:Fill-in, V:Variation,

E:Ending

CTK2500-ES-1A.indd 5 2016/07/26 16:32:05

EN-4

General Guide

Use this button to change the volume level and pitch, and to configure other settings.

Press br FUNCTION.

Next, press br FUNCTION the number of times required to select the setting you want to change.

Each press of br FUNCTION cycles through the available parameters.

•You can also scroll back through settings by holding down br FUNCTION and pressing bs TEMPOw.

Using the FUNCTION Button (br)

br key

presses Parameter Display Description

1 Transpose Trans. Changes (transposes) overall instrument tuning by semitone units.

–12 to +12 (semitone units, one octave up/down)

2 Accompaniment

Volume

AcompVol Changes the Auto Accompaniment volume.

3 Song Volume Song Vol Changes the song playback volume.

4 Dance Music

Volume

DM Vol. Changes the dance music song playback volume.

5 Dance Music

Sync Type

DM Sync Sets the timing of dance music syncing.

1: No misalignment of phrase playback between each part, regardless of pattern

phrase switch timing.

2: Start pattern phrase playback to match timing of the pattern switching

keyboard key. If there is misalignment with the playback timing of the pattern

phrase between parts, alignment will be adjusted automatically measure-by-

measure as playback proceeds.

If you do not perform any operation for a while configuring

settings, the display will return to the previous screen

automatically.

Use the number buttons and the [–] and [+] keys to change

displayed numbers and settings.

Use the number buttons to enter numbers and values.

•Enter the same number of digits as the currently displayed

value.

Example: To enter tone number 004, input 0 3 0 3 4.

•Negative values cannot be input using the number buttons.

Use [+] (increase) and [–] (decrease) instead.

You can use the [+] (increase) and [–] (decrease) keys to

change the displayed number or value.

•Holding down either key scrolls the displayed setting.

•Pressing both keys at the same time will revert to the initial

default setting or the recommended setting.

Timeout

Using the 10-key Pad (bm)

Number Buttons

[–] and [+] Keys

CTK2500-ES-1A.indd 6 2016/07/26 16:32:05

English

EN-5

General Guide

6 Dance Music

Tempo Setting

DM Tempo Specifies whether or not the performance tempo changes to the value that is

preset for each pattern.

on: When the pattern is switched, the performance tempo changes to the tempo

suggested for the selected pattern. Since the tempo changes, melody can be

completely changed.

oFF: Even if the pattern is switched, the performance tempo remains at its

current setting, without changing.

Tempo does not change suddenly, which enables natural pattern connection.

7 Dance Music

Tone Setting

DM Tone Specifies whether or not the keyboard tone changes to the tone that is preset for

each pattern.

on: When the pattern is switched, the tone changes to the tone suggested for the

selected pattern. Select this setting when you want to change the performance

tone whenever the pattern changes.

oFF: Even if the pattern is switched, the tone remains at its current setting,

without changing. Select this setting when you want the same tone to play even

if the pattern changes.

8 Reverb Reverb Applies reverb to notes and specifies the reverb length.

oFF: No reverb applied.

1 to 10: A larger values applies longer reverb.

9 Voice Fingering

Guide

Speak Enables or disables Voice Fingering Guide, which uses a voice to tell you which

finger to use to play each note during Lesson Lite.

on: Voice Fingering Guide enabled.

oFF: Voice Fingering Guide disabled.

10 Note Guide NoteGuid Enables or disables Note Guide, which sounds each note you need to play

during a Lesson Lite.

on: Note Guide enabled.

oFF: Note Guide disabled.

11 Performance

Evaluation

Scoring Enables or disables Performance Evaluation, which displays scores for your

Lesson Lite results.

on: Performance Evaluation enabled.

oFF: Performance Evaluation disabled.

12 Pedal Effect Jack Selects the effect applied by the pedal.

Sustain (SUS): Sustains notes played while the pedal is depressed. Organ and

other non-decaying tone notes are sustained as long as the pedal is depressed.

Sostenuto (SoS): Pressing keyboard keys and then pressing this pedal before

releasing them sustains them as long as the pedal is depressed.

Soft (SFt): Slightly softens notes played while the pedal is depressed.

Rhythm (rHy): Starts or stops Auto Accompaniment or song playback.

13 Tuning Tune Makes slight adjustments to the overall pitch. Use this feature to adjustment

Digital Keyboard tuning to another musical instrument or to playback from a

CD. This setting is the frequency of A4 (A above middle C). See the notes under

“IMPORTANT!” below.

415.5 to 465.9 Hz (Initial Default: 440.0 Hz)

br key

presses Parameter Display Description

CTK2500-ES-1A.indd 7 2016/07/26 16:32:05

EN-6

General Guide

When the parameter you want is displayed, use bm (10-key) to change its setting.

• The tone and other parameters revert to their initial defaults whenever you turn on power. The main volume, and Tuning, LCD

Contrast, and Auto Power Off settings are automatically saved and retained when power is turned off.

• You can use the [+] and [–] buttons to input a value to the right of a decimal point.

To specify 442.2 Hz, for example, first use the number buttons to input 4 3 4 3 2. Next, press the [+] button twice.

14 LCD Contrast Contrast Adjusts display contrast.

1 to 12: A larger value makes the display contrast darker.

15 Auto Power Off APO Setting that controls whether or not the Digital Keyboard turns off automatically

after a period of non-use.

oFF: Auto Power off disabled.

30: The Digital Keyboard turns off automatically after 30 minutes of non-use.

br key

presses Parameter Display Description

CTK2500-ES-1A.indd 8 2016/07/26 16:32:05

English

EN-7

• Do not try to place a smart device on the Digital Keyboard’s

music stand. Doing so can cause the device to fall and

become damaged, or can scratch flooring.

Either an AC adaptor or batteries can be used to power this

Digital Keyboard. Normally, use of AC adaptor power is

recommended.

•Depending on your geographical area, an AC adaptor may

not be included. In this case, will need to purchase an AC

adaptor from your retailer.

Make sure that you use only the AC adaptor specified for this

Digital Keyboard. Use of a different type of AC adaptor can

cause malfunction.

• Be sure to turn off Digital Keyboard power before

connecting or disconnecting the AC adaptor.

• The AC adaptor will become warm to the touch after very

long use. This is normal and does not indicate malfunction.

• To prevent breaking of the wire, take care to avoid putting

any type of load on the power cord.

•Never insert metal, pencils, or any other objects into the

product’s 9.5V DC terminal. Doing so creates the risk of

accident.

• Be sure to turn off power before loading batteries.

• It is up to you to prepare six commercially available AA-size

batteries. Do not use oxyride batteries or any other nickel

based batteries.

Open the battery cover on the bottom of the Digital

Keyboard.

Load six AA-size batteries into the battery

compartment.

Make sure the positive + and negative - ends of the

batteries are facing as shown in the illustration.

Insert the tabs of the battery cover into the holes

on the side of the battery compartment, and close

the cover.

■Low Battery Indication

The indicator shown below starts to flash to let you know

when battery power is low. Replace the batteries with new

ones.

Getting Ready to Play

Preparing the Music Stand

Power Supply

Using the AC Adaptor

Specified AC Adaptor: AD-E95100L

(JEITA Standard plug)

No bending! No winding!

Music stand

AC adaptor

DC 9.5V terminalHousehold power outlet

Using Batteries

Low battery indicator (flashes)

CTK2500-ES-1A.indd 9 2016/07/26 16:32:05

EN-8

Press 1P (Power).

This turns on power.

•To turn off the Digital Keyboard, hold down the 1P

(Power) button until the Digital Keyboard’s display

goes blank.

Try playing something on the keyboard. You could

use 2VOLUME to adjust the volume setting.

•This causes the volume indicator, which shows the

current volume level, to appear on the display.

•Turning off power causes tone, rhythm, and other settings

(except for main volume, the Tuning, LCD Contrast, and

Auto Power Off settings) to return to their initial defaults.

Following playback of the dance music demo (00), the built-in

songs will playback sequentially from 01 to 60. You can

switch to a different song while playback is in progress.

Press 7START/STOP, PLAY/STOP and

8CHORDS, ACCOMP, PART SELECT at the

same time.

This will start playback of the demo songs. Demo

playback continues until you stop it.

•Demo songs always start from song number 00 (dance

music demo song).

•See page A-6 for a complete list of available songs.

To change to another song while demo playback is

in progress, use bm (10-key) [–] and [+] keys to

enter the song number you want (page EN-4).

This will cause demo playback to jump to the song

whose number you entered.

•You cannot use bm (10-key) number buttons to select a

song.

To stop demo playback, press 7START/STOP,

PLAY/STOP.

Demo playback continues until you stop it by pressing

7START/STOP, PLAY/STOP.

Using headphones cuts off output from the built-in speakers,

which means you can practice playing even late at night

without disturbing others.

•Be sure to turn down the volume level before connecting

headphones.

•Headphones do not come with the Digital Keyboard.

•Use commercially available headphones. See page EN-1 for

information about options.

• Do not listen to very high volume output over headphones

for long period. Doing so creates the risk of hearing

damage.

• If the plug of the headphones you are using does not match

the ct PHONES/OUTPUT jack, use the applicable

commercially available adaptor plug.

• If you are using headphones that require an adaptor plug,

make sure you do not leave the adaptor plugged in when

removing the headphones.

Turning on the metronome causes the metronome tone to

sound for a fixed interval in accordance with the tempo.

Press bq METRONOME.

This starts the metronome.

Press bq METRONOME again to stop the

metronome.

Playing the Digital Keyboard

Turning on Power and Playing

Playing the Demo Songs

Using Headphones

Using the Metronome

Start/Stop

CTK2500-ES-1A.indd 10 2016/07/26 16:32:06

English

EN-9

You can configure the metronome to use a bell sound for the

first beat of each measure of the song you are playing.

•You can specify a value from 0 to 9 as the number of beat

per measure.

•When playing a built-in song, the beats per measure setting

(which determines when the bell sounds) is configured

automatically for the currently selected song.

Hold down bq$BEAT until the beats per

measure setting screen appears on the display.

Use bm (10-key) to enter the number of beats per

measure.

•The bell will not sound if you specify 0 for this setting.

In this case, all beats are indicated by a click sound.

This setting lets you practice with a steady beat,

without worrying how many beats there are in each

measure.

Use the following procedure to change the tempo of the

metronome.

Press bs TEMPO.

Use w (slower) and q (faster) to change the tempo

setting. Holding down either button changes the setting

at high speed.

•Pressing w and q at the same time will initialize the

tempo setting in accordance with the currently

selected song, dance music song or rhythm.

•Pressing bs TEMPO causes the tempo indicator to

appear on the display, and the tempo value starts to

flash. While the tempo value is flashing, you can use

bm (10-key) to change it.

The volume level of the metronome changes along with the

settings below. For information about how to change the

metronome volume level in each mode, see “Using the

FUNCTION Button (br)” (page EN-4).

•Built-in song volume

•Dance music volume

•Auto Accompaniment volume

•The balance between the metronome volume and the above

settings cannot be changed.

Press 9TONE.

Use bm (10-key) to select the tone number you

want.

The corresponding tone number and tone name will

appear on the screen.

•For a list of tones, see the “Tone List” (page A-1).

•Selecting a drum set tone causes various percussion

instruments to be assigned to keyboard keys.

Try playing something on the keyboard.

You can play the tone of a selected instrument.

Press bk RHYTHM and 9TONE at the same time.

This selects tone 001 STEREO GRAND PIANO, and changes

other settings so they are appropriate for piano performance.

Changing the Beats per Measure

Changing the Metronome Tempo

Changing the Metronome Sound Volume

Controlling the Keyboard

Sounds

Select from a variety of musical

instrument sounds

To select an instrument for playing

Playing with a Piano Tone (Piano Setup)

CTK2500-ES-1A.indd 11 2016/07/26 16:32:06

Controlling the Keyboard Sounds

EN-10

Turning on the VIRTUAL HALL function lets you play with

the acoustics of a concert hall.

Press bp VIRTUAL HALL to turn on the VIRTUAL

HALL function.

To turn off the VIRTUAL HALL function, press

bp VIRTUAL HALL again.

•The reverb setting turns off automatically whenever

the VIRTUAL HALL function is turned on. When you

turn off the VIRTUAL HALL function, the reverb

setting will return to whatever it was before you

turned on the VIRTUAL HALL function.

A pedal can be used to change notes in various ways while

playing.

•A pedal unit does not come with the Digital Keyboard.

Purchase one separately from your retailer. See page EN-1

for information about options.

Connect an optional pedal to the cq SUSTAIN jack.

Using VIRTUAL HALL

Using a Pedal

Connecting a Pedal Unit

CTK2500-ES-1A.indd 12 2016/07/26 16:32:06

English

EN-11

In the Dance Music Mode, you can combine and play multiple type of pattern phrases, and apply effects to songs that are playing,

in order to enjoy dance music.

Pattern phrases of each part can be combined, making it possible to enjoy dance music like a DJ.

Entering the Dance Music Mode (page EN-12) changes the functions of the keyboard keys as shown below.

The keys of the left-half switch keyboard have the functions below.

These keys switch the pattern phrase and turn pattern phrases on or off.

There are four parts: Drum, Bass, Synth 1 and Synth 2, three different pattern phrases can be assigned to each.

While an Effect Switch key is depressed, the corresponding effect (described below) is applied to the entire song.

•The display shows the applicable function name while an effect is being applied.

•An effect is applied as long as its keyboard key is depressed, and stops being applied when the key is released.

•The application manner of MOD LPF and MOD HPF changes with the tempo.

•Effects are applied to overall pattern play, and cannot be applied to individual parts.

Playing in the Dance Music Mode

Dance Music Mode

Switch Keyboard Functions

 Pattern phrase switches

 Effect switches

Keyboard Key Function Effect, Description

FX1 MOD LPF*1Cuts the high-range frequencies of the sound.

FX2 MOD HPF*2Cuts the low-range frequencies of the sound.

FX3 FLANGER Applies an undulating surge effect to the sound.

FX4 LO-FI Reduces the resolution of the sound.

*1 Modulation Low Pass Filter

*2 Modulation High Pass Filter

Melody keyboard

(E above middle C)

Switch keyboard

Drum

PITCH DOWN

PITCH UP

CHANGE

ROLL

FILTER

GATE

ENDING

Drum

Bass

Syn1

Syn2

CFX1 FX2 FX3 FX4

 Auto build up switches

Drum part Bass part

 Pattern phrase switches

Synthesizer1 part Synthesizer2 part  Effect switches

 Track reset switch

CTK2500-ES-1A.indd 13 2016/07/26 16:32:06

Playing in the Dance Music Mode

EN-12

Pressing this key while playback is in progress returns

playback to the beginning of the currently playing phrase.

These keyboard keys can be used to apply build up effects

that are a characteristic of dance music. See “Creating a Build

Up” (page EN-12).

Press bn DANCE MUSIC.

Use the bm (10-key) [–] and [+] keys to select a

pattern.

•For a list of patterns, see the “Dance Music Mode List”

(page A-6).

•Changing the pattern normally causes the tempo and tone

to change to the settings configured for each pattern. If you

do not want these settings to change, see “Dance Music

Tempo Setting” (page EN-4) and “Dance Music Tone

Setting” (page EN-4).

Press a  Pattern phrase switch.

This starts pattern play.

Now you can press other part pattern phrase keys to

increase the parts that are sounding, change to a different

phrase, and configure other combinations.

Pressing a keyboard key that corresponds to a

pattern phrase that is sounding stops the phrase.

•You can also start and stop pattern playback by

pressing 7START/STOP in step 3.

•The on-screen pattern phrase keyboard keys shows the

notes being played.

•Pressing a keyboard key to which an effect is assigned

applies the effect.

After pressing 9TONE, use the bm (10-key) [–] and [+] keys

to select a tone for the right-half melody keyboard.

Hold down 9TONE to select the tone recommended for the

selected pattern.

•Press bn DANCE MUSIC to return to the pattern selection

screen.

You can use the tempo setting operation to change the tempo

of pattern play. See “Changing the Metronome Tempo” (page

EN-9).

The build up functions can be used to create build ups while

pattern play is in progress, to apply effects and build ups that

are characteristic of dance music.

•The auto build up function is executed from the next note

immediately after a keyboard key is pressed.

•Though effects and the build up function can be used at the

same time, the effect currently being executed may stop.

•The display shows the applicable function name while

build up functions are being used.

 Track reset switch

 Auto build up switches

Using the Dance Music Mode

Changing the Melody Keyboard Tone

Changing the Tempo

Creating a Build Up

Function

Name Description Remarks

PITCH Each press of a keyboard key

changes the overall pitch of the song.

Pressing the PITCH DOWN key

lowers the pitch in semitone units,

while PITCH UP raises the pitch in

semitone units.

CHANGE Instantly changes the pattern phrase

of the currently playing song.

ROLL Cuts out part of a song, repeats it,

and applies fine performance effects.

FILTER Applies effects that make notes

darker (by cutting high-range

frequencies) or brighter (by cutting

low-range frequencies).

GATE Applies an effect that finely chops a

song.

ENDING Ends the currently playing song

while applying various effects.

*1 Depending on the part, some pattern phrases are not

changed.

*2 How an effect is applied changes randomly with each

keyboard key press. An effect is applied for a fixed

amount of time during which the on-screen pattern phrase

keyboard flashes.

CTK2500-ES-1A.indd 14 2016/07/26 16:32:06

English

EN-13

See “Using the FUNCTION Button (br)” (page EN-4).

With this Digital Keyboard, built-in music data is referred to

as “songs”. You can play back songs for your listening

pleasure, or for play-along practice.

•In addition to simple listening enjoyment, the built-in

songs can be used with the lesson system (page EN-15) for

practice.

Use the procedure below to play back one of the built-in

songs. You can play along on the keyboard with song

playback.

Press bl SONG BANK.

Use bm (10-key) to enter the number of the song

you want.

•See page A-6 for a complete list of available songs.

Press 7START/STOP.

This starts playback of the song.

Press 7START/STOP again to stop playback.

Song playback will continue (repeat) until you press

7START/STOP to stop it. You can cancel song repeat

by pressing 3REPEAT.

Use the operations in this section to perform pause, skip

forward, and skip back operations.

■Pause

Press 6kPAUSE.

This pauses song playback.

Press 6kPAUSE again to resume playback

from the point where you paused it.

■Skip Forward

Press 5dFF.

This fast forwards playback of the current song.

Releasing 5dFF (Fast Forward) resumes playback

from that location.

Dance Music Mode Settings

Dance Music Volume (DM Vol.) Setting

Dance Music Sync Type (DM Sync) Setting

Dance Music Tempo (DM Tempo) Setting

Dance Music Tone (DM Tone) Setting

Playing Built-in Songs

Playing Back a Particular Song

Start/Stop

Pause, Skip Forward, Skip Back

CTK2500-ES-1A.indd 15 2016/07/26 16:32:06

Playing Built-in Songs

EN-14

■Skip Back

Press 4sREW.

This fast reverses playback of the current song. Releasing

4sREW (Fast Revere) resumes playback from that

location.

Press bs TEMPO.

Use w (slower) and q (faster) to change the tempo

setting. Holding down either button changes the setting

at high speed.

•Pressing w and q at the same time will return the

current song to its original default tempo.

•Pressing a bs TEMPO button causes the tempo

indicator to appear on the display, and the tempo

value to start to flash. While the value is flashing, you

can use the bm (10-key) buttons to change it.

•Changing the song number will return the selected

song to its original default tempo.

See “Using the FUNCTION Button (br)” (page EN-4).

You can use the procedure in this section to repeat particular

measures for practice playing along until you master it. You

can specify the start measure and the end measure of the

section you want to play and practice.

Press 3REPEAT to temporarily turn off song

repeat.

While song playback is in progress, press

3REPEAT at the point where you want to start

the repeat.

This specifies the measure as the start measure.

When playback reaches the measure you want to

select as the end measure, press 3REPEAT

again.

This specifies the measure as the end measure and starts

repeat playback of the measures in the specified range.

•During repeat play you can use 6kPAUSE to pause

playback, 5dFF to skip forward, or 4sREW

to skip back.

Pressing 3REPEAT again returns to normal

playback.

Changing the song number clears the start measure and

end measure of the repeat operation.

The same tone used by the song is assigned to the keyboard

so you can play along with the song on the keyboard.

Hold down 9TONE until the name of the tone

used by the selected song appears on the display.

•If your currently selected tone is the same as the song

tone, the display contents will not change.

Play along with the song playback.

•If you select a song that uses different tones for left and

right hand play, the right hand part tone is assigned to the

keyboard.

You can turn off the right hand part or the left hand part of a

song during playback and practice playing the along with the

remaining part. Use this capability when you feel that a song

is initially too difficult for you to play with both hands at the

same time.

Press 8PART SELECT to select the part you

want to turn off.

Each press of 8PART SELECT cycles through the

settings shown below.

Press 7START/STOP, PLAY/STOP.

This starts playback in accordance with the setting you

selected in step 1.

Changing Playback Speed (Tempo)

Adjusting the Song Volume

Repeating Playback of Specific Measures

Playing with the Same Tone as Song

Playback

Turning Off the Part of One Hand for Practice

(Part Select)

Right hand part off

Left hand part off

Both hand parts off

Both hand parts on

CTK2500-ES-1A.indd 16 2016/07/26 16:32:07

English

EN-15

With this type of lesson, notes appear on the display screen.

Play notes on the keyboard in accordance with the

instructions provided by Voice Fingering Guide. Don't worry

if you play the wrong note. Accompaniment play will wait

until you play the correct note so there is no need to hurry.

Select the song you want to practice (page

EN-13).

Press bo LESSON LITE.

Play notes on the keyboard in accordance with the

instructions provided on the display and by Voice

Fingering Guide.

With this type of lesson, notes appear on the display

screen. Voice Fingering Guide uses a simulate voice to

announce which finger you should use.

To stop the lesson, press bo LESSON LITE (or

7START/STOP, PLAY/STOP).

●If you complete lesson play to the end, a score that rates

your play will appear on the screen.

See “Using the FUNCTION Button (br)” (page EN-4).

You can disable song repeat when you are practicing, if you

want.

Press 3REPEAT.

This disables song repeat.

Using Built-in Songs to

Master Keyboard Play

Lesson Lite

Accompaniment will wait for you to play the correct

note.

•On-screen notation and sound will tell you which

notes to play.

•Voice Fingering Guide will announce which finger

you should use.

Bravo! You pass!

Again! Go back and try again.

Lights

Settings You Can Use During

Lesson Lite

Turning Off Voice Fingering Guide (Speak)

Turning Off Note Guide (NoteGuid)

Turning Off Performance Evaluation

(Scoring)

Disabling Song Repeat

CTK2500-ES-1A.indd 17 2016/07/26 16:32:07

EN-16

With Auto Accompaniment, simply select an accompaniment

pattern. Each time you play a chord with your left hand the

appropriate accompaniment will play automatically. It’s like

having a personal backup group along with you wherever

you go.

•Auto Accompaniments are made up of the following three

parts.

(1) Rhythm

(2) Bass

(3) Harmony

You can have only the rhythm part play, or you can have all

three parts play at the same time.

The rhythm part is the foundation of each Auto

Accompaniment. Your Digital Keyboard comes with a variety

of built-in rhythms, including 8-beat and waltz. Use the

following procedure to play the basic rhythm part.

Press bk RHYTHM.

Use bm (10-key) to select the rhythm number you

want.

•For information about rhythm types, see the “Rhythm

List” (page A-5).

Press 7START/STOP or 4sREW.

This starts the rhythm.

Play along with the rhythm.

To stop the rhythm, press 7START/STOP again.

You can use the tempo setting operation to change the tempo

of pattern play. See “Changing the Tempo” (page EN-12).

Playing a chord with your left hand automatically adds bass

and harmony accompaniment parts to the currently selected

rhythm. It is just like having your own personal back up

group on call.

Start play of the Auto Accompaniment rhythm part.

Press 8ACCOMP.

This enables chord input on the accompaniment

keyboard.

Use the accompaniment keyboard to play chords.

This will cause bass and harmony Auto Accompaniment

parts to be added to the rhythm part.

Play other chords with left hand as you play the

melody with your right hand.

Pressing 8ACCOMP again returns to rhythm

only accompaniment.

Using Auto Accompaniment

Playing the Rhythm Part only

Starting and Stopping the Rhythm Part only

Changing the Tempo

Playing All Parts

Auto Accompaniment with Chords

Accompaniment keyboard

CTK2500-ES-1A.indd 18 2016/07/28 14:47:59

English

EN-17

Using Auto Accompaniment

You can select from among the following five chord input

modes.

•FINGERED 1

•FINGERED 2

•FINGERED 3

•CASIO CHORD

•FULL RANGE CHORD

Hold down 8$CHORDS until the chord input

mode selection screen appears on the display.

Use the bm (10-key) [–] and [+] keys to select the

chord input mode you want.

■FINGERED 1, 2, and 3

With these three input modes, you play chords on the

accompaniment keyboard using their normal chord

fingerings. Some chord forms are abbreviated, and can be

fingered with one or two keys.

See page A-7 for information about chords that are supported

and how they are fingered on the keyboard.

●FINGERED 1

Play the component notes of the chord on the keyboard.

●FINGERED 2

Unlike FINGERED 1, 6th input is not possible.

●FINGERED 3

Unlike FINGERED 1, allows input of fraction chords with the

lowest keyboard note as the bass note.

■CASIO CHORD

With CASIO CHORD, you can use simplified fingerings to

play the four types of chords described below.

•When playing a minor, seventh, or minor seventh chord, it

makes no different whether the additional keys you press

are black or white.

■FULL RANGE CHORD

With this mode, you can use the full range of the keyboard to

play chords and the melody.

See page A-7 for information about chords that are supported.

Selecting a Chord Input Mode

Chord Type

Major Chords

Pressing a single accompaniment area key in the CASIO

CHORD mode will play the major chord whose name is

marked above the key. All of the accompaniment area keys

that are marked with the same chord name play exactly the

same chord.

Example: C (C Major)

Minor Chords

To play a minor chord, press the accompaniment area key

that corresponds to the major chord, while also pressing one

other accompaniment area key to the right.

Example: Cm (C Minor)

Seventh Chords

To play a seventh chord, press the accompaniment area key

that corresponds to the major chord, while also pressing two

other accompaniment area keys to the right.

Example: C7 (C Seventh)

Minor Seventh Chords

To play a minor seventh chord, press the accompaniment

area key that corresponds to the major chord, while also

pressing three other accompaniment area keys to the right.

Example: Cm7 (C Minor Seventh)

CCDE F F



CCDE F



CCDE F F



CCDE F



CCDE F F



CCDE F



CCDE F F



CCDE F



CTK2500-ES-1A.indd 19 2016/07/26 16:32:07

Using Auto Accompaniment

EN-18

Use the following procedures to play intro and ending

patterns, to play fill-in patterns, and to play variations of basic

Auto Accompaniment patterns.

See “Using the FUNCTION Button (br)” (page EN-4).

With One-Touch Preset, the Digital Keyboard automatically

configures optimal tone, tempo, and other settings in

accordance with the rhythm pattern you select.

Hold down bk$ONE TOUCH PRESET until the

current tone screen appears on the display.

This will automatically apply the One-Touch Preset

settings in accordance with the rhythm pattern that is

currently selected.

Play a chord on the keyboard.

This will start accompaniment automatically.

Using Auto Accompaniment

Effectively

Auto Accompaniment Pattern Variations

Auto Accompaniment

Types Procedure

Auto Accompaniment

Variation

Press 5. Pressing 4 returns to

normal pattern.

Auto Accompaniment

Intro

Press 3. If you press 5 while an

intro pattern is being played, the

variation pattern will start when

the intro pattern is finished.

Auto Accompaniment

Fill-in

While a normal pattern is playing,

press 4. Normal pattern play will

resume after the fill in pattern is

complete.

While a variation pattern is

playing, press 5. Variation

pattern play will resume after the

fill in pattern is complete.

Auto Accompaniment

Ending

While an Auto Accompaniment is

playing, press 6. This will play

the ending pattern and then stop

Auto Accompaniment play

automatically.

Using Synchro Start Press 6. Play a chord on the

keyboard. This will start full part

accompaniment (normal). Any of

the following operations can be

performed while in synchro

standby to start a non-normal

pattern.

To start with intro pattern, press

To start with variation pattern

play, press 5.

Adjusting the Accompaniment Volume

3 4 5 6

Using One-Touch Preset

CTK2500-ES-1A.indd 20 2016/07/26 16:32:08

English

EN-19

Your Digital Keyboard can connect with a smartphone, tablet,

or other smart device, which can then use a special app to

playback songs from other than Digital Keyboard memory.

You can play along with song playback on the keyboard.

The APP function has two modes, described below.

■Play Mode

When a song is played by the app, notes and chord names

appear on the Digital Keyboard’s display. You can play along

with a song on the keyboard while viewing information about

which keyboard keys should be pressed on the app screen. In

this mode, sounds played by the app itself will sound through

the Digital Keyboard’s speakers, so sounds will be different

from those of the Digital Keyboard.

■Store Mode

You can transfer a song from the app to the Digital Keyboard

and store it as a user song.

A stored song can be played back as you play along on the

keyboard, or used in a Lesson Lite.

• Do not send APP function data from the app while the APP

function of the Digital Keyboard is not enabled.

• The sound of data transferred from the Digital Keyboard

may be audible under the conditions below.

–When using the APP function while the APP indicator is

not shown on the display

–When app instrument connection is enabled

–When transferring song data in the Save Mode

• Since the Play Mode and Store Mode have their own

characteristics, using the same song in both modes will not

result in the same performance.

Go to the website below to download the app and install it on

your smart device.

http://web.casio.com/app/

You need to perform the steps below to prepare the APP

function for use in either the Play Mode or the Store Mode.

Use a commercially available audio cable to

connect the cr AUDIO IN jack of the Digital

Keyboard to the headphones jack of the smart

device.

• Do not use an audio cable that adds resistance.

Hold down br$APP.

This will cause the APP indicator to appear on the Digital

Keyboard’s display to indicate that the APP function is

enabled.

On the smart device, start up the app.

Prepare the APP function for use (page EN-19).

This enables app instrument connection.

From the song list in the app, select a song and

play it.

The song will sound from the Digital Keyboard’s

speakers.

Chord information will appear on the Digital Keyboard

display.

Play along with the song on the keyboard.

•During song play, the same notes will sound from the left

and right speakers.

Linking with an Application

(APP Function)

APP Function

Downloading the Special App

Preparing the APP Function for

Use

Using the App in the Play Mode

CTK2500-ES-1A.indd 21 2016/07/26 16:32:08

Linking with an Application (APP Function)

EN-20

Prepare the APP function for use (page EN-19).

Use bm (10-key) [–] and [+] keys to select the song

bank number where you want the song transferred

from the app to be stored.

If you do not select a song bank number here, the Digital

Keyboard will select an available storage location

automatically, so you can skip this step if you do not

need to specify a particular song bank number.

•You can select one of the user song bank numbers to store a

transferred song.

•The volume/tempo area of the Digital Keyboard’s display

shows how much user song memory has been used, while

the measure area shows how much free memory is

available.

From the song list in the app, select a song and

transfer it.

After data transfer and storage are complete, the APP

indicator will disappear from the display and the song

bank screen will appear.

•If the song bank number already contains data, the message

“Replace?” will appear asking if you want to overwrite the

existing data with the new data. Press the [+] (Yes) button

to overwrite the existing data or the [–] (No) button if you

do not want to overwrite.

•Normally, up to 30 songs transferred from a smart device

can be stored in the song bank user song area.

•Storing songs that consist of large volumes of data may

cause memory to become full before 30 songs are stored.

•The time it takes transfer a song depends on the size of the

song. Transfer of most songs should take anywhere from

around 10 to 30 seconds.

•Changes in app specifications may result in changes in the

app’s operational procedures. For details about the

operation, see the app user documentation.

Press bl SONG BANK and then use bm (10-key)

[–] and [+] keys to select a song.

Press 7PLAY/STOP. This starts the song.

Press bl SONG BANK and then use bm (10-key)

[–] and [+] keys to select the song you want to

delete.

•The volume/tempo area of the Digital Keyboard’s

display shows how much user song memory has been

used, while the measure area shows how much free

memory is available.

Hold down bl SONG BANK. This displays

“DELETE?” on the display.

To delete the data, press the [Yes] (+) button.

A song delete operation cannot be undone. If you do not

want to delete the song, select [No] (–).

Using the App in the Store Mode Playing Saved Data (Songs)

Deleting Saved Data (Songs)

CTK2500-ES-1A.indd 22 2016/07/28 14:48:27

English

EN-21

This section explains the meanings of the error messages that

appear on the display if the data transfer operation fails or if

some other problem occurs. To clear an error message,

pressing any button other than the power button. Note that

the “EnterApp” message will disappear automatically after a

few seconds if you do not perform any operation. If “ReCV

Err” appears on the display when you use the Play Mode, the

error message will disappear and normal operation will

resume after a connection is established correctly.

This Digital Keyboard can be connected to commercially

available stereo, amplifier, or recording equipment, to a

portable audio player or other equipment.

Connect a commercially available connection cord to the

ct PHONES/OUTPUT jack.

•The connecting cord should have a stereo standard plug on

one end and a plug that matches the configuration of the

input jack of the external device on the other end.

•Turn off the external device when making connections.

After connecting, turn down the Digital Keyboard and

external device volume levels whenever turning power on

or off.

• After connecting, turn on the Digital Keyboard and then the

external device.

• If Digital Keyboard notes sound distorted when they are

sounded from external audio equipment, lower the Digital

Keyboard’s volume setting.

Connect a commercially available connection cord to the

cr AUDIO IN jack.

•The connecting cord should have a stereo mini plug on one

end and a plug that matches the configuration of the output

jack of external device on the other end.

•Notes from an external device may not sound normally if

the Digital Keyboard’s APP function is enabled.

•Turn off the Digital Keyboard when making connections.

After connecting, turn down the Digital Keyboard and

external device volume levels whenever turning power on

or off.

• After connecting, turn on the external device and then the

Digital Keyboard.

• If notes are distorted when they are sounded on the

external device, lower the volume setting of the external

device.

Error Messages

Display Cause Action

ReCV Err 1. Disconnected

audio cable.

1. Correctly connect the

audio cable and then

try again.

2. App closed while it

was playing data.

2. Start up the app and

try again.

App Vol+ App volume is too

low.

Raise the volume of the

app.

App Vol– App volume is too

high.

Lower the volume of

the app.

Mem Full Not enough memory

capacity for song data

to be transferred in

the Save Mode.

Delete user songs you

no longer need in order

to free up memory

space.

Data Err Digital Keyboard was

unable to correctly

receive data sent

from the app.

Try again.

EnterApp Data received from

an app while the APP

function is not

enabled.

Enable the APP

function and try again.

Save Err Data save failed. Try saving to a different

area.

Del Err Data delete failed. Try again.

Connecting External Devices

Connecting to Audio Equipment

Outputting Digital Keyboard Notes to Audio

Equipment

Playing an External Device from the Digital

Keyboard

CTK2500-ES-1A.indd 23 2016/07/26 16:32:08

EN-22

Reference

Troubleshooting

Symptom Action

Included Accessories

I can’t find something that should be here. Carefully check inside all of the packing materials.

Power Requirements

Power will not turned on. •Check the AC adaptor or make sure that the batteries are facing

correctly (page EN-7).

•Replace the batteries with new ones or switch over to AC adaptor

power (page EN-7).

The Digital Keyboard outputs a loud sound and then

suddenly powers down.

Replace the batteries with new ones or switch over to AC adaptor

power (page EN-7).

The Digital Keyboard suddenly powers down after

30 minutes.

This happens when Auto Power Off (page EN-4) is triggered.

Display

The display keeps going out or are flashing. Replace the batteries with new ones or switch over to AC adaptor

power (page EN-7).

On-screen keyboard keys or notes remain on the

display.

A Lesson Lite is in progress and the Digital Keyboard is waiting for

you to play the next note in the song. To stop this from happening,

cancel the lesson (page EN-15).

Screen contents are visible only from straight ahead. This is dues to production limitations. It does not indicate

malfunction.

While the APP function is being used, on-screen

notation and chord information sometimes go blank.

This happens when invalid data is received. It does not indicate

malfunction. Check to make sure that the app is connected correctly.

Sound

Nothing happens when I press any keyboard key. •Adjust the main volume setting (page EN-8).

•Check if something is plugged into the PHONES/OUTPUT jack

(ct) on the back of the Digital Keyboard.

•Turn power off and then back on to initialize all Digital Keyboard

settings (page EN-8).

Nothing happens or notes do not play normally

when I play notes on the left side of the keyboard.

Press 8ACCOMP to disable chord input in the accompaniment

keyboard area (page EN-16).

Nothing happens when I start an Auto

Accompaniment.

•With rhythms 096 to 100, nothing will sound until you play a chord

on the keyboard. Try playing a chord (page EN-17).

•Check and adjust the accompaniment volume setting (page EN-18).

•Turn power off and then back on to initialize all Digital Keyboard

settings (page EN-8).

Nothing happens when I start playback of a built-in

song.

•It takes a little time after you press the button until the song starts

to play. Wait for a moment for the song to start.

•Check and adjust the song volume (page EN-14).

•Turn power off and then back on to initialize all Digital Keyboard

settings (page EN-8).

The metronome does not sound. •Check and adjust the accompaniment volume setting (page EN-4).

•Check and adjust the song volume (page EN-4).

•Check the dance music song volume level (page EN-4) and adjust it

as required.

•Turn power off and then back on to initialize all Digital Keyboard

settings (page EN-8).

Notes keep sounding, without stopping. •Turn power off and then back on to initialize all Digital Keyboard

settings (page EN-8).

•Replace the batteries with new ones or switch over to AC adaptor

power (page EN-7).

CTK2500-ES-1A.indd 24 2016/07/26 16:32:08

English

EN-23

Reference

Perform the following procedure when you want to return the Digital Keyboard’s stored data and settings to their initial factory

defaults.

Turn off the Digital Keyboard.

While holding down bl SONG BANK and the [0] 10-key (bm) key at the same time, press 1P (Power).

•You will be able to use the Digital Keyboard in a short while after its system is initialized.

Some notes are cut off while they are playing. Notes are cut off whenever the number of notes being sounded

exceeds the maximum polyphony value of 48 (24 for some tones).

This does not indicate malfunction.

The volume or tone setting I made has changed. •Adjust the main volume setting (page EN-8).

•Turn power off and then back on to initialize all Digital Keyboard

settings (page EN-8).

•Replace the batteries with new ones or switch over to AC adaptor

power (page EN-7).

In certain keyboard ranges, the volume and tone

quality sound are slightly different from those in

other keyboard ranges.

This is due to system limitations. It does not indicate malfunction.

With some tones, octaves do not change at the far

ends of the keyboard.

This is due to system limitations. It does not indicate malfunction.

The pitch of the notes does not match other

accompanying instruments or sounds strange when

played long with other instruments.

•Check and adjust the transpose (page EN-4) and tuning settings

(page EN-4).

•Turn power off and then back on to initialize all Digital Keyboard

settings (page EN-8).

The reverb of notes seems to change suddenly. •Check and adjust the reverb setting (page EN-4).

•Turn power off and then back on to initialize all Digital Keyboard

settings (page EN-8).

Operation

When I perform a skip forward or skip back

operation, the skip operation moves multiple song

measures instead of only a single measure.

While song playback is stopped or a Lesson Lite is in progress, skip

forward and skip back operations are performed in song units (page

EN-13).

APP function data transfer failed. Look up the meaning of the error message (page EN-21) and take the

appropriate corrective steps.

Returning the Digital Keyboard to Its Factory Default Settings

Symptom Action

CTK2500-ES-1A.indd 25 2016/07/26 16:32:08

EN-24

Reference

•Design and specifications are subject to change without notice.

Specifications

Model CTK-2500/CTK-2550

Keyboard 61 keys

Maximum Polyphony 48 notes

Tones

Preset Tones 400; 1 stereo piano tone

Effects Reverb (10 types, Off), Dance Music effects, Virtual Hall

Metronome

Beat Off, 1 to 9 beats

Tempo 20 to 255

Song Bank

Preset Songs 60

User Songs Up to 30/Total Memory Capacity: Approximately 32 kilobytes (1 kilobyte = 1,024 bytes)

Lesson Lite

Lesson Parts Left hand, right hand, both hands

Other Repeat, Voice Fingering Guide, Note Guide, Performance Evaluation

Auto Accompaniment

Preset Rhythms 100 types

One Touch Presets 100 types

Dance Music Mode

Preset Patterns 50 types

Demo Function Looped play of the dance music demo (1 song) and built-in Song Bank (60 songs)

Other Functions

Transpose ±1 octave (–12 to 0 to +12 semitones)

Tuning A4 = 415.5 to 465.9Hz (Initial Default: 440.0Hz)

Musical Information System Tone, Auto Accompaniment, Song Bank numbers and names; staff notation; fingering guide;

pedal; tempo; measure number, beat; chord name, etc.

APP Function

Supported Devices iOS, Android (connected via the audio input terminal)

Jacks

Sustain jack Standard jack (sustain, sostenuto, soft, rhythm)

PHONES/OUTPUT jack Stereo standard jack × 1

Output impedance: 140 Ω; Output voltage: 4.5 V (RMS) MAX

AUDIO IN jack Stereo mini jack

Input impedance: 9 kΩ; Input sensitivity: 200 mV

AC adaptor terminal 9.5 V DC

Power Requirements 2-Way Power

Batteries Six AA-size manganese batteries or AA-size alkaline batteries

Battery Life Approximately 12 hours (on alkaline batteries)

AC Adaptor AD-E95100L

Auto Power Off Approximately 30 minutes after last operation; Can be disabled.

Speakers 10cm × 2 (Output: 2.0W+2.0W)

Power Consumption 9.5V = 5.5W

Dimensions 94.6 (W) × 30.7 (D) × 9.2 (H) cm (37 1/4 × 12 1/8 × 3 5/8 inch)

Weight (Excluding batteries) Approximately 3.3 kg (7.3 lbs)

CTK2500-ES-1A.indd 26 2016/07/26 16:32:09

English

EN-25

Reference

Be sure to read and observe the following operating precautions.

■Location

Avoid the following locations for this product.

•Areas exposed to direct sunlight and high humidity

•Areas subjected to temperature extremes

•Near a radio, TV, video deck, or tuner

The above devices will not cause malfunction of the product, but interference from the product can cause audio or video

interference of a nearby device.

■User Maintenance

•Never use benzine, alcohol, thinner, or other chemical agents to clean the product.

•To clean the product or its keyboard, wipe with a soft cloth moistened in a weak solution of water and a mild neutral detergent.

Wring all excess moisture from the cloth before wiping.

■Included and Optional Accessories

Use only accessories that are specified for use with this product. Use of unauthorized accessories creates the risk of fire, electric

shock, and personal injury.

■Weld Lines

Lines may be visible on the exterior of the product. These are “weld lines” that result from the plastic molding process. They are

not cracks or scratches.

■Musical Instrument Etiquette

Always be aware of others around you whenever using this product. Be especially careful when playing late at night to keep the

volume at levels that do not disturb others. Other steps you can take when playing late at night are closing the window and using

headphones.

Operating Precautions

CTK2500-ES-1A.indd 27 2016/07/26 16:32:09

A-1

Appendix/Apéndice

Tone List/Lista de tonos

No./

Nº

Tone Name/

Nombre del tono

Program

Change/

Cambio de

programa

Bank

Select

MSB/

MSB de

selección

de banco

PIANO

001 STEREO GRAND PIANO 0 2

002 GRAND PIANO 01

003 BRIGHT PIANO 1 2

004 MODERN PIANO 13

005 DANCE PIANO 1 1

006 MELLOW PIANO 03

007 STRINGS PIANO 0 8

008 HONKY-TONK 32

009 OCTAVE PIANO 3 9

010 BASS/PIANO 09

011 ELEC.GRAND PIANO 2 2

012 MODERN E.G.PIANO 23

013 HARPSICHORD 6 2

014 HARPSICHORD & STRINGS 6 1

ELECTRIC PIANO

015 ELEC.PIANO 42

016 FM E.PIANO 5 5

017 60’S E.PIANO 45

018 CHORUS E.PIANO 1 4 9

019 CHORUS E.PIANO 2 4 6

020 MODERN E.PIANO 5 2

021 SOFT E.PIANO 48

022 SYNTH-STR.E.PIANO 4 3

023 CLEAN E.PIANO 44

024 CLAVI 1 7 2

025 CLAVI 2 7 3

026 SOFT CLAVI 7 1

027 DETUNE CLAVI 7 8

028 SEQUENCE CLAVI 7 9

CHROMATIC PERC.

029 VIBRAPHONE 1 11 2

030 VIBRAPHONE 2 11 1

031 SOFT VIBRAPHONE 1 11 3

032 SOFT VIBRAPHONE 2 11 4

033 MARIMBA 12 2

034 SOFT MARIMBA 12 1

035 CELESTA 1 8 2

036 CELESTA 2 8 1

037 GLOCKENSPIEL 9 2

038 MUSIC BOX 1 10 2

039 MUSIC BOX 2 10 1

040 XYLOPHONE 13 2

041 TUBULAR BELL 14 2

042 DULCIMER 15 2

ORGAN

043 DRAWBAR ORGAN 1 16 2

044 DRAWBAR ORGAN 2 16 1

045 PERC.ORGAN 1 17 2

046 PERC.ORGAN 2 17 3

047 ELEC.ORGAN 1 16 8

048 ELEC.ORGAN 2 16 4

049 JAZZ ORGAN 1 17 4

050 JAZZ ORGAN 2 17 6

051 ROCK ORGAN 1 18 2

052 ROCK ORGAN 2 18 1

053 FULL DRAWBAR 16 9

054 CLICK ORGAN18 7

055 8’ORGAN17 5

056 CHURCH ORGAN 1 19 2

057 CHURCH ORGAN 2 19 3

058 CHAPEL ORGAN19 8

059 THEATER ORGAN19 6

060 REED ORGAN20 2

061 ACCORDION21 2

062 BANDONEON23 2

063 HARMONICA 1 22 2

064 HARMONICA 2 22 8

GUITAR

065 NYLON STR.GUITAR 24 2

066 STEEL STR.GUITAR 25 2

067 12 STR.GUITAR 25 8

068 CHORUS STEEL GT 25 9

069 JAZZ GUITAR 26 2

070 OCT.JAZZ GUITAR 26 8

071 CLEAN GUITAR 1 27 2

072 CLEAN GUITAR 2 27 1

073 MUTE GUITAR 28 2

074 OVERDRIVE GUITAR 29 2

075 DISTORTION GUITAR 30 2

076 POWER DIST.GUITAR 30 5

077 FEEDBACK GUITAR 31 8

078 DIST.GUITAR & BASS 30 6

BASS

079 ACOUSTIC BASS 32 2

080 FINGERED BASS 33 2

081 PICKED BASS 34 2

082 FRETLESS BASS 35 2

083 SLAP BASS 37 2

084 SAW SYNTH-BASS 38 2

085 SQUARE SYNTH-BASS 39 2

086 DIGI ROCK BASS 39 1

087 TRANCE BASS 38 4

088 SINE BASS 39 6

STR/ORCHESTRA

089 VIOLIN40 2

090 SLOW VIOLIN40 8

091 VIOLA 41 2

092 CELLO 42 2

093 SLOW CELLO 42 1

094 CONTRABASS 43 2

095 VIOLIN & CELLO 40 3

096 CELLO SECTION42 4

097 PIZZICATO STRINGS 45 2

098 HARP 1 46 2

099 HARP 2 46 1

100 CHORUS HARP 46 8

ENSEMBLE

101 STRINGS 48 2

102 SLOW STRINGS 49 2

103 WIDE STRINGS 48 16

104 CHAMBER 48 3

105 OCTAVE STRINGS 48 32

106 STRINGS SFZ 48 8

107 TREMOLO STRINGS 49 1

108 FLUTE & STRINGS 49 3

109 CHOIR STRINGS 52 3

110 SYNTH-STRINGS 1 50 2

111 SYNTH-STRINGS 2 51 2

112 SYNTH-STRINGS 3 51 3

113 FAST SYNTH-STRINGS 50 3

114 CHOIR AAHS 52 2

115 VOICE DOO 53 2

116 SYNTH-VOICE 54 2

117 SYNTH-VOICE PAD 54 8

118 CHORUS SYNTH-VOICE 54 9

119 ORCHESTRA HIT 1 55 2

120 ORCHESTRA HIT 2 55 1

BRASS

121 TRUMPET 56 2

122 MELLOW TRUMPET 56 8

123 TRUMPET SFZ 56 1

124 TROMBONE 57 2

125 TUBA 58 2

126 MUTE TRUMPET 59 2

127 FRENCH HORN60 2

No./

Nº

Tone Name/

Nombre del tono

Program

Change/

Cambio de

programa

Bank

Select

MSB/

MSB de

selección

de banco

CTK2500-ES-1A.indd 54 2016/07/26 16:32:15

A-2

Appendix/Apéndice

128 FRENCH HORN SECTION60 1

129 BRASS 61 2

130 BRASS SECTION 1 61 3

131 BRASS SECTION 2 61 6

132 BRASS SECTION 3 61 7

133 MELLOW BRASS 61 1

134 HARD BRASS 61 5

135 BRASS SFZ 61 8

136 BRASS & STRINGS 61 4

137 SYNTH-BRASS 1 62 2

138 SYNTH-BRASS 2 63 2

139 ANALOG SYNTH-BRASS 1 62 8

140 ANALOG SYNTH-BRASS 2 62 9

REED/PIPE

141 ALTO SAX 1 65 1

142 ALTO SAX 2 65 2

143 HARD A.SAX 65 3

144 BREATHY A.SAX 65 8

145 TENOR SAX 66 1

146 SOPRANO SAX 1 64 2

147 SOPRANO SAX 2 64 1

148 BARITONE SAX 1 67 2

149 BARITONE SAX 2 67 1

150 SAX SECTION65 9

151 CLARINET 71 2

152 OBOE 68 2

153 SOLO OBOE 68 4

154 BASSOON70 5

155 FLUTE 1 73 2

156 FLUTE 2 73 1

157 PURE FLUTE 73 8

158 PICCOLO 72 2

159 RECORDER 74 2

160 PAN FLUTE 75 2

161 BOTTLE BLOW 1 76 2

162 BOTTLE BLOW 2 76 1

163 WHISTLE 78 2

164 OCARINA79 2

165 FLUTE & OBOE 73 3

SYNTH-LEAD

166 SQUARE LEAD 1 80 2

167 SQUARE LEAD 2 80 3

168 SQUARE LEAD 3 80 1

169 SAW LEAD 1 81 2

170 SAW LEAD 2 81 1

171 SAW LEAD 3 81 5

172 MELLOW SAW LEAD 81 8

173 SQUARE PULSE LEAD 80 5

174 SEQUENCE SAW81 9

175 SEQUENCE SINE80 9

176 SINE LEAD 80 8

177 SS LEAD 81 3

178 SEQUENCE SQUARE 80 7

179 SEQUENCE PULSE 80 16

180 SLOW SAW LEAD 81 4

181 CALLIOPE 82 2

182 VENT LEAD 82 5

183 VENT SYNTH 82 1

184 CHIFF LEAD 83 2

185 SEQUENCE LEAD 1 83 5

186 SEQUENCE LEAD 2 83 3

187 VOICE LEAD 85 2

188 DISTORTION LEAD 84 8

189 CHARANG84 2

190 CHURCH LEAD 85 4

191 SYNTH-VOICE LEAD 85 7

192 FIFTH LEAD 86 4

193 FIFTH SAW LEAD 86 2

194 FIFTH SQUARE LEAD 86 3

195 FIFTH SEQUENCE 86 1

196 BASS+LEAD 87 2

No./

Nº

Tone Name/

Nombre del tono

Program

Change/

Cambio de

programa

Bank

Select

MSB/

MSB de

selección

de banco

197 DANCE SQUARE LEAD 80 48

198 DANCE SYNC SQUARE LEAD 80 49

199 DANCE SAW LEAD 81 48

200 DANCE SYNC SAW LEAD 81 49

201 DANCE POLY SAW LEAD 81 50

202 DANCE SAW BASS 87 48

SYNTH-PAD

203 FANTASY 1 88 2

204 FANTASY 2 88 3

205 WARM VOX 89 8

206 WARM PAD 89 2

207 SINE PAD 89 3

208 SOFT PAD 89 4

209 OLD TAPE PAD 89 6

210 POLYSYNTH 1 90 2

211 POLYSYNTH 2 90 1

212 POLY SAW90 8

213 SPACE CHOIR 91 1

214 HEAVEN91 2

215 SQUARE PAD 92 1

216 BOWED PAD 92 2

217 GLASS PAD 92 3

218 ETHNIC PAD 93 2

219 HARD METAL PAD 93 4

220 CHORUS PAD 94 1

221 HALO PAD 94 2

222 SWEEP PAD 95 2

223 RAIN DROP 96 2

224 SPACE VOICE 97 1

225 SOUND TRACK 1 97 2

226 SOUND TRACK 2 97 3

227 RAVE 97 8

228 CRYSTAL 98 2

229 CHORAL BELL 98 16

230 CELESTA PAD 99 1

231 ATMOSPHERE 99 2

232 BRIGHT BELL PAD 100 1

233 BRIGHTNESS 100 2

234 GOBLIN101 2

235 ECHO PAD 102 2

236 ECHO DROP 102 3

237 POLY DROP 102 4

238 STAR THEME 103 2

239 SPACE PAD 103 8

240 DANCE SAW PAD 90 48

241 DANCE SQUARE PAD 1 90 49

242 DANCE SQUARE PAD 2 90 50

INDIAN

243 SITAR 1 104 2

244 SITAR 2 104 3

245 TANPURA 1 104 32

246 TANPURA 2 104 33

247 HARMONIUM 1 20 32

248 HARMONIUM 2 20 33

249 SHANAI 1 111 2

250 SHANAI 2 111 3

251 SANTUR 1 15 3

252 SANTUR 2 15 4

253 TABLA 116 16

ETHNIC

254 YANG QIN 1 15 8

255 YANG QIN 2 15 9

256 DI ZI 72 16

257 ZHENG 107 1

258 SHENG109 8

259 SUO NA 111 32

260 XIAO 77 32

261 PI PA 105 32

262 BANJO 105 2

263 THUMB PIANO 108 2

264 STEEL DRUMS 114 2

No./

Nº

Tone Name/

Nombre del tono

Program

Change/

Cambio de

programa

Bank

Select

MSB/

MSB de

selección

de banco

CTK2500-ES-1A.indd 55 2016/07/26 16:32:16

Appendix/Apéndice

A-3

265 RABAB 105 8

266 KOTO 107 2

GM TONES

267 GM PIANO 1 0 0

268 GM PIANO 2 1 0

269 GM PIANO 3 2 0

270 GM HONKY-TONK 30

271 GM E.PIANO 1 4 0

272 GM E.PIANO 2 5 0

273 GM HARPSICHORD 6 0

274 GM CLAVI 7 0

275 GM CELESTA 8 0

276 GM GLOCKENSPIEL 9 0

277 GM MUSIC BOX 10 0

278 GM VIBRAPHONE 11 0

279 GM MARIMBA 12 0

280 GM XYLOPHONE 13 0

281 GM TUBULAR BELL 14 0

282 GM DULCIMER 15 0

283 GM ORGAN 1 16 0

284 GM ORGAN 2 17 0

285 GM ORGAN 3 18 0

286 GM PIPE ORGAN19 0

287 GM REED ORGAN20 0

288 GM ACCORDION21 0

289 GM HARMONICA 22 0

290 GM BANDONEON23 0

291 GM NYLON STR.GUITAR 24 0

292 GM STEEL STR.GUITAR 25 0

293 GM JAZZ GUITAR 26 0

294 GM CLEAN GUITAR 27 0

295 GM MUTE GUITAR 28 0

296 GM OVERDRIVE GUITAR 29 0

297 GM DISTORTION GUITAR 30 0

298 GM GUITAR HARMONICS 31 0

299 GM ACOUSTIC BASS 32 0

300 GM FINGERED BASS 33 0

301 GM PICKED BASS 34 0

302 GM FRETLESS BASS 35 0

303 GM SLAP BASS 1 36 0

304 GM SLAP BASS 2 37 0

305 GM SYNTH-BASS 1 38 0

306 GM SYNTH-BASS 2 39 0

307 GM VIOLIN40 0

308 GM VIOLA 41 0

309 GM CELLO 42 0

310 GM CONTRABASS 43 0

311 GM TREMOLO STRINGS 44 0

312 GM PIZZICATO 45 0

313 GM HARP 46 0

314 GM TIMPANI 47 0

315 GM STRINGS 1 48 0

316 GM STRINGS 2 49 0

317 GM SYNTH-STRINGS 1 50 0

318 GM SYNTH-STRINGS 2 51 0

319 GM CHOIR AAHS 52 0

320 GM VOICE DOO 53 0

321 GM SYNTH-VOICE 54 0

322 GM ORCHESTRA HIT 55 0

323 GM TRUMPET 56 0

324 GM TROMBONE 57 0

325 GM TUBA 58 0

326 GM MUTE TRUMPET 59 0

327 GM FRENCH HORN60 0

328 GM BRASS 61 0

329 GM SYNTH-BRASS 1 62 0

330 GM SYNTH-BRASS 2 63 0

331 GM SOPRANO SAX 64 0

332 GM ALTO SAX 65 0

333 GM TENOR SAX 66 0

334 GM BARITONE SAX 67 0

No./

Nº

Tone Name/

Nombre del tono

Program

Change/

Cambio de

programa

Bank

Select

MSB/

MSB de

selección

de banco

335 GM OBOE 68 0

336 GM ENGLISH HORN69 0

337 GM BASSOON70 0

338 GM CLARINET 71 0

339 GM PICCOLO 72 0

340 GM FLUTE 73 0

341 GM RECORDER 74 0

342 GM PAN FLUTE 75 0

343 GM BOTTLE BLOW76 0

344 GM SHAKUHACHI 77 0

345 GM WHISTLE 78 0

346 GM OCARINA 79 0

347 GM SQUARE LEAD 80 0

348 GM SAW LEAD 81 0

349 GM CALLIOPE 82 0

350 GM CHIFF LEAD 83 0

351 GM CHARANG84 0

352 GM VOICE LEAD 85 0

353 GM FIFTH LEAD 86 0

354 GM BASS+LEAD 87 0

355 GM FANTASY 88 0

356 GM WARM PAD 89 0

357 GM POLYSYNTH 90 0

358 GM SPACE CHOIR 91 0

359 GM BOWED GLASS 92 0

360 GM METAL PAD 93 0

361 GM HALO PAD 94 0

362 GM SWEEP PAD 95 0

363 GM RAIN DROP 96 0

364 GM SOUND TRACK 97 0

365 GM CRYSTAL 98 0

366 GM ATMOSPHERE 99 0

367 GM BRIGHTNESS 100 0

368 GM GOBLINS 101 0

369 GM ECHOES 102 0

370 GM SF 103 0

371 GM SITAR 104 0

372 GM BANJO 105 0

373 GM SHAMISEN106 0

374 GM KOTO 107 0

375 GM THUMB PIANO108 0

376 GM BAGPIPE 109 0

377 GM FIDDLE 110 0

378 GM SHANAI 111 0

379 GM TINKLE BELL 112 0

380 GM AGOGO 113 0

381 GM STEEL DRUMS 114 0

382 GM WOOD BLOCK 115 0

383 GM TAIKO 116 0

384 GM MELODIC TOM 117 0

385 GM SYNTH-DRUM 118 0

386 GM REVERSE CYMBAL 119 0

387 GM GUITAR FRET NOISE 120 0

388 GM BREATH NOISE 121 0

389 GM SEASHORE 122 0

390 GM BIRD 123 0

391 GM TELEPHONE124 0

392 GM HELICOPTER 125 0

393 GM APPLAUSE 126 0

394 GM GUNSHOT 127 0

DRUM SET

395 STANDARD SET 1 0 120

396 STANDARD SET 2 1120

397 DANCE SET 29 120

398 BRUSH SET 40 120

399 ORCHESTRA SET 48 120

400 INDIAN SET 49 120

No./

Nº

Tone Name/

Nombre del tono

Program

Change/

Cambio de

programa

Bank

Select

MSB/

MSB de

selección

de banco

CTK2500-ES-1A.indd 56 2016/07/26 16:32:17

A-4

Appendix/Apéndice

•“” indicates a key is assigned the same tones as it is for STANDARD SET 1.

•“” indica una clave asignada a los mismos tonos que para STANDARD SET 1.

Drum Assignment List/Lista de asignación de batería

STANDARD SET 1 STANDARD SET 2

C-1

D-1

E-1

F-1

G-1

A-1

B-1

C-1

E-1

F-1

A-1

B-1

C0

E0

F0

A0

B0

C1

E1

F1

A1

B1

C2

E2

F2

A2

B2

C3

E3

F3

A3

B3

C4

E4

F4

A4

B4

C5

E5

F5

A5

B5

C6

E6

F6

A6

B6

C7

E7

F7

A7

B7

C8

E8

F8

A8

B8

C9

E9

F9

BRUSH SETDANCE SET

DRUMS SET NAME

ORCHESTRA SET INDIAN SET

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

Xiao Luo

Bang Gu

Applause

Metronome Click

Metronome Bell

Standard Kick 2

Standard Kick 1

Side Stick

Standard Snare 1

Standard Hand Clap

Standard Snare 2

Low Tom 2

Closed Hi-Hat

Low Tom 1

Pedal Hi-Hat

Mid Tom 2

Open Hi-Hat

Mid Tom 1

High Tom 2

Crash Cymbal 1

High Tom 1

Ride Cymbal 1

Chinese Cymbal

Ride Bell

Tambourine

Splash Cymbal

Cowbell

Crash Cymbal 2

Vibraslap

Ride Cymbal 2

High Bongo

Low Bongo

Mute High Conga

Open High Conga

Open Low Conga

High Timbale

Low Timbale

High Agogo

Low Agogo

Cabasa

Maracas

Short High Whistle

Long Low Whistle

Short Guiro

Long Guiro

Claves

High Wood Block

Low Wood Block

Mute Cuica

Open Cuica

Mute Triangle

Open Triangle

Shaker

Cheer Short

Cheer

Cheer Long

Cheer Fade Out

Explotion 1

Explotion 2

“One”

“Two”

“Three”

“Four”

“Five”



Room Kick 2

Room Kick 1



Room Snare 1



Room Snare 2



Power Kick 2

Power Kick 1

Power Snare 1

Power Hand Clap

Power Snare 2



Synth Kick 2

Synth Kick 1



Synth Snare 1

Synth Hand Clap

Synth Snare 2

Synth Low Tom 2



Synth Low Tom 1



Synth Mid Tom 2



Synth Mid Tom 1

Synth High Tom 2



Synth High Tom 1



Dance Kick 1

Dance Kick 2

Dance Q

Dance Snare 1

Dance Clap

Dance Snare 2

HipHop Close Hat

Noise Rise

HipHop Open Hat



Brush Kick 2

Brush Kick 1



Brush Snare 1

Brush Slap

Brush Snare 2

Brush Low Tom 2



Brush Low Tom 1



Brush Mid Tom 2



Brush Mid Tom 1

Brush High Tom 2



Brush High Tom 1



Closed Hi-Hat

Pedal Hi-Hat

Open Hi-Hat

Ride Cymbal



Timpani F

Timpani F#

Timpani G

Timpani G#

Timpani A

Timpani A#

Timpani B

Timpani C+

Timpani C#+

Timpani D+

Timpani D#+

Timpani E+

Timpani F+



Tabla Ge

Tabla Ka

Tabla Te

Tabla Na

Tabla Tun



Key/

Clave

Note No./

Nº de nota

CTK2500-ES-1A.indd 57 2016/07/26 16:32:17

Appendix/Apéndice

A-5

Rhythm List/Lista de ritmos

No./Nº Rhythm name/

Nombre del ritmo

8 BEAT

001 STRAIGHT 8 BEAT

002 8 BEAT POP

003 8 BEAT

16 BEAT

004 16 BEAT

005 16 BEAT SHUFFLE 1

006 16 BEAT SHUFFLE 2

BALLAD

007 MODERN BALLAD

008 16 BEAT BALLAD

009 POP BALLAD

010 6/8 BALLAD

DANCE

011 EDM 1

012 EDM 2

013 DISCO POP

014 MODERN R&B

015 DISCO SOUL

POPS

016 POP

017 POP ROCK

018 FAST SOUL

019 SLOW SOUL

020 60’s SOUL

ROCK

021 STRAIGHT ROCK

022 SHUFFLE ROCK

023 LATIN ROCK

024 SLOW ROCK

025 NEW ORLNS R&R

026 ROCK WALTZ

JAZZ

027 SLOW BIG BAND

028 MIDDLE BIG BAND

029 FAST BIG BAND

030 SWING

031 SLOW SWING

032 JAZZ WALTZ

033 FOX TROT

EUROPEAN

034 POLKA

035 WALTZ 1

036 SLOW WALTZ

037 VIENNESE WALTZ

038 FRENCH WALTZ

039 TANGO

040 MARCH 1

041 MARCH 2

LATIN

042 BOSSA NOVA

043 SAMBA

044 MAMBO

045 RHUMBA

046 CHA-CHA-CHA

047 MERENGUE

048 BOLERO

049 SALSA

050 REGGAE

051 POP REGGAE

052 SKA

053 CUMBIA

INDIAN

054 BHANGRA

055 DADRA

056 GARBA

057 KEHARWA

058 TEEN TAAL

059 DANDIYA

060 BHAJAN

061 INDIAN POP 1

062 INDIAN POP 2

063 QAWWALI

064 KERALA

065 RAJASTHANI

WORLD

AMERICAN

066 COUNTRY BALLAD

067 BLUEGRASS

068 DIXIE

069 TEX-MEX

070 FAST GOSPEL

071 HAWAIIAN

SPANISH/EASTERN EUROPEAN

072 FOLKLORE

073 RUSSIAN CHANSON

ARABIC/ORIENTAL

074 SIRTAKI

075 MUS

076 ADANI

077 KHALIJI

078 MALFOUF

CHINESE

079 JIANGNAN

080 DONGBEIYANGGE

081 JINGJU

082 HUANGMEIXI

083 MIAOZU

084 XINJIANG

SOUTHEAST ASIAN

085 KRONCONG

086 DANGDUT

JAPANESE

087 ENKA

VARIOUS

088 CHRISTMAS SONG

089 CHRISTMAS WALTZ

090 STR QUARTET

PIANO RHYTHMS

091 PIANO 8 BEAT

092 PIANO BALLAD

093 EP BALLAD

094 JAZZ COMBO

095 RAGTIME

096 PIANO ROCK & ROLL

097 ARPEGGIO

098 PIANO MARCH

099 STRIDE PIANO

100 WALTZ 2

No./Nº Rhythm name/

Nombre del ritmo

CTK2500-ES-1A.indd 58 2016/07/26 16:32:18

A-6

Appendix/Apéndice

Song List/Lista de canciones

No./Nº Title/Título

WORLD

01 TWINKLE TWINKLE LITTLE STAR

02 ON TOP OF OLD SMOKEY

03 WHEN THE SAINTS GO MARCHING IN

04 AMAZING GRACE

05 COME BIRDS

06 DID YOU EVER SEE A LASSIE?

07 DANNY BOY

08 MY BONNIE

09 HOME SWEET HOME

10 AURA LEE

11 ALOHA OE

12 FURUSATO

13 GREENSLEEVES

14 LONDON BRIDGE

15 UNDER THE SPREADING CHESTNUT TREE

16 SIPPIN’ CIDER THROUGH A STRAW

17 GRANDFATHER’S CLOCK

18 ANNIE LAURIE

19 BEAUTIFUL DREAMER

20 MY DARLING CLEMENTINE

21 LITTLE BROWN JUG

22 YANKEE DOODLE

23 I’VE BEEN WORKING ON THE RAILROAD

24 OH! SUSANNA

25 TURKEY IN THE STRAW

EVENT

26 SILENT NIGHT

27 WE WISH YOU A MERRY CHRISTMAS

28 JINGLE BELLS

29 JOY TO THE WORLD

30 O CHRISTMAS TREE

PIANO/CLASSICS

31 MARY HAD A LITTLE LAMB

32 LE CYGNE FROM “LE CARNAVAL DES ANIMAUX”

33 AIR FROM “SUITE no.3”

34 SPRING FROM “THE FOUR SEASONS”

35 HUNGARIAN DANCES no.5

36 MINUET IN G MAJOR

37 GAVOTTE (GOSSEC)

38 ARABESQUE (BURGMÜLLER)

39 DECK THE HALL

40 ODE TO JOY

41 AVE MARIA (GOUNOD)

42 PRELUDE op.28 no.7 (CHOPIN)

43 GOING HOME FROM “FROM THE NEW WORLD”

44 FÜR ELISE

45 TURKISH MARCH (MOZART)

46 SONATA op.27 no.2 “MOONLIGHT” 1st Mov.

47 ETUDE op.10 no.3 “CHANSON DE L’ADIEU”

48 THE ENTERTAINER

49 FRÖHLICHER LANDMANN

50 LA CHEVALERESQUE

51 VALSE op.64 no.1 “PETIT CHIEN”

52 LIEBESTRÄUME no.3

53 JESUS BLEIBET MEINE FREUDE

54 CANON (PACHELBEL)

55 MARCH FROM “THE NUTCRACKER”

56 CHANSON DU TOREADOR FROM “CARMEN”

57 INVENTIONEN no.1

58 PRAELUDIUM no.1 (J.S.BACH)

59 TRÄUMEREI

60 NOCTURNE op.9 no.2 (CHOPIN)

61-90 USER SONGS

Dance Music Mode List/

Lista de modos de música de

danza

No./Nº Title/Título

EDM

01 ELECTRO DANCE 1

02 ELECTRO DANCE 2

03 ELECTRO DANCE 3

04 BIG BEAT TECHNO 1

05 BIG BEAT TECHNO 2

06 SPEED SHUFFLE 1

07 SPEED SHUFFLE 2

08 POP TRANCE 1

09 POP TRANCE 2

10 SLOW SOUL 1

11 DIGITAL SHUFFLE 1

12 DIGITAL SHUFFLE 2

13 POWER POP 1

14 POWER POP 2

15 POWER POP 3

16 NEO TRANCE 1

17 NEO TRANCE 2

18 HARD SHUFFLE 1

19 HARD SHUFFLE 2

20 ELECTRO BOUNCE 1

21 ELECTRO BOUNCE 2

22 POWER ELECTRO 1

23 POWER ELECTRO 2

24 ACID DANCE

25 POWER DANCE 1

26 POWER DANCE 2

27 FUTURE DANCE

28 DANCE RAGGA

29 ACID ELECTRO 1

30 ACID ELECTRO 2

31 HARD ELECTRO

32 ACID TECHNO 1

33 ACID TECHNO 2

34 FANTASTIC DANCE

35 FUTURE POP

HOUSE

36 ELECTRIC POP

37 DIGITAL SHUFFLE 3

38 POP DANCE 1

39 POP DANCE 2

40 FUTURE HOUSE 1

41 FUTURE HOUSE 2

42 SPEED HOUSE 1

43 SPEED HOUSE 2

44 URBAN DANCE 1

45 URBAN DANCE 2

HIP-HOP

46 DEEP SOUL 1

47 DEEP SOUL 2

48 SLOW SOUL 2

49 ELECTRO BOUNCE 3

50 ELECTRO RAGGA

CTK2500-ES-1A.indd 59 2016/07/26 16:32:18

Appendix/Apéndice

A-7

In addition to the chords that can be fingered with Fingered 1

and Fingered 2, the following chords also are recognized.

Además de los acordes que se pueden digitar con Fingered 1

y Fingered 2, también se pueden reconocer los siguientes

acordes.

•With Fingered 3, the lowest note fingered is interpreted as

the base note. Inverted forms are not supported.

•With Full Range Chord, when the lowest note fingered is a

certain distance from the neighboring note, the chord is

interpreted as a fraction chord.

•Unlike Fingered 1, 2, and 3, Full Range Chord requires

pressing of at least three keys to form a chord.

•Con Fingered 3, la nota más baja digitada se interpreta

como nota base. No se pueden usar formas invertidas.

•Con Full Range Chord, cuando la nota digitada más baja se

encuentre a cierta distancia de la nota adyacente, el acorde

se interpreta como un acorde bitonal.

•A diferencia de Fingered 1, 2, y 3, Full Range Chord

requiere la pulsación de tres teclas como mínimo para

formar un acorde.

Fingering Guide/

Guía de digitación

Fingered 1, Fingered 2 Chords/

Acordes Fingered 1, Fingered 2

Cdim

Caug *3

Csus4 *3

Csus2 *3

Cmadd9

CmM7

Cdim7 *3

C69 *3

C6 *1 *3

Cm6 *2 *3

Cm7 *3

CM7

Cm7b5 *3

C7sus4

Cadd9

C7b5 *3

*1 With Fingered 2, interpreted as Am7.

*2 With Fingered 2, interpreted as Am7b5.

*3 Inverted form not supported in some cases.

*1 Con Fingered 2, se interpreta como Am7.

*2 Con Fingered 2, se interpreta como Am7b5.

*3 En algunos casos no se puede usar la forma invertida.

Fingered 3, Full Range Chords/

Acordes Fingered 3, Full Range

Ddim

Fm7

Gm7

add9

      

      

CTK2500-ES-1A.indd 60 2016/07/26 16:32:18

A-8

Appendix/Apéndice

Chord Example List/Lista de ejemplos de acordes

Root

Chord

Type

dim

aug

sus4

sus2

m7b5

7b5

7sus4

add9

madd9

mM7

dim7

(A#)/BbBF#/(Gb)G(G#)/AbAFCC

#/(Db)D(D#)/EbE

•Since the chord input range is limited, this model may not support some of the chords shown above.

•Debido a que el rango de entrada de acordes es limitado, es posible que este modelo no admita algunos de los acordes mostrados arriba.

CTK2500-ES-1A.indd 61 2016/07/26 16:32:22

EN/ES

CTK2500-ES-1A

USER’S GUIDE

Safety Precautions

Before trying to use the Digital Keyboard, be sure to read the separate “Safety Precautions”.

Please keep all information for future reference.

GUÍA DEL USUARIO

Precauciones de seguridad

Antes de intentar usar el teclado digital, asegúrese de leer las “Precauciones de seguridad” separadas.

Guarde toda la información para futuras consultas.

CTK-2500

CTK-2550

About Music Score data

You can use a computer to download music score data from the CASIO Website. For more information, visit the

URL below.

http://world.casio.com/

Acerca de los datos de partituras

Puede utilizar un ordenador (computadora) para descargar los datos de partituras desde el sitio web de CASIO.

Para obtener más información, visite la siguiente URL.

http://world.casio.com/

EnglishEspañol

This recycle mark indicates that the packaging conforms to

the environmental protection legislation in Germany.

Esta marca de reciclaje indica que el empaquetado se

ajusta a la legislación de protección ambiental en Alemania.

MA1607-A Printed in China

CTK2500-ES-1A.indd 1 2016/07/26 16:32:04

Casio CTK2500_2550_EN Web_CTK2500 ES 1A Web CTK2500 EN

Navigation menu

Versions of this User Manual:

Views

Navigation
