SOHOSpeed ADSL Ethernet/Wireless Gateway User’s Manual
2
Table of Contents
1. INTRODUCTION.................................................................................................4
1.1 FEATURES ......................................................................................................4
2. GATEWAY OVERVIEW ....................................................................................5
2.1 PORTS AND BUTTONS ....................................................................................5
2.2 LED DESCRIPTION ........................................................................................6
3. INSTALLING YOUR GATEWAY .....................................................................7
4. SETTING UP YOUR GATEWAY .....................................................................8
4.1 LOG INTO YOUR GATEWAY ............................................................................8
4.2 HOME SCREEN...............................................................................................9
4.3 SETUP ..........................................................................................................10
4.3.1 Wide Area Network Connection...........................................................10
4.3.2 Local Area Network Connection..........................................................10
4.4 CONFIGURING THE WAN .............................................................................10
4.4.1 New Connection ...................................................................................11
4.4.1.1 Bridged gateway profile and Connection ........................................11
4.4.1.2 PPPoA Connection Setup ................................................................12
4.4.1.3 PPPoE Connection Setup.................................................................13
4.4.1.4 DHCP Connection Setup .................................................................14
4.4.1.5 Static Connection Setup...................................................................15
4.4.1.6 Classical IP over ATM Connection Setup .......................................16
4.4.2 Modify an Existing Connection............................................................17
4.4.3 Modem Setup........................................................................................17
4.5 CONFIGURING THE WLAN...........................................................................18
4.6 CONFIGURING THE LAN...............................................................................19
4.6.1 Enable/Disable DHCP.........................................................................20
4.6.2 Changing the gateways IP address......................................................21
4.6.2.1 Static IP address assignment............................................................21
4.6.3 Firewall/NAT Services .........................................................................22
4.7 ADVANCED ...................................................................................................22
4.7.1 Wireless Security..................................................................................23
4.7.1.1 WEP .................................................................................................23
4.7.1.2 802.1x...............................................................................................24
4.7.1.3 WPA.................................................................................................25
4.7.2 Wireless Management..........................................................................26
4.7.2.1 Access List.......................................................................................26
4.7.2.2 Associated Stations ..........................................................................27
4.7.2.3 Multiple SSID ..................................................................................28
4.7.3 UPnP....................................................................................................29
4.7.4 Port Forwarding ..................................................................................30
4.7.5 Advanced Security................................................................................31
4.7.5.1 DMZ configuration ..........................................................................31
4.7.5.2 Enable Remote Web ........................................................................31
4.7.5.3 Enable Remote Telnet......................................................................32
4.7.5.4 Enable Incoming ICMP Ping...........................................................32
4.7.6 Access Control .....................................................................................32
4.7.7 LAN clients...........................................................................................32
SOHOSpeed ADSL Ethernet/Wireless Router User’s Guide
3
4.7.8 Bridge Filters .......................................................................................32
4.7.9 Multicast ..............................................................................................34
4.7.10 Static Routing.......................................................................................35
4.7.11 Dynamic Routing .................................................................................36
4.8 TOOLS ..........................................................................................................37
4.8.1 System Commands ...............................................................................37
4.8.2 Remote Log ..........................................................................................37
4.8.3 User Management................................................................................38
4.8.4 Update Gateway...................................................................................38
4.8.5 Ping Test ..............................................................................................39
4.8.6 Modem Test..........................................................................................39
4.8.7 UI Support............................................................................................39
4.9 STATUS.........................................................................................................40
4.9.1 Network Statistics.................................................................................40
4.9.2 Connection Status ................................................................................40
4.9.3 DHCP Clients ......................................................................................40
4.9.4 Modem Status.......................................................................................40
4.9.5 Product Information.............................................................................40
4.9.6 System Log ...........................................................................................40
5. APPENDIX A: TROUBLESHOOTING .......................................................... 41
5.1 THE GATEWAY IS NOT FUNCTIONAL.............................................................41
5.2 I CAN’T CONNECT TO THE GATEWAY............................................................41
5.3 THE LEDS BLINK IN A SEQUENTIAL PATTERN..............................................42
5.4 THE DSL LINK LED CONTINUES TO BLINK BUT DOES NOT GO SOLID.........42
5.5 THE DSL LINK LED IS ALWAYS OFF...........................................................42
6. GATEWAY TERMS .......................................................................................... 43
SOHOSpeed ADSL Ethernet/Wireless Gateway User’s Manual
4
1. Introduction
The SOHOSpeed ADSL Gateway is the perfect high-speed WAN bridge/router. This full-
featured product is specifically designed to connect to the Internet and directly connect to
your local area network via high speed 10/100 Mbps Ethernet or 802.11b/g. The gateway also
has full NAT firewall and DMZ services to block unwanted users from accessing your network.
1.1 Features
• Equipped with a 1 or 4-Port 10/100 Ethernet Switch
• Equipped with IEEE 802.11b/g WLAN AP (wireless models)
• High speed wireless connection, up to 54 Mbps (wireless models)
• Connects multiple PCs to the Internet with just one WAN IP Address (when
configured in router mode with NAT enabled)
• Configurable through user-friendly web pages
• Supports Single-Session IPSec and PPTP Pass-Through for Virtual Private Network
(VPN)
• Several popular games are already pre configured. Just enable the game and the
port settings are automatically configured.
• Configurable as a DHCP Server on Your Network
• Compatible with virtually all standard Internet applications
• Industry standard and interoperable DSL interface
• Address Filtering, DMZ Hosting, and Much More
• Support 64, 128 and 256 bits WEP / WPA / WPA-PSK / 802.1x (wireless models)
• Simple web based status page displays a snapshot of your system configuration, and
links to the configuration pages
• Downloadable flash software upgrades
• Support for up to 8 Permanent Virtual Circuits (PVC)
• Support for up to 8 PPPoE sessions
• Supports Classical IP over ATM (CLIP or also referred to as RFC1577)
SOHOSpeed ADSL Ethernet/Wireless Router User’s Guide
5
2. Gateway Overview
Your gateway has many ports, switches and LEDs. Let’s take a look at the different options.
Depending upon your model of gateway, your gateway may have some or all of the features
listed below

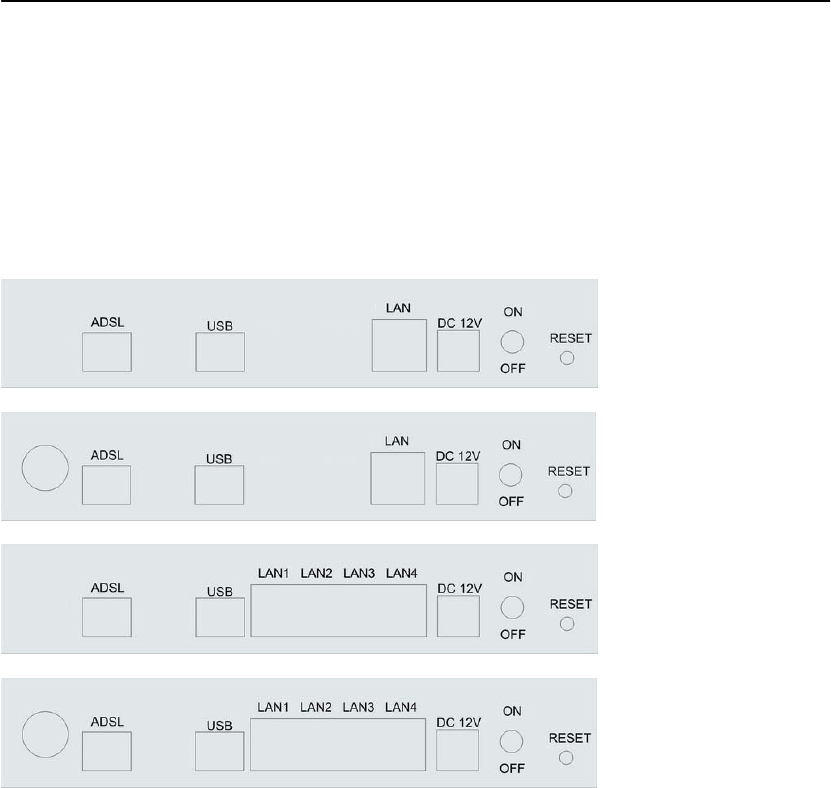

2.1 Ports and Buttons
(1 Port Ethernet Gateway)
(1 Port Wireless Gateway)
(4 Ports Ethernet Gateway)
(4 Ports Wireless Gateway)
RESET: The RESET button will set the gateway to its factory default setting and reset the
gateway. You may need to place the gateway into its factory defaults if the configuration is
changed, you loose the ability to enter the gateway via the web interface, or following a
software upgrade, and you loose the ability to enter the gateway. To reset the gateway,
simply press the reset button for more than 10 seconds. The gateway will be reset to its
factory defaults and after about 30 seconds the gateway will become operational again.
POWER: Connect the power adapter that came the Gateway. Using a power supply with a
different voltage rating will damage this product. Make sure to observe the proper power
requirements. The power requirement is 12 volts.
LAN (local area network) port(s): Connect to Ethernet network devices, such as a PC, hub,
switch, or router. Some gateways come with a single LAN connection and some come with
four LAN connections. Depending on the connection, you may need a cross over cable or a
strait through cable.
USB (universal serial port): Connects this port to a PC’s USB port. The gateway only
supports Window’s based PCs via an RNDIS driver (included in the software).
ADSL port: This is the WAN interface which connects directly to your phone line.
SOHOSpeed ADSL Ethernet/Wireless Gateway User’s Manual
6

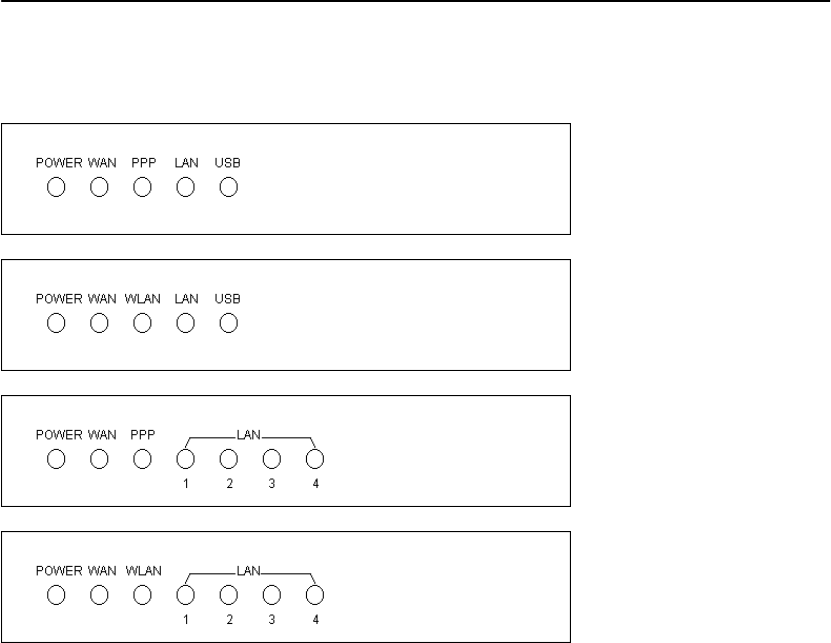

2.2 LED Description
(1 Port Ethernet Gateway)
(1 Port Wireless Gateway)
(4 Ports Ethernet Gateway)
(4 Ports Wireless Gateway)
Power LED: The LED stays lighted to indicate the system is power on properly.
WAN LED: This LED is lighted when the WAN connection is established and flashes when
the WAN port is sending/receiving data.
WLAN LED: This LED is lighted when a wireless link is established and flashes when the
data is sending/receiving via wireless. (wireless models)
PPP LED: This LED is lighted when a PPP link is established and flashes when the data is
sending/receiving via PPP. (Ethernet models)
LAN LED: The LED is lighted when a connection is established to LAN port and flashes when
LAN port is sending/receiving data. (The number of LAN ports depends on your model.)
USB LED: The LED is lighted when a connection is established to USB port and flashes
when USB port is sending/receiving data.
SOHOSpeed ADSL Ethernet/Wireless Router User’s Guide
7
3. Installing Your Gateway
1. Locate an optimum location for the gateway.
2. For connections to the Ethernet and DSL interfaces, refer to the quick start guide.
3. Connect the AC Power Adapter. Depending upon the type of network, you may want to put
the power supply on an uninterruptible supply. Only use the power adapter supplied with the
gateway. A different adapter may damage the product.
Now that the hardware installation is complete, proceed to Chapter 4: Setting up your
gateway
SOHOSpeed ADSL Ethernet/Wireless Gateway User’s Manual
8
4. Setting up Your Gateway
This section will guide you through your gateway’s configuration. The gateway is shipped with
a standard default bridge configuration; for most users, you may want to change the gateway
from a bridge to a router.
4.1 Log into Your Gateway
To configure your gateway, open your web browser. You may get an error message at this
point; this is normal. Don’t panic. Continue following these directions. Type the default IP
address (192.168.1.1) Press the Enter key and the following screen, shown in Figure 1 will
appear. The default user name is Admin (case sensitive) and the password is Admin (case
sensitive).
Note: Before setting up your gateway, make sure you have followed the quick start guide. You
should have your computers configured for DHCP mode and have proxies disabled on your
browser. Also if you access the Gateway, and instead of getting a login screen, the browser
instead displays a login redirection screen, you should check your browser's setting, and
verify that JavaScript support is enabled. Also, if you do not get the screen shown in Figure 1,
you may need to delete your temporary Internet files (basically flush the cached web pages).
Figure 1 (Log-in screen)
SOHOSpeed ADSL Ethernet/Wireless Router User’s Guide
9
4.2 Home Screen

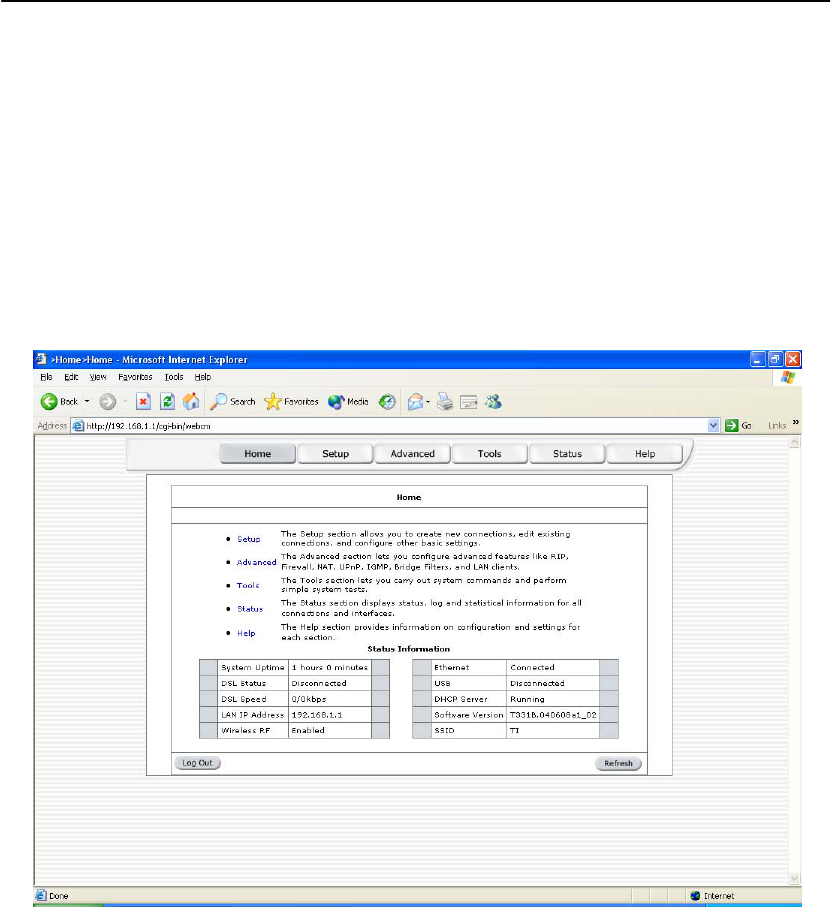

The first screen (Figure 2) that appears (after the log in screen) is the Home screen. From this
screen the user can setup the modem (configure the LAN and WAN connection(s), configure
the advanced configuration options within the modem (security, routing, and filtering), access
tools that are helpful for debug purposes, obtain the status of the modem, and view the
extensive online help.
The basic layout of the Home page consists of a page selection list across the top of the
browser window. The footer displays gateway status, connection information, and other useful
information. The center display is where most of the configuration will take place.
Figure 2 (Home page)
SOHOSpeed ADSL Ethernet/Wireless Gateway User’s Manual
10
4.3 Setup
To setup your gateway with a basic configuration, from the Home page, select Setup. Figure
3 illustrates the setup page. The page is broken into two subsections the WAN configuration
and the LAN configuration.
Before configuring the Gateway, there are several concepts that you should be familiar with
on how your new Gateway works. Please take a moment to familiarize yourself with these
concepts, as it should make the configuration much easier.

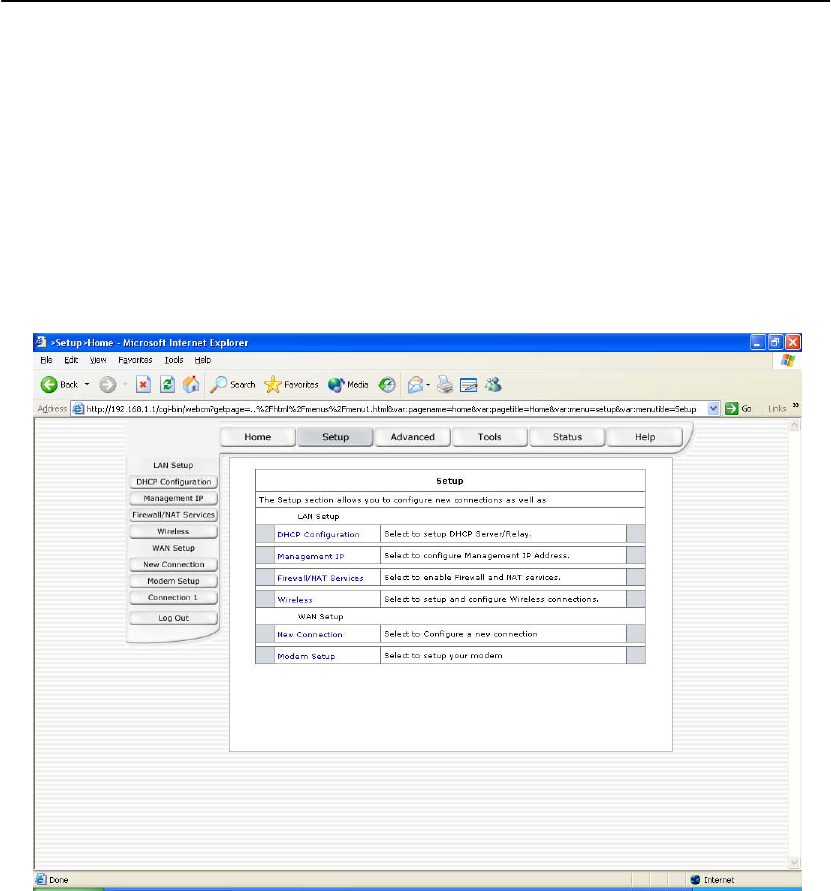

Figure 3 (Setup page)
4.3.1 Wide Area Network Connection
On the other side of the Gateway is where your Wide Area Network (WAN) connection; also
referred to as a broadband connection. This WAN connection is different for every WAN
supplier. Most of the configuration you will perform will be in this area.
4.3.2 Local Area Network Connection
On one side of your Gateway, you have your own Local Area network (LAN) connections.
This is where you plug in your local computers to the Gateway. The Gateway is normally
configured to automatically provide all the PC's on your network with Internet addresses.
4.4 Configuring the WAN
Before the gateway will pass any data between the LAN interface(s) and the WAN interface,
the WAN side of the modem must be configured. Depending upon your DSL service provider
or your ISP, you will need some (or all) of the information outlined below before you can
properly configure the WAN:
• Your DSL line VPI and VCI
• Your DSL encapsulation type and multiplexing
• Your DSL training mode (default is MMODE)
SOHOSpeed ADSL Ethernet/Wireless Router User’s Guide
11
For PPPoA or PPPoE users, you also need these values from your ISP:
• Your username and password
For RFC 1483 users, you may need these values from your ISP:
• Your DSL fixed Internet IP address
• Your Subnet Mask
• Your Default Gateway
• Your primary DNS IP address
4.4.1 New Connection
A new connection is basically a virtual connection. Your gateway can support up to 8 different
(unique) virtual connections. If you have multiple different virtual connections, you may need
to utilize the static and dynamic routing capabilities of the modem to pass data correctly.
4.4.1.1 Bridged gateway profile and Connection
A pure bridged connection does not assign an IP address to the WAN interface. NAT and
firewall rules are not enabled. This connection method makes the Gateway act as a hub, and
just passes packets across the WAN interface to the LAN interface.
To configure the gateway as a bridge, from the Home page, click on Setup and then click on
New Connection. The default PPPoE connection setup is displayed. At the Type field select
Bridge and the Bridge connection setup page is displayed (see Figure 4). Give your Bridge
connection a unique name; the name must not have spaces and cannot begin with numbers.
In this case the unique name is called bridge1. Select the encapsulation type (LLC or VC); if
you are not sure just use the default mode. Select the VPI and VCI settings; your DSL service
provider or your ISP will supply these; in this case the DSL service provider is using 0,35.
Also select the quality of service (QOS); leave the default value if you are unsure or the ISP
did not provide this information.
Figure 4 (Bridge Connection Setup)
To complete the connection you must now click the apply button. The apply button will
temporarily save this connection. To make the change permanent you need to click on Tools
SOHOSpeed ADSL Ethernet/Wireless Gateway User’s Manual
12
(at the top of the page) and select System Commands. At the system commands page, click
on Save All.
4.4.1.2 PPPoA Connection Setup
PPPoA is also known as RFC 2364. It is a method of encapsulating PPP packets over ATM
cells which are carried over the DSL line. PPP or Point-to-Point protocol is a method of
establishing a network connection / session between network hosts. It usually provides a
mechanism of authenticating users. LLC and VC are two different methods of encapsulating
the PPP packet. Contact your ISP to make sure which encapsulation is being supported.
By selecting PPPoA, you are forcing your gateway to terminate the PPPoA connection. The
advantage is that the PPPoA termination is done within the gateway and not on your PC; this
frees up your PC resources and allows multiple users to utilize the PPPoA connection.
To configure the gateway for PPPoA, click on Setup and then click on New Connection. The
default PPPoE connection setup is displayed. At the Type field select PPPoA and the PPPoA

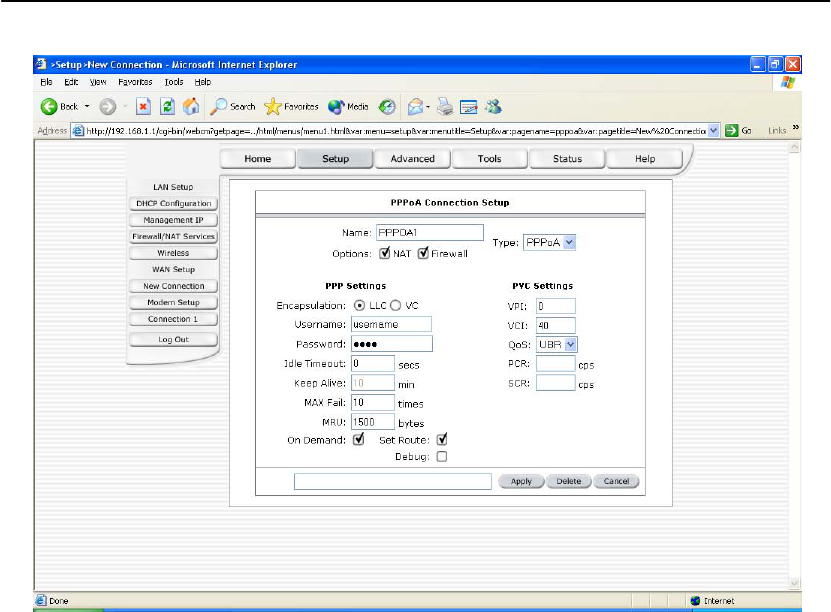

connection setup page is displayed; figure 5 illustrates a typical PPPoA configuration. Give
your PPPoA connection a unique name; the name must not have spaces and cannot begin
with numbers. In this case the unique name is called PPPOA1. Select the encapsulation type
(LLC or VC); if you are not sure just use the default mode. Select the VPI and VCI settings;
your DSL service provider or your ISP will supply these; in this case the DSL service provider
is using 0,40. Also select the quality of service (QOS); leave the default value if you are
unsure or the ISP did not provide this information.
Following is a description of the different options:
a. Username: The username for the PPPoA access; this is provided by your DSL
service provider or your ISP.
b. Password: The password for the PPPoA access; this is provided by your DSL
service provider or your ISP.
c. On-Demand: Enables on-demand mode. The connection will disconnect if no
activity is detected after the specified idle timeout value.
d. Idle Timeout: Specifies that PPPoA connection should disconnect if the link has
no activity detected for n seconds. This field is used in conjunction with the On-
Demand feature. To ensure that the link is always active, enter a 0 in this field.
e. Keep Alive: When on-demand option is not enable, this value specifies the time to
wait without being connected to your provider before terminating the connection.
To ensure that the link is always active, enter a 0 in this field.
f. Maxfail: As long as a DSL connection is established, the gateway will attempt to
establish a PPPoA connection. If after n consecutive failed connection attempts
the gateway will wait for some random time before trying to establish the
connection again. A value of 0 means no limit.
g. Set Route: Specify this connection as the default-route.
h. MRU: Maximum Receive Unit the DSL connection can receive. It is a negotiated
value that asks the provider to send packets of no more than n bytes. The
maximum specified value is 1500 although some DSL/ISP providers require a
larger value. The minimum MRU value is 128.
i. Debug: Enables PPPoA connection debugging facilities. Debugging is talked
about later.
SOHOSpeed ADSL Ethernet/Wireless Router User’s Guide
13
Figure 5 (PPPoA Connection Setup)
To complete the connection you must now click the apply button. The apply button will
temporarily save this connection. To make the change permanent you need to click on Tools
(at the top of the page) and select System Commands. At the system commands page, click
on Save All.
4.4.1.3 PPPoE Connection Setup
PPPoE is also known as RFC 2516. It is a method of encapsulating PPP packets over
Ethernet. PPP or Point-to-Point protocol is a method of establishing a network
connection/session between network hosts. It usually provides a mechanism of authenticating
users.
To configure the gateway for PPPoE, click on Setup and then click on New Connection. The
default PPPoE connection setup is displayed. At the Type field select PPPoE and the PPPoE

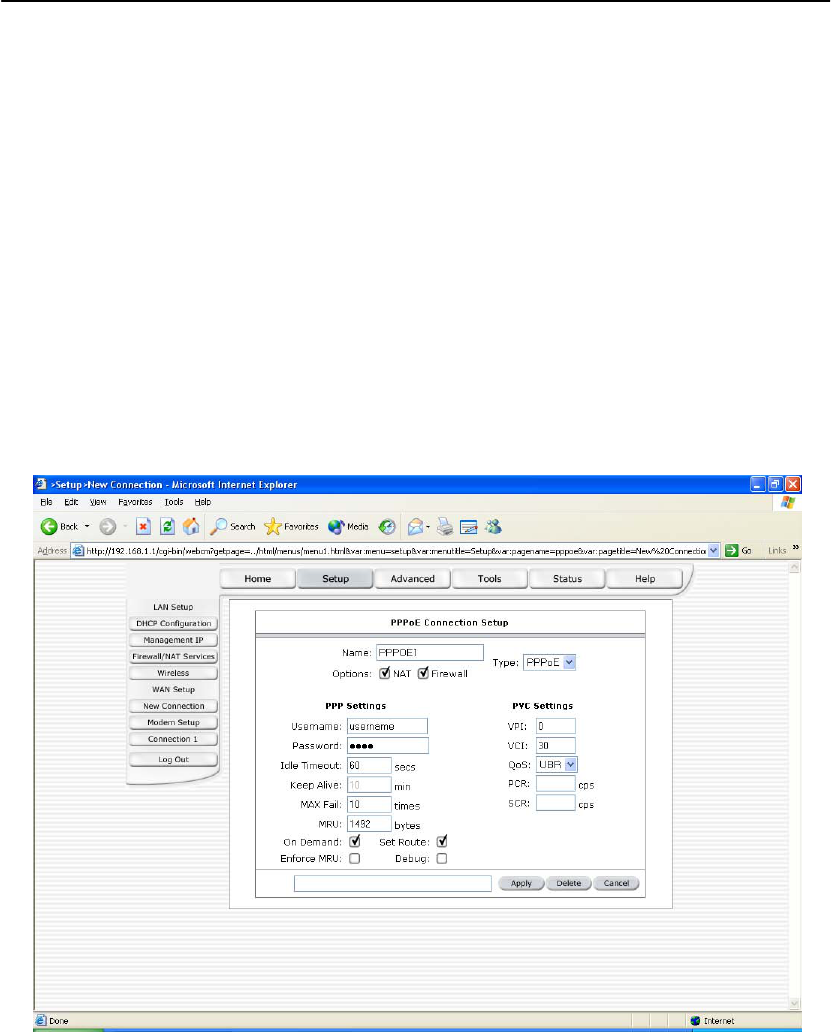

connection setup page is displayed; figure 6 illustrates a typical PPPoE configuration. Give
your PPPoE connection a unique name; the name must not have spaces and cannot begin
with numbers. In this case the unique name is called PPPOE1. Select the encapsulation type
(LLC or VC); if you are not sure just use the default mode. Select the VPI and VCI settings;
your DSL service provider or your ISP will supply these; in this case the DSL service provider
is using 0,30. Also select the quality of service (QOS); leave the default value if you are
unsure or the ISP did not provide this information.
Following is a description of the different options:
j. Username: The username for the PPPoE access; this is provided by your DSL
service provider or your ISP.
k. Password: The password for the PPPoE access; this is provided by your DSL
service provider or your ISP.
l. On-Demand: Enables on-demand mode. The connection will disconnect if no
activity is detected after the specified idle timeout value.
m. Idle Timeout: Specifies that PPPoE connection should disconnect if the link has
no activity detected for n seconds. This field is used in conjunction with the On-
Demand feature. To ensure that the link is always active, enter a 0 in this field.
SOHOSpeed ADSL Ethernet/Wireless Gateway User’s Manual
14
n. Keep Alive: When on-demand option is not enable, this value specifies the time to
wait without being connected to your provider before terminating the connection.
To ensure that the link is always active, enter a 0 in this field.
o. Maxfail: As long as a DSL connection is established, the gateway will attempt to
establish a PPPoE connection. If after n consecutive failed connection attempts
the gateway will wait for some random time before trying to establish the
connection again. A value of 0 means no limit.
p. Set Route: Specify this connection as the default-route.
q. MRU: Maximum Receive Unit the DSL connection can receive. It is a negotiated
value that asks the provider to send packets of no more than n bytes. The
maximum specified value is 1500 although some DSL/ISP providers require a
larger value. The minimum MRU value is 128.
r. Enforce MRU: Check this box if you experience problems accessing the Internet
over a PPPoE connection. This feature will force all TCP traffic to conform with
PPP MRU by changing TCP Maximum Segment Size to PPP MRU.
s. Debug: Enables PPPoE connection debugging facilities. Debugging is talked
about later.
Figure 6 (PPPOE Connection Setup)
To complete the connection you must now click the apply button. The apply button will
temporarily save this connection. To make the change permanent you need to click on Tools
(at the top of the page) and select System Commands. At the system commands page, click
on Save All.
4.4.1.4 DHCP Connection Setup
Dynamic Host Configuration Protocol (DHCP) allows the gateway to automatically obtain the
IP address from the server. This option is commonly used in situations where IP is
dynamically assigned and is not known prior to assignment.
SOHOSpeed ADSL Ethernet/Wireless Router User’s Guide
15
To configure the gateway for a DHCP connection, click on Setup and then click on New
Connection. The default DHCP connection setup is displayed. At the Type field select DHCP
and the DHCP connection setup page is displayed; figure 7 illustrates a typical DHCP
configuration. Give your DHCP connection a unique name; the name must not have spaces
and cannot begin with numbers. In this case the unique name is called DHCP1. Select the
encapsulation type (LLC or VC); if you are not sure just use the default mode. Select the VPI
and VCI settings; your DSL service provider or your ISP will supply these; in this case the
DSL service provider is using 0,35. Also select the quality of service (QOS); leave the default
value if you are unsure or the ISP did not provide this information.
If your DSL line is connected and your DSL/ISP provider is supporting DHCP, you can click
the renew button and the gateway will retrieve an IP address, Subnet mask, and Gateway
address. At anytime, you can renew the DHCP address by clicking on the renew button; in
most cases you will never have to use this button.

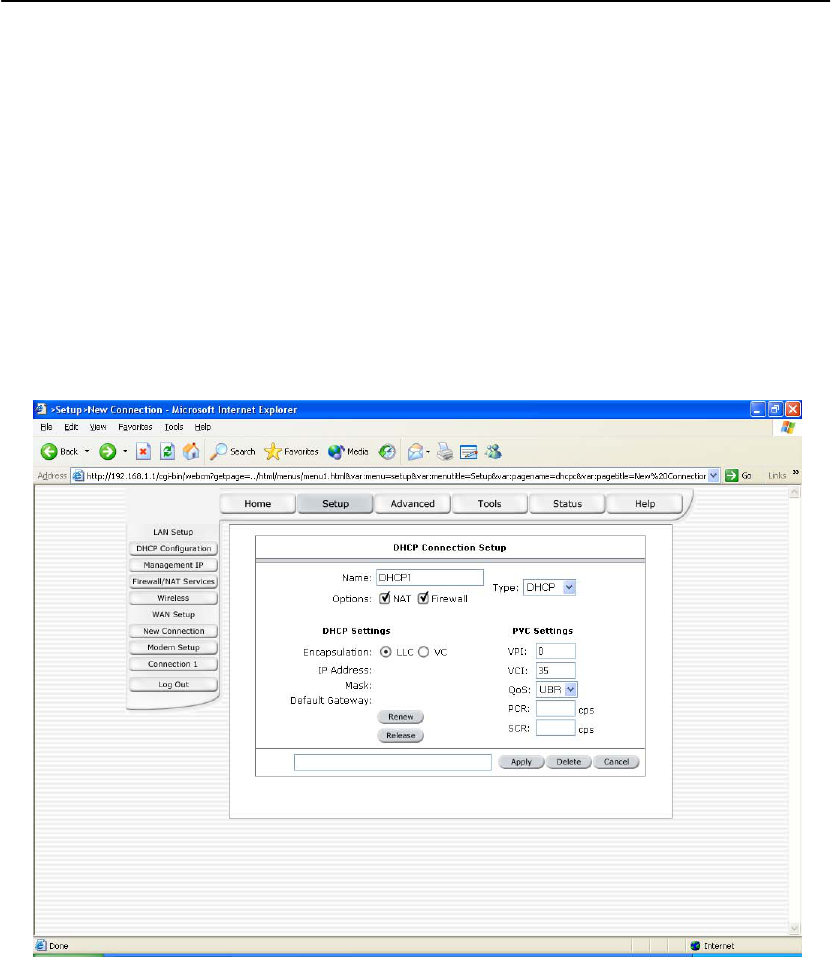

Figure 7 (DHCP Connection Setup)
To complete the connection you must now click the apply button. The apply button will
temporarily save this connection. To make the change permanent you need to click on Tools
(at the top of the page) and select System Commands. At the system commands page, click
on Save All.
4.4.1.5 Static Connection Setup
Static is used whenever a known static IP is assigned. The accompanying information such
as the Subnet mask and the gateway should also be specified. Up to three Domain Name
Server (DNS) addresses can also be specified. These servers would enable you to have
access to other web servers. Valid IP addresses range is from 0.0.0.0 to 255.255.255.255.
SOHOSpeed ADSL Ethernet/Wireless Gateway User’s Manual
16
To configure the gateway for a Static connection, click on Setup and then click on New
Connection. The default Static connection setup is displayed. At the Type field select Static
and the Static connection setup page is displayed; figure 8 illustrates a typical Static
configuration. Give your Static connection a unique name; the name must not have spaces
and cannot begin with numbers. In this case the unique name is called STATIC1. Select the
encapsulation type (LLC or VC); if you are not sure just use the default mode. Select the VPI
and VCI settings; your DSL service provider or your ISP will supply these; in this case the
DSL service provider is using 0,35. Also select the quality of service (QOS); leave the default
value if you are unsure or the ISP did not provide this information. You can also enable
Network Address Translation (NAT) and the Firewall options. If you are unsure, leave these in
the default mode.
Based upon the information your DSL/ISP provided, enter your assigned IP address, Subnet
Mask, Default Gateway (if provided), and Domain Name Services (DNS) values (if provided).
For the static configuration, you can also select a bridge connection or a routed connection.
Since static IP address is typically used to host WEB servers, you may want to use a bridge
connection.
Figure 8 (Static IP Connection Setup)
To complete the connection you must now click the apply button. The apply button will
temporarily save this connection. To make the change permanent you need to click on Tools
(at the top of the page) and select System Commands. At the system commands page, click
on Save All.
4.4.1.6 Classical IP over ATM Connection Setup
The Classical IP over ATM (CLIP) support provides the ability to transmit IP packets over an
ATM network, SOHOSpeed ADSL Gateway’s CLIP support will encapsulate IP in an AAL5
packet data unit (PDU) frame using RFC1577and it utilizes an ATM aware version of the ARP
protocol. (ATMARP. SOHOSpeed ADSL Gateway’s CLIP support only allows for PVC support;
it does not support SVC.)
SOHOSpeed ADSL Ethernet/Wireless Router User’s Guide
17
To configure the gateway for a CLIP connection, click on Setup and then click on New
Connection. The default CLIP connection setup is displayed. At the Type field select CLIP
and the CLIP connection setup page is displayed; figure 9 illustrates a typical CLIP
configuration. Give your CLIP connection a unique name; the name must not have spaces
and cannot begin with numbers. In this case the unique name is called CLIP1. Select the VPI
and VCI settings; your DSL service provider or your ISP will supply these; in this case the
DSL service provider is using 0,35. Also select the quality of service (QOS); leave the default
value if you are unsure or the ISP did not provide this information.

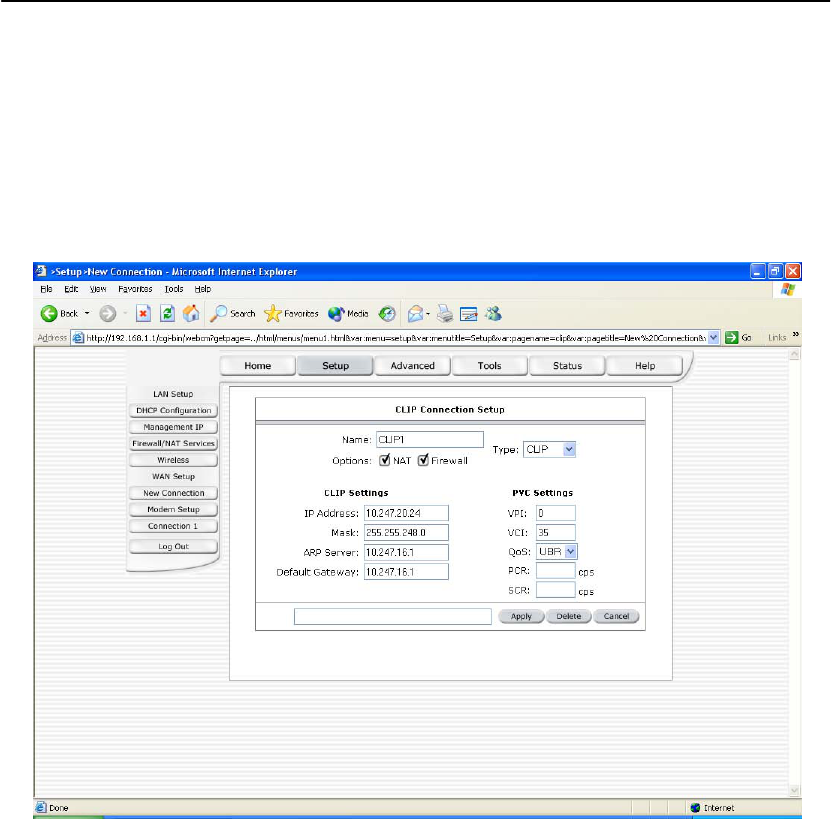

Figure 9 (CLIP Connection Setup)
To complete the connection you must now click the apply button. The apply button will
temporarily save this connection. To make the change permanent you need to click on Tools
(at the top of the page) and select System Commands. At the system commands page, click
on Save All.
4.4.2 Modify an Existing Connection
To modify an existing connection, from the Home screen, click setup and then click the
connection you want to modify. The connections are listed as Connection 1 through
Connection 8.
As a note, if you delete the connection, to make the change permanent you need to click on
Tools (at the top of the page) and select System Commands. At the system commands
page, click on Save All.
4.4.3 Modem Setup
To configure the DSL modulation type, go to the Home screen, Click setup. Under WAN
Setup, select Modem Setup. This will bring up the modem setup screen. Leave the default
value if you are unsure or the DSL/ISP did not provide this information. For most all cases,
this screen should not be modified.
The apply button will temporarily save this connection. To make the change permanent you
need to click on Tools (at the top of the page) and select System Commands. At the system
commands page, click on Save All.
SOHOSpeed ADSL Ethernet/Wireless Gateway User’s Manual
18
4.5 Configuring the WLAN
Before you can use the wireless to access Internet or wire LAN via the modem, you must
enable the AP functionality of this modem first. You can enable it following below setting,
Setup Æ Wireless Æ Enable AP. Then you can select a channel to use and entry your AP’s
SSID.
Note: you must Restart Access Point for Wireless changes to take effect.

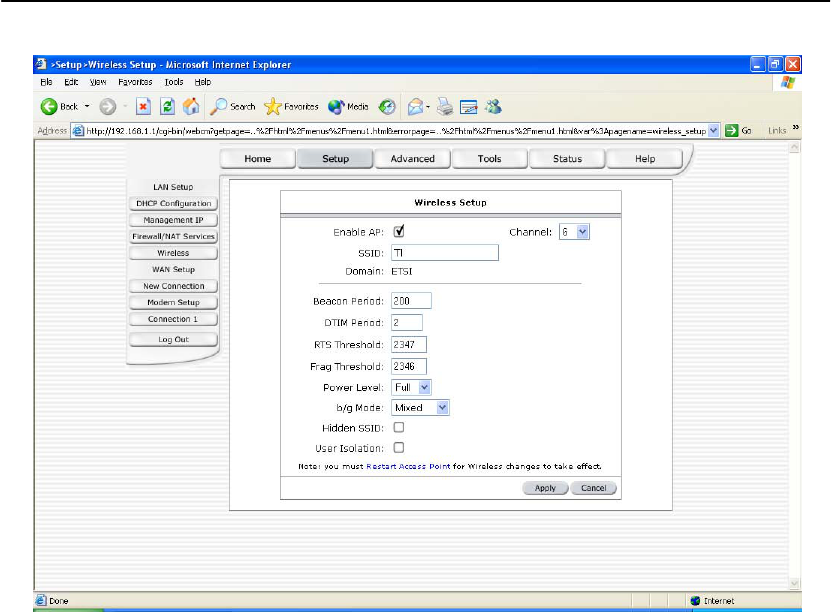

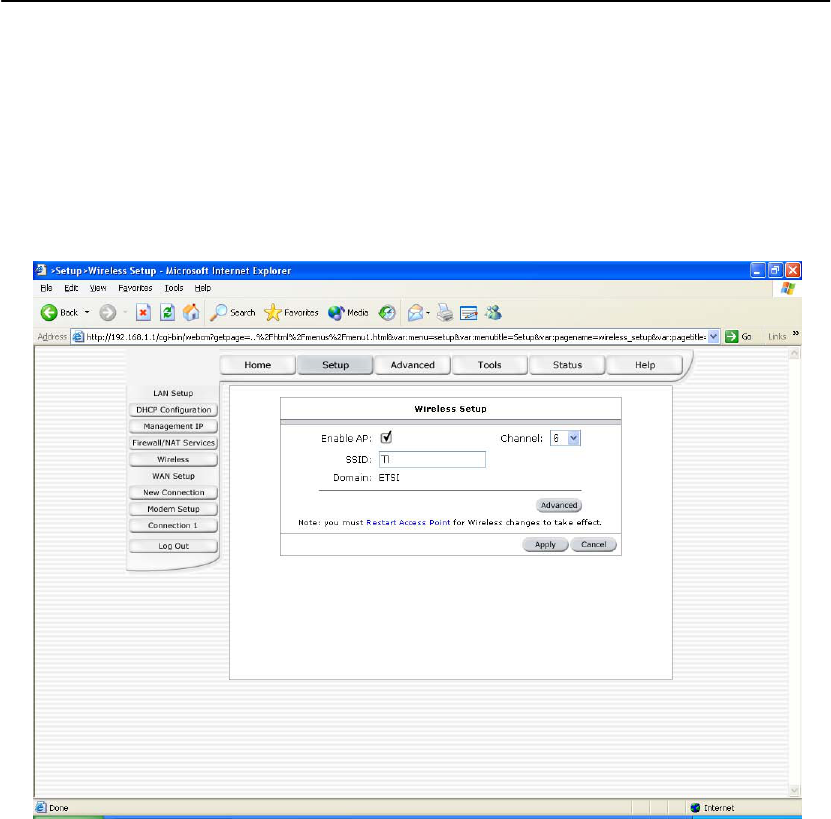

Enable AP: enable/disable AP functionality
Channel: select the working channel this AP will used
SSID: service set ID
Advanced: additional parameter setting
SOHOSpeed ADSL Ethernet/Wireless Router User’s Guide
19
Following is a description of the different options:
Beacon Period: Beacon is a special broadcast packet sent by AP, the unit is 1024 us
DTIM Period: Delivery Traffic Indication Message (DTIM), if AP have broadcast packets need
to transmit in Beacon packet will include this parameter, to indicates the number of Beacon
intervals between successive DTIMs, default value is 2
RTS Threshold: if the packet size is large than this value, AP will start RTS/CTS transmitted,
default value is 2347 bytes
Frag Threshold: if the packet size is large than this value, AP will fragment this packet, default
value is 2346 bytes
Power Level: adjust the Tx power level, there have 5 levels you can choice, Full, 50%, 25%,
12% and 6%, default is Full power
b/g Mode: select the operation mode of wireless, Mixed (b and g), b only, b+ (22M) and g only,
default is Mixed
Hidden SSID: by default SSID information will include in the beacon packet to notice user, for
security issue you can remove SSID from beacon.
4.6 Configuring the LAN
By default, your gateway has DHCP server (LAN side) enabled. If you already have a DHCP
server running on your network, you must disable one of the two DHCP servers; if you plug a
second DHCP server into the network, you will experience network errors and the network will
not function normally.
SOHOSpeed ADSL Ethernet/Wireless Gateway User’s Manual
20
4.6.1 Enable/Disable DHCP
To enable or disable DHCP go to the Home screen, Click setup. Under LAN Setup, select
DHCP Configuration. This will bring up the screen shown in Figure 10.
The Start IP Address is where the DHCP server starts issuing IP addresses. This value must
be greater than the gateways IP address value. For example if the gateways IP address is
192.168.1.1 (default) than the starting IP address must be 192.168.1. 2 (or higher).
The End IP Address is where the DHCP server stops issuing IP addresses. The ending
address cannot exceed a subnet limit of 254. Hence the max value for our default gateway is
192.168.1.254. If the DHCP server runs out of DHCP addresses, users will not get access to
network resources. If this happens you can increase the Ending IP address (to the limit of 255)
or reduce the lease time.
The Lease Time is the amount of time a network user will be allowed connection to the
Gateway with their current dynamic IP address. The amount of time is in units of seconds; the
default value is 3600 seconds (1 hour).
Note: If you change the start or end values, make sure the values are still within the same
subnet as the gateways IP address. In other words, if the gateways IP address is 192.168.1.1
(default) and you change the DHCP start/end IP addresses to be 192.128.1.2/192.128.1.100,
you will not be able to communicate to the gateway if your PC has DHCP enabled.

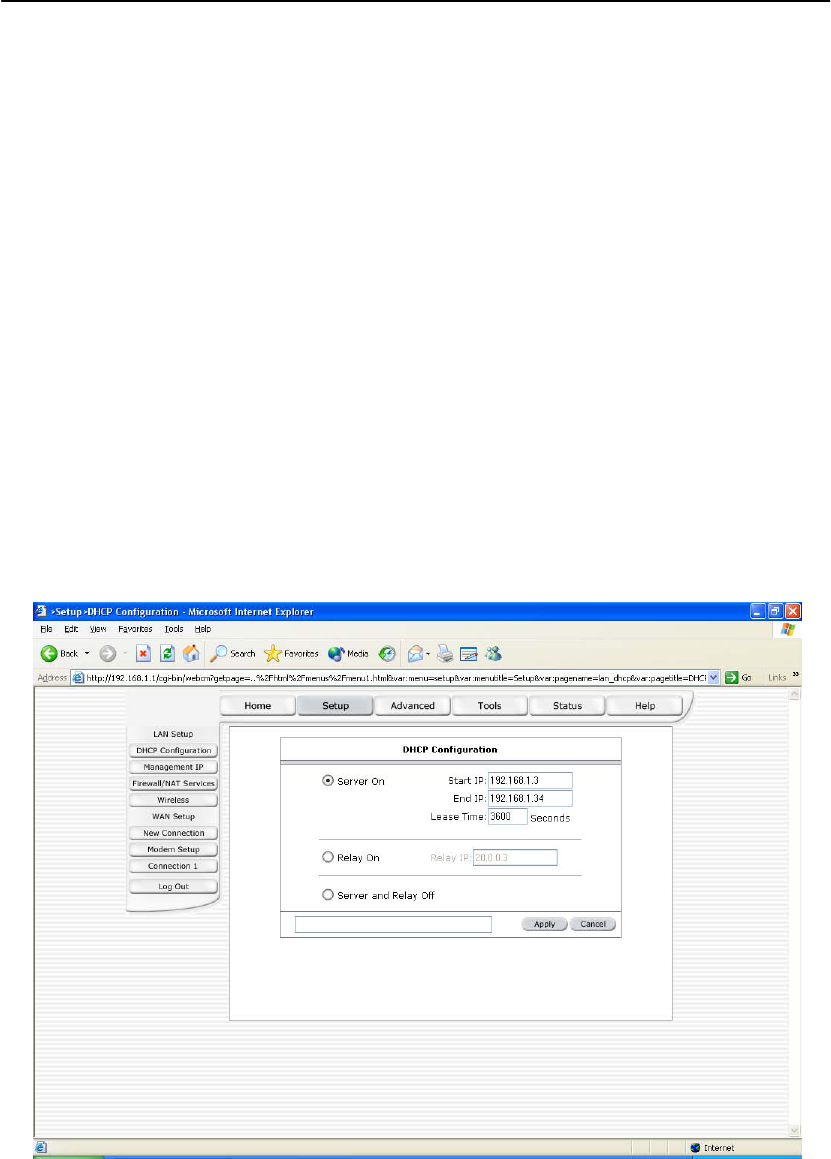

Figure 10 (DHCP Server configuration)
SOHOSpeed ADSL Ethernet/Wireless Router User’s Guide
21

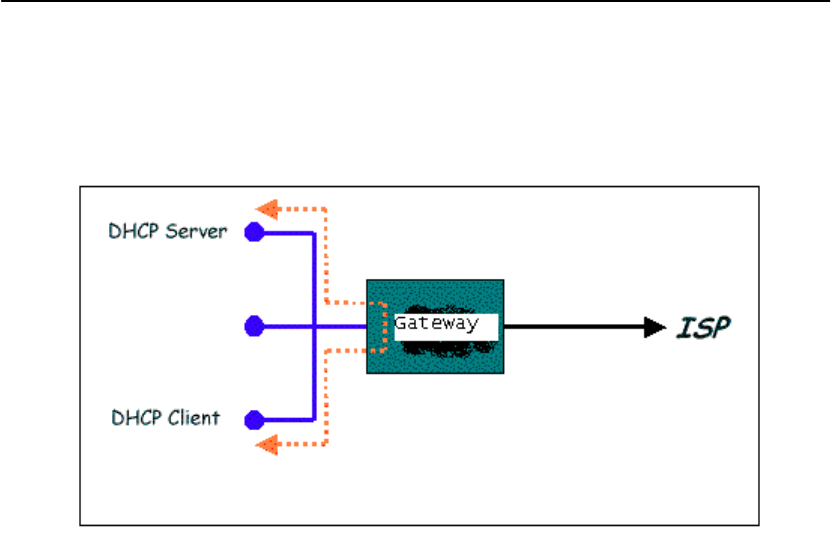

In addition to the DHCP server feature, the gateway supports the DHCP relay function. When
the gateway is configured as DHCP server, it assigns the IP addresses to the LAN clients.
When the gateway is configured as DHCP relay, it is responsible for forwarding the requests
and responses negotiating between the DHCP clients and the server. See figure 11.
Figure 11 (Example of a DHCP Relay configuration)
By turning off the DHCP server and relay the network administrator must carefully configure
the IP address, Subnet Mask and DNS settings of every computer on your network. Do not
assign the same IP address to more than one computer and your Gateway must be on the
same subnet as all the other computers.
The apply button will temporarily save this connection. To make the change permanent you
need to click on Tools (at the top of the page) and select System Commands. At the system
commands page, click on Save All.
4.6.2 Changing the gateways IP address
You can change the gateway’s IP address by going to the Home screen, click setup and
under LAN Setup, select Management. This will bring up the screen shown in Figure 12.
4.6.2.1 Static IP address assignment
Your gateway’s default IP address and subnet mask are 192.168.1.1/255.255.255.0; this
subnet mask will allow the gateway to support 254 users. If you want to support a larger
number of users you can change the subnet mask; but remember. The DHCP server is
defaulted to only give out 255 IP addresses. Further remember that if you change your
gateways’ IP address and you have DHCP enabled, the DHCP configuration must reside
within the same subnet.
The default gateway is the routing device used to forward all traffic that is not addressed to a
station within the local subnet. Your ISP will provide you with the default gateway Address.
Figure 12 shows a default gateway address of 10.247.16.1 because this was the default
gateway defined when the CLIP connection was configured.
The hostname can be any alphanumeric word that does not contain spaces. The domain
name is used to in conjunction with the host name to uniquely identify the gateway. To access
the gateway’s web pages the user can type 192.168.1.1 (the gateway’s default IP address) or
type mygateway.ar7.
SOHOSpeed ADSL Ethernet/Wireless Gateway User’s Manual
22

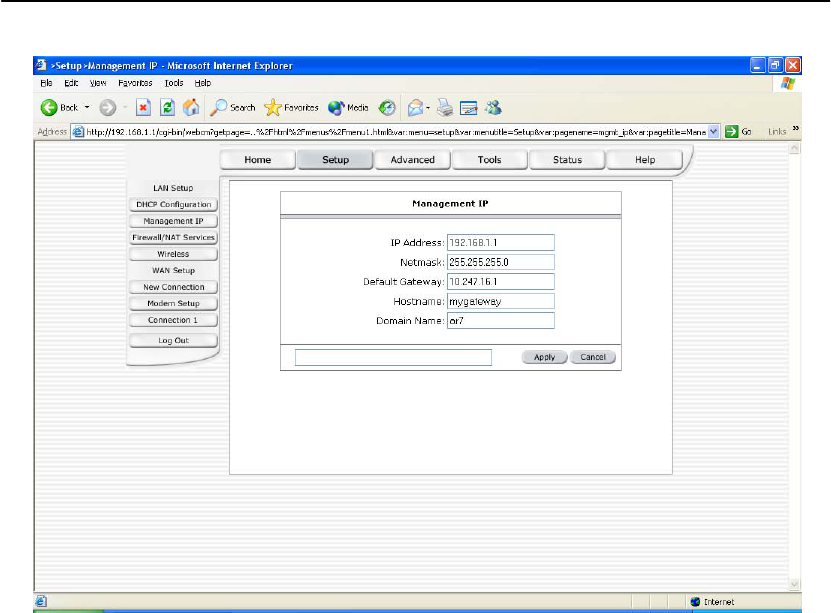

Figure 12 (Management IP address)
The apply button will temporarily save this connection. To make the change permanent you
need to click on Tools (at the top of the page) and select System Commands. At the system
commands page, click on Save All.
4.6.3 Firewall/NAT Services
You can enable or disable Firewall and NAT by going to the Home screen, click setup and
under LAN Setup, select Firewall/NAT Services. By unselecting the “Enable Firewall and NAT
Services” button the firewall and NAT services is disabled for all WAN connections.
The apply button will temporarily save this connection. To make the change permanent you
need to click on Tools (at the top of the page) and select System Commands. At the system
commands page, click on Save All.
4.7 Advanced
The gateway supports a host of advanced features. For basic Gateway functionality, the user
does not need to utilize these advanced features. The features help with routing, security, port
configuration, and plug and play capability.
SOHOSpeed ADSL Ethernet/Wireless Router User’s Guide
23
4.7.1 Wireless Security
For security issue, when you using wireless you probable want to enable wireless security
functionality, there have three methods of security supported in this modem. Following the

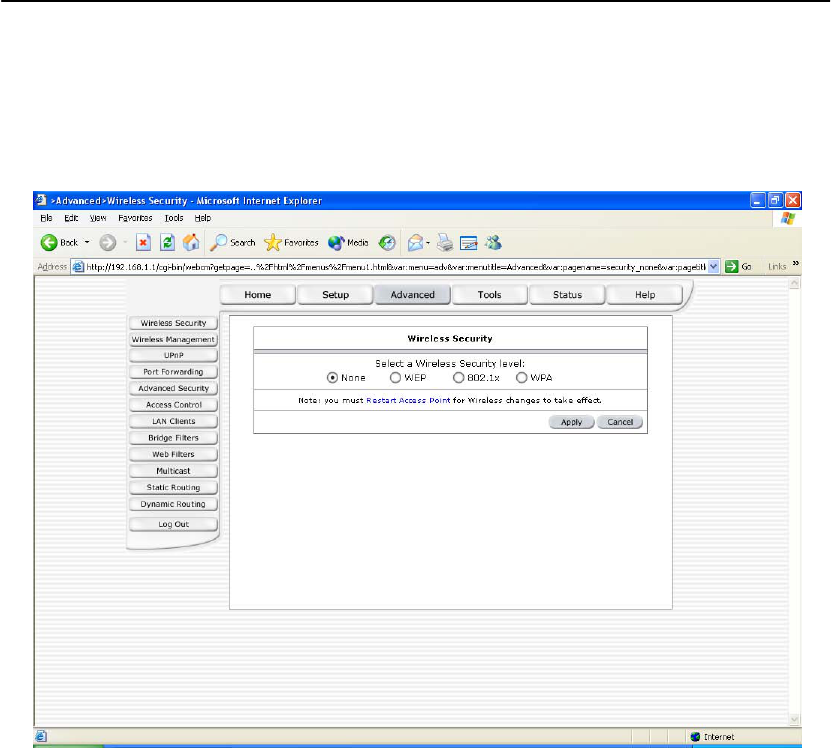

instruction Advanced Æ Wireless Security, by default security is disable.
None: By default, the wireless security functionality is disabled
WEP: defined in IEEE802.11, this modem support 64, 128 and 256 bits encryption key
802.1x: IEEE802.1x with RADIUS Server support
WPA: support both 802.1x with RADIUS Server and PSK (pre shared key)
4.7.1.1 WEP

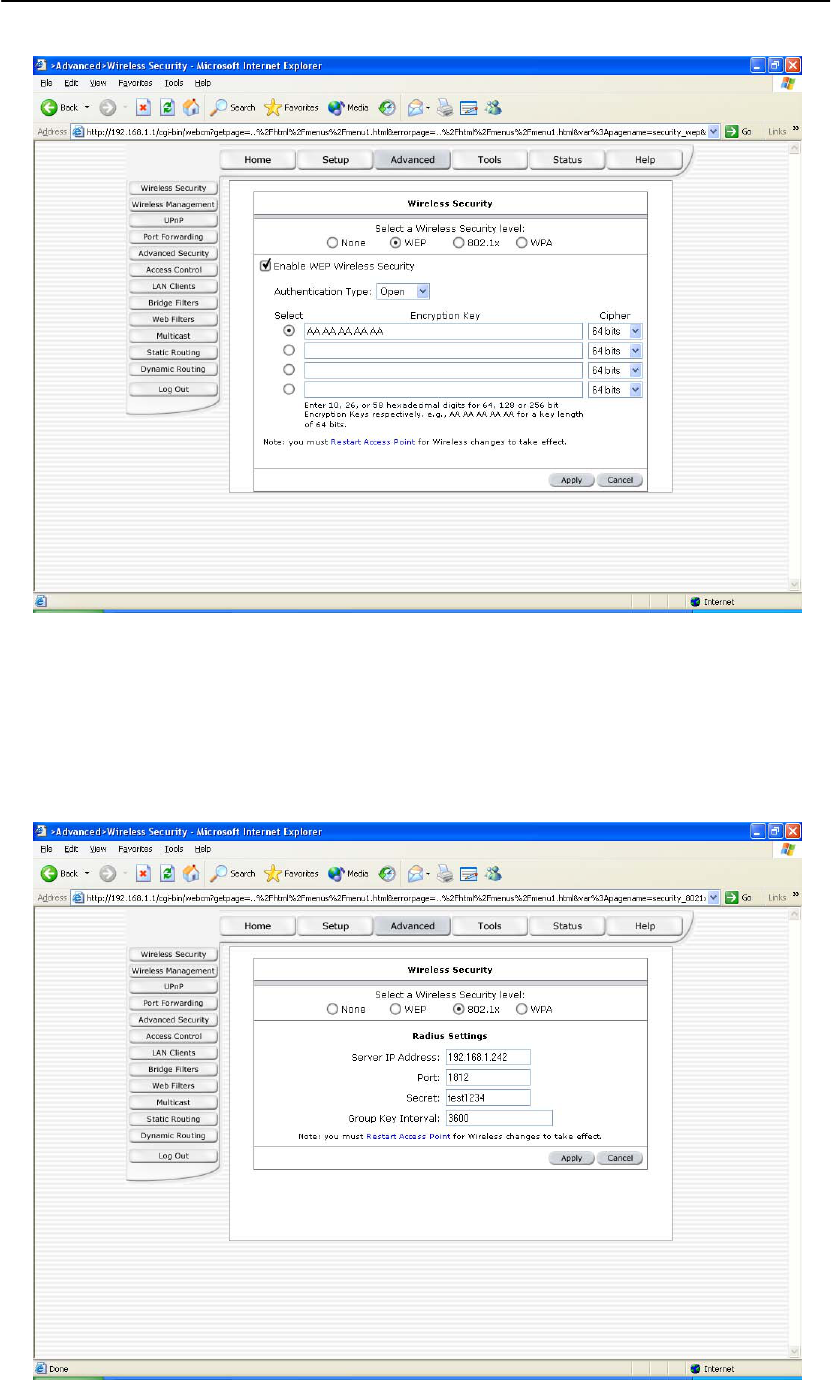

First you have to enable WEP, and then choice one of the four key sets and key length, finally
entry the encryption key word. The number of digits of encryption key word is depend on
which key length you selected, enter 10, 26, or 58 hexadecimal digits for 64, 128 or 256 bit
Encryption Keys respectively. e.g., AA AA AA AA AA for a key length of 64 bits.
SOHOSpeed ADSL Ethernet/Wireless Gateway User’s Manual
24
Notice that after you change any parameters of Wireless, you must Restart the AP.
4.7.1.2 802.1x
Before you used 802.1x to secure your WLAN, you need to setup RADIUS Server to provide
authentication service, then you type the IP of the RADIUS Server in Server IP Address
record, and secret key in Secret record.
SOHOSpeed ADSL Ethernet/Wireless Router User’s Guide
25
Following is a description of the different options:
Port: the RADIUS Server’s TCP/IP port number
Group Key Interval: one problem of WEP is WEP never change the encapsulation key,
RADIUS can fix this problem by renew key in a time period.

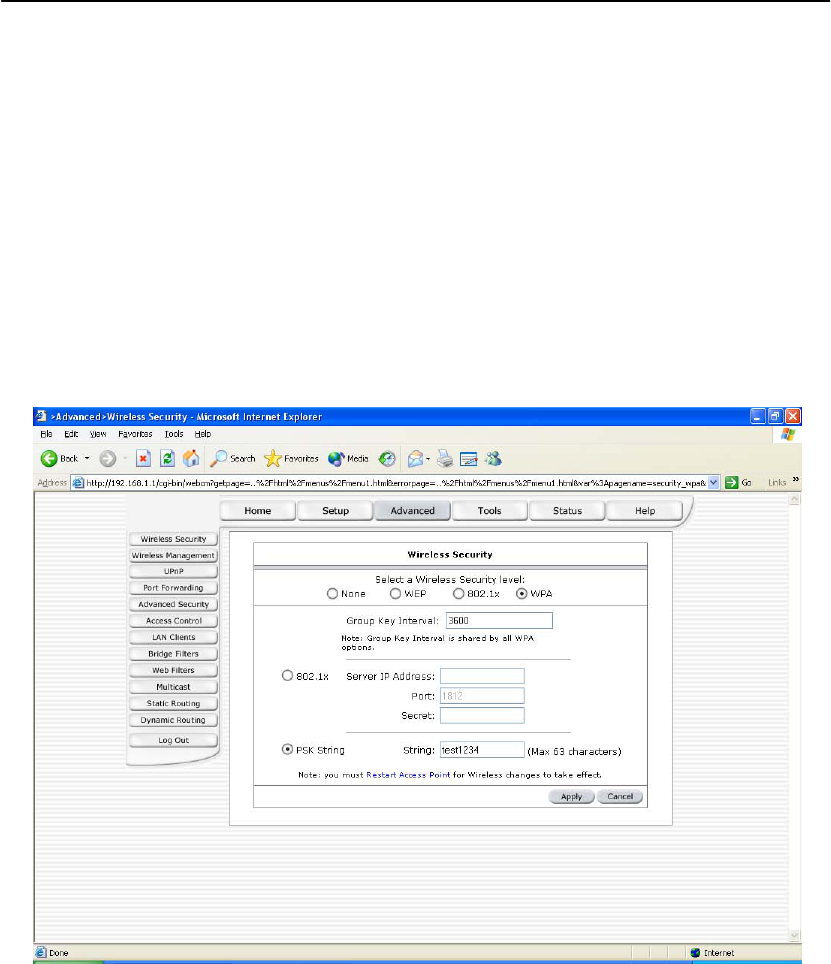

4.7.1.3 WPA
WPA is instructed by 802.1x, EAP and TKIP, but for SOHO environment, where there are no
central authentication servers or EAP framework, WPA provide another method for such
environment call Pre-Shared Key (PSK).
Regarding 802.1x, the setup is description as before.
To use PKI, you only have to do is type a secret key in it.
SOHOSpeed ADSL Ethernet/Wireless Gateway User’s Manual
26
4.7.2 Wireless Management
There have three methods to help administrator to manage Wireless, Access List, Associated
Stations and Multiple SSID.

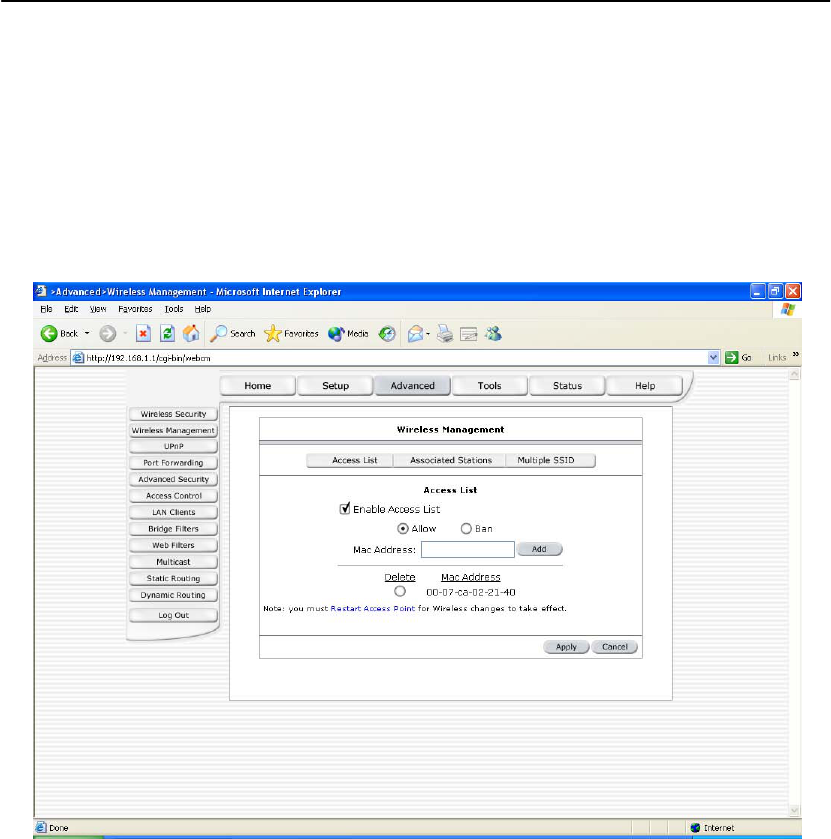

4.7.2.1 Access List
You can allow/ban a user to access Internet via wireless by put its MAC address on this
access list.
1. Enable Access List functionality
2. Selection this is a Allow or Ban list
If you select Allow list, by default, no one can pass through this AP after you put its MAC
address on this list.
If you select Ban list, by default, anyone can pass through this AP after you put
someone’s MAC address in this list, then it will be reject to access via this AP.
3. You can manually type the MAC address which you want to Allow/Ban assceed.
4. Click the Apply button
5. Don’t forget to restart Access Point
SOHOSpeed ADSL Ethernet/Wireless Router User’s Guide
27

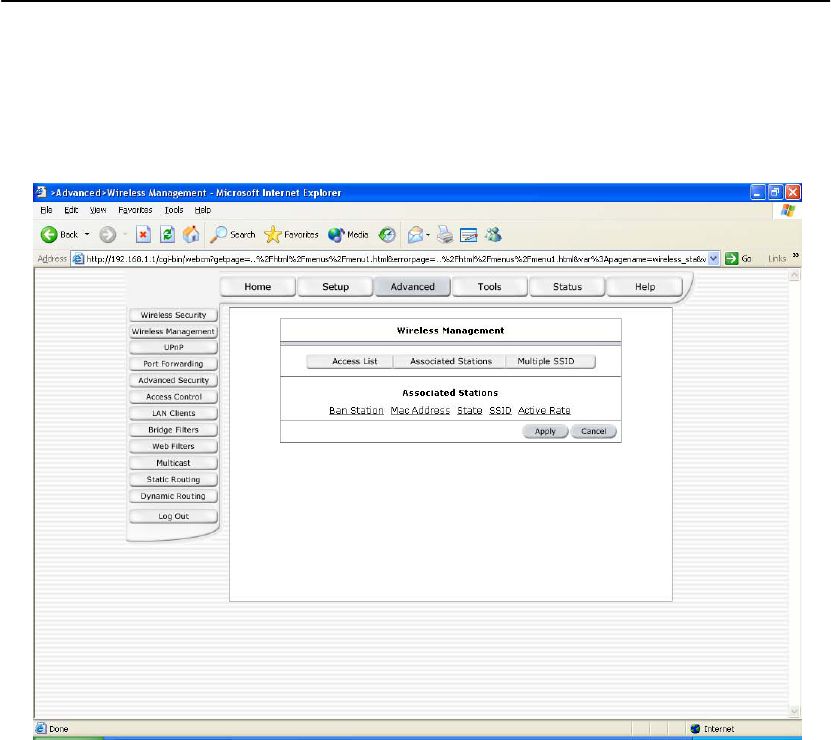

4.7.2.2 Associated Stations
You can see a user information list that is associated with this AP, you can reject its access
by click the Ban Station button on the left side in each row.
SOHOSpeed ADSL Ethernet/Wireless Gateway User’s Manual
28
4.7.2.3 Multiple SSID
This functionality can not used combine with any wireless security functionality, you must
disable wireless security function before use it.
To enable this functionality, just select Enable Multiple SSID, type a new SSID and click Add
button.

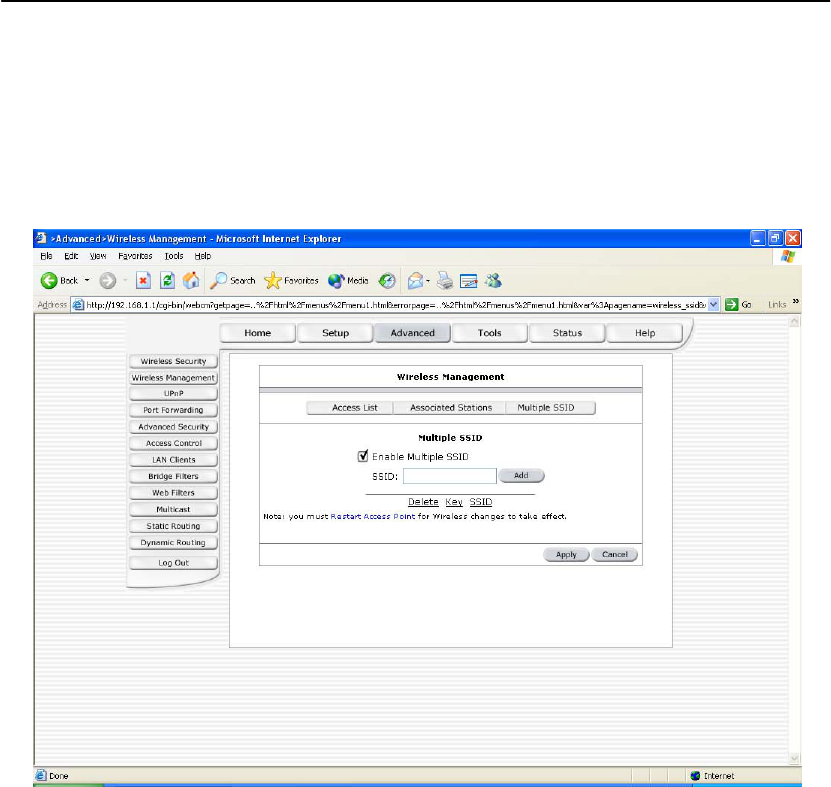

SOHOSpeed ADSL Ethernet/Wireless Router User’s Guide
29
4.7.3 UPnP
UPnP NAT and Firewall Traversal allow traffic to pass-thru the Gateway for applications using
the UPnP protocol. This feature requires one active DSL connection. In presence of multiple
DSL connections, select the one over which the incoming traffic will be present, for example
the default Internet connection.
To enable UPnP, you must first have a WAN connection configured. Once a WAN connection
is configured, from the Home screen, click Advanced and under Advanced, select UPnP. This
will bring up the screen shown in Figure 13. You must enable UPnP and then select which
connection will utilize UPnP.
Figure 13 (Management IP address)
The apply button will temporarily save this connection. To make the change permanent you
need to click on Tools (at the top of the page) and select System Commands. At the system
commands page, click on Save All.
SOHOSpeed ADSL Ethernet/Wireless Gateway User’s Manual
30
4.7.4 Port Forwarding
Using the Port Forwarding page, you can provide local services (for example web hosting) for
people on the Internet or play Internet games. When users send this type of request to your
network via the Internet, the Gateway will forward those requests to the appropriate PC. Port
forwarding can be used with DHCP assigned addresses but remember that a DHCP address
is dynamic (not static). For example, if you were configuring a netmeeting server, you would
want to assign this server a static IP address so that the IP address is not reassigned. Also
remember that if an Internet user is trying to access an Internet application, they must use the
WAN IP address. The port forwarding will translate the WAN IP address into a LAN IP
address.
To configure a service, game, or other application select the external connection (for example
the Internet connection), from the Home screen, click Advanced and under Advanced, select
Port Forwarding. Next select the computer hosting the service and add the corresponding
firewall rule. If you want to add a custom application, select the User category, click New and
fill in the port, protocols and description for your application.
For example, if you want to host a Netmeeting session, from the Home screen, click
Advanced and under Advanced, select Port Forwarding. First select the IP address for your
Netmeeting server. Next select the Audio/Video category and add Netmeeting to the applied
rules box. To view the management rules, highlight Netmeeting and select view; this will
display the pre configured protocols and ports that Netmeeting will use. Now assuming that
your WAN connection is correct, you can run Netmeeting from your server and call users that
are on the Internet. If you know your WAN IP address, users can call you. Figure 14 illustrates
a typical Port Forwarding configuration.

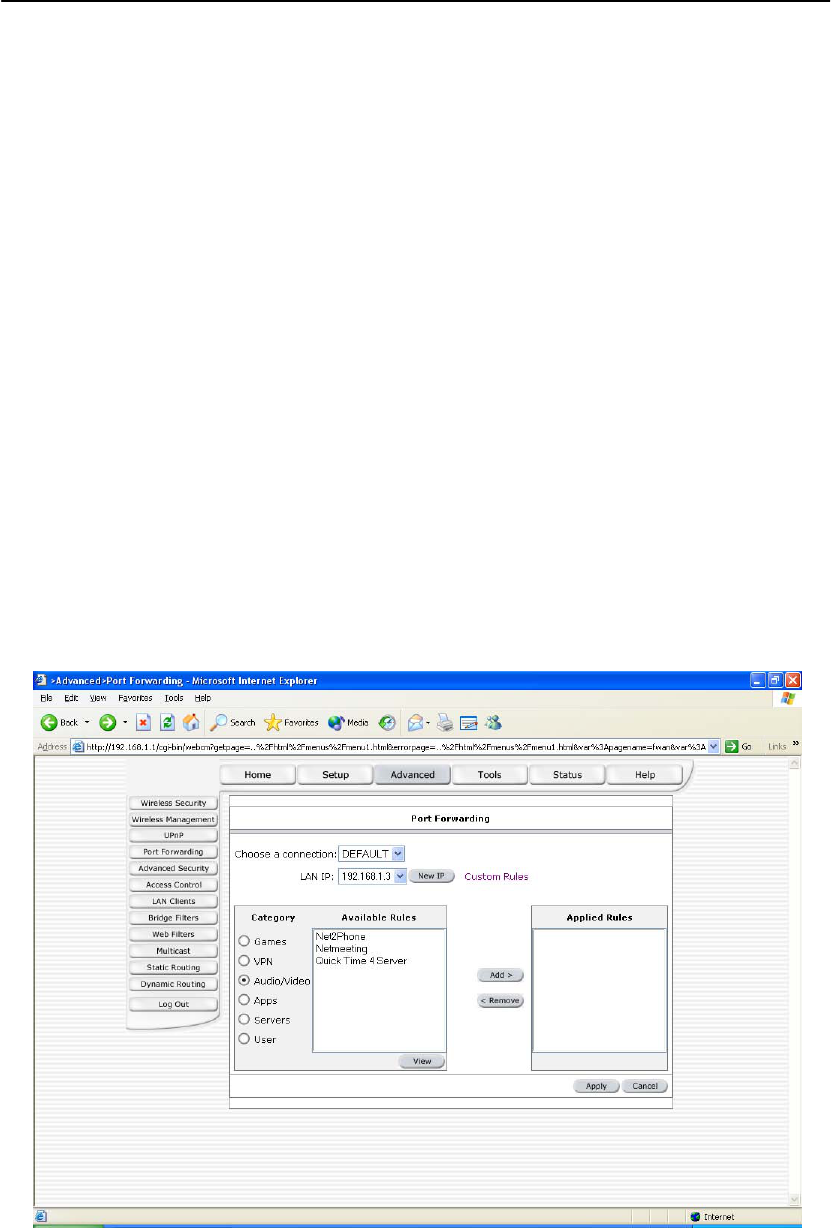

Figure 14 (Port Forwarding: Netmeeting)
The apply button will temporarily save this connection. To make the change permanent you
need to click on Tools (at the top of the page) and select System Commands. At the system
commands page, click on Save All.
SOHOSpeed ADSL Ethernet/Wireless Router User’s Guide
31
4.7.5 Advanced Security
In the presence of the firewall, anonymous Internet traffic is blocked. Using the advanced
security features, you can redirect this traffic to a dedicated computer on your local network
(DMZ) or open the access from the Internet to the Gateway's management ports (web, telnet).
The Gateway's firewall and NAT services (port forwarding, access control) can be disabled for
all interfaces by un-checking the "Enable Firewall and NAT Service"
To enable any of the advanced security features, from the Home screen, click Advanced and
under Advanced, select Advanced Security. Figure 15 illustrates the typical advanced security
configuration.

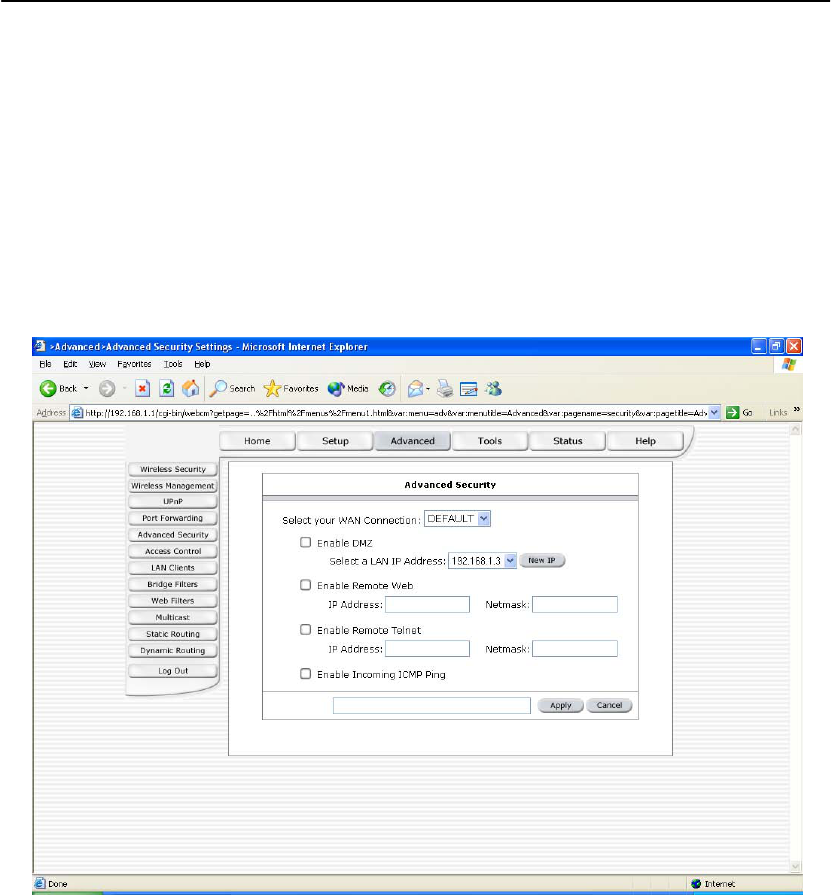

Figure 15 (Advanced Security)
The apply button will temporarily save this connection. To make the change permanent you
need to click on Tools (at the top of the page) and select System Commands. At the system
commands page, click on Save All.
4.7.5.1 DMZ configuration
Setting a computer (on your local network) as a DMZ forwards any network traffic that is not
redirected to another computer via the port-forwarding feature to the computer's IP address.
This opens the access to the DMZ computer from the Internet.
4.7.5.2 Enable Remote Web
Enabling the Remote Web on your local network allows Web requests that come from the
Internet to be re-routed to a Web Server that is on a different subnet. This is different that the
Web server rule that is configurable via the port-forwarding page. In this case, the web server
is on a different subnet.
SOHOSpeed ADSL Ethernet/Wireless Gateway User’s Manual
32
4.7.5.3 Enable Remote Telnet
Enabling the Remote Web on your local network allows telnet requests that come from the
Internet to be re-routed to a telnet Server that is on a different LAN IP subnet. This is different
that the telnet server rule that is configurable via the port-forwarding page. In this case, the
telnet server is on a different subnet.
4.7.5.4 Enable Incoming ICMP Ping
Enabling the Incoming Internet Control Message Protocol (ICMP) Ping will allow Echo
requests to come into the gateway. The gateway will respond with an ICMP Echo response
message. The option allows the DSL provider or ISP to determine the following:
a. The status of the network.
b. Tracking and isolating hardware and software problems.
c. Testing, measuring, and managing networks.
4.7.6 Access Control
Access control can also be called port blocking. Specific types of traffic that is destined to a
selected LAN IP address can be blocked. To enable any of the Access Control features, from
the Home screen, click Advanced and under Advanced, select Access Control. A page similar
to the port-forwarding page appears. Similar to the port-forwarding page, an IP address can
be added to a rule. All Access Control rules have precedence over rules that were added via
the port-forwarding page.
The apply button will temporarily save this connection. To make the change permanent you
need to click on Tools (at the top of the page) and select System Commands. At the system
commands page, click on Save All.
4.7.7 LAN clients
To add a LAN client, from the Home screen, click Advanced and under Advanced, select LAN
Clients. If DHCP is used, all DHCP clients are automatically assigned. If a fixed IP address
server is on the LAN and you want this server to be visible via the WAN, you must add its IP
address. Once the IP address has been added to you can apply Port Forwarding and Access
Control rules to this IP address.
The apply button will temporarily save this connection. To make the change permanent you
need to click on Tools (at the top of the page) and select System Commands. At the system
commands page, click on Save All.
4.7.8 Bridge Filters
The bridge filtering mechanism provides a way for the users to define rules to allow/deny
frames through the bridge based on source MAC address, destination MAC address and/or
frame type. When bridge filtering is enabled, each frame is examined against the defined filter
rules sequentially, and when a matched is determined, the appropriate filtering action
(determined by the access type selected ... i.e. allow or deny) is performed. The user should
note that the bridge filter will only examined frames from interfaces which are part of the
bridge itself. Twenty filter rules are supported with bridge filtering. To enable Bridge Filters,
from the Home screen, click Advanced and under Advanced, select Bridge Filters. Figure 16
illustrates a typical Bridge filter configuration.
SOHOSpeed ADSL Ethernet/Wireless Router User’s Guide
33
The User Interface for Bridge Filter allows the user to add/edit/delete, as well as, enables the
filter rules. To add rules, simply define the source MAC address, destination MAC address
and frame type with desired filtering type (i.e. allow/deny), and press the “Add” button. The
MAC address must be in a xx-xx-xx-xx-xx-xx format, with 00-00-00-00-00-00 as “don’t care”.
Blanks can be used in the MAC address space, and would be considered also as “don’t care”.
To edit/modify an existing filter rule, select the desired rule created previously from “Add” in
the “Edit” select box. The selected filter rule will appear on top section, as with the “Add” filter
rule. Make the desired change to the MAC address, frame type and/or access type, and press
“Apply”.
To delete filter rule(s), select the filter rule entry to delete in the “Delete” selection box. Note
that multiple deletions are possible. Once all the desired filter rule(s) is/are selected for
deletion, press the “Apply” button. The “Select All” select box can also be used to delete the
entire filter rule. It provides a quick method of selecting all filter rules for deletion.
The “Enable Bridge Filters” button allow the user to enable or disable bridge filtering. It can be
set/unset during any add/edit/delete operation. It can also be set/unset independently by just
pressing the “Apply” button.

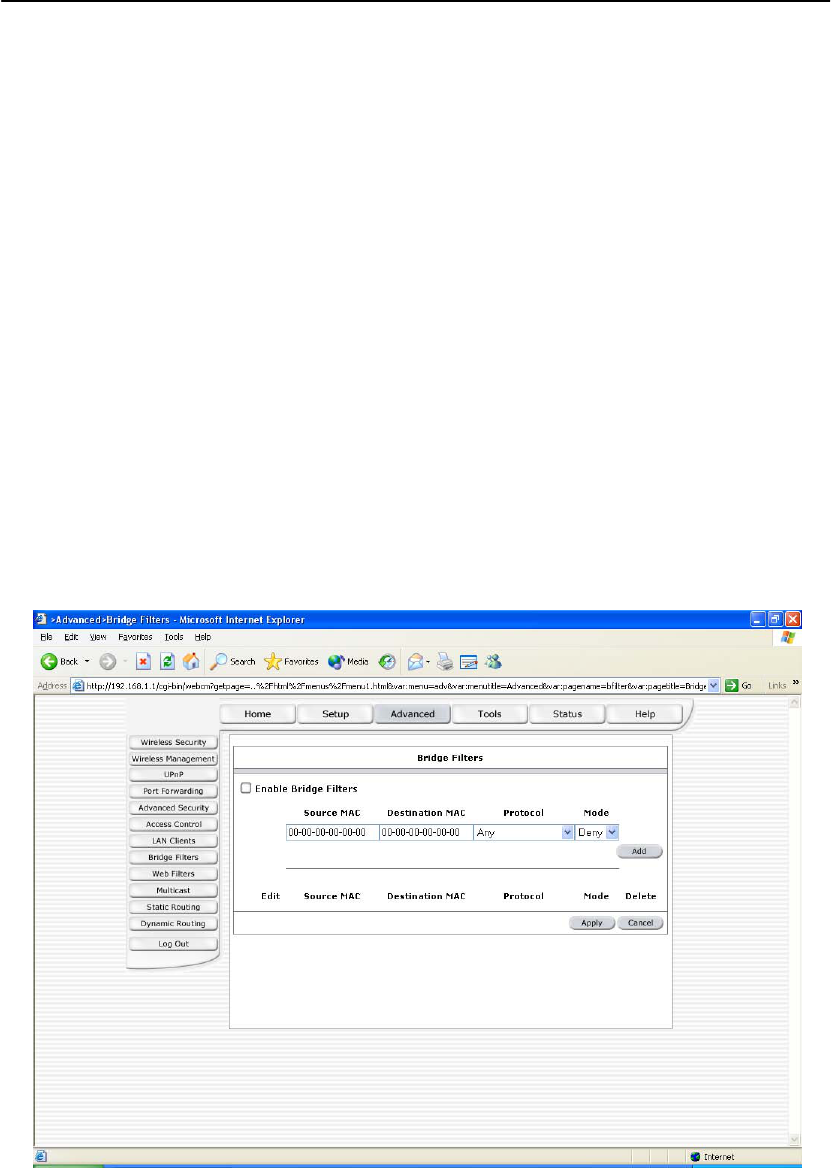

Figure 16 (Bridge Filters)
Note: The bridge filter table contains 3 hidden rules. These rules are entered automatically by
the system to ensure the user does not "lock" them out of the system. The first rule allows any
and all ARP frames through the system. The second rule allows all IPv4 frames with the
destination MAC address of the bridge to go through. The third rule allows all IPv4 frames
with the source MAC address of the bridge to go through.
SOHOSpeed ADSL Ethernet/Wireless Gateway User’s Manual
34
Tip: On a windows based machine, to find a MAC address, at a DOS prompt type ipconfig
/all.
The apply button will temporarily save this connection. To make the change permanent you
need to click on Tools (at the top of the page) and select System Commands. At the system
commands page, click on Save All.
4.7.9 Multicast
Multicasting is a form of limited broadcast. UDP is used to send datagrams to all hosts that
belong to what is called a "host group." A host group is a set of zero or more hosts identified
by the same destination IP address. The following statements apply to host groups.
a. Anyone can join or leave a host group at will.
b. There are no restrictions on a host's location.
c. There are no restrictions on the number of members that may belong to a host
group.
d. A host may belong to multiple host groups.
e. Non-group members may send UDP datagrams to the host group.
Multicasting is useful when data needs to be sent to more than one other device. For instance,
if one device is responsible for acquiring data that many other devices need, then multicasting
is a natural fit. Note that using multicasting as opposed to sending the same data to individual
devices uses less network bandwidth.
To enable Multicasting, from the Home screen, click Advanced and under Advanced, select
Muliticast. Figure 17 illustrates a typical Multicast configuration.

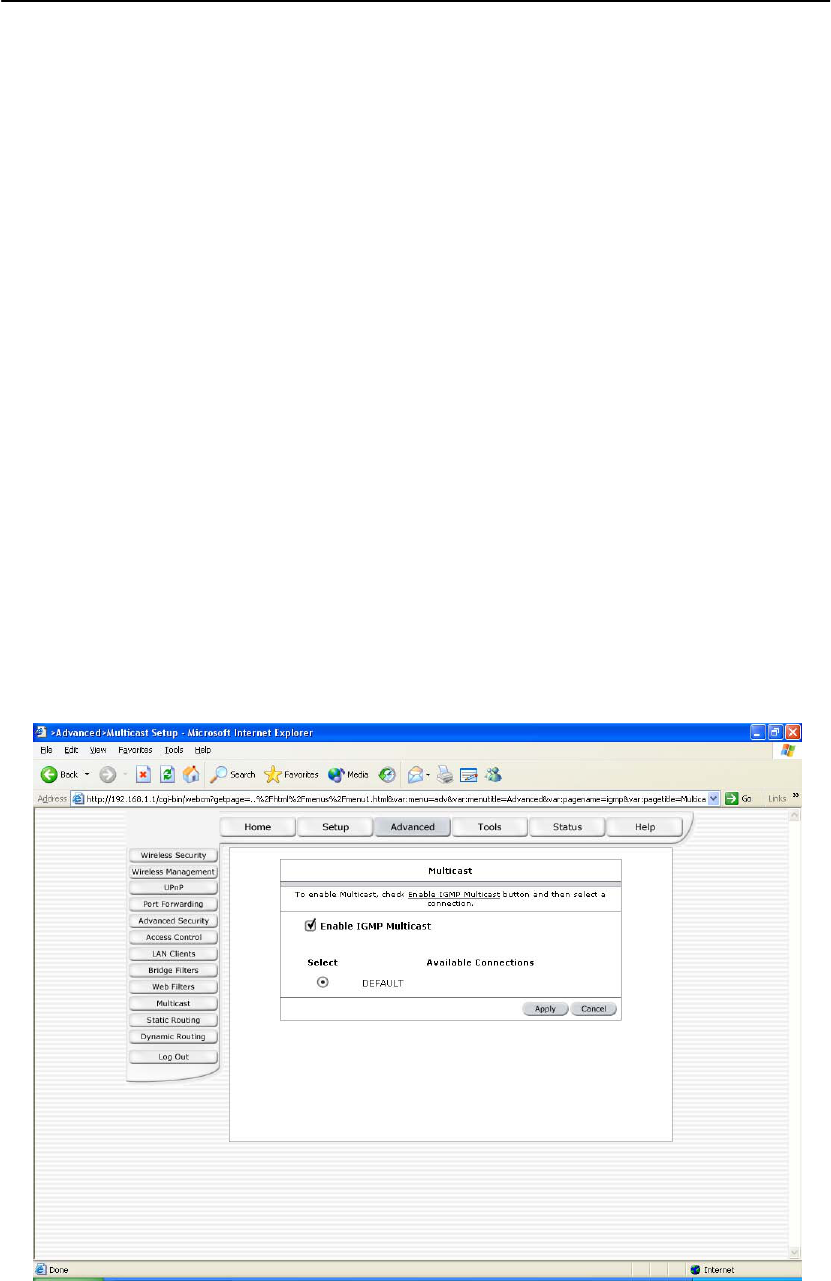

Figure 17 (Multicast)
The apply button will temporarily save this connection. To make the change permanent you
need to click on Tools (at the top of the page) and select System Commands. At the system
commands page, click on Save All.
SOHOSpeed ADSL Ethernet/Wireless Router User’s Guide
35
4.7.10 Static Routing
If the Gateway is connected to more than one network, you may need to set up a static route
between them. A static route is a pre-defined pathway that network information must travel to
reach a specific host or network. You can use static routing to allow different IP domain users
to access the Internet through the Gateway.
The New Destination IP is the address of the remote LAN network or host to which you want
to assign a static route. Enter the IP address of the host for which you wish to create a static
route here. For a standard Class C IP domain, the network address is the first three fields of
the New Destination IP, while the last field should be 0. The Subnet Mask identifies which
portion of an IP address is the network portion, and which portion is the host portion. For a full
Class C Subnet, the Subnet Mask is 255.255.255.0. The Gateway IP address should be the
IP address of the gateway device that allows for contact between the Gateway and the
remote network or host. The Hop Count determines the maximum number of steps between
network nodes that data packets will travel. A node is any device on the network (such as a
router or switch).
To enable Static Routing, from the Home screen, click Advanced and under Advanced, select
Static Routing. Figure 18 illustrates a typical Static Route.

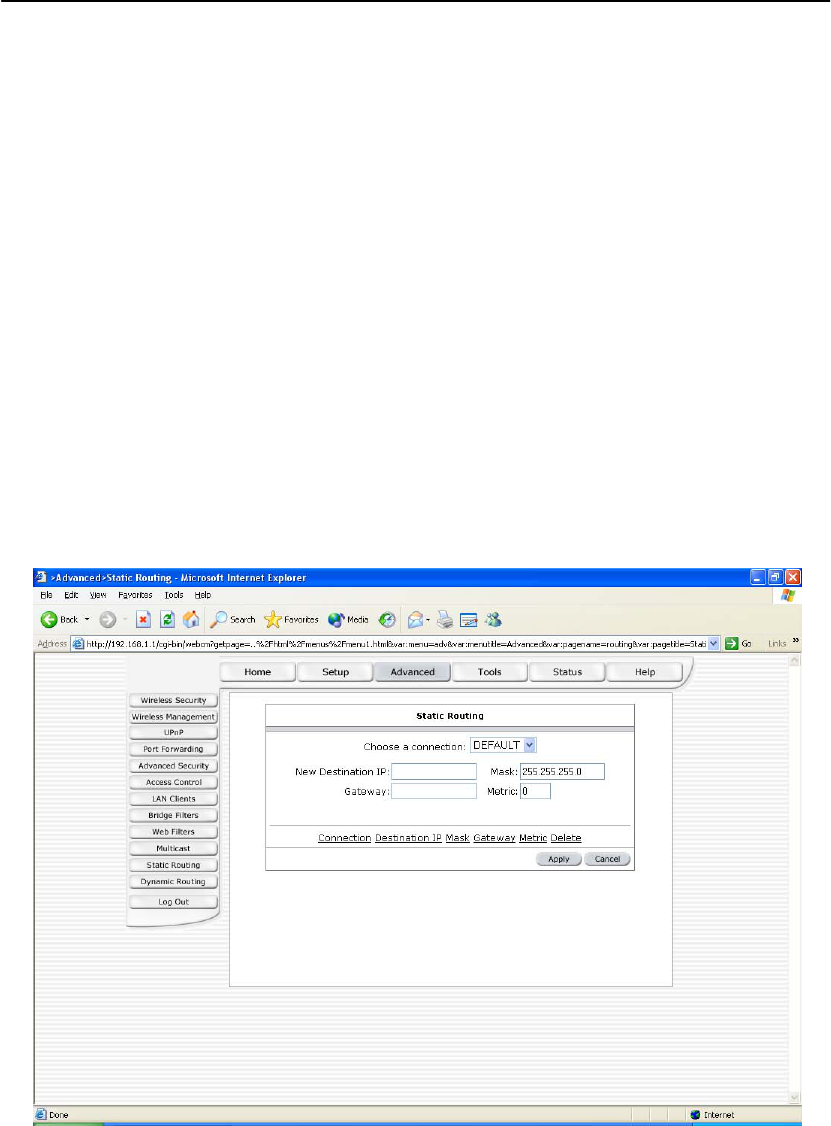

Figure 18 (Static Routing)
The apply button will temporarily save this connection. To make the change permanent you
need to click on Tools (at the top of the page) and select System Commands. At the system
commands page, click on Save All.
SOHOSpeed ADSL Ethernet/Wireless Gateway User’s Manual
36
4.7.11 Dynamic Routing
Dynamic Routing allows the Gateway to automatically adjust to physical changes in the
network. The Gateway, using the RIP protocol, determines the network packets’ route based
on the fewest number of hops between the source and the destination. The RIP protocol
regularly broadcasts routing information to other routers on the network.
The Direction determines the direction that RIP routes will be updated. Selecting In means
that the Gateway will only incorporate received RIP information. Selecting Out means that the
Gateway will only send out RIP information. Selecting both means that the Gateway will
incorporate received RIP information and send out updated RIP information.
The protocol is dependent upon the entire network. Most networks support Rip v1. If RIP v1 is
selected, routing data will be sent in RIP v1 format. If Rip V2 is selected, routing data will be
sent in RIP v2 format using subnet broadcasting. If Rip V1 Compatible is selected, routing
data will be sent in RIP v2 format using multicasting.
To enable Dynamic Routing, from the Home screen, click Advanced and under Advanced,
select Dynamic Routing. Figure 19 illustrates a typical Dynamic Route.

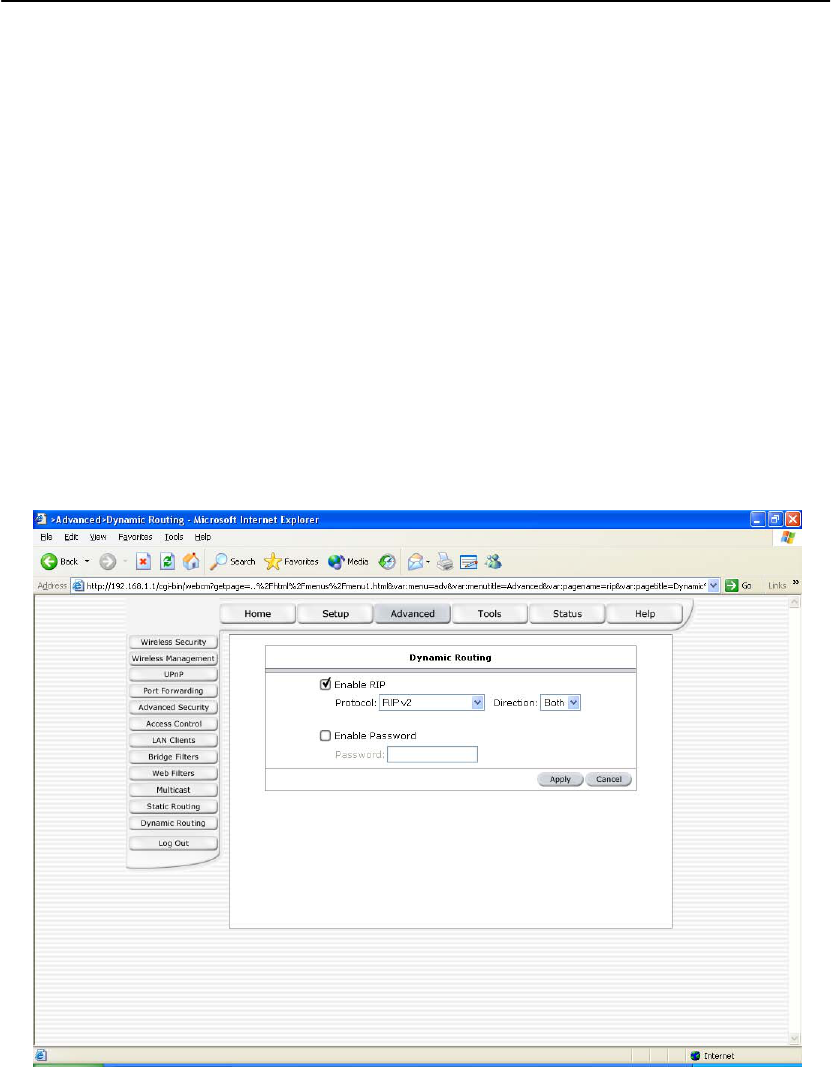

Figure 19 (Dynamic Routing)
The apply button will temporarily save this connection. To make the change permanent you
need to click on Tools (at the top of the page) and select System Commands. At the system
commands page, click on Save All.
SOHOSpeed ADSL Ethernet/Wireless Router User’s Guide
37
4.8 Tools
The gateway supports a host of tools which will allow you to customize and debug your
gateway.
4.8.1 System Commands
To make the changes permanent you need to click on Tools (at the top of the page) and
select System Commands. The following commands are used to configure the gateway:
a. Save all: Press this button in order to permanently save the current configuration of
the Gateway. If you do re-start the system without saving your configuration, the
Gateway will revert back to the previously saved configuration.
b. Restart: Use this button to re-start the system. If you have not saved your
configurations, the Gateway will revert back to the previously saved configuration
upon re-starting. NOTE: Connectivity to the unit will be lost. You can reconnect
after the unit reboots.
c. Restore Defaults: Use this button to restore factory default configuration. NOTE:
Connectivity to the unit will be lost. You can reconnect after the unit reboots.
4.8.2 Remote Log
The remote log feature is used in conjunction with the PC tool (software provided with your
gateway). For PPPoE and PPPoA connections, you can select debug if you want to log the
connection information. This is helpful when trying to debug connection problems.
The remote log feature will forward all logged information to the remote PC. The type of
information forwarded to the remote PC depends upon the Log level. Each log message is
assigned a severity level, which indicates how seriously the triggering event affects Gateway
functions. When you configure logging, you must specify a severity level for each facility;
messages that belong to the facility and are rated at that level or higher are logged to the
destination.
Table 1 defines the different severity levels.
To forward logging information, you need to click on Tools (at the top of the page) and select
Remote Log.

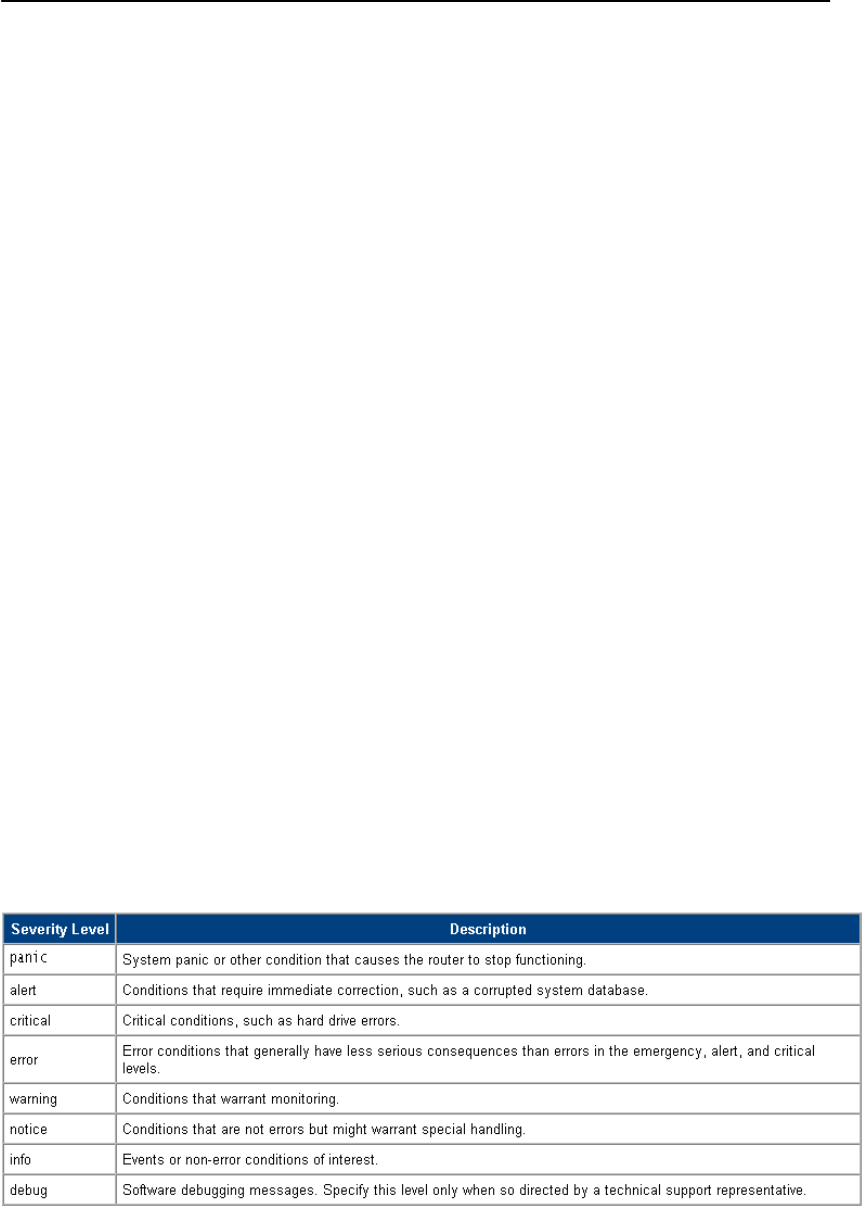

Table 1 (Severity Level)
SOHOSpeed ADSL Ethernet/Wireless Gateway User’s Manual
38
4.8.3 User Management
You can change your gateway’s username and password by going to the Home screen,
under the tools menu, click User Management. From here you can change the login name
and password. You can also change the idle timeout; you will need to log back onto the
gateway once the timeout expires.
If you forget your password, you can press and hold the reset to factory defaults button for 10
seconds (or more). The gateway will reset to its factory default configuration and all custom
configurations will be lost.
The apply button will temporarily save this connection. To make the change permanent you
need to click on Tools (at the top of the page) and select System Commands. At the system
commands page, click on Save All.
4.8.4 Update Gateway
You can remotely upgrade the gateway’s firmware by going to the Home screen, under the
tools title, click Update Gateway. This will bring up the screen shown in Figure 19.
SOHOSpeed ADSL Gateway will provide two different images; one image is the kernel
(operating system) and the other image is the file system.
To upgrade the firmware, click browse, find the firmware file to download. Make sure this is
the correct file. Click on upgrade firmware (as shown in Figure 20). Once the upgrade is
complete the gateway will reboot. You will need to log back onto the gateway after the
firmware upgrade is complete.
The firmware upgrade should take less that 5 minutes to complete. If it takes longer than 5
minutes, something has gone wrong.
Note: Do not remove power from the gateway during the firmware upgrade procedure.

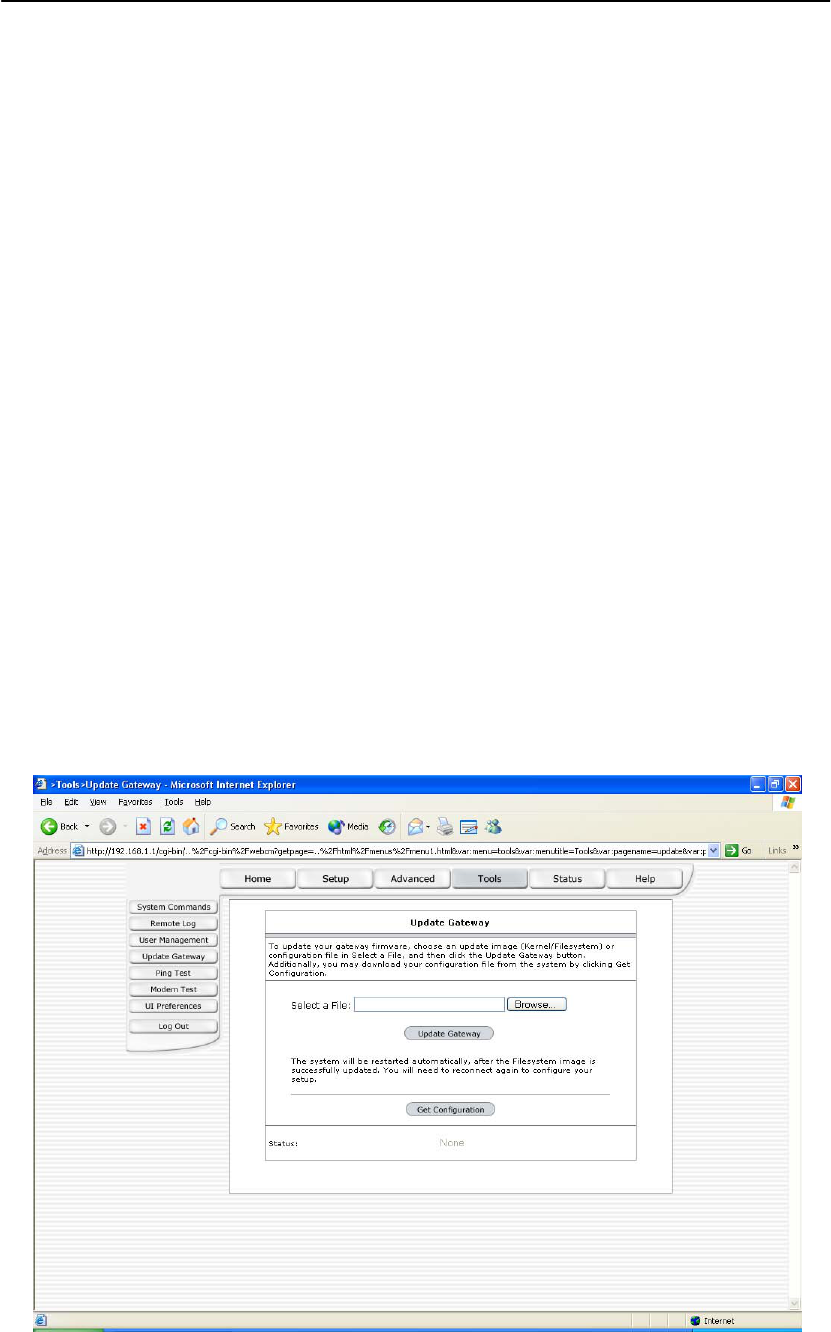

Figure 20 (Update Gateway)
SOHOSpeed ADSL Ethernet/Wireless Router User’s Guide
39
4.8.5 Ping Test
Once you have your gateway configured, it is a good idea to make sure you can Ping the
network. You can get to the Ping web page by going to the Home screen, under the Tools title,
click Ping Test. Type the target address that you want to pin. If you have your PC connected
to the gateway via the default DHCP configuration, you should be able to Ping the network
address 192.168.1.1. If your ISP has provided their server address you can try to ping the
address. If the pings for both the WAN and the LAN side complete, and you have the proper
protocols configured, you should be able to surf the Internet.
By default when you select ping test, the gateway will ping itself 3 times. As shown in Figure
21, the gateway passed the Ping test; this basically means that the TCP/IP protocol is up and
running. If this first Ping test does not pass, the TCP/IP protocol is not loaded for some
reason; you should restart the modem.

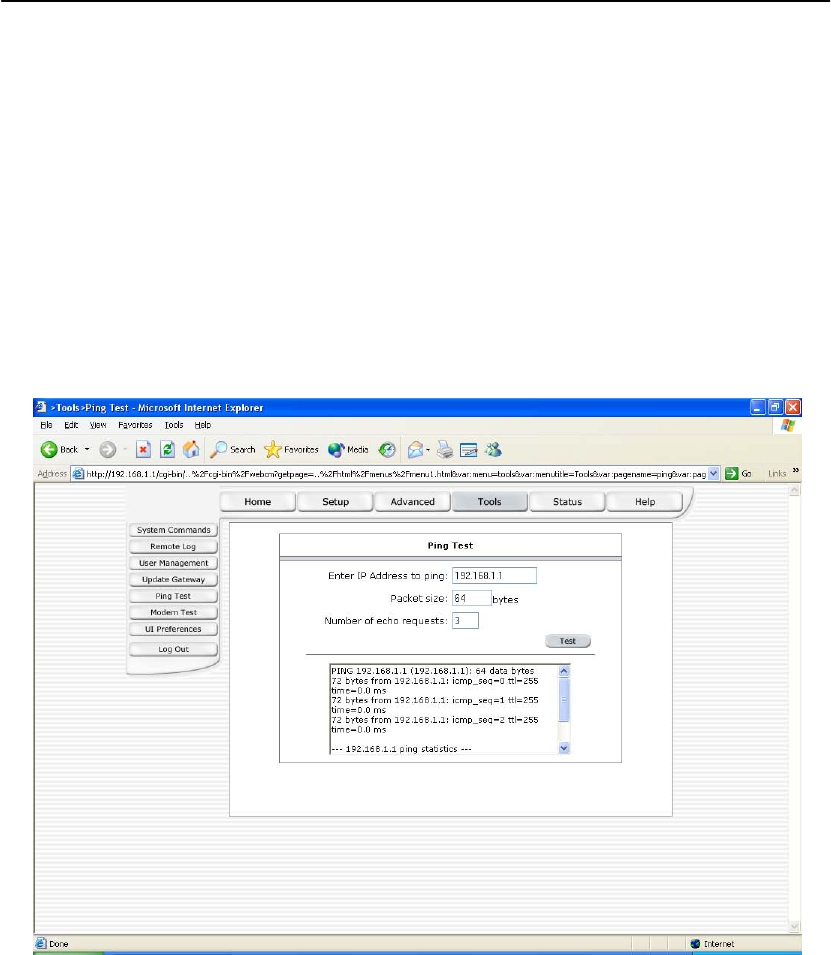

Figure 21 (Ping test)
4.8.6 Modem Test
The Modem Test is used to check whether your Modem is properly connected to the WAN
Network. This test may take a few seconds to complete. To perform the test, select your
connection from the list and press the Test button. Before running this test, make sure you
have a valid DSL link; if the DSL link is not connected, this test will always fail.
Also the DSLAM must support this feature; not all DSLAMs have F4 and F5 support.
4.8.7 UI Support
If you are having difficulty viewing the gateways’ web pages, you can change the resolution.
You can get to the UI support page by going to the Home screen, under the Tools title, click
UI support. The modem supports 640x480, 800x600, and 1024x780 (default).
SOHOSpeed ADSL Ethernet/Wireless Gateway User’s Manual
40
4.9 Status
The Status section allows you to view the Status/Statistics of different connections and
interfaces.
4.9.1 Network Statistics
Select to view the Statistics of different interfaces - Ethernet/USB/DSL.
4.9.2 Connection Status
Select to view the Status of different connections.
4.9.3 DHCP Clients
Select to view the list of DHCP clients.
4.9.4 Modem Status
Select to view the Status and Statistics of your broadband (DSL) connection.
4.9.5 Product Information
You can display the gateway’s driver and run-time information by going to the Home screen,
under the Status title, click Product Information. Figure 22 illustrates the typical product
information, which is provided.

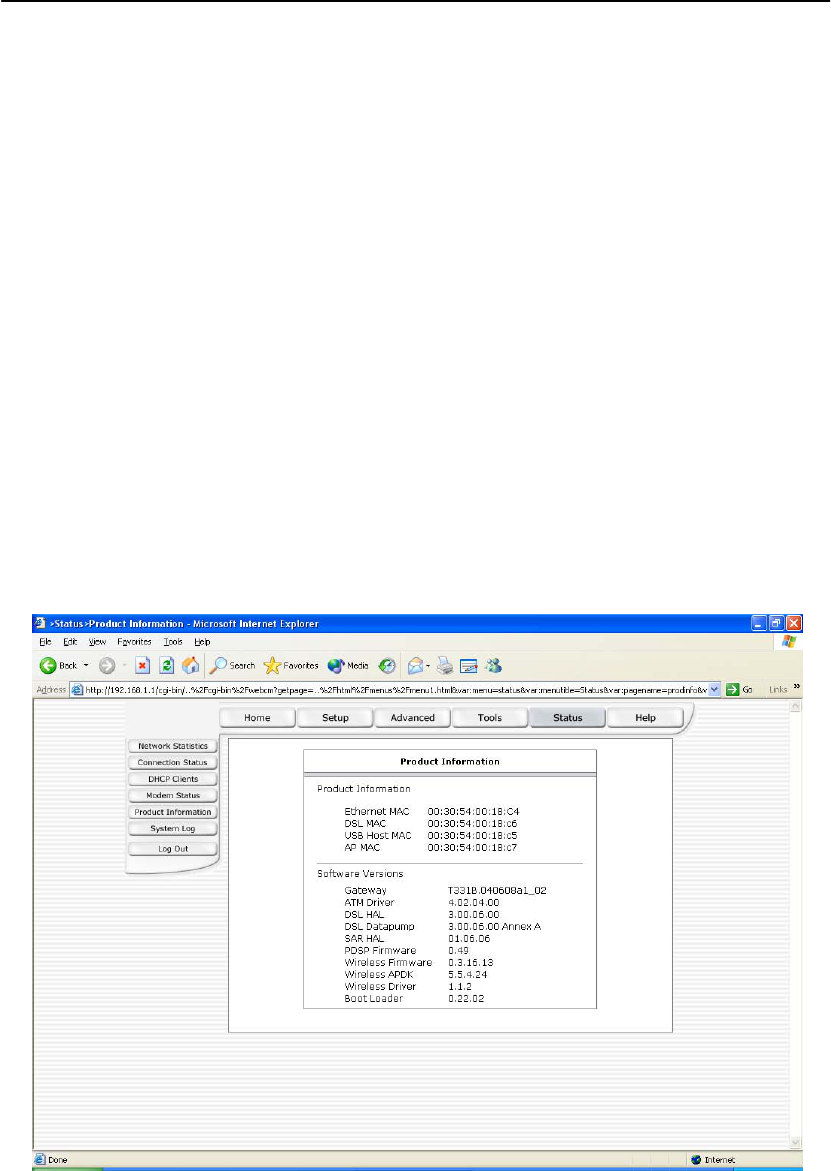

Figure 22 (Product Information)
4.9.6 System Log
You can display the Gateway’s log by going to the Home screen, under the Status title, click
System log. From here you can view all logged information. Depending upon the severity
level, this logged info will generate log reports to a remote host (if remote logging is enabled).
SOHOSpeed ADSL Ethernet/Wireless Router User’s Guide
41
5. Appendix A: Troubleshooting
Below is a list of commonly asked questions. Before calling technical support, please look
through these issues to see if they help solve your problem.
5.1 The gateway is not functional.
1. Check to see that the power LED is green and than the network cables are
installed correctly. Refer to the quick start guide for more details.
2. Check to see that the LAN and WAN LEDs are green.
3. Check to see that the DSL LED is green
4. Make sure you are not connecting the USB and the Ethernet port at the
same time. You must only use 1 interface at a time.
5. Check the settings on your PC. Again, refer to the quick start guide for
more details
6. Check the gateway’s settings.
7. From your PC, can you PING the gateway? Assuming that the gateway
has DHCP enabled and your PC is on the same subnet as the gateway,
you should be able to PING the gateway.
8. Can you PING the WAN? Your ISP should have provided the IP address of
their server. If you can ping the gateway and your protocols are configured
correctly, you should be able to ping the ISPs network. If you cannot PING
the ISPs network, make sure your using the correct protocols with the
correct VPI/VCI values.
9. Make sure NAT is enabled for your connection. If NAT is disabled you the
gateway will not route frames correctly.
5.2 I can’t connect to the gateway.
1. Check to see that the power LED is green and that the network cables are
installed correctly; see the quick start guide for more details.
2. Make sure you are not connecting the USB and the Ethernet port at the
same time. You must only use 1 interface at a time.
3. Make sure that your PC and the gateway is on the same network segment.
The gateway’s default IP address is 192.168.1.1. If you are running a
Windows based PC, you can open a DOS window and type IPCONFIG;
make sure that the network adapter that is connected to the gateway is
within the same 192.168.1.x subnet.
4. Also, your PC’s Subnet Mask should match the gateways subnet mask.
The gateway has a default subnet mask of 255.255.255.0.
5. If this still does not work, press the reset button for 10 seconds. This will
place the gateway into its factory default state. Go through the above
procedures again.
6. Make sure NAT is enabled for your connection. If NAT is disabled you the
gateway will not route frames correctly.
SOHOSpeed ADSL Ethernet/Wireless Gateway User’s Manual
42
5.3 The LEDs blink in a sequential pattern.
This typically means that either the kernel or flash file system is corrupted. The only way to
recover from this type of failure is via the PC tool. You need to install the PC tool that was
provided with SOHOSpeed ADSL Gateway and perform the following steps:
1. In windows disable all network adapters except the one, which is
connected to the gateway.
2. Disable zone alarm or any IP blocking software that is running of the PC.
3. Run the PC tool application. At the IP address prompt, type 192.168.1.1
and retrieve/assign IP address. The PC application should come back with
information about the gateway. You then need to load the kernel image,
flash file system, and config.xml file to the flash.
4. Once all three codes have been loaded into the gateway, the gateway will
automatically reboot. As long as there is no problem with the Flash
memory, the gateway should be functional and the LEDs should light
correctly.
5.4 The DSL Link LED continues to blink but does not go
solid.
1. This means that the DSL line is trying to train but for some reason it cannot establish
a valid connection. The main cause of this is that you are too far away from the
central office. Contact your DSL service provider for further assistance.
5.5 The DSL Link LED is always off.
1. Make sure you have DSL service. You should get some kind of information from your
ISP which states that DSL service is installed. You can usually tell if the service is
installed by listening to the phone line; you will hear some high-pitched noise. If you
do not hear high-pitched noise, contact your ISP.
2. Verify that the phone line is connected directly to the wall and to the line input on the
gateway. If the phone line is connected to the phone side of the gateway or you have
a splitter installed on the phone line, the DSL light will not come on.
SOHOSpeed ADSL Ethernet/Wireless Router User’s Guide
43
6. Gateway terms
What is a firewall?
A firewall is protection between the Internet and your local network. It acts similarly to the
firewall in your car, protecting the interior of the car from the engine. Your car's firewall has
very small opening that allow desired connections from the engine into the cabin (gas pedal
connection, etc), but if something happens to your engine, you are protected.
The firewall in the Gateway is very similar. Only the desired connections that you allow are
passed through the firewall. These connections are normally originating from the local
network; such as web browsing, checking your email, downloading a file, and playing a game.
However, in some cases, you can allow incoming connections so that you can run programs
like a web server.
What is NAT?
NAT stands for Network Address Translation. Another name for it is Connection Sharing.
What does this mean? Your ISP provides you with a single network address for you to access
the Internet through. However, you may have several machines on your local network that
want to access the Internet at the same time. The Gateway provides NAT functionality that
converts your local network addresses to the single network address provided by your ISP. It
keeps track of all these connections and makes sure that the correct information gets to the
correct local machine.
Occasionally, there are certain programs that don't work well through NAT. Some games, and
some specialty applications have a bit of trouble. The Gateway contains special functionality
to handle the vast majority of these troublesome programs and games. NAT does cause
problems when you want to run a SERVER though. When running a server, please see the
DMZ section below.
What is a DMZ?
DMZ really stands for Demilitarized Zone. It is a way of separating out part of your local
network so that is more open to the Internet. Suppose that you want to run a web-server, or a
game server. Normal servers like these are blocked from working by the NAT functionality.
The solution is to "isolate" the single local computer into a DMZ. This makes the single
computer look like it is directly on the Internet, and others can access this machine.
Your machine isn't really directly connected to the Internet, and it really has an internal local
network address. When you provide the servers network address to others, you must provide
the address of the Gateway. The Gateway "fakes" the connection to your machine.
You should use the DMZ when you want to run a server that others will access from the
Internet. Internal programs and servers (like print servers, etc) should NOT be connected to
the DMZ
What is a Gateway?
The Internet is so large that a single network cannot handle all of the traffic and still deliver a
reasonable level of service. To overcome this limitation, the network is broken down into
smaller segments or subnets that can deliver good performance for the stations attached to
that segment. This segmentation solves the problem of supporting a large number of stations,
but introduces the problem of getting traffic from one subnet to another.
To accomplish this, devices called routers or gateways are placed between segments. If a
machine wishes to contact another device on the same segment, it transmits to that station
directly using a simple discovery technique. If the target station does not exist on the same
segment as the source station, then the source actually has no idea how to get to the target.
One of the configuration parameters transmitted to each network device is its default gateway.
This address is configured by the network administrators and it informs each personal
computer or other network device where to send data if the target station does not reside on
the same subnet as the source. If your machine can reach all stations on the same subnet
(usually a building or a sector within a building), but cannot communicate outside of this area,
it is usually because of an incorrectly configured default gateway.
FEDERAL COMMUNICATIONS COMMISSION
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions:(1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user‘s authority to operate the equipment.
NOTE
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiated radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
Note:
This device and its antenna(s) used for this transmitter must not be co-located
or operating in conjunction with any other antenna or transmitter.
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. In order to avoid the possibility of exceeding the
FCC radio frequency exposure limits, human proximity to the antenna shall
not be less than 20cm (8 inches) during normal operation.
