CastleNet Technology BTC08R800 Bluetooth 3.0/2.1+EDR Embedded module User Manual
CastleNet Technology Inc. Bluetooth 3.0/2.1+EDR Embedded module
user manual
CastleNet BTC08R800 User Guide
CastleNet Technology Inc. Copyright © 2011 All Rights
Reserved. 1 of 7
User Guide
Bluetooth 3.0/2.1+EDR Embedded Module
CastleNet BTC08R800 User Guide
CastleNet Technology Inc. Copyright © 2011 All Rights
Reserved. 2 of 7
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. To maintain compliance with FCC RF exposure compliance requirements, please
follow operation instruction as documented in this manual.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
CastleNet BTC08R800 User Guide
CastleNet Technology Inc. Copyright © 2011 All Rights
Reserved. 3 of 7
This device is intended only for OEM integrators under the following conditions:
1) The transmitter module may not be co-located with any other transmitter or antenna.
As long as 2 conditions above are met, further transmitter test will not be required. However, the
OEM integrator is still responsible for testing their end-product for any additional compliance
requirements required with this module installed (for example, digital device emissions, PC
peripheral requirements, etc.).
IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop
configurations or co-location with another transmitter), then the FCC authorization is no longer
considered valid and the FCC ID can not be used on the final product. In these circumstances, the
OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and
obtaining a separate FCC authorization.
End Product Labeling
The final end product must be labeled in a visible area with the
following: “Contains TX FCC ID: RK9-BTC08R800”.
Manual Information To the End User
The OEM integrator has to be aware not to provide information to the end user regarding how to
install or remove this RF module in the user’s manual of the end product which integrates this
module.
The users manual for OEM integrators must include the following information in a prominent location
“IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements. The antenna
must not be co-located or operating in conjunction with any other antenna or transmitter.
CastleNet BTC08R800 User Guide
CastleNet Technology Inc. Copyright © 2011 All Rights
Reserved. 4 of 7
Canada-Industry Canada (IC)
Operation is subject to the following two conditions:
this device may not cause interference and
this device must accept any interference, including interference that may cause undesired operation
of the device.
IMPORTANT NOTE:
IC Radiation Exposure Statement:
This equipment with IC radiation exposure limits set forth for an uncontrolled environment. To
maintain compliance with IC RF exposure compliance requirements, please follow operation
instruction as documented in this manual.
CastleNet BTC08R800 User Guide
CastleNet Technology Inc. Copyright © 2011 All Rights
Reserved. 5 of 7
1. INTRODUCTION
The BTC08R800 series is a embedded Bluetooth module, smallest form factor for Notebook and
handheld PC. The Bluetooth function is based on CSR BlueCore8 PC-ROM single chip, which is
fully compliant with Bluetooth 2.1 specification plus EDR. It has good RF performance. Lowest
power consumption, piconet and scatternet capability. The interface is HCI USB compliant with
USB fully speed (12Mbits).

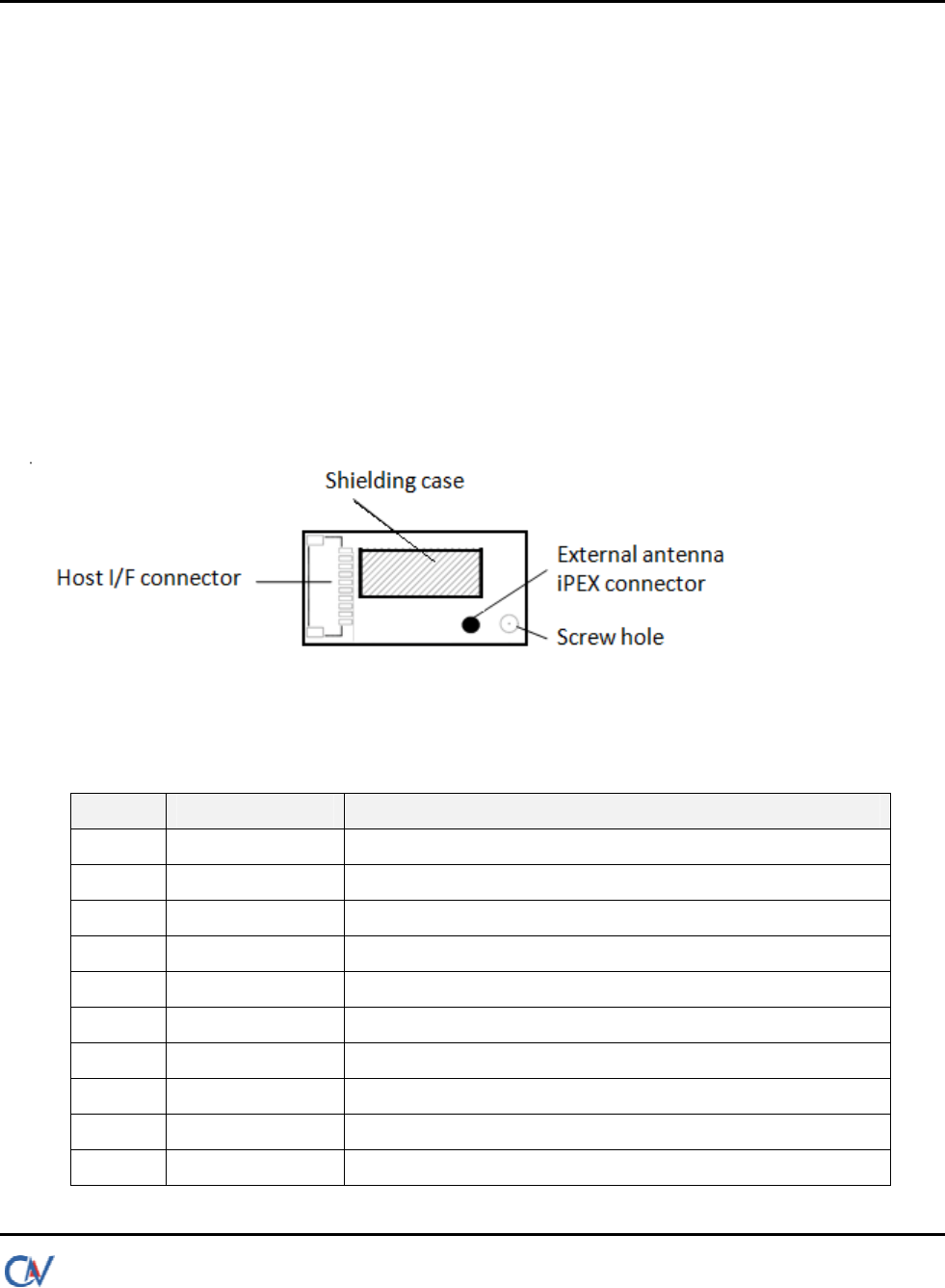

The cable connection and PIN define of “Host I/F connector” from BT module (BTC08R800 series)
to PC system is specially customized by OEM Laptop PC.
2. PIN Define (Host I/F connector)
PIN# Define Description
1 GND
2 USB D+
3 USB D-
4 BT_STATUS Connected when 3-wired BT-WiFi coexistence.
5 BT_ACT WLAN and BT Co-existence
6 BT_ON Active High to enable BT Radio.. Low to disable BT Radio.
7 WLAN_ACT WLAN and BT Co-existence
8 +3.3V Power supply for module
9 LED LED indicator for BT activity. / Reserved.
10 GND
CastleNet BTC08R800 User Guide
CastleNet Technology Inc. Copyright © 2011 All Rights
Reserved. 6 of 7

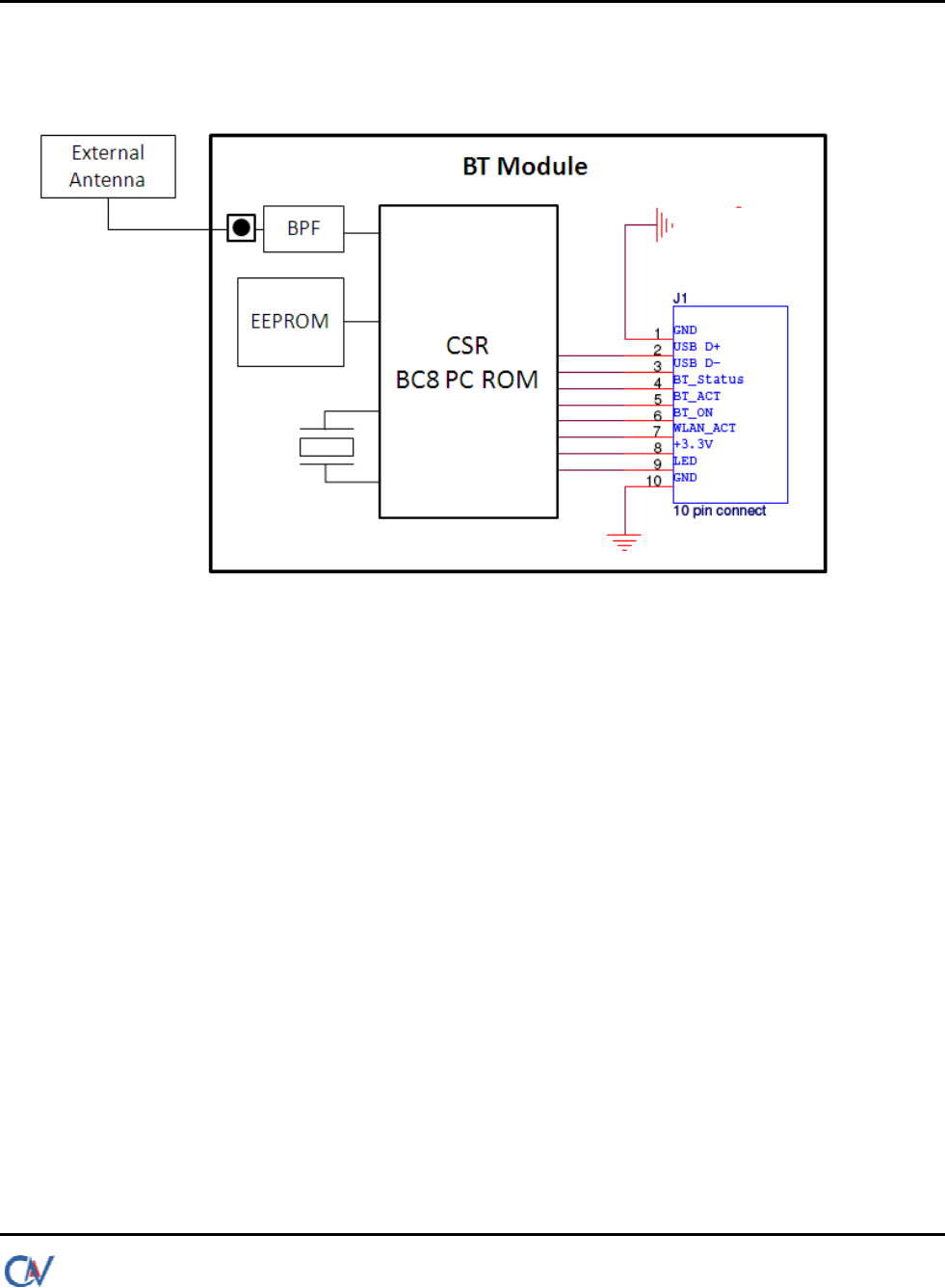

3. Block Diagram
4. INSTALLATION
4.1 Installed in Laptop PC
The Mainboard of the system should provide a Host connector and Cable connection for BT
module. Please follow the SOP to install & assemble it step by step.
4.2 Testing in Lab

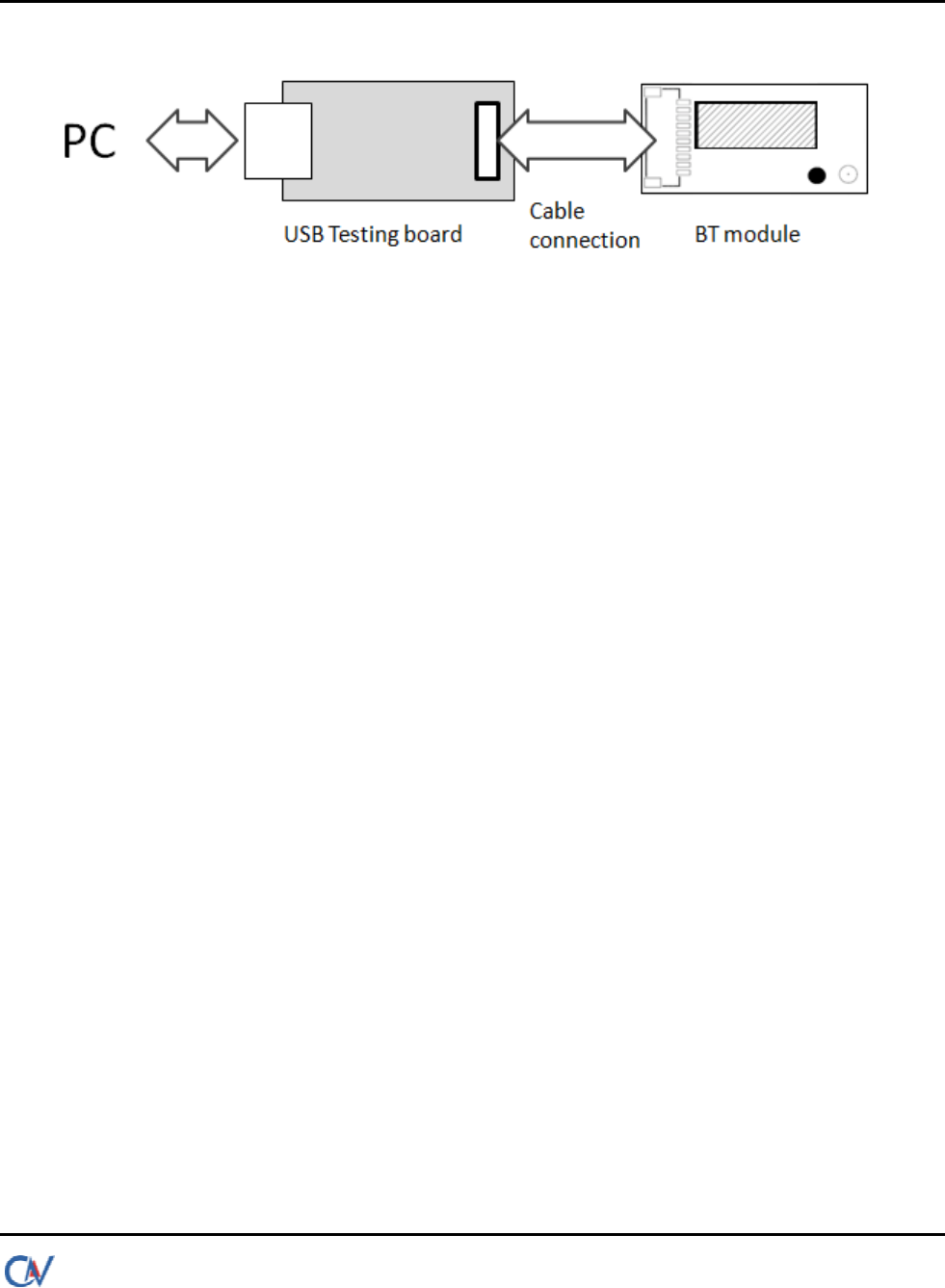

The module is embedded inside Notebook. If for testing purpose, we provide the “USB Testing
Board” in order to let tester connect BTC08R800 via the special cable connection to PC externally.
The USB Testing Board provides +5V/3.3V conversion from PC Host. Please plug into any USB
port on your PC.
CastleNet BTC08R800 User Guide
CastleNet Technology Inc. Copyright © 2011 All Rights
Reserved. 7 of 7
After Hardware installation, when system find the new hardware, please install the driver /
software correctly.
