CBW209D1 Cable Modem Quick Installation Guide
Package Contents
CBW209D1 cable modem * 1
Quick Installation Guide * 1
RJ-45 CAT 5E cable * 1
12 V/1 A Power Adaptor * 1

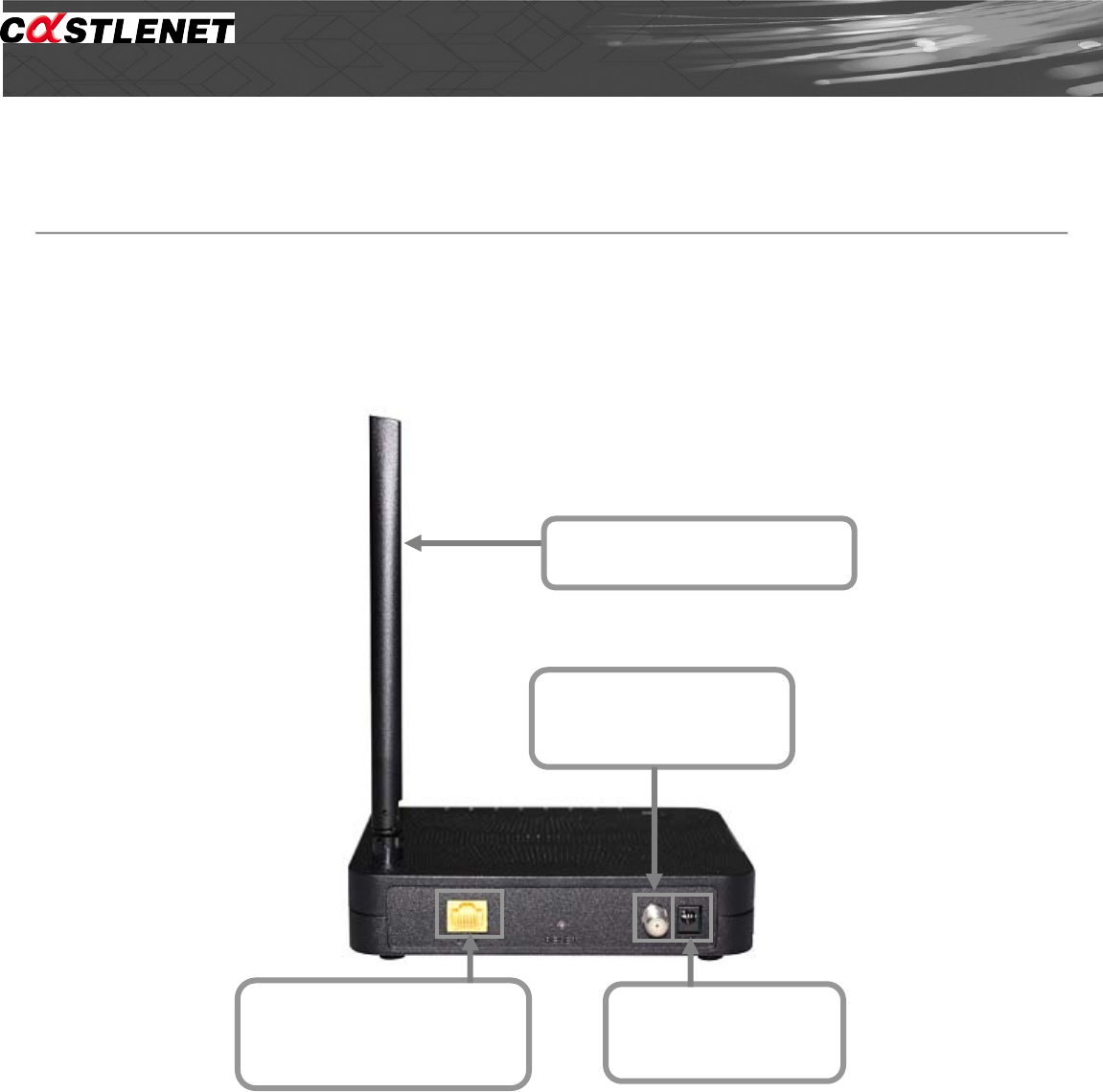

Rear Panel and Hardware Connection
This chapter describes the proper steps for connecting your cable modem. Please be sure to follow
the steps in the sequence outlined below. Failure to do so could result in improper operation or failure
of your cable modem.
Step 1:Connect a cable by feeding the F-connector on the back of the cable modem. Ensure the
center conductor of the 75 ohm coaxial cable is inserted directly into the center of the F-connector.
Secure the coaxial cable by carefully threading the outer shell of the coaxial cable connector onto the
F-connector in a clockwise direction until tight. Be careful not to over-tighten the connector or you may
damage either the connector or the cable modem.
Step2: Connect the cable modem to an IEEE 802.3 10Base-T / 802.3u 100Base-TX Network using a
RJ-45 male-terminated Ethernet cable. This cable modem equips with one Ethernet port, you can
connect one PC to the cable modem at the same time if necessary.
Step 3: Connect the AC Adapter to the cable modem by inserting the barrel-shaped connector into the
mating power connector on the back of the cable modem. Exercise carefully to ensure the connectors
are properly aligned prior to insertion and ensure the two connectors engage completely. The cable
modem is shipped with an AC adapter. Remember to use only power adapter that came with the cable
modem. Other power adapters might have voltages that are not correct for your particular cable
modem. Using a power adapter with the wrong voltage can damage the cable modem.
Step 4: Adjust the antenna if necessary.
Step 1 Connecting
the Coaxial Cable
Step 2 Connecting to a
Network Interface Cord
Step 3 Connecting
to the AC Adapter
Step 4 Adjust the Antenna
CBW209D1 Cable Modem Quick Installation Guide

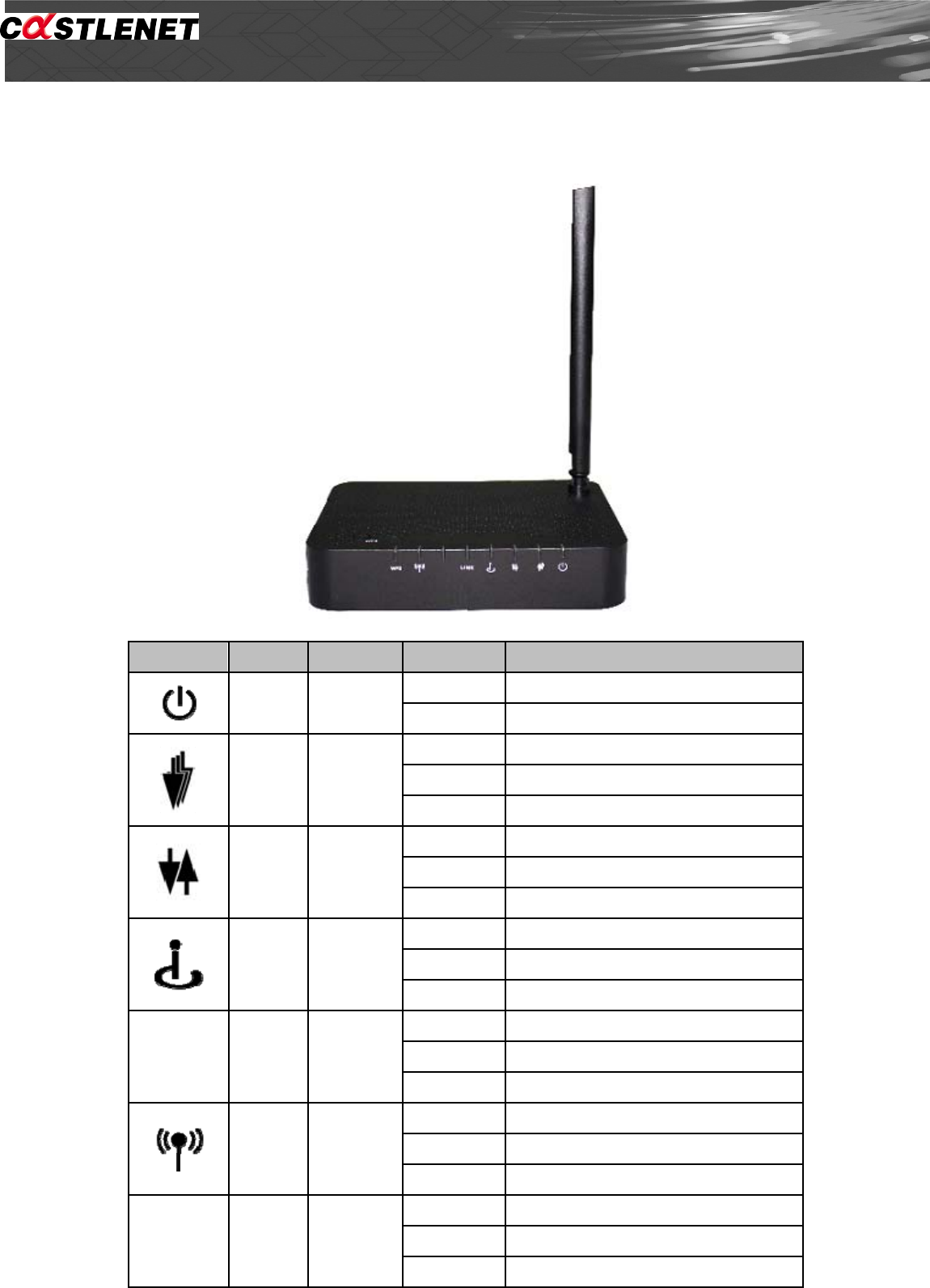

Front Panel & LEDs
There are seven Light-Emitting-Diodes (LEDs) located on the
front panel top provide status information to the user.
LED NAME COLOR MODE STATUS
POWER Green On DC power connected
Off No DC power connected
DS Green
Blinking Downstream scanning
On Downstream locked
Off Cable interface idle
US Green
Blinking Upstream ranging
On Upstream locked
Off Cable interface idle
ONLINE Green
Blinking CM provisioning
On CM on-line
Off Cable interface idle
LINK LAN
Green
On ETH device connected ( FE)
Blinking Data in traffic
Off No ETH device connected
Wi-Fi Green
On WiFi enabled
Blinking Data in traffic
Off WiFi disabled
WPS WPS Green
Blinking WPS in paring
On WPS paring completed
Off WPS inactive
CBW209D1 Cable Modem Quick Installation Guide
Accessing the Web Management
For easy-changing the default settings, a Web-based GUI is built-in for your access.
Use the following procedures to login to your CBW209D1.
1. Open your web browser. Type the default IP address of the CBW209D1 (e.g. http://192.168.0.1)
and press Enter.
Configuring Your WAN Connection
The DHCP page allows you to activate/deactivate the DHCP server function of the CBW209D1, and, if
the DHCP server is activated, to see DHCP leases it has provided.
Enable CBW209D1’s DHCP server to
allocate IP address to the connected
LAN client (PC) and configure the
Starting Local Address to be issued.
You can also set the maximum number
of PCs to which the CBW209D1 will
issue IP addresses and the release time
(in second).
CBW209D1 Cable Modem Quick Installation Guide
Check your CBW209D1 Access Information
There is a label pasted to the bottom of CBW209D1 case. In that label, you can obtain following
information. Please note, following label is just an example, each CBW209D1 has their own label and
setting value. Please follow your label information to access and configure CBW209D1. In normal
case, you don’t need to change anything, all setting have been set and work properly.
SSID: This is used for your CBW209D1 wireless setting use, and, this setting has already been set to
your CBW209D1.
WPA Pre-Shared Key: This is the password for your wireless client when connecting to CBW209D1.
You will be asked to key in this password so as to connect via wireless
connection.
Web Management: This is the URL when you like to access to CBW209D1. You can simply type
http://192.168.0.1 in Microsoft Internet Explorer or any other internet browser to
access CBW209D1 web management page.
Login: This is the value when accessing CBW209D1 web management page. You will be asked to
key in this default value to access CBW209D1.
Password: This is the value when accessing CBW209D1 web management page. You will be asked
to key in this default value to access CBW209D1.
SSID:
CBW209D1_8C9D
WPA2-PSK(TKIP+AES)
Web Management:
http://192.168.0.1
login: admin
password: password
CBW209D1 Cable Modem Quick Installation Guide
FCC Statement
This device complies with Class B Part 15 of the FCC Rules. The device generates, uses and can
radiate radio frequency energy and, if not installed and used as instructed, may cause harmful
interference to radio communication. Only Coaxial cables are to be used with this device in order to
ensure compliance with FCC emissions limits. Accessories connected to this device by the user must
comply with FCC Class B limits. The manufacturer is not responsible for any interference which results
from use of improper cables, or which results from unauthorized changes or modifications to the
device. "A Minimum 26 AWG Line Core should be used for connection to the cable modem"
Warranty
Items sold by manufacturer/distributor/agent, hereinafter called "Seller", are warranted only as follows:
Except as noted below Seller will correct, either by repair or replacement at its option, any defect of
material or workmanship which develops within one year after delivery of the item to the original Buyer
provided that evaluation and inspection by Seller discloses that such defect developed under normal
and proper use. Repaired or replaced items will be further warranted for the unexpired term of their
original warranty. All items claimed defective must be returned to Seller, transportation charges
prepaid, and will be returned to the Buyer with transportation charges collect unless evaluation proves
the item to be defective and that the Seller is responsible for the defect. In that case, Seller will return
to Buyer with transportation charge prepaid. Seller may elect to evaluate and repair defective items at
the Buyer's site. Seller may charge Buyer a fee (including travel expenses, if needed) to cover the cost
of evaluation if the evaluation shows that the items are not defective or that they are defective for
reasons beyond the scope of this warranty.
The Seller makes no warranty concerning components or accessories not manufactured by it.
However, in the event of failure of such a part, Seller will give reasonable assistance to Buyer in
obtaining from the manufacturer whatever adjustment is reasonable in light of the manufacturer's own
warranty.
Seller will not assume expense or liability for repairs made outside the factory by other than Seller's
employees without Seller's written consent.
SELLER IS NOT RESPONSIBLE FOR DAMAGE TO ANY ASSOCIATED EQUIPMENT, NOR WILL
SELLER BE HELD LIABLE FOR INCIDENTAL, CONSEQUENTIAL, OR OTHER
DAMAGES. THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES EXPRESSED OR
IMPLIED INCLUDING THE IMPLIED WARRANTY OF "MERCHANTABILITY" AND "FITNESS FOR
PARTICULAR PURPOSE."
Trademarks
All trademarks are the property of their respective owners.
CBW209D1 Cable Modem Quick Installation Guide
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC Caution:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Non-modification Statement:
Changes or modifications not expressly approved by the party responsible for compliance could void
the user's authority to operate the equipment.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with minimum distance 20cm between the radiator &
your body.
Limited Channels fixed for use in the US:
IEEE 802.11b or 802.11g or 802.11n(HT20) operation of this product in the U.S. is firmware-limited to
Channel 1 through 11. IEEE 802.11n(HT40) operation of this product in the U.S. is firmware-limited to
Channel 3 through 9
