CastleNet Technology Inc. WIFI cable modem router CBW383G1IND QIG
Users Manual
CB
W383G1IND Cable Modem Quick Installation Guide
Package Contents
CBW383G1IND cable modem * 1
Quick Installation Guide * 1
RJ-45 CAT 5E cable * 1
12 V/1A Power Adaptor * 1

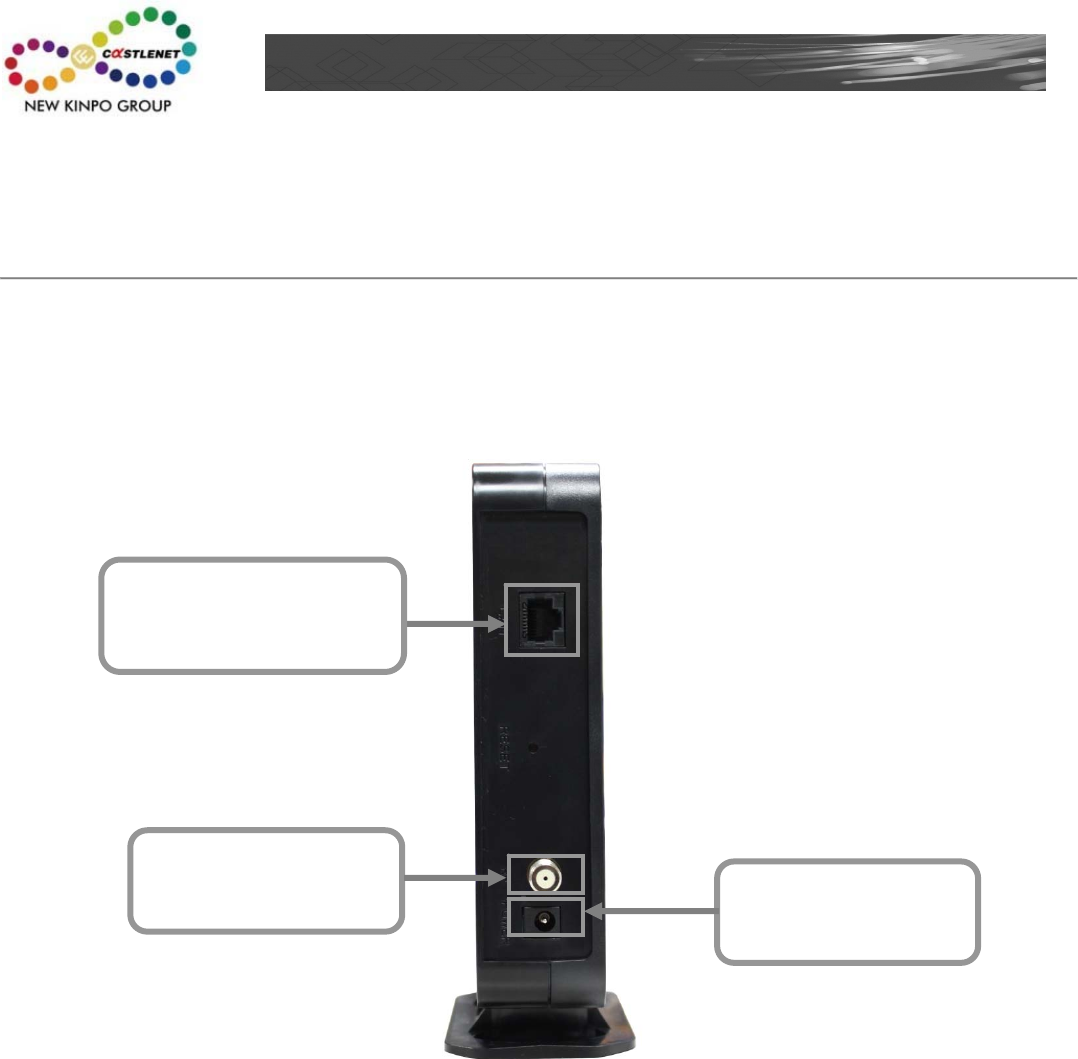

Rear Panel and Hardware Connection
This chapter describes the proper steps for connecting your cable modem. Please be sure to follow
the steps in the sequence outlined below. Failure to do so could result in improper operation or failure
of your cable modem.
Step 1:Connect a cable by feeding the F-connector on the back of the cable modem. Ensure the
center conductor of the 75 ohm coaxial cable is inserted directly into the center of the F-connector.
Secure the coaxial cable by carefully threading the outer shell of the coaxial cable connector onto the
F-connector in a clockwise direction until tight. Be careful not to over-tighten the connector or you may
damage either the connector or the cable modem.
Step2: Connect the cable modem to an IEEE 802.3 10Base-T / 802.3u 100Base-TX / 802.3ab
1000Base-T Network using a RJ-45 male-terminated Ethernet cable. This cable modem equips with
one Ethernet port, you can connect PC to the cable modem.
Step 3: Connect the AC Adapter to the cable modem by inserting the barrel-shaped connector into the
mating power connector on the back of the cable modem. Exercise carefully to ensure the connectors
are properly aligned prior to insertion and ensure the two connectors engage completely. The cable
modem is shipped with an AC adapter. Remember to use only power adapter that came with the cable
modem. Other power adapters might have voltages that are not correct for your particular cable
Step 1
Connecting
the Coaxial Cable
Step 2
Connecting to a
Network Interface Cord
Step 3 Connecting
to the AC Adapter
CBW383G1IND Cable Modem Quick Installation Guide
modem. Using a power adapter with the wrong voltage can damage the cable modem.
Step 4: Adjust the antenna if necessary.
CBW383G1IND Cable Modem Quick Installation Guide

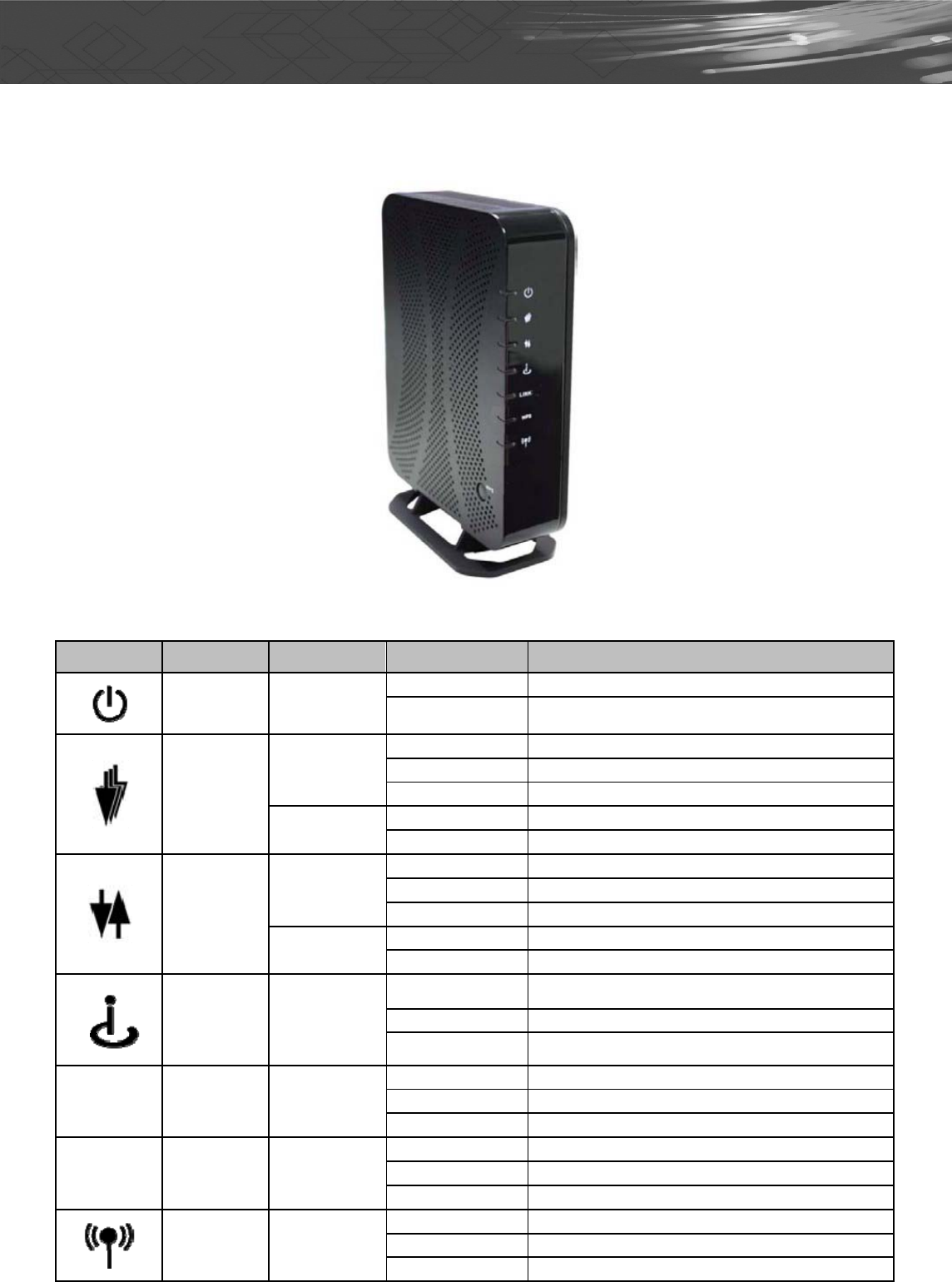

Front Panel & LEDs
There are seven Light-Emitting-Diodes (LEDs) located on the
front panel top provide status information to the user.
LED NAME COLOR MODE STATUS
POWERGreen
OnDCpowerconnected
OffNoDCpowerconnected
DS
Green
BlinkingDownstreamscanning
OnDownstreamlocked
OffCableinterfaceidle
OrangeOnW/DSlocked
OffW/DSdisabledorCMstandby
US
Green
BlinkingUpstreamranging
OnUpstreamlocked
OffCableinterfaceidle
OrangeOnW/USlocked
OffW/USdisabledorCMstandby
ONLINEGreen
BlinkingCMprovisioning
OnCMon‐line
OffCableinterfaceidle
LINK LANGreen
&Orange
OnETHdeviceconnected(Green:GbE,Orange:FE)
BlinkingDataintraffic
OffNoETHdeviceconnected
WPS WPSGreen
BlinkingWPSinparing
OnWPSenabled
OffWPSdisabled
Wi‐FiGreen
OnWiFienabled
BlinkingDataintraffic
OffWiFidisabled
CBW383G1IND Cable Modem Quick Installation Guide
Accessing the Web Management
For easy-changing the default settings, a Web-based GUI is built-in for your access.
Use the following procedures to login to your CBW383G1IND.
1. Open your web browser. Type the default IP address of the CBW383G1IND (e.g.
http://192.168.0.1) and press Enter.

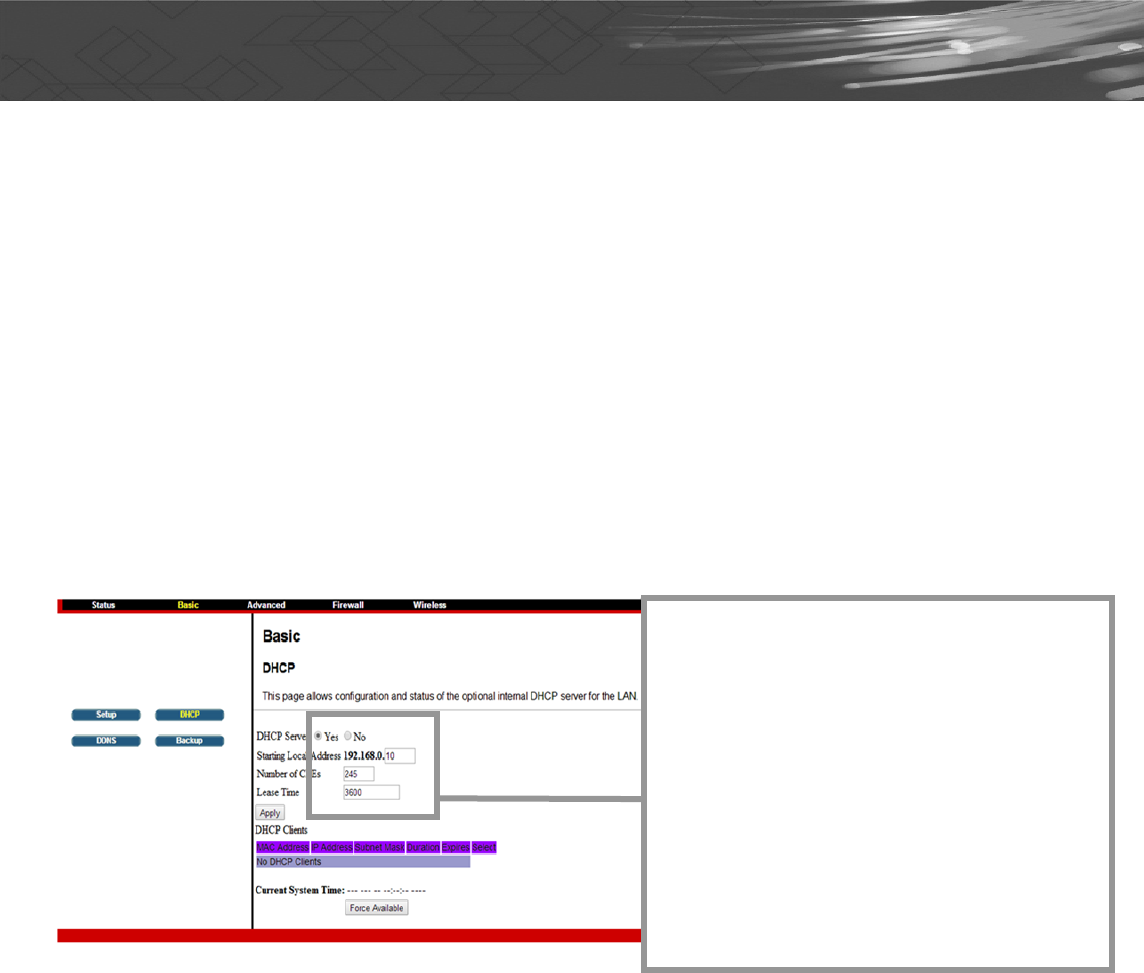

Configuring Your WAN Connection
The DHCP page allows you to activate/deactivate the DHCP server function of the CBW383G1IND,
and, if the DHCP server is activated, to see DHCP leases it has provided.
Enable CBW383G1IND’s DHCP server
to allocate IP address to the connected
LAN client (PC) and configure the
Starting Local Address to be issued.
You can also set the maximum number
of PCs to which the CBW383G1IND will
issue IP addresses and the release time
(in second).
CBW383G1IND Cable Modem Quick Installation Guide
Check your CBW383G1IND Access Information
There is a label pasted to the bottom of CBW383G1IND case. In that label, you can obtain following
information. Pls note, following label is just an example, each CBW383G1IND has their own label and
setting value. Pls follow your label information to access and configure CBW383G1IND. In normal
case, you don’t need to change anything, all setting have been set and work properly.
SSID: This is used for your CBW383G1IND wireless setting use, and, this setting has already been
set to your CBW383G1IND.
WPA Pre-Shared Key: This is the password for your wireless client when connecting to
CBW383G1IND. You will be asked to key in this password so as to connect
via wireless connection.
Web Management: This is the URL when you like to access to CBW383G1IND. You can simply type
http://192.168.0.1 in Microsoft Internet Explorer or any other internet browser to
access CBW383G1IND web management page.
Login: This is the value when accessing CBW383G1IND web management page. You will be asked
to key in this default value to access CBW383G1IND.
Password: This is the value when accessing CBW383G1IND web management page. You will be
asked to key in this default value to access CBW383G1IND.
SSID:
CBW383G1IND_D52D-G
WPA2-PSK passphrase
Web Management:
http://192.168.0.1
login: admin
password: password
CBW383G1IND Cable Modem Quick Installation Guide
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one
of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate this equipment.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. To
maintain compliance with FCC RF exposure compliance requirements, please follow operation instruction
as documented in this manual.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
This device is intended only for OEM integrators under the following conditions:
1) The antenna must be installed such that 20 cm is maintained between the antenna.
2) The transmitter module may not be co-located with any other transmitter or antenna.
As long as 2 conditions above are met, further transmitter test will not be required. However, the OEM integrator
is still responsible for testing their end-product for any additional compliance requirements required with this
module installed (for example, digital device emissions, PC peripheral requirements, etc.).
CBW383G1IND Cable Modem Quick Installation Guide
IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop
configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid
and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be
responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC
authorization.
FCC Statement
This device complies with Class B Part 15 of the FCC Rules. The device generates, uses and can
radiate radio frequency energy and, if not installed and used as instructed, may cause harmful
interference to radio communication. Only Coaxial cables are to be used with this device in order to
ensure compliance with FCC emissions limits. Accessories connected to this device by the user must
comply with FCC Class B limits. The manufacturer is not responsible for any interference which results
from use of improper cables, or which results from unauthorized changes or modifications to the
device.
"A Minimum 26 AWG Line Core should be used for connection to the cable modem
Canada-Industry Canada (IC)
Operation is subject to the following two conditions:
this device may not cause interference and
this device must accept any interference, including interference that may cause undesired operation of the
device.
IMPORTANT NOTE:
IC Radiation Exposure Statement:
This equipment with IC radiation exposure limits set forth for an uncontrolled environment. To maintain
compliance with IC RF exposure compliance requirements, please follow operation instruction as documented
in this manual.
CBW383G1IND Cable Modem Quick Installation Guide
Warranty
Items sold by manufacturer/distributor/agent, hereinafter called "Seller", are warranted only as follows:
Except as noted below Seller will correct, either by repair or replacement at its option, any defect of
material or workmanship which develops within one year after delivery of the item to the original Buyer
provided that evaluation and inspection by Seller discloses that such defect developed under normal
and proper use. Repaired or replaced items will be further warranted for the unexpired term of their
original warranty. All items claimed defective must be returned to Seller, transportation charges
prepaid, and will be returned to the Buyer with transportation charges collect unless evaluation proves
the item to be defective and that the Seller is responsible for the defect. In that case, Seller will return
to Buyer with transportation charge prepaid. Seller may elect to evaluate and repair defective items at
the Buyer's site. Seller may charge Buyer a fee (including travel expenses, if needed) to cover the cost
of evaluation if the evaluation shows that the items are not defective or that they are defective for
reasons beyond the scope of this warranty.
The Seller makes no warranty concerning components or accessories not manufactured by it.
However, in the event of failure of such a part, Seller will give reasonable assistance to Buyer in
obtaining from the manufacturer whatever adjustment is reasonable in light of the manufacturer's own
warranty. Seller will not assume expense or liability for repairs made outside the factory by other than
Seller's employees without Seller's written consent.
SELLER IS NOT RESPONSIBLE FOR DAMAGE TO ANY ASSOCIATED EQUIPMENT, NOR WILL
SELLER BE HELD LIABLE FOR INCIDENTAL, CONSEQUENTIAL, OR OTHER DAMAGES. THIS
WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES EXPRESSED OR IMPLIED INCLUDING
THE IMPLIED WARRANTY OF "MERCHANTABILITY" AND "FITNESS FOR PARTICULAR
PURPOSE."
Note to CATV Sysrem Installer
"The EUT must be bonding the screen of the coaxial cable to the earth at the building entrance per
ANSI/NFPA 70, the National Electrical Code (NEC), in particular Section 820.93, Grounding of Outer
Conductive Shield of a Coaxial Cable.”
