329D L

329D LN

Hydraulic Excavators

Cat®C7 Diesel Engine with ACERT™ Technology

Net Power (ISO 9249) at 1800 rpm

Standard 140 kW/190 hp

Optional (high power) 152 kW/207 hp

Operating Weight 28 400 to 30 100 kg

Maximum Travel Speed 5.3 km/h

Maximum Reach at Ground Level 10 820 mm

Maximum Digging Depth 7110 mm

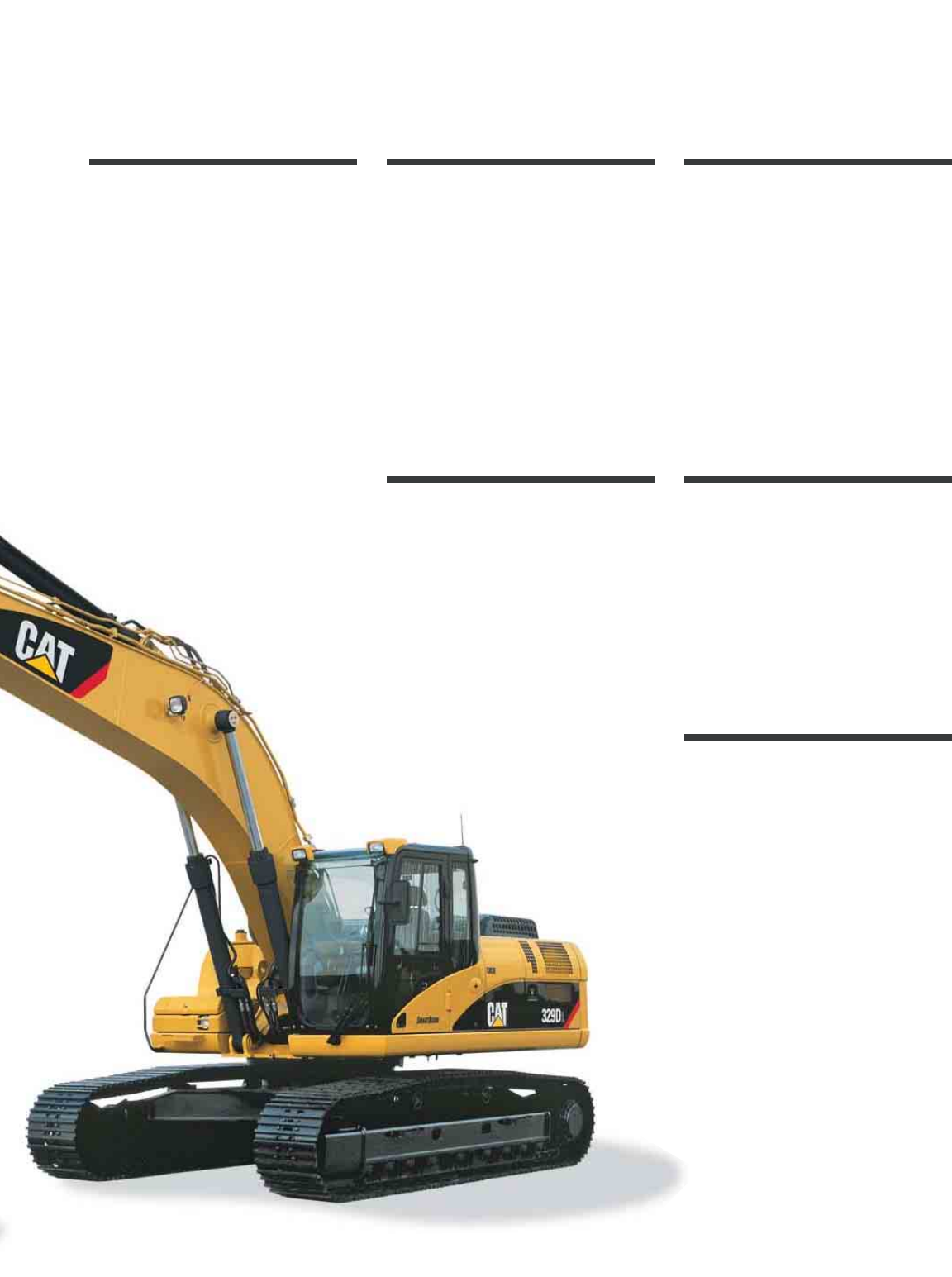

2

Environmentally Responsible Design

Quieter operation, lower engine

emissions, less fluid disposal and

cleaner service can help you meet or

exceed worldwide regulations and

protect the environment. pg. 4

Hydraulics

The hydraulic system has been designed

to provide reliability and outstanding

controllability with increased digging

forces, lifting capacity and drawbar

pull. The Cat Tool Control System

provides enhanced flexibility.

The Heavy Lift Mode maximizes

lifting performance and maintains

excellent stability. pg. 5

Operator Station

Provides maximum space, wider

visibility and easy access to switches.

The monitor is a full-color graphical

display that allows the operator to

understand the machine information

easily. Overall, the new cab provides

a comfortable environment for the

operator. pg. 6

Excellent controllability and reliability, impressive

lift capacity, better fuel efficiency, simplified service

and a more comfortable operator station to increase

your productivity and lower your operating costs.

SmartBoomTM

More productive. Faster cycle times

for truck loading and rock scraping.

Maintains optimum hammering

frequency for effective, steady

productivity. pg. 5

Engine

The Cat®C7 engine with ACERT™

Technology offers better fuel efficiency

and reduced wear. It works at the point

of combustion to optimize engine

performance and provide low exhaust

emissions. By combining ACERT

Technology with the new Economy

Mode and Power Management,

customers can balance the demands of

performance and fuel economy to suit

their requirements and application. pg. 4

329D L and 329D LN Hydraulic Excavators

The D Series incorporates innovations for improved performance,

controllability and versatility.

3

Electronic Control System

The compact, full-color, graphical

display monitor displays machine,

maintenance, diagnostic and prognostic

information in twenty different languages,

as well as the rear view camera image.

The Economy Mode and Power

Management is selected from the

monitor. To minimize sun glare,

the monitor angle is adjustable. pg. 7

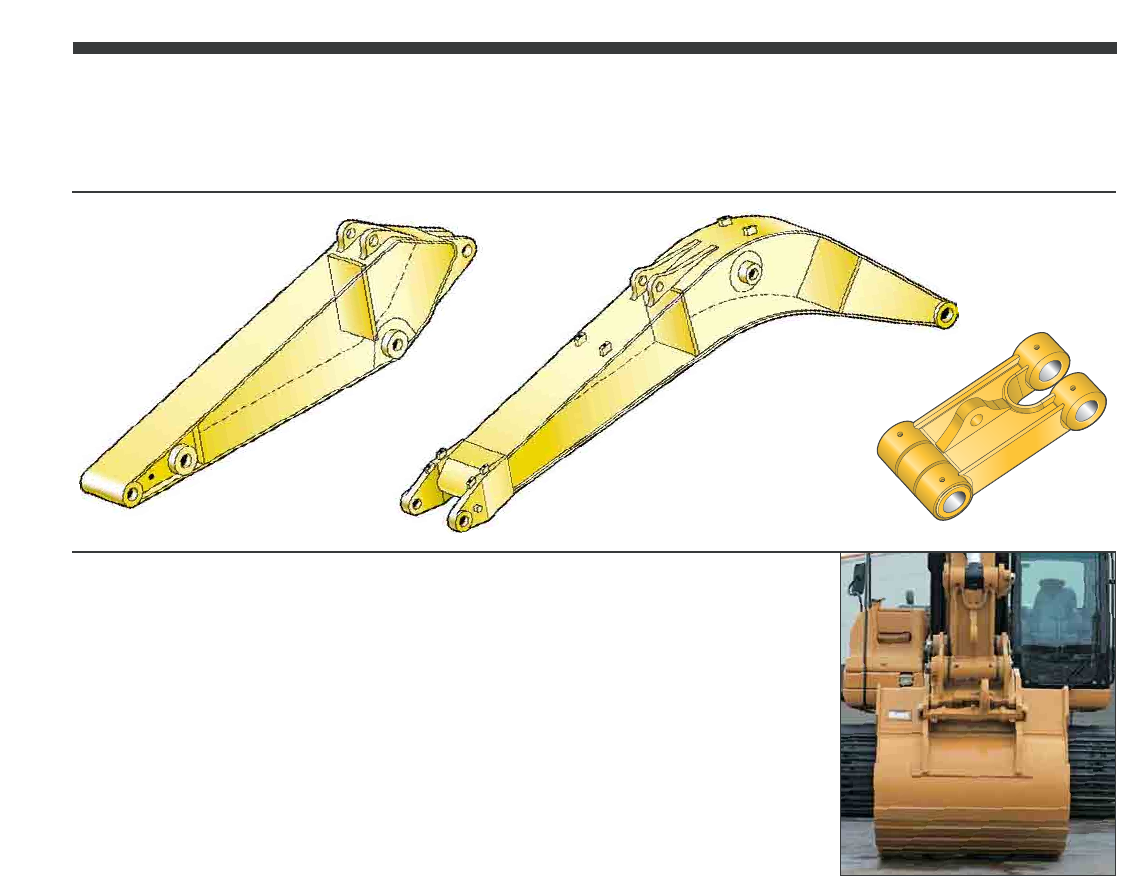

Booms, Sticks and Linkage

Caterpillar excavator booms and sticks

are built for performance and long

service life. Two types of booms

and three sticks are available, offering

a range of configurations suitable

for a wide variety of applications.

The bucket linkage pins have been

enlarged to improve reliability and

durability. All booms and sticks are

stress relieved. pg. 10

Structures

Caterpillar design and manufacturing

techniques assure outstanding durability

and service life from these important

components. The 329D comes standard

with grease lubricated tracks.

Cat designed excavator undercarriage

is stable, durable and low maintenance

for good machine stability and

transportability. pg. 8

Service and Maintenance

Fast, easy service has been designed

in with extended service intervals,

advanced filtration, convenient filter

access and user-friendly electronic

diagnostics for increased productivity

and reduced maintenance costs.

pg. 9

Complete Customer Support

Your Cat dealer offers a wide range

of services that can be set up under a

customer support agreement when you

purchase your equipment. The dealer

will help you choose a plan that can

cover everything from machine and

attachment selection to replacement.

pg. 9

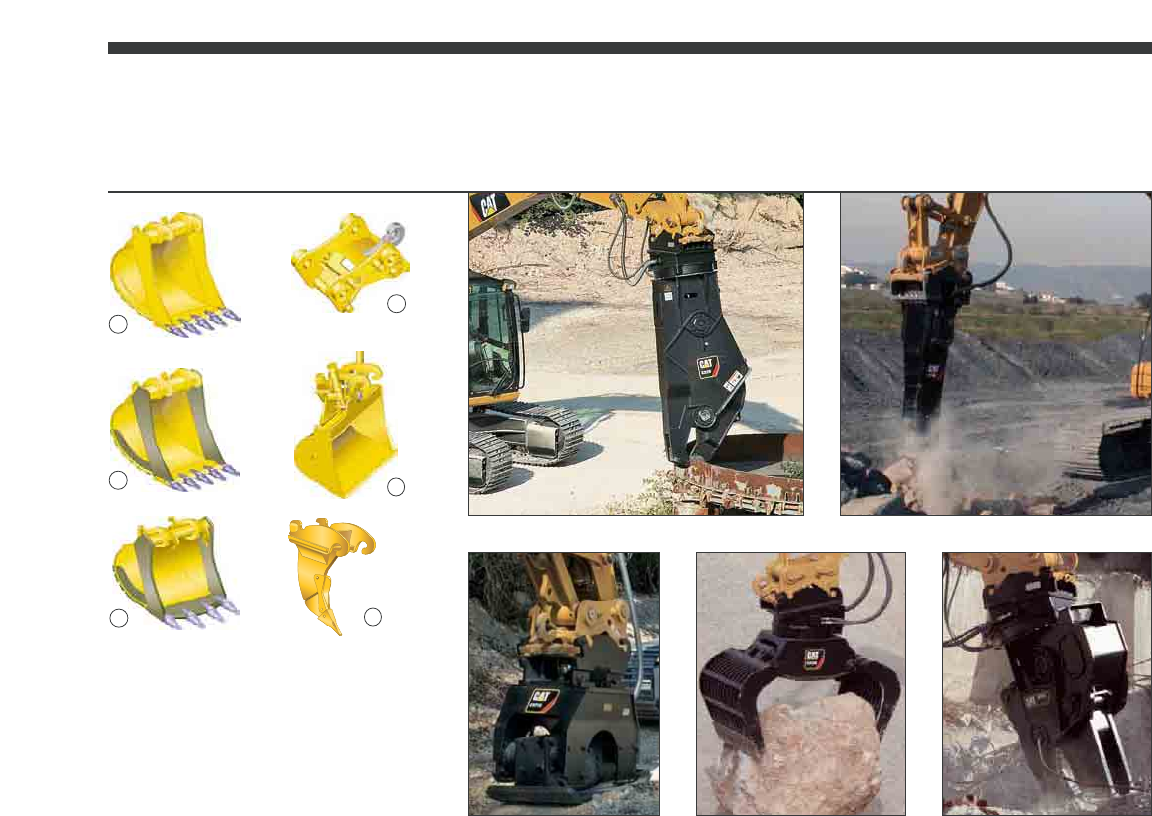

Work Tools and GET

A variety of work tools, including

buckets, couplers, hammers, crushers,

pulverizers, multiprocessors, shears

and grapples are available. pg. 11

4

Engine

Built for power, reliability, economy and low emissions.

Meeting regulations... Exceeding expectations.

Environmentally Responsible Design

Caterpillar machines not only help you build a better world, they help maintain

and preserve the fragile environment.

Emissions. The Cat C7 with ACERT

Technology introduces a series of

evolutionary, incremental improvements

that provide breakthrough engine tech-

nology built on systems and components

developed by Caterpillar with proven

reliability. The technology capitalizes on

Cat expertise in four core engine systems:

fuel, air, electronics and after treatment.

By combining ACERT Technology with

the new Economy Mode, customers can

balance the demands of performance and

fuel economy to suit their requirements

and application. ACERT engines meet

EC Stage IIIA emissions regulation.

Fewer Leaks and Spills. Engine oil and

encapsulated hydraulic oil filters are positioned

vertically and are easy to reach to minimize

spillage. Service intervals are extended to reduce

the times fluids are changed and handled.

Hydraulic oil service interval can be extended

to 4000 hours with the S•O•S program.

In addition to the S•O•S program fine filtration

system attachment extends the service interval

to 5000 hours.

Cat Extended Life Coolant extends service

to 6000 h, less need for fluid disposal.

The hydraulic system is compatible with Cat

HEES hydraulic bio-oil for ecologically

sensitive applications.

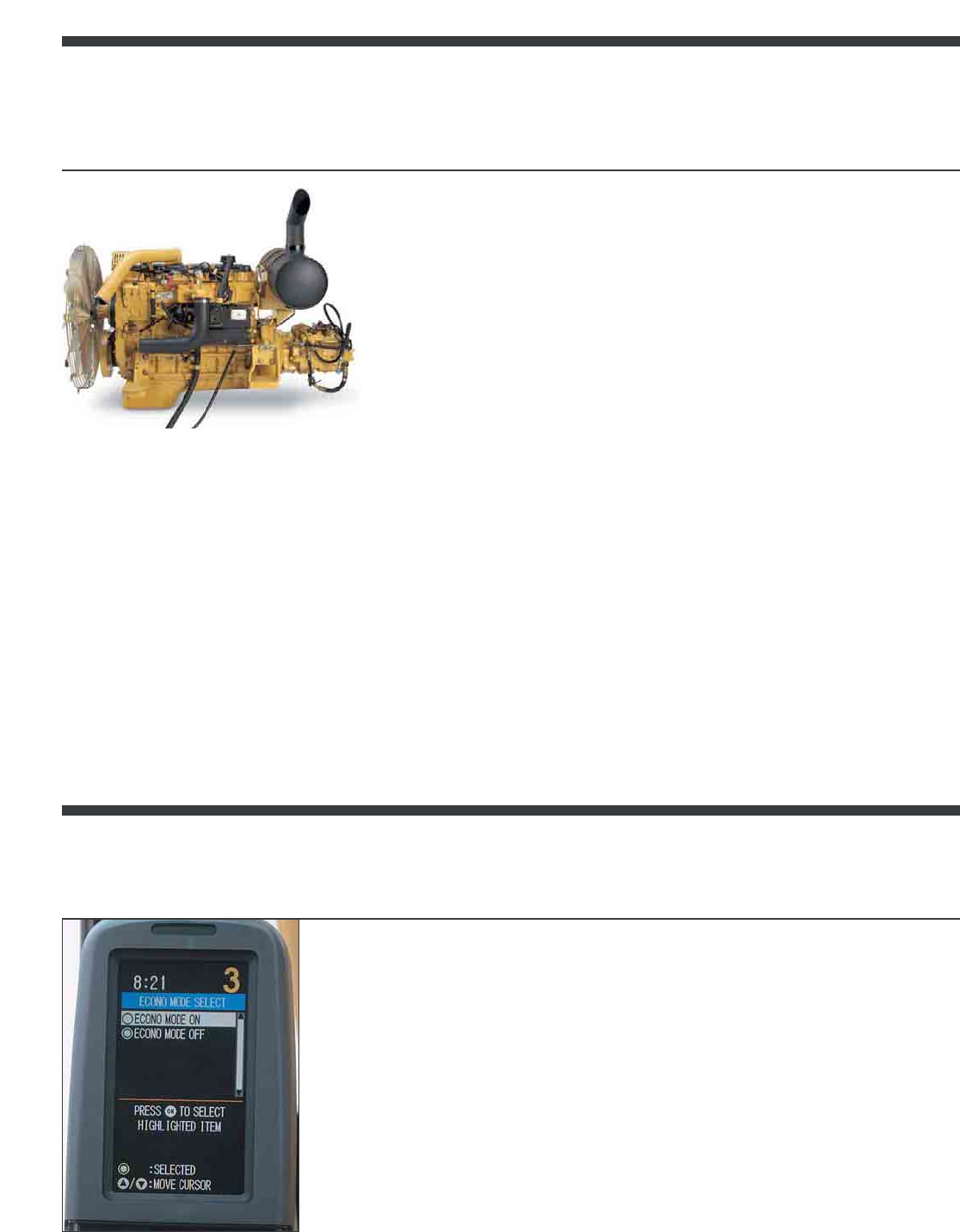

Performance. The Cat C7 engine

with ACERT Technology offers more

engine power, and runs at lower speeds

for better fuel efficiency and reduced

wear. The 329D is available with two

engine power versions:

– Standard power (140 kW)

– Optional High power (152 kW)

Power Management. Optimal machine

performance for each type of application.

The operator can change the engine

power on the monitor from standard

to high. The high power mode is

recommended for extremely productive

areas and for hard digging applications.

Automatic Engine Speed Control.

The two-stage, one-touch control

maximizes fuel efficiency and reduces

sound levels.

Engine Controller. ADEM™ A4

(Advanced Diesel Engine Management)

electronic control module manages fuel

delivery to get the best performance per

liter of fuel. The controller uses sensors

in fuel, air intake, exhaust and cooling

systems and provides flexible fuel

mapping, allowing the engine to

respond quickly to varying application

needs. It tracks engine and machine

conditions while keeping the engine

operating at peak efficiency.

Fuel Delivery. The Cat C7 features

electronic controls that govern the

mechanically actuated unit fuel

injection system. Multiple injection

fuel delivery involves a high degree

of precision. Precisely shaping the

combustion cycle lowers combustion

chamber temperatures, generating

fewer emissions and optimizing fuel

combustion. This translates into more

work output for your fuel cost.

Cooling System. To reduce fan noise,

the cooling fan is driven from a viscous

clutch which is electrically controlled by

the machine ECM. It calculates optimum

fan speed based on the target engine

speed, coolant temperature, hydraulic

oil temperature and actual fan speed.

The Cat C7 delivers a completely new

layout that separates the cooling system

from the engine compartment.

Air Cleaner. The radial seal air filter

features a double-layered filter core

for more efficient filtration and is

located in a compartment behind the cab.

A warning is displayed on the monitor

when dust accumulates above

a preset level.

5

Rock Scraping. Scraping rock and

finishing work is easy and fast.

SmartBoom simplifies the task and

allows the operator to concentrate

on stick and bucket, while boom

freely goes up and down without

using pump flow.

Hammer Work. The front parts auto-

matically follow the hammer while

penetrating the rock. Blank shots or

excessive force on the hammer are

avoided resulting in longer life for

the hammer and the machine. Similar

advantages with vibratory plates.

Truck Loading. Loading trucks from

a bench is more productive and fuel

efficient as the return cycle is reduced

while the boom down function does

not require pump flow.

SmartBoom. Reduces stress and vibrations transmitted to the machine and provides a more

comfortable environment.

Hydraulics

Cat hydraulics deliver power and precise control to keep material moving.

Component Layout. The 329D hydraulic

system and component locations have

been designed to provide a high level

of system efficiency. The main pumps,

control valves and hydraulic tank

are located close together to allow

for shorter tubes and lines between

components, which reduce friction loss,

and pressure drops in the lines.

The layout further provides greater

operator comfort by placing the radiator

on the cab side of the upper structure.

This allows incoming air to enter the

engine compartment from the operator

side and hot air and corresponding

engine sound to exit on the opposite

side away from the operator.

This reduces engine compartment

heat and sound being transmitted to

the operator.

Heavy Lift Mode. Maximizing lifting per-

formance and boosting the lifting capability.

Heavy loads can be easily moved in the full

working range of the machine maintaining

excellent stability.

Hydraulic Cross Sensing System. The hydraulic

cross sensing system utilizes each of two

hydraulic pumps to 100%, under all operating

conditions. This improves productivity with

faster implement speeds and quicker, stronger

pivot turns.

Pilot System. The pilot pump is independent

from the main pumps and controls the front

linkage, swing and travel operations.

Boom and Stick Regeneration Circuit. Boom

and stick regeneration circuit saves energy

during boom-down and stick-in operation which

increases efficiency, reduces cycle times and

pressure loss for higher productivity, lower

operating costs and increased fuel efficiency.

Electronic Control System.

Ten hydraulic pump flow and pressure

settings can be preset, eliminating

the need to adjust the hydraulics each

time a tool is changed.

Auxiliary Valve. The auxiliary valve

is standard. Control circuits are

optional, allowing for operation of

high and medium pressure tools

such as shears, grapples, hammers,

pulverizers, etc.

Hydraulic Cylinder Snubbers.

Located at the rod-end of the boom

cylinders and both ends of the stick

cylinders to cushion shocks while

reducing sound levels and extending

component life.

6

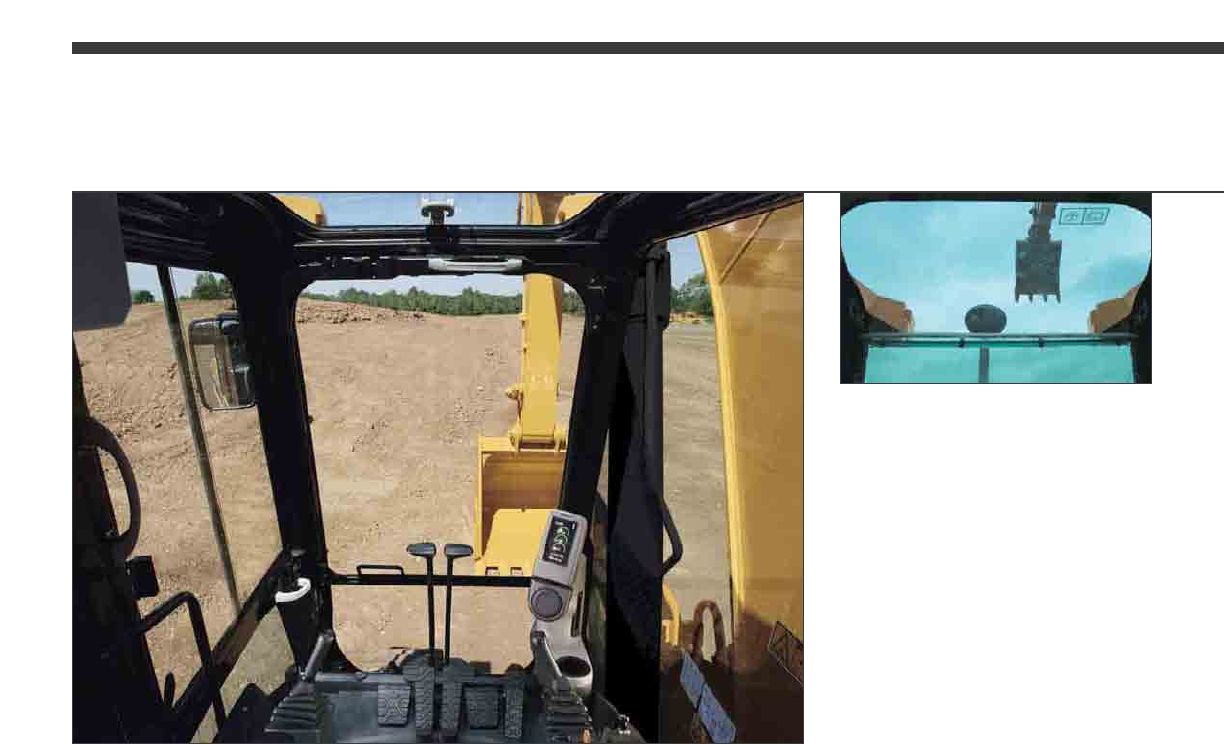

Operator Station. The workstation is

spacious, quiet and comfortable, assuring

high productivity during a long workday.

The air conditioner and attachment switches

are conveniently located on the right-hand

wall, and the key switch and throttle dial

are on the right-hand console. The monitor

is easy to see and maximizes visibility.

Seat. An optional air suspension seat

is available in the 329D. The standard

and optional seats provide a variety of

adjustments to suit the operator's size

and weight including fore/aft, height

and weight. Wide adjustable armrests and

a retractable seat belt are also included.

Climate Control. Positive filtered ventilation

with a pressurized cab is standard. Fresh

air or re-circulated air can be selected with

a switch on the right console.

Hydraulic Activation Control Lever.

For added safety, this lever must be in

the operate position to activate the machine

control functions.

Controls. The 329D uses pilot operated

control levers, positioned so the operator

can operate with arms on the armrests.

The vertical stroke is longer than the

horizontal, reducing operator fatigue.

The control lever grips are shaped to fit

into the operator’s hands. The horn switch

and one-touch low idle switch are

positioned on the left and right grip.

Implement Controls. Easy to handle joy-

sticks with integrated push buttons and

sliding switches control all implement

and swing functions. The sliding switches

provide modulated control for hydro-

mechanical tools and are designed to

increase operator comfort and reduce

operator fatigue.

Skylight. A unique large polycarbonate

skylight provides very good upward

visibility, especially useful in above

ground applications.

Windows. To maximize visibility,

all glass is affixed directly to the cab

eliminating the use of window frames.

Choice of fixed or easy-to-open split

front windshield meet operator

preference and application conditions.

50/50 split front windshield allows

both upper and lower portions to be

stored in an overhead position.

70/30 split front windshield stores

the upper portion above the operator.

The lower front windshield features

a rounded design to maximize

downward visibility and improves

wiper coverage.

Both openable versions feature

a one-touch action release system.

The fixed front windshield is available

in standard duty laminated glass or

high impact resistant laminated glass.

Wiper. Designed to maximize visibility

in poor weather conditions. The parallel

wiper system covers almost the complete

front window without leaving unwiped

areas in the immediate line of sight of

the operator.

Cab Exterior. The exterior design uses

thick steel tubing along the bottom

perimeter of the cab, improving the

resistance of fatigue and vibration.

This design allows the FOGS to be

bolted directly to the cab, at the factory

or as an attachment later, enabling the

machine to meet specifications and job

site requirements.

Operator Station

Designed for simple, easy operation and comfort,

the 329D allows the operator to focus on production.

7

Electronic Control System

Manages the engine and hydraulics

for maximum performance.

Monitor Display Screen. The monitor

is a full color 400x234 pixels Liquid

Crystal Display (LCD) graphic display.

The Master Caution Lamp blinks ON

and OFF when one of the critical

conditions below occurs:

Engine oil pressure low

Coolant temperature high

Hydraulic oil temperature high

By default, the monitor displays the rear

view camera image to assure a total

control over the environment during

operation. By pressing the "OK" button,

the operator can toggle between this

screen and the machine information

display, divided in four different areas:

Clock and Throttle Dial Area. The

clock and the throttle dial position are

in this area and the gas-station icon

with green color is also displayed.

Gauge Area. Three analog gauges,

fuel level, hydraulic oil temperature

and coolant temperature, are

displayed in this area.

Event Display Area. Machine

information is displayed in this area

with the icon and language.

Multi-information Display Area.

This area is reserved for displaying

information that is convenient for

the operator. The “CAT” logo mark

is displayed when information to

display does not exist.

Keypad. The keypad allows operator

to select machine operation conditions

and to set view preferences.

Adjustable Consoles. Redesigned consoles

feature a simple, functional design to

reduce operator fatigue, ease of switch

operation and excellent visibility. Both

consoles have attached armrests with

height adjustments.

Cab Mounts. The cab shell is attached to

the frame with viscous rubber cab mounts,

which dampen vibrations and sound levels

while enhancing operator comfort.

Standard Cab Equipment. To enhance

operator comfort and productivity,

the cab includes a lighter, drink holder,

coat hook, service meter, literature holder,

magazine rack and storage compartment.

88

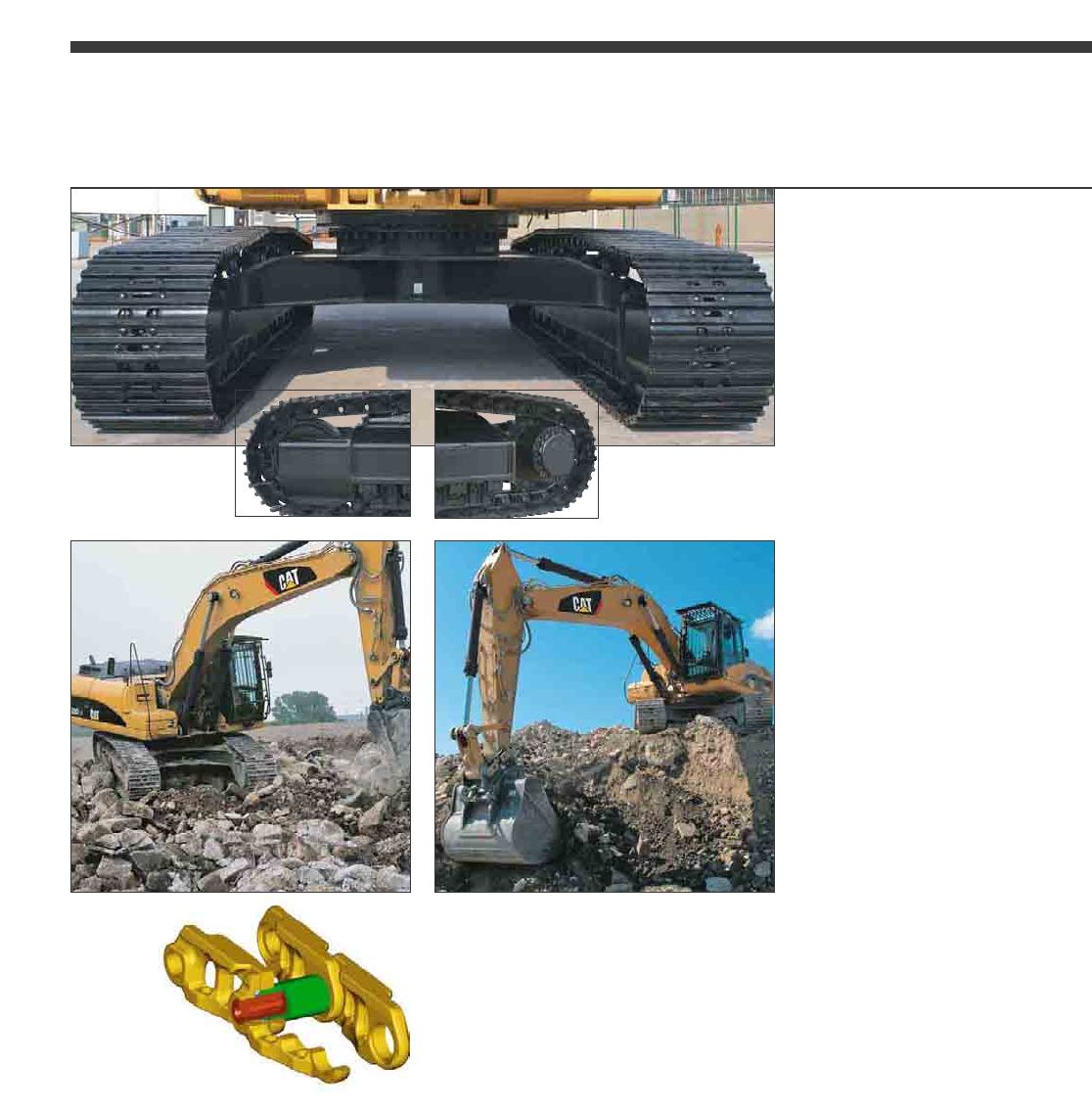

Tracks. The 329D comes standard with

grease lubricated tracks. The track links

are assembled and sealed with grease

to decrease internal bushing wear,

reduce travel noise and extend service

life lowering operating costs.

Structure

329D structural components and undercarriage are the backbone

of the machine's durability.

Structures. Proven structural

manufacturing techniques, assure

outstanding durability and service

life from these important components.

Robotic Welding. Up to 95% of

the structural welds on a Caterpillar

Excavator are completed by robots.

Robotic welds achieve over three

times the penetration of manual

welds.

Carbody Design and Track Roller

Frames. X-shaped, box-section

carbody provides excellent resistance

to torsional bending. Robot-welded

track roller frames are press-formed,

pentagonal units to deliver

exceptional strength and service life.

Undercarriage. Durable Cat

undercarriage absorbs stresses

and provides excellent stability.

Rollers and Idlers. Sealed and

lubricated track rollers, carrier

rollers, and idlers provide excellent

service life, to keep the machine

in the field longer.

Undercarriage Options. Two under-

carriage options, long (L) and long

narrow (LN) allow you to choose

the best machine for your application

and business needs.

Long Undercarriage. The long under-

carriage (L) maximizes stability and

lift capacity. This long, wide and

sturdy undercarriage offers a very

stable work platform.

Long Narrow Undercarriage.

The long and narrow undercarriage

(LN) provides the best choice when

ease of transport is important while

maintaining excellent lift capacity.

9

Extended Service Intervals. 329D

service and maintenance intervals have

been extended to reduce machine service

time and increase machine availability.

Complete Customer Support

Cat dealer services help you operate longer with lower costs.

Machine Selection. Make detailed

comparisons of the machines you are

considering before you buy. What are

the job requirements, machine attach-

ments and operating hours?

What production is needed? Your Cat

dealer can provide recommendations.

Purchase. Consider the financing options

available as well as day-to-day operating

costs. This is also the time to look at dealer

services that can be included in the cost

of the machine to yield lower equipment

owning and operating costs over the long run.

Customer Support Agreements.

Cat dealers offer a variety of product

support agreements, and work with

customers to develop a plan the best meets

specific needs. These plans can cover

the entire machine, including attachments,

to help protect the customer’s investment.

Operation. Improving operating techniques

can boost your profits. Your cat dealer has

videotapes, literature and other ideas to help

you increase productivity, and Caterpillar

offers certified operator training classes to

help maximize the return on your investment.

Product Support. You will find nearly

all parts at our dealer parts counter.

Cat dealers utilize a worldwide

computer network to find in-stock

parts to minimize machine downtime.

You can save money with Cat

remanufactured components.

Maintenance Services. Repair option

programs guarantee the cost of repairs

up front. Diagnostic programs such

as Scheduled Oil Sampling, Coolant

Sampling and Technical Analysis

help you avoid unscheduled repairs.

Replacement. Repair, rebuild or

replace? Your Cat dealer can help

you evaluate the cost involved so

you can make the right choice.

Service and Maintenance

Simplified service and maintenance save you time and money.

Air Filter Compartment. The air filter

features a double-element construction

for superior cleaning efficiency.

When the air cleaner plugs, a warning

is displayed on the monitor screen inside

the cab.

Ground Level Service. The design and

layout of the 329D was made with the

service technician in mind. Many service

locations are easily accessible at ground

level allowing critical maintenance to

get done quickly and efficiently.

Pump Compartment. A service door on

the right side of the upper structure

allows ground-level access to the pump

and pilot filter.

Capsule Filter. The hydraulic return

filter, a capsule filter, is situated outside

the hydraulic tank. This filter prevents

contaminants from entering the system

when hydraulic oil is changed and keeps

the operation clean.

Diagnostics and Monitoring. The 329D

is equipped with S•O•S sampling ports

and hydraulic test ports for the hydraulic

system, engine oil, and for coolant. A test

connection for the Electronic Technician

(ET) service tool is located behind the cab.

Anti-Skid Plate. Anti-skid plate covers

top of storage box and upper structure

to prevent slipping during maintenance.

Fan Guard. Engine radiator fan is

completely enclosed by fine wire mesh,

reducing the risk of an accident.

Greasing Points. A concentrated remote

greasing block on the boom delivers grease

to hard-to-reach locations on the front.

Radiator Compartment. The left rear

service door allows easy access to the

engine radiator, oil cooler and air-to-air

aftercooler. Reserve tank and drain cock

are attached to the radiator for simplified

maintenance.

10

Booms, Sticks and Linkage

Designed for flexibility, high productivity, and efficiency in a variety of applications.

Front Linkage Attachments. Select the right

combination of front linkage with your Cat

dealer to ensure high productivity from the

very start of your job. Two types of booms

and three sticks are available, offering a range

of configurations suitable for a wide variety

of applications and offer a large combination

of reach and digging forces for optimum

versatility. All booms and sticks undergo a

stress relieving process for greater durability.

Boom Construction. The booms have large

cross-sections and internal baffle plates to

provide long life durability.

Reach Boom. The reach boom (6150 mm)

is designed to balance reach, digging force

bucket capacity, offering a wide range of

applications as digging, loading, trenching and

working with hydraulic tools.

Mass Excavation Boom. The mass boom

(5550 mm) is designed to provide maximum

digging forces, bucket capacity and truck

loading productivity.

Stick Construction. Sticks are made of

high-tensile strength steel using a large

box section design with interior baffle

plates and an additional bottom guard

to protect against damage.

Reach Sticks. Two lengths of reach

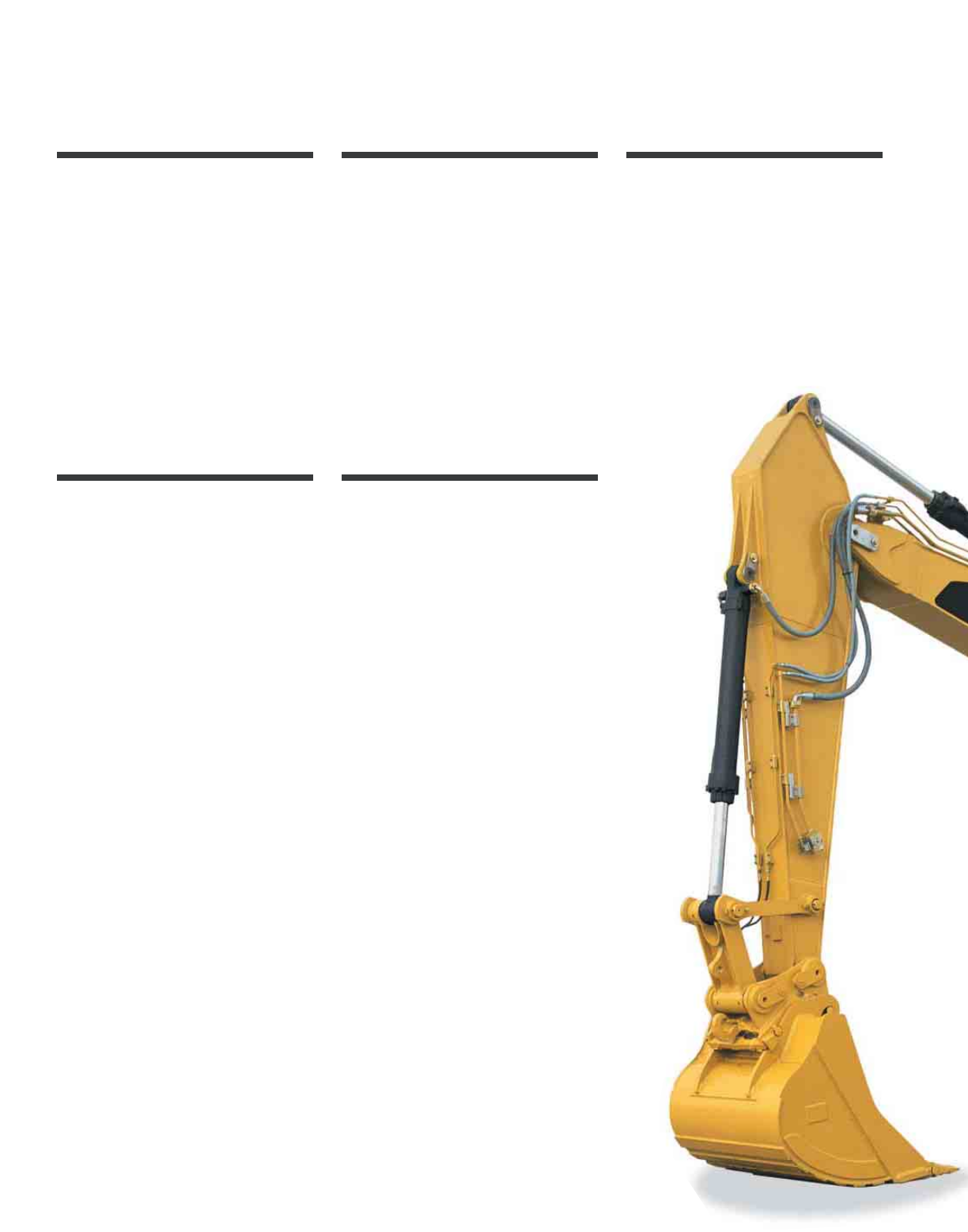

sticks are available to suite a variety

of applications. Reach sticks use the

CB2 linkage.

R3.2CB2. The 3200 mm stick gives

the largest working envelope with

medium-sized buckets.

R2.6CB2. The 2650 mm stick uses

larger capacity CB2 family buckets

and is best suited for trenching,

excavation and general construction

applications.

Mass Stick. The mass excavation stick

is available for higher digging forces

and increased bucket capacity.

M2.5DB. The 2500 mm stick provides

excellent digging envelope with large

bucket capacity and high force levels.

Bucket Linkage. Two bucket

linkages (CB2 and DB) are

available, with lifting eye on

the power link.

Power Link. The new power link

improves durability, increases

machine-lifting capability in key

lifting positions, and is easier to

use compared to the previous lift

bar design.

Linkage Pins. All pins used in

front linkages have thick chrome

plating, giving them high wear

and corrosion resistance. The large

diameter pins smoothly distribute

the shear and bending loads to

help ensure long pin, boom and

stick life.

11

4

5

1

2

36

Work Tools. Caterpillar work tools are

designed to function as an integral part

of your excavator and to provide the best

possible performance in your particular

application. All work tools are per-

formance-matched to Cat machines.

Quick Couplers. Quick couplers enable

the operator to simply release one work

tool and connect to another, making your

hydraulic excavator highly versatile.

Productivity also increases, as a carrier

no longer needs to be idle between jobs.

Caterpillar offers hydraulic and spindle

quick coupler versions.

Buckets. Caterpillar offers a wide range

of specialized buckets, each designed

and tested to function as an integral part

of your excavator. Buckets feature

the new Caterpillar K Series™ Ground

Engaging Tools.

Ripper. The Caterpillar TR-series ripper

provides a powerful single point of

penetration force to break out rock and

other difficult to excavate material.

Hammers. Cat hammer series deliver

very high blow rates, increasing the

productivity of your tool carriers in

demolition and construction applications.

Wide oil flow acceptance ranges make

the Caterpillar hammers suitable for a

wide range of carriers and provide a

system solution from one safe source.

Orange Peel Grapples. The orange peel

grapple is constructed of high-strength,

wear-resistant steel, with a low and

compact design that makes it ideal for

dump clearance. There are several

choices of tine and shell versions.

Multi-Grapples. The multi-grapple

with unlimited left and right rotation

is the ideal tool for stripping, sorting,

handling and loading. The powerful

closing force of the grab shells

combined with fast opening/closing

time ensures rapid cycle time which

translates to more tons per hour.

Multi-Processors. Thanks to its single

basic housing design, the multi-pro-

cessor series of hydraulic demolition

equipment makes it possible to use

a range of jaw sets that can handle any

demolition job. The multi-processor

is the most versatile demolition tool

on the market.

Vibratory Plate Compactors.

Cat compactors are performance-

matched to Cat machines, and integrate

perfectly with the Cat hammer line –

brackets and hydraulic kits are fully

interchangeable between hammers

and compactors.

Shears. Cat shears provide superior

and effective scrap processing, and

are highly productive in demolition

environments. Shears are compatible

with a matching Cat excavator, and

bolt-on brackets are available for either

stick or boom-mounted options.

1Excavation (X)

2Extreme Excavation (EX)

3Rock (R)

4Quick Coupler

5Ditch Cleaning

6Ripper

Work Tools

A wide variety of Work Tools help optimize machine performance.

Purpose designed and built to Caterpillar’s high durability standards.

12

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

mm kg m3%

4539 4098 3985 3584 5288 4632

2650 mm 3200 mm 2650 mm 3200 mm

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

N

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

4289 3848 3735 3334 4838 4182

N

329D L 329D LN 329D L 329D LN

2500 mm

CW45, CW45SCW45, CW45SCW45, CW45SCW45, CW45S

CB2 600 646 0.49 100

CB2 750 688 0.67 100

CB2 1250 919 1.29 100

CB2 1300 958 1.35 100

CB2 1350 979 1.42 100

CB2 1400 1000 1.48 100

CB2 1500 1043 1.61 100

CB2 1600 1084 1.74 100

DB 1000 1124 1.11 100

DB 1350 1333 1.62 100

DB 1500 1443 1.84 100

DB 1600 1501 1.99 100

DB 1650 1530 2.07 100

DB 1700 1558 2.14 100

DB 1800 1616 2.29 100

CB2 750 724 0.66 100

CB2 1150 926 1.16 100

CB2 1350 1014 1.42 100

CB2 1450 1083 1.55 100

CB2 1500 1104 1.61 100

CB2 1600 1148 1.74 100

DB 1350 1454 1.62 100

DB 1500 1549 1.84 100

DB 1600 1647 1.99 100

DB 1650 1678 2.07 100

DB 1700 1710 2.14 100

DB 1000 1257 1.11 90

DB 1650 1820 2.07 90

CB2 600 615 0.49 100

CB2 750 611 0.67 100

CB2 1250 845 1.29 100

CB2 1300 884 1.35 100

CB2 1350 904 1.42 100

CB2 1400 925 1.48 100

CB2 1500 966 1.61 100

CB2 1600 985 1.74 100

DB 1000 1108 1.11 100

DB 1350 1314 1.62 100

DB 1500 1423 1.84 100

DB 1600 1482 1.99 100

DB 1650 1511 2.07 100

DB 1700 1539 2.14 100

DB 1800 1563 2.29 100

CB2 750 675 0.67 100

CB2 1150 878 1.16 100

CB2 1350 966 1.42 100

CB2 1450 1034 1.55 100

CB2 1500 1056 1.61 100

CB2 1600 1100 1.74 100

DB 1350 1436 1.62 100

DB 1500 1531 1.84 100

DB 1600 1629 1.99 100

DB 1650 1661 2.07 100

DB 1700 1691 2.14 100

DB 1000 1277 1.11 90

DB 1650 1760 2.07 90

Max. Material Density

1200 kg/m3

Max. Material Density

1800 kg/m3

Max. Material Density

1500 kg/m3

Maximum load in kg (payload plus bucket)

Without Quick

Coupler

Excavation

Extreme Excavation

Rock

With Quick Coupler

Linkage Width Weight* Capacity

(ISO) Fill

Factor

Reach boom

6150 mm ME

5550 mm

Maximum load in kg (payload plus bucket)

Excavation

Extreme Excavation

Rock

Not compatibleNot recommended

* Bucket weight including

penetration plus tips

Bucket Specifications

N

N

N

N

N

N

N

N

N

H120C s, H130 s, H140D s

MP20 CC, CR, PP, PS, S, TS

MP30 CC, CR, S, TS

MP30 PP, PS

VHC-40

VHC-50

VHP-40

VHP-50

S320

S325

S340*

G115

G125

G320

G330

G320B-D, -R

CVP110

GOS-35 620, 700, 780

GOS-35 1050, 1260

GOS-35 1460, 1670

GOS-45 970

GOS-45 1120

GOS-45 1270

GOS-45 1580

GOS-45 1710

GOS-45 2020

GOS-45 2340

GSH20B 600, 800

GSH20B 1000

GSH22B 600

GSH22B 800

GSH22B 1000

GSH22B 1250

GSH20B 600, 800, 1000

GSH22B 600

GSH22B 800

GSH22B 1000

GSH22B 1250

N

NN NN

NN NN

NNNN

NNNN

N

N

N

N

N

N

NNN

N

N

N

NN

NNN

NNN

N

N

N

N

N

N

NN N

N

N

NN N

NNNN

N

N

NN

N

NN

N

NN

2650 3200

329D L 329D LN

2650 3200 2500

CW-45

CW-45S

H120C s, H130 s, H140D s

MP20 CC, CR, PS, S

MP20 PP, TS

VHC-40

VHC-50

VHP-40

VHP-50

S320

S325

G115

G125

G315

G320

G330

G320B-D, -R

CVP110

mm

N13

N

329D L 329D LN

* Boom mounted

Work Tools Matching Guide

Reach boom

6150 mm ME

5550 mm

Hammers

Multiprocessors

Crushers and Pulverizers

Without quick coupler

Hydraulic Shears

Mechanical Grapples

Multi Grapples

Vibratory Plate Compactor

Clamshell Buckets

(rehandling)

Orange Peel Grapples

5 tines

4 tines

Vibratory Plate Compactor

Quick Couplers

Multiprocessors

Hammers

With quick coupler

Crushers and Pulverizers

Hydraulic Shears

Mechanical Grapples

Multi Grapples

Best choice

Quick coupler match

Not recommended Max. Material Density 3000 kg/m3

Max. Material Density 1200 kg/m3

Max. Material Density 1800 kg/m3

360° Working range

Over the front only

14

Stick type

Stick length

Bucket weight

Bucket capacity

Bucket width/type

Operating weight*

329D L (800 mm shoes)

329D LN (600 mm shoes)

Ground pressure

329D L (800 mm shoes)

329D LN (600 mm shoes)

Stick weight (without bucket cylinder)

Boom weight (without stick cylinder)

Upperstructure (without counterweight)

Undercarriage

329D L (800 mm shoes)

329D LN (600 mm shoes)

Counterweight

R2.6CB2 R3.2CB2 M2.5DB

2650 3200 2500

925 884 1436

1.5 1.35 1.6

1400/X 1300/X 1350/EX

29 430 29 560 30 110

28 410 28 540 29 100

0.43 0.43 0.44

0.56 0.56 0.57

840 945 980

1770 1830

6770 6770

11 400 11 400

10 380 10 380

5810 5810

mm

kg

m3

mm

kg

kg

bar

bar

kg

kg

kg

kg

kg

kg

329D Hydraulic Excavator specifications

* With counterweight, quick coupler, bucket, operator and full fuel.

Reach boom

6150 mm ME

5550 mm

Machine and Major Component Weights

Actual weights and ground pressures will depend on final machine configuration.

Engine

Cat C7 with ACERT Technology

Standard Net Power at 1800 rpm

ISO 9249 140 kW/190 hp

80/1269/EEC 140 kW/190 hp

Optional Net Power at 1800 rpm

ISO 9249 152 kW/207 hp

80/1269/EEC 152 kW/207 hp

Bore 110 mm

Stroke 127 mm

Displacement 7.2 liters

All engine horsepower (hp) are metric

including front page.

The C7 engine meets Stage IIIA

emission requirements.

Net power advertised is the power

available at the flywheel when the

engine is equipped with fan, air

cleaner, muffler, and alternator.

Full engine net power up to 2300 m

altitude (engine derating required

above 2300 m).

Sound

Operator Sound

The operator sound level measured

according to the procedures specified

in ISO 6394:1998 is 76 dB(A),

for cab offered by Caterpillar,

when properly installed and

maintained and tested with

the doors and windows closed.

Hearing protection may be needed

when operating with an open operator

station and cab (when not properly

maintained or doors/windows open)

for extended periods or in noisy

environment.

Exterior Sound

The labeled spectator sound power

level measured according to the test

procedures and conditions specified

in 2005/88/EC is 104 dB(A).

Cab/FOGS

Cab/FOGS meets ISO 10262.

Hydraulic System

Main System

Maximum flow 2 x 235 l/min

Maximum pressure

Normal 350 bar

Heavy lift 360 bar

Travel 350 bar

Swing 275 bar

Pilot System

Maximum flow 32.4 l/min

Maximum pressure 39 bar

Boom Cylinder

Bore 140 mm

Stroke 1407 mm

Stick Cylinder

Bore 150 mm

Stroke 1646 mm

CB2 Family Bucket Cylinder

Bore 135 mm

Stroke 1156 mm

DB Family Bucket Cylinder

Bore 150 mm

Stroke 1151 mm

F

E

D

L

C

K

J

H

G

M

B

A

15

329D Hydraulic Excavator specifications

Service Refill Capacities

Liters

Fuel Tank 520

Cooling System 30

Engine Oil 30

Swing Drive (each) 10

Final Drive (each) 6

Hydraulic system

(including tank) 310

Hydraulic tank 257

Drive

Maximum Travel Speed 5.3 km/h

Maximum Drawbar Pull 249 kN

Dimensions

All dimensions are approximate.

mm

AShipping height (with bucket)

Reach boom

2650 mm stick 3190

3200 mm stick 3180

Mass Excavation boom

2500 mm stick 3250

mm

BShipping length

Reach boom

2650 mm stick 10 420

3200 mm stick 10 410

Mass Excavation boom

2500 mm stick 9860

mm

CTrack width

329D L (800 mm shoes) 3390

329D LN (600 mm shoes) 2990

DTrack length 4860

ELength to centers of rollers 3990

FTail swing radius 3080

GGround clearance 480

HBody height 2610

JCab height 3170

KBody width 2900

LTrack gauge

329D L 2590

329D LN 2390

MCounterweight clearance 1080

Track Width

Undercarriage with

triple grouser shoes

Long (L) 600 mm, 800 mm, 900 mm

600 mm HD, 700 mm HD

Long Narrow (LN) 600 mm, 800 mm

600 mm HD, 700 mm HD Swing Mechanism

Swing Speed 10.2 rpm

Swing Torque 82.2 kNm

16

1

2

3

4

5

6

7

10 911 87654321 10

m

0

1

2

3

4

5

6

7

8

4

5

6

7

8

m

9

10

C

A

G

F

D

2650 mm

E

B

3200 mm

1

2

3

4

5

6

7

10 911 87654321 10

m

0

1

2

3

4

5

6

7

8

4

5

6

7

8

m

9

10

C

A

GF

D

E

B

2500 mm

329D Hydraulic Excavator specifications

M2.5DB

mm 2500

mm -6010

mm 9340

mm 10 409

mm 6090

mm 2560

mm -6439

mm -4710

mm 1764

kN 185

kN 167

R2.6CB2 R3.2CB2

mm 2650 3200

mm -6620 -7170

mm 10 130 10 600

mm 9880 9990

mm 6870 7020

mm 2920 2370

mm -5980 -7010

mm -6440 -6510

mm 1610 1610

kN 168 159

kN 155 138

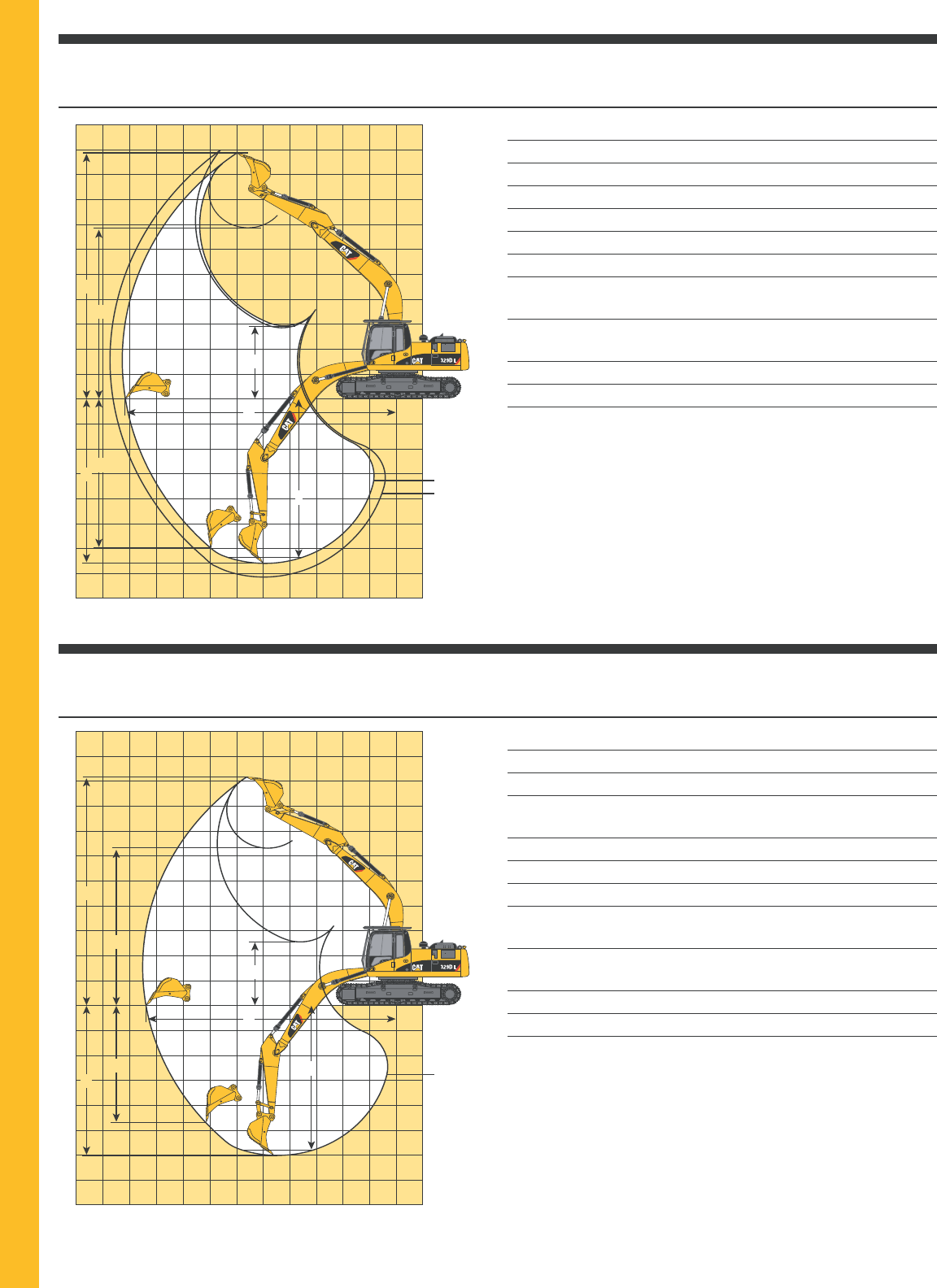

Working Ranges – Reach Boom (6150 mm)

Stick Length

AMaximum Digging Depth

BMaximum Reach at Ground Level

CMaximum Cutting Height

DMaximum Loading Height

EMinimum Loading Height

FMaximum Digging Depth

2500 mm Level Bottom

GMaximum Vertical Wall

Digging Depth

Bucket Tip Radius

Bucket Force (ISO 6015)

Stick Force (ISO 6015)

Working Range – Mass Excavation Boom (5550 mm)

Stick Length

AMaximum Digging Depth

BMaximum Reach

at Ground Level

CMaximum Cutting Height

DMaximum Loading Height

EMinimum Loading Height

FMaximum Digging Depth

2500 mm Level Bottom

GMaximum Vertical Wall

Digging Depth

Bucket Tip Radius

Bucket Force (ISO 6015)

Stick Force (ISO 6015)

17

m

m

m

m

7.5 m

6.0 m

4.5 m

3.0 m

1.5 m

0 m

–1.5 m

–3.0 m

–4.5 m

1.5 m 3.0 m 4.5 m 6.0 m 7.5 m 9.0 m

7.5 m

6.0 m

4.5 m

3.0 m

1.5 m

0 m

–1.5 m

–3.0 m

–4.5 m

1.5 m 3.0 m 4.5 m 6.0 m 7.5 m 9.0 m

1.5 m 3.0 m 4.5 m 6.0 m 7.5 m 9.0 m

1.5 m 3.0 m 4.5 m 6.0 m 7.5 m 9.0 m

7.5 m

6.0 m

4.5 m

3.0 m

1.5 m

0 m

–1.5 m

–3.0 m

–4.5 m

7.5 m

6.0 m

4.5 m

3.0 m

1.5 m

0 m

–1.5 m

–3.0 m

–4.5 m

*5070 5010 *4380 *4380 7.69

*6690 5000 *4180 3890 8.6

*7860 6970 *7190 4860 *5050 3540 *4160 3410 9.18

*12 140 10 130 *9330 6560 *7950 4650 5950 3450 *4280 3150 9.48

*14 930 9330 *10 790 6170 7750 4440 5840 3350 *4540 3040 9.54

*5850 *5850 *16 490 8870 10 680 5880 7560 4280 5740 3270 *4990 3080 9.35

*6100 *6100 *9790 *9790 *16 810 8700 10 510 5730 7460 4180 *5750 3290 8.91

*10 450 *10 450 *14 740 *14 740 *16 080 8730 10 490 5720 7460 4190 6610 3750 8.16

*16 550 *16 550 *14 130 8920 *10 510 5840 *8330 4730 7.02

*5690 5430 7.09

*7380 4950 *5380 4330 8.08

*8640 6890 *7780 4840 *5320 3760 8.69

*13 400 9920 *10 050 6510 7970 4660 *5530 3470 *5460 3460 9.01

*15 870 9230 10 990 6160 7770 4470 5870 3390 *5790 3350 9.07

*16 870 8900 10 720 5930 7610 4340 5940 3410 8.87

*9710 *9710 *16 770 8830 10 600 5830 7550 4280 6420 3670 8.4

*14 360 *14 360 *15 610 8920 10 630 5860 7620 4340 7470 4260 7.61

*16 590 *16 590 *13 060 9160 *9530 6060 *8580 5610 6.37

*5690 *5690 7.09

*7380 5540 *5380 4860 8.08

*8640 7710 *7780 5420 *5320 4230 8.69

*13 400 11 240 *10 050 7330 8250 5240 *5530 3920 *5460 3920 9.01

*15 870 10 530 11 370 6970 8050 5060 6090 3850 *5790 3800 9.07

*16 870 10 190 11 100 6730 7890 4920 6160 3870 8.87

*9710 *9710 *16 770 10 120 10 980 6630 7830 4860 6650 4170 8.4

*14 360 *14 360 *15 610 10 200 11 010 6660 7890 4920 7740 4830 7.61

*16 590 *16 590 *13 060 10 460 *9530 6860 *8580 6350 6.37

*5070 *5070 *4380 *4380 7.69

*6690 5590 *4180 *4180 8.6

*7860 7790 *7190 5450 *5050 3990 *4160 3850 9.18

*12 140 11 460 *9330 7380 *7950 5240 6170 3910 *4280 3570 9.48

*14 930 10 630 *10 790 6980 8030 5030 6050 3800 *4540 3470 9.54

*5850 *5850 *16 490 10 160 11 060 6690 7840 4860 5960 3720 *4990 3510 9.35

*6100 *6100 *9790 *9790 *16 810 9990 10 890 6540 7730 4760 *5750 3750 8.91

*10 450 *10 450 *14 740 *14 740 *16 080 10 010 10 870 6520 7740 4770 6860 4260 8.16

*16 550 *16 550 *14 130 10 210 *10 510 6650 *8330 5370 7.02

Lift Capacities – Reach Boom (6150 mm)

All weights are in kg, without bucket, with quick coupler, heavy lift on.

Shoes

800 mm

Long Stick

329D L

3200 mm

Shoes

800 mm

Medium Stick

329D L

2650 mm

Shoes

600 mm

Medium Stick

329D LN

2650 mm

Shoes

600 mm

Long Stick

329D LN

3200 mm

329D Hydraulic Excavator specifications

Load Point Height Load Radius Over Front Load Radius Over Side Load at Maximum Reach

* Limited by hydraulic rather than tipping load.

The above loads are in compliance with hydraulic excavator lift capacity ratings standard ISO 10567, they do not exceed 87% of hydraulic lifting capacity

or 75% of tipping capacity. Weight of all lifting accessories must be deducted from the above lifting capacities.

18

m

m

7.5 m

6.0 m

4.5 m

3.0 m

1.5 m

0 m

–1.5 m

–3.0 m

–4.5 m

1.5 m 3.0 m 4.5 m 6.0 m 7.5 m 9.0 m

7.5 m

6.0 m

4.5 m

3.0 m

1.5 m

0 m

–1.5 m

–3.0 m

–4.5 m

1.5 m 3.0 m 4.5 m 6.0 m 7.5 m 9.0 m

*6480 *6480 5.96

*8030 7760 *6070 5750 7.1

*8800 7530 *7750 5150 *6040 4810 7.79

*12 980 11 260 *10 040 7170 8040 5010 *6290 4350 8.15

*15 460 10 490 11 250 6810 7860 4840 6790 4190 8.22

*8880 *8880 *16 650 10 080 10 970 6560 7720 4720 6990 4290 8

*9310 *9310 *15 400 *15 400 *16 450 9960 10 850 6460 7730 4720 7.47

*20 810 20 500 *14 850 10 070 *10 840 6540 *9450 5770 6.57

*10 880 10 450 *9220 8740 5.07

*6480 *6480 5.96

*8030 6930 *6070 5110 7.1

*8800 6700 *7750 4560 *6040 4250 7.79

*12 980 9920 *10 040 6350 7760 4420 *6290 3820 8.15

*15 460 9180 10 870 6000 7580 4260 6540 3670 8.22

*8880 *8880 *16 650 8780 10 580 5750 7440 4130 6740 3750 8

*9310 *9310 *15 400 *15 400 *16 450 8670 10 470 5650 7450 4130 7.47

*20 810 17 450 *14 850 8780 10 550 5730 9180 5060 6.57

*10 880 9150 *9220 7680 5.07

Shoes

600 mm

Medium Stick

329D LN

2500 mm

Lift Capacities – Mass Excavation Boom (5550 mm)

All weights are in kg, without bucket, with quick coupler, heavy lift on.

Shoes

800 mm

Medium Stick

329D L

2500 mm

329D Hydraulic Excavator specifications

Standard Equipment

Standard equipment may vary. Consult your Caterpillar dealer for specifics.

Electrical

Alternator – 65 amp

Heavy duty maintenance free

batteries (2)

Lights working

Boom, both side

Cab interior

Cab mounted, two

Frame mounted

Rear view camera with display on

monitor

Signal/warning horn

Engine

Automatic engine speed control

Caterpillar C7 engine (140 kW)

Altitude capability to 2300 m

Fine swing control

Fuel filter

High ambient cooling

Secondary engine shut-off switch

Side-by-side cooling system with

separately mounted AC condenser

Water separator, with level indicator,

for fuel line

Guards

6 mm swivel guard on undercarriage

Heavy duty bottom guards on upper

frame

Heavy duty travel motor guards on

undercarriage

Operator Station

Adjustable armrest

Air conditioner, heater and defroster

with automatic climate control

Ashtray and 24 volt lighter

Beverage/cup holder

Bolt-on FOGS capability

Capability to install 2 additional pedals

Coat hook

Electrical provision for seat heater

EU sound criteria package

Floor mat, washable

Instrument panel and gauges with full

color graphical display, start-up level

checks

Laminated front windshield

Literature compartment

Mirrors – left and right

Neutral lever (lock out) for all controls

Positive filtered ventilation,

pressurized cab

Rear window, emergency exit

Retractable seat belt

Sliding upper door window

Stationary skylight (polycarbonate)

Storage compartment suitable

for a lunch box

Sunshade for windshield and skylight

Travel control pedals with removable

hand levers

Windshield wiper and washer

(upper and lower)

Undercarriage

Automatic swing parking brake

Automatic travel parking brakes

Grease lubricated track

Hydraulic track adjusters

Idler and center section track guards

Long (L)

Long Narrow (LN)

Steps – four

Two speed travel

19

Other Standard Equipment

Auxiliary hydraulic valve for hydro-

mechanical tools

Cat branded XT hoses and reusable

couplings

Cat Datalink and capability to use ET

Caterpillar one key security system with

locks for doors, cab and fuel cap

Cross-roller type swing bearing

Counterweight with lifting eyes

Drive for auxiliary pump

Heavy lift mode

Regeneration circuit for boom and stick

S•O•SSM quick sampling valves for

engine oil, hydraulic oil and coolant

Steel firewall between engine and

hydraulic pump compartment

Wiring provisions for Product Link

Standard Equipment

Standard equipment may vary. Consult your Caterpillar dealer for specifics.

Engine

Caterpillar C7 High power engine

(152 kW)

Front Linkage

Bucket linkages

CB2-family for CB2 sticks

with lifting eye)

DB-family for DB sticks

with lifting eye)

Buckets and quick coupler (pg.11)

Booms (with two working lights)

Reach

– 6150 mm

Mass excavation

– 5550 mm

Sticks

For reach boom

– R2.6CB2

– R3.2CB2

For mass boom

– M2.5DB

Tips

Shoes

Triple grouser

329D L – 600 mm, 800 mm, 900 mm

Heavy duty – 600 mm, 700 mm

329D LN – 600 mm, 800 mm

Heavy duty – 600 mm, 700 mm

Guards

FOGS, bolt-on

Full length for L and LN undercarriage

(two piece)

Track end guide for L and LN

undercarriage

Operator Compartment

Joysticks

Four button joystick or single action

auxiliary control

Thumb wheel modulation joystick

Lunch box storage with lid

Machine security system with

programmable keys

Radio

AM/FM radio mounted in right hand

console with antenna and speakers

Radio ready mounting at rear location

including 24 V to 12 V converter

Seat

Adjustable high-back seat with

mechanical suspension

Adjustable high-back seat with

air suspension

Adjustable high-back heated seat with

air suspension

Straight travel pedal

Visor rain protection

Windshield

1-piece standard duty

1-piece high impact resistant

50-50 split, sliding

70-30 split, sliding

Auxiliary Controls and Lines

Auxiliary boom lines (high pressure

for reach and mass booms

Auxiliary stick lines (high pressure

for reach and mass booms

Basic control arrangements:

– Single action

(single action tool such as hammer,

with direct return to tank)

– System, combined

(single and double action tools,

direct return to tank)

– System, Medium Pressure AHC

(two directional flow attachment)

– Circuit, Cooling (circulating

circuit for cooling hydraulic oil)

Universal control group for

quick coupler

Miscellaneous Options

Bio hydraulic oil package

Boom lowering control device with

SmartBoom

Cab front rain protector

Converters, 7 amp-12 V

– One

– Two

Electric refueling pump with auto

shut-off

Fine filtration filter

Jump start terminals

Starting aid for cold weather with ether

Stick lowering control device

Travel alarm with cut off switch

Optional Equipment

Optional equipment may vary. Consult your Caterpillar dealer for specifics.

®

HEHH3856 (07/2008) hr

329D L and 329D LN Hydraulic Excavators

For more complete information on Cat products, dealer services, and industry solutions, visit us on the web at

www.cat.com

Materials and specifications are subject to change without notice. Featured machines in photos

may include additional equipment. See your Caterpillar dealer for available options.

© 2008 Caterpillar -- All rights reserved

CAT, CATERPILLAR, their respective logos, “Caterpillar Yellow” and the POWER EDGE trade dress as well as

corporate and product identity used herein, are trademarks of Caterpillar and may not be used without permission.
