Engine

Engine Model Cat®C15 ACERT™

Gross Power – SAE J1995 350 kW 469 hp

Net Power – SAE J1349 338 kW 453 hp

Weights

Rated Payload 39.5 tonnes 43.5 tons

Body Capacities

Heaped 2:1 24 m331.4 yd3

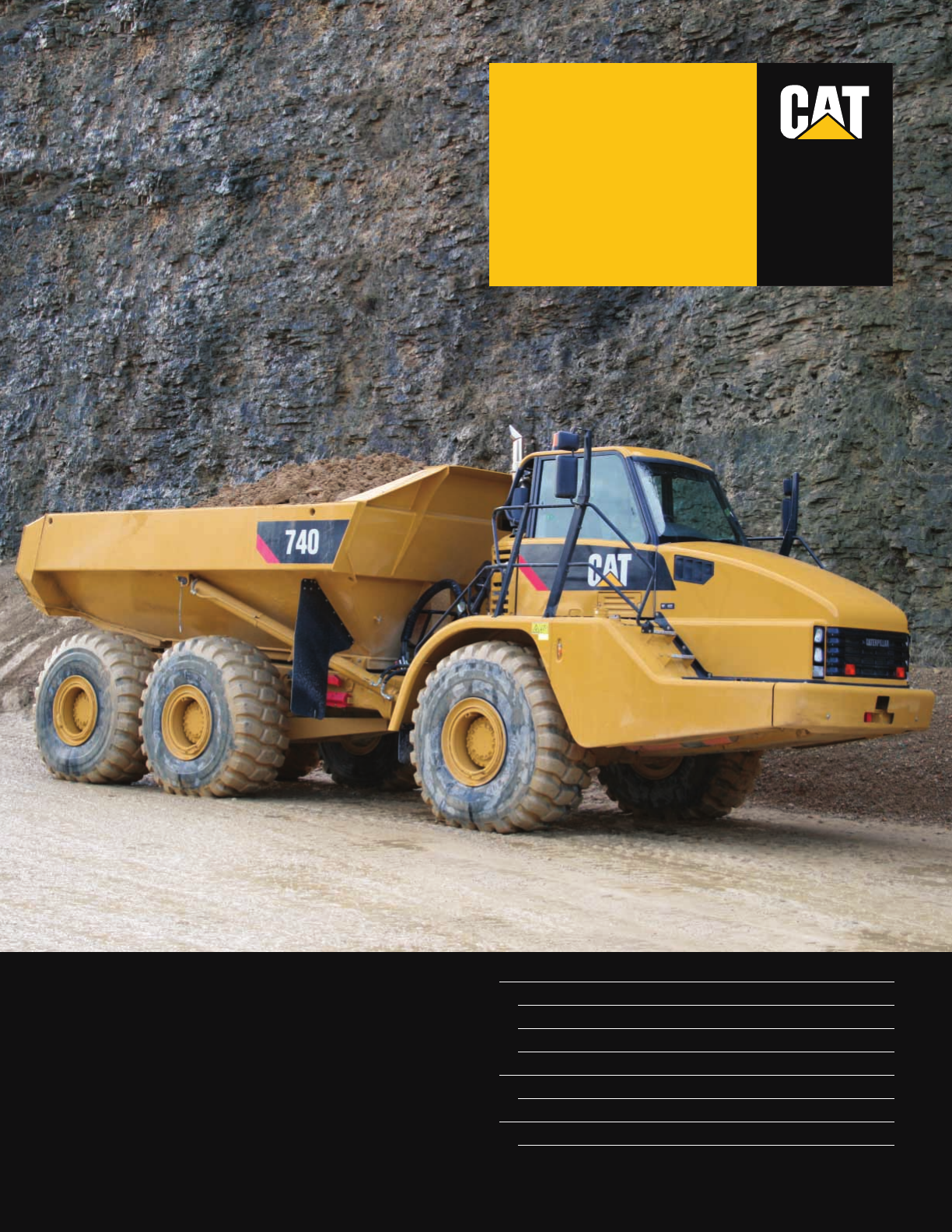

740

Articulated Truck

2

740 Articulated Truck

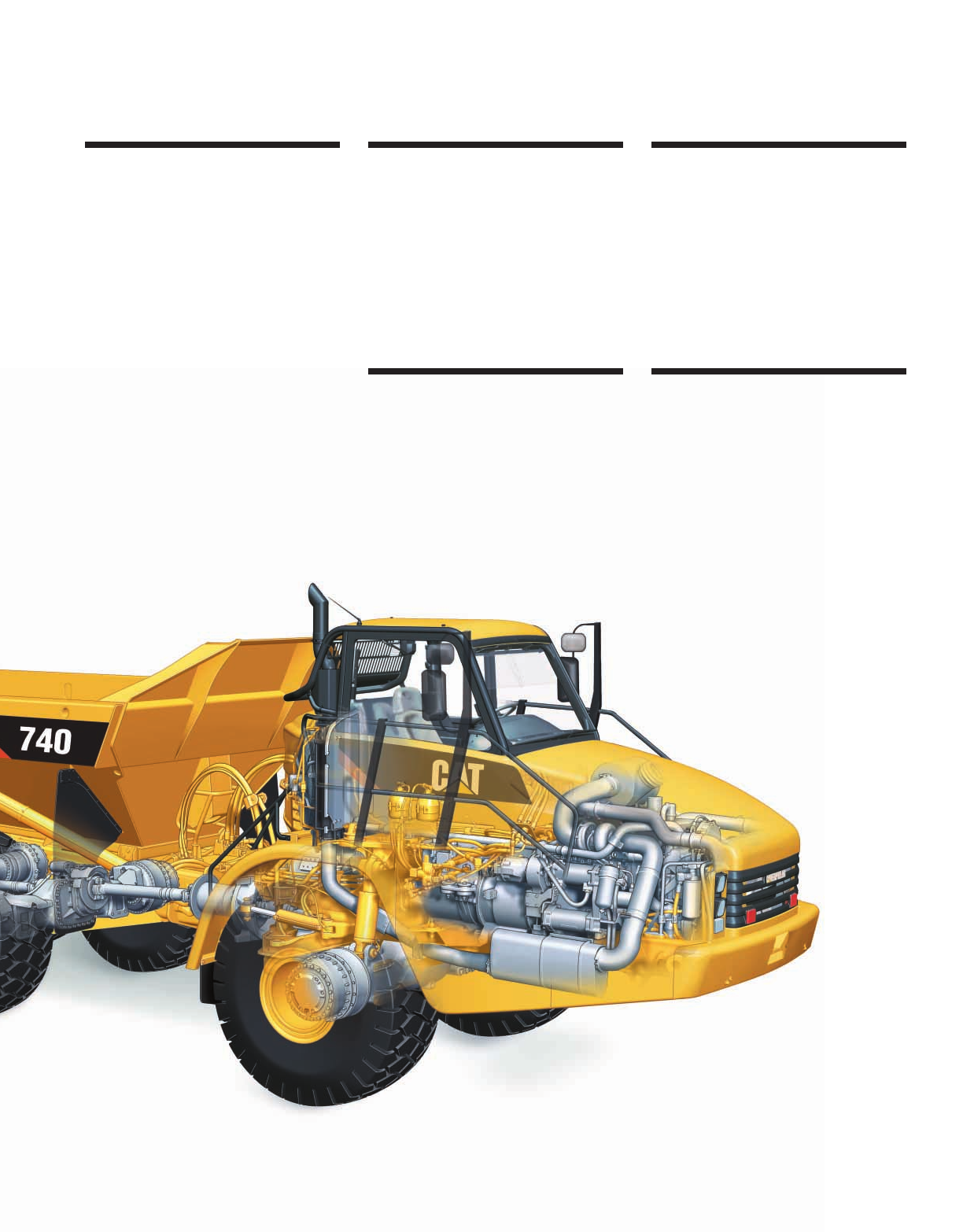

The 740 Caterpillar®Articulated Truck is a world-leading earthmoving solution.

The 740 offers proven reliability and

durability, high performance, low fuel

consumption, operator comfort and low

operating costs.

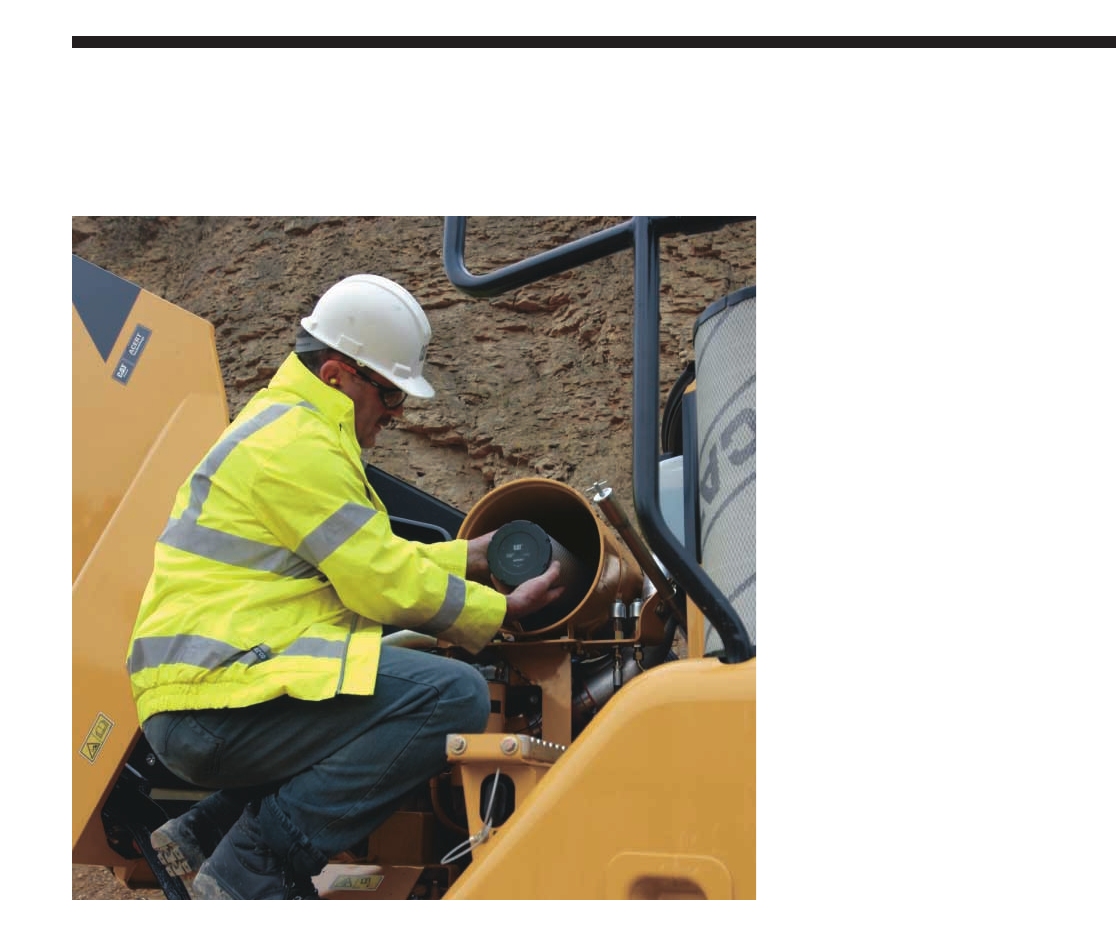

Serviceability

Long service intervals and easy

maintenance provide better machine

availability, resulting in lower owning

and operating costs. pg. 10

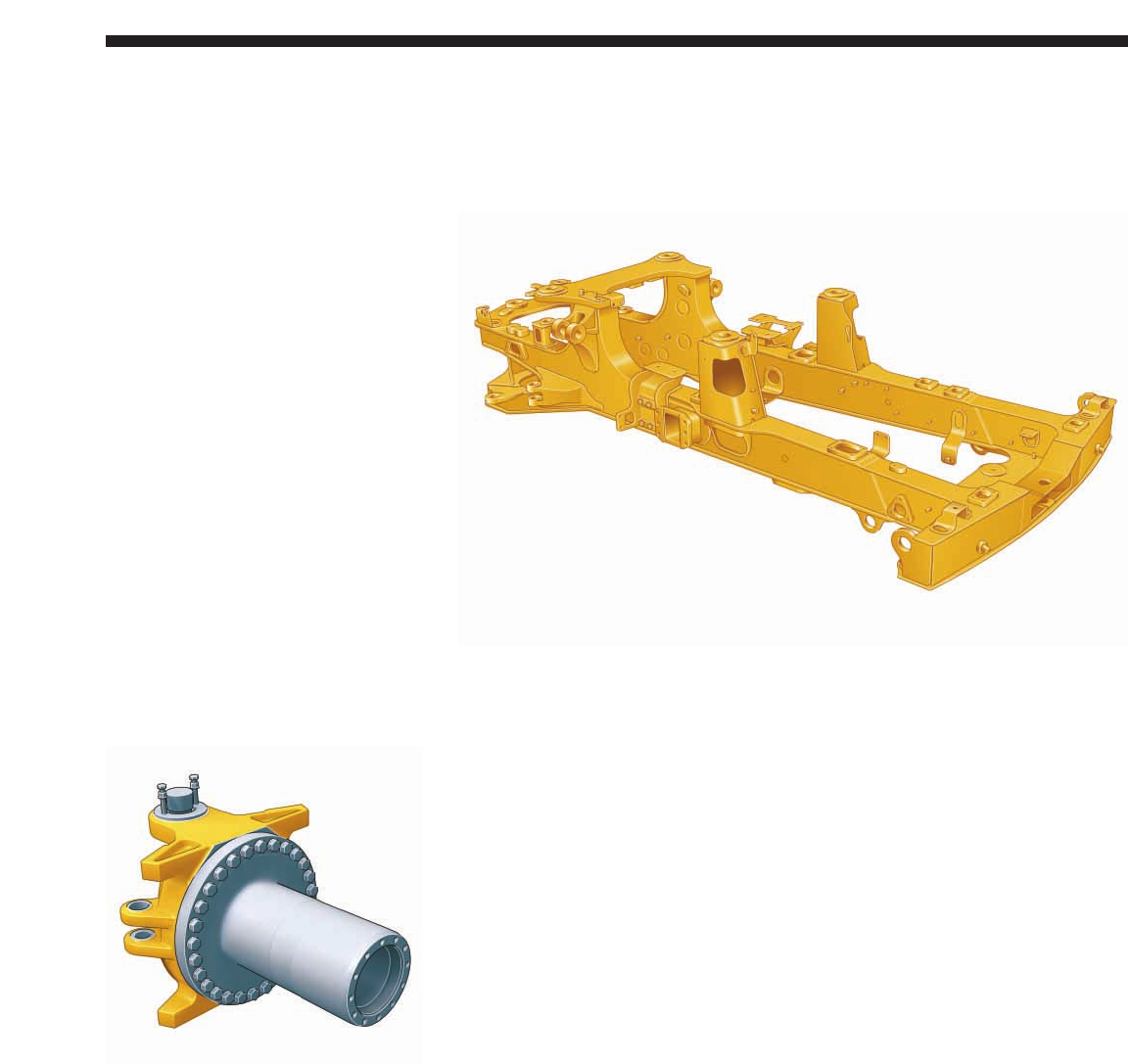

Durability and Reliability

The 740 has built-in durability and

reliability. Cat purpose-built articulated

truck drivetrain components, front frame

and hitch ensure maximum performance

in the toughest applications. pg. 9

Performance and Productivity –

Suspension and Traction Control

Three-point front suspension provides

a smooth ride, allowing the operator

to travel at speed over rough terrain.

Cross-axle differential locking system

provides full driveline locking for

maximum performance in adverse

conditions. pg. 6

Performance and Productivity –

Power Train

The Cat®C15 ACERT engine, matched

with the seven-speed forward and

two-speed reverse electronic controlled

transmission, provides a wide operating

range for smooth shifting. pg. 5

Cat®C15 Engine with

ACERT™ Technology

The core concept behind ACERT™

technology is advanced combustion.

ACERT engine technology carefully

controls the combustion process to

reduce pollutant levels while maintaining

performance and efficiency. pg. 4

✔New Feature

3

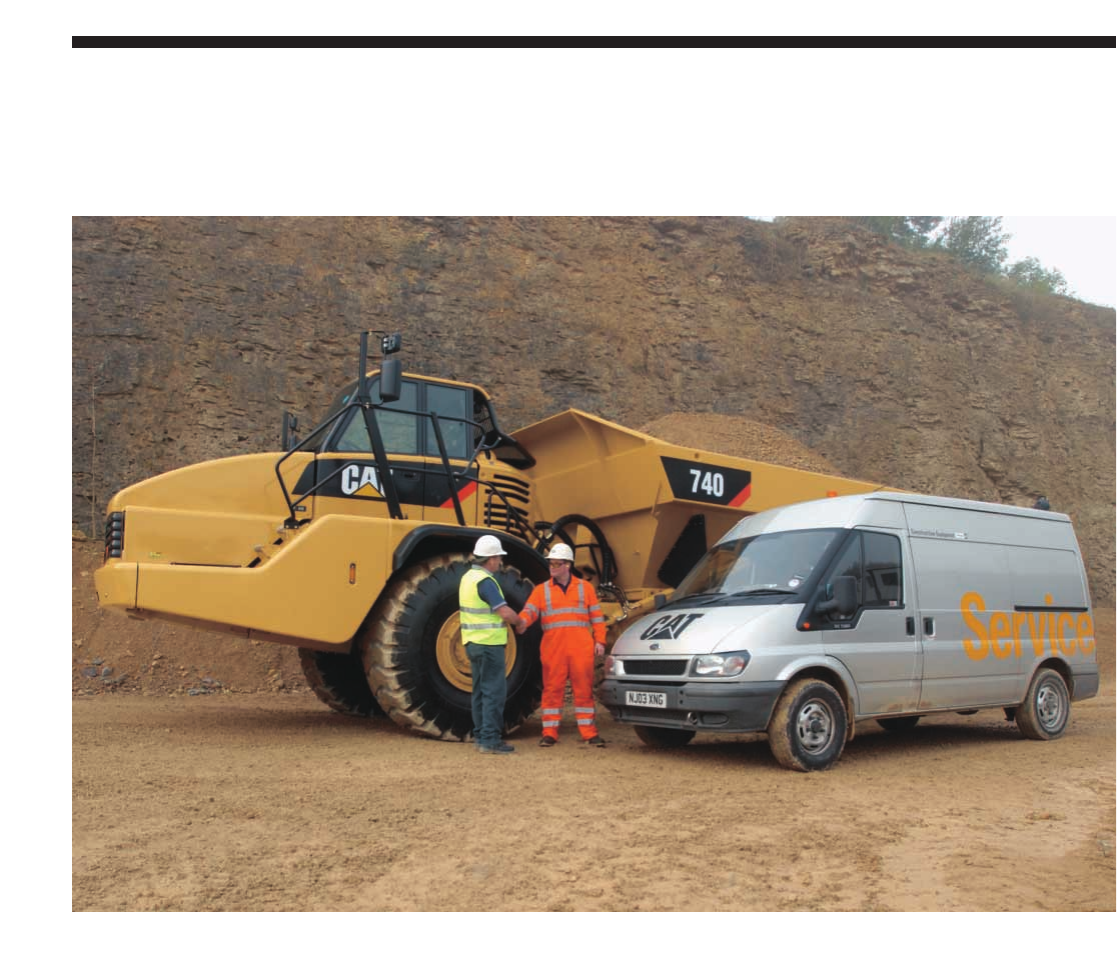

Complete Customer Support

Your Cat dealer offers a wide range

of services that can be set up under a

customer support agreement when you

purchase your equipment. The dealer will

help you choose a plan that can cover

everything from machine configuration

to eventual replacement. pg. 12

Product Link

Satellite technology provides machine

data via the internet giving you critical

information and enabling Cat dealer

World Class services. pg. 11

✔

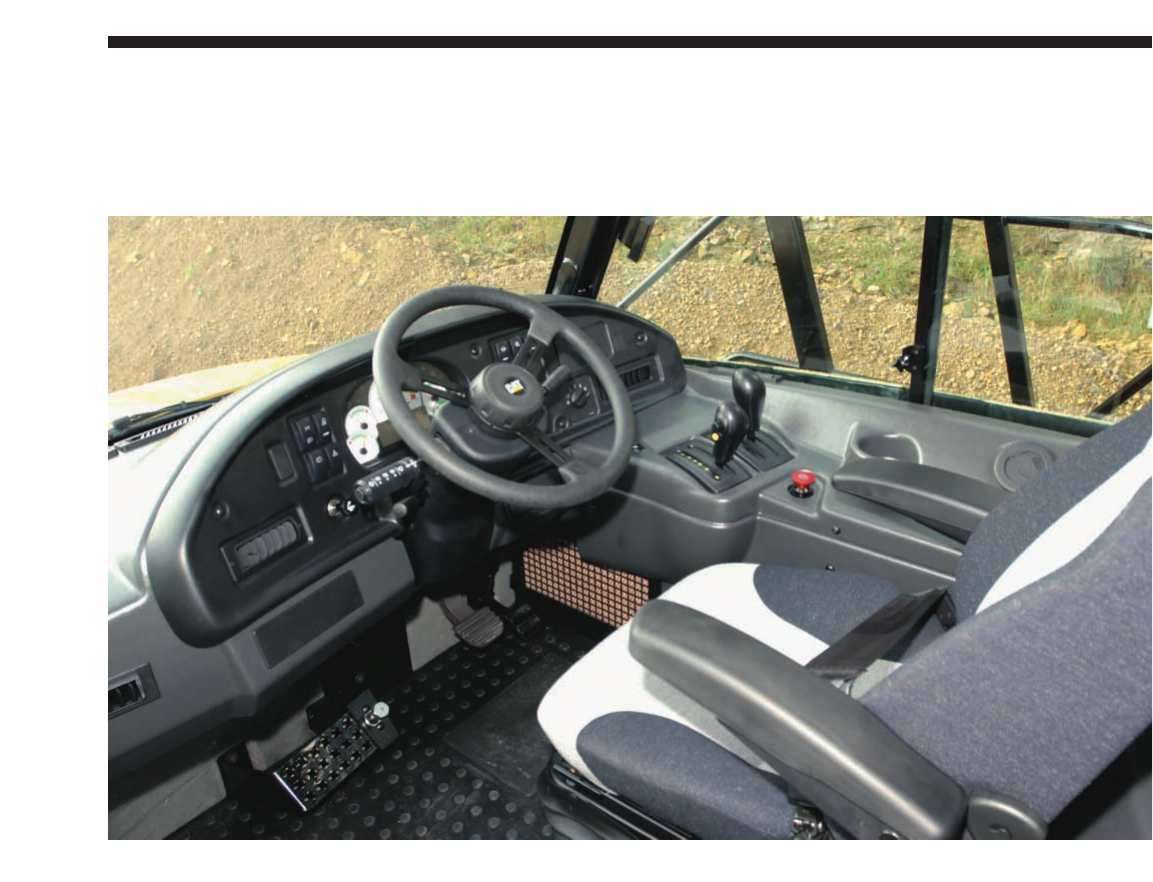

Ease of Operation

Ergonomically designed wrap-around

dash, tilt and telescopic steering wheel,

easy-to-reach controls and outstanding

all-around viewing promote fast,

confident machine operation. pg. 8

Operator Comfort

Large center-mounted cab, oscillating

front axle, air suspension seat, full-size

trainer seat and large storage space

provide exceptional operator comfort.

pg. 7

Performance and Productivity –

Body Capacity

Increased payload capacity for

improved productivity. pg. 6

✔

ACERT Technology. The Cat®C15

ACERT™ engine introduces a series of

evolutionary, incremental improvements

that provide breakthrough engine

technology built on systems and

components developed by Caterpillar

with proven reliability. The technology

capitalizes on Cat expertise in four core

engine systems: fuel, air, electronics

and after treatment. ACERT technology

is a unique and revolutionary systems

solution that enables Cat engines to

meet today’s clean air regulations, thus

establishing the building blocks for

attaining tomorrow’s more stringent

standards.

C15 Block. The one-piece, gray iron

block features generous ribbing for

stiffness and heavy bearing bulkheads

for rigidity and strength as the crankshaft

turns. Straight O-ring connection points

reduce the loss of engine oil and fluids.

Cylinder Head and Piston Technology.

The C15 ACERT engine has a cross-

flow cylinder head with refined port

geometry, which provides improved

breathing and better combustion.

The Monotherm/steel pistons have

a forged steel design, which offers

high strength, light weight and tighter

tolerances. The result is better oil

control, minimal blow-by and long

liner life.

Advanced Diesel Engine Management

(ADEM) A4 Engine Controller.

The ADEM™ A4 electronic control

module manages fuel delivery to get

the best performance per liter or gallon

of fuel used. The engine management

system provides flexible fuel mapping,

allowing the engine to respond quickly

to varying application needs. It tracks

engine and machine conditions while

keeping the engine operating at peak

efficiency.

Fuel Delivery. Multiple injection

fuel delivery involves a high degree

of precision. Precisely shaping the

combustion cycle lowers combustion

chamber temperatures, generating

fewer emissions and optimizing fuel

combustion. This translates into more

work output for your fuel cost.

Noise Reduction Technologies.

Noise reduction has been achieved

through design changes to the isolated

top cover, oil pan, multiple injection

strategy, insulated timing case cover,

sculpted crankcase and gear train

refinements.

4

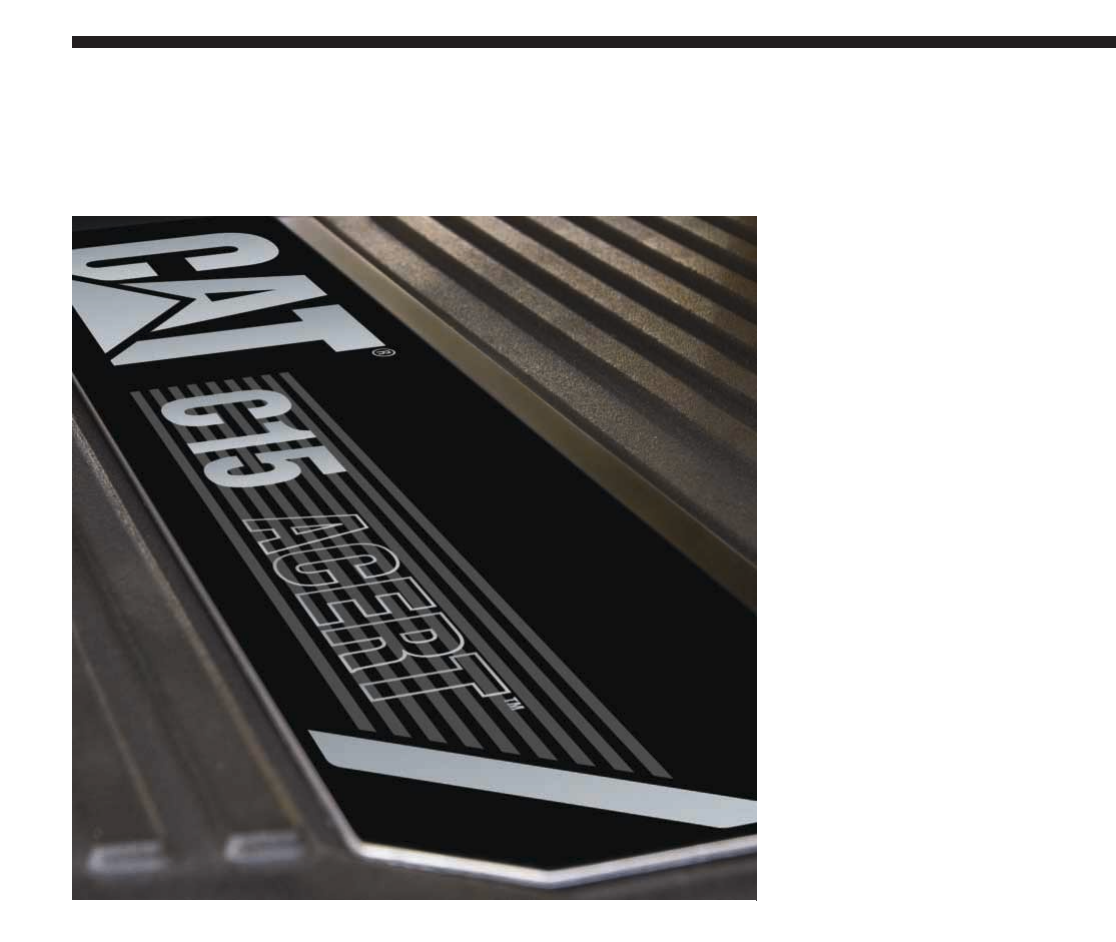

Cat C15®Engine with ACERT™ Technology

A combination of proven systems and innovative new technologies, ACERT engines optimize

performance while meeting EPA Tier 3 and EU Stage IIIa engine exhaust emission regulations.

Mechanically Actuated Electronic Unit

Injection (MEUI). A highly evolved fuel

system with a proven record of reliability

in the field. It combines the technical

advancement of an electronic control

system with the simplicity of direct

mechanically controlled unit fuel

injection. It excels in its ability to control

injection pressure over the entire engine

operating speed range. These features

allow the C15 to have complete control

over injection timing, duration and

pressure.

Air-to-Air Aftercooling (ATAAC).

ATAAC keeps air intake temperatures

down and, in concert with the tight

tolerance combustion chamber

components, maximizes fuel efficiency

and minimizes emissions. Significant

improvements in air flow are generated

by a turbocharger, unique cross-flow

head and a single overhead camshaft.

Wastegate Turbocharging.

Single wastegate turbocharger

provides higher boost over a wide range,

outstanding low-end performance with

improved peak torque and engine

response.

Electronic Transmission. The Caterpillar

seven-speed electronically controlled

transmission is designed specifically for

the articulated truck and its applications.

It features anti-hunt shift shift strategy

for speed continuity. It also incorporates

Individual Clutch Modulation (ICM)

to ensure constant shift times even

when the oil is cold.

Two Reverse Gears. The transmission

arrangement provides a second reverse

gear for improved performance when

operating in longer rear hauling

applications. First gear reverse is now

of a lower ratio for increased rimpull

on wet or steep grades.

Controlled Throttle Shifting (CTS).

Significantly reduces power train stress

and clutch wear by controlling engine

speed, torque converter lock-up and

transmission clutch engagements.

Engine Overspeed Inhibitor. Electronic

Engine Overspeed Inhibitor. Electronic

Transmission Control (ETC) protects

against engine overspeeding by shifting

the transmission up one gear at specified

rpm settings. If the transmission is in its

highest gear, torque converter lockup

disengages.

Directional Shift Management.

Regulates engine speed during directional

shifts to prevent damage caused by

high-speed directional changes.

Programmable Top Gear Selection.

Electronic Transmission Control lets

you electronically limit top gear selection

without the use of additional service

tooling or mechanical limiting of

the shift cane.

Caterpillar Engine Compression Brake.

Provides extra braking effort on downhill

grades. It is an excellent match for the

C15 ACERT engine, turning it into a

power absorbing air compressor. It has

very fast response time and produces

no additional heat, so it can be used

continuously.

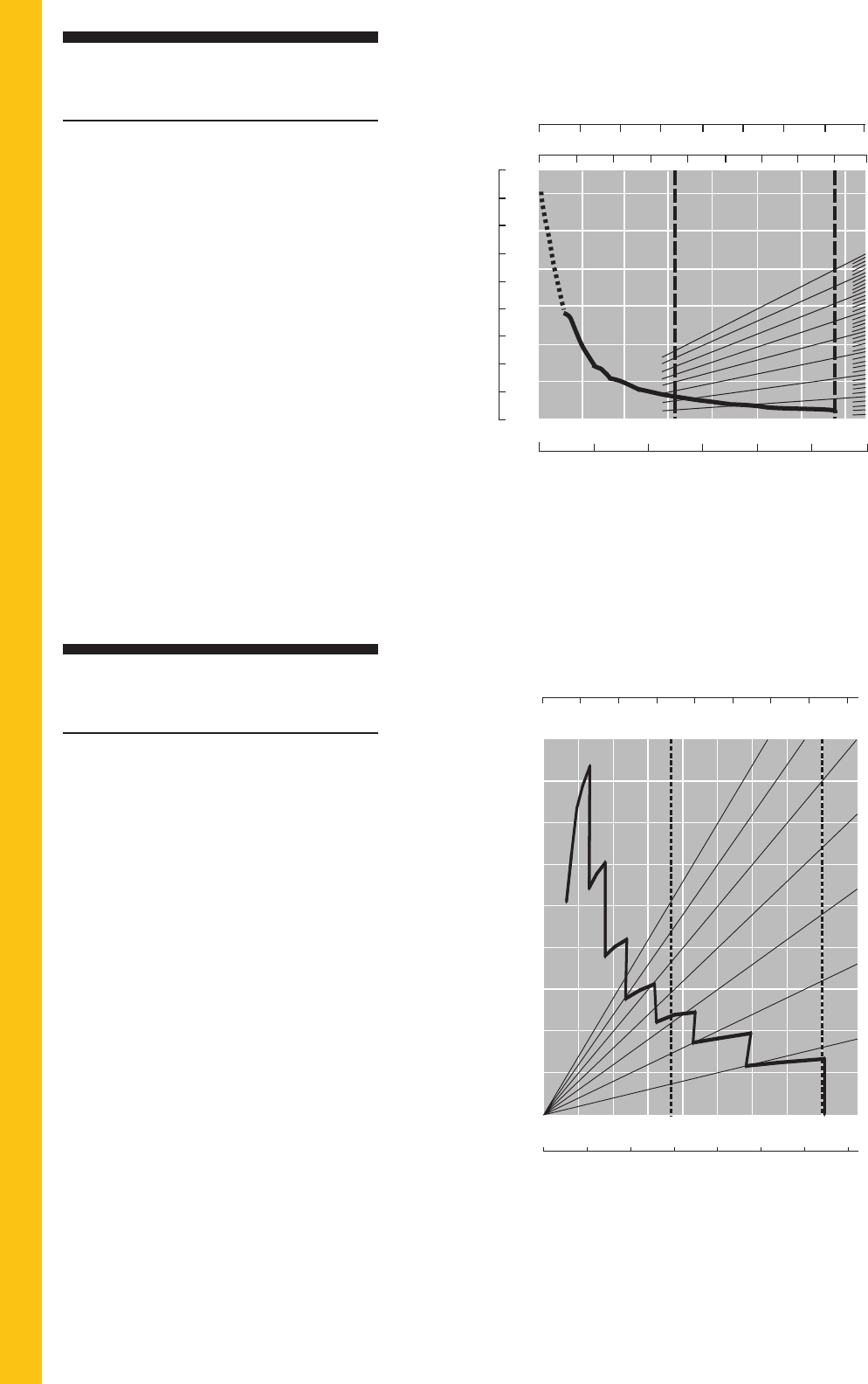

Usable Rimpull. Power train components

work together to offer more usable

rimpull at higher speeds on effective

grades. In first gear, the torque converter

overcomes grade resistance by sending

more torque to the wheels and preventing

engine lugging. On downhill grades, the

engine compression brake works like

a brake by slowing the machine.

Hydraulic Fan. The remote-mounted

hydraulic fan is temperature sensitive

providing variable speeds when needed,

which minimizes power requirements.

The result is more power to the ground

and faster cycle times.

5

Performance and Productivity – Power Train

Integrated power train with more power, greater performance and lower fuel consumption –

the power to do more work.

Front Suspension. The three-point front

suspension oscillates ±6° to provide a

smooth ride, allowing the operator to

travel at speed over rough terrain and

softening impact loads on structures

and components.

A-Frame Construction. The front

suspension uses an oscillating A-frame

with a lateral tie rod to control axle

sideways movement. The independent

low-pressure, oil-nitrogen suspension

cylinders provide an excellent ride in

rough conditions. Low pressure ensures

consistent damping and increased

seal life.

Front Suspension Cylinders. Large bore,

low pressure cylinders are purpose

designed for tough applications and offer

a soft, smooth ride.

Mounting Points. Suspension mounting

points are integrated into the axle

housing, increasing reliability.

Rear Suspension. Features a walking

beam geometry with Caterpillar designed

rear suspension mounts which provide

a reliable and stable ride for excellent

load retention.

Traction Control. The traction control

system is comprised of a wet clutched

inter-axle differential and wet clutched

cross-axle differentials. All differentials

can be engaged and disengaged on-the-

go for maximum versatility. When used

together, the differentials provide

100 percent driveline locking.

Inter-Axle Differential Lock. Locks all

three axles in unison and modifies torque

distribution for excellent traction in poor

underfoot conditions and on grades.

It is operated by a switch located at

the footrest.

Cross-Axle Differential Locks.

Provides full driveline locking –

all three axles and all six wheels –

for maximum performance in the most

adverse conditions. Acts in unison with

the inter-axle differential lock when the

footswitch is actuated and the dash-

mounted switch is selected.

Fast Hoist Cycle Times. Fast body raise

and lower times mean less time spent

in the dump area.

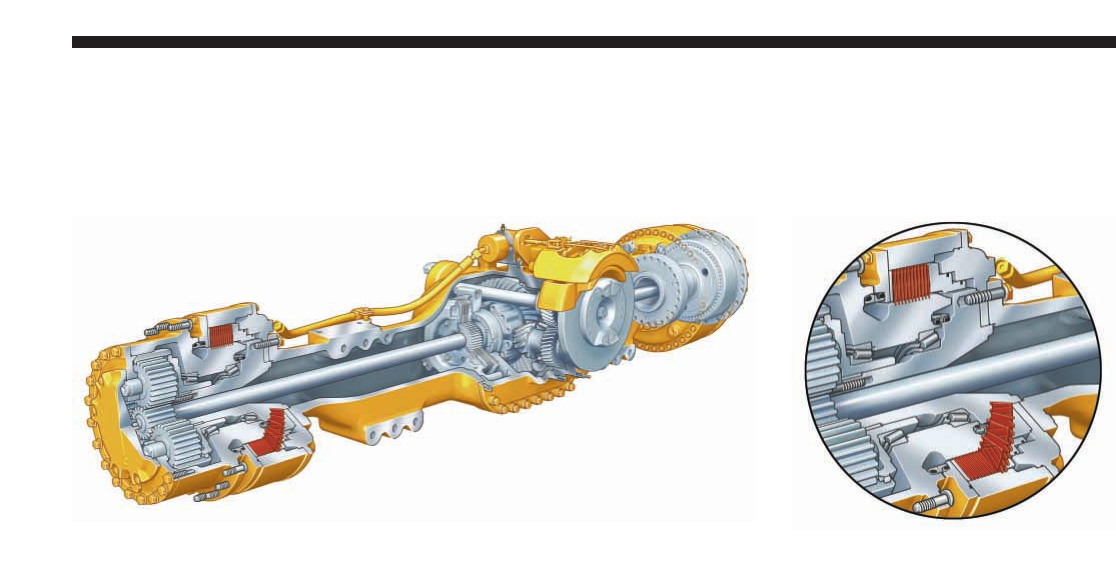

Service brake detail

Enclosed, Oil-Cooled Brakes.

Multi-plate, oil-immersed brakes are

fitted to both front and center axles.

These brakes provide outstanding

stopping capability, while maintaining

maximum durability and low wear

characteristics.

Exhaust Heat System. The body comes

exhaust heat ready.

Load-Carrying Capacity. The 740 has a

large target area to provide consistently

high load-carrying capacity. Its diverging

flow design gives clean load ejection,

which maximizes production and avoids

the waste of material carry-back.

6

Performance and Productivity – Suspension and Traction Control

Suspension systems and traction control – delivering power to the ground in all conditions.

Ride Comfort. The three-point front

suspension with its oscillating axle and

low-pressure ride struts, combined with

the center-mounted cab, offers unrivaled

levels of ride comfort for the operator

in all driving conditions. The operator

remains comfortable and productive

throughout the day.

Spacious Two-Person Cab. The 740

features a large two-person cab, offering

comfortable working space for both the

operator and trainer or trainee. All 700

Family articulated trucks use the same

spacious cab design.

Air Suspension Seat. The air suspension

seat enhances operator comfort with a

cushioned upper high back, adjustable

damping with three settings, ride zone

indicator and adjustable lumbar settings.

It is fully adjustable to provide the

optimal driving position.

Storage Space. Plenty of storage space

to create a safe, secure and uncluttered

working environment.

Trainer Seat. Full-size trainer seat features

a fully padded seat with a backrest and

a wide, retractable seatbelt for a secure

and comfortable ride. The trainer seat

is positioned next to the operator seat,

giving both the operator and trainer

a clear view of the instrument panel,

controls and the road.

Heating/Ventilation/Air Conditioning.

Twelve vents provide air distribution

to keep the operator comfortable and to

provide rapid defrosting of all windows.

Heating, air conditioning and defrosting

are standard. The recirculation filter is

positioned for easy servicing.

Radiator Mounting. The radiator is

mounted at an angle to prevent heat

transfer to the cab.

Dual-Sliding Window. The right-hand

window is a dual-sliding window.

Opening this window with the left rear

hinged window provides cross-flow

ventilation and enhanced operator

comfort.

Sound Levels. Cab mounts are designed

to reduce noise and vibration in the cab.

All connections to the cab are resiliently

mounted. The operator’s station makes

extensive use of sound-absorbing and

barrier materials to keep sound levels low.

Steering Column. A comfortable driving

position is provided by a telescopic and

tilt steering column.

7

Operator Comfort

The operator’s office – high productivity from a comfortable, motivated operator.

Ergonomic Layout. The controls and

layout of the cab are designed to make it

as easy to operate as your car. Quick, easy

to read and simple to operate, the controls

and gauges on the 740 allow the operator

to concentrate on production.

Dash. The Generation II wrap-around

dash puts all controls within easy reach of

the operator. Featuring LED illuminated

rocker switches, large LCD display and a

rear wash wipe rocker switch. It provides

an automotive feel with the industrial

strength you would expect from

Caterpillar.

Viewing Area. The low sloping hood

and placement of the cooling package

behind the cab give the operator excellent

all-around visibility. The large glass

area and central operator position also

provide excellent visibility.

Wipers. The wet arm wiper system

cleans more glass area and is bottom-

mounted to keep it out of the operator’s

line of sight. Windows are tinted to

reduce glare.

Differential Lock Controls. The inter-axle

differential lock is engaged/disengaged

by using a raised switch incorporated

into the drivers foot rest, for ease of

operation. For 100% lock up, all three

cross-axle differential locks act in unison

with the inter-axle differential lock

when the foot switch is activated

and a dash mounted switch is selected.

Disengaging the foot switch opens

all differential locks immediately.

Transmission and Hoist Levers.

The hoist lever provides easy, comfortable

operation. The transmission lever offers

excellent comfort, along with the control

for top gear limit, transmission hold

and neutral lock.

Suspended Pedals. Easy to operate

and reach with plenty of leg and foot

room. They also make for easier cleaning

of the cab floor by keeping the pedals

out of the dirt.

Cat 2S Monitoring System. Provides an

improved method of monitoring critical

machine functions and alerts the operator

to an immediate or impending problem.

The system includes four levels of

warning.

8

Ease of Operation

Designed for simple, easy operation, the 740 allows the operator to focus on production.

Front Frame. The front frame design

features a large box section and wide,

stiff frame beams to handle torque loads.

The divergent frame design decreases

stress in the hitch area and optimizes

suspension geometry. The frame design

makes maximum use of robotic welding

for increased durability.

Rear Frame. Twin-box construction

minimizes stress concentrations

and provides low weight with long

service life.

Castings. Both front and rear frames

make extensive use of heavy-duty

steel castings.

Suspension. The three-point oscillating

axle front suspension provides

unparalleled ride quality. It also protects

the truck from the most adverse road

conditions by absorbing shock loads

that would otherwise reach the frame.

Articulating/Oscillating Hitch.

The articulating hitch provides the

truck with steering articulation, and

the oscillation ensures all-wheel ground

contact in rough terrain.

Hitch Construction. Two-piece

construction features a strong, durable

cast steel head bolted to a hard-wearing

forged steel tube. The hitch tube has

hardened bearing areas and a hardened

thrust face for reduced maintenance

and longer life.

Steer Cylinders In-Line with Hitch.

Steer cylinders are in-line with the

hitch, minimizing steer loads and

stress in the hitch area.

Service Brakes. Oil-cooled multiple

disc brakes are continuously cooled

for exceptional, non-fading braking.

They are designed and built for reliable,

adjustment-free operation.

Parking Brake. Located on the center

axle in an elevated position and designed

to deliver higher heat capacity and

abuse resistance.

Cat Power Train Components. All major

components have been purpose-designed

for earthmoving applications. In fact,

many of the major components have

been designed specifically for

articulated trucks.

Radiator Protection. The radiator is

located behind the cab for excellent

visibility. This design incorporates

three levels of protection:

1) Body Spill Guard.

2) Cab Steel Spill Guard.

3) High-Strength Surround.

9

Durability and Reliability

High availability leads to high productivity. Excellent durability keeps ownership costs low.

Long Service Intervals. Long engine oil

change and hydraulic oil change intervals

lower maintenance costs and downtime.

Wheel-bearing adjustment is completely

eliminated.

Lube Points. Lube points are grouped

at the rear of the front frame and the

front of the rear frame. Universal joints

are lubed for life, eliminating servicing.

Autolube is optional.

Service Points. Engine and transmission

dipstick and fill caps, air and fuel filters,

and the fuel priming pump are all

mounted on the left side of the engine

under the hood. Coolant level indicator

and fill cap are outside the cab.

Radiator. The radiator package is

located behind the cab, which provides

protection from frontal impacts and offers

easy access to the inlet and outlet sides

of the radiator. The ATAAC radiator

is located at the front of the truck.

Extended Life Coolant. Extends the

change interval and improves component

life by reducing aluminum corrosion.

Hood. The hood is raised and lowered

electrically, minimizing operator effort

when servicing the machine.

Electrical Service Center. Located inside

the cab, this service center provides a

power port, diagnostic connector and

Cat Data Link connector.

Cat Data Link Connector. The Cat Data

Link connector provides a plug-in using

a laptop computer with Electronic

Technician (ET) software. The Cat

Data Link port performs programming

functions on all electronic controls.

Service Access. The cab tilts to the side

to provide easy access underneath, which

simplifies servicing of the transmission,

drive shafts and hydraulic pumps.

Machine electrical and hydraulic

interfaces are located on the right side

of the cab, behind a removable cab

body panel for easy access.

Integrated Transmission Package.

The transmission integrates the

transmission pump and torque converter

into a single package. Because the

transmission is an integral design,

it eliminates many of the external

hoses, resulting in less servicing

and higher reliability.

Engine and Transmission Removal.

The front frame design allows the

engine and transmission to be removed

and installed in one piece.

Truck Transport. The suspension

system eliminates the need to lower the

suspension when transporting the truck,

reducing maintenance and downtime.

Output Transfer Gear. Provides lubrication

of all bearings and clutches using a

distributed-pressure lubricated and

filtered system. Good lubrication and

filtration reduce service and repair.

10

Serviceability

More time on production, less time and money spent on servicing.

Equipment Manager – a better way to

manage your fleet. Equipment Manager

allows transmitted data to be searched and

sorted by alert level, group, equipment

identification, make and model.

Depending on your information needs,

Equipment Manager will:

• Report current equipment parameters

(machine hours, location, fuel

consumption, etc)

• Track all elements of machine

maintenance and keep history

• Predict when a service is needed

• Facilitate maintenance scheduling

and parts ordering

• Alert you to potential and

immediate issues

Each new machine comes with Asset

Watch. However, you can subscribe to a

higher level of service for any machine,

at any time, through your Cat dealer.

Equipment Manager combines key

equipment indicators such as hours,

location and diagnostic codes with

powerful tools like mapping, maintenance

and repair scheduling.

Asset Watch. Asset Watch manages

your assets – enabling you to find your

machine quickly, and to control its

movement and work schedule.

Maintenance Watch. Maintenance

Watch includes all the features of Asset

Watch and will also help you plan,

coordinate and track your repairs and

maintenance, allowing you to align

maintenance with machine usage

more accurately.

Health Watch. Health Watch includes

all the features of Asset Watch and will

track machine operational conditions to

help address potential issues before they

become serious. You can also identify

abuse, efficiency and training issues

with individual operators.

11

Product Link

Powered by Product Link, Equipment Manager is a secure user-friendly, application

accessed via your Cat dealer’s website.

Selection. Make detailed comparisons of

the machines you are considering before

you buy. What are the job requirements,

machine attachments and operating

hours? What is your need for machine

availability and do you have the proper

loading tool match? Your Cat®dealer

can help.

Custom Product. The 740 is compatible

with a wide range of Caterpillar and

auxiliary equipment manufacturers’

specialized products. For more

information, contact your local

Cat dealer.

Purchase. Look past the initial price,

look at the value the 740 offers.

Consider the resale value, compare

productivity and day-to-day operating

costs and fuel consumption. Consult your

local Cat dealer for financing options.

Operation. For the best operating

techniques to increase productivity

and your profit, turn to your Cat dealer

for the latest training literature and

trained staff.

Maintenance. Repair option programs

guarantee the cost of repairs up front.

Diagnostic programs such as S•O•SSM

and Technical Analysis help you avoid

unscheduled repairs.

Replacement. Repair or rebuild?

Cat articulated trucks are designed for

longer life with rebuildable components.

Your Cat dealer can help you evaluate

the cost involved so you can make

the right choice.

Product Support. The 740 offers easy

maintenance with combined service

points and extended service intervals

to keep the machine running longer.

Your local Cat dealership will be with

you every step of the way with its

unsurpassed worldwide parts support,

trained technicians and customer

support agreements.

Warranty. Your local Cat dealer is there

to support and protect you. Extended

warranty options are also available.

Cat.com. For more complete information

on Cat products, dealer services and

industry solutions, visit us on the

Web at www.cat.com.

SAFETY.CAT.COM™.

12

Complete Customer Support

Cat®dealer services help you operate longer with lower costs.

13

740 Articulated Truck specifications

Sound Levels

Interior Cab 79 dB(A)

• The operator sound exposure Leq (equivalent sound pressure

level) measured according to the work cycle procedures

specified in ANSI/SAE J1166 OCT 98 is 79 dB(A), for the cab

offered by Caterpillar, when properly installed and maintained

and tested with the doors and windows closed.

• Hearing protection may be needed when operating with an

open operator station and cab (when not properly maintained

or doors/windows open) for extended periods or in noisy

environments.

Operating Weights

Front Axle – Empty 19 400 kg 42,770 lb

Center Axle – Empty 7200 kg 15,873 lb

Rear Axle – Empty 6500 kg 14,330 lb

Total – Empty 33 100 kg 72,973 lb

Front Axle – Rated Load 5200 kg 11,464 lb

Center Axle – Rated Load 17 150 kg 37,809 lb

Rear Axle – Rated Load 17 150 kg 37,809 lb

Total – Rated Load 39 500 kg 87,083 lb

Front Axle – Loaded 24 600 kg 54,234 lb

Center Axle – Loaded 24 350 kg 53,683 lb

Rear Axle – Loaded 23 650 kg 52,139 lb

Total – Loaded 72 600 kg 160,055 lb

Body Plate Thickness

Front 8 mm 0.31 in

Scow 16 mm 0.63 in

Side 12 mm 0.47 in

Base 16 mm 0.63 in

Service Refill Capacities

Fuel Tank 532 L 140.5 gal

Cooling System 80 L 21.1 gal

Hydraulic System 328 L 86.6 gal

Engine Crankcase 38 L 9.5 gal

Transmission 72 L 19 gal

Final Drives/Differential 72 L 19 gal

Output Transfer Gear Box 18 L 4.8 gal

Engine

Engine Model Cat®C15 ACERT™

Gross Power – SAE J1995 350 kW 469 hp

Net Power – SAE J1349 338 kW 453 hp

Net Power – ISO 9249 342 kW 458 hp

Net Power – EEC 80/1269 342 kW 458 hp

Flywheel Power 338 kW 453 hp

Bore 137 mm 5.4 in

Stroke 171.5 mm 6.75 in

Displacement 15.2 L 926 in3

• The power ratings apply at rated speed of 1,800 rpm when

tested under the conditions for the specified standard.

• The net power advertised is the power available at the

flywheel when the engine is equipped with alternator, air

cleaner, muffler and fan at minimum speed.

• Net power when the fan is at maximum speed is 330 kW

(442 hp) per the SAE reference conditions.

• The 740 meets EPA Tier 3/EU Stage IIIa emission

specifications for the U.S. and Europe through 2010.

• No engine derating required below 2438 m (8,000 ft.).

Weights

Rated Payload 39.5 tonnes 43.5 tons

Body Capacities

Heaped 2:1 24 m331.4 yd3

Struck 18.5 m324.2 yd3

Transmission

Forward 1 8.9 km/h 5.5 mph

Forward 2 12.1 km/h 7.5 mph

Forward 3 16.4 km/h 10.2 mph

Forward 4 22 km/h 13.7 mph

Forward 5 30 km/h 18.6 mph

Forward 6 40 km/h 25.1 mph

Forward 7 54.7 km/h 34 mph

Reverse 1 8.4 km/h 5.2 mph

Reverse 2 11.6 km/h 7.2 mph

14 740 Articulated Truck specifications

Standards

Brakes ISO 3450 – 1996

Cab/FOPS ISO 3449 Level ll – 2005

Cab/ROPS ISO 3471 – 1994

Steering ISO 5010 – 2007

Body Hoist

Raise time 12 Seconds

Lower time 7 Seconds

15

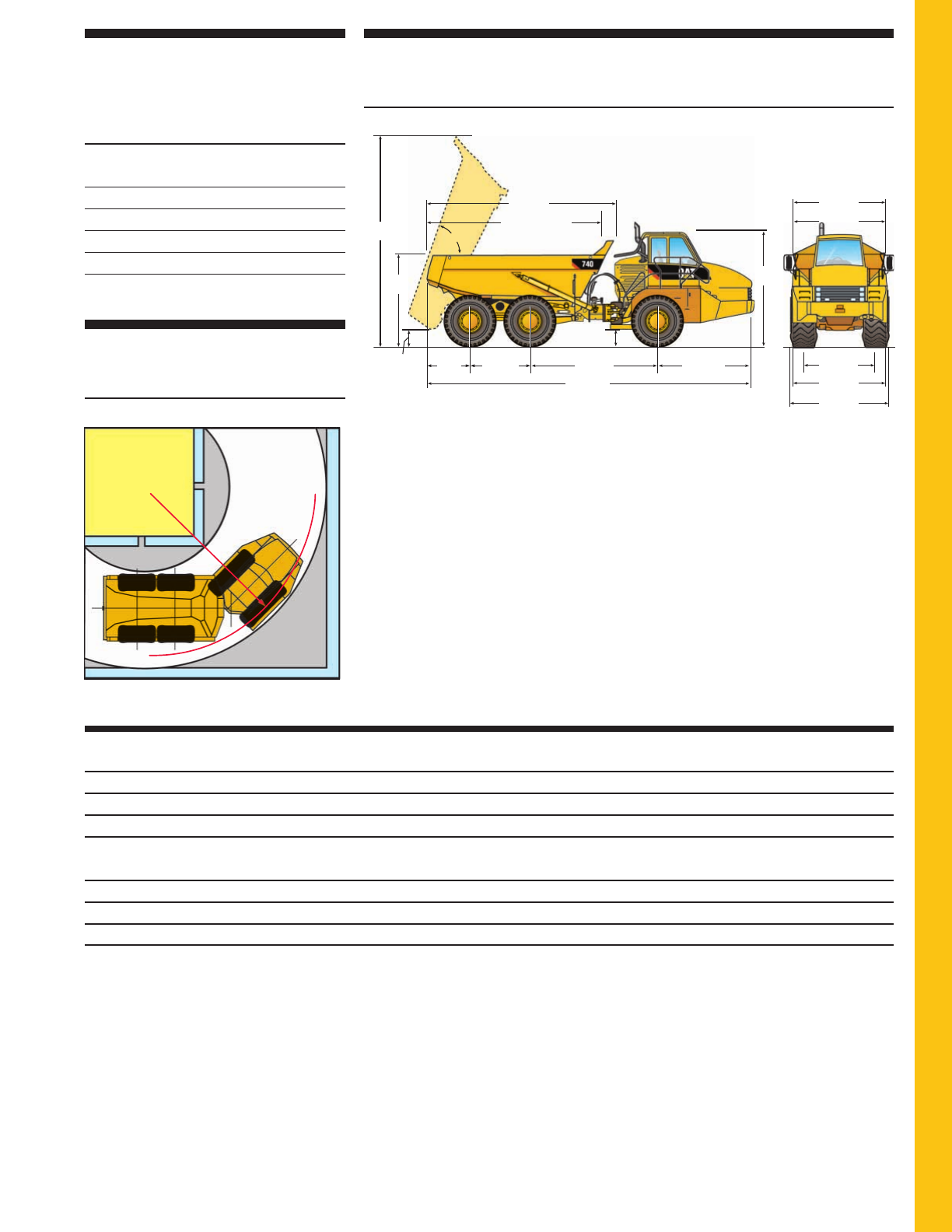

740 Articulated Truck specifications

3418 mm

11.2'

3705 mm*

12.14'

°70

3745 mm

12.3'

577 mm

1.8'

5734 mm

18.8'

Inside

of Body

6288 mm

20.6'

1966 mm

6.4'

1458 mm

4.7' 4244 mm

13.9' 3221 mm

10.5'

10 889 mm

35.7'

3430 mm

11.2'

3520 mm

11.5'

2687 mm

8.8'

* If equipped with a scissor tailgate.

Max-unladen over tire bulge

3239 mm

10.6'

7092 mm

23.4'

697 mm

2.3'

Turning Circle

Dimensions are for machines equipped

with 29.5R25 tires.

Turning dimensions

Steer angle — left/right 45°

SAE turning radius 8138 mm 320.4 in

Clearance radius 8595 mm 338.4 in

Inside radius 4101 mm 161.5 in

Aisle width 5694 mm 224.2 in

Steering

Lock to Lock 4.6 seconds @ 60 rpm

Dimensions

(approximate)

Optimal Loader/Truck Pass Matching

Hydraulic Excavators 385C 365C 345D

Loader Capacity (Tonnes) – 50 min hr 954-1193 750-1100 665-805

Loader Capacity (Tons) – 50 min hr 1049-1314 825-1210 735-885

Passes 3-4 5 6

Wheel Loaders 988H 980H 972H 966H

Loader Capacity (Tonnes) – 50 min hr 565-790 590-650 490-565 400-535

Loader Capacity (Tons) – 50 min hr 625-870 650-717 540-625 440-590

Passes 3-4 4 5 5-6

An optimum system match gives you a major productivity advantage. The 740 is an excellent match for the Cat 385C, 365C and

345C Hydraulic Excavators; and 972H, 980H and 988H Wheel Loaders. This results in increased production and lower system costs

per unit of volume moved.

16 740 Articulated Truck specifications

0 5 10 15 20 25 30 35 40 mph

0102030405060 km/h

010203040 506070

0 20 40 60 80 100 120 140 160 lb x 1000

kg x 1000

35% 25%

20%

15%

10%

5%

EL

1

2

3

4

80

180

70

45

56

7

30%

0 5 10 15 20 25 30 35

90

75

60

45

30

15

0

0102030

40 50 60

30

25

20

40%

35%

30%

25%

20%

15%

10%

5%

0

km/h

mph

1A

1B

23456

EL

15

10

5

0

35

40

45

lb x 1000

kg x 1000

lb x 1000

kg x 1000

20 40 60 80 100 120 140 160

010 20 30 40 50 60 70 80

7

Gradeability/Speed/Rimpull

To determine performance, read from

Gross Weight down to % Total Resistance.

Total Resistance equals actual % grade plus

1% for each 10 kg/metric ton (20 lb/ton) of

Rolling Resistance. From this point, read

horizontally to the curve with the highest

attainable speed range. Then, go down to

Maximum Speed. Usable Rimpull depends

on traction available.

GROSS WEIGHT

STANDARD*

SPEED

RIMPULL

TOTAL RESISTANCE %

(GRADE PLUS ROLLING RESISTANCE)

1A — 1st Gear

(Converter Drive)

1B — 1st Gear

(Direct Drive)

2 — 2nd Gear

E — Empty 33 100 kg (72,973 lb)

L — Loaded 72 600 kg (160,055 lb)

* at sea level

3 — 3rd Gear

4 — 4th Gear

5 — 5th Gear

6 — 6th Gear

Retarding Performance

To determine performance, read from

Gross Weight down to % Effective Grade.

Effective Grade equals actual % favorable

grade plus 1% for each 10 kg/metric ton

(20 lb/ton) of Rolling Resistance. From this

point, read horizontally to the curve with

the highest attainable speed range. Then, go

down to Maximum Speed. Retarding effect

on these curves represents full application of

the retarder.

GROSS WEIGHT

SPEED

% EFFECTIVE GRADE (FAVORABLE)

1 — 1st Gear

2 — 2nd Gear

3 — 3rd Gear

4 — 4th Gear

E — Empty 33 100 kg (72,973 lb)

L — Loaded 72 600 kg (160,055 lb)

5 — 5th Gear

6 — 6th Gear

7 — 7th Gear

17

740 Articulated Truck specifications

Standard Equipment

Standard equipment may vary. Consult your Caterpillar dealer for details.

Seat, fully adjustable, air suspension

Seat, padded companion/trainer

Seatbelts, two retractable

Secondary steering – electronic

S•O•SSM sampling valves

Spill guard, front, integral part of fabricated body

Starting receptacle, electric, remote

Storage – two cup holders, flask receptacle, under seat

storage, door pocket, behind seat storage, coat hook.

Sun visor

Three-axle, six wheel drive

Tilt and telescopic steering wheel

Tires, 29.5R25, radial

Tow pins, front and rear

Vandalism protection: lockable caps for fuel tank

and hydraulic oil tank

Windows opening side, tinted

Windshield wiper and washer, two speed, intermittent (front)

Windshield wiper and washer, two speed, (rear)

Air conditioning with R134A refrigerant

Air vents, adjustable

Auto shift seven-speed forward and two-speed

reverse transmission

Back up alarm

Body, adapted for exhaust heat

Cat C15®engine with ACERT™Technology

CD/Radio, heavy duty

Differentials, standard with clutched cross-axle differential

locks for all axles

Electrical system: 24 volt, 5A 24- to 12-volt converter

Electro hydraulic hoist control

Engine compression brake

Ether starting aid

Glass windows, laminated and tinted, front

Glass windows, toughened and tinted, sides and rear

Guards: rear window, radiator, crankcase and axle

Headlights, four

Heater and defroster with four-speed fan

Horn, electric

Lights: cab interior, front, side, rear, two reversing/working

lights, two stop/tail lights, front and rear direction indicators

Mirrors, main and auxiliary, left and right

Mud flaps, wheel arch and body mounted, with transportation

tie backs

Oil-cooled brakes, enclosed

Product Link

(US/Canada/Europe/Turkey/Australia/New Zealand)

Retarder

ROPS/FOPS cab, with full instrumentation, including:

– Instrument cluster display module

– Indicator lamps: left turn, secondary steering, primary

steering loss, front and rear brake temp (735/740 and

740 Ejector only), brake oil pressure, action lamp,

transmission fault, park brake, charging system status,

differential lock, body not in float, right turn, high beam,

transmission hold, machine filter warning, retarder,

retarder up shift warning

– Gauges: engine oil pressure, engine coolant temperature,

torque converter oil temperature, fuel level, fuel tank

level gauge

– Meters: service hour meter, speedometer, tachometer

18 740 Articulated Truck specifications

Optional Equipment

Optional equipment may vary. Consult your Caterpillar dealer for details.

Extensions, fender

Fast fuel fill

Flashing Xenon Beacon

Fuel Additive – Anti-Waxing

Heated rearview mirrors

Product Link (Where Available)

Tailgate:

– Scissor-type

Autolube installation for automatic greasing of bearings

Bath, oil pre-cleaner

Body liners

Caterpillar Work Area Vision System (WAVS)

rear-view camera

CD/Radio, heavy duty

Cold Weather Coolant (–51°C/–60°F)

Cold weather start attachment

Cycle counter/operator monitoring kit

Engine Block Heater

Exhaust heated body

740 Articulated Truck specifications 19

Notes

R

For more complete information on Cat products, dealer services,

and industry solutions, visit us on the web at www.cat.com

© 2008 Caterpillar

All Rights Reserved

Printed in U.S.A.

Materials and specifications are subject to change without notice.

Featured machines in photos may include additional equipment.

See your Caterpillar dealer for available options.

CAT, CATERPILLAR, SAFETY.CAT.COM, their respective logos, “Caterpillar Yellow”

and the POWER EDGE trade dress, as well as corporate and product identity used

herein, are trademarks of Caterpillar and may not be used without permission.

AEHQ5649-03 (5-08)

Replaces AEHQ5649-02

740 Articulated Truck
