Engine

Engine Model Cat®C7 ACERT™

Gross Power - SAE J1995 162 kW 217 hp

Net Power - ISO 9249 147 kW 197 hp

• Caterpillar engine with ACERT™ Technology - EPA Tier

III, EU Stage III Compliant

Buckets

Bucket Capacities 2.5-3.5 m33.25-4.5 yd3

Weights

Operating Weight 18 338 kg 40,435 lb

• For 3.1 m3(4.0 yd3) general purpose bucket with BOCE

Operating Specifications

Static Tipping Load, 10 915 kg 24,068 lb

Full Turn - Bucket

• For 3.1 m3(4.0 yd3) general purpose bucket with BOCE

950H

Wheel Loader

2

950H Wheel Loader

H-Series Wheel Loaders - The New Standard For Midsize Loaders

Performance you can feel with the capability

to work in the most demanding applications.

Unmatched operator comfort and efficiency

in a world class cab. Revolutionary

electronics and hydraulics for low-effort

operation. Increased productivity with lower

owning and operating costs.

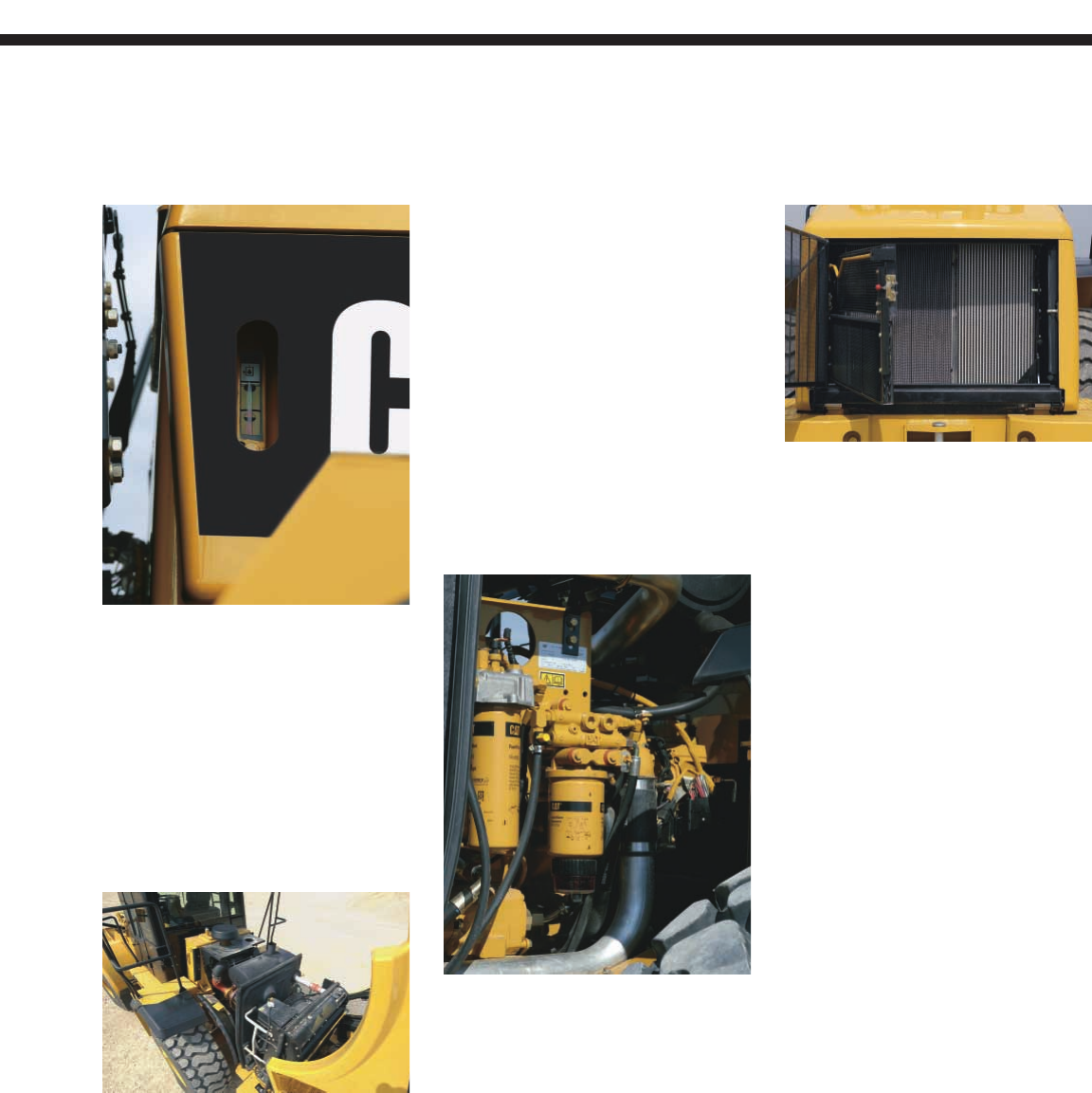

SERVICEABILITY

• Service Centers For Convenient

Maintenance

• Exceptional Access To Service Points

• Monitoring Systems And Dealer

Support Reduce Unexpected Downtime

pg. 16

PRODUCTIVITY

• Improved Cycle Times With Load-

Sensing Hydraulic System

• Constant Net Horsepower Through

The Operating Range

• Aggregate Autodig Automates The

Loading Process pg. 8

DURABILITY

• ACERT™ Technology Maintains

Performance, Efficiency And Durability

While Meeting Emissions Regulations

• Heavy Duty Components Stand Up To

All Operating Conditions

• Strong, Solid Structures Built To Last

pg. 6

RELIABILITY

• Proven Components And Technology

Equal Proven Reliability

• Diagnostic Systems Monitor Product

Health To Ensure Reliability

• Unmatched Parts Availability And

Dealer Support pg. 4

3

OWNING AND OPERATING COSTS

• Proven Fuel Efficiency

• Superior Maintenance

• Electronic Systems Monitor Product

Health And Performance

• Complete Dealer Support pg. 14

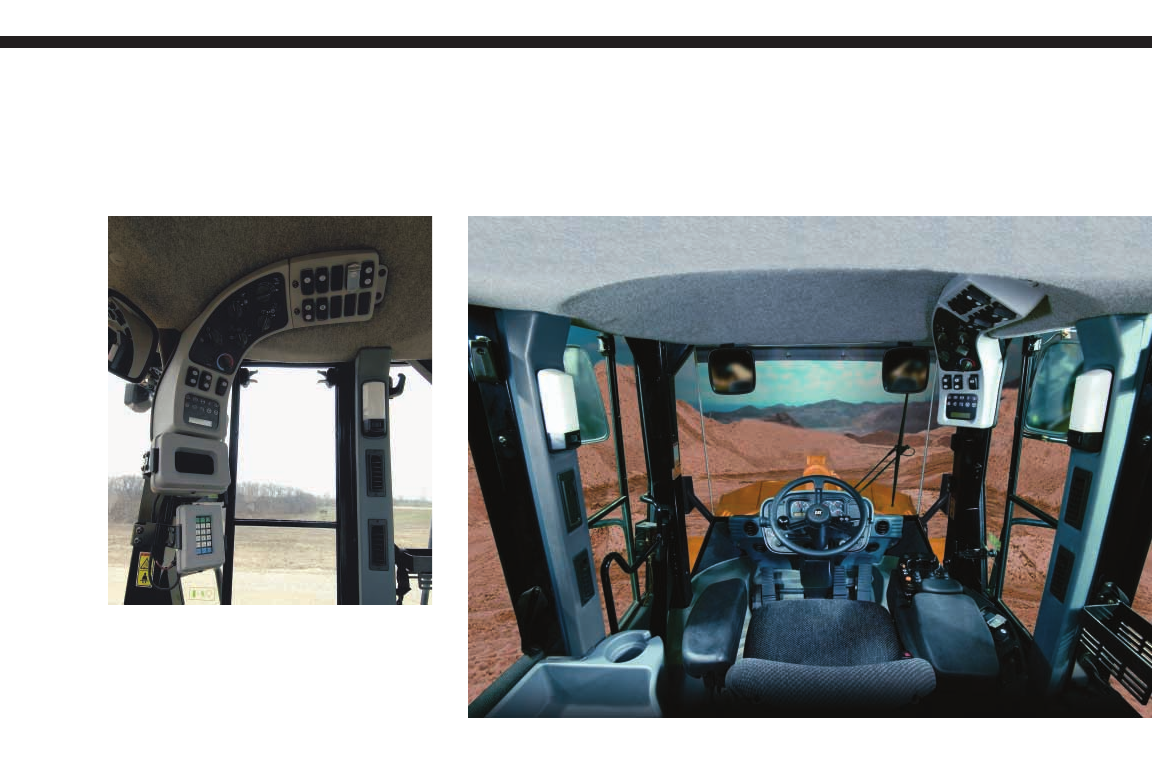

OPERATOR COMFORT

• Easy Entry And Exit

• Excellent Visibility

• Comfortable Environment With

Controlled Vibration

• Choice Of Steering And Implement

Control Systems pg. 12

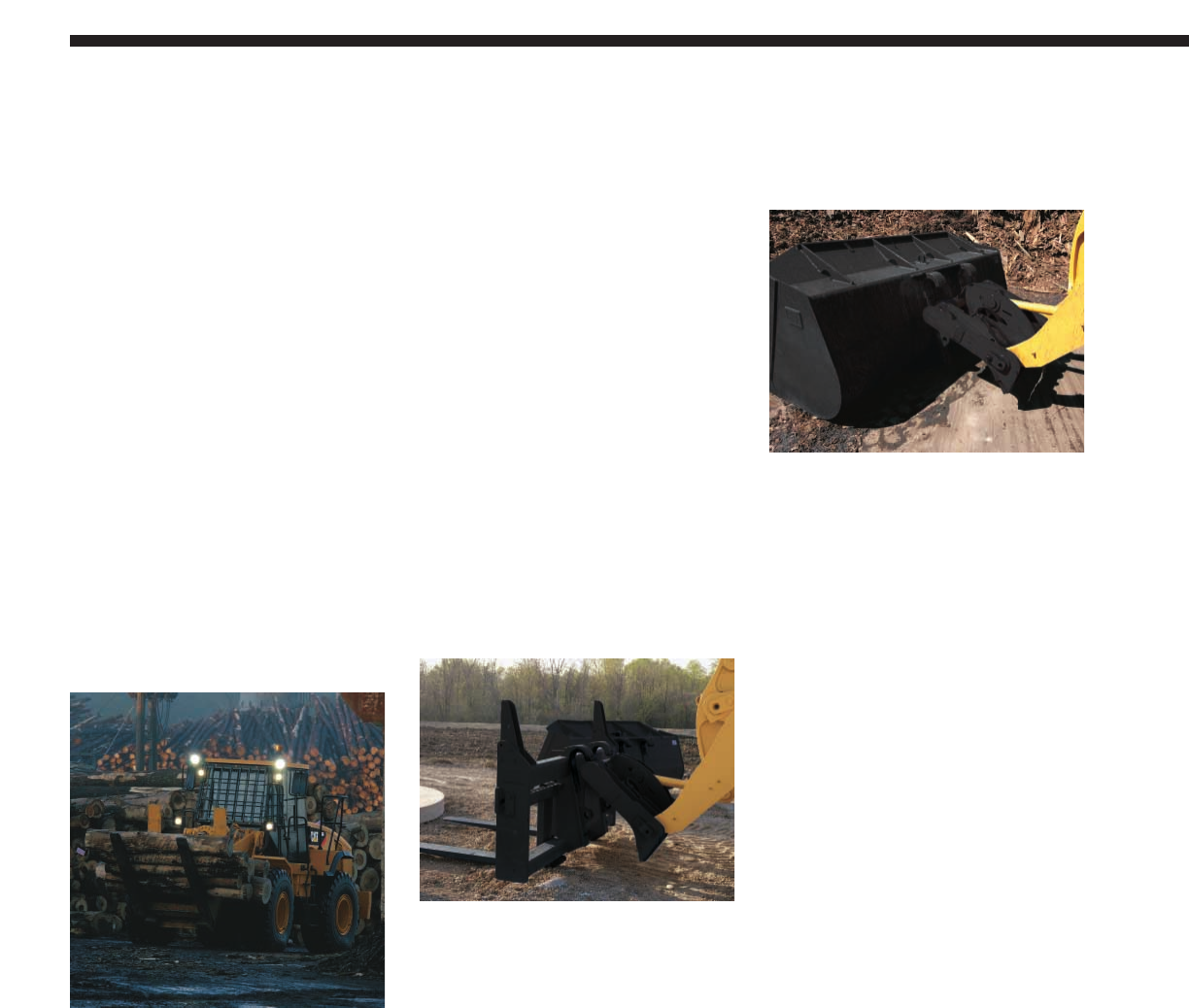

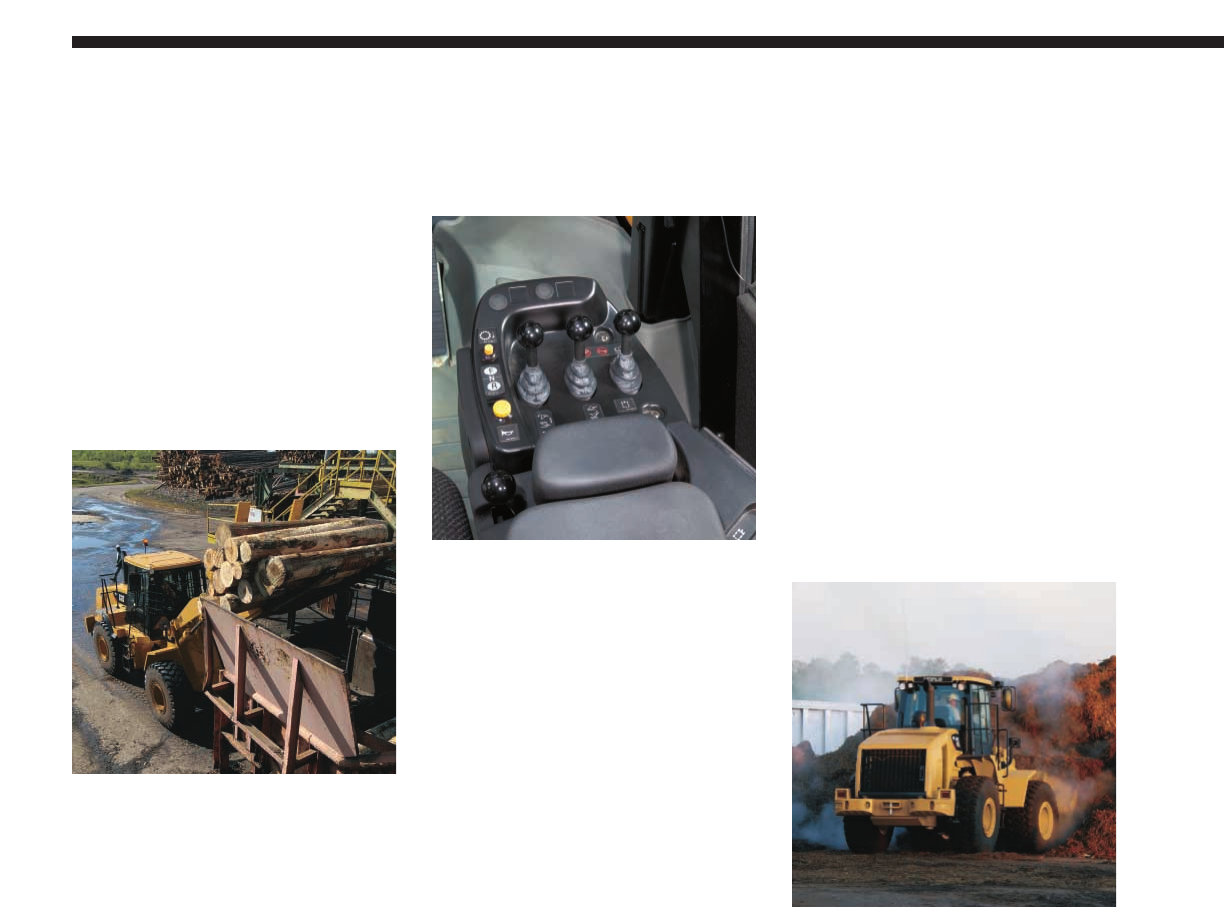

VERSATILITY

• Special Machine Arrangements For

Specialized Applications

• Quick Coupler And Large Variety Of

Cat®Work Tools pg. 10

• Proven components and technology

provide proven reliability

• Electronic systems monitor vital

machine components

• Excellent uptime from the best

dealer support network in the

industry

• Unmatched genuine Cat parts

availability

PROVEN RELIABILITY. The 950H

features many of the components

designed and proven in previous 950

models - all contribute to the reliability

of the 950H:

• Frames

• Axles

• Planetary powershift transmission

• Free wheel stator torque converter

• Separated cooling system

• Cab

ACERT™ TECHNOLOGY. Since March

2003, ACERT Technology has been

proving itself in on-highway trucks.

More recently it has proven itself again

in field tests of off-highway equipment.

This technology allows Cat engines to

meet durability and reliability

expectations without sacrificing fuel

economy or performance.

CATERPILLAR DESIGNED

COMPONENTS. Components used to

build Cat Wheel Loaders are designed

and manufactured to Caterpillar quality

standards to ensure maximum

performance even in extreme operating

conditions.

Engine electronic control modules and

sensors are completely sealed against

moisture and dust. Deutsche connectors

and electrical wire braiding ensure that

electrical connections resist corrosion

and premature wear.

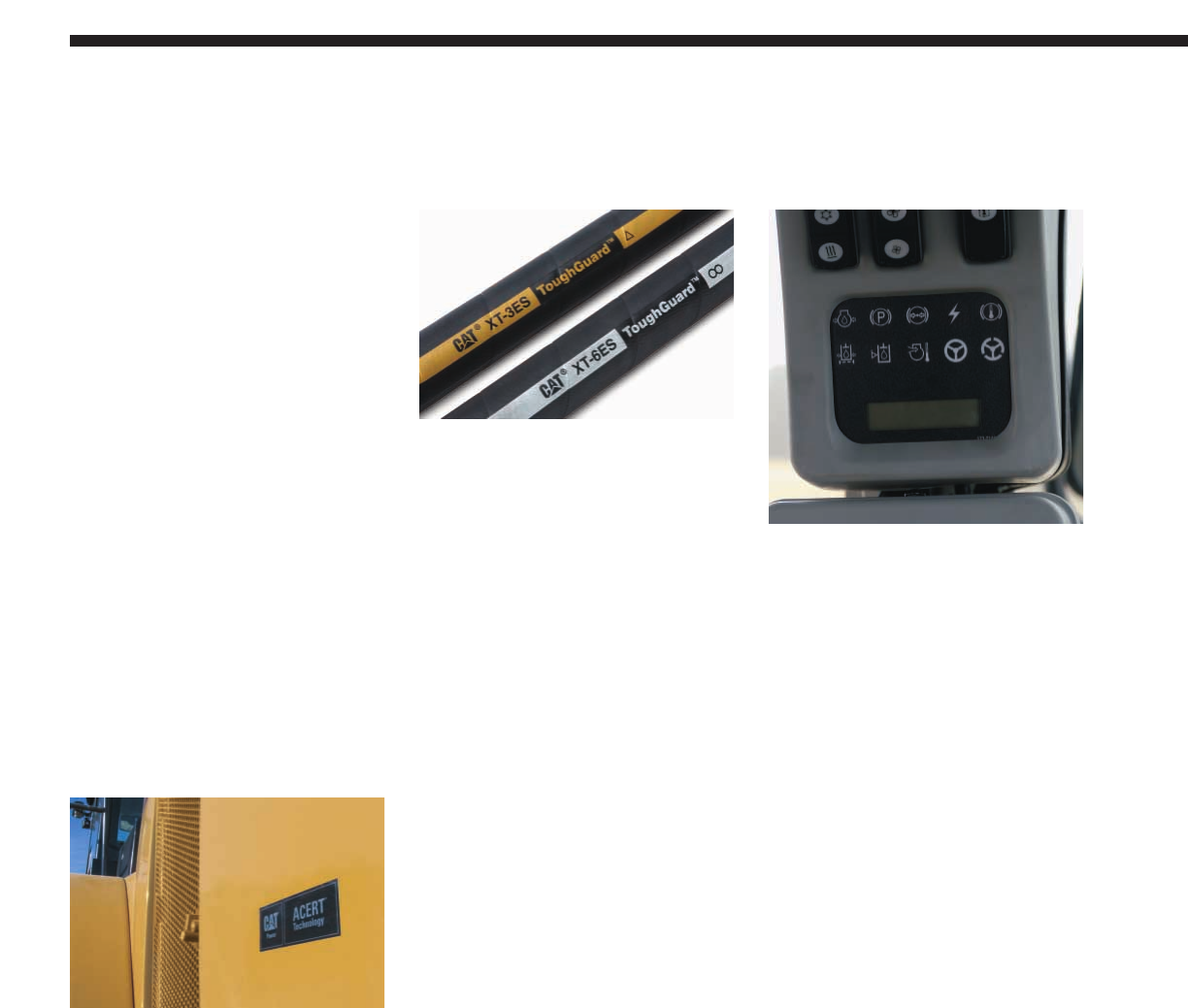

Hoses are engineered and manufactured

for high resistance to abrasion, excellent

flexibility and easy installation and

replacement.

Caterpillar®couplings use o-ring face

seals to provide positive sealing for

durable leak-free connections.

Heavy duty components reduce the risk

of leaks, corrosion and premature wear

increasing uptime and helping to protect

the environment.

MONITORING PROGRAMS. Monitoring

product health is key to maintaining

reliability of any equipment. Many

programs are available on the 950H -

both as standard and optional features -

to help you track machine condition.

Caterpillar Monitoring System. The

950H is equipped with the Cat

Monitoring System (CMS) that keeps

watch over the health of your loader.

CMS monitors critical engine system

functions and will derate the engine to

protect itself from damage if needed.

Depending on which of the following

six critical conditions arise, the CMS

monitor or front panel will display

warning lights and sound audible

alarms.

• High coolant temperature

• High air inlet temperature

• Low engine oil pressure

• High fuel pressure

• Low fuel pressure

• Engine over-speed

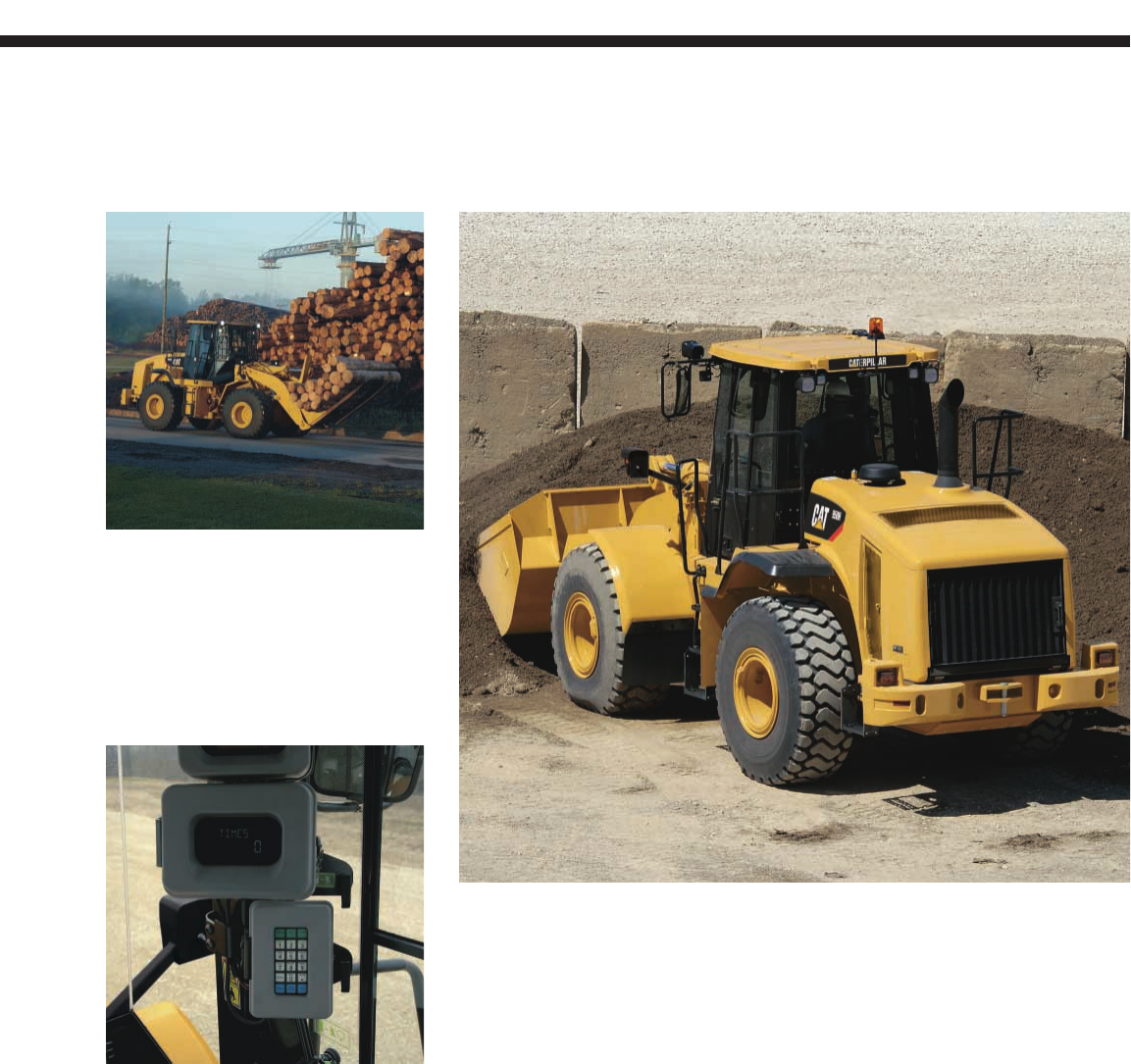

Product Link. Product Link is a state-of-

the-art satellite technology based

product that provides two-way

information flow between machine on-

board systems and the Caterpillar

network operations center. Multiple

types of information can be collected

and tracked - from machine location

and service meter hours, to health and

productivity information.

4

The Cat®950H - Tested And Proven - Ready To Work

RELIABILITY

EquipmentManager. With a

subscription to EquipmentManager

through the Cat Dealer Storefront the

information collected through Product

Link can be transmitted to a computer.

With fast, easy-to-access machine

information, you can optimize asset

utilization, reduce security risks,

improve maintenance management and

implement before-failure repair

strategies. The result is more uptime,

lower operating costs and a higher

overall return on equipment investment.

S•O•SSM Services. Keep minor repairs

from becoming major ones and avoid

complete failures. By regularly taking

samples from the ports provided, your

Cat dealer tracks wear of components

and parts, oil performance, and oil

condition and uses that data to predict

wear-related problems before they

happen. Often a simple adjustment or

replacement of a part, based on S•O•S

reports, can keep a small problem from

turning into a major repair - allowing

your machine to be running when you

need it, not waiting in the shop for

service.

DEALER SUPPORT. The Caterpillar

global network of independently-owned

dealers is the best in the world at

providing support to keep your loader

up and running. Known for parts

availability and technical expertise, Cat

dealers are partners in your business.

Service Capabilities. Cat field service

technicians have the experience and

tools necessary to service your loader

on site. Field service trucks are fully

loaded with state-of-the-art tools and

diagnostic equipment as well as

specifications and schematics for every

Cat machine. Technical experts at the

dealership and at Caterpillar are

available to provide assistance to field

service technicians when needed.

When on-site repair isn’t enough, Cat

dealerships are fully-equipped to

service your loader quickly.

PARTS AVAILABILITY. Caterpillar

provides an unsurpassed level of

personalized service for your wheel

loader. With parts distribution centers

throughout the world, most parts can be

delivered in 24 hours.

REMANUFACTURED PARTS. Cat

engines and major components are

designed to be remanufactured and

provide multiple life cycles. The Cat

Reman program is more extensive than

most rebuild programs. Components are

actually remanufactured in the factory

to original specifications with necessary

product updates.

Strict reuse guidelines and unparalleled

quality control ensure that reman

products provide the reliability and

durability that you expect from

Caterpillar. Reman products are stocked

in distribution centers around the world

and are ready to install to minimize

downtime, maintain productivity and

profitability.

5

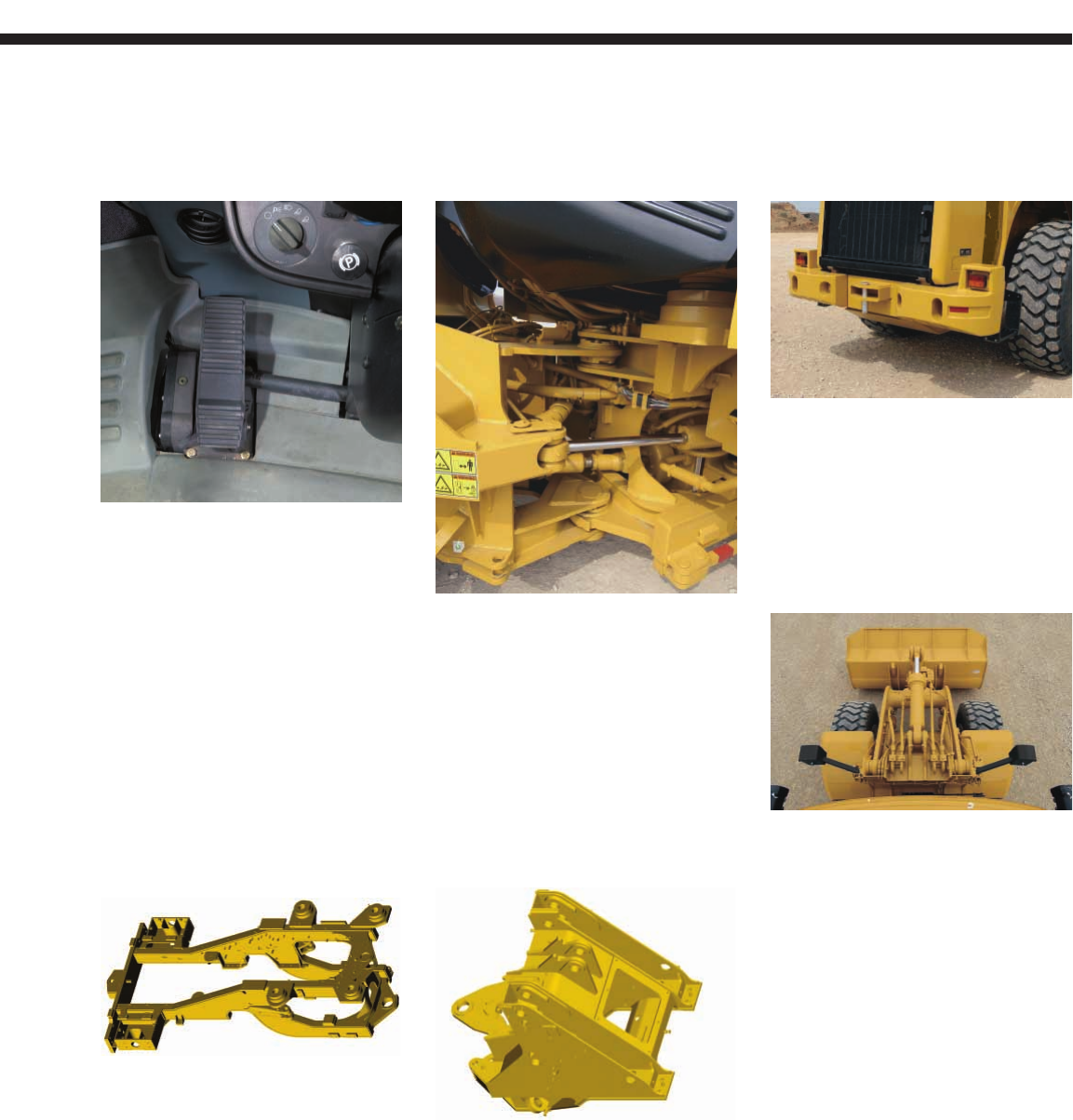

• ACERT™ Technology maintains

engine performance, efficiency and

durability while reducing emissions

• Heavy duty components withstand

all operating conditions

• Strong, solid structures built to last

EPA TIER III, EU STAGE III COMPLIANT

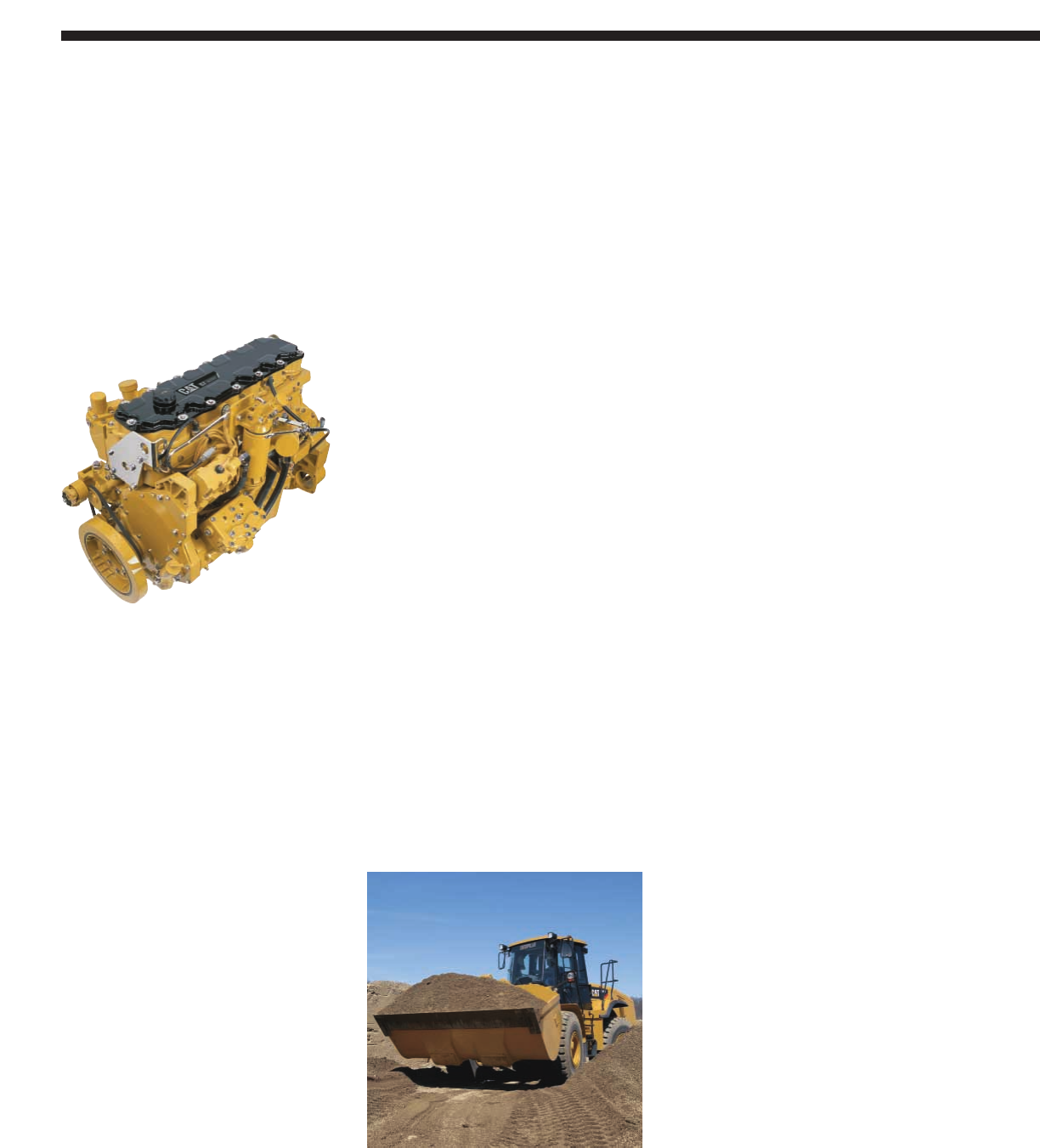

C7 ENGINE. ACERT Technology

combines proven systems with

innovative new technologies to

precisely deliver fuel to the combustion

chamber. It maintains engine

performance, efficiency and durability

while dramatically reducing emissions.

The Cat C7 with ACERT Technology is

a 7.2 L displacement, 6-cylinder,

electronically governed engine.

Electronic fuel injection is provided

through the well-proven Caterpillar

hydraulically actuated, electronically

controlled unit injection (HEUI) system.

A wastegate turbocharger, equipped

with a titanium wheel for improved

durability, combined with air-to-air

aftercooling (ATAAC) provides

consistent high horsepower with

increased altitude capability.

Electronic Controller. The engine is

governed by the ADEM™ A4 electronic

control module. The controller

continually adjusts engine output based

on load demand using a series of

sensors located on the machine and

engine.

Hydraulically Actuated Electronic Unit

Injectors (HEUI). The HEUI™ system has

been at work in Cat engines across the

product line with a proven track record

of consistent, durable, reliable

performance.

Engine Block and Pistons. The gray,

cast iron engine block is made of the

same material as the cylinder heads.

Wall diameters are thicker than in

previous designs while adjustments

have been made to reduce sound levels

and increase rigidity. One-piece all-steel

pistons are housed within a wet,

replaceable cast iron cylinder liner

constructed of high-strength, heat-

treated castings. Steel-forged

connecting rods are larger in diameter

and are connected to the crankshaft with

two bolts.

Cylinder Head. The cylinder head is a

one-piece design that incorporates

cross-flow design to facilitate air

movement. This allows the engine to

breathe cooler, cleaner air with less

effort.

RADIATOR. Brazed aluminum

construction provides a stronger joint

for maximum durability and resistance

to leaks. The 6-fins-per-inch, square-

wave core design decreases the chance

of blockage and plugging.

POWERSHIFT TRANSMISSION. The

950H continues to use heavy-duty

powershift transmission technology

proven on previous models and

currently used up through the largest

wheel loader built by Caterpillar - the

994F.

The planetary powershift transmission

features heavy-duty components to

handle the toughest applications. Built-

in electronic controls enhance shift

quality, productivity and durability.

Control Throttle Shifting. Control

Throttle Shifting regulates engine speed

during high-energy directional changes

for smoother shifting and longer

component life.

Electronic Clutch Pressure Control.

Electronic Clutch Pressure Control

(ECPC) system modulates clutches

individually to improve shift quality,

component life and operator comfort.

Adjustment is simplified with all

solenoid valves externally mounted on

top of the transmission housing.

AXLES. The 950H axles are designed by

Caterpillar for durability in all operating

conditions. The front axle is rigidly

mounted to the frame to support the

weight of the wheel loader and

withstand internal torque loads as well

as external forces encountered

throughout operation.

The rear axle is designed to allow ± 13°

oscillation. All four wheels remain on

the ground over uneven terrain

providing excellent stability and

traction.

6

Built Strong And Tough

DURABILITY

Integrated Braking System. The Cat

exclusive Integrated Braking System

reduces axle oil temperatures and

improves transmission neutralizer

smoothness. IBS has a direct impact on

durability of the axles and brakes

especially in applications involving

long distances and/or heavy braking.

STRUCTURES. The articulated frame

design of the 950H features a durable

box-section engine frame and rigid

four-plate loader tower that is

robotically welded. Robotic welding

creates frame joints with deep plate

penetration welds and excellent fusion

for maximum strength and durability.

Engine End Frame (EEF). A full box-

section engine end frame with hitch

plates at the front end provides a strong,

rigid structure that resists twisting and

impact loads. The result is an extremely

solid mounting platform for the engine,

transmission, axle, ROPS and other

accessories.

Spread Hitch. The distance between the

upper and lower hitch plates is an

important contributor to machine

performance and component life. The

Caterpillar spread hitch design provides

excellent load distribution and bearing

life. Both the upper and lower hitch pins

pivot on double tapered roller bearings -

improving durability by distributing

both vertical and horizontal loads over a

larger surface area. The wide opening

also provides excellent service access.

Non-Engine End Frame (NEEF). The

non-engine end frame provides a solid

mounting base for the front axle, lift

arms, lift cylinders and tilt cylinders.

The fabricated, four-plate loader tower

absorbs the forces associated with

loading, twisting and penetration.

Counterweight. The two-piece

counterweight is integrated into the

950H design and styling. This 1853 lb

(840 kg) counterweight incorporates the

rear lights into the top of the structure.

A heavy-duty counterweight, 3084 lb

(1399 kg), is optional for logging or

high-lift applications.

Linkage. The 950H linkage is a single-

tilt Z-bar design. Z-bar linkage

generates excellent breakout force and

good rack back angle for better bucket

loading and load retention.

Lift arms are solid steel, providing

superior strength with an excellent front

end viewing area. The proven design

offers excellent dump clearance and

reach for exceptional matching to both

on- and off-highway trucks.

Rotary sensors, for the tilt lever and lift

circuit allow the operator to

electronically set detent positions from

the cab. A guard covers the sensor to

protect it from damage.

7

• Hydraulics are easy to control with

low effort

• Maximum fuel efficiency and

flexibility in idle speeds

• Consistent horsepower regardless of

conditions

• Standard and optional features that

maximize productivity

LOAD SENSING HYDRAULICS. The

950H features a load sensing hydraulic

system that automatically adjusts to

operating conditions to provide only the

hydraulic flow required by the

implement for improved fuel efficiency.

With the new M3PC Priority

Proportional Pressure Compensation

Valve, implement control is improved

over the previous system - raise/lower

and rack back/dump can be operated

simultaneously and fine modulation is

repeatable for improved productivity.

Operators will notice enhanced ease of

operation, more rimpull into the pile

and a 20% increase in lift force.

Electrohydraulic Implement Controls.

Electrohydraulic implement controls on

the 950H provide the operator with in-

cab programmable kickouts to prevent

material spillage - improving

productivity. The implement control

console features an optional

Forward/Neutral/Reverse switch

allowing fast, easy directional changes

to reduce cycle times.

CONSTANT NET HORSEPOWER. On

many competitive machines, gross

horsepower is constant, meaning that

net engine power available for actual

work will vary based on demands made

from parasitic sources, such as air

conditioning or cooling fans.

The Cat C7 engine is electronically

configured to provide constant net

horsepower at full parasitic load

enhancing productivity and improving

fuel efficiency.

On-Demand Fan. With electronic control

of the variable speed on-demand fan,

temperature levels of the engine

coolant, transmission oil, hydraulic oil

and air inlet manifold are constantly

monitored. This data is used to control

and maintain fan speed at the level

necessary to maintain normal system

temperatures. Controlled fan speed

improves fuel efficiency, lowers noise

levels and reduces radiator plugging.

Separated Cooling System. Many

competitive loaders use cooling systems

that pull air in from the sides, through

the engine compartment and exhaust it

out the rear of the machine. The 950H

cooling system is isolated from the

engine compartment by a non-metallic

shield. The hydraulically driven,

variable speed fan draws in clean air

from the rear of the machine and

exhausts it out the sides and top of the

hood. The end results are optimal

cooling efficiency, increased fuel

efficiency, less radiator plugging and

reduced operator sound levels.

PLANETARY POWERSHIFT

TRANSMISSION. The electronic

planetary powershift transmission with

automatic shift capability is designed

and built by Caterpillar. The very

responsive, full-power speed and

directional changes provide excellent

cycle times and productivity.

VARIABLE SHIFT CONTROL. Match

transmission shifting patterns to

machine application requirements.

Variable Shift Control (VSC) improves

shift quality and fuel efficiency in

certain applications by allowing the

transmission to upshift at lower engine

RPMs.

8

Work Smart And Move More

PRODUCTIVITY

RIDE CONTROL. The optional Ride

Control System improves ride,

performance and load retention when

traveling over rough terrain. Operators

gain confidence moving at higher

speeds in load and carry operations

decreasing cycle times and increasing

productivity.

PAYLOAD CONTROL SYSTEM. Scales,

designed specifically for Cat machines

allow on-the-go weighing of material in

the bucket. Operators load trucks more

accurately and efficiently. Loading

trucks right the first time equates to

quicker cycles for the operator and

more productivity and controllability

for your operation.

Payload Control is offered as a factory-

installed option. Driver tickets and a

variety of reports can be printed with

the addition of the optional printer.

AUTOLUBE. The optional Caterpillar

Autolube System provides precise,

automatic lubrication of pins and

bushings - during loader operation.

Automatic lubrication reduces time

spent on daily maintenance and

downtime for unplanned repairs due to

inadequate greasing - improving

productivity.

AGGREGATE AUTODIG. Well-received

by both experienced and novice

operators, the optional Aggregate

Autodig automates the loading process.

Aggregate Autodig provides smoother

loading cycles, consistently full

payloads and eliminates tire spin - all

without touching the controls.

9

• Special machine arrangements

provided from the factory

• A quick coupler and variety of

buckets and work tools for many

applications

SPECIAL MACHINE ARRANGEMENTS.

When you have a specialized operation,

you need a specialized wheel loader to

be productive. The following machine

arrangements are available for the

950H:

Aggregate Yard Loaders. The Yard

Loader Value Package provides the

ultimate in productivity and

convenience. Options such as Autolube,

Aggregate Autodig, Payload Control

and Ride Control reduce operator

fatigue and make your wheel loader the

most productive yard loader available.

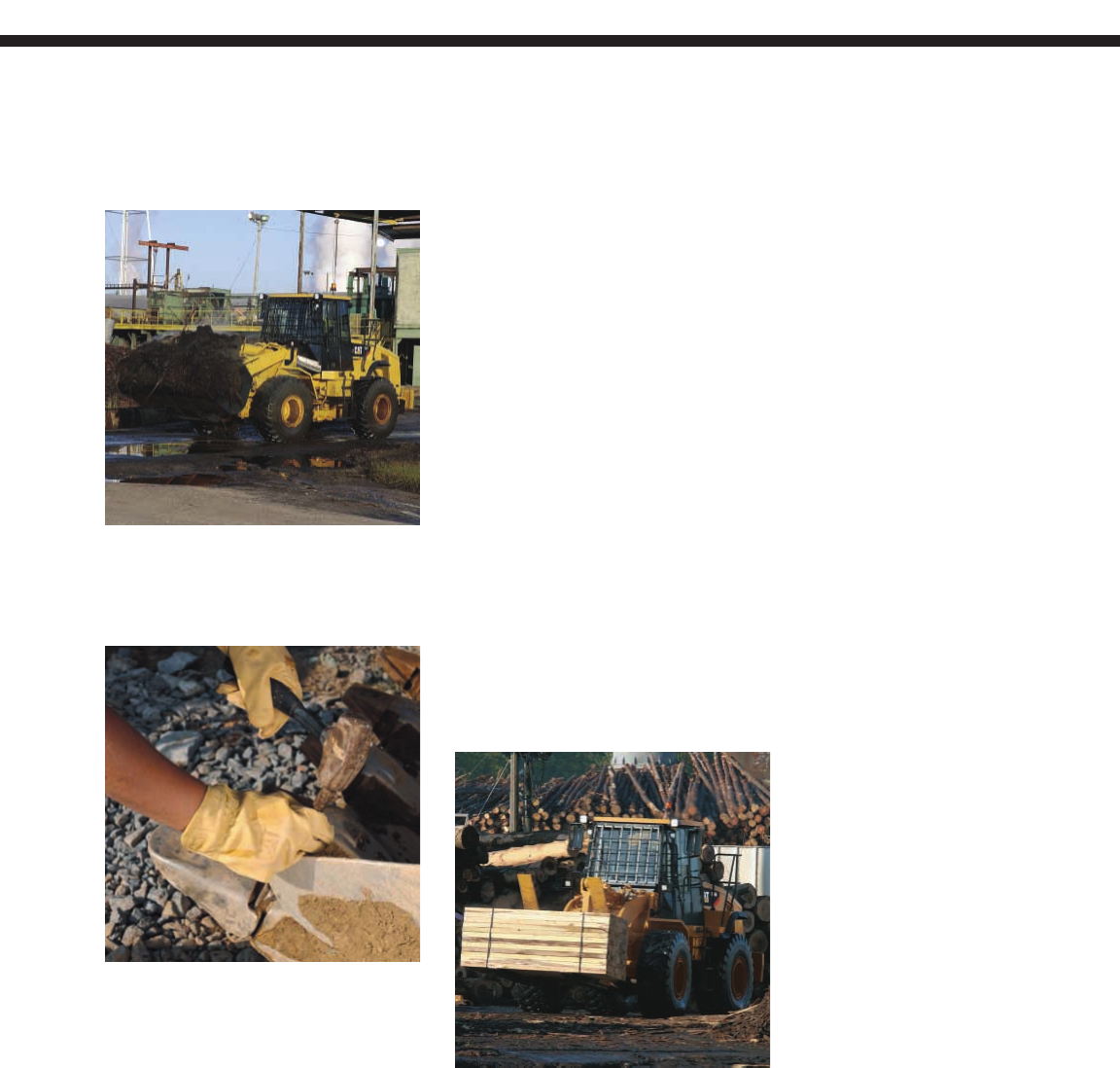

Forestry Applications. The Forest

Machine Arrangement provides Ride

Control, a heavy-duty tilt cylinder and

an additional counterweight for use in

forestry and logging applications.

Specially-designed work tools for

forestry applications can be factory-

installed.

Industrial Loader. Heavy duty guarding

and special features designed specifically

for industrial applications, such as waste

and scrap handling, allow the 950H to

withstand the harshest of conditions.

Work tools designed specifically for

these applications can be added to

the machine.

Lift Arrangements. High lift

arrangements are available for

applications requiring additional dump

clearance. Both 2-valve and 3-valve

packages can be factory installed.

WORK TOOLS AND QUICK COUPLERS.

A variety of buckets, work tools and

couplers are available from the factory

or from your Caterpillar dealer to

customize the 950H for your operation.

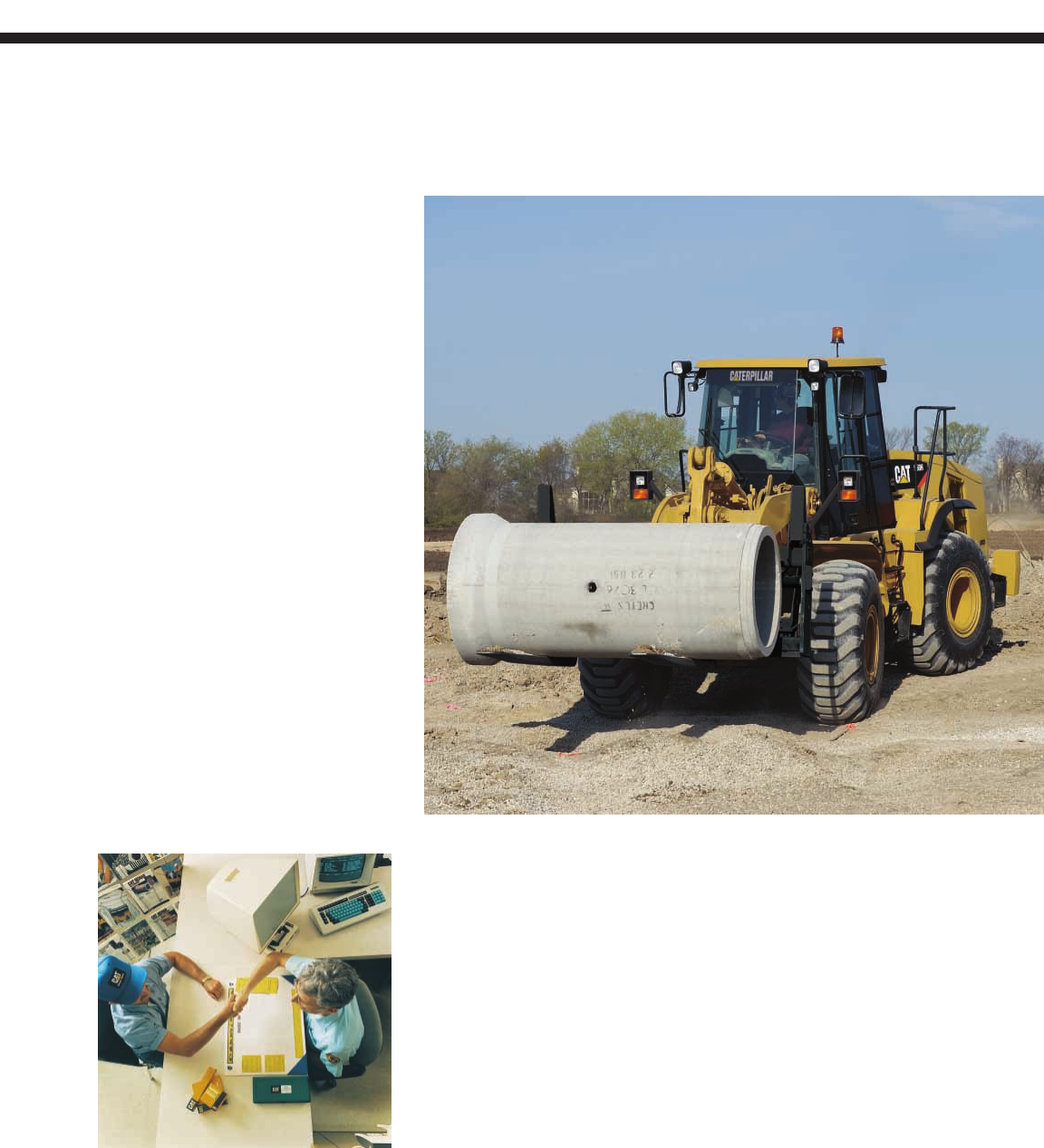

Quick Couplers. Quick couplers provide

unmatched versatility. The hydraulic

model allows an operator to change

attachments in seconds without leaving

the cab. On the manual model, the

operator must lock the pins.

Buckets. Special buckets are available

to match Cat wheel loaders to any job,

anywhere, any time.

General Purpose Buckets. General

purpose buckets provide good all-

around performance for stockpiling,

rehandling, excavating and bank

loading. A heavy duty general purpose

bucket can be used for more aggressive

applications.

Material Handling Buckets. The

material handling bucket is a flat-floor

bucket used for handling stockpiled

materials such as aggregates or other

easy-to-load materials requiring

moderate breakout force.

Multi-Purpose Buckets. Multi-purpose

buckets have a unique four-way action

that can load, strip topsoil, bulldoze,

clamp pipe or large chunks of concrete,

clean up debris, and many other tasks.

Rock Buckets. These buckets are

designed to work primarily in the

mining and quarry industries, either in

straight- or spade-edge configurations.

The straight edge has higher breakout

force and increased dump clearance; the

spade edge offers better penetration.

Side Dump Buckets. Side dump buckets

dump both to the front and to the side of

the machine, an advantage when

working in tight quarters, such as street

work, tunnel construction and building

levees.

Waste Buckets. Waste buckets are

designed for long life in the harsh world

of refuse applications. This high-

capacity bucket is well-suited for

loading, sorting and other transfer

station work.

10

Built For Your Operation

VERSATILITY

Woodchip and Clean-Up Buckets.

Woodchip and high-capacity clean-up

buckets are available for forestry and

millyard applications.

Ground Engaging Tools (GET). Several

GET options are available from

Caterpillar for the 950H buckets. A cast

corner adapter is incorporated into the

design of the buckets that allows a tooth

to be placed on the extreme corner for

protection against base bucket wear.

Reversible bolt-on cutting edges

(BOCE) and a bolt-on half-arrow

cutting edge are also available for the

950H buckets.

The Cat K Series™ tooth system

features an easier-to-install tip and

provides very secure tooth retention. No

special tools are required for installation

and removal.

Forks. From pallet forks up through

specialized logging arrangements,

loader forks are available for a wide

range of jobs.

Core Forks. Superior design makes Cat

core forks the logical choice for

plywood mills and millyards.

Grapple Forks. Grapple forks with

kickout offer many high-performance

log-handling features such as easy

loading, increased dump clearance and

improved sorting ability.

Logging Forks. Logging forks are

designed for heavy duty applications -

loading and unloading trucks, sorting,

decking and feeding the mill.

Lumber and Log Forks. Lumber and log

forks are ideal for a wide range of jobs

loading, decking and sorting lumber,

logs or palletized material.

Millyard Forks. Used for unloading,

sorting, decking and feeding logs to the

mill, millyard forks maximize loader

efficiency in millyard applications.

Pallet Forks. When used with a quick

coupler, pallet forks increase the

versatility of the machine; ideal for

handling a variety of materials.

Other Work Tools. Caterpillar offers a

constantly increasing array of work

tools to add value and functionality to

Cat wheel loaders.

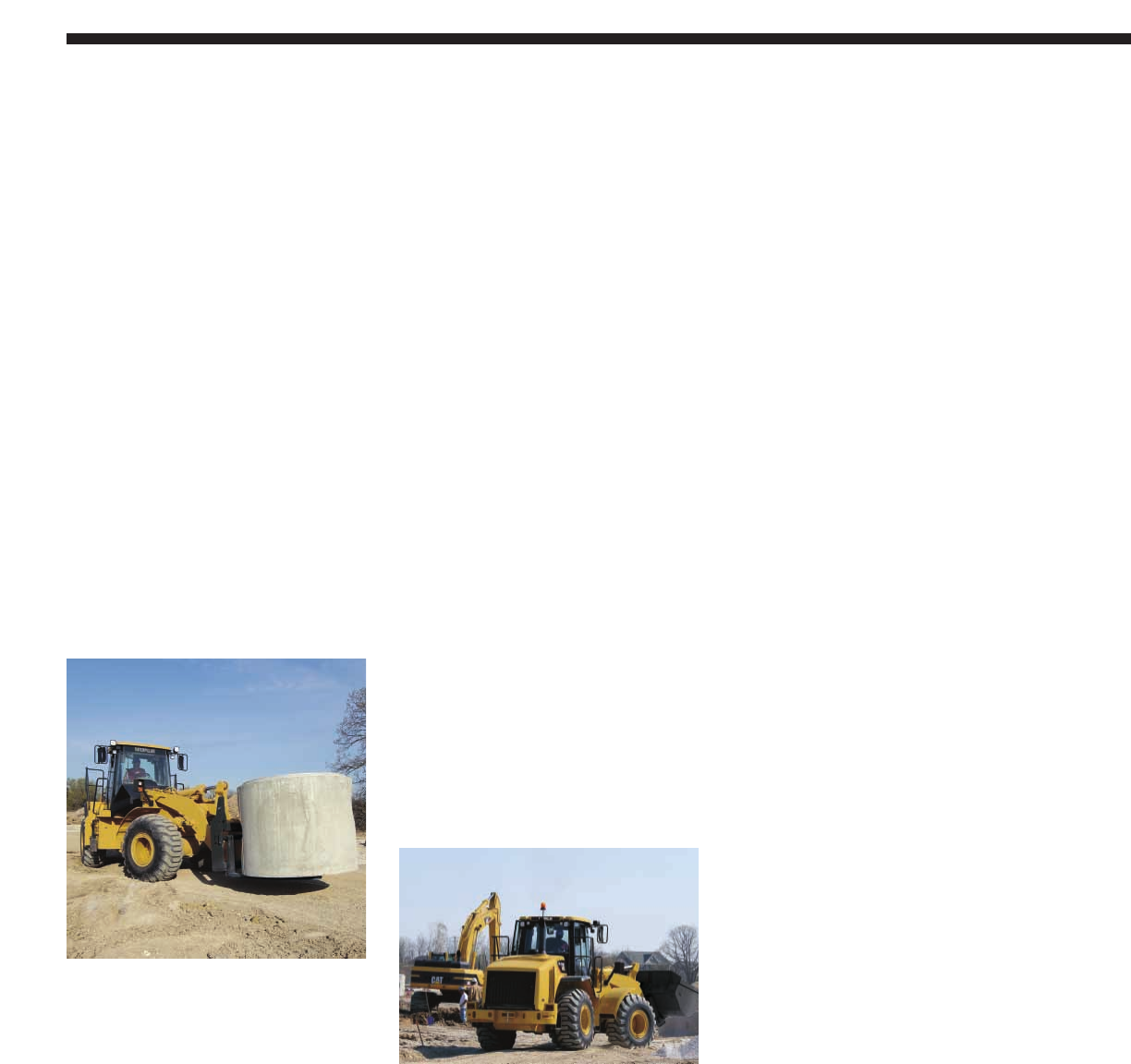

Material Handling Arms. Move pipe,

concrete blocks, highway dividers and

other construction materials quickly and

easily with an extendible material

handling arm. Length of the arm is

manually adjustable to match load and

reach requirements.

Loader Rakes. Loader rakes are durable,

high-capacity tools for land clearing and

site clean up. Rakes are available with

or without top clamps and in quick

coupler and pin-on models.

Angle Blades. Angle blades, available

in both manual and hydraulic versions,

equip Cat machines to sidecast soil,

plow snow, pioneer roads and move

debris and rocks.

Angle Brooms. Hydraulic and manual

angle brooms are ideal for clearing

parking lots, industrial plants, millyards,

airport runways, streets, driveways and

lanes.

Special Application Brooms. Special

application brooms are built to handle

tough sweeping situations found in

sewer and pipeline, governmental, and

coal seam applications.

Snow Removal. Hydraulic and manual

reversing plows and trip-edge reversing

plows are available for Cat 950H wheel

loaders. Quick reversing action plows

are ideal for clearing snow on mountain

roads, airports, large parking lots, plant

facilities and rural or urban roads. V-

plows penetrate drifts and throw snow

both directions to quickly clear a path

through heavy accumulations.

11

• Comfortable operation

• Excellent visibility

• Easy entry and exit

• Controlled vibration

• Choice of steering systems

OPERATING ENVIRONMENT. The 950H

maintains the distinction of offering the

largest, most ergonomic cab in its class.

Seat. The Cat C-500 Series Comfort air

suspension seat, standard in the 950H,

is built strong and durable and is 6-way

adjustable to accommodate all-sized

operators. The cast one-piece back and

seat pan prevent protrusions under the

cushions. The seat features an

automotive-style lumbar support for

maximum comfort. The right hand

armrest with integrated implement

controls adjusts for comfortable,

convenient operation. A heated seat

option is available for additional

comfort.

VISIBILITY. The 950H provides

excellent visibility to both the front and

rear of the machine. Distortion-free flat

glass stretches to the floor of the cab for

excellent visibility to the bucket. Wet-

arm wipers on both front and back keep

the windows clean in any condition.

The cab roof has channels that direct

rain off the corners of the cab keeping

windows clear. An overhang on all

sides protects the operator from glare.

Windshield Cleaning Package. An

optional windshield cleaning package

provides additional steps and handrails

to provide easy access for cleaning the

front windows.

Rear Vision Camera. An optional rear

vision camera is available to clearly

monitor movement behind the wheel

loader.

Lighting Packages. Optional lighting

packages are available for roading or

low-light applications. The optional

High Intensity Discharge (HID) lights

provide exceptional lighting for night

work. A rotating beacon is available as

a safety feature.

ENTRY AND EXIT. A ladder with self-

cleaning steps keeps debris build-up to

a minimum. The ladder is at a 5°

forward incline for easy entry and exit.

Platforms are wide allowing ease of

movement to the front or rear of the

machine. The main cab door opens a

full 180° and latches in place to allow

safe navigation to the rear of the

machine.

The right side door opens 10°, or

completely for secondary exit simply by

pulling a pin. A full-length ladder on

the right side facilitates safe exit if

needed.

VIBRATION. Caterpillar understands that

wheel loaders work in some of the

harshest environments. By controlling

normal machine vibrations, operator

efficiency and productivity are

improved. From the ground up, the Cat

950H is designed with many features,

both standard and optional, that reduce

vibration.

• The oscillating rear axle follows the

contour of the ground while

allowing the cab to stay steady.

• The cab is attached to the frame with

iso-mounts designed to reduce shock

loads from the ground.

• The articulation joint is equipped

with two neutralizer valves that

prevent frame-to-frame contact.

• Cylinder dampening slows the

bucket as it reaches the limits of

travel, preventing machine jarring.

• Ride Control is an option designed

to reduce jolting and bouncing

during load and carry operations. An

accumulator acts as a shock absorber

to reduce machine pitching and

provide a smoother ride over rough

terrain.

• Electronically controlled, automatic

kickouts prevent the jerking and

bouncing associated with abrupt

cylinder stops.

• Air suspension seat-mounted

implement controls reduce vertical

vibrations that come up through the

floor.

AGGREGATE AUTODIG. The optional

Aggregate Autodig System provides

smoother loading cycles and

consistently full payloads without

touching the controls - reducing

operator fatigue.

12

Work Comfortably And Efficiently

OPERATOR COMFORT

CONTROLS. The main control panel on

the 950H is located high on the right

ROPS post - keeping everything within

reach of the operator while maintaining

visibility to the ground. Keeping all

switches and controls conveniently

placed allows better efficiency and

improved productivity all while

minimizing operator fatigue.

STEERING OPTIONS. The 950H offers a

choice of steering systems to provide

flexibility for your application.

Conventional Steering. The

conventional steering configuration

offers a low-effort hand metering unit

hydraulic steering system. Load sensing

steering directs power through the

steering system only when needed.

When not steering, more engine power

is available to generate rimpull,

breakout force, lift force, and results in

reduced fuel consumption. The steering

column tilts for maximum operator

comfort.

Command Control Steering. Command

Control Steering is a load-sensing

system that links the steering wheel and

frame angle positions to provide the

proper amount of steering control. The

speed the machine turns is proportional

to the steering wheel position. Less than

6 lb (26 N) steering effort is required by

the operator, regardless of conditions.

Full machine articulation is

accomplished with a ±70° turn of the

wheel - versus two to three 360° turns

of a conventional steering wheel.

The Command Control Steering wheel

contains the forward/neutral/reverse

switch and the upshift/downshift button

- allowing the left hand to remain on

the steering wheel at all times.

Implement controls are integrated into

the right armrest so they move with the

operator.

13

• More return for your wheel loader

investment through proven Cat fuel

efficiency

• Sight gauges, grouped maintenance

points, easy engine access, ecology

drains, maintenance-free batteries -

all simplify daily maintenance

• Electronic monitoring systems track

product health to avoid unscheduled

costly repairs

• Unsurpassed parts availability

reduces downtime

• Excellent resale value provided by

genuine Cat quality, outstanding

dealer service and unmatched dealer

support programs

• Caterpillar Financial Services and

Cat dealers understand your business

FUEL EFFICIENCY. Many manufacturers

tout fuel consumption as one of the

determining factors for machine

acquisition, but fuel consumption is

only part of the story. Productivity must

also play a part in the decision. Even

more importantly, how fuel

consumption and productivity interact -

fuel efficiency - should be considered.

950H Fuel Efficiency. Customer testing

of the 950H is showing an improvement

in fuel efficiency over the 950G Series

II. This fuel savings is achieved through

the integration of the Caterpillar

proportional-flow load sensing

hydraulic system, Engine Idle

Management System software, Variable

Shift Control and ACERT™ Technology.

ACERT™ Technology Fuel Economy.

Based on Caterpillar testing, the fuel

economy of Cat engines with ACERT

Technology is 3 to 5 percent better than

current competing technologies. This

fuel economy is directly related to the

complete combustion of fuel due to the

integration between the electronic

control that monitors conditions, the air

management system that controls air

volume and the fuel injection system

that delivers just the right amount of

fuel as needed.

Free Wheel Stator Torque Converter

(FWSTC). The free wheel stator torque

converter improves power train

efficiency in load and carry operations

which contributes to the improved fuel

efficiency of the 950H.

ENGINE IDLE MANAGEMENT SYSTEM.

The Engine Idle Management System

(EIMS) maximizes fuel efficiency and

provides flexibility in managing idle

speeds for specific application

requirements. Four idle control speeds

are available.

Hibernate Mode. Idle speed drops after

a preset time to provide lower fuel

consumption, reduced sound levels and

lower emissions.

Work Mode. Adjust working idle speeds

according to customer preference and

operating conditions.

Warm-Up Mode. Keep the engine at a

consistent temperature in cold

conditions.

Low Voltage Mode. Prevent battery

drain due to high electrical loads from

attachments and accessories.

MAINTENANCE. Proper maintenance of

your wheel loader can help control

expenses and lower your owning and

operating costs. The 950H provides

unmatched serviceability by offering:

• Hydraulic service center

• Electric service center

• Well-protected, easily visible sight

gauges

• Ground level maintenance points

• Easy access to engine compartment

• Ecology drains for simple and clean

fluid drainage

• Brake wear indicators for ease of

inspection

• Maintenance-free batteries

• Extended oil and filter change

intervals

• Airborne debris-resistant, swing-out

grill provides more efficient airflow

MONITORING SYSTEMS. Monitoring

product health simplifies maintenance

planning and reduces costs.

Caterpillar Monitoring System. The

Caterpillar Monitoring System (CMS)

tracks critical machine systems to alert

the operator to potential need for

service. Three levels of warning allow

the operator to assess the situation more

accurately.

Product Link. With Product Link

owners can collect and track multiple

types of information - from machine

location and service meter hours, to

health and productivity information.

14

The 950H - Best Value For Your Operation

OWNING AND OPERATING COSTS

EquipmentManager. With a

subscription to EquipmentManager

information from Product Link can be

transmitted to a computer. Return on

equipment investment is optimized

through maintenance management and

improved uptime.

Machine Security System. Stolen

equipment equates to lost production

and increased costs. Eliminate machine

theft and unauthorized usage with the

Cat Machine Security System (MSS).

MSS is integrated into the machine’s

electronic system and can protect most

brands of equipment by requiring a

uniquely coded key to start the machine.

S•O•S Services. Managing component

life and machine availability decreases

downtime while improving your

productivity and efficiency. S•O•SSM

Services can help you do that. Regular

fluid sampling is used to track what is

going on inside the equipment. Wear-

related problems are predictable and

easily and quickly repairable.

Maintenance can be done according to

your schedule, resulting in increased

uptime and flexibility in maintenance

and repair before failure.

PARTS AVAILABILITY. Caterpillar

provides an unsurpassed level of

personalized service for your wheel

loader. With parts distribution centers

worldwide, most parts can be delivered

in 24 hours. Easy access to parts

reduces downtime.

RESALE VALUE. Owning quality

equipment is a very important factor in

maintaining resale value. Cat not only

supplies quality equipment but also

provides product and dealer support to

maintain the reliability and durability of

your machine.

Customer Support Agreements. A

Customer Support Agreement (CSA) is

any arrangement between you and your

Cat dealer that helps you lower your

total cost per unit of production. CSAs

are flexible, allowing them to be

tailored to your business. They can

range from simple Preventive

Maintenance Kits to sophisticated Total

Cost Performance Guarantees. Having a

CSA with your Cat dealer allows you

more time to do what you do best - run

your business.

Caterpillar Equipment Training

Solutions. A thorough understanding of

machine systems and a high level of

skill in operation helps achieve

maximum efficiency and improves

return on investment. Caterpillar

Equipment Training Solutions programs

help provide operators with high levels

of proficiency and confidence. Contact

your Cat Dealer for more information

on Caterpillar Equipment Training

Solutions programs.

Caterpillar Financial Services

Corporation. Cat Financial understands

your business, your industry and the

challenges you face. That’s why they

can provide payment plans to fit your

unique needs - and to help you achieve

your goals.

15

• Grouped service points and sight

gauges for easy daily maintenance

• Convenient access to engine

compartment for excellent

serviceability

• Swing-out grill and cooling cores for

easy cleaning

• Electronic systems to monitor

product health

HYDRAULIC SERVICE CENTER.

Transmission oil and hydraulic filters

are located in the Hydraulic Service

Center, behind the hinged, right-side

access ladder. The hydraulic oil tank

can be drained from this location using

the access port.

• Hydraulic filter change interval at

500 hours

• Transmission filter change interval

at 1000 hours

ELECTRIC SERVICE CENTER. Batteries,

relay panel and an optional tool box are

conveniently located below the left-side

access platform. The engine shutdown

switch is housed with the relay panel. A

compartment integrated into the access

platform contains the hood tilt actuation

switch, master switch and jump-start

receptacle.

GROUND LEVEL GREASE POINTS.

Grease fittings are grouped on the right

side of the machine in two convenient

locations - in a service compartment

just below the right-side service

platform, and a bank located just off the

non-engine end frame. These locations

facilitate easy lubrication of vital

components located throughout the

machine.

AUTOLUBE. Reduce time spent on daily

maintenance and downtime for

unplanned repairs due to inadequate

greasing with the optional Caterpillar

Automatic Lubrication System. Precise

lubrication of pins and bushings at

specific intervals improves component

wear and reduces ground contamination

from excessive greasing.

REMOTE PRESSURE TAPS. Pressure

taps for the steering and hydraulic

systems, transmission (optional) and

brakes are grouped behind an access

panel just below the right-side service

platform.

S•O•S SERVICES. Sampling valves on

the 950H allow quick access to engine,

transmission and hydraulic oils for

S•O•S analysis. Oil change intervals

and other services can be optimized

according to your work schedule,

reducing downtime and managing

expenses.

16

Easy To Maintain - Easy To Service

SERVICEABILITY

SIGHT GAUGES. Well-protected, yet

easily visible sight gauges for the

transmission, hydraulic oil and radiator

coolant allow easy daily checks while

reducing the risk of contaminants

entering the systems.

BRAKE WEAR INDICATORS. Axles are

equipped with standard brake wear

indicators, allowing a technician to

easily determine when it is necessary to

service the brakes.

ENGINE COMPARTMENT ACCESS. The

non-metallic hood on the 950H has

been redesigned and restyled from

previous models. Side and top panels

are stronger due to more robust

reinforcement ribs - the change in

contour also adds to rigidity of the

hood.

A single mechanical lift cylinder with

manual back-up opens the hood. The

tilting hood provides excellent access to

the engine compartment, and if

necessary, the entire hood can be

removed with the built-in lift points.

With the hood closed, quick checks of

engine oil levels and the coolant sight

gauge can be completed through the

side service doors.

Panels located behind the tires lift up

and can be removed for additional

access. Roading fenders hinge from the

rear and swing out allowing easier

access to the engine compartment.

ELECTRIC PRIMING PUMP. An electric

fuel priming pump located on the

primary fuel filter base eliminates the

need to pre-fill or manually prime filters

after a change, eliminating engine

contamination.

ECOLOGY DRAINS. Engine,

transmission and hydraulic oils can be

easily drained with standard-equipment

ecology drains. An axle oil ecology

drain is optional.

COOLING SYSTEM. Cooling system

access for clean-out and maintenance is

outstanding. The perforated and

corrugated grill minimizes debris build-

up and swings out for easy cleaning and

access to the cooling cores.

The full-width air conditioning

condenser and oil cooler cores swing

out 45° to allow easy cleaning of the

rear radiator face. Access panels on

either side of the radiator support

structure provide access to the front

face of the radiator and ATAAC cores

for easy cleaning.

CAB. The entire operator station can be

removed in about 45 minutes and is

easy to re-attach. Quick disconnects are

used so no wires need to be cut and no

refrigerant is lost.

Cab cleaning is made easy with

channels on the cab floor and no

threshold at the door - the floor can be

swept or mopped out easily.

WINDSHIELD CLEANING PACKAGE. An

optional windshield cleaning package

consists of two steps for the loader front

frame, two additional handrails and a

folding mirror. This package allows

access to the entire front windshield for

easy cleaning.

COMPLETE CUSTOMER SUPPORT. Cat

field service technicians have the

experience and tools necessary to

service your loader on site. Technical

experts at the dealership and Caterpillar

can provide additional assistance to

field service technicians as needed.

17

18 950H Wheel Loader specifications

Transmission

Forward 1 6.9 km/h 4.3 mph

Forward 2 12.7 km/h 7.9 mph

Forward 3 22.3 km/h 13.9 mph

Forward 4 37 km/h 23.0 mph

Reverse 1 7.6 km/h 4.7 mph

Reverse 2 13.9 km/h 8.6 mph

Reverse 3 24.5 km/h 15.2 mph

Reverse 4 40 km/h 24.9 mph

• Maximum travel speeds (23.5-25 tires).

Hydraulic System

Bucket/Work Tool System - Pump 270 L/min 71 gal/min

Output

Steering System Pump Type Piston

Hydraulic Cycle Time - Raise 6.2 Seconds

Hydraulic Cycle Time - Dump 1.3 Seconds

Hydraulic Cycle Time - Lower, 2.5 Seconds

Empty, Float Down

Hydraulic Cycle Time - Total 10 Seconds

• Implement System (Standard), Piston Pump - Rated at 2,100

rpm and 1,000 psi (6900 kPa).

• Cycle time with rated payload

Brakes

Brakes Meets required

standards.

• Meet OSHA, SAE J1473 OCT90 and ISO 3450-1985 standards.

Axles

Front Fixed front

Rear Oscillating +/- 13°

Maximum Single-Wheel Rise and 470 mm 18.5 in

Fall

Engine

Engine Model Cat®C7 ACERT™

Gross Power - SAE J1995 162 kW 217 hp

Net Power - ISO 9249 147 kW 197 hp

Net Power - SAE J1349 145 kW 195 hp

Net Power - 80/1269/EEC 147 kW 197 hp

Peak Torque (Net) @ 1,400 RPM 907 N·m 669 ft-lb

Bore 110 mm 4.33 in

Stroke 127 mm 5 in

Displacement 7.2 L 439 in3

• Caterpillar engine with ACERT™ Technology - EPA Tier III,

EU Stage III Compliant

• These ratings apply at 1,800 rpm when tested under the

specified standard conditions.

• Rating for net power advertised based on power available

when the engine is equipped with alternator, air cleaner,

muffler and on-demand hydraulic fan drive at maximum fan

speed.

Weights

Operating Weight 18 338 kg 40,435 lb

• For 3.1 m3(4.0 yd3) general purpose bucket with BOCE

Buckets

Bucket Capacities 2.5-3.5 m33.25-4.5

yd3

Max Bucket Capacity 3.5 m34.5 yd3

Operating Specifications

Breakout Force 165 kN 37,125 lb

Static Tipping Load, Full Turn 10 915 kg 24,068 lb

- Bucket

Static Tipping Load, Full Turn 4273 kg 9,421 lb

- Forks

• For 3.1 m3(4.0 yd3) general purpose bucket with BOCE

• For 1829 mm (72 in) quick coupler pallet forks

19

950H Wheel Loader specifications

Service Refill Capacities

Fuel Tank - Standard 314 L 83 gal

Cooling System 42 L 11 gal

Crankcase 30 L 7.9 gal

Transmission 34 L 9 gal

Differentials and Final Drives 36 L 9.5 gal

- Front

Differentials and Final Drives 36 L 9.5 gal

- Rear

Hydraulic Tank 110 L 29 gal

Tires

Tires Choose from a variety

of tires to match your

application.

• Choice of:

23.5R25, L2, VSW

23.5R25, L2, VUT D2A

23.5R25, L2, XTLA

23.5R25, L3, VMT

23.5R25, L3, XHA

23.5R25, L5, XMINE

750/65R25, L3, XLD

23.5-25, L2, SGGL

• NOTE: In certain applications (such as load and carry) the

loader’s productive capabilities might exceed the tires’

tonnes-km/h (ton-mph) capabilities. Caterpillar recommends

that you consult a tire supplier to evaluate all conditions

before selecting a tire model. The 23.5-25 size range and

other special tires are available on request.

Cab

ROPS/FOPS Meets SAE and ISO

standards.

• Caterpillar cab with integrated Rollover Protective Structure

(ROPS) are standard in North America and Europe.

• ROPS meets SAE J1040 APR88 and ISO 3471:1994 criteria.

• Falling Objects Protective Structure (FOPS) meets SAE J231

JAN81 and ISO 3449:1992 Level II criteria.

• The operator sound pressure level measured according to

the procedures specified in ISO 6394:1998 is 72 dB(A) for the

cab offered by Caterpillar, when properly installed and

maintained and tested with the doors and windows closed.

• Hearing protection may be needed when operating with an

open operator station and cab (when not properly

maintained or doors/windows open) for extended periods or

in noisy environments.

• The sound pressure level is 111 dB(A) measured according

to the static test procedure and conditions specified in ISO

6395:1998 for a standard machine configuration.

20 950H Wheel Loader specifications

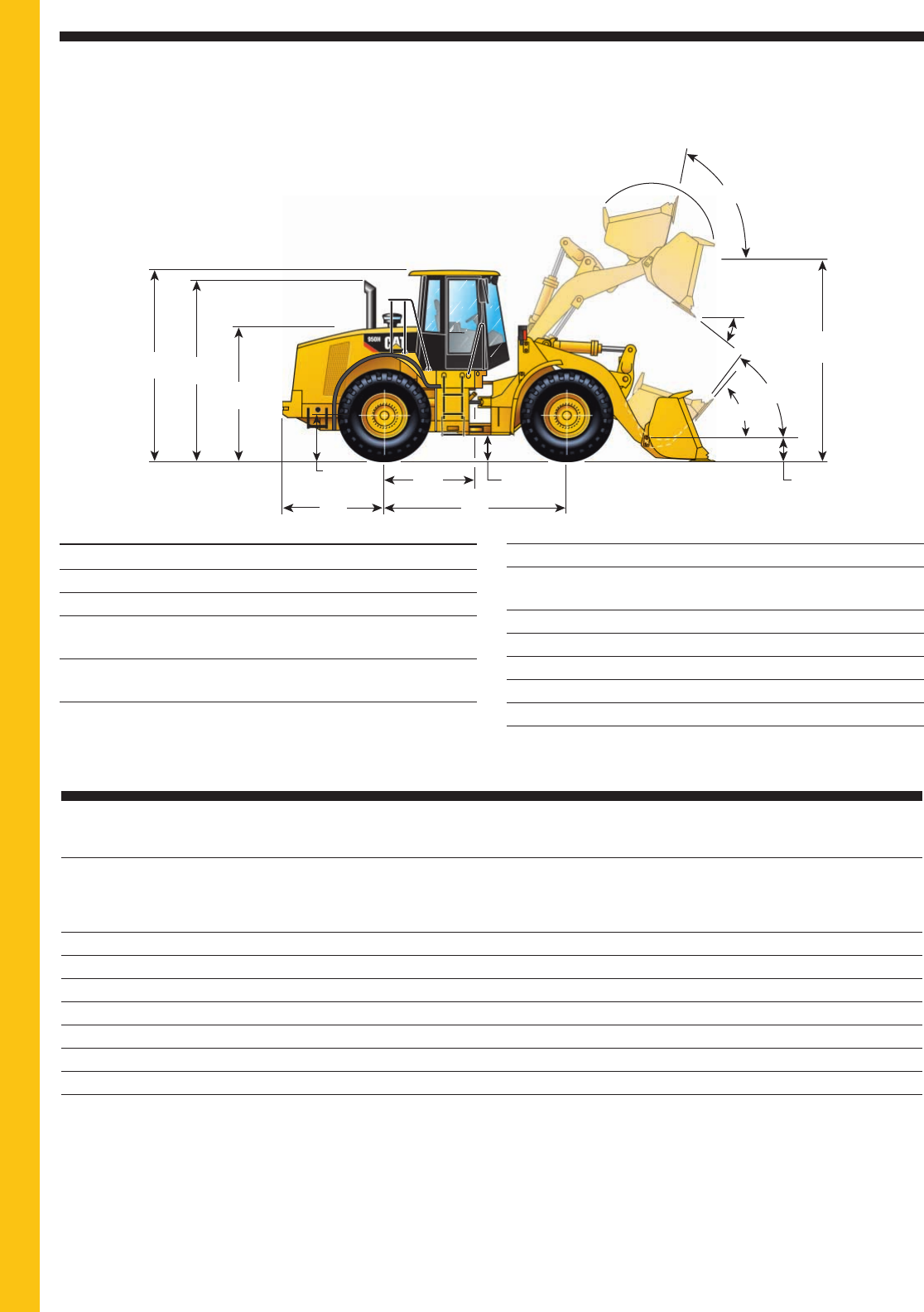

Dimensions

All dimensions are approximate.

1Height to top of ROPS 3452 mm 11'4"

2Height to top of exhaust pipe 3369 mm 11'1"

3Height to top of hood 2462 mm 8'1"

4Ground clearance with 23.5R25 412 mm 1'4"

(see Tire Options chart for other tires)

5B-Pin height – standard 3992 mm 13'1"

B-Pin height – high lift 4490 mm 14'9"

6Center line of rear axle to edge

of counterweight 1955 mm 6'5"

7Wheelbase 3350 mm 11'0"

8B-Pin height @ carry – standard 455 mm 1'6"

B-Pin height @ carry – high lift 591 mm 1'11"

9Center line of rear axle to hitch 1675 mm 5'6"

10 Rack back @ maximum lift 59.5°

11 Dump angle @ maximum lift 48.2°

12 Rack back @ carry 45°

13 Rack back @ ground 38.5°

14 Height to center line of axle 748 mm 2'5"

mm inches mm inches kg lb kg lb

23.5R25 VSW BS L2 Radial 2862 113 6 0.2 20 44 14 31

23.5R25 VUT D2A BS L2 Radial 2866 113 10 0.4 –41 –90 –29 –64

23.5R25 XTLA MX L2 Radial 2801 110 7 0.3 –112 –247 –79 –174

23.5R25 VMT BS L3 Radial 2851 112 3 0.1 124 273 88 194

23.5R25 XHA MX L3 Radial 2784 110 0 0.0 0 0 0 0

23.5R25 XMINE MX L5 Radial 2807 111 26 1.0 872 1,923 619 1,365

750/65R25 XLD MX L3 Radial 2879 113 7 0.3 460 1,014 326 719

23.5-25 SGGL FS L2 Bias 2834 112 14 0.6 –472 –1,041 –335 –739

Width over tires

Change in

vertical dimensions

Change in

operating weight

Change in static

tipping load

Tires

Tread width for 23.5-25 is 2140 mm (7'0")

2

3

1

4

67

8

9

14

5

10

11

12

13

21

950H Wheel Loader specifications

2.50 2.70 2.70 2.70 2.90 2.90 2.90 3.10 3.10

3.25 3.50 3.50 3.50 3.75 3.75 3.75 4.00 4.00

2.11 2.26 2.26 2.30 2.45 2.45 2.49 2.65 2.65

2.76 2.96 2.96 3.00 3.20 3.20 3.26 3.47 3.47

2994 2994 2927 2994 2994 2927 2994 2994 2927

9'10" 9'10" 9'7" 9'10" 9'10" 9'7" 9'10" 9'10" 9'7"

2873 2873 2974 2824 2824 2926 2819 2819 2922

9'5" 9'5" 9'9" 9'3" 9'3" 9'7" 9'3" 9'3" 9'7"

1282 1282 1182 1315 1315 1215 1300 1300 1202

4'2" 4'2" 3'11" 4'4" 4'4" 4'0" 4'3" 4'3" 3'11"

2575 2575 2433 2635 2635 2493 2630 2630 2488

8'5" 8'5" 8'0" 8'8" 8'8" 8'2" 8'8" 8'8" 8'2"

62 92 92 62 92 92 62 92 92

2.44 3.62 3.62 2.44 3.62 3.62 2.44 3.62 3.62

8086 8086 7933 8146 8146 7993 8141 8141 7988

26'6" 26'6" 26'0" 26'9" 26'9" 26'3" 26'9" 26'9" 26'2"

5329 5329 5329 5386 5386 5386 5443 5443 5443

17'6" 17'6" 17'6" 17'8" 17'8" 17'8" 17'10" 17'10" 17'10"

7075 7075 7002 7090 7090 7017 7089 7089 7016

23'3" 23'3" 23'0" 23'3" 23'3" 23'0" 23'3" 23'3" 23'0"

12 883 12 587 12 700 12 760 12 468 12 581 12 639 12 351 12 464

28,407 27,754 28,004 28,136 27,492 27,741 27,869 27,234 27,483

11 302 11 024 11 136 11 186 10 911 11 024 11 073 10 802 10 915

24,921 24,308 24,555 24,665 24,059 24,308 24,416 23,818 24,068

191.0 173.0 174.0 180.0 164.0 165.0 180.0 164.0 165.0

42,975 38,925 39,150 40,500 36,900 37,125 40,500 36,900 37,125

18 182 18 339 18 232 18 236 18 393 18 286 18 288 18 445 18 338

40,091 40,438 40,202 40,210 40,557 40,321 40,325 40,671 40,435

Rated bucket capacity (§)m

3

yd3

Struck capacity (§)m

3

yd3

Width (§)mm

ft/in

Dump clearance at full lift mm

and 45º discharge (§) ft/in

Reach at full lift mm

and 45º discharge (§) ft/in

Reach with lift arm horizontal mm

and bucket level (§) ft/in

Digging depth (§)mm

in

Overall length mm

ft/in

Overall height with bucket mm

at full raise ft/in

Loader clearance circle radius with mm

bucket in carry position (§) ft/in

Static tipping load straight* kg

lb

Static tipping load kg

full 37º turn lb

Breakout force** (§)kN

lb

Operating weight* (§)kg

lb

Operation Specifications

General Purpose Buckets

Teeth

Teeth

and

segments

Bolt-on

edges Teeth

Teeth

and

segments

Bolt-on

edges Teeth

Teeth

and

segments

Bolt-on

edges

1400

2250 2500 2750 3000 3250 3500 3750 lb/yd3

yd3m3

kg/m3

3.5

3.8

4.1

4.3

4.6

2.7

2.9

3.1

3.3

3.5

1600 1800 2000 2200

Material Density

Bucket Selection Guide

% = Bucket Fill Factor

115% 100% 95%

22 950H Wheel Loader specifications

3.10 3.30 3.30 3.30 3.50 3.50 2.90 3.10 3.10

4.00 4.25 4.25 4.25 4.50 4.50 3.75 4.00 4.00

2.66 2.82 2.82 2.81 2.98 2.98 2.50 2.70 2.70

3.48 3.69 3.69 3.68 3.90 3.90 3.25 3.50 3.50

2994 2994 2927 2896 2946 2946 2896 2896 2896

9'10" 9'10" 9'7" 9'6" 9'8" 9'8" 9'6" 9'6" 9'6"

2814 2814 2917 2708 2708 2812 2680 2680 2784

9'3" 9'3" 9'7" 8'11" 8'11" 9'3" 8'10" 8'10" 9'2"

1292 1292 1195 1406 1406 1308 1456 1456 1357

4'3" 4'3" 3'11" 4'7" 4'7" 4'3" 4'9" 4'9" 4'5"

2630 2630 2488 2786 2786 2643 2839 2839 2697

8'8" 8'8" 8'2" 9'2" 9'2" 8'8" 9'4" 9'4" 8'10"

62 92 92 62 92 92 62 92 92

2.44 3.62 3.62 2.44 3.62 3.62 2.44 3.62 3.62

8141 8141 7988 8297 8297 8143 8330 8330 8176

26'9" 26'9" 26'2" 27'3" 27'3" 26'9" 27'4" 27'4" 26'10"

5491 5491 5491 5379 5379 5379 5398 5398 5398

18'0" 18'0" 18'0" 17'8" 17'8" 17'8" 17'9" 17'9" 17'9"

7089 7089 7016 7086 7109 7066 7100 7100 7056

23'3" 23'3" 23'0" 23'3" 23'4" 23'2" 23'4" 23'4" 23'2"

12 523 12 240 12 354 12 386 12 378 12 347 12 104 11 820 11 927

27,613 26,989 27,241 27,311 27,293 27,225 26,689 26,063 26,299

10 962 10 696 10 810 10 850 10 822 10 810 10 586 10 321 10 428

24,171 23,585 23,836 23,924 23,863 23,836 23,342 22,758 22,994

179.0 163.0 164.0 159.0 146.0 147.0 151.0 140.0 140.0

40,275 36,675 36,900 35,775 32,850 33,075 33,975 31,500 31,500

18 353 18 510 18 403 18 393 18 550 18 441 18 540 18 697 18 589

40,468 40,815 40,579 40,557 40,903 40,662 40,881 41,227 40,989

General Purpose Quick

Coupler Buckets

Teeth

Teeth

and

segments

Bolt-on

edges Teeth

Teeth

and

segments

Bolt-on

edges Teeth

Teeth

and

segments

Bolt-on

edges

23

950H Wheel Loader specifications

2.90 3.10 3.10 3.10 3.30 3.30 3.30 3.50 3.50

3.75 4.00 4.00 4.00 4.25 4.25 4.25 4.50 4.50

2.50 2.66 2.66 2.67 2.83 2.83 2.84 3.00 3.00

3.25 3.48 3.48 3.49 3.70 3.70 3.71 3.92 3.92

2994 2994 2927 2994 2994 2927 2994 2994 2927

9'10" 9'10" 9'7" 9'10" 9'10" 9'7" 9'10" 9'10" 9'7"

2760 2760 2870 2725 2725 2835 2690 2690 2800

9'1" 9'1" 9'5" 8'11" 8'11" 9'4" 8'10" 8'10" 9'2"

1214 1214 1123 1249 1249 1158 1284 1284 1194

4'0" 4'0" 3'8" 4'1" 4'1" 3'10" 4'3" 4'3" 3'11"

2630 2630 2488 2680 2680 2538 2730 2730 2588

8'8" 8'8" 8'2" 8'10" 8'10" 8'4" 8'11" 8'11" 8'6"

62 92 92 62 92 92 62 92 92

2.44 3.62 3.62 2.44 3.62 3.62 2.44 3.62 3.62

8121 8121 7968 8171 8171 8018 8221 8221 8068

26'8" 26'8" 26'2" 26'10" 26'10" 26'4" 27'0" 27'0" 26'6"

5391 5391 5391 5436 5436 5436 5482 5482 5482

17'8" 17'8" 17'8" 17'10" 17'10" 17'10" 18'0" 18'0" 18'0"

7089 7089 7016 7102 7102 7029 7116 7116 7042

23'3" 23'3" 23'0" 23'4" 23'4" 23'1" 23'4" 23'4" 23'1"

12 982 12 684 12 798 12 875 12 580 12 694 12 767 12 611 12 590

28,625 27,968 28,220 28,389 27,739 27,990 28,151 27,807 27,761

11 388 11 107 11 222 11 288 11 010 11 124 11 187 11 031 11 027

25,111 24,491 24,745 24,890 24,277 24,528 24,667 24,323 24,315

181.0 164.0 165.0 172.0 157.0 158.0 164.0 150.0 151.0

40,725 36,900 37,125 38,700 35,325 35,550 36,900 33,750 33,975

18 176 18 333 18 226 18 217 18 374 18 267 18 259 18 416 18 309

40,078 40,424 40,188 40,168 40,515 40,279 40,261 40,607 40,371

Rated bucket capacity (§)m

3

yd3

Struck capacity (§)m

3

yd3

Width (§)mm

ft/in

Dump clearance at full lift mm

and 45º discharge (§) ft/in

Reach at full lift mm

and 45º discharge (§) ft/in

Reach with lift arm horizontal mm

and bucket level (§) ft/in

Digging depth (§)mm

in

Overall length mm

ft/in

Overall height with bucket mm

at full raise ft/in

Loader clearance circle radius with mm

bucket in carry position (§) ft/in

Static tipping load straight* kg

lb

Static tipping load kg

full 37º turn lb

Breakout force** (§)kN

lb

Operating weight* (§)kg

lb

Operation Specifications

Material Handling Buckets

Teeth

Teeth

and

segments

Bolt-on

edges Teeth

Teeth

and

segments

Bolt-on

edges Teeth

Teeth

and

segments

Bolt-on

edges

24 950H Wheel Loader specifications

2.90 2.90 5.20

3.75 3.75 6.75

2.45 2.44 4.62

3.20 3.19 6.04

2984 2969 3073

9'9" 9'9" 10'1"

2871 2712 2716 494

9'5" 8'11" 8'11" 1'7"

1297 1425 1278 67

4'3" 4'8" 4'2" 0'3"

2588 2789 2707 406

8'6" 9'2" 8'11" 1'4"

92 62 92 23

3.62 2.44 3.62 0'1"

8068 8300 8187 503

26'6" 27'3" 26'10" 1'8"

5391 5391 6005 495

17'8" 17'8" 19'8" 1'7"

7068 7130 7141 186

23'2" 23'5" 23'5" 0'7"

12 472 12 609 12 356 –2094

27,501 27,803 27,245 –4,617

10 894 11 027 10 713 –1949

24,021 24,315 23,622 –4,298

151.0 159.0 135.0 –10.0

33,975 35,775 30,375 –2,250

18 540 18 457 19 213 1268

40,881 40,698 42,365 2,796

Bolt-on

edges

Bottom

strap

teeth

Bolt-on

edges

Change

in specs

* Static tipping loads and operating weights shown are based on

standard machine configuration with 23.5R25 tires, full fuel tank,

coolants, lubricants, air conditioner, ride control and operator.

** Measured 102 mm (4.0") behind tip of cutting edge with bucket

hinge pin as pivot point in accordance with SAE J732C.

(§) Specifications and ratings conform to all applicable standards

recommended by the Society of Automotive Engineers,

including SAE Standard J732C governing loader ratings.

Waste/

Coal

Bucket

High LiftRock Buckets

25

950H Wheel Loader specifications

Standard Equipment

Standard equipment may vary. Consult your Caterpillar dealer for details.

POWER TRAIN

Brakes, full hydraulic enclosed wet-disc with Integrated

Braking System (IBS) and brake wear indicator

Engine, Cat C7 with ACERT Technology and ATAAC

Fan, radiator, electronically controlled, hydraulically driven,

temperature sensing, on demand

Filters, fuel, primary/secondary

Filters, engine air, primary/secondary

Fuel priming pump (electric)

Fuel/water separator

Muffler, sound suppressed

Radiator, unit core

Starting aid, air inlet heater

Switch, transmission neutralizer lockout

Torque converter, free wheel stator

Transmission, automatic, planetary powershift (4F/4R)

Variable Shift Control (VSC)

OTHER

Automatic bucket positioner

Counterweight

Couplings, Caterpillar O-ring face seal

Doors, service access (locking)

Ecology drains, engine, transmission and hydraulics

Fenders, steel (front and rear)

Guard, airborne debris

Hitch, drawbar with pin

Hood, non-metallic, power tilting

Hoses, Caterpillar XT™

Hydraulic oil cooler

Kickout, lift and tilt, automatic (in-cab adjustable)

Linkage, Z-bar, cast crosstube/tilt lever

Oil sampling valves

Product Link ready

Remote diagnostic pressure taps

Service center, electrical and hydraulic

Sight gauges:

Engine coolant

Hydraulic oil

Transmission oil level

Steering, load sensing

Vandalism protection caplocks

TIRES, RIMS, WHEELS

A tire must be selected from the mandatory attachments

section. Base machine price includes an allowance based on

a premium radial tire.

ANTIFREEZE

Premixed 50% concentration of Extended Life Coolant with

freeze protection to -34°C (-29°F)

ELECTRICAL

Alarm, back-up

Alternator, 80-amp brushless

Batteries, Maintenance free (2) 1400 CCA

Ignition key; start/stop switch

Lighting system, halogen (6 total)

Main disconnect switch

Receptacle, starting, 24-volt

Starter, electric, heavy-duty

Starting and charging system (24-volt)

OPERATOR ENVIRONMENT

Bucket/work tool function lockout

Cab, pressurized and sound-suppressed ROPS/FOPS

Radio-ready (entertainment) includes antenna, speakers

and converter (12-volt, 10-amp)

Cigar lighter and ashtray (12-volt)

Coat hook (2) with straps

Computerized monitoring system

Instrumentation, gauges:

Digital gear range indicator

Engine coolant temperature

Fuel level

Hydraulic oil temperature

Speedometer/tachometer

Transmission oil temperature

Instrumentation, warning indicators:

Air inlet heater

Axle oil temperature

Electrical, alternator output

Engine inlet manifold temperature

Engine oil pressure

Fuel level

Fuel pressure, hi/low

Hydraulic oil level

Parking brake

Primary steering oil pressure

Service brake oil pressure

Transmission filter bypass

Controls, electrohydraulic, lift and tilt function

Heater and defroster

Horn, electric (steering wheel/console)

Light, dome (cab)

Lunchbox, beverage holders and personal tray

Mirror, rearview (internally mounted)

Seat, Cat Comfort (cloth) with air suspension

Seat belt, retractable, 51 mm (2”) wide

Steering column, adjustable angle (SW-CCS) and length

(CCS)

Wet-Arm wipers and washers, front and rear

Intermittent front wipers

Window, sliding (left and right side)

26 950H Wheel Loader specifications

Optional Equipment

Optional equipment may vary. Consult your Caterpillar dealer for details.

Mirrors, heated external, folding

Open canopy

Payload Control System

Payload Control System Printer

Platform, window cleaning

Precleaner, turbine

Precleaner, turbine/trash

Product Link

Radio, AM/FM Weatherband (CD)

Radio, CB-ready

Remote pressure taps, transmission

Ride Control System, two- or three-valve

Seatbelt, 76 mm (3”) wide

Sound suppression, exterior

Starting aid, ether

Steering, Command Control System

Steering, secondary

Switch, lift lever FNR (steering wheel machines)

Sun visor, front

Tool box

Special Machine Arrangements

High Lift Arrangement, two- and three-valve

Forest Machine Arrangement

Industrial Loader Arrangement

Sewer and Water Arrangement

Yard Loader Value Package

Air conditioner

Aggregate Autodig System

Autolube

Buckets and work tools

Bucket Ground Engaging Tools (GET) - see Cat dealer for

details

Camera, rear vision

Cooler, axle oil

Differentials

Limited slip, front or rear

NO-SPIN, rear

Drain, axle ecology

Fender extensions, front and rear

Fenders, narrow

Fenders, roading

Guard, axle seal

Guard, front window, wide or small mesh

Guard, power train

Heater, engine coolant, 120- or 240-volt

Hydraulic arrangement, three-valve

Joystick control, two- or three-valve

Lights, directional

Lights, high intensity discharge (HID)

Lights, roading

Light, warning beacon

Lights, work, cab-mounted

Machine Security System

Mirrors, external

Mirrors, heated external

950H Wheel Loader specifications 27

Notes

R

For more complete information on Cat products, dealer services,

and industry solutions, visit us on the web at www.cat.com

© 2007 Caterpillar

All Rights Reserved

Printed in U.S.A.

Materials and specifications are subject to change without notice.

Featured machines in photos may include additional equipment.

See your Caterpillar dealer for available options.

CAT, CATERPILLAR, their respective logos, ACERT, “Caterpillar Yellow” and the

POWER EDGE trade dress, as well as corporate and product identity used herein,

are trademarks of Caterpillar and may not be used without permission.

AEHQ5675-01 (5-07)

Replaces AEHQ5675

950H Wheel Loader
