Magnet

Attach the magnet 9 temporarily to the right

side spoke of the front wheel.

Sensor

Attach the sensor 2 temporarily to the inside of the right front fork.

Adjust the position of the sensor 2 and the magnet 9 so that it

meets the conditions

A

and

B

in the “Important” column. Fas-

ten them tightly.

Reference: If the clearance between the speed sensor and the

magnet is wide, mount the sensor band 34 in an

opposite way as shown.

In case of aerofork, apply the attachment 0.

Wire

Secure the wire along the front fork using the ny-

lon ties 5 and wind it round the brake cable up to

handlebar.

Note: Allow enough wire clearance in the

area marked with .

Bracket

Use the rubber pad 6 or band holder pad 7 so

that the bracket’s band 1 fits your handlebar. Fix

it with the screw.

Reference: To release the band, pull it while

pushing the area marked with .

1

2

3

4

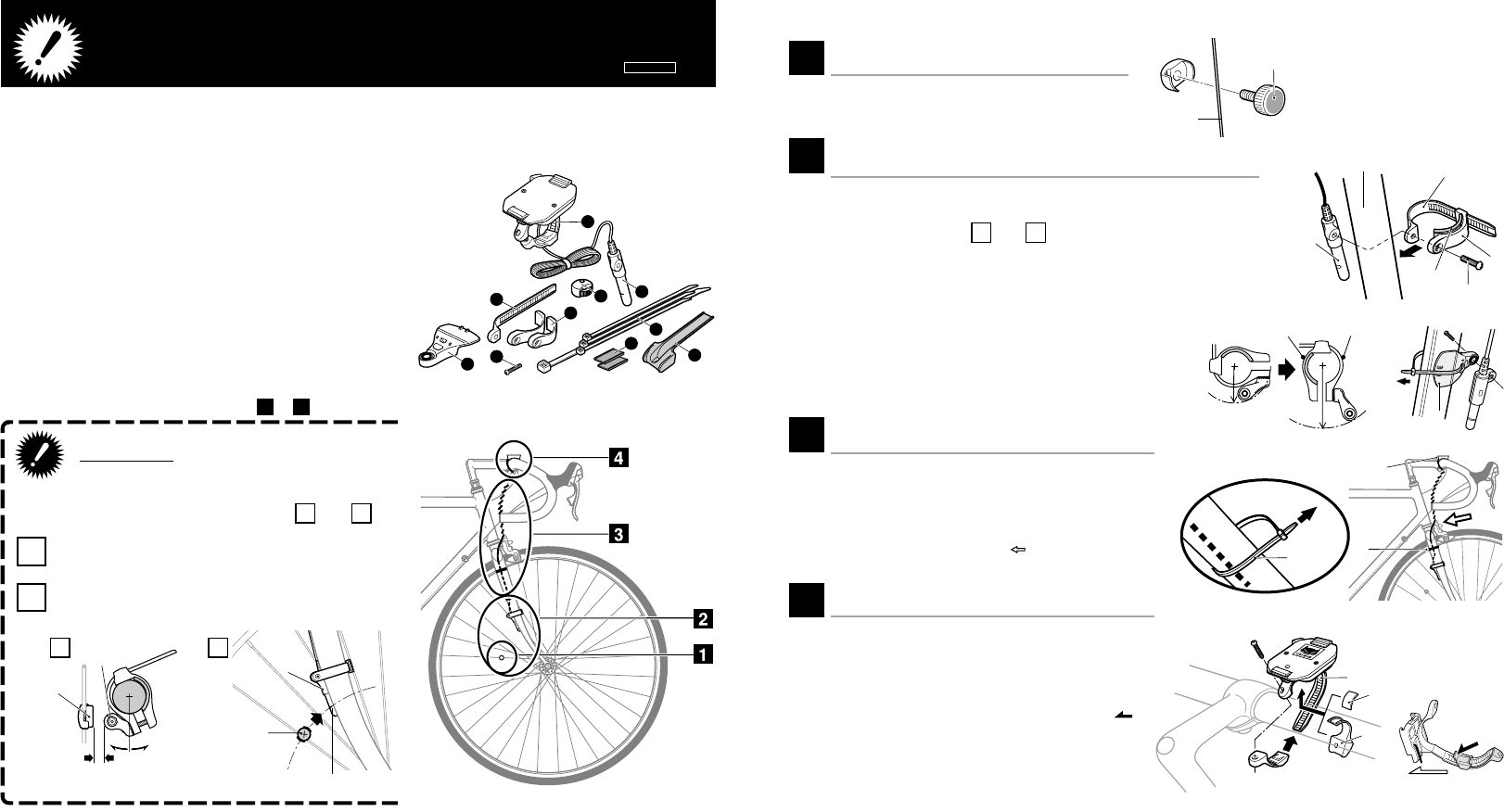

IMPORTANT NOTICE ABOUT

INSTALLATION MSC-2Dx N

For the sake of easy installation and operation, some components have been changed.

When installing to your bicycle, follow the explanation written in this sheet, not the Quick

Start manual.

Parts

Make sure that the following parts are included in the package.

1Bracket (with 2Dx attachment)

2Sensor

3Sensor Band-A (L/S)

4Sensor Band-B

5Nylon Tie

9

8

3

4

5

7

6

10

2

1

2Dx attachment

9

2

9

2

9

4

3

2

8

6

front fork

34

0

1

6

7

5

1

5

E

A

B

AB

6Rubber Pad

7Band Holder Pad

8Screw

9Magnet

0Attachment for Aerofork

Installation

Follow the following instruction

1

–

4

.

Important

Attach the sensor and the magnet properly so that their

positions meet the following conditions

A

and

B

.

The clearance between the sensor 2 and the mag-

net 9 should be about 5mm.

Align center of the magnet 9 and the marking line of

the sensor 2 while rotating the front wheel.

about 5mm marking line entire view

spoke

press

pull

Copyright© 2001 CAT EYE Co.,Ltd.

MSC2DxMM-010604 1 Printed in Japan

066600120

#166-5150 Lithium battery CR2032

Pile au lithium CR2032

Lithiumbatterie CR2032

lithium batterij CR2032

Batteria al litio CR2032

Pila de Litio CR2032

リチウム電池CR2032

#169-9826 Replacement electrode belt

Sangle porte-électrodes

Elektrodengurt

vervanging electrodeband

Fascia sensore battito cardiaco

Correa de Electrodos de Repuesto

交換用MSC HR電極ベルト

#169-9816 Attachment belt

Sangle de fixation

Befestigungsgurt

bevestigingsband

Cinghia di fissaggio sensore battito cardiaco

Correa de Acoplamiento

装着ベルト

#249-9980 Wrist band kit

Bracelet

Handgelenk-Kit

polsband set

Cinturino

Kit de Correa de Muñeca

リストバンドキット

#240-1001 PC download kit

#240-1002 Kit de transfert de données

#240-1003 PC-Überspiel-Kit

#240-1004 polsband set

#240-1006 Kit interfaccia PC

#240-1005 Kit para cargar en PC

#240-1000 PCダウンロードキット

#169-9806 MSC Dx chest belt heart rate sensor kit

Kit de sangles et détecteur de rythme cardiaque MSC-Dx

Herzfrequenzsensor-Kit für Brustgurt

MSC Dx borstband met hartslagsensor set

Kit fascia sensore battito cardiaco MSC DX

MSC-Dx Kit de Sensor del Ritmo Cardíaco de la Correa Pectoral

MSC-Dxチェストベルト心拍センサーキット

#249-9990N Bracket sensor kit

Kit de support d’unité principale et détecteur de vitesse

Halterungskit für Sensor

bracket sensor set

Kit supporto sensore velocità

Kit Soporte del Sensor

ブラケットセンサーキット

#249-9995 MSC-2Dx (bracket) attachment

Adaptateur MSC-2Dx

Aufsteckplatte (Halterung) für den MSC-2Dx

MS-2Dx (bracket) bevestiging

Attacco MSC-2DX

MSC-2Dx（ブラケット）アタッチメント

#169-9691 Wheel magnet

Aimant de roue

Radmagnet

wielmagneet

Magnete ruota

Imán de Rueda

ホイールマグネット

#169-9760 Magnet for composite wheel

Aimant pour roue en matière composite

Magnet für Carbonräder

magneet voor composiet wiel

Magnete per ruote in materiale composito

Imán para Ruedas de Palos

コン ポジットホイール用マグネット

#169-9780 Attachment for Aerofork

Fixation pour fourche AERO

Zusatz zur Federgabel

Bevestiging voor aerovork

Attacco per forcella aerodinamica

Sujección para horquilla aerodinámica

扁 平フォーク 用 アタッチメント

#169-6280 Universal sensor band

Collier universel pour détecteur

Universalband für Sensor

universele sensorband

Fascetta universale sensore

Banda de Sensor Universal

ユニバーサルセンサーバンド

#249-9970 Attachment kit

Kit de fixation

Montage-Kit

bevestigingsset

Kit fascette di fissaggio

Kit de Acoplamiento

アタッチメントキット

2-8-25, Kuwazu, Higashi Sumiyoshi-ku,

Osaka 546-0041 Japan

e-mail: service@cateye.com

URL: http://www.cateye.com

CO.,LTD.

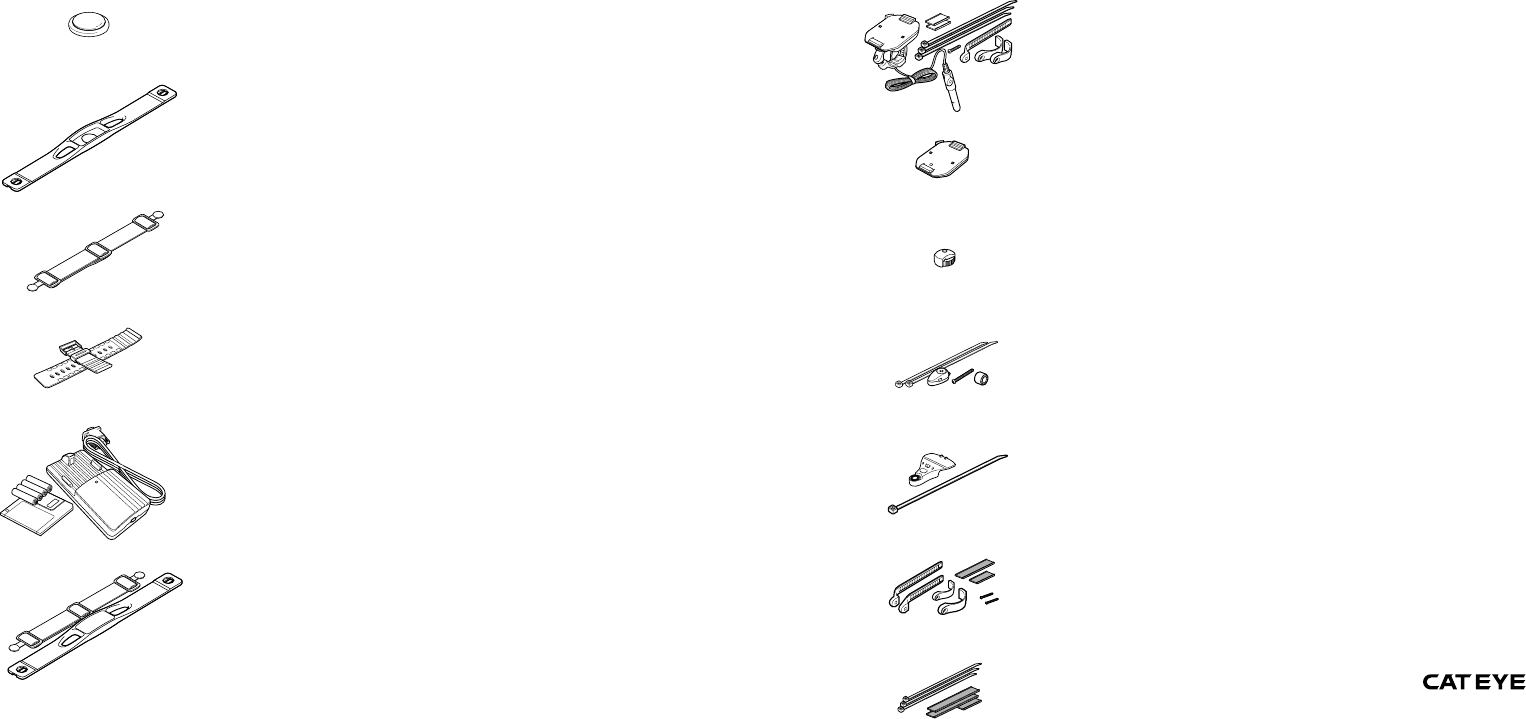

MSC-2DX N SPARE ACCESSORIES
