Cattron North America 86942 New R3 450 MHz 2 PCA-8694-X201 User Manual Word Engineering
Laird Controls North America Inc. New R3 450 MHz 2 PCA-8694-X201 Word Engineering
User Manual
This document and all information contained within are the exclusive, confidential and proprietary property of
Laird PLC, Laird Controls North America, Inc., or other subsidiary of Laird PLC (hereafter, “Laird”). It is not to be
reproduced, nor is it or any portion of it to be used by or disclosed to any other individual or legal entity, without
the prior, written approval of Laird. Furthermore, the information contained within this document is also to be
handled in accordance with any and all confidentiality agreements between Laird and the receiver or user of this
document. © Copyright 2017, Laird. All rights reserved.
2PCA-8694-A001 Radio Module
9S02-8694-A001
Revision: A
Status: Approved
Date: December 10, 2017
Author: H. Lin
Filename: 9S02-8694-A001
2PCA-8694-A001 Radio Module
9S21-8694-A001
Laird™ proprietary and confidential Page 3 of 12 9S02-8694-A001
Revision: A, Approved
TABLE OF CONTENTS
1 INTRODUCTION ....................................................................................................................................................... 7
1.1 PURPOSE ......................................................................................................................................................... 7
1.2 SCOPE............................................................................................................................................................. 7
1.3 APPLICABILITY .................................................................................................................................................. 7
1.4 ACRONYMS, ABBREVIATIONS.......................................................................................................................... 7
2 FEATURES SUMMARY ............................................................................................................................................... 8
2.1 GENERAL ARCHITECTURE ................................................................................................................................... 8
2.2 POWER SUPPLIES AND REGULATORS .................................................................................................................... 8
2.3 FREQUENCY REFERENCE AND PHASE LOCKED LOOP: ............................................................................................... 9
2.4 RECEIVER SECTION: ........................................................................................................................................... 9
3 HOST INTERFACE DEFINITION ..................................................................................................................................10
3.1 PINS ASSIGNMENT ..........................................................................................................................................10
4 TECHNICAL DATA AND SPECIFICATIONS .....................................................................................................................11
LAIRD – WIRELESS AUTOMATION AND CONTROL SOLUTIONS SUPPORT ..................................................................................12
2PCA-8694-A001 Radio Module
9S21-8694-A001
Laird™ proprietary and confidential Page 4 of 12 9S02-8694-A001
Revision: A, Approved
86942TRX module meets Part 90 of the FCC rules and regulations. Compliance with the labeling requirements,
FCC notices is required. In order to comply with FCC Certification requirements, the Original Equipment
Manufacturer (OEM) must fulfill the following requirements.

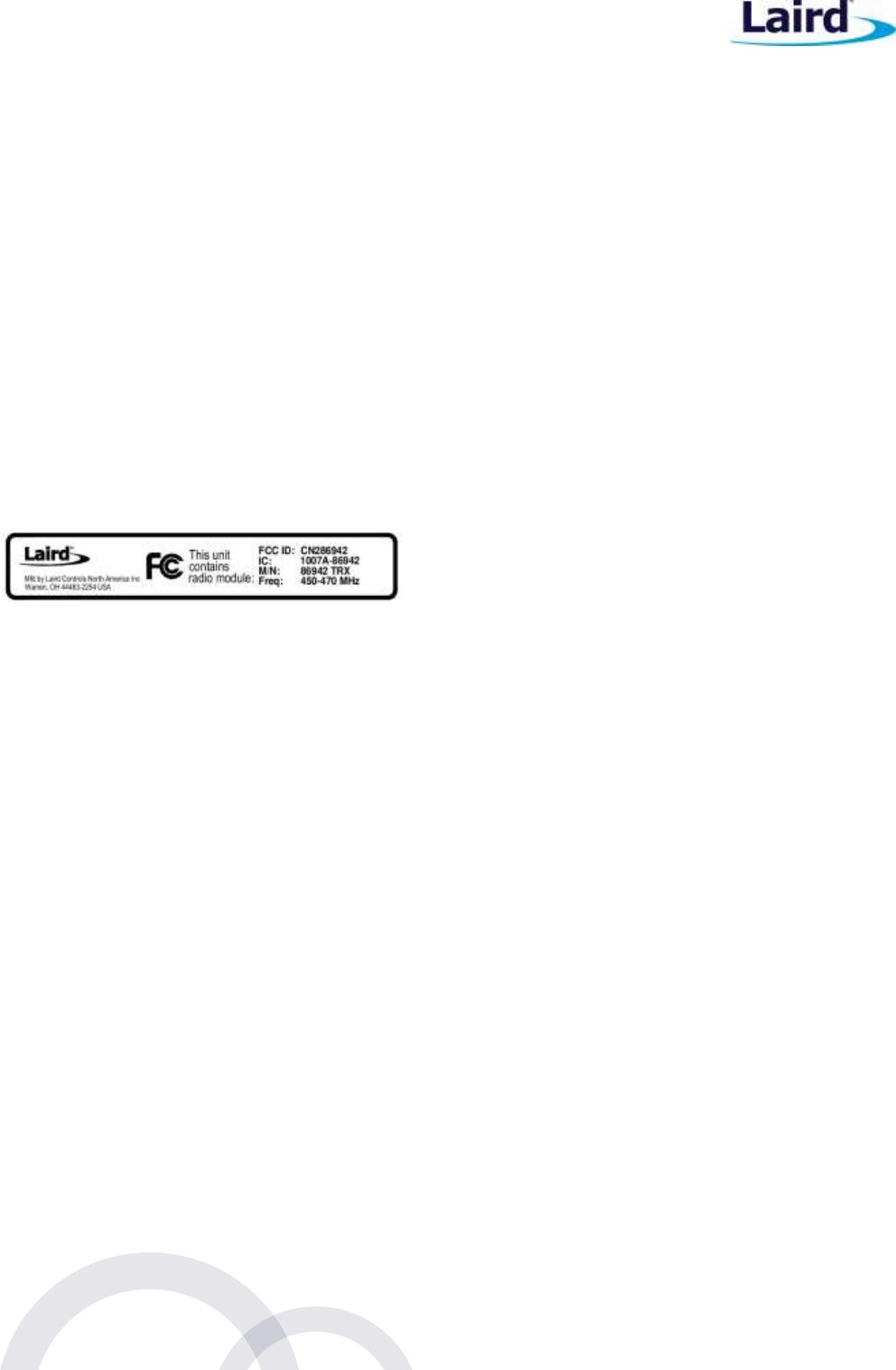

1. The system integrator must place an exterior label on the outside of the final product housing the 86942TRX
Module. The figure below shows the contents that must be included in this label.
2. 86942TRX modules may only be used with the antennas that have been tested and approved for use with
the module.
LABELING REQUIREMENTS
The OEM must make sure that FCC labeling requirements are met. This includes a clearly visible exterior label on
the outside of the final product housing that displays the contents shown in below.
WARNING: The 86942TRX modules have been tested by the FCC for use with other products without further
certification (as per FCC Section 2.1091). Changes or modifications to this device not expressly approved by
Cattron-Theimeg could void the user’s authority to operate the equipment.
NOTICE: OEM’s must verify the final end product complies with unintentional radiators (FCC Section 15.107 and
15.109) before providing a declaration of conformity for their final product to Part 15 of the FCC Rules.
NOTICE: The 86942TRX modules have been certified for mobile and fixed radio applications. If the module will
be used for portable applications, the device must undergo SAR testing.
RF Exposure WARNING: This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm
between the radiator and your body. This transmitter must not be co-located or operating in conjunction with
any other antenna or transmitter.
NOTICE: The preceding statement must be included as a CAUTION statement in OEM product manuals in order
to alert users of FCC RF Exposure compliance.
86942TRX is designed for use in countless wireless applications requiring long range communications with low
energy consumption. To ensure that the final product complies with the all of the regulatory requirements for
the Modular Grant the following integration instructions should be followed. 86942TRX is limited to OEM
installation ONLY. The OEM integrator is responsible for ensuring that the end-user has no manual instructions
to remove or install the module.
2PCA-8694-A001 Radio Module
9S21-8694-A001
Laird™ proprietary and confidential Page 5 of 12 9S02-8694-A001
Revision: A, Approved
FCC Part 15.105(b) Warning Statement
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
IC RSS-GEN, Sec 7.1.2 Warning Statement- (Required for Transmitters)
ENGLISH:
Under Industry Canada regulations, this radio transmitter may only operate using an
antenna of a type and maximum (or lesser) gain approved for the transmitter by
Industry Canada. To reduce potential radio interference to other users, the antenna
type and its gain should be so chosen that the equivalent isotropically radiated
power (e.i.r.p.) is not more than that necessary for successful communication.
FRENCH:
Conformément à la réglementation d'Industrie Canada, le présent émetteur radio
peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur)
approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques
de brouillage radioélectrique à l'intention des autres utilisateurs, il faut choisir le
type d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente
(p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une
communication satisfaisante.
IC RSS-GEN, Sec 7.1.2 Warning Statement-
(Required for Transmitters w/ detachable antennas)
ENGLISH:
This radio transmitter (IC: 1007A-86942,Model Number: 86942TRX) has been
approved by Industry Canada to operate with the antenna types listed
2PCA-8694-A001 Radio Module
9S21-8694-A001
Laird™ proprietary and confidential Page 6 of 12 9S02-8694-A001
Revision: A, Approved
below with the maximum permissible gain and required antenna impedance for
each antenna type indicated. Antenna types not included in this list, having a gain
greater than the maximum gain indicated for that type, are strictly prohibited for
use with this device.
FRENCH:
Le présent émetteur radio (IC:1007A-86942, Numéro de modèle: 86942TRX) a été
approuvé par Industrie Canada pour fonctionner avec les types d'antennes
énumérés ci-dessous ayant un gain admissible maximal et l'impédance requise pour
chaque type d'antenne. Les types d'antennes non inclus dans cette liste, ou dont le
gain est supérieur au gain maximal indiqué, sont strictement interdits pour
l'exploitation de l'émetteur.
IC RSS-102, Sec 2.6 Warning Statements
ENGLISH:
The applicant is responsible for providing proper instructions to the user of the radio device,
and any usage restrictions, including limits of exposure durations. The user manual shall
provide installation and operation instructions, as well as any special usage conditions, to
ensure compliance with SAR and/or RF field strength limits. For instance, compliance
distance shall be clearly stated in the user manual.
IC RSS-GEN
ENGLISH:
This device complies with Industry Canada’s license-exempt RSSs. Operation is subject to the
following two conditions: (1) This device may not cause interference; and (2) This device
must accept any interference, including interference that may cause undesired operation of
the device.
FRENCH:
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux
appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions
suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de
l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage
est susceptible d'en compromettre le fonctionnement.
Only the following authorized antennas may be used with the equipment:
Only the antenna gain less than 4.15dBi may be used with the equipment.
2PCA-7839-A001, 50Ohm, Gain:-0dBi
2PCA-8339-X301, 50Ohm, Gain:-5.0dBi
PRT-0000430 (EXD-450-BN), 50Ohm, Gain:-0dBi
2PCA-8430-X001, 50Ohm, Gain: 2.0dBi
½ wave Omni antenna (SUB-4302), 4.15dBi
2PCA-8694-A001 Radio Module
9S21-8694-A001
Laird™ proprietary and confidential Page 7 of 12 9S02-8694-A001
Revision: A, Approved
1 INTRODUCTION
1.1 PURPOSE
A new family of RF module is being developed by Laird. This family includes high performance radios covering
several RF bands used world-wide for remote control applications. They are built around a common
architecture, and present a uniform host interface definition. The host interface is used for data communication
and radio configuration.
1.2 SCOPE
This document describes the host interface signal definitions, timings, operation mode, available functionalities,
and provide details about its integration to Unity products. This document does not cover RF specifications or
power supply specifications.
1.3 APPLICABILITY
This description applies to all 2PCA-8694-Axxx.
1.4 ACRONYMS, ABBREVIATIONS
Acronyms
CTS - Clear to Send. RS-232 control signal
RTS - Request to Send. RS-232 control signal
DTR - Data Terminal Ready. RS-232 control signal
DSR - Data Set Ready. RS-232 control signal
TX - Transmit data. RS-232 data signal
RX - Receive data. RS-232 data signal
LED- Light emitting diode
UART- Universal Asynchronous Receiver Transmitter
Abbreviations
MIPS - Million Instructions Per Second
SPI – Serial peripheral interface
USB- Universal serial bus
uP - Micro Processor
P.C. Printed Circuit
PC (Personal) Computer – Desktop or Laptop
2PCA-8694-A001 Radio Module
9S21-8694-A001
Laird™ proprietary and confidential Page 8 of 12 9S02-8694-A001
Revision: A, Approved
2 FEATURES SUMMARY
2.1 GENERAL ARCHITECTURE
The Laird Transceiver consists of a UHF Receiver as well as a UHF Transmitter section that is controlled by a
digital subsection providing and processing protocol and control functions for the overall radio requirements.
The transceiver is intended to be powered using an externally provided 12VDC supply.
The overall current consumption @ 12VDC in RX mode is about 110mA.
The Transmit section was designed to provide a nominal output power of +27dBm into a 50 ohm load.
The overall current consumption for TX is an additional 450mA, resulting in a total current during TX of about
560mA.
The RF section is contained in a shielded enclosure that has openings for four 50ohm SMB connections:
1. ANT1 --- RX input 1
2. ANT2 --- RX input 2
3. ANT3 --- RX input 3
4. TX OUT
In addition to these there are openings for visual observation of the PLL Lock status, as well as two alignment
points, one adjusting the 2nd RX LO frequency and adjusting the RX Quadrature detector.
There is no need to trim the TX and the RX front end sections,
The following sections will contain a detailed description of the different circuit blocks pertaining to the
transceiver.
2.2 POWER SUPPLIES AND REGULATORS
A nominal external 12VDC is supplied to the assembly using P101 pin 7 (positive) and pin 10 (negative).
This input is directly fed to U113 (LT1961EMS8-5#PBF) and to U5004 (KA7809). The +5VDC output of U113 is
used to supply the digital section as well as the RX DATA buffer and shaping amplifiers and the modulation
active filter chain, this +5V supply voltage feeds also a 2.7V voltage regulator to supply the ADC reference
voltage for the CPU (U6001 – ADP160AUJZ-2.7).
The +9VDC output is used to feed the RF RX regulator MIC5216-5.0 (U4) which provides +5V to the synthesizer
and RX chain.
The +9V output is also used to supply regulator U52002 (KA7805) which is powering the TX Driver and PA stages.
2PCA-8694-A001 Radio Module
9S21-8694-A001
Laird™ proprietary and confidential Page 9 of 12 9S02-8694-A001
Revision: A, Approved
2.3 Frequency Reference and Phase Locked Loop:
The overall RF system frequency reference is provided by a 14.4 MHz VCTCXO (designator Y4).
The synthesizer uses an external VCO (designator U6) that is tunable from 425 to 475 MHZ.
The nominal RF output level of the VCO is nominally between +2 and +6 dBm into 50 ohms.
The RF output of the VCO is subsequently split using resistive dividers into:
1. RF Sample input for the PLL
2. 1st RX Mixer LO input
3. TX signal input to the TX Amplifier chain.
2.4 Receiver Section:
The RF input to the Receive section is provide using one of the existing ANT1, 2, 3 input, these are selected using
signals provided by the Microcontroller (designator U5).
The received signal is the routed to a UHF SAW filter FL1 that has a width of about 20MHz and is centered in one
of the designated RX bands:
Low Band – 406 to 425 MHz
Mid Band – 425 to 447 MHz
High Band – 447 to 475 MHz
These filters are installed depending on the RX Band variants that are being used.
The Local Oscillator input is supplied by an output of the splitter mentioned above referring to the VCO.
The 21.4MHz mixer signal output is filtered using a crystal Filter (designator Y1), the BW of this filter is selected
depending on the product variant built (either a narrow or a wide band version).
After filtering the 21.4 MHz signal is routed to an FM IC that performs an additional frequency down-conversion
to 455kHz and provides a second mixer and 2nd LO oscillator using and externally supplied crystal (designator
Y2).
The FM IC SA605 (designator U2) additionally provides limiting IF gain and quadrature detection as well as
having outputs for RSSI monitoring besides the demodulated signal.
The second IF Filtering is provided using two 455kHz Ceramic Filters 455FU (455DU) (designators FL3 and FL4).
2PCA-8694-A001 Radio Module
9S21-8694-A001
Laird™ proprietary and confidential Page 10 of 12 9S02-8694-A001
Revision: A, Approved
3 HOST INTERFACE DEFINITION
3.1 PINS ASSIGNMENT
Description
IO
Signal
P101
P102
Signal
IO
Description
Range limit
RNGLMT
1
1
Chassis
Shielding
RS232 Rx Data
I
RXD
2
2
TXD
O
RS232 TX data
RS232 TX data
O
TXD
3
3
RXD
I
RS232 Rx Data
Programe enable
I
PROGn
4
4
RTSD
O
RS232 request to send data
Receiver common ground
GND
5
5
CTSD
I
RS232 clear to send data
NC
6
6
+12V
+12V
7
7
GND
Clock
I
/CLK
8
8
AUX/RDATA
I
Auxillary line
Reset
I
/STB
9
GND
10
Table 3.1 – Host Interface pins assignment
2PCA-8694-A001 Radio Module
9S21-8694-A001
Laird™ proprietary and confidential Page 11 of 12 9S02-8694-A001
Revision: A, Approved
4 TECHNICAL DATA AND SPECIFICATIONS
Charger Model
2PCA-8694-X201
Dimensions (W x L x H)
90 x 120 x 20 mm
Weight
130g
Operating Temperature
-30° C – 80° C
Storage Temperature
-45° C – 85° C
Power Supply Input
12V 0.3A (max)
Specified frequency range
450-470MHz
Channel spacing
12.5KHz
Data rate / Modulation
4.8kbps / GFSK 2.4KHz deviation
RX Sensitivity
-114dBm +/-2dB
RX Saturation
>-10dBm
TX conducted power
480mW
TX harmonic
-50dBc
RoHS
Compliant
2PCA-8694-A001 Radio Module
9S21-8694-A001
Laird™ proprietary and confidential Page 12 of 12 9S02-8694-A001
Revision: A, Approved
LAIRD – WIRELESS AUTOMATION AND CONTROL SOLUTIONS SUPPORT
For Remote & Communication Control Systems Support, Parts & Repair, or Technical Support, visit us online at:
www.lairdtech.com/wacs-support
Due to continuous product improvement, specifications may change without notice.
This product is manufactured at the following locations:
Laird Controls North America Inc. 655 N River Rd NW, Suite A, Warren, OH 44483
