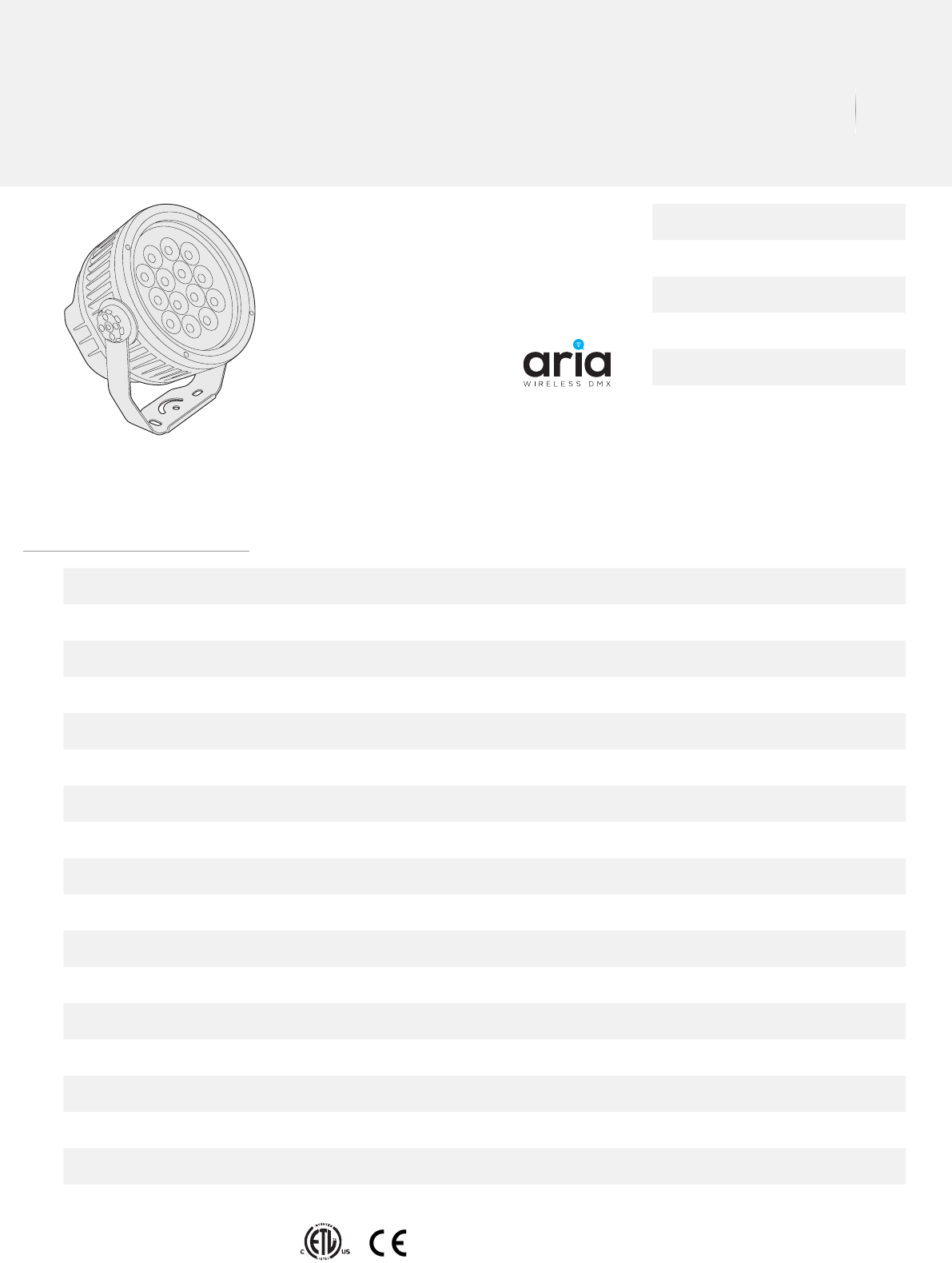

Specications
Color RGBW (W=6000K)
Beam Angle 10º (standard), 20º, 40º, 60º, 10º x 60º spread lens options
Total Lumens 4351 @ 10º
Center Beam Candela 97,231 @ 10º
Control DMX-512, 4 channels, optional manual color setting
Max Fixtures in Series 32, via DMX-512
Effective Projected Area Front: 0.72, Side 0.74 (includes drag coefficient)
Power Consumption 147W at steady state
Operating Voltage 100-277VAC, 50/60Hz
Lumen Maintenance L70 @ 120,000 Hours (25º C)
Finish Gray (Standard), White or Black (Optional)
Housing Material Die Cast Aluminum, Optional Marine Environment Coating Available
Operating Temperature -40º F to 122º F (-40º C to 50º C)
IP Rating IP66, Wet Location
Fixture Connectors Attached 5’ (1.5m) IP 66 AC Power + Signal Cable
Warranty 5 Year Limited Warranty
Weight 26.4 lbs (12 kg)
Dimensions 9.13” ø x W 8.39” x H 14.13” (232mm ø x W 213mm x H 359mm)
Certifications
ACCLAIM
LIGHTING
Specication Sheet 2.1.3
www.acclaimlighting.com
Dyna Drum SO QW™
The Dyna Drum SO QW is a high output, outdoor rated, quad color LED flood fixture. It features an adjustable yoke, on-board
digital display, a 100-277VAC internal power supply, and an internal receiver for the Aria wireless DMX system. It is ideal for facade
lighting applications, and as an area flood light.,
Client:
Project:
Type:
Order Code:
Quantity:
™
3G
LUMINAIRE
VIBRATION

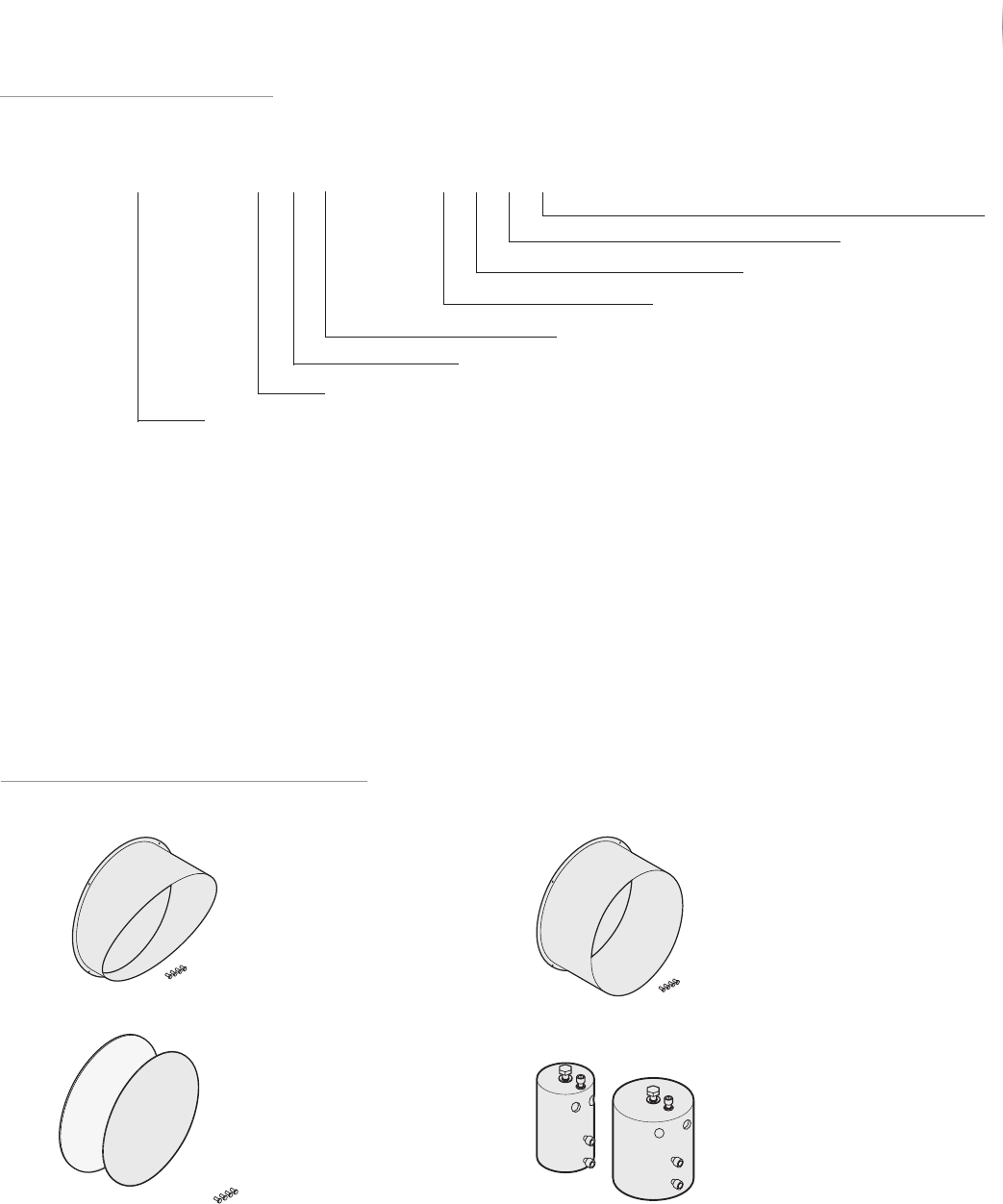

Order Codes
* Indicates Special Order
ACCLAIM
LIGHTING
Dyna Drum SO QW™
Specication Sheet 2.1.3
www.acclaimlighting.com
DDF - 2 # 1 - A C H N
Input Voltage:
N = Normal (100-277VAC)
Color:
H = QW (RGBW
W=6000K)
Size:
A = Standard
Beam:
C = 10°
Lens Cover:
1 = Clear
Housing Color:
1 = Black*
2 = White*
4 = Gray
7 = Custom*
Control:
2 = DMX
Version:
F = SO QW
Related Components
Half Snoot
Includes four M4 mounting screws
Spread Lens Kits
Includes four M4 mounting screws
Full Snoot
Includes four M4 mounting screws
Gray: DDSOHSG
Black: DDSOHSB
White: DDSOHSW
Gray: DDSOFSG
Black: DDSOFSB
White: DDSOFSW
20º Beam: DDSSL20
40º Beam: DDSSL40
60º Beam: DDSSL60
10º x 60º Beam: DDSSL1060
Tenon Mount
For 2” pipe: TM2
For 4” pipe: TM4
ACCLAIM
LIGHTING
Dyna Drum SO QW™

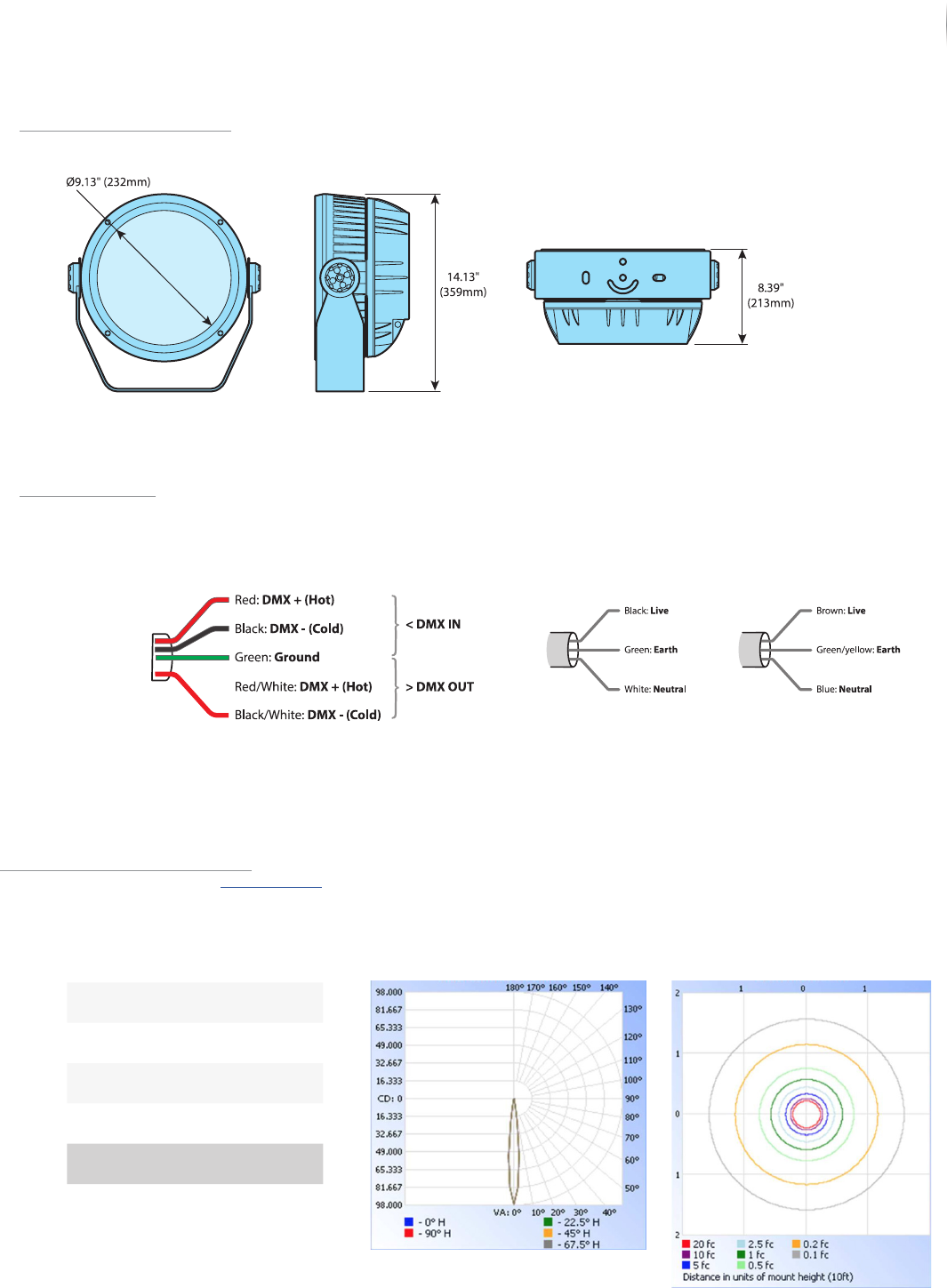

Dimensions
Specication Sheet 2.1.3
www.acclaimlighting.com
Power cord colors
US version
Power cord colors
European version
Wiring
Photometrics
For IES & Revit files, please visit acclaimlighting.com
Zonal Lumen Summary Polar Candela Distribution Isofootcandle Plot
Zone Lumens %
0-60 4186 96.2
60-90 155.4 3.6
90-180 8.7 0.2
Total 4351 100
QW, 10º
ACCLAIM
LIGHTING

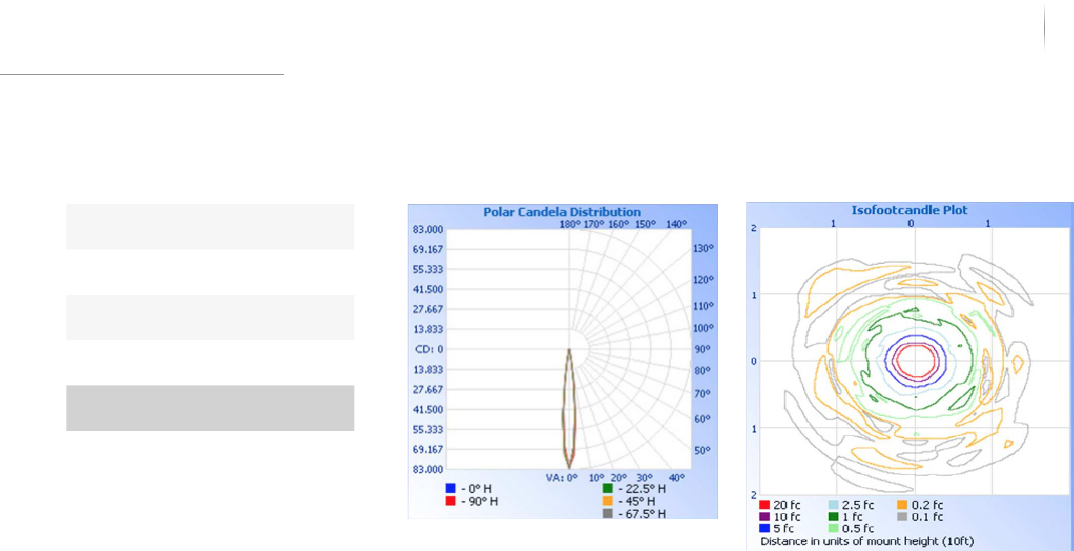

Photometrics (Con‘t)
Zonal Lumen Summary Polar Candela Distribution Isofootcandle Plot
Specication Sheet 2.1.3
www.acclaimlighting.com
Dyna Drum SO™
Zone Lumens %
0-60 4036 97.0
60-90 120.3 2.9
90-180 4.6 0.1
Total 4161.3 100
RGBW, 6º
