FEATURES

IP65 Rated Hybrid Spot, Beam, Wash 3-in-1 Luminaire

470W 8,000K Lamp and Advanced Optics

Spot, Beam and Wash Modes

Motorized Zoom from 2° Beam to 38° Spot or 40° Wash

Advanced Internal Thermal Cooling System

Full CMY Color Mixing and Linear CTO Color Correction

14 Dichroic Colors including CTB, CTO, and UV

8 Rotating Interchangeable and 14 Static-Stamped Gobos

Full 360° Bi-Directional Animation Wheel

8 Facet and Linear Rotating Prisms and Wash Frost Effects

Motorized Focus and Auto-Focus

High Speed Mechanical Shutter and Strobe

DMX, RDM, Art-NET, and sACN Support

Elation’s E-FLY™Internal Wireless DMX Transceiver

Specifications are subject to change without notice ©Elation Professional 11/08/17

Elation Professional USA | 6122 S. Eastern Ave. | Los Angeles, CA. 90040

323-582-3322 | 323-832-9142 fax | www.elationlighting.com | info@elationlighting.com

Elation Professional B.V. | Junostraat 2 | 6468 EW Kerkrade, The Netherlands

+31 45 546 85 66 | +31 45 546 85 96 fax | www.elationlighting.eu | info@elationlighting.eu

ELATION I PROTEUS HYBRID™ I Product Specification Sheet

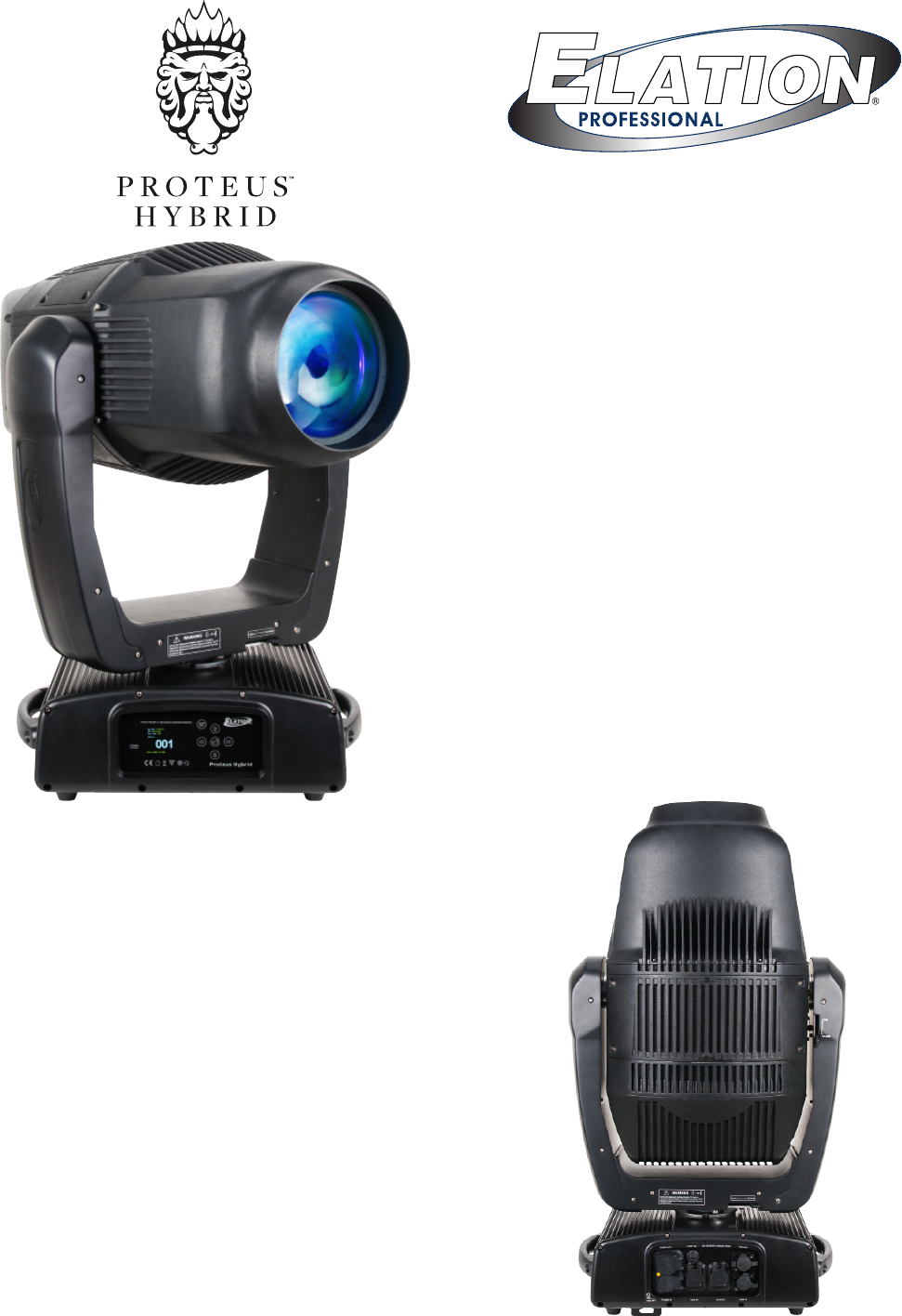

The PROTEUS HYBRID™ an IP65 rated 3-in-1 hybrid moving

head luminaire, which can be used as a spot, beam,

or wash fixture. Features include an advanced optical

system with motorized zoom from 2° in beam mode to

38° in spot mode or 40° in wash mode, a advanced

internal thermal cooling system, full CMY and linear CTO

color mixing, 14 dichroic colors including CTB, CTO, and

UV, 8 rotating interchangeable and 14 static-stamped

metal gobos, full 360° bi-directional animation wheel,

rotating prisms and frost filter, motorized focus and auto-

focus, high speed mechanical shutter and strobe, DMX,

RDM (Remote Device Management), Art-NET, and sACN

protocol support, Elation’s E-FLY™ internal wireless DMX

transceiver, IP rated 5pin XLR and RJ45 etherCON in/

out connections, powerCON TRUE1 power in, full color

180° reversible menu display with 6 button touch control

panel, battery backup for display power, and a multi-

voltage universal auto switching power supply (100-240v).

SOURCE

Phlips MSD Platinum 21R 470W 8,000K Lamp

1,000 Hour Average Lamp Life*

*Lamp Life may vary depending on several factors including but not limited to: Environmental

Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

PHOTOMETRIC DATA

80CRI | >23,000 Lumens

13,375 LUX 1,243 FC @49.2’ (15m) (3.0° Spot)

233,000 LUX 21,646 FC @49.2’ (15m) (2.0° Beam)

11,500 LUX 1,068 FC @16.4’ (15m) (4.0° Wash)

EFFECTS

Full 360° Bi-Directional Animation Wheel

8 Facet and Linear Rotating Prisms and Prism Macros

Frost Filter Hybrid Wash Effect

Motorized Focus and Auto-Focus

High Speed Mechanical Shutter and Strobe

COLOR

14 Dichroic Colors including CTB, CTO, and UV

Full CMY Color Mixing and Linear CTO Color Correction

GOBOS

(8) Interchangeable Rotating / Indexing Glass Gobos

(14) Static-Stamped Metal Gobos

CONTROL / CONNECTIONS

(3) DMX Channel Modes (37 total channels)

6 Button Touch Control Panel

Full Color 180° Reversible LCD Menu Display

8 / 16 Bit Resolution Adjustable Movement

DMX, RDM, Art-NET and sACN Protocol Support

Elation E-FLY™ Internal Wireless DMX Transceiver

IP65 5pin DMX, RJ45 Ethernet In/Out (Art-NET, sACN)

IP65 powerCON TRUE1Power In

SIZE / WEIGHT

Length: 18.2” (462mm)

Width: 22.5” (572mm)

Vertical Height: 31.5” (800mm)

Weight: 84.0 lbs. (38.0 kg)

ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz

700W Max Power Consumption

14°F to 113°F (-10°C to 45°C)

APPROVALS / RATINGS

specifications I ELATION PROTEUS HYBRID™ I www.elationlighting.com

Specifications are subject to change without notice ©Elation Professional 1107/17

Elation Professional USA | 6122 S. Eastern Ave. | Los Angeles, CA. 90040

323-582-3322 | 323-832-9142 fax | www.elationlighting.com | info@elationlighting.com

Elation Professional B.V. | Junostraat 2 | 6468 EW Kerkrade, The Netherlands

+31 45 546 85 66 | +31 45 546 85 96 fax | www.elationlighting.eu | info@elationlighting.eu

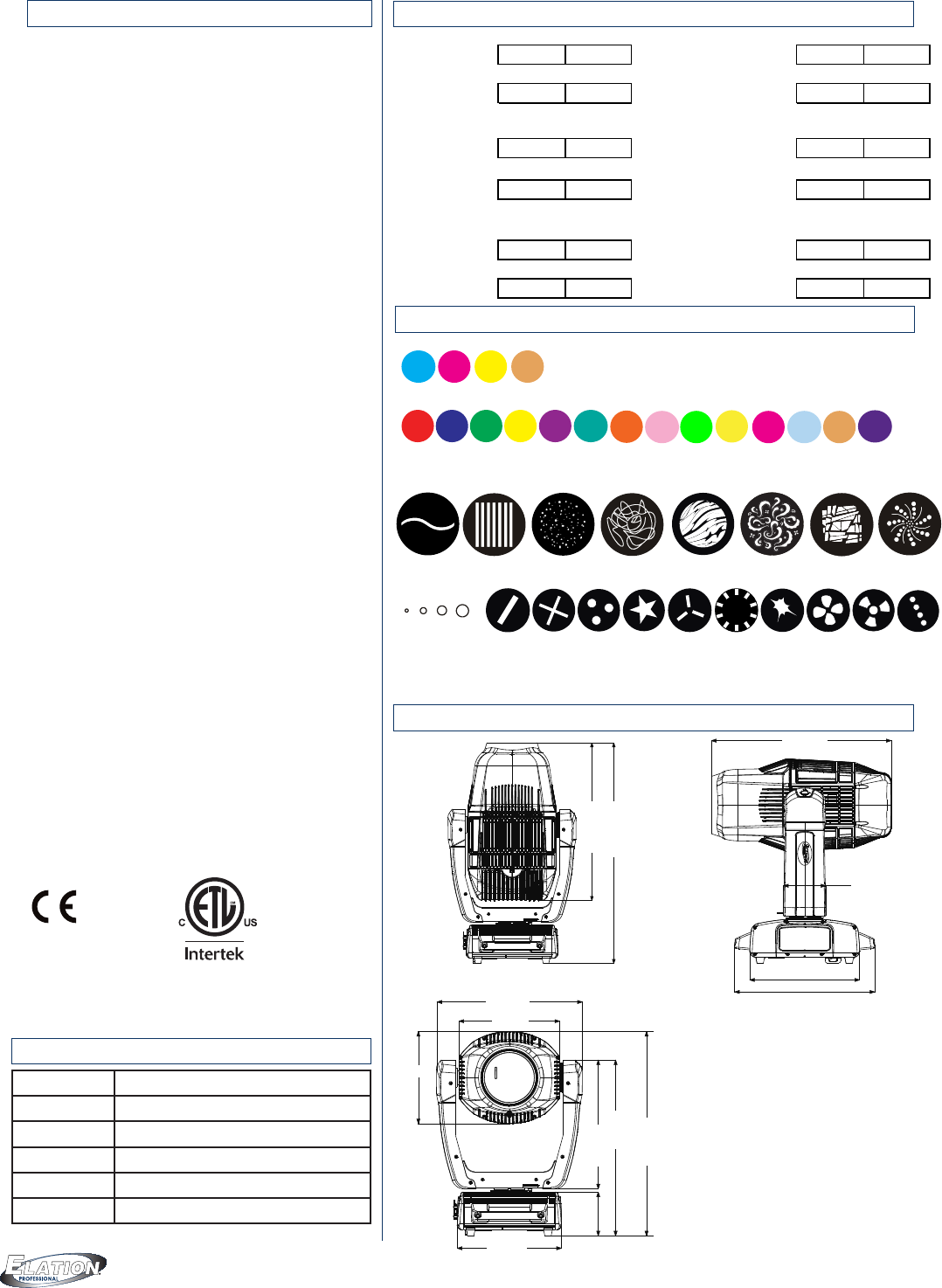

DIMENSIONAL DIAGRAMS

PRODUCT SPECIFICATIONS PHOTOMETRIC DATA

ORDERING INFORMATION

462 mm

320 mm

293 mm

331 mm

6 4 9 . 7 mm

5 6 0 m m

4 1 0 m m

1 3 9 m m

571.5 mm

134 mm

445 mm

349.5 mm

5 7 1 . 5 mm

7 9 9 . 7 mm

PRB021 PROTEUS HYBRID™

DRCPROHYBRID1 Single Road Case For PROTEUS HYBRID

DRCPROHYBX2W Dual Road Case For PROTEUS HYBRID

TRIGGER CLAMP Heavy Duty Wrap Around Hook Style Clamp

EFL001 E-FLY™ Wireless DMX Transceiver

SCABLE60 24” (610mm) 60 lbs. (27 kg) Rated Safety Cable

COLORS AND GOBOS

IP65

SPOT MODE

15 m 49.2 ft

SPOT MODE

15 m 16.4 ft

3.0° Min

0.73 2.4

29.0° Max

7.65 25.1

lux fc lux fc

FULL ON 61,670 5,729 FULL ON 679 63

BEAM MODE

15 m 49.2 ft

BEAM MODE

15 m 16.4 ft

2.0° Min

0.56 1.8

22.0° Max

2.76 9.1

lux fc lux fc

FULL ON 233,000 21,646 FULL ON 2,712 252

WASH MODE

15 m 49.2 ft

WASH MODE

15 m 49.2 ft

4.0° Min

1.05 3.4

32.0° Max

8.37 27.5

lux fc lux fc

FULL ON 33,340 3,097 FULL ON 626 58

1 2 3 4 5 6 7 8

INTERCHANGEABLE-ROTATING GOBO WHEEL 1

STATIC-FIXED GOBO WHEEL 2

COLOR WHEEL

RED

1

1 2 3 4 5 6 7 8 9 1 0 11 12 13 14

COLOR FLAGS

CYAN MAGENTA YELLOW

BLUE

2

GREEN

3

YELLOW

4

PURPLE

5

AGUA

6

ORANGE

7

LT PINK

8

LIME

9

LT YELLOW

10

MAGENTA

11

CTO

12

CTB

13

CTO

UV

14

4010832

**IMPORTANT NOTICE REGARDING GOBO DIMENSIONS AND CUSTOM GOBOS**

Due to the extreme high temp optical system, special material and design requirements are required.

Please contact ELATION Customer Support for specic details.
