Celadon, Inc. Tessonics RF Remote Users Manual
Celadon >
Users Manual
RSWA
Remote
Control
User’s Manual
Remote Control – Part No: R03-R1
Receiver – Part No: R03-R2
Tessonics Inc.
1983 Ambassador Dr.,
Windsor, Ontario
N9C 3R5, Canada
www.tessonics.com
Setting Up the Remote

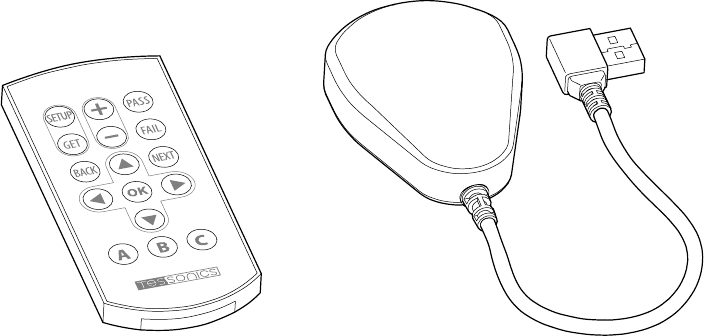

e package contains the remote and the receiver module.
When the remote is shipped, the battery is insulated by a protective lm. Pull
the lm out to make the remote operational.
To start using the remote, power on the RSWA unit and wait until it boots up.
Plug the USB receiver into the USB port on the right hand side of the RSWA
unit. When you plug the receiver in for the rst time, please allow 5–10
seconds for hardware initialization, then proceed to the pairing procedure.
Pairing the Remote
e pairing procedure will set up the receiver to be controlled by a specic re-
mote. In the environment with multiple RSWA units and remotes, this allows
to choose specicaly which remote controls which RSWA.
To pair the remote control with the receiver:
• Make sure the receiver is plugged into the RSWA and that RSWA is run-
ning;
• Bring the remote within a few inches from the receiver, push and hold
any button on the remote for 5 seconds. e LED on the remote will ash
rapidly during the pairing procedure;
• Release the button and test the remote with RSWA applications.
If you need to pair a remote to a dierent RSWA, remove the battery from
the remote for about 1 minute. is will reset it to the original unpaired state.
en put the battery back and repeat the pairing procedure with the dierent
receiver.
Button Assignments
Button Description
Setup Perform Setup procedure
Get Get RSWA measurement
+/- Increase/decrease the diameter of the circle
Pass/Fail Make a decision on weld quality
Next Move to next weld or unit
Back Exit from menu or dialog
Ok Conrm selection in menus and dialogs
/Up and down cursor keys; in Array
Explorer’s main window: Navigate up and
down in the weld list view
/Le and right cursor keys; in Array
Explorer’s main window: Navigate le and
right in recent measurements
A Opens drop down menu in A-scan view
(may be changed in future soware
releases)
B Toggles between front and back cells in
weld list view (may be changed in future
soware releases)
C Toggles between automatic and manual
circle measurements (may be changed in
future soware releases)
Replacing the Battery
is remote needs a battery to operate. Replace the battery when needed with
CR2025 battery.
To replace the battery:
• Pull the battery compartment out and remove
the old battery
• Insert the replacement
battery with the positive
side facing up
• Close the battery compartment
• If necessary, perporm
the pairing procedure
SETUP +
–
GET FAIL
PASS
OK
ABC
BACK NEXT
Regulatory Compliance Statements
FCC Information
is device complies with Part 15 of the FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) is device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
CAUTION: Changes or modications not expressly approved by Tessonics Inc.
could void the user’s authority to operate this device.
NOTE: is equipment has been tested and found to comply with the limits for
a Class A digital device, pursuant to Part 15 of the FCC Rules. ese limits are
designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. is equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in ac-
cordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be required to correct the
interference at his own expense.
Industry Canada Information
is Class A digital apparatus complies with Canadian ICES-003
Cet appareil numérique de la classe A est conforme à la norme NMB-003 du
Canada
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interfer-
ence that may cause undesired operation of the device.
e Term “IC:” before the certication/registration number only signies that the
Industry Canada technical specications were met.
European Community Compliance Information
Warning: is is a Class A product. In a domestic environment this product may
cause radio interference in which case the user may be required to take adequate
measures.
