User’s Manual
For
2.4 GHz Wireless Mouse
OPM- 6324
Introduction
Thank you for purchasing this 2.4 GHz wireless optical mouse. You are about
to experience the superior speed and the excellent performance it brings to
you. This RF Wireless optical mouse is designed compact and portable with
the goal of eliminating bothersome cables and maximize your working space
anytime anywhere. It cordlessly works up to 10 meters from your PC or laptops.
The 2.4GHz frequency, 82 channels and 65,000 sets IDs will prevent your
mouse being interfered by other RF products. Advance features such as a
3-mode power saving technology triple extends your battery life. Furthermore,
the synchronized 2408 ID auto-detects between mouse and receiver efficiently
to avoid interference.
Please go over this entire manual for the safety concern and make the most
use of its advanced features.
Battery placement
1. Gently press the button and lift up the cap from its side indicated in the
following diagram.
2. Place batteries in their proper polarities.
3. To save battery power, turn off the mouse while traveling or when you’re not
using it. To turn off the mouse, slide the on/off switch at the bottom of the
mouse.
! Caution
l Follow the battery polarity markers to ensure the proper polarity.
l Insure of the battery type. (AAA, Alkaline 1.5 V)
l Always take out batteries if you know you won’t use the mouse for a while.
Press to open
Power on/off
Lift to open

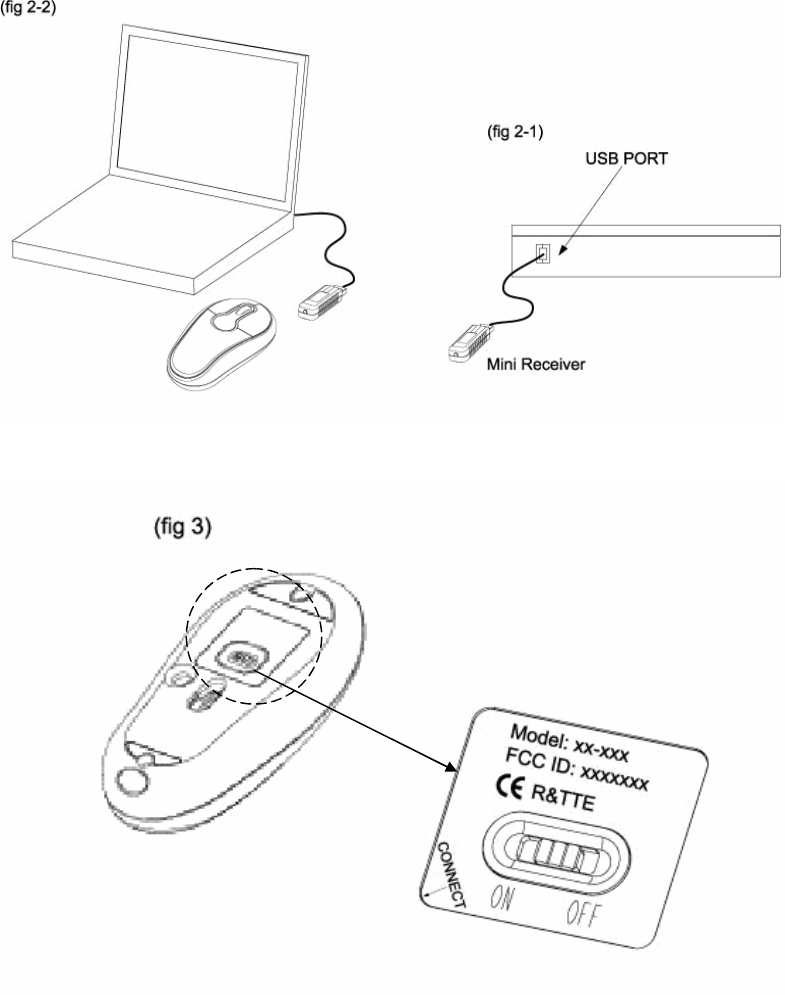

Hardware Installation
1. Connect the mini receiver to any available USB port. (Fig. 2-1) Refer to the
following diagram for instruction.
2. Switch on the mouse. (Fig. 3)
Driver Installation
Note: Your mouse is able to function properly without installing the software.
Install this driver CDROM only if necessary.
Note: Go to “Control Panel<Add/Remove Program” to remove your previous
mouse drivers before starting using the mouse.
The following is instructions of driver installation:
1. Insert the driver CD into your CD Rom Drive. The installation should start
automatically.
2. If auto-run failed, click the Start Manu and select “Run”. Type in
“<your CD Rom drive>:/setup.exe”. (Go to “My Computer” and find the
letter of your CD Rom Drive)
3. Select the language you want for this installation.
4. You may be required inserting the Windows 98 CD during the installation.
5. Follow the on-screen instruction to complete the installation.
6. When the installation completes, you should be able to see an icon on the
right hand side of the task bar.
Pairing
1. Press the receiver “connect” button shown below. And Its LED will light up.
(Fig. 5)
2. Press the mouse “connect” button.
(Fig. 5)
3. The LED of the receiver is off when the mouse is functional. If not, re-do
pairing (step 1 and 2).
4. Re-do pairing whenever you change batteries, remove the battery cap or
change another receiver.
Receiver connect button. Press it firstly.
Receiver connect button. Press it firstly.
Customize your mouse settings
Click “Mouse” in your control panel, or click the mouse icon on the task bar to
program your mouse buttons.
Setup for multiple users
If you have two or more RF mice, you may setup the second user 30 seconds
after setting up the first user to avoid interference.
Environment
The following conditions may shorten the effective distance or drop the
performance:
1. To avoid using RF mouse on a metal, reflecting or half tone painted surface.
For instance: mirror, glass, or 3D mouse pad… etc.
2. To avoid obstacles between the mouse and the receiver.
3. To keep at least 1.5 meters from other RF devices to avoid frequency
interference.
Troubleshooting
If the mouse doesn’t function properly, try to do the following:
l Check if the distance is within the working range of 1.2 meters.
l Make sure the mouse is switched on.
l Check your mouse pad. Problems will occur if you use Cellink
wireless optical mouse on a metal, reflecting or half-tone-painted
surface.
l Re-pair the mouse to properly set up its ID.
Others
l System requirement: Windows 98SE, 2000, ME, XP.
l Window 98 CD disk may be required during the installation of the driver.
FCC Safety Statements
This device complies with Part 15 of the FCC rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause
undesired operation.
The radiated output power is far below the FCC Radio frequency exposure limits. Nevertheless,
this device should be used in such a manner that the potential for human contact during
normal operation is minimized.
Warning: Changes or modifications made to this equipment not expressly approved
by the manufacturer. May void the FCC authorization to operate this equipment.
Important. Please note the following:
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
CE Statements
This device has bee tested and found to comply with the requirements set up
in the council directive on the approximation of the law of member states
relating to EMC Directive 89/336/EEC, Low Voltage Directive 73/23/EEC and
R&TTE Directive 99/5/EC.
Copyright and Trademark Notices
Products and brand names may be the trademarks or registered trademarks of their respective
owners.
Market / Country
Worldwide
Product Specification:
Product OPM-6324
Operation Frequency 2402-2483MHz RF wireless
Sensor Optical
Resolution 800 dpi
Buttons 2 buttons with scrolling wheel
Numbers of ID 65,000 user’s ID
Channels 82 Channels
Mechanical Life 100 miles
Switch Life 1,000,000
Power Consumption Working mode < 21mA, Standby mode < 200uA
RF Output Power < 1 mW
Power Supply 2 * AAA Alkaline batteries
Transmission Range 10 Meters+
Weight 46.2 g
Dimension 86.00*47.9*26.9 mm
Interface USB 1.1 compliant
