User Manual
For
Mini Bluetooth Headset
BTHS-6023/BTHS-6023-F ~
BTHS-6135/BTHS-6135-F
Table of Contents
Introduction
- Introduction to Bluetooth Technology
- Mini Bluetooth Headset
- Box Contents and Picture
Getting Started
- Charging Battery
- Check the Headset Buttons
- Turning the Headset On or Off
- Pairing the Headset
- Making Calls.
- Answering and Ending calls
- Transfer
- Voice Dial
- Connect with a PC or a PDA
Important Information
- Service Information
- Trouble Shooting
- Product Care
- Children
- Travel Charger
- Battery Information
- About Pairing
- Bluetooth passkey
Introduction
Introduction to Bluetooth Technology
Bluetooth is a short-range wireless communication technology. It
allows wireless connections between Bluetooth devices such as
cellular phones, personal digital assistants (PDA), desktop, laptops,
input – output devices (mouse, keyboard, and printers), and home
appliance. Bluetooth refers to a worldwide standard designed to
operate in the internationally recognized ISM (Industrial Scientific and
Medical) frequency band. Within the ISM band (2.4GHz - 2.48GHz),
Bluetooth transmissions hop between 79 separated frequencies 1,600
times every second, and with a communication range of about 10
meters (Class II).
Mini Bluetooth Headset
Product Specification:
Bluetooth Specification: Bluetooth Version 1.2 compliant. (Class II)
Standby Time: 150 hours
Working Time: 11 hours
Power Consumption: <20mA (Talking); <1mA (Standby)
Weight: 13 grams (Battery included)
Certificates: CE, FCC, BQB
*Above mentioned Talking Time and Standby Time will be different
owing to mobile phones’ setting and using environment. The figures
above show the average values of certain mobile phones tested by
manufacturer.
Box Content and Picture
- Mini Bluetooth Headset
- Travel Charger 100~240V
- Necklace and Hook
- Carry Bag
- Earplug sponges
- Quick Guide and User Manual
Getting Started
Charging Battery
The Headset comes with an embedded rechargeable battery. For the
first time usage, it takes about 4 hours to fully charge the battery.
Afterward, it takes about 2 hours to fully charge. After fully charged,
the talking time can be up to 11 hours, and the standby time can be
up to 150 hours.

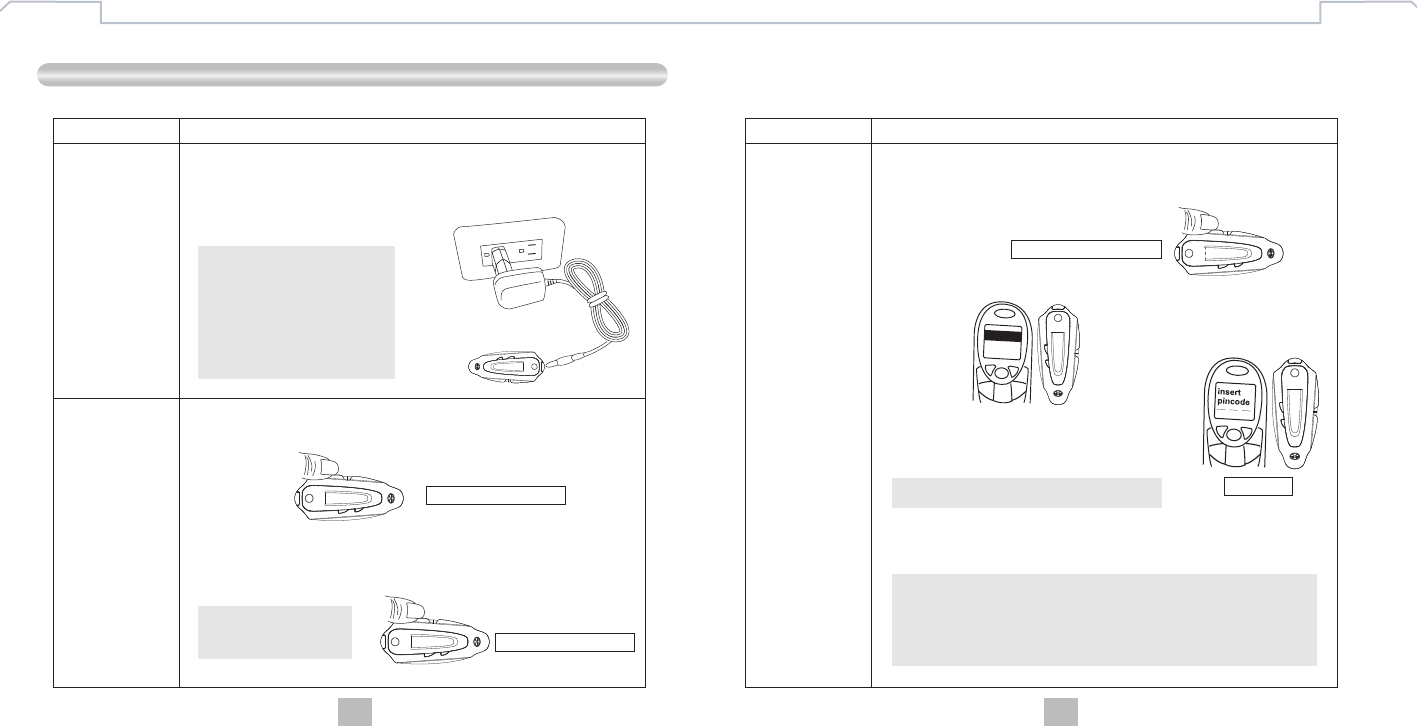

1. Connect the Travel Charger with the AC power.

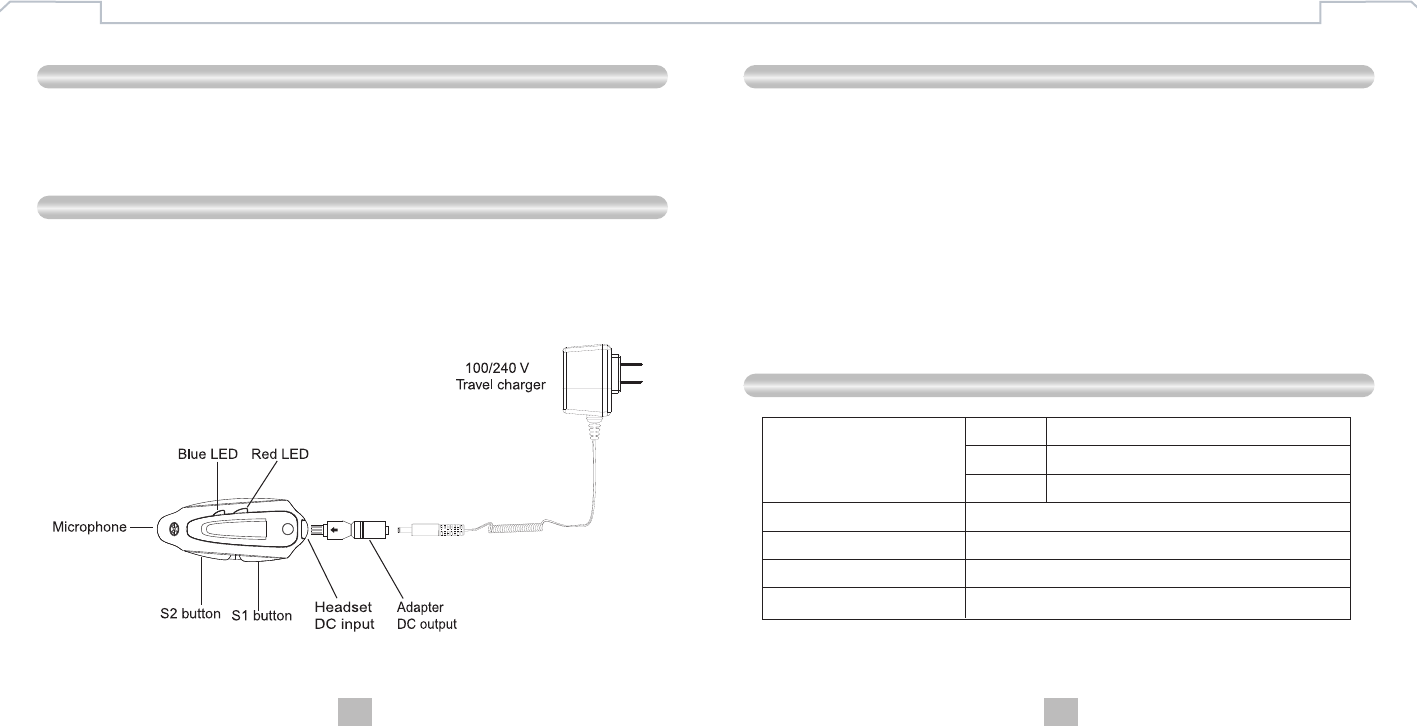

2. Connect the Travel Charger, DC Connector, and Headset as picture
shown above. Red indicator of Headset will light up.
3. When the battery is fully charged, the red indicator of Headset will
be off.

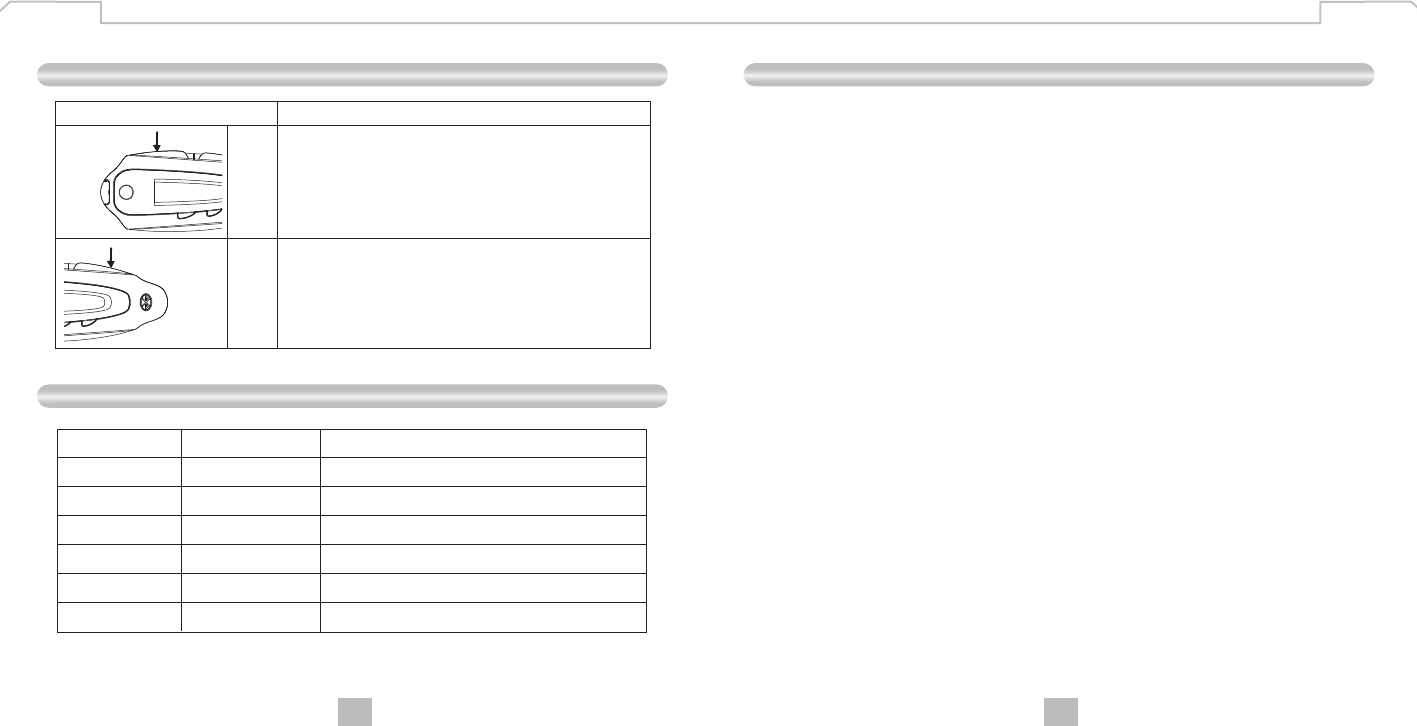

Turning the Headset On or Off.
1. To turn on the Headset, press and hold S1 button for 3 seconds.
You will hear a low tone of “Do” and the blue indicator of Headset
flashes.
2. To turn off the Headset, press and hold S1 button for 3 seconds.
You will hear a low tone of “Do” and the red indicator flashes
quickly. Then, the Headset is powered off.
Note: The Headset will be shut down while charging battery. Please
turn it on after pairing.

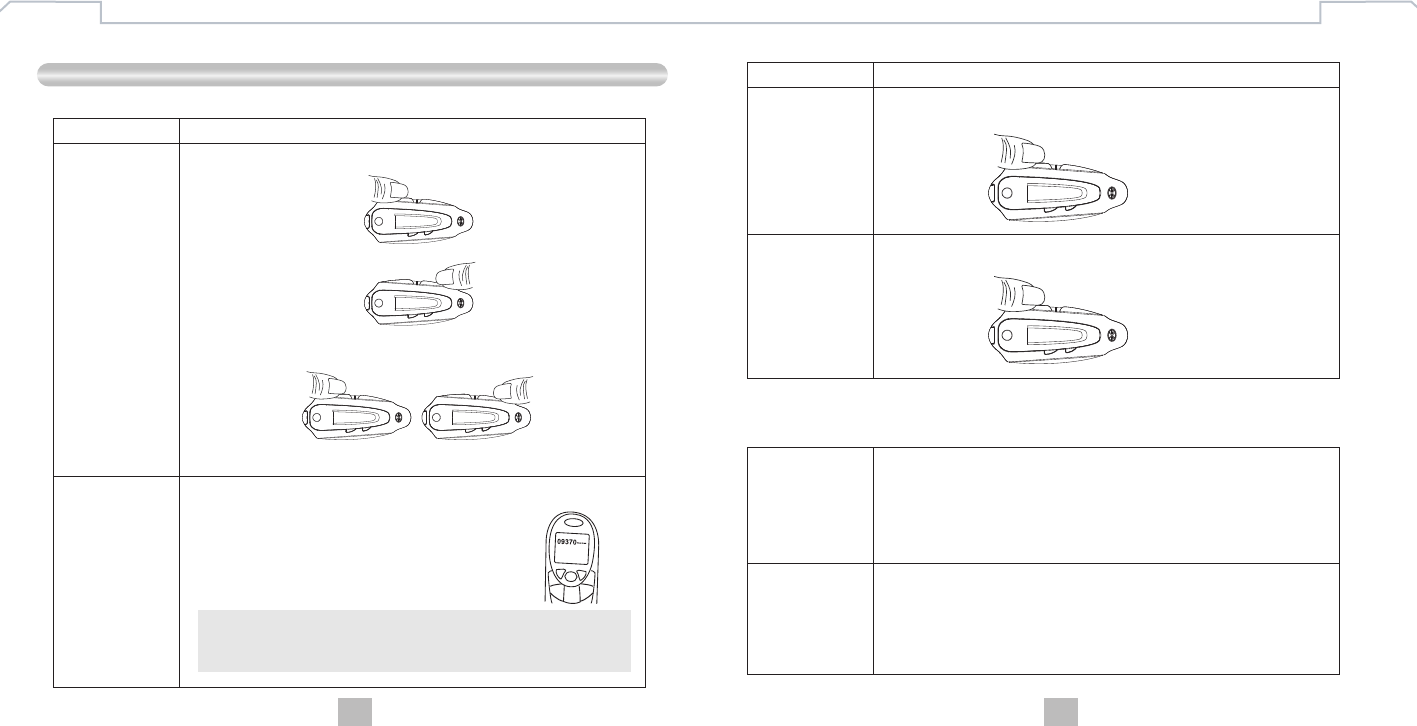

Pairing the Headset
You are required to pair the Headset with your mobile phone or other
devices before using it.
Step 1: The Headset must be powered off before initiating pairing. To
initiate pairing, press and hold S1 button for 5 seconds until the blue
and red indicators of Headset are flashing alternatively. If you are
wearing the Headset during the pairing process, you will hear two
short high tones of “Do-Do” when the Headset is ready for pairing.
Step 2: Initial pairing process of your mobile phone.
Step 3: You will be asked to enter pin-code to complete pairing, enter
1234 and confirm it. (Note: The 1234 is default pin-code pre-stored in
Headset.) The red indicator of Headset will turn off and the blue
indicator will flash slowly after pairing completed successfully.
Step 4: After pairing, the blue indicator of Headset will quickly shining
3 times every second. If with reference design in your mobile phone,
you can find a symbol of headset/handsfree function.
Note:
1. If the Headset is not in pairing mode, your mobile phone won’t find
the Headset. Please set the Headset in pairing mode before letting
your mobile phone search for the headset.
2. If no pairing is possible in a period of time, around approximate
three minutes, the Headset will automatically power on and so the
previous pairing (if any) is revoked. You may need to repeat steps
1 to 3 until pairing succeeds.
Making Calls
You are able to use the Headset to make calls when it is paired
successfully with your mobile phone. When your mobile phone has
paired with Headset or other devices, you can hear a ring tone while
calling. You can press and hold S2 for 3 seconds or press end button of
your mobile phone to end the call.
1. Using phone keys – Dial the number on the mobile phone as you
usually do. Once the call has been set up, the voice will be
transmitted to Headset automatically.
2. Redial – Press and hold S2 button for 3 seconds to redial the last
number you called.
Answering and Ending Calls
1. When the Headset is powered on and the mobile phone rings, you
will hear a build-in musical tone and certain phones will still have a
ring tone. Press S1 button to answer the call.
2. Press and hold S2 button for 3 seconds to reject the call. The
opposite side will hear the message of voice box and the headset’s
musical tone will have rung for extra two seconds.
3. If the Headset is powered off, press and hold S1 button for 3
seconds to turn it on and answer the call.
4. Adjust Headset Volume by pressing S1 button for volume up and
pressing S2 button for volume down.
5. End calls by pressing and holding S2 button for 3 seconds.
Transfer
Press and hold S1 button for 3 seconds to transfer the call to mobile
phone while talking on the Headset. If you want to transfer the call
back to Headset, press S1 button again.
Voice Dialing
If your mobile phone supports Voice Dialing Function, you can start or
record the voice commands and press S1 for 1 second to start the
voice control through the Headset.
Connect with a PC or PDA
You are allowed to connect the Headset with a Bluetooth enabled PC
or PDA that is with Audio Gateway Profiles supported. Please refer to
the user manual of your Bluetooth enabled PC or PDA for setup
information.
Important Information
Trouble Shooting
1. The Headset cannot be activated after being charged for 20
minutes.
To activate the Headset, it needs to change the battery at least for
40 minutes. However, it is highly recommended to fully charge the
battery before use.
2. No sound contact between Headset and other devices.
- Make sure that the two devices have been paired.
- Make sure that the headset is turned on.
- Make sure that the two devices are within a working range.
- Make sure that your mobile phone is within signal strength.
- Some Bluetooth mobile phones can support only one Bluetooth
Headset. Disconnection may happen when there is more than one
headset paired with your mobile phone.
3. Why doesn’t the Headset work with my mobile phone after the
Headset has been fully charged and switched on?
You have to activate the Bluetooth function of your mobile phone
first and pair it with the Headset, and set it as headset/ handsfree
of your mobile phone.
4. Does the Headset work with all types of mobile phone?
No. It works only with Bluetooth enabled mobile phones.
5. What is the operation distance between the Headset and a
Bluetooth mobile phone?
The Headset has been tested and approved by BQB. It is fully
complaint to Bluetooth Version 1.2, Class II, Headset / Handsfree
profile. The maximum operation distance can be up to 10 meters,
however it will be affected and shortened by different
circumstances and designs of different brands of mobile phones.
Some mobile phones are with less operative distance. Basically,
the operative range can be longer in spaces without obstacles.
6. When my mobile phone was searching for the Headset, why did
several Bluetooth devices appear on my mobile phone?
Most Bluetooth enabled mobile phones with Bluetooth function
activated can search for more than one Bluetooth device within
operating range.
7. Why can’t my mobile phone find the Headset?
If the Headset is not in pairing mode, your mobile phone won’t find
the Headset. Please set the Headset into pairing mode before
starting your mobile phone to search for the Headset. (Please refer
to the User Manual for detailed instructions.)
8. Do I need to pair the Headset with my mobile phone every time I
use it?
No. Once the pairing is set up between the two devices, they will
remain paired even when one or both devices are powered off.
9. Why is there a disturbance noise coming from the Headset?
The performance of the Headset will be affected by two factors
1) whether your mobile phone is in a good signal area. If your
mobile phone is in weak signal area, you won’t hear clearly
with the Headset.
2) Whether it is in the operative range.
10. What should I do when I can’t hear very well with the Headset?
Adjust the sound volume on your mobile phone, or press the S1
button of the Headset to increase volume, or check if your mobile
phone is a good signal area.
11. Why doesn’t the Headset work suddenly?
1) The Headset may have run out of battery.
2) Some Bluetooth mobile phones, which have a problem with the
Bluetooth implementation, will occasionally but not often, get
into an Bluetooth shut-down status in unpredictable
circumstances. When this happens, please reset your mobile
phone by moving the battery. (It is not necessary to do the
pairing again.) Make sure that your phone has the latest
version of firmware loaded onto it. Please check the website of
your mobile phone for new firmware.
12. Why doesn’t the voice dialing function work with the Headset?
You may have to record your voice with the Headset to your mobile
phone.
Product Care
- Use of non-original accessories may result in performance
deterioration, injury, products’ damage, electronic shock, and
warranty termination.
- Attempt to disassemble your Headset may damage it, and the
warranty will be void.
- Do not put the Headset in a dusty place.
- Use only a clean soft cloth to clean your Headset.
- When the Headset is not in use, always keep it in its case.
- Do not allow children to play with your Headset, as they may
injury themselves and damage the Headset as well.
- Do not place the Headset in an extremely hot or cold temperature,
if the Headset will not be used for a while.
Children
Do not allow children to play with your Headset, as the small parts
may cause a chocking hazard.
Travel Charger
- The charger is designed for indoor use only. Do not use it for
outdoors.
- The charger must be connected to the designed power sources as
marked.
- When removing the charger form an outlet, never pull the charger
cord, as it may damage the charger.
Battery Information
New Battery
For the first time usage, plug the adapter into the Headset and charge
it at least 4 hours until the red indicator turns off.
Battery Care
- Only qualified Service Centers are authorized to remove or
replace the battery.
- The rechargeable battery has a long service life if treated with
care.
- The battery can only be charged in a temperature range of -10℃
to 45℃.
- Use the battery in room temperature for maximum battery
capacity.
- The battery capacity may be reduced if operating in a cold
environment.
- The Headset has to be recharged every two months, when it is not
in use during a long time.
About Pairing
What is pairing?
Pairing is a process of associating Bluetooth devices with each other.
It will establish a permanent security link between the devices and
enable quick access to the services provided without the need to enter
passkeys.
Bluetooth Passkey
Each Headset has a default passkey 1234 for pairing, which is stored
in its internal memory. You are usually required to enter the passkey
1234 in a pairing process with a Bluetooth mobile or other devices,
however it depends on the kind of Bluetooth device that the headset is
connected to. Please refer to the user manual of the devices for the
specific operation.
Battery
CAUTION
RISK OF EXPLOSION IF BATTERY IS REPLACED
BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING
TO THE INSTRUCTIONS
CE Statements
This device has been tested and found to comply with the requirements set up in the
council directive on the approximation of the law of member states relating to EMC
Directive 89/336/EEC, Low Voltage Directive 73/23/EEC and R&TTE Directive
99/5/EC.
FCC Safety Statements
This device complies with Part 15 of the FCC rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that
may cause undesired operation.
The radiated output power is far below the FCC Radio frequency exposure limits.
Nevertheless, this device should be used in such a manner that the potential for
human contact during normal operation is minimized.
Warning: Changes or modifications made to this equipment not
expressly approved by the manufacturer. May void the FCC
authorization to operate this equipment.
Important! Please note the following:
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Copyright and Trademark Notices.
Products and brand names may be the trademarks or registered
trademarks of their respective owners.
