Cellink 4710874204751 Bluetooth USB Adapter User Manual BTA 6030R 6000R

Cellink Co., Ltd. Bluetooth USB Adapter BTA 6030R 6000R

Users Manual

1
Cellink
Bluetooth USB Adapter
BTA-6030R / BTA-6000R
User’s Manual
2
Introduction
Introduction to Bluetooth Wireless Technology
Bluetooth is a short- range wireless communication technology. It allows wireless connections
between Bluetooth devices such as cellular phones, personal digital assistants (PDA),
desktop and notebooks computers, input-output devices (mouse, keyboards, and printers),
and home appliances. Bluetooth refers to a worldwide standard designed to operate in the
internationally recognized ISM (Industrial Scientific and Medical) frequency band. Within the
ISM band (2.4 GHz – 2.48 GHz) Bluetooth transmissions hop between 79 separate
frequencies 1,600 times every second, and with a communication range of about 10 meters
(33 feet) for class II or 100 meters (330 feet) for class I.
Introduction to Bluetooth USB Adapter
Bluetooth USB Adapter is a Bluetooth enabler, that enables your desktop or notebook
computer to connect wirelessly to any other Bluetooth enabled computers and devices. It
allows a working range of up to 10 (class 2)/100 (class 1) meters (33/330 feet) with a 723
Kbps data rate transmission, and complies with Bluetooth 1.2 and USB 1.1 (support the two
lower data-transfer rates of either 1.5 Mb/s or 12 Mb/s)/2.0(support all three data rates: 1.5
Mb/s, 12 Mb/s, and 480 Mb/s. the fast data-transfer rate of 480 Mb/s) specifications.
Bluetooth USB Adapter is an ideal solution for home and mobile networking needs. It is easy
to install and use for wireless connectivity to such as cellular phones, PDAs, printers,
computers, keyboards, mice etc.
Box Content and Picture
- Bluetooth USB Adapter
- Driver CD
- Quick Guide and User Manual
3
System Requirement
PC System Requirement:
- CPU: Intel Pentium III 500MHz or above.
- Memory: 256MB or more.
- Hard disk space: at least 50MB.
- OS: Windows 98SE/Me/2000/XP
- A free USB port, USB 1.1/2.0 compliant.
- CD-ROM Drive.
Mac System Requirement:
- MAC OS: 10.1.4 or later
- Mac OS driver and software provided by Apple.
- A free USB port, USB 1.1/2.0 compliant.
- CD-ROM Drive.
4
Software Installation
Note: Do not plug your Bluetooth USB Adapter into USB port until you have completed the
software installation as the following:
1. Insert the software CD comes with your USB adapter. The “InstallShield Wizard”
should automatically start running. If it doesn’t load, run its “Setup.exe” file.
2. A menu window appears for you to select settings items. Click “Install” to start
installation process.
3. The InstallShiel Wizard window should now appear, Click “Next”.
5

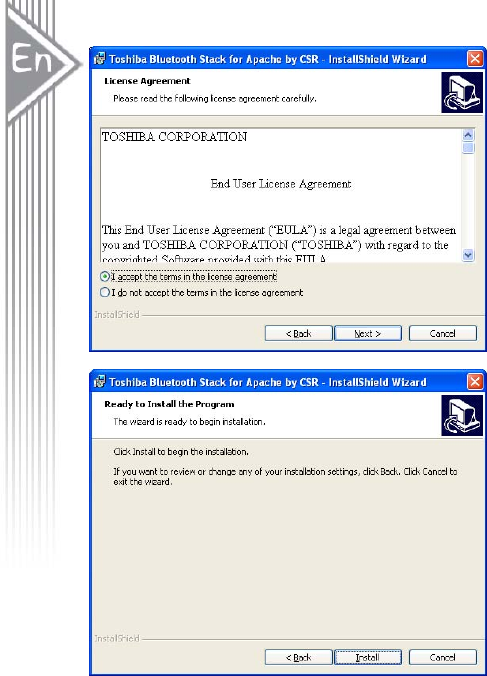

4. Select “Yes” to accept License Agreement.
5. Click “Install” to begin the installation.
6

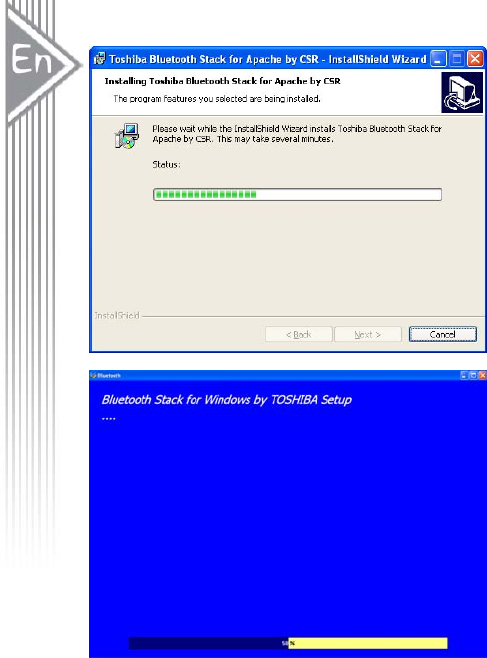

6. InstallShiel is processing.
7. Wait for the setup.
7

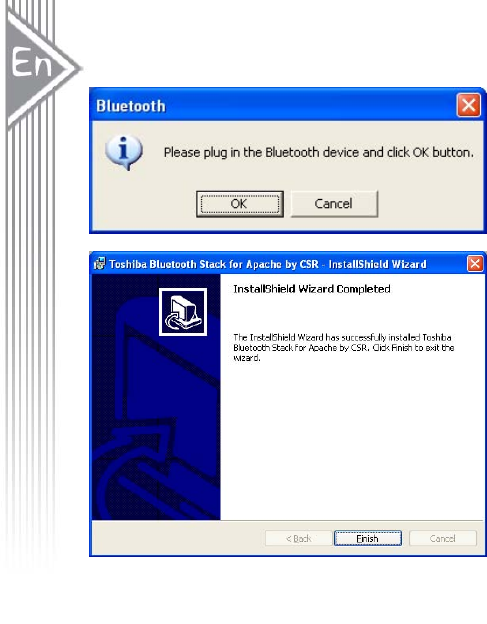

8. Now plug the EDR USB adapter onto an available USB port and click “OK” to continue
installation.
9. Click “Finish” to finish the installation.
8

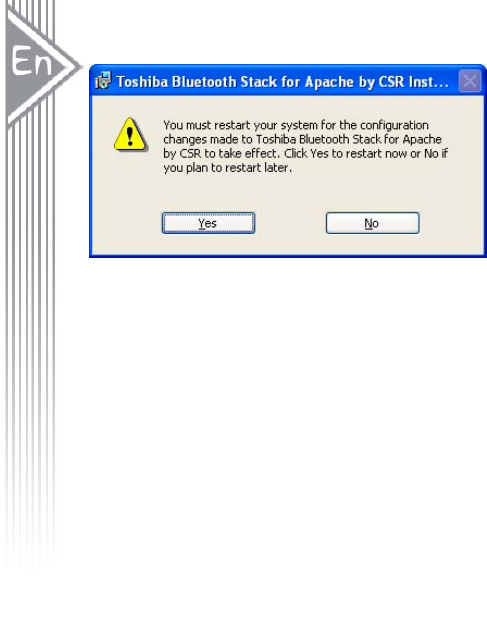

10. You will be asked to restart system. Click “Yes” to restart immediately or click “No” to
restart later.
9
Pairing Guide
What’s pairing?
Pairing is a process of associating Bluetooth devices with each other. It allows avoiding
entering access information every time when a connection is requested. Bluetooth devices
need to be paired with each other before attempting a connection at first time.
Paired devices will remain paired, even if:
1. One of the devices is un-powered.
2. A service connection is interrupted or stopped.
3. One or both devices are rebooted.
Pass Key
Paired devices share a unique Pass Key (also referred to as Link Key), by which they
authenticate with each other when connecting. The Pass Key can be alphanumeric, numbers,
or letters, and must consist of one or up to 16 characters.
How to pair devices?
Automatically -- If a passkey is required before connection, devices will pair automatically the
first time they connect (a passkey must be successfully exchanged).
Manually -- In the main window of Bluetooth Manager, right click a device, select Pair Device
from the popup menu, and then input a same passkey on both sides.
10
Example 1, pair with a Bluetooth Mouse.

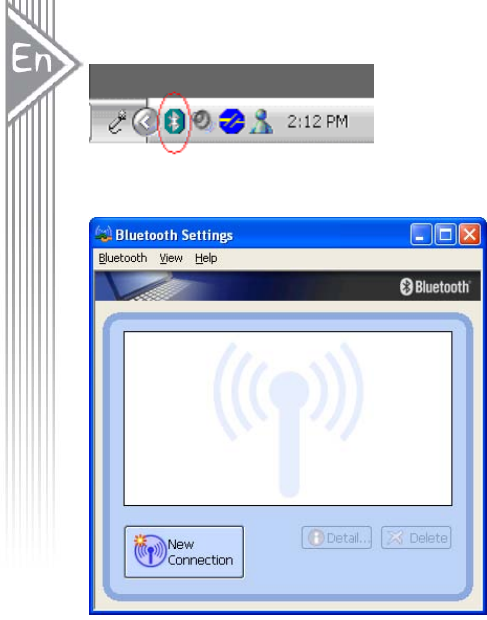

1. Open Bluetooth Manager main window by clicking Bluetooth icons on task bar.
2. Set the Bluetooth Mouse into pairing mode. Click “New Connection” button to start
Bluetooth device searching.
11

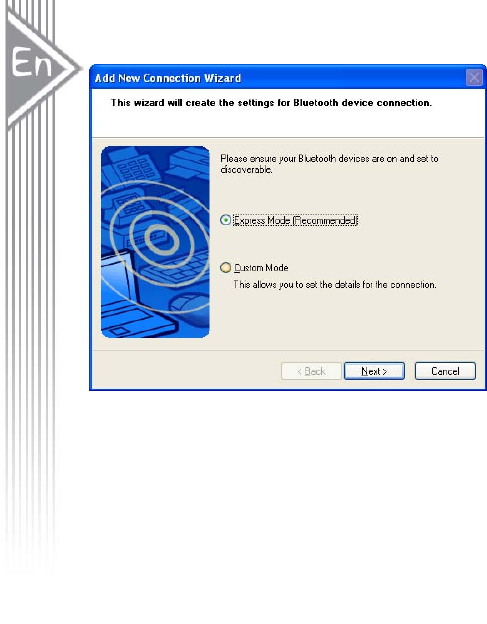

3. Select “Express Mode” and click “Next”. System starts searching Bluetooth devices in
working range.
12
4. Select the “Bluetooth Mouse” in the Bluetooth Device list and click “Next”. If you can’t
find the device you want to pair with, click “Refresh” to search again.
13
5. Enter a name and select an icon.
14
6. An icon “Bluetooth Mouse” will appear after pairing process completed.
15
Example 2, pair with a Bluetooth Headset.
1. Open Bluetooth Manager main window by clicking Bluetooth icons on task bar.
2. Set the Bluetooth Mouse into pairing mode. Click “New Connection” button to start
Bluetooth device searching.
16
3. Select “Express Mode” and click “Next”. System starts searching Bluetooth devices in
working range.
17
4. Select the “BT Headset-F” in the Bluetooth Device list and click “Next”. If you can’t find
the device you want to pair with, click “Refresh” to search again
5. You will be required to enter Passkey (PIN Code). Check headset’s manual for the
passkey and enter it.
18
6. Press Answer button of the headset to continue pairing process.
19
7. Enter a name and select an icon.
20
8. An icon “BT Headset-F” will appear after pairing process completed.
21
Note! Read Help file of “Bluetooth Settings” for detail information.
22
Connect and Disconnect
Connect
There are two ways to setup a Bluetooth connection.
Select Remote Device First
Select a remote device and double click it to refresh its services. Bluetooth passkey may be
asked if security level of either side of the connection is set to High and they are not paired
devices. After service searching finished, the services that the remote device supports are
found and the corresponding service icons on the top of the main window will change to be
pink color.
Double click the pink color service icon you want to connect on the top of the Main Window.
Connection will be setup. After connection is OK, the remote device and the service icon will
turn green.
Note:
PAN: If the PAN server side does not connect to a DHCP server, it will take about 45 seconds
to assign the IP address for the PAN client. Users have to wait about 45 seconds before using
TCP/IP.
DUN: There will be a dial-up dialog box. The user needs to input the ISP phone number, its
name and the password.
FTP: After connection is setup, a FTP Window will pop up. The window shows the shared
directories of the remote device. The window may be empty if there is no file or directory on
the remote site.
OPP: There are four kinds of operation modes for OPP: Send My Card, Get Card, Send
Objects and Exchange Cards. At the beginning, the default operation is Send My Card. Users
can right click the icon to select operation on the popup menu. Send My Card will send my
card directly to the remote device. Get Card will try to require the owner’s card from the
remote device. Exchange Cards will send my card first and then get the remote device card.
Send Objects will pop up a file dialog box to let users to select some object files to send to the
remote device. Object means the files in the format of vCards2.1, vCalendar1.0, vMessage
and vNote.
23
Synchronization: There will be a dialog to let user to operate.
Printer: After the connection is established, users can use the printer to print with any other
Windows applications that support printing.
Select Service Icon First
Select a service icon on the top of the main Window. If you have ever browsed the services of
some remote devices, the device that supports the service will be highlighted in yellow.
Double click the remote browse first to check whether the device has the service and then
connect to it. If the remote device does not have the service, connection will fail. The
Bluetooth passkey may be asked if the security level of either side of the connection is set to
High and they are not paired devices.
Note:
There are corresponding operation menu on the remote device icon and the service icon.
Users can also start the connection using the pop up menu.
Disconnect
Select the remote device first and right click the service icon on the top of the main window.
On the pop up menu, select Disconnect.
Select the remote device and right click the device icon. On the pop up menu, select
Disconnect / submenu (the connection you want to disconnect).
With FTP and Synchronization, close their operation widow and the connection will be
disconnected.
The remote device side can disconnect the connection directly.
If the local Bluetooth device is removed or the remote device is removed, all the connections
will be disconnected. If the remote device moves out of the radio range, all the connections
with the remote device will be disconnected after about 1 minute.
Note:
When the program starts, it will show some words in the bottom right hand corner of the
screen.
24
Example 1, connect/disconnect with a Bluetooth Mouse.
1. Turn on the Bluetooth Mouse. Move the cursor over the icon of Bluetooth Mouse in
Bluetooth Settings. Right click it and select “Connect”.
25
2. The icon of Bluetooth Mouse will be changed to connecting status.
26
3. To disconnect the mouse, right click on the icon and select “Disconnect”.
27
Example 2, connect/disconnect with a Bluetooth Headset.

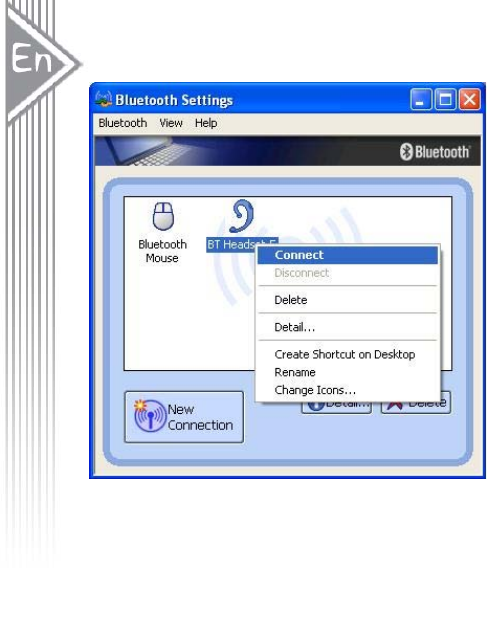

1. Turn on the Bluetooth Headset. Move the cursor over the icon of Bluetooth Headset in
Bluetooth Settings. Right click it and select “Connect”.
28

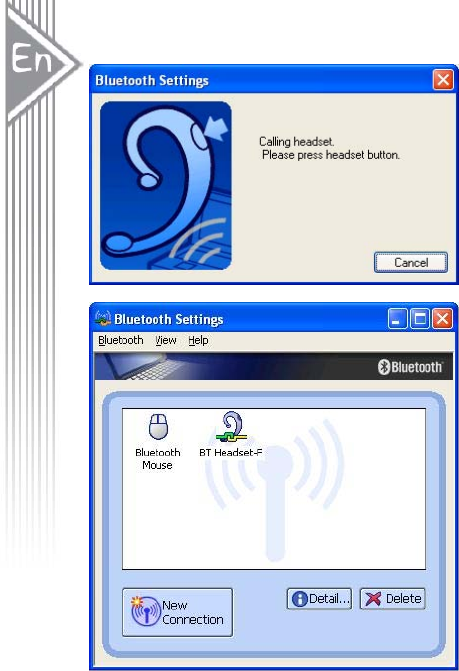

2. System is calling the headset. You will hear ring tone from the headset. Press answer
button to continue connecting process.
3. The icon of Bluetooth Headset will be changed to connecting status.
29

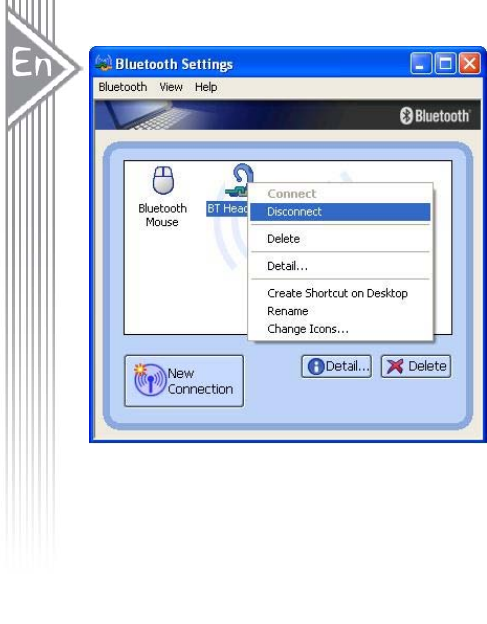

4. To disconnect the mouse, right click on the icon and select “Disconnect”.
30

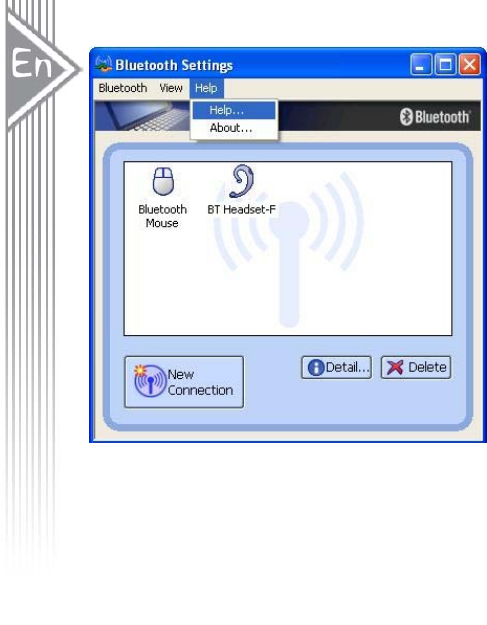

Note! Read Help file of “Bluetooth Settings” for detail information.
31 respective owners.
CE Statements
This device has been tested and found to comply with the requirements set up in the
council directive on the approximation of the law of member states relating to EMC
Directive 89/336/EEC, Low Voltage Directive 73/23/EEC and R&TTE Directive
99/5/EC.
FCC Safety Statements
This device complies with Part 15 of the FCC rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause
undesired operation.
The radiated output power is far below the FCC Radio frequency exposure limits.
Nevertheless, this device should be used in such a manner that the potential for human
contact during normal operation is minimized.
Warning:
Changes or modifications made to this equipment not expressly approved by the
manufacturer. May void the FCC authorization to operate this equipment.
Important! Please note the following:
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Copyright and Trademark Notices
Products and brand names may be the trademarks or registered trademarks of their
The antenna(s) used for this transmitter must not be co-located or operating in conjunction
with any other antenna or transmittter. Changes or modifications not expressly approved by
the party responsible for compliance could void the user's authority to operate the equipment.
