User Manual
Page 1
M8666GP
User Manual
Page 2

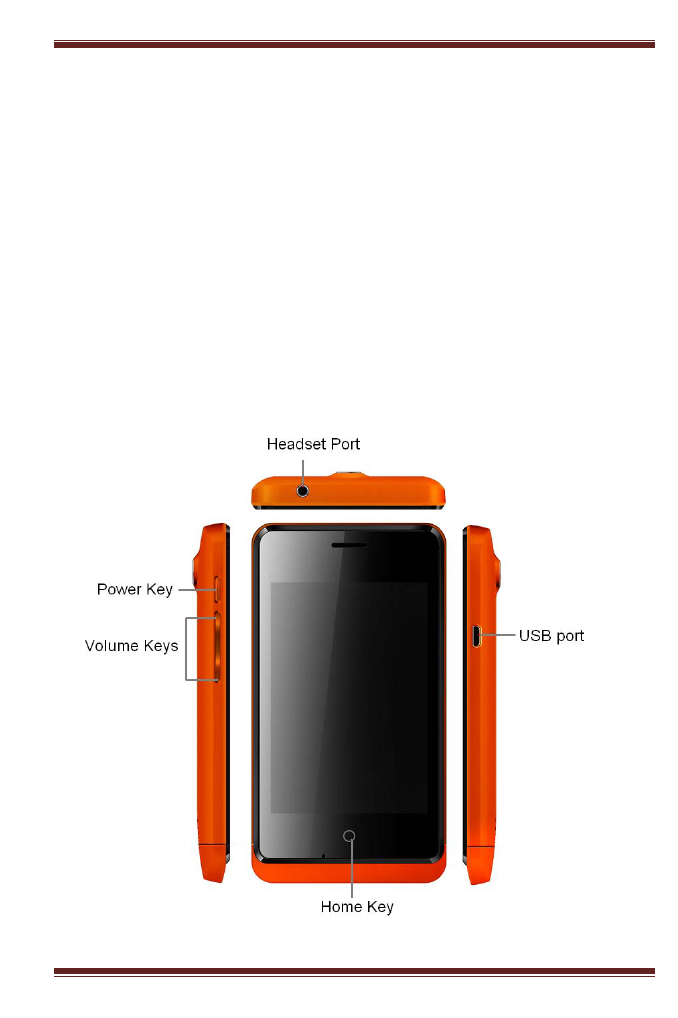

Phone display & key basics
To turn on your phone, long press Power Key.
Press and hold Power Key till Phone options menu appears.You
can access the following feature:Turn on airplane mode,Silence
incoming calls,Restart and Power off.
To put your phone in sleep mode, press the Power key once. This
turn off the screen but still allows your phone to receive calls.
To adjust the volume,Press Volume Keys.
To return to the home screen, press Home Key.
Page 3

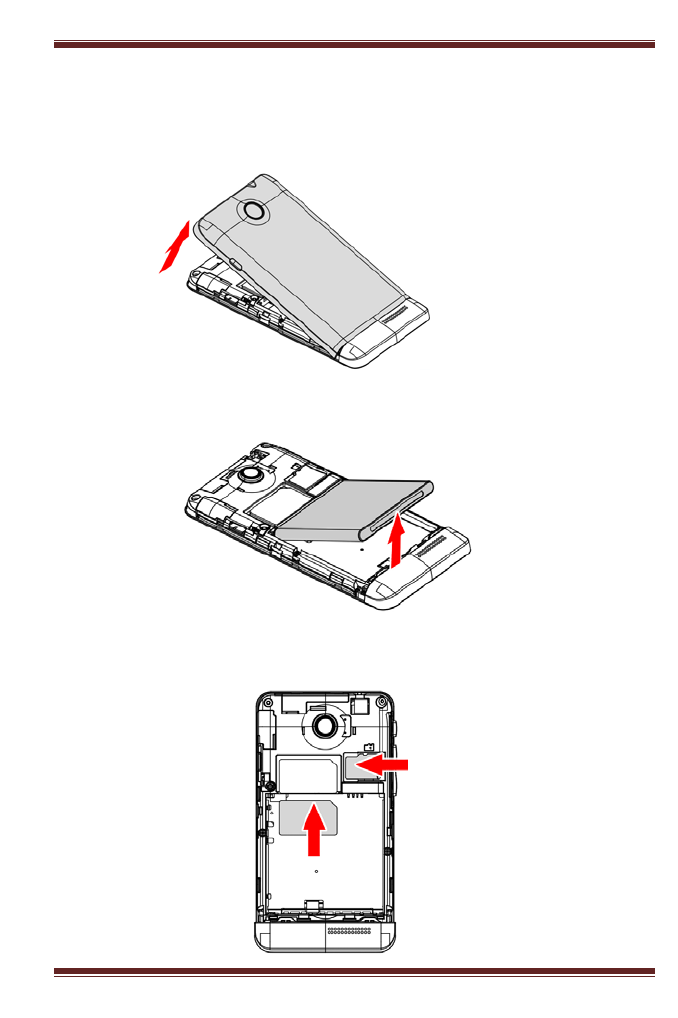

Installing the battery and SD Card
(1) Remove the back cover
(2) Remove the battery
(3) Install the SIM card
Page 4

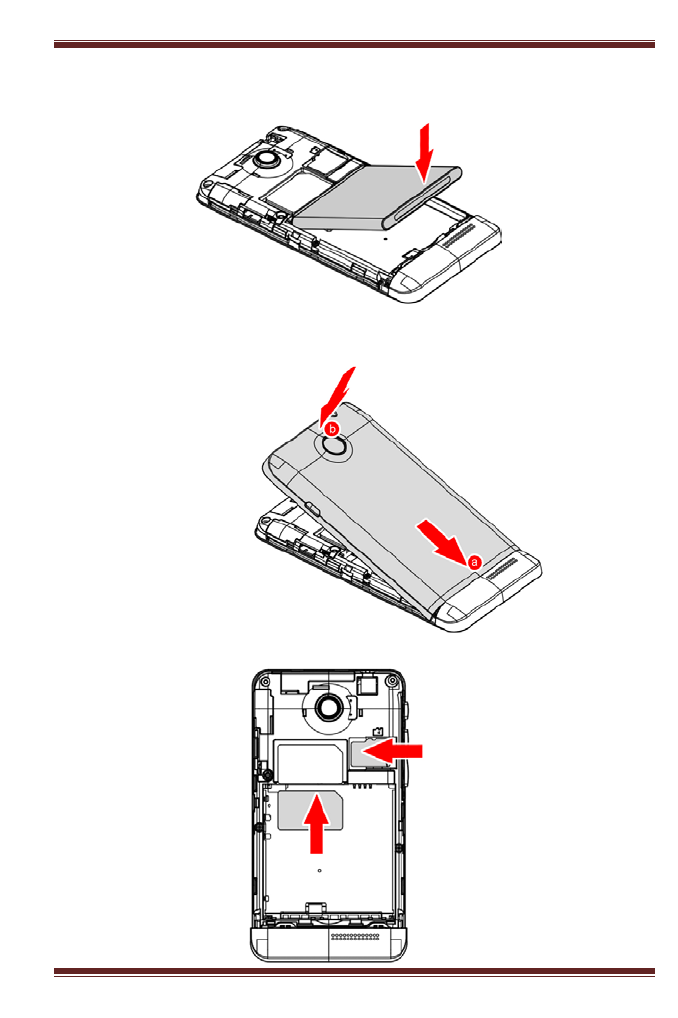

(4) Install the battery
(5) Install the back cover
(6) Insert T-flash card
Page 5

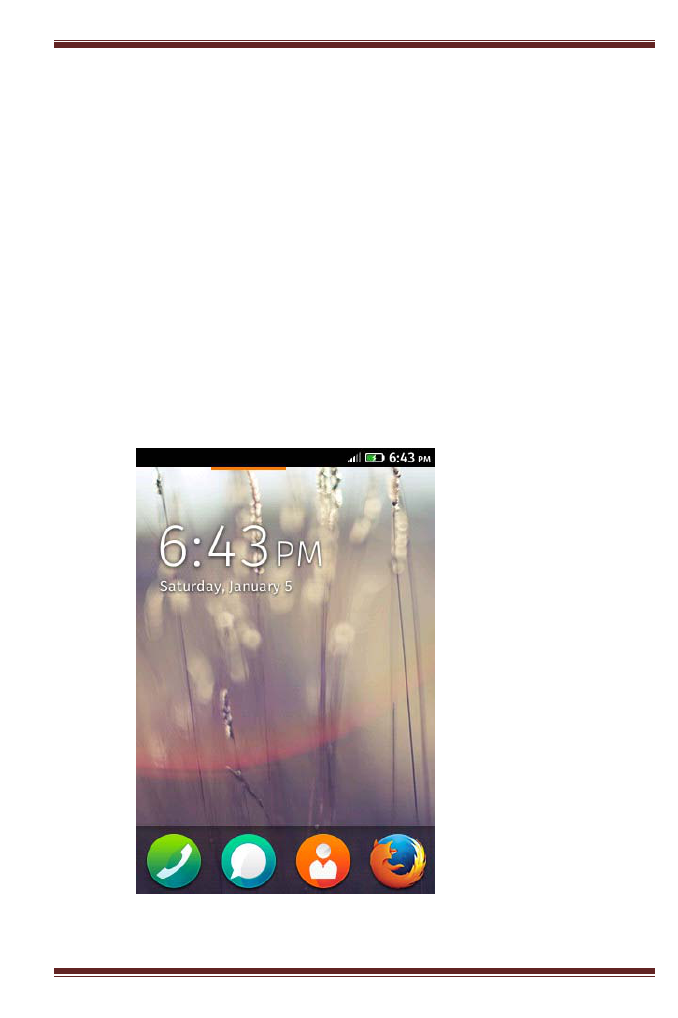

Home screen
Wherever you are, whatever you’re doing on your phone, simply
press HOME Key to return to Home screen.
The home screen is your starting point for using applications on
your phone. You can customize your Home screen as you like.
Touch and hold any icon until it starts to jiggle,drag one icon to
different position and different screens, when you are finished, just
press the Home button.
From the lock screen, press the power key once and slide up the
slider then touch unlock icon to unlock screen.
Page 6

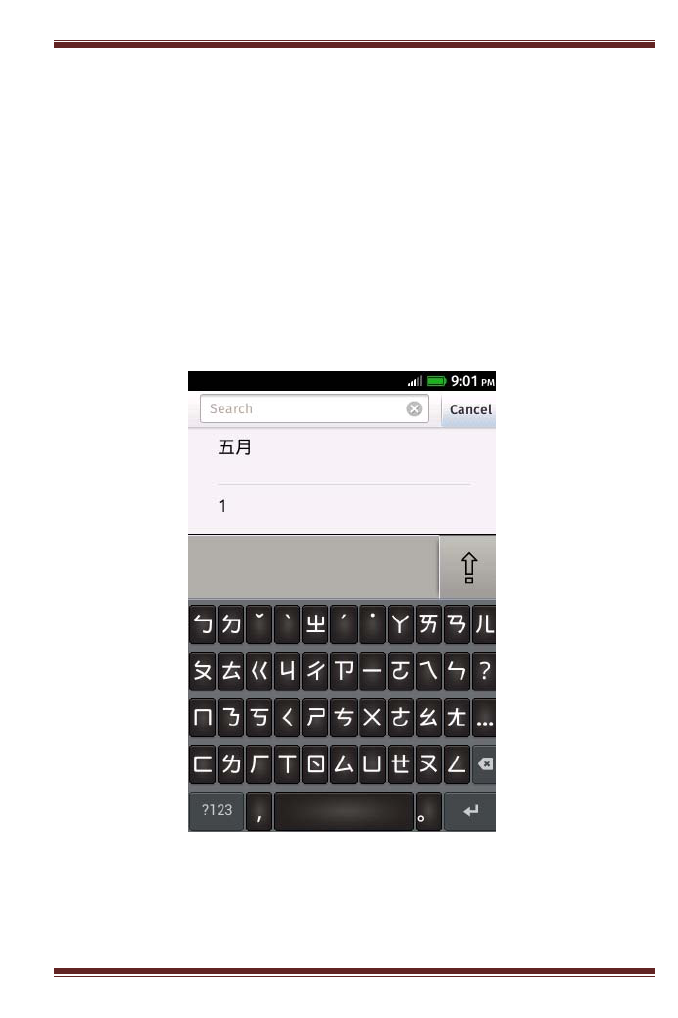

Onscreen Keyboard
When you start a program or select a field that requires text or
numbers, the onscreen keyboard becomes available.
When you do not need the keyboard, you can close it by pressing
Back Key.
To adjust onscreen keyboard settings, you can go to Settings >
keyboard.
Page 7
Phone calls
To make a call, touch a phone number in Contacts, an Email, a
text message or anywhere on your phone.
You can also enter the phone number manually by virtual keypad
and dial directly.
To answer a call, touch the icon .
To reject a call, touch the icon .
To end a call, touch the End Call icon .
Page 8
Gallery
Gallery lets you to access photos and videos you have taken. For
photos, you can do basic editing tasks, set them as wallpaper or
contact picture and share them to your friends. Load your favorite
photos onto your phone from your computer or use the built in
camera to take pictures. Tap photos to see your pictures. Flick
right or left to move between images.In the picture review screen
double tap or pinch to zoom.
Page 9
Camera
Your phone lets you take pictures and record videos with the built-
in camera.
Before using the camera, please insert an SD card. All the pictures
and videos you captured are stored on SD card.
To open camera, press Home Key, slide the screen left or right
until the camera icon appears and then tap Camera.
In picture mode, touch icon to take a picture.
In video mode, touch icon to record a video.
Touch icon to view the picture.
Page 10
Music
Music only plays audio files saved on SD card. Please insert SD
card correctly before playing music.
At any level in your music library, touch and hold a list (song, artist,
album or playlist) to open the context menu. Select a song to play
and go to the playback screen.
While listening to music,the following actions are available :
Shuffle songs:Shuffle songs in random order. Touch to toggle
shuffle on or off. When the icon is gray, shuffle is off.
Go to any point in song: Slide fingertip in progress bar to
desired point in a song.
Pause/resume play:Touch to pause;touch to resume play.
Repeat mode:Touch to switch the repeat modes.
Page 11
Video
To record a video, tap Camera,then touch icon and switch to
video mode. Tap the Record button to start recording. Tap it again
to stop recording. You can record in landscape or portrait.
To play video files, press icon, and then select a video you want
to watch in the video list to play.
Page 12
Browser
Browser supports you to browse web pages when your phone is
connected to available network.
To connect to WLAN or enable mobile network, you can go to
Settings > Wi-Fi.
Open the Browser screen and tap the web address tab to enter the
address you’d like to visit.
Double tap or pinch to zoom. Tap muti-page button to open a
new web page or toggle between multiple web pages. You can
also save your favorite web.
Page 13
Search
To search your phone or Web, go to the Home screen and press
the Home Key or swipe the screen from left or right. Tap in what
you would like to find--a name,app,song,movie or any keyword.
Your phone offers suggestions as you type to make searching
even faster. To search within an app like Mail,Contacts, Messages,
tap the search bar.
Page 14
Safety Information and Notices
Failure to comply with the following precautions may be dangerous
or illegal.
Please carefully read and observe the terms below:
Safe power on
Do not use your mobile phone where it is forbidden to use or you
might cause a disturbance or danger.
Safe transportation first
Please observe all related local laws and regulations.
Please drive with both hands.
Transportation security should be considered when driving.
Disturbance
All mobile phone performances might be disturbed
Turn off when in hospital
Please follow related limitations.
Please turn off your mobile phone when near a medical instrument.
Turn off on an airplane
Please follow related limitations.
Do not use your phone on an airplane.
Turn off when at a gasoline station
Do not use your mobile phone at a filling station or around fuels or
chemicals.
Turn off around exposure Area
Please observe related limitations and do not use your mobile
phone around an area where explosions can occur.
Proper use
As described in this manual, your mobile phone can be used only
in right location.
If possible, please do not touch the antenna area on your phone.
Use qualified after sale service
Only a qualified maintainer can install or repair your mobile phone.
Page 15
Accessories and batteries
Only use the authorized accessories and batteries and do not
connect to unmatched manufacturers or products.
Waterproof
Your mobile phone is not waterproof. Please keep it away from
water.
Backup
Do remember to make a backup or keep a written record of all
important information saved in your mobile phone.
Connect to other devices
Please read the user manual of the device to get more detailed
security instructions before connecting to other devices and do not
connect to unmatched product.
SOS emergency calls
Make sure your mobile phone is switched on and in a service area.
In home screen, tap the dial key, input the SOS number, then press
the Dial Key. Tell where you are and do not hang up without
permission.
Page 16
Specific Absorption Rate (SAR) information
This phone is designed and manufactured not to exceed the
emission limits for exposure to radio frequency (RF) energy set by
the Federal Communications Commission of the U.S. Government.
The exposure standard for wireless mobile phones employs a unit
of measurement known as the Specific
Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg.
*Tests for SAR are conducted using standard operating positions
accepted by the FCC with the phone transmitting at its highest
certified power level in all tested frequency bands. Although the
SAR is determined at the highest certified power level, the actual
SAR level of the phone while operating can be well below the
maximum value. This is because the phone is designed to operate
at multiple power levels so as to use only the poser required to
reach the network. In general, the closer you are to a wireless base
station antenna, the lower the power output.
The highest SAR value for the model phone as reported to the
FCC when tested for use at the ear is 0.788W/kg and when worn
on the body, as described in this user guide, is 1.160 W/kg (Body-
worn measurements differ among phone models, depending upon
available accessories and FCC requirements.)
While there may be differences between the SAR levels of various
phones and at various positions, they all meet the government
requirement.
The FCC has granted an Equipment Authorization for this model
phone with all reported SAR levels evaluated as in compliance with
the FCC RF exposure guidelines. SAR information on this model
phone is on file with the FCC and can be found under the Display
Grant section of www.fcc.gov/oet/ea/fccid after searching on FCC
ID: T38C8666GP.
For body worn operation, this phone has been tested and meets
the FCC RF exposure guidelines for use with an accessory that
contains no metal and the positions the handset a minimum of 1.5
cm from the body. Use of other accessories may not ensure
compliance with FCC RF exposure guidelines. If you do no t use a
Page 17
body-worn accessory and are not holding the phone at the ear,
position the handset a minimum of 1.5 cm from your body when
the phone is switched on.
FCC Regulations
“This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including
interference that may cause undesired operation.”
This mobile phone has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular
installation If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party
responsible for compliance could void the
user‘s authority to operate the equipment.
The antenna(s) used for this transmitter must not be co-located or
operating in conjunction with any other antenna or transmitter.
Page 18
12 MONTH LIMITED WARRANTY
Gong Qing Cheng Cellon Communications Technology Co., Ltd
(the Company) warrants to the original retail purchaser of this
handheld portable cellular telephone, that should this product or
any part thereof during normal consumer usage and conditions, be
proven defective in material or workmanship that results in product
failure within the first twelve (12) month period from the date of
purchase, such defect(s) will be repaired or replaced (with new or
rebuilt parts) at the Company’s option, without charge for parts or
labor directly related to the defect(s).
The antenna, keypad, display, rechargeable battery and battery
charger, if included, are similarly warranted for twelve (12) months
from date of purchase.
This Warranty does not apply to:
Product subjected to abnormal use or conditions, accident,
mishandling, neglect, unauthorized alteration, misuse, improper
installation or repair or improper storage; Product whose
mechanical serial number or electronic serial number has been
removed, altered or defaced.
Damage from exposure to moisture, humidity, excessive
temperatures or extreme environmental conditions;
Damage resulting from connection to, or use of any accessory or
other product not approved or authorized by the Company;
Defects in appearance, cosmetic, decorative or structural items
such as framing and non-operative parts;
Product damaged from external causes such as fire, flooding, dirt,
sand, weather conditions, battery leakage, blown fuse, theft or
improper usage of any electrical source.
The Company disclaims liability for removal or reinstallation of the
product, for geographic coverage, for inadequate signal reception
Page 19
by the antenna or for communications range or operation of the
cellular system as a whole.
When sending your wireless device to Gong Qing Cheng Cellon
Communications Technology Co., Ltd for repair or service, please
note that any personal data or software stored on the device may
be inadvertently erased or altered. Therefore, we strongly
recommend you make a back up copy of all data and software
contained on your device before submitting it for repair or service.
This includes all contact lists, downloads (i.e. third-party software
applications, ringtones, games and graphics) and any other data
added to your device. In addition, if your wireless device utilizes a
SIM or Multimedia card, please remove the card before submitting
the device and store for later use when your device is returned,
Gong Qing Cheng Cellon Communications Technology Co., Ltd is
not responsible for and does not guarantee restoration of any third-
party software, personal information or memory data contained in,
stored on, or integrated with any wireless device, whether under
warranty or not, returned to Gong Qing Cheng Cellon
Communications Technology Co., Ltd for repair or service.
To obtain repairs or replacement within the terms of this Warranty,
the product should be delivered with proof of Warranty coverage
(e.g. dated bill of sale), the consumer’s return address, daytime
phone number and/or fax number and complete description of the
problem, transportation prepaid, to the Company at the address
shown below or to the place of purchase for repair or replacement
processing.
THE EXTENT OF THE COMPANY’S LIABILITY UNDER THIS
WARRANTY IS LIMITED TO THE REPAIR OR REPLACEMENT
PROVIDED ABOVE AND, IN NO EVENT, SHALL THE
COMPANY’S LAIBILITY EXCEED THE PURCHASE PRICE PAID BY
PURCHASER FOR THE PRODUCT.
ANY IMPLIED WARRANTIES, INCLUDING ANY IMPLIED
WARRANTY OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE, SHALL BE LIMITED TO THE DURATION
Page 20
OF THIS WRITTEN WARRANTY. ANY ACTION FOR BREACH OF
ANY WARRANTY MUST BE BROUGHT WITHIN A PERIOD OF 18
MONTHS FROM DATE OF ORIGINAL PURCHASE. IN NO CASE
SHALL THE COMPANY BE LIABLE FOR AN SPECIAL
CONSEQUENTIAL OR INCIDENTAL DAMAGES FOR BREACH OF
THIS OR ANY OTHER WARRANTY, EXPRESS OR IMPLIED,
WHATSOEVER. THE COMPANY SHALL NOT BE LIABLE FOR THE
DELAY IN RENDERING SERVICE UNDER THIS WARRANTY OR
LOSS OF USE DURING THE TIME THE PRODUCT IS BEING
REPAIRED OR REPLACED.
No person or representative is authorized to assume for the
Company any liability other than expressed herein in connection
with the sale of this product.
GongQingCheng Cellon Communications Technology Co.,LTD
New Industrial Park, GongQingCheng City
Jiangxi Province 332020 PRC.
(86)0792-7720000
Page 21
FCC Regulations:
This mobile phone complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that
may cause undesired operation.
This mobile phone has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates, uses and can radiated radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
Page 22
Changes or modifications not expressly approved by the party
responsible for compliance could void the user‘s authority to
operate the equipment.
RF Exposure Information (SAR)
This model phone meets the government’s requirements for
exposure to radio waves.
This phone is designed and manufactured not to exceed the
emission limits for exposure to radio frequency (RF) energy set by
the Federal Communications Commission of the U.S. Government.
The exposure standard for wireless mobile phones employs a unit
of measurement known as the Specific Absorption Rate, or SAR.
The SAR limit set by the FCC is 1.6W/kg. *
The highest SAR value for the model phone as reported to the FCC
when tested for use at the ear is 0.788(Head SAR)W/kg and
when worn on the body, as described in this user guide, is
1.160(Body SAR)W/kg (Body-worn measurements differ among
Tests for SAR are
conducted using standard operating positions accepted by the FCC
with the phone transmitting at its highest certified power level in
all tested frequency bands. Although the SAR is determined at the
highest certified power level, the actual SAR level of the phone
while operating can be well below the maximum value. This is
because the phone is designed to operate at multiple power levels
so as to use only the poser required to reach the network. In
general, the closer you are to a wireless base station antenna, the
lower the power output.
Page 23
phone models, depending upon available enhancements and FCC
requirements.)
While there may be differences between the SAR levels of various
phones and at various positions, they all meet the government
requirement.
The FCC has granted an Equipment Authorization for this model
phone with all reported SAR levels evaluated as in compliance
with the FCC RF exposure guidelines. SAR information on this
model phone is on file with the FCC and can be found under the
Display Grant section of http://www.fcc.gov/oet/fccid after
searching on FCC ID: T38C8666GP.
For body worn operation, this phone has been tested and meets
the FCC RF exposure guidelines for use with an accessory that
contains no metal and the positions the handset a minimum of 1.0
cm from the body. Use of other enhancements may not ensure
compliance with FCC RF exposure guidelines. If you do no t use a
body-worn accessory and are not holding the phone at the ear,
position the handset a minimum of 1.0 cm from your body when
the phone is switched on.
