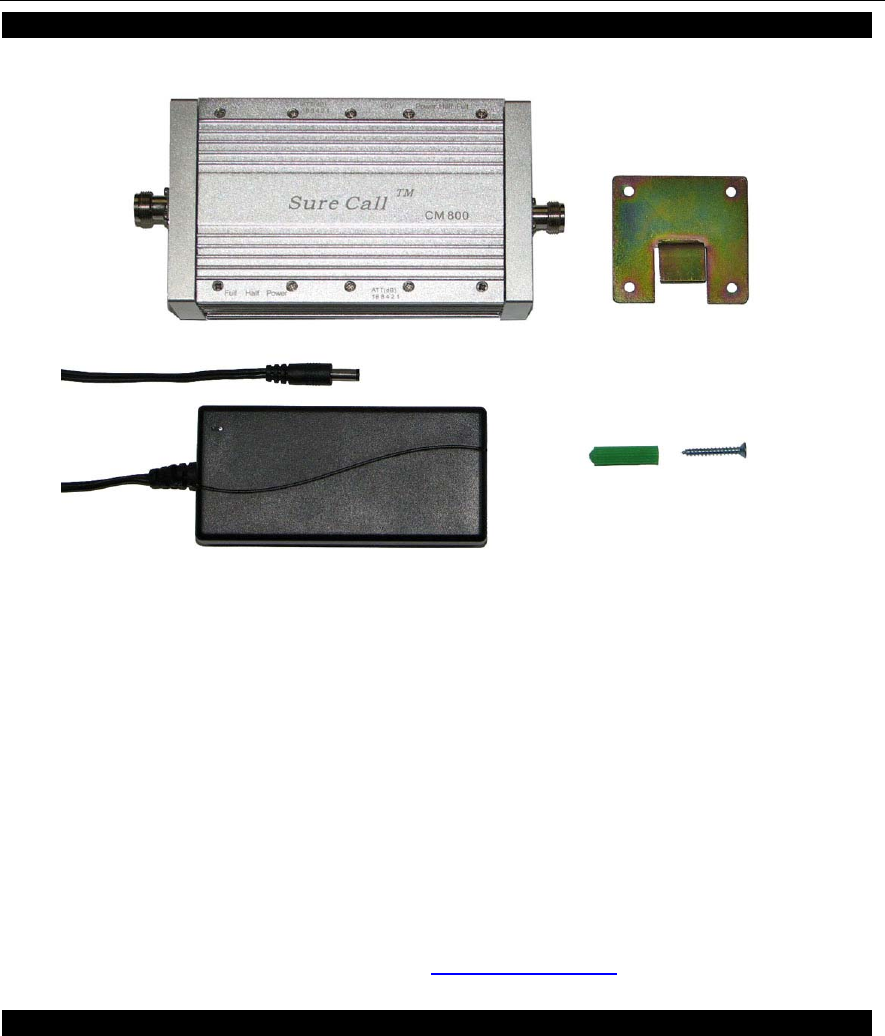

CONTENTS OF THE PACKAGE fdgbsddg

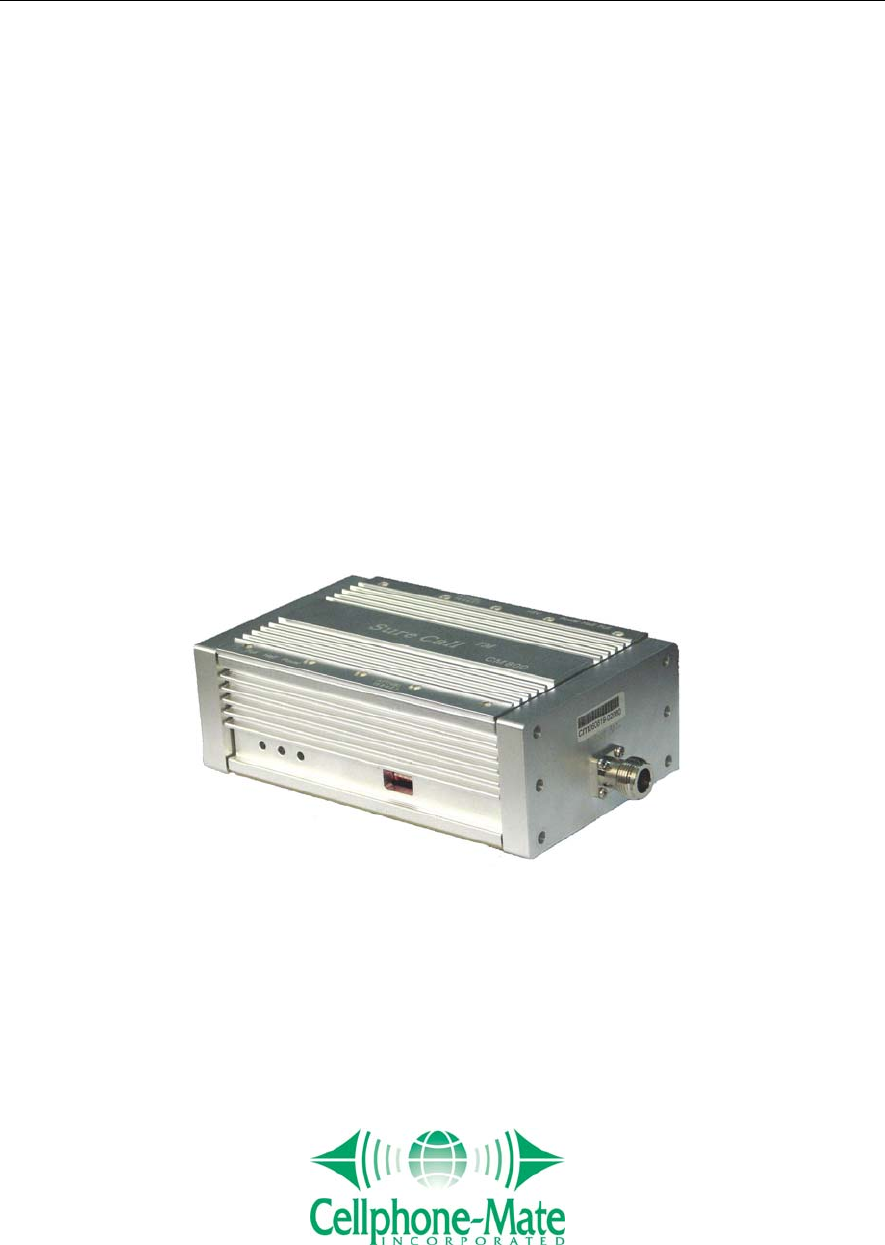

1. CM800 Amplifier with connectors: N female type
2. Mounting Kit
3. 110V AC Power Adaptor
4. User Manual (this document)
The following items need to be purchased separately before installation:
1. Dome antenna or other type of indoor antenna.
2. Yagi antenna or omni directional antenna for outdoor use.
3. Ultra low loss RF cable that connects indoor antenna with the repeater, length depends on actual situation.
4. Ultra low loss RF cable that connects out door antenna with the repeater, 100 feet recommended.
For further help, please consult the Cellphone-Mate website (www.Cellphone-Mate.com) or call toll free at 888-365-MATE.
SAFETY NOTES fdgbsddg
The human body should always be separated from the indoor antenna of the Amplifier by at least 25cm (10”).
Don't expose this product to extreme high or low temperature. For example, putting the Amplifier under direct sunshine for too
long may cause it to overheat, thereby damaging the electronic components inside.
There are no consumer serviceable or modifiable parts inside this Amplifier product. Alteration or abuse of the Amplifier
or other components will void this product’s warranty, and could be dangerous to the user.
NOTE: The wireless amplified can also be used for boat and other applications, but not recommended for small vehicles
since there is no enough separation between inside and outside antenna.
Cellphone-Mate Inc.
CM800 Manual
3
INSTALLATION INSTRUCTIONgbsddg
Warning: Never power on the units before completion of the installation.
The signal is received by the outside antenna from the cell tower, then AMPLIFIED and transmitted to your phone through the inside
antenna. When the phone transmits, the signal is received by the inside antenna, then AMPLIFIED and transmitted to the cell
tower through the outside antenna.
Always refer to the picture on the next page. It is there to help you through each step of the installation.
STEP 1. Install the CM800 on the wall with the mounting kits supplied.
STEP 2. Connect the Inside Antenna to the side that shows “Indoor Ant.”.
STEP 3. Connect the Outside Antenna: Select an outside mounting location. For best performance, try to keep the antenna on top
of the roof. The outside antenna should be located in an area with at least a 12” radius clear of obstructions, and other radiating
elements.
NOTE: Keep the separation distance between the inside and outside antennas to at least 100 ft apart to avoid RF
oscillation. If not, then the amplification gain must be reduced with gain control switches on both side of the unit for
uplink and downlink.
STEP 4. Connect the Power Cord.
Warning: To prevent damage to the Amplifier, before you plug in the Amplifier to an AC power
outlet, please make sure that both sides are already connected with the cables from both the
outdoor and indoor antennas.
WARNING: after power is on, and before making any cellular phone calls, if uplink
lights marked either “full” or “half” is on, that means that the oscillation is
happening. A full light means severe oscillation, a half light identifies that there is
some level of oscillation. You should then POWER OFF immediately, then reduce
both the uplink gain and downlink gain via the gain control switches, or further
increase separation distance, or do both until neither of the uplink light are on
when you are not making cellular phone calls.
Note: 1. Power lights for both uplink and down link will always be on after you power up.
2. During Cellular phone Conversations, it’s normal to see both uplink half light and full light turn on and off.
STEP 5. After solving all oscillation problems, users can make cellular phone calls to test how the repeater system works,
adjusting gain as needed.
Cellphone-Mate Inc.
CM800 Manual
4
Safety Warning:
1. The input voltage for the Amplifier is 9V. DO NOT use this Amplifier with a regular 12V power supply. If a 12-volt
power supply is connected directly to this Amplifier, it will be damaged.
2. Never plug in the power supply to the amplifier without the outdoor antenna and indoor antenna cables having been
attached to the amplifier.
3. Ensure that the distance between inside and outside antennas is a minimum of 100 feet for the amplifier.
4. If the Uplink Full light or Uplink Half Light is on when you are not making cellular phone calls, DO NOT use the amplifier,
turn it off immediately, since it may cause damage to the amplifier.
Downlink Full Light Downlink Half Light Power Light Power Cord Downlink Gain Control Switches
Uplink Full Light Uplink Half Light Power Light Uplink Gain Control Switches
Mounting Rig
N Connector for Indoor N Connector For Outdoor
Cellphone-Mate Inc.
CM800 Manual
5
Amplifier Gain Control
Each Attenuation Gain Switches control a certain level of gain. Each button has a certain dB gain, which is on the top of the amplifier.
Those values are 16, 8, 4, 2, and 1 for the five switches respectively.
TROUBLESHOOTING GUIDE
During operation, if the Amplifier interferes with your radio or other electronic receivers, move the Amplifier further away from those
devices.
For a list of Frequently Asked Questions and a complete and up-to-date Troubleshooting Guide, please visit our website at:
www.Cellphone-Mate.com/FAQ.htm
You can also consult a Cellphone-Mate technical specialist directly by sending e-mail to us at:
info@Cellphone-Mate.com
Or write to:
Cellphone-Mate, Inc.
2450 Peralta Blvd. Suite 105
Fremont, CA, 94536 U.S.A.
