Centrak CA100 900MHz Frequency Hopping Module User Manual FCC SCAC100 RPT Wei

Centrak, Inc. 900MHz Frequency Hopping Module FCC SCAC100 RPT Wei

Users Manual

EUT: Frequency Hopping Device Report No: 0048-050207-01
Model: CA100 FCC ID:ST2-CA100
Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, tel:(908) 927 9288
User Manual
The CA100 module can be interfaced with the user’s Board through the 20 pin connector
designated as GB052A- 20S- H22- TSD- B. This is a standard commercial connector.
Remote Play, Inc. software is the only software authorized to operate the module. The software
must be integrated by Remote Play, Inc.

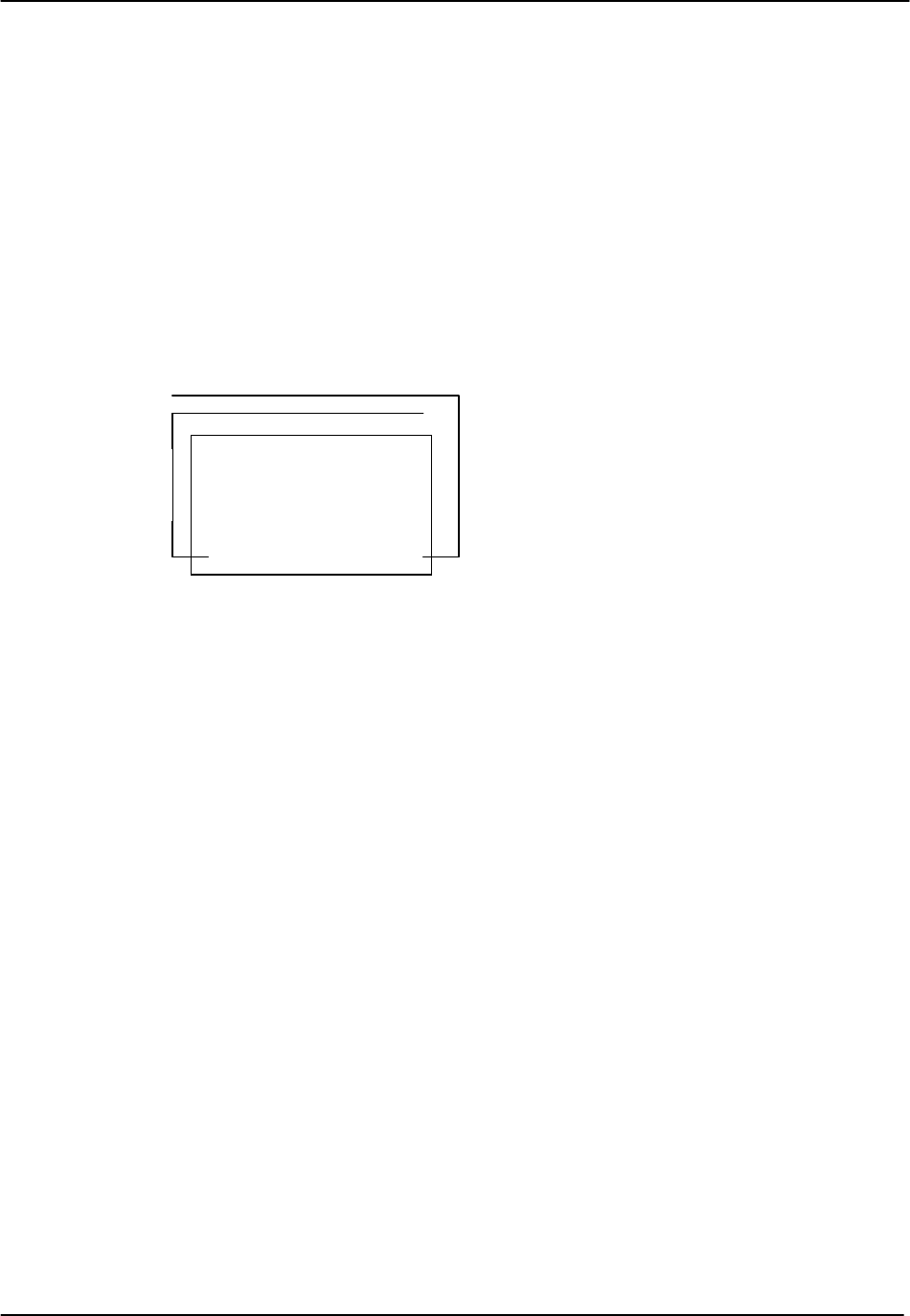

In order to allow proper operation of the module, the antennas are permanently attached to the
module and their shape needs to adhere to the shape below. The antennas must have “guides” to
make sure that the antennas comply with the authorized shape as is shown below:
The module connector pins are shown in the schematics and should be only used with Remote
Play, Inc. Software version RPI-CA100-10. The Vcc voltage must be 3 volts +/- 10% and all the
digital signals comply with standard CMOS “1” and “0” requirements. The maximum RSSI
signal is 1.6 volts.
The maximum data rate that Remote Play, Inc. uses in this module is 16 kbps.
The minimum hopping frequency is 907 Mhz.
The maximum hopping frequency is 923 Mhz
The maximum peak power is less than 7 dBm using any bandwidth.
The minimum sensitivity is –103 dBm.
Typical communication range is > 500 feet
Installation Instructions
1. The module is ESD sensitive and should be handled accordingly. Make sure that a
ground strip is used at all time.
2. Before connecting the module make sure that the connection pins adhere to the specs:
a. Pins 1,3, 5,6, 16, 17, 18 19 and 20 are properly grounded.
CA-100 Module
Top View
TX
Antenna
EUT: Frequency Hopping Device Report No: 0048-050207-01
Model: CA100 FCC ID:ST2-CA100
Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, tel:(908) 927 9288
b. Pin 8 should be connected to the power supply. 3 volts controlled (+/- 10%)
c. Pin 2 carries an analog RSSI signal and should be routed to avoid close digital
lines.
d. The rest of the pins are digital pins carrying data and signaling with “1” as 3 volts
and 0 as “0”. They should adhere to CMOS type levels.
3. The RF module has its own regulation but the input voltage should be kept within 10% of
3 volts.
4. The device having the module must have a label that states” contains FCC ID: ST2-
CA100” besides other required FCC labels for that device.
5. Make sure that the antennas used are not modified and must not be co-located or operated
in conjunction with any other antenna or transmitter.
FCC Statement
The module itself must have a FCC Identifier, “ FCC ID: ST2-CA100”.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
Caution: The user that changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
Additional radiated spurious emission evaluation for the additional host device may be required.
Statement needed to be shown on End Product
Since this module is installed inside the end product, the end product should be affixed a label on
visible area showing this product contains a RF model, and also its FCC ID.
Important Note
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
The OEM integrator has to be aware not to provide information to the end use regarding how to
install or remove this RF module in the user manual of the end product which integrate this
module.
