IT-313H Monitor
A smarter approach to RTLS. CenTrak’s ITK-313H Monitor is a key
component for delivering room-level certainty for RTLS through the
use of CenTrak’s Gen2IR™.
•CenTrak Gen2IR Technology for accurate room‐level location
•Battery powered
•Can be configured and monitored over-the-air by central server
for superior control
•Simple to install ceiling tile mounting bracket, no in-room wiring
required
The Monitor is an IR (infrared) signaling unit which enables room level
certainty for CenTrak’s suite of asset, staff and patient tags. Each
Monitor transmits an infrared pulse pattern containing a unique
location code.
About CenTrak Gen2IR Technology
The CenTrak proprietary IR protocol achieves a marked improvement
over conventional IR protocols that were designed for remote control
applications. It provides superior resilience to fluorescent and other
common indoor interference sources.
Since infrared is light, and light cannot penetrate walls, Gen2IR enables
room-level certainty for the CenTrak RTLS system. Gen2IR does not
need line of sight for effective communication. IR signals bounce
effectively from structures and walls and flood the entire room
including locations that are not in direct line of sight to the monitor.
The battery operation and the extremely simple mounting mechanism
allows for the quick and low cost installation.
ITK-313H Mounted to Ceiling
ITK-313H Monitor
CenTrak, Inc.
826 Newtown Yardley Road
Newtown, PA 18940
t: 215-860-2928 e: sales@centrak.com
www.centrak.com
© CenTrak 2016. All Rights Reserved. Proprietary and Confidential.

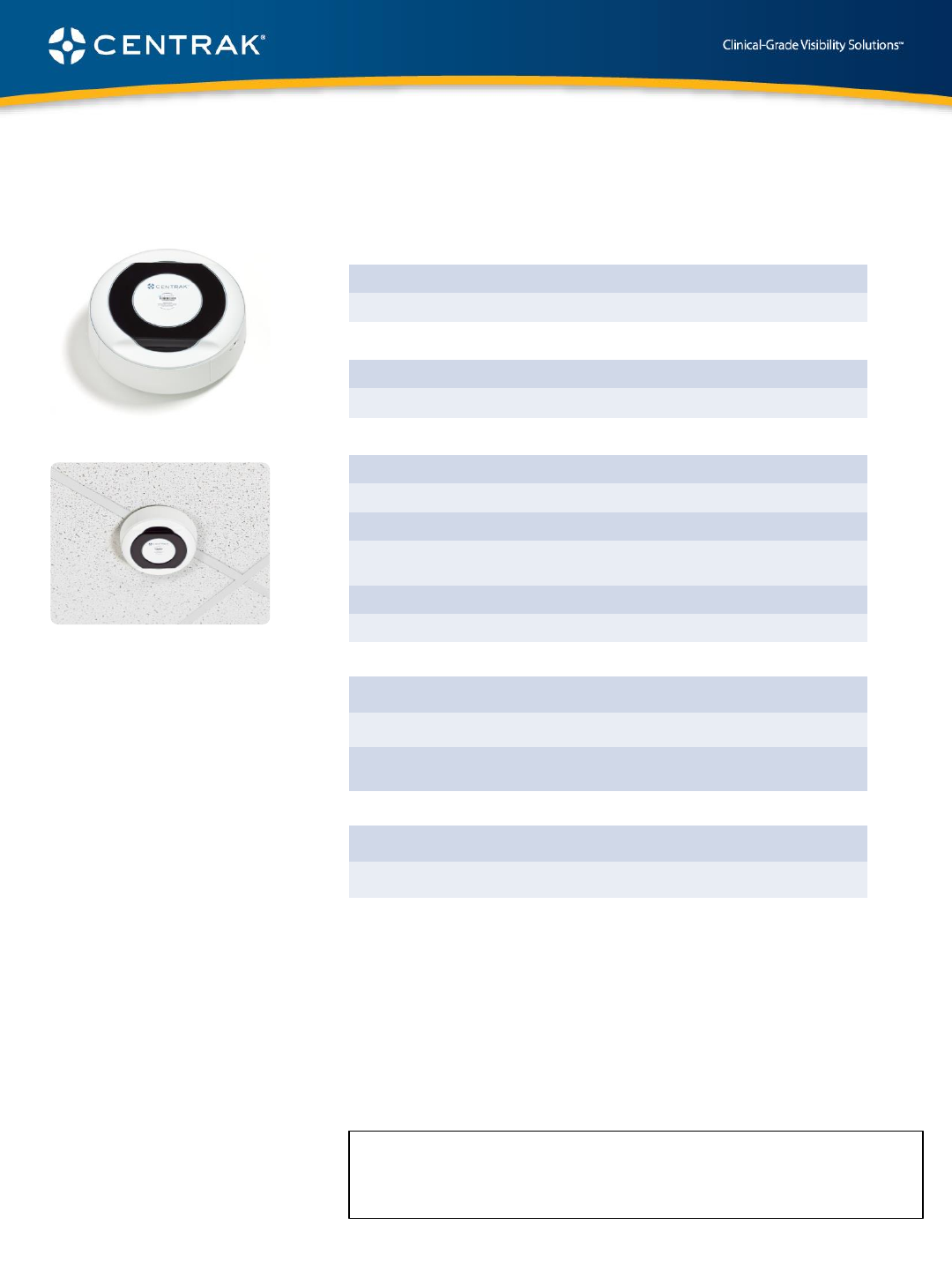

IT-313H Monitor
Technical Specifications
Reach
Maximum Room Size 20’ square rooms (400 square feet)
Maximum Range Up to 60’
Enclosure
Diameter 6.5 in (165.1 mm)
Height 2.25 in (57.15 mm)
Weight 18 oz (.51 kg) without batteries
Mounting Ceiling tile clip, wall-mount, desktop
operation
Monitor Mounting Plate ITA-352
Mounting Accessories Various items detailed on page 3
Power
Battery option Pre-installed Lithium
Wired option 7.5 DC Volt, 500 mA
Environmental
Operating Temperature -20 C to +70 C
Storage temperature -25 C to +80 C
Operating Humidity Splash resistant or optional weatherproof
case
This component complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) The device may not cause harmful
interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. Modifying or
tampering with the transceiver’s or receiver’s internal components can cause a malfunction, invalidate the warranty, and will void FCC authorization to
use these products. This product or its systems are covered by one or more of the following U.S. patents: 5,917,425, 7,061,428, 7,378,964, 7,619,532.
L ‘ utilisation de ce dispositif est autorisée seulement aux conditions suivantes : (1) il ne doit pas produire de brouillage et (2) l’ utilisateur du dispositif
doit étre prêt à accepter tout brouillage radioélectrique reçu, même si ce brouillage est susceptible de compromettre le fonctionnement du dispositif.
Operation
FCC Operating Frequency Range 902-928 MHz
CE Operating Frequency Range 868-870 MHz
Available features may vary based upon the mode of operation.
CenTrak, Inc.
826 Newtown Yardley Road
Newtown, PA 18940
t: 215-860-2928 e: sales@centrak.com
www.centrak.com
IT-313H Mounted to Ceiling
IT-313H Monitor
© CenTrak 2016. All Rights Reserved. Proprietary and Confidential.
IT-313H Monitor

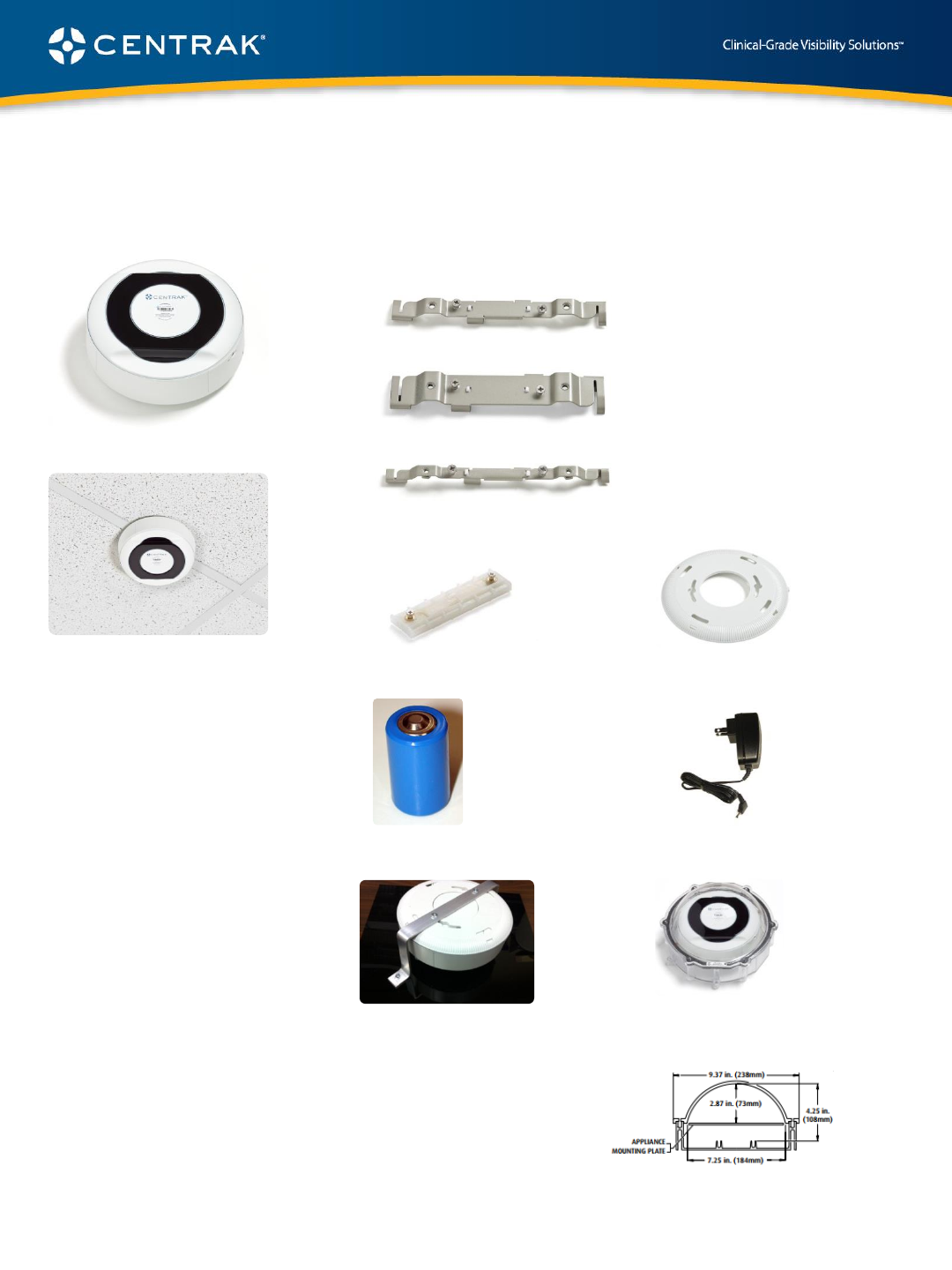

Accessories
ITA-361 Monitor Metal
Ceiling Attachment
(9/16 inch)
ITA-362 Monitor Metal
Ceiling Attachment
(15/16 inch)
ITA-356
D Cell Lithium
Battery (2)
(for illustration
purposes only)
Ceiling Attachments
Power
ITA-374-M Monitor Weather-
Proof Protective Dome
(Monitor not included)
ITA-353
Ceiling Tile
Attachment
(standard)
ITA-363 Monitor Metal
Ceiling Attachment
(5/16 inch)
ITA-352
Monitor
Mounting Plate
(standard)
Enclosure
ITA-377 Monitor Flush
Mounting Plate
(Monitor not included)
CenTrak, Inc.
826 Newtown Yardley Road
Newtown, PA 18940
t: 215-860-2928 e: sales@centrak.com
www.centrak.com
Construction:
UV Stabilized Polycarbonate
ITA-351
Monitor
Power
Adapter
IT-313H Mounted to Ceiling
IT-313H Monitor

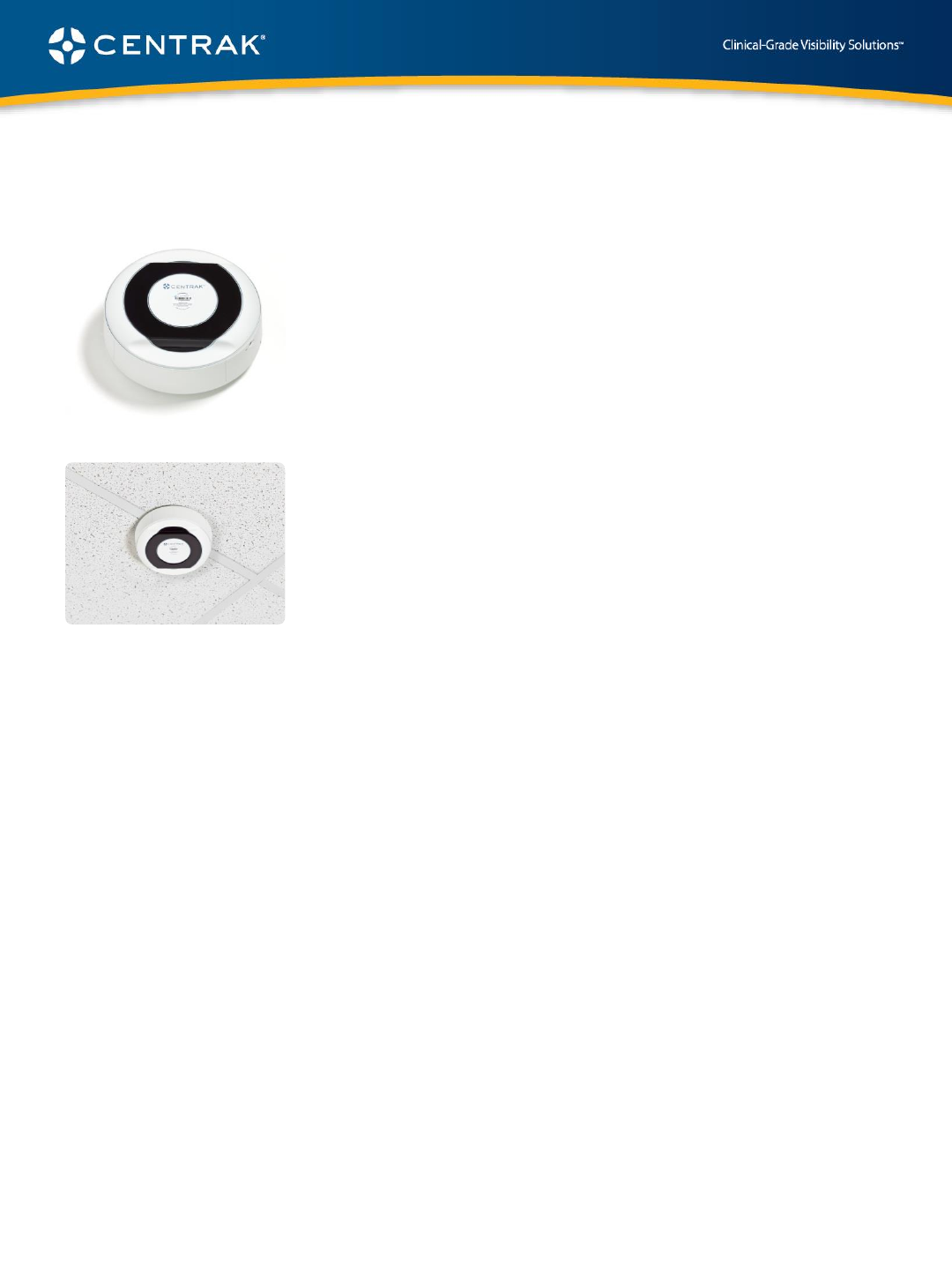

IC Statement per the requirements in RSS-Gen Section 8.4 and RSP-100 Section 4.
