IT-323H Virtual Wall
•No physical wall or curtain needed to limit area being divided
•Semi-private room separation to accurately locate an asset or
person on either side of the room
•Division of bays or bed areas typically important in ER and OR
Pre-Op/Post-Op settings
•Can be configured and monitored by central server for
superior control
•Battery-operated
•Simple to install clip-on ceiling mounting bracket
The Virtual Wall is a Gen2IR (infrared) signaling unit used with IR-enabled tags
to provide a method of locating tagged assets or people for facilities that
require sub-room level accuracy. Virtual Walls are geared to semi-private
rooms and bays typically found in ER and OR settings. Unlike room-level
monitors, Virtual Walls do not need physical walls to limit the area of
coverage.
About CenTrak’s Gen2IR™ Technology
The CenTrak core RTLS differs from legacy in its combined use of a patented
second-generation infrared (Gen2IR™) and active-RFID technology. Monitors
(and Virtual Walls) transmit a unique location ID using Gen2IR ,which is
received by any tag in that location. The tag communicates the location ID and
its own unique ID via RF to the CenTrak Location Server using a hospital’s
existing wired or Wi-Fi network, where it can be accessed in real-time by
hospital personnel and integrated with third party solution providers.
IT-323H Virtual Wall

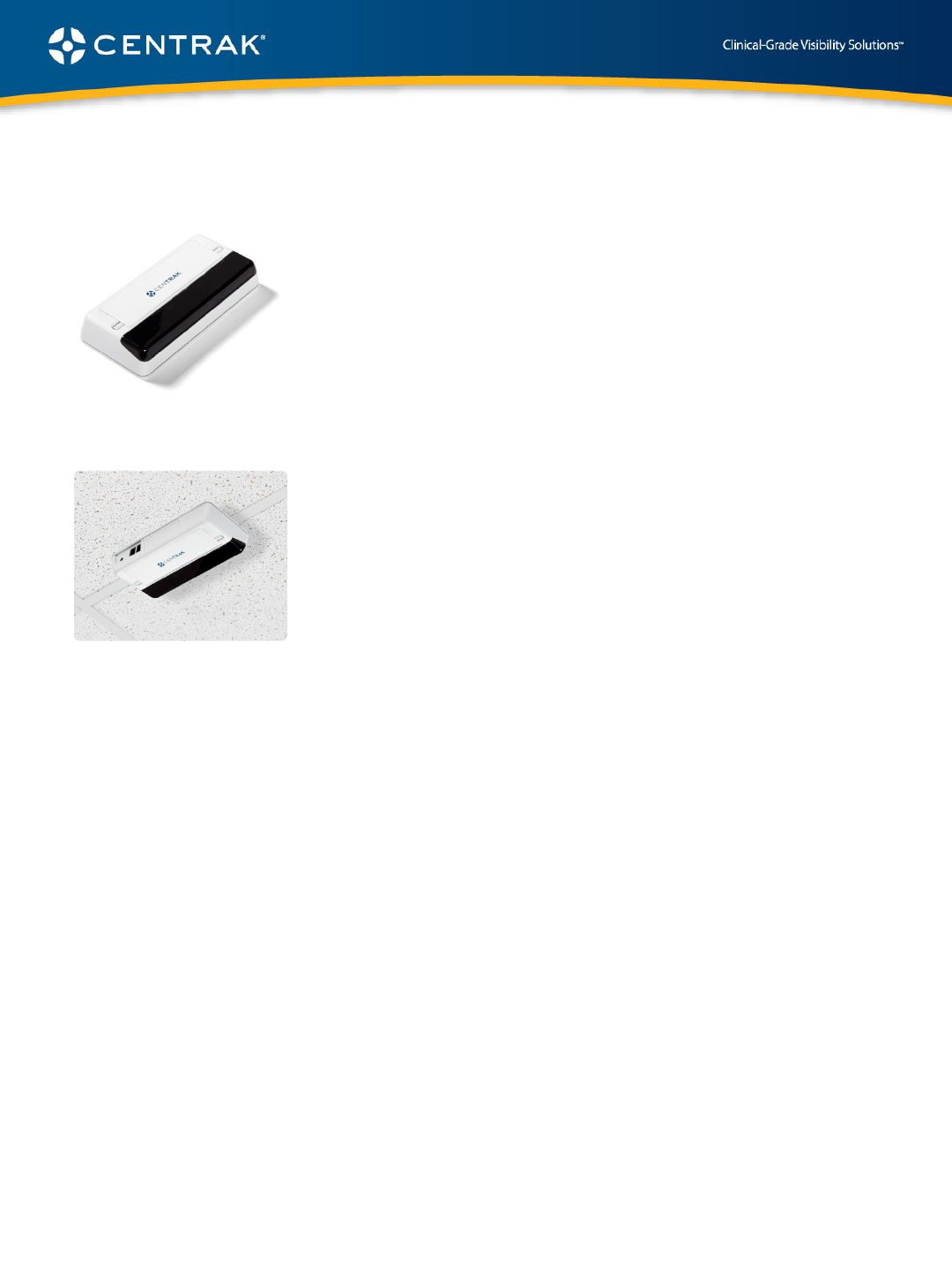

IT-323H Virtual Wall shown
mounted to a ceiling
CenTrak, Inc.
826 Newtown Yardley Road
Newtown, PA 18940
t: 215-860-2928 e: sales@centrak.com
www.centrak.com
© CenTrak 2016. All Rights Reserved. Proprietary and Confidential.

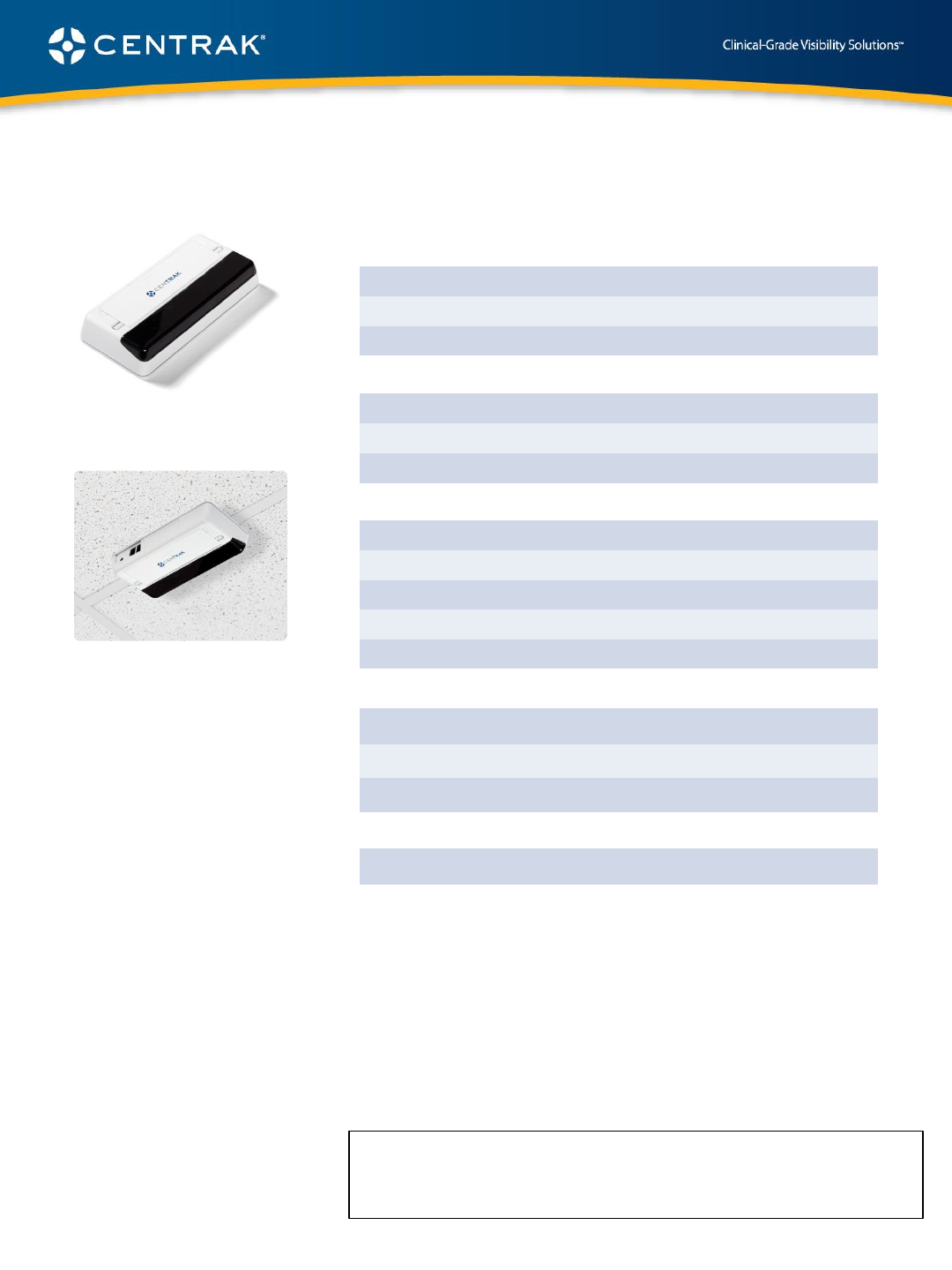

Technical Specifications
Operation
FCC Operating Frequency Range 902-928 MHz
CE Operating Frequency Range 868-870 MHz
Power Control Local on/off, Remote on/off
Bay Area Coverage
Maximum Room Size 14’ long x 12’ wide (12’ high)**
Minimum Room Size 8’ long x 6’ wide (7’ high)**
Wall Thickness Up to 1’
Enclosure
Base Width 5.5 in (139.7 mm)
Base Length 8.5 in (215.9 mm)
Base Depth 1.5 in (38.1 mm)
Base Weight 18.5 oz (0.53 kg)
Mounting Ceiling tile clip, above ceiling tile
Environmental
Operating Temperature 0 C to +50 C
Storage temperature -20 C to +70 C
Operating Humidity 10% to 90% non-condensing
IT-323H Virtual Wall
IT-323H Virtual Wall shown
mounted to a ceiling
CenTrak, Inc.
826 Newtown Yardley Road
Newtown, PA 18940
t: 215-860-2928 e: sales@centrak.com
www.centrak.com
This component complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) The device may not cause harmful
interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. Modifying or
tampering with the transceiver’s or receiver’s internal components can cause a malfunction, invalidate the warranty, and will void FCC authorization to
use these products. This product or its systems are covered by one or more of the following U.S. patents: 5,917,425, 7,061,428, 7,378,964, 7,619,532.
L ‘ utilisation de ce dispositif est autorisée seulement aux conditions suivantes : (1) il ne doit pas produire de brouillage et (2) l’ utilisateur du dispositif
doit étre prêt à accepter tout brouillage radioélectrique reçu, même si ce brouillage est susceptible de compromettre le fonctionnement du dispositif.
IT-323H Virtual Wall
Power
Battery Lithium D-Cell
© CenTrak 2016. All Rights Reserved. Proprietary and Confidential.

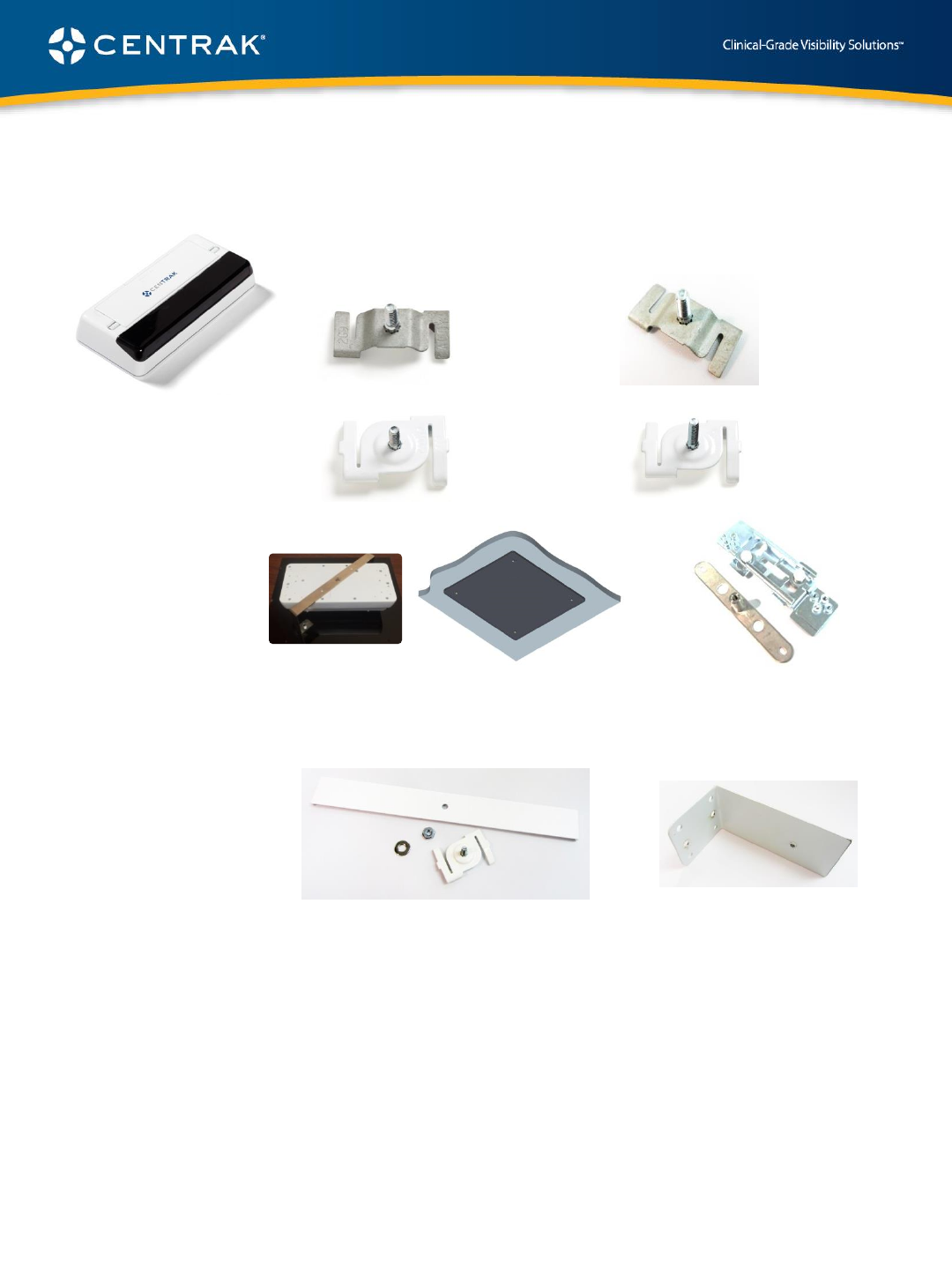

Accessories
ITA-371 VW Monitor
Ceiling Attachment
(9/16 inch) Standard
ITA-372 VW
Monitor Ceiling
Attachment (15/16
inch) Standard
Ceiling Attachments
ITA-373 VW
Monitor Ceiling
Attachment
(15/16 inch) Long
CenTrak, Inc.
826 Newtown Yardley Road
Newtown, PA 18940
t: 215-860-2928 e: sales@centrak.com
www.centrak.com
IT-323H Virtual Wall
IT-323H Virtual Wall
ITA-377
Monitor/Virtual Wall
Flush Mounting Plate
(Monitor not included)
ITAK-385
Monitor/Virtual Wall Back to Back Attachment
(Monitor not included)
ITA-378
Monitor/Virtual Wall Multi Ceiling Attachment
(Monitor not included)
ITA-370 VW Monitor
Ceiling Attachment
(9/16 inch) Long
ITA-364-VW
Virtual Wall Monitor L-Bracket
