6 IN 1 AIR FRAMING NAILER9751093910SET UP AND OPERATING INSTRUCTIONSDistributed exclusively by Harbor Freight Tools®.3491 Mission Oaks Blvd., Camarillo, CA 93011Visit our website at: http://www.harborfreight.com Read this material before using this product. Failure to do so can result in serious injury. SAVE THIS MANUAL.Copyright© 2007 by Harbor Freight Tools®. All rights reserved. No portion of this manual or any artwork contained herein may be reproduced in any shape or form without the express written consent of Harbor Freight Tools. Diagrams within this manual may not be drawn proportionally. Due to continuing improvements, actual product may differ slightly from the product described herein. Tools required for assembly and service may not be included.For technical questions or replacement parts, please call 1-800-444-3353.Revised manual 08j

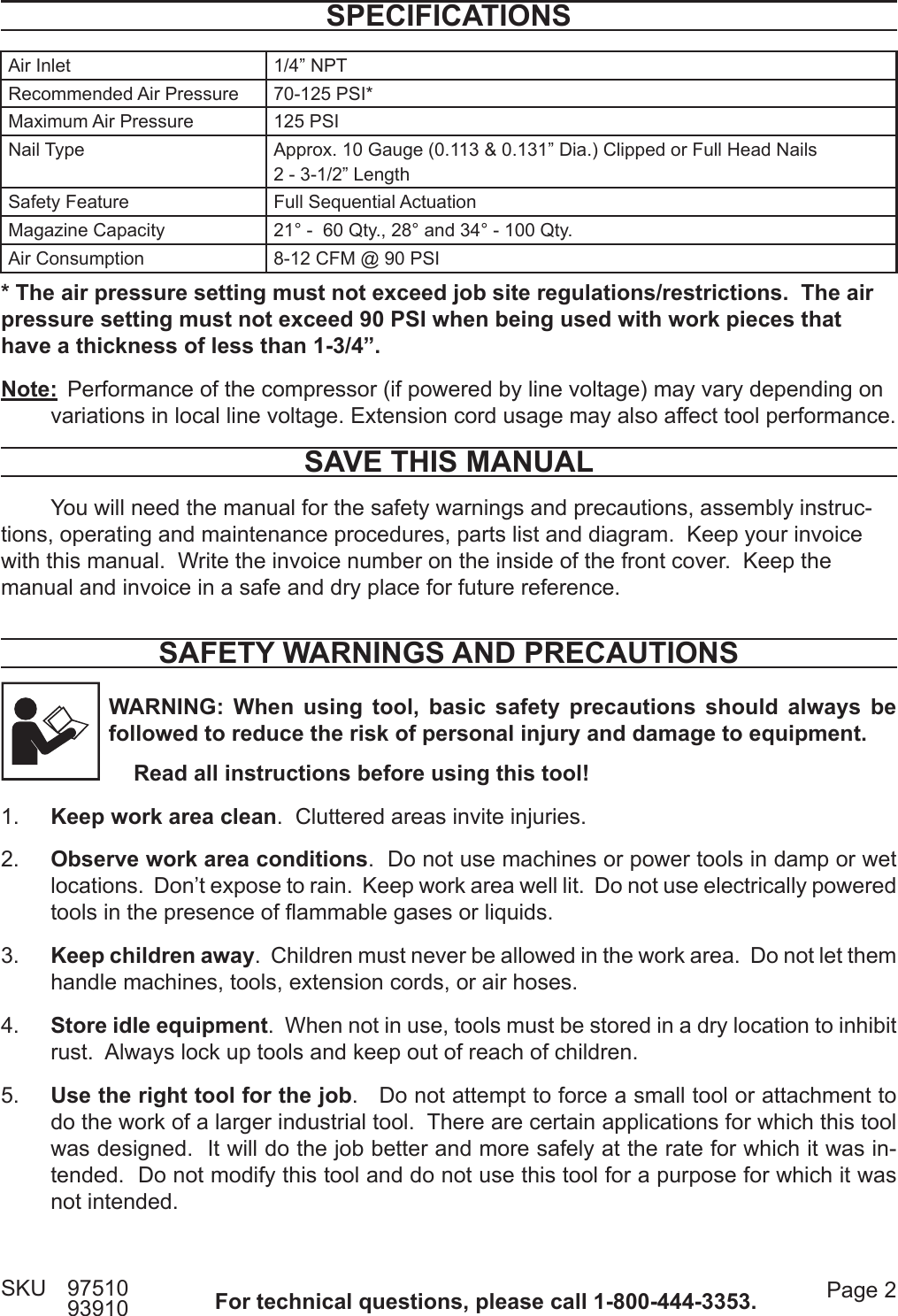

Page 2SKU 97510 93910 For technical questions, please call 1-800-444-3353.SPECIFICATIONSAir Inlet 1/4” NPT Recommended Air Pressure 70-125 PSI*Maximum Air Pressure 125 PSINail Type Approx. 10 Gauge (0.113 & 0.131” Dia.) Clipped or Full Head Nails2 - 3-1/2” LengthSafety Feature Full Sequential ActuationMagazine Capacity 21° - 60 Qty., 28° and 34° - 100 Qty.Air Consumption 8-12 CFM @ 90 PSI* The air pressure setting must not exceed job site regulations/restrictions. The air pressure setting must not exceed 90 PSI when being used with work pieces that have a thickness of less than 1-3/4”.Note: Performance of the compressor (if powered by line voltage) may vary depending on variations in local line voltage. Extension cord usage may also affect tool performance.SAVE THIS MANUALYou will need the manual for the safety warnings and precautions, assembly instruc-tions, operating and maintenance procedures, parts list and diagram. Keep your invoice with this manual. Write the invoice number on the inside of the front cover. Keep the manual and invoice in a safe and dry place for future reference.SAFETY WARNINGS AND PRECAUTIONSWARNING: When using tool, basic safety precautions should always be followed to reduce the risk of personal injury and damage to equipment. Read all instructions before using this tool!1. Keep work area clean. Cluttered areas invite injuries.2. Observe work area conditions. Do not use machines or power tools in damp or wet locations. Don’t expose to rain. Keep work area well lit. Do not use electrically powered tools in the presence of ammable gases or liquids.3. Keep children away. Children must never be allowed in the work area. Do not let them handle machines, tools, extension cords, or air hoses.4. Store idle equipment. When not in use, tools must be stored in a dry location to inhibit rust. Always lock up tools and keep out of reach of children.5. Use the right tool for the job. Do not attempt to force a small tool or attachment to do the work of a larger industrial tool. There are certain applications for which this tool was designed. It will do the job better and more safely at the rate for which it was in-tended. Do not modify this tool and do not use this tool for a purpose for which it was not intended.
