Centronix Electronics FMM FM Modulator User Manual Manual

Manual

FM Modulator

Model : FMM

Specifications

RF Output LineAnt Radiation output

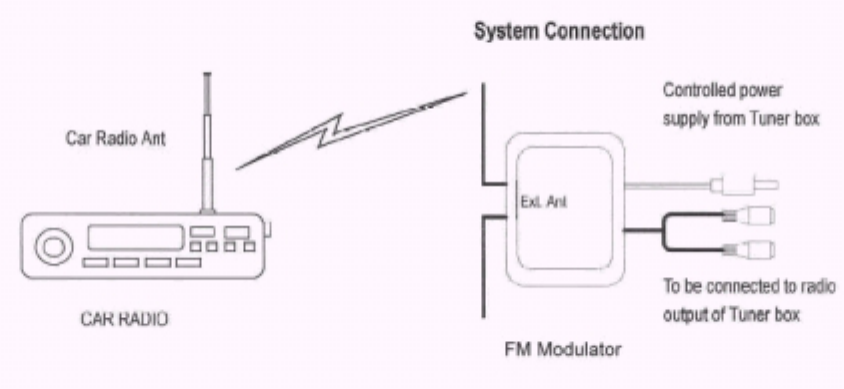

Audio Input RCA Jacks: To be connected to stereo output of Tuner Box or otherAudio devices

Carrier Frequency

FM1 89.1 ± 0.2 MHz

FM2 88.7 ± 0.2 MHz

Power Source DC 12V controlled

Dimensions Cabinet Size : 89(W) x 68(D) x18(T) mm

Weight 100g

Consumption 50mA max

* Specifications are subject to change without notice for the purpose of improvement

Main Functions

Provide two carrier frequencies

Two carrier frequencies are provided to selection FM1(89.1MHz) and FM2(88.7MHz).

Light weight and compact

The size and weight of the transmitter is so small and light, it can be mounted behind the radio inside the

dashboard without any problem.

Notice

FM Modulator includes two carrier frequencies (FM1 : 89.1±0.2MHz and FM2 : 88.7±0.2MHz which is

the original setting in factory), please tune the frequency of radio to 88.7 MHz. If the worse reception is

happened, please make a fine tuning or switch this unit to FM1, change the frequency to 89.1 MHz and

make a fine tuning, or do the seeking function of the radio to improve the reception. Please do not adjust

the coil inside this unit by yourself to prevent any damage. If there is not getting better at all, please

consult your dealer.
