1. mTokenCryptoID Product Overview

1.0. Current Situation

Today’s world is increasingly getting connected due to rapid development in information

and internet technology industry, peoples’ work, study and life-style is changing greatly

and growing more efficiency; meanwhile, E-Commerce, E-Government, Digital

Currency, E-Banking, financial and retailsectors are acceleratingutilization of digital

information resources every day.

1.1. Challenge

On the other hand, network security issues are prominently increasing; whereas in

traditional process of network security authentication, “username + password”

authentication method is used frequently, this kind of strategy is easy butinsecure.

1.2. Century Longmai solution

Meanwhile PKI systems and network security technology based on portable hardware is

a new and trending development in digital security to ensure data privacy, confidentiality

and availability. Embedded with secure element and smart card chip technology, Century

Longmai’smTokenCryptoID is a two-factor USB authenticator utilizing CCID drivers for

highly robust authentication and verification deployments across multi-industry. The

CCID drivers work to protect the USB connection and are therefore less susceptible to

packet sniffing thus providing stronger authentication.

The mTokenCryptoIDproduct design seamlessly integrates with the exiting PKI

applications for application developers to easily configuremTokenCryptoIDwith related

services like Web, E-mail, VPN, Windows Smart card logon, etc. The end users of

mTokenCryptoIDbenefit from driverless Plug & Play operations (without need to

manually install any software), which allows for unproblematic yet secure verification of

users in web services, E-mail protection, VPN login, Windows smartcard logon for both

network and local based authentication.

mTokenCrytpoIDUser Manual

2. mTokenCryptoIDPKI Certificate Utility

mTokenCryptoIDPKI Certificate Utility is an easy to operate GUI application used to

conveniently manage mToken CCID device.

Please run Setup.exe to install.

2.1 Basic Functions

mTokenCryptoIDPKI Certificate Utility’s functions include:

1. Import/delete/viewcertificates

2. ChangedevicenameandPIN

3. Advancedconfiguration

2.2 Basic Operations

2.2.1 Device Detail

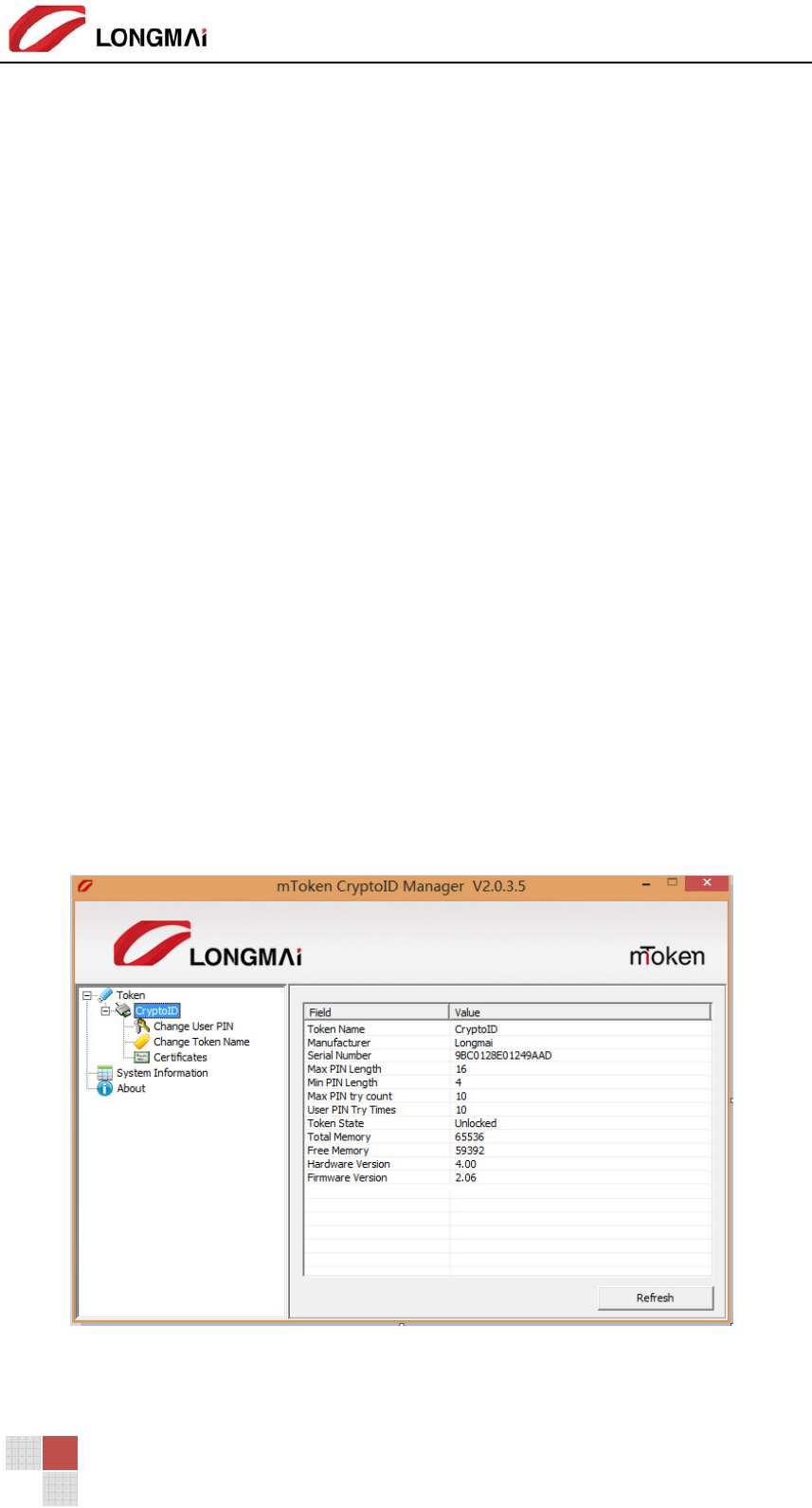

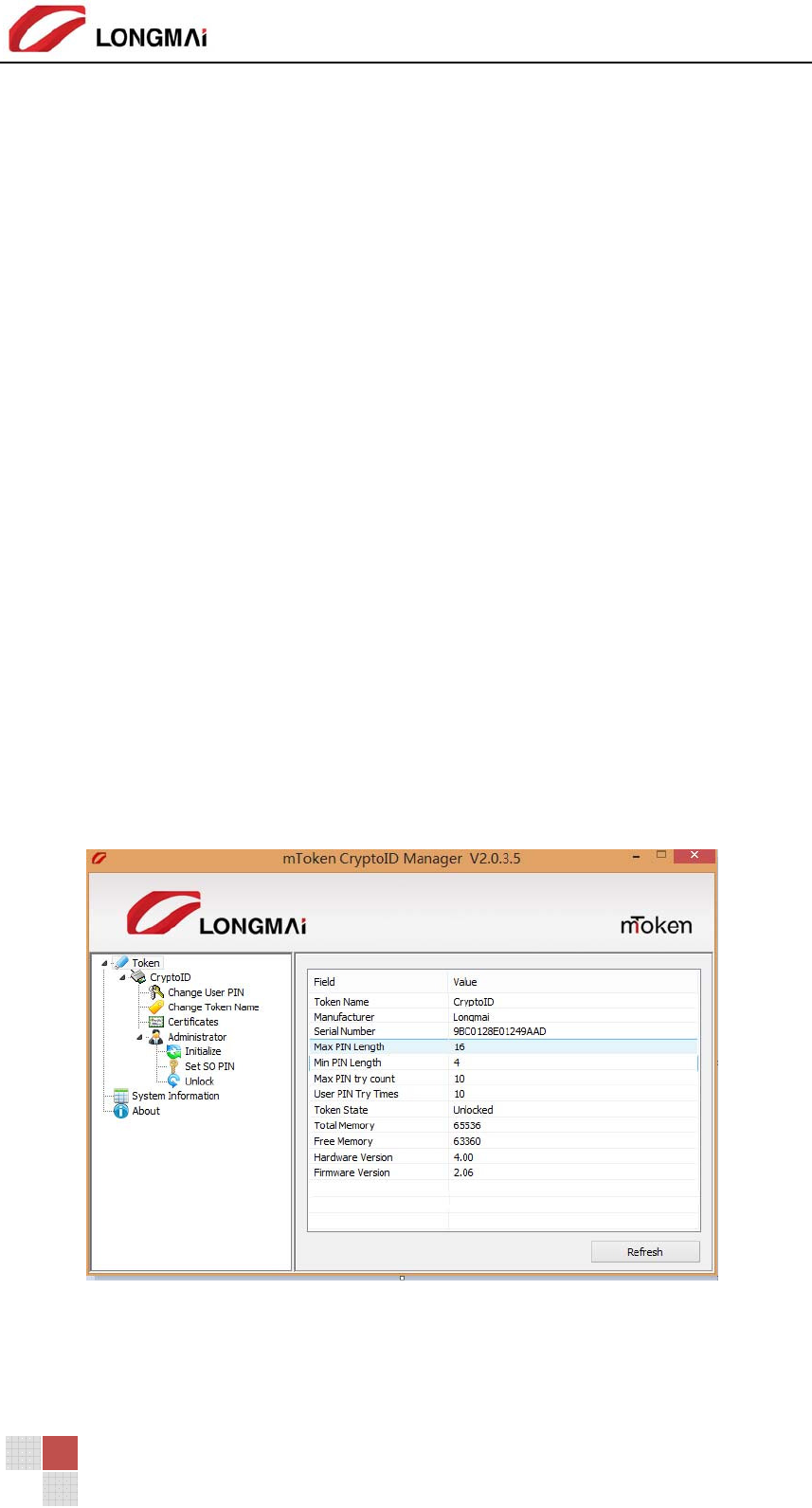

1. StartmTokenCryptoIDPKICertificateUtility,alltheconnected

mTokenCryptoIDdeviceswillbeauto‐detectedandlistedintheleftPanel.

2. Thenselectadevicename,detailedinformationaboutconnectedtokenwillbe

shownintherightPanel.

mTokenCrytpoIDUser Manual

2.2.2 Change mTokenCryptoIDUser PIN and Name

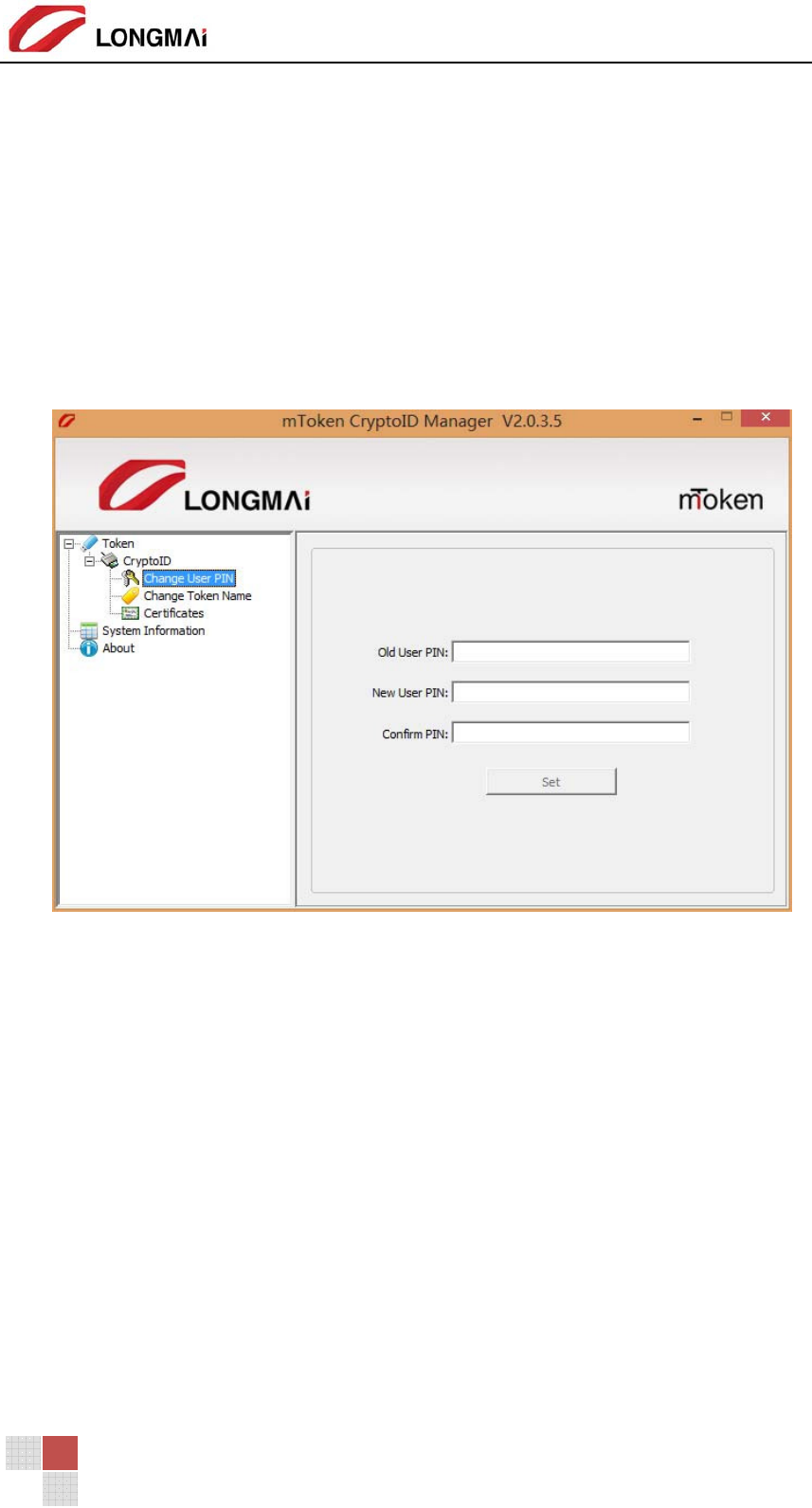

 TochangemTokenCryptoIDUserPIN,performthefollowingoperations:

1. SelectChangeUserPINinthelefttree.

2. InputtheoldUserPIN.

3. InputanewUserPINandaconfirmPIN.

4. ClickSetbutton.

 Tochangethetoken’sname,selectChangeTokenNameinthelefttreeand

inputanewnameinthedialogbox,clickSettosavechanges.

mTokenCrytpoIDUser Manual

2.2.3 View Certificates

 Toviewcertificatesinthedevice,performthefollowingoperations:

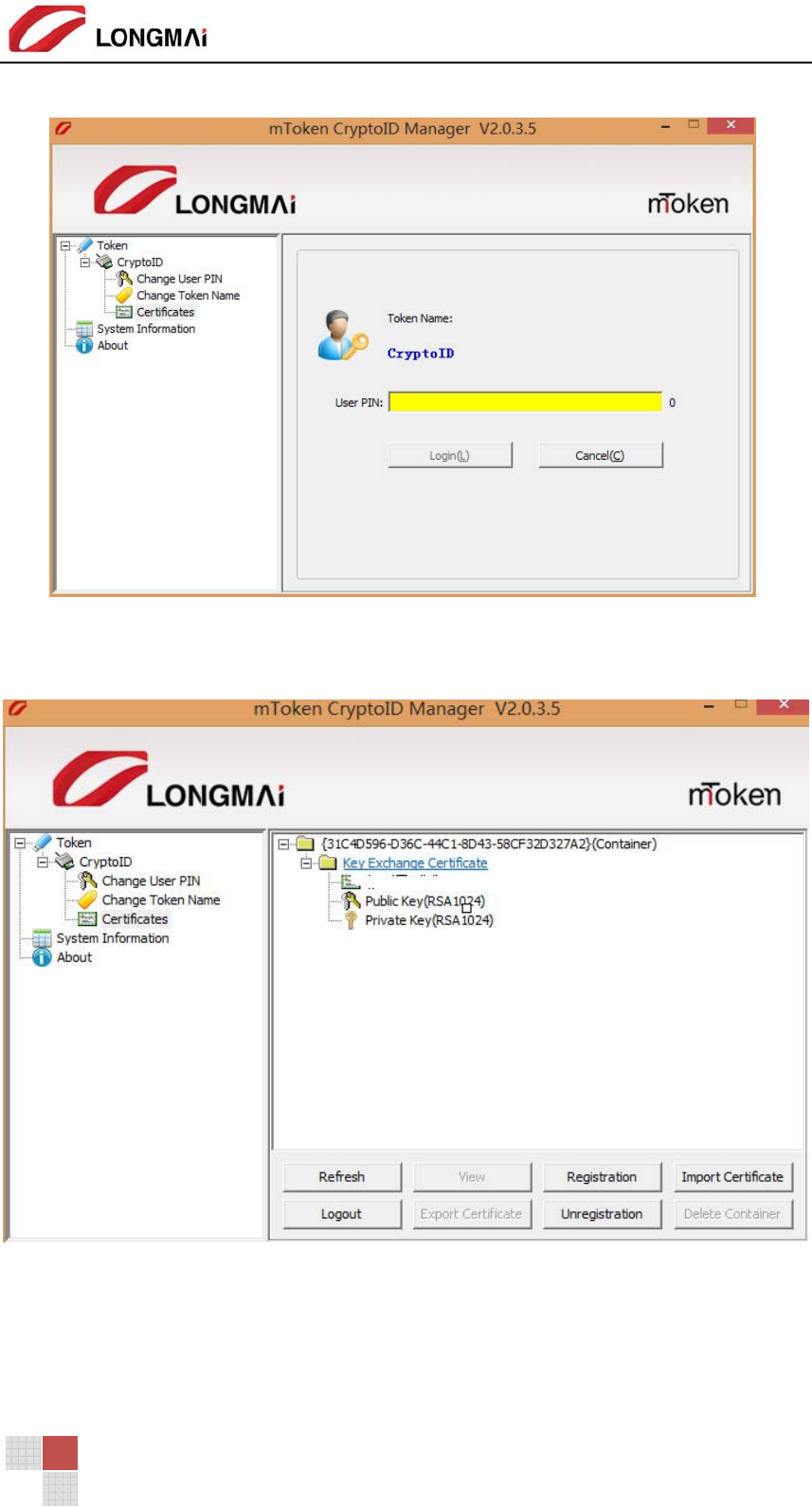

1. SelectCertificatesinthelefttree.

2. InputthecorrectPINinthedialogboxthatpopsup.(Thedefaultvalueis

12345678)

Note:The token will be locked after ten time’s wrong PIN inputs. In this case, user has to

contact the developer to unlock it.

The remaining trialsare independent of reconnection and time, but willrestore to default

value after successful PIN verification.

 Usercancheckthe“UserPINTryTimes”byclickingthedevicenameintheleft

tree.

mTokenCrytpoIDUser Manual

After successful login the Certificate Utility, you can view the available containers and

certificates in them.

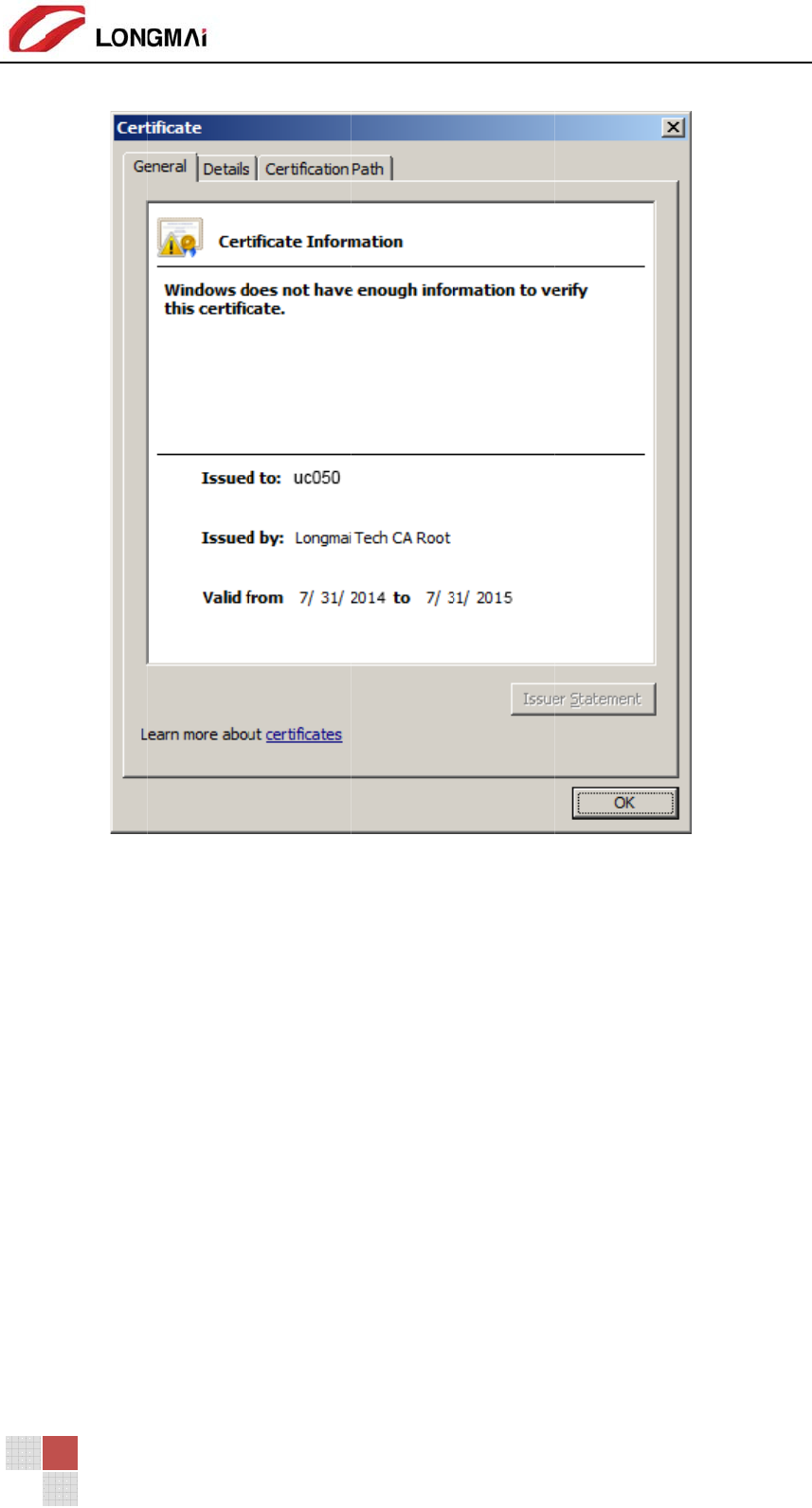

Double-click the certificate or click the View button to see the detailedinformation in the

Certificate dialog box (as seen below)

Co

p

mTo

k

p

yright 2015 C

e

k

enCrytpoIDU

s

e

ntury Longma

i

s

er Manual

i

Technology

C

o.,Ltd. All ri

g

hts reserved. | Public

mTokenCrytpoIDUser Manual

3. mTokenCryptoIDPKI Manager

3.1 Basic Functions

mTokenCryptoIDPKI Manager is designed to manage the token device, including

Device initialization, SO PIN setup, device Unlock, ISO download and Certificates

management.

Note:PKI Manager is designed to manage mTokenCryptoIDdevices- it is not

recommended to send this tool to end-users.

3.2 Basic Operations

3.2.1 Find mTokenCryptoID

1. StartsthemTokenCryptoIDPKIManager,alltheconnected

mTokenCryptoIDdevicesareauto‐detectedandlistedintheleftpart,

2. Thenselectadevicename,thedetailinformationoftheconnectedtoken

willbeshownintherightPanel.

3.2.2 Import certificate

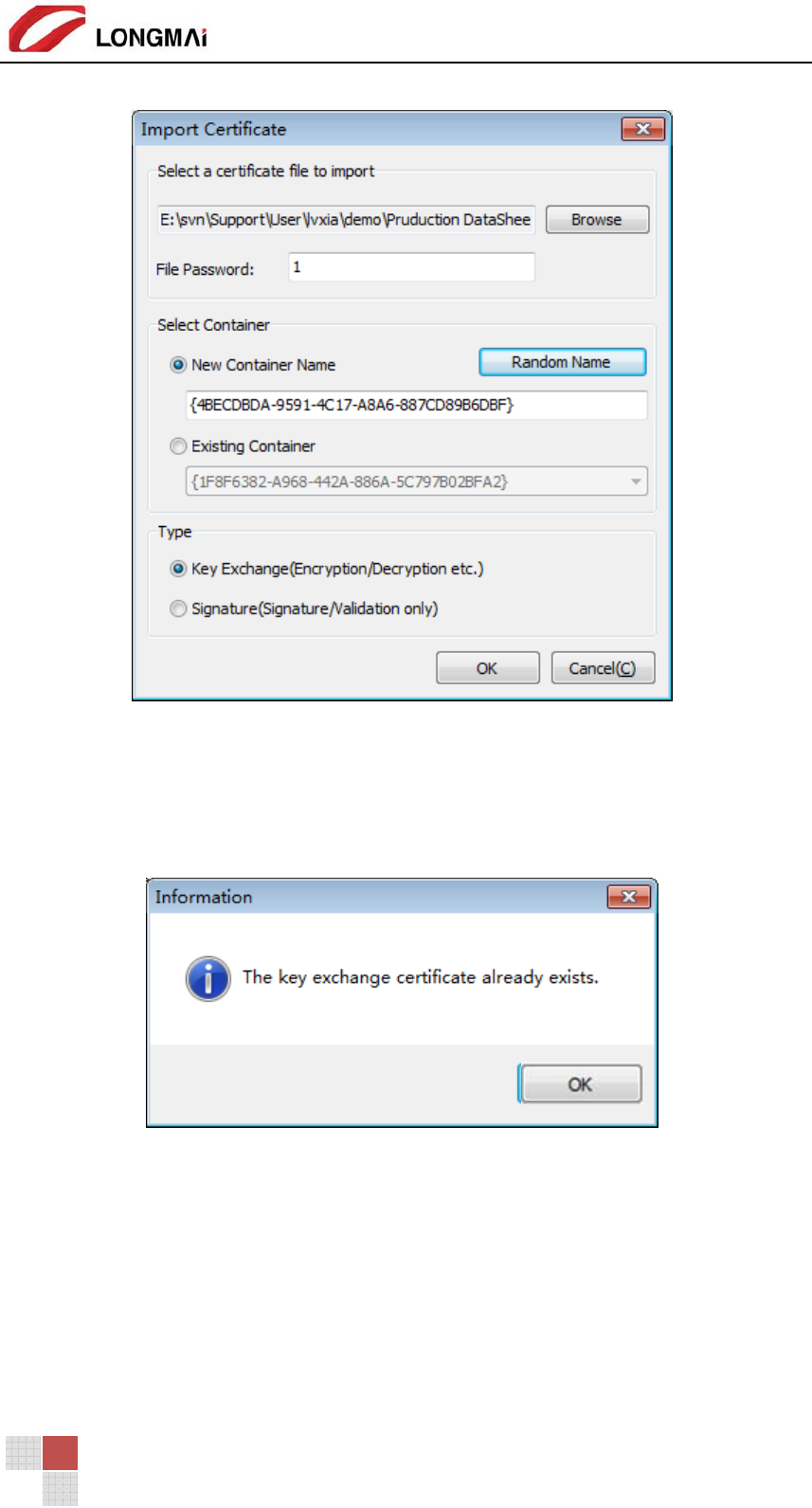

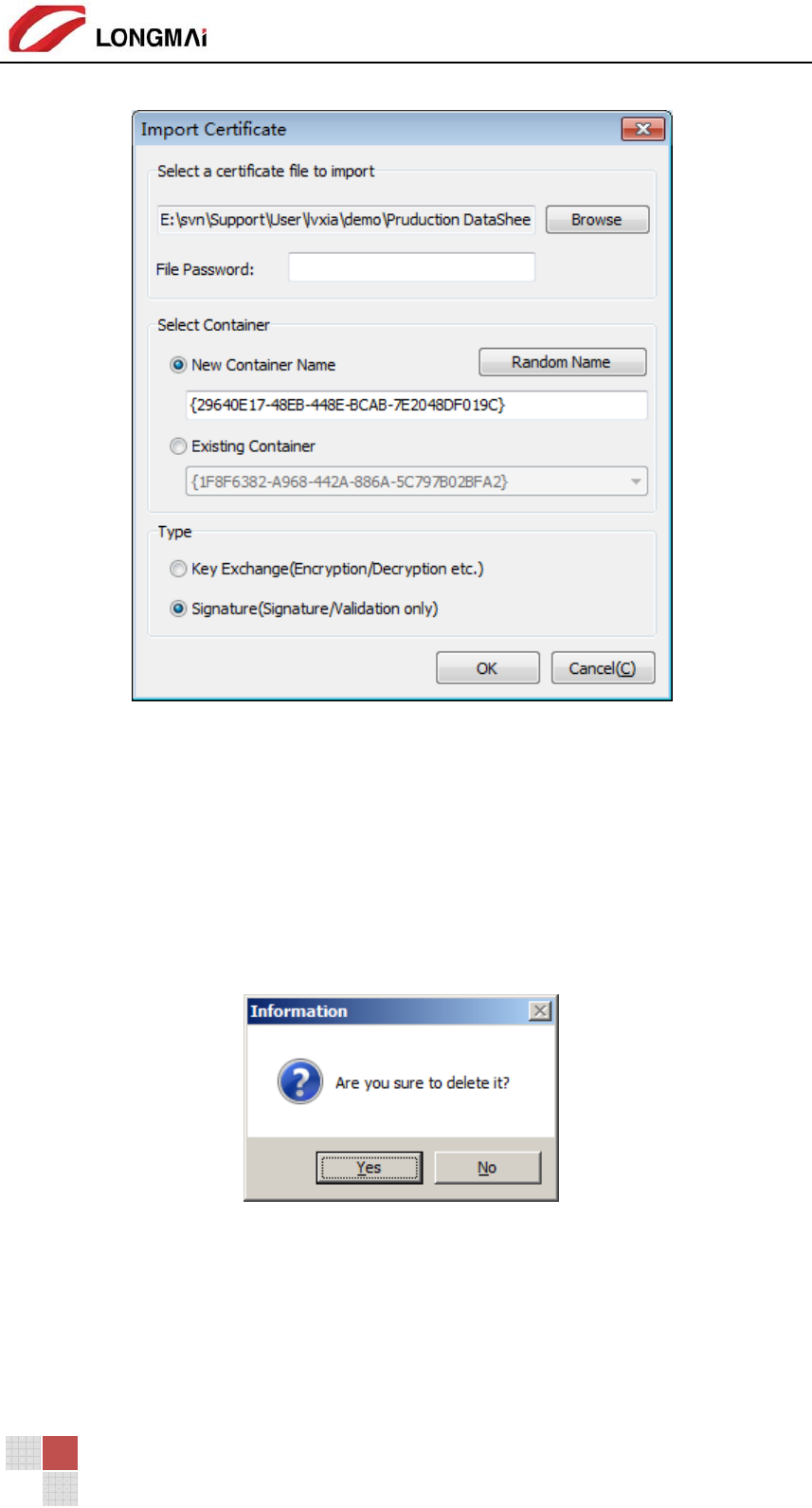

To import certificate into the mTokenCryptoID, perform the following operations:

mTokenCrytpoIDUser Manual

1. SelectCertificateinthelefttreeandinputcorrectUserPIN.

2. ClickImportCertificatebutton.

3. ClickBrowserbuttontoselectacertificate.

4. Inputitscorrectpasswordifneeded.

5. SelectNewContainerName(manuallyinputanameoruseanauto‐name

byclickingRandomNamebutton)

6. SelectExistingContainer(choosefromdrop‐downlist).

7. Selectthetypeofthekey.

8. ClickOKbuttontoimportthekey.

mTokenCrytpoIDUser Manual

Note:A container can contain up to two certificates, but must different type; for example,

the first one’s type is Key Exchange, the other one must be Signature and vice versa.

Importing a certificate whose type already exists results intothe below pop up alert.

If importing a different type of certificate, the importation can execute successful.

mTokenCrytpoIDUser Manual

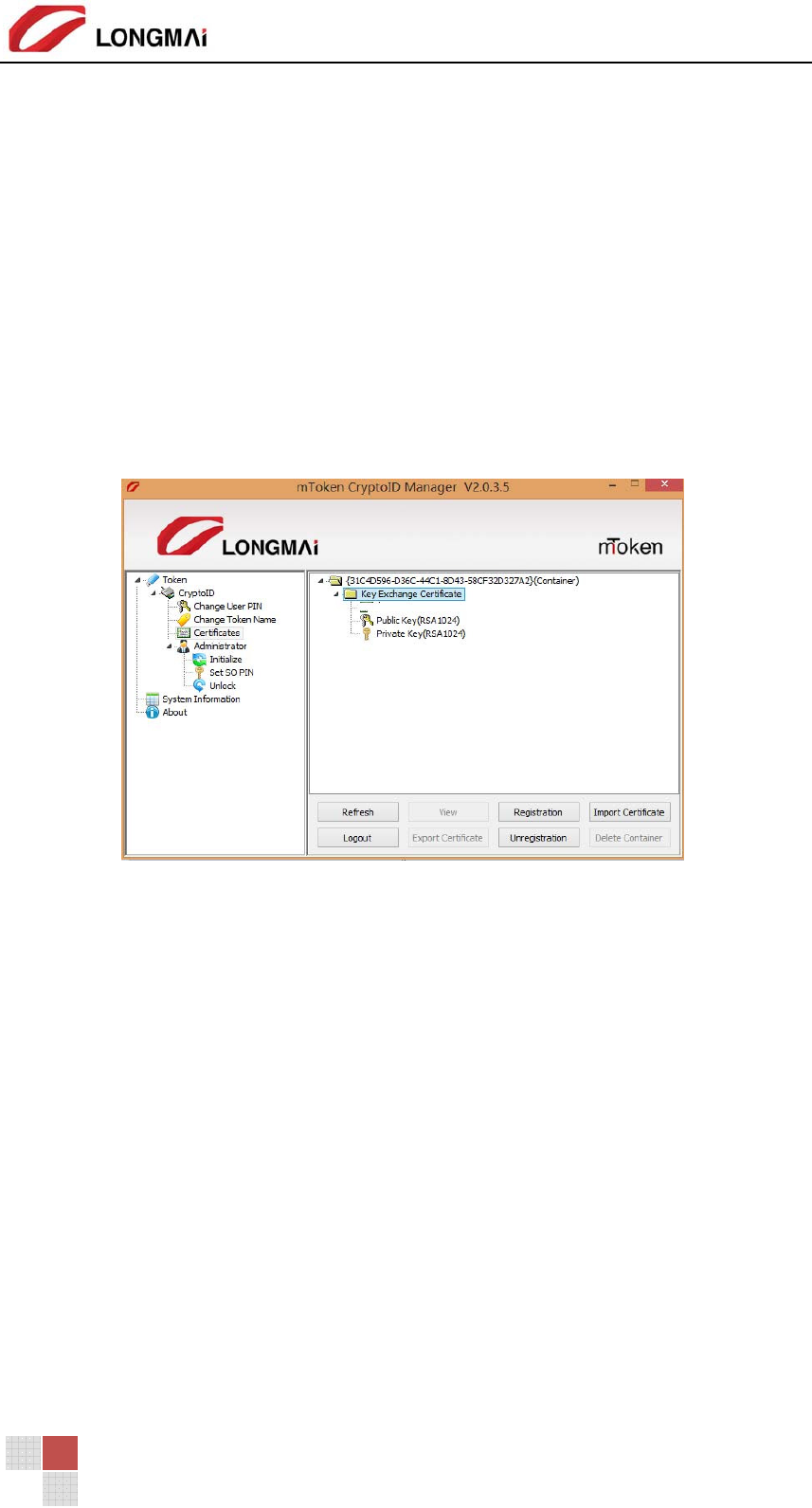

3.2.3 Delete container

You can delete containers and certificates quickly with mTokenCryptoIDManager.

Select a container and click Delete Container button (all certificates in it will be

deleted).

Note: You can only delete certificate through deleting the container.

3.2.4 InitializemTokenCryptoID

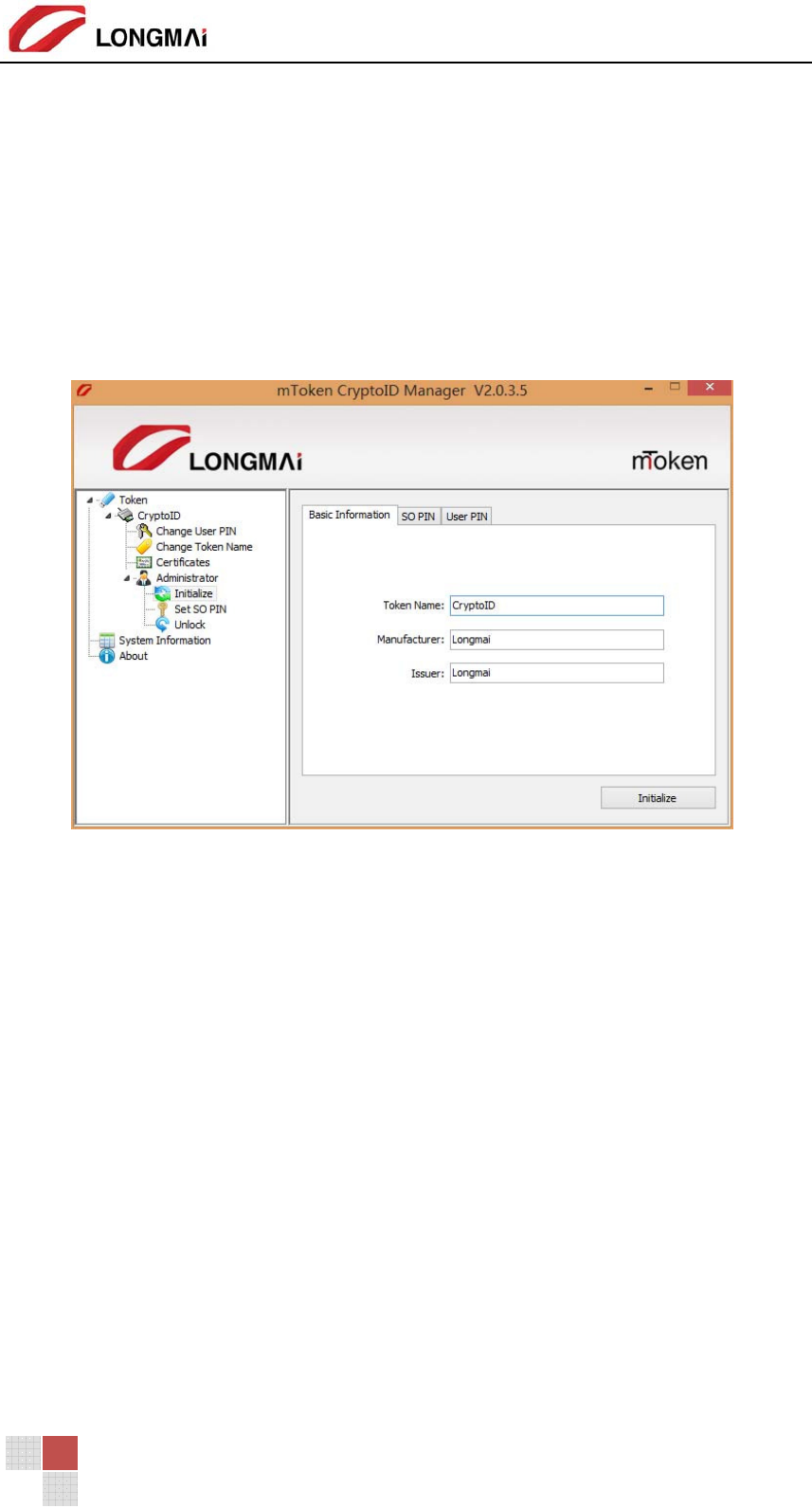

To initialize the mTokenCryptoIDdevice, perform the following operations:

1. SelectInitializeinthelefttree.

2. Filloutallinputboxes.

mTokenCrytpoIDUser Manual

3. ClickInitialize.

Min PIN length and Max PIN length are limited to 4~16Bytes while Max PIN try

count is limited to 1~15 trials.

Note:Initialize function should be used carefully, because all containers and certificates

will be cleared during this process. In addition, all PINs (including SO PIN) will be

reset.

3.2.5 Change SO PIN

 IfthedeviceadministratorneedstochangeSOPIN,pleasedirectlyusePKI

Managertoforthismodification.

mTokenCrytpoIDUser Manual

3.2.6 Unlock operation

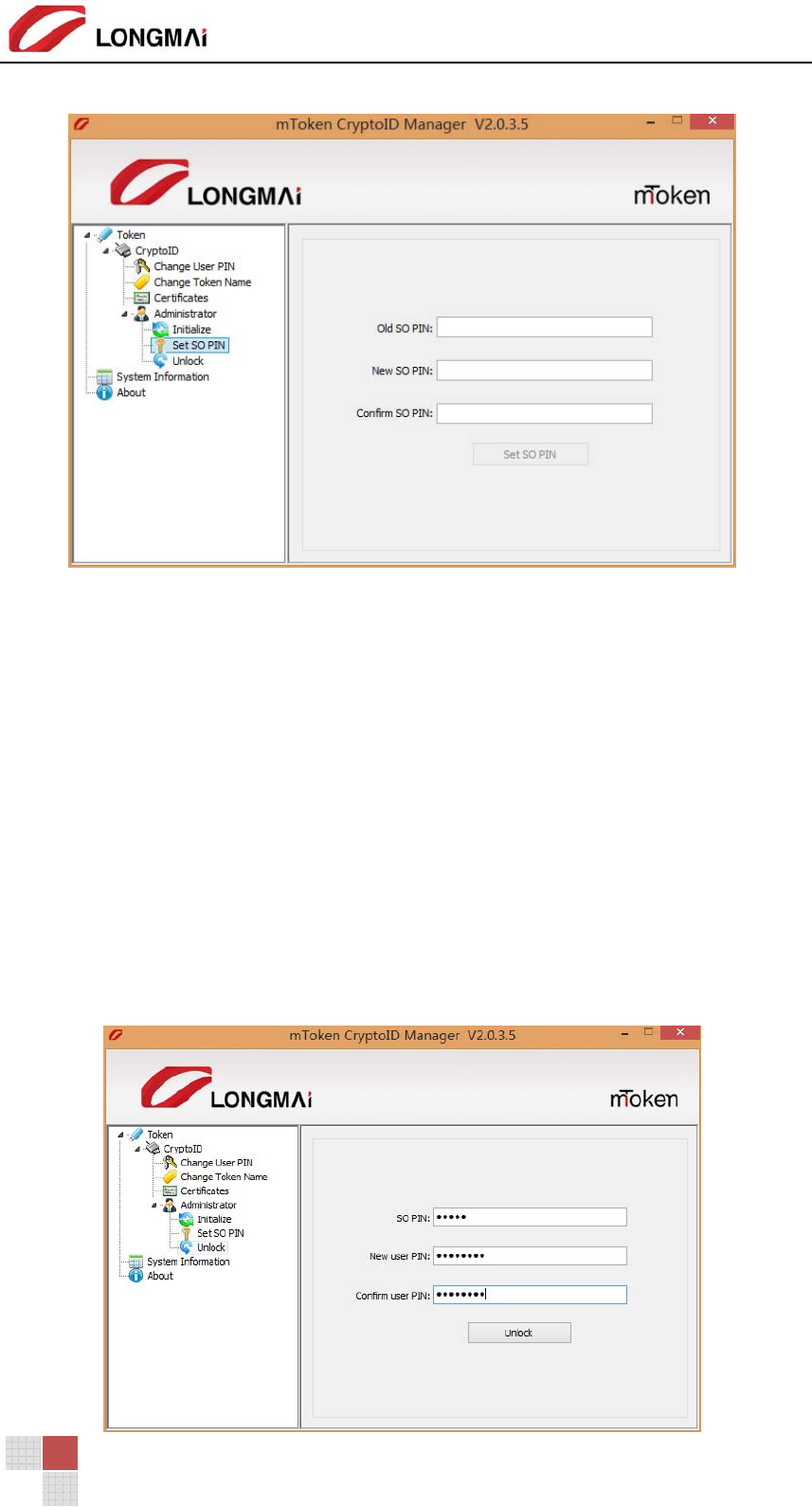

In case the user forgets the PIN (user PIN); manager can use mTokenCryptoIDPKI

Manager to unlock the device.

 Tounlockthetoken,performthefollowingoperations:

1. SelectUnlockinthelefttree,

2. InputthecorrectSOPIN,otherwisecan’tchangetheUserPIN,

3. InputanewUserPINandconfirmitagain,

4. ClickOKtochangetheUserPIN.

Note: The length of the PIN has to be limited by the Min PIN and MAX PIN length.

mTokenCrytpoIDUser Manual

3.3 Extra Functions

If the user has mTokenCryptoIDMiddleware installed, the CryptoIDtray icon will

display upon connecting mTokenCryptoIDdevice.

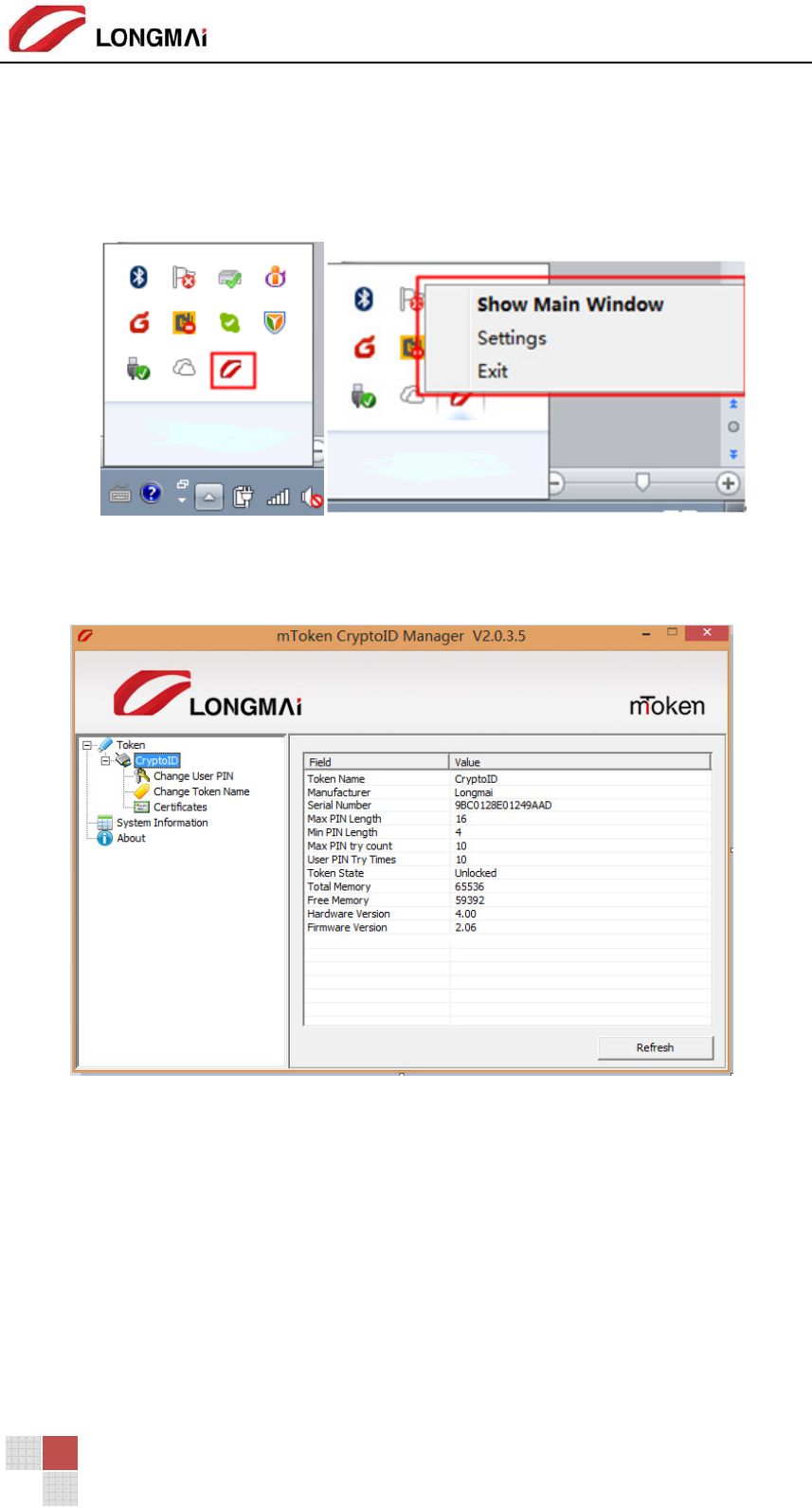

Right-click the tray icon to display the three functions shown in figure above.

 ShowMainWindow‐‐‐ClicktostartPKICertificateUtility.

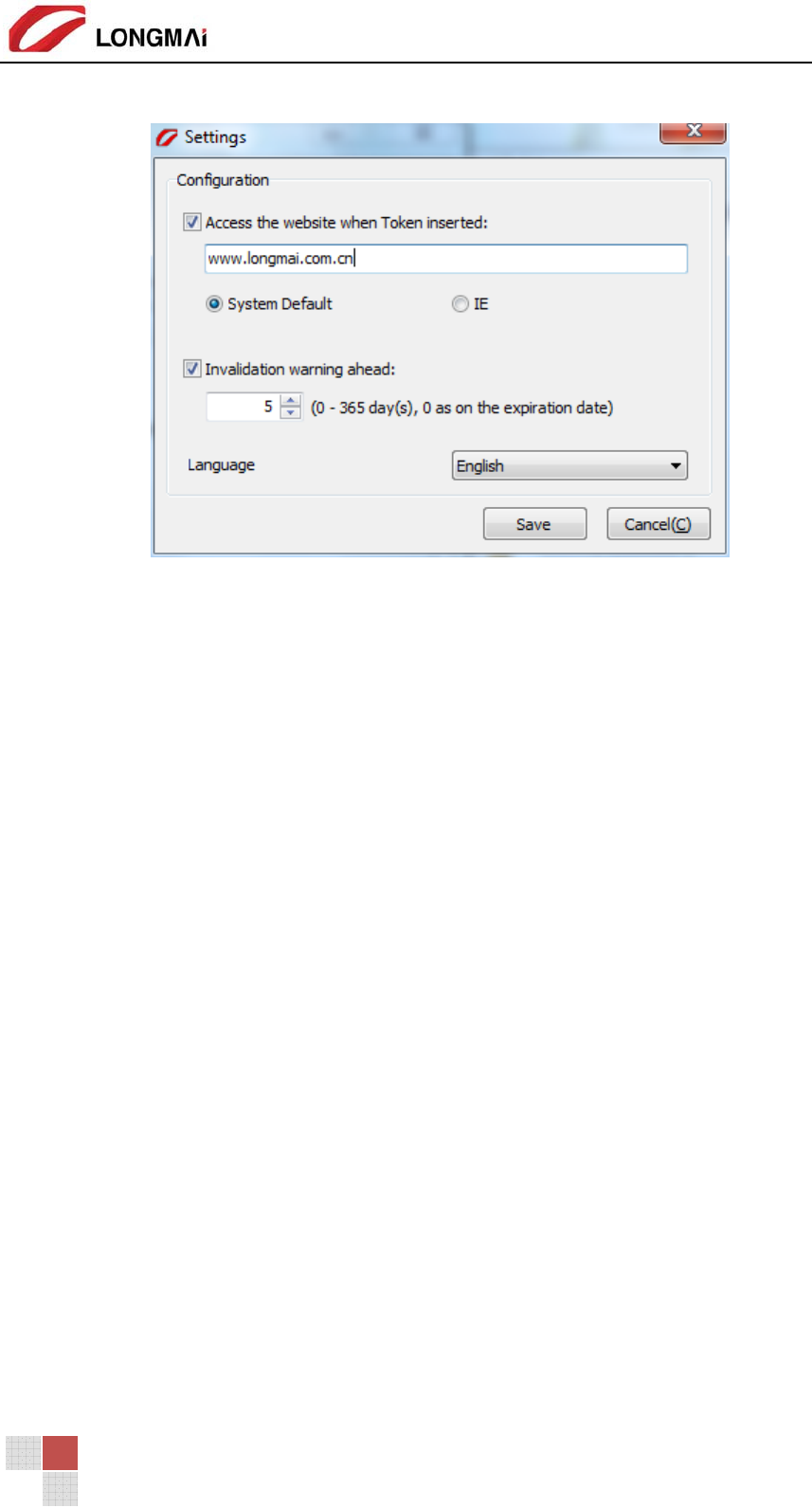

 Settings‐‐‐ClickheretoconfigureURLandwarningperiodfor

expiredcertificate.

mTokenCrytpoIDUser Manual



 Exit–ClickheretoclosePKICertificateUtility.

mTokenCrytpoIDUser Manual



4. About Century Longmai

Establishedin2003,CenturyLongmaiTechno logy Co.,Ltdisoneofthemostleading

informationsecuritydevicevendorsinChinawithover12yearsexperiencedevelopinglatest

generationofdigitalsecuritysolutionsandproductsforsecureinformationaccessand

transmission.OurproductportfoliosincludePKIdongles,wirelessPKItokens,OTPtokens,

smartcard,smartcardreaders,electronicdocumentprotectionsolution,softwarelicense

dongles,SmartcardreadersandOEMservices.Provedtobesecureandconvenient,our

solutionsandproductsarededicatedtohelpcustomersbuildsafe,efficientandsustainable

networks,financialsystemsandenjoysecureaccesstodataandinformationeverywhere

whenevertheywant.



Century Longmai Technology Co., Ltd

3rdFloor,GongKongBuilding,No.1,WangZhuangRoad,HaidianDistrict,Beijing,China

Postcode:100083

Tel: (86)10‐62323636|Fax:(86)10‐62313636

SalesE‐mail:info@longmai.netSupportE‐mail:support@longmai.net

Website:http://lm‐infosec.com



FCCWarning

AnyChangesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliance

couldvoidtheuser’sauthoritytooperatetheequipment.



Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothefollowingtwo

conditions:(1)Thisdevicemaynotcauseharmfulinterference,and(2)thisdevicemustaccept

anyinterferencereceived,includinginterferencethatmaycauseundesiredoperation.



Note:ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigital

device,pursuanttopart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonable

protectionagainstharmfulinterferenceinaresidentialinstallation.Thisequipmentgenerates

usesandcanradiateradiofrequencyenergyand,ifnotinstalledandusedinaccordancewith

theinstructions,maycauseharmfulinterferencetoradiocommunications.However,thereis

noguaranteethatinterferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoes

causeharmfulinterferencetoradioortelevisionreception,whichcanbedeterminedby

turningtheequipmentoffandon,theuserisencouragedtotrytocorrecttheinterferenceby

mTokenCrytpoIDUser Manual

oneormoreofthefollowingmeasures: 

—Reorientorrelocatethereceivingantenna. 



—Increasetheseparationbetweentheequipmentandreceiver. 



—Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiveris

connected. 



—Consultthedealeroranexperiencedradio/TVtechnicianforhelp.



Century Longmai Technology 201505LM mToken Crypto ID User Manual mToken CrytpoID x

Century Longmai Technology Co.,Ltd mToken Crypto ID mToken CrytpoID x

Users Manual

Navigation menu

Namespaces

Views

Navigation
