Chapter 1 Getting Started
1.1 Brief Instruction
Chainway C4000 is a series of Android powered smart terminals, with data capture, data
processing, wireless communication. It is with high-reliability & high-expansibility. Auto &
Accurate data collection is achieved in various business fields via a complete solution of
premium options, the flexible solution among options and operators is suited-up. You will
find out with C4000, much easier deployment, reduced complexity, decreased maintenance,
are the benefits for enterprises.
C4000 meets industrial level IP64 (IEC sealing), is sufficient to routine applications, eg,
railway inspection, road parking toll, vehicle inspection, logistics express, power inspection,
warehousing management, chain retail, etc. Whether the mobile operators are working indoor
or outdoor, with Chainway C4000, your business is always &highly efficient on-line.
Meeting industrial standards, designed to support a various of mobile solutions. With the
build-in high performance Cortex-A9 1GHZ dual core processor technology, the operators
need only one device to enjoy a convenient and easy job, C4000 will be the ideal choice for
key-fact business in mobile solutions, for simplified task flow, enhanced work efficiency, for
shortened time to customer response, more satisfied customer care service.
Chainway C4000 comes with world wide band WCDMA technology. . Multi channels data
and voice communication guarantees the real-time communication and data efficiency, C4000
brings you the best ROI.
1.2 Precaution Before Using Battery
Do not leave batteries unused for extended periods of time, either in the product or in
storage. When the battery has been unused for 6 months, check the charge status and
charge or dispose of the battery as appropriate.
The typical estimated life of a Lithium-Ion battery is about two to three years or 300 to
500 charge cycles, whichever occurs first. One charge cycle is a period of use from fully
charged, to fully discharged, and fully recharged again. Use a two to three year life
expectancy for batteries that do not run through complete charge cycles.
Rechargeable Lithium-Ion batteries have a limited life and will gradually lose their
capacity to hold a charge. This loss of capacity (aging) is irreversible. As the battery
loses capacity, the length of time it will power the product (run time) decreases.
Lithium-Ion batteries continue to slowly discharge (self-discharge) when not in use or
while in storage. Routinely check the battery’s charge status. The user manual typically
includes information on how to check battery status, as well as battery charging
instructions.
www.chainway.net
Observe and note the run time that a new fully-charged battery provides for powering
your product. Use the new battery run time as a basis to compare run times for older
batteries. The run time of your battery will vary depending on the product’s
configuration and the applications that you run.
Routinely check the battery’s charge status.
Carefully monitor batteries that are approaching the end of their estimated life.
Consider replacing the battery with a new one if you note either of the following
conditions:
The battery run time drops below about 80% of the original run time.
The battery charge time increases significantly.
If a battery is stored or otherwise unused for an extended period, be sure to follow the
storage instructions in this document. If you do not follow the instructions, and the
battery has no charge remaining when you check it, consider it to be damaged. Do not
attempt to recharge it or to use it. Replace it with a new battery.
Always follow the charging instructions provided with your product. Refer to your
product’s user manual and/or online help for detailed information about charging its
battery.
Charge or discharge the battery to approximately 50% of capacity before storage.
Charge the battery to approximately 50% of capacity at least once every six months.
Remove the battery and store it separately from the product.
Store the battery at temperatures between 5 °C and 20 °C (41 °F and 68 °F).
www.chainway.net

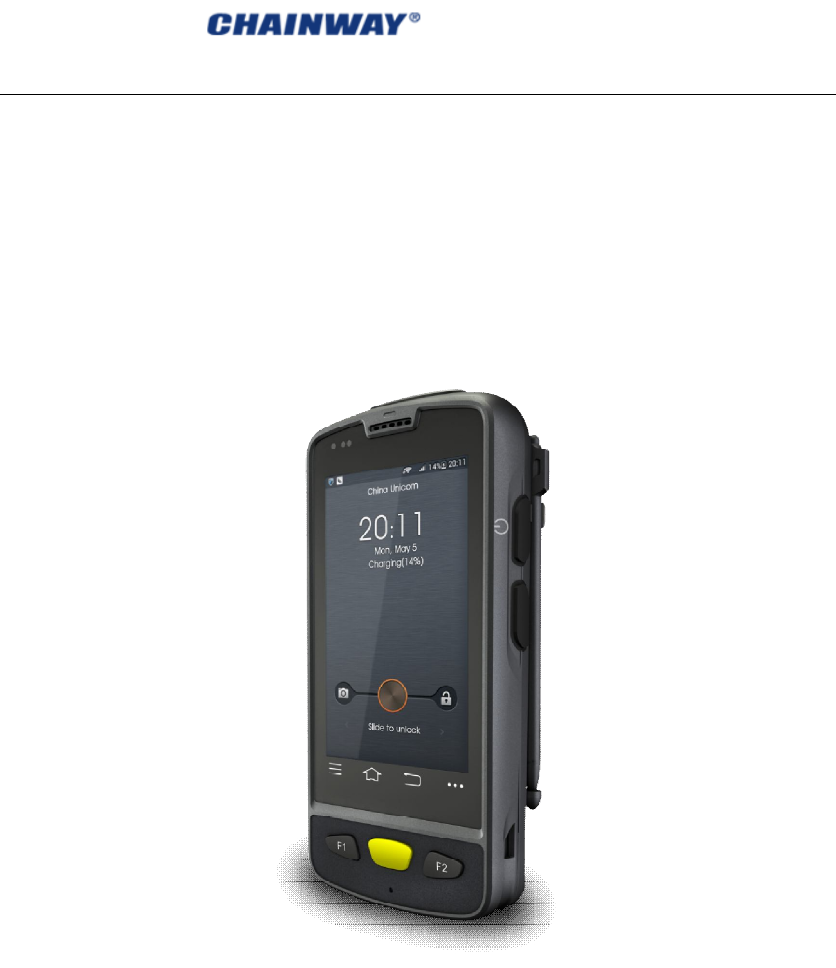

Chapter 2 About The Device

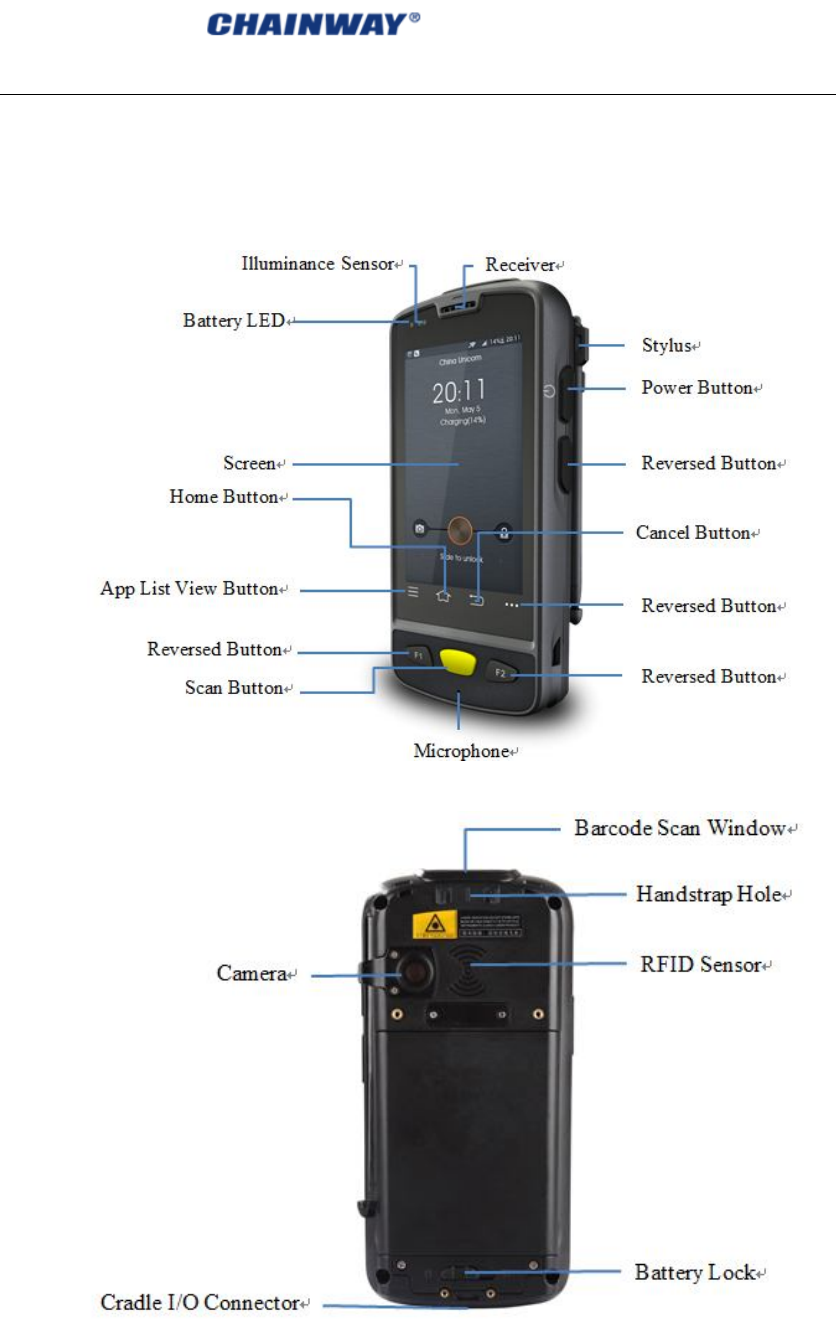

2.1 Structure:
<Front>
<Back>
www.chainway.net
Buttons:
Button Function
1. Power Button Press and hold to turn the device on or off
2. App List View Button View a list of apps running
3. Home Button Press to return to the home screen
4. Cancel Button Tap to return to the previous screen

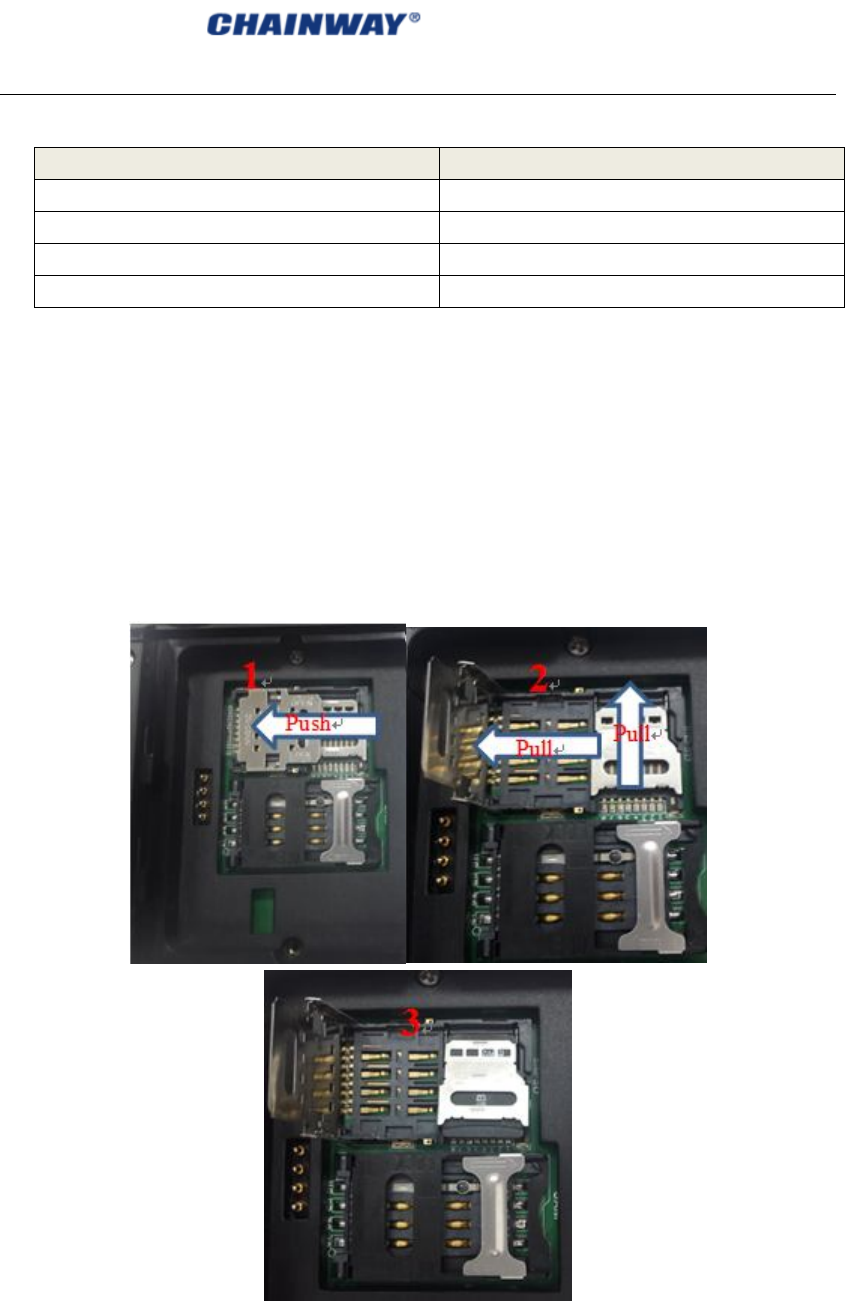

2.2 SD Card Installation

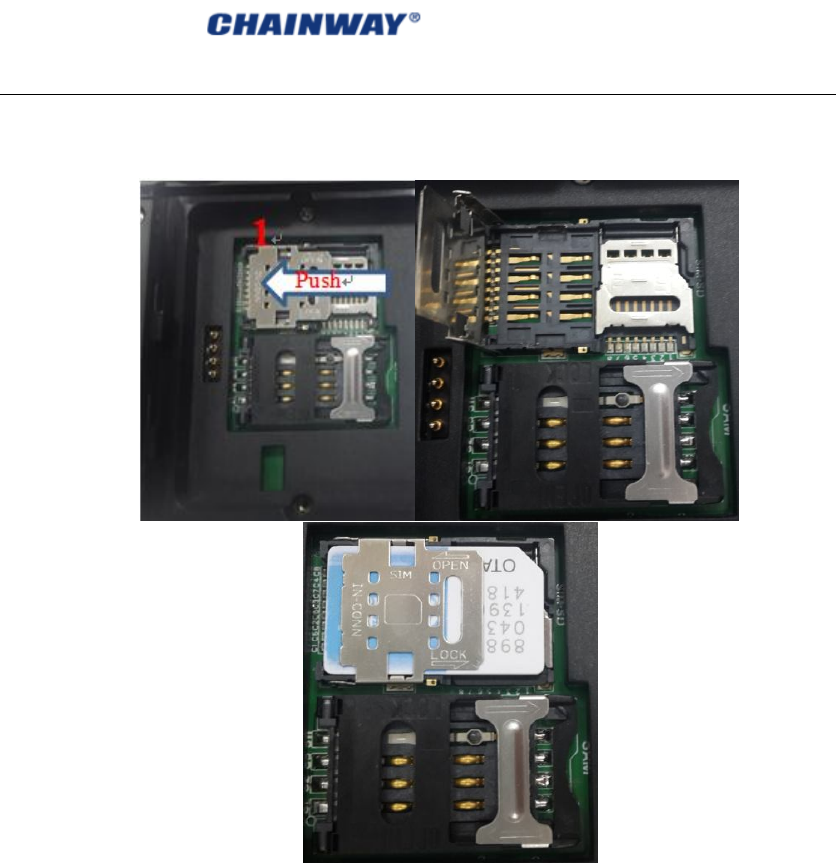

Detailed installation steps are as follows:
1. Open the SIM slot as the direction of ‘Open/Lock’ labeled;
2. Open the SD slot as the direction of ‘Open/Lock’ labeled;
3. Install the SD card properly;
4. Lock the SD slot and SIM slot properly;
2.3 SIM Card Installation
1. Open the SIM slot as the direction of ‘Open/Lock’ labeled;
3
www.chainway.net
2. Install the SIM card correctly;
3. Lock the SIM slot properly;
2.4 Battery Installation
1. Push the battery down into the bottom of the battery;
2. Push the battery to the direction of the array;
3. Turn the battery lock;
2.5 Battery Charging
2.5.1 Direct Charging:
Use the adapter to charge the battery via the USB connector of the snap-on;.
2.5.2 Cradle Charging:
Connect the adapter with the power cable to charge the device.
2.6 Device Turning on/off
2
3
www.chainway.net

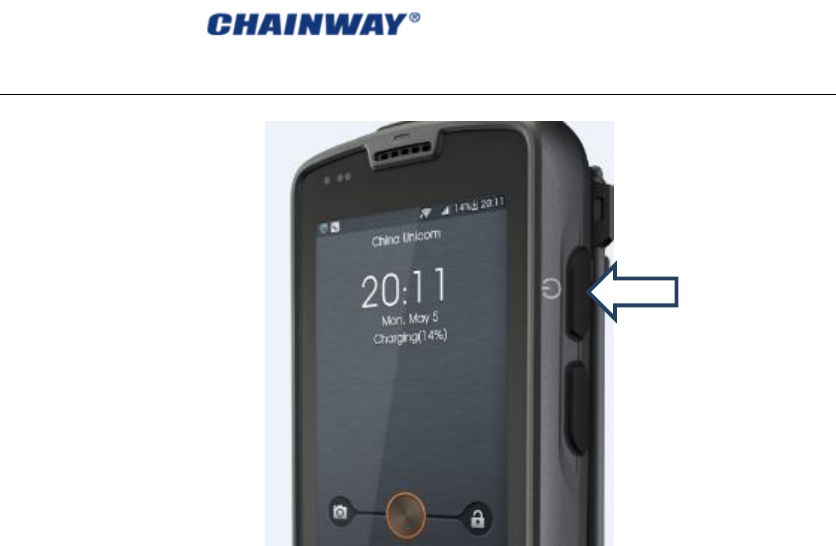

Press the ‘Power’ button on the side shortly due to turn on/off.
www.chainway.net
Chapter 3 Call Function

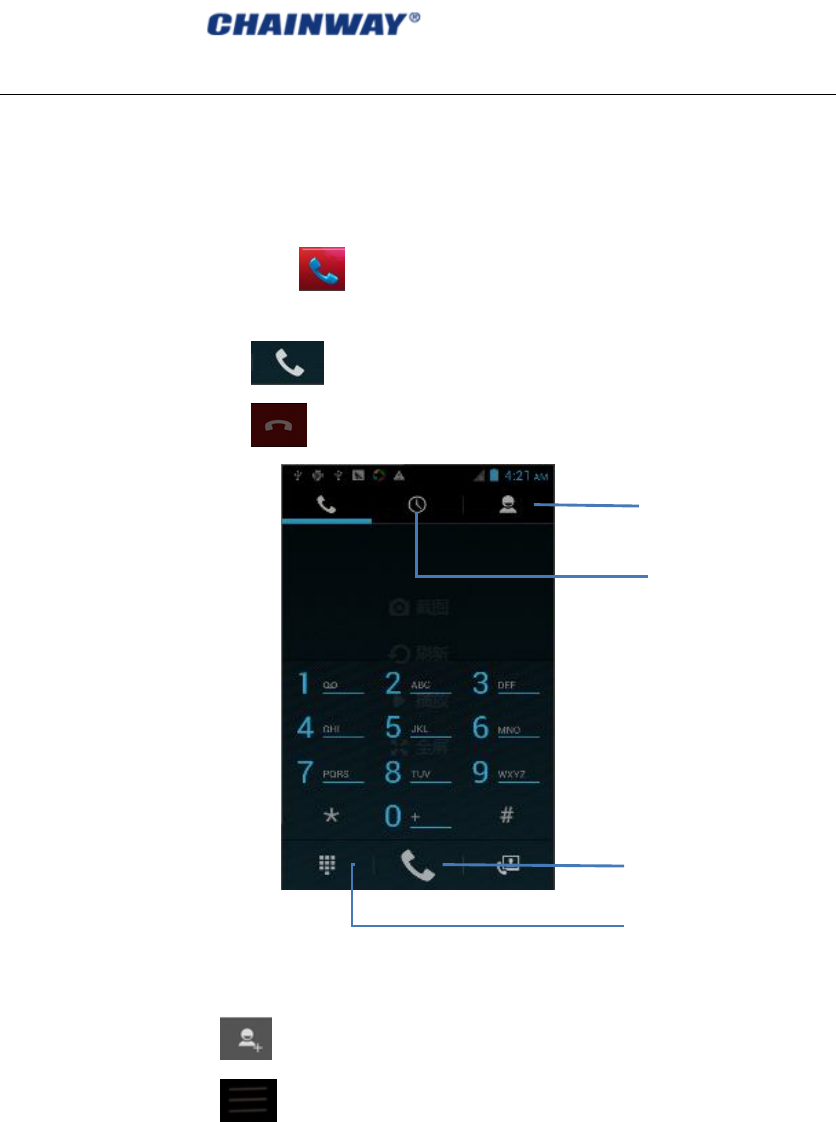

3.1 Phone
1. Click this icon :
2. Click the number button to input the numbers;
3. Click the button to confirm and dial;
4. Click the to end the calling;

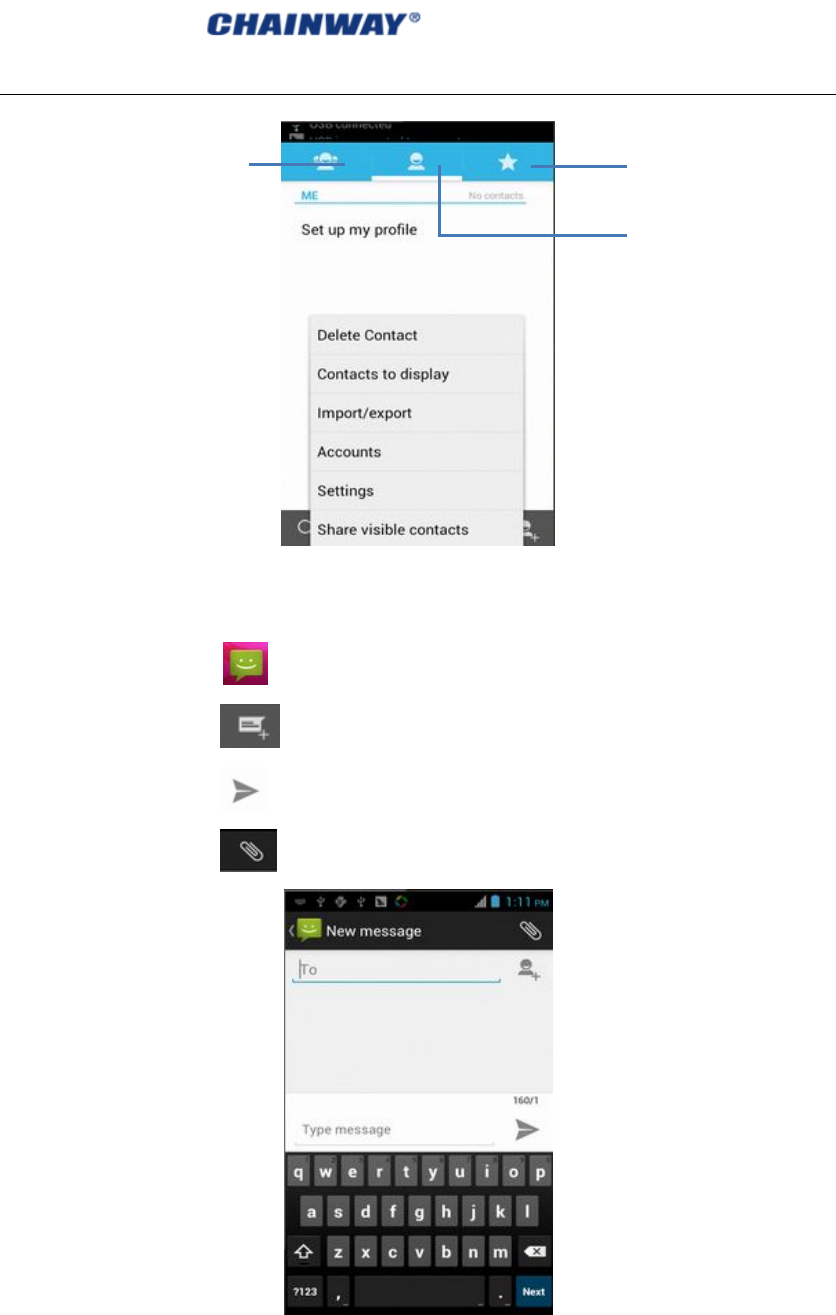

3.2 Contacts
1. Click ‘Contacts’ to open the contacts list;
2. Click ‘ ’ to add the new contact;
3. Click ‘ ’ to import/export or delete the contact list;
Contacts
Logs
Voice Calling
Emulated Numeric Keypad
www.chainway.net
3.3 Messaging
1. Click ‘ ’ to open the message list;
2. Click ‘ ’ to input the content;
3. Click ‘ ’ to send the message;
4. Click ‘ ’ to add photos, videos;
Favorites
Contact List
Group
www.chainway.net

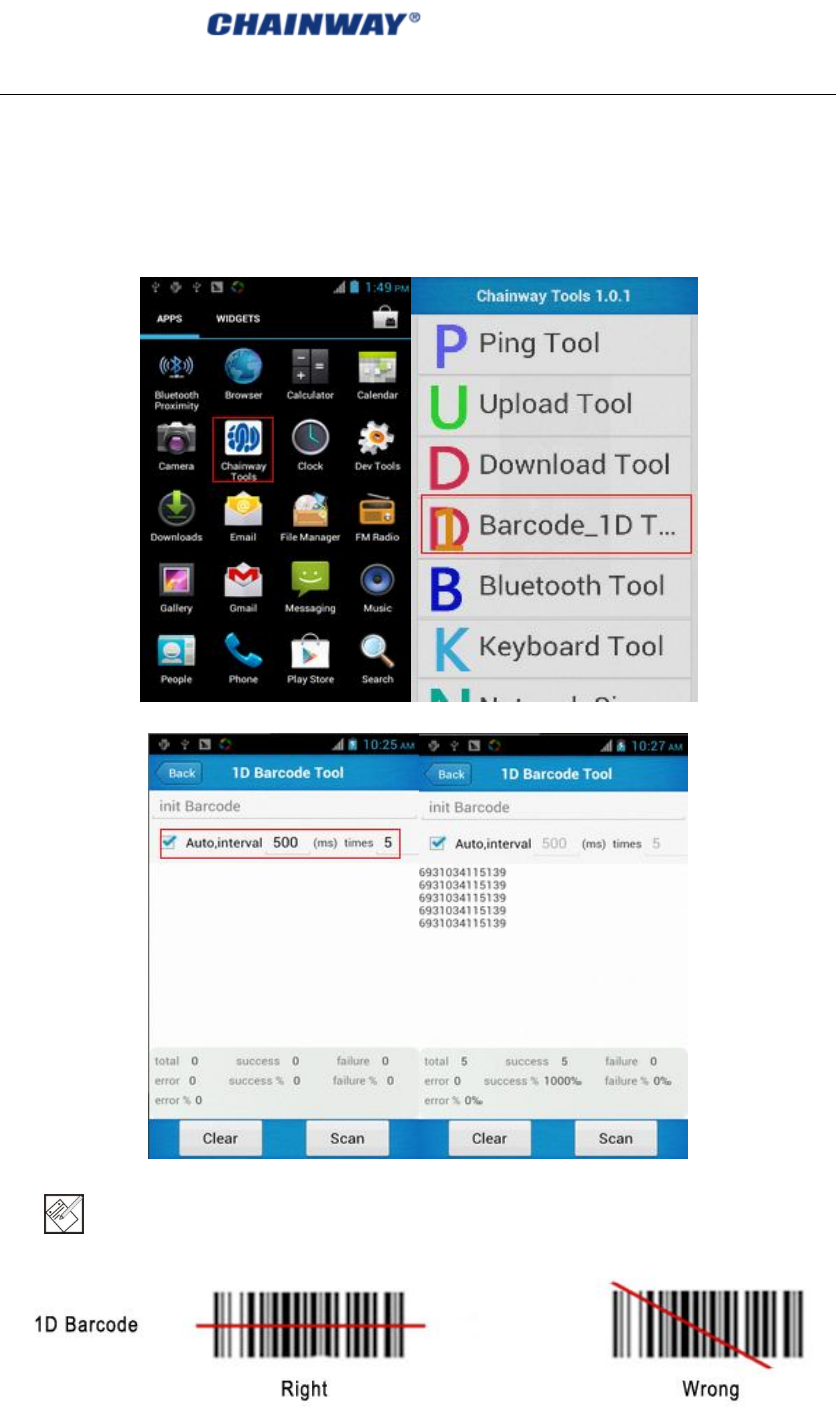

Chapter 4 Barcode Reader
1. Open the Barcode Demo within Chainway Tools;
2. Press the ‘Scan’ button to start scanning, then the auto interval parameters
can also be set;

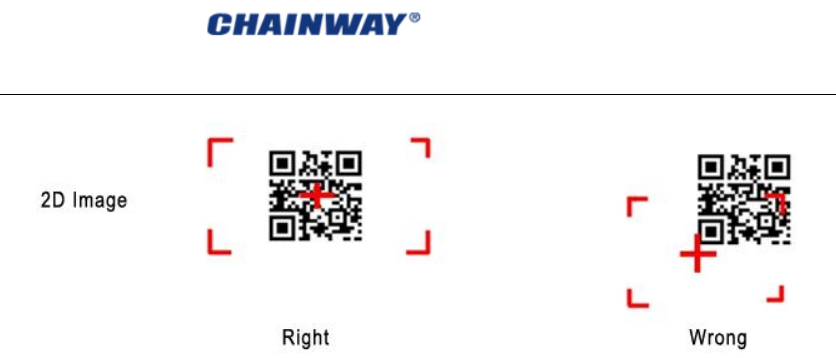

Note: Please scan the barcode correctly, otherwise the scanning might be failed;
www.chainway.net
www.chainway.net
Chapter 5 RFID Reader

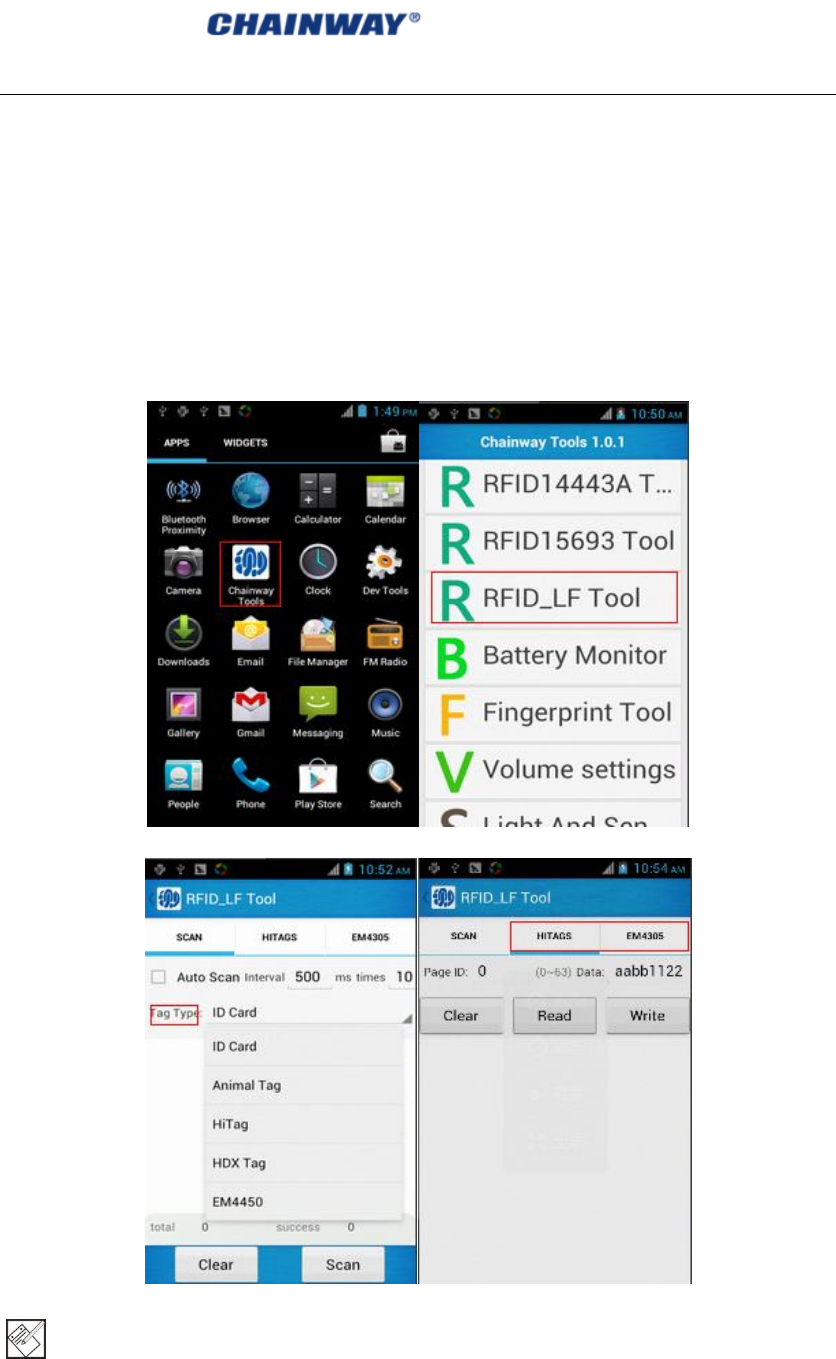

5.1 Low Frequency
1. Open the RFID_LF Demo within Chainway Tools and then press the ‘Scan’
button to start scanning;
2. Tag types including ID Card/Animal Tag/Hitag/HDX Tag/EM4450 can be
also selected, and Hitag-S and EM4305 reading/writing are already
supported by the device;
Note: please ensure that the LF module is embedded in the device, also please select the
tag type correctly, otherwise the operation might not work. Meanwhile, please pay attention
www.chainway.net
to the HDX and FDX-B since they are using different hardware due to the different working
principles.
5.2 High Frequency

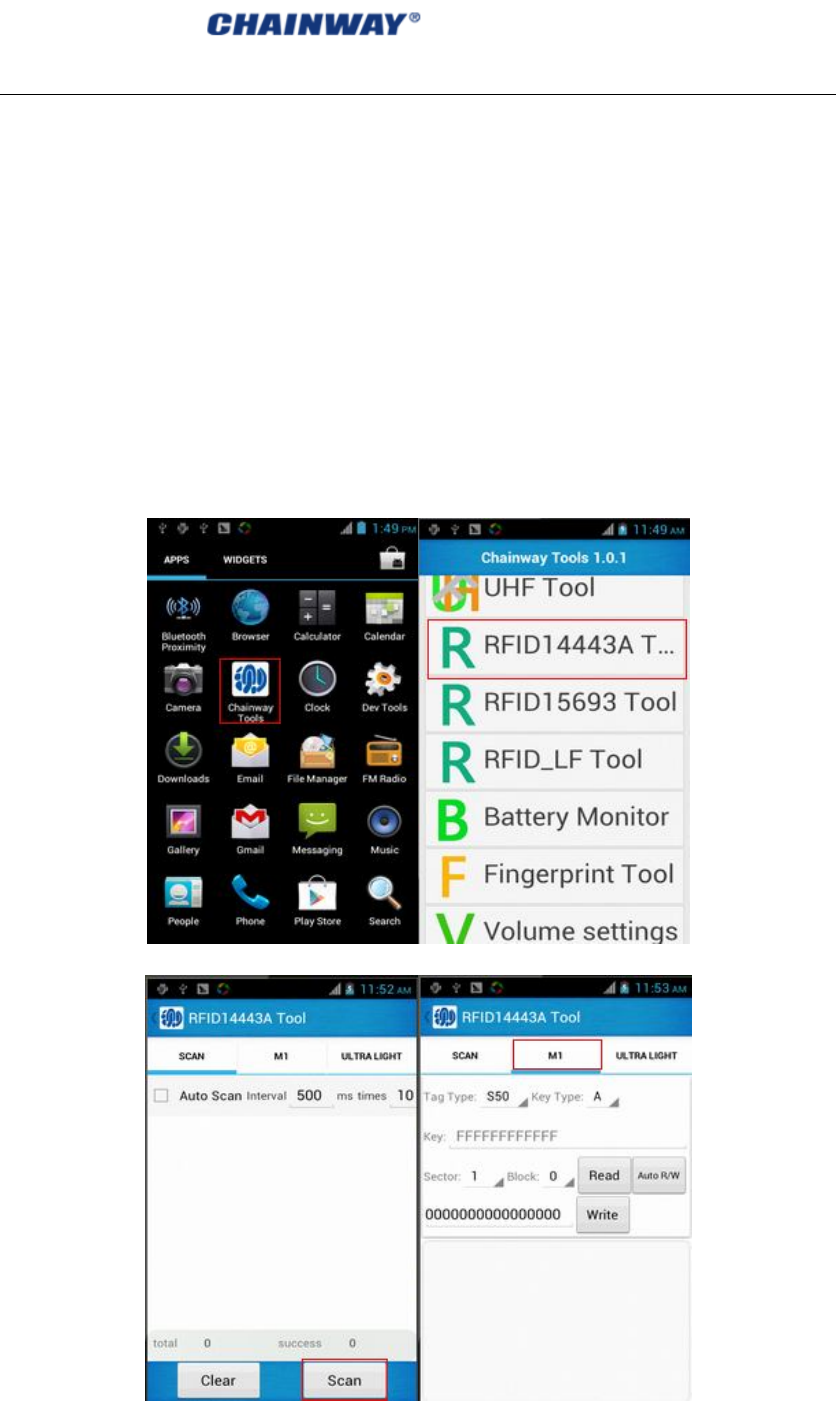

5.2.1 14443A
1. Open the RFID_14443A demo within Chainway Tool, and press the ‘Scan’
button to start scanning;
2. Mifare and Ultra Light reading/writing are also supported;
www.chainway.net

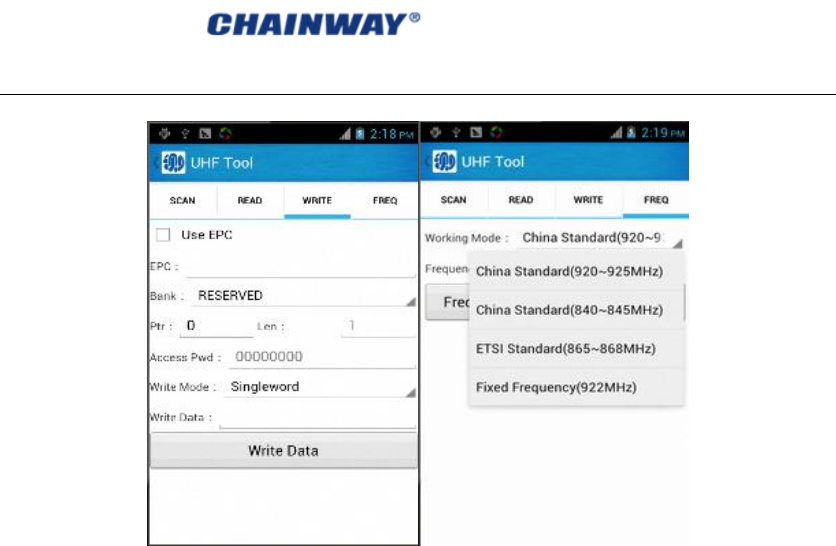

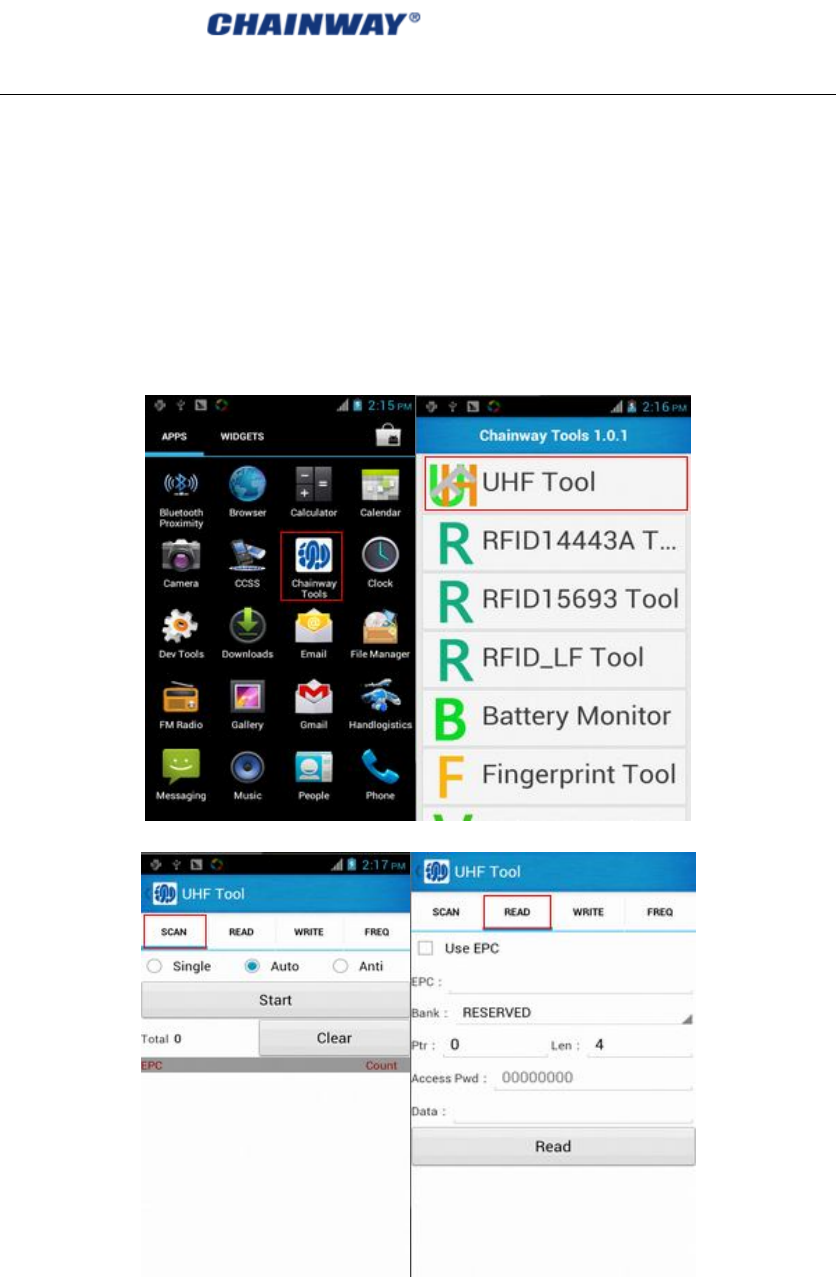

5.3 Ultra High Frequency
1. Open the UHF demo within Chainway Tool, and press the ‘Scan’ button to
start scanning;
2. Multiple tags reading and single tag reading/writing are also supported;
www.chainway.net
www.chainway.net
Chapter 6 Fingerprint Reader
1. Open the Fingerprint Demo in Chainway Tool and then press the ‘Scan’
button to start scanning;
2. Put the finger to the fingerprint module and set the ID/name of the template
under ‘ACQUISITION’;
3. Put the finger to the fingerprint module properly and identify by
ID/Name/Score under ‘IDENTIFICATION’;

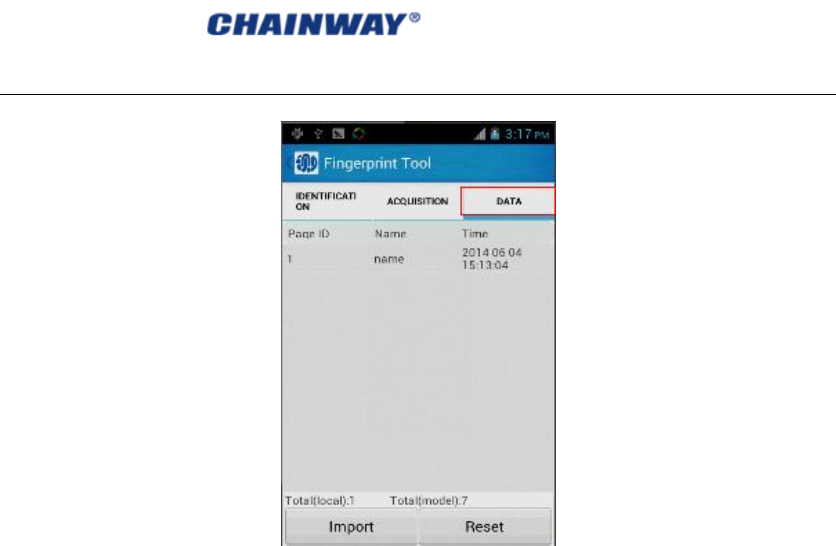

4. The local templates can also be checked under ‘Data’;
www.chainway.net
www.chainway.net
Chapter 7 The Other Functions

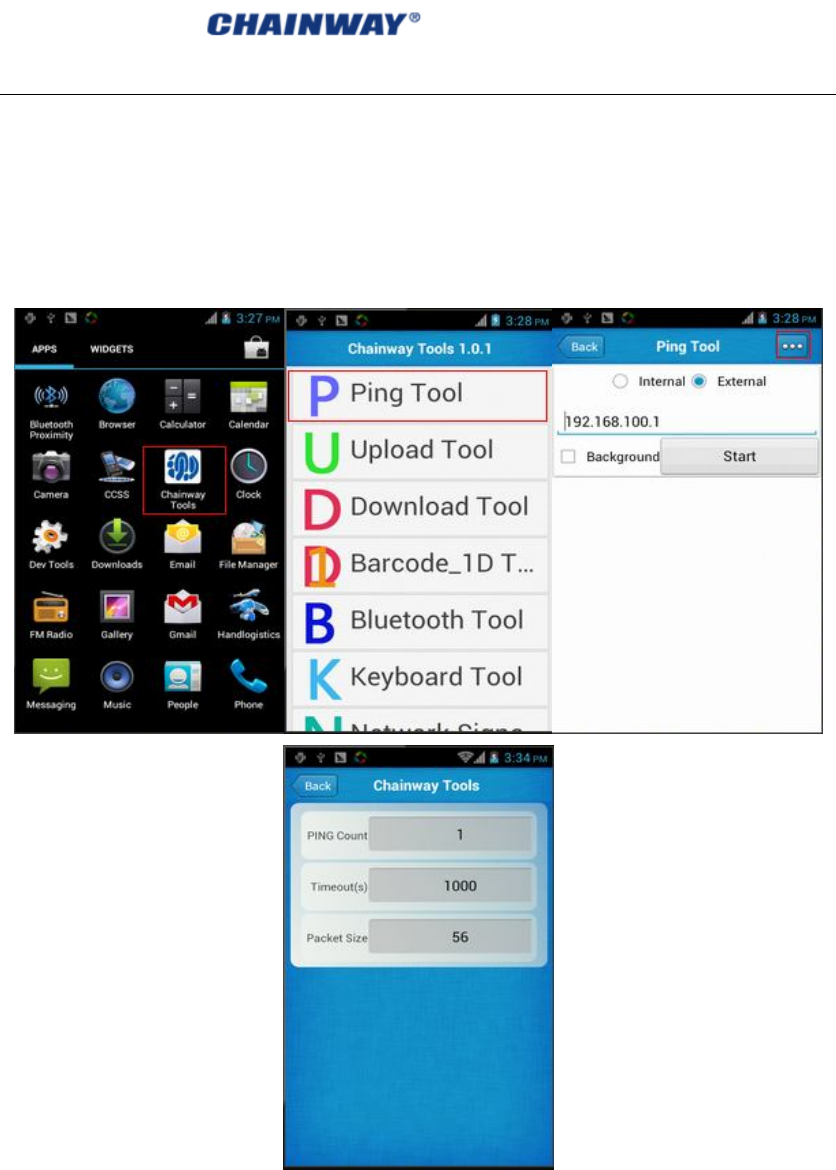

7.1 PING Tool
1. Open the Ping Tool in Chainway Tool;
2. Set the Ping parameters and select the internal/external addresses;

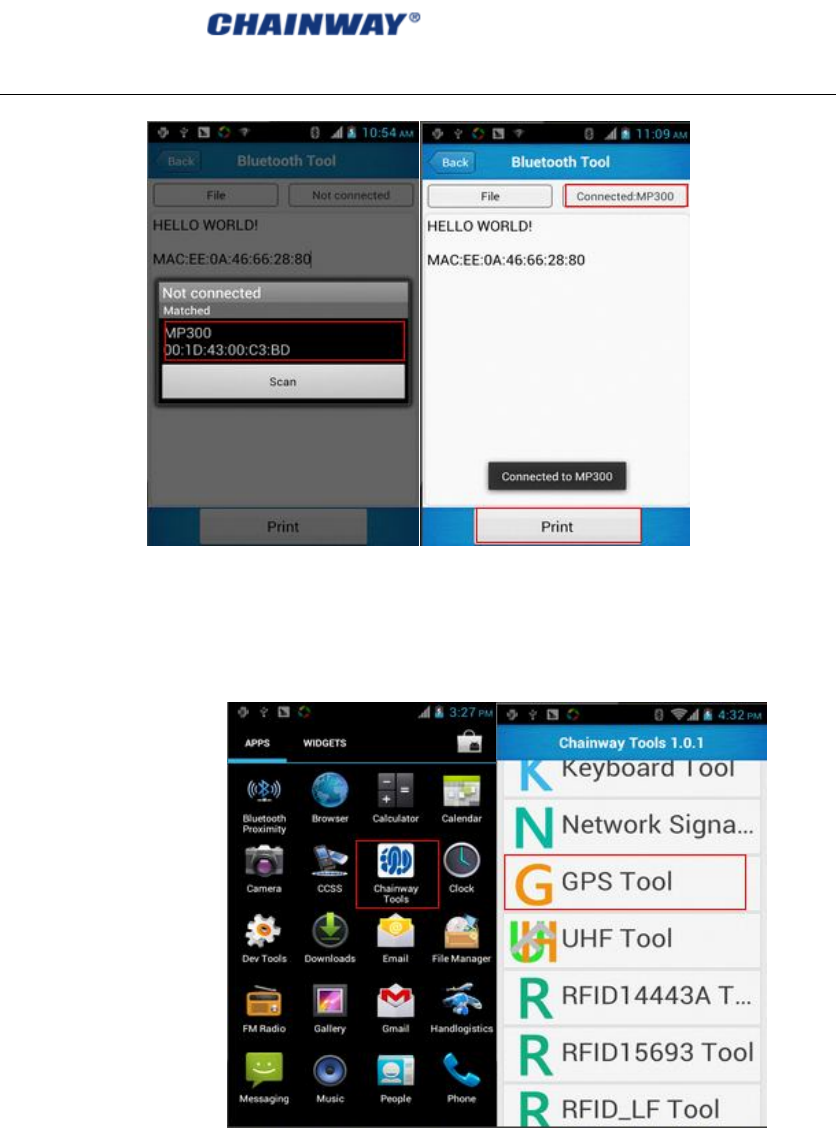

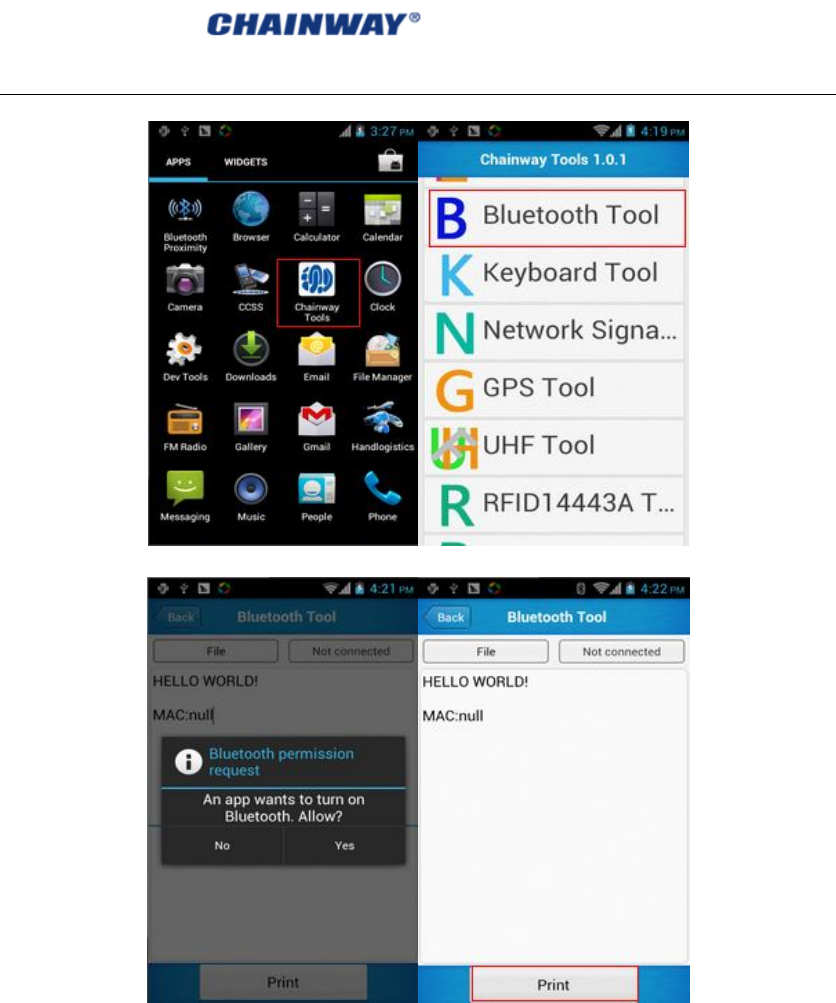

7.2 Bluetooth
1. Open the Bluetooth demo in Chainway Tool and turn on the Bluetooth;
2. Input the content or select the file, then scan the nearby Bluetooth printer
and pair them;
3. Select the printer and click ‘Print’ to print the content;
www.chainway.net
www.chainway.net
www.chainway.net

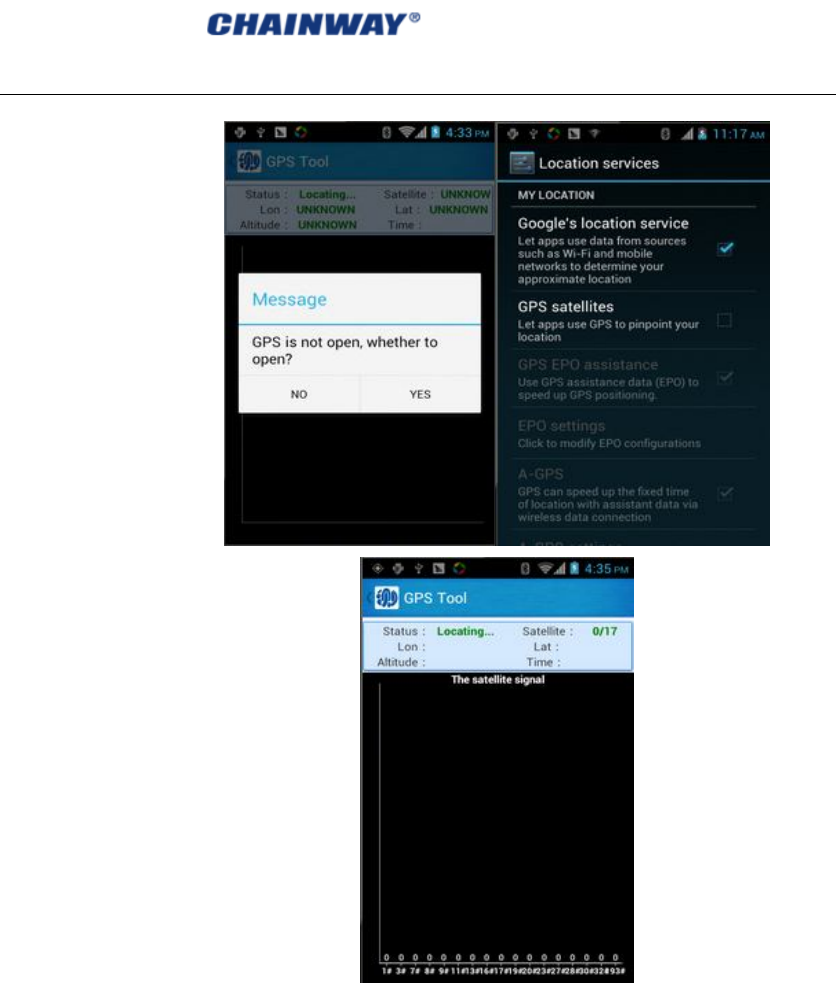

7.3 GPS
1. Open the GPS demo in Chainway Tool and turn on GPS module;
2. Set the GPS parameters and get the GPS data information;
www.chainway.net

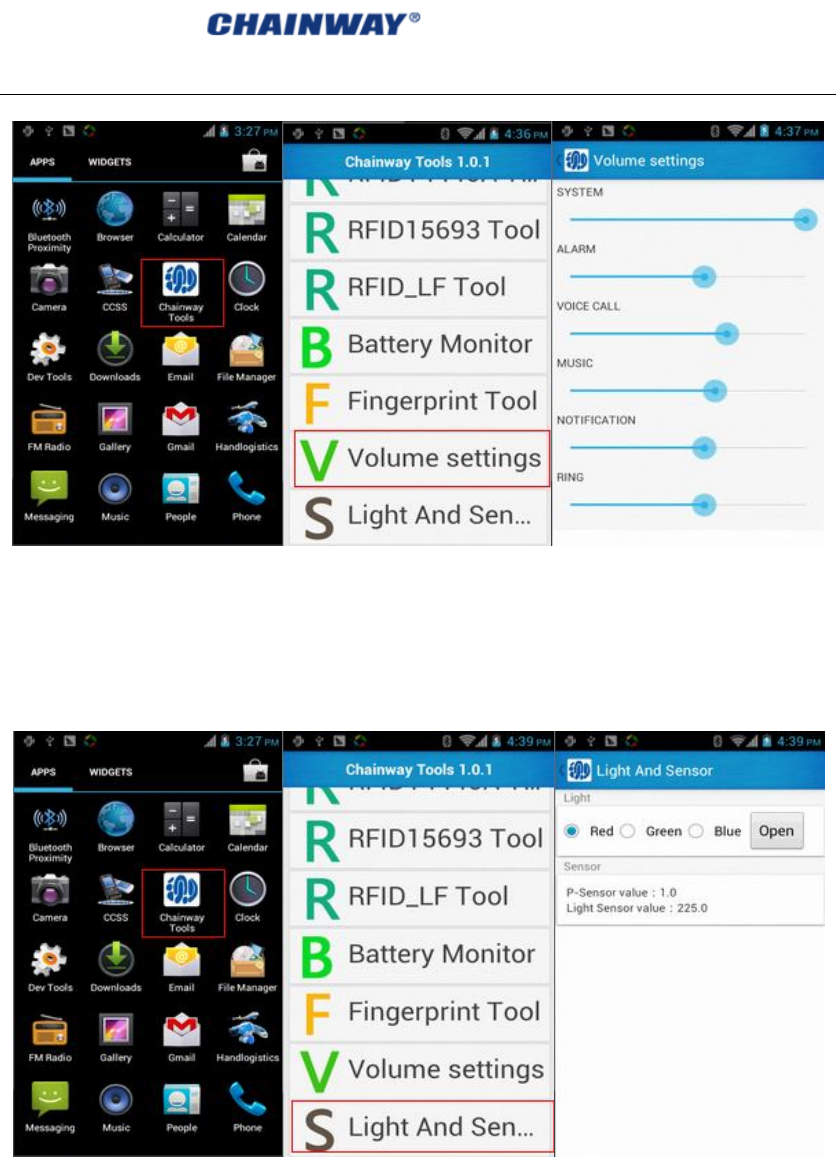

7.4 Volume Settings
1. Open the Volume Setting demo in Chainway Tool;
2. Set the volumes based on the requirements;
www.chainway.net
7.5 Light And Sensor
1. Open the Light And Sensor demo in Chainway Tool;
2. Test the lights and sensor based on the requirements;
7.6 Keyboard Tool
1. Open the Keyboard Tool demo in Chainway Tool;
2. Set and test the key values of the device;
www.chainway.net

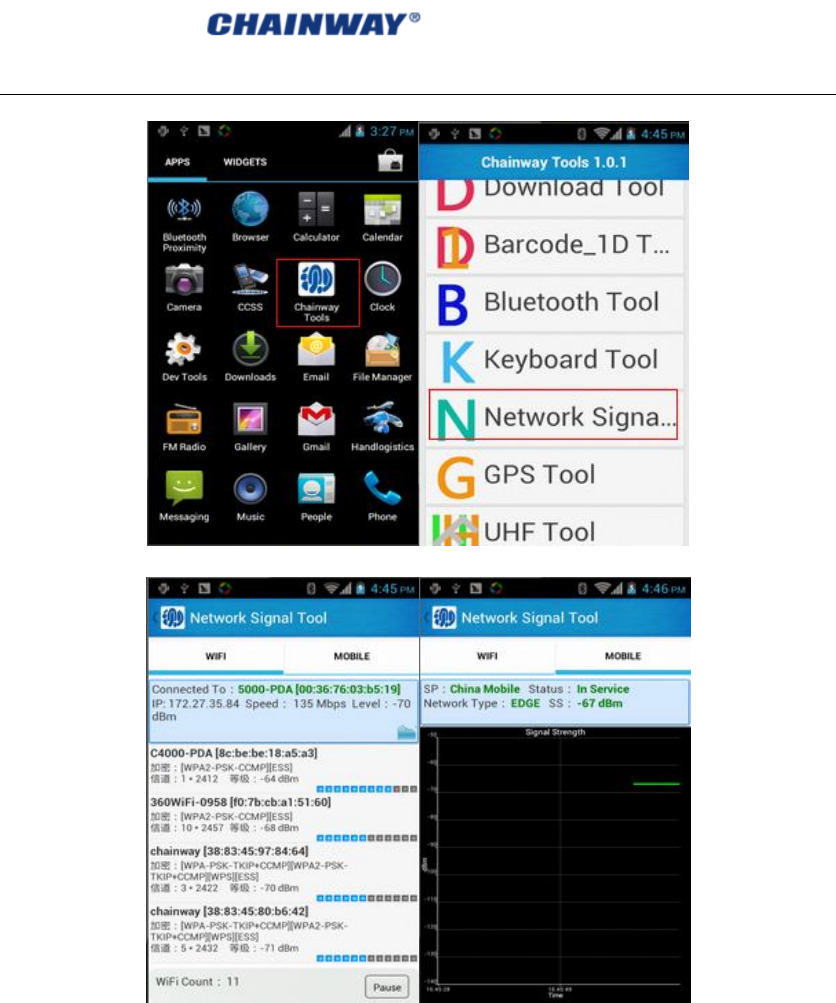

7.7 Network Signal
1. Open the Network Signal demo in Chainway Tool;
2. Test the WIFI/Mobile signal based on the requirements;
www.chainway.net
WCDMA/HSDPA (850/2100MHz),
www.chainway.net
Chapter 8 Device Specifications
Physical Characteristics
Dimensions 153mm*75mm*29mm/6.02*2.95*1.14in.
Weight 286g/10.09oz. (includes main battery)
Screen 4in.WVGA (480*800) TFT-LCD, capacitive dual touch
Keyboard 3 function keys, 3 side buttons
Battery Main bat. (rechargeable li-ion polymer, 3.7V, 3200 mAh)
Expansion Slot MicroSD/TF, maximum capacity of 32G
SIM Slot 1 PSAM, 1 SIM, 1 MicroSD
Audio 0.5W
Camera OV 5M pixels, auto focus (optional)
Performance Characteristics
CPU Cortex-A9 1GHz dual core
OS Android 4.0.4
Memory 512MB RAM/1GB RAM (Optional) , Build-in 4GB Flash
Interface USB Micro-B, serial port RS-232(TTL)
Storage Card Type MicroSD card
Maximum Expansion 32GB
User Environmental Characteristics
Operating Temperature -10℃ to 50℃
Storage Temperature -40℃ to 70℃
Humidity 5%RH-95%RH（non-condensing）
Dropping Survive 1.2m/3.9ft. drop, 6 sides (concrete floor under operating temp.)
Sealing IP64, IEC compliance
Wireless Communication
WAN
WLAN IEEE802.11b/g/n, internal antenna
WPAN Bluetooth v2.1+EDR
Data Collection
Barcode Scan Engine 1D barcode（Symbol SE955, laser, hardware decoding）:
2D CMOS laser scanner: Symbol SE4500
HF 13.56MHz, ISO14443A/ISO15693
www.chainway.net
RFID
Developing Environment
SDK Chainway SDK
Programming Language Java
Developing Tool Eclipse
17
Federal Communications Commission (FCC)
Interference Statement
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.
This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference in a residential
installation. This equipment generates, uses and
can radiate radio frequency energy and, if not
installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee
that interference will not occur in a particular
installation. If this equipment does cause harmful
interference to radio or television reception, which
18
can be determined by turning the equipment off and
on, the user is encouraged to try to correct the
interference by one or more of the following
measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment
and receiver.
—Connect the equipment into an outlet on a circuit
different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV
technician for help.
Note: Any changes or modifications not expressly
approved by the party responsible for compliance
could void the user's authority to operate the
equipment.
This mobile device meets guidelines for exposure to
radio waves. Your mobile device is a radio
transmitter and receiver. It is designed not to exceed
19
the limits for exposure to radio waves recommended
by international guidelines.
The SAR limit adopted by USA and Canada is 1.6
watts/kilogram (W/kg) averaged over one gram of
tissue. The highest SAR value reported to the
Federal Communications
Commission (FCC) and the Industry Canada (IC) for
this device type when it is tested for use at the ear is
0.183 W/kg, and that when it is properly worn on the
body is W/kg.
The device complies with the RF specifications when
the device is used near your ear or at a distance of 0
cm from your body. Ensure that the device
accessories such as a device case and a device
holster are not composed of metal components. Keep
your device 0 cm away from your body to meet the
requirement earlier mentioned.
1.48
