Chapter 1 Brief Instruction
1.1 Brief Instruction
Chainway C6000 is a series of Android powered smart terminals, with
data capture, data processing, wireless communication. It is with
high-reliability & high-expansibility. Auto & Accurate data collection is
achieved in various business fields via a complete solution of
premium options, the flexible solution among options and operators is
suited-up. You will find out with C6000, much easier deployment,
reduced complexity, decreased maintenance, are the benefits for
enterprises.
C6000 meets industrial level IP65 (IEC sealing), is sufficient to
routine applications, eg, railway inspection, road parking toll, vehicle
inspection, logistics express, power inspection, warehousing
management, chain retail, etc. Whether the mobile operators are
working indoor or outdoor, with Chainway C6000, your business is
always &highly efficient on-line.
Meeting industrial standards, designed to support various of mobile
solutions. With the build-in high performance Cortex-A7 1GHZ quad
core processor technology, the operators need only one device to
enjoy a convenient and easy job, C6000 will be the ideal choice for
key-fact business in mobile solutions, for simplified task flow,
enhanced work efficiency, for shortened time to customer response,
more satisfied customer care service.
Chainway C6000 comes with world wide band 4G technology. Multi
channels data and voice communication guarantees the real-time
communication and data efficiency, C6000 brings you the best ROI.
5
1.2 Precaution Before Using Battery
• Do not leave batteries unused for extended periods of
time, either in the product or in storage. When the battery has
been unused for 6 months, check the charge status and charge
or dispose of the battery as appropriate.
• The typical estimated life of a Lithium-Ion battery is about
two to three years or 300 to 500 charge cycles, whichever
occurs first. One charge cycle is a period of use from fully
charged, to fully discharged, and fully recharged again. Use a
two to three year life expectancy for batteries that do not run
through complete charge cycles.
• Rechargeable Lithium-Ion batteries have a limited life and
will gradually lose their capacity to hold a charge. This loss of
capacity (aging) is irreversible. As the battery loses capacity,
the length of time it will power the product (run time) decreases.
• Lithium-Ion batteries continue to slowly discharge (self-
discharge) when not in use or while in storage. Routinely check
the battery’s charge status. The user manual typically includes
information on how to check battery status, as well as battery
charging instructions.
• Observe and note the run time that a new fully-charged
battery provides for powering your product. Use the new battery
run time as a basis to compare run times for older batteries.
The run time of your battery will vary depending on the
product’s configuration and the applications that you run.
• Routinely check the battery’s charge status.
• Carefully monitor batteries that are approaching the end
of their estimated life.
• Consider replacing the battery with a new one if you note
either of the following conditions:
• The battery run time drops below about 80% of the
original run time.
6
• The battery charge time increases significantly.
• If a battery is stored or otherwise unused for an extended
period, be sure to follow the storage instructions in this
document. If you do not follow the instructions, and the battery
has no charge remaining when you check it, consider it to be
damaged. Do not attempt to recharge it or to use it. Replace it
with a new battery.
• Always follow the charging instructions provided with your
product. Refer to your product’s user manual and/or online help
for detailed information about charging its battery.
• Charge or discharge the battery to approximately 50% of
capacity before storage.
• Charge the battery to approximately 50% of capacity at
least once every six months.
• Remove the battery and store it separately from the
product.
• Store the battery at temperatures between 5 °C and 20 °C
(41 °F and 68 °F).
7
Chapter 2 Installation Guide
2.1 Appearance

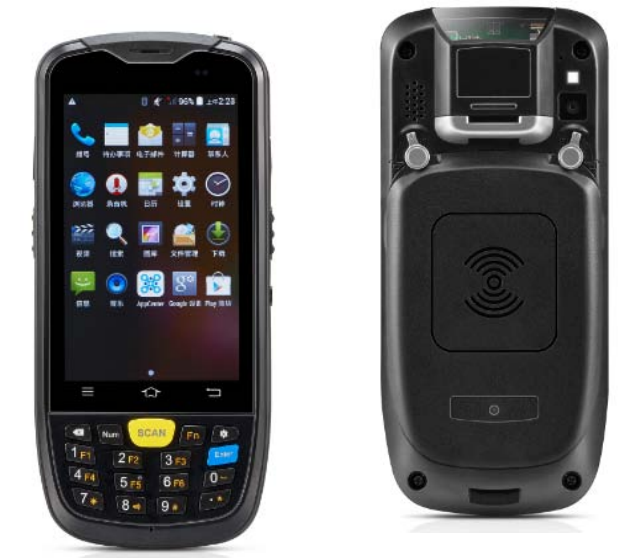

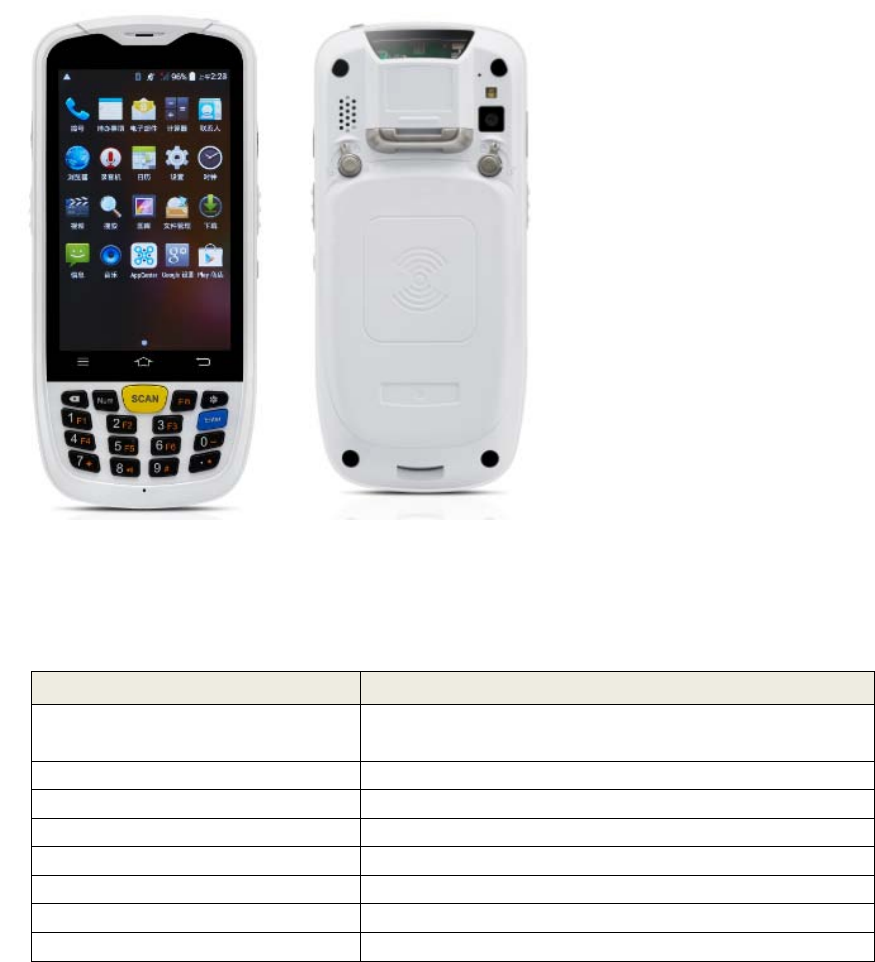

The C6000 device has black and white appearance optional.
8
2.2 Buttons
Button
Function
Power Button
Press and hold to turn the device on or
off.
Custom Function Button
Customize function by software
SCAN
Scan Button
X
Cancel Button
Num
Switch white keyboard function
Fn
Switch orange keyboard function
Setting Button
Right of the Fn Button
Enter
Enter Button
9
2.3 Micro SD、SIM、PSAM Card
Installation

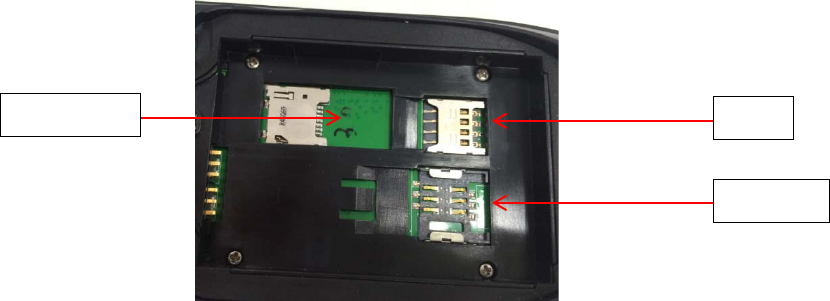

Detailed installation of Micro SD、SIM、PSAM Card steps are as
follows:
2.4 Battery Charging
Use the adapter to charge the battery via the USB connector of the
snap-on. Don't use other brands of charger for device.
TF card
SIM
PSAM
10
2.5 Device Power on/off
Press the ‘Power’ button on the top about 3s due to power on/off. And
press it shortly to wake up.
Max. radiant power: 0.6mW
Wave length: 655nM
IEC 62471 (ed.1).
11
Chapter 3 Call Function
3.1 Phone

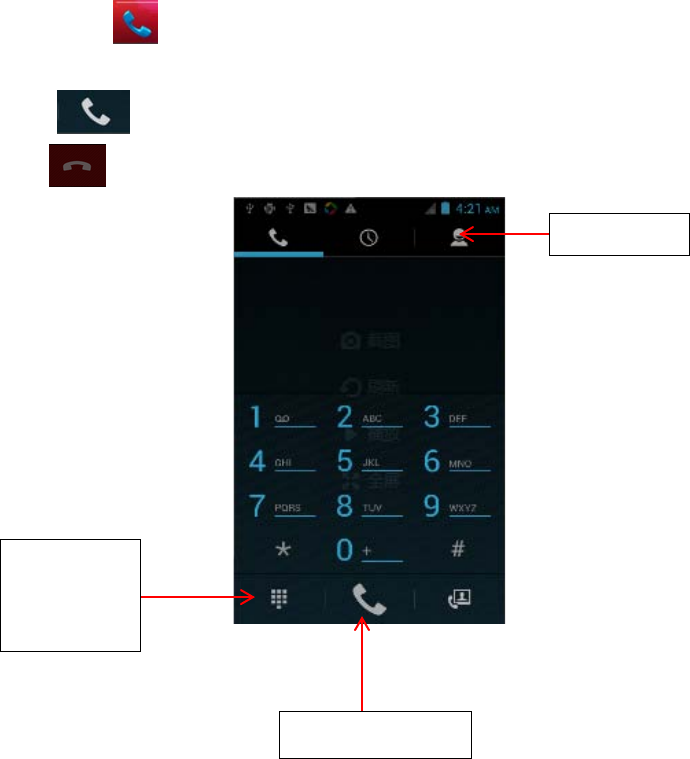

Click this icon .
Click the number button to input the numbers.
Click the button to confirm and dial.
Click the to end the calling.
Emul
ated
Numeric
Voice
Cont
12
3.2 Contacts

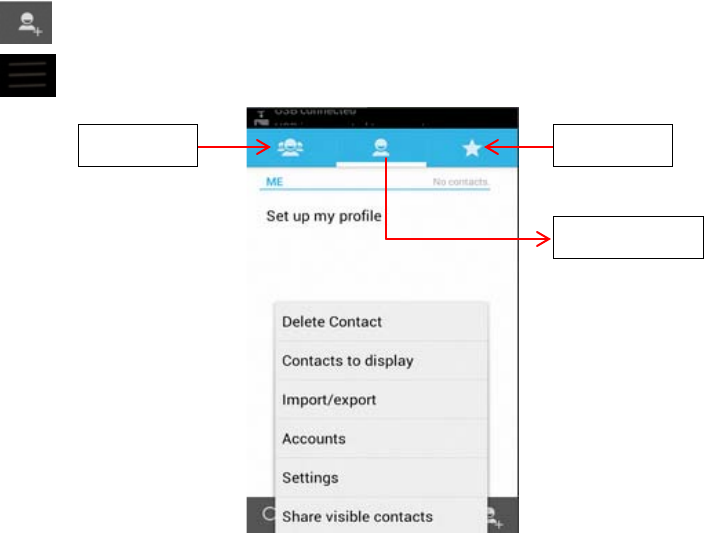

Click ‘Contacts’ to open the contacts list.
Click to add the new contact.
Click to import/export or delete the contact list.
Gro
Fav
Conta
13
3.3 Messaging

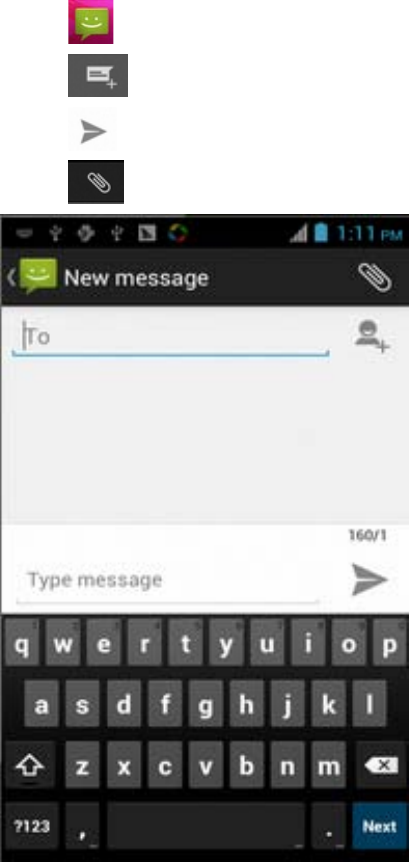

Click to open the message list.
Click to input the content.
Click to send the message.
Click to add photos, videos.
14
Chapter 4 Barcode Reader
Open the Barcode Demo in APP Center and then press the ‘Scan’
button to start scanning.
Note: Please scan the barcode correctly, otherwise the scanning might be failed.
15
Chapter 5 RFID Reader
5.1 High Frequency
5.1.1 14443A

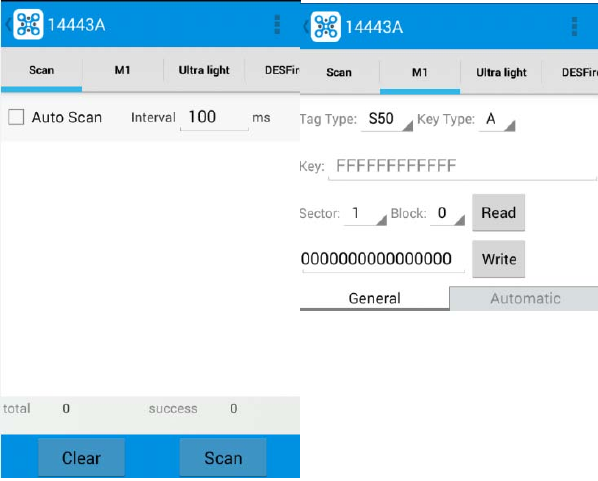

Open the 14443A demo within Appcenter, and press the ‘Scan’
button to start reading.
Mifare and Ultralight reading/writing are also supported.
16
5.1.2 14443B
Open the 14443B demo within Appcenter, and gain UID of the card.
17
5.1.3 15693

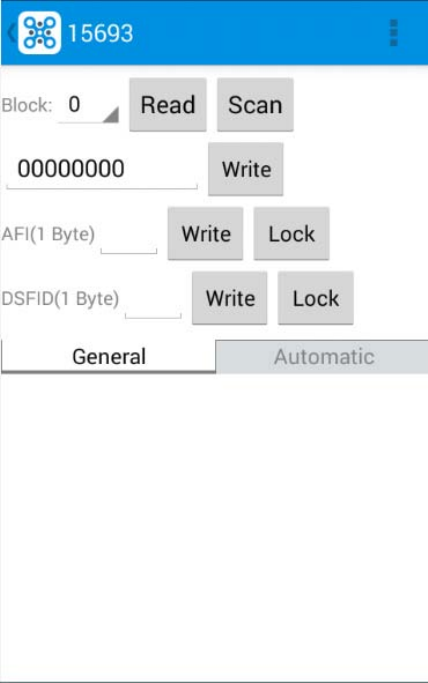

Open the “15693” demo within Appcenter,and then reading and
writing information of the tag.
18
5.2 NFC
Open the “NFC” demo within Appcenter, and then reading and writing
information of the tag.
19
Chapter 6Other Functions
6.1 PING

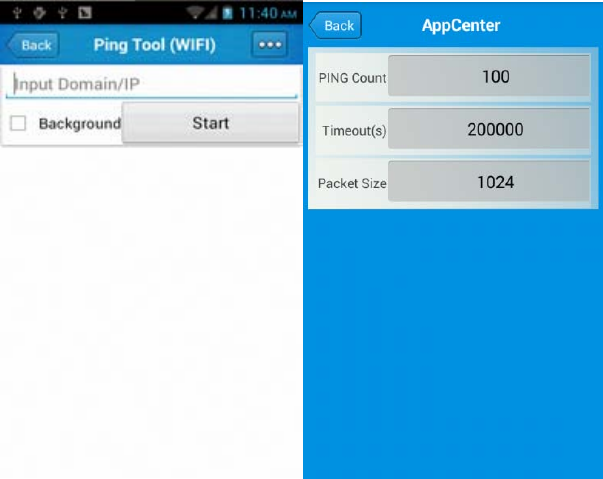

1. Open the Ping in Appcenter.
2. Set the Ping parameters and select the
internal/external addresses.
20
6.2 Bluetooth

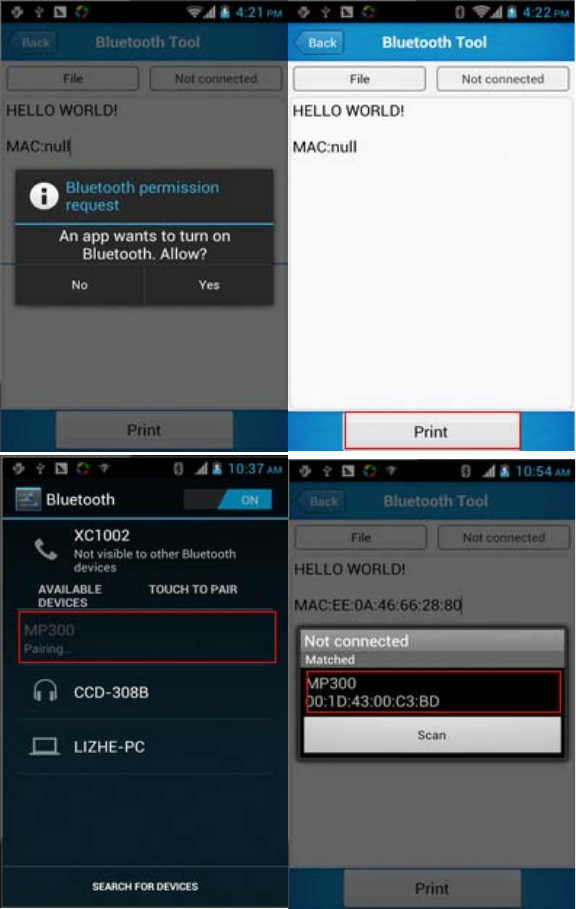

1. Open the Bluetooth demo in Appcenter and turn on the
Bluetooth.
2. Input the content or select the file, then scan the nearby
Bluetooth printer and pair them.
3. Select the printer and click ‘Print’ to print the content.
21
6.3 GPS

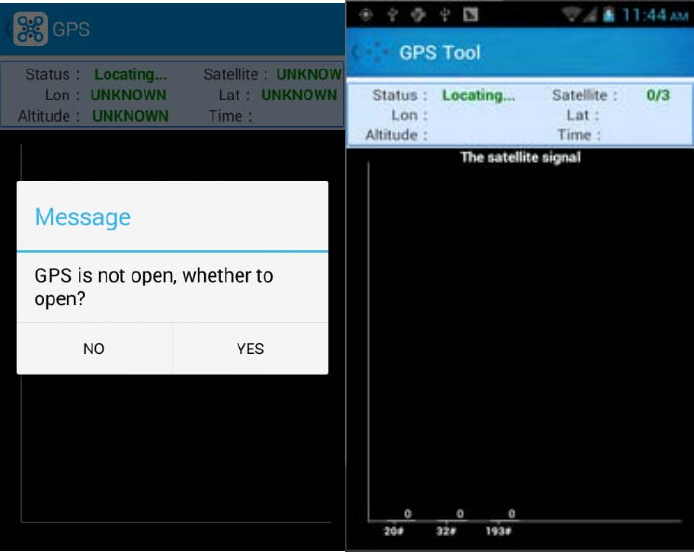

1. Open the GPS demo in Appcenter and turn on GPS
module.
2. Set the GPS parameters and get the GPS data
information.
22
6.4 Volume Settings

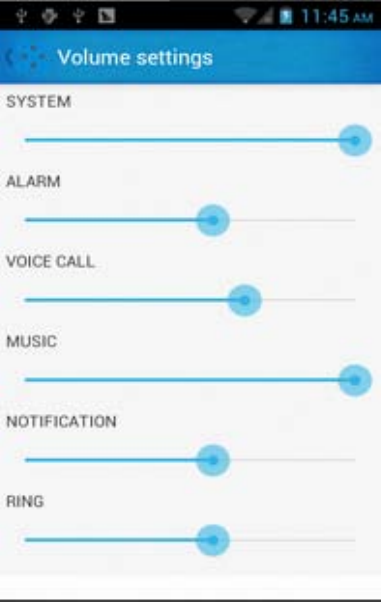

1. Open the Volume Setting demo in Appcenter.
2. Set the volumes based on the requirements.
23
6.5 Sensor

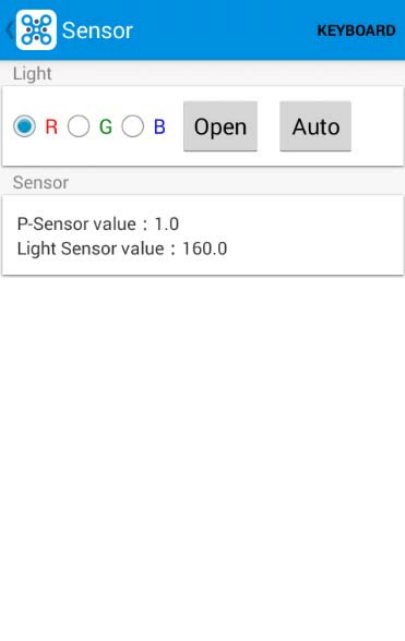

1. Open the Sensor demo in Appcenter.
2. Test the sensor based on the requirements.
24
6.6 Keyboard
1. Open the Keyboard demo in Handset Appcenter.
2. Set and test the key values of the device.

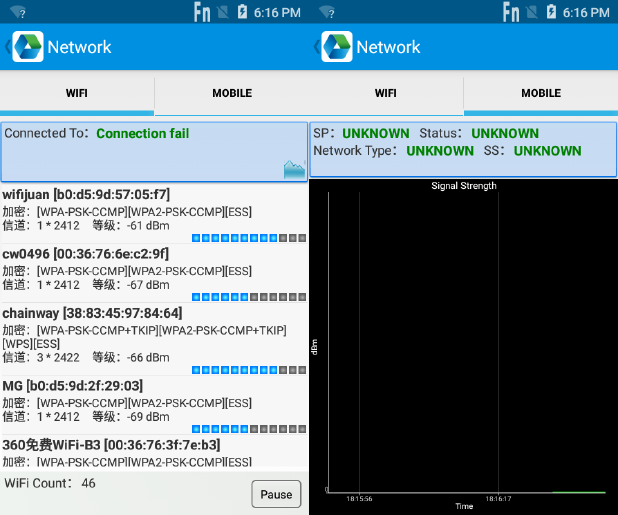

6.7 Network
1. Open the Network demo in Appcenter.
2. Test the WIFI/Mobile signal based on the requirements.
25
Chapter 7 Device Specifications
Physical Parameters
Dimensions
157.6mm*73.7mm*29mm
Weight
297g (includes main battery)
Screen
4in.WVGA (480*800) TFT-LCD, capacitive dual touch
Keyboard
numeric keypad, 3 side buttons
Battery
Main bat. (rechargeable li-ion polymer, 3.7V, 4000 mAh)
Expansion Slot
MicroSD/TF, maximum capacity of 32G
SIM Slot
1 PSAM, 1 SIM, 1 MicroSD
Audio
0.5W wat
Camera OV 8M pixels, auto focus (optional)
Performance Parameters
CPU
Qualcomm 8909 1.3GHz quad core
OS Android 5.1
Memory 1GB RAM, Build-in 8GB Flash
Interface
USB Micro-B,
Storage Card Type
TF card
Maximum Expansion
Storage
32GB
26
Environmental Parameters
Operating Temperature -20℃ to 50℃
Storage Temperature -40℃ to 70℃
Humidity
5%RH-95%RH (non-condensing)
Dropping Survive
1.5m/3.9ft. drop, 6 sides, concrete floor under operating temp.
Sealing IP65, IEC compliance
27
Developing Environment
SDK
Chainway SDK
Programming Language
Java
Developing Tool
Eclipse/Android Studio
Note:
Note: Using the incorrect type battery has danger of explosion.
Please dispose the used battery according to instructions.
Note: Due to the used enclosure material, the product shall only be
connected to a USB Interface of version 2.0 or higher. The
connection to so called power USB is prohibited.
Note: The adapter shall be installed near the equipment and shall be
easily accessible.
Note: The suitable temperature for the product and accessories is -
20℃ to 50℃.
Note: CAUTION RISK OF EXPLOSION IF BATTERY IS REPLACED
BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES
ACCORDING TO THE INSTRUCTIONS.
Note: Charging by adapter specified maximum ambient
temperature is 35°C ( Declare by manufacturer.)
28
FCC statements:
This device complies with part 15 of the FCC rules. Operation is subject to
the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
NOTE: The manufacturer is not responsible for any radio or TV interference
caused by unauthorized modifications or changes to this equipment. Such
modifications or changes could void the user’s authority to operate the
equipment.
NOTE: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates uses and
can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
‐ Reorient or relocate the receiving antenna.
‐ Increase the separation between the equipment and receiver.
‐Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
‐Consult the dealer or an experienced radio/TV technician for help.
During SAR testing, this device is set to transmit at its highest certified
power
level in all tested frequency bands, and placed in positions that simulate RF
exposure in usage near the body with the separation of 10 mm. Although the
SAR is determined at the highest certified power level, the actual SAR level
of
the while operating can be well below the maximum value. This is because
the device is designed to operate at multiple power levels so as to use only
29
the power required to reach the network. In general, the closer you are to a
wireless base station antenna, the lower the power output.
FCC Radiation Exposure Statement
. This device was tested for typical body‐worn operations with the back of
the handset kept 10mm from the body.
To maintain compliance with FCC RF exposure requirements, use
accessories that maintain a 10 mm separation distance between the user's
body and the back of the handset. The use of belt clips, holsters and similar
accessories should not contain metallic components in its assembly. The use
of accessories that do not satisfy these requirements may not comply with
FCC RF exposure requirements, and should be avoided.
RF Exposure Information(SAR)
The SAR limit of USA (FCC) is 1.6 W/kg averaged over one gram of tissue.
Device
Types C6000 (FCC ID: 2AC6AC6000) has also been tested against this
SAR limit.
The highest SAR value reported under this standard during product
certification for use when properly worn on the body is 0.322 W/kg and for
head is 0.320 W/kg.
