Chainway Information Technology C71 Mobile Data Terminal User Manual
Shenzhen Chainway Information Technology Co., Ltd. Mobile Data Terminal Users Manual
Users Manual
SHENZHEN CHAINWAY INFORMATION TECHNOLOGY CO.,LTD
Mobile Data Terminal
C71 User Manual
1
Content
Content .......................................................................................... 1
Statement .......................................................................................... 3
Chapter 1 Product Intro ..................................................................... 4
1.1 Intro ..................................................................................... 4
1.2 Precaution before using battery ........................................... 5
1.3 Charger ............................................................................... 6
1.4 Notes ................................................................................... 7
Chapter 2 Installation instructions...................................................... 8
2.1 Appearance ............................................................................. 8
2.2 Install Micro SD and SIM cards .............................................. 10
2.3 Battery charge ....................................................................... 11
2.4 Buttons and function area display .......................................... 12
Chapter 3 Call function .................................................................... 13
3.1 Calling numbers ..................................................................... 13
3.2 Contacts ................................................................................ 13
3.3 SMS and MMS ....................................................................... 13
Chapter 4 Barcode reader-writer ..................................................... 14
Chapter 5 Infrared read-write function ............................................. 16
Chapter 6 RFID reader .................................................................... 17
6.1 NFC ....................................................................................... 17
Chapter 7 Other functions ............................................................... 18
7.1 PING tool ............................................................................... 18
7.2 Bluetooth ............................................................................... 19
7.3 GPS ....................................................................................... 20
2
7.4 Volume setup ......................................................................... 21
7.5 Sensor ................................................................................... 22
7.6 Keyboard ............................................................................... 23
7.7 Network ................................................................................. 24
7.8 Keyboard emulator ................................................................ 25
Chapter 8 Device characteristic ....................................................... 26
Appendix ......................................................................................... 28
Restrictions: ........................................................ 错误!未定义书签。
Simplified EU declaration of conformity............... 错误!未定义书签。
SAR Information ................................................. 错误!未定义书签。
3
Statement
2013 by ShenZhenChainway Information Technology Co., Ltd. All
rights reserved.
No part of this publication may be reproduced or used in any form, or
by any electrical or mechanical means, without permission written
from Chainway. This includes electronic or mechanical means, such
as photocopying, recording, or information storage and retrieval
systems. The material in this manual is subject to change without
notice.
The software is provided strictly on an “as is” basis. All software,
including firmware, furnished to the user is on a licensed basis.
Chainway grants to the user a non-transferable and non-exclusive
license to use each software or firmware program delivered
hereunder (licensed program). Except as noted below, such license
may not be assigned, sublicensed, or otherwise transferred by the
user without prior written consent of Chainway. No right to copy a
licensed program in whole or in part is granted, except as permitted
under copyright law. The user shall not modify, merge, or incorporate
any form or portion of a licensed program with other program material,
create a derivative work from a licensed program, or use a licensed
program in a network without written permission from Chainway.
Chainway reserves the right to make changes to any software or
product to improve reliability, function, or design.
Chainway does not assume any product liability arising out of, or in
connection with, the application or use of any product, circuit, or
application described herein.
No license is granted, either expressly or by implication, estoppel, or
otherwise under any Chainway intellectual property rights. An implied
license only exists for equipment, circuits, and subsystems contained
in Chainway products.
4
Chapter 1 Product Intro
1.1 Intro
C71 device is a smart mobile PDA that integrated with various
features such as wireless communication, data acquisition, wireless
transmission and data processing etc. It is configured with Andriod
6.0 OS and it possesses high reliability and expansibility. With a set
of advanced data acquisition options, C71 can be operated in various
industries to acquire precise and abundant datum automatically.
Meanwhile, the device can match the options with staffs accordingly.
The corporation which deployed C71 will realize the deployment work
is simple and maintenance work will be remarkably decreased.
C71 is highly rugged, compact and durable. With IP65 water and dust
proof capability, the device has met IEC sealing standard. Therefore,
it can be operated by staffs such as railway inspector, road toll
operator, vehicle inspector, delivery postman, power supply inspector,
storage administrator, financial & insurance, police officers, security
tracing etc. Wherever your staff’ locations are, C71 can remain its
connectivity with the system to make sure business in high-effective
operating.
C71mobile data terminal adopted 4G LTE technology to realize
multipath communication and calling function for field work, data
exchange efficiency has been enhanced simultaneously. Therefore,
C71 will bring the largest investment return for enterprises.
5
1.2 Precaution before using battery
Do not leave battery unused for long time, no matter it is in
device or inventory. If battery has been used for 6 months
already, it should be check for charging function or it should be
disposed correctly.
The lifespan of Li-ion battery is around 2 to 3 years, it can be
circularly charged for 300 to 500 times. (One full battery charge
period means completely charged and completely discharged.)
When Li-ion battery is not in used, it will continue discharge
slowly. Therefore, battery charging status should be checked
frequently and take reference of the related battery charging
information on the manuals.
Observe and record the information of a new unused and non-
fully charged battery. On the basis of operating time of new
battery and compare with a battery that has been used for long
time. According to product configuration and application
program, the operating time of battery would be different.
Check battery charging status at regular intervals.
When battery operating time drops below about 80%, charging
time will be increased remarkably.
If a battery is stored or otherwise unused for an extended
period, be sure to follow the storage instructions in this
document. If you do not follow the instructions, and the battery
has no charge remaining when you check it, consider it to be
damaged. Do not attempt to recharge it or to use it. Replace it
with a new battery.
Store the battery at temperatures between 5 °C and 20 °C
(41 °F and 68 °F).
6
1.3 Charger
The charger type is GME10D-050200FUu. Output voltage/current is
5V DC/2A. The plug considered as disconnect device of adapter.
7
1.4 Notes
Note:
Using the incorrect type battery has danger of explosion.
Please dispose the used battery according to
instructions.
Note:
Due to the used enclosure material, the product shall
only be connected to aUSBInterface of version 2.0 or
higher. The connection to so called power USB is
prohibited.
Note:
The adapter shall be installed near the equipment and
shall be easily accessible.
Note:
The suitable temperature for the product and
accessories is -20
℃
to 45
℃
.
Note:
CAUTION RISK OF EXPLOSION IF BATTERY IS
REPLACED BY AN INCORRECT TYPE. DISPOSE OF
USED BATTERIES ACCORDING TO THE
INSTRUCTIONS.
Note:Charging by adapter specified maximum ambient
temperature is 35°C ( Declare by manufacturer.)
8
Chapter 2 Installation instructions

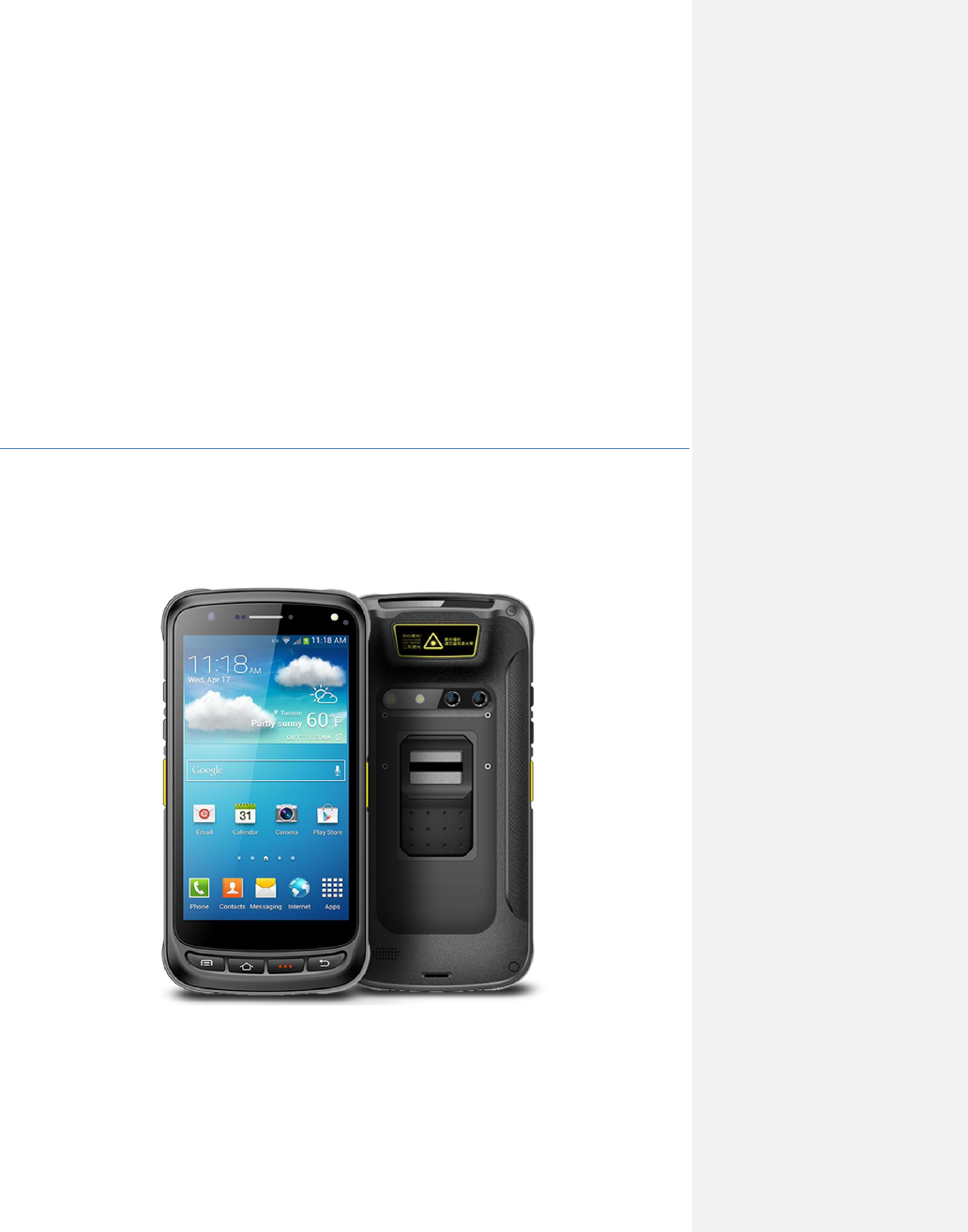

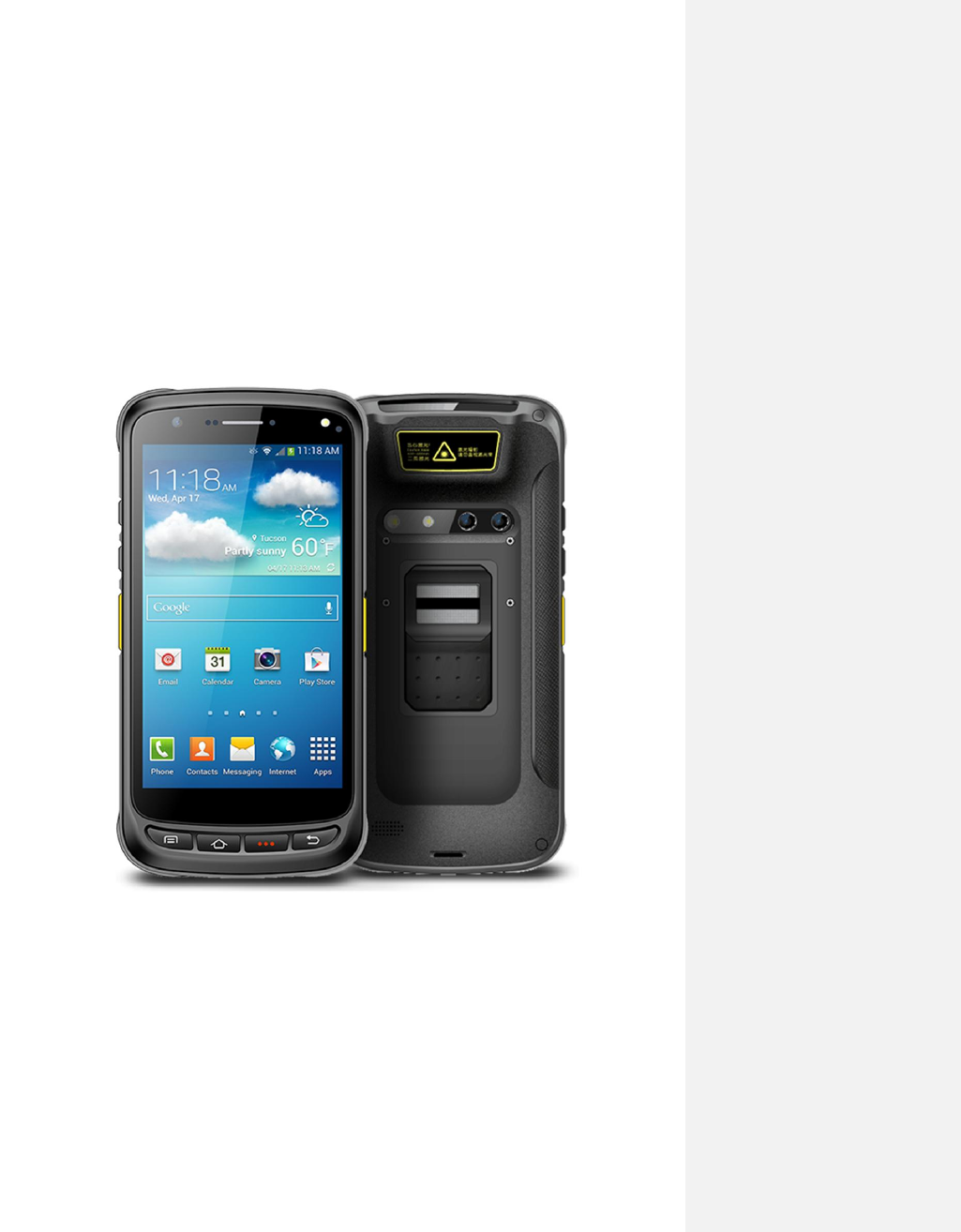

2.1 Appearance
9
Buttons instruction
Button Description
Side
button
1.Power Located on left side, press to ON/OFF device.
2.Function key Located on left side, its function can be defined by software.
3.SCAN Scanning button located on both sides. There are two scanning
buttons.
Main
button
4.Menu Display main menu.
5.Home Touch it back to main screen.
6.Enter Press to confirm current selection.
7.Backspace Return to last step to setup.
10

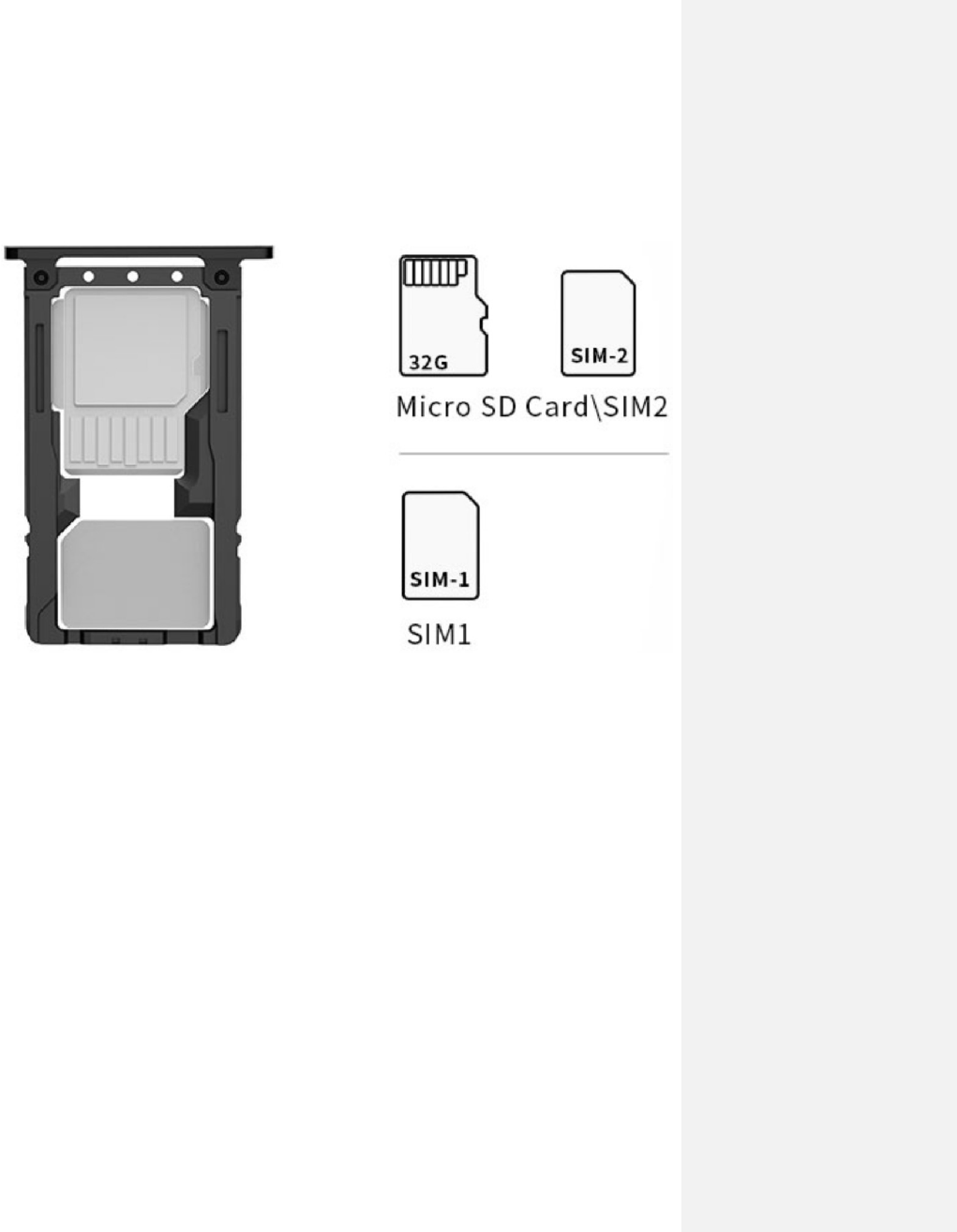

2.2 Install Micro SD and SIM cards
The cards sockets are showing as follows:
11
2.3 Battery charge
By using USB Type-C contact, the original adaptor should be used for
charging the device. Make sure not to use other adaptors to charge
the device.
12
2.4 Buttons and function area display
C71 has 4 side buttons and 4 main buttons, NFC identification area
2D scanning head and Infrared scanning lens locates at front. HD
camera, optical fingerprint sensor and flashlight locate at rear.
13

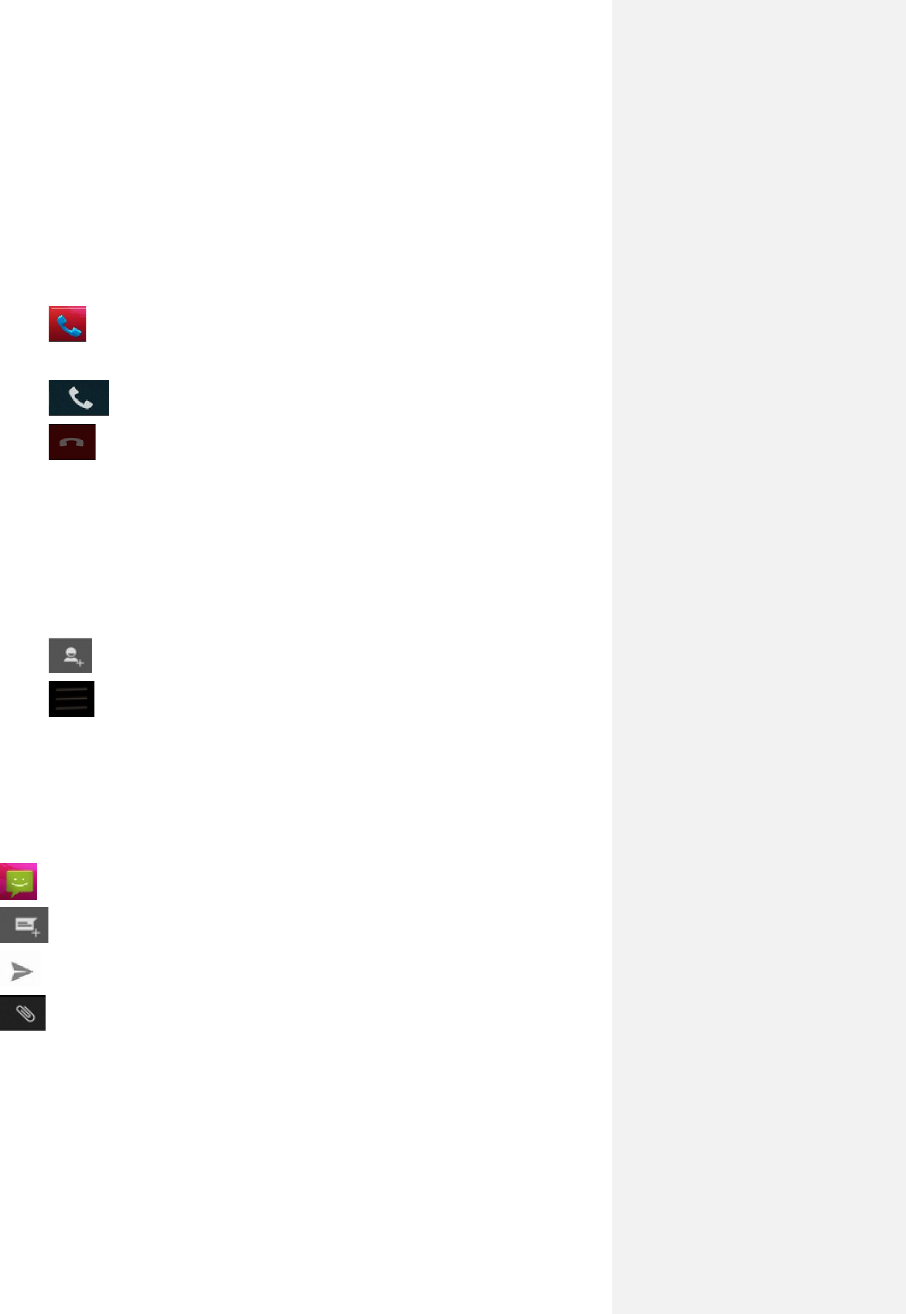

Chapter 3 Call function
3.1 Calling numbers
1. Click icon .
2. Click number key to input phone numbers.
3. Click icon to call.
4. Click icon to end call.
3.2 Contacts
1. Click contacts to open contacts list.
2. Click icon to add new contacts.
3. Click icon to import/export contacts.
3.3 SMS and MMS
1. Click to open message window.
2. Click to input message receiver and contents.
3. Click to send out messages.
4. Click to add attachment pictures and videos.
14

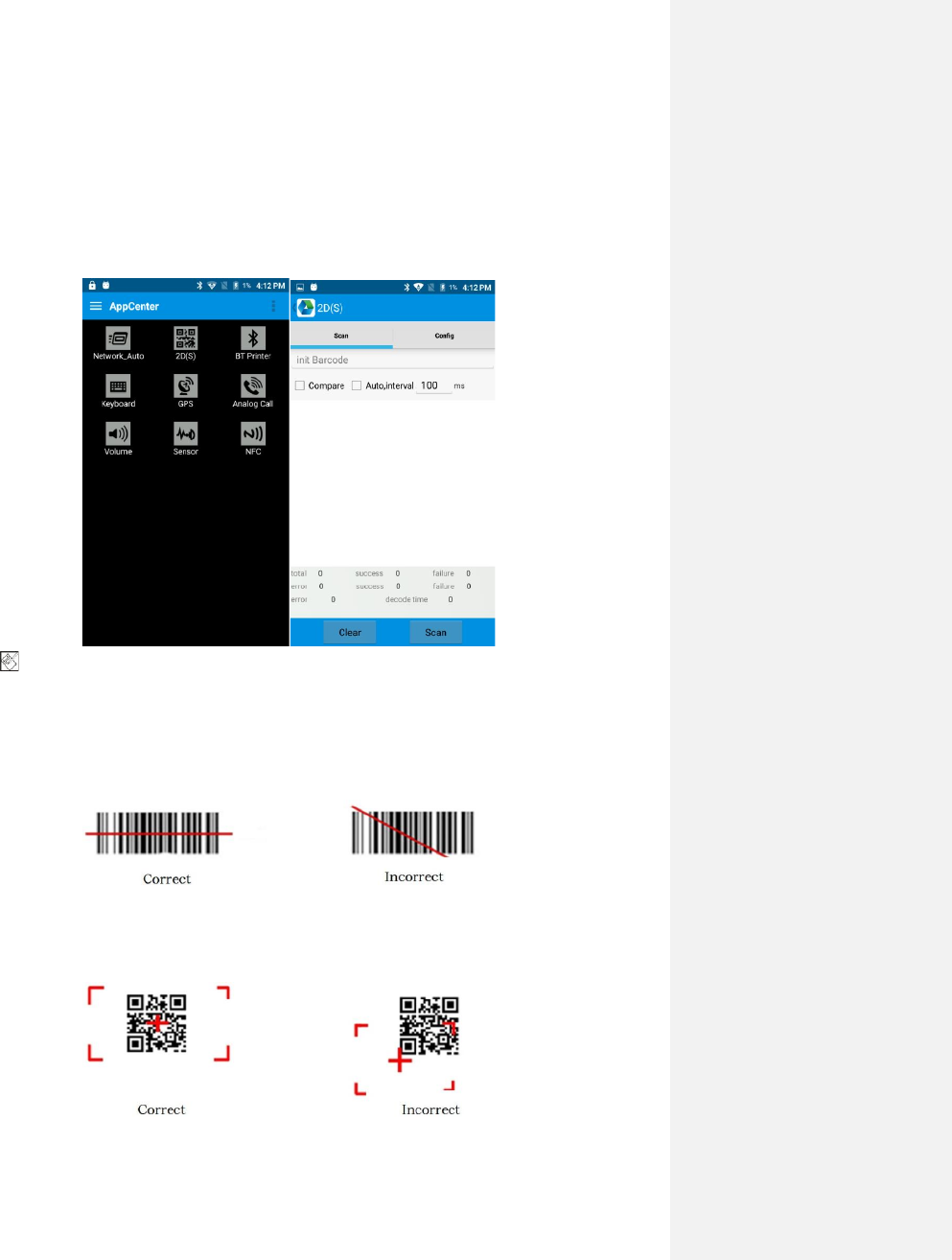

Chapter 4 Barcode reader-writer
1. In App Center, to open 2D barcode scan test.
2. Press “SCAN” button or click scan key to start scanning, the
parameter “Auto interval” can be adjusted.
Caution: Please scan codes in correct way otherwise the
scanning will be failed.
1D barcode:
2D code:
15
Max. radiant power: 0.6mW
Wave length: 655nM
IEC 62471 (ed.1).
16

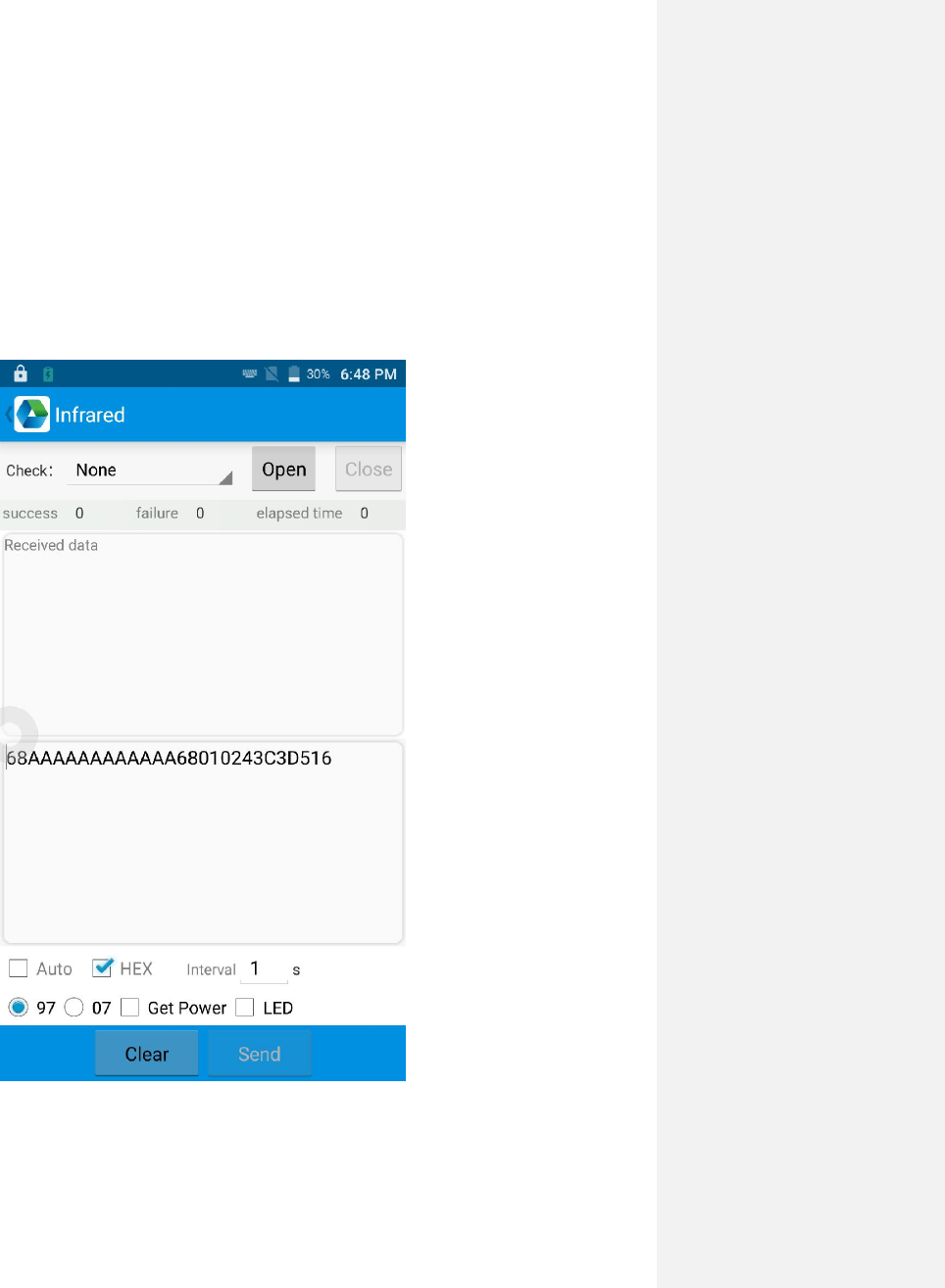

Chapter 5 Infrared read-write function
1. Open infrared function in App Center.
2. Click button “Open” to start infrared scanning function. Click
“LED” for infrared scanning aim assist. Depending on different
application status to compile different commands to realize
infrared read and write function.
17
Chapter 6 RFID reader

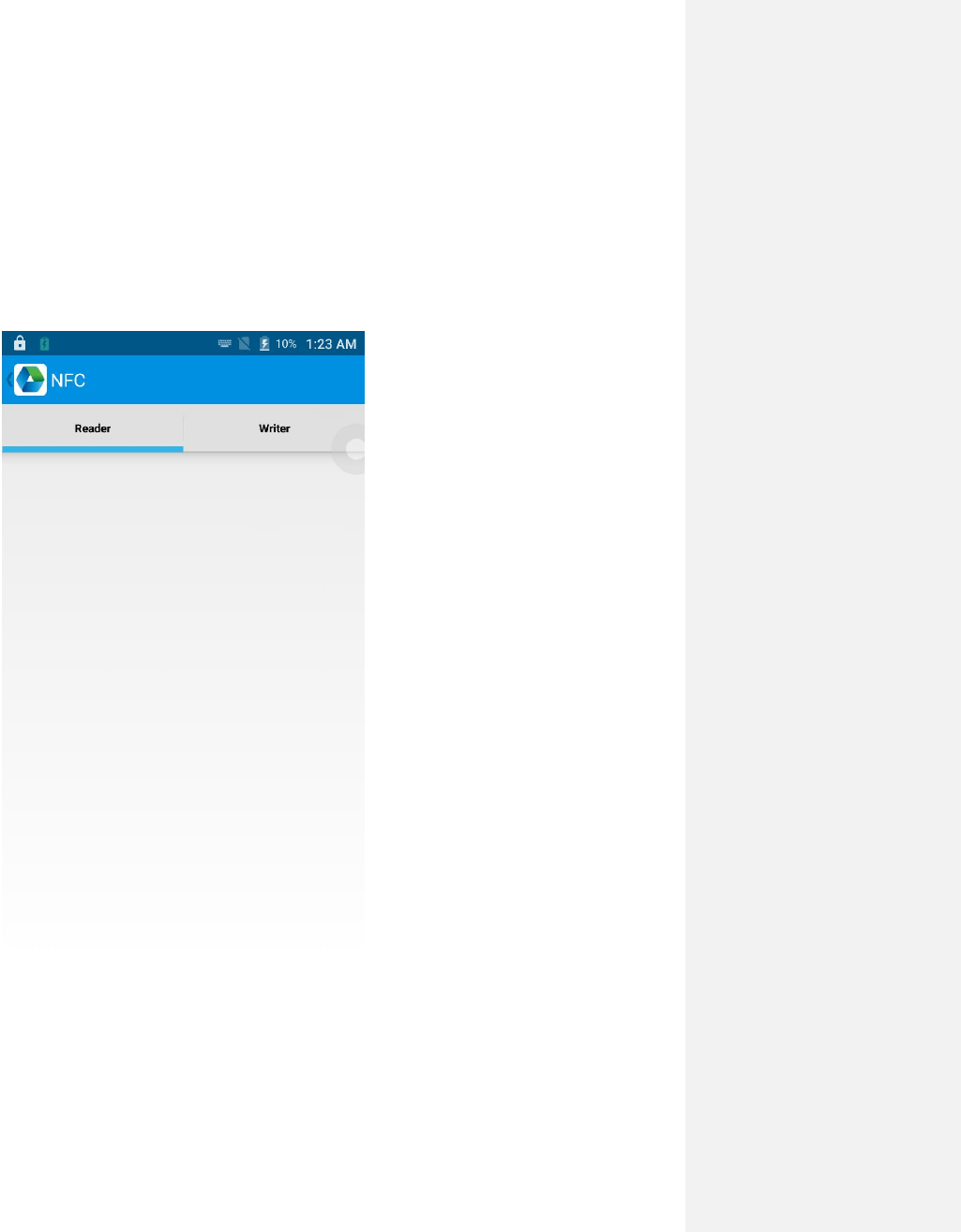

6.1 NFC
Click App Center, open “NFC” to read and write tag information.
18
Chapter 7 Other functions
7.1 PING tool
1. Open “PING” in App Center.
2. Setup PING parameter and select external/internal address.
19

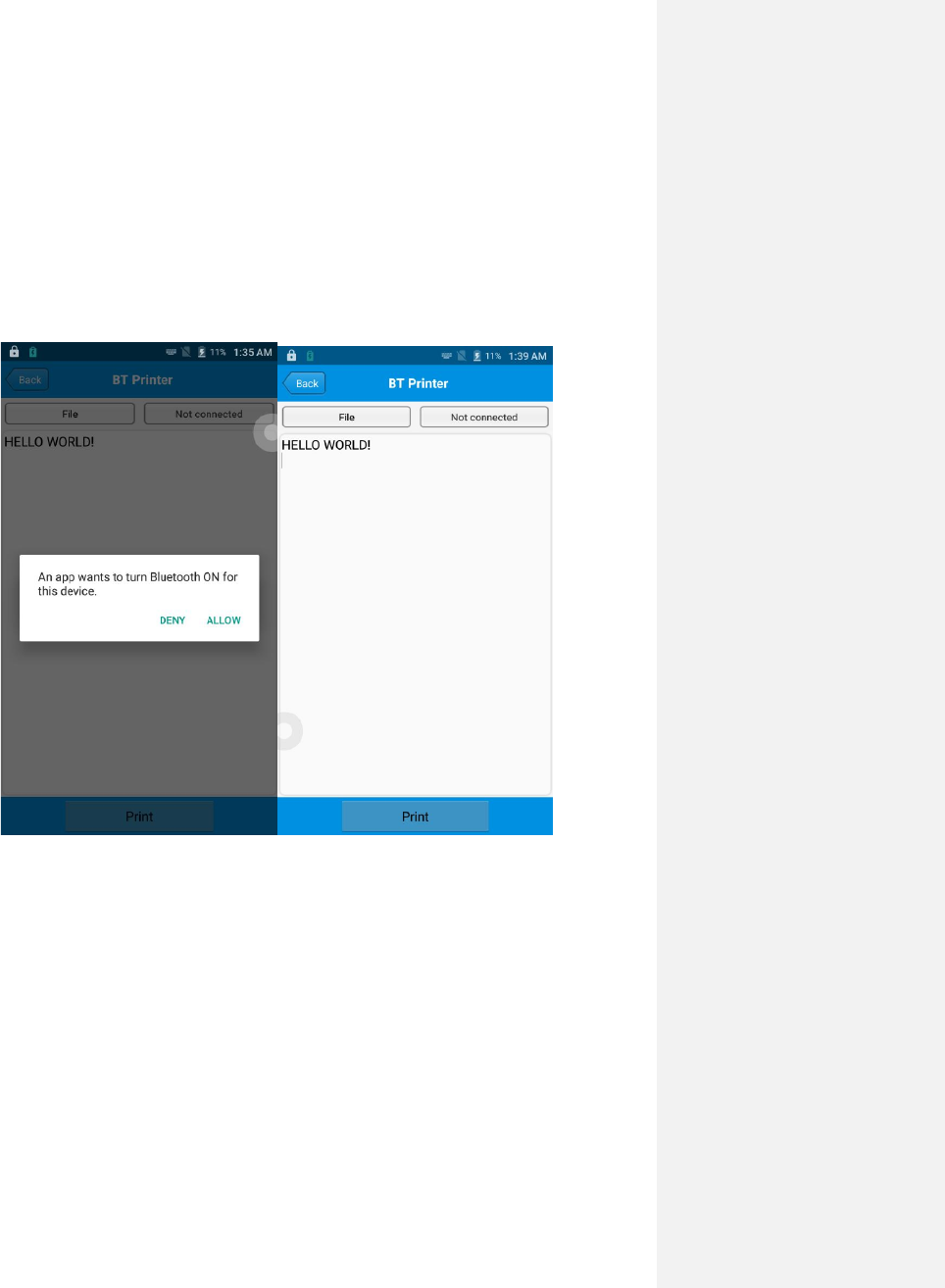

7.2 Bluetooth
1. Open “BT Printer” in App Center.
2. In the list of detected devices, click the device that you want to
pair.
3. Select printer and click “Print” to start printing contents.
20

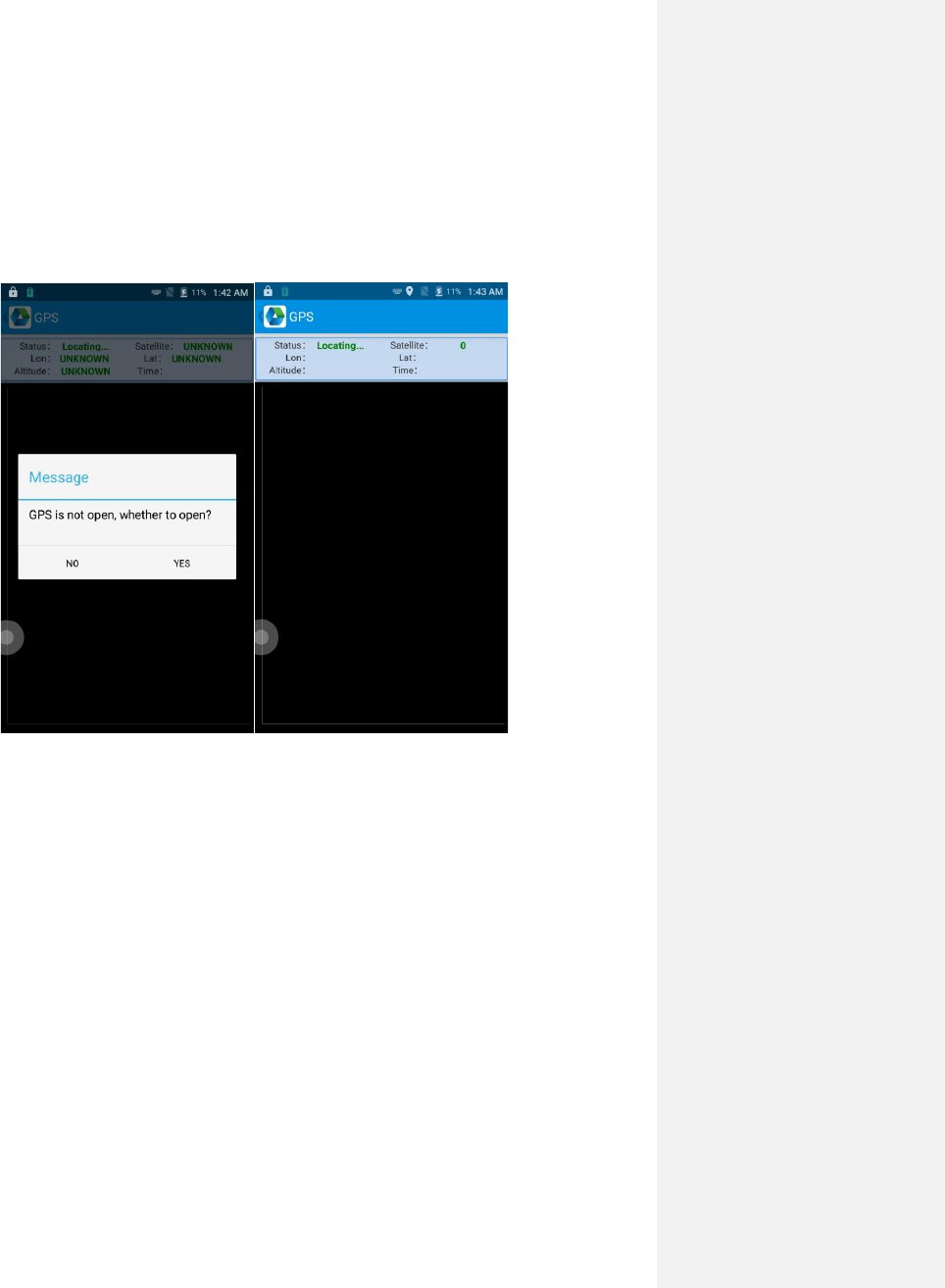

7.3 GPS
1. Click “GPS” in App Center to open GPS test.
2. Setup GPS parameters to access GPS information.
21
7.4 Volume setup
1. Click “Volume” in App Center.
2. Setup volume by requirements.
22
7.5 Sensor
1. Click “Sensor” in App Center.
2. Setup the sensor by requirements.
23
7.6 Keyboard
1. Click “Keyboard” in App Center.
2. Setup and test the main value of the device.
24

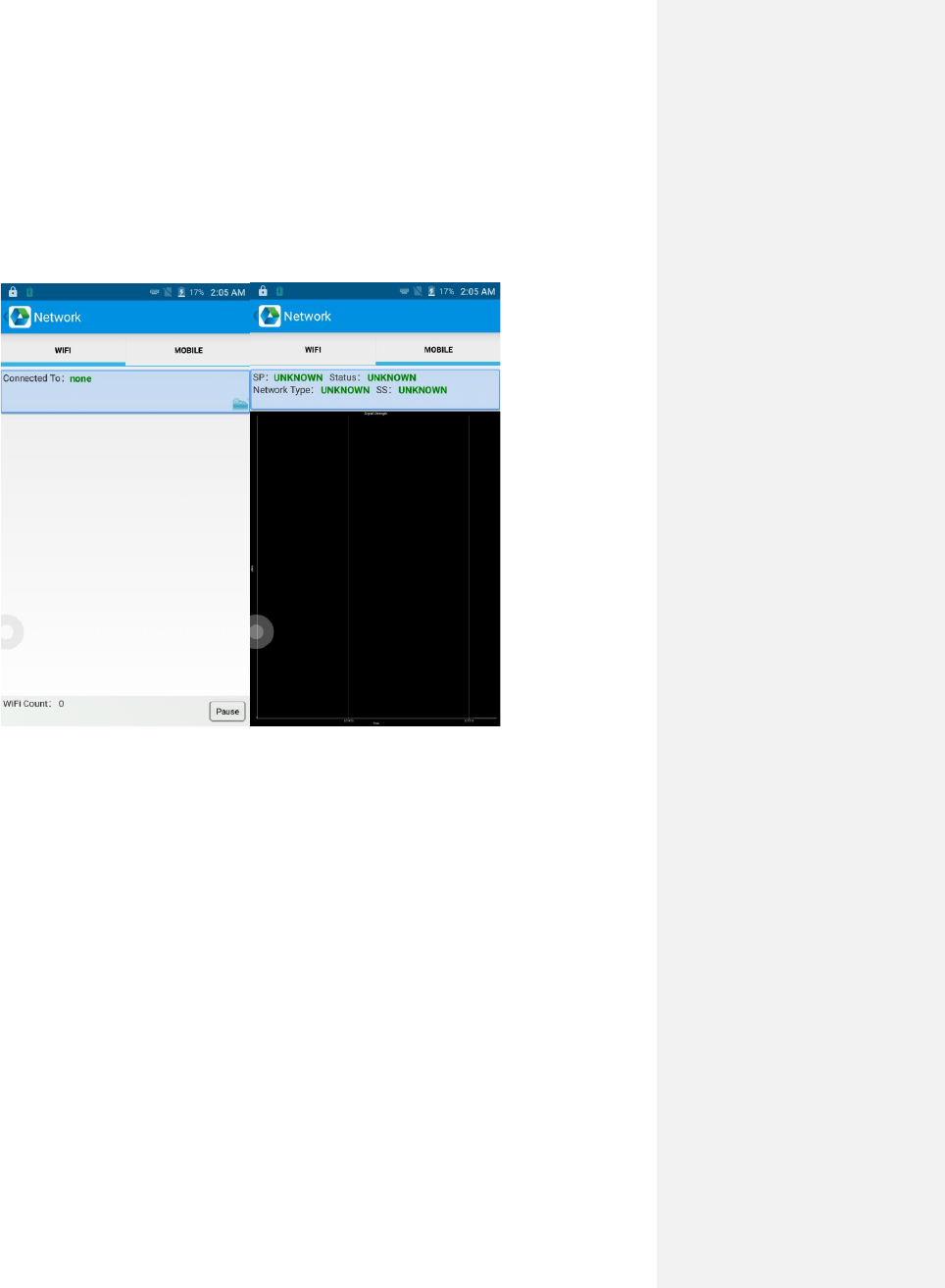

7.7 Network
1. Click “Network” in App Center.
2. Test WIFI/Mobile signal by requirements.
25

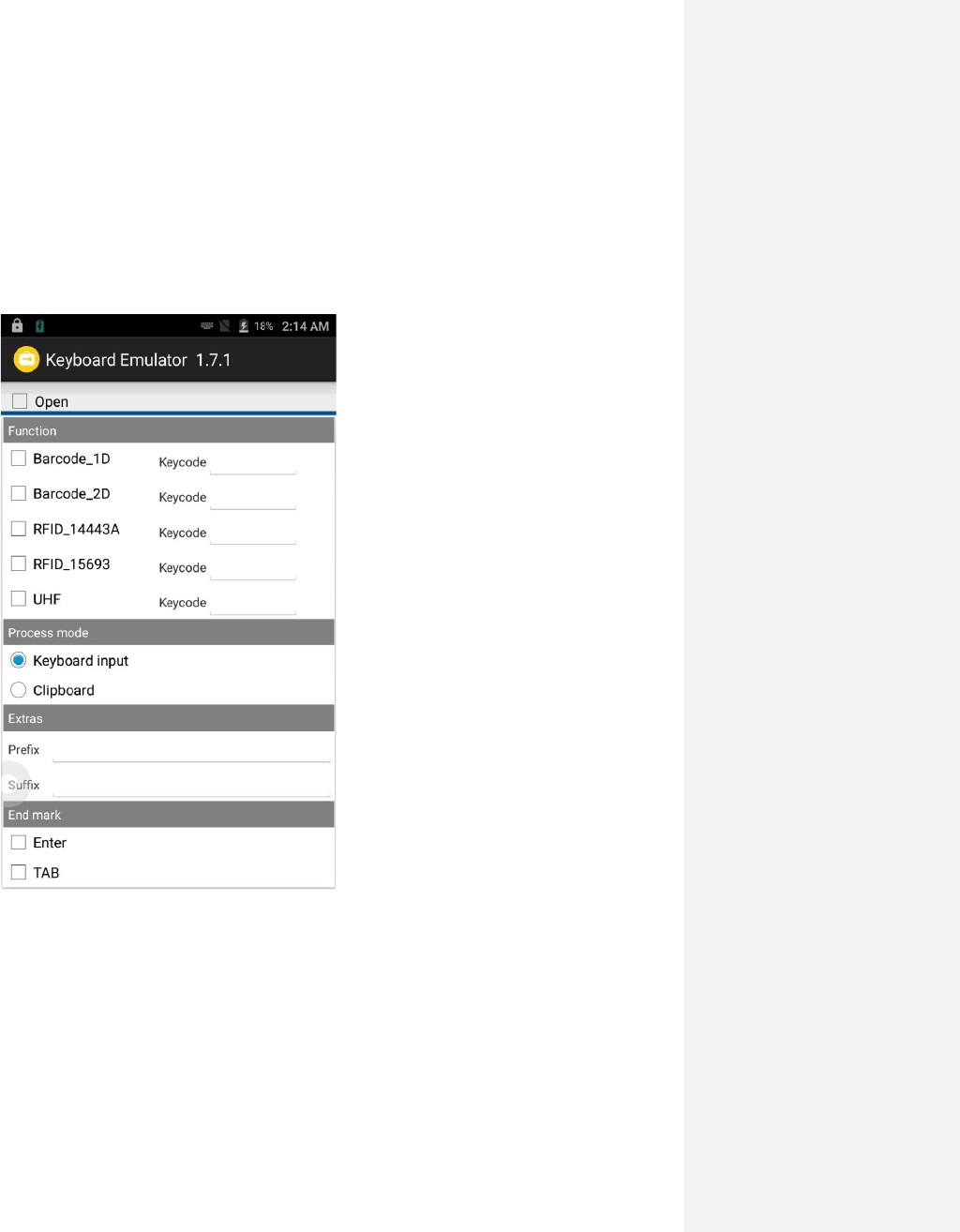

7.8 Keyboard emulator
The keyboard emulator can be used in multiple operating background
and output formats directly. And it includes Prefix/Suffix/Enter/TAB.
Please check Keyboard emulator manual for more details.
26
Chapter 8 Device characteristic
Physical characteristics
Size
164.2mm*78.8mm*17mm
Weight
<260g(battery included)
Display
5.2 inch，IPS FHD 1920*1080P
Touch panel
4 main keyboards, 1 power button, 2 scan buttons,
1 multi-function button
Battery
Li-ion, rechargeable, 5000mAh
Expansion
Supports up to 32 GB Micro SD card
Expansion Slot
1 slot for SIM card, 1 slot for SIM or TF card
Audio
speaker, 2 microphones, voice call
Camera
13MP autofocus camera with flashlight
Performance
CPU
Cortex-A53 1.3GHz Quadcore
OS
Andriod 6.0
RAM
2GB RAM
Communication
Interface
USB2.0,Type-C,OTG
ROM
16GB
Max.expansion
Supports up to 32 GB Micro SD card
User environment
Operating
temp.
-20
℃
to 45
℃
Storage Temp.
-20
℃
to 70
℃
Humidity
5%RH - 95%RH non condensing
Sealing
IP65, IEC sealing standard
Drop
specification
Multiple 1.8m/4.0ft drops to the concrete
27
Communication
WAN
EU:
2G： 850/900/1800/1900MHz,max. power33.69dBm
3G： 850/900/1900/2100 MHz, max. power23.52dBm
4G： B1/B3 /B5/B7/B8/B20/B40, max. powe23.359dBm
US:
2G: 850/900/1800/1900MHz,
3G: 850/900/1700/1900MHz,
4G: B2, B4, B7, B12, B17.
WLAN
IEEE802.11a/b/g/n, embedded antenna, 5 Gigabit
WIFI(hotspot is not supported.)
wifi 2.4G;max. power 17.75 dBm
Wifi 5G-Band1: max. power 16.51 dBm
Wifi 5G-Band2: max. power 16.28 dBm
Wifi 5G-Band4: max. power 15.93 dBm
WPAN
Bluetooth 4.0: max. power -0.32 dBm
Data collection
Barcode
scanning
2D CMOS scanning engine(Honeywell
N6603/Zebra SE4710)
RFID
NFC 13.56Mhz 62.57dBμV/m (3m)
-14.23dBμA/m (10m)
Developing Environment
SDK
Chainway software develop kit
Language
Java
Develop
Eclipse/Android Studio
批注
[Leo1]:
功率需确认
28
Appendix
29
Federal Communications Commission (FCC) Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generate, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate this equipment.
The SAR limit adopted by USA is 1.6 watts/kilogram (W/kg) averaged over one gram
of tissue. The highest SAR value reported to the Federal Communications
Commission (FCC) for this device type when it use at the ear is 0.452 W/kg and when
properly worn on the body is 0.694 W/kg.
RF exposure warning
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment.
