Statement
2013 by ShenZhen Chainway Information Technology Co., Ltd. All
rights reserved.
No part of this publication may be reproduced or used in any form, or
by any electrical or mechanical means, without permission written
from Chainway. This includes electronic or mechanical means, such
as photocopying, recording, or information storage and retrieval
systems. The material in this manual is subject to change without
notice.
The software is provided strictly on an “as is” basis. All software,
including firmware, furnished to the user is on a licensed basis.
Chainway grants to the user a non-transferable and non-exclusive
license to use each software or firmware program delivered
hereunder (licensed program). Except as noted below, such license
may not be assigned, sublicensed, or otherwise transferred by the
user without prior written consent of Chainway. No right to copy a
licensed program in whole or in part is granted, except as permitted
under copyright law. The user shall not modify, merge, or incorporate
any form or portion of a licensed program with other program material,
create a derivative work from a licensed program, or use a licensed
program in a network without written permission from Chainway.
Chainway reserves the right to make changes to any software or
product to improve reliability, function, or design.
Chainway does not assume any product liability arising out of, or in
connection with, the application or use of any product, circuit, or
application described herein.
No license is granted, either expressly or by implication, estoppel, or
otherwise under any Chainway intellectual property rights. An implied
license only exists for equipment, circuits, and subsystems contained
in Chainway products.
4
5
Chapter 1 Product Intro
1.1 Intro
C75 is a devoted handheld computer that offers mobile printing
capabilities. The thermal printer supports various printer engines and
prints labels and receipts. Built-in dual slots are for PSAM cards to
encrypt data. Portable and durable, this device is the perfect multi-
use tool for your advanced data capture and mobility needs in retail,
healthcare, parking, etc.
6
1.2 Precaution before using battery
Do not leave battery unused for long time, no matter it is in
device or inventory. If battery has been used for 6 months
already, it should be check for charging function or it should be
disposed correctly.
The lifespan of Li-ion battery is around 2 to 3 years, it can be
circularly charged for 300 to 500 times. (One full battery charge
period means completely charged and completely discharged.)
When Li-ion battery is not in used, it will continue discharge
slowly. Therefore, battery charging status should be checked
frequently and take reference of the related battery charging
information on the manuals.
Observe and record the information of a new unused and non-
fully charged battery. On the basis of operating time of new
battery and compare with a battery that has been used for long
time. According to product configuration and application
program, the operating time of battery would be different.
Check battery charging status at regular intervals.
When battery operating time drops below about 80%, charging
time will be increased remarkably.
If a battery is stored or otherwise unused for an extended
period, be sure to follow the storage instructions in this
document. If you do not follow the instructions, and the battery
has no charge remaining when you check it, consider it to be
damaged. Do not attempt to recharge it or to use it. Replace it
with a new battery.
Store the battery at temperatures between 5 °C and 20 °C
(41 °F and 68 °F).
7
1.3 Charger
The charger type is GME10D-050200FGu, output voltage/current is
5V DC/2A. The plug considered as disconnect device of adapter.
8
1.4 Notes
Note: Using the incorrect type battery has danger of explosion.
Please dispose the used battery according to instructions.
Note: Due to the used enclosure material, the product shall
only be connected to a USB Interface of version 2.0 or
higher. The connection to so called power USB is
prohibited.
Note: The adapter shall be installed near the equipment and
shall be easily accessible.
Note: The suitable temperature for the product and accessories
is 0-10
℃
to 50
℃
.
Note: CAUTION RISK OF EXPLOSION IF BATTERY IS
REPLACED BY AN INCORRECT TYPE. DISPOSE OF
USED BATTERIES ACCORDING TO THE
INSTRUCTIONS.
9
Chapter 2 Installation instructions

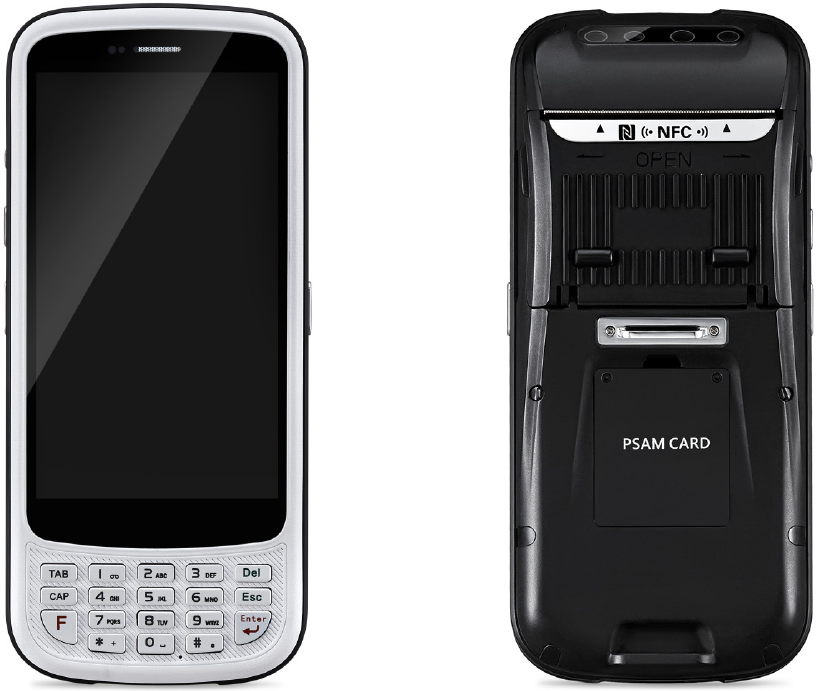

2.1 Appearance
10
2.2 Install Micro SD and SIM cards
The cards sockets are showing as follows:
11
2.3 Battery charge
By using USB Type-C contact, the original adaptor should be used for
charging the device. Make sure not to use other adaptors to charge
the device.
12
2.4 Buttons and function area display

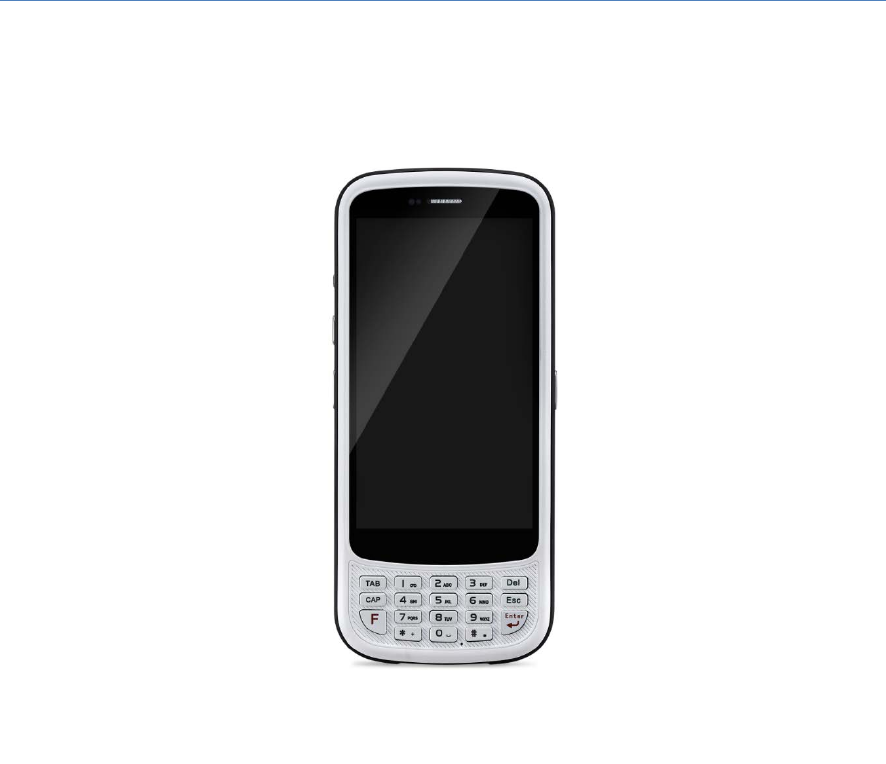

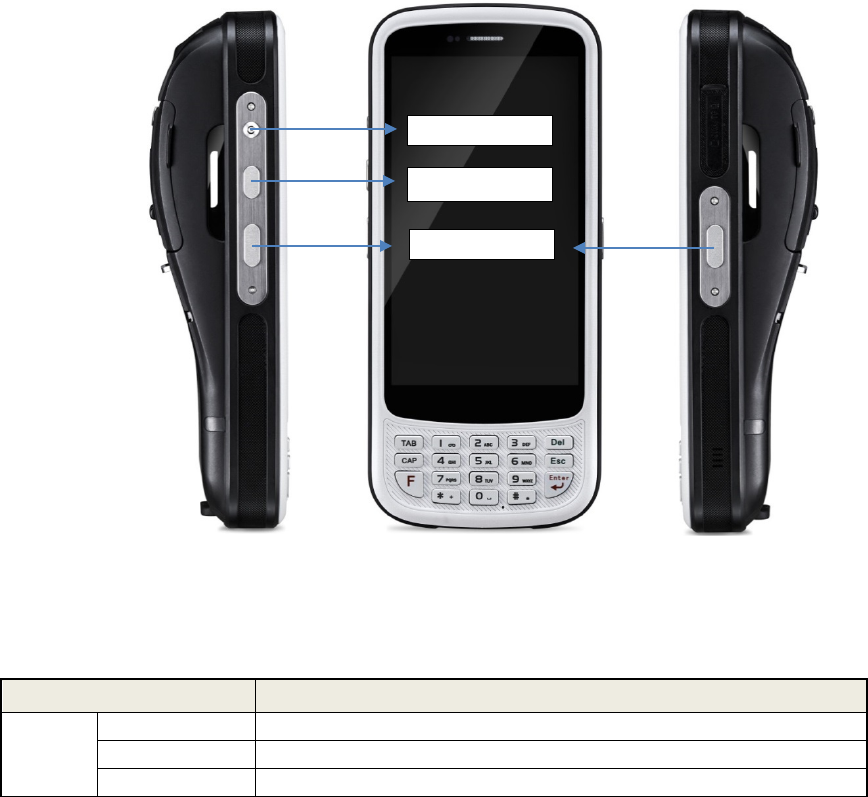

C75 has 4 side buttons and simple keyboard, NFC identification area
2D scanning module and HD camera.
Instructions：
Buttons
Description
Side
Buttons
1 Power Button Locates at left side of device, press power button to ON/OFF.
2 Setting Button
Locates at left side of device, the setting button can be setup in software.
3 SCAN Button
Locate at both sides of device
Power Button Power Button
Setting Button
SCAN Button
13
Chapter 3 Call function
3.1 Calling numbers
1. Click icon .
2. Click number key to input phone numbers.
3. Click icon to call.
4. Click icon to end call.
3.2 Contacts
1. Click contacts to open contacts list.
2. Click icon to add new contacts.
3. Click icon to import/export contacts.
3.3 SMS and MMS
1. Click to open message window.
2. Click to input message receiver and contents.
3. Click to send out messages.
4. Click to add attachment pictures and videos.
14
Chapter 4 Barcode reader-writer
1. In App Center, to open 2D barcode scan test.
2. Press “SCAN” button or click scan key to start scanning, the
parameter “Auto interval” can be adjusted.
Caution: Please scan codes in correct way otherwise the
scanning will be failed.
1D barcode:
2D code:
15
Max. radiant power: 0.6mW
Wave length: 655nM
IEC 60825-1 (Ed.2.0).
21CFR 1040.10 and 1040.11 standard.
16

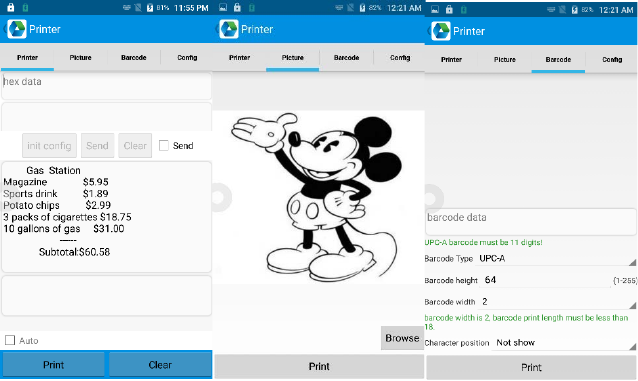

Chapter 5 Infrared read-write function
1. Open printer function in App Center.
2. Click “Print” to test printing function.
3. Save picture into internal storage or SD card directory and
select “Picture” to print pictures.
4. Select “Barcode” and click to print barcode.
17
Chapter 6 RFID reader
6.1 NFC

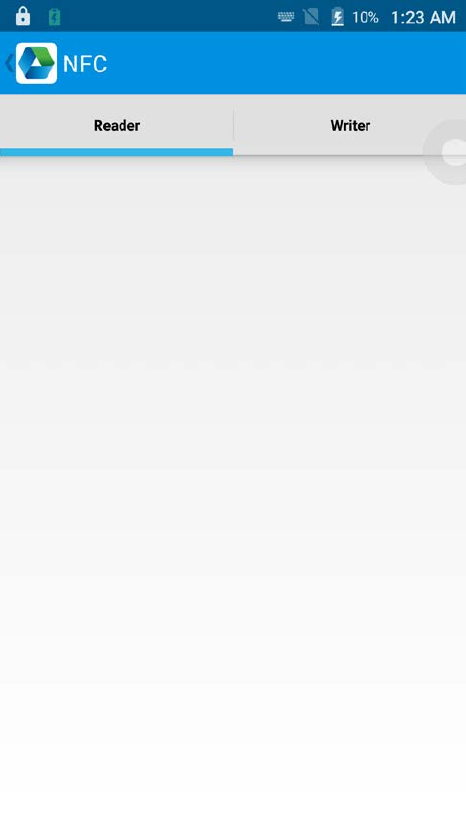

Click App Center, open “NFC” to read and write tag information.
18
Chapter 7 Other functions

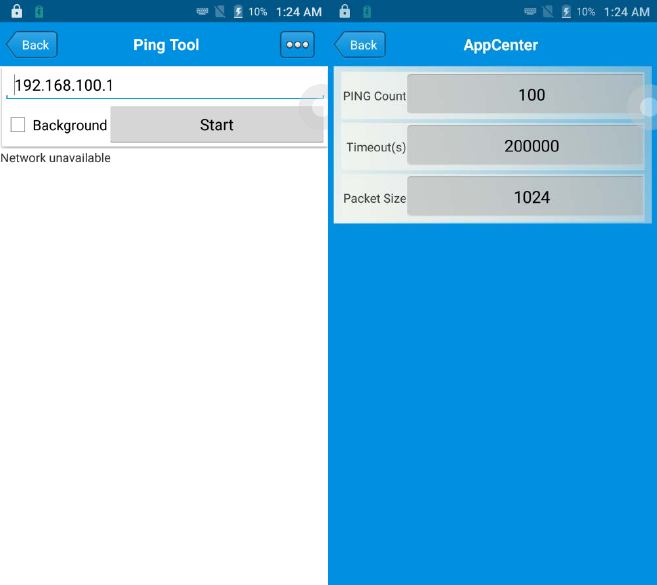

7.1 PING tool
1. Open “PING” in App Center.
2. Setup PING parameter and select external/internal address.
19

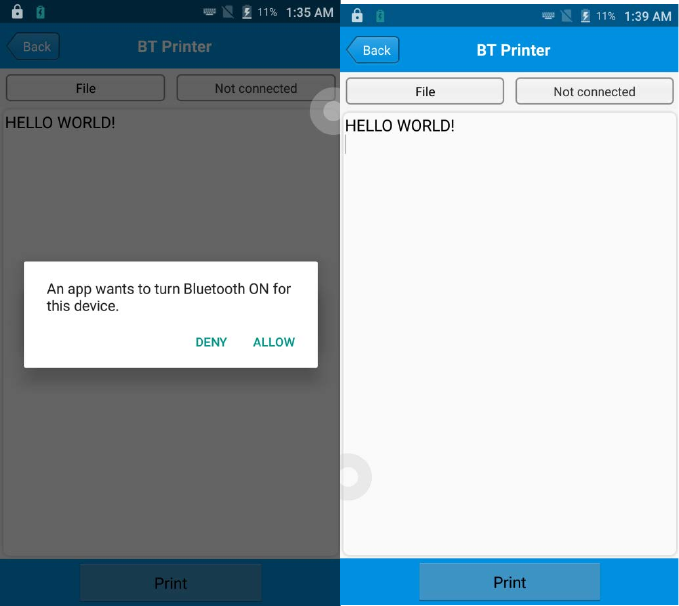

7.2 Bluetooth
1. Open “BT Printer” in App Center.
2. In the list of detected devices, click the device that you want to
pair.
3. Select printer and click “Print” to start printing contents.
20

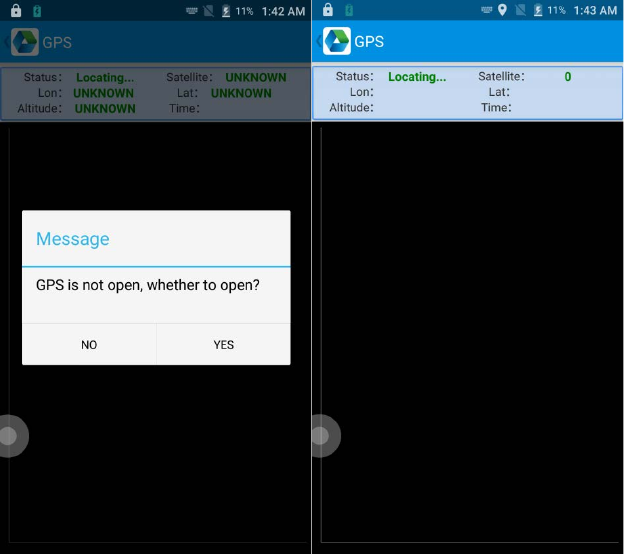

7.3 GPS
1. Click “GPS” in App Center to open GPS test.
2. Setup GPS parameters to access GPS information.
21
7.4 Volume setup
1. Click “Volume” in App Center.
2. Setup volume by requirements.
22

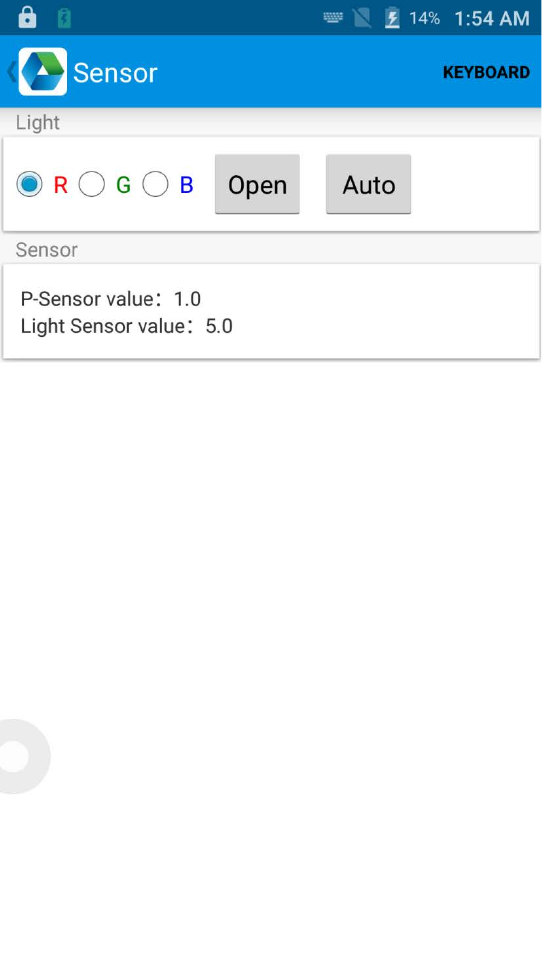

7.5 Sensor
1. Click “Sensor” in App Center.
2. Setup the sensor by requirements.
23

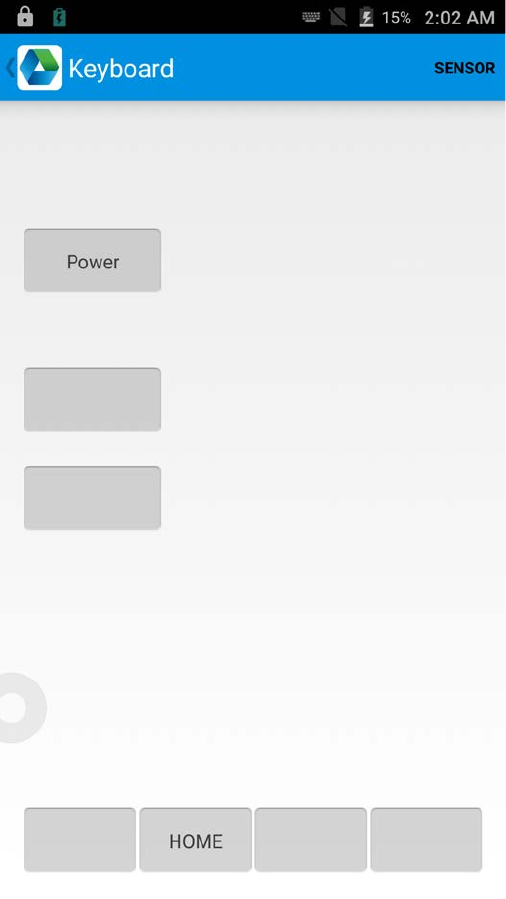

7.6 Keyboard
1. Click “Keyboard” in App Center.
2. Setup and test the main value of the device.
24

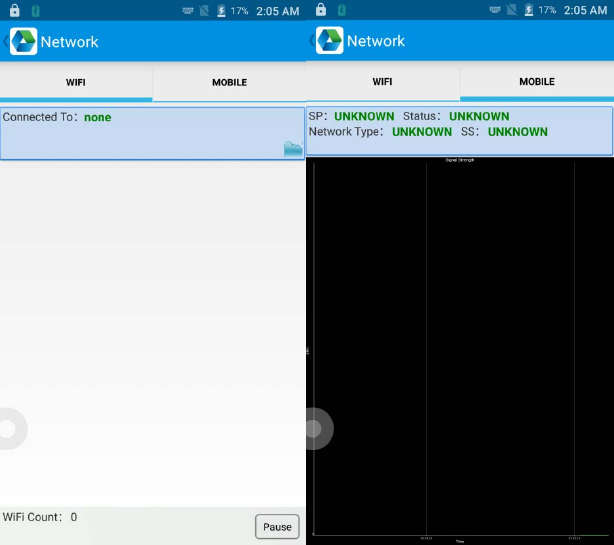

7.7 Network
1. Click “Network” in App Center.
2. Test WIFI/Mobile signal by requirements.
25
7.8 Keyboard emulator

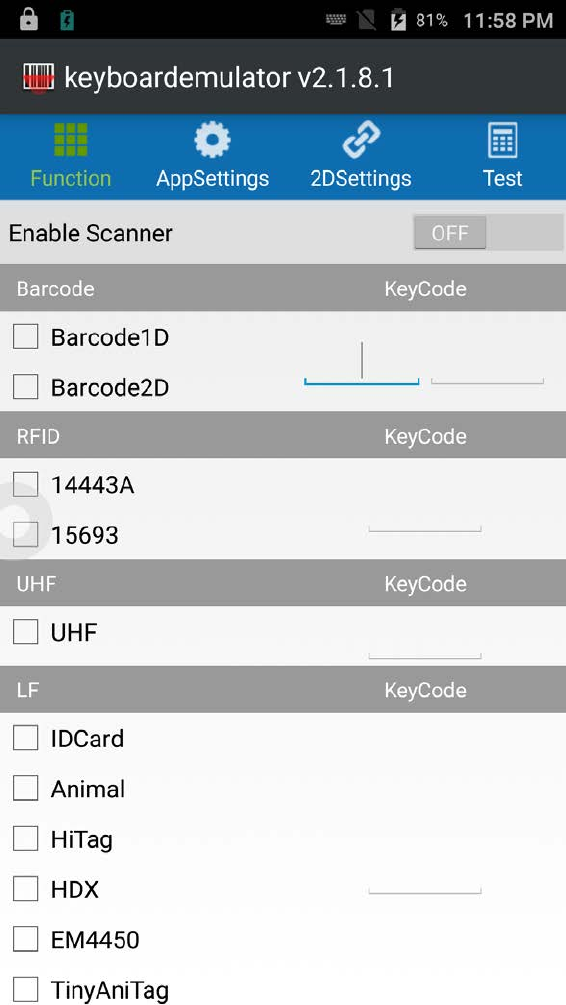

The keyboard emulator can be used in multiple operating background
and output formats directly.
Please check Keyboard emulator manual for more details.
26
Chapter 8 Device characteristic
Physical characteristics
Size
186.89*83.99*35.04-49.49mm
Weight
507g/17.88oz
Display
5.2'' IPS FHD 1920x1080P
Touch panel
Corning Gorilla Glass, multi-touch panel, gloves
and wet hands supported
Battery
Li-ion, rechargeable, 8000mAh
Expansion Slot
2 PSAM slots at most (ISO7816 protocol), 1 slot
for SIM card, 1 slot for SIM or TF card
Audio
Speaker, 2 microphones
Camera
13MP autofocus camera with flashlight
Keypad
3 side keys, 1 power key, numeric keyboard
Sensors
Gravity sensor, light sensor, proximity sensor,
vibration motor
Performance
CPU
Cortex-A53 Quad-core 1.3GHz
OS
Andriod 6.0
RAM
2GB RAM
Communication
Interface
USB2.0,Type-C,OTG
ROM
16GB
Max. expansion
Supports up to 32 GB Micro SD card
User environment
Operating
temp.
-20℃ to 50℃
Storage Temp.
-
40℃ to 70℃
Humidity
5%RH - 95%RH non condensing
Sealing
IP65, IEC sealing standard
Drop
specification
Multiple 1.2m/3.9ft drops to the concrete
27
Communication
WAN
US:
2G: 850/1900/MHz
3G: 850/1900/1700MHz
4G: B2, B4, B7, B12, B17
WLAN
IEEE802.11 a/b/g/n, 2.4G/5G dual-band, internal
antenna
WWAN (Others)
Depending on the country's ISP
Thermal Printer
Rate (mm/s)
85
Image Size (pixel)
384 dots
Paper Width (mm)
58
Data collection
Barcode
scanning
2D scanning engine(Honeywell N6603/Zebra
SE4710)
RFID
NFC 13.56Mhz
Developing Environment
SDK
Chainway software develop kit
Language
Java
Develop
Eclipse/Android Studio
28
Restrictions:
AT
BE
BG
HR
CY
CZ
DK
EE
FI
FR
DE
GR
HU
IE
IT
LV
LT
LU
MT
NL
PL
PT
RO
SK
SI
ES
SE
UK
This device is restricted to indoor use where operated in the
European Community using frequency in 5150MHz-5350MHz to
reduce the potential for interference.
29
FCC statements:
This device complies with part 15 of the FCC rules. Operation is subject to
the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
NOTE: The manufacturer is not responsible for any radio or TV interference
caused by unauthorized modifications or changes to this equipment. Such
modifications or changes could void the user’s authority to operate the
equipment.
NOTE: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates uses and
can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
‐ Reorient or relocate the receiving antenna.
‐ Increase the separation between the equipment and receiver.
‐Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
‐Consult the dealer or an experienced radio/TV technician for help.
During SAR testing, this device is set to transmit at its highest certified
power
level in all tested frequency bands, and placed in positions that simulate RF
exposure in usage near the body with the separation of 10 mm. Although the
30
SAR is determined at the highest certified power level, the actual SAR level
of
the while operating can be well below the maximum value. This is because
the device is designed to operate at multiple power levels so as to use only
the power required to reach the network. In general, the closer you are to a
wireless base station antenna, the lower the power output.
FCC Radiation Exposure Statement
. This device was tested for typical body‐worn operations with the back of
the handset kept 10mm from the body.
To maintain compliance with FCC RF exposure requirements, use
accessories that maintain a 10 mm separation distance between the user's
body and the back of the handset. The use of belt clips, holsters and similar
accessories should not contain metallic components in its assembly. The use
of accessories that do not satisfy these requirements may not comply with
FCC RF exposure requirements, and should be avoided.
RF Exposure Information(SAR)
The SAR limit of USA (FCC) is 1.6 W/kg averaged over one gram of tissue.
Device
Types C75 (FCC ID: 2AC6AC75) has also been tested against this SAR
limit.
The highest SAR value reported under this standard during product
certification for use when properly worn on the body is0.655 W/kg and for
head is 0.479 W/kg.
