Chainway Information Technology P80 Industrial tablet User Manual
Shenzhen Chainway Information Technology Co., Ltd. Industrial tablet
User Manual
Industrial Tablet
P80 User Manual
2
Catalog
Chapter 1 Product Intro ...................................................................................................... 3
1.1 Intro....................................................................................................................... 3
1.2 Precaution before using battery ........................................................................... 4
1.3 Charger ................................................................................................................. 5
1.4 Notes .................................................................................................................... 6
Chapter 2 Installation instructions ...................................................................................... 7
2.1 Appearance .......................................................................................................... 7
2.2 Install Micro SD and SIM cards............................................................................ 9
2.3 Battery charge .................................................................................................... 10
Chapter 3 Call function ..................................................................................................... 11
3.1 Calling numbers ................................................................................................. 11
3.2 Contacts ............................................................................................................. 11
3.3 SMS and MMS ................................................................................................... 11
Chapter 4 Barcode reader-writer ...................................................................................... 12
Chapter 5 RFID reader ..................................................................................................... 15
Chapter 6 Other functions................................................................................................. 16
6.1 PING tool ............................................................................................................ 16
6.2 Bluetooth ............................................................................................................ 17
6.3 GPS .................................................................................................................... 18
6.4 Volume setup ..................................................................................................... 19
6.5 Network .............................................................................................................. 20
Chapter 7 Device characteristic ........................................................................................ 21
3
Chapter 1 Product Intro
1.1 Intro
P80 device is a industrial tablet that integrated with various features
such as UHF RFID, barcode scanning, HF RFID/NFC, Iris and
fingerprint recognition etc. It is configured with Andriod 7.1 OS and it
possesses high reliability and expansibility. With a set of advanced
data acquisition options, P80 can be operated in various industries to
acquire precise and abundant datum automatically. Meanwhile, the
device can match the options with staffs accordingly. The corporation
which deployed P80 will realize the deployment work is simple and
maintenance work will be remarkably decreased.
P80 is highly rugged, compact and durable. With IP65 water and dust
proof capability, the device has met IEC sealing standard. Therefore,
it can be operated by staffs such as railway inspector, road toll
operator, vehicle inspector, delivery postman, power supply inspector,
storage administrator, financial & insurance, police officers, security
tracing etc. Wherever your staff’ locations are, P80 can remain its
connectivity with the system to make sure business in high-effective
operating.
P80 industrial tablet adopted 4G LTE technology to realize multipath
communication and calling function for field work, data exchange
efficiency has been enhanced simultaneously. Therefore, P80 will
bring the largest investment return for enterprises.
4
1.2 Precaution before using battery
Do not leave battery unused for long time, no matter it is in
device or inventory. If battery has been used for 6 months
already, it should be check for charging function or it should be
disposed correctly.
The lifespan of Li-ion battery is around 2 to 3 years, it can be
circularly charged for 300 to 500 times. (One full battery charge
period means completely charged and completely discharged.)
When Li-ion battery is not in used, it will continue discharge
slowly. Therefore, battery charging status should be checked
frequently and take reference of the related battery charging
information on the manuals.
Observe and record the information of a new unused and non-
fully charged battery. On the basis of operating time of new
battery and compare with a battery that has been used for long
time. According to product configuration and application
program, the operating time of battery would be different.
Check battery charging status at regular intervals.
When battery operating time drops below about 80%, charging
time will be increased remarkably.
If a battery is stored or otherwise unused for an extended period,
be sure to follow the storage instructions in this document. If
you do not follow the instructions, and the battery has no charge
remaining when you check it, consider it to be damaged. Do not
attempt to recharge it or to use it. Replace it with a new battery.
Store the battery at temperatures between 5 °C and 20 °C
(41 °F and 68 °F).
5
1.3 Charger
The charger type is GME10D-050200FGu,output voltage/current is
5V DC/2A. The plug considered as disconnect device of adapter.
6
1.4 Notes
Note:
Using the incorrect type battery has danger of explosion.
Please dispose the used battery according to instructions.
Note:
Due to the used enclosure material, the product shall only be
connected to a USB Interface of version 2.0 or higher. The
connection to so called power USB is prohibited.
Note:
The adapter shall be installed near the equipment and shall be
easily accessible.
Note:
The suitable temperature for the product and accessories is 0-
10℃ to 50℃.
Note:
CAUTION RISK OF EXPLOSION IF BATTERY IS REPLACED
BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES
ACCORDING TO THE INSTRUCTIONS.
7
Chapter 2 Installation instructions

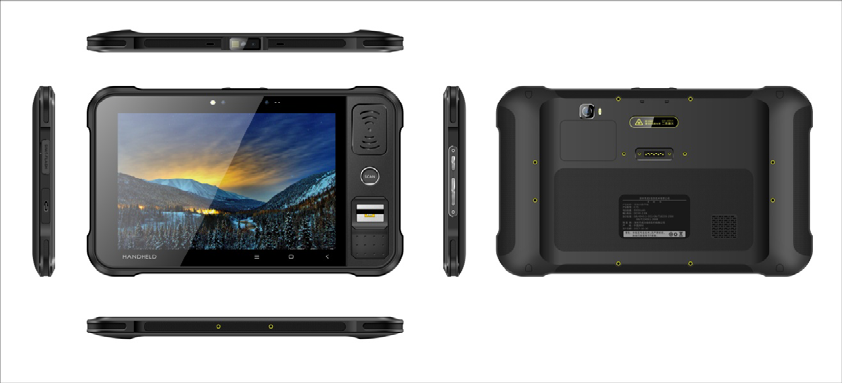

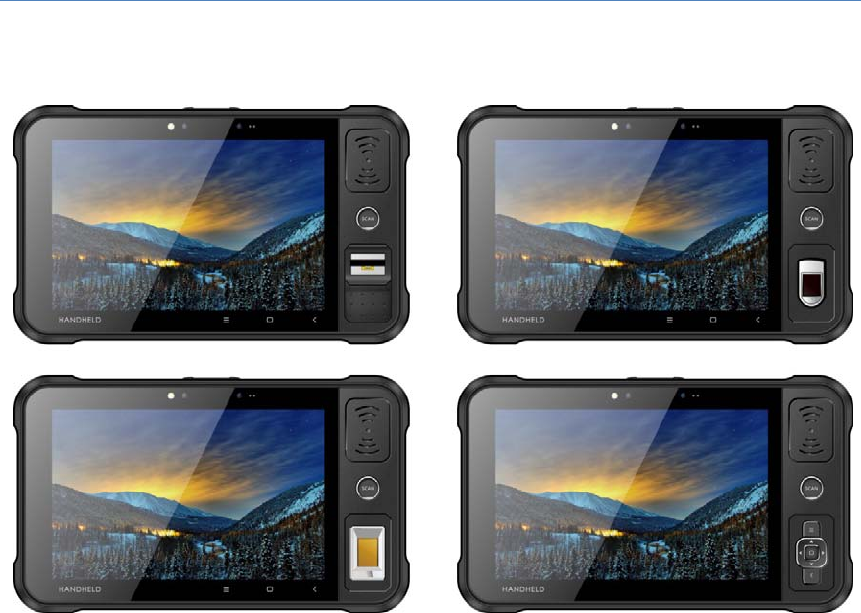

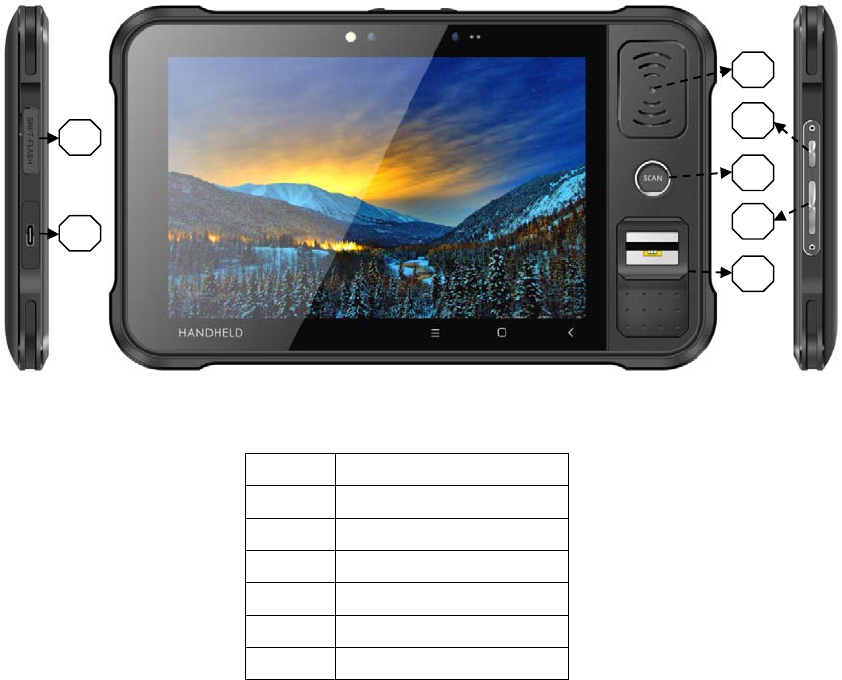

2.1 Appearance
8
Function Guide
1 NFC
2 Power Button
3 SCAN Button
4 Volume Setup
5 Fingerprint
6 SIM/TF Card Slot
7 TYPE-C Port
1
2
3
4
5
6
7
9

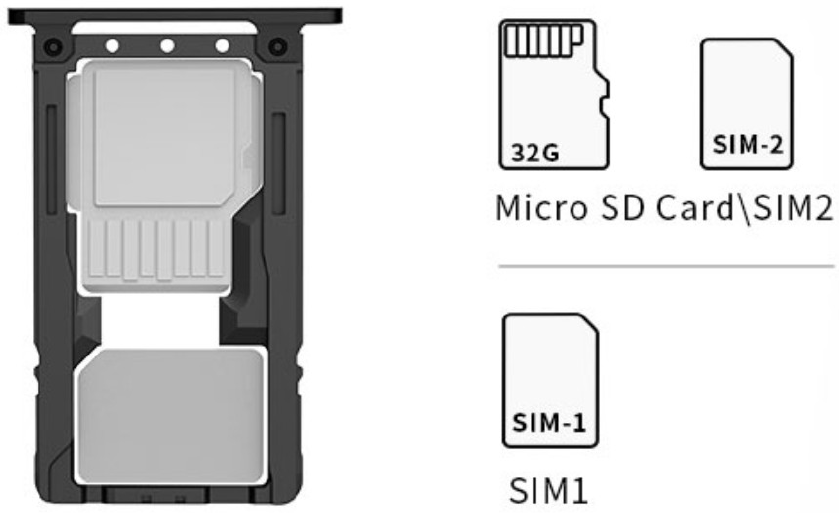

2.2 Install Micro SD and SIM cards
The cards sockets are showing as follows:
10
2.3 Battery charge
By using USB Type-C contact, the original adaptor should be used for
charging the device. Make sure not to use other adaptors to charge
the device.
11
Chapter 3 Call function
3.1 Calling numbers
1. Click icon .
2. Click number key to input phone numbers.
3. Click icon to call.
4. Click icon to end call.
3.2 Contacts
1. Click contacts to open contacts list.
2. Click icon to add new contacts.
3. Click icon to import/export contacts.
3.3 SMS and MMS
1. Click to open message window.
2. Click to input message receiver and contents.
3. Click to send out messages.
4. Click to add attachment pictures and videos.
12

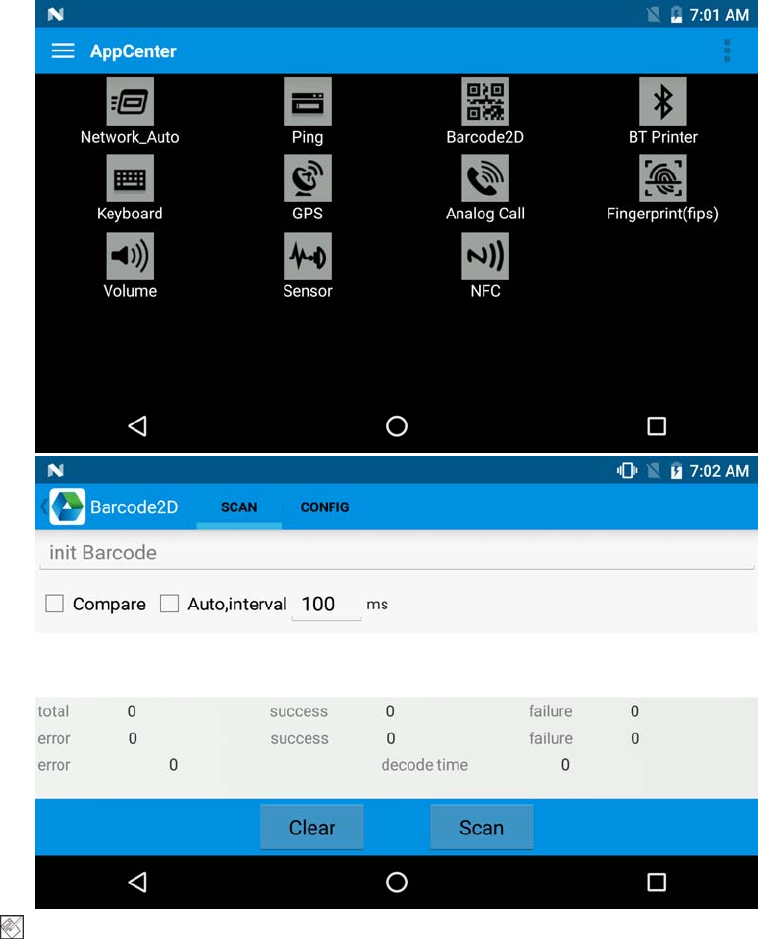

Chapter 4 Barcode reader-writer
1. In App Center, to open 2D barcode scan test.
2. Press “SCAN” button or click scan key to start scanning, the
parameter “Auto interval” can be adjusted.

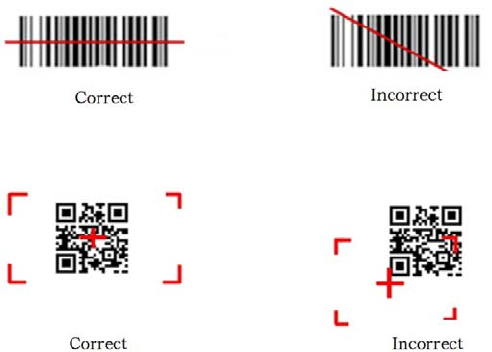

Caution: Please scan codes in correct way otherwise the
scanning will be failed.
13
1D barcode:
2D code:
14
Max. radiant power: 0.6mW
Wave length: 655nM
IEC 60825-1 (Ed.2.0).
21CFR 1040.10 and 1040.11 standard.
15

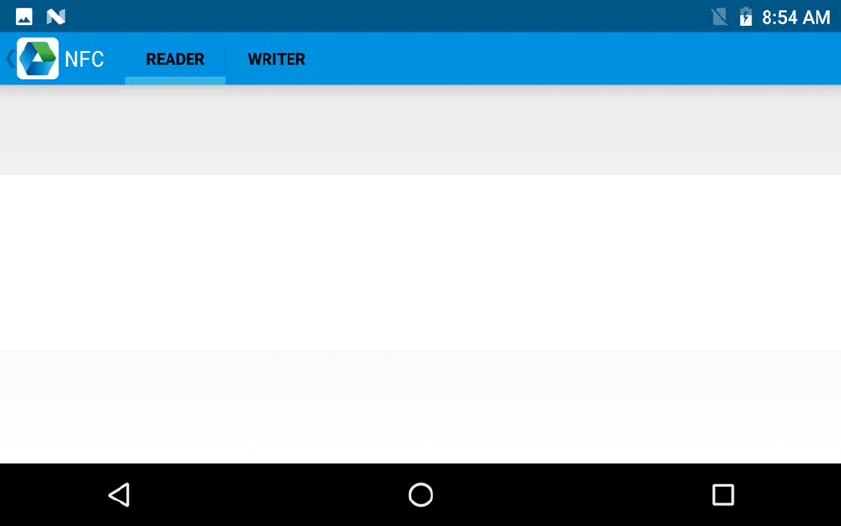

Chapter 5 RFID reader
Click App Center, open “NFC” to read and write tag information.
16
Chapter 6 Other functions

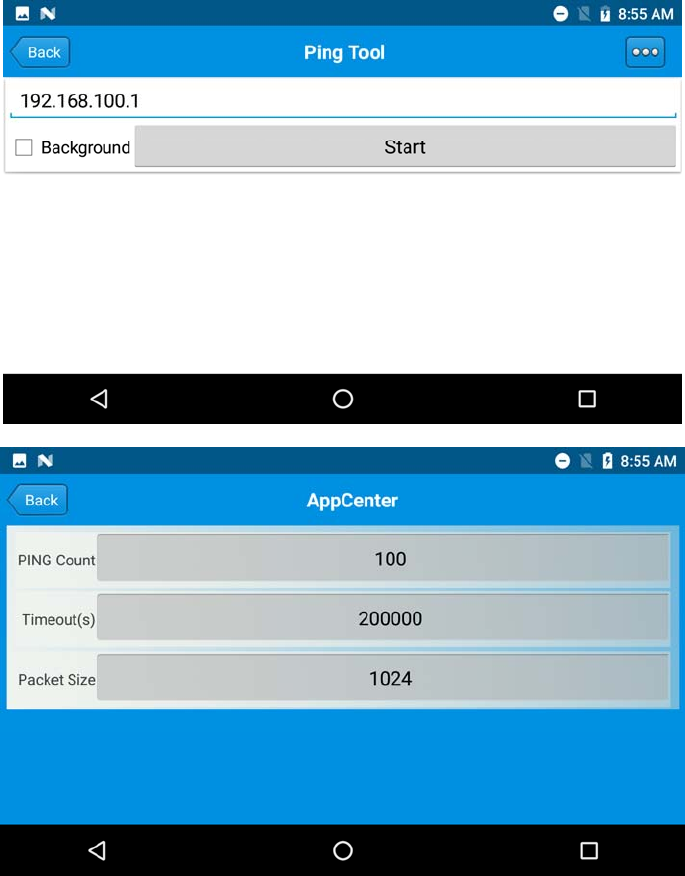

6.1 PING tool
1. Open “PING” in App Center.
2. Setup PING parameter and select external/internal address.
17

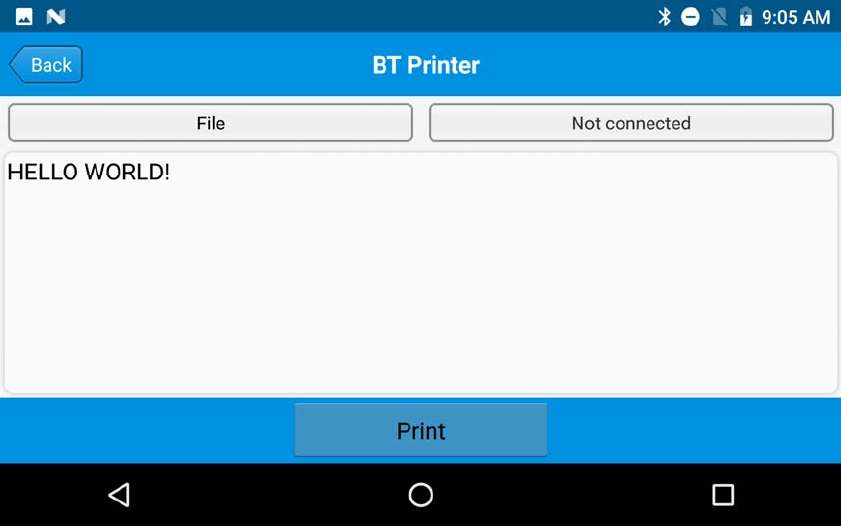

6.2 Bluetooth
1. Open “BT Printer” in App Center.
2. In the list of detected devices, click the device that you want to
pair.
3. Select printer and click “Print” to start printing contents.
18

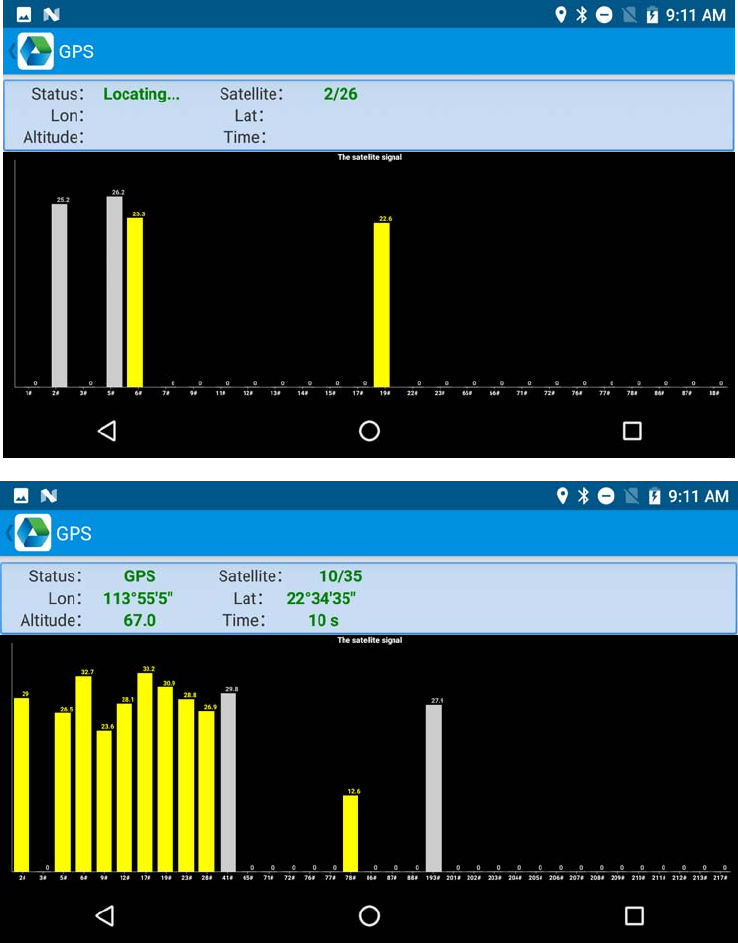

6.3 GPS
1. Click “GPS” in App Center to open GPS test.
2. Setup GPS parameters to access GPS information.
19

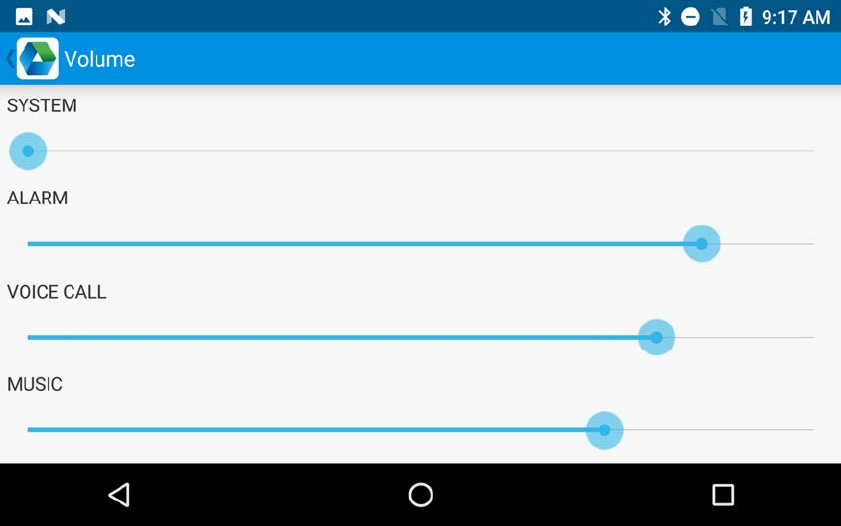

6.4 Volume setup
1. Click “Volume” in App Center.
2. Setup volume by requirements.
20

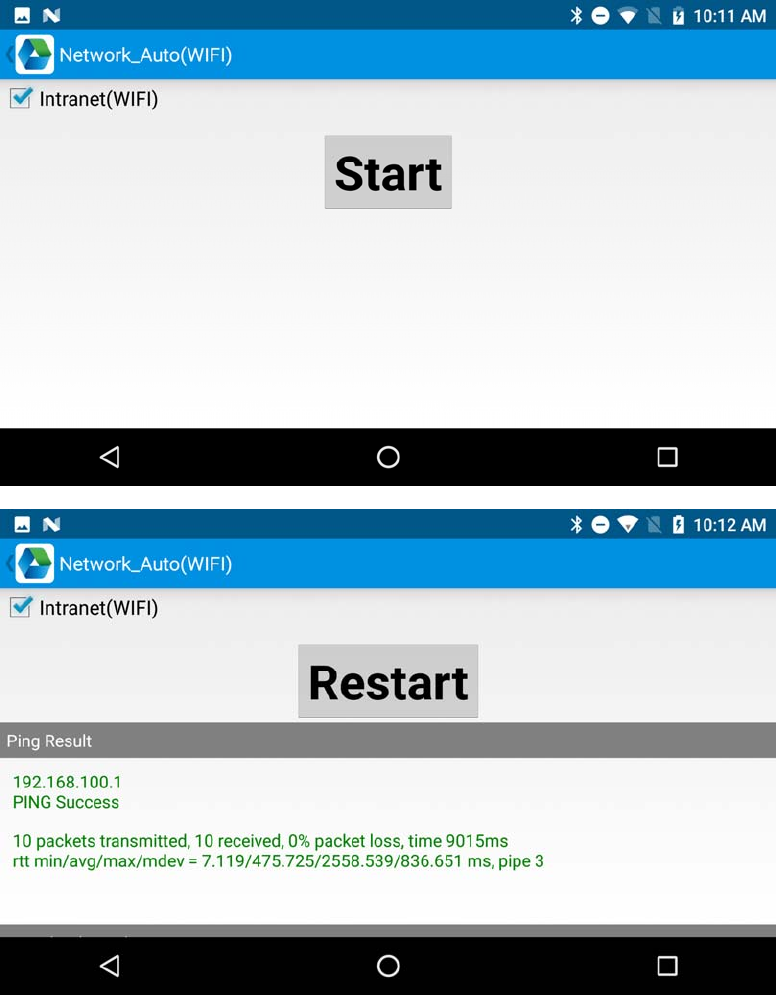

6.5 Network
1. Click “Network” in App Center.
2. Click "Start" to check the IP address and PING information.
21
Chapter 7 Device characteristic
Physical characteristics
Size 250.8mm x 152mm x 15mm/ 9.87 x 5.98 x 0.59in
Weight 700g/24.7oz
Display 8'' IPS LTPS 1920x1200
Touch panel Corning Gorilla Glass, multi-touch panel, gloves
and wet hands supported
Battery Main battery: Li-ion, rechargeable, 8000mAh
Expansion Supports up to 32 GB Micro SD card
Expansion Slot 1 slot for SIM card, 1 slot for SIM or TF card
Audio speaker, 2 microphones, voice call
Camera 13MP autofocus camera with flashlight
Performance
CPU 2.0GHz MSM8953
OS Android 7.1
RAM 2GB RAM
Communication
Interface USB 3.0 Type-C, OTG
ROM 16GB
Max. expansion Supports up to 32 GB Micro SD card
User environment
Operating temp. -20℃to 50℃
Storage Temp. -40℃ to 70℃
Humidity 5%RH - 95%RH non condensing
Sealing IP65, IEC sealing standard
Drop
specification Multiple 1.2m/3.9ft drops to concrete across the
operating temperature range
22
Communication
WAN EU:
2G: 850/900/1800/1900MHz
3G: 850/900/1900/2100MHz
4G: B1, B3, B5, B7, B8, B20, B40
US:
2G: 850/900/1800/1900MHz
3G: 850/900/1700/1900MHz
4G: B2, B4, B5, B7, B26, B41
CDMA2000 BC0
CN:
2G: 900/1800MHz
3G: 900/1900/2000/2100MHz
4G: TDD-LTE: B38, B39, B40, B41
FDD-LTE: B1, B3, B8
WLAN IEEE802.11 a/b/g/n/ac, 2.4G/5G dual-band,
internal antenna
WPAN Bluetooth 4.2/4.1+HS/4.0/3.0+HS/2.1+EDR
Data collection
Barcode
scanning Zebra SE4710 (standard), Zebra SE4850
(optional)
RFID NFC 13.56Mhz
Developing Environment
SDK Chainway software develop kit
Language Java
Develop Eclipse/Android Studio
23
FCC Caution
§ 15.19 Labeling requirements.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
§ 15.105 Information to the user.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates
uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help.
§ 15.21 Information to user.
Any Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
Operations in the 5.15-5.25GHz band are restricted to indoor usage only
Specific Absorption Rate (SAR) information:
Body-Support Operation
This device was tested for typical body-support operations. To comply with RF exposure
requirements, a minimum separation distance of 0 cm must be maintained between the user’s
body and the handset, including the antenna. Third-party belt-clips, holsters, and similar
accessories used by this device should not contain any metallic components. Body accessories
that do not meet these requirements may not comply with RF exposure requirements and should
be avoided. Use only the supplied or an approved antenna.
