Chamberlain Group The 1D7924 Door State Sensor User Manual 114A4649ER indd

Chamberlain Group Inc, The Door State Sensor 114A4649ER indd

User Manual

ONE YEAR LIMITED WARRANTY
Chamberlain, Inc. warrants to the fi rst retail purchaser of this
product that is free from defect in materials and/or workmanship
for a period of 1 year from the date of purchase.
NEED HELP?
Go to the Help section at www.mychamberlain.com, or call
Chamberlain Technical Support at 1-800-528-9131.

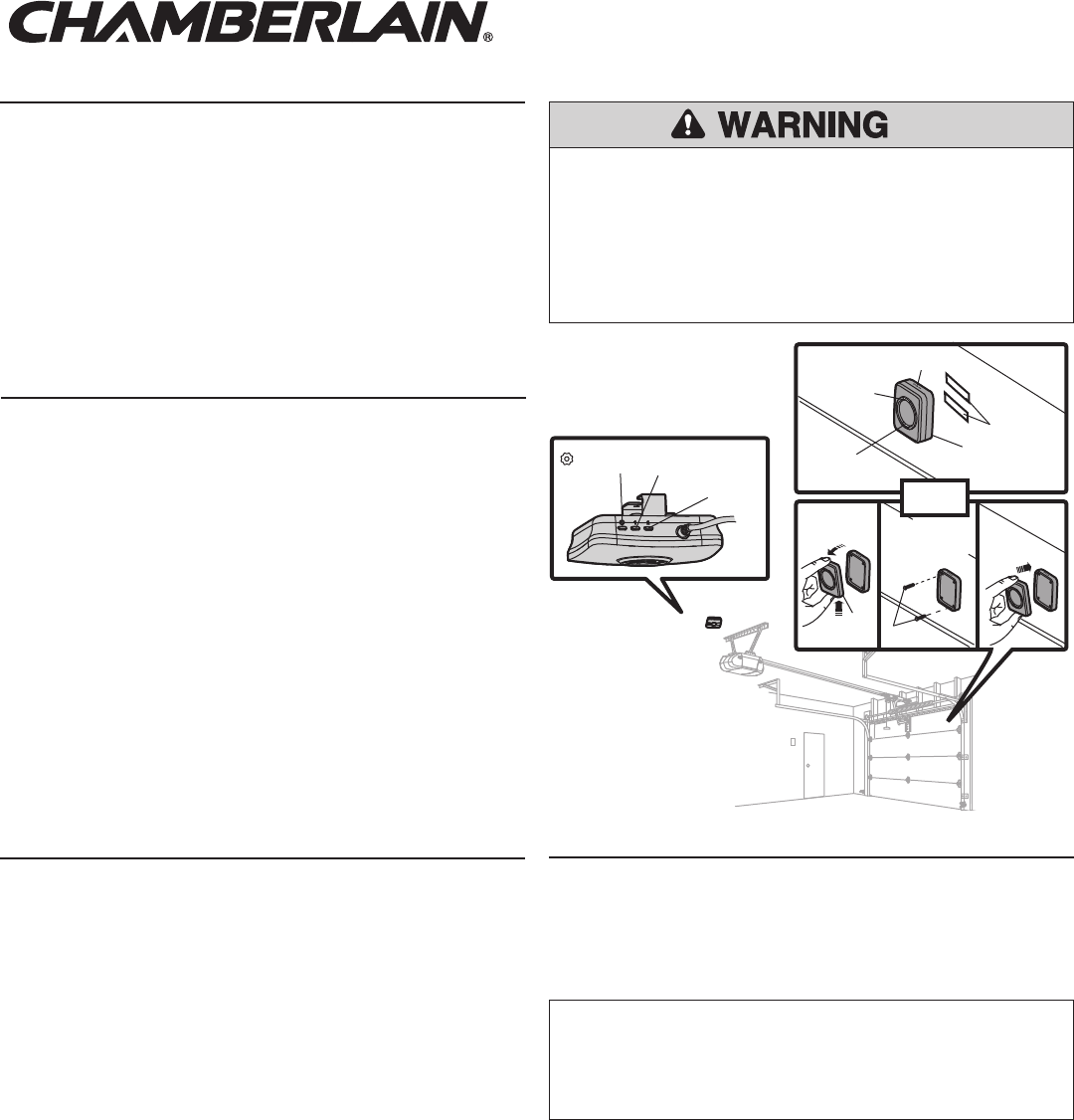

INSTALL THE DOOR SENSOR
1. Use an alcohol wipe and clean area.
2. Position the door sensor vertically and attach to the top panel
of the garage door with fastening strips (provided).
OR
Press in the bottom of the door sensor and remove the front
cover. Position the door sensor vertically and attach to the top
panel of the garage door with screws (provided). Replace the
front cover.
PROGRAM THE DOOR SENSOR
1. Use the MyQ® App to add a new door sensor.
OR
1. Press and release BUTTON 1 for door 1 or BUTTON 2 for door 2
on the Wi-Fi hub. The yellow LED on the Wi-Fi hub will turn off
when successfully programmed.
2. Press the Test button on door sensor until the yellow LED on the
door sensor turns on.
3. Press the Test BUTTON again on the door sensor and the Wi-Fi
hub will beep once for door 1 and twice for door 2.
MODEL 041A7924
DOOR SENSOR
BUTTON
(Settings) BUTTON 1
BUTTON 2
LED
Front
Cover Screws
Test BUTTON
Top Panel
of Garage Door
Top Panel
of Garage Door
Fastening
Strips
Door
Sensor
Top
OR
©2013 The Chamberlain Group, Inc.
114A4649 All Rights Reserved
NOTICE: To comply with FCC and/or Industry Canada (IC) rules, adjustment or modifi cations
of this transceiver are prohibited. THERE ARE NO USER SERVICEABLE PARTS.
This device complies with Part 15 of the FCC rules and IC RSS-210. Operation is subject to
the following two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may cause
undesired operation.
To prevent possible SERIOUS INJURY or DEATH from a closing
garage door:
• Activate door ONLY when it can be seen clearly, is properly
adjusted, and there are no obstructions to door travel.
• ALWAYS keep garage door in sight until completely closed
NEVER permit anyone to cross the path of closing garage
door.
