Chamberlain Group The 1D7973 Universal Keyless Entry Transmitter User Manual
Chamberlain Group Inc, The Universal Keyless Entry Transmitter
User manual
+

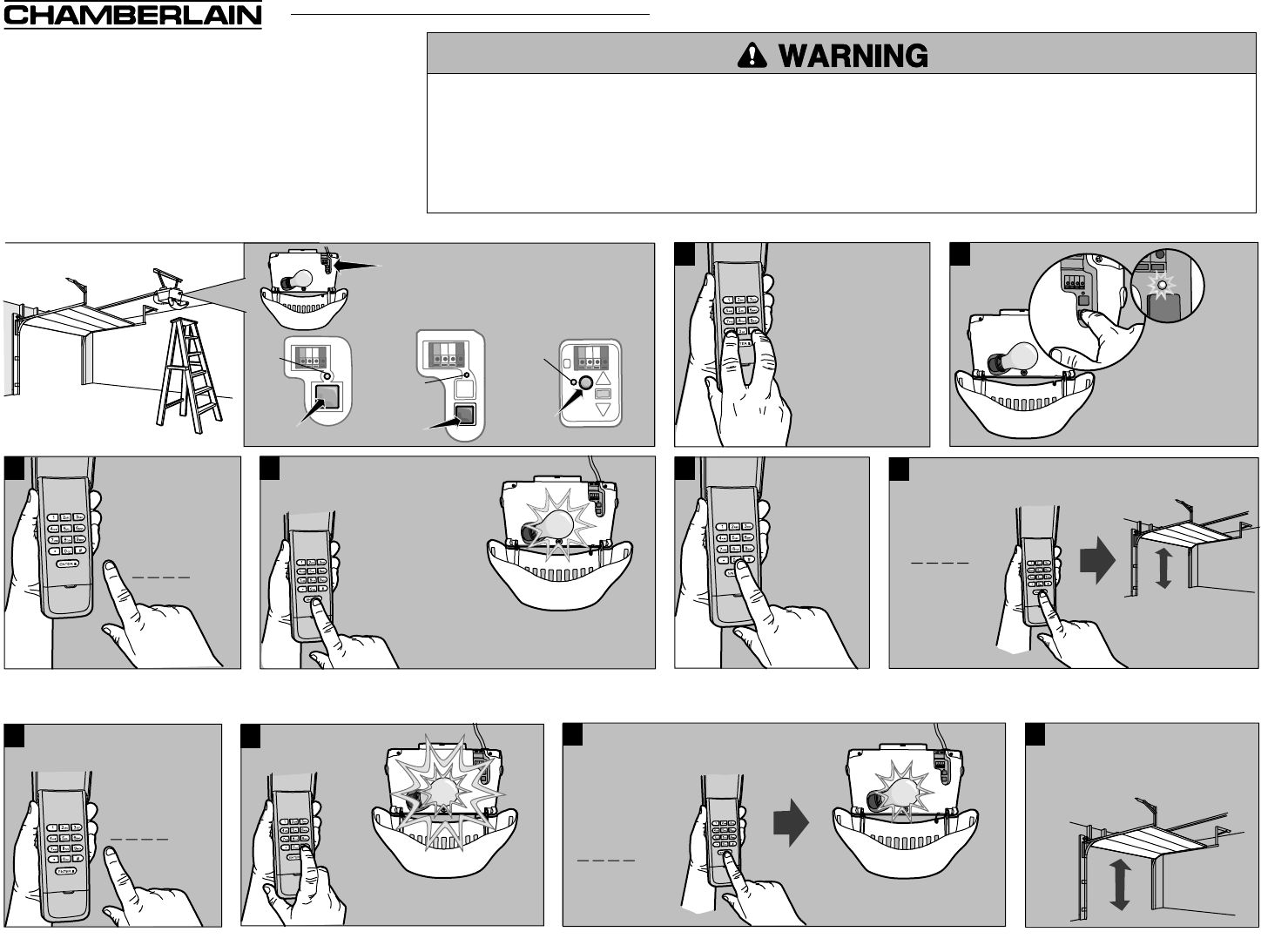

Press and hold
the and #
buttons until
the lights on the
keypad stop
blinking.
12
Enter a 4-digit
personal
identification
number (PIN)
of your choice:
34Press 0 to
complete the
programming.
5
The garage door
opener will activate.
6
? ? ? ? ? ? ? ?
PROGRAM INITIAL PIN
CHANGE AN EXISTING PIN*
PIN
Press and release the ENTER
button...
1
? ? ? ?
Press the programmed PIN
that you want to change.
...the light bulb
blinks twice.
2Press and hold the
# button until...
3
+
? ? ? ?
new PIN
Enter the new 4-digit PIN of your choice,
then press the ENTER button.
To test, press the PIN, then press the ENTER button.
4To test, press the new PIN,
then the ENTER button.
The garage door opener
will activate.
The light bulb will blink once.
Check to see if the
light bulb blinks.
If not, slowly
press and release
the ENTER button
until the light bulb
blinks. Be careful NOT to
press the ENTER button after the
light bulb blinks.
*
Press and
release the
Learn button.
The LED will light.
Within 30 seconds...
PREPARE
Locate the Learn button on the
garage door opener.
NOTE: Your garage door opener may
look different.
OR OR
Learn
LED
Learn
LED
Learn
LED
Green
or
Red/Orange Purple Yellow
To prevent possible SERIOUS INJURY or DEATH from a moving gate or garage door:
• Install Keyless Entry Control within sight of the garage door, out of reach of children at a minimum height of 5 feet (1.5 m), and
away from ALL moving parts of door.
• ALWAYS keep remote controls out of reach of children. NEVER permit children to operate, or play with remote controls.
• Activate gate or door ONLY when it can be seen clearly, is properly adjusted, and there are no obstructions to door travel.
• ALWAYS keep gate or garage door in sight until completely closed. NEVER permit anyone to cross path of moving gate or door.
* For garage door openers that have a green Learn button or an external receiver repeat "Program Initial PIN" to change the existing PIN.
To program the Keyless Entry to more than one garage door opener, repeat the steps above using a new PIN for each additional garage door opener.
WIRELESS KEYLESS ENTRY • MODELS 940EV AND 940EVC
For use with Chamberlain 315 MHz or 390 MHz garage door
openers manufactured after January 1, 1993. The garage door
opener activates when the 4-digit Personal Identification Number
(PIN) and ENTER button are pressed on the Keyless Entry.
Install the battery and program the Keyless Entry prior to
installation. Make sure the garage door opener has a working
light bulb because it is a programming indicator.
®
...the light bulb blinks 3 times.

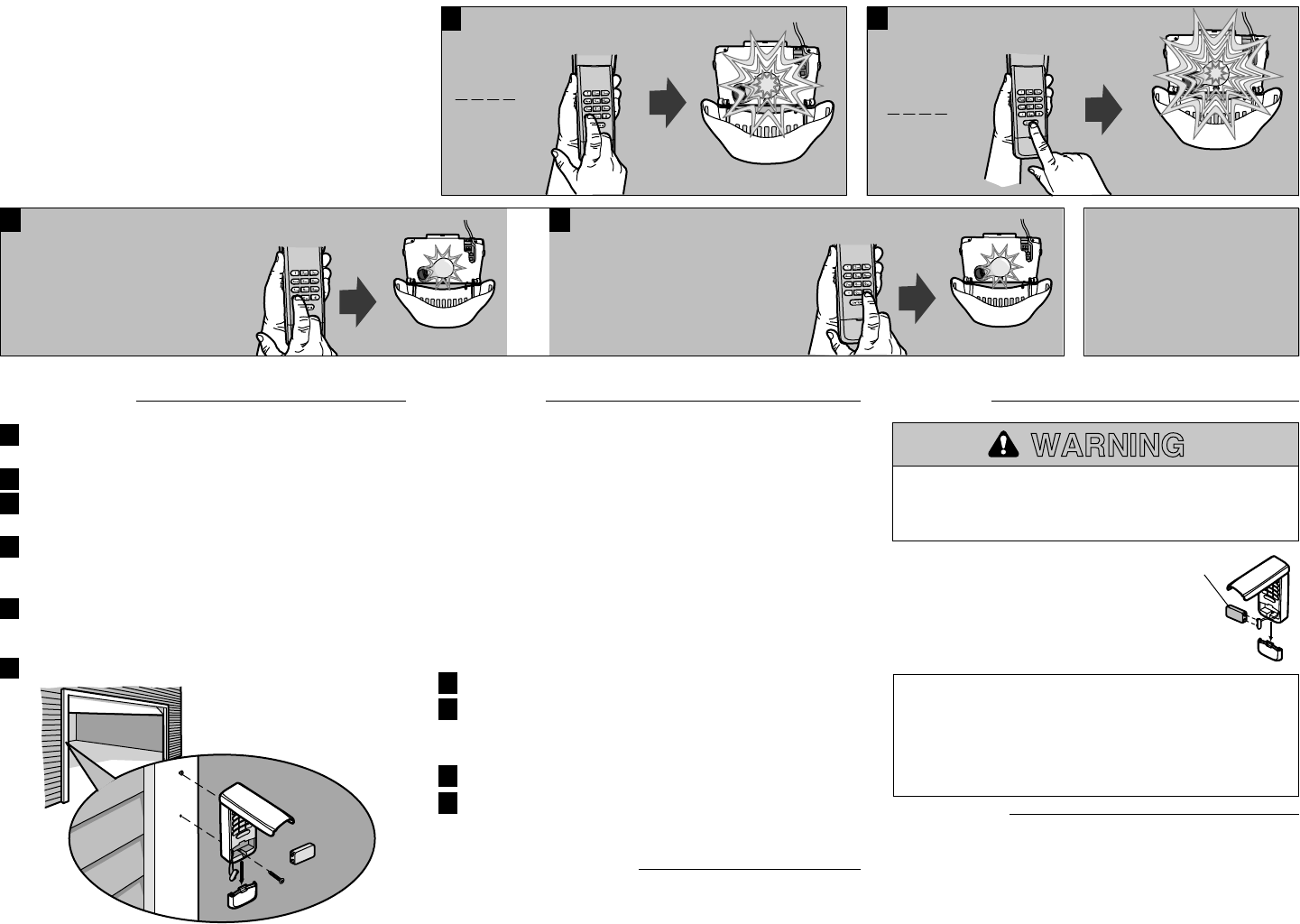

1Press any programmed PIN, then press and hold
the * button until...
+
? ? ? ?
PIN
2
+
? ? ? ?
Temporary PIN
Enter the temporary 4-digit PIN of your
choice, then press the ENTER button.
The light bulb will blink
4 times.
Then press
the button.
3NUMBER OF HOURS
+
NUMBER OF OPENINGS
Press the number
of hours the
temporary PIN
will work (up to 255).
3
OR Then press
the # button.
+
Press the number
of openings the
temporary PIN
will work (up to 255).
1 blink 1 blink
To test, press the temporary
PIN, then press the ENTER
button. The garage door opener
will activate. If the temporary
PIN was set for a number of
openings, the test will use up
one opening.
To clear the temporary PIN, repeat steps 1-3 above, setting the number of hours or openings to 0 in step 3.
*
Replace the battery when the keypad
becomes dim or does not light after a
button is pressed.
Dispose of old battery properly.
To prevent possible SERIOUS INJURY or DEATH:
• NEVER allow small children near batteries.
• If battery is swallowed, immediately notify doctor.
WARNING
PROGRAM A TEMPORARY PIN
OPERATION
The garage door opener activates when the PIN and ENTER
button are pressed. The keypad will blink for 15 seconds, during
that time the ENTER button can be used to stop, start or reverse
the door.
If the wrong number is accidentally pressed, press the correct
PIN then the ENTER button. The Keyless Entry will transmit only
the last four digits that were pressed before the ENTER button.
ONE BUTTON CLOSE: The Keyless Entry has a feature that allows
the door to be closed using the ENTER button instead of a PIN.
NOTE: This feature is not available on garage door openers
manufactured prior to 2006 or an external receiver.
To deactivate the one button close feature:
Press and hold the 1 and 9 buttons for 10 seconds.
The keypad will blink four times when the one button close
feature is deactivated.
To activate the one button close feature:
Press and hold the 1 and 9 buttons for 10 seconds.
The keypad will blink twice when the one button close feature
is activated.
NOTICE: To comply with FCC and or Industry Canada rules (IC), adjustment or
modifications of this receiver and/or transmitter are prohibited, except for changing
the code setting or replacing the battery. THERE ARE NO OTHER USER
SERVICEABLE PARTS.
Tested to Comply with FCC Standards FOR HOME OR OFFICE USE. Operation is
subject to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
NOTE: This feature is not available on garage door openers
that have a green Learn button or an external receiver.
A temporary 4-digit PIN can be programmed to allow access
to visitors. Each programmed PIN can program one temporary
PIN. The temporary PIN can be set for a number of hours or a
number of door openings. The temporary PIN cannot be the
same as any previously programmed PIN.
BATTERY
1
INSTALLATION
Select a location to mount the Keyless Entry at a minimum
height of 5 feet (1.5 m) out of the reach of children.
Remove battery cover and battery.
Mark the top mounting hole and drill 1/8 inch (3.2 mm)
pilot hole.
Install the top screw, allowing 1/8 inch (3.2 mm) to
protrude above the surface. Position the Keyless Entry
over the top screw.
Mark the bottom hole and drill 1/8 inch (3.2 mm) pilot
hole. Install the bottom screw. Do not overtighten to avoid
cracking the plastic housing.
Reinstall battery and replace cover.
2
3
4
5
6
9V Battery
1
1
2
2
© 2011, The Chamberlain Group, Inc.
114A3926 All Rights Reserved
WARRANTY
ONE YEAR LIMITED WARRANTY
The Chamberlain Group, Inc. warrants to the first retail
purchaser of this product that is free from defect in materials
and/or workmanship for a period of 1 year from the date of
purchase.
REPLACEMENT PARTS
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10A25
Keypad Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41D621
Battery Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41D541
1-800-528-9131 www.chamberlain-diy.com
