Single Button Remote Control
Models: PPV1 & PPLV1
3-Button Remote Control
Model: PPV3
Key chain Remote Control
Models: PPK1, PPK3, PPK1PH,
PPK3PH, PPLK1 & PPLK1PH
REMOTE CONTROLS
MODELS PPV3, PPV1, PPK1, PPK3, PPK1PH,
PPK3PH, PPLK1, PPLK1PH, AND PPLV1
To prevent possible SERIOUS INJURY or DEATH from a
moving gate or garage door:
• ALWAYS keep remote controls out of reach of children.
NEVER permit children to operate, or play with remote
controls.
• Activate gate or door ONLY when it can be seen clearly, is
properly adjusted, and there are no obstructions to door
travel.
• ALWAYS keep gate or garage door in sight until
completely closed. NEVER permit anyone to cross path of
moving gate or door.

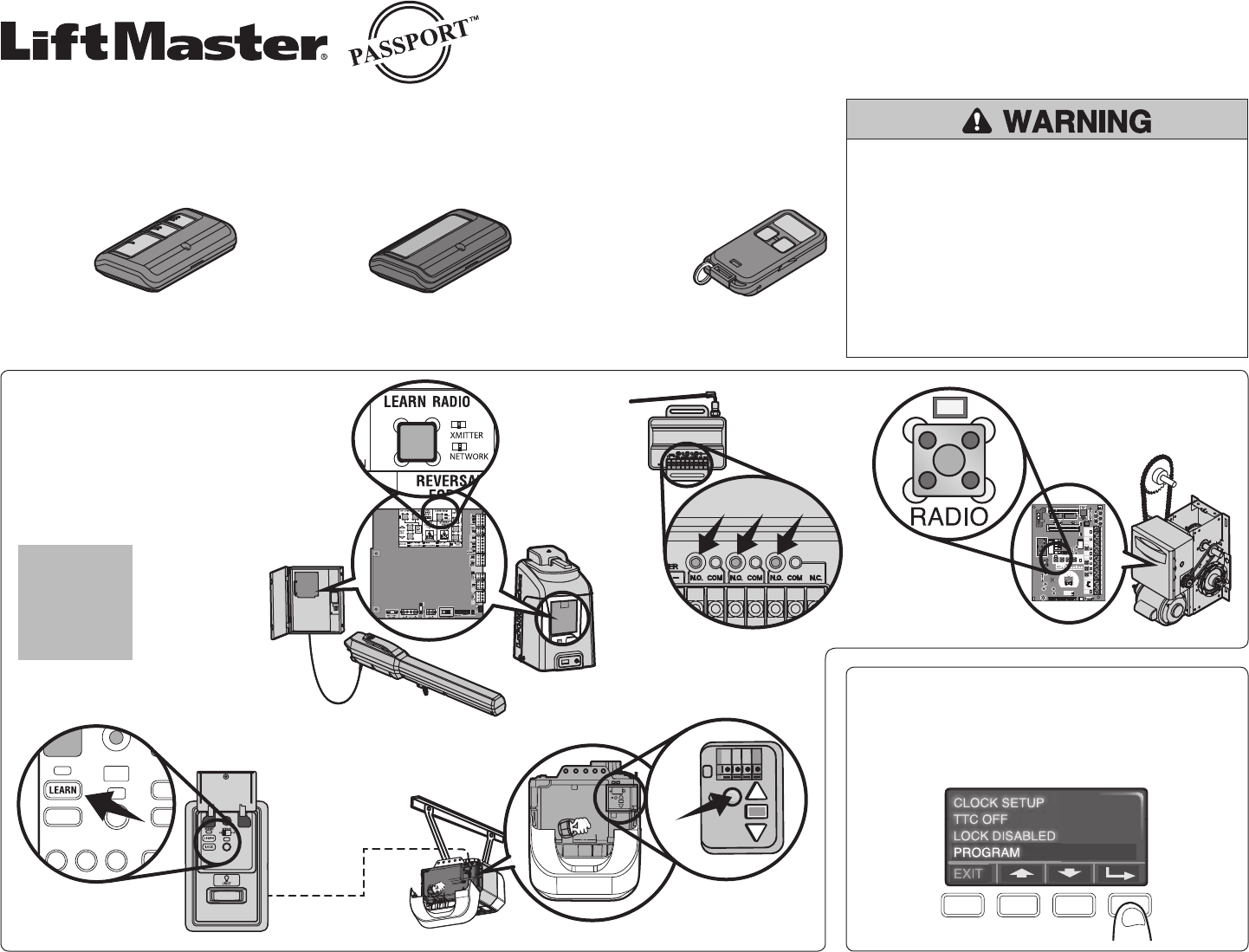

PROGRAM USING A LEARN BUTTON
Program the remote using the LEARN button or the LCD screen depending on the device. When using the Passport™ remote control
an access control system or gated entry, contact your property manager or LiftMaster® dealer.
• Locate the LEARN button on your device.
• Press and release the LEARN button.
• Press the remote control button that you
would like to program.
For additional help in locating the LEARN button scan the
QR code or visit www.????.com
PROGRAM USING AN LCD MENU
Navigate through the menus to the programming
function and follow the instructions. Refer to your
product manual for detailed programming instructions.
Residential Garage
Door Openers
LEARN
SLOT 1
RADIO
SLS
MRT MID TTC
DATA
24VAC
24VAC
LMEP:
EDGE:
OPEN
CLOSE
STOP
COMMON
RELAY A
RELAY B
SBC
MAS
COMMON
TIMER
DEFEAT
POWER
TIMER
ENABLE
123
FSTS
DIAG
OPTN
PROG
TTS
E2
D1
C2
B2
CLS
OLS
MID
REV
STD
SLOT 2
MOTOR
DIRECTION
3-PHASE
1-PHASE
Commercial Door
Operators
Wall Mounted
Door Control for
Garage Door Openers
Universal
Receiver
LEARN buttons
Gate Operators
QR CODE
PLACEHOLDER
Passport™ remote controls are compatible with a range of LiftMaster® Security✚ 2.0™ products including garage door openers,
commercial door openers, gate operators, telephone entry and access control systems.
Passport™ LT remote controls (Models: PPLV1, PPLK1, and PPLK1PH) are not compatible with garage door openers.
NOTE: The images are for reference and your product may look different.
![](/img.php?id=1746311&img=bg2.png)
REPLACEMENT PARTS
3V2032 Lithium battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10A20
Visor Clip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29B137
ONE YEAR LIMITED WARRANTY
The Chamberlain Group, Inc. warrants to the first consumer purchaser of this product that it is free from defect in materials and/or
workmanship for a period of 1 year from the date of purchase.
HOW TO USE THE REMOTE CONTROL
Press and hold the button down until the door or gate starts to
move. The remote control will operate from up to 3 car lengths
away on typical installations. Installations and conditions vary,
contact an installing dealer for more information.
3-BUTTON REMOTE CONTROLS
Additional buttons on the remote control can be programmed to
operate up to 3 devices such as additional garage door openers,
light controls, gate operators or access control systems.
NOTE: Passport™ LT models are designed to work with
Passport™ stand alone receivers and commercial operators
only and will not work with residential garage door opener
accessories.
NOTICE: To comply with FCC and or Industry Canada rules (IC), adjustment or
modifications of this receiver and/or transmitter are prohibited, except for changing
the code setting or replacing the battery. THERE ARE NO OTHER USER SERVICEABLE
PARTS.
Tested to Comply with FCC Standards FOR HOME OR OFFICE USE. Operation is
subject to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.

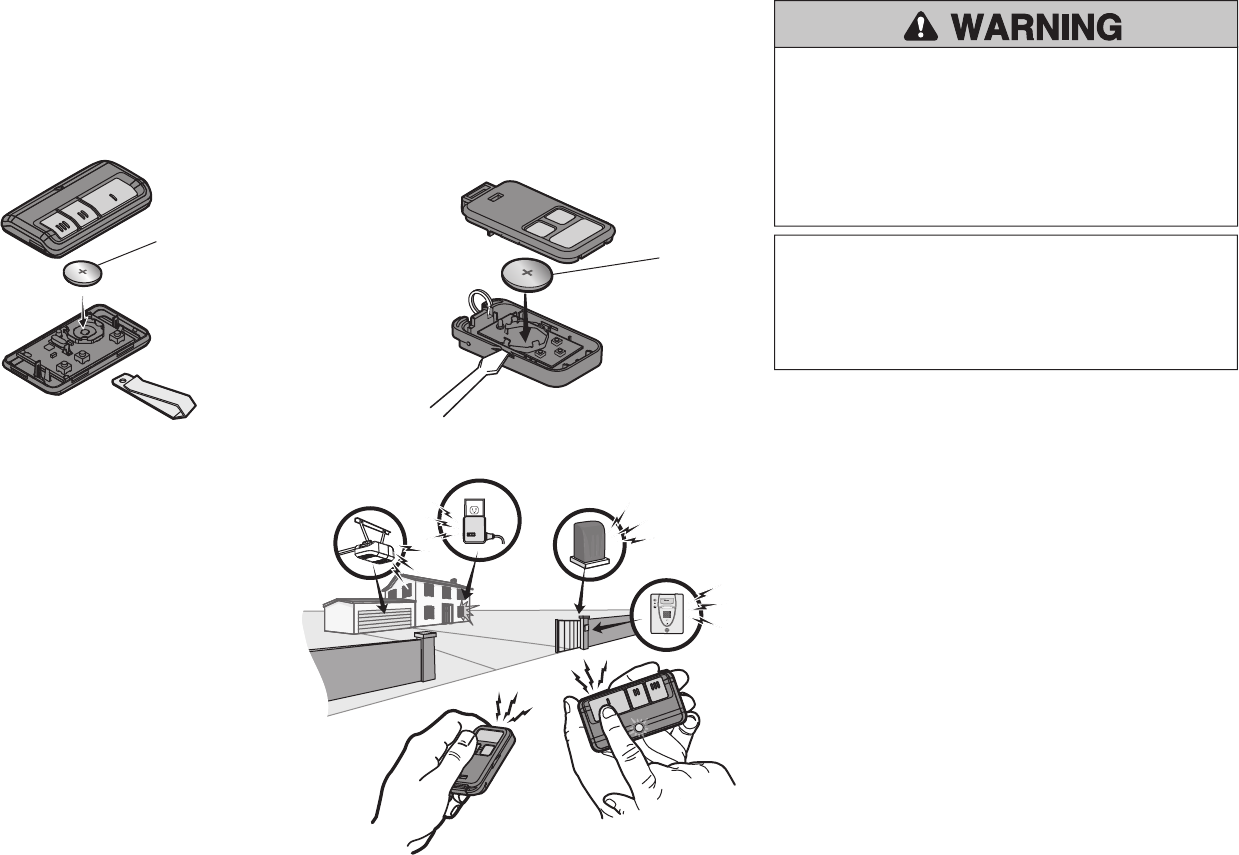

THE REMOTE CONTROL BATTERY
To replace battery, open the case as shown. Insert battery positive side up (+). Replace the battery with only 3V2032 coin cell
battery. Dispose of old battery properly. To prevent possible SERIOUS INJURY or DEATH:
• NEVER allow small children near batteries.
• If battery is swallowed, immediately notify doctor.
To reduce risk of fire, explosion or chemical burn:
• Replace ONLY with 3V2032 coin batteries.
• DO NOT recharge, disassemble, heat above 212° F (100° C)
or incinerate.
© 2012, The Chamberlain Group, Inc.
114A4494 All Rights Reserved
1-800-528-9131
www.liftmaster.com
KEY CHAIN REMOTE
Pry open the case with a screwdriver blade.
VISOR REMOTE
Pry open the case first in the middle (1), then at each side
(2 and 3) with the visor clip.
1
2
3
3V2032
3V2032
