MyQ® CONTROL PANEL
MODEL 888LM
To prevent possible SERIOUS INJURY or DEATH from electrocution:
• Be sure power is NOT connected BEFORE installing door control.
• Connect ONLY to 12-35 VOLT low voltage wires.
To prevent possible SERIOUS INJURY or DEATH from a closing
garage door:
• Install door control within sight of garage door, out of reach of
children at a minimum height of 5 feet (1.5 m), and away from ALL
moving parts of door.
• NEVER permit children to operate or play with door control push
buttons or remote control transmitters.
• Activate door ONLY when it can be seen clearly, is properly
adjusted, and there are no obstructions to door travel.
• ALWAYS keep garage door in sight until completely closed. NEVER
permit anyone to cross path of closing garage door.
• DO NOT install this door control on garage door opener systems
controlling one-piece or swing doors.
To provide an adequate visual alert, the garage door opener light
bulb(s) MUST be a minimum of 40 Watt (or eqv.).
The MyQ® Control Panel is intended to be installed with Security✚™
Garage Door Openers manufactured between 1998 and present. The
MyQ® Control Panel is NOT compatible with Security✚ 2.0™ Garage Door
Openers. DO NOT install this door control on garage door opener
systems controlling one-piece or swing doors.
APPLICATION
The MyQ® Control Panel offers a quick and convenient way to add
Security✚ 2.0™ and MyQ® technology to your existing garage door
opener. MyQ® technology uses a 900MHz signal to provide two-way
communication between the garage door opener and MyQ® enabled
accessories. You may program up to 12 Security✚ 2.0™ remote controls,
2 Security✚ 2.0™ keyless entries and a combination of 16 MyQ®
accessories to the MyQ® control panel.
COMPATIBLE ACCESSORIES
Security
✚
2.0™ Accessories: MyQ® Accessories:
Model 891LM
1- Button Remote Control Model 823LM
Remote Light Switch
Model 893LM
3-Button Remote Control Model 825LM
Remote Light Control
Model 890MAX
3-Button Mini MAX Remote Control Model 828LM
LiftMaster® Internet Gateway
Model 893MAX
3-Button MAX Remote Control Model 829LM
Garage Door and Gate Monitor
Model 895MAX
3-Button Premium MAX Remote
Control
Model 877LM
Wireless Keyless Entry
Model 877MAX
Wireless MAX Keyless Entry
OVERVIEW
Install the MyQ® Control Panel in place of the existing door control. Due
to power consumption the MyQ® Control Panel cannot be used in
conjunction with another wired door control connected to your garage
door opener. If an additional door control is needed, the wireless door
control model 885LM can be programmed to the MyQ® Control Panel.
To program the 885LM to the MyQ® Control Panel, follow the remote
control programming steps. When in battery back-up mode, any feature
using unattended operation such as Timer-to-Close, close from a garage
door and gate monitor or remote operation utilizing the LiftMaster®
Internet Gateway will be disabled.

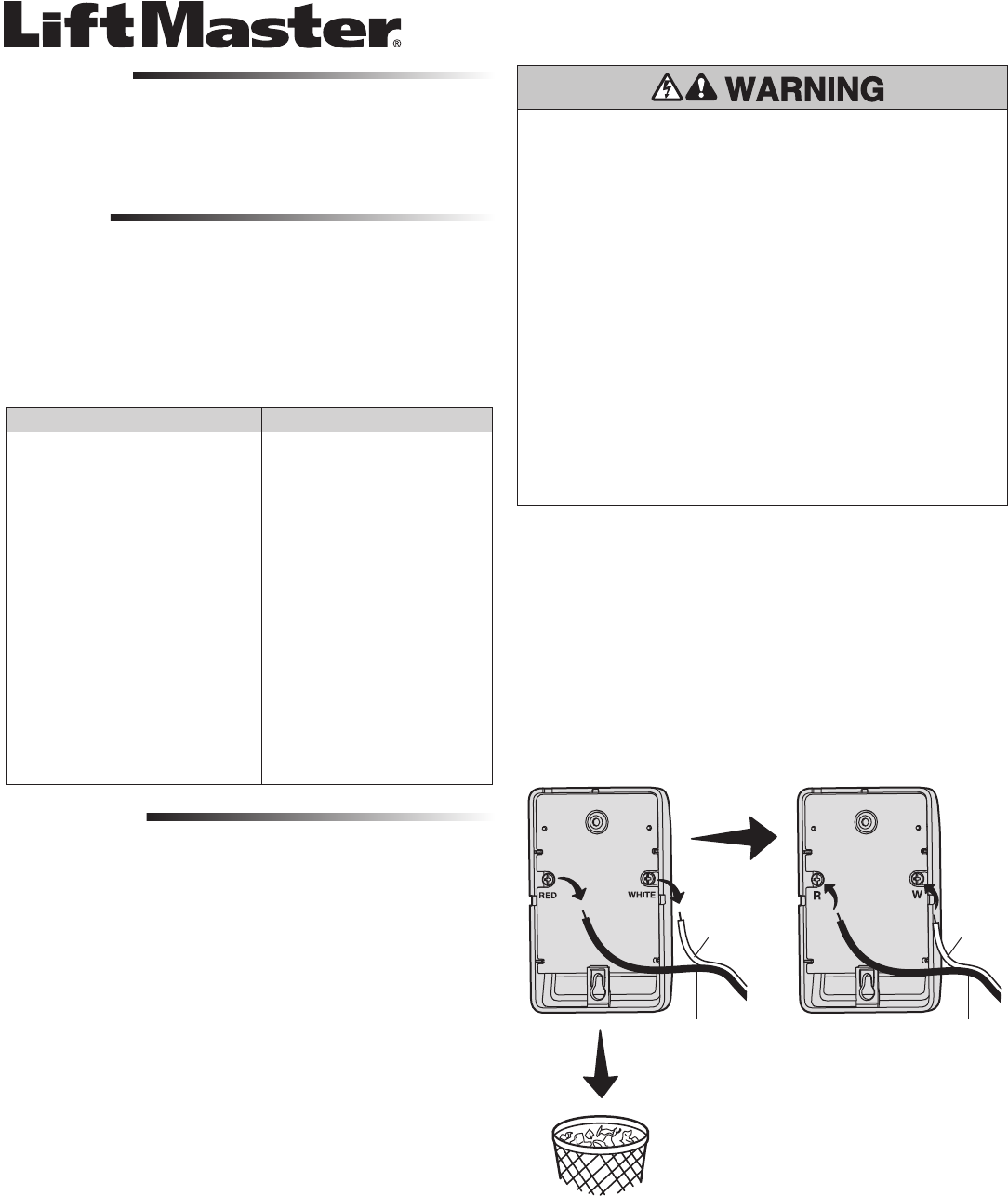

1. Disconnect all electrical and battery power (if applicable) to the
garage door opener.
2. Remove the existing door control from the wall.
3. Note the polarity of the wires connected to the existing door
control.
• Label the wire connected to the RED terminal.
• Label the wire connected to the WHITE terminal.
Disconnect the wires from the existing door control.
4. Connect the wires to the new MyQ® Control Panel. Make sure the
polarity is correct.
• Red wire to the R terminal.
• White wire to the W terminal.
INSTALLATION
Existing Door Control
Discard, donate
or recycle
Wire from
RED terminal Connect
RED wire to
R terminal
Wire from
WHITE
terminal
Connect
WHITE
wire to W
terminal
MyQ® Control Panel
5. Mount the MyQ® Control Panel to the wall.
6. Reconnect power. The yellow command LED and the red learn LED
will blink quickly for up to 5 minutes as the control panel
recharges. When the control panel is operational, the yellow
command LED will glow steadily.
2
PIN
?? ??
PROGRAMMING

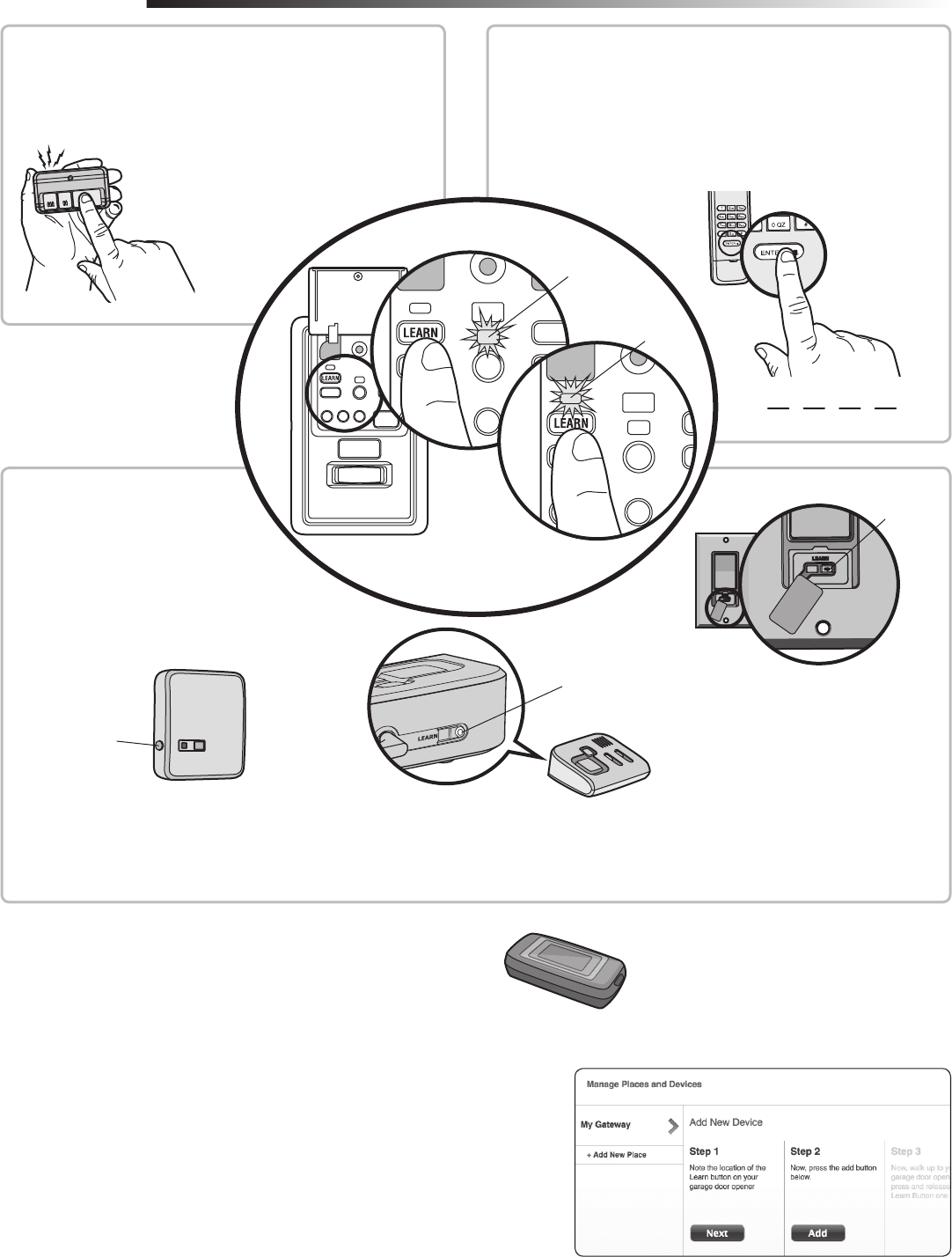

REMOTE CONTROL 1. Press the MyQ® Control Panel LEARN
button twice, the red learn LED will turn
on.
2. Press the button on the remote control
that you wish to operate your garage
door.
3. The garage door opener lights will flash
(or two clicks will be heard) when the
code has been programmed.
1. Press the MyQ® Control Panel LEARN button twice, the red learn
LED will turn on.
2. Enter a 4-digit personal identification number (PIN) of your choice
on the keyless entry keypad. Then press the ENTER button.
3. The garage door opener lights will flash (or two clicks will be heard)
when the code has been programmed.
KEYLESS ENTRY
LEARN
Button
LEARN
Button
Model 825LM - Remote Light Control
Light module can be synchronized with the
garage door opener light bulbs.
Model 823LM - Remote Light Switch
Light module can be synchronized with
the garage door opener light bulbs.
LEARN
Button
Model 829LM - Garage Door and Gate Monitor
Indicates the status of your garage door from inside
the home and allows you to close an open garage door
from inside the house.
MyQ® ENABLED
ACCESSORIES
1. Press the MyQ® Control Panel LEARN
button twice, the red learn LED will
turn on.
2. Press the LEARN button on the MyQ®
device.*
* MyQ® accessories may be programmed to the
LiftMaster® Internet Gateway (Model 828LM)
or the MyQ® control panel. For instructions on
programming to the internet gateway refer to
the manual.
INTERNET GATEWAY
The LiftMaster® Internet Gateway gives you control of your garage door
from your internet connected computer or mobile device. You must have
your internet gateway registered to your customer account at
www.myliftmaster.com in order to use it with the MyQ® Control Panel. Go
to www.myliftmaster.com and follow the instructions to create an account
and register your device if you have not already.
To program your control panel to the LiftMaster® Internet Gateway:
1. Go to www.myliftmaster.com from a computer or mobile device.
2. Click on “Manage Places>Add New Device>Garage Door Opener”
and follow the directions.
3. Once you click ADD you have 3 minutes to press the LEARN button
two times on the MyQ® control panel. The red learn LED will turn
on.
4. The red learn LED will turn off when programming is complete.
Once the control panel is learned, it will appear on your screen. You
can then name the device (e.g., My Control Panel, etc.)
Model 828LM
LiftMaster® Internet Gateway
www.myliftmaster.com
Command
LED (yellow)
Learn
LED
(Red)
3
PUSH BAR
Press the push bar to open/close the door.
LIGHTS
Press the LIGHT button to turn the garage door opener lights on or off.
When the lights are turned on they will stay on until the LIGHT button is
pressed again, or until the garage door opener is activated. Once the
garage door opener is activated the lights will turn off after the specified
period of time (the factory setting is 4-1/2 minutes). The LIGHT button
will not control the lights when the door is in motion.
To change the amount of time the garage door opener lights will stay on:
Press and hold the LOCK button until the garage door opener lights flash.
The time interval is indicated by the number of flashes.
Light Feature
The lights will turn on when someone enters through the open garage
door and the safety reversing sensor infrared beam is broken. If using the
garage door opener light as a work light, turn the light on using the light
button on the door control or the light will turn off if you are beyond the
range of the sensor.
Activate:
Start with the garage door opener lights on. Press and hold the LIGHT
button until the garage door opener lights turn off, then on again.*
Deactivate:
Press and hold the LIGHT button until the garage door opener lights
turn on, then off again.*
* Approximately 10 seconds
FUNCTIONS
NUMBER OF TIMES GARAGE
DOOR OPENER LIGHTS FLASH 1234
TIME THE GARAGE DOOR
OPENER LIGHT STAYS ON 1 ½
Minutes 2 ½
Minutes 3 ½
Minutes 4 ½
Minutes
MOTION SENSOR
This feature will automatically turn on the garage door opener lights when
motion is sensed. The lights will come on for the set period of time, then
shut off.
Activate/Deactivate:
Slide the motion sensor switch ON or OFF.
TIMER-TO-CLOSE (TTC)
NOTE: DO NOT install this door control on garage door opener systems
controlling one-piece or swing doors.
The TTC feature automatically closes the door after a specified time
period (1, 5, or 10 minutes). Once the TTC has been set and the door is
open, the LED for the selected close interval will blink and begin to count
down to close the door. The control panel will beep and the garage door
opener lights will flash before closing the door.
The TTC feature will deactivate if the garage door encounters an
obstruction twice; or the safety reversing sensors are incorrectly installed.
The garage door will reverse open and WILL NOT close until the
obstructions are clear or the safety reversing sensors are correctly
installed. When the obstruction has been cleared or the safety reversing
sensors have been aligned, the door will close when the garage door
opener is activated.
Activate:
Press and hold the ON button until one of the TTC LEDs light up. Then
press the ON button again to cycle through the time interval options
(the corresponding TTC LED will light for each time interval). The
garage door opener light bulbs will blink as confirmation.
Deactivate:
Press and hold the OFF button until all TTC LEDs turn off and a beep is
heard from the control panel.
Temporarily hold door open (suspend TTC):
Press and release the HOLD OPEN button. The HOLD OPEN button will
begin to flash. Press the HOLD OPEN button again to resume normal
TTC operation.
LOCK
Activate*:
Press and hold the LOCK button for 2 seconds. The command LED will
flash as long as the lock feature is activated and your handheld remote
control will not operate your door at this time.
Deactivate:
Press and hold the LOCK button again for 2 seconds. The command
LED will stop flashing and normal operation will resume.
* Your LiftMaster® branded keypad will continue to work when LOCK has
been activated.

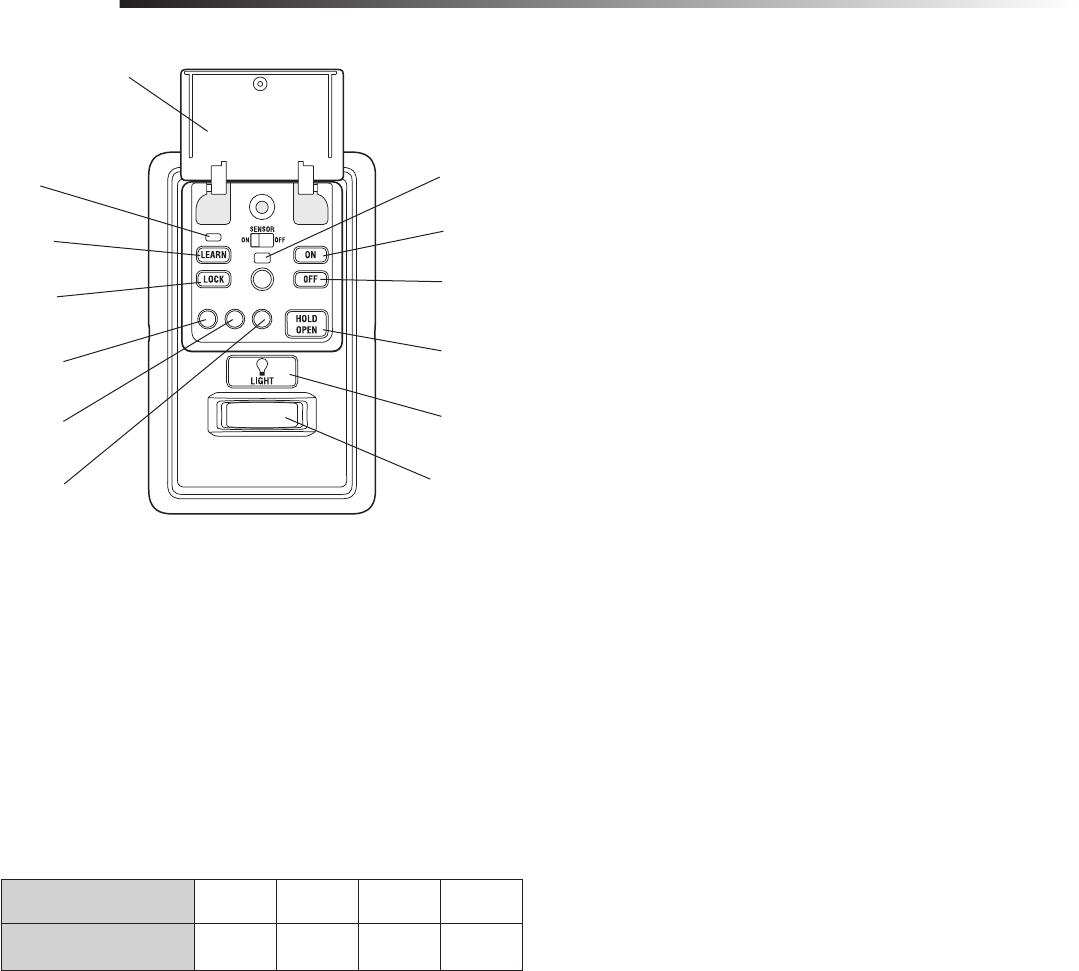

LIGHT
Button
1 Minute
TTC LED
5 Minute
TTC LED
10 Minute
TTC LED
ON Button
Command
LED (yellow)
OFF Button
HOLD OPEN
Button
Motion
Sensor
LEARN
button
Learn LED
(Red)
LOCK
button
Push Bar (Open)
© 2012, The Chamberlain Group, Inc.
114A4503 All Rights Reserved
FOR SERVICE DIAL OUR TOLL FREE NUMBER:
1-800-528-9131
www.liftmaster.com
ONE YEAR LIMITED WARRANTY
The Chamberlain Group, Inc. warrants to the first consumer purchaser of
this product that is free from defect in materials and/or workmanship for
a period of 1 year from the date of purchase.
• If the yellow command LED does not turn on, reverse the wires
connected to the R and W terminals of the control panel. Replace
wire if necessary.
• If yellow and red LEDs are blinking slowly, the control panel is not
compatible with your garage door opener.
• If the yellow and red LEDs are blinking quickly, the control panel is
charging, and may take up to 5 minutes to become operational.
NOTICE: To comply with FCC and/or Industry Canada (IC) rules, adjustment or modifi cations of this transceiver
are prohibited. THERE ARE NO USER SERVICEABLE PARTS. Any changes or modifi cations not expressly
approved by the party responsible for compliance could void the user's authority to operate the equipment.
This device complies with Part 15 of the FCC rules and IC RSS-210. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
This Class B digital apparatus complies with Canadian ICES-003.
AVIS: Les règles de la FCC et/ou d’Industrie Canada (IC) interdisent tout ajustement ou toute modifi cation de
ce récepteur. IL N’EXISTE AUCUNE PIÈCE SUSCEPTIBLE D’ÊTRE ENTRETENUE PAR L’UTILISATEUR. Tout
changement ou toute modifi cation non expressément approuvé par la partie responsable de la conformité peut
avoir pour résultat d'annuler l'autorité de l'utilisateur de faire fonctionner l'équipement.
Cet appareil est conforme aux dispositions de la partie 15 du règlement de la FCC et de l'norme IC RSS-210.
Son utilisation est assujettie aux deux conditoins suivantes: (1) ce dispositif ne peut causer des interférences
nuisibles, et (2) ce dispositif doit accepter toute interférence recue, y compris une interférence pouvant causer
un fonctionnement non souhaité.
Cet appareil numerique de la classe B est conforme a la norme NMB-003 du Canada.
WARRANTY
TROUBLESHOOTING
ERASE DEVICES FROM MEMORY
Erase all remote controls and keyless entries:
1. Press and hold the LEARN button on the control panel until the red
learn LED goes out (approximately 6 seconds). All remote control
and keyless entry codes are now erased. Reprogram any
compatible accessory you wish to use.
NOTE: Erasing remote controls and keyless entries from the control panel
does not erase them from the garage door opener, you need to erase the
memory of the garage door opener separately.
Erase all devices (including MyQ® enabled accessories):
1. Press and hold the LEARN button on the control panel until the red
learn LED goes out (approximately 6 seconds).
2. Immediately press and hold the LEARN button again until the red
learn LED goes out. All codes are now erased. Reprogram any
compatible accessory you wish to use.
