User Manual

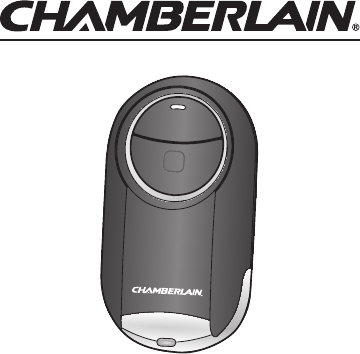

UNIVERSAL GARAGE DOOR MINI REMOTE CONTROL
The Universal Garage Door Mini Remote Control can be
programmed to activate up to two products, such as a garage
door opener, MyQ® light controls, gate operator, or commercial
door operator. Each button on the remote control works
independently of the other and must be programmed separately.
The images throughout this manual are for reference only and
your product may look different.
The Universal Garage Door Mini Remote Control can be
programmed to operate with different brands of garage door
openers. It is compatible with most garage door opener systems
manufactured by Chamberlain ®, LiftMaster ®, Sears Craftsman ®,
Garage Master ®, Genie ®, Linear ®, Stanley ®, Overhead Door ®,
Wayne Dalton ®, Moore-O-Matic ®, Do-It ®, Master Mechanic ®,
Raynor ®, and True Value ®.
MODEL MC100
To prevent possible SERIOUS INJURY or DEATH from a moving
gate or door:
ALWAYS keep remote controls out of reach of children.
NEVER permit children to operate, or play with remote control
transmitters.
Activate gate or door ONLY when it can be seen clearly, is
properly adjusted and there are no obstructions to door travel.
ALWAYS keep gate or door in sight until completely closed.
NEVER permit anyone to cross path of moving gate or door.
* LiftMaster
®, Do-It
®, Master Mechanic
®, Raynor
®, True Value
® and
Sears Craftsman
® are compatible with Chamberlain technology.
**Visit www.chamberlain.com/MC100 for Genie® Intellicode II instructions.
Read instructions thoroughly BEFORE beginning.
If using the Universal Garage Door Mini Remote
Control with residential door openers, the remote
control must be used only with door openers
manufactured after 1993 that utilize photoelectric
sensors. The photoelectric sensors are always
located on or near the bottom of the door track.
STOP
Garage Door Opener
Brand
Type/Color of
Program/Learn button Year
Linear®Mega-Code '97-Current
Chamberlain®* Orange/Red '97-'03
Chamberlain®* Purple '05-Current
Chamberlain®* Green '93-'96
Genie® Overhead Door®Intellicode '95-Current
Genie®** Overhead Door®Intellicode '93-Current
Stanley®Secure Code '98
Chamberlain®* Yellow '11-Current
Wayne Dalton®Rolling Code '99
The Universal Garage Door Mini Remote Control is compatible
with the following brands, which use a program/learn button:
PROGRAMMING
Press and hold bottom button on the
remote control until the blue LED
stays solid (approximately 10
seconds) then release the button.
Start with your garage door closed.
Press and release the Program/LEARN button on your
garage door opener.
LED
2
1
3
4
5
TEST
Test the remote control by pressing the button you programmed
in step 4. If the garage door opener does not activate, repeat the
programming steps or visit www.chamberlain.com/MC100 for
additional instructions.
Program/
LEARN Button
When the garage door opener activates, immediately press
and release either of the buttons on the remote control to
confirm the code and exit programming.
On the remote control, press and release the button that
you would like to program twice. The blue LED will blink
and the remote control will begin sending the pre-
programmed codes to the garage door opener.
Transmission can take up to 45 seconds.
IMPORTANT: The remote will activate your door or gate during
programming. Ensure door is clear of ALL obstructions.
Bottom
Button
To prevent possible SERIOUS INJURY or DEATH:
NEVER allow small children near batteries.
If battery is swallowed, immediately notify doctor.
To reduce risk of fire, explosion or chemical burn:
Replace ONLY with 3V CR2032 coin batteries.
DO NOT recharge, disassemble, heat above 212°F (100°C)
or incinerate.
Dispose of batteries properly. Replace ONLY with
3V CR2032 coin batteries.
BATTERY
NOTICE: To comply with FCC and or Industry Canada (IC) rules, adjustment
or modifications of this receiver and/or transmitter are prohibited, except
for changing the code setting or replacing the battery. THERE ARE
NO OTHER USER SERVICEABLE PARTS.
Tested to comply with FCC Standards FOR HOME OR OFFICE USE.
Operation is subject to the following two conditions: (1) this device may
not cause harmful interference, and (2)this device must accept any
interference received, including interference that may cause undesired operation.
Need Help?
Go to www.chamberlain.com/MC100
or call 1-800-442-1255
All trade names used herein are trademarks
of respective manufacturers listed.
© 2015, The Chamberlain Group, Inc.
All Rights Reserved
114A4845
Battery
Screw
