5
Setup

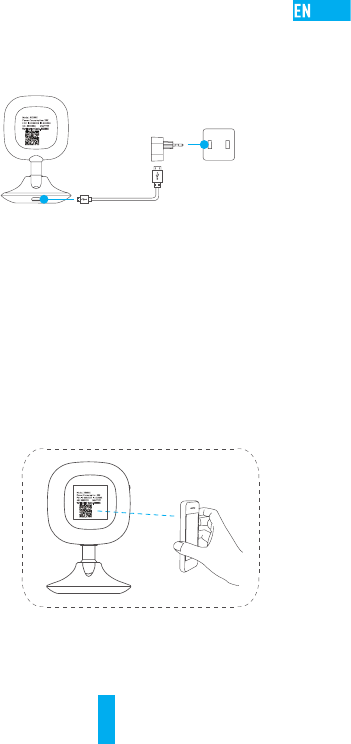

Step 1 Power-on
Plug the power cable into the camera and to the power adapter and then
into a power outlet. When the indicator flickers red and blue, the power is
ready for setup.
Step 2 Quick Settings
1. Connect your mobile phone to Wi-Fi.
2. Download and install the My Q app by searching “My Q” in App Store (iOS
7.0 or later) and Google PlayTM (Android 4.0 or later).
3. Launch the app and register for an My Q user account following the start-
up wizard.
4. Log in the app and in the Home screen, tap "+" on the upper-right corner
to enter the adding device interface.
5. Scan the QR code of the device with your mobile phone. Or you can
manually input the 9-digit serial number to add the camera. The QR code
and the serial number are located on the label on the back of the camera.
6. Follow the procedure to set the Wi-Fi connection of the camera.
7. Set the correct time zone, DST information and Date Format to finish
setup.
Power Cable
Power Outlet
6
Installation
Step 1 Installing the Metal Plate (Optional)
Pick a clean and flat surface and secure the metal plate to the desired
position with the foam stickers or screws.
There’s a magnet piece inside the camera. You can skip this step if
the surface is made of metal.

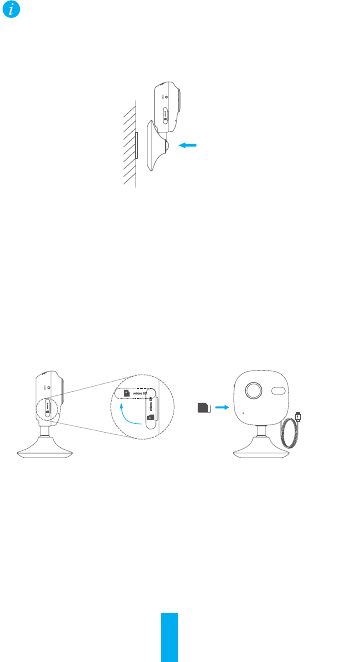

Step 2 Installing the Camera
Secure the camera magnetically to the metal plate or metal surface.
Step 3 Completing Installation
Adjust the camera angle as required.
Recording on the Memory Card
Step 1 Installing the Memory Card
1. Flip the memory card slot cover clockwise to open it, see the following
left figure.
2. Insert a microSD card into the slot until a click, see the following right
figure.
3. Replace the cover.
Step 2 Initializing the Memory Card
1. From the My Q app, check the memory card status by tapping on the
Storage Status in the Device Settings.
2. If the memory card status displays as Not Initialized, tap the Initialize
button to initialize it. You can then record event triggered video in the
camera after the initialization completed.
7

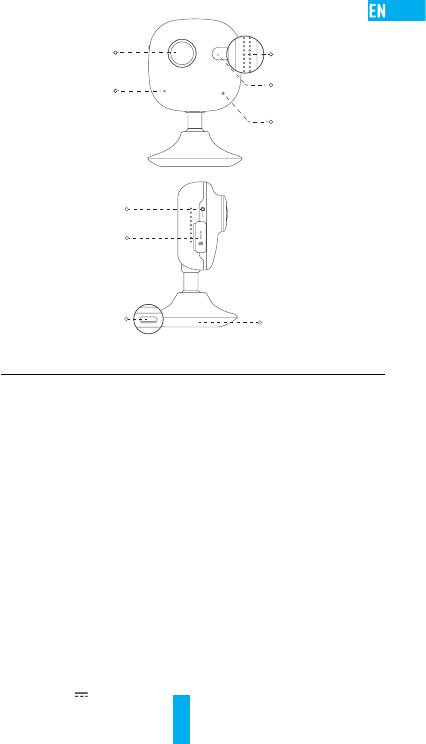

Basics
Name Description
IR Light Auto light source for dark environment. The camera video has two
modes: color (for daylight recording) and black and white with IR
illuminator (for night condition).
LED Indicator •Blinking Red and Blue: The camera is on; you can configure the
Wi-Fi connection.
•Steady Blue: The camera is being connected and operated by
user(s).
•Slow Blue Flicker: The camera is running properly.
•Steady Red: The camera is starting up.
•Slow Red Flicker: The Wi-Fi connection has failed.
•Fast Red Flicker: MicroSD card error.
Memory Card
Slot
For microSD card (not included with this product). You can purchase
separately. Recommended compatibility: Class 10, maximum space
128GB. After inserting the card, you can record the event inside the
camera. You need to initialize it on the My Q App.
RESET Hold down the RESET button for 10 seconds while the camera is
running, the camera restarts and all parameters are reset to default.
Power Input 5V±10%
Lens
Magnetic Base
Memory Card Slot
RESET
Power Input
LED Indicator
IR Light
Microphone
Speaker
8
Q: “The device is offline.” or “The device is not registered.” prompts appear
when adding the camera using the My Q App.
A: 1. Make sure the network, which the camera is connected to, is working
properly and the router’s DHCP is enabled.
2. Hold down the RESET button for 10 seconds to reset the settings if you
change the network parameters.
Q: The mobile phone cannot receive alarm prompts when the camera is online.
A: 1. Make sure the My Q app is running on your mobile phone.
2. For Android OS mobile phone, make sure the app is running in the
background; and for iOS mobile phones, enable the message push
function in “Settings > Notification”.
Q: Does the camera support power via USB devices or a portable battery.
A: It’s advised to use the My Q standard power adapter to provide a stable
voltage supply.
For more information, please visit www.My Qlife.com.
Troubleshooting
