1/2 hp Belt Drive
Garage Door Opener
■ Please read this manual and the enclosed safety materials carefully!
■ Fasten the manual near the garage door after installation.
■ The door WILL NOT CLOSE unless the Protector System® is connected and
properly aligned.
■ Periodic checks of the garage door opener are required to ensure safe operation.
■ The model number label is located on the left side panel of your garage
door opener.
■ This garage door opener is compatible with MyQ® and Security✚ 2.0™ accessories.
■ DO NOT enable the Timer-to-Close feature if you are installing the garage door
opener on a one-piece door. The Timer-to-Close is to be used ONLY with sectional
doors.
Serial Number:
Date of Purchase:
Model HD520EV
FOR RESIDENTIAL USE ONLY
Write down the following information
for future reference:
.
.
The Chamberlain Group, Inc.
845 Larch Avenue
Elmhurst, Illinois 60126-1196
1
Safety Symbol and Signal Word Review
This garage door opener has been designed and tested to offer safe service provided it isinstalled,
operated, maintained and tested in strictaccordance with the instructions and warningscontained in this
manual.
When you see these SafetySymbols and Signal Words on the following pages,they will alertyou to the
possibility of serious injury or death if you do not comply with the warnings that accompany them. The
hazard may come from something mechanical or from electric shock.Read the warnings carefully.
Mechanical
Electrical
When you see thisSignal Word on the following pages,itwill alert you to the possibilityof damage to
your garage door and/or the garage door opener ifyou do notcomply with the cautionarystatementsthat
accompany it. Read them carefully.

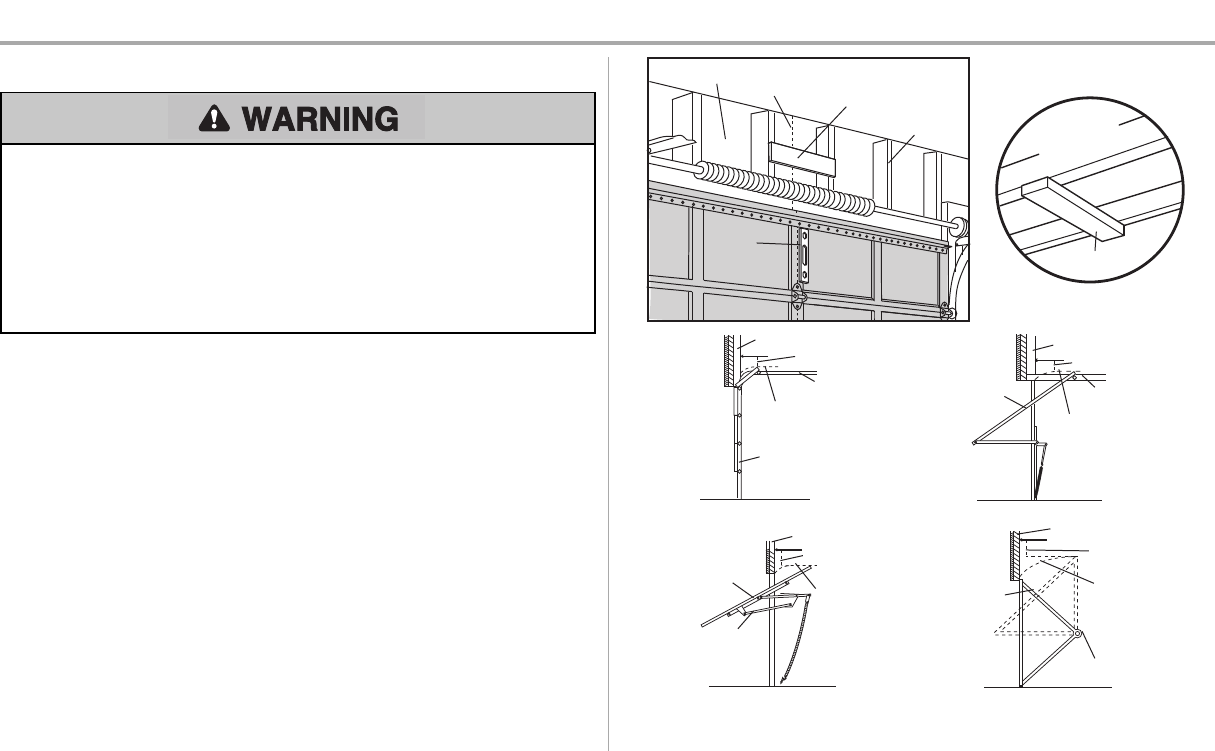

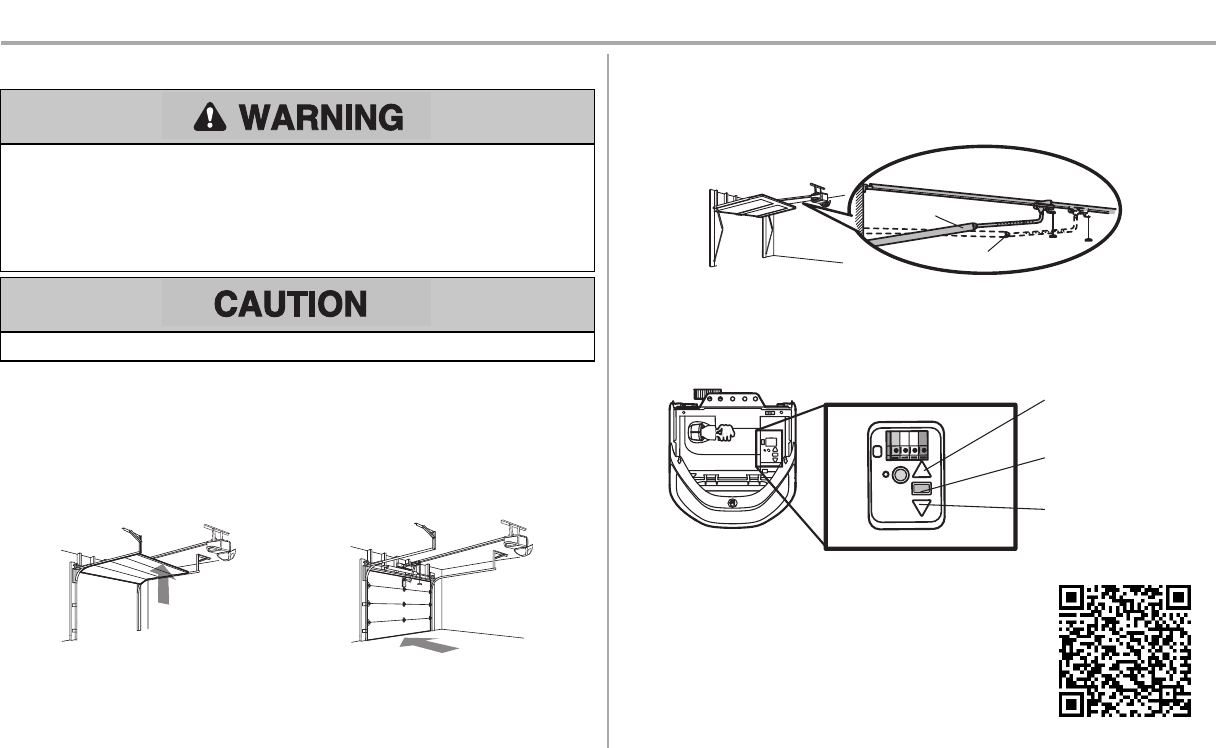

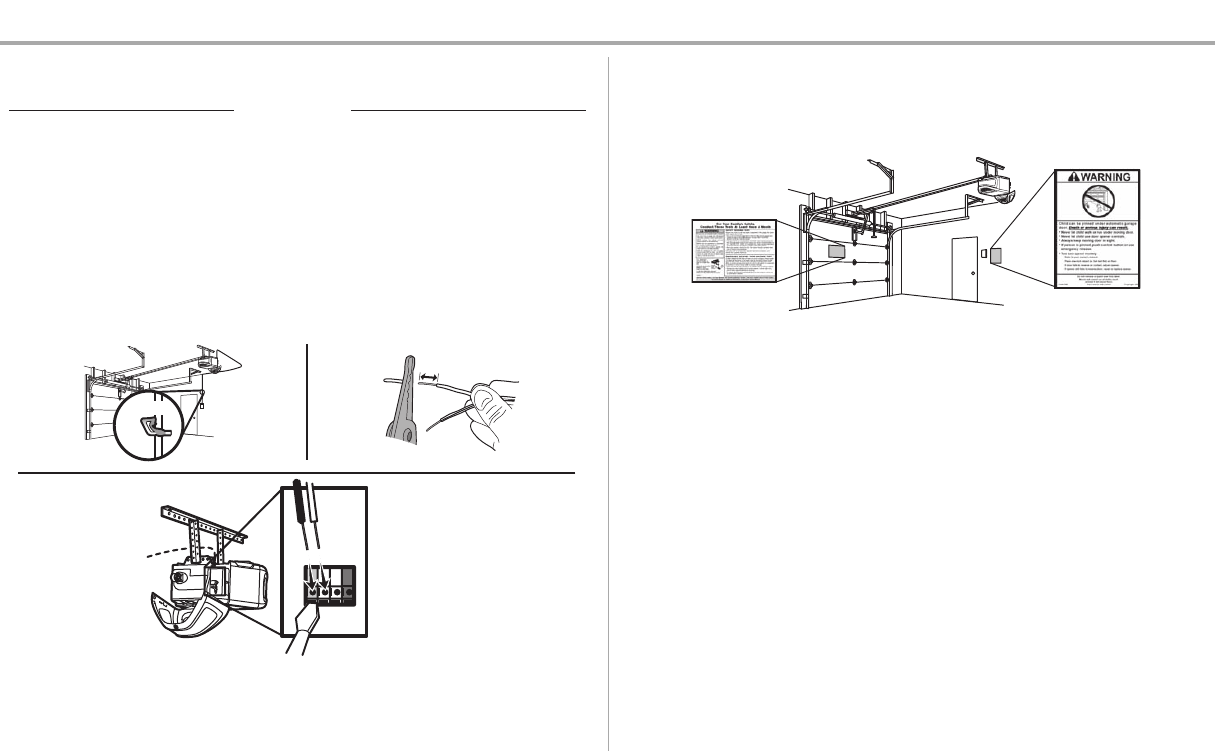

Check the Door
To preventpossible SERIOUS INJURY or DEATH:
lALWAYS call a trained door systems technician if garage door binds, sticks, or is out of balance.
An unbalanced garage door mayNOT reverse when required.
lNEVER try to loosen, move or adjust garage door, door springs, cables, pulleys, brackets or their
hardware, ALL of which are under EXTREME tension.
lDisable ALL locksand remove ALL ropes connected to garage door BEFORE installation and
operating garage door opener to avoid entanglement.
To preventdamage to garage door and opener:
lALWAYS disable locks BEFORE installing and operating the opener.
lONLY operate garage door opener at120 V,60 Hz to avoid malfunction and damage.
Before you begin:
1. Disable locks and remove any ropes connected to the garage door.
2. Lift the door halfway up. Release the door. If balanced, it should stay
in place, supported entirely by its springs.
3. Raise and lower the door to check for binding or sticking. Ifyour door
binds, sticks, or is out of balance, call a trained door systems
technician.
4. Check the seal on the bottom ofthe door.Any gap between the floor
and the bottom of the door mustnot exceed 1/4 inch (6 mm).
Otherwise, the safety reversal system may not work properly.
5. The opener should be installed above the center of the door.Ifthere
is a torsion spring or center bearing plate in the wayof the header
bracket, itmay be installed within 4feet (1.2 m) to the leftor rightof
the door center.See page11.
Torsion
Spring
Extension
Spring
OR
Preparation
2

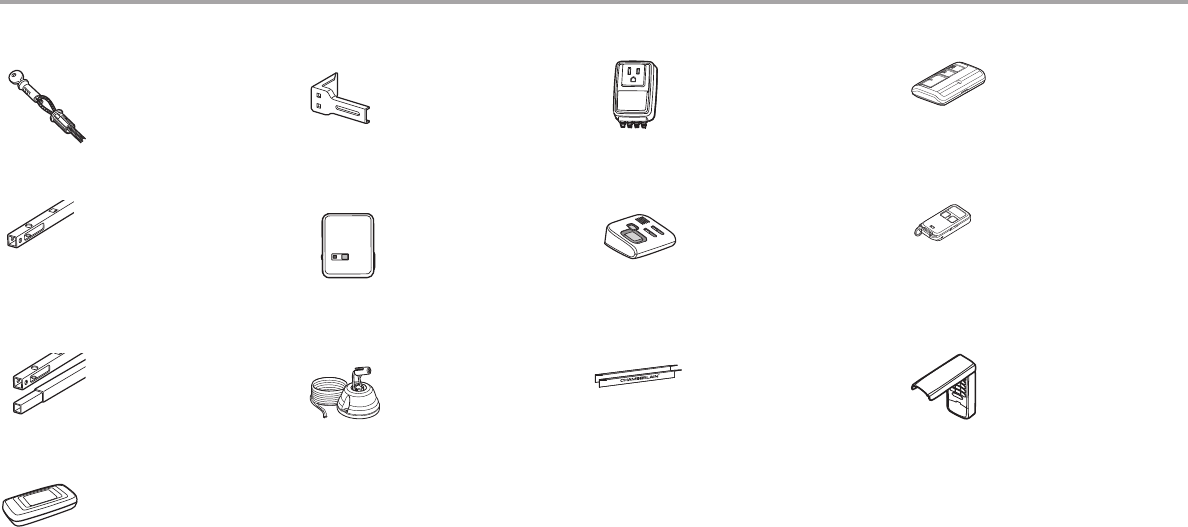

Additional Items You May Need:
Surveyyour garage area to see if you will need any of the following items:
n(2) 2X4 PIECES OF WOOD
Maybe used to fasten the header bracketto the structural supports.Also used to position the
garage door opener during installation and for testing the safety reversing sensors.
nSUPPORT BRACKET AND FASTENING HARDWARE
Must be used ifyou have a finished ceiling in your garage.
nEXTENSION BRACKETS (MODEL 041A5281-1) OR WOOD BLOCKS
Depending upon garage construction,extension bracketsor wood blocks may be needed to
install the safety reversing sensor.
nFASTENING HARDWARE
Alternate floor mounting of the safetyreversing sensor will require hardware not provided.
nOUTSIDE QUICK RELEASE (MODEL 7702CB)
Required for a garage with NO access door.
nDOOR REINFORCEMENT
Required if you have a lightweight steel, aluminum, fiberglass or glass panel door.
nRAIL EXTENSION KIT
Required ifyour garage door is more than 7 feet (2.13 m) high.

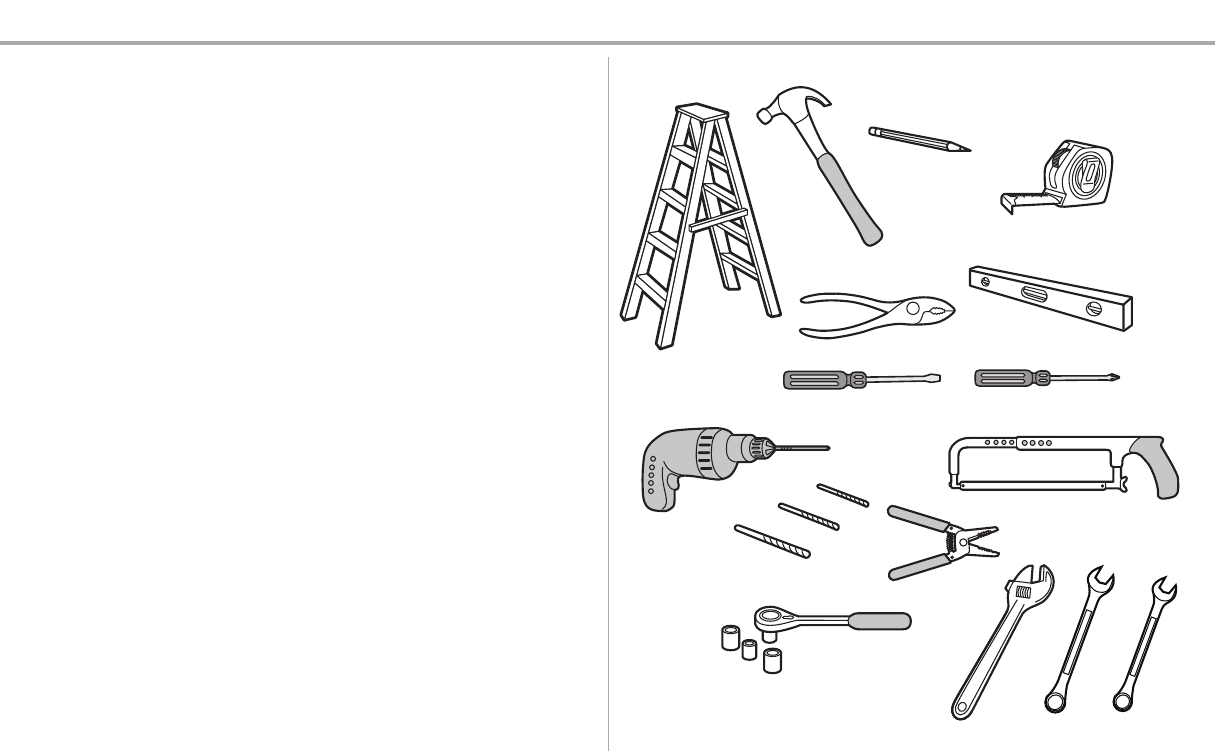

Tools Needed
2
1
3/16
7/16
1/2
7/32
5/16
3/8 7/16
1/2
Preparation
3

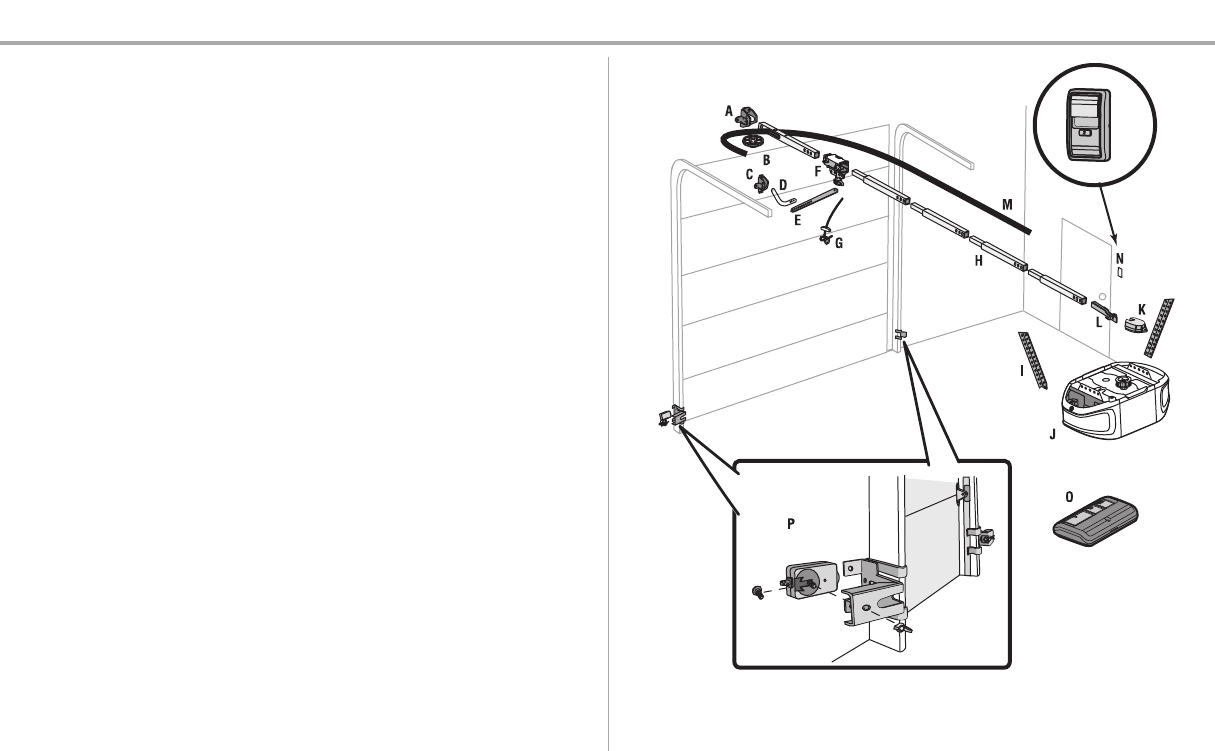

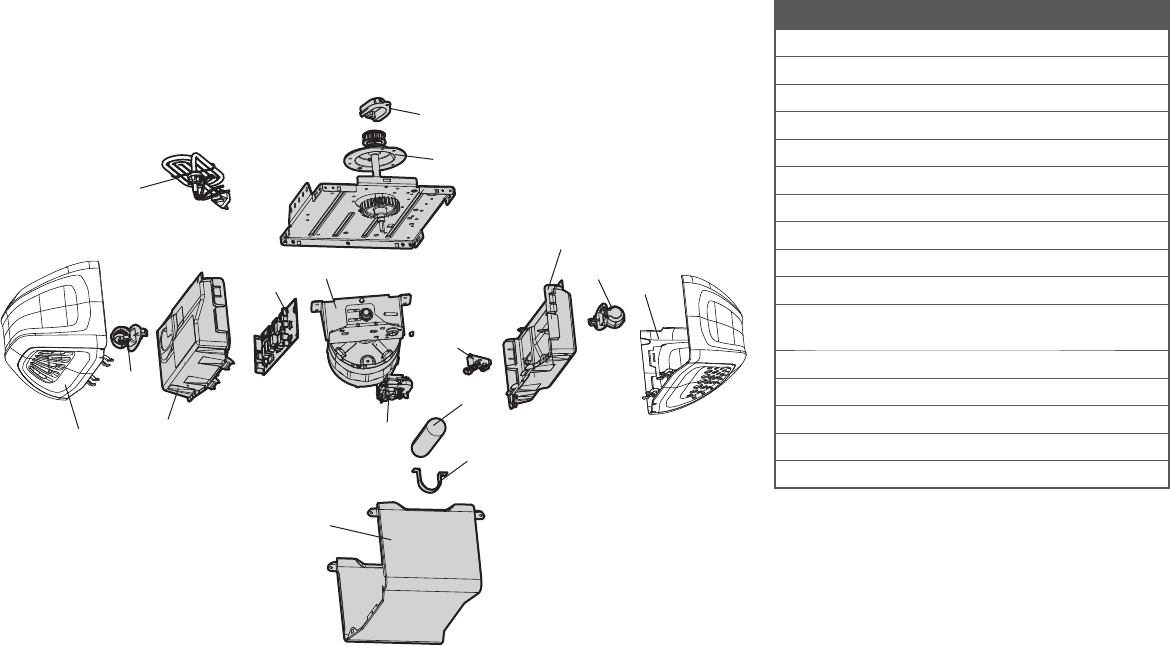

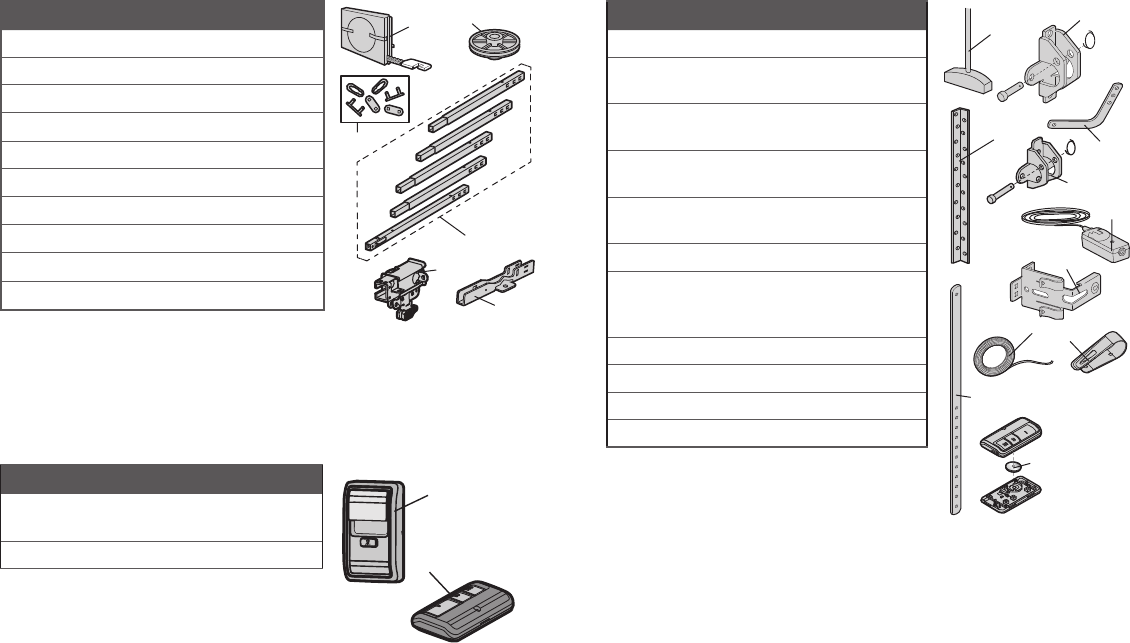

Carton Inventory
Your garage door opener is packaged in one carton which contains the motor unit and all parts
illustrated below.Accessoriesvarydepending on the garage door opener model purchased. Depending
on your model, other accessories may be included with your garage door opener. Instructions for these
accessories will be attached to the accessory and are notincluded in this manual. Ifanything is missing,
carefully checkthe packing material. Hardware for assembly and installation is shown on the nextpage.
Save the carton and packing material until the installation and adjustment is complete. The images
throughout this manual are for reference only and your product may look different.
A. Header bracket
B. Pulley
C. Door bracket
D. Curved door arm
E. Straight door arm
(Packaged inside front rail section)
F. Trolley
NOTE: Be sure to assemble the trolley before sliding onto rail.
G. Emergencyrelease rope and handle
H. Rail (1 front and 4 center sections)
I. Hanging brackets (2)
(Packaged inside the frontrail section)
J. Garage door opener (motor unit)
K. Sprocket cover and screws
L. “U” bracket
M. Belt
N. Door control
O. Remote control
P. The Protector System®
Safety reversing sensors with 2 conductor white and white/black wire attached: Sending Sensor
(1), Receiving Sensor (1), and Safety Sensor Brackets (2)
NOT SHOWN
White and red/white wire
Owner's manual
Preparation
4

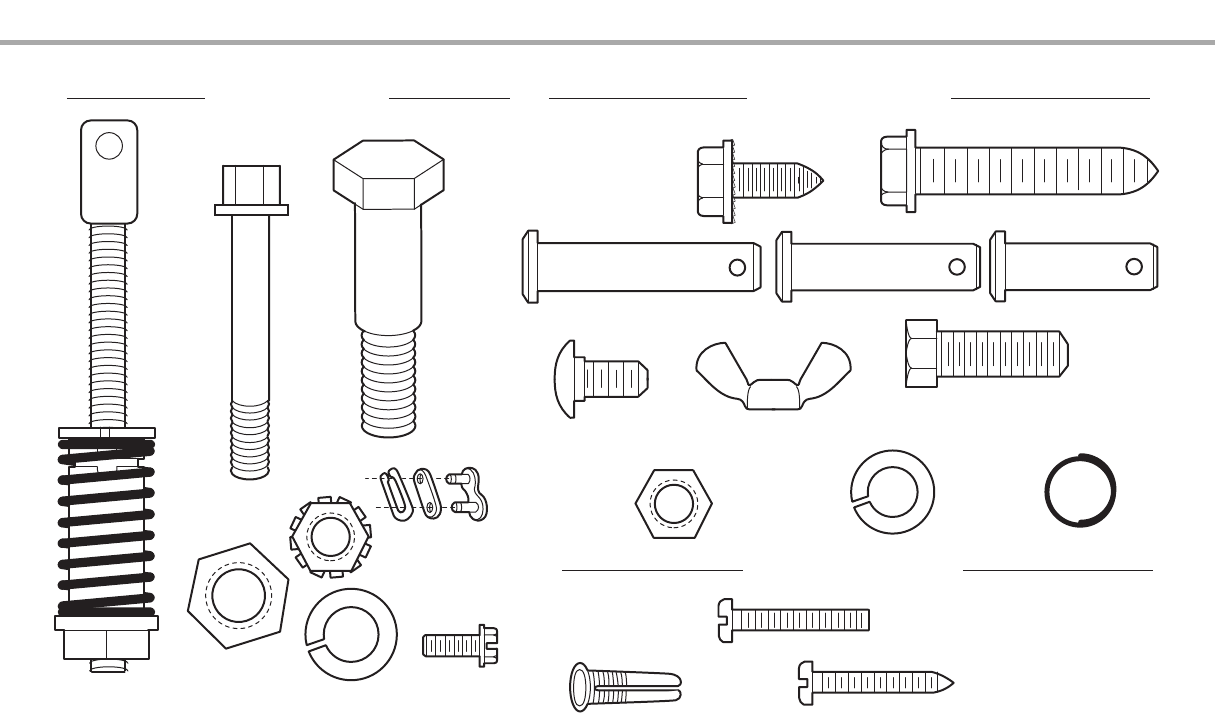

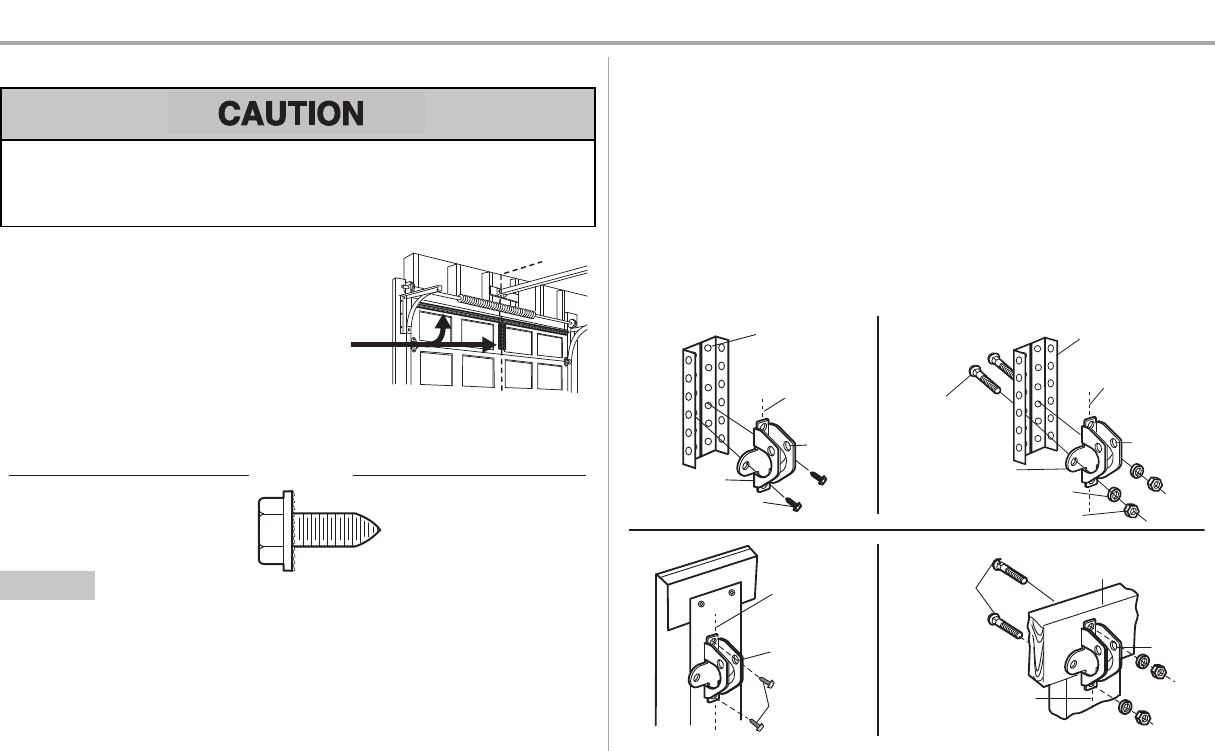

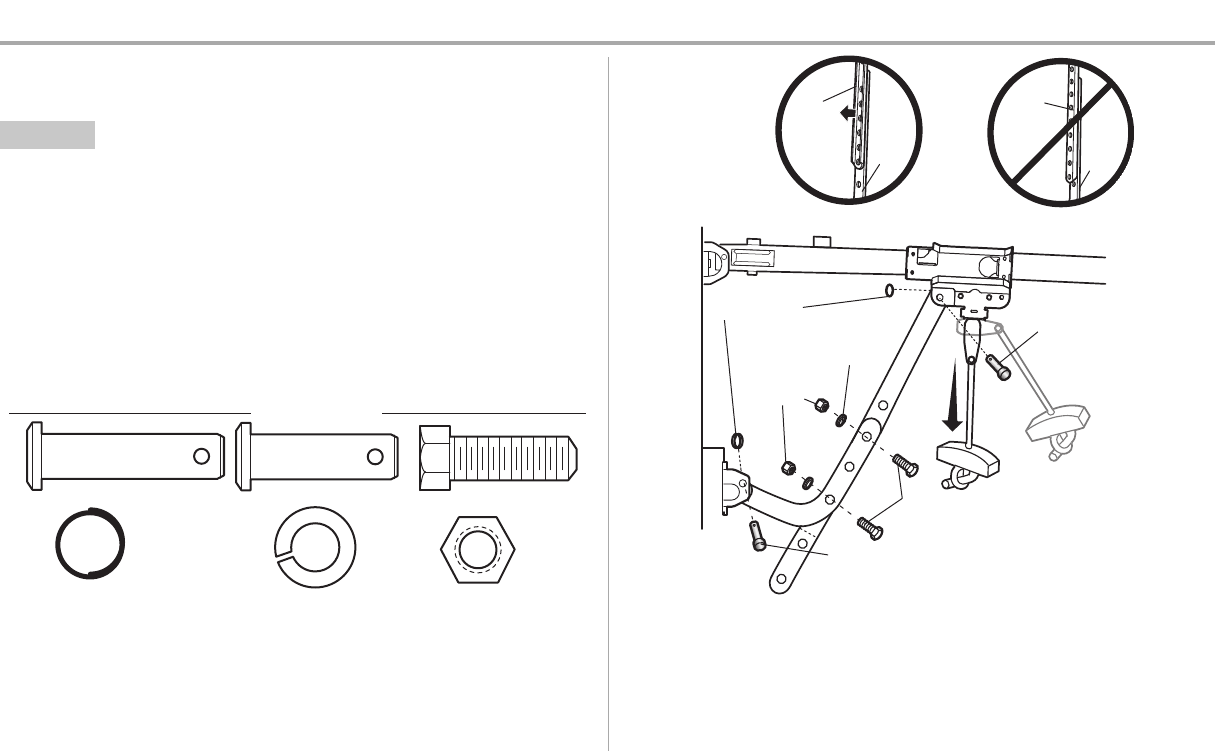

Hardware Inventory
Clevis Pin 5/16"x1-1/2"
Ring Fastener (3)
Hex Bolt 5/16"-18x7/8" (4)
Lock Washer
5/16"-18 (5)
Nut
5/16"-18 (6)
Self-Threading Screw
1/4"-14x5/8" (2)
Clevis Pin 5/16"x1"
Clevis Pin 5/16"x1-1/4"
Carriage Bolt
1/4"-20x1/2" (2)
Wing Nut 1/4"-20 (2)
ASSEMBLY HARDWARE INSTALLATION HARDWARE
Screw 6ABx1" (2)
Drywall Anchors (2)
Screw 6-32x1" (2)
DOOR CONTROL HARDWARE
Insulated
Staples
(Not Shown)
Lag Screw 5/16"-9x1-5/8" (4)
Hex Screw
#8x3/8" (2)
(packed with the
sprocket cover)
Bolt
1/4"-20x1-3/4"
Lock Nut
1/4"-20
Bolt
Nut 3/8"
Lock Washer 3/8"
Master Link
Spring
Trolley Nut
Threaded
Shaft
with
Preparation
5
Assembly

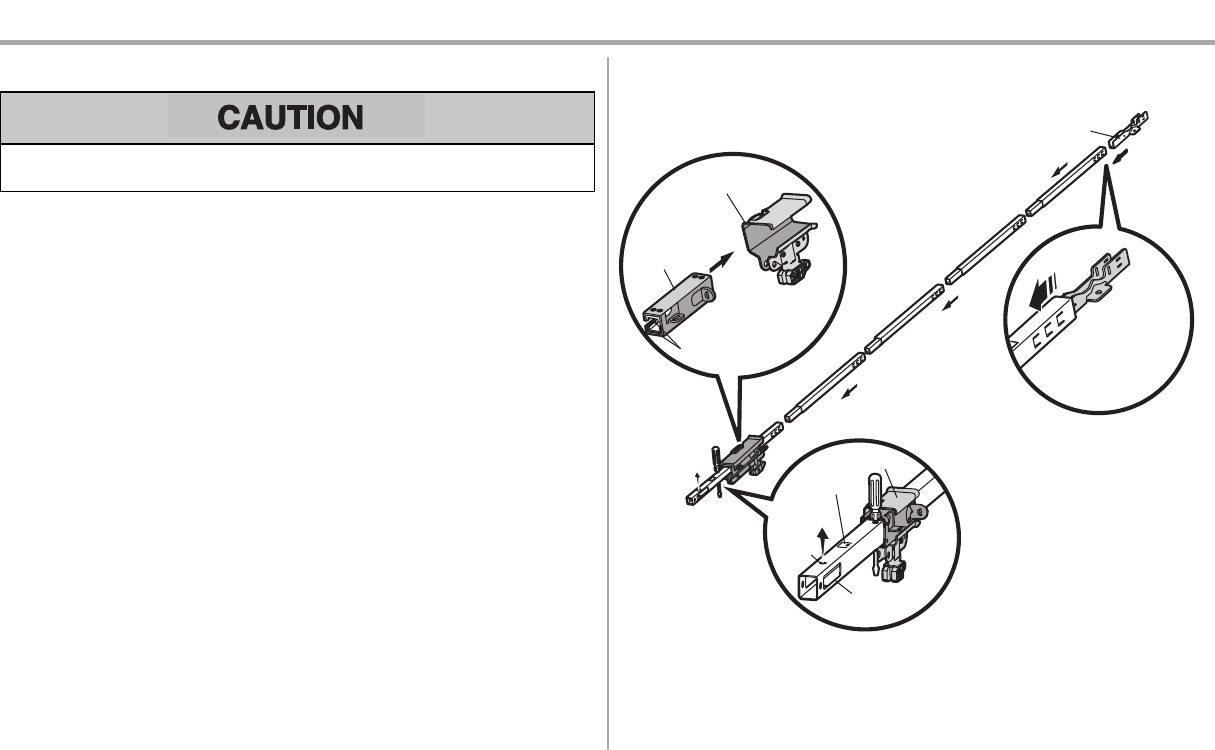

STEP 1 Assemble the rail and install the trolley
To preventINJURY from pinching,keep hands and fingersaway from the jointswhile assembling the
rail.
To avoid installation difficulties, do not run the garage door opener until instructed to do so.
The front rail has a cut out “window” at the door end. The front and back rail both have rail tabs.These
rail tabs MUST be on top of the rail when assembled.
1. Remove the straightdoor arm and hanging bracket packaged inside the frontrail and setaside
for Installation Step 5 and 9. NOTE: To prevent INJURY while unpacking the rail carefully remove
the straight door arm stored within the rail section.
2. Align the rail sections on a flatsurface asshown and slide the tapered ends into the larger ones.
Tabs along the side will lockinto place.
3. Place the motor unit on packing material to protect the cover, and restthe backend of the rail on
top. For convenience, put a supportunder the frontend of the rail.
4. As a temporary stop, inserta screwdriver into the hole 10" (25 cm) from the front end of the rail,
as shown.
5. Check to be sure there are 4 plastic wear pads inside the inner trolley.Ifthey became loose
during shipping, check all packing material. Snap them back into position as shown.
6. Slide the trolley assemblyalong the rail from the back end to the screwdriver.
7. Slide the rail onto the “U” bracket,until itreaches all the stops on the top and sides ofthe “U”
bracket.
To garage
door opener
(TO MOTOR UNIT)
Front Rail
Section
(TO DOOR)
“U” Bracket
Outer Trolley
Inner Trolley
Wear Pads
SLIDE TO STOPS
ON TOP AND
SIDES OF
“U” BRACKET
Rail
Tab
Trolley
Window
Cut-Out
Idler
Pulley
Hole
6
Assembly

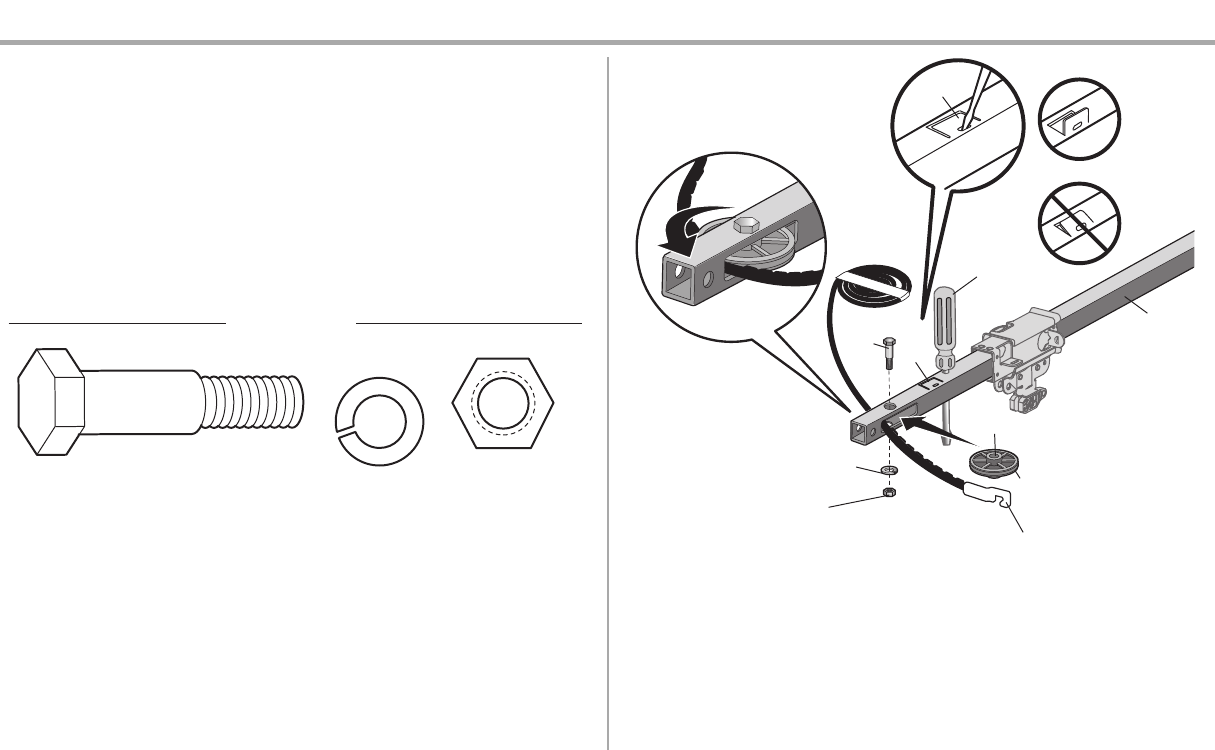

STEP 2 Fasten the rail to the motor unit

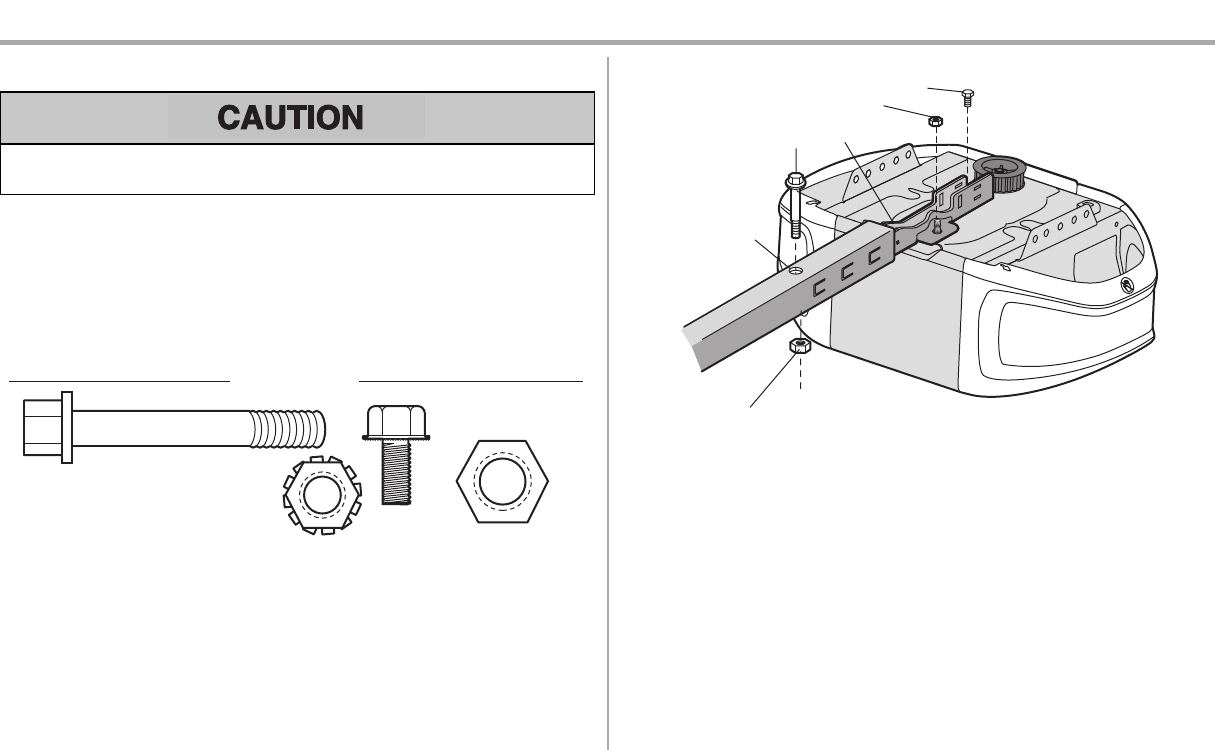

To avoid SERIOUS damage to garage door opener, use ONLY those bolts/fasteners mounted in the
top of the opener.
1. Inserta 1/4"-20x1-3/4" bolt into the cover protection bolt hole on the backend of the rail as
shown.Tighten securelywith a 1/4"-20 lock nut. DO NOT overtighten.
2. Remove the bolt and nut from the top of the motor unit.
3. Use the carton to supportthe front end of the rail.
4. Place the “U” bracket, flat side down onto the motor unit and align the bracket holes with the bolt
holes.
5. Fasten the “U” bracketwith the previouslyremoved bolt and locknut; DO NOT use any power
tools. The use ofpower toolsmaypermanently damage the garage door opener.
HARDWARE
Bolt 1/4"-20x1-3/4"
Lock Nut 1/4"-20
(Mounted in the
Bolt and Nut
garage door opener)
“U” Bracket
Bolt
Cover Protection
Bolt Hole
Bolt 1/4"-20x1-3/4"
Lock Nut 1/4"-20
Lock Nut
7
Assembly
STEP 3 Install the idler pulley
1. Lay the belt beside the rail, asshown.Grasp the end with the hooked trolleyconnector and pass
approximately 12" (30 cm) of belt through the window.Keep the ribbed side toward the rail, and
allow it to hang until AssemblyStep 4.
2. Remove the tape from the idler pulley. The inside center should be pre-greased. If dry, regrease
to ensure proper operation.
3. Place the idler pulley into the window as shown.
4. Insertthe idler bolt from the top through the rail and pulley. Tighten with a 3/8" lock washer and
nut underneath the rail until the lock washer is compressed.
5. Rotate the pulley to be sure it spins freely.
6. Locate the rail tab. The rail tab is between the idler bolt and the trolley in the front rail section. Use
a flathead screwdriver and lift the rail tab until the tab is vertical (90º).
Screwdriver
Rail
Trolley Connector
Bolt
Lock Washer 3/8"
Nut 3/8"
Rail
Tab
CORRECT
INCORRECT
Rail Tab
Idler Pulley
Grease Inside Pulley
8
Assembly

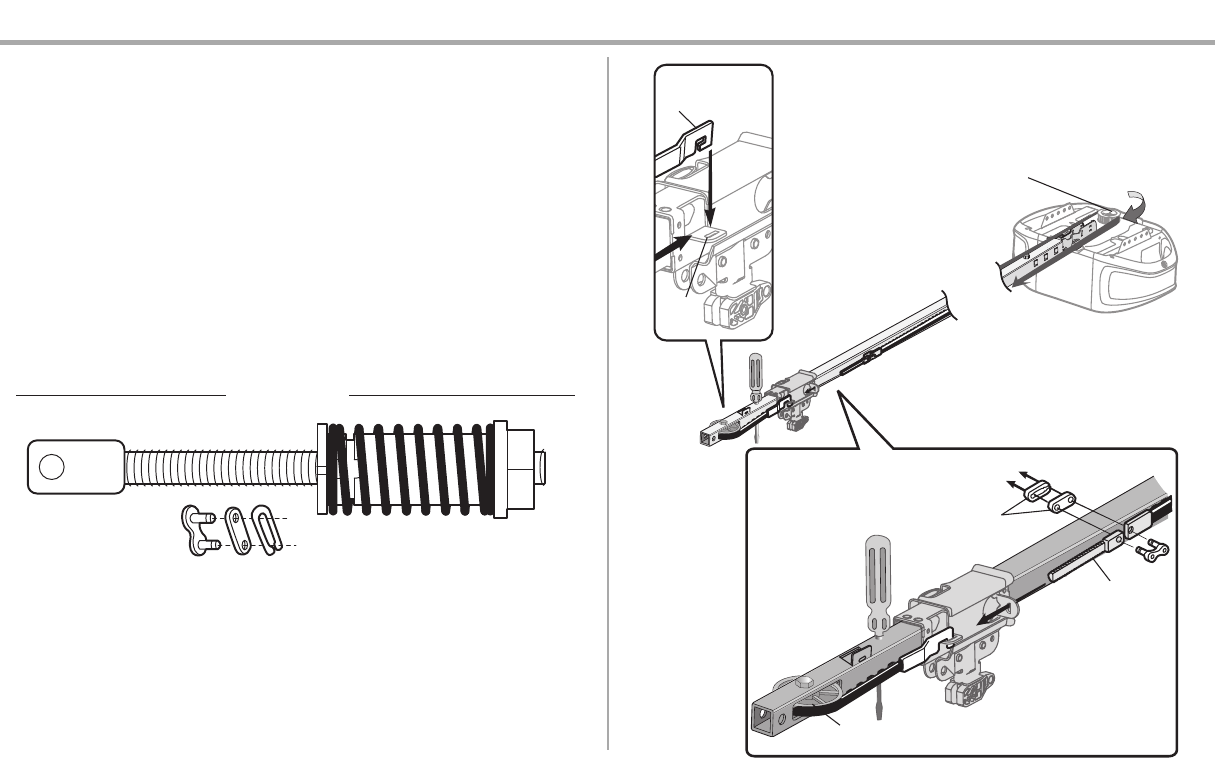

STEP 4 Install the belt
1. Pull the belt around the idler pulley and toward the trolley.The ribbed side must contact the
pulley.
2. Hook the trolley connector into the retaining slot on the trolleyas shown (Figure 1).
3. With the trolley againstthe screwdriver, dispense the remainder of the belt along the rail
lengthtoward the motor unit and around the sprocket (Figure 2).The sprocket teeth mustengage
the belt.
4. Check to make sure the belt is not twisted.Connect the trolley threaded shaftwith the master link
(Figure 3).
lPush pins of master link bar through holes in end of belt and trolley threaded shaft.
lPush master linkcap over pins and pastpin notches.
lSlide clip-on spring over cap and onto pin notches until both pins are securely locked in
place.
5. Remove the spring trolley nut from the threaded shaft.
6. Insertthe trolley threaded shaftthrough the hole in the trolley.
HARDWARE
Master
Link
Threaded Shaft with Spring Trolley Nut
Sprocket
Figure 3
Front Rail
Section
(TO DOOR)
Idler
Pulley
Threaded Shaft
Master
Link
Figure 2
Trolley Connector
Figure 1
Retaining
Slot
9
Assembly
STEP 5 Tighten the belt

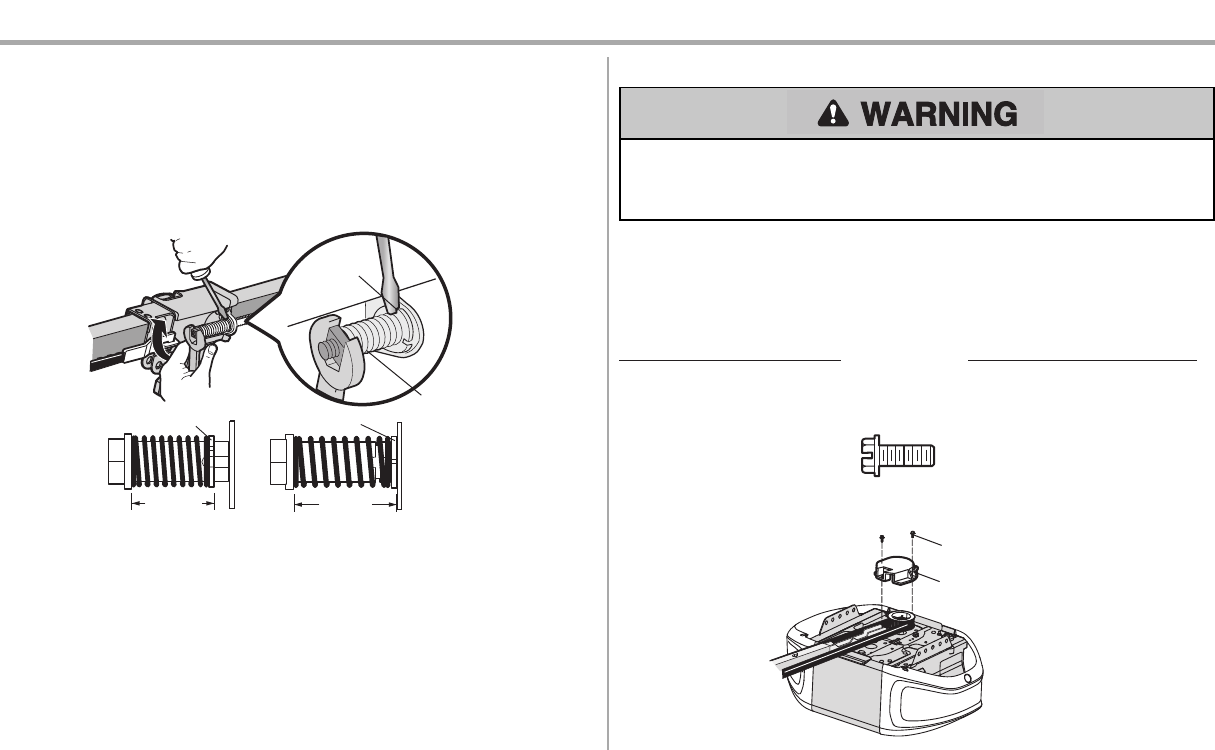

1. By hand, thread the spring trolley nut on the threaded shaft until it is finger tight against the
trolley.Do not use any tools.Remove the screwdriver.
2. Inserta flathead screwdriver tip into one of the nut ring slots and brace it firmlyagainstthe trolley.
3. Tighten the spring trolley nut with an adjustable wrench or a 7/16" open end wrench about a
quarter turn until the spring releases and snaps the nutring againstthe trolley.This sets the
spring to optimum belt tension.
Nut Ring
BEFORE
1"
(2.5
cm)
Nut Ring
AFTER
1-1/4"
(3.18 cm)
Nut Ring Slot
Spring Trolley
STEP 6 Install the sprocket cover
To avoid possible SERIOUS INJURY to finger from moving garage door opener:
lALWAYS keep hand clear of sprocket while operating opener.
lSecurely attach sprocket cover BEFORE operating.
1. Position the sprocket cover over the sprocketas shown and fasten to the mounting plate with
8x3/8" hex screws provided.
You have now finished assembling your garage door opener. Please read the following warnings
before proceeding to the installation section.
Hex Screw #8x3/8"
(Packed with the
sprocket cover)
HARDWARE
Hex Screw #8x3/8"
Sprocket Cover
10
Installation
IMPORTANT INSTALLATION INSTRUCTIONS
To reduce the risk of SEVERE INJURY or DEATH:
1. READ AND FOLLOW ALL INSTALLATION WARNINGS AND INSTRUCTIONS.
2. Install garage door opener ONLY on properlybalanced and lubricated garage door. An
improperly balanced door may NOT reverse when required and could result in SEVERE
INJURY or DEATH.
3. ALL repairs to cables,spring assemblies and other hardware MUST be made by a trained door
systemstechnician BEFORE installing opener.
4. Disable ALL locksand remove ALL ropes connected to garage door BEFORE installing opener
to avoid entanglement.
5. Install garage door opener 7 feet (2.13 m) or more above floor.
6. Mount the emergency release within reach,butat least6 feet(1.83 m) above the floor and
avoiding contact with vehicles to avoid accidental release.
7. NEVER connectgarage door opener to power source until instructed to do so.
8. NEVER wear watches,ringsor loose clothing while installing or servicing opener.They could be
caught in garage door or opener mechanisms.
9. Install wall-mounted garage door control:
lwithin sight ofthe garage door.
lout of reach of children at minimum height of 5 feet (1.5m).
laway from ALL moving parts of the door.
10. Place entrapment warning label on wall nextto garage door control.
11. Place manual release/safetyreverse testlabel in plain view on inside of garage door.
12. Upon completion of installation, test safety reversal system. Door MUST reverse on contact with a
1-1/2" (3.8 cm) high object(or a 2x4 laid flat) on the floor.
13. To avoid SERIOUS PERSONAL INJURY or DEATHfrom electrocution, disconnect ALL electric
and battery power BEFORE performing ANY service or maintenance.
14. DO NOT enable the Timer-to-Close functionality ifoperating either one-piece or swinging
garage doors.To be enabled ONLY when operating a sectional door.
11
Installation

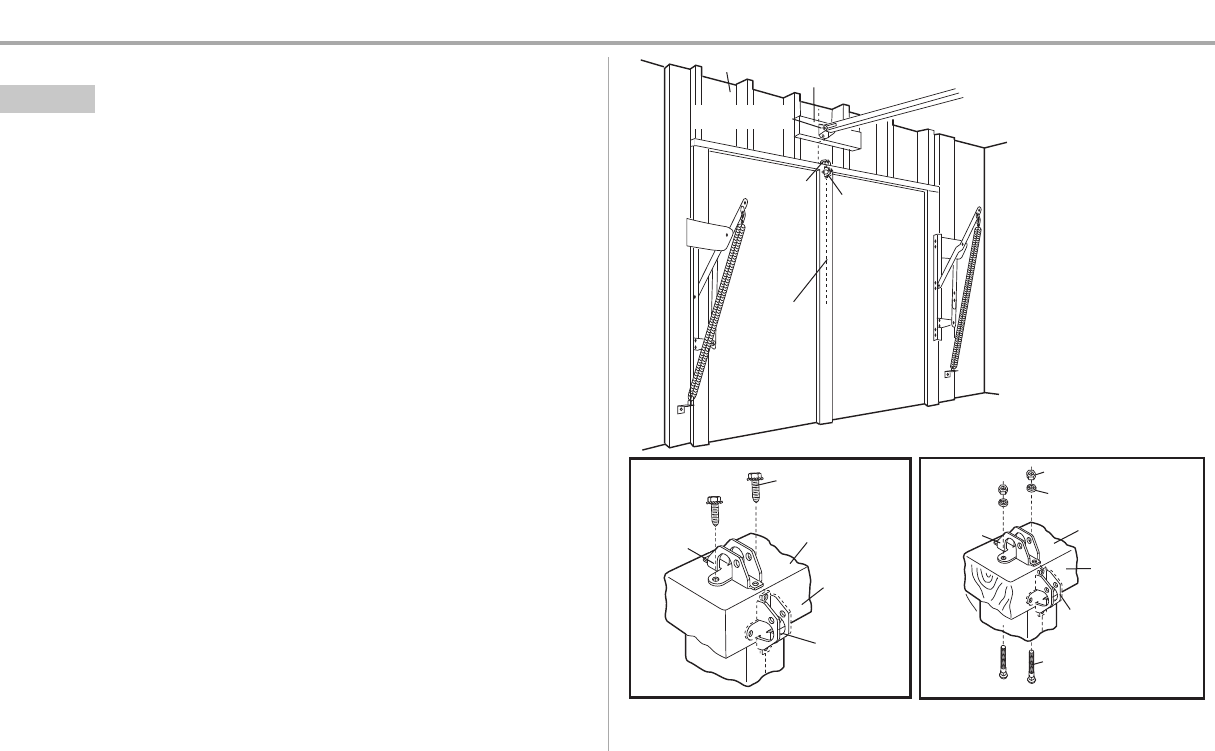

STEP 1 Determine the header bracket location
To preventpossible SERIOUS INJURY or DEATH:
lHeader bracket MUST be RIGIDLY fastened to structural supporton header wall or ceiling,
otherwise garage door might NOT reverse when required. DO NOT install header bracket over
drywall.
lConcrete anchorsMUSTbe used ifmounting header bracket or 2x4 into masonry.
lNEVER try to loosen, move or adjust garage door, springs, cables, pulleys, brackets, or their
hardware, ALL of which are under EXTREME tension.
lALWAYS call a trained door systems technician if garage door binds, sticks, or is out of balance.
An unbalanced garage door might NOT reverse when required.
Installation procedures vary according to garage door types. Follow the instructions which apply to your
door.
1. Close the door and mark the inside vertical centerline of the garage door.
2. Extend the line onto the header wall above the door.You can fasten the header bracket within
4 feet (1.22 m) of the left or right of the door center only if a torsion spring or center bearing
plate is in the way; or you can attach it to the ceiling (see page 12) when clearance is
minimal. (It may be mounted on the wall upside down if necessary, to gain approximately
1/2" (1 cm). If you need to install the header bracketon a 2x4 (on wall or ceiling),use lag screws
(notprovided) to securely fasten the 2x4 to structural supports asshown here and on page 12.
3. Open your door to the highest point oftravel as shown.Draw an intersecting horizontal line on
the header wall 2" (5 cm) above the high point :
l2" (5 cm) above the high point for sectional door and one-piece door with track.
l8" (20 cm) above the high point for one-piece door without track.
This height will provide travel clearance for the top edge of the door.NOTE: If the total number of inches
exceeds the height available in your garage, use the maximum height possible, or refer to page12 for
ceiling installation.
Header Wall Vertical Centerline of Garage Door
2x4 Structural
Supports
Level
(Optional)
Unfinished
Ceiling
2x4
OPTIONAL CEILING MOUNT
FOR HEADER BRACKET
Sectional door with curved track
Header Wall
Track
2" (5 cm)
Highest Point
of Travel
Door
One-piece door with horizontal track
Header Wall
Track
2" (5 cm)
Highest
Point
of Travel
Door
One-piece door without track:
jamb hardware
Header Wall
8" (20 cm)
Highest
Point of
Travel
Door
Jamb
Hardware
One-piece door without track:
pivot hardware
Header Wall
8" (20 cm)
Highest
Point of
Travel
Door
Pivot
12
Installation

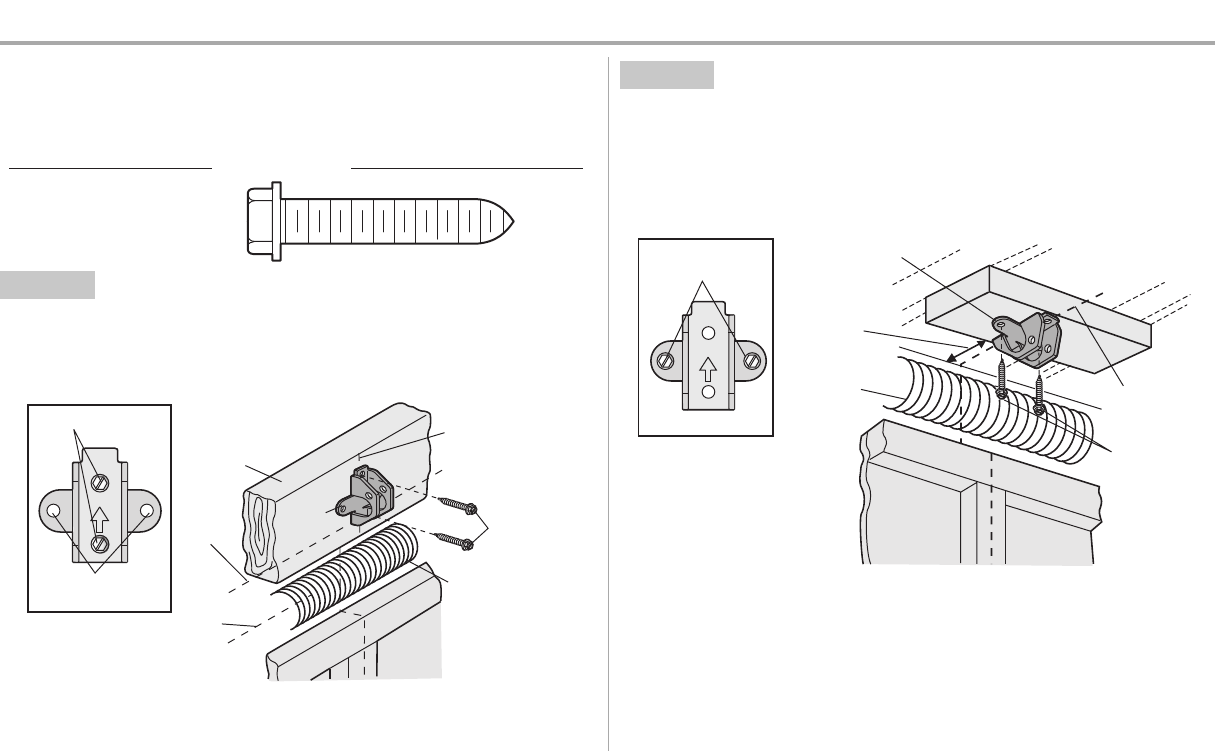

STEP 2 Install the header bracket
You can attach the header bracket either to the wall above the garage door,or to the ceiling.Follow the
instructions which will work best for your particular requirements.Do not install the header bracket over
drywall. If installing into masonry, use concrete anchors (not provided).
HARDWARE
Lag Screw 5/16"-9x1-5/8"
OPTION A WALL INSTALLATION
1. Center the bracket on the vertical centerline with the bottom edge of the bracketon the horizontal
line asshown (with the arrow pointing toward the ceiling).
2. Mark the vertical setof bracket holes.Drill 3/16" pilotholes and fasten the bracket securely to a
structural support with the hardware provided.
UP
Wall Mount
Optional Mounting
Holes
Vertical
Centerline of
Garage Door
(Header Wall)
Header
Bracket
2x4 Structural
Support
Door Spring
(Garage Door)
Highest Point
of Garage
Door Travel
Horizontal
Line
Lag Screw
5/16"-9x1-5/8"
OPTION B CEILING INSTALLATION
1. Extend the vertical centerline onto the ceiling as shown.
2. Center the bracket on the vertical mark, no more than 6" (15cm) from the wall. Make sure the
arrow is pointing away from the wall. The bracket can be mounted flush againstthe ceiling when
clearance is minimal.
3. Mark the side holes. Drill 3/16" pilot holes and fasten bracketsecurely to a structural supportwith
the hardware provided.
UP
(Header Wall)
Ceiling Mounting
Holes (Finished Ceiling)
Vertical
Centerline of
Garage Door
Header
Bracket
6" (15 cm)
Maximum
Door Spring
(Garage Door)
Lag Screw
5/16"-9x1-5/8"
13
Installation

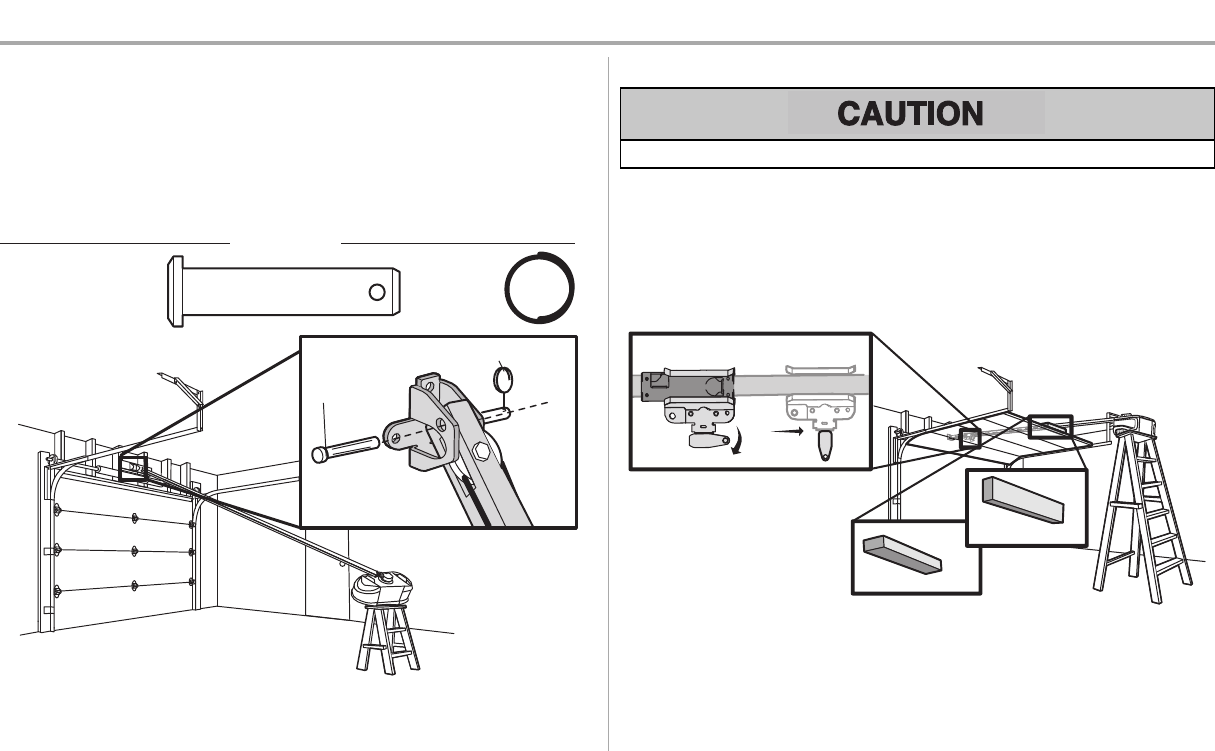

STEP 3 Attach the rail to the header bracket
1. Position the opener on the garage floor below the header bracket. Use packing material as a
protective base.
NOTE: If the door spring is in the way, you will need help. Have someone hold the opener
securely on a temporary support to allow the rail to clear the spring.
2. Position the rail bracket against the header bracket.
3. Align the bracket holes and join with a clevispin asshown.
4. Inserta ring fastener to secure.
HARDWARE
Clevis Pin 5/16"x1-1/2" Ring Fastener
Clevis Pin
5/16"x1-1/2"
Ring Fastener
STEP 4 Position the garage door opener
To preventdamage to garage door,rest garage door opener rail on 2x4 placed on top section ofdoor.
1. Remove the packing material and lift the garage door opener onto a ladder.
2. Fully open the door and place a 2x4 (laid flat) under the rail. For one-piece doors without tracks,
lay the 2x4 on it's side.
NOTE: A 2x4 is ideal for setting the distance between the rail and the door. If the ladder is not tall
enough you will need help at this point. Ifthe door hits the trolley when it is raised, pull the trolley release
arm down to disconnect the inner and outer trolley. Slide the outer trolley toward the garage door
opener. The trolley can remain disconnected until instructed.
One-piece
door without
tracks
All other door types
Connected Disconnected
14
Installation

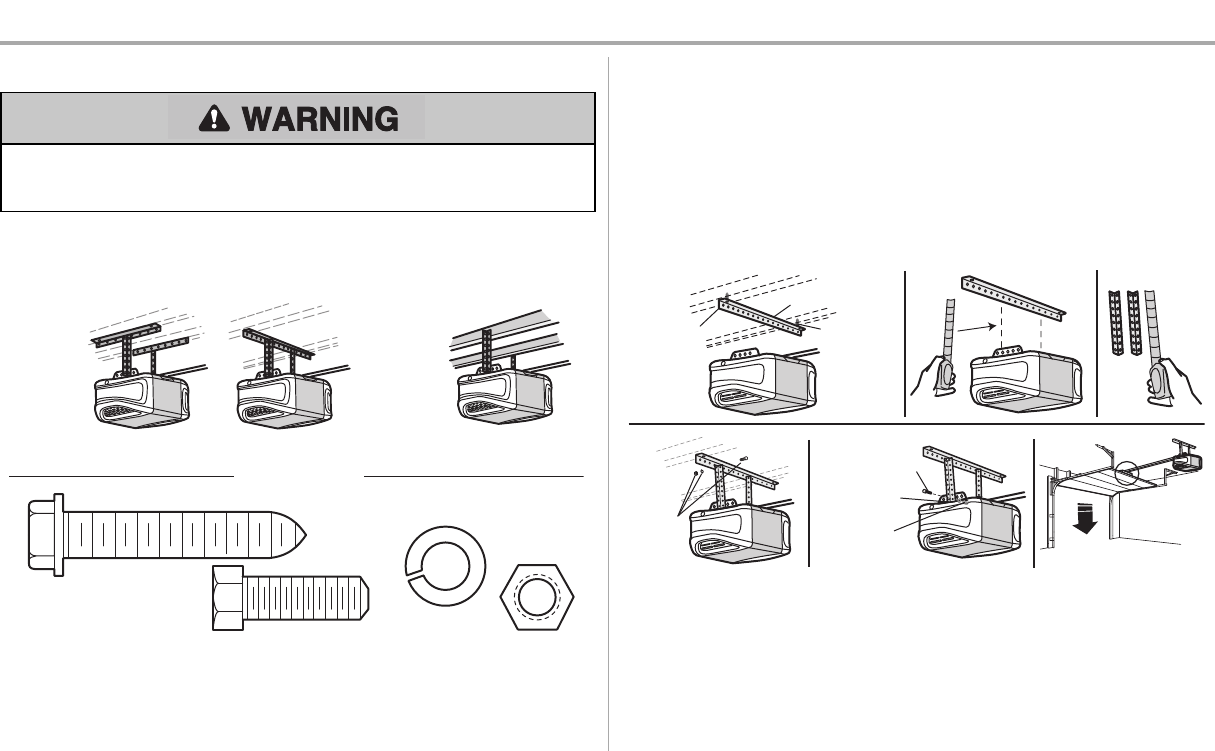

STEP 5 Hang the garage door opener
To avoid possible SERIOUS INJURY from a falling garage door opener, fasten itSECURELY to
structural supportsof the garage. Concrete anchors MUSTbe used ifinstalling ANY bracketsinto
masonry.
Hanging the garage door opener will varydepending on your garage.Below are three example
installations.Your installation may be different. For ALL installations the garage door opener MUST be
connected to structural supports.The instructions illustrate one of the examples below.
Finished
Ceiling
Unfinished
Ceiling
HARDWARE
Hex Bolt 5/16"- 18x7/8"
Nut 5/16"-18
Lock Washer
5/16"-18
Lag Screw 5/16"-9x1-5/8"
1. On finished ceilings, use the lag screws to attach a support bracket (not provided) to the structural
supports before installing the garage door opener.
2. Make sure the garage door opener is aligned with the header bracket. Measure the distance
from each side of the garage door opener to the support bracket.
3. Cutboth pieces ofthe hanging bracket to required lengths.
4. Attach the end of each hanging bracketto the supportbracket with appropriate hardware (not
provided).
5. Attach the garage door opener to the hanging brackets with the hexbolts,lockwashers,and
nuts.
6. Remove the 2x4 and manually close the door.If the door hits the rail, raise the header bracket.
Finished
Ceiling (not provided)
Lag Screw
5/16"-
9x1-5/8"
Lag Screw
5/16"-
9x1-5/8"
123
(not
provided)
Hex Bolt
5/16"- 18x7/8"
Nut 5/16"-18
Lock Washer
5/16"-18
456
15
Installation

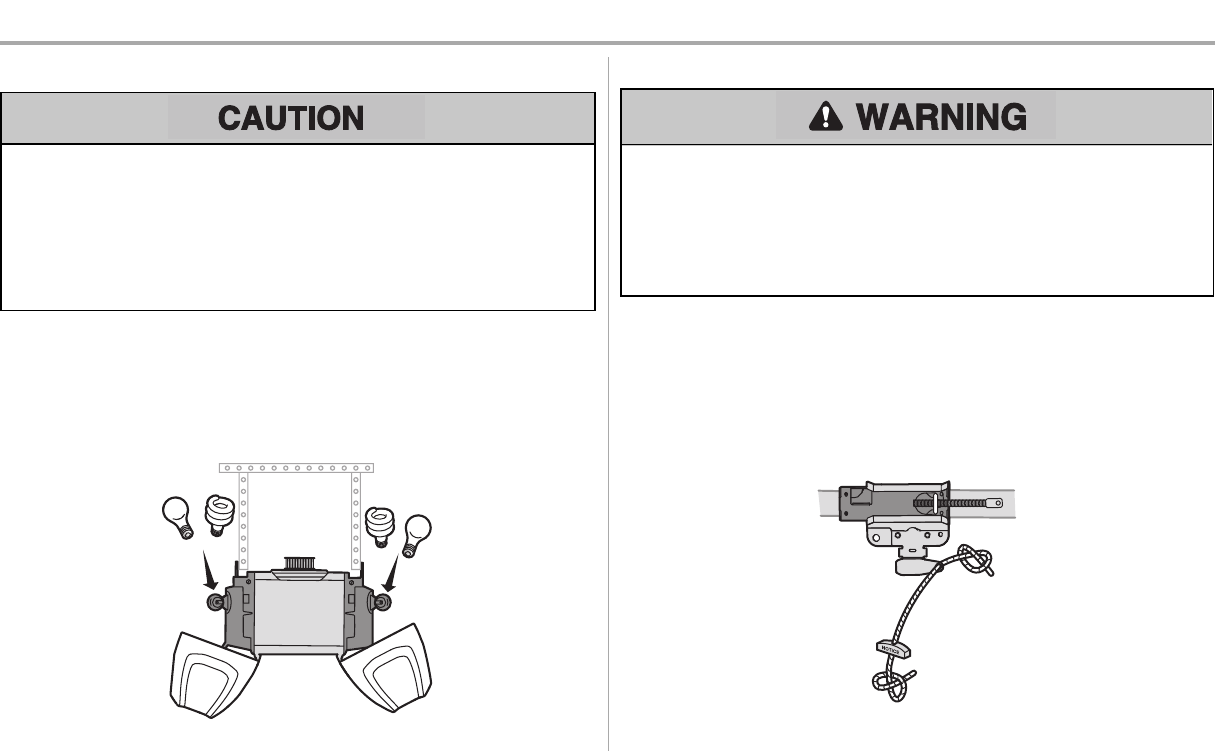

STEP 6 Install the light bulbs
To preventpossible OVERHEATING ofthe end panel or lightsocket:
lUse ONLY A19 incandescent (100W maximum) or compactfluorescent(26W maximum) light
bulbs.
lDO NOT use incandescent bulbs larger than 100W.
lDO NOT use compact fluorescent light bulbs larger than 26W (100W) equivalent.
lDO NOT use halogen bulbs.
lDO NOT use short neck or specialty light bulbs.
1. Pull on the top sides ofthe light lens and rotate the light lens down.
2. Insert an A19 incandescent (100W maximum) or compact fluorescent (26W, 100W equivalent)
lightbulb into the light socket.
3. Rotate the lens up to close.
NOTE: Do not use halogen, short neck, or specialty light bulbs as these may overheat the end panel or
light socket. Do not use LED bulbs as they may reduce the range or performance of your remote controls.
or
or

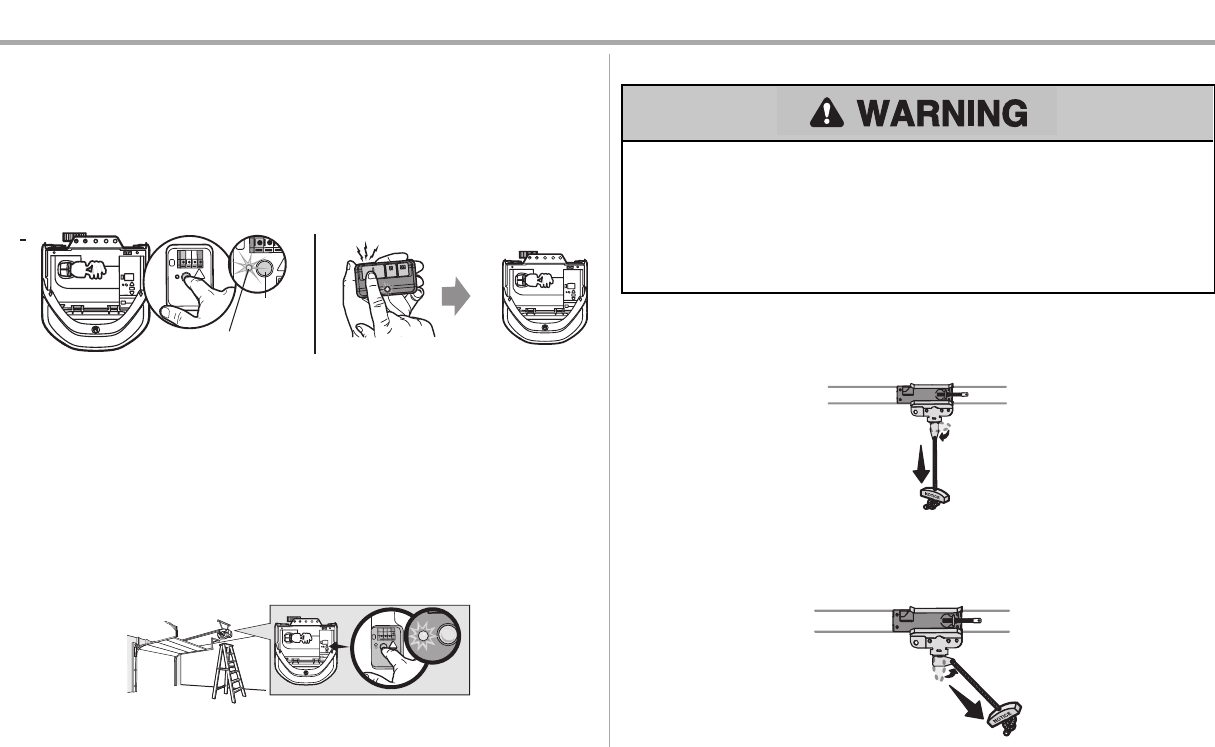

STEP 7 Attach the emergency release rope and handle
To preventpossible SERIOUS INJURY or DEATHfrom a falling garage door:
lIf possible,use emergency release handle to disengage trolley ONLY when garage door is
CLOSED. Weak or broken springsor unbalanced door could result in an open door falling
rapidlyand/or unexpectedly.
lNEVER use emergency release handle unless garage doorway is clear of persons and
obstructions.
lNEVER use handle to pull door open or closed. Ifrope knot becomes untied,you could fall.
1. Insertone end of the emergencyrelease rope through the handle. Make sure that “NOTICE” is
rightside up. Tie a knot atleast 1 inch (2.5 cm) from the end of the emergency release rope.
2. Insertthe other end ofthe emergencyrelease rope through the hole in the trolley release arm.
Mount the emergency release within reach, but at least 6 feet (1.83 m) above floor, avoiding
contact with vehicles to prevent accidental release and secure with a knot.
NOTE: If it is necessary to cut the emergency release rope, seal the cut end with a match or lighter to
prevent unraveling. Ensure the emergency release rope and handle are above the top of all vehicles to
avoid entanglement.
16
Installation

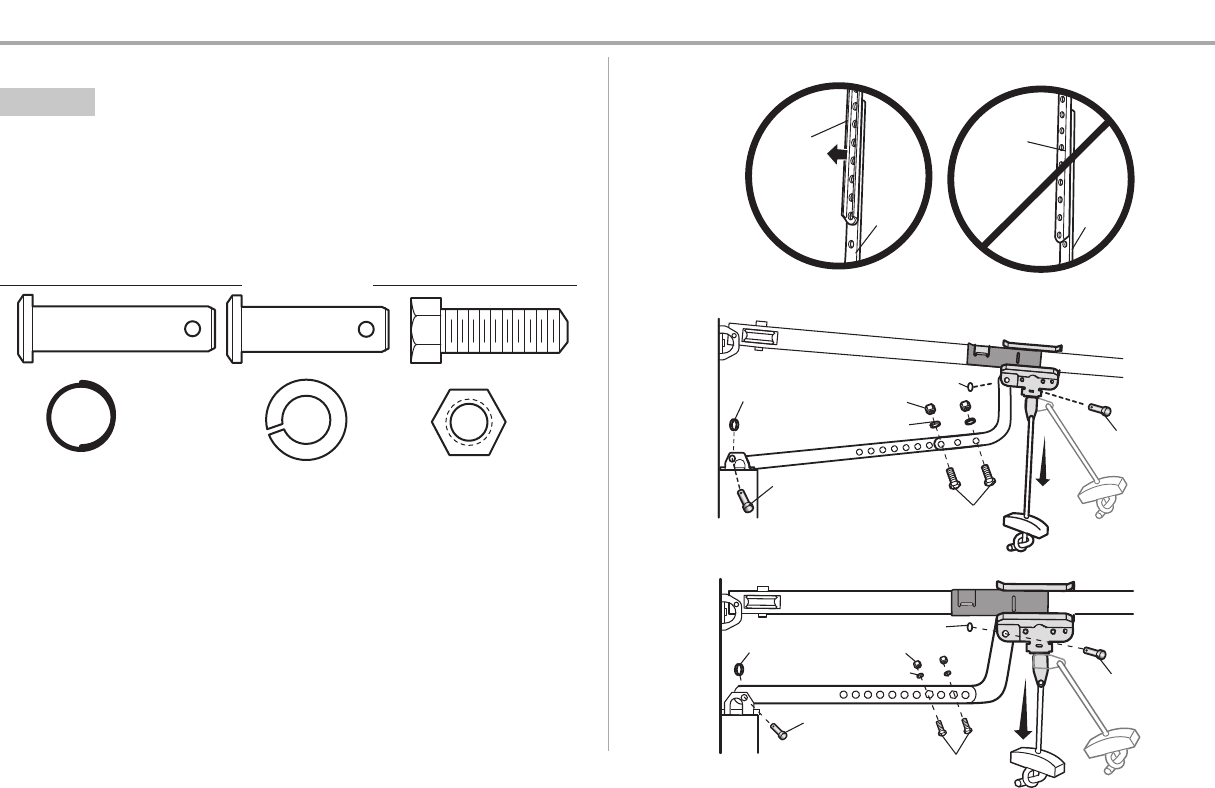

STEP 8 Install the door bracket
Fiberglass, aluminum or lightweight steel garage doors WILL REQUIRE reinforcement BEFORE
installation of door bracket.Contact the garage door manufacturer or installing dealer for opener
reinforcement instructions or reinforcement kit. Failure to reinforce the top section as required
according to the door manufacturer mayvoid the door warranty.
A horizontal and vertical reinforcement is needed for
lightweight garage doors (fiberglass, aluminum, steel,
doors with glass panel, etc.) (not provided). A horizontal
reinforcement brace should be long enough to be
secured to two or three vertical supports.A vertical
reinforcement brace should cover the heightof the top
panel. Contact the garage door manufacturer or installing
dealer for opener reinforcement instructions or
reinforcement kit.
NOTE: Many door reinforcement kits provide for direct attachment of the clevis pin and door arm. In this
case you will not need the door bracket; proceed to the next step.
Self-Threading Screw
1/4"-14x5/8"
HARDWARE
OPTION A SECTIONAL DOORS
1. Center the door bracket on the previouslymarked vertical centerline used for the header bracket
installation. Note correct UP placement, as stamped inside the bracket.
2. Position the top edge of the bracket2"-4" (5-10 cm) below the top edge ofthe door,OR directly
below any structural supportacrossthe top ofthe door.
3. Mark, drill holes and install as follows, depending on your door’s construction:
Metal or light weight doors using a vertical angle iron brace between the door panel support and
the door bracket:
lDrill 3/16" fastening holes. Secure the door bracket using the two self threading screws. (Figure
1)
lAlternately, use two 5/16" bolts, lock washers and nuts (not provided). (Figure 2)
Metal, insulated or light weight factory reinforced doors:
lDrill 3/16" fastening holes. Secure the door bracket using the self-threading screws. (Figure 3)
Wood Doors:
lUse top and bottom or side to side door bracket holes.Drill 5/16" holes through the door and
secure bracket with 5/16"x2" carriage bolts, lock washers and nuts (not provided). (Figure 4)
NOTE: The 1/4"-14x5/8" self-threading screws are not intended for use on wood doors.
FIGURE 1
FIGURE 3 FIGURE 4
FIGURE 2
Vertical
Reinforcement
Vertical Centerline
of Garage Door
UP
Door Bracket
Vertical Reinforcement
Vertical Centerline
of Garage Door
Bolt 5/16"-18x2"
(not provided)
Lock Washer 5/16"
Nut 5/16"-18
Door Bracket
UP
Vertical
Centerline
of Garage
Door
UP
Vertical Centerline of
Garage Door
Bolt 5/16"-18x2"
(not provided)
UP
Inside Edge of Door or
Reinforcement Board
Self-Threading Screw
1/4"-14x5/8"
Self-Threading
Screw
1/4"-14x5/8"
17
Installation
STEP 8 Install the door bracket (continued)
OPTION B ONE-PIECE DOORS
1. Center the door bracket on the top of the door, in line with the header bracket asshown.
2. Mark either the left and right, or the top and bottom holes.
Metal Doors:
lDrill 3/16" pilot holes and fasten the bracket with the self-threading screws provided.
Wood Doors:
lDrill 5/16" holes and use 5/16"x2" carriage bolts, lock washers and nuts (not provided) or
5/16"x1-1/2" lag screws(notprovided) depending on your installation needs.
NOTE: The door bracket may be installed on the top edge of the door if required for your installation.
(Refer to the dotted line optional placement drawing.)
For a door with no exposed
framing, or for the optional
installation, use lag screws
5/16"x1-1/2" (not provided)
to fasten the door bracket.
Vertical
Centerline
of Garage
Door
Optional
Placement
of Door
Bracket
Door Bracket
Header Bracket
Header Wall
2x4 Support (Finished Ceiling)
Door
Bracket
Top of Door
(Inside Garage)
Top Edge of
Door
Optional
Placement
Optional
Placement
Top Edge
of Door
Top of Door
(Inside Garage)
Door
Bracket
Carriage Bolt 5/16"x2"
(not provided)
Nut 5/16"-18
Lock Washer 5/16"
Metal Door Wood Door
Self-Threading
Screw 1/4"-14x5/8"
18
Installation
STEP 9 Connect the door arm to the trolley
Installation will vary according to the garage door type.Follow the instructions which applyto your door.
OPTION A SECTIONAL DOORS
IMPORTANT: The groove on the straight door arm MUST face awayfrom the curved door arm.
1. Close the door.Disconnect the trolley bypulling the emergency release handle.
2. Attach the straight door arm to the outer trolley using the clevispin.Secure with the ring fastener.
3. Attach the curved door arm to the door bracket using the clevispin.Secure with the ring fastener.
4. Bring arm sections together. Find two pairs ofholes thatline up and join sections.Select holes as
far apartas possible to increase door arm rigidity and attach using the bolts, nuts,and lock
washers.
5. Pull the emergency release handle toward the garage door opener until the trolleyrelease arm
is horizontal. The trolley will re-engage automatically when the garage door opener is activated.
NOTE: If the holes in the curved door arm and the straight door arm do not align, reverse the straight
door arm, selecttwo holes (as far apart as possible) and attach using bolts , nuts, and lock washers . If the
straight door arm is hanging down too far, you may cut 6 inches (15 cm) from the solid end.
HARDWARE
Hex Bolt 5/16"-18x7/8"
Nut 5/16"-18
Lock Washer
5/16" -18
Clevis Pin 5/16"x1"
Clevis Pin 5/16"x1-1/4"
Ring Fastener
Straight
Door Arm Curved
Door
Arm
(Groove
facing
out)
CORRECT
Straight
Door
Arm Curved
Door
Arm
INCORRECT
Lock Washer
5/16" -18
Nut
5/16"-18
Hex Bolt 5/16"-18x7/8"
Clevis Pin 5/16"x1-1/4"
Ring Fastener Clevis Pin
5/16"x1"
19
Installation
STEP 9 Connect the door arm to the trolley (continued)
OPTION B ONE-PIECE DOORS
IMPORTANT: The groove on the straight door arm MUST face awayfrom the curved door arm.
1. Close the door.Disconnect the trolley bypulling the emergency release handle.
2. Fasten the straightdoor arm and the curved door arm together to the longestpossible length
(with a 2 or 3 hole overlap) using the bolts, nuts, and lockwashers.
3. Attach the straight door arm to the door bracket using the clevispin.Secure with the ring fastener.
4. Attach the curved door arm to the trolley using the clevispin.Secure with the ring fastener.
5. Pull the emergency release handle toward the garage door opener until the trolleyrelease arm
is horizontal.
HARDWARE
Hex Bolt 5/16"-18x7/8"
Nut 5/16"-18
Lock Washer
5/16" -18
Clevis Pin 5/16"x1"
Clevis Pin 5/16"x1-1/4"
Ring Fastener
One-Piece Door without Track
One-Piece Door with Track
Straight
Door Arm
Curved
Door
Arm
(Groove
facing out)
CORRECT INCORRECT
Straight
Door
Arm
Curved
Door
Arm
Ring
Fastener Ring Fastener
Nut 5/16"-18
Nut 5/16"-18
Ring
Fastener
Ring Fastener
Lock Washer 5/16" -18
Lock Washer 5/16" -18
Clevis Pin 5/16"x1-1/4"
Clevis Pin
5/16"x1-1/4"
Hex Bolt 5/16"-18x7/8"
Hex Bolt 5/16"-18x7/8"
Clevis Pin
5/16"x1"
Clevis Pin
5/16"x1"
20
Installation
STEP 10 Install the door control
To preventpossible SERIOUS INJURY or DEATHfrom electrocution:
lBe sure power is NOT connected BEFORE installing door control.
lConnectONLY to 12 VOLT low voltage wires.
To preventpossible SERIOUS INJURY or DEATHfrom a closing garage door:
lInstall door control within sight of garage door, out of reach of children at a minimum height of 5
feet (1.5 m), and away from ALL moving parts of door.
lNEVER permitchildren to operate or play with door control push buttons or remote control
transmitters.
lActivate door ONLY when it can be seen clearly,is properly adjusted,and there are no
obstructions to door travel.
lALWAYS keep garage door in sight until completely closed. NEVER permit anyone to cross path
of closing garage door.
INTRODUCTION
Compatible with MyQ®enabled accessories, see page 39. Your garage door opener is compatible with
up to 2 MyQ®door controls. NOTE: Older Chamberlain door controls and third party products are not
compatible.
Install the door control within sight ofthe door ata minimum heightof 5 feet(1.5 m) where small children
cannot reach, and away from the moving parts of the door. For gang box installations it is not necessary
to drill holes or install the drywall anchors.Use the existing holes in the gang box.
NOTE: Your product may look different than the illustrations.
HARDWARE
Screw
6ABx1" (2)
Drywall
Anchors (2)
Screw
6-32x1" (2)
1. Strip 7/16 inch (11 mm) of insulation from one end of the wire and separate the wires.
2. Connectone wire to each ofthe two screws on the back ofthe door control.The wires can be
connected to either screw.If your garage is pre-wired for the door control choose any two wires to
connect,note which wires are used so the correctwires are connected to the garage door
opener in a later step.
3. Mark the location of the bottom mounting hole and drill a 5/32 inch (4 mm) hole.
4. Install the bottom screw, allowing 1/8 inch (3 mm) to protrude from the wall.
5. Position the bottom hole of the door control over the screw and slide down into place.
6. Liftthe push bar up and mark the top hole.
7. Remove the door control from the wall and drill a 5/32 inch (4 mm) hole for the top screw.
8. Position the bottom hole of the door control over the screw and slide down into place. Attach the
top screw.
7/16" (11 mm) Wall
1 2 3
DRYWALL GANG BOX
6ABx1"
6-32x1"
Drywall Anchor
4-5 6
6-32x1"
GANG BOX
8 DRYWALL
6ABx1"
Drywall Anchor
7
21
Installation
STEP 11 Wire the door control to the garage door opener
HARDWARE
Insulated Staple
(Not Shown)
1. Run the white and red/white wire from the door control to the garage door opener. Attach the
wire to the wall and ceiling with the staple (not applicable for gang box or pre-wired installations).
Do notpierce the wire with the staple as this may cause a short or an open circuit.
2. Strip 7/16 inch (11 mm) of insulation from the end of the wire near the garage door opener.
3. Connectthe wire to the red and white terminals on the garage door opener. Ifyour garage is pre-
wired make sure you use the same wires that are connected to the door control. To insertor
release wiresfrom the terminal, push in the tab with screwdriver tip.
RED
WHITE
WHITE
GREY
7/16" (11 mm)
2
3
1
Staple
STEP 12 Attach the warning labels
1. Attach the entrapment warning label on the wall near the door control with tacks or staples.
2. Attach the manual release/safetyreverse test label in a visible location on the inside of the
garage door.
22
Installation
STEP 13 Install the Protector System®
Be sure power is NOT connected to the garage door opener BEFORE installing the safety reversing
sensor.
To preventSERIOUS INJURY or DEATHfrom closing garage door:
lCorrectly connect and align the safety reversing sensor. This required safety device MUST NOT
be disabled.
lInstall the safetyreversing sensor so beam is NO HIGHER than 6" (15 cm) above garage floor.
IMPORTANT INFORMATION ABOUT THE SAFETY REVERSING SENSORS
The safety reversing sensors must be connected and aligned correctly before the garage door
opener will move in the down direction.
The sending sensor (with an amber LED) transmitsan invisible light beam to the receiving sensor (with a
green LED). Ifan obstruction breaksthe lightbeam while the door isclosing, the door will stop and
reverse to the full open position, and the garage door opener lightswill flash 10 times.
NOTE: For energy efficiency the garage door opener will enter sleep mode when the door is fully
closed. The sleep mode shuts the garage door opener down until activated. The sleep mode is
sequenced with the garage door opener light bulb; as the light bulb turns off the sensor LEDs will turn off
and whenever the garage door opener lights turn on the sensor LEDs will light.The garage door opener
will not go into the sleep mode until the garage door opener has completed 5 cycles upon power up.
When installing the safety reversing sensors check the following:
lSensors are installed inside the garage, one on either side of the door.
lSensors are facing each other with the lenses aligned and the receiving sensor lens does not
receive direct sunlight.
lSensors are no more than 6 inches (15 cm) above the floor and the lightbeam isunobstructed.
Safety Reversing Sensor
6" (15 cm) max. above floor
Invisible Light Beam
Protection Area
Facing the door from inside the garage
HARDWARE
Carriage Bolt
1/4"-20x1/2" Wing Nut
1/4"-20

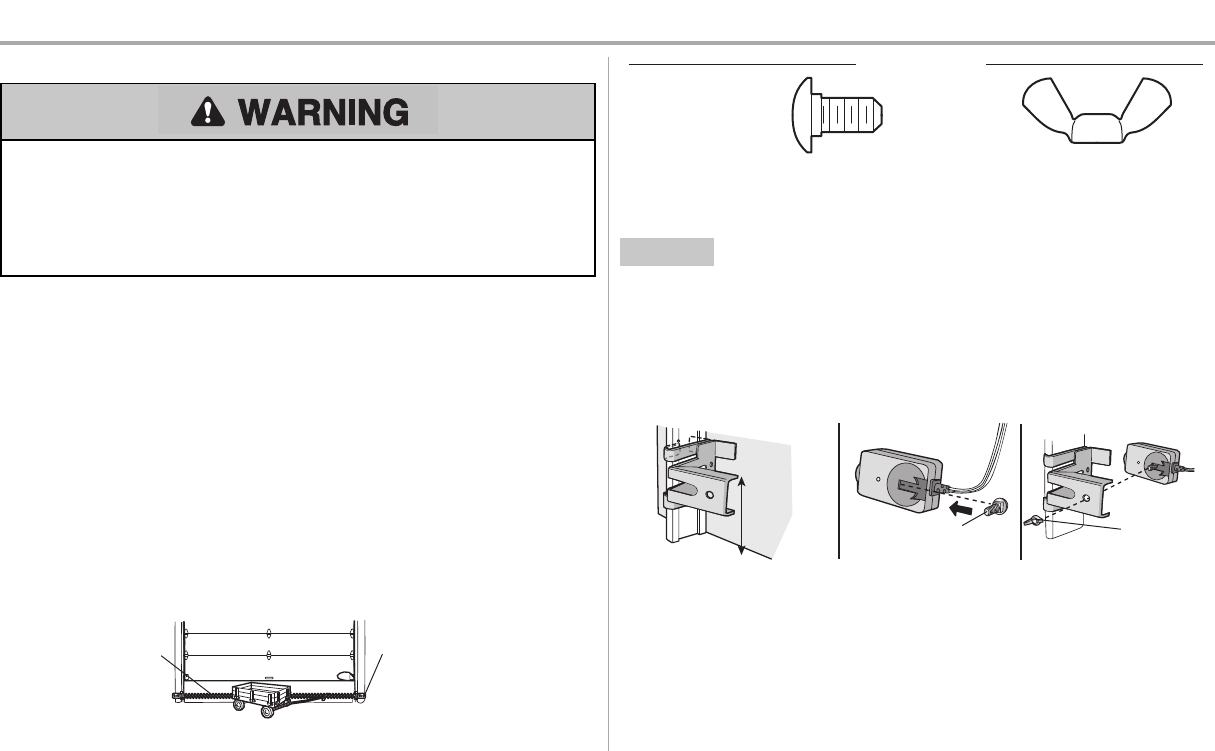

The safetyreversing sensors can be attached to the door track,the wall, or the floor. The sensors should
be no more than 6 inches (15 cm) above the floor. If the door track will not support the sensor bracket a
wall installation is recommended.Choose one of the following installations.
OPTION A DOOR TRACK INSTALLATION
1. Slide the curved armsof the sensor bracket around the edge of the door track.Snap into place
so that the sensor bracket isflush againstthe track.
2. Slide the carriage bolt into the slot on each sensor.
3. Insertthe bolt through the hole in the sensor bracketand attach with the wing nut.The lenses on
both sensors should point toward each other. Make sure the lens is not obstructed by the sensor
bracket.
No more
than 6 inches
(15 cm) Carriage Bolt
1/4"-20x1/2"
Wing Nut
1/4"-20
123
23
Installation
STEP 13 Install the Protector System®(continued)
OPTION B WALL INSTALLATION
If additional clearance isneeded an extension bracket (not provided) or wood blocks can be used. Make
sure each brackethasthe same amount ofclearance so theywill align correctly.
1. Position the sensor bracket against the wall with the curved armsfacing the door. Make sure
there is enough clearance for the beam to be unobstructed.Mark holes.

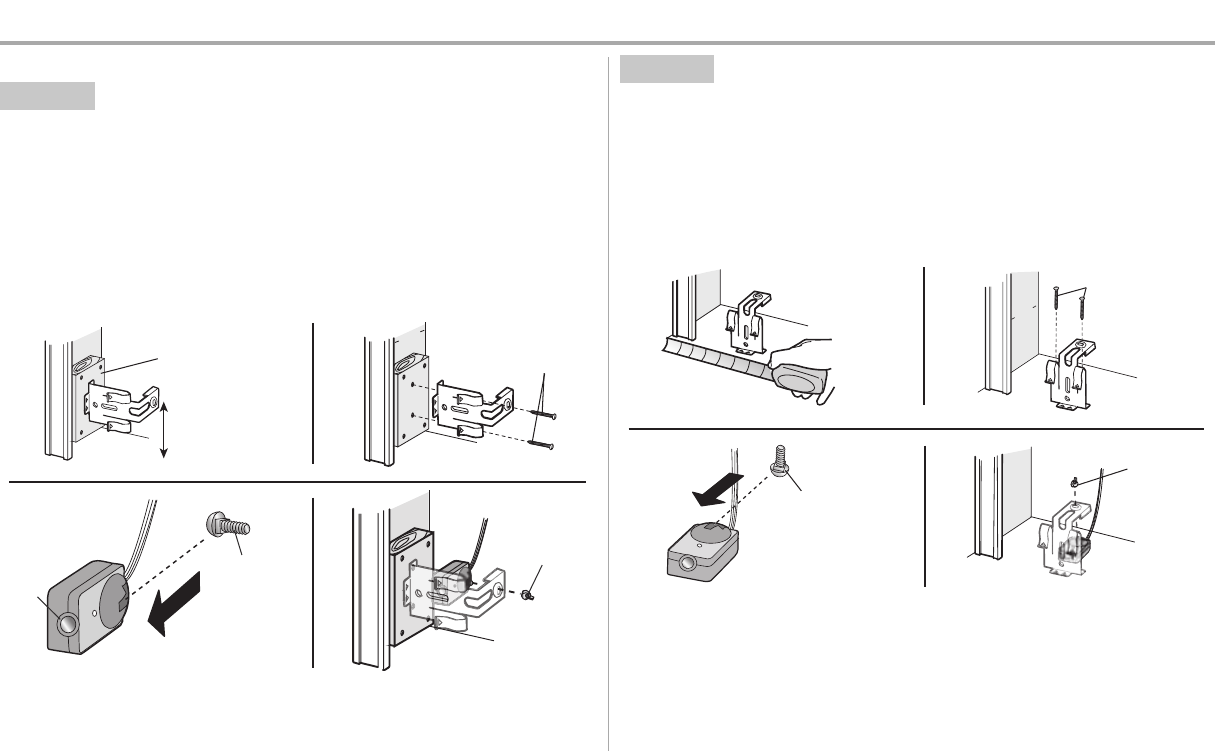

2. Drill 3/16 inch pilot holes for each sensor bracket and attach the sensor bracketsto the wall using
lag screws (not provided).
3. Slide the carriage bolt into the slot on each sensor.
4. Insertthe bolt through the hole in the sensor bracketand attach with the wing nut.The lenses on
both sensors should point toward each other. Make sure the lens is not obstructed by the sensor
bracket.
(Not provided)
No more than
6 inches (15 cm)
12
Inside
Garage
Wall
(Not provided)
Lens
Carriage Bolt
1/4"-20x1/2"
Wing Nut
1/4"-20
34
OPTION C FLOOR INSTALLATION
Use an extension bracket(not provided) or wood block to raise the sensor bracketif needed.
1. Carefully measure the position ofboth sensor bracketsso they will be the same distance from the
wall and unobstructed.
2. Attach the sensor bracketsto the floor using concrete anchors (not provided).
3. Slide the carriage bolt into the slot on each sensor.
4. Insertthe bolt through the hole in the sensor bracketand attach with the wing nut.The lenses on
both sensors should point toward each other. Make sure the lens is not obstructed by the sensor
bracket.
Inside
Garage
Wall
(Not provided)
1 2
Carriage Bolt
1/4"-20x1/2"
Wing Nut
1/4"-20
34
24
Installation
STEP 14 Wire the Safety Reversing Sensors
If your garage already has wires installed for the safety reversing sensors, proceed to page 25.
HARDWARE
Insulated Staple
(Not Shown)

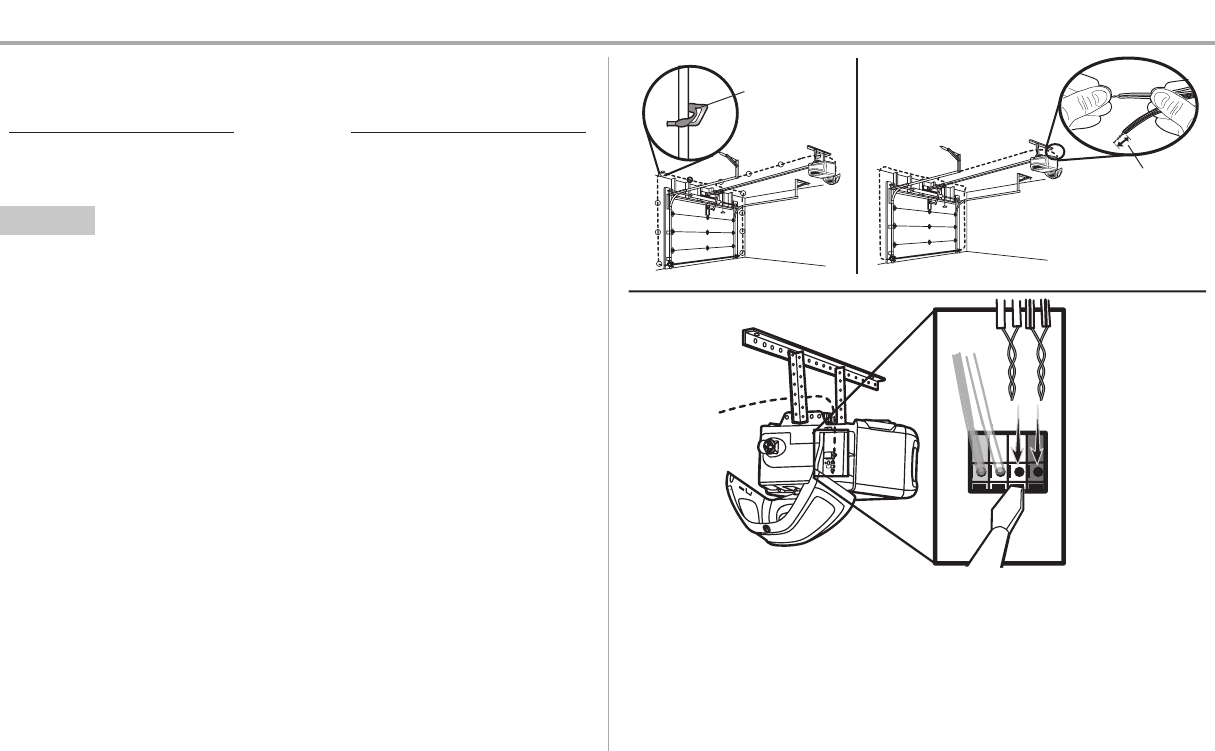

OPTION A INSTALLATION WITHOUT PRE-WIRING
1. Run the wire from both sensors to the garage door opener.Attach the wire to the wall and ceiling
with the staples.
2. Strip 7/16 inch (11 mm) of insulation from each set of wires.Separate the wires.Twistthe white
wires together. Twist the white/black wires together.
3. Insertthe white wires into the white terminal on the garage door opener. Insert the white/black
wires into the grey terminal on the garage door opener. To insertor remove the wires from the
terminal, push in the tab with a screwdriver tip.
Staple
7/16" (11 mm)
WHITE
WHITE
GREY
RED
12
3
25
Installation
STEP 14 Wire the Safety Reversing Sensors (continued)
OPTION B PRE-WIRED INSTALLATION
1. Cutthe end ofthe safetyreversing sensor wire, making sure there is enough wire to reach the
pre-installed wires from the wall.
2. Separate the safety reversing sensor wires and strip 7/16 inch (11 mm) of insulation from each
end.Choose two ofthe pre-installed wires and strip 7/16 inch (11 mm) of insulation from each
end.Make sure that you choose the same color pre-installed wires for each sensor.
3. Connectthe pre-installed wires to the sensor wires with wire nutsmaking sure the colors
correspond for each sensor. For example, the white wire would connect to the yellow wire and
the white/black wire would connect to the purple wire.
4. At the garage door opener,strip 7/16 inch (11 mm) of insulation from each end of the wires
previously chosen for the safety reversing sensors. Twist the like-colored wires together.
5. Insertthe wires connected to the white safety sensor wires to the white terminal on the garage
door opener. Insert the wires that are connected to the white/black safety sensor wires to the grey
terminal on the garage door opener.
Safety reversing
sensor wires
Pre-installed
wires
White
White/Black
Yellow (for example)
Purple (for example)
Not Provided
Pre-installed wires
Safety reversing
sensor wires
7/16" (11 mm)
Yellow
Purple
1
3
4
7/16"
(11 mm)
2
WHITE
WHITE
RED
GREY
Purple
(for
example)
Yellow
(for example)
To insert or remove the wires from
the terminal, push in the tab with a
screwdriver tip.
5
26
Installation
STEP 15 Connect power
To prevent possible SERIOUS INJURY or DEATH from electrocution or fire:
lBe sure power is NOT connected to the opener, and disconnectpower to circuitBEFORE
removing cover to establish permanentwiring connection.
lGarage door installation and wiring MUST be in compliance with ALL local electrical and
building codes.
lNEVER use an extension cord, 2-wire adapter,or change plug in ANY way to make it fit outlet. Be
sure the opener is grounded.
To avoid installation difficulties, do not run the opener at this time.
To reduce the riskof electric shock, your garage door opener has a grounding type plug with a third
grounding pin. This plug will only fit into a grounding type outlet. If the plug doesn’t fitinto the outlet you
have, contact a qualified electrician to install the proper outlet.
THERE ARE TWO OPTIONS FOR CONNECTING POWER:
OPTION A TYPICAL WIRING

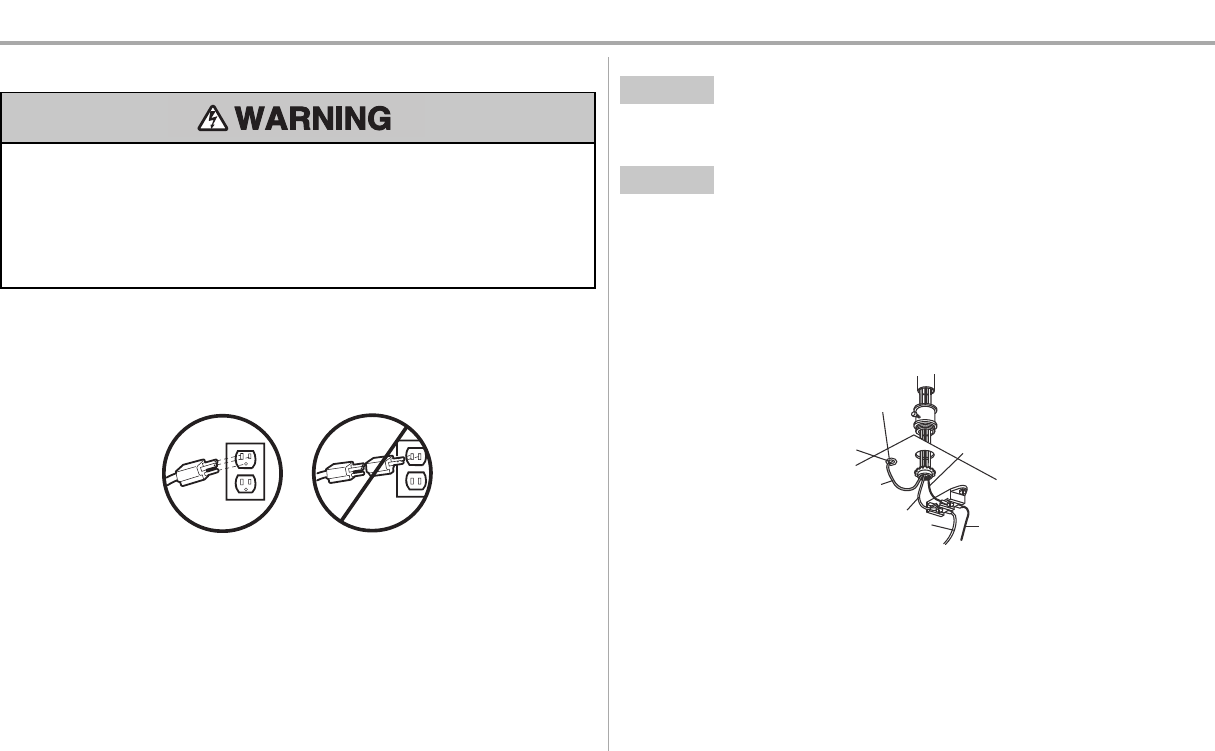

1. Plug in the garage door opener into a grounded outlet.
2. DO NOTrun garage door opener at this time.
OPTION B PERMANENT WIRING
If permanent wiring is required by your local code, refer to the following procedure. To make a
permanent connection through the 7/8 inch hole in the top of the motor unit (according to local
code):
1. Remove the motor unit cover screwsand set the cover aside.
2. Remove the attached 3-prong cord.
3. Connectthe black (line) wire to the screw on the brassterminal; the white (neutral) wire to the
screw on the silver terminal;and the ground wire to the green ground screw.The opener must
be grounded.
4. Reinstall the cover.
Ground Tab
Green
Ground
Screw
Ground
Wire
White Wire
Black
Wire
Black
Wire
27
Installation
STEP 16 Aligning the safety reversing sensors
The door will not close if the sensors have not been installed and aligned correctly.
When the light beam isobstructed or misaligned while the door is closing, the door will reverse and the
garage door opener lights will flash ten times. If the door is already open, it will not close.

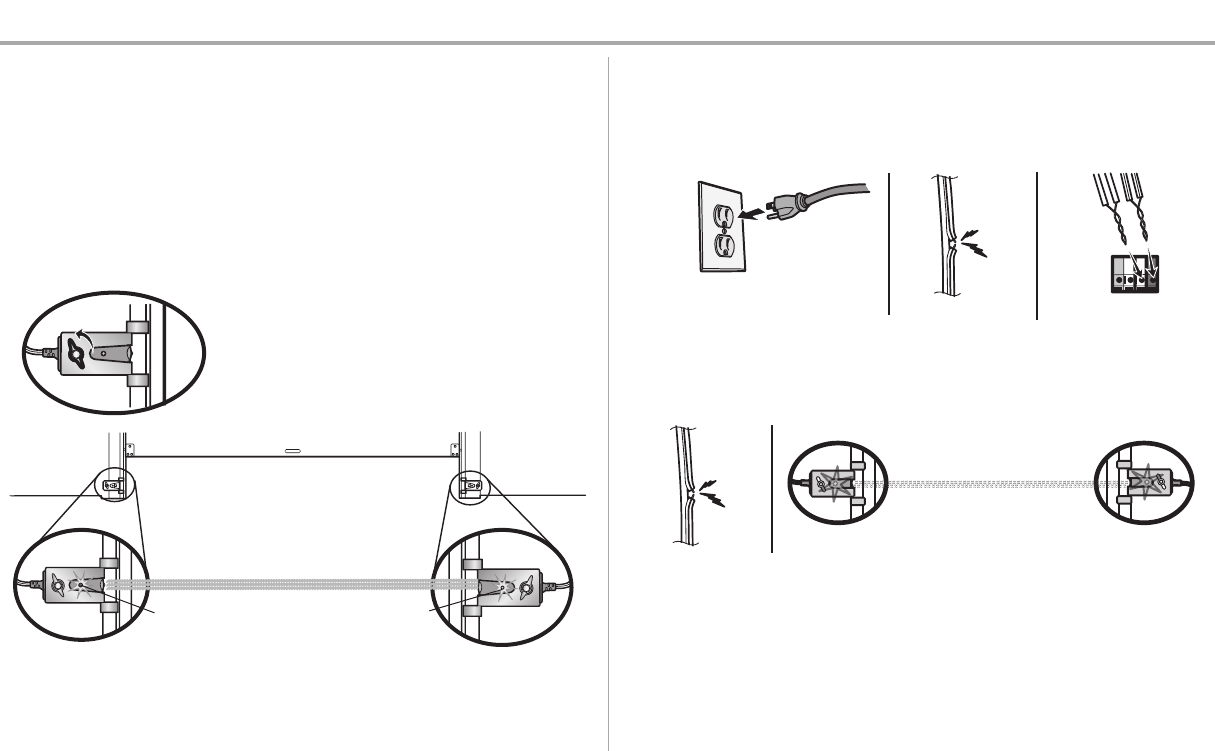

1. Check to make sure the LEDs in both sensors are glowing steadily. The LEDsin both sensors will
glowsteadily ifthey are aligned and wired correctly.
The sensorscan be aligned byloosening the wing nuts, aligning the sensors,and tightening the wing
nuts.
Green LED
Amber LED
If the receiving sensor is in direct sunlight,
switch it with sending sensor so it is on the
opposite side of the door.
(invisible light beam)
SENDING SENSOR RECEIVING SENSOR
IF THE AMBER LED ON THE SENDING SENSOR IS NOT GLOWING:
1. Make sure there is power to the garage door opener.
2. Make sure the sensor wire is not shorted/broken.
3. Make sure the sensor hasbeen wired correctly:white wires to white terminal and white/black
wires to grey terminal.
RED
WHITE
WHITE
GREY
3
2
1
IF THE GREEN LED ON THE RECEIVING SENSOR IS NOT GLOWING:
1. Make sure the sensor wire is not shorted/broken.
2. Make sure the sensors are aligned.
12

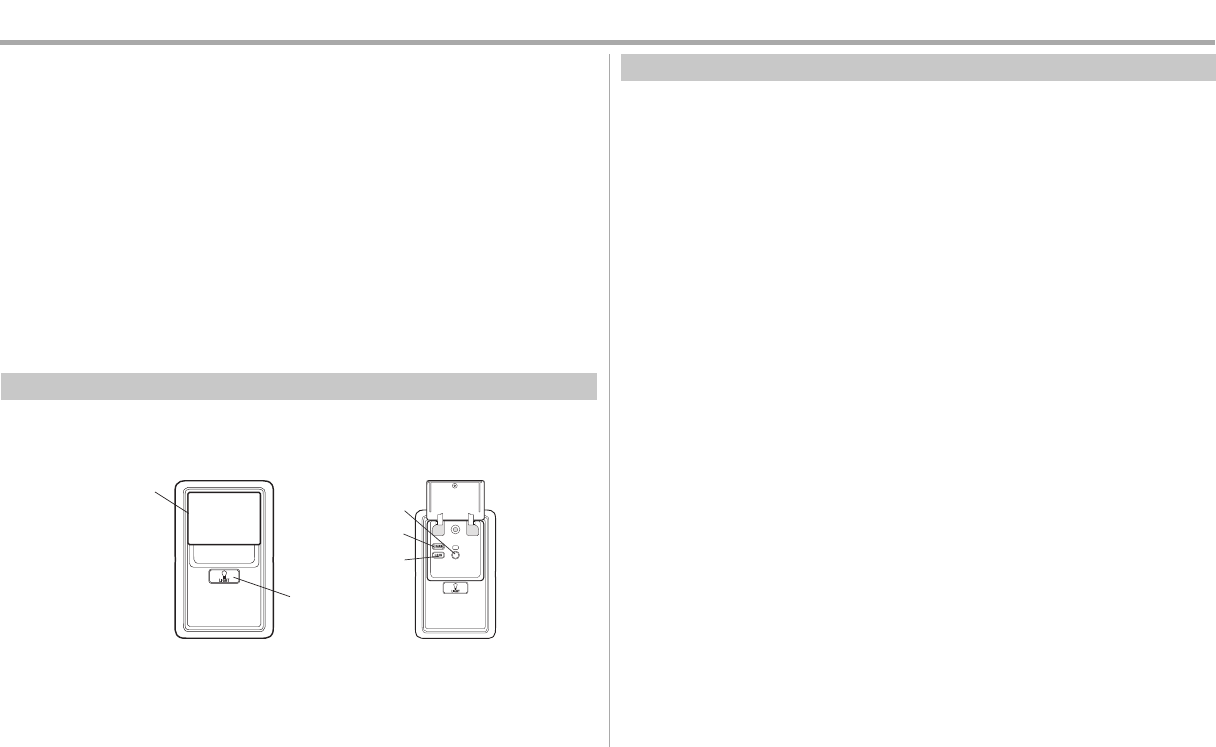

STEP 17 Ensure the door control is wired correctly

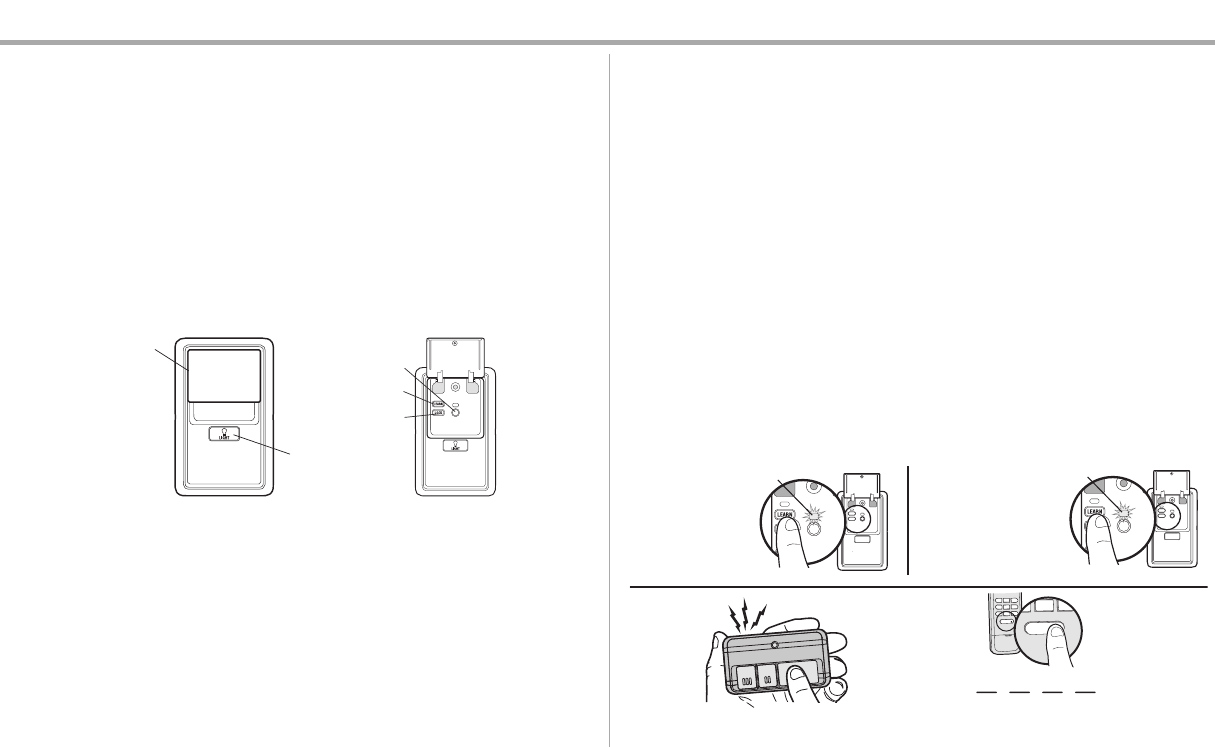

If the door control hasbeen installed and wired correctly,the command LED on the Multi-Function
Control Panel will blink.
28
Adjustments
Introduction
Without a properly installed safety reversal system, persons (particularly small children) could be
SERIOUSLY INJURED or KILLED by a closing garage door.
lIncorrectadjustment ofgarage door travel limits will interfere with proper operation of safety
reversal system.
lAfter ANY adjustments are made, the safetyreversal systemMUST be tested.Door MUST reverse
on contact with 1-1/2" (3.8 cm) high object (or 2x4 laid flat) on floor.
To preventdamage to vehicles, be sure fully open door provides adequate clearance.
Your garage door opener is designed with electronic controls to make setup and adjustments easy. The
adjustments allow you to program where the door will stop in the open (UP) and close (DOWN) position.
The electronic controls sense the amountof force required to open and close the door.The force is
adjusted automatically when you program the travel.
NOTE: If anything interferes with the door’s upward travel it will stop. If anything interferes with the door’s
downward travel, it will reverse.
UP (Open) DOWN (Close)
One-Piece Doors Only
When setting the UP travel for a one-piece door ensure that the door does not slant backwardswhen
fully open (UP). If the door is slanted backwards this will cause unnecessary bucking and/or jerking when
the door is opening or closing.
CORRECT
INCORRECT
Programming Buttons
The programming buttons are located on the leftside panel of the garage door opener and are used to
program the travel.
UP Button
Adjustment Button
DOWN Button
PROGRAMMING BUTTONS
To watch a shortinstructional video on how to program the travel on your
new garage door opener use your smartphone to read the QRCode:
29
Adjustments
STEP 1 Program the Travel
Without a properly installed safety reversal system, persons (particularly small children) could be
SERIOUSLY INJURED or KILLED by a closing garage door.
lIncorrectadjustment ofgarage door travel limits will interfere with proper operation of safety
reversal system.
lAfter ANY adjustments are made, the safetyreversal systemMUST be tested.Door MUST reverse
on contact with 1-1/2" (3.8 cm) high object (or 2x4 laid flat) on floor.

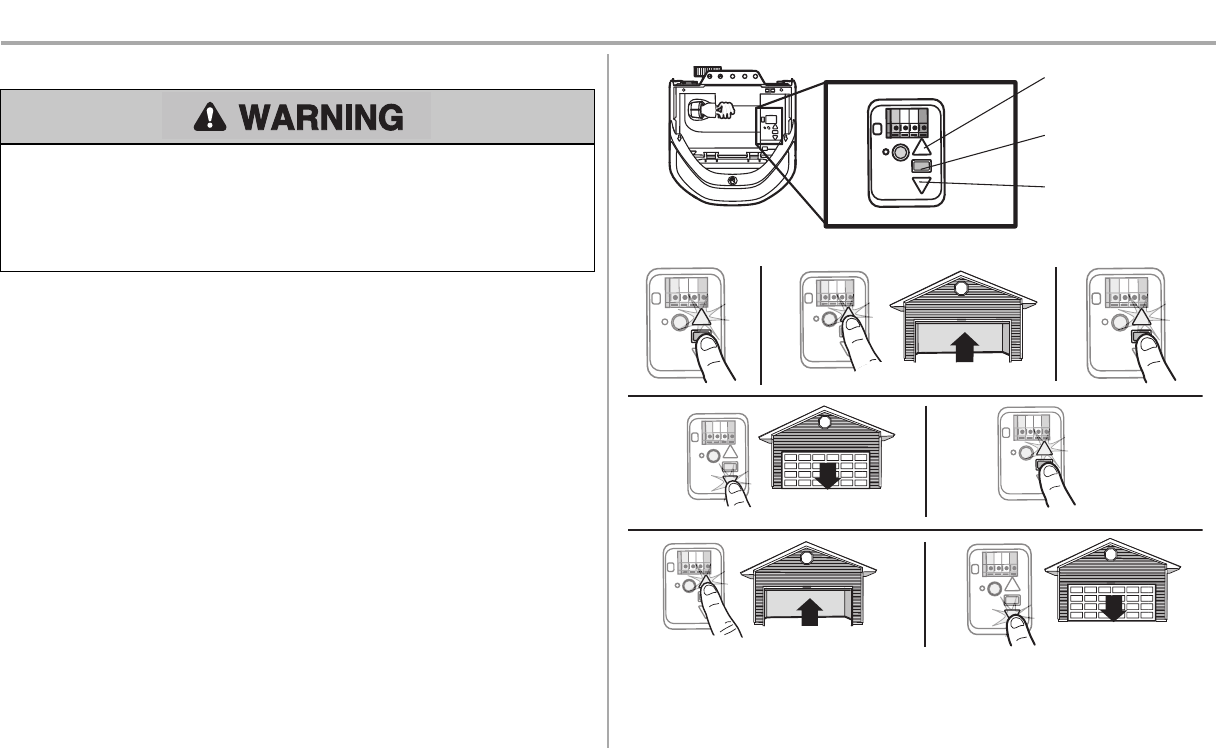

1. Press and hold the Adjustment Button until the UP Button begins to flash and/or a beep isheard.
2. Press and hold the UP Button until the door is in the desired UP position.NOTE: The UP and
DOWN Buttons can be used to move the door up and down as needed.
3. Once the door is in the desired UP position pressand release the Adjustment Button. The
garage door opener lights will flash twice and the DOWNButton will begin to flash.IMPORTANT
NOTE: For one-piece door installations refer to page 28.
4. Press and hold the DOWN Button until the door is in the desired DOWNposition.NOTE: The UP
and DOWN Buttons can be used to move the door up and down as needed.
5. Once the door is in the desired DOWNposition press and release the Adjustment Button. The
garage door opener lights will flash twice and the UP Button will begin to flash.
6. Press and release the UP Button. When the door travels to the programmed UP position, the
DOWN Button will begin to flash.
7. Press and release the DOWNButton.The door will travel to the programmed DOWNposition.
Programming is complete.
* Ifthe garage door opener lights are flashing 5 timesduring the steps for Program the Travel, the
programming has timed out.If the garage door opener lightsare flashing 10 timesduring the steps for
Program the Travel,the safety reversing sensors are misaligned or obstructed (refer to page 27). When
the sensors are aligned and unobstructed, cycle the door through a complete up and down cycle using
the remote control or the UP and DOWN buttons. Programming is complete.Ifyou are unable to operate
the door up and down,repeat the steps for Programming the Travel.
UP Button
Adjustment Button
DOWN Button
PROGRAMMING BUTTONS
1 2 3
4 5
6 7
30
Adjustments
STEP 2 Test the Safety Reversal System
Without a properly installed safety reversal system, persons (particularly small children) could be
SERIOUSLY INJURED or KILLED by a closing garage door.
lSafety reversal system MUST be tested every month.
lAfter ANY adjustments are made, the safetyreversal systemMUST be tested.Door MUST reverse
on contact with 1-1/2" (3.8 cm) high object (or 2x4 laid flat) on the floor.
1. With the door fully open, place a 1-1/2 inch (3.8 cm) board (or a 2x4 laid flat) on the floor,
centered under the garage door.
2. Operate the door in the down direction.The door MUST reverse on striking the obstruction.
If the door stops and does not reverse on the obstruction,the down travel needs to be increased (refer to
Adjustment Step 1). Repeat the test. When the door reverses on the 1-1/2" (3.8 cm) board (or 2x4 laid
flat), remove the obstruction and run the opener through 3 or 4 complete travel cycles to test adjustment.
If the garage door opener continues to fail the safety reversal test, call a trained door systems technician.
1 2

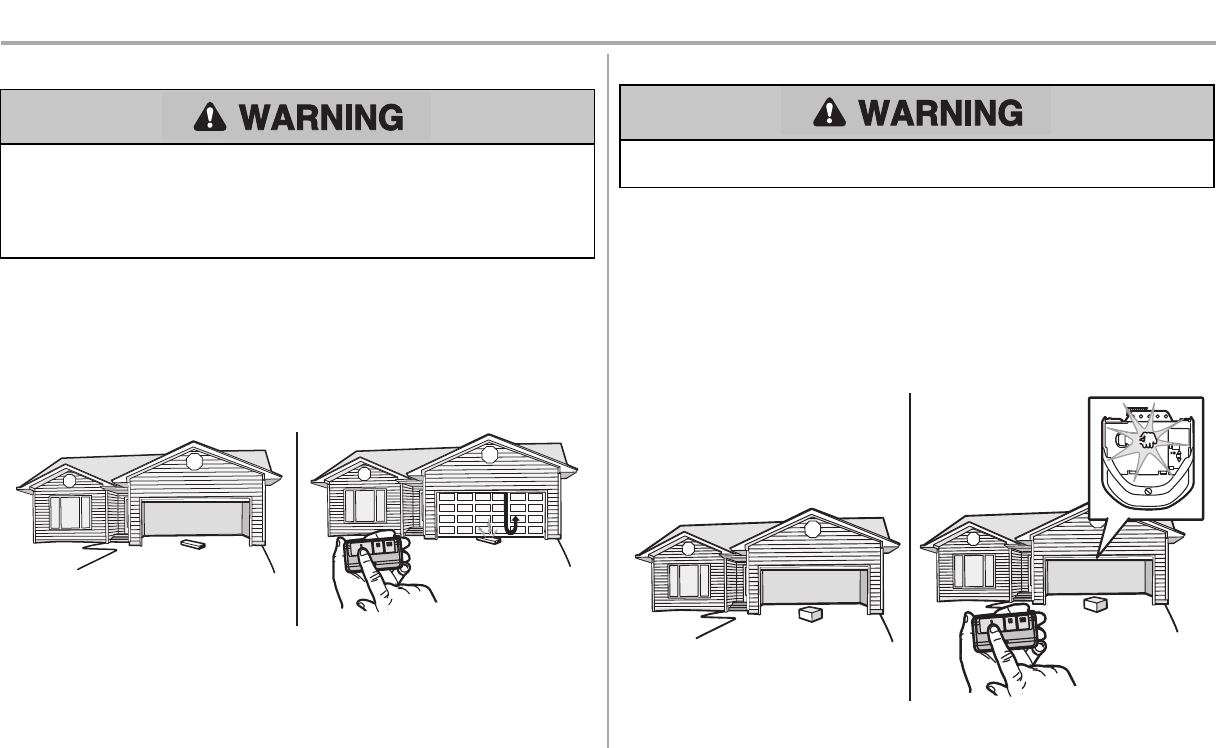

STEP 3 Test the Protector System®
Without a properly installed safety reversing sensor, persons (particularly small children) could be
SERIOUSLY INJURED or KILLED by a closing garage door.
1. Press the remote control push button to open the door.
2. Place the opener carton in the path ofthe door.
3. Press the remote control push button to close the door. The door will not move more than an inch
(2.5cm), and the opener lights will flash.
The garage door opener will not close from a remote control if the LED in either safety reversing sensor
is off (alerting you to the factthat the sensor is misaligned or obstructed). If the garage door opener
closes the door when the safetyreversing sensor is obstructed (and the sensors are no more than
6inches [15cm] above the floor), call for a trained door systems technician.
12
31
IMPORTANT SAFETY INSTRUCTIONS
To reduce the risk of SEVERE INJURY or DEATH:
1. READ AND FOLLOW ALL WARNINGS AND INSTRUCTIONS.
2. ALWAYS keep remote controls out of reach of children. NEVER permit children to operate
or play with garage door control push buttons or remote controls.
3. ONLY activate garage door when it can be seen clearly,it isproperlyadjusted, and there
are no obstructions to door travel.
4. ALWAYS keep garage door in sightand away from people and objects until completely
closed. NO ONE SHOULDCROSS THE PATH OF THE MOVING DOOR.
5. NO ONE SHOULD GO UNDER A STOPPED, PARTIALLY OPENED DOOR.
6. If possible,use emergency release handle to disengage trolley ONLY when garage door is
CLOSED. Use caution when using this release with the door open. Weak or broken
springs or unbalanced door could resultin an open door falling rapidlyand/or unexpectedly
and increasing the risk ofSEVERE INJURY or DEATH.
7. NEVER use emergency release handle unless garage doorway is clear of persons and
obstructions.
8. NEVER use handle to pull garage door open or closed. Ifrope knotbecomesuntied, you
could fall.
9. After ANY adjustments are made, the safety reversal system MUSTbe tested.
10. Safety reversal system MUST be tested every month.Garage door MUSTreverse on contact with
1-1/2" (3.8 cm) high object(or a 2x4 laid flat) on the floor. Failure to adjust the garage door
opener properly increases the risk of SEVERE INJURY or DEATH.
11. ALWAYS KEEP GARAGE DOORPROPERLY BALANCED(see page 1). An improperly
balanced door may NOTreverse when required and could resultin SEVERE INJURY or
DEATH.
12. ALL repairs to cables,spring assemblies and other hardware, ALL of which are under
EXTREME tension, MUST be made by a trained door systems technician.
13. ALWAYS disconnectelectric power to garage door opener BEFORE making ANY repairs or
removing covers.
14. This operator system isequipped with an unattended operation feature. The door could move
unexpectedly.NO ONE SHOULD CROSS THE PATH OF THE MOVING DOOR.
15. DO NOT enable the Timer-to-Close functionality ifoperating either one-piece or swinging
garage doors.To be enabled ONLY when operating a sectional door.
16. SAVE THESE INSTRUCTIONS.
Operation
32
Operation
Features
Your garage door opener is equipped with features to provide you with greater control over your garage
door operation.
MyQ®
MyQ®technology usesa 900MHz signal to provide two-way communication between the garage door
opener and MyQ®enabled accessories.Your garage door opener is compatible with up to 8 MyQ®
accessories.For Smartphone App control of your garage door opener and other MyQ®accessories,
Chamberlain's MyQ®Internet Gateway (model CIGBU) is required.
TIMER-TO-CLOSE (TTC)
The Timer-to-Close feature automaticallyclosesthe door after a specified time period that can be
adjusted using the door control.DO NOT enable TTC if operating a one-piece door. TTC is to be used
ONLY with sectional doors. Factory default issetto off.The garage door opener will beep and the lights
will flash before closing the door.The TTC feature will deactivate ifthe garage door encounters an
obstruction twice; or the safety reversing sensors are incorrectly installed.The garage door will reverse
open and WILL NOT close until the obstructionsare clear or the safety reversing sensors are correctly
installed.When the obstruction has been cleared or the safetyreversing sensors have been aligned, the
door will close when the garage door opener is activated.TTC WILL NOT work ifthe garage door opener
is operating by battery power or if the safety reversing sensors are misaligned. This feature is NOT
intended to be the primary method of closing the door. A keyless entry should be installed in the event
of an accidental lock out when using this feature.
REMOTE CONTROLS AND DOOR CONTROLS (MyQ®)
Your garage door opener hasalreadybeen programmed atthe factoryto operate with your remote
control,which changes with each use,randomly accessing over 100 billion new codes.Compatible with
MyQ®enabled accessories, see page 39.
NOTE: Older Chamberlain remote controls, door controls, and third party products are not compatible.
MyQ®Accessories MEMORY CAPACITY
Remote Controls Up to 8
Door Controls Up to 2 MyQ®door controls
KeylessEntries Up to 1
THE PROTECTOR SYSTEM®(SAFETY REVERSING SENSORS)
When properly connected and aligned, the safetyreversing sensors will detect an obstruction in the path
of the infrared beam.If an obstruction breaks the infrared beam while the door is closing, the door will
stop and reverse to full open position,and the opener lights will flash 10 times.Ifthe door is fully open,
and the safety reversing sensors are not installed,or are misaligned, the door will not close from a
remote control.However,you can close the door if you hold the button on the door control or keyless entry
until the door is fully closed. The safety reversing sensors do not effect the opening cycle.
ENERGY CONSERVATION
For energy efficiency the garage door opener will enter sleep mode when the door isfully closed.The
sleep mode shuts the garage door opener down until activated. The sleep mode is sequenced with the
garage door opener light bulb; as the light bulb turns off the sensor LEDs will turn offand whenever the
garage door opener lights turn on the sensor LEDswill light.The garage door opener will not go into the
sleep mode until the garage door opener has completed 5 cyclesupon power up.
LIGHTS
The garage door opener light bulbs will turn on when the opener is initially plugged in; power is restored
after interruption, or when the garage door opener is activated. The lightswill turn offautomatically after
4-1/2 minutes. An incandescent A19 light bulb (100 watt maximum) or for maximum energy efficiency a
26W (100W equivalent) compact fluorescent light (CFL) bulb may be used.NOTE: Do not use halogen,
short neck, or specialty light bulbs as these may overheat the end panel or light socket.Do not use LED
bulbs as they may reduce the range or performance of your remote controls.
Light Feature
The garage door opener is equipped with an added feature; the lightswill turn on when someone enters
through the open garage door and the safety reversing sensor infrared beam is broken.For added
control over the lightbulbson your garage door opener,see page 33.
33
Operation
Using your Garage Door Opener
The garage door opener can be activated through a wall-mounted door control,remote control, wireless
keyless entry or MyQ®accessory.
When the door isclosed and the garage door opener is activated the door will open. If the door senses
an obstruction or is interrupted while opening the door will stop.When the door is in any position other
than closed and the garage door opener is activated the door will close.If the garage door opener
sensesan obstruction while closing, the door will reverse.Ifthe obstruction interrupts the sensor beam
the garage door opener lights will blink 10 times.However,you can close the door if you hold the button
on the door control or keyless entry until the door is fully closed. The safety reversing sensors do not
affect the opening cycle.
The safety reversing sensor must be connected and aligned correctly before the garage door opener will
move in the down direction.
Using the Multi-Function Control Panel
SYNCHRONIZE THE DOOR CONTROL
To synchronize the door control to the garage door opener,press the push bar until the garage door
opener activates(it may take up to 3 presses).Test the door control by pressing the push bar, each press
of the push bar will activate the garage door opener.
Push Bar
LIGHT Button
LOCK Button
Command LED
LEARN Button
MULTI-FUNCTION CONTROL PANEL FEATURES
PUSH BAR
Press the push bar to open or close the door.
LIGHTS
Light Button
Press the LIGHTbutton to turn the garage door opener lights on or off. When the lightsare turned on
they will stay on until the LIGHT button is pressed again, or until the garage door opener is activated.
Once the garage door opener is activated the lightswill turn off after the specified period oftime (the
factory setting is 4-1/2 minutes). The LIGHT button will notcontrol the lightswhen the door is in motion.
To change the amount of time the garage door opener lights will stay on:
Press and hold the LOCK button (approximately10 seconds) until the garage door opener lights flash.
The time interval isindicated by the number times the garage door opener flashes:
l1 flash is1-1/2 minutes
l2 flashes is 2-1/2 minutes
l3 flashes is 3-1/2 minutes
l4 flashes is 4-1/2 minutes
To cycle through the time intervals repeatthe step above.
Light Feature
The lights will turn on when someone enters through the open garage door and the safety reversing
sensor infrared beam is broken.
lDeactivate: Pressand hold the LIGHT button (approximately10 seconds) until the garage door
opener lightsturn on, then off again.
lActivate: Start with the garage door opener lightson. Pressand hold the LIGHT button
(approximately10 seconds) until the garage door opener lights turn off, then on again.
If the command LED iscontinuously blinking, the LOCK feature needs to be deactivated.
34
Operation
Multi-Function Control Panel (continued)
LOCK
The LOCK feature is designed to prevent activation of the garage door opener from remote controls
while still allowing activation from the door control and keyless entry. This feature is useful for added
peace ofmind when the home is empty(i.e.vacation).
lActivate: Pressand hold the LOCK button for 2 seconds.The command LED will flash as long
as the lock feature is activated and your handheld remote control will not operate your door at
this time.
lDeactivate: Pressand hold the LOCK button again for 2 seconds.The command LED will stop
flashing and normal operation will resume.
PROGRAM
Any compatible remote controls,wireless keyless entry, or MyQ®accessoriescan be programmed to the
garage door opener bypressing the Learn button.
Push Bar
LIGHT Button
LOCK Button
Command LED
LEARN Button
Remote Control
Your remote control has been programmed at the factory to operate with your garage door opener.
Older Chamberlain remote controls are NOT compatible, see page 39 for compatible accessories.
Programming can be done through the door control or the learn button the garage door opener.To
program additional accessories refer to the instructionsprovided with the accessory or visit
www.chamberlain.com. Ifyour vehicle is equipped with a Homelink®, you mayrequire an external
adapter depending on the make, model, and year of your vehicle. Visit www.homelink.com for additional
information.
TO ADD, REPROGRAM, OR CHANGE A REMOTE CONTROL/KEYLESS ENTRY PIN
USING THE MULTI-FUNCTION CONTROL PANEL
1. Press the LEARNbutton on the door control to enter Programming Mode.
2. Press the LEARNbutton again,the LED will flash once.
3. Remote Control:
Press the button on the remote control thatyou wish to operate your garage door.Keyless
Entry:
Enter a 4-digit personal identification number (PIN) ofyour choice on the keyless entrykeypad.
Then pressthe ENTER button.
The garage door opener lightswill flash (or two clickswill be heard) when the code has been
programmed. Repeat the steps for programming additional remote controls or keyless entry devices.
The command LED
will flash once.
The command LED will
flash once again.
12
OR
PIN
? ? ? ?
4GHI 5JKL
7PRS 8TUV 9WXY
0 QZ
*
#
ENTER
0 QZ
*#
ENTER
6
MNO
3
35
Operation
Remote Control (continued)
PROGRAM A REMOTE CONTROL USING THE LEARN BUTTON
1. Locate the Learn Button.
2. Press and immediatelyrelease the Learn button. The Learn LED will glow steady for 30 seconds.
Within 30 seconds...
3. Press and hold the button on the remote control that you wish to use.Release the button when
the garage door opener lights blink or two clicks are heard. When replacing the light lens cover,
ensure the antenna wires are hanging straight down.
LEARN LED
LEARN
Button
“click”
“click”
13
2
To Erase the Memory
ERASE ALL REMOTE CONTROLS AND KEYLESS ENTRIES
1. Pressand hold the learn button on garage door opener until the learn LEDgoesout
(approximately 6 seconds). All remote control and keyless entry codes are now erased.
Reprogram any accessory you wish to use.
ERASE ALL DEVICES (Including MyQ®enabled accessories)
1. Pressand hold the learn button on garage door opener until the learn LEDgoesout
(approximately 6 seconds).
2. Immediately pressand hold the learn button again until the learn LED goes out. All codes are
now erased.
Reprogram any accessory you wish to use.
To Open the Door Manually
To preventpossible SERIOUS INJURY or DEATHfrom a falling garage door:
lIf possible,use emergency release handle to disengage trolley ONLY when garage door is
CLOSED. Weak or broken springsor unbalanced door could result in an open door falling
rapidlyand/or unexpectedly.
lNEVER use emergency release handle unless garage doorway is clear of persons and
obstructions.
lNEVER use handle to pull door open or closed. Ifrope knot becomes untied,you could fall.
DISCONNECT THE TROLLEY
1. The door should be fully closed ifpossible.
2. Pull down on the emergencyrelease handle so the trolley release arm snaps to the vertical
position. The door can now be raised and lowered as often as necessary.
TO RECONNECT THE TROLLEY
1. Pull the emergency release handle toward the garage door opener so the trolley release arm
snaps to the horizontal position.The trolley will reconnect on the nextUP or DOWNoperation,
either manually or by using the door control or remote control.
36

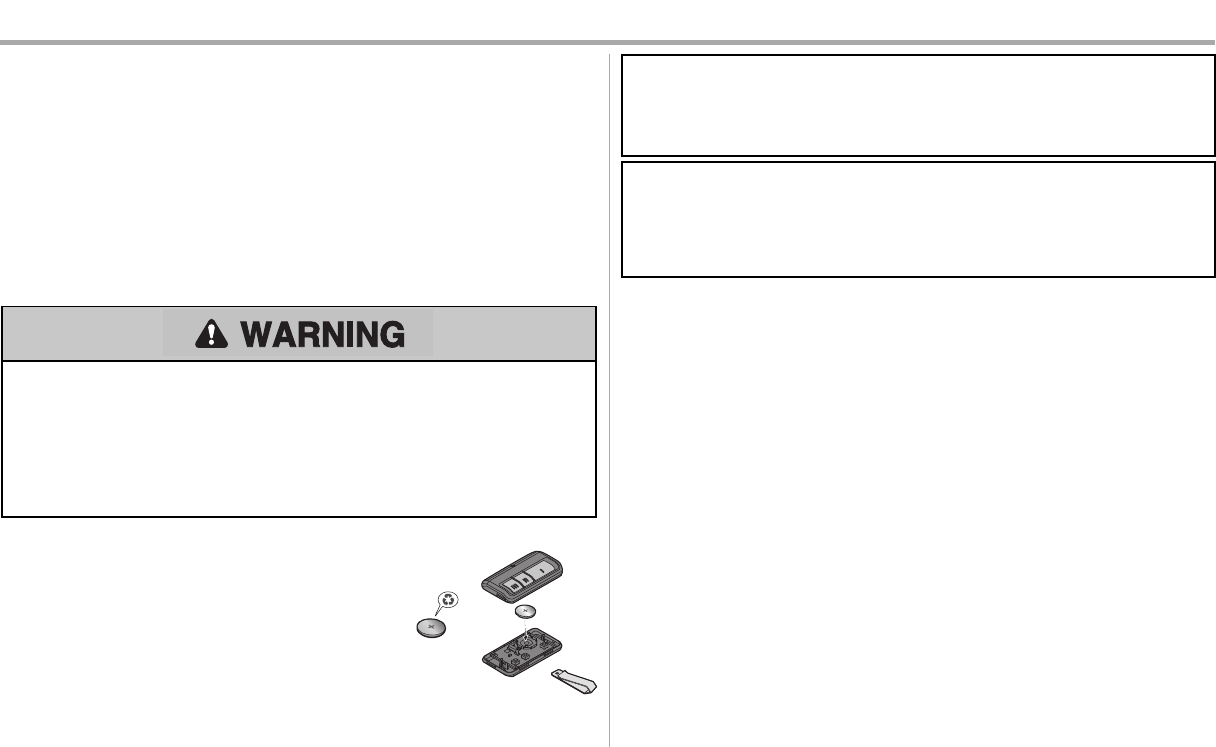

Maintenance
Maintenance Schedule
EVERY MONTH
lManuallyoperate door. If it isunbalanced or binding, call a trained door systems technician.
lCheck to be sure door opens and closes fully.Adjust ifnecessary, see page 28.
lTest the safety reversal system. Adjust if necessary, see page 28.
EVERY YEAR
lOil door rollers,bearingsand hinges.The garage door opener doesnotrequire additional
lubrication. Do not grease the door tracks.
The Remote Control Battery
To preventpossible SERIOUS INJURY or DEATH:
lNEVER allow small children near batteries.
lIf battery is swallowed, immediately notify doctor.
To reduce risk of fire, explosion or chemical burn:
lReplace ONLY with 3V2032 coin batteries.
lDO NOT recharge, disassemble, heat above 212°F (100°C) or incinerate.
1
2
3
The 3V2032 lithium battery should produce power for up to 3
years. If the battery is low, the remote control’s LED will not flash
when the button is pressed.
To replace battery, pry open the case first in the middle (1), then at
each side (2 and 3) with the visor clip.
Replace the batteries with only 3V2032 coin cell batteries. Insert
battery positive side up. Dispose of old batteries properly.
NOTICE: To comply with FCC and/or IndustryCanada (IC) rules, adjustment or modificationsof thistransceiver are prohibited. THERE
ARENOUSER SERVICEABLEPARTS. Anychangesormodificationsnot expresslyapproved bythe partyresponsible forcompliance
could void the user'sauthorityto operate the equipment.
Thisdevice complies with Part15 of the FCC rulesand IC RSS-210. Operation issubjectto the following two conditions:(1)thisdevice
maynot cause harmfulinterference, and (2)thisdevice must accept anyinterference received, including interference that maycause
undesiredoperation.
ThisClassBdigitalapparatuscomplieswith Canadian ICES-003.
AVIS:Lesrèglesde la FCC et/ou d’Industrie Canada (IC)interdisent tout ajustementou toute modification de ce récepteur. IL N’EXISTE
AUCUNEPIÈCESUSCEPTIBLED’ÊTREENTRETENUE PAR L’UTILISATEUR. Tout changement ou toute modification non
expressément approuvé parla partie responsable de la conformité peut avoirpourrésultatd'annulerl'autorité de l'utilisateur de faire
fonctionnerl'équipement.
Cet appareilestconforme auxdispositionsde la partie 15 du règlement de la FCC et de l'norme IC RSS-210. Son utilisation estassujettie
aux deux conditoinssuivantes: (1)ce dispositif ne peut causer desinterférencesnuisibles, et (2)ce dispositif doit acceptertoute
interférence recue, ycomprisune interférence pouvant causerun fonctionnement non souhaité.
Cet appareilnumerique de la classe Best conforme a la norme NMB-003 du Canada.
37
Diagnostic Chart
Your garage door opener is programmed with self-diagnostic capabilities.The UP and DOWNarrowson the garage door opener flash the diagnostic codes.
DIAGNOSTIC CODE SYMPTOM SOLUTION
Up Arrow
Flash(es)
Down Arrow
Flash(es)
1 1 The garage door opener will not close and the light bulbs flash. Safety sensors are not installed, connected, or wires may be cut. Inspect sensor wires for a
disconnected or cut wire.
1 2 The garage door opener will not close and the light bulbs flash. There is a short or reversed wire for the safety sensors.Inspect safety sensor wire at all staple and
connection points, replace wire or correct as needed.
1 3 The door control will notfunction. The wires for the door control are shorted or the door control is faulty. Inspectdoor control wires atall
staple and connection points,replace wire or correctas needed.
1 4 The garage door opener will not close and the light bulbs flash. Safety sensors are misaligned or were momentarily obstructed.Realign both sensors to ensure both
LEDs are steady and not flickering. Make sure nothing is hanging or mounted on the door thatwould
interruptthe sensor’s path while closing.
1 5 Door moves6-8" stops or reverses. Manuallyopen and close the door. Check for binding or obstructions, such as a broken spring or door
lock, correct as needed. Check wiring connections at travel module and at the logic board. Replace
travel module if necessary.
No movement, only a single click. Manuallyopen and close the door.Checkfor binding or obstructions,such asa broken spring or door
lock, correct as needed. Replace logic board if necessary.
Opener hums for 1-2 seconds no movement. Manuallyopen and close the door. Check for binding or obstructions, such as a broken spring or door
lock, correct as needed. Replace motor if necessary.
1 6 Door coastsafter it has come to a complete stop. Program travel to coasting position or have door balanced by a trained door systems technician.
2 1-5 No movement, or sound. Replace logic board.
3 2 Unable to set the travel or retain position. Check travel module for proper assembly, replace if necessary.
Troubleshooting
38
DIAGNOSTIC CODE SYMPTOM SOLUTION
Up Arrow
Flash(es)
Down Arrow
Flash(es)
4 1-4 Door is moving stops or reverses. Manuallyopen and close the door. Check for binding or obstructions, such as a broken spring or door lock,
correct as needed. If the door is binding or sticking contact a trained door systems technician. If door is not
binding or sticking attemptto reprogram travel (refer to page 28).
4 5 Opener runs approximately 6-8", stops and reverses. Communication error to travel module. Check travel module connections,replace travel module if
necessary.
4 6 The garage door opener will notclose and the lightbulbs
flash.
Safety sensors are misaligned or were momentarily obstructed.Realign both sensors to ensure both LEDs
are steady and notflickering.Make sure nothing is hanging or mounted on the door thatwould interruptthe
sensor’s path while closing.
The garage door opener can beep for several reasons:
lGarage door opener has been activated through a device or feature such as Timer-to- Close or
garage door monitor, see page 32.
My remote control will not activate the garage door:
lVerify the lock feature is not activated on the door control.
lReprogram the remote control.
lIf the remote control will still not activate the door checkthe diagnostic codes to ensure the garage
door opener is working properly.
My door will not close and the light bulbs blink on my motor unit:
The safety reversing sensor must be connected and aligned correctly before the garage door opener will
move in the down direction.
lVerify the safety sensors are properly installed, aligned and free of any obstructions.
My garage door opener light(s) will not turn off when the door is open:
The garage door opener is equipped with a feature that turns the lighton when the safety reversing
sensors have been obstructed. This feature can be disabled using the door control,see page 33.
My neighbor’s remote control opens my garage door:
Erase the memoryfrom your garage door opener and reprogram the remote control(s).
My vehicle's Homelink®is not programming to my garage door opener:
Depending on the make,model, and year of your vehicle an external adapter maybe required. Visit
www.homelink.com for additional information.
Troubleshooting
39
Accessories
AGDMEV
BIK01
CLLP1
953EV
CLSS1
940EV
956EV
Garage Door and Gate Monitor:
Monitor open/closed status for
up to 4 MyQ® compatible garage
door openers or gate operators
and close them from anywhere in
the home.
Installation Upgrade Kit:
The Installation Upgrade Kit
includes all components needed
to hang garage door openers up
to 24" (61 cm) from the ceiling.
Laser Parking Assistant:
Park in the right spot every time!
A laser beam is activated by your
garage door opener and
projected on to the dashboard
of your vehicle to guide perfect
parking.
Remote Control:
Works with ALL Chamberlain
openers from 1993-present.
MyQ® compatible. Includes visor
clip.
System Surge Protector:
The Garage Door Opener Surge
Protector is designed to protect
Chamberlain garage door
openers against damage from
lightning and power surges. Easy
to install.
Wireless Keypad:
For use outside of the home to
enable access to the garage
using a 4-digit PIN. Works with
ALL Chamberlain openers from
1993-present. MyQ® compatible.
Keychain Remote Control:
Works with ALL Chamberlain
openers from 1993-present.
MyQ® compatible. With key ring.
PILCEV MyQ® Remote Lamp Control:
Control home lighting and
garage doors with one remote.
For use with plug-in lamps.
Synchronize to work with MyQ®
compatible garage door openers
and remote controls.
Extension Brackets:
(Optional) For safety reversing
sensor installation onto the
wall or fl oor.
CLOSED
OPEN
041A5281-1
8810CB 10 Foot (3 m) Rail Extension:
To allow a 10 foot (3 m) door
to open fully.
8 Foot (2.4 m) Rail Extension:
To allow an 8 foot (2.4 m) door
to open fully.
8808CB
7702CB Outside Quick Release:
Required for a garage with NO
access door.
CIGBU MyQ® Internet Gateway:
Internet enabled accessory
which connects to the
computer and allows you to
monitor and control garage
door openers and lighting
accessories enabled by MyQ®
technology.
40
CHAMBERLAIN® LIMITED WARRANTY
The Chamberlain Group, Inc.® (“Seller”) warrants to the fi rst retail purchaser of this product, for the residence
in which this product is originally installed, that it is free from defects in materials and/or workmanship for a
specifi c period of time as defi ned below (the “Warranty Period”). The warranty period commences from the date
of purchase.
WARRANTY PERIOD
Parts Motor Accessories Belt
5 Years Lifetime 1 year 15 Years
The proper operation of this product is dependent on your compliance with the instructions regarding
installation, operation, and maintenance and testing. Failure to comply strictly with those instructions will void
this limited warranty in its entirety. If, during the limited warranty period, this product appears to contain a defect
covered by this limited warranty, call 1-800- 528-9131, toll free, before dismantling this product. You will be
advised of disassembly and shipping instructions when you call. Then send the product or component, pre-paid
and insured, as directed to our service center for warranty repair. Please include a brief description of the
problem and a dated proof- of-purchase receipt with any product returned for warranty repair. Products returned
to Seller for warranty repair, which upon receipt by Seller are confi rmed to be defective and covered by this
limited warranty, will be repaired or replaced (at Seller’s sole option) at no cost to you and returned pre-paid.
Defective parts will be repaired or replaced with new or factory rebuilt parts at Seller’s sole option. [You are
responsible for any costs incurred in removing and/or reinstalling the product or any component .]
ALL IMPLIED WARRANTIES FOR THE PRODUCT, INCLUDING BUT NOT LIMITED TO ANY IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED
IN DURATION TO THE APPLICABLE LIMITED WARRANTY PERIOD SET FORTH ABOVE FOR THE
RELATED COMPONENT(S), AND NO IMPLIED WARRANTIES WILL EXIST OR APPLY AFTER SUCH
PERIOD. Some States do not allow limitations on how long an implied warranty lasts, so the above
limitation may not apply to you. THIS LIMITED WARRANTY DOES NOT COVER NON-DEFECT DAMAGE,
DAMAGE CAUSED BY IMPROPER INSTALLATION, OPERATION OR CARE (INCLUDING, BUT NOT
LIMITED TO ABUSE, MISUSE, FAILURE TO PROVIDE REASONABLE AND NECESSARY MAINTENANCE,
UNAUTHORIZED REPAIRS OR ANY ALTERATIONS TO THIS PRODUCT), LABOR CHARGES FOR
REINSTALLING A REPAIRED OR REPLACED UNIT, REPLACEMENT OF CONSUMABLE ITEMS (E.G.,
BATTERIES IN REMOTE CONTROL TRANSMITTERS AND LIGHT BULBS), OR UNITS INSTALLED
FOR NON-RESIDENTIAL USE. THIS LIMITED WARRANTY DOES NOT COVER ANY PROBLEMS WITH,
OR RELATING TO, THE GARAGE DOOR OR GARAGE DOOR HARDWARE, INCLUDING BUT NOT
LIMITED TO THE DOOR SPRINGS, DOOR ROLLERS, DOOR ALIGNMENT OR HINGES. THIS LIMITED
WARRANTY ALSO DOES NOT COVER ANY PROBLEMS CAUSED BY INTERFERENCE. UNDER NO
CIRCUMSTANCES SHALL SELLER BE LIABLE FOR CONSEQUENTIAL, INCIDENTAL OR SPECIAL
DAMAGES ARISING IN CONNECTION WITH USE, OR INABILITY TO USE, THIS PRODUCT. IN NO EVENT
SHALL SELLER’S LIABILITY FOR BREACH OF WARRANTY, BREACH OF CONTRACT, NEGLIGENCE
OR STRICT LIABILITY EXCEED THE COST OF THE PRODUCT COVERED HEREBY. NO PERSON IS
AUTHORIZED TO ASSUME FOR US ANY OTHER LIABILITY IN CONNECTION WITH THE SALE OF THIS
PRODUCT.
Some states do not allow the exclusion or limitation of consequential, incidental or special damages, so the
above limitation or exclusion may not apply to you. This limited warranty gives you specifi c legal rights, and you
may also have other rights, which vary from state to state.
Contact Information
For installation and service information call:
1-800-528-9131
Before calling, please have the model number of the garage
door opener. If you are calling about a Troubleshooting issue,
it is recommended that you have access to your garage door
opener while calling. If you are ordering a repair part please
have the following information: part number, part name, and
model number.
Address repair parts orders to:
The Chamberlain Group, Inc.
6050 S. Country Club Road
Tucson, AZ 85706
Warranty
41
Repair Parts
Rail Assembly Parts
Accessories
Installation Parts
1
3
2
4
6
5
1
2
NOTICE
1
3
4
2
5
6
7
8
9
10
11
Description Part Number
1 Belt 41A5250
2 Pulley 144C54
3 Master Link 4A1008
4 Rail 41A5665
5 Trolley Assembly 41C5141-1
6 “U” Bracket 12D598-1
Not Shown
Wear Pads 183A163
Hardware Bag 041A7920-2
Owner’s Manual 114A4738
Description Part Number
1 Multi-Function Control
Panel
41A7185-1
2 Remote Control 953ESTD
Description Part Number
1 Curved Door Arm 178B35
2 Door Bracket with Clevis
Pin and Fastener
41A5047-1
3 Emergency Release Rope
and Handle
41A2828
4 Header Bracket with Clevis
Pin and Fastener
41A5047-2
5 Remote Control
Visor Clip
29B137
6 Safety Sensor Bracket 041A5266-3
7 Safety Sensor Kit
Receiving and sending
sensors with wire
41A5034
8 Straight Door Arm 178B34
9 White and Red/White Wire 41B4494-1
10 3V2030 Lithium Battery 10A20
11 Hanging Brackets 12B776
42
14
11
10
13
7
6
9
2
12
8
4
4
3
5
5
1
Repair Parts
Garage Door Opener Parts
Description Part Number
1 Sprocket Cover 41A4371
2 Gear and Sprocket 41A4885-5
3 End Panel with Light Socket 041A7760
4 Light Socket 41C279
5 Light Lens 41D7570
6 Capacitor 30B532
7 Capacitor Bracket 12A373
8 Travel Module 041D7742-7
9 Cover 041A7620-8
10 Receiver Logic Board 45ACT
11 End Panel for Receiver Logic Board
with Light Socket
41D7638
12 Motor with Travel Module 041A7442
13 Line Cord 41B4245
14 Terminal Block 41A3150
Not Shown
Wire Harness Kit 041A7948
© 2014, The Chamberlain Group, Inc.
114A4738 All Rights Reserved

Navigation menu
