GARAGE DOOR OPENER

Model Series 1300

For Residential Use Only

Owner’s Manual

■Please read this manual and the enclosed safety materials carefully!

■Fasten the manual near the garage door after installation.

■The door WILL NOT CLOSE unless the Protector System®is connected and properly

aligned.

■Periodic checks of the opener are required to ensure safe operation.

■The model number label is located on the front panel of your opener.

®

Model 1356M - 1/2HP

Model 1346M - 1/3HP Model 1355M - 1/2HP

Model 1345M - 1/3HP

2

When you see these Safety Symbols and Signal Words

on the following pages, they will alert you to the

possibility of serious injury or death if you do not

comply with the warnings that accompany them. The

hazard may come from something mechanical or from

electric shock. Read the warnings carefully.

When you see this Signal Word on the following pages, it

will alert you to the possibility of damage to your garage

door and/or the garage door opener if you do not comply

with the cautionary statements that accompany it. Read

them carefully.

INTRODUCTION

Safety Symbol

and Signal Word Review

This garage door opener has been designed and tested to offer safe service provided it is installed, operated,

maintained and tested in strict accordance with the instructions and warnings contained in this manual.

Mechanical

Electrical

Introduction 2-7

Safety symbol and signal word review........................2

Preparing your garage door ........................................3

Tools needed...............................................................3

Planning ..................................................................4-5

Carton inventory..........................................................6

Hardware inventory .....................................................7

Assembly 8-11

Fasten the rail to the motor unit..............................8, 9

Install the chain and the sprocket cover .....................8

Install the chain spreader and the chain ...................10

Tighten the chain .......................................................11

Installation 11-27

Installation safety instructions....................................11

Determine the header bracket location................12-13

Install the header bracket..........................................14

Attach the rail to the header bracket.........................15

Position the opener ...................................................16

Hang the opener .......................................................17

Install the door control...............................................18

Install the light and lens ............................................19

Attach the emergency release rope and handle .......19

Electrical requirements..............................................20

Install the Protector System®................................21-23

Fasten the door bracket.......................................24-25

Connect the door arm to the trolley .....................26-27

Adjustment 28-30

Adjust the travel limits ...............................................28

Adjust the force .........................................................29

Test the safety reversal system.................................30

Test the Protector System®........................................30

Operation 31-34

Operation safety instructions.....................................31

Using your garage door opener ................................31

Using the wall-mounted door control ........................32

To open the door manually........................................32

Care of your garage door opener..............................33

Having a problem? ....................................................34

Programming 35-36

To add or reprogram a hand-held remote control .....35

To erase all codes .....................................................35

3-Button remotes.......................................................35

To add, reprogram or change

a Keyless Entry PIN ..................................................36

Repair Parts 37-38

Rail assembly parts...................................................37

Installation parts ........................................................37

Motor unit assembly parts.........................................38

Accessories 39

Repair Parts and Service 40

Warranty 40

TABLE OF CONTENTS

3

To prevent damage to garage door and opener:

• ALWAYS disable locks BEFORE installing and operating the

opener.

• ONLY operate garage door opener at 120V, 60 Hz to avoid

malfunction and damage.

To prevent possible SERIOUS INJURY OR DEATH:

• ALWAYS call a trained door systems technician if garage

door binds, sticks, or is out of balance. An unbalanced

garage door may not reverse when required.

• NEVER try to loosen, move or adjust garage door, door

springs, cables, pulleys, brackets or their hardware, all of

which are under EXTREME tension.

• Disable ALL locks and remove ALL ropes connected to

garage door BEFORE installing and operating garage door

opener to avoid entanglement.

Preparing your garage door

Before you begin:

• Disable locks.

• Remove any ropes connected to garage door.

•Complete the following test to make sure your

garage door is balanced and is not sticking or binding:

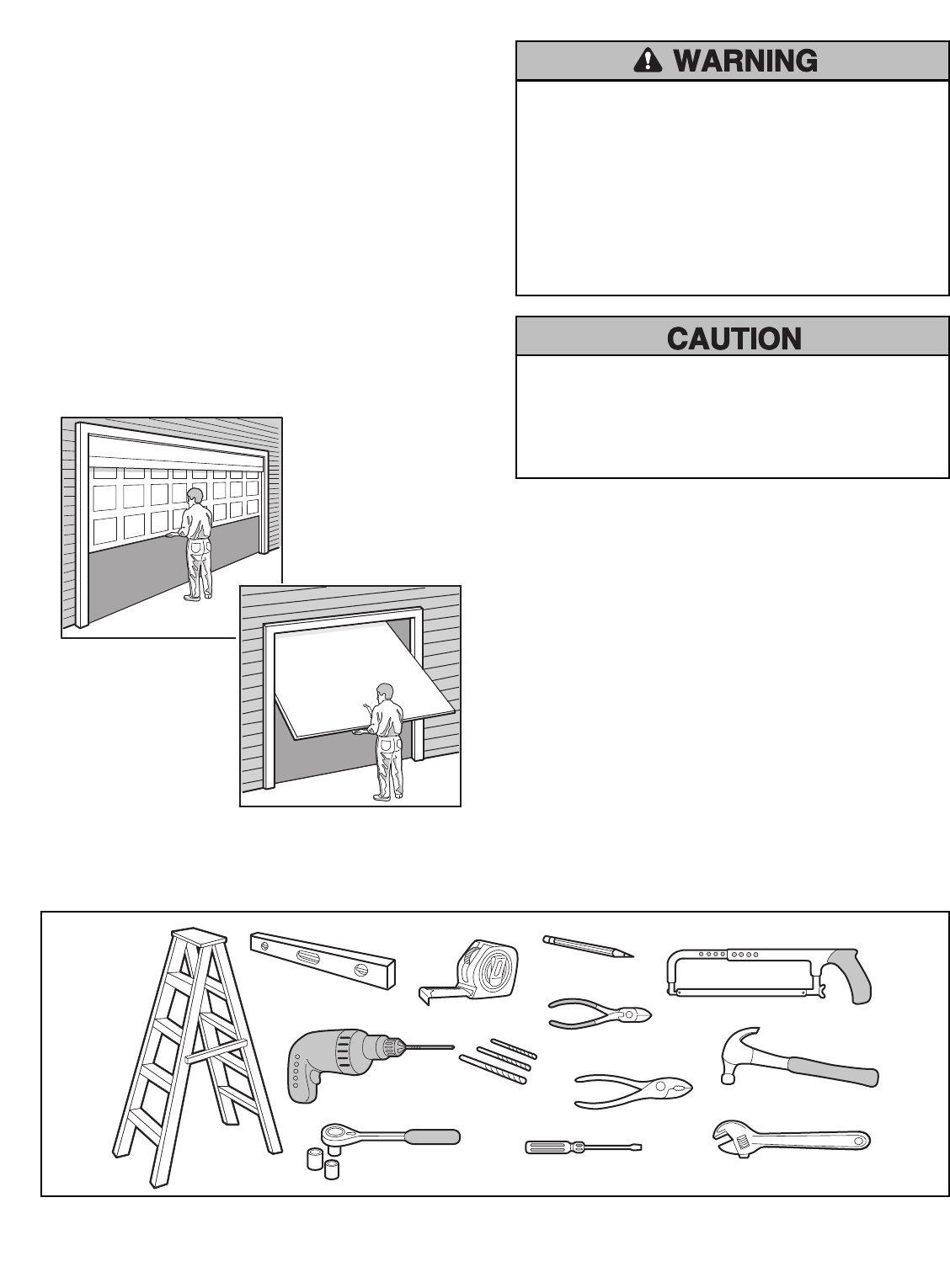

1. Lift the door about halfway as shown. Release the

door. If balanced, it should stay in place, supported

entirely by its springs.

2. Raise and lower the door to see if there is any

binding or sticking.

If your door binds, sticks, or is out of balance, call a

trained door systems technician.

Tools needed

During assembly, installation and adjustment of the

opener, instructions will call for hand tools as illustrated

below.

Pliers

Wire Cutters

Claw Hammer

Hack Saw

Screwdriver Adjustable End Wrench

1/2" and 7/16" Sockets

and Wrench

Drill

Tape Measure

2

1

Stepladder

Pencil

3/16", 5/16" and

5/32" Drill Bits

Carpenter’s

Level (Optional)

Sectional Door

One-Piece Door

4

Safety Reversing Sensor

Support bracket &

fastening hardware

is required.

See page 17.

— — — — — — — —

Header Wall

FINISHED CEILING

Torsion

Spring

Extension

Spring

OR

Safety

Reversing

Sensor

Gap between floor

and bottom of door must

not exceed 1/4" (6 mm)

Access

Door

Wall-

mounted

Door

Control

Horizontal and vertical reinforcement

is needed for lightweight garage doors

(fiberglass, steel, aluminum, door with

glass panels, etc.). See page 24 for details.

Motor unit

Slack in chain tension

is normal when

garage door is closed

Vertical

Centerline of

Garage Door

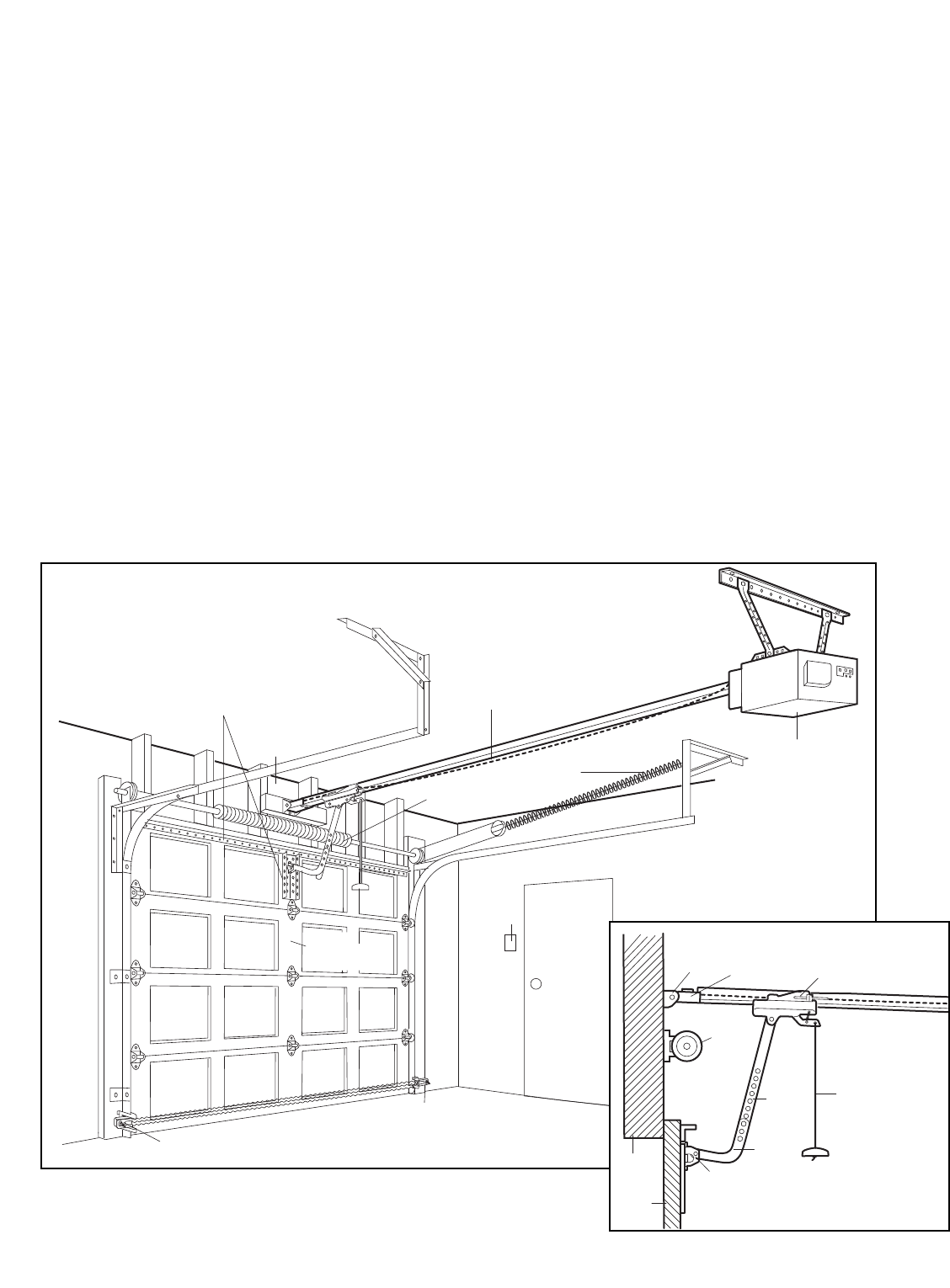

SECTIONAL DOOR INSTALLATION

Planning

Identify the type and height of your garage door. Survey

your garage area to see if any of the conditions below

apply to your installation. Additional materials may be

required. You may find it helpful to refer back to this page

and the accompanying illustrations as you proceed with

the installation of your opener.

Depending on your requirements, there are several

installation steps which may call for materials or

hardware not included in the carton.

• Installation Step 1 – Look at the wall or ceiling above

the garage door. The header bracket must be securely

fastened to structural supports.

• Installation Step 5 – Do you have a finished ceiling in

your garage? If so, a support bracket and additional

fastening hardware may be required.

• Installation Step 10 – Depending upon garage

construction, extension brackets or wood blocks may

be needed to install sensors.

• Installation Step 10 – Alternate floor mounting of the

safety reversing sensor will require hardware not

provided.

• Do you have an access door in addition to the garage

door? If not, Model 1702LM Outside Quick Release is

required. See Accessories page.

• Look at the garage door where it meets the floor. Any

gap between the floor and the bottom of the door must

not exceed 1/4" (6 mm). Otherwise, the safety reversal

system may not work properly. See Adjustment Step 3.

Floor or door should be repaired.

SECTIONAL DOOR INSTALLATIONS

• Do you have a steel, aluminum, fiberglass or glass

panel door? If so, horizontal and vertical reinforcement

is required (Installation Step 11).

• The opener should be installed above the center of the

door. If there is a torsion spring or center bearing plate

in the way of the header bracket, it may be installed

within 4 feet (1.22 m) to the left or right of the door

center. See Installation Steps 1 and 11.

• If your door is more than 7 feet (2.13 m) high, see rail

extension kits listed on Accessories page.

Chain Pulley

Bracket

Header

Bracket Trolley

Straight

Door

Arm

Emergency

Release

Rope & Handle

Door Bracket

Garage

Door

Curved

Door

Arm

Garage

Door

Spring

Header

Wall

CLOSED POSITION

5

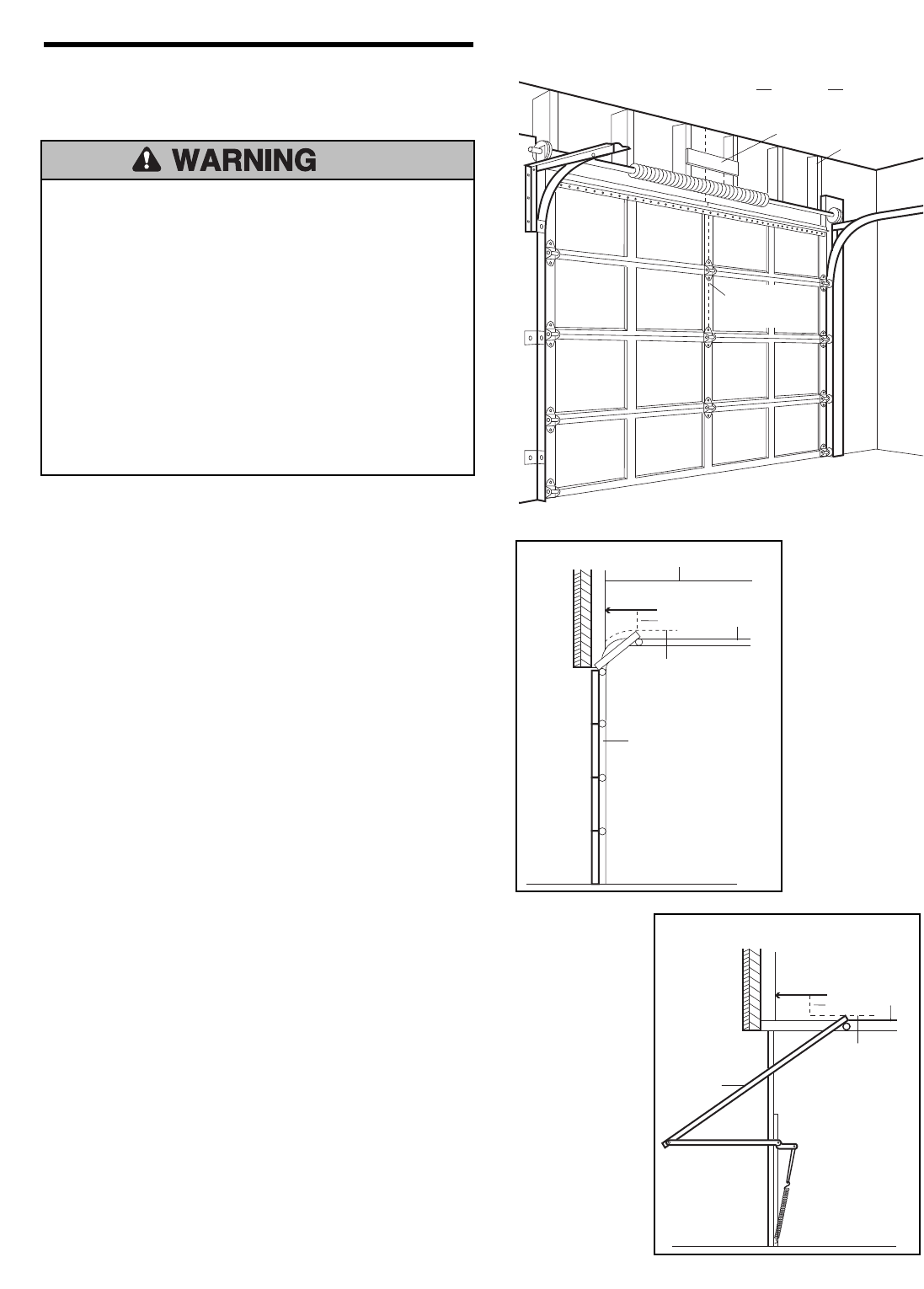

Without a properly working safety reversal system, persons

(particularly small children) could be SERIOUSLY INJURED

or KILLED by a closing garage door.

• The gap between the bottom of the garage door and the

floor MUST NOT exceed 1/4" (6 mm). Otherwise, the safety

reversal system may not work properly.

• The floor or the garage door MUST be repaired to eliminate

the gap.

Access

Door

Gap between floor and

bottom of door must not

exceed 1/4" (6 mm)

Safety

Reversing

Sensor

Safety

Reversing

Sensor

CLOSED POSITION

Header

Bracket

Chain

Pulley Bracket

Door

Bracket Straight

Door

Arm

Curved

Door Arm

Trolley

Emergency Release

Rope & Handle

Rail

Garage

Door

Chain

Header

Wall

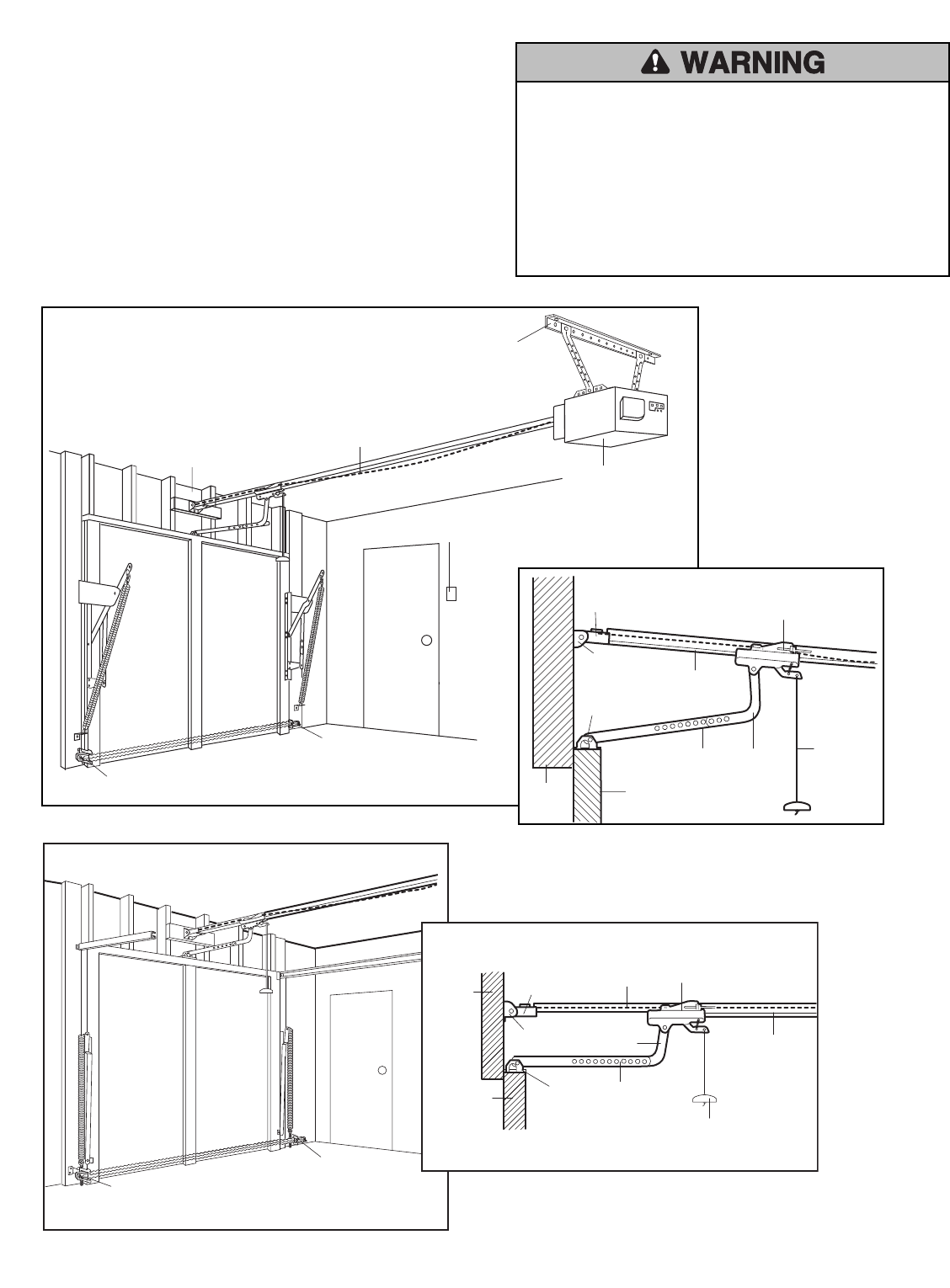

Planning (Continued)

ONE-PIECE DOOR INSTALLATIONS

• Generally, a one-piece door does not require

reinforcement. If your door is lightweight, refer to the

information relating to sectional doors in Installation

Step 11.

• Depending on your door’s construction, you may need

additional mounting hardware for the door bracket

(Step 11).

ONE-PIECE DOOR WITH TRACK

FINISHED CEILING

Support bracket

& fastening

hardware is required.

See page 17.

Slack in chain tension

is normal when

garage door is closed.

Header

Wall

Safety Reversing

Sensor

Safety Reversing

Sensor

Gap between floor

and bottom of door must

not exceed 1/4" (6 mm)

Access

Door

Wall-mounted

Door Control

Motor Unit

ONE-PIECE DOOR WITHOUT TRACK

Chain

Pulley Bracket

Header

Bracket

Trolley

Straight

Door

Arm

Emergency

Release

Rope

& Handle

Door

Bracket

Curved

Door

Arm

Header

Wall

Rail

Garage

Door

CLOSED POSITION

6

Straight Door

Arm Section

Curved Door Arm Section

Safety Labels

and

Literature

Header Bracket

UP

CEILING MOUNT ONLY

Sprocket Cover

2-Conductor Bell Wire

White & White/Red

Lighted Door Control Button

w/6ABx1-1/2" screws

Motor Unit with Light Lens

Remote Control

Transmitter Visor Clip

One-Piece

Rail

Styrofoam

Chain

Pulley Bracket

Chain Spreader with

Screws and Washers

Trolley

Chain

Door Bracket

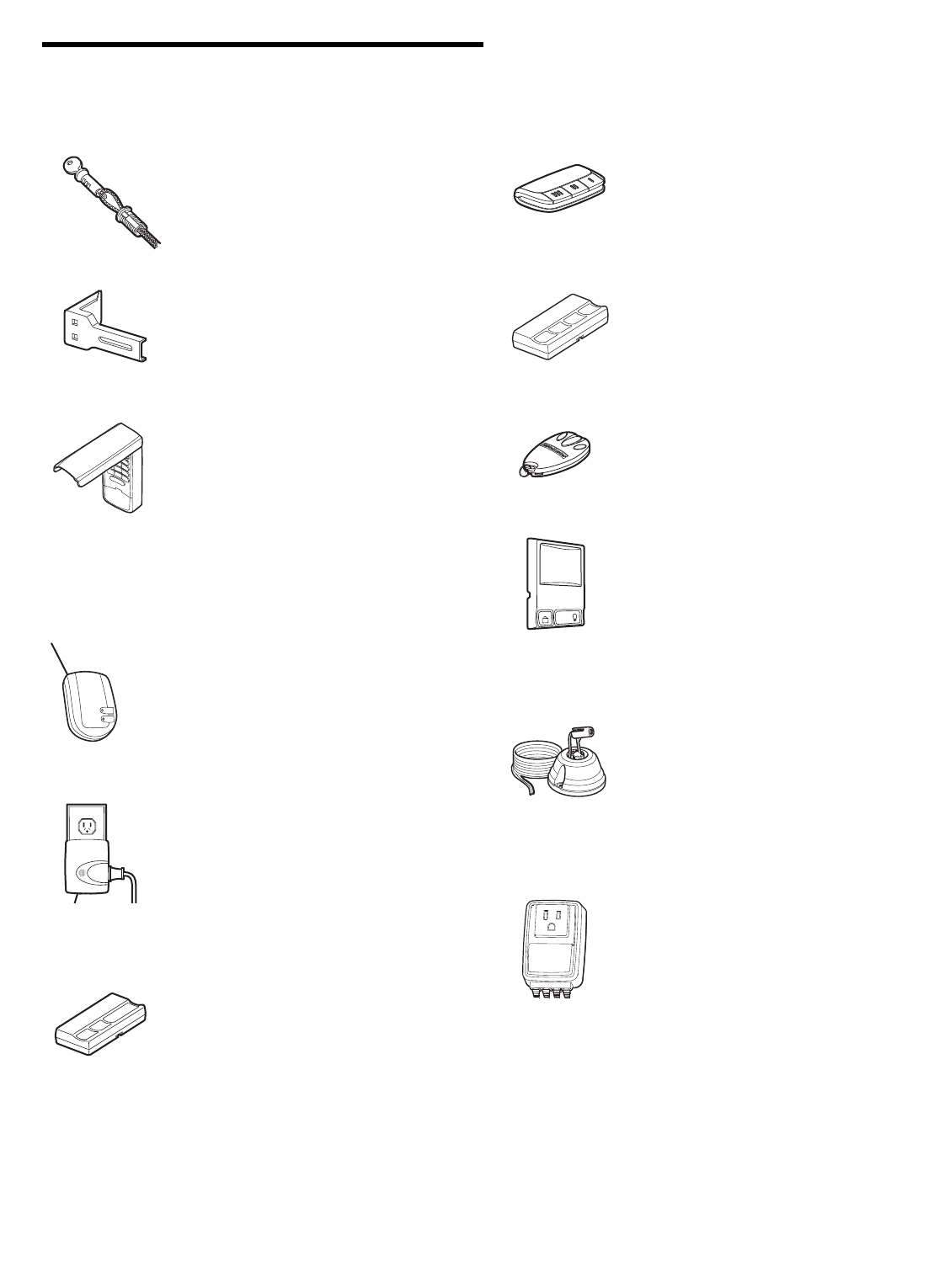

SECURITY✚®

Single-Button Remote Control (1)

The Protector System®

(2) Safety Reversing Sensors

(1 Sending Eye and 1 Receiving Eye)

with 2-Conductor White & White/Black

Bell Wire attached

Safety Sensor

Bracket (2)

Carton Inventory

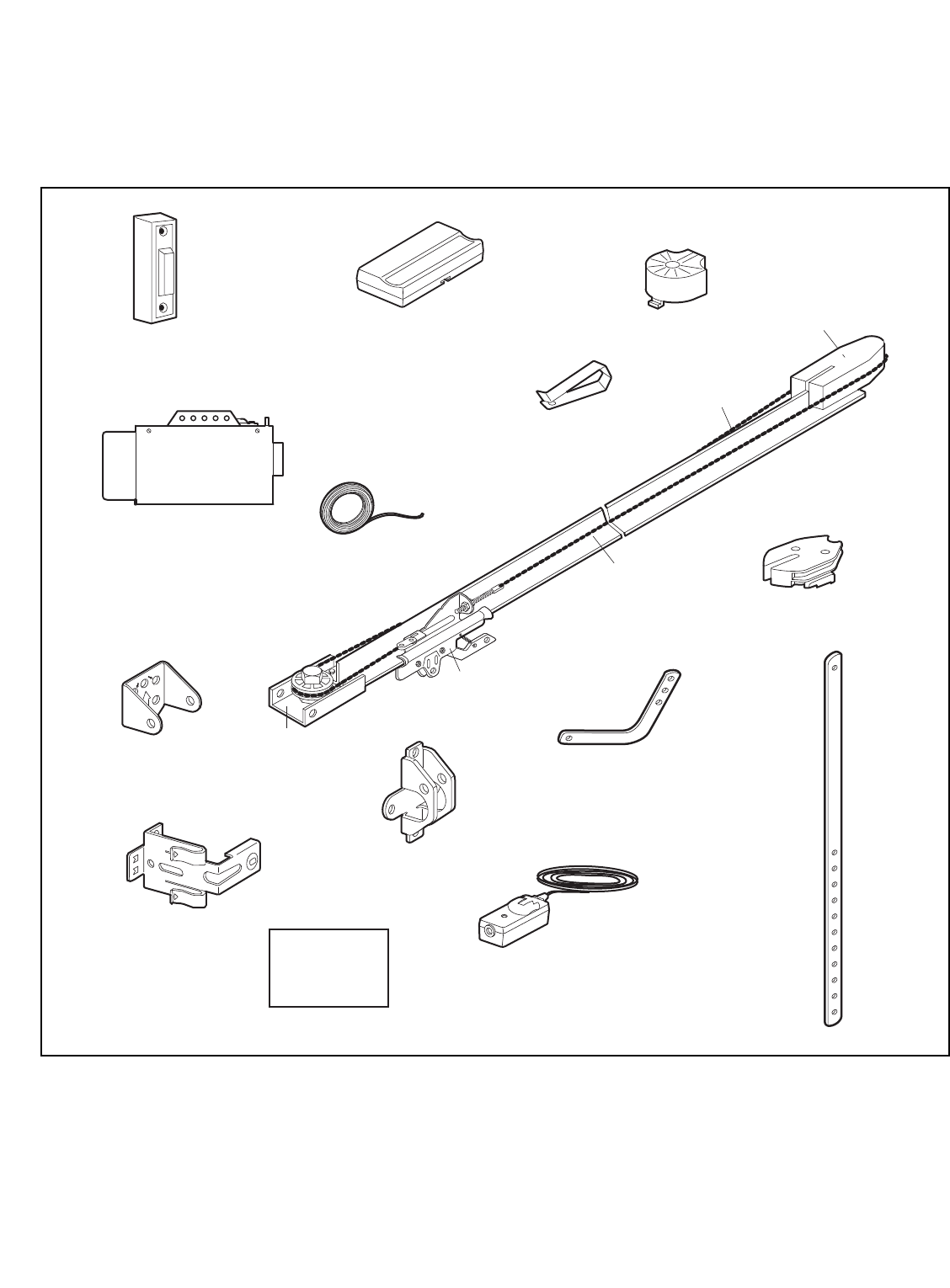

Your garage door opener is packaged in two cartons

which contain the motor unit and all parts illustrated

below. Note that accessories will depend on the model

purchased. If anything is missing, carefully check the

packing material. Parts may be stuck in the foam.

Hardware for assembly and installation is shown on the

next page. Save the carton and packing material until

installation and adjustment is complete.

Model 1355M &

1345M ONLY

Models 1346M & 1356M ONLY

7

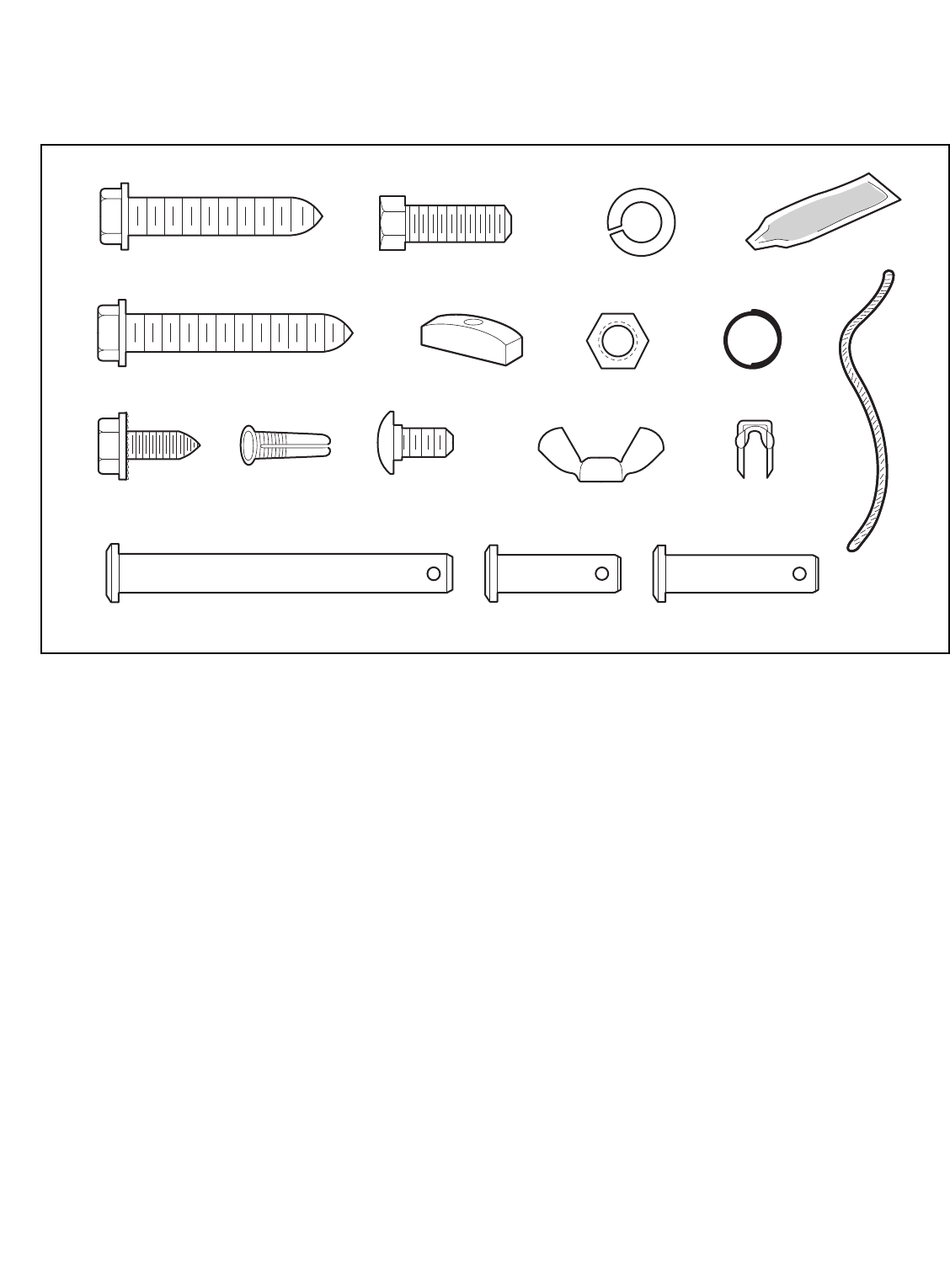

Hardware Inventory

Separate all hardware and group as shown below for the assembly and installation procedures.

Nut 5/16"-18 (4)

Clevis Pin

5/16"x2-3/4" (1)

NOTICE

Handle

Drywall

Anchors (2)

Clevis Pin

5/16"x1" (1) Clevis Pin

5/16"x1-1/4" (1)

Hex Bolt

5/16"-18x7/8" (4)

Rope

Ring Fastener (3)

Lock Washer 5/16" (4)

Lag Screw

5/16"-9 x1-5/8" (2)

Wing Nut

1/4"-20 (2)

Staples (30)

Rail Grease

Carriage Bolts

1/4"-20x1/2" (2)

Lag Screw

5/16"-18x1-7/8" (2)

Self-Threading Screw

1/4"-14x5/8" (2)

INSTALLATION HARDWARE

8

To avoid SERIOUS damage to garage door opener,

use ONLY those bolts/fasteners mounted in the top of the

opener.

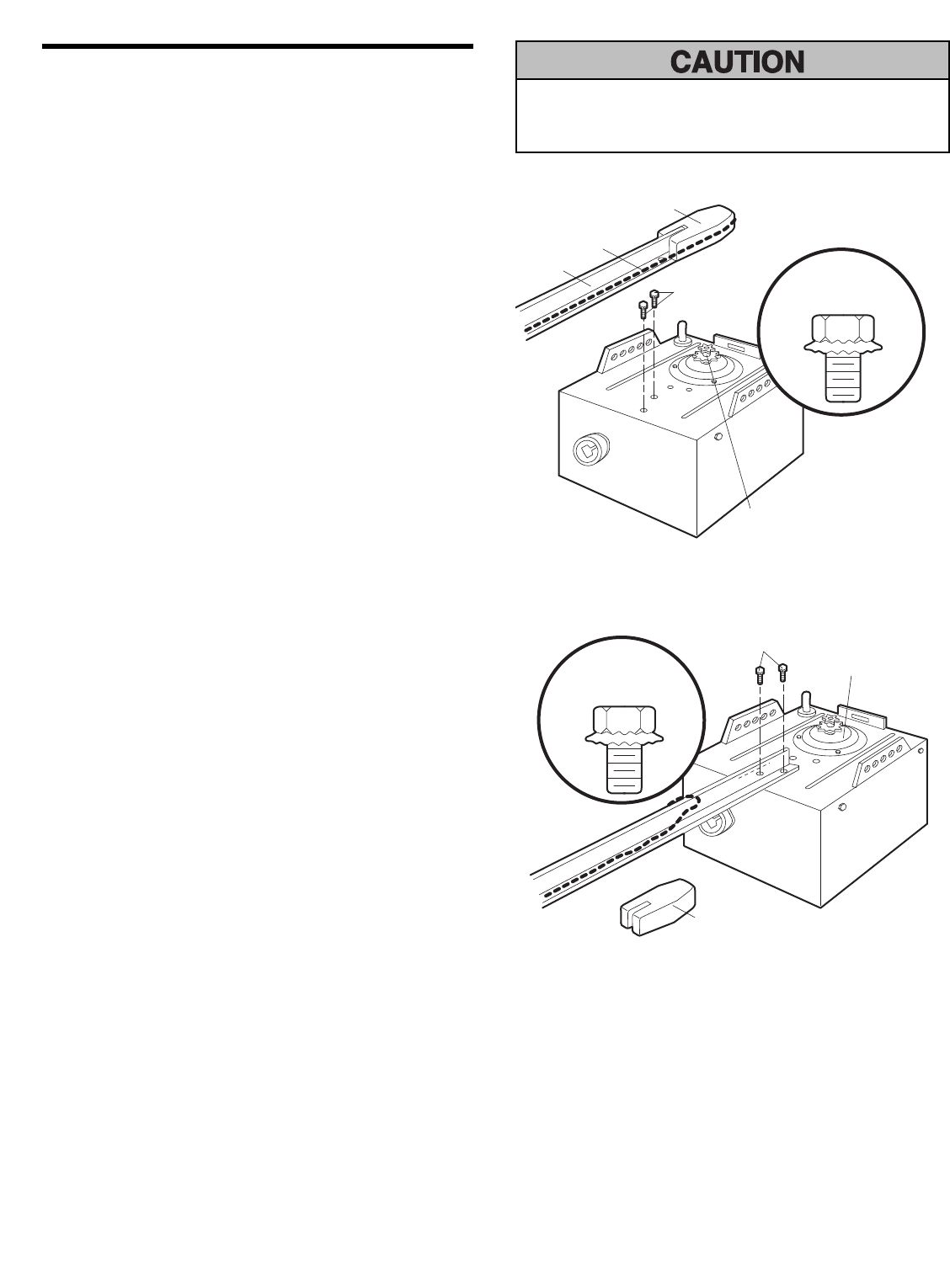

ASSEMBLY STEP 1

Fasten the Rail to the Motor Unit

MODELS 1355M AND 1345M ONLY

(For Models 1356M and 1346M see page 9)

• Remove the two washered bolts mounted in top of

motor unit.

• Position rail at an angle to opener so one hole in rail

and motor unit line up.

• Thread one of the washered bolts part way in.

Use only these bolts! Use of any other bolts will

cause serious damage to door opener.

• Align rail and styrofoam over sprocket. Cut tape from

rail, chain and styrofoam.

• REMOVE STYROFOAM.

Washered Bolt

5/16"-18x1/2"

Styrofoam

Rail

Hole

USE ONLY THIS

TYPE AND SIZE

BOLT

Washered Bolt

5/16"-18x1/2" Motor Unit

Sprocket

USE ONLY THIS

TYPE AND SIZE

BOLT

Sprocket Cover

Mounting

Plate

Front Tab Slot

Back Tab Slot

ASSEMBLY STEP 2

Attach the Chain to the Sprocket and

Install the Sprocket Cover

MODELS 1355M AND 1345M ONLY

• Position chain over the sprocket. If necessary, loosen

the outer nut on the trolley to obtain more chain slack.

• Insert the second washered bolt. CAUTION: Use only

the bolt previously removed from motor unit!

• Tighten both screws securely through the rail into the

motor unit as shown.

• Install the sprocket cover: Insert the back tab in the slot.

Squeeze the cover slightly and insert the front tab in the

slot on the mounting plate.

Proceed to Assembly Step 5.

9

ASSEMBLY STEP 3

Fasten the Rail to the Motor Unit

MODELS 1356M AND 1346M ONLY

• Remove the two washered bolts mounted in top of

motor unit.

• Align rail and styrofoam over sprocket.

• Cut tape from rail, chain and styrofoam. Remove

styrofoam and pull the chain back (away from the

mounting plate).

• Fasten the rail with the two washered bolts previously

removed. Tighten securely.

Use only these bolts! Use of any other bolts will

cause serious damage to door opener.

USE ONLY THIS

TYPE AND SIZE

BOLT

Washered

Bolts

5/16"-18x1/2"

Chain

Rail

Styrofoam

Packaging

Motor

Unit

Sprocket

Washered Bolts

5/16"-18x1/2"

Styrofoam

Packaging

Mounting

Plate

USE ONLY THIS

TYPE AND SIZE

BOLT

To avoid SERIOUS damage to garage door opener,

use ONLY those bolts/fasteners mounted in the top of the

opener.

10

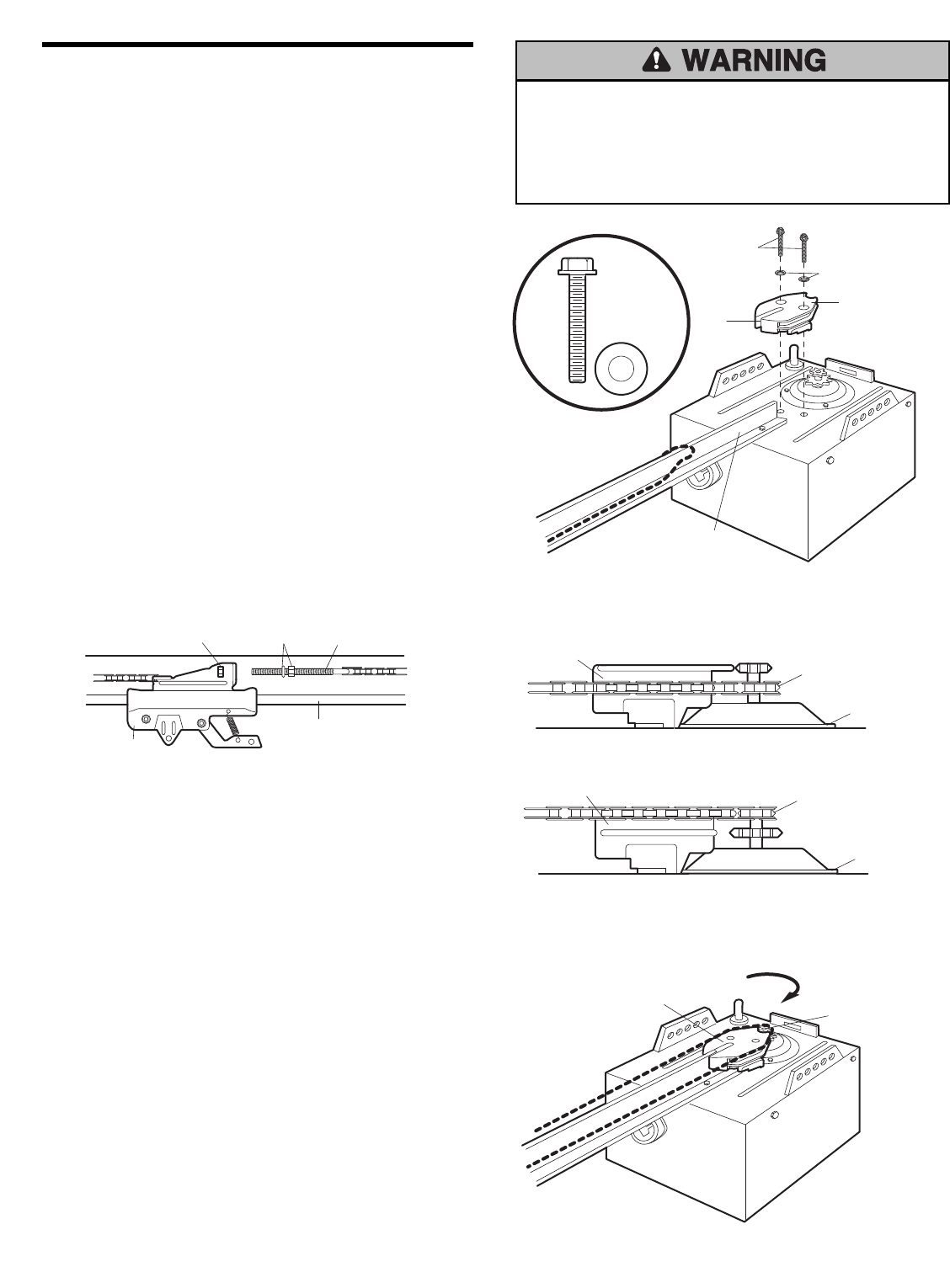

ASSEMBLY STEP 4

Attach the Chain Spreader

and Re-install the Chain

MODELS 1356M AND 1346M ONLY

• Line up the holes in the chain spreader with the holes

in the motor unit as shown. The slot in the chain

spreader must fit over the Rail flange

(Figure 1).

• Securely fasten the chain spreader with the hardware

provided.

• Remove the trolley threaded shaft from the trolley by

loosening the inner nut and lock washer (Figure 2).

• Guide the chain around the selected groove in the

chain spreader (to engage either the 8-tooth sprocket

or the 6-tooth sprocket) as shown (Figure 3).

• Continue dispensing the chain forward to the trolley

(Figure 4). Reconnect the trolley to the trolley

threaded shaft. Proceed to Assembly Step 3 for chain

tightening instructions.

Trolley

Trolley

Threaded Shaft

Outer

Nut

Rail

Inner Nut

and Washer

Chain

Spreader

#8x1"

Hex Screw

USE ONLY

THIS TYPE

AND SIZE

SCREW

Rail

Flange

Slot

Washers

Sprocket

Install Chain

In This Direction

Chain

Spreader

Figure 1

Figure 2

Figure 3

Figure 4

8-Tooth

Sprocket

6-Tooth

Sprocket

Chain

Spreader

Motor Unit

Mounting Plate

Motor Unit

Mounting Plate

Chain

Spreader

To avoid possible SERIOUS INJURY to fingers from moving

garage door opener:

• ALWAYS keep hand clear of sprocket while operating

opener.

• Securely attach sprocket cover BEFORE operating.

11

ASSEMBLY STEP 5

Tighten the Chain

ALL MODELS

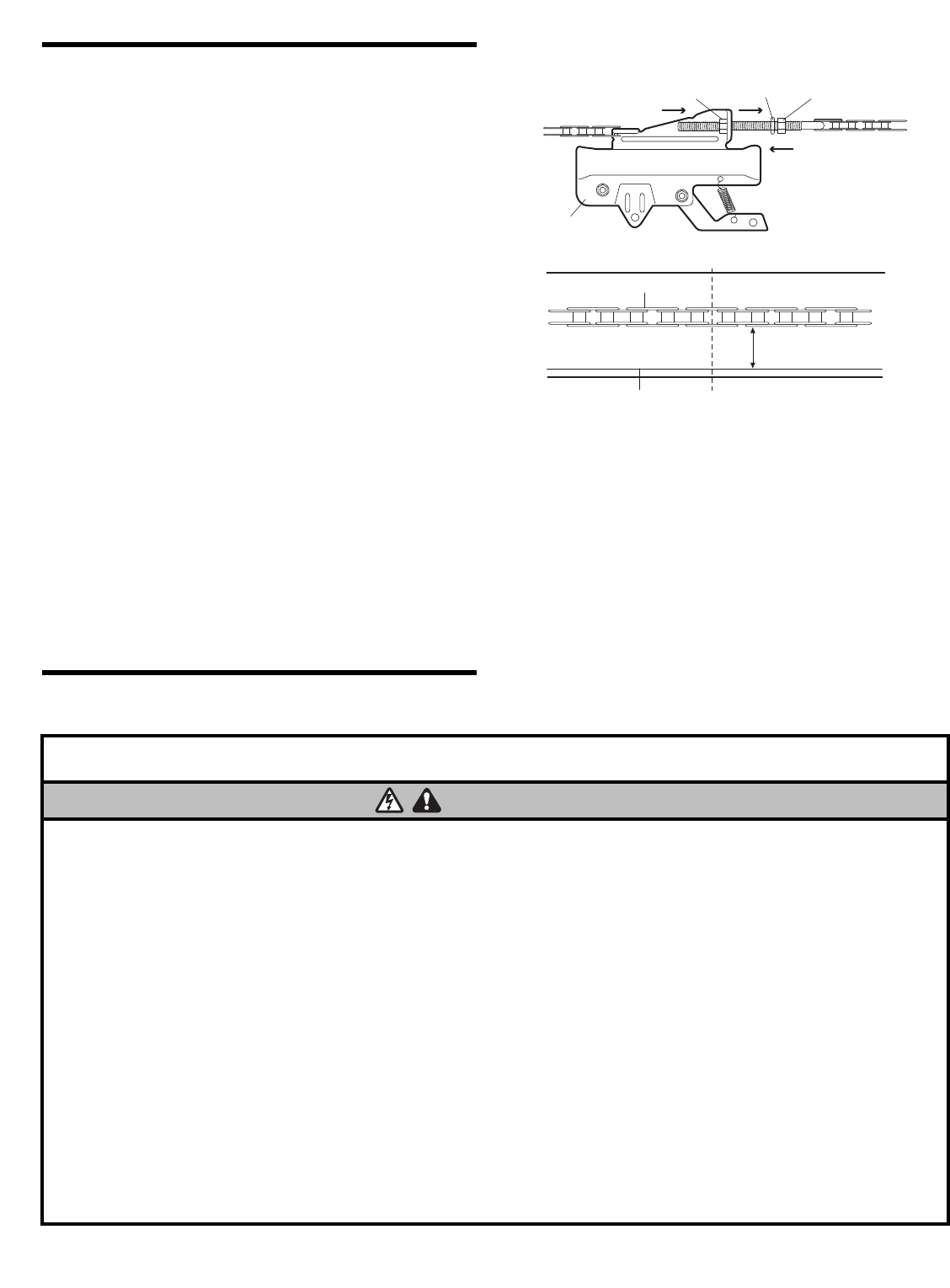

• Spin the inner nut and lock washer down the trolley

threaded shaft, away from the trolley.

• To tighten the chain, turn outer nut in the direction

shown. AS YOU TURN THE NUT, KEEP THE CHAIN

FROM TWISTING.

• When the chain is approximately 1/2" (13 mm) above

the base of the rail at its midpoint, re-tighten the inner

nut to secure the adjustment.

Sprocket noise can result if chain is either too loose

or too tight.

NOTE: When installation is complete, you may notice

some chain droop with the door closed. This is normal. If

the chain returns to the position shown when the door is

open, do not re-adjust the chain.

NOTE: During future maintenance, ALWAYS pull the

emergency release handle to disconnect trolley before

adjusting chain.

You have now finished assembling your garage door

opener. Please read the following warnings before

proceeding to the installation section.

Lock

Washer

To Tighten Outer Nut

Inner Nut

Trolley

Chain

Base of Rail

1/2" (13 mm)

To Tighten

Inner Nut

Outer Nut

Mid Length of Rail

IMPORTANT INSTALLATION INSTRUCTIONS

1. READ AND FOLLOW ALL INSTALLATION WARNINGS AND

INSTRUCTIONS.

2. Install garage door opener ONLY on properly balanced and

lubricated garage door. An improperly balanced door may

not reverse when required and could result in SEVERE

INJURY or DEATH.

3. All repairs to cables, spring assemblies and other hardware

MUST be made by a trained door systems technician

BEFORE installing opener.

4. Disable ALL locks and remove ALL ropes connected to

garage door BEFORE installing opener to avoid

entanglement.

5. Install garage door opener 7 feet (2.13 m) or more above

floor.

6. Mount emergency release handle 6 feet (1.83 m) above

floor.

7. NEVER connect garage door opener to power source until

instructed to do so.

8. NEVER wear watches, rings or loose clothing while

installing or servicing opener. They could be caught in

garage door or opener mechanisms.

9. Install wall-mounted garage door control:

• within sight of the garage door.

• out of reach of children at minimum height of 5 feet

(1.5 m).

• away from ALL moving parts of the door.

10. Place entrapment warning label on wall next to garage

door control.

11. Place manual release/safety reverse test label in plain

view on inside of garage door.

12. Upon completion of installation, test safety reversal

system. Door MUST reverse on contact with a

1-1/2” (3.8 cm) high object (or a 2x4 laid flat) on

the floor.

To reduce the risk of SEVERE INJURY or DEATH:

WARNING

WARNING

WARNINGWARNING

INSTALLATION

12

INSTALLATION STEP 1

Determine the Header Bracket

Location

Installation procedures vary according to garage door

types. Follow the instructions which apply to your door.

SECTIONAL DOOR

AND ONE-PIECE DOOR WITH TRACK

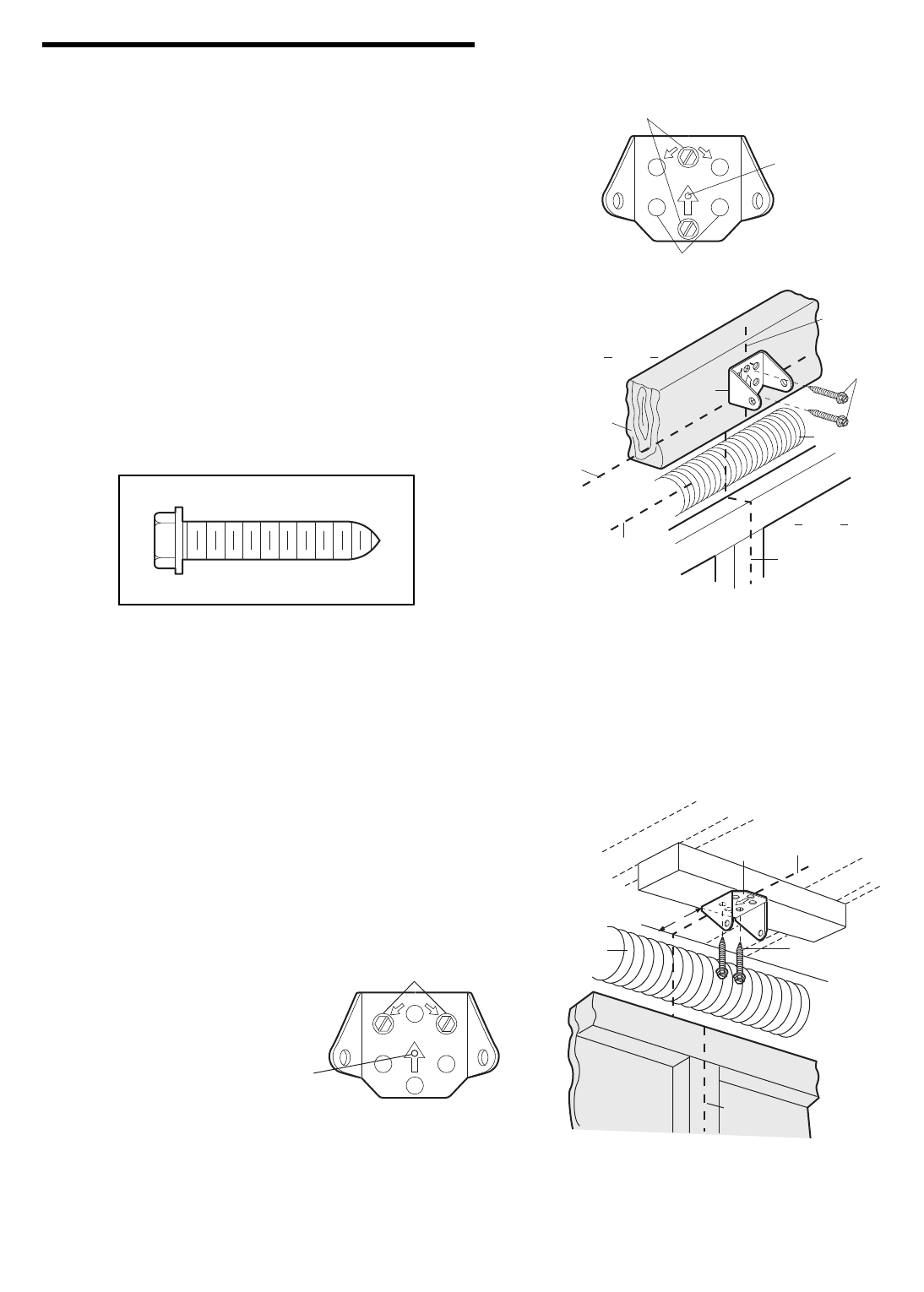

1. Close the door and mark the inside vertical centerline

of the garage door.

2. Extend the line onto the header wall above the door.

You can fasten the header bracket within 4 feet (1.2

m) of the left or right of the door center only if a

torsion spring or center bearing plate is in the

way; or you can attach it to the ceiling (see

page 10) when clearance is minimal. (It may be

mounted on the wall upside down if necessary, to

gain approximately 1/2" (1 cm).)

If you need to install the header bracket on a 2x4

(on wall or ceiling), use lag screws (not provided)

to securely fasten the 2x4 to structural supports as

shown here and on page 13.

3. Open your door to the highest point of travel as

shown. Draw an intersecting horizontal line on the

header wall 2" (5 cm) above the high point. This height

will provide travel clearance for the top edge of the

door.

Proceed to Step 2, page 14.

One-piece

door with

horizontal

track

To prevent possible SERIOUS INJURY or DEATH:

• Header bracket MUST be RIGIDLY fastened to structural

support on header wall or ceiling, otherwise garage door

might not reverse when required. DO NOT install header

bracket over drywall.

• Concrete anchors MUST be used if mounting header

bracket or 2x4 into masonry.

• NEVER try to loosen, move or adjust garage door, springs,

cables, pulleys, brackets, or their hardware, all of which are

under EXTREME tension.

• ALWAYS call a trained door systems technician if garage

door binds, sticks, or is out of balance. An unbalanced

garage door might not reverse when required.

Header Wall

Ceiling

Track

Highest Point

of Travel

Door

2" (5 cm)

Sectional door

with curved

track

Door

Track

Header Wall

Highest Point

of Travel

2" (5 cm)

Finished

Ceiling

Header

Wall 2x4 Structural

Supports

Vertical

Centerline

of Garage Door

13

Header Wall

Vertical

Centerline

of Garage

Door

2x4

Unfinished

Ceiling

2x4

OPTIONAL

CEILING MOUNT

FOR

HEADER BRACKET

Structural

Supports

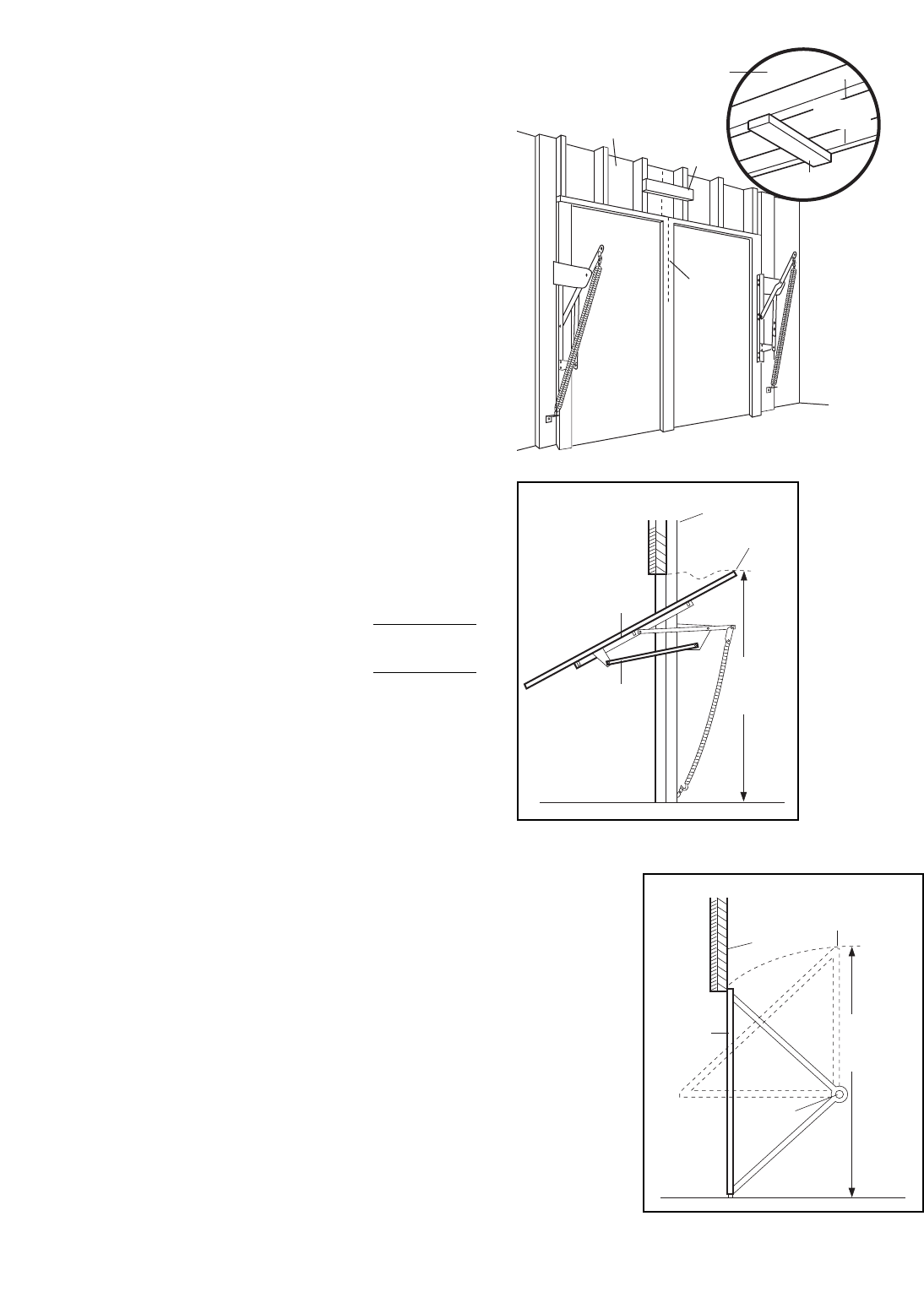

ONE-PIECE DOOR WITHOUT TRACK

1. Close the door and mark the inside vertical centerline

of your garage door. Extend the line onto the header

wall above door, as shown.

If headroom clearance is minimal, you can install the

header bracket on the ceiling. See page 14.

If you need to install the header bracket on a 2x4 (on

wall or ceiling), use lag screws (not provided) to

securely fasten the 2x4 to structural supports

as shown.

2. Open your door to the highest point of travel as shown.

Measure the distance from the top of the door to the

floor. Subtract the actual height of the door. Add 8" (20

cm) to the remainder. (See Example).

3. Close the door and draw an intersecting horizontal line

on the header wall at the determined height.

NOTE: If the total number of inches exceeds the

height available in your garage, use the maximum

height possible, or refer to page 14 for ceiling

installation.

Door

Highest Point

of Travel

Header Wall

Pivot

Distance

Floor

One-piece door without track:

pivot hardware

Header Wall

Highest Point

of Travel

Door

Floor

Distance

Jamb

Hardware

One-piece door without track:

jamb hardware

EXAMPLE

Distance from top of door

(at highest point of travel) to floor . . . . . . . .92" (234 cm)

Actual height of door . . . . . . . . . . . . . . . . .-88" (224 cm)

Remainder . . . . . . . . . . . . . . . . . . . . . . . . . . . .4" (10 cm)

Add . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .+8" (20 cm)

Bracket height on header wall . . . . . . . . . . .=12" (30 cm)

(Measure UP from top of CLOSED door.)

Proceed to Step 2, page 14.

14

INSTALLATION STEP 2

Install the Header Bracket

You can attach the header bracket either to the wall

above the garage door, or to the ceiling. Follow the

instructions which will work best for your particular

requirements. Do not install the header bracket over

drywall. If installing into masonry, use concrete

anchors (not provided).

WALL HEADER BRACKET INSTALLATION

• Center the bracket on the vertical centerline with the

bottom edge of the bracket on the horizontal line as

shown (with the arrow pointing toward the ceiling).

• Mark the vertical set of bracket holes (do not use the

holes designated for ceiling mount). Drill 3/16" pilot

holes and fasten the bracket securely to a structural

support with the hardware provided.

Lag Screw

5/16"-9 x 1-5/8"

HARDWARE SHOWN ACTUAL SIZE

Lag Screws

5/16"-9x1-5/8"

Highest Point of

Garage Door Travel

Header

Wall

Garage

Door

UP

CEILING MOUNT ONLY

Wall Mounting Holes

Optional

Wall Mounting Holes

The nail hole is for

positioning only.

You must use lag screws

to mount the header bracke

UP

CEILING MOUNT ONLY

Door Spring

Header

Bracket

2x4

Structural

Support

Horizontal

Line

Vertical

Centerline

of Garage Door

Vertical

Centerline

of Garage Door

UP

CEILING MOUNT ONLY

Ceiling Mounting Holes

The nail hole is for

positioning only.

You must use lag screws

to mount the header bracket.

UP

Lag Screws

5/16"-9x1-5/8"

Garage Door

Header Wall

– Finished Ceiling –

Header

Bracket

6" (15 cm)

Maximum

Door

Spring

Vertical

Centerline

of Garage Door

Vertical

Centerline

of Garage Door

CEILING HEADER BRACKET INSTALLATION

• Extend the vertical centerline onto the ceiling as

shown.

• Center the bracket on the vertical mark, no more than

6" (15 cm) from the wall. Make sure the arrow is

pointing toward the wall. The bracket can be mounted

flush against the ceiling when clearance is minimal.

• Mark the side holes. Drill 3/16" pilot holes and fasten

bracket securely to a structural support with the

hardware provided.

15

Clevis Pin

5/16"x2-3/4" Ring Fastener

INSTALLATION STEP 3

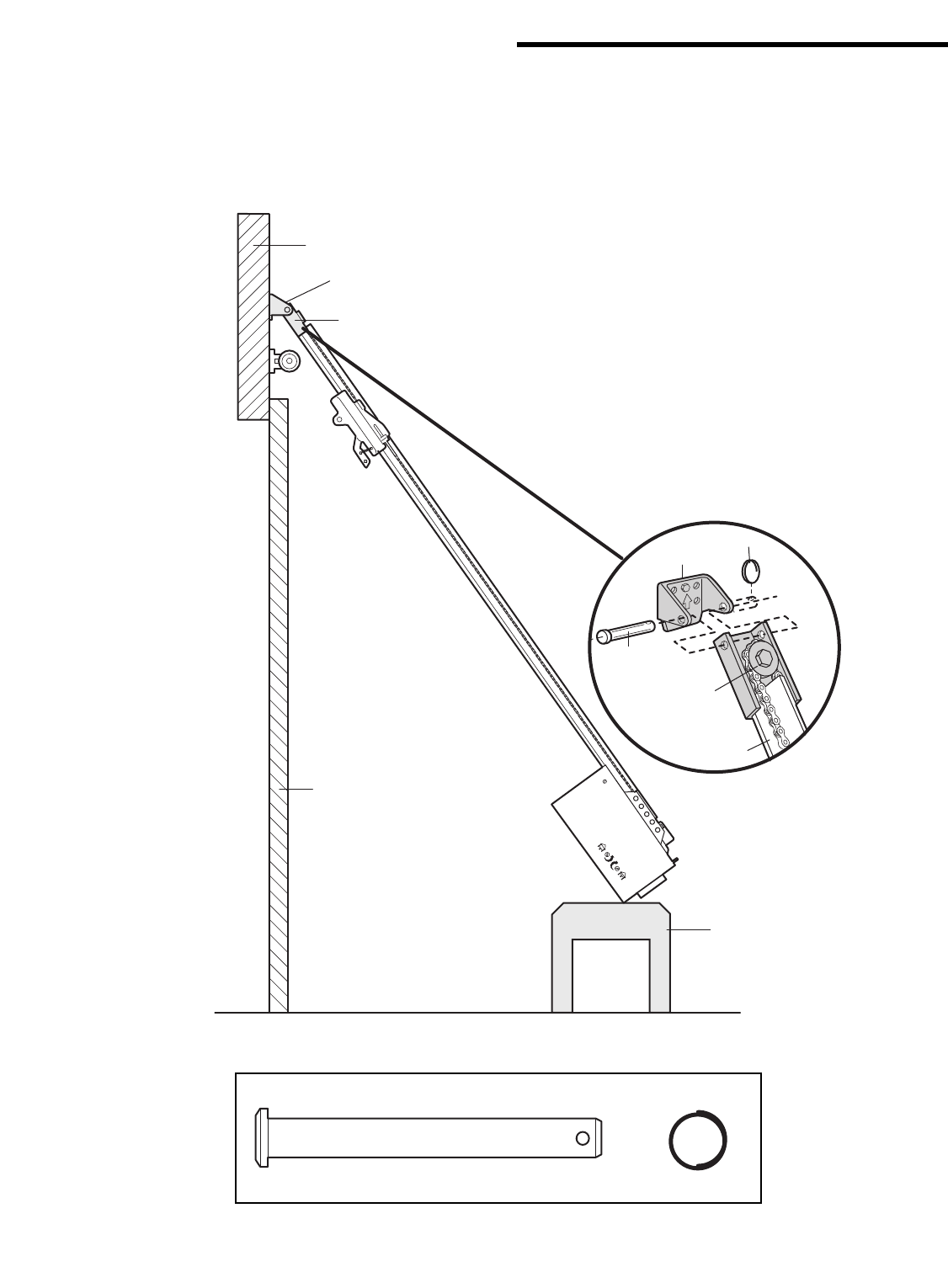

Attach the Rail to the Header Bracket

• Position the opener on the garage floor below the

header bracket. Use packing material as a protective

base. NOTE: If the door spring is in the way you’ll

need help. Have someone hold the opener securely on

a temporary support to allow the rail to clear the

spring.

• Position the rail bracket against the header bracket.

• Align the bracket holes and join with a clevis pin

as shown.

• Insert a ring fastener to secure.

Header Bracket

Chain Pulley Bracket

Temporary

Support

Header Wall

Garage

Door

Clevis Pin

5/16"x2-3/4"

Ring Fastener

Header Bracket

Chain

Pulley

Bracket

Rail

HARDWARE SHOWN ACTUAL SIZE

16

ONE-PIECE DOOR WITHOUT TRACK

• With the door fully open and parallel to the floor,

measure the distance from the floor to the top of the

door.

• Using a stepladder as a support, raise the top of the

opener to this height.

• The top of the door should be level with the top of the

motor unit. Do not position the opener more than 2" (5

cm) above this point.

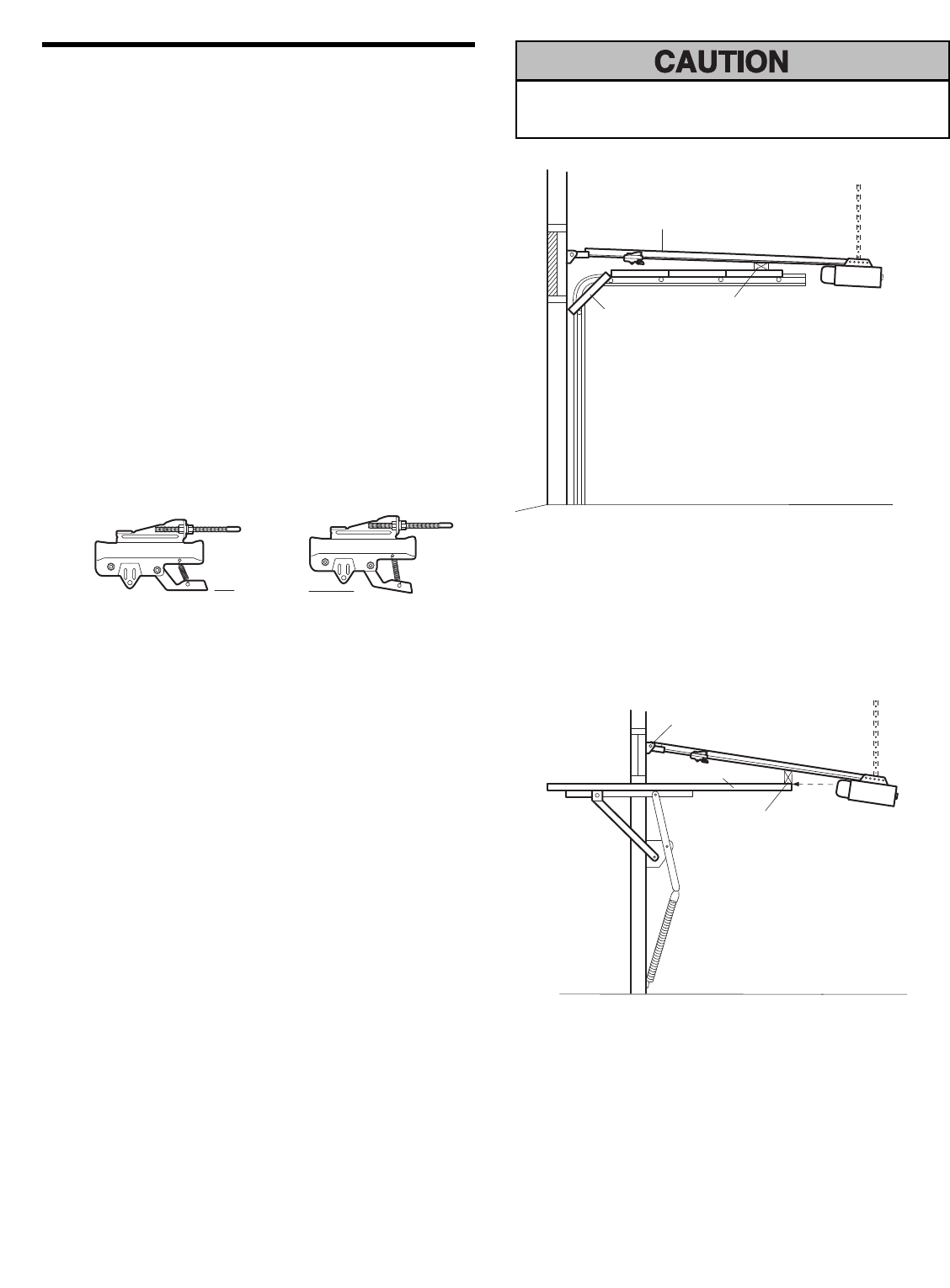

INSTALLATION STEP 4

Position the Opener

Follow instructions which apply to your door type as

illustrated.

SECTIONAL DOOR OR ONE-PIECE DOOR WITH

TRACK

A 2x4 laid flat is convenient for setting an ideal door-to-

rail distance.

• Raise the opener onto a stepladder. You will need help

at this point if the ladder is not tall enough.

• Open the door all the way and place a 2x4 laid flat on

the top section beneath the rail.

• If the top section or panel hits the trolley when you

raise the door, pull down on the trolley release arm

to disconnect inner and outer sections. Slide the outer

trolley toward the motor unit. The trolley can remain

disconnected until Installation Step 12 is completed.

Rail

Door 2x4 is used to determine

the correct mounting height

from ceiling.

Trolley

Release Arm

ENGAGED RELEASED

To prevent damage to garage door, rest garage door opener

rail on 2x4 placed on top section of door.

Header

Bracket

Top of Door

2x4 is used to determine

the correct mounting height

from ceiling.

17

INSTALLATION STEP 5

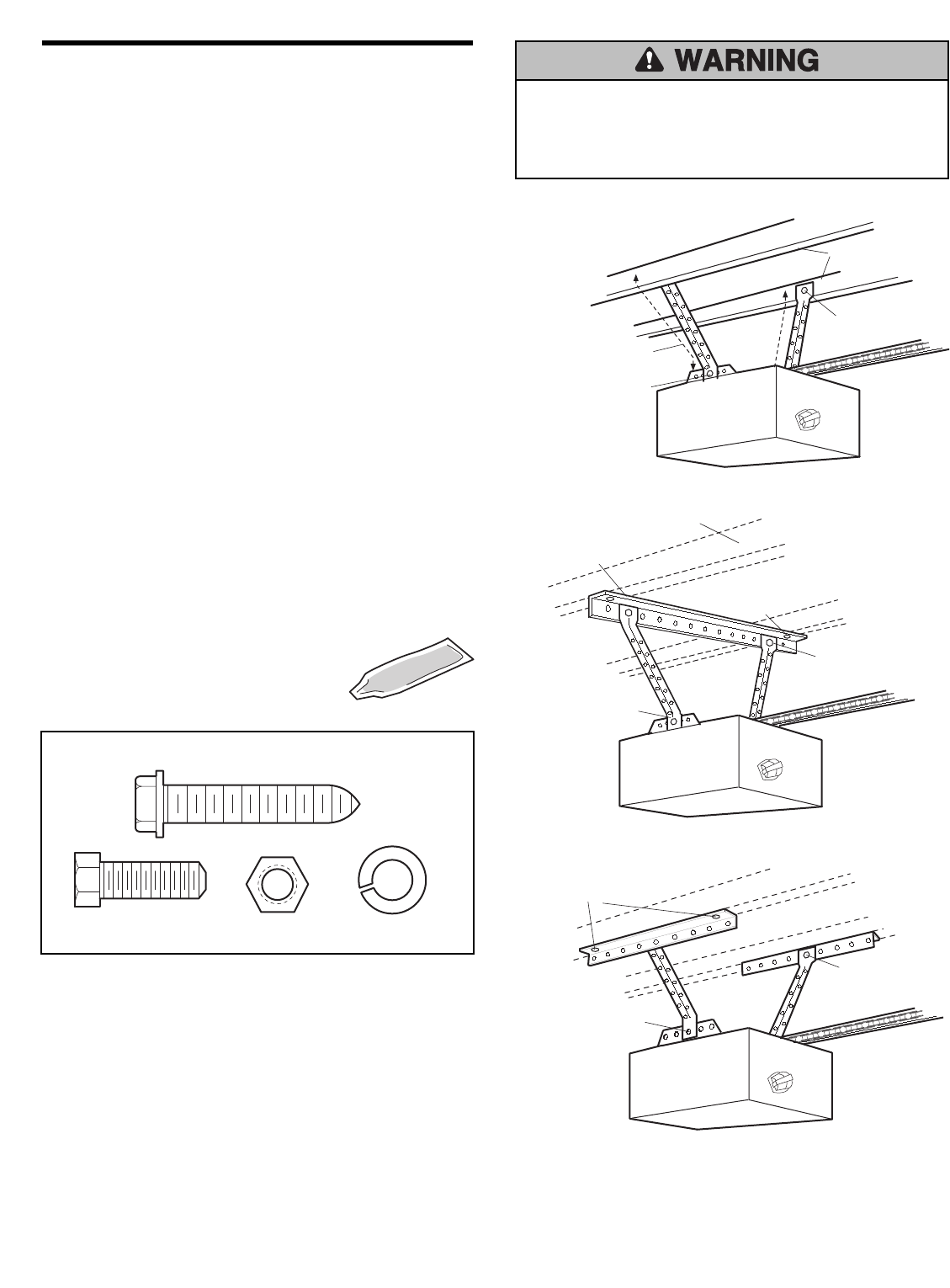

Hang the Opener

Two representative installations are shown. Yours may

be different. Hanging brackets should be angled (Figure

1) to provide rigid support. On finished ceilings (Figure 2

and Figure 3), attach a sturdy metal bracket to structural

supports before installing the opener. This bracket and

fastening hardware are not provided.

1. Measure the distance from each side of the motor unit

to the structural support.

2. Cut both pieces of the hanging bracket to required

lengths.

3. Drill 3/16" pilot holes in the structural supports.

4. Attach one end of each bracket to a support with

5/16"-18x1-7/8" lag screws.

5. Fasten the opener to the hanging brackets with 5/16"-

18x7/8" hex bolts, lock washers and nuts.

6. Check to make sure the rail is centered

over the door (or in line with the

header bracket if the bracket is not

centered above the door).

7. Remove the 2x4. Operate the door manually. If the

door hits the rail, raise the header bracket.

8. Grease the top and underside of the rail surface where

the trolley slides with rail grease.

To avoid possible SERIOUS INJURY from a falling garage

door opener, fasten it SECURELY to structural supports of

the garage. Concrete anchors MUST be used if installing any

brackets into masonry.

Hex Bolt

5/16"-18x7/8" Nut 5/16"-18 Lock Washer 5/16"

Lag Screw 5/16"-9x1-5/8"

HARDWARE SHOWN ACTUAL SIZE

Measure

Distance

Lag Screws

5/16"-18x1-7/8"

Bolt 5/16"-18x7/8"

Lock Washer 5/16"

Nut 5/16"-18

Structural

Supports

Bracket

(Not Provided)

Lag Screws

5/16"-18x1-7/8"

(Not Provided)

Bolt 5/16"-18x7/8"

Lock Washer 5/16"

Nut 5/16"-18

FINISHED CEILING

Hidden

Support

Bolt 5/16"-18x7/8"

Lock Washer 5/16"

Nut 5/16"-18

Bolt 5/16"-18x7/8"

Lock Washer 5/16"

Nut 5/16"-18

Lag Screws

5/16"-18x1-7/8"

(Not Provided)

Bolt 5/16"-18x7/8"

Lock Washer 5/16"

Nut 5/16"-18

FINISHED CEILING

Figure 1

Figure 2

RAIL GREASE

NO.83A11-2

Figure 3

18

To prevent possible SERIOUS INJURY or DEATH from

electrocution:

• Be sure power is not connected BEFORE installing door

control.

• Connect ONLY to 24 VOLT low voltage wires.

To prevent possible SERIOUS INJURY or DEATH from a

closing garage door:

• Install door control within sight of garage door, out of reach

of children at a minimum height of 5 feet (1.5 m), and away

from all moving parts of door.

• NEVER permit children to operate or play with door control

push buttons or remote control transmitters.

• Activate door ONLY when it can be seen clearly, is properly

adjusted, and there are no obstructions to door travel.

• ALWAYS keep garage door in sight until completely closed.

NEVER permit anyone to cross path of closing garage door.

Drywall Anchors Insulated

Staples

Screw 6ABx1-1/2"

Lighted Door Control Button

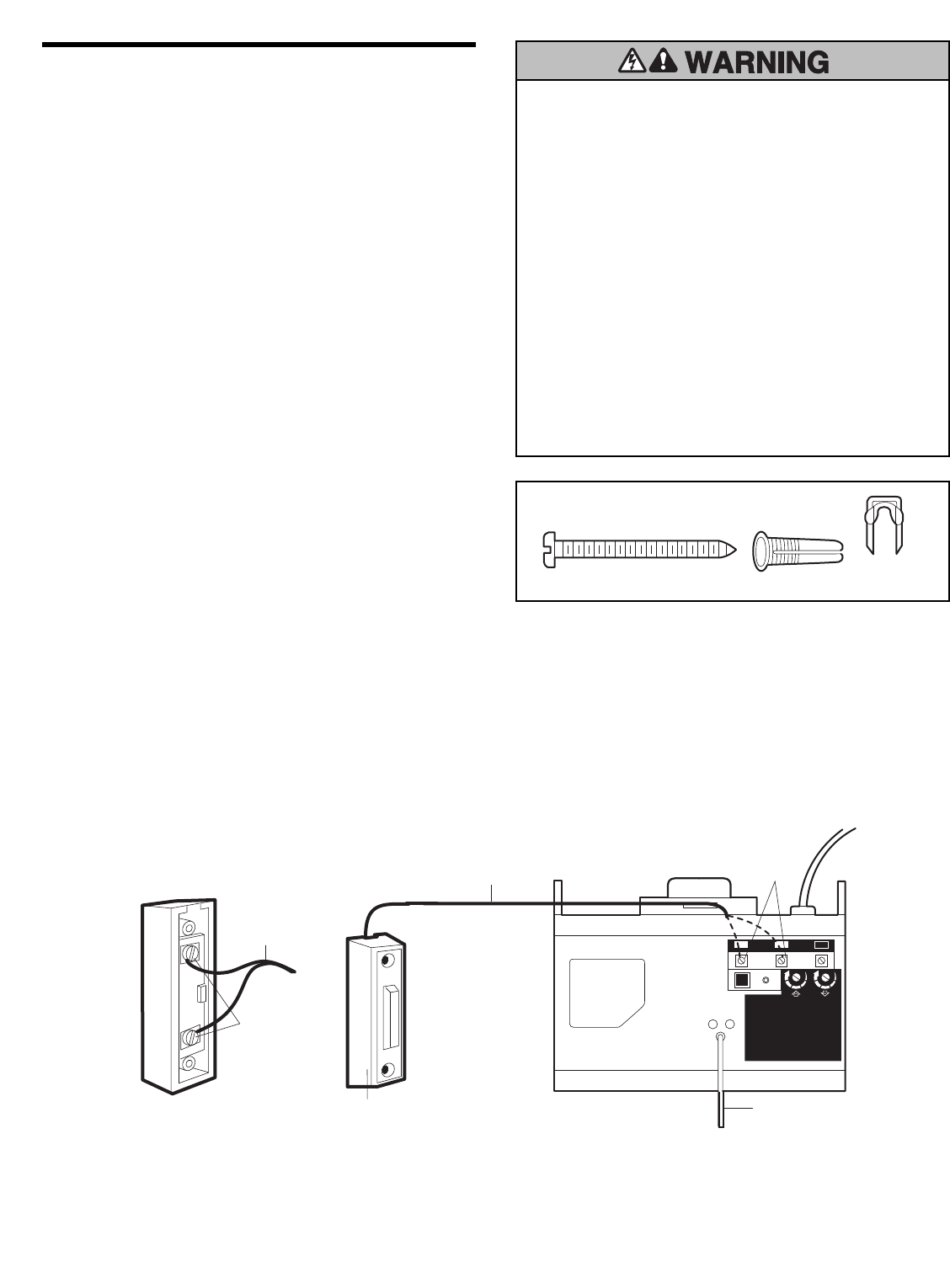

INSTALLATION STEP 6

Install the Door Control

Locate the door control within sight of the door at a

minimum height of 5 feet (1.5 m) where small children

cannot reach, and away from all moving parts of the door

and door hardware.

1. Strip 1/4" (6 mm) of insulation from one end of the bell

wire. Connect it to the two screw terminals on the back

of the door control by color: white wire to 2 and

white/red wire to 1.

2. Fasten the Lighted Door Control Button securely with

6ABx1-1/2" screws. If installing into drywall, drill 5/32"

holes and use the anchors provided.

3. Run the bell wire up the wall and across the ceiling to

the opener. Use insulated staples to secure the wire in

several places. Do not pierce wire with a staple,

creating a short or open circuit.

4. Receiver terminal screws and the antenna are located

on the back panel of the opener. Position the antenna

wire as shown.

5. Connect the bell wire to the opener terminal screws:

white to 2 and white/red to 1.

6. Use tacks or staples to permanently attach the

entrapment warning label to the wall near the door

control, and the manual release/safety reverse test in

a prominent location on the inside of the garage door.

NOTE: DO NOT connect the power and operate the

opener at this time. The trolley will travel to the full open

position but will not return to the close position until the

sensor beam is connected and properly aligned. See

Safety Reversing Sensor instructions beginning on page

21.

Opener

Terminal Screws

Bell Wire

Antenna

BACK PANEL

Lighted Door

Control Button

Terminal Screws

Bell Wire

WHT

RED

1

3

9

7

5

1

3

9

7

5

23

1

-2

-1

Lighted

Door Control Button

HARDWARE SHOWN ACTUAL SIZE

19

INSTALLATION STEP 7

Install the Light and Lens

INSTALL THE LIGHT

• Install an A19 standard neck, 75 watt maximum light

bulb in the socket. The light will turn ON and remain lit

for approximately 4-1/2 minutes when power is

connected. Then the light will turn OFF.

• Use standard neck Garage Door Opener bulbs for

replacement

INSTALL THE LENS

• Locate and loosen (approximately 1/8" (3 mm) the two

screws near top of opener front panel.

• Position lens against panel with slotted tabs directly

below screws. Slide lens up to seat tabs behind

screws.

• Snap bottom tabs of lens into panel slots.

• Retighten top panel screws to secure lens.

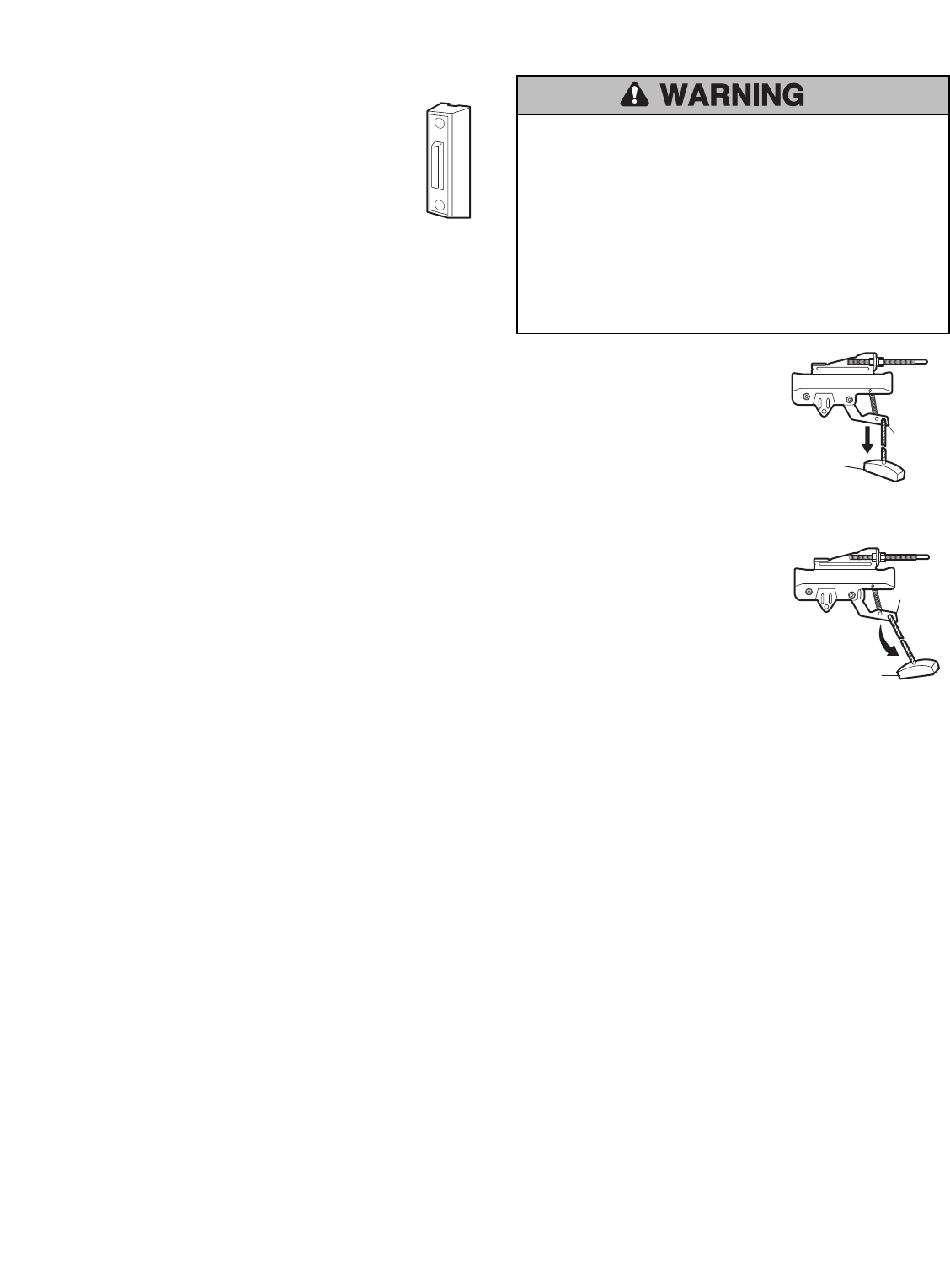

INSTALLATION STEP 8

Attach the Emergency Release Rope

and Handle

• Thread one end of the rope through the hole in the top

of the red handle so "NOTICE" reads right side up as

shown. Secure with an overhand knot at least 1" (2.5

cm) from the end of the rope to prevent slipping.

• Thread the other end of the rope through the hole in

the release arm of the outer trolley.

• Adjust rope length so the handle is 6 feet (1.83 m)

above the floor. Secure with an overhand knot.

NOTE: If it is necessary to cut the rope, heat seal the cut

end with a match or lighter to prevent unraveling.

To prevent possible SERIOUS INJURY or DEATH from a

falling garage door:

• If possible, use emergency release handle to disengage

trolley ONLY when garage door is CLOSED. Weak or broken

springs or unbalanced door could result in an open door

falling rapidly and/or unexpectedly.

• NEVER use emergency release handle unless garage

doorway is clear of persons and obstructions.

• NEVER use handle to pull door open or closed. If rope knot

becomes untied, you could fall.

Lens Slot

75 Watt Max.

Light Bulb

Lens Tab

Light

Lens

Panel Screw

Trolley

NOTICE

Overhand

Knot

Emergency

Release Handle

Rope

Trolley

Release Arm

To prevent possible OVERHEATING of the endpanel or light

socket:

• DO NOT use short neck or specialty light bulbs.

• DO NOT use halogen bulbs. Use ONLY incandescent.

To prevent damage to the opener:

• DO NOT use bulbs larger than 75W.

• ONLY use A19 size bulbs.

20

INSTALLATION STEP 9

Electrical Requirements

To avoid installation difficulties, do not run the

opener at this time.

To reduce the risk of electric shock, your garage door

opener has a grounding type plug with a third grounding

pin. This plug will only fit into a grounding type outlet. If

the plug doesn't fit into the outlet you have, contact a

qualified electrician to install the proper outlet.

If permanent wiring is required by your local code,

refer to the following procedure.

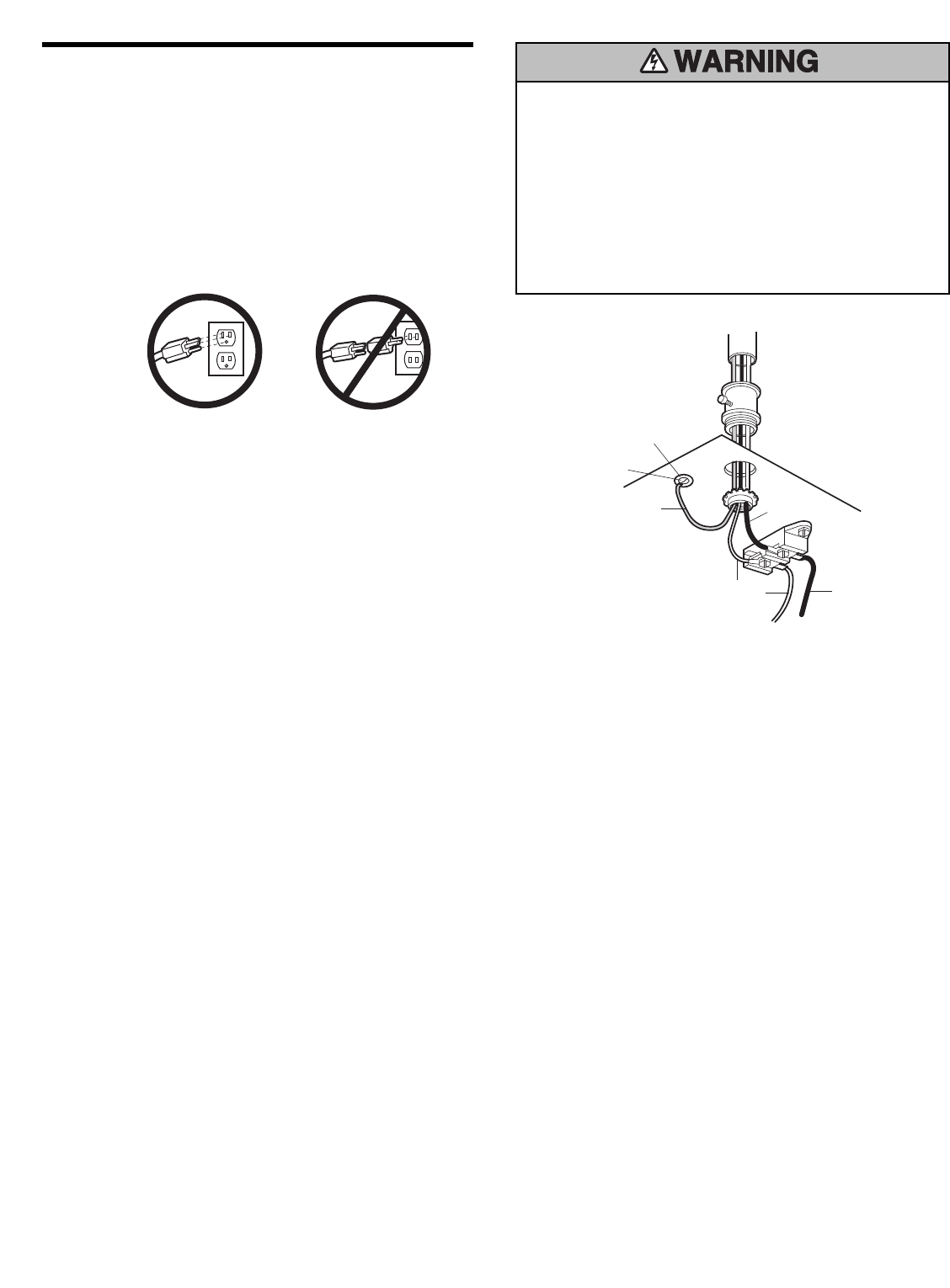

To make a permanent connection through the 7/8" hole

in the top of the motor unit:

• Remove the motor unit cover screws and set the cover

aside.

• Remove the attached 3-prong cord.

• Connect the black (line) wire to the screw on the brass

terminal; the white (neutral) wire to the screw on the

silver terminal; and the ground wire to the green

ground screw. The opener must be grounded.

• Reinstall the cover.

To avoid installation difficulties, do not run the

opener at this time.

RIGHT WRONG

To prevent possible SERIOUS INJURY or DEATH from

electrocution or fire:

• Be sure power is not connected to the opener, and

disconnect power to circuit BEFORE removing cover to

establish permanent wiring connection.

• Garage door installation and wiring MUST be in compliance

with all local electrical and building codes.

• NEVER use an extension cord, 2-wire adapter, or change

plug in ANY way to make it fit outlet. Be sure the opener is

grounded.

Ground Tab

Green

Ground Screw

Ground Wire

Black Wire

PERMANENT WIRING

CONNECTION

White Wire

Black

Wire

21

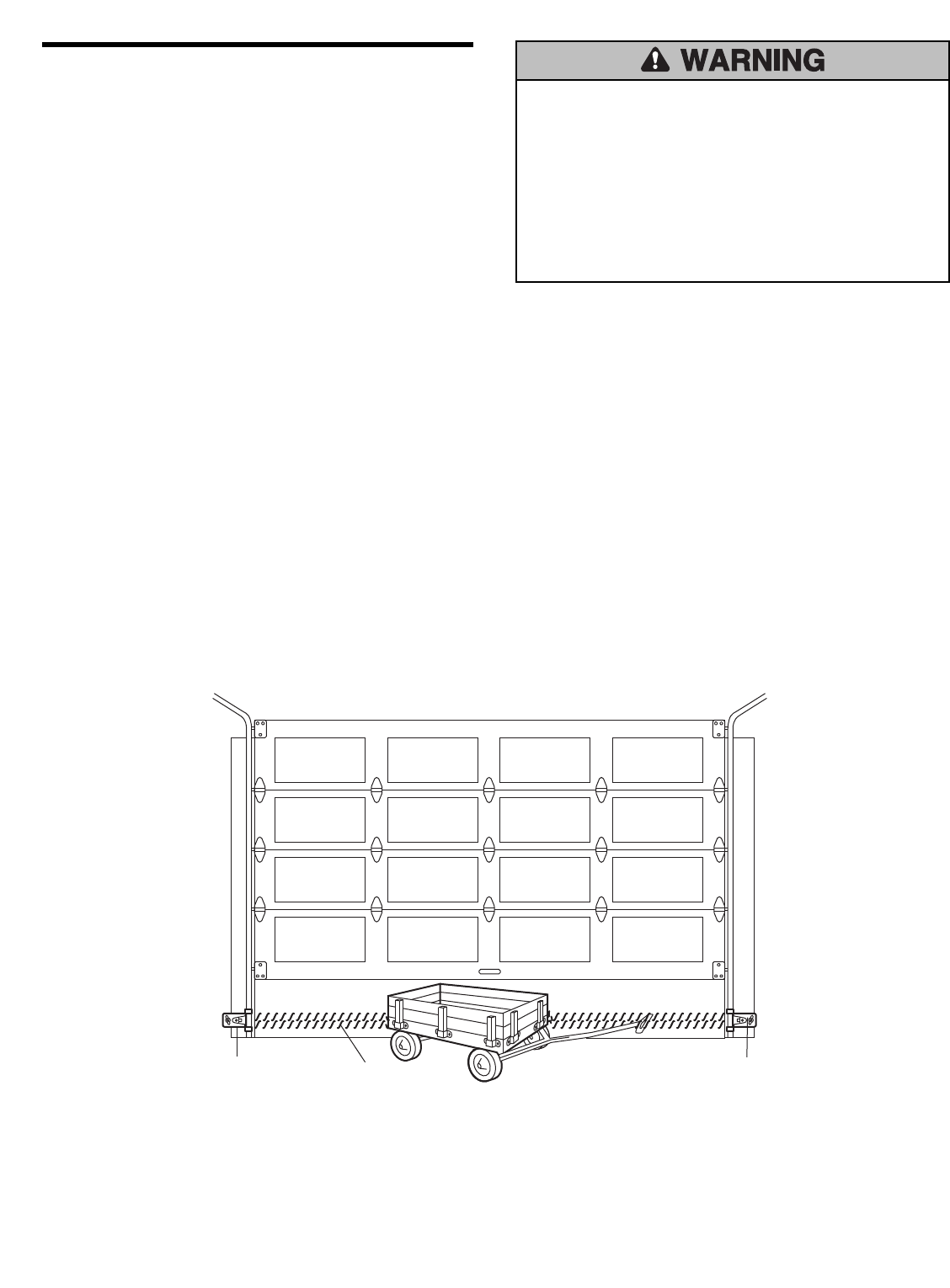

Invisible Light Beam

Protection Area

Safety Reversing Sensor

6" (15 cm) max. above floor Safety Reversing Sensor

6" (15 cm) max. above floor

Facing the door from inside the garage

INSTALLATION STEP 10

Install The Protector System®

The safety reversing sensor must be connected and

aligned correctly before the garage door opener will

move in the down direction.

IMPORTANT INFORMATION ABOUT

THE SAFETY REVERSING SENSOR

When properly connected and aligned, the sensor will

detect an obstacle in the path of its electronic beam. The

sending eye (with an amber indicator light) transmits an

invisible light beam to the receiving eye (with a green

indicator light). If an obstruction breaks the light beam

while the door is closing, the door will stop and reverse

to full open position, and the opener lights will flash

10 times.

The units must be installed inside the garage so that the

sending and receiving eyes face each other across the

door, no more than 6" (15 cm) above the floor. Either can

be installed on the left or right of the door as long as the

sun never shines directly into the receiving eye lens.

The mounting brackets are designed to clip onto the

track of sectional garage doors without additional

hardware.

If it is necessary to mount the units on the wall, the

brackets must be securely fastened to a solid surface

such as the wall framing. Extension brackets (see

accessories) are available if needed. If installing in

masonry construction, add a piece of wood at each

location to avoid drilling extra holes in masonry if

repositioning is necessary.

The invisible light beam path must be unobstructed. No

part of the garage door (or door tracks, springs, hinges,

rollers or other hardware) may interrupt the beam while

the door is closing.

Be sure power is not connected to the garage door opener

BEFORE installing the safety reversing sensor.

To prevent SERIOUS INJURY or DEATH from a closing

garage door:

• Correctly connect and align the safety reversing sensor.

This required safety device MUST NOT be disabled.

• Install the safety reversing sensor so beam is NO HIGHER

than 6" (15 cm) above garage floor.

22

DOOR TRACK MOUNT (RIGHT SIDE)

Indicator

Light

Lens

Lip

Sensor

Bracket

Door

Track

FLOOR MOUNT (RIGHT SIDE)

WALL MOUNT (RIGHT SIDE)

Indicator

Light

Sensor

Bracket

Lens

Extension

Bracket

(See Accessories)

Inside

Garage

Wall

(Provided with

Extension

Bracket)

(Provided with

Extension Bracket)

Figure 1

Figure 2

Figure 3

Figure 4

WALL MOUNT (RIGHT SIDE)

Attach with

Concrete Anchors

(Not Provided)

Inside

Garage

Wall

Sensor

Bracket

Lens

Indicator

Light

Inside

Garage

Wall

Indicator

Light Sensor

Bracket

Lens

Lag Screws

(Not Provided)

Fasten Wood Block to Wall with

Lag Screws (Not Provided)

INSTALLING THE BRACKETS

Be sure power to the opener is disconnected. Install

and align the brackets so the sensors will face each

other across the garage door, with the beam no higher

than 6" (15 cm) above the floor. They may be installed in

one of three ways, as follows.

Garage door track installation (preferred):

• Slip the curved arms over the rounded edge of each

door track, with the curved arms facing the door. Snap

into place against the side of the track. It should lie

flush, with the lip hugging the back edge of the track,

as shown in Figure 1.

If your door track will not support the bracket securely,

wall installation is recommended.

Wall installation (Figure 2 & 3):

• Place the bracket against the wall with curved arms

facing the door. Be sure there is enough clearance for

the sensor beam to be unobstructed.

• If additional depth is needed, an extension bracket

(see Accessories) or wood blocks can be used.

• Use bracket mounting holes as a template to locate

and drill (2) 3/16" diameter pilot holes on the wall at

each side of the door, no higher than 6" (15 cm) above

the floor.

• Attach brackets to wall with lag screws (not provided).

• If using extension brackets or wood blocks, adjust right

and left assemblies to the same distance out from the

mounting surface. Make sure all door hardware

obstructions are cleared.

Floor installation (Figure 4):

• Use wood blocks or extension brackets (see

Accessories) to elevate sensor brackets so the lenses

will be no higher than 6" (15 cm) above the floor.

• Carefully measure and place right and left assemblies

at the same distance out from the wall. Be sure all

door hardware obstructions are cleared.

• Fasten to the floor with concrete anchors as shown.

Wing Nut

1/4"-20

Staples

Carriage Bolt

1/4"-20x1/2"

HARDWARE SHOWN ACTUAL SIZE

23

Carriage Bolt

1/4"-20x1/2" Lens

Wing Nut

1/4"-20

Figure 5MOUNTING AND WIRING THE SAFETY REVERSING

SENSORS

• Slide a 1/4"-20x1/2" carriage bolt head into the slot on

each sensor. Use wing nuts to fasten sensors to

brackets, with lenses pointing toward each other across

the door. Be sure the lens is not obstructed by a

bracket extension (Figure 5).

• Finger tighten the wing nuts.

•Run the wires from both sensors to the opener. Use

insulated staples to secure wire to wall and ceiling.

• Strip 1/4" (6 mm) of insulation from each set of wires.

Separate white and white/black wires sufficiently to

connect to the opener terminal screws: white to 2 and

white/black to 3 (Figure 6).

ALIGNING THE SAFETY REVERSING SENSORS

•Plug in the opener. The indicator lights in both the

sending and receiving eyes will glow steadily if wiring

connections and alignment are correct.

The sending eye amber indicator light will glow regardless

of alignment or obstruction. If the green indicator light in

the receiving eye is off, dim, or flickering (and the invisible

light beam path is not obstructed), alignment is required.

• Loosen the sending eye wing nut and readjust, aiming

directly at the receiving eye. Lock in place.

• Loosen the receiving eye wing nut and adjust sensor

until it receives the sender’s beam. When the green

indicator light glows steadily, tighten the wing nut.

TROUBLESHOOTING THE SAFETY

REVERSING SENSORS

1. If the sending eye indicator light does not glow steadily

after installation, check for:

• Electric power to the opener.

• A short in the white or white/black wires. These can

occur at staples, or at terminal connections.

• Incorrect wiring between sensors and opener.

• A broken wire.

2. If the sending eye indicator light glows steadily but the

receiving eye indicator light doesn't:

• Check alignment.

• Check for an open wire to the receiving eye.

3. If the receiving eye indicator light is dim, realign either

sensor.

NOTE: When the invisible beam path is obstructed or

misaligned while the door is closing, the door will

reverse. If the door is already open, it will not close. The

opener lights will blink 10 times. (If bulbs are not

installed, 10 clicks can be heard.) See page 21.

Invisible Light Beam

Protection Area

Safety Reversing Sensor

Safety Reversing Sensor

Connect Wire to

Opener Terminal Screws

Bell Wire

Finished Ceiling

OPENER TERMINAL SCREWS

Sensor

Connections

Door Control

Connections

(dotted line)

1 2 3

Bell Wire

Figure 6

24

INSTALLATION STEP 11

Fasten the Door Bracket

Follow instructions which apply to your door type

as illustrated below or on the following page.

A horizontal reinforcement brace should be long

enough to be secured to two or three vertical

supports. A vertical reinforcement brace should

cover the height of the top panel.

Figure 1 shows one piece of angle iron as the horizontal

brace. For the vertical brace, 2 pieces of angle iron are

used to create a U-shaped support. The best solution is

to check with your garage door manufacturer for an

opener installation door reinforcement kit.

NOTE: Many door reinforcement kits provide for direct

attachment of the clevis pin and door arm. In this case

you will not need the door bracket; proceed to Step 12.

SECTIONAL DOORS

1. Center the door bracket on the previously marked

vertical centerline used for the header bracket

installation. Note correct UP placement, as stamped

inside the bracket.

2. Position the top edge of the bracket 2"-4"

(5-10 cm) below the top edge of the door, OR directly

below any structural support across the top of the

door.

3. Mark, drill holes and install as follows, depending on

your door’s construction:

Metal or light weight doors using a vertical angle

iron brace between the door panel support and the

door bracket:

• Drill 3/16" fastening holes. Secure the door bracket

using the two 1/4"-14x5/8" self-threading screws.

(Figure 2A)

• Alternately, use two 5/16" bolts, lock washers and nuts

(not provided). (Figure 2B)

Metal, insulated or light weight factory reinforced

doors:

• Drill 3/16" fastening holes. Secure the door bracket

using the self-threading screws (Figure 3).

Wood Doors:

• Use top and bottom or side to side door bracket holes.

Drill 5/16" holes through the door and secure bracket

with 5/16"x2" carriage bolts, lock washers and nuts

(not provided). (Figure 4)

NOTE: The 1/4"-14x5/8" self-threading screws are not

intended for use on wood

doors.

To prevent damage to garage door, reinforce inside of door

with angle iron both vertically and horizontally.

Vertical

Centerline

of Garage

Door

Door

Bracket

Location

Header

Bracket

HORIZONTAL AND VERTICAL

REINFORCEMENT IS NEEDED

FOR LIGHTWEIGHT GARAGE

DOORS (FIBERGLASS,

ALUMINUM, STEEL, DOORS

WITH GLASS PANEL, ETC.).

(NOT PROVIDED)

Door

Bracket

Vertical

Centerline

of Garage Door

UP

Vertical

Reinforcement

Self-Threading

Screw

1/4"-14x5/8"

Door

Bracket

Nut

5/16"-18

Bolt

5/16"-18x2"

Lock Washer

5/16"

UP

Vertical

Reinforcement

(Not Provided)

Vertical

Centerline

of Garage Door

UP

Self-Threading

Screw

1/4"-14x5/8"

Vertical

Centerline

of Garage Door

UP

Inside Edge

of Door or

Reinforcement Board

Bolt

5/16"x2"

(Not Provided)

Vertical

Centerline

of Garage

Door

Figure 1

Figure 2A

Figure 2B

Figure 3

Figure 4

Self-Threading

Screw

1/4"-14x5/8"

HARDWARE

SHOWN

ACTUAL SIZE

25

Header Wall

Vertical

Centerline of

Garage Door

Finished Ceiling

Optional

Placement

of Door

Bracket

Header

Bracket

Door

Bracket

2x4 Support

For a door with no exposed framing,

or for the optional installation, use

lag screws 5/16"x1-1/2" (Not Provided)

to fasten door bracket.

METAL DOOR

Top of Door

(Inside

Garage)

Door

Bracket

Optional

Placement

Top Edge

of Door

Self-Threading

Screw

1/4"-14x5/8"

Door

Bracket

Top of Door

(Inside

Garage)

Carriage Bolt

5/16"x2"

(Not Provided)

Optional

Placement

Lock

Washer

5/16"

Nut

5/16"-18

Top Edge

of Door

WOOD DOOR

HORIZONTAL AND VERTICAL

REINFORCEMENT IS NEEDED

FOR LIGHTWEIGHT GARAGE

DOORS (FIBERGLASS,

ALUMINUM, STEEL, DOORS

WITH GLASS PANEL, ETC.).

(NOT PROVIDED)

ONE-PIECE DOORS

Please read and comply with the warnings and

reinforcement instructions on the previous page. They

apply to one-piece doors also.

• Center the door bracket on the top of the door, in line

with the header bracket as shown. Mark either the left

and right, or the top and bottom holes.

•Metal Doors: Drill 3/16" pilot holes and fasten the

bracket with the 1/4"-14x5/8" self-threading screws

provided.

•Wood Doors: Drill 5/16" holes and use 5/16"x2"

carriage bolts, lock washers and nuts (not provided) or

5/16"x1-1/2" lag screws (not provided) depending on

your installation needs.

NOTE: The door bracket may be installed on the top

edge of the door if required for your installation. (Refer to

the dotted line optional placement drawing.)

Self-Threading Screw

1/4"-14x5/8"

HARDWARE SHOWN

ACTUAL SIZE

26

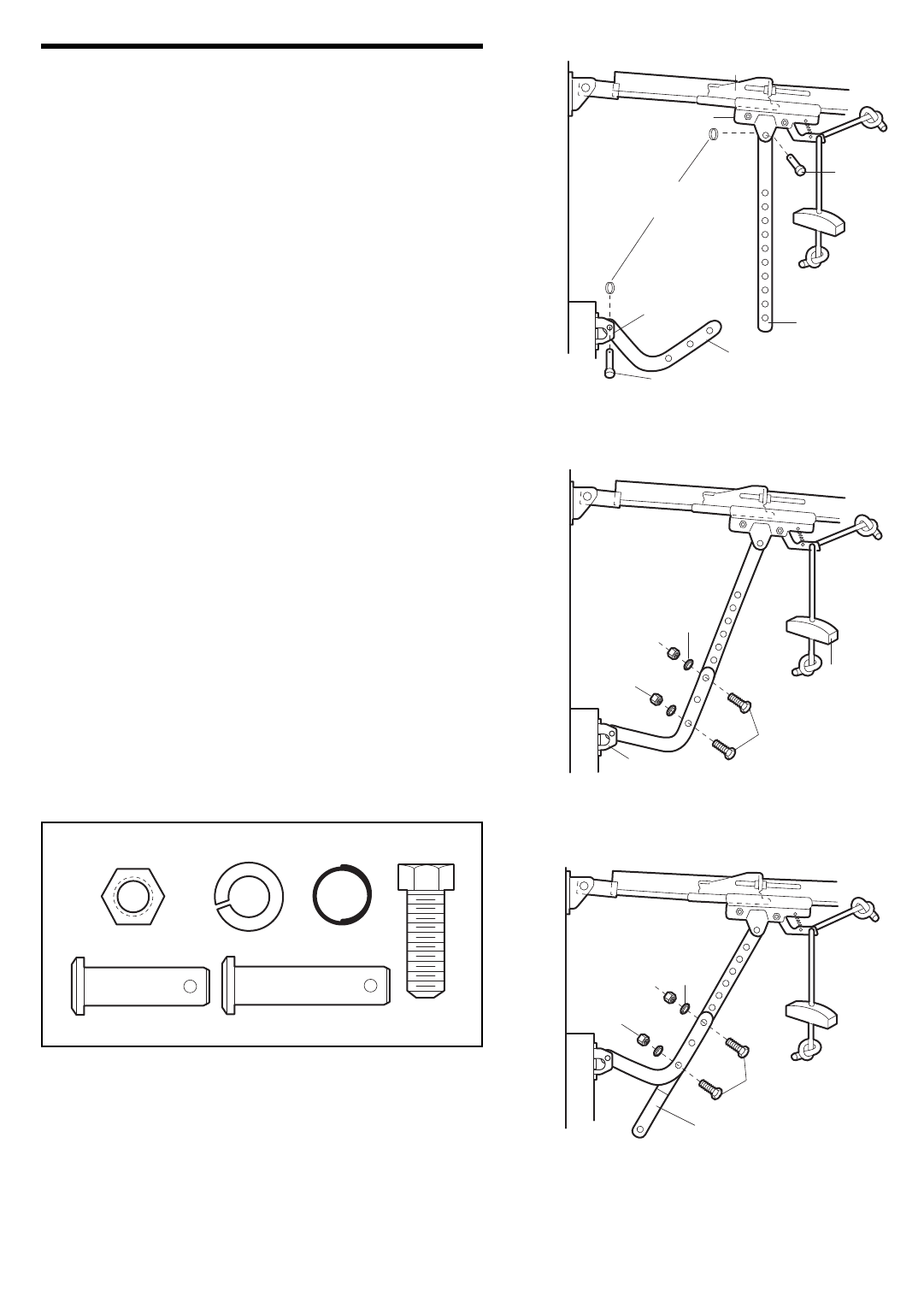

INSTALLATION STEP 12

Connect Door Arm to Trolley

Follow instructions which apply to your door type as

illustrated below and on the following page.

SECTIONAL DOORS ONLY

• Make sure garage door is fully closed. Pull the

emergency release handle to disconnect the outer

trolley from the inner trolley. Slide the outer trolley back

(away from the door) about 2" (5 cm) as shown in

Figures 1, 2 and 3.

• Figure 1:

– Fasten straight door arm section to outer trolley with

the 5/16"x1" clevis pin. Secure the connection with a

ring fastener.

– Fasten curved section to the door bracket in the

same way, using the 5/16"x1-1/4" clevis pin.

• Figure 2:

– Bring arm sections together. Find two pairs of holes

that line up and join sections. Select holes as far

apart as possible to increase door arm rigidity.

• Figure 3, Hole alignment alternative:

– If holes in curved arm are above holes in straight

arm, disconnect straight arm. Cut about 6" from the

solid end. Reconnect to trolley with cut end down as

shown.

– Bring arm sections together.

– Find two pairs of holes that line up and join with bolts,

lock washers and nuts.

• Proceed to Adjustment Step 1, page 28. Trolley will re-

engage automatically when opener is operated.

Ring

Fastener

Door

Bracket

Clevis Pin

5/16"x1-1/4"

Curved

Door Arm

Straight

Door Arm

Clevis Pin

5/16"x1"

Inner Trolley

Outer Trolley

Lock

Washers

5/16"

Nuts

5/16"-18

Door Bracket

Bolts

5/16"-18x7/8"

Emergency

Release

Handle

Lock

Washers

5/16"

Nuts

5/16"-18

Bolts

5/16"-18x7/8"

Cut This End

Figure 1

Figure 2

Figure 3

Lock Washer 5/16"

Nut 5/16"-18 Ring Fastener

Hex Bolt

5/16"-18x7/8"

Clevis Pin

5/16"x1" (Trolley)

Clevis Pin

5/16"x1-1/4" (Door Bracket)

HARDWARE SHOWN ACTUAL SIZE

27

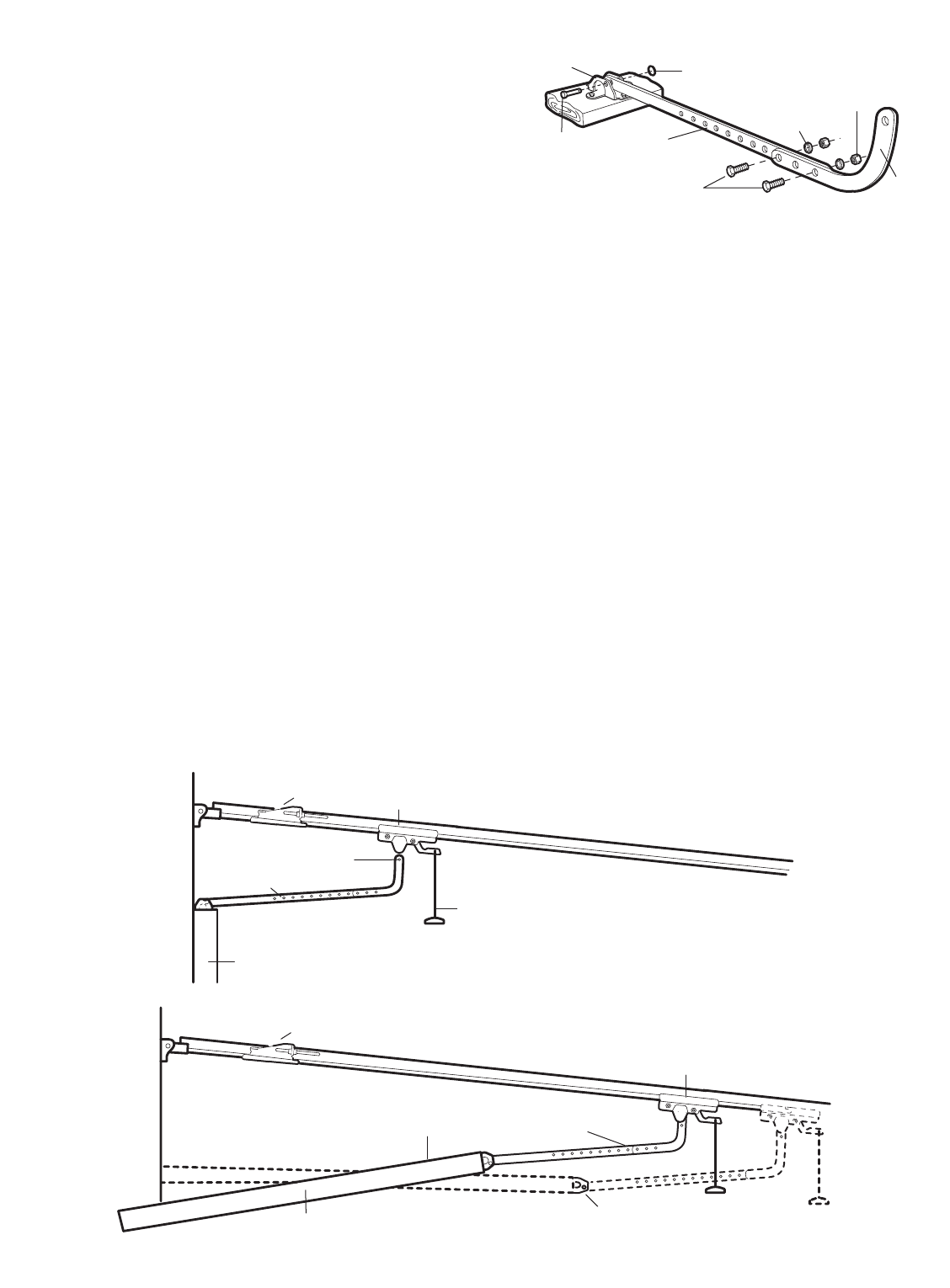

ALL ONE-PIECE DOORS

1. Assemble the door arm, Figure 4:

• Fasten the straight and curved door arm sections

together to the longest possible length (with a 2 or 3

hole overlap).

• With the door closed, connect the straight door arm

section to the door bracket with the

5/16"x1-1/4" clevis pin.

• Secure with a ring fastener.

2. Adjustment procedures, Figure 5:

• On one-piece doors, before connecting the door arm

to the trolley, the travel limits must be adjusted. Limit

adjustment screws are located on the left side panel

as shown on page 28. Follow adjustment procedures

below.

• Open door adjustment: decrease UP

travel limit

- Turn the UP limit adjustment screw counter-

clockwise 5-1/2 turns.

- Press the Door Control push button. The trolley will

travel to the fully open position.

- Manually raise the door to the open position (parallel

to the floor), and lift the door arm to the trolley. The

arm should touch the trolley just in back of the door

arm connector hole. Refer to the fully open

trolley/door arm positions in the illustration. If the arm

does not extend far enough, adjust the limit further.

One full turn equals 2" (5 cm) of trolley travel.

• Closed door adjustment: decrease DOWN travel

limit

- Turn the DOWN limit adjustment screw clockwise

5 complete turns.

Nuts

5/16"-18

Lock

Washers

5/16"

Ring

Fastener

Straight

Arm

Bolts

5/16"-18x7/8

Door

Bracket

Clevis Pin

5/16"x1-1/4"

Curved

Door Arm

- Press the Door Control push button. The trolley will

travel to the fully closed position.

- Manually close the door and lift the door arm to the

trolley. The arm should touch the trolley just ahead of

the door arm connector hole. Refer to the fully closed

trolley/door arm positions in the illustration. If the arm

is behind the connector hole, adjust the limit further.

One full turn equals 2" (5 cm) of trolley travel.

3. Connect the door arm to the trolley:

• Close the door and join the curved arm to the

connector hole in the trolley with the remaining clevis

pin. It may be necessary to lift the door slightly to

make the connection.

• Secure with a ring fastener.

• Run the opener through a complete travel cycle. If the

door has a slight "backward" slant in full open position

as shown in the illustration, decrease the UP limit until

the door is parallel to the floor.

NOTE: When setting the up limit on the following page,

the door should not have a "backward" slant when fully

open as illustrated below. A slight backward slant will

cause unnecessary bucking and/or jerking operation as

the door is being opened or closed from the fully open

position.

Figure 4

Door Arm

Door Arm

Connector Hole

Closed

Door

Outer Trolley

Emergency Release Handle

Inner Trolley

Outer Trolley

Open Door

Door Arm

Correct Angle

Door with

Backward Slant (Incorrect)

Inner Trolley

Figure 5

28

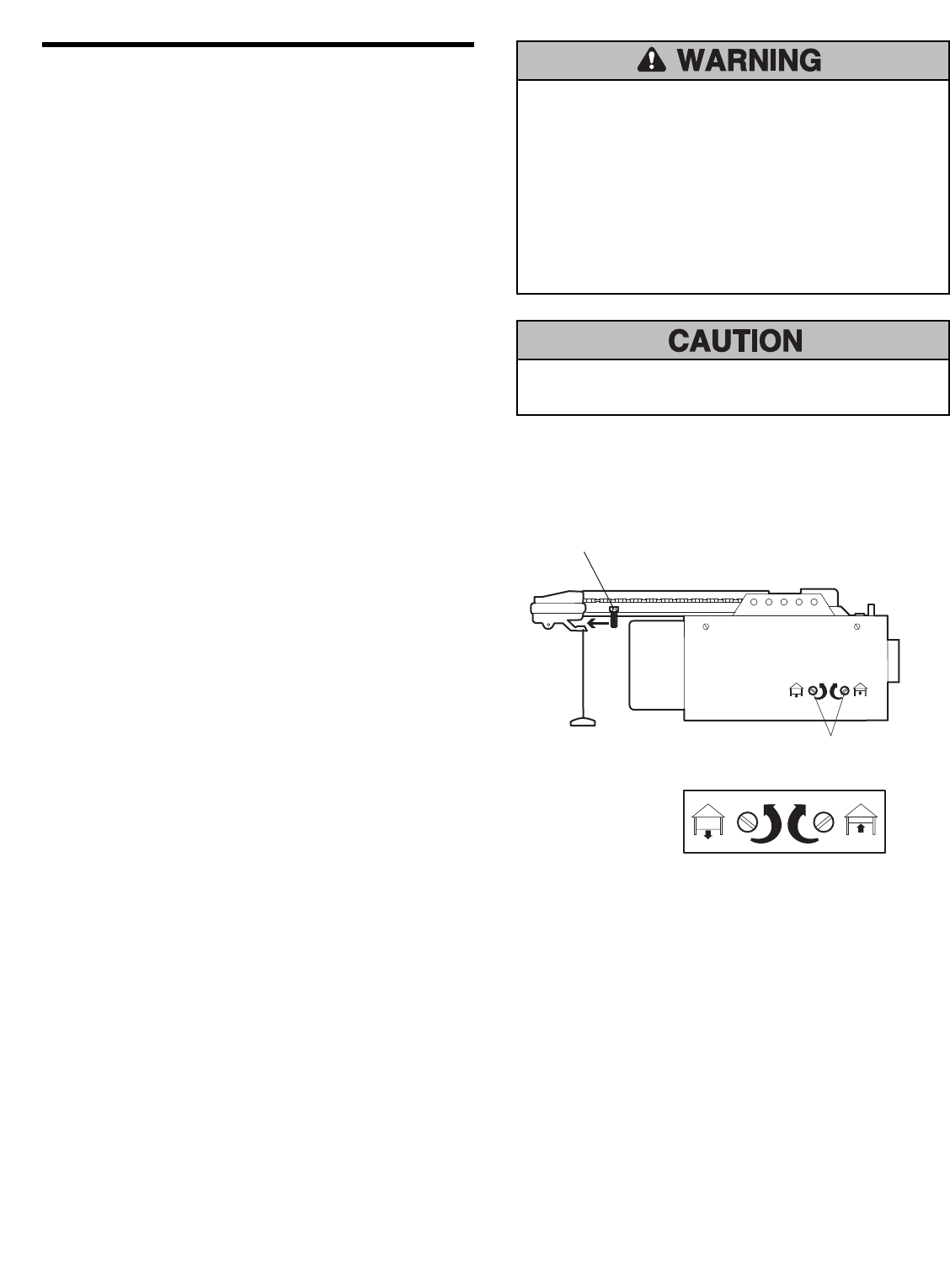

ADJUSTMENT STEP 1

Adjust the UP and DOWN Travel Limits

Limit adjustment settings regulate the points at which the

door will stop when moving up or down.

To operate the opener, press the Door Control push bar.

Run the opener through a complete travel cycle.

• Does the door open and close completely?

• Does the door stay closed and not reverse

unintentionally when fully closed?

If your door passes both of these tests, no limit

adjustments are necessary unless the reversing test fails

(Adjustment Step 3, page 30).

Adjustment procedures are outlined below. Read the

procedures carefully before proceeding to Adjustment

Step 2. Use a screwdriver to make limit adjustments.

Run the opener through a complete travel cycle after

each adjustment.

NOTE: Repeated operation of the opener during

adjustment procedures may cause the motor to overheat

and shut off. Simply wait 15 minutes and try again.

NOTE: If anything interferes with the door’s upward

travel, it will stop. If anything interferes with the door’s

downward travel (including binding or unbalanced doors),

it will reverse.

HOW AND WHEN TO ADJUST THE LIMITS

• If the door does not open completely but opens at

least 5 feet (1.5 m):

Increase up travel. Turn the UP limit adjustment screw

clockwise. One turn equals 2" (5 cm) of travel.

NOTE: To prevent the trolley from hitting the cover

protection bolt, keep a minimum distance of 2-4" (5-10

cm) between the trolley and the bolt.

• If door does not open at least 5 feet (1.5 m):

Adjust the UP (open) force as explained in Adjustment

Step 2.

• If the door does not close completely:

Increase down travel. Turn the down limit adjustment

screw counterclockwise. One turn equals 2" (5 cm) of

travel.

If door still won't close completely and the trolley

bumps into the pulley bracket (page 4), try lengthening

the door arm (page 26) and decreasing the down limit.

• If the opener reverses in fully closed position:

Decrease down travel. Turn the down limit adjustment

screw clockwise. One turn equals 2"

(5 cm) of travel.

• If the door reverses when closing and there is no

Without a properly installed safety reversal system, persons

(particularly small children) could be SERIOUSLY INJURED

or KILLED by a closing garage door.

• Incorrect adjustment of garage door travel limits will

interfere with proper operation of safety reversal system.

• If one control (force or travel limits) is adjusted, the other

control may also need adjustment.

• After ANY adjustments are made, the safety reversal

system MUST be tested. Door MUST reverse on contact

with 1-1/2" (3.8 cm) high object (or 2x4 laid flat) on floor.

visible interference to travel cycle:

If the opener lights are flashing, the Safety Reversing

Sensors are either not installed, misaligned, or

obstructed. See Troubleshooting, page 23.

Test the door for binding: Pull the emergency release

handle. Manually open and close the door. If the door

is binding or unbalanced, call for a trained door

systems technician. If the door is balanced and not

binding, adjust the DOWN (close) force. See

Adjustment Step 2.

LEFT SIDE PANEL

Travel Limit Adjustment Screws

Cover

Protection

Bolt

2-4"

(5-10 cm)

Adjustment Label

To prevent damage to vehicles, be sure fully open door

provides adequate clearance.

29

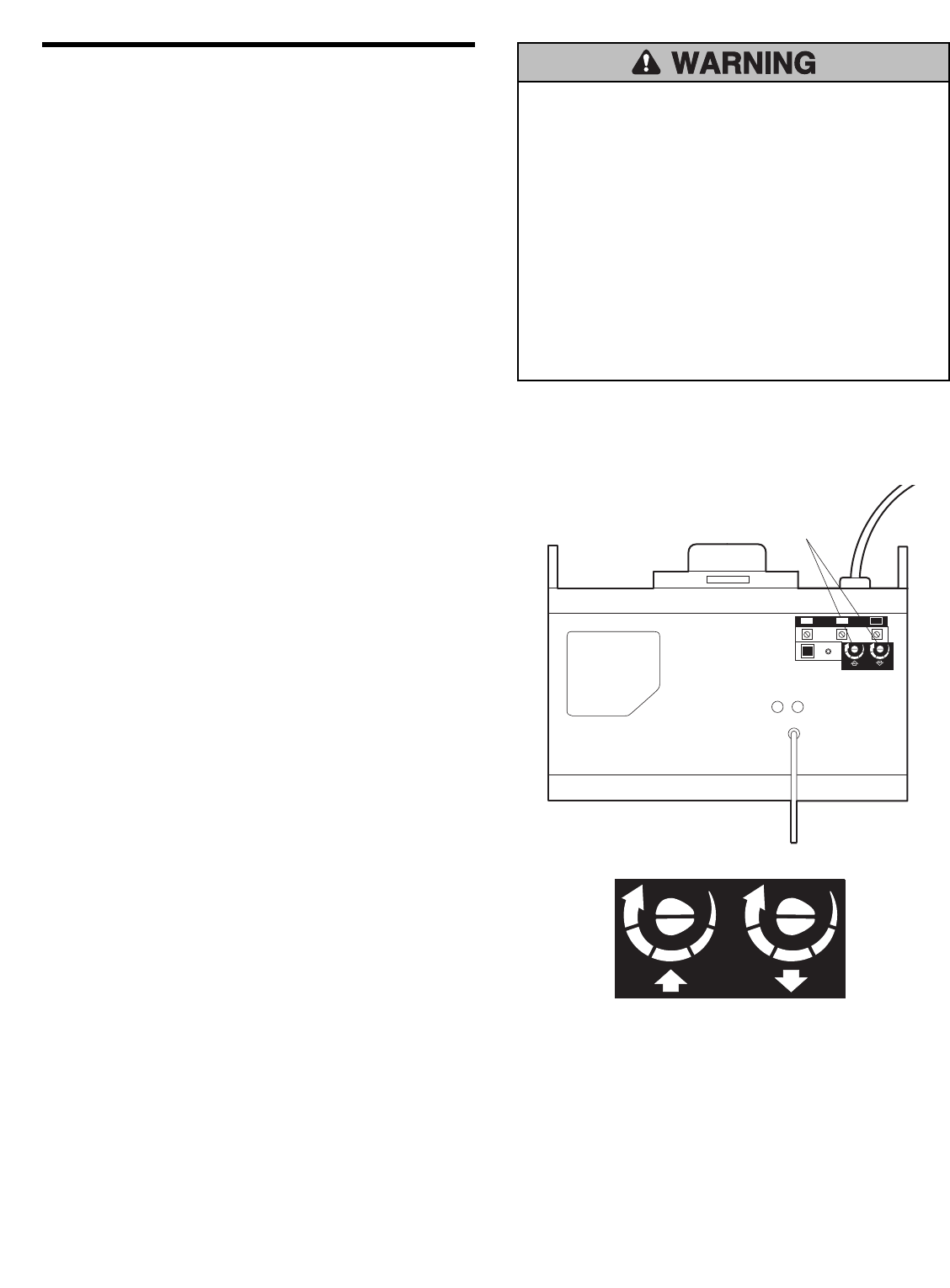

ADJUSTMENT STEP 2

Adjust the Force

Force adjustment controls are located on the back panel

of the motor unit. Force adjustment settings regulate the

amount of power required to open and close the door.

If the forces are set too light, door travel may be

interrupted by nuisance reversals in the down direction

and stops in the up direction. Weather conditions can

affect the door movement, so occasional adjustment may

be needed.

The maximum force adjustment range is about 3/4 of

a complete turn. Do not force controls beyond that

point. Turn force adjustment controls with a screwdriver.

NOTE: If anything interferes with the door’s upward

travel, it will stop. If anything interferes with the door’s

downward travel (including binding or unbalanced doors),

it will reverse.

HOW AND WHEN TO ADJUST THE FORCES

1. Test the DOWN (close) force

• Grasp the door bottom when the door is about halfway

through DOWN (close) travel. The door should

reverse. Reversal halfway through down travel does

not guarantee reversal on a 1-1/2"

(3.8 cm) obstruction. See Adjustment Step 3, page 30.

If the door is hard to hold or doesn't reverse,

DECREASE the DOWN (close) force by turning

the control counterclockwise. Make small adjustments

until the door reverses normally. After each adjustment,

run the opener through a complete cycle.

• If the door reverses during the down (close) cycle

and the opener lights aren't flashing, INCREASE

DOWN (close) force by turning the control clockwise.

Make small adjustments until the door completes a

close cycle. After each adjustment, run the opener

through a complete travel cycle. Do not increase the

force beyond the minimum amount required to close

the door.

2. Test the UP (open) force

• Grasp the door bottom when the door is about halfway

through UP (open) travel. The door should stop. If the

door is hard to hold or doesn't stop, DECREASE

UP (open) force by turning the control

counterclockwise. Make small adjustments until the door

stops easily and opens fully. After each adjustment, run

the opener through a complete travel cycle.

• If the door doesn’t open at least 5 feet (1.5 m),

INCREASE UP (open) force by turning the control

clockwise. Make small adjustments until door opens

completely. Readjust the UP limit if necessary. After

each adjustment, run the opener through a complete

travel cycle.

Force Adjustment Controls

1

3

9

7

5

1

3

9

7

5

123

FORCE ADJUSTMENT LABEL

Kg

1

3

9

7

5

1

3

9

7

5

Kg

BACK PANEL

Without a properly installed safety reversal system, persons

(particularly small children) could be SERIOUSLY INJURED

or KILLED by a closing garage door.

• Too much force on garage door will interfere with proper

operation of safety reversal system.

• NEVER increase force beyond minimum amount required to

close garage door.

• NEVER use force adjustments to compensate for a binding

or sticking garage door.

• If one control (force or travel limits) is adjusted, the other

control may also need adjustment.

• After ANY adjustments are made, the safety reversal

system MUST be tested. Door MUST reverse on contact

with 1-1/2" (3.8 cm) high object (or 2x4 laid flat) on floor.

30

Without a properly installed safety reversal system, persons

(particularly small children) could be SERIOUSLY INJURED

or KILLED by a closing garage door.

• Safety reversal system MUST be tested every month.

• If one control (force or travel limits) is adjusted, the other

control may also need adjustment.

• After ANY adjustments are made, the safety reversal system

MUST be tested. Door MUST reverse on contact with 1-1/2"

(3.8 cm) high object (or 2x4 laid flat) on the floor.

ADJUSTMENT STEP 3

Test the Safety Reversal System

TEST

• With the door fully open, place a 1-1/2" (3.8 cm) board

(or a 2x4 laid flat) on the floor, centered under the

garage door.

• Operate the door in the down direction. The door must

reverse on striking the obstruction.

ADJUST

• If the door stops on the obstruction, it is not traveling

far enough in the down direction. Increase the DOWN

limit by turning the DOWN limit adjustment screw

counterclockwise 1/4 turn.

NOTE: On a sectional door, make sure limit

adjustments do not force the door arm beyond a

straight up and down position. See the illustration on

page 26.

• Repeat the test.

• When the door reverses on the 1-1/2" (3.8 cm) board,

remove the obstruction and run the opener through 3

or 4 complete travel cycles to test adjustment.

IMPORTANT SAFETY CHECK:

Repeat Adjustment Steps 1, 2 and 3 after:

• Each adjustment of door arm length, limits, or force

controls.

• Any repair to or adjustment of the garage door

(including springs and hardware).

• Any repair to or buckling of the garage floor.

• Any repair to or adjustment of the opener.

ADJUSTMENT STEP 4

Test the Protector System®

• Press the remote control push button to open the door.

• Place the opener carton in the path of the door.

• Press the remote control push button to close the door.

The door will not move more than an inch, and the

opener lights will flash.

The garage door opener will not close from a remote if

the indicator light in either sensor is off (alerting you to

the fact that the sensor is misaligned or obstructed).

If the opener closes the door when the safety

reversing sensor is obstructed (and the sensors are

no more than 6" (15 cm) above the floor), call for a

trained door systems technician.

Safety Reversing Sensor Safety Reversing Sensor

Without a properly installed safety reversing sensor, persons

(particularly small children) could be SERIOUSLY INJURED

or KILLED by a closing garage door.

1-1/2" (3.8 cm) board

(or a 2x4 laid flat)

31

OPERATION

Using Your Garage Door Opener

Your Security✚®opener and hand-held remote control

have been factory-set to a matching code which changes

with each use, randomly accessing over 100 billion new

codes. Your opener will operate with up to eight

Security✚®remote controls and one Security✚®Keyless

Entry System. If you purchase a new remote, or if you

wish to deactivate any remote, follow the instructions in

the Programming section.

Activate your opener with any of the following:

•The hand-held Remote Control: Hold the push button

down until the door starts to move.

•The wall-mounted Door Control: Hold the push button

or bar down until the door starts to move.

•The Keyless Entry (See Accessories): If supplied with

your garage door opener, it must be programmed

before use. See Programming.

When the opener is activated (with the safety

reversing sensor correctly installed and aligned)

1. If open, the door will close. If closed, it will open.

2. If closing, the door will reverse.

3. If opening, the door will stop.

4. If the door has been stopped in a partially open

position, it will close.

5. If obstructed while closing, the door will reverse. If the

obstruction interrupts the sensor beam, the opener

lights will blink for five seconds.

6. If obstructed while opening, the door will stop.

7. If fully open, the door will not close when the beam is

broken. The sensor has no effect in the opening cycle.

If the sensor is not installed, or is misaligned, the door

won't close from a hand-held remote. However, you can

close the door with the Door Control, the Outside

Keylock, or Keyless Entry, if you activate them until down

travel is complete. If you release them too soon, the door

will reverse.

The opener light will turn on under the following

conditions: when the opener is initially plugged in; when

power is restored after interruption; when the opener is

activated.

The light will also turn on when someone walks through

the open garage door.

It will turn off automatically after 4-1/2 minutes. Bulb size

is A19. Bulb power is 75 watts maximum.

IMPORTANT SAFETY INSTRUCTIONS

To reduce the risk of SEVERE INJURY or DEATH:

WARNING

WARNING

WARNINGWARNING

1. READ AND FOLLOW ALL WARNINGS AND

INSTRUCTIONS.

2. ALWAYS keep remote controls out of reach of children.

NEVER permit children to operate or play with garage

door control push buttons or remote controls.

3. ONLY activate garage door when it can be seen clearly, it

is properly adjusted, and there are no obstructions to

door travel.

4. ALWAYS keep garage door in sight until completely

closed. NO ONE SHOULD CROSS THE PATH OF THE

MOVING DOOR.

5. NO ONE SHOULD GO UNDER A STOPPED, PARTIALLY

OPEN DOOR.

6. If possible, use emergency release handle to disengage

trolley ONLY when garage door is CLOSED. Weak or

broken springs or unbalanced door could result in an

open door falling rapidly and/or unexpectedly.

7. NEVER use emergency release handle unless garage

doorway is clear of persons and obstructions.

8. NEVER use handle to pull garage door open or closed. If

rope knot becomes untied, you could fall.

9. If one control (force or travel limits) is adjusted, the

other control may also need adjustment.

10. After ANY adjustments are made, the safety reversal

system MUST be tested.

11. Safety reversal system MUST be tested every month.

Garage door MUST reverse on contact with 1-1/2"

(3.8 cm) high object (or a 2 x 4 laid flat) on the floor.

12. ALWAYS KEEP GARAGE DOOR PROPERLY BALANCED

(see page 3). An improperly balanced door may not

reverse when required and could result in SEVERE

INJURY or DEATH.

13. All repairs to cables, spring assemblies and other

hardware, ALL of which are under EXTREME tension,

MUST be made by a trained door systems technician.

14. ALWAYS disconnect electric power to garage door

opener BEFORE making ANY repairs or removing covers.

15. SAVE THESE INSTRUCTIONS.

32

To Open the Door Manually

The door should be fully closed if

possible. Pull down on the

emergency release handle and lift

the door manually. To reconnect

the door to the opener, press the

door control push button.

The lockout feature prevents the

trolley from reconnecting

automatically, Pull the emergency

release handle down and back

(toward the opener). The door can

then be raised and lowered

manually as often as necessary.

To disengage the lockout feature,

pull the handle straight down. The

trolley will reconnect on the next

UP or DOWN operation.

Using the Wall-Mounted

Door Control

Press the push button to open or close the door.

Press again to reverse the door during the closing

cycle or to stop the door while it's opening. To prevent possible SERIOUS INJURY or DEATH from a

falling garage door:

• If possible, use emergency release handle to disengage

trolley ONLY when garage door is CLOSED. Weak or broken

springs or unbalanced door could result in an open door

falling rapidly and/or unexpectedly.

• NEVER use emergency release handle unless garage

doorway is clear of persons and obstructions.

• NEVER use handle to pull door open or closed. If rope knot

becomes untied, you could fall.

Trolley

Release

Arm

NOTICE

Emergency

Release

Handle

(Pull Down)

Trolley

Release

Arm

NOTICE

Emergency

Release Handle

(Down and Back)

LOCKOUT POSITION

MANUAL DISCONNECT

POSITION

33

Having a Problem?

1. The opener doesn't operate from either the Door

Control or the remote control:

• Does the opener have electric power? Plug a lamp into

the outlet. If it doesn't light, check the fuse box or the

circuit breaker. (Some outlets are controlled by a wall

switch.)

• Have you disabled all door locks? Review installation

instruction warnings on page 11.

• Is there a build-up of ice or snow under the door? The

door may be frozen to the ground. Remove any

restriction.

• The garage door spring may be broken. Have it

replaced.

• Repeated operation may have tripped the overload

protector in the motor. Wait 15 minutes and try again.

2. Opener operates from the remote, but not from the

Door Control:

• Is the door control lit? If not, remove the bell wire from

the motor unit terminals. Short the red and white

terminals by touching both terminals at the same time

with a piece of wire. If the opener runs, check for a

faulty wire connection at the door control, a short

under the staples, or a broken wire.

• Are the wiring connections correct? Review Installation

Step 6, page 18.

3. The door operates from the Door Control, but not

from the remote control:

• Is the door push bar flashing? If your model has the

Lock feature, make sure it is off.

• Program the opener to match the remote control code.

(Refer to instructions on the motor unit panel.) Repeat

with all remotes.

4. The remote control has short range:

• Change the location of the remote control in your car.

• Check to be sure the antenna on the side or back

panel of motor unit extends fully downward.

• Some installations may have shorter range due to a

metal door, foil backed insulation, or metal garage

siding.

5. Opener noise is disturbing in living quarters of

home:

• If operational noise is a problem because of proximity

of the opener to the living quarters, the Vibration

Isolator Kit 89LM can be installed. This kit was

designed to minimize vibration to the house and is

easy to install.

NOTICE: To comply with FCC and or Industry Canada (IC) rules, adjustment or modifications of

this receiver and/or transmitter are prohibited, except for changing the code setting or replacing

the battery. THERE ARE NO OTHER USER SERVICEABLE PARTS.

Tested to Comply with FCC Standards FOR HOME OR OFFICE USE. Operation is subject to the

following two conditions: (1) this device may not cause harmful interference, and (2) this device

must accept any interference received, including interference that may cause undesired operation.

The Remote Control Battery

The lithium battery should

produce power for up to 5 years.

To replace battery, use the visor

clip or screwdriver blade to pry

open the case as shown. Insert

battery positive side up (+).

Dispose of old battery properly.

Replace ONLY with 3V2032 coin

batteries.

To prevent possible SERIOUS INJURY or DEATH:

• NEVER allow small children near batteries.

• If battery is swallowed, immediately notify doctor.

To reduce risk of fire, explosion or chemical burn:

• Replace ONLY with 3V2032 coin batteries.

• Do NOT recharge, disassemble, heat above 100°C (212°F)

or incinerate.

Care of Your Opener

LIMIT AND FORCE ADJUSTMENTS:

Weather conditions may cause some

minor changes in door operation

requiring some readjustments,

particularly during the first year of

operation.

Pages 28 and 29 refer to the limit

and force adjustments. Only a

screwdriver is required. Follow the

instructions carefully.

Repeat the safety reverse test

(page 30) after any adjustment of

limits or force.

MAINTENANCE SCHEDULE

Once a Month

• Manually operate door. If it is unbalanced or binding,

call a trained door systems technician.

• Check to be sure door opens & closes fully. Adjust limits

and/or force if necessary. (See pages 28 and 29.)

• Repeat the safety reverse test. Make any necessary

adjustments. (See page 30.)

Twice a Year

• Check chain tension. Disconnect trolley first. Adjust if

necessary (see page 11).

Once a Year

• Oil door rollers, bearings and hinges. The opener does

not require additional lubrication. Do not grease the

door tracks.

LIMIT CONTROLS

(Left side panel)

FORCE CONTROLS

(Back panel)

KG KG

1

3

9

7

5

1

3

9

7

5

Open Force Close Force

Battery

positive

side up (+)

34

Having a Problem? (Continued)

6. The garage door opens and closes by itself:

• Be sure that all remote control push buttons are off.

• Remove the bell wire from the door control terminals

and operate from the remote only. If this solves the

problem, the door control is faulty (replace), or there is

an intermittent short on the wire between the door

control and the motor unit.

• Clear memory and re-program all remote controls.

7. The door doesn't open completely:

• Is something obstructing the door? Is it out of balance,

or are the springs broken? Remove the obstruction or

repair the door.

• If the door is in good working order but now doesn't

open all the way, increase the up force. See

Adjustment Step 2.

• If the door opens at least 5 feet (1.5 m), the travel

limits may need to be increased. One turn equals 2" (5

cm) of travel. See Adjustment Step 1.

Repeat the safety reverse test after the adjustment is

complete.

8. The door stops but doesn't close completely:

• Review the travel limits adjustment procedures on

page 28.

Repeat the safety reverse test after any adjustment

of door arm length, close force or down limit.

9. The door opens but won't close:

• If the opener lights blink, check the safety reversing

sensor. See Installation Step 10.

• If the opener lights don’t blink and it is a new

installation, check the down force. See Adjustment

Step 2, page 29. For an existing installation, see

below.

Repeat the safety reverse test after the adjustment

is complete.

10. The door reverses for no apparent reason and

opener lights don’t blink:

• Is something obstructing the door? Pull the emergency

release handle. Operate the door manually. If it is

unbalanced or binding, call a trained door systems

technician.

• Clear any ice or snow from the garage floor area

where the door closes.

• Review Adjustment Step 2 on page 29.

• If door reverses in the fully closed position, decrease

the travel limits (Adjustment Step 1).

Repeat safety reverse test after adjustments to force or

travel limits. The need for occasional adjustment of the

force and limit settings is normal. Weather conditions in

particular can affect door travel.

11. The door reverses for no apparent reason

and opener lights blink for 5 seconds after

reversing:

• Check the safety reversing sensor. Remove any

obstruction or align the receiving eye. See

Installation Step 10.

12. The opener lights don't turn on:

• Replace the light bulbs (75 watts maximum). Use

A19 standard neck garage door opener bulb if

regular bulb burns out.

13. The opener lights don't turn off:

• Is the Light feature on? Turn it off.

14. The opener strains or maximum force is

needed to operate door:

• The door may be out of balance or the springs

may be broken. Close the door and use the

emergency release handle to disconnect the

trolley. Open and close the door manually. A

properly balanced door will stay in any point of

travel while being supported entirely by its springs.

If it does not, disconnect the opener and call a

trained door systems technician. Do not increase

the force to operate the opener.

15. The opener motor hums briefly, then won't

work:

• The garage door springs may be broken. See

above.

• If the problem occurs on the first operation of the

opener, door may be locked. Disable the door lock.

Repeat the safety reverse test after the adjustment is

complete.

16. The opener won't operate due to power

failure:

• Use the emergency release handle to disconnect

the trolley. The door can be opened and closed

manually. When power is restored, press the Door

Control push bar and trolley will automatically

reconnect (unless trolley is in lockout position.)

See page 32.

• The Outside Quick Release accessory (for use on

garages with no service door) disconnects the

trolley from outside the garage in case of power

failure.

17. The chain droops or sags:

• It is normal for the chain to droop slightly in the

closed door position. Use the emergency release

rope and handle to disconnect the trolley. If the

chain returns to the normal height when the trolley

is disengaged, and the door reverses on a 2x4 laid

flat, no adjustments are needed. (See page 11.)

35

*3-Button Remotes

If supplied with your

garage door opener, the

large button is factory

programmed to operate

it. Additional buttons on

any Security✚®3-button

remote or mini-remote

can be programmed to operate other Security✚®

garage door openers.

To Erase All Codes From Motor Unit

Memory

To deactivate any unwanted remote,

first erase all codes:

Press and hold the “learn” button on

motor unit until the learn indicator light

goes out (approximately 6 seconds). All previous codes

are now erased. Reprogram each remote or keyless

entry you wish to use.

1

3

9

7

5

1

3

9

7

5

123

12

1. Press and release the “learn”

button on the motor unit. The

learn indicator light will glow

steadily for 30 seconds.

2. Within 30 seconds, press and

hold the button on the hand-held

remote*that you wish to operate

your garage door.

3. Release the button when the

motor unit lights blink. It has

learned the code. If light bulbs

are not installed, two clicks will be

heard.

To Add or Reprogram an Additional Hand-held Remote Control

USING THE “LEARN” BUTTON

2

1

KG

2

1

KG

PROGRAMMING

Your garage door opener has already been programmed at the factory to operate with your hand-held remote control.

The door will open and close when you press the large push button.

Below are instructions for programming your opener to operate with additional Security✚®remote controls.

NOTICE: If this Security

✚

®garage door opener is operated with a non-rolling code transmitter, the technical measure in

the receiver of the garage door opener, which provides security against code-theft devices, will be circumvented. The

owner of the copyright in the garage door opener does not authorize the purchaser or supplier of the non-rolling code

transmitter to circumvent that technical measure.

36

1. Press and release the “learn”

button on motor unit. The learn

indicator light will glow steadily

for 30 seconds.

2. Within 30 seconds, enter a four

digit personal identification

number (PIN) of your choice on

the keypad. Then press and

hold the ENTER button.

3. Release the button when the

motor unit lights blink. It has

learned the code. If light bulbs

are not installed, two clicks will

be heard.

To Add, Reprogram or Change a Keyless Entry PIN

NOTE: Your new Keyless Entry must be programmed to operate your garage door opener.

USING THE “LEARN” BUTTON

2

1

KG

To change an existing, known PIN

If the existing PIN is known, it may be changed by one

person without using a ladder.

1. Press the four buttons for the present PIN, then press

and hold the # button.

The opener light will blink twice. Release the # button.

2. Press the new 4-digit PIN you have chosen, then

press Enter.

The motor unit lights will blink once when the PIN has

been learned.

Test by pressing the new PIN, then press Enter. The

door should move.

To set a temporary PIN

You may authorize access by visitors or service people

with a temporary 4-digit PIN. After a programmed

number of hours or number of accesses, this temporary

PIN expires and will no longer open the door. It can be

used to close the door even after it has expired. To set a

temporary PIN:

1. Press the four buttons for your personal entry PIN (not

the last temporary PIN), then press and hold the ✽

button.

The opener light will blink three times. Release the

button.

2. Press the temporary 4-digit PIN you have chosen,

then press Enter.

The opener light will blink four times.

3. To set the number of hours this temporary PIN will

work, press the number of hours (up to 255), then

press ✽.

OR

3. To set the number of times this temporary PIN will

work, press the number of times (up to 255), then

press #.

The opener light will blink once when the temporary PIN

has been learned.

Test by pressing the four buttons for the temporary PIN,

then press Enter. The door should move. If the

temporary PIN was set to a certain number of openings,

remember that the test has used up one opening.To

clear the temporary password, repeat steps 1-3, setting

the number of hours or times to 0 in step 3.

One Button Close: Opener can be closed by pressing

only the ENTER button if the one button close feature

has been activated. This feature has been activated at

the factory. To activate or deactivate this feature press

and hold buttons 1 and 9 for 10 seconds. The keypad

will blink twice when the one button close is active. The

keypad will blink four times when one button close is

deactivated.

KG KG

1

3

9

7

5

1

3

9

7

5

123

12

37

7

UP

CEILING MOUNT ONLY

11

10

NOTICE

5 6

8

1 4

9

12

3

2

Installation Parts

REPAIR PARTS

KEY PART

NO. NO. DESCRIPTION

1 41A4166 Door control button

2 371LM Single-button remote control

3 10A20 3V2032 Lithium battery

4 29B137 Transmitter visor clip

5 41A2828 Emergency release rope & handle

assembly

6 41B4494-1 2-conductor bell wire – white &

white/red

7 41A4353 Header bracket w/clevis pin & fastener

8 41A5047 Door bracket w/clevis pin & fastener

9 41A5034 Safety sensor kit (receiving and

sending eyes) with 3' (.9 m)

2-conductor bell wire attached

10 178B34 Straight door arm section

11 178B35 Curved door arm section

12 41A5266-1 Safety sensor brackets (2)

NOT SHOWN

41A2770-6 Installation hardware bag

(see page 7).

114A3587 Owner’s manual

114A3587SP Owner’s manual - Spanish

1

34

5

6

2

Rail Assembly Parts

KEY PART

NO. NO. DESCRIPTION

1 4A1008 Master link kit

2 41A4813 Chain pulley bracket

3 41A3489 Complete trolley assembly

4 1707LM 7 foot (2.1 m) complete rail

1708LM 8 foot (2.4 m) complete rail

1710LM 10 foot (3 m) complete rail

5 41D3484 Full chain assembly

6 83A11 Rail grease

38

Motor Unit Assembly Parts

2

1

2A

10

8

13

14

15

16

19

4

3

DN

UP

Brown

Wire

(Down)

Contact

LIMIT SWITCH ASSY.

Grey

Wire

Yellow

Wire

(Up)

Contact

Center Limit

Contact

Drive

Gear

9

20

16

12

18

11

17 3

1A

567

KEY PART

NO. NO. DESCRIPTION

1 41A4208-2 Chain spreader w/screws

(1356M, 1346M)

1A 31D380 Sprocket cover (1355M, 1345M)

2 41C4206 Gear and sprocket assy.

(1356M, 1346M)

2A 41C4220A Gear and sprocket assy. (1355M,

1345M) Complete with:

Spring washer, Thrust washer,

Retaining ring, Bearing plate, Roll

pins (2), Drive gear and worm gear,

Helical gear w/retainer and grease

3 41A2817 Drive/worm gear kit w/grease,

Roll pins (2)

4 41B4245 Line cord

5 143D100 End panel w/all labels

6 175B88 Light socket

7 108D36-2 Lens

8 30B532 Capacitor - 1/2HP

30B533 Capacitor - 1/3HP

9 12A373 Capacitor bracket

10 41A3150 Terminal block w/screws

KEY PART

NO. NO. DESCRIPTION

11 41D3058 Universal replacement motor &

bracket assy. Complete with:

Motor, worm, bracket, bearing

assembly, RPM sensor.

12 41A3583-11 Cover 1/2HP (1356M, 1355M)

41A3583-15 Cover 1/3HP (1346M, 1345M)

13 41A2818 Helical gear & retainer

w/grease

14 41D3452 Limit switch assembly

15 41C4398A RPM sensor assembly

16 41C4246 Wire harness assy. w/plug

17 41A2826 Shaft bearing kit

18 41A2822A Interrupter cup assy.

19 41A5021-1M-315 Receiver logic board assy.

Complete with: Logic board,

End panel w/all labels, Light

socket

20 41A5014-3 End panel w/all labels

NOT SHOWN

41A2825 Opener assy. hardware kit

(includes screws not designated

by a number in illustration).

39

ACCESSORIES

CLOSED

OPEN

LOCK

LIGHT

374LM

370LM

915LM

395LM

990LM

1702LM Outside Quick Release:

Required for a garage with NO access

door. Enables homeowner to open

garage door manually from outside by

disengaging trolley.

Remote Light Control:

Enables homeowner to turn on a lamp,

television or other appliance from car,

bedside, or anywhere in the home with a

remote.

SECURITY✚®3-Button Remote

Control:

Includes visor clip.

SECURITY✚®4-Button Remote

Control:

Includes visor clip.

Wireless Door Control:

Push bar, light feature and auxiliary

button. Includes battery.

377LM

Extension Brackets:

(Optional) For safety sensor installation

onto the wall or floor.

373P

SECURITY✚®Keyless Entry:

Enables homeowner to operate garage

door opener from outside by entering a

password on a specially designed

keyboard. Also can add a temporary

password for visitors or service persons.

This temporary password can be limited

to a programmable number of hours or

entries.

378LM

SECURITY✚®3-Button Mini Remote

Control:

With key ring and fastening strip.

Surge Protector:

The Garage Door Opener Surge

Protector is designed to protect

LiftMaster®garage door openers against

damage from lightning and power

surges.

975LM Laser Park Assist:

Laser enables homeowners to precisely

park vehicles in the garage.

Garage Door Monitor:

Security for the largest door of your

home!

Tells you if your garage door is open or

closed. Monitors up to 4 garage doors

by adding additional sensor modules.

41A5281

Designer Burled Walnut 3-Button

Remote Control with Security✚®:

Includes visor clip.

373W

© 2008, The Chamberlain Group, Inc.

114A3587 All Rights Reserved

LIFTMASTER®SERVICE IS

ON CALL

OUR LARGE SERVICE ORGANIZATION

SPANS AMERICA

INSTALLATION AND SERVICE INFORMATION IS AS NEAR

AS YOUR TELEPHONE. SIMPLY DIAL OUR TOLL FREE

NUMBER:

1-800-528-9131

www.liftmaster.com

For professional installation, parts and service, contact

your local LIFTMASTER/CHAMBERLAIN dealer. Look for

him in the Yellow Pages, or call our Service number for a

list of dealers in your area.

HOW TO ORDER

REPAIR PARTS

Selling prices will be furnished on request or parts will be

shipped at prevailing prices and you will be billed

accordingly.

WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE

FOLLOWING INFORMATION:

• PART NUMBER

• PART NAME

• MODEL NUMBER

ADDRESS ORDERS TO:

THE CHAMBERLAIN GROUP, INC.

Technical Support Group

6050 S. Country Club Road

Tucson, Arizona 85706

SERVICE INFORMATION

TOLL FREE NUMBER:

1-800-528-9131

LIFTMASTER ONE YEAR LIMITED WARRANTY

48 MONTHS (4 YEARS) & 24 MONTHS (2 YEARS) MOTOR LIMITED WARRANTY

The Chamberlain Group, Inc. (“Seller”) warrants to the first retail purchaser of this product, for the residence in which this product is originally

installed, that it is free from defect in materials and/or workmanship for a period of one year from the date of purchase [and that the motor is free

from defect in materials and/or workmanship for a period of 48 months (4years) for models 1356M & 1355M and 24 months (2 years) for models

1346M & 1345M from the date of purchase]. The proper operation of this product is dependent on your compliance with the instructions regarding

installation, operation, maintenance and testing. Failure to comply strictly with those instructions will void this limited warranty in its entirety.

If, during the limited warranty period, this product appears to contain a defect covered by this limited warranty, call 1-800-528-9131, toll free,

before dismantling this product. Then send this product, pre-paid and insured, to our service center for warranty repair. You will be advised of

shipping instructions when you call. Please include a brief description of the problem and a dated proof-of-purchase receipt with any product

returned for warranty repair. Products returned to Seller for warranty repair, which upon receipt by Seller are confirmed to be defective and

covered by this limited warranty, will be repaired or replaced (at Seller’s sole option) at no cost to you and returned pre-paid. Defective parts will

be repaired or replaced with new or factory-rebuilt parts at Seller’s sole option.

ALL IMPLIED WARRANTIES FOR THE PRODUCT, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE ONE YEAR LIMITED

WARRANTY PERIOD SET FORTH ABOVE [EXCEPT THE IMPLIED WARRANTIES WITH RESPECT TO THE MOTOR, WHICH ARE LIMITED

IN DURATION TO THE 48 MONTHS (4 YEARS) FOR MODELS 1356M & 1355M AND 24 MONTHS (2 YEARS) FOR MODELS 1346M & 1345M

LIMITED WARRANTY PERIOD FOR THE MOTOR], AND NO IMPLIED WARRANTIES WILL EXIST OR APPLY AFTER SUCH PERIOD. Some

States do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. THIS LIMITED

WARRANTY DOES NOT COVER NON-DEFECT DAMAGE, DAMAGE CAUSED BY IMPROPER INSTALLATION, OPERATION OR CARE

(INCLUDING, BUT NOT LIMITED TO ABUSE, MISUSE, FAILURE TO PROVIDE REASONABLE AND NECESSARY MAINTENANCE,

UNAUTHORIZED REPAIRS OR ANY ALTERATIONS TO THIS PRODUCT), LABOR CHARGES FOR REINSTALLING A REPAIRED OR

REPLACED UNIT, REPLACEMENT OF BATTERIES AND LIGHT BULBS OR UNITS INSTALLED FOR NON-RESIDENTIAL USE.

THIS LIMITED WARRANTY DOES NOT COVER ANY PROBLEMS WITH, OR RELATING TO, THE GARAGE DOOR OR GARAGE DOOR

HARDWARE, INCLUDING BUT NOT LIMITED TO THE DOOR SPRINGS, DOOR ROLLERS, DOOR ALIGNMENT OR HINGES. THIS LIMITED

WARRANTY ALSO DOES NOT COVER ANY PROBLEMS CAUSED BY INTERFERENCE. ANY SERVICE CALL THAT DETERMINES THE

PROBLEM HAS BEEN CAUSED BY ANY OF THESE ITEMS COULD RESULT IN A FEE TO YOU.

UNDER NO CIRCUMSTANCES SHALL SELLER BE LIABLE FOR CONSEQUENTIAL, INCIDENTAL OR SPECIAL DAMAGES ARISING IN

CONNECTION WITH USE, OR INABILITY TO USE, THIS PRODUCT. IN NO EVENT SHALL SELLER’S LIABILITY FOR BREACH OF

WARRANTY, BREACH OF CONTRACT, NEGLIGENCE OR STRICT LIABILITY EXCEED THE COST OF THE PRODUCT COVERED HEREBY.

NO PERSON IS AUTHORIZED TO ASSUME FOR US ANY OTHER LIABILITY IN CONNECTION WITH THE SALE OF THIS PRODUCT.

Some States do not allow the exclusion or limitation of consequential, incidental or special damages, so the above limitation or exclusion may

not apply to you. This limited warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
