Owner's Manual

The Chamberlain Group, Inc.

845 Larch Avenue

Elmhurst, Illinois 60126-1196

www.chamberlain.com

CONTENTS

Preparation .............................. 1-4

Assembly ................................. 5-9

Installation ............................ 10-19

Install the Door Control ............. 20-21

Install the Protector System® ...... 22-25

Power .................................. 26-27

Adjustments .......................... 28-30

Operation.................................. 31

Using Your Garage Door Opener ...... 32

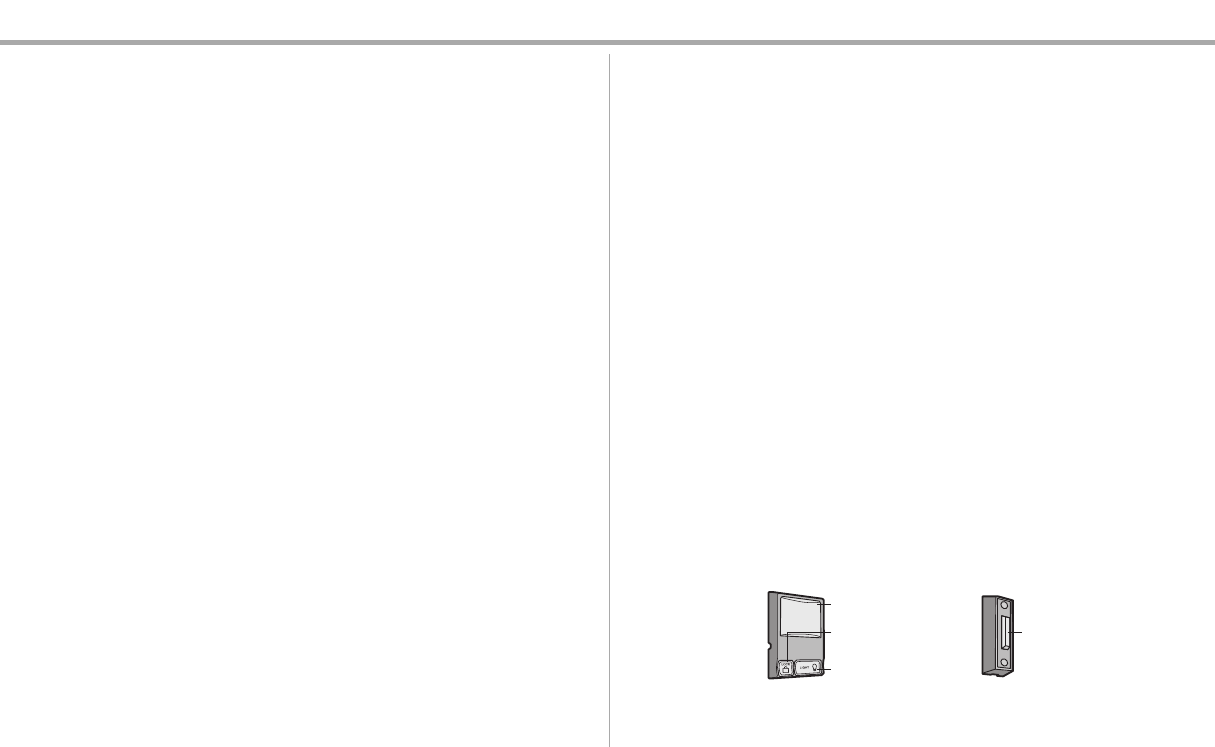

Using the Wall-Mounted

Door Control .............................. 32

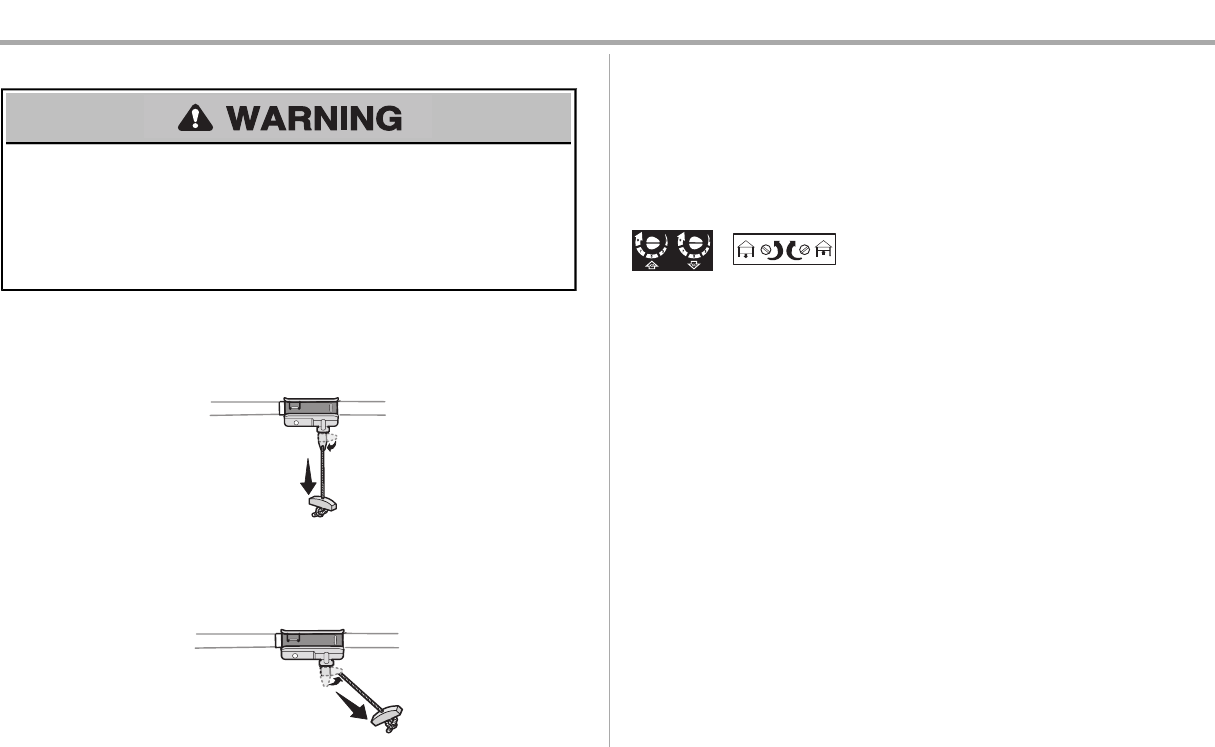

To Open the Door Manual .............. 33

Care of Your Opener ..................... 33

Having a Problem? ...................... 34

Diagnostic Chart ......................... 35

Programming ......................... 36-37

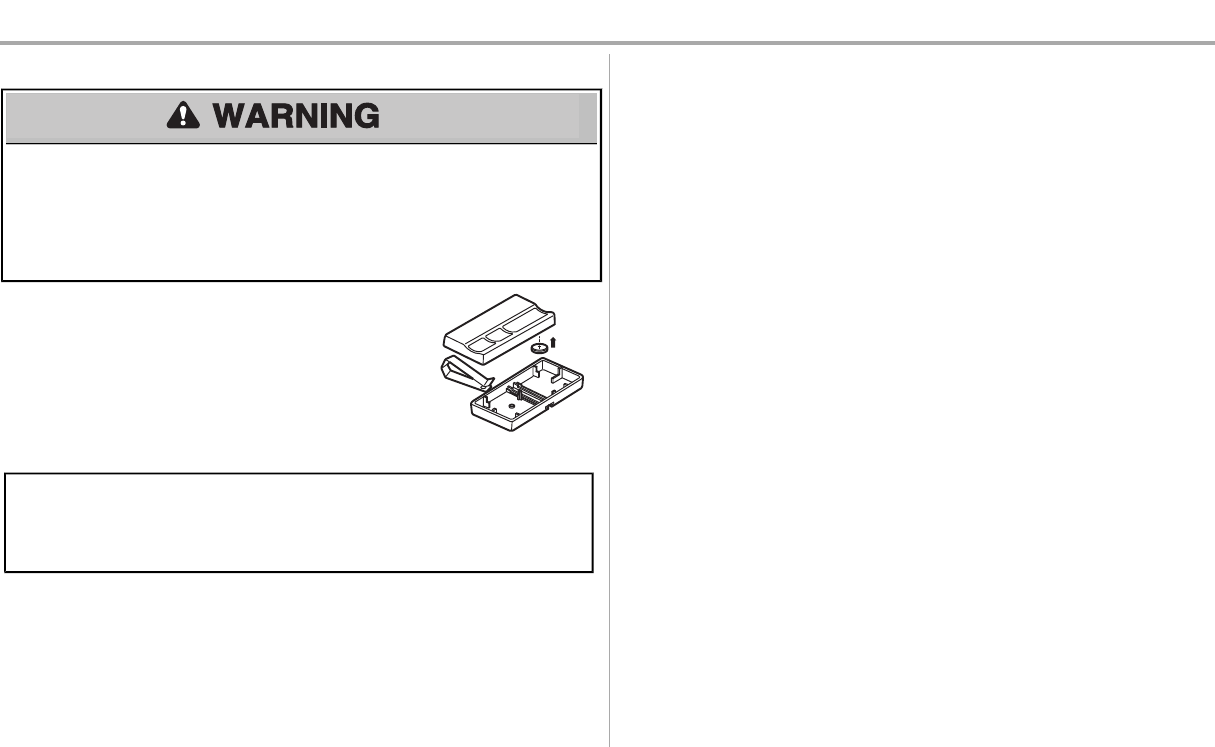

The Remote Control Battery ............ 38

Accessories ............................... 39

Warranty .............................. 40-41

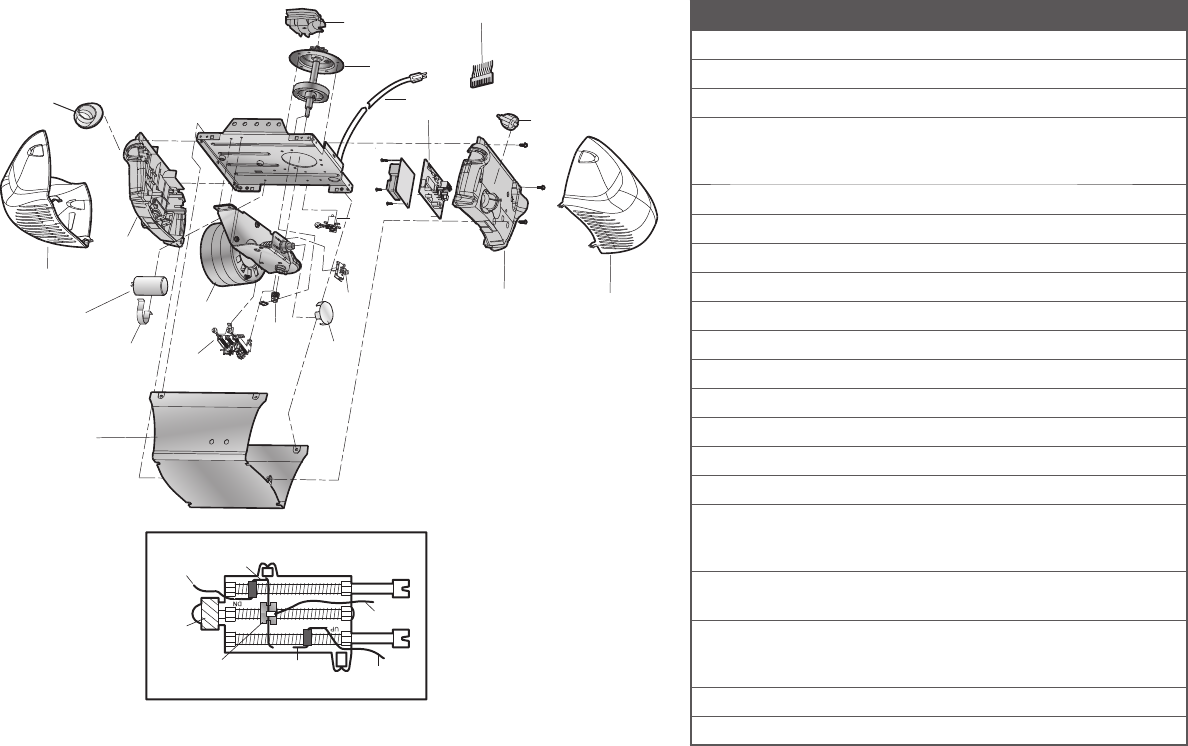

Repair Parts .......................... 42-43

1/2 hp Chain Drive

Garage Door Opener

■ Please read this manual and the enclosed safety materials carefully!

■ Fasten the manual near the garage door after installation.

■ The door WILL NOT CLOSE unless the Protector System® is connected and

properly aligned.

■ Periodic checks of the garage door opener are required to ensure safe

operation.

■ The model number label is located on the front panel of your garage

door opener.

FOR RESIDENTIAL USE ONLY

Serial Number:

Date of Purchase:

Write down the following information

for future reference:

PD210 • PD212D •

LW2000 • HD200D •

248730

PD610D • PD612D •

HD400D • LW3000

There are two type of garage door openers pictured.

Yours may appear slightly different.

Safety Symbol and Signal Word Review

This garage door opener has been designed and tested to offer safe service provided it isinstalled,

operated, maintained and tested in strictaccordance with the instructions and warnings contained in this

manual.

When you see these Safety Symbols and Signal Words on the following pages,they will alertyou to the

possibility of serious injury or death if you do not comply with the warnings that accompany them.The

hazard may come from something mechanical or from electric shock. Read the warnings carefully.

Mechanical

Electrical

When you see thisSignal Word on the following pages,itwill alert you to the possibility ofdamage to

your garage door and/or the garage door opener ifyou do notcomply with the cautionarystatementsthat

accompany it. Read them carefully.

Check the Door

To prevent possible SERIOUSINJURYor DEATH:

• ALWAYS call a trained door systems technician if garage door binds, sticks, or is out of balance.

An unbalanced garage door mayNOT reverse when required.

• NEVER try to loosen, move or adjust garage door, door springs, cables, pulleys, brackets or their

hardware, ALLof which are under EXTREMEtension.

• Disable ALLlocksand remove ALLropesconnected to garage door BEFORE installation and

operating garage door opener to avoid entanglement.

To preventdamage to garage door and opener:

• ALWAYS disable locks BEFORE installing and operating the opener.

• ONLY operate garage door opener at120 V, 60 Hzto avoid malfunction and damage.

1. Disable locks and remove any ropes connected to the garage door.

2. Lift the door halfway up. Release the door. If balanced, it should stay in

place, supported entirely by its springs.

3. Raise and lower the door to checkfor binding or sticking. Ifyour door

binds, sticks, or is out of balance, call a trained door systems

technician.

4. Check the seal on the bottom ofthe door.Anygap between the floor

and the bottom of the door must not exceed 1/4 inch (6 mm).

Otherwise, the safety reversal system may not work properly.

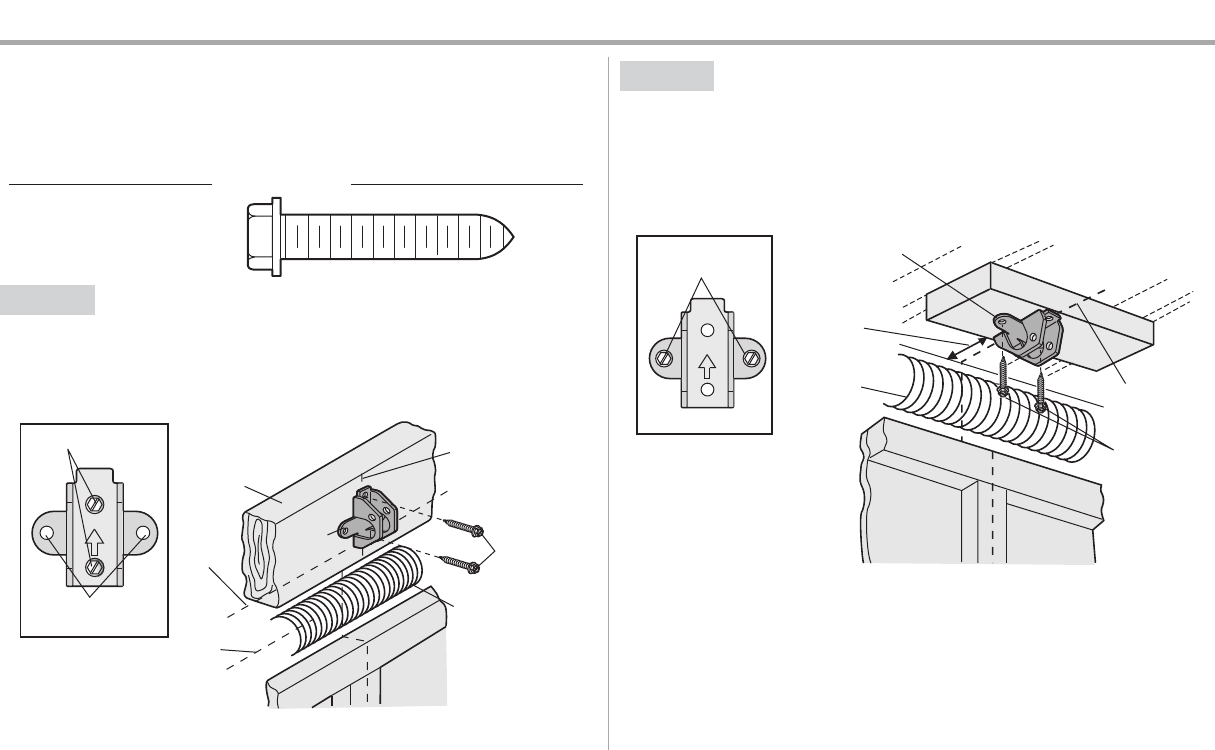

5. The opener should be installed above the center of the door.If there is

a torsion spring or center bearing plate in the wayof the header

bracket, itmay be installed within 4 feet (1.2 m) to the left or right ofthe

door center. See page 13.

Torsion

Spring

Extension

Spring

Preparation

Additional Items You May Need:

Survey your garage area to see if you will need any of the following items:

n(2) 2X4 PIECES OF WOOD

Maybe used to fasten the header bracket to the structural supports. Also used to position the

garage door opener during installation and for testing the safetyreversing sensors.

nSUPPORT BRACKET AND FASTENING HARDWARE

Must be used ifyou have a finished ceiling in your garage.

nEXTENSION BRACKETS (MODEL 41A5281) OR WOOD BLOCKS

Depending upon garage construction, extension brackets or wood blocks maybe needed to

install the safety reversing sensor.

nFASTENING HARDWARE

Alternate floor mounting of the safety reversing sensor will require hardware not provided.

nOUTSIDEQUICKRELEASE (MODEL 7702CB)

Required for a garage with NO access door.

nDOOR REINFORCEMENT

Required if you have a lightweight steel, aluminum, fiberglass or glass panel door.

nRAIL EXTENSION KIT

Required if your garage door is more than 7 feet (2.13 m) high.

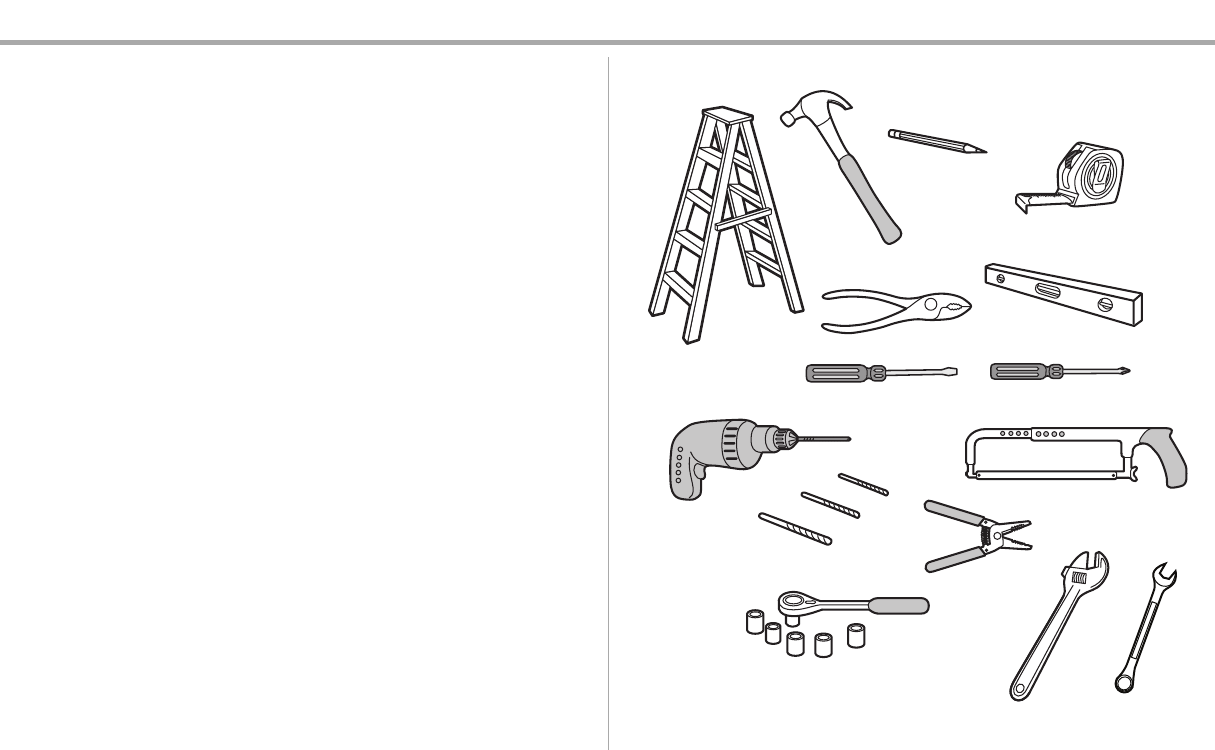

Tools Needed

3/16

7/16

1/2

5/32

5/16

5/8

9/16

1/4

7/16

Preparation

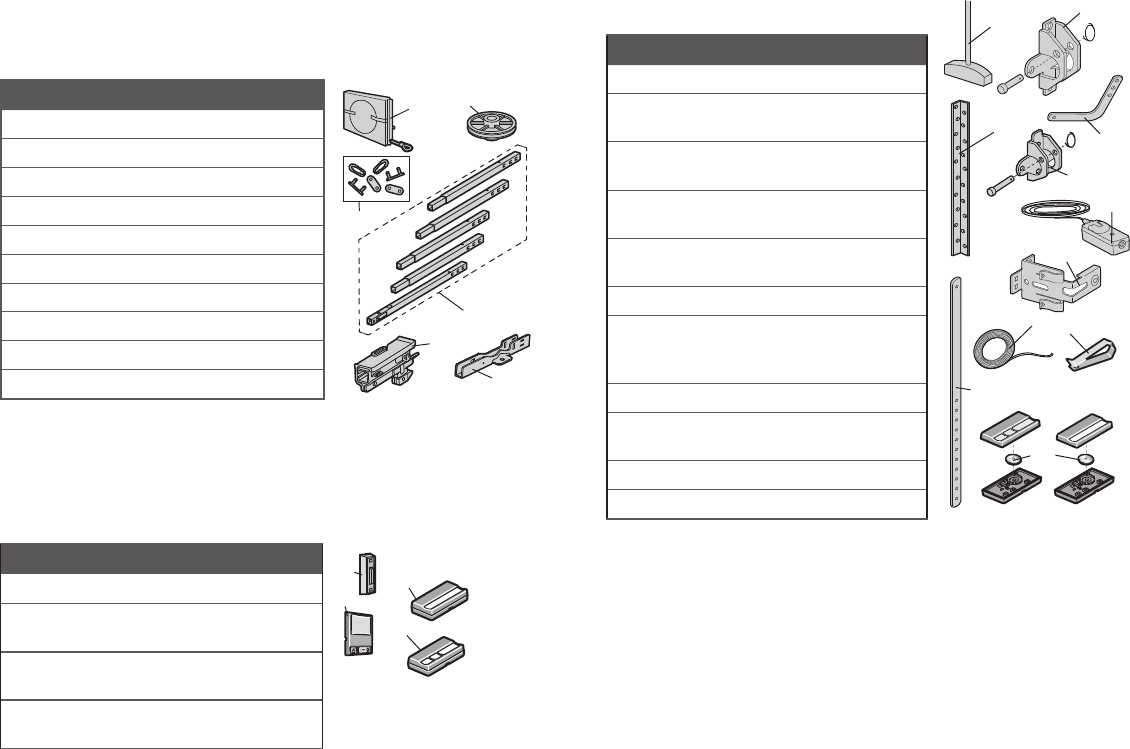

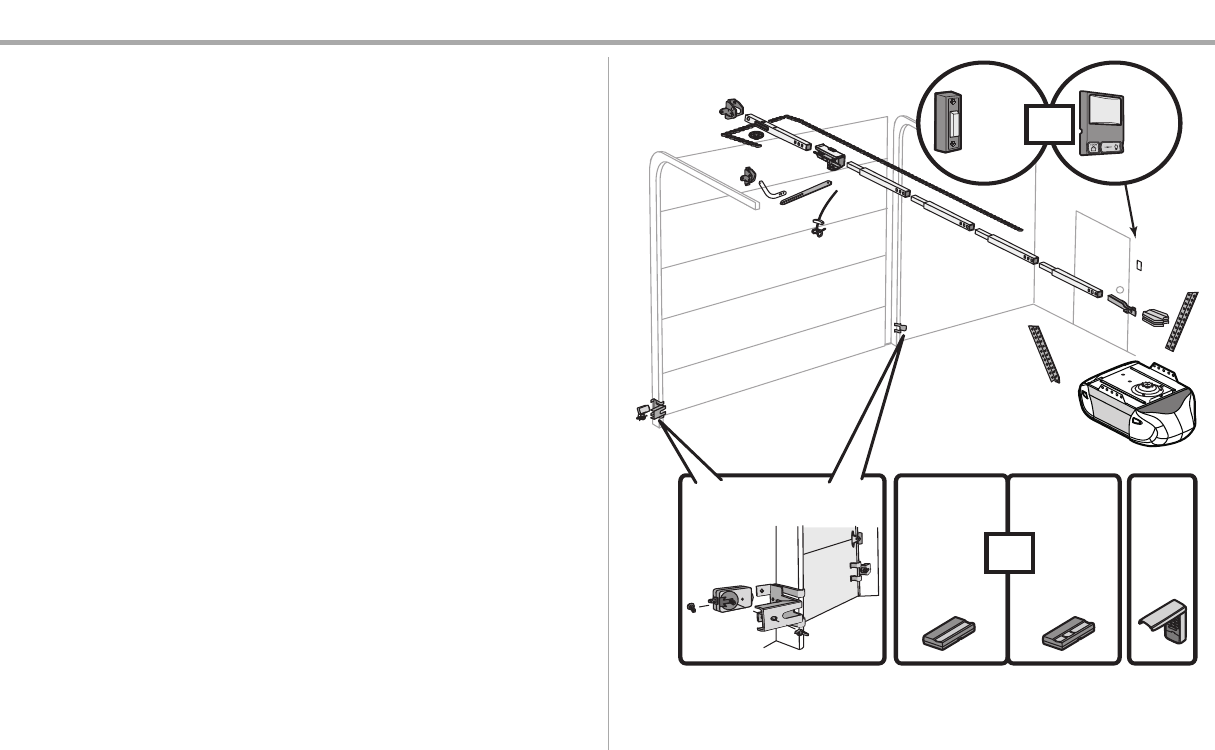

Carton Inventory

Your garage door opener is packaged in one carton which contains the motor unit and all parts

illustrated below.Accessoriesvary depending on the garage door opener model purchased. Depending

on your model, other accessories may be included with your garage door opener. Instructions for these

accessories will be attached to the accessory and are not included in this manual. Ifanything is missing,

carefully checkthe packing material. Hardware for assembly and installation is shown on the nextpage.

Save the carton and packing material until the installation and adjustment is complete. The images

throughout this manual are for reference only and your product may look different.

A. Header bracket

B. Pulley

C. Door bracket

D. Curved door arm

E. Straight door arm (Packaged inside front rail section)

F. Trolley

NOTE: Be sure to assemble the trolley before sliding onto rail.

G. Emergency release rope and handle

H. Rail (1 front and 4 center sections)

I. Hanging brackets (2) (Packaged inside the front rail section)

J. Garage door opener (motor unit)

K. Chain spreader with screws

L. “U” bracket

M. Chain and cable

N. Door control (Door Control Button or Multi-Function Door Control)

O. Remote control

P. The Protector System®

Safety reversing sensors with 2 conductor white and white/black wire attached: Sending Sensor (1),

Receiving Sensor (1), and Safety Sensor Brackets (2)

Q. Keyless Entry (Depending on the model purchased)

NOTSHOWN

White and red/white wire

Owner's manual

Models

LW2000,

HD200D

and

248730

All

Other

Models

O Q

Models

PD210D (1)

PD212D (2)

LW2000 (1)

HD200D (1)

248730 (1)

Models

PD610D (1)

PD612D (2)

HD400D (2)

LW3000 (2)

Models

HD400D

LW3000

Preparation

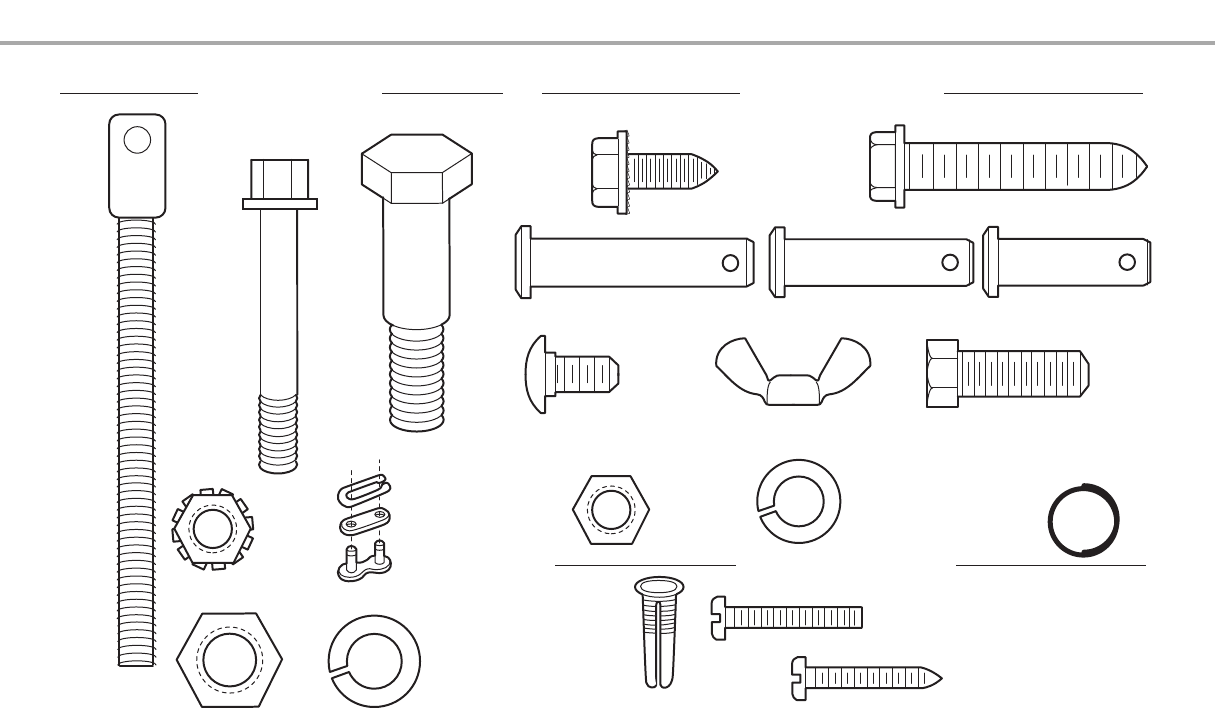

Hardware Inventory

Bolt

1/4"-20x1-3/4"

Lock Nut

1/4"-20

Bolt

Nut 3/8" Lock Washer 3/8"

Master Link

Clevis Pin 5/16"x1-1/2"

Ring Fastener (3)

Hex Bolt 5/16"-18x7/8" (4)

Lock Washer

5/16"-18 (7)

Nut

5/16"-18 (8)

Self-Threading Screw

1/4"-14x5/8" (2)

Clevis Pin 5/16"x1"

Clevis Pin 5/16"x1-1/4"

Carriage Bolt

1/4"-20x1/2" (2)

Wing Nut 1/4"-20 (2)

ASSEMBLY HARDWARE INSTALLATION HARDWARE

Screw 6ABx1" (2)

Drywall Anchors (2)

Screw 6-32x1" (2)

DOOR CONTROL HARDWARE

Insulated

Staples

(Not Shown)

Lag Screw 5/16"-9x1-5/8" (4)

Threaded

Shaft

Preparation

Assembly

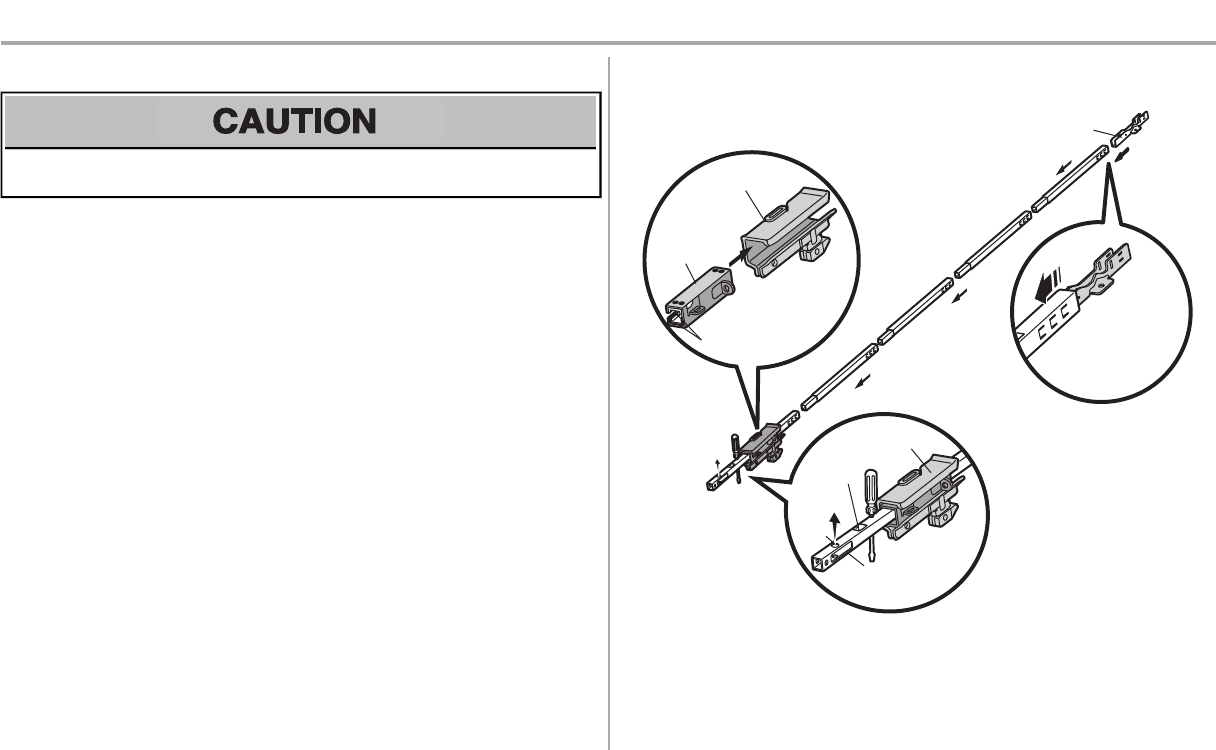

STEP 1 Assemble the rail and trolley

To prevent INJURY from pinching, keep hands and fingers away from the joints while assembling the

rail.

To avoid installation difficulties, do not run the garage door opener until instructed to do so.

The front rail has a cut out “window” at the door end (see illustration). The hole above this window is

larger on the top of the rail than on the bottom. A smaller hole 3-1/2" (8.9 cm) away is close to the rail

edge. Rotate the backrail so ithas a similar hole close to the opposite edge,about 4-3/4" (12 cm) from

the far end.

1. Remove the straightdoor arm and hanging bracket packaged inside the front rail and set

aside for Installation Step 5 and 9.NOTE: To prevent INJURY while unpacking the rail

carefully remove the straight door arm stored within the rail section.

2. Align the rail sections on a flat surface as shown and slide the tapered ends into the larger

ones. Tabsalong the side will lockinto place.

3. Place the motor unit on packing material to protect the cover, and restthe backend ofthe rail

on top. For convenience, put a supportunder the front end of the rail.

4. As a temporary stop, insert a screwdriver into the hole 10" (25 cm) from the front end of the rail,

as shown.

5. Check to be sure there are 4 plastic wear padsinside the inner trolley. Iftheybecame loose

during shipping, check all packing material. Snap them back into position as shown.

6. Slide the trolley assembly toward the screwdriver as shown.

7. Slide the rail onto the “U” bracket,until itreaches all the stops on the top and sides ofthe “U”

bracket.

To garage

door opener

(TO MOTOR UNIT)

Front Rail

Section

(TO DOOR)

“U” Bracket

Outer Trolley

Inner Trolley

Wear Pads

Rail

Tab

Trolley

Window

Cut-Out

SLIDE TO STOPS

ON TOP AND

SIDES OF

“U” BRACKET

Idler

Pulley

Hole

Assembly

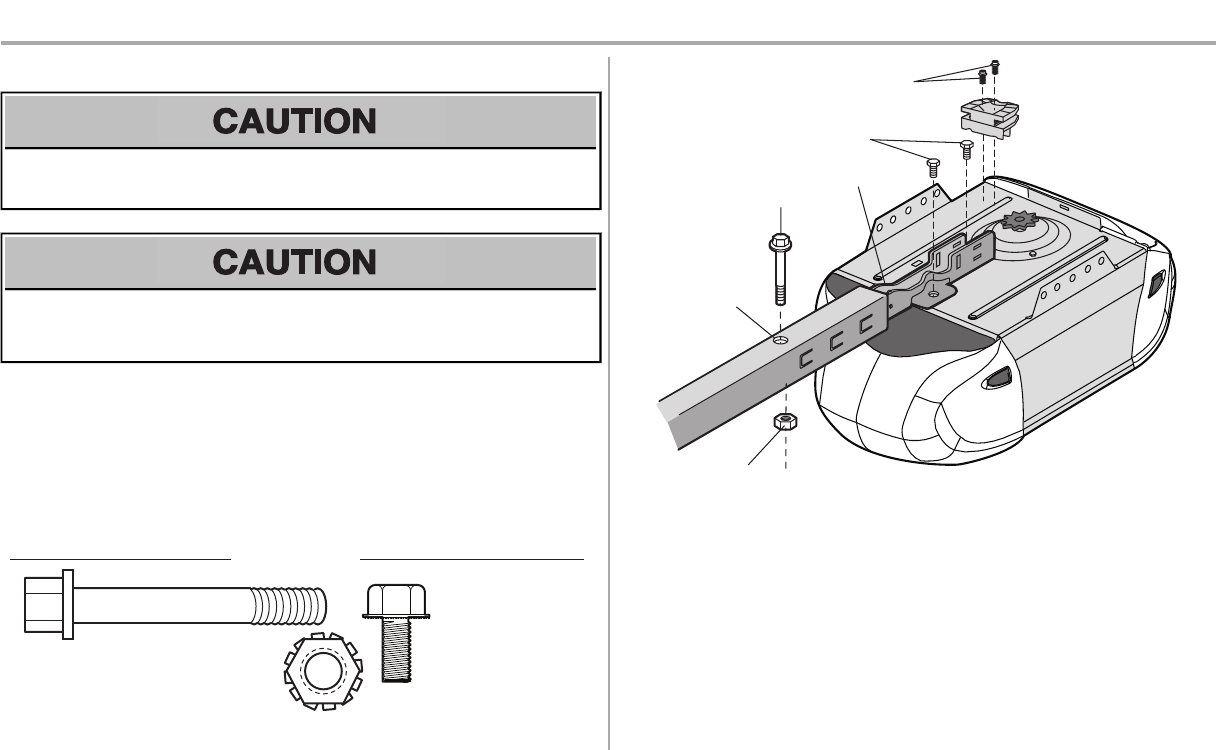

STEP 2 Fasten the rail to the motor unit

To avoid SERIOUS damage to garage door opener, use ONLY those bolts/fasteners mounted in the

top of the opener.

To avoid possible SERIOUSINJURYto fingers:

lSecurelyattach chain spreader.

lNEVERconnectgarage door opener to power source until instructed to do so.

1. Insert a 1/4"-20x1-3/4" bolt into the cover protection bolthole on the backend of the rail as

shown.Tighten securely with a 1/4"-20 locknut.Do NOT overtighten.

2. Remove the two boltsfrom the top of the motor unit.

3. Use the carton to support the front end of the rail.

4. Place the “U” bracket,flat side down onto the motor unit and align the bracket holes with the

bolt holes.

5. Fasten the “U” bracketwith the previouslyremoved bolts; DO NOT use any power tools. The

use of power toolsmaypermanently damage the garage door opener.

6. Attach spreader to the motor unit with two screws.

(Mounted in the

Bolts

garage door opener)

HARDWARE

Bolt 1/4"-20x1-3/4"

Lock Nut 1/4"-20

“U” Bracket

Bolts

Hex Screws

8-32x7/16

Cover

Protection

Bolt Hole

Bolt

1/4"-20x1-3/4"

Lock Nut 1/4"-20

Assembly

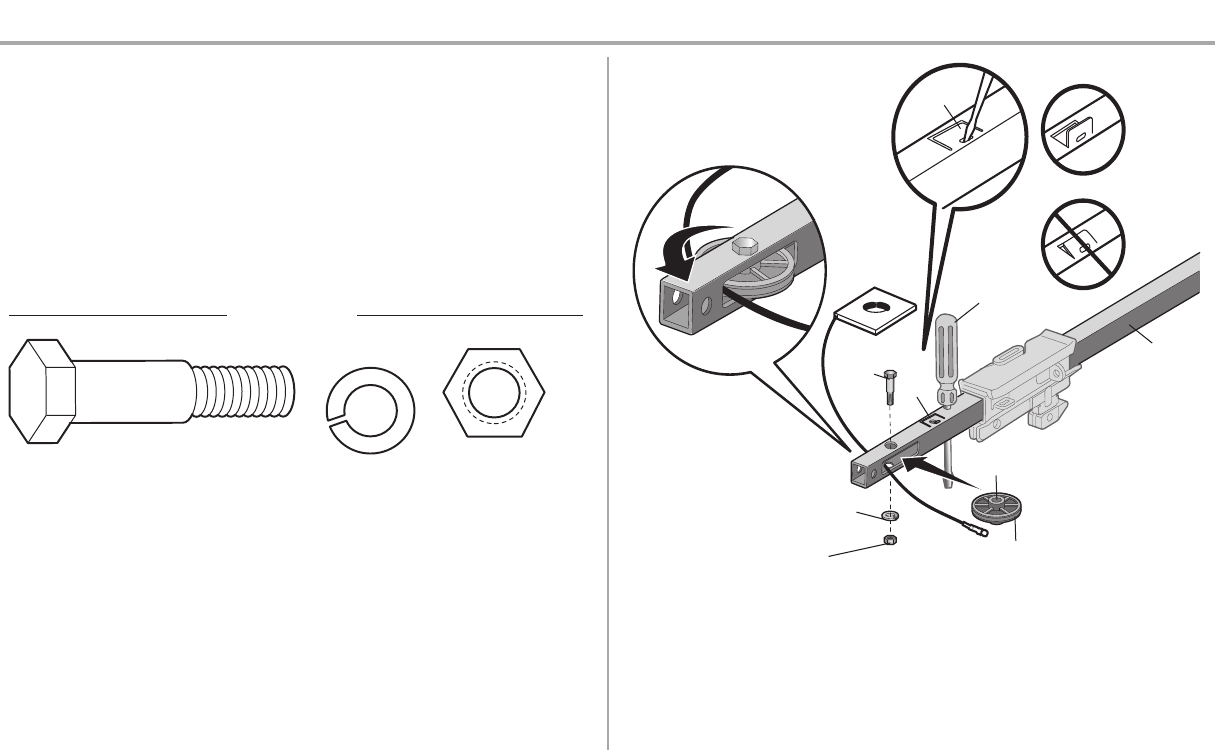

STEP 3 Install the idler pulley

1. Lay the chain/cable beside the rail, asshown.Grasp the end with the cable loop and pass

approximately 12" (30 cm) of cable through the window.Allow it to hang until Assembly Step 4.

2. Remove the tape from the idler pulley.The inside center should be pre-greased. Ifdry,

regrease to ensure proper operation.

3. Place the idler pulleyinto the window as shown.

4. Insert the idler bolt from the top through the rail and pulley. Tighten with a 3/8" lock washer and

nut underneath the rail until the lock washer is compressed.

5. Rotate the pulley to be sure it spins freely.

6. Locate the rail tab. The rail tab is between the idler bolt and the trolley in the front rail section.

Use a flat head screwdriver and lift the rail tab until the tab is vertical (90º).

HARDWARE

Bolt Nut 3/8"

Lock Washer 3/8"

Screwdriver

Rail

Idler Pulley

Grease Inside Pulley

Bolt

Lock Washer 3/8"

Nut 3/8"

Rail

Tab

CORRECT

INCORRECT

Rail Tab

Assembly

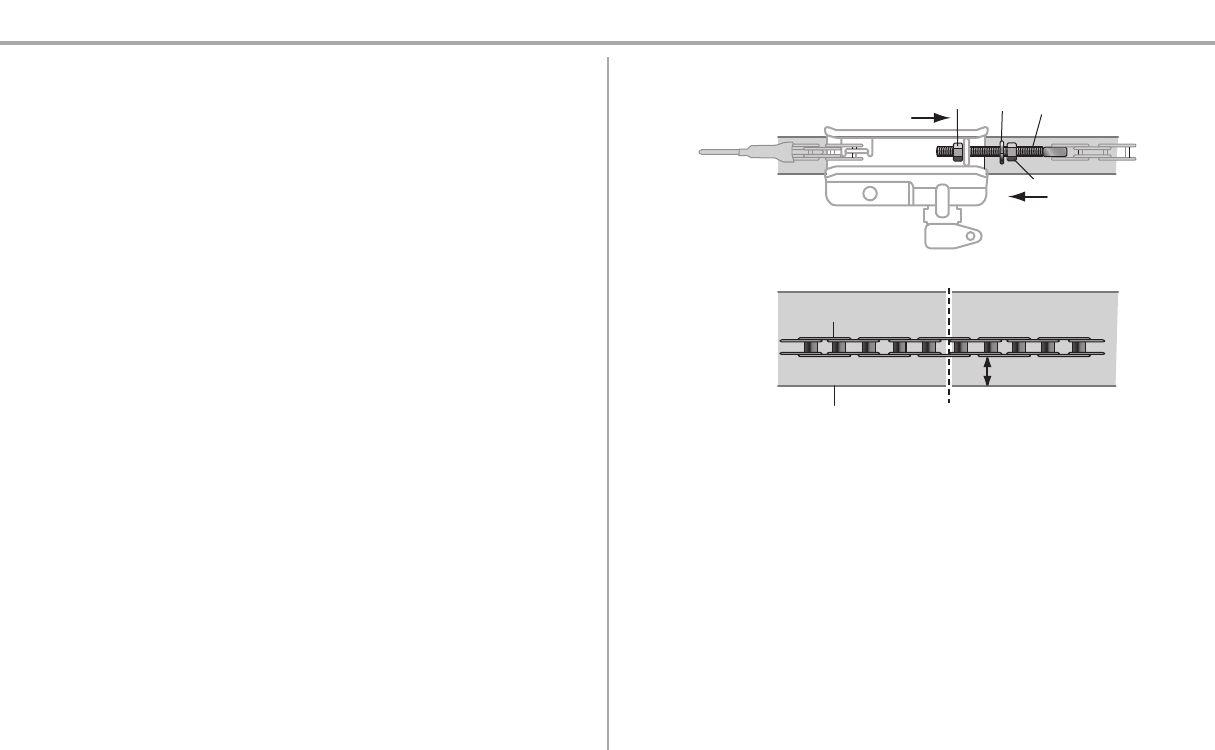

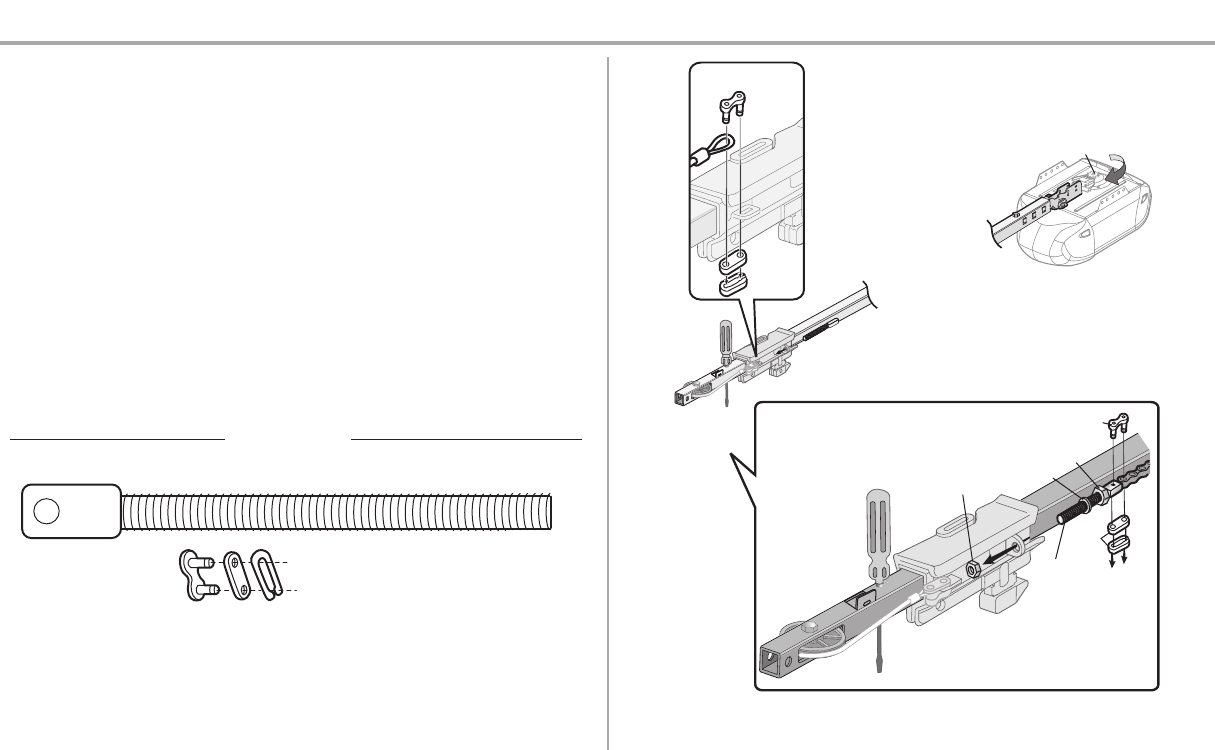

STEP 4 Install the chain

1. Pull the cable around the idler pulley and toward the trolley.

2. Connectthe cable to the retaining slot on the trolley.(a)

a. Push pins of master link bar through cable link and trolley slot.

b. Push master linkcap over pins and pastpin notches.

c. Slide clip-on spring over cap and onto pin notches until both pins are securely

locked in place.

3. With the trolley againstthe screwdriver, dispense the remainder of the cable/chain along the

rail toward the motor unit into the slot on the chain spreader, around the sprocket onto the

chain spreader and continuing to the trolley assembly.The sprocket teeth must engage the

chain. (b)

4. Check to make sure the chain is not twisted,then connect itto the threaded shaftwith the

remaining master link.

5. Thread the inner nut and lock washer onto the trolley threaded shaft.

6. Insert the trolley threaded shaftthrough the hole in the trolley.Be sure the chain is not

twisted. (c)

7. Loosely thread the outer nut onto the trolley threaded shaft.

8. Remove the screwdriver.

HARDWARE

Master

Link

Threaded Shaft

Threaded

Shaft

Outer

Nut

Front Rail

Section

(TO DOOR)

Inner

Nut

Lock

Washer

Master Link

Master

Link

Sprocket

Assembly

STEP 5 Tighten the chain

1. Spin the inner nut and lockwasher down the trolleythreaded shaft, away from the trolley.

2. To tighten the chain,turn the outer nut in the direction shown.

3. When the chain is approximately 1/4" (6 mm) above the base ofthe rail at it's midpoint, re-

tighten the inner nut to secure the adjustment.

Sprocket noise can result ifthe chain is too loose. When installation is complete, you maynotice some

chain droop with the door closed. This is normal. Ifthe chain returns to the position shown when the door

is open, do not re-adjust the chain.

NOTES:

lDuring future maintenance, ALWAYS pull the emergency release handle to disconnect the

trolley before adjusting the chain.

lYou may notice loosening of the chain after Adjustment Step 3 (Test the Safety Reversal

System). Check for proper tension and readjust chain if necessary. Then repeat Adjustment

Step 3.

You have now finished assembling your garage door opener. Please read the following warnings

before proceeding to the installation section.

Outer

Nut

Lock

Washer

Trolley

Threaded

Shaft

Inner Nut

To Tighten

Inner Nut

To Tighten Outer Nut

Base of Rail Mid length of Rail

Chain

1/4" (6 mm)

Installation

IMPORTANT INSTALLATION INSTRUCTIONS

To reduce the risk of SEVERE INJURY or DEATH:

1. READ AND FOLLOW ALL INSTALLATION WARNINGS AND INSTRUCTIONS.

2. Install garage door opener ONLY on properly balanced and lubricated garage door.An

improperly balanced door may NOT reverse when required and could result in SEVERE

INJURY or DEATH.

3. ALL repairs to cables,spring assemblies and other hardware MUST be made by a trained

door systems technician BEFORE installing opener.

4. Disable ALL locks and remove ALL ropesconnected to garage door BEFORE installing

opener to avoid entanglement.

5. Install garage door opener 7 feet (2.13 m) or more above floor.

6. Mount the emergency release within reach, but at least6 feet (1.83 m) above the floor and

avoiding contact with vehiclesto avoid accidental release.

7. NEVER connectgarage door opener to power source until instructed to do so.

8. NEVERwear watches,rings or loose clothing while installing or servicing opener. They could

be caught in garage door or opener mechanisms.

9. Install wall-mounted garage door control:

• within sight of the garage door.

• out of reach of children at minimum height of 5 feet (1.5 m).

• away from ALL moving parts of the door.

10. Place entrapment warning label on wall nextto garage door control.

11. Place manual release/safety reverse testlabel in plain view on inside of garage door.

12. Upon completion of installation, test safety reversal system. Door MUST reverse on contact

with a 1-1/2" (3.8 cm) high object (or a 2x4 laid flat) on the floor.

13. To avoid SERIOUS PERSONAL INJURY or DEATHfrom electrocution, disconnectALL

electric power BEFORE performing any service or maintenance.

Installation

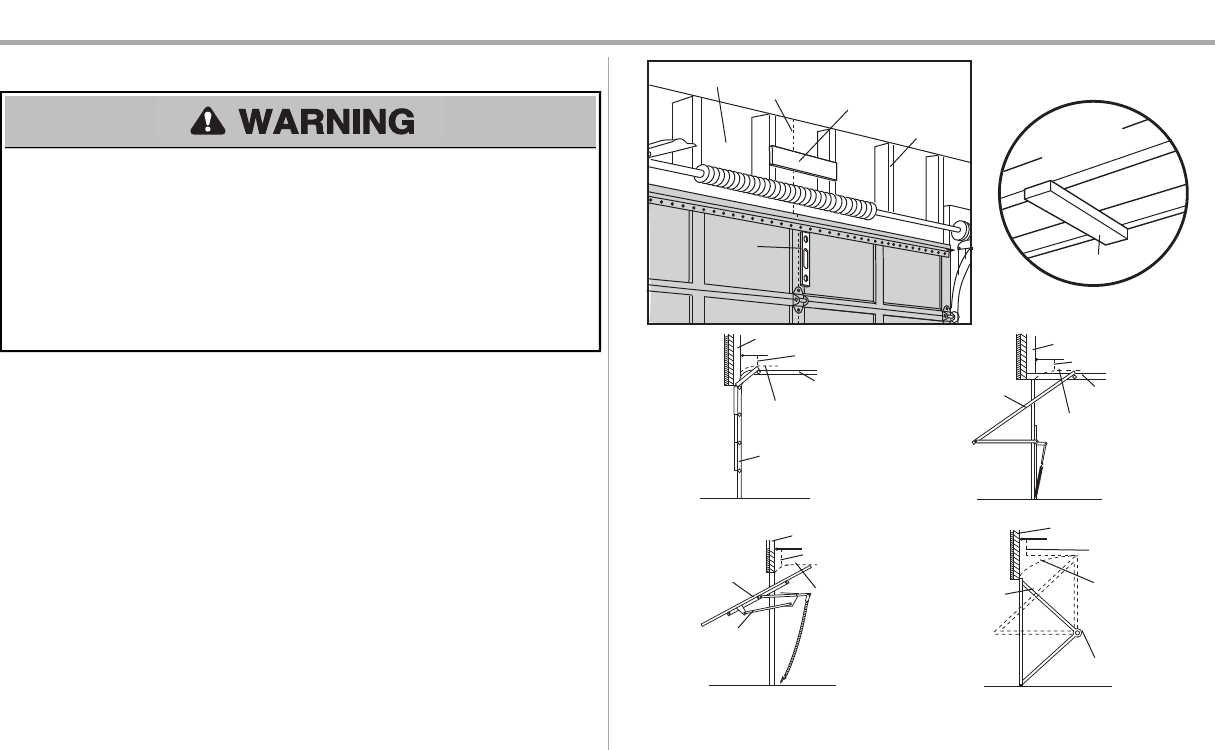

STEP 1 Determine the header bracket location

To prevent possible SERIOUS INJURY or DEATH:

• Header bracket MUST be RIGIDLY fastened to structural support on header wall or ceiling,

otherwise garage door might NOT reverse when required. DO NOT install header bracket over

drywall.

• Concrete anchors MUSTbe used if mounting header bracket or 2x4 into masonry.

• NEVER try to loosen, move or adjust garage door, springs, cables, pulleys, brackets, or their

hardware, ALL of which are under EXTREME tension.

• ALWAYS call a trained door systems technician if garage door binds, sticks, or is out of balance.

An unbalanced garage door might NOT reverse when required.

Installation procedures vary according to garage door types.Follow the instructions which apply to your

door.

1. Close the door and mark the inside vertical centerline ofthe garage door.

2. Extend the line onto the header wall above the door.

You can fasten the header bracket within 4 feet (1.22 m) of the left or right of the door

center only if a torsion spring or center bearing plate is in the way; or you can attach it to

the ceiling when clearance is minimal. (It may be mounted on the wall upside down if

necessary, to gain approximately 1/2" (1 cm).

If you need to install the header bracket on a 2x4 (on wall or ceiling), use lag screws (not

provided) to securely fasten the 2x4 to structural supports.

3. Open your door to the highestpoint of travel as shown.Draw an intersecting horizontal line on

the header wall 2" (5 cm) above the high point :

l2" (5 cm) above the high point for sectional door and one-piece door with track.

l8" (20 cm) above the high pointfor one-piece door without track.

This height will provide travel clearance for the top edge ofthe door.NOTE:If the total number of inches

exceeds the height available in your garage, use the maximum height possible, or refer to page 12 for

ceiling installation.

Header Wall Vertical Centerline of Garage Door

2x4 Structural

Supports

Level

(Optional)

Unfinished

Ceiling

2x4

OPTIONAL CEILING MOUNT

FOR HEADER BRACKET

Sectional door with curved track

Header Wall

Track

2" (5 cm)

Highest Point

of Travel

Door

One-piece door with horizontal track

Header Wall

Track

2" (5 cm)

Highest

Point

of Travel

Door

One-piece door without track:

jamb hardware

Header Wall

8" (20 cm)

Highest

Point of

Travel

Door

Jamb

Hardware

One-piece door without track:

pivot hardware

Header Wall

8" (20 cm)

Highest

Point of

Travel

Door

Pivot

Installation

STEP 2 Install the header bracket

You can attach the header bracketeither to the wall above the garage door,or to the ceiling.Follow the

instructions which will work best for your particular requirements. Do not install the header bracket over

drywall. If installing into masonry, use concrete anchors (not provided).

HARDWARE

Lag Screw 5/16"-9x1-5/8"

OPTION A WALL INSTALLATION

1. Center the bracket on the vertical centerline with the bottom edge ofthe bracket on the

horizontal line as shown.

2. Mark the vertical setof bracket holes.Drill 3/16" pilot holes and fasten the bracket securely to a

structural supportwith the hardware provided.

Wall Mount

Optional Mounting

Holes

Vertical

Centerline of

Garage Door

(Header Wall)

Header

Bracket

2x4 Structural

Support

Door Spring

(Garage Door)

Highest Point

of Garage

Door Travel

Horizontal

Line

Lag Screw

5/16"-9x1-5/8"

OPTION B CEILING INSTALLATION

1. Extend the vertical centerline onto the ceiling as shown.

2. Center the bracket on the vertical mark,no more than 6" (15 cm) from the wall. Make sure the

arrow is pointing away from the wall. The bracketcan be mounted flush againstthe ceiling

when clearance is minimal.

3. Mark the side holes. Drill 3/16" pilotholes and fasten bracket securely to a structural support

with the hardware provided.

(Header Wall)

Ceiling Mounting

Holes (Finished Ceiling)

Vertical

Centerline of

Garage Door

Header

Bracket

6" (15 cm)

Maximum

Door Spring

(Garage Door)

Lag Screw

5/16"-9x1-5/8"

Installation

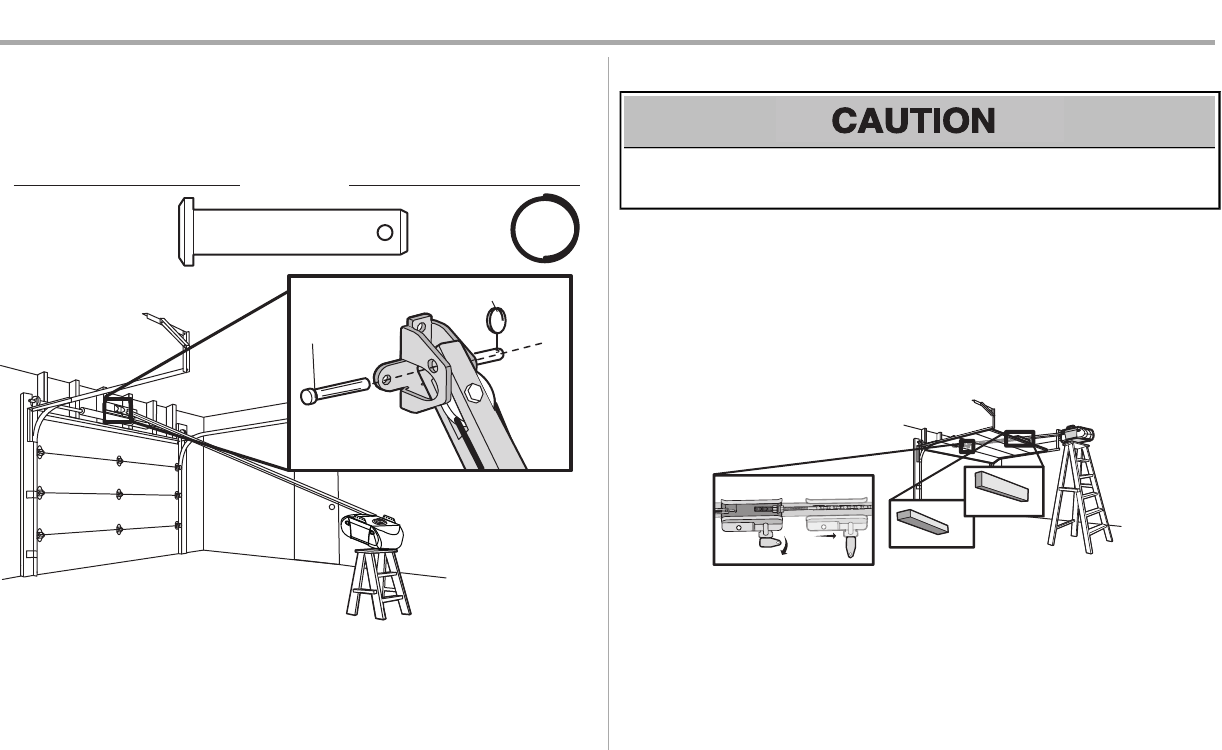

STEP3 Attach the rail to the header bracket

1. Align the rail with the header bracket. Insert the clevis pin through the holesin the header

bracket and rail. Secure with the ring fastener.

NOTE: Use the packing material as a protective base for the garage door opener.

HARDWARE

Clevis Pin 5/16"x1-1/2" Ring Fastener

Clevis Pin

5/16"x1-1/2"

Ring Fastener

STEP 4 Position the garage door opener

To preventdamage to garage door,rest garage door opener rail on 2x4 placed on top section of

door.

1. Remove the packing material and lift the garage door opener onto a ladder.

2. Fully open the door and place a 2x4 (laid flat) under the rail. For one-piece doorswithout

tracks, lay the 2x4 on it's side.

NOTE: A 2x4 is ideal for setting the distance between the rail and the door. If the ladder is not tall

enough you will need help at this point.If the door hits the trolley when it is raised, pull the trolley release

arm down to disconnect the inner and outer trolley. Slide the outer trolley toward the garage door

opener. The trolley can remain disconnected until instructed.

Connected Disconnected

One-piece

door

without tracks

All other

door types

+PUVCNNCVKQP

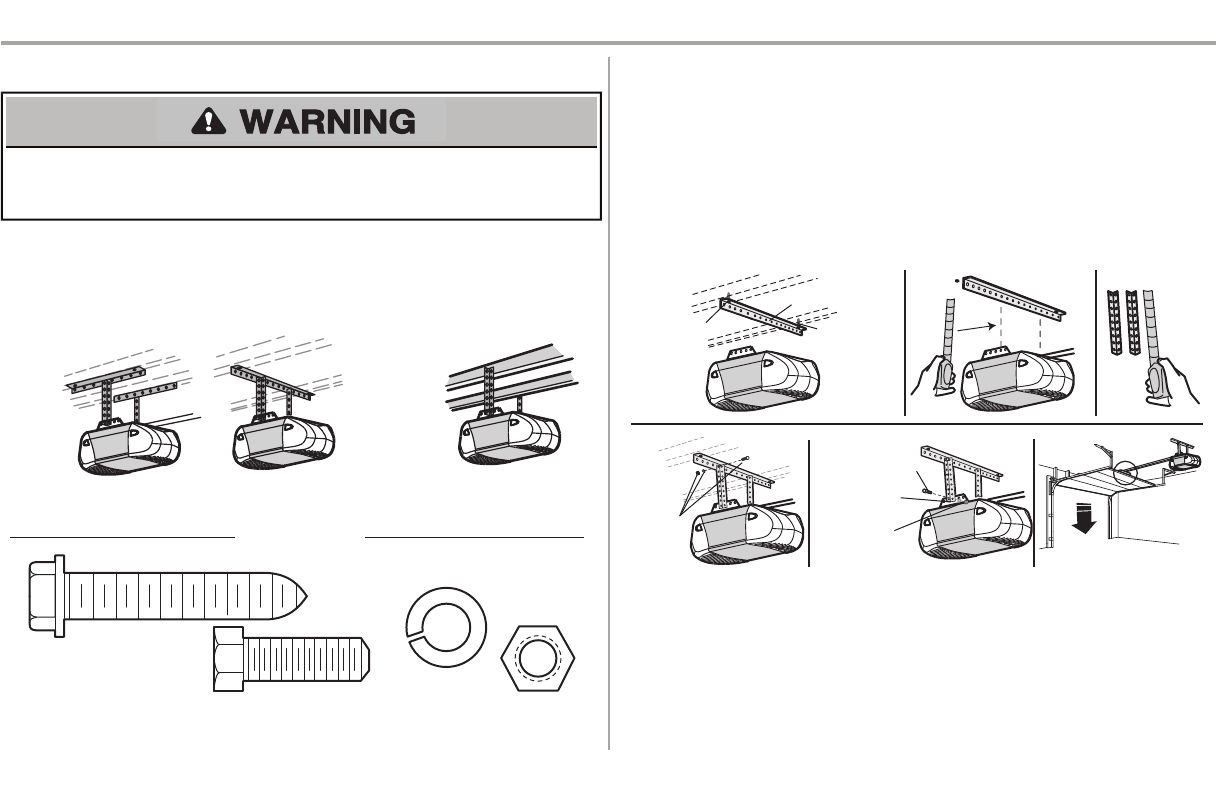

56'2  *CPI VJG ICTCIG FQQT QRGPGT

7R DYRLG SRVVLEOH 6(5,286 ,1-85< IURP D IDOOLQJ JDUDJH GRRU RSHQHU IDVWHQ LW 6(&85(/< WR

VWUXFWXUDO VXSSRUWV RIWKH JDUDJH&RQFUHWH DQFKRUV0867 EH XVHG LI LQVWDOOLQJ $1< EUDFNHWV LQWR

PDVRQU\

*CPIKPI VJG ICTCIG FQQT QRGPGT YKNN XCT[ FGRGPFKPI QP [QWT ICTCIG $GNQY CTG VJTGG GZCORNG

KPUVCNNCVKQPU ;QWT KPUVCNNCVKQP OC[ DG FKHHGTGPV (QT #.. KPUVCNNCVKQPU VJG ICTCIG FQQT QRGPGT /756 DG

EQPPGEVGF VQ UVTWEVWTCN UWRRQTVU6JG KPUVTWEVKQPU KNNWUVTCVG QPG QH VJG GZCORNGU DGNQY

Finished Ceiling Unfinished Ceiling

HARDWARE

Hex Bolt 5/16"- 18x7/8"

Nut 5/16"-18

Lock Washer

5/16"-18

Lag Screw 5/16"-9x1-5/8"

 1P HKPKUJGF EGKNKPIU WUG VJG NCI UETGYUVQ CVVCEJ C UWRRQTV DTCEMGV PQV RTQXKFGF VQ VJG

UVTWEVWTCN UWRRQTVU DGHQTG KPUVCNNKPI VJG ICTCIG FQQT QRGPGT

 /CMG UWTG VJG ICTCIG FQQT QRGPGT KUCNKIPGF YKVJ VJG JGCFGT DTCEMGV /GCUWTG VJG FKUVCPEG

HTQO GCEJ UKFG QH VJG ICTCIG FQQT QRGPGT VQ VJG UWRRQTVDTCEMGV

 %WV DQVJ RKGEGU QHVJG JCPIKPI DTCEMGV VQ TGSWKTGF NGPIVJU

 #VVCEJ VJG GPF QH GCEJ JCPIKPI DTCEMGVVQ VJG UWRRQTV DTCEMGV YKVJ CRRTQRTKCVG JCTFYCTG PQV

RTQXKFGF

 #VVCEJ VJG ICTCIG FQQT QRGPGT VQ VJG JCPIKPI DTCEMGVU YKVJ VJG JGZ DQNVU NQEM YCUJGTU CPF

PWVU

 4GOQXG VJG Z CPF OCPWCNN[ ENQUG VJG FQQT +H VJG FQQT JKVU VJG TCKN TCKUG VJG JGCFGT DTCEMGV

Finished

Ceiling (not provided)

Lag Screw

5/16"-

9x1-5/8"

123

(not

provided)

Hex Bolt

5/16"- 18x7/8"

Nut 5/16"-18

Lock Washer

5/16"-18

456

Lag Screw

5/16"-

9x1-5/8"

Installation

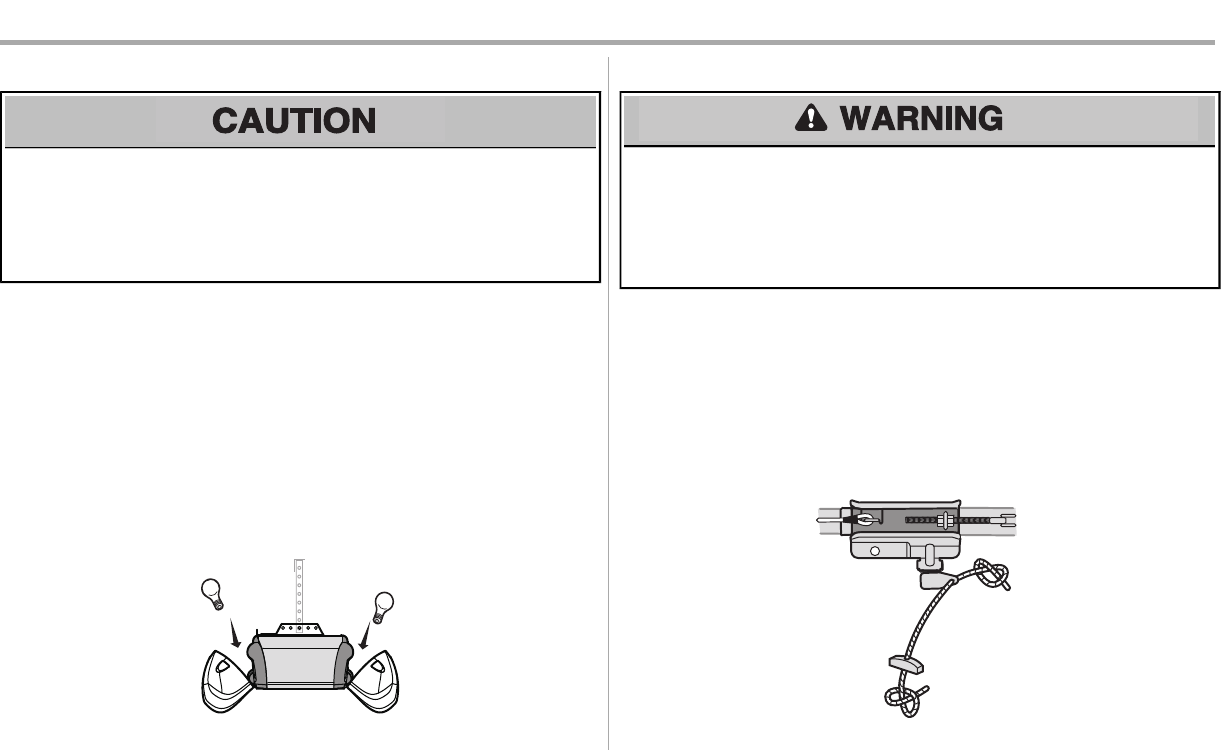

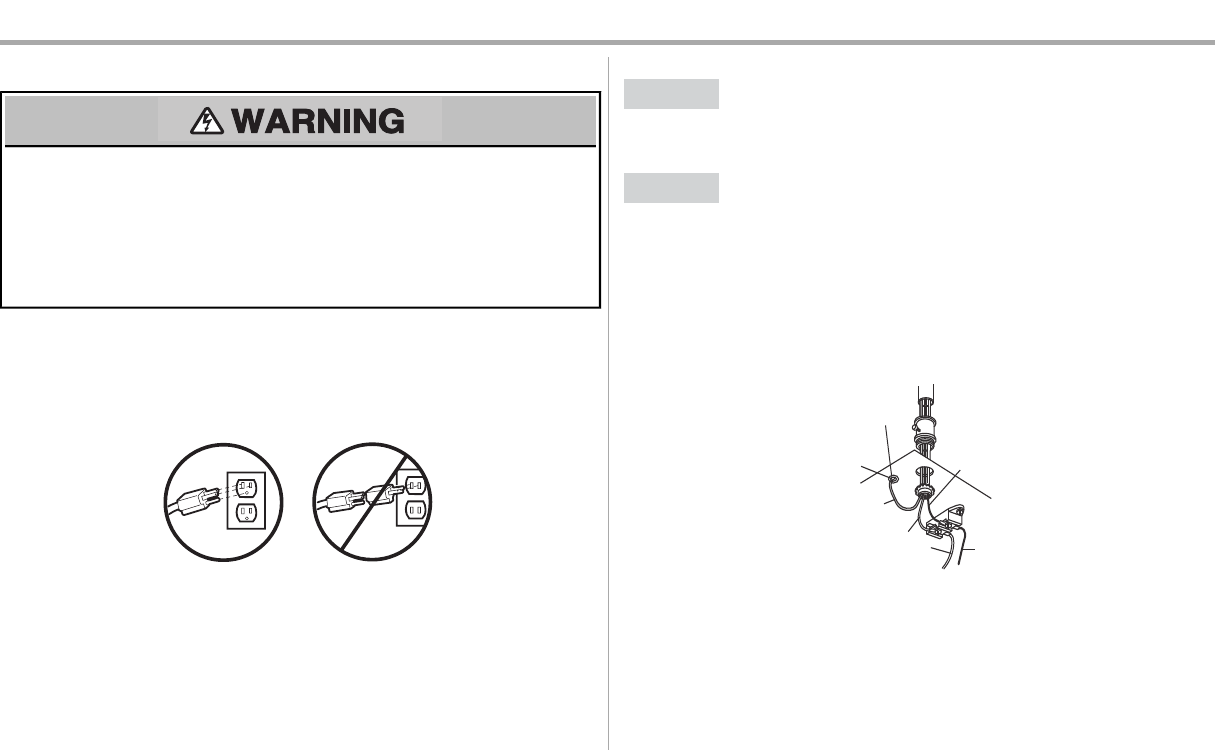

STEP 6 Install the light bulbs

To prevent possible OVERHEATING of the endpanel or light socket:

lDO NOT use short neck or specialty light bulbs.

lDO NOT use halogen bulbs.Use ONLY incandescent.

To preventdamage to the opener:

lDO NOT use bulbs larger than 100W.

lONLY use A19 size bulbs.

1. Install a 100 wattmaximum light bulb in each socket. Light bulb size should be A19,standard

neckonly. The lightswill turn ON and remain lit for approximately4-1/2 minutes when power is

connected. Then the lightswill turn OFF.

2. Insert bottom lens tabs into slots on chassis. Tilt towards chassis to engage top tabs, then drop

down gently into place (see illustration).

3. To remove,depressboth top lens tabs.Tilt lens slightly outward and down, then pull outto

clear bulbs.Use care to avoid snapping off bottom lens tabs.

4. Use A19, standard neck garage door opener bulbsfor replacement.

NOTE: Use only standard light bulbs. The use of short neck or speciality light bulbs may overheat the

endpanel or light socket.

STEP 7 Attach the emergency release rope and handle

To prevent possible SERIOUS INJURY or DEATHfrom a falling garage door:

• If possible,use emergencyrelease handle to disengage trolley ONLY when garage door is

CLOSED. Weak or broken springs or unbalanced door could result in an open door falling rapidly

and/or unexpectedly.

• NEVER use emergency release handle unless garage doorway is clear of persons and

obstructions.

• NEVER use handle to pull door open or closed. Ifrope knot becomes untied, you could fall.

1. Insert one end ofthe emergency release rope through the handle. Make sure that “NOTICE” is

rightside up. Tie a knot atleast1 inch (2.5 cm) from the end ofthe emergencyrelease rope.

2. Insert the other end of the emergency release rope through the hole in the trolley release arm.

Mount the emergency release within reach, but at least 6 feet (1.83 m) above floor, avoiding

contact with vehicles to prevent accidental release and secure with a knot.

NOTE: If it is necessary to cut the emergency release rope, seal the cut end with a match or lighter to

prevent unraveling. Ensure the emergency release rope and handle are above the top of all vehicles to

avoid entanglement.

NOTICE

Installation

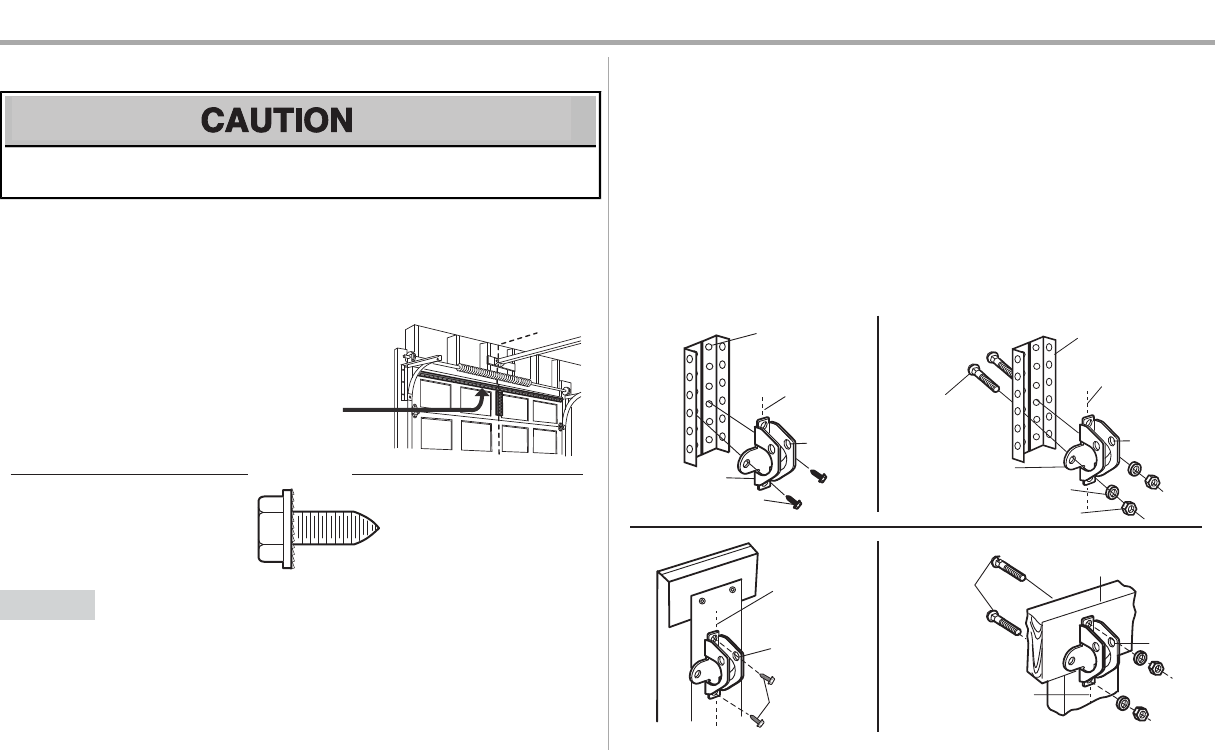

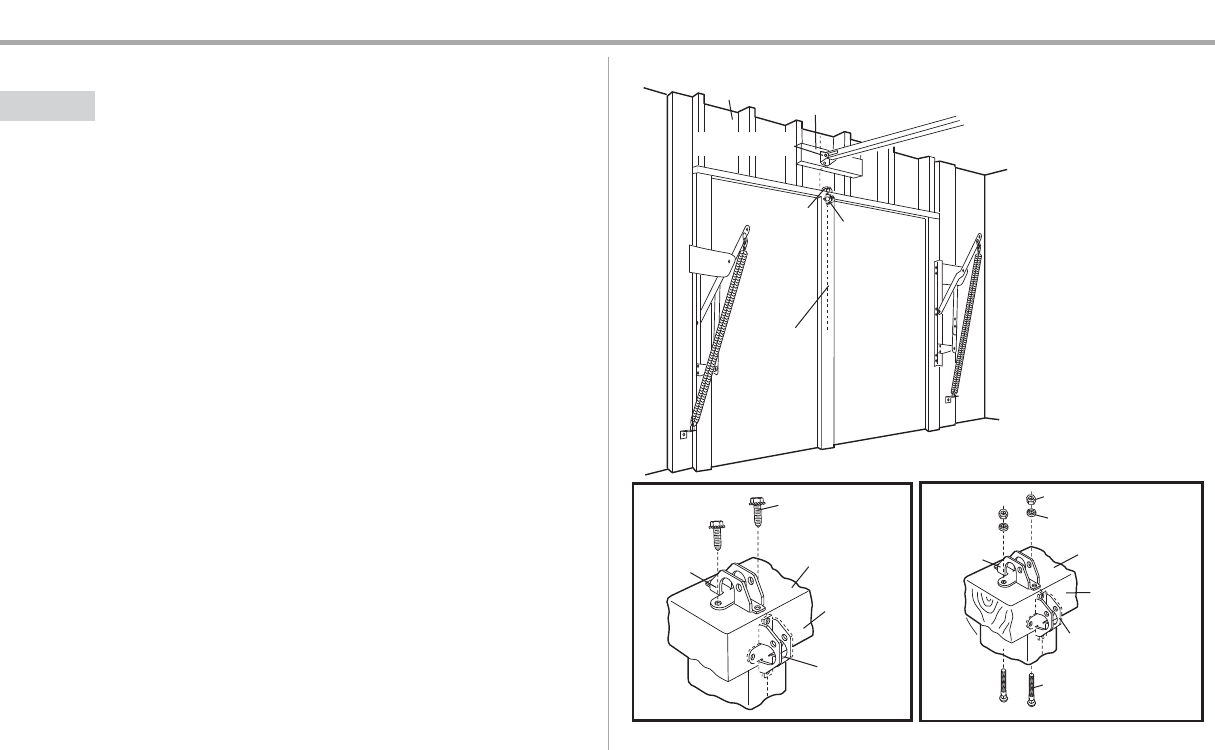

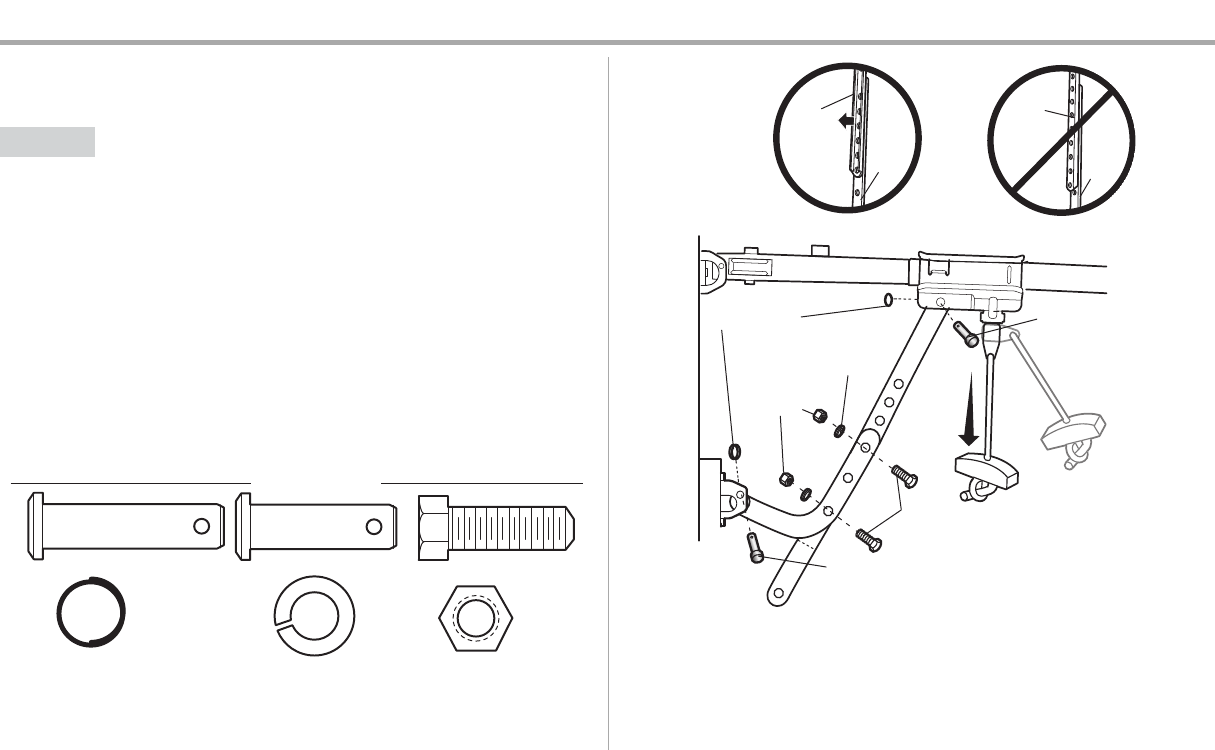

STEP 8 Install the door bracket

Fiberglass, aluminum or lightweight steel garage doors WILLREQUIRE reinforcement BEFORE

installation of door bracket.Contact your door manufacturer for reinforcement kit.

Figure 1 showsone piece ofangle iron as the horizontal brace.For the vertical brace,2 pieces ofangle

iron are used to create a U-shaped support. The bestsolution is to check with your garage door

manufacturer for an opener installation door reinforcement kit.

NOTE: Many door reinforcement kits provide for direct attachment of the clevis pin and door arm. In this

case you will not need the door bracket; proceed to the next step.

A horizontal and vertical reinforcementis needed for

lightweight garage doors (ﬁ

berglass, aluminum, steel,

doors with glass panel, etc.) (not provided).

A horizontal reinforcement brace should be long

enough to be secured to two or three vertical supports.

A vertical reinforcement brace should cover the height

of the top panel.

FIGURE 1

Self-Threading Screw

1/4"-14x5/8"

HARDWARE

OPTION A SECTIONALDOORS

1. Center the door bracket on the previously marked vertical centerline used for the header

bracket installation. Note correct UP placement, as stamped inside the bracket.

2. Position the top edge of the bracket 2"-4" (5-10 cm) below the top edge ofthe door, OR

directly below any structural support across the top of the door.

3. Mark, drill holes and install as follows, depending on your door’s construction:

Metal or light weight doors using a vertical angle iron brace between the door panel support

and the door bracket:

• Drill 3/16" fastening holes.Secure the door bracket using the two selfthreading screws.

(Figure 2)

• Alternately, use two 5/16" bolts, lock washers and nuts (not provided). (Figure 3)

Metal, insulated or light weight factory reinforced doors:

• Drill 3/16" fastening holes.Secure the door bracketusing the self-threading screws.

(Figure 4)

Wood Doors:

• Use top and bottom or side to side door bracketholes.Drill 5/16" holesthrough the door and

secure bracket with 5/16"x2" carriage bolts, lock washers and nuts (not provided). (Figure 5)

NOTE: The 1/4"-14x5/8" self-threading screws are not intended for use on wood doors.

FIGURE 2

FIGURE 4 FIGURE 5

FIGURE 3

Vertical

Reinforcement

Vertical Centerline

of Garage Door

Door Bracket

Vertical Reinforcement

Vertical Centerline

of Garage Door

Bolt 5/16"-18x2"

(not provided)

Lock Washer 5/16"

Nut 5/16"-18

Door Bracket

Vertical

Centerline

of Garage

Door

Vertical Centerline of

Garage Door

Bolt 5/16"-18x2"

(not provided)

Inside Edge of Door or

Reinforcement Board

Self-Threading Screw

1/4"-14x5/8"

Self-Threading

Screw

1/4"-14x5/8"

Installation

STEP 8 Install the door bracket (continued)

OPTION B ONE-PIECEDOORS

1. Center the door bracket on the top of the door, in line with the header bracket asshown.

2. Mark either the left and right, or the top and bottom holes.

Metal Doors:

• Drill 3/16" pilot holes and fasten the bracket with the self-threading screws provided.

Wood Doors:

• Drill 5/16" holes and use 5/16"x2" carriage bolts, lock washers and nuts (not provided) or 5/16"x1-

1/2" lag screws (not provided) depending on your installation needs.

NOTE: The door bracket may be installed on the top edge of the door if required for your installation.

(Refer to the dotted line optional placement drawing.)

For a door with no exposed

framing, or for the optional

installation, use lag screws

5/16"x1-1/2" (not provided)

to fasten the door bracket.

Vertical

Centerline

of Garage

Door

Optional

Placement

of Door

Bracket

Door Bracket

Header Bracket

Header Wall

2x4 Support (Finished Ceiling)

Door

Bracket

Top of Door

(Inside Garage)

Top Edge of

Door

Optional

Placement

Optional

Placement

Top Edge

of Door

Top of Door

(Inside Garage)

Door

Bracket

Carriage Bolt 5/16"x2"

(not provided)

Nut 5/16"-18

Lock Washer 5/16"

Metal Door Wood Door

Self-Threading

Screw 1/4"-14x5/8"

Installation

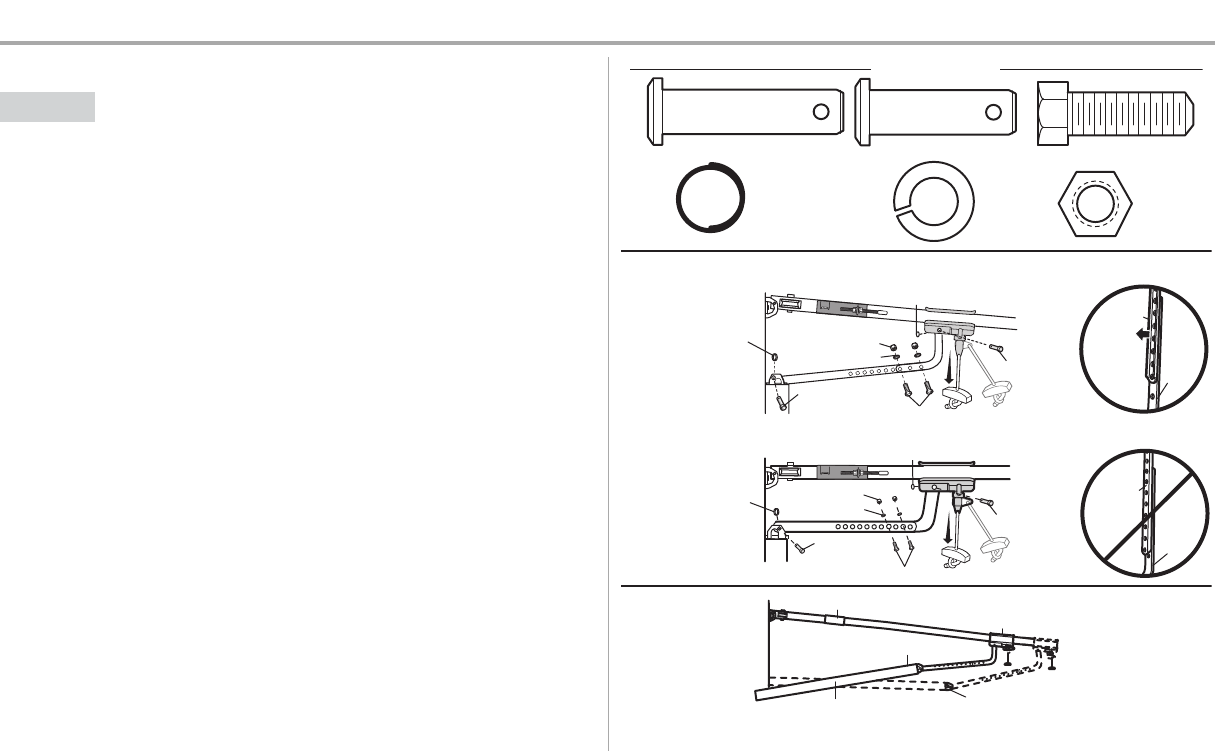

STEP 9 Connect the door arm to the trolley

Installation will vary according to the garage door type. Follow the instructions which apply to your door.

OPTION A SECTIONAL DOORS

IMPORTANT: The groove on the straightdoor arm MUST face away from the curved door arm.

1. Close the door.Disconnectthe trolley by pulling the emergency release handle.

2. Attach the straight door arm to the outer trolley using the clevispin.Secure with the ring

fastener.

3. Attach the curved door arm to the door bracket using the clevis pin. Secure with the ring

fastener.

4. Bring arm sections together. Find two pairs ofholes that line up and join sections.Select holes

as far apart as possible to increase door arm rigidity and attach using the bolts, nuts, and lock

washers.

5. Pull the emergencyrelease handle toward the garage door opener until the trolley release

arm ishorizontal.The trolley will re-engage automatically when the garage door opener is

activated.

NOTE: If the holes in the curved door arm and the straight door arm do not align, reverse the straight

door arm, select two holes (as far apart as possible) and attach using bolts ,nuts, and lock washers . If the

straight door arm is hanging down too far, you may cut 6 inches (15 cm) from the solid end.

HARDWARE

Hex Bolt 5/16"-18x7/8"

Nut 5/16"-18

Lock Washer

5/16" -18

Clevis Pin 5/16"x1"

Clevis Pin 5/16"x1-1/4"

Ring Fastener

Straight

Door Arm Curved

Door

Arm

(Groove

facing

out)

CORRECT

Straight

Door

Arm Curved

Door

Arm

INCORRECT

Lock Washer

5/16" -18

Nut

5/16"-18

Hex Bolt 5/16"-18x7/8"

Clevis Pin 5/16"x1-1/4"

Ring Fastener Clevis Pin

5/16"x1"

Installation

STEP 9 Connect the door arm to the trolley (continued)

OPTION B ONE-PIECE DOORS

1. Assemble the door arm, Figure 1:

IMPORTANT: The groove on the straight door arm MUST face away from the curved door arm.

• Fasten the straight and curved door arm sections together to the longestpossible length (with a 2 or 3

hole overlap).

• With the door closed, connectthe straight door arm section to the door bracket with the 5/16"x1-1/4"

clevispin. Secure with a ring fastener.

2. Adjustment procedures:

• On one-piece doors,before connecting the door arm to the trolley,the travel limits mustbe adjusted.

Limit adjustment screws are located on the left side panel as shown on page 28. Follow adjustment

procedures below.

• Open door adjustment : Decrease UP travel limit

nTurn the UP limit adjustment screw counterclockwise 4 turns.

nPress the door control push button. The trolley will travel to the fullyopen position.

nManuallyraise the door to the open position (parallel to the floor),and lift the door arm to the

trolley.The arm should touch the trolley just in the back ofthe door arm connector hole. If the

arm does not extend far enough, adjustthe limit further. One full turn equals 2" (5 cm) of trolley

travel.

• Closed door adjustment : Decrease DOWN travel limit

nTurn the DOWNlimitadjustmentscrew clockwise 4 complete turns.

nPress the door control push button. The trolley will travel to the fullyclosed position.

nManuallyclose the door and liftthe door arm to the trolley.The arm should touch the trolley

just ahead of the door arm connector hole. If the arm is behind the connector hole, adjust the

limitfurther. One full turn equals 2" (5 cm) of trolley travel.

3. Connect the door arm to the trolley:

• Close the door and join the curved arm to the connector hole in the trolley with the remaining clevis pin.

It may be necessary to lift the door slightly to make the connection. Secure with a ring fastener.

• Run the opener through a complete travel cycle. If the door has a slight “backward” slant in full open

position as shown in the illustration, decrease the UP limituntil the door is parallel to the floor

(Figure 2).

NOTE: A slight backward slant will cause unnecessary bucking and/or jerking operation as the door is

being opened or closed from the fully open position. See page 28 for adjustments.

HARDWARE

Hex Bolt 5/16"-18x7/8"

Nut 5/16"-18

Lock Washer

5/16" -18

Clevis Pin 5/16"x1"

Clevis Pin 5/16"x1-1/4"

Ring Fastener

FIGURE 1: Door Closed

FIGURE 2 Inner Trolley

Outer Trolley

Open Door Door with Bacward Slant (Incorrect)

Door Arm

Nut

Ring

Fastener

Ring Fastener

Lock Washer

Clevis Pin

5/16"x1-1/4"

Hex Bolt

Clevis Pin

5/16"x1"

One-Piece Door without Track

One-Piece Door with Track

Ring

Fastener

Ring Fastener

Nut

Lock Washer

Clevis Pin

5/16"x1-1/4" Hex Bolt

Clevis Pin

5/16"x1"

CORRECT

Straight

Door

Arm

(Groove

facing

out)

Curved

Door

Arm

INCORRECT

Straight

Door

Arm

Curved

Door

Arm

Installation

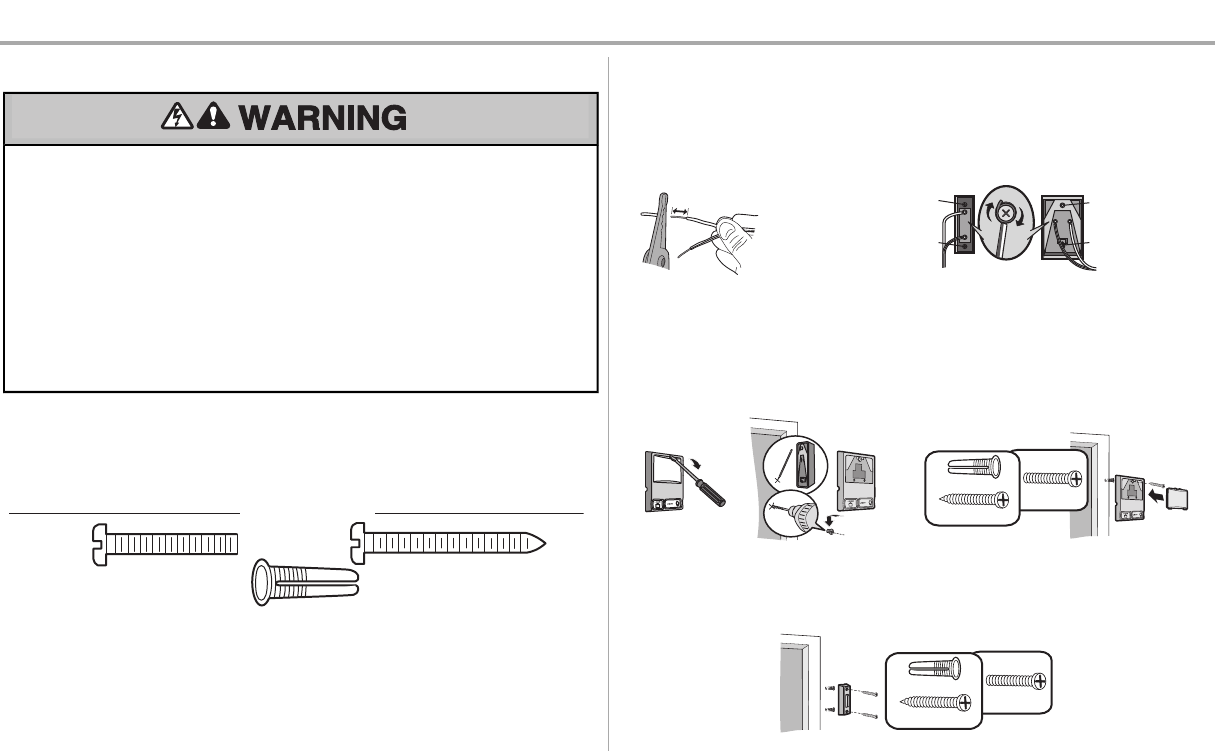

STEP10 Install the door control

To prevent possible SERIOUS INJURY or DEATH from electrocution:

• Be sure power is NOT connected BEFORE installing door control.

• ConnectONLY to 24 VOLT low voltage wires.

To prevent possible SERIOUS INJURY or DEATH from a closing garage door:

• Install door control within sight of garage door, out of reach of children at a minimum height of 5

feet (1.5 m), and away from ALL moving parts of door.

• NEVER permitchildren to operate or play with door control push buttons or remote control

transmitters.

• Activate door ONLY when it can be seen clearly,is properly adjusted,and there are no

obstructions to door travel.

• ALWAYS keep garage door in sight until completely closed. NEVER permit anyone to cross path

of closing garage door.

Install the door control within sight ofthe door at a minimum heightof 5 feet (1.5 m) where small children

cannot reach, and away from the moving parts of the door. For gang box installations it is not necessary

to drill holes or install the drywall anchors. Use the existing holes in the gang box.

NOTE: Your product may look different than the illustrations.

HARDWARE

Screw

6ABx1-1/4" (2)

Drywall

Anchors (2)

Screw

6-32x1" (2)

Connect the door control wires:

1. Strip 7/16" (11 mm) of insulation from one end of bell wire and connect to the two screw

terminals on backof door control by color: white wire to WHT (1) and white/red wire to the RED

(2). If your garage is pre-wired for the door control, choose any two wires to connect, note

which wires are used so the correctwires are connected to the garage door opener in a later

step.

7/16" (11 mm) Top Mounting

Hole

Bottom Mounting

Hole

Top Mounting

Hole

Bottom Mounting

Hole

Install the Multi-Function Door Control:

1. Remove cover by gently prying at the top of the cover with a small flat head screwdriver.

2. Mark the location of the bottom-mounting hole and drill a 5/32 inch (4 mm) hole.

3. Install the bottom screw, allowing 1/8 inch (3 mm) to protrude from the wall.

4. Position the bottom hole of the door control over the screw and slide down into place.

5. Mark and drill the top hole.

6. Attach the top screw.

DRYWALL

GANG BOX

6-32x1"

6ABx1-1/4"

Drywall Anchor

Install the Door Control Button:

1. Mark and drill 5/32 inch (4 mm) hole(s).

2. Fasten door control button to wall with screws.

DRYWALL

GANG BOX

6-32x1"

6ABx1-1/4"

Drywall Anchor

Installation

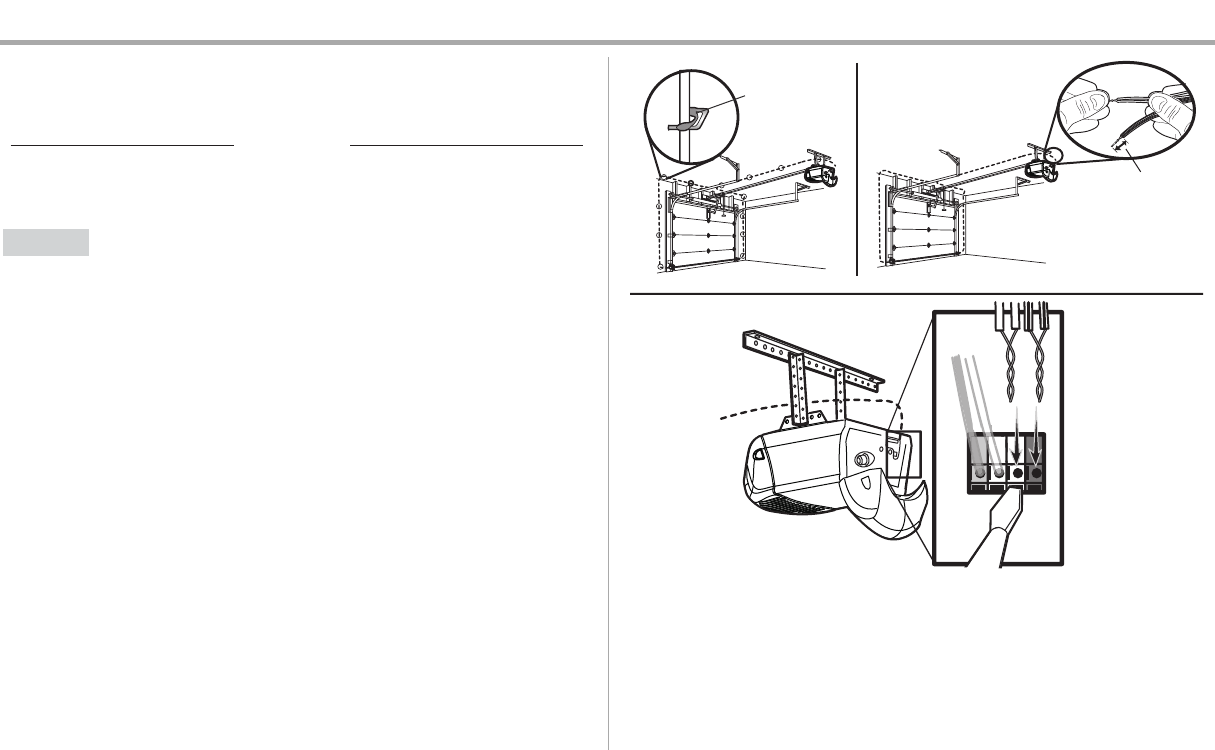

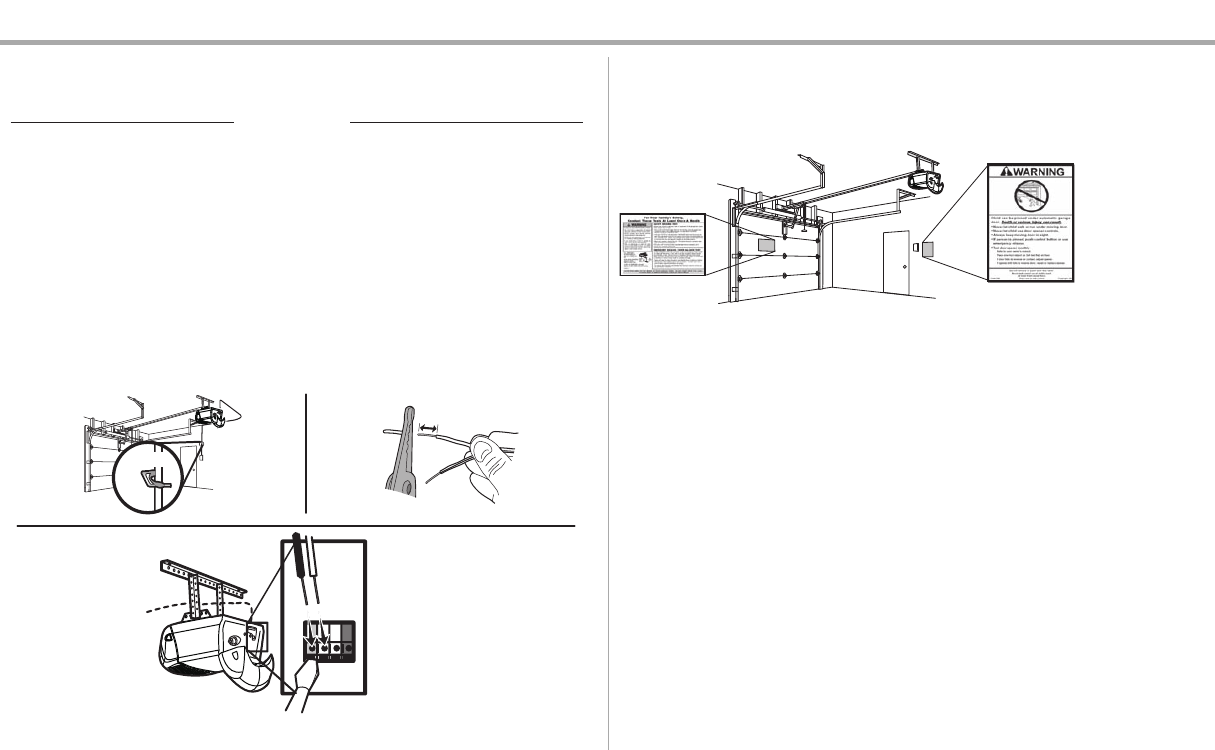

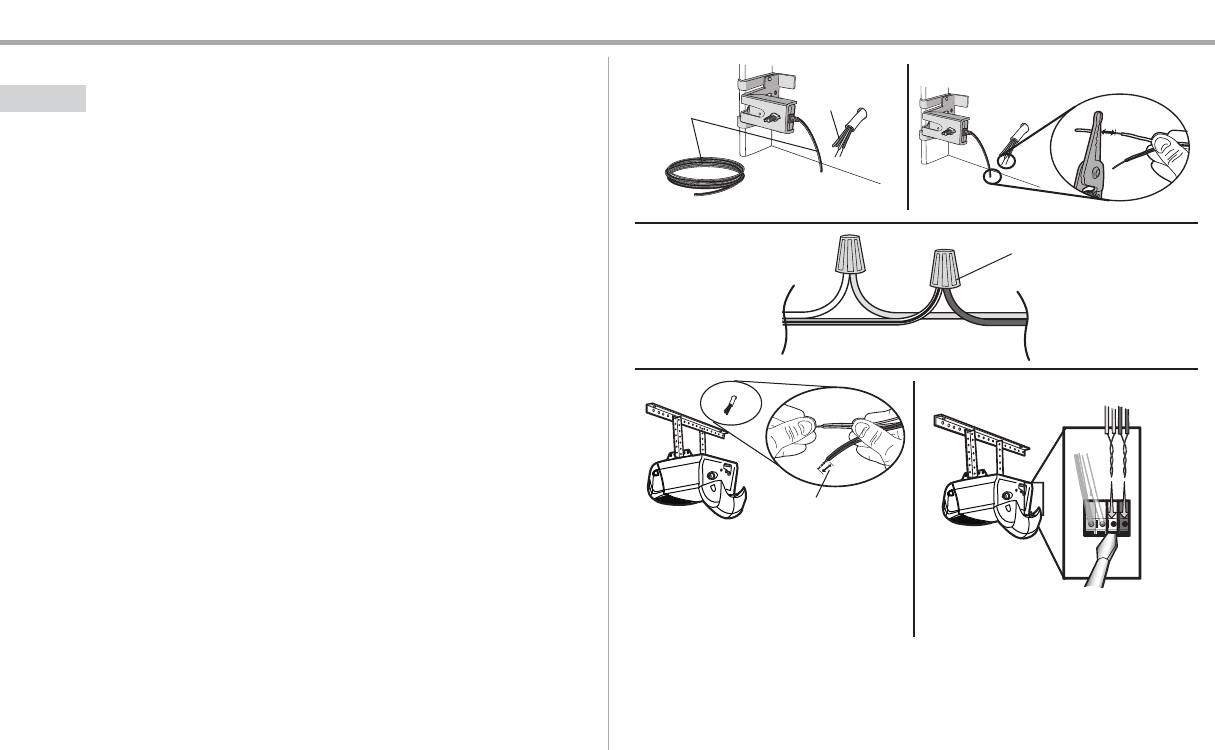

STEP 11 Wire the door control to the garage door opener

HARDWARE

Insulated Staple

(Not Shown)

1. Run the white and red/white wire from the door control to the garage door opener. Attach the

wire to the wall and ceiling with the staple (not applicable for gang box or pre-wired

installations).Do notpierce the wire with the staple as this may cause a short or an open

circuit.

2. Strip 7/16 inch (11 mm) of insulation from the end ofthe wire near the garage door opener.

3. Connectthe wire to the red and white terminals on the garage door opener. Ifyour garage is

pre-wired make sure you use the same wires that are connected to the door control.To insert

or release wires from the terminal, push in the tab with screwdriver tip.

Staple

RED

WHITE

GREY

7/16" (11 mm)

STEP 12 Attach the warning labels

1. Attach the entrapment warning label on the wall near the door control with tacks or staples.

2. Attach the manual release/safety reverse testlabel in a visible location on the inside of the

garage door.

Installation

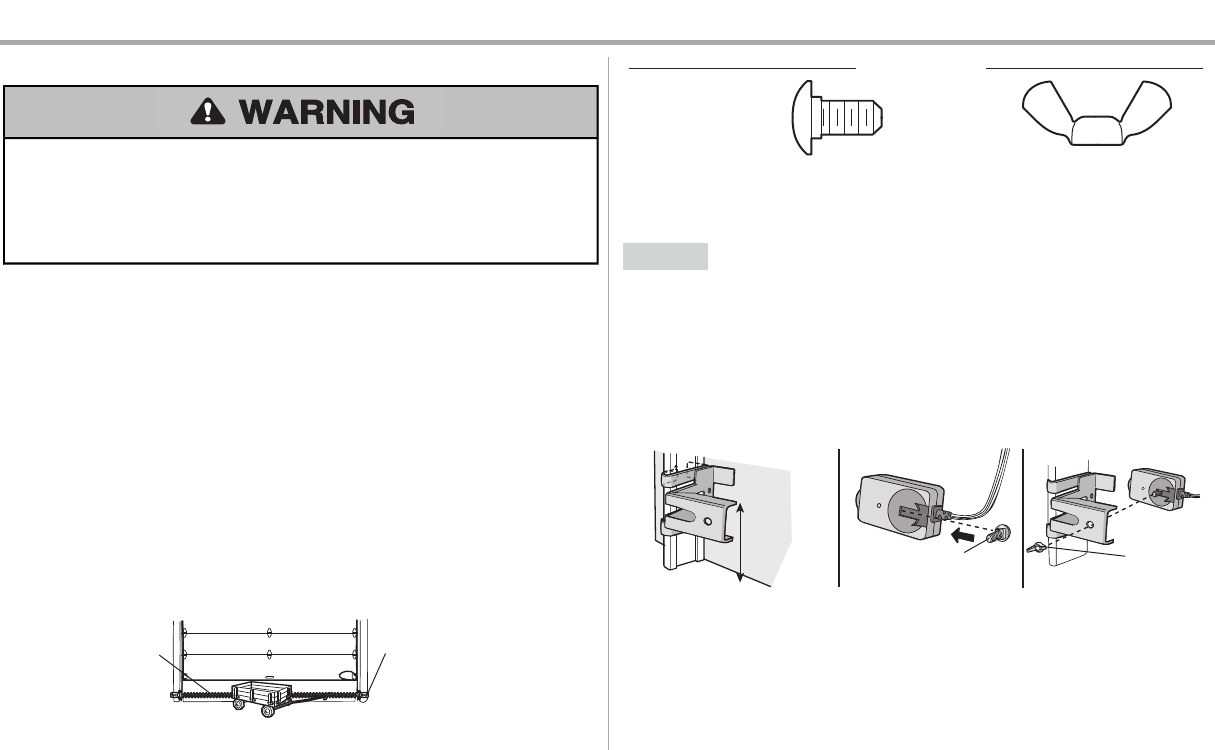

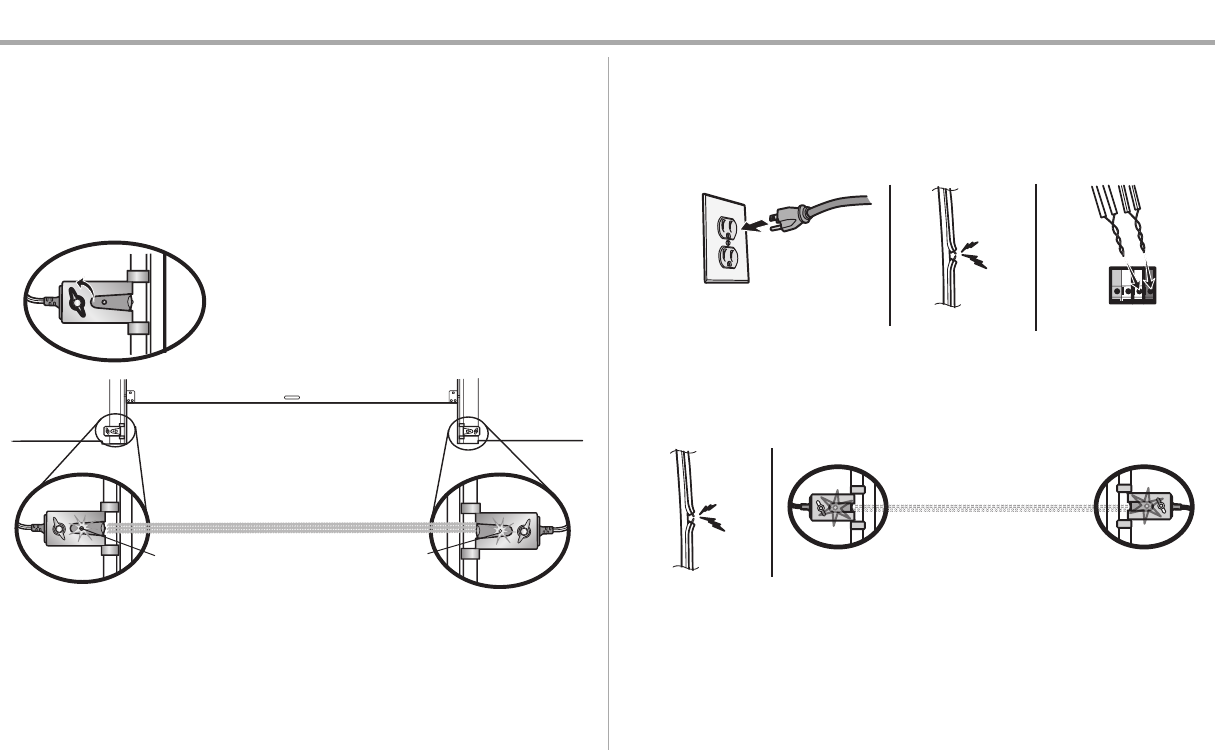

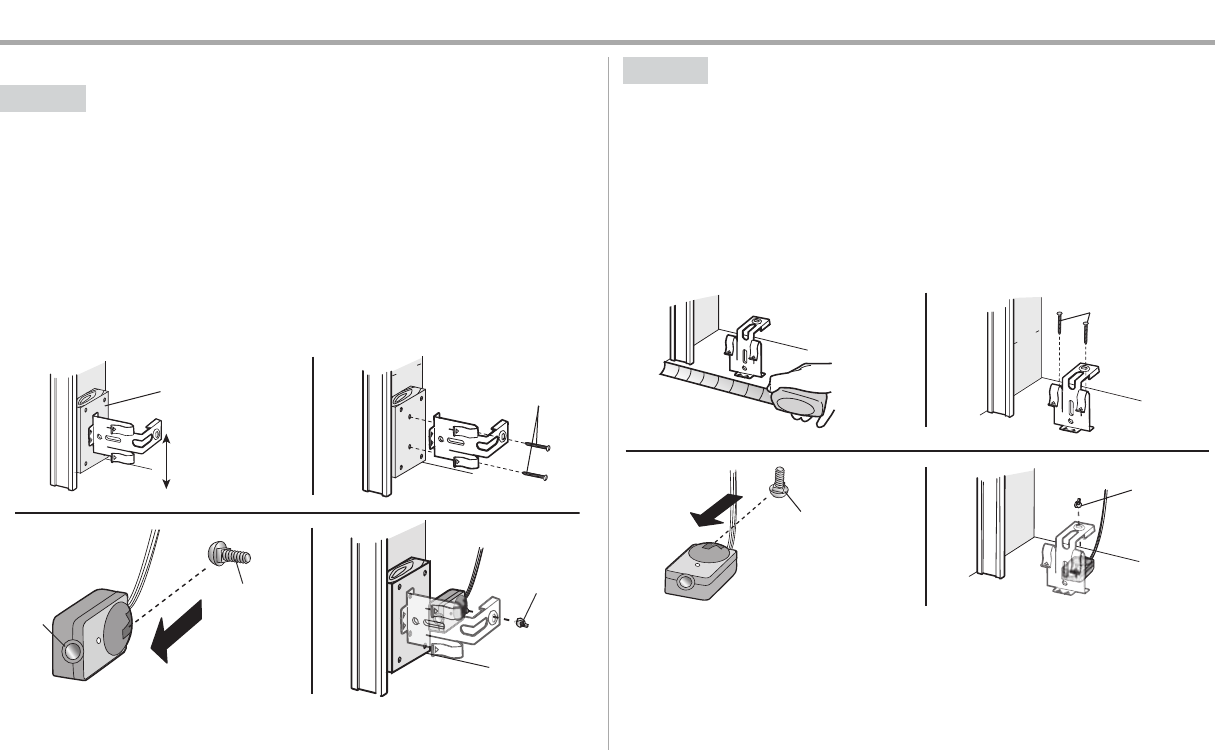

STEP 13 Install the Protector System®

Be sure power is NOT connected to the garage door opener BEFORE installing the safety reversing

sensor.

To prevent SERIOUS INJURY or DEATHfrom closing garage door:

• Correctly connect and align the safety reversing sensor. This required safety device MUST NOT be

disabled.

• Install the safetyreversing sensor so beam is NO HIGHER than 6" (15 cm) above garage floor.

The safety reversing sensor must be connected and aligned correctly before the garage door

opener will move in the down direction.

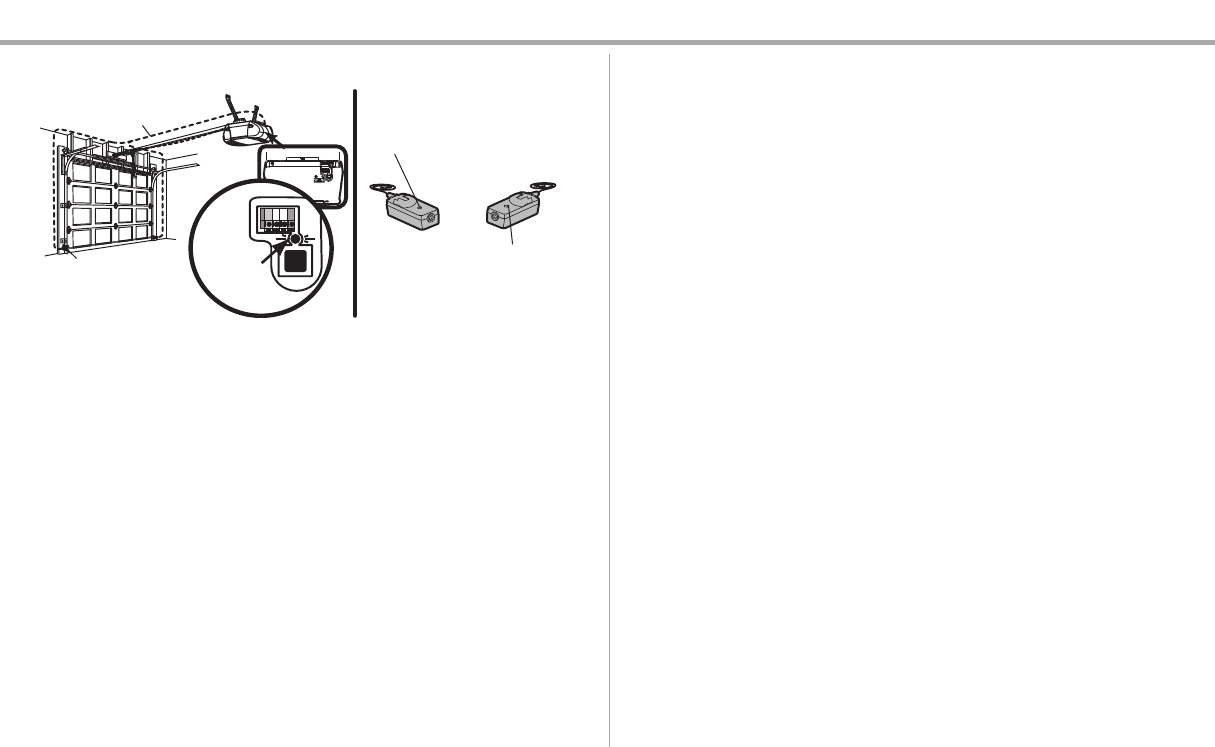

IMPORTANT INFORMATION ABOUT THE SAFETY REVERSING SENSOR

When properlyconnected and aligned,the sensor will detectan obstacle in the path ofits electronic

beam. The sending eye (with an amber indicator light) transmits an invisible lightbeam to the receiving

eye (with a green\ indicator light).If an obstruction breaksthe light beam while the door is closing, the

door will stop and reverse to full open position,and the opener lights will flash 10 times.

The units mustbe installed inside the garage so thatthe sending and receiving eyes face each other

across the door, no more than 6" (15 cm) above the floor. Either can be installed on the left or right ofthe

door as long as the sun never shines directly into the receiving eye lens.

The mounting brackets are designed to clip onto the track ofsectional garage doors without additional

hardware.

If itis necessary to mount the unitson the wall, the brackets must be securely fastened to a solid surface

such as the wall framing.Extension brackets (see accessories) are available ifneeded.If installing in

masonry construction, add a piece of wood at each location to avoid drilling extra holes in masonry if

repositioning is necessary.

The invisible light beam path mustbe unobstructed.No part ofthe garage door (or door tracks,springs,

hinges,rollers or other hardware) may interrupt the beam while the door is closing.

Safety Reversing Sensor

6" (15 cm) max. above floor

Invisible Light Beam

Protection Area

Facing the door from inside the garage

HARDWARE

Carriage Bolt

1/4"-20x1/2" Wing Nut

1/4"-20

The safetyreversing sensors can be attached to the door track,the wall, or the floor. The sensors should

be no more than 6 inches (15 cm) above the floor. Ifthe door trackwill not support the sensor bracketa

wall installation is recommended. Choose one of the following installations.

OPTION A DOORTRACKINSTALLATION

1. Slide the curved arms ofthe sensor bracket around the edge ofthe door track. Snap into place

so that the sensor bracketis flush against the track.

2. Slide the carriage bolt into the slot on each sensor.

3. Insert the bolt through the hole in the sensor bracket and attach with the wing nut. The lenses

on both sensors should point toward each other. Make sure the lens isnot obstructed by the

sensor bracket.

No more

than 6 inches

(15 cm) Carriage Bolt

1/4"-20x1/2"

Wing Nut

1/4"-20

123

Installation

STEP 13 Install the Protector System®(continued)

OPTION B WALLINSTALLATION

If additional clearance is needed an extension bracket (not provided) or wood blockscan be used. Make

sure each bracket has the same amount ofclearance so they will align correctly.

1. Position the sensor bracket againstthe wall with the curved armsfacing the door. Make sure

there is enough clearance for the beam to be unobstructed. Markholes.

2. Drill 3/16 inch pilot holes for each sensor bracketand attach the sensor bracketsto the wall

using lag screws (not provided).

3. Slide the carriage bolt into the slot on each sensor.

4. Insert the bolt through the hole in the sensor bracket and attach with the wing nut. The lenses

on both sensors should point toward each other. Make sure the lens isnot obstructed by the

sensor bracket.

(Not provided)

No more than

6 inches (15 cm)

Inside

Garage

Wall

(Not provided)

Lens

Carriage Bolt

1/4"-20x1/2"

Wing Nut

1/4"-20

OPTION C FLOORINSTALLATION

Use an extension bracket (not provided) or wood block to raise the sensor bracket if needed.

1. Carefully measure the position ofboth sensor bracketsso they will be the same distance from

the wall and unobstructed.

2. Attach the sensor bracketsto the floor using concrete anchors (not provided).

3. Slide the carriage bolt into the slot on each sensor.

4. Insert the bolt through the hole in the sensor bracket and attach with the wing nut. The lenses

on both sensors should point toward each other. Make sure the lens isnot obstructed by the

sensor bracket.

Inside

Garage

Wall

(Not provided)

1 2

Carriage Bolt

1/4"-20x1/2"

Wing Nut

1/4"-20

Installation

STEP 14 Wire the Safety Reversing Sensors

If your garage already has wires installed for the safety reversing sensors, proceed to page 25.

HARDWARE

Insulated Staple

(Not Shown)

OPTION A INSTALLATION WITHOUTPRE-WIRING

1. Run the wire from both sensors to the garage door opener. Attach the wire to the wall and

ceiling with the staples.

2. Strip 7/16 inch (11 mm) of insulation from each set ofwires. Separate the wires.Twistthe white

wires together. Twist the white/black wires together.

3. Insert the white wires into the white terminal on the garage door opener. Insert the white/black

wires into the grey terminal on the garage door opener.To insert or remove the wires from the

terminal, push in the tab with a screwdriver tip.

Staple

7/16" (11 mm)

WHITE

GREY

RED

Installation

STEP 14 Wire the Safety Reversing Sensors (continued)

OPTION B PRE-WIREDINSTALLATION

1. Cutthe end of the safetyreversing sensor wire, making sure there is enough wire to reach the

pre-installed wires from the wall.

2. Separate the safety reversing sensor wires and strip 7/16 inch (11 mm) of insulation from each

end.Choose two ofthe pre-installed wires and strip 7/16 inch (11 mm) of insulation from each

end.Make sure thatyou choose the same color pre-installed wires for each sensor.

3. Connectthe pre-installed wires to the sensor wires with wire nuts making sure the colors

correspond for each sensor. For example, the white wire would connectto the yellow wire and

the white/black wire would connectto the purple wire.

4. At the garage door opener,strip 7/16 inch (11 mm) of insulation from each end of the wires

previouslychosen for the safety reversing sensors. Twist the like-colored wires together.

5. Insert the wires connected to the white safety sensor wires to the white terminal on the garage

door opener. Insert the wires that are connected to the white/blacksafety sensor wires to the

greyterminal on the garage door opener.

Safety reversing

sensor wires

Pre-installed

wires

White

White/Black

Yellow (for example)

Purple (for example)

Not Provided

Pre-installed wires

Safety reversing

sensor wires

7/16" (11 mm)

Yellow

Purple

7/16"

(11 mm)

WHITE

RED

GREY

Purple

(for

example)

Yellow

(for example)

To insert or remove the wires from

the terminal, push in the tab with a

screwdriver tip.

Installation

STEP 15 Connect power

To prevent possible SERIOUS INJURY or DEATH from electrocution or fire:

• Be sure power is NOT connected to the opener, and disconnectpower to circuit BEFORE

removing cover to establish permanentwiring connection.

• Garage door installation and wiring MUST be in compliance with ALL local electrical and building

codes.

• NEVER use an extension cord, 2-wire adapter,or change plug in any way to make it fit outlet. Be

sure the opener is grounded.

To avoid installation difficulties, do not activate the garage door opener at this time.

To reduce the riskof electric shock,your garage door opener has a grounding type plug with a third

grounding pin.Thisplug will only fit into a grounding type outlet. Ifthe plug doesn’t fitinto your outlet,

contact a qualified electrician to install the proper outlet.

THERE ARE TWO OPTIONS FOR CONNECTINGPOWER:

OPTION A TYPICAL WIRING

1. Plug in the garage door opener into a grounded outlet.

2. DO NOT run garage door opener at thistime.

OPTION B PERMANENT WIRING

If permanent wiring is required by your local code, refer to the following procedure. To make a

permanent connection through the 7/8 inch hole in the top of the motor unit (according to local

code):

1. Remove the motor unit cover screwsand set the cover aside.

2. Remove the attached 3-prong cord.

3. Connectthe black(line) wire to the screw on the brassterminal; the white (neutral) wire to the

screw on the silver terminal; and the ground wire to the green ground screw.The opener

must be grounded.

4. Reinstall the cover.

Ground Tab

Green

Ground

Screw

Ground

Wire

White Wire

Black

Wire

Black

Wire

Installation

STEP 16 Ensure the safety reversing sensors are aligned

The door will not close if the sensors have not been installed and aligned correctly.

When the lightbeam is obstructed or misaligned while the door is closing, the door will reverse and the

garage door opener lightswill flash ten times.If the door is alreadyopen, it will not close.The sensors

can be aligned by loosening the wing nuts, aligning the sensors,and tightening the wing nuts.

Check to make sure the LEDs in both sensors are glowing steadily.The LEDsin both sensors will glow

steadily if they are aligned and wired correctly.

Green LED

Amber LED

If the receiving sensor is in direct sunlight,

switch it with sending sensor so it is on the

opposite side of the door.

(invisible light beam)

SENDING SENSOR RECEIVING SENSOR

IF THE AMBER LED ON THE SENDING SENSOR IS NOT GLOWING:

1. Make sure there is power to the garage door opener.

2. Make sure the sensor wire is notshorted/broken.

3. Make sure the sensor has been wired correctly:white wires to white terminal and white/black

wires to grey terminal.

RED

WHITE

GREY

IF THE GREEN LED ON THE RECEIVING SENSOR IS NOT GLOWING:

1. Make sure the sensor wire is notshorted/broken.

2. Make sure the sensors are aligned.

Adjustments

Step 1 Adjust the UP and DOWN Travel Limits

Without a properly installed safety reversal system, persons (particularly small children) could be

SERIOUSLY INJURED or KILLED by a closing garage door.

• Incorrectadjustment ofgarage door travel limits will interfere with proper operation of safety

reversal system.

• After ANY adjustmentsare made, the safety reversal system MUST be tested. Door MUST reverse

on contact with 1-1/2" (3.8 cm) high object(or 2x4 laid flat) on floor.

To prevent damage to vehicles, be sure fully open door provides adequate clearance.

Limit adjustment settings regulate the points atwhich the door will stop when moving up or down.

To operate the opener, press the Door Control push bar.

Run the opener through a complete travel cycle.

• Does the door open and close completely?

• Does the door stay closed and not reverse unintentionally when fully closed?

If your door passes both of these tests, no limitadjustments are necessary unless the reversing test fails

(Adjustment Step 3, page 30).

Adjustment procedures are outlined below. Read the procedures carefully before proceeding to

Adjustment Step 2.Use a screwdriver to make limit adjustments.

Run the opener through a complete travel cycle after each adjustment.

NOTE: Repeated operation of the opener during adjustment procedures maycause the motor to

overheat and shut off. Simply wait 15 minutes and try again.

NOTE: Anything interferes with the door’s upward travel, it will stop. If anything interferes with the door’s

downward travel (including binding or unbalanced doors), it will reverse.

HOW AND WHEN TO ADJUST THE LIMITS

• If the door does not open completely but opens at least five feet (1.5 m):

Increase up travel. Turn the UP limit adjustment screw clockwise.One turn equals 2" (5 cm) of

travel.

NOTE: To prevent the trolley from hitting the cover protection bolt, keep a minimum distance of 2-4" (5 cm

- 10 cm) between the trolley and the bolt.

• If door does not open at least 5 feet (1.5 m):

Adjustthe UP (open) force asexplained in AdjustmentStep 2.

• If the door does not close completely:

Increase down travel. Turn the DOWNlimitadjustment screw counterclockwise. One turn equals 2"

(5 cm) of travel.

If door still won’t close completelyand the trolleybumps into the pulley bracket, try lengthening the

door arm (page 18) and decreasing the down limit.

• If the opener reverses in fully closed position:

Decrease down travel. Turn the DOWNlimitadjustment screw clockwise.One turn equals 2" (5 cm)

of travel.

• If the door reverses when closing and there is no visible interference to travel cycle:

If the opener lightsare flashing, the Safety Reversing Sensors are either not installed, misaligned,

or obstructed. See page 27.

Testthe door for binding: Pull the emergency release handle. Manually open and close the door. If

the door is binding or unbalanced, call for a trained door systemstechnician. If the door isbalanced

and not binding, adjust the DOWN (close) force. See Adjustment Step 2.

Cover Protection Bolt

Limit Adjustment Screws

2-4"

(5-10 cm)

Left Side

Panel

Adjustments

Step 2 Adjust the Force

Without a properly installed safety reversal system, persons (particularly small children) could be

SERIOUSLY INJURED or KILLED by a closing garage door.

• Too much force on garage door will interfere with proper operation of safety reversal system.

• NEVER increase force beyond minimum amount required to close garage door.

• NEVER use force adjustmentsto compensate for a binding or sticking garage door.

• If one control (force or travel limits) isadjusted, the other control may also need adjustment.

• After ANY adjustmentsare made, the safety reversal system MUST be tested.Door MUST reverse on

contact with 1-1/2" high (3.8 cm) object(or 2x4 laid flat) on floor.

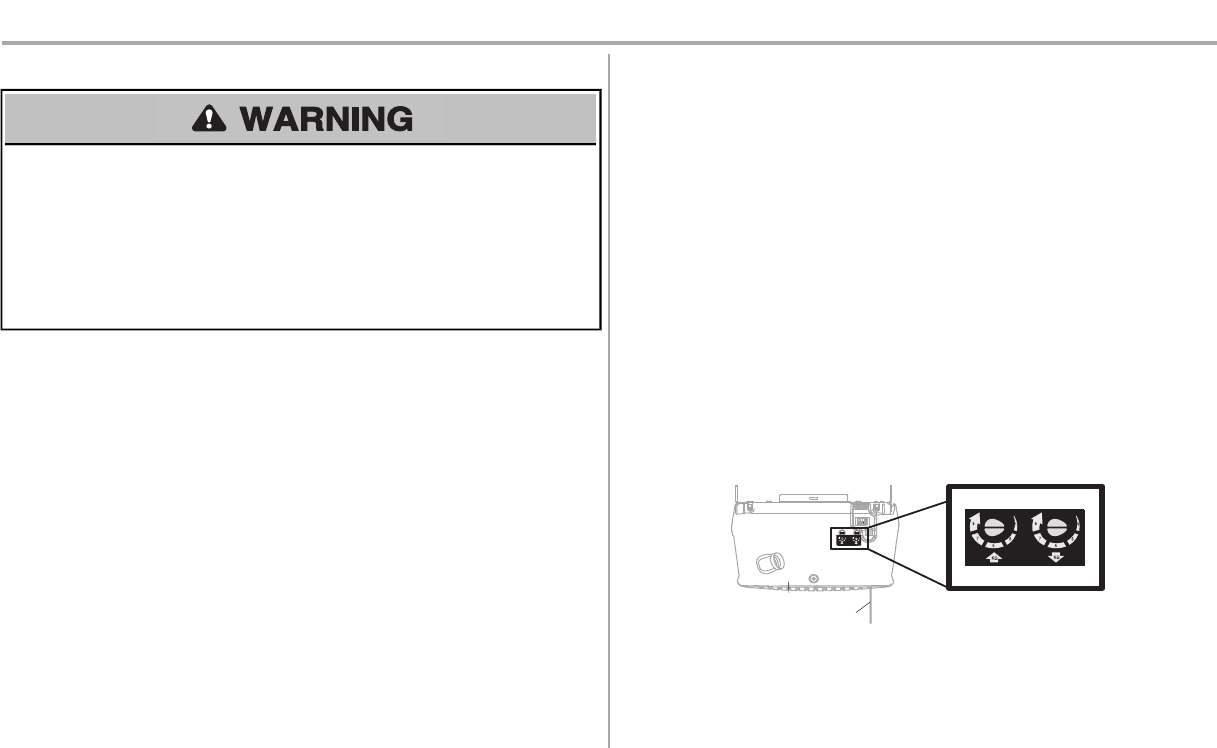

Force adjustment controls are located on the back panel ofthe motor unit. Force adjustment settings

regulate the amount ofpower required to open and close the door.

If the forces are set too light, door travel may be interrupted by nuisance reversals in the down direction

and stops in the up direction. Weather conditions can affectthe door movement, so occasional

adjustmentmay be needed.

The maximum force adjustment range is about 3/4 of a complete turn. Do not force controls beyond

that point.

Turn force adjustment controls with a screwdriver.

NOTE: If anything interferes with the door’s upward travel, it will stop. If anything interferes with the door’s

downward travel (including binding or unbalanced doors), it will reverse.

HOW AND WHEN TO ADJUST THE FORCES

1. Test the DOWN (close) force

lGrasp the door bottom when the door is about halfwaythrough DOWN (close) travel. The door

should reverse. Reversal halfwaythrough down travel does not guarantee reversal on a 1-

1/2" (3.8 cm) obstruction. See Adjustment Step 3,page 30.If the door is hard to hold or

doesn’t reverse, DECREASE the DOWN (close) force by turning the control

counterclockwise. Make small adjustments until the door reverses normally. After each

adjustment,run the opener through a complete cycle.

lIf the door reverses during the down (close) cycle and the opener lights aren’t flashing,

INCREASE DOWN(close) force by turning the control clockwise.Make small adjustments until

the door completes a close cycle. After each adjustment,run the opener through a complete

travel cycle. Do not increase the force beyond the minimum amount required to close the door.

2. Test the UP (open) force

lGrasp the door bottom when the door is about halfwaythrough UP (open) travel. The door

should stop. If the door is hard to hold or doesn’t stop, DECREASE UP (open) force by

turning the control counterclockwise.Make small adjustmentsuntil the door stops easily and

opens fully.After each adjustment,run the opener through a complete travel cycle.

lIf the door doesn’t open at least 5 feet (1.5 m), INCREASE UP (open) force by turning the

control clockwise. Make small adjustments until door opens completely. Readjust the UP limit if

necessary.After each adjustment,run the opener through a complete travel cycle.

Back Panel

Antenna

Open Force Close Force

Force Adjustment Screws

Adjustments

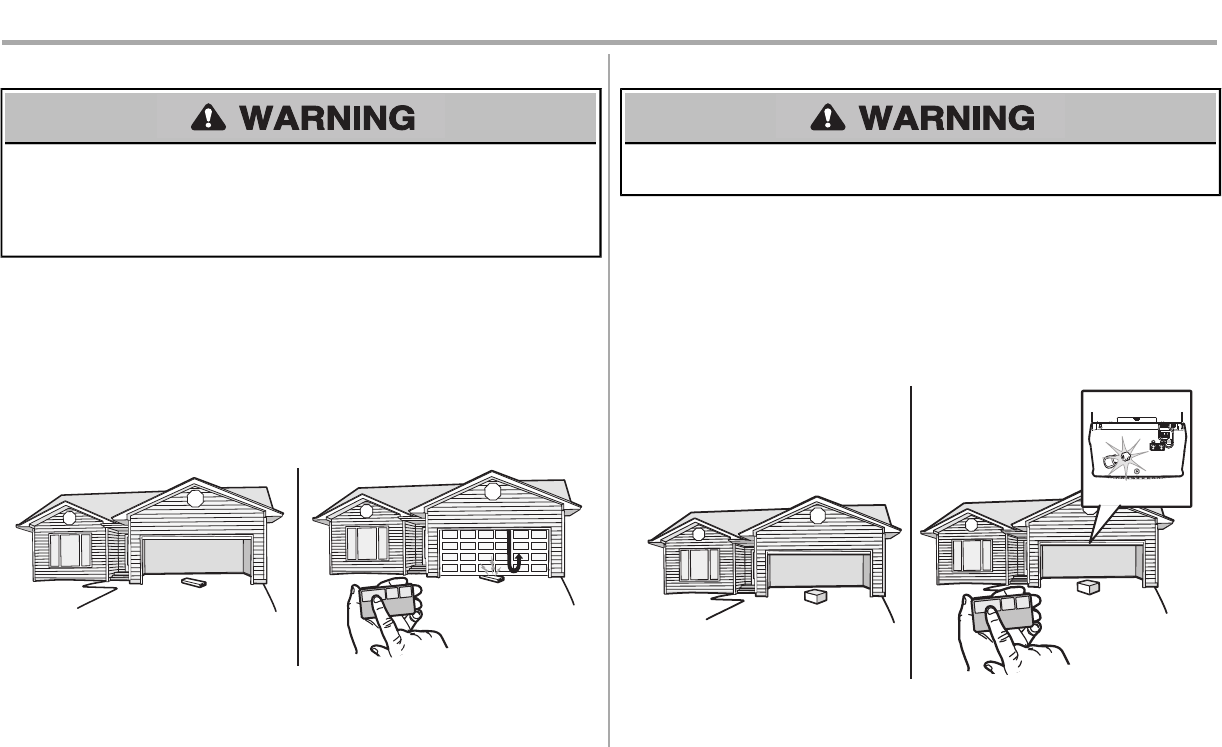

STEP 3 Test the Safety Reversal System

Without a properly installed safety reversal system, persons (particularly small children) could be

SERIOUSLY INJURED or KILLED by a closing garage door.

• Safety reversal system MUST be tested every month.

• After ANY adjustmentsare made, the safety reversal system MUST be tested. Door MUST reverse

on contact with 1-1/2" (3.8 cm) high object(or 2x4 laid flat) on the floor.

1. With the door fully open,place a 1-1/2 inch (3.8 cm) board (or a 2x4 laid flat) on the floor,

centered under the garage door.

2. Press the remote control push button to close the door.The door MUST reverse when it makes

contact with the board.

If the door stops and does not reverse on the obstruction, the down travel needs to be increased (refer to

Adjustment Step 1). Repeatthe test.When the door reversesupon contact with the 1-1/2 inch board,

remove the board and open/close the door 3 or 4 timesto test the adjustment. If the garage door opener

continues to fail the safety reversal test, call a trained door systemstechnician.

1 2

STEP 4 Test the Protector System®

Without a properly installed safety reversing sensor, persons (particularly small children) could be

SERIOUSLY INJURED or KILLED by a closing garage door.

1. Open the door. Place the garage door opener carton in the path ofthe door.

2. Press the remote control push button to close the door.The door will not move more than an

inch (2.5 cm),and the garage door opener lights will flash 10 times.

The garage door opener will not close from a remote control if the LED in either safety reversing sensor

is off (alerting you to the factthat the sensor ismisaligned or obstructed). Ifthe garage door opener

closesthe door when the safety reversing sensor isobstructed (and the sensors are no more than 6

inches [15 cm] above the floor), call for a trained door systemstechnician.

IMPORTANT SAFETYINSTRUCTIONS

To reduce the risk of SEVERE INJURY or DEATH:

1. READ AND FOLLOW ALL WARNINGS AND INSTRUCTIONS.

2. ALWAYS keep remote controls out of reach of children. NEVER permit children to operate or

play with garage door control push buttons or remote controls.

3. ONLY activate garage door when it can be seen clearly,it is properly adjusted, and there are

no obstructions to door travel.

4. ALWAYS keep garage door in sight and away from people and objects until completely

closed. NO ONE SHOULD CROSS THE PATHOF THE MOVING DOOR.

5. NO ONE SHOULD GO UNDER A STOPPED,PARTIALLY OPENED DOOR.

6. If possible,use emergencyrelease handle to disengage trolley ONLY when garage door is

CLOSED. Use caution when using the release with the door opener. Weak or broken springs

or unbalanced door could result in an open door falling rapidlyand/or unexpectedly and

increasing the risk of SEVEREINJURYor DEATH.

7. NEVER use emergency release handle unless garage doorway is clear of persons and

obstructions.

8. NEVER use handle to pull garage door open or closed. Ifrope knot becomes untied, you

could fall.

9. After ANY adjustmentsare made, the safety reversal systemMUSTbe tested.

10. Safety reversal system MUST be tested every month. Garage door MUST reverse on

contact with 1-1/2" (3.8 cm) high object(or a 2x4 laid flat) on the floor. Failure to adjustthe

garage door opener properly increasesthe riskof SEVERE INJURY or DEATH.

11. ALWAYS KEEP GARAGE DOOR PROPERLY BALANCED (see page 2). An improperly

balanced door may NOT reverse when required and could resultin SEVERE INJURY or

DEATH.

12. ALL repairs to cables,spring assemblies and other hardware, ALL of which are under

EXTREME tension, MUST be made by a trained door systems technician.

13. ALWAYS disconnect electric power to garage door opener BEFORE making ANY

repairs or removing covers.

14. This operator system isequipped with an unattended operation feature. The door could

move unexpectedly.NO ONE SHOULD CROSS THE PATH OF THE MOVING DOOR.

15. SAVE THESE INSTRUCTIONS.

Operation

Using Your Garage Door Opener

Your Security+®opener and hand-held remote control have been factory-setto a matching code which

changes with each use, randomly accessing over 100 billion new codes.Your opener will operate with

up to eight Security+®remote controls and one Security+®Keyless Entry System. If you purchase a new

remote, or ifyou wish to deactivate any remote,follow the instructions in the Programming section.

Activate your opener with any of the following:

lThe Hand-Held Remote Control: Hold the large push button down until the door startsto move.

lThe Wall-Mounted Door Control: Hold the push button or bar down until the door startsto

move.

lThe KeylessEntry(See Accessories):If provided with your garage door opener,it mustbe

programmed before use. See Programming.

When the opener is activated (with the safety reversing sensor correctly installed and aligned)

1. If open, the door will close. If closed, it will open.

2. If closing, the door will reverse.

3. If opening, the door will stop.

4. If the door has been stopped in a partially open position, it will close.

5. If obstructed while closing, the door will reverse.If the obstruction interruptsthe sensor beam,

the opener lights will blink for five seconds.

6. If obstructed while opening, the door will stop.

7. If fully open, the door will not close when the beam is broken. The sensor has no effect in the

opening cycle.

If the sensor is not installed,or is misaligned, the door won’t close from a hand-held remote.However,

you can close the door with the Door Control, the Outside Keylock,or Keyless Entry, ifyou activate them

until down travel is complete.If you release them too soon, the door will reverse.

The opener light will turn on under the following conditions:when the opener is initially plugged in; when

power is restored after interruption; when the opener is activated.

They will turn offautomatically after 4-1/2 minutes. Bulb size is A19. Bulb power is 100 watts maximum.

Security+®light feature: Lights will also turn on when someone walksthrough the open garage door.

With a Multi-Function Door Control, this feature maybe turned off as follows: With the opener lights off,

press and hold the light button for 10 seconds,until the light goes on, then offagain. To restore this

feature,start with the opener lights on, then press and hold the lightbutton for 10 seconds until the light

goesoff, then on again.

Using the Wall-Mounted Door Control

Door Control Button

Press the lighted push button to open or close the door. Pressagain to reverse the door during the

closing cycle or to stop the door while it’sopening.

The Multi-Function Door Control

Press the push bar/push button to open or close the door. Pressagain to reverse the door during the

closing cycle or to stop the door while it’sopening.

Light Feature

Press the Light button to turn the opener light on or off.It will not control the opener lights when the door

is in motion. Ifyou turn it on and then activate the opener, the light will remain on for 4-1/2 minutes.Press

again to turn it off sooner.The 4-1/2 minute interval can be changed to 1-1/2,2-1/2, or 3-1/2 minutes as

follows:

1. Press and hold the Lockbutton until the lightblinks (about10 seconds).A single blink

indicatesthat the timer is resetto 1-1/2 minutes.

2. Repeat the procedure and the light will blink twice, resetting the timer to 2-1/2 minutes.

3. Repeat again for a 3-1/2 minute interval,etc., up to a maximum of four blinksand 4-1/2

minutes.

Lock Feature

Designed to prevent operation of the door from handheld remote controls.However, the door will open

and close from the Door Control, the Outside Keylock and the Keyless Entry Accessories.

To activate, pressand hold the Lockbutton for 2 seconds.The push bar lightwill flash as long as the Lock

feature is on.

To turn off, press and hold the Lockbutton again for 2 seconds.The push bar lightwill stop flashing.The

Lockfeature will also turn offwhenever the “Learn” button on the motor unit panel isactivated.

Push Bar

Lock

Button

Light

Button

Push

Button

Operation

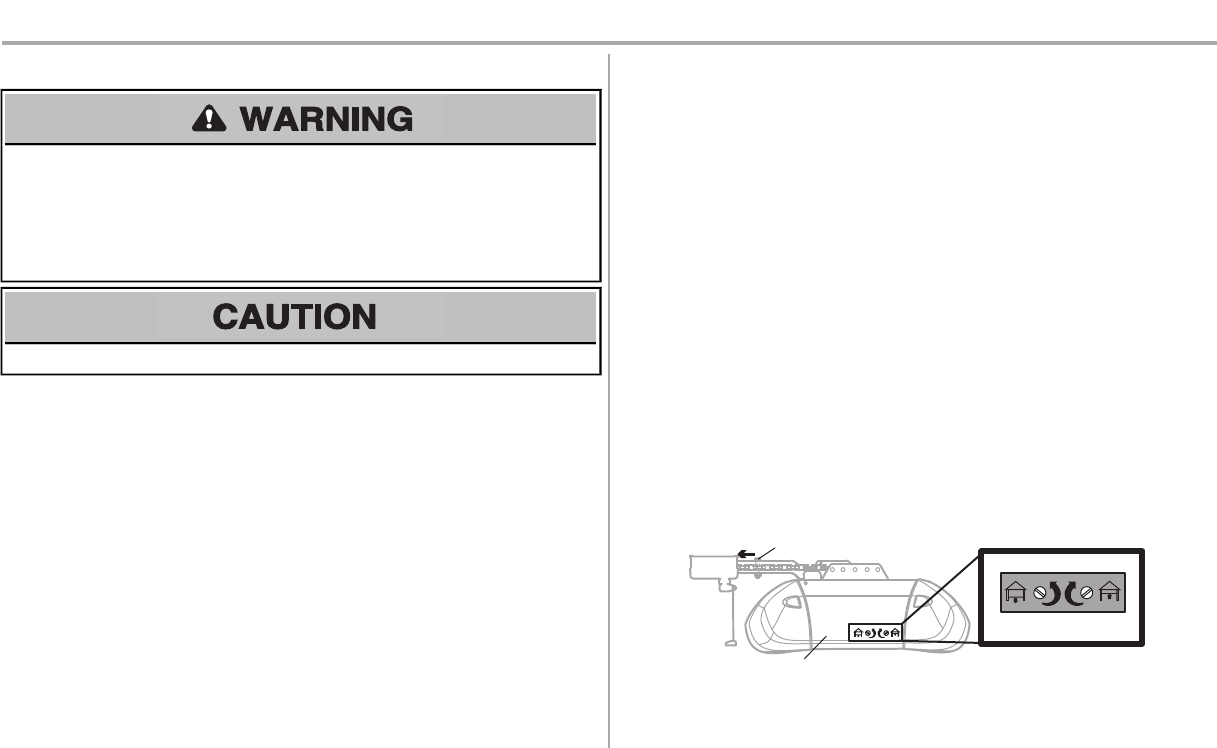

To Open the Door Manually

To prevent possible SERIOUS INJURY or DEATHfrom a falling garage door:

• If possible,use emergencyrelease handle to disengage trolley ONLY when garage door is

CLOSED. Weak or broken springs or unbalanced door could result in an open door falling

rapidlyand/or unexpectedly.

• NEVER use emergency release handle unless garage doorway is clear of persons and

obstructions.

• NEVER use handle to pull door open or closed. Ifrope knot becomes untied, you could fall.

DISCONNECT THE TROLLEY

1. The door should be fully closed if possible.

2. Pull down on the emergency release handle so the trolley release arm snaps to the vertical

position. The door can now be raised and lowered as often as necessary.

NOTICE

RECONNECT THE TROLLEY

1. Pull the emergencyrelease handle toward the garage door opener so the trolley release arm

snaps to the horizontal position.

The trolley will reconnecton the nextUP or DOWNoperation, either manually or by using the

door control or remote control.

NOTICE

Care of Your Opener

LIMIT AND FORCE ADJUSTMENTS

Weather conditions may cause some minor changes in door operation requiring some re-adjustments,

particularly during the first year of operation. Pages 28 and 29 refer to the limitand force adjustments.

Only a screwdriver is required. Follow the instructions carefully. Repeat the safety reverse test

(Adjustment Step 3, page 30) after any adjustment of limits or force.

LIMIT CONTROLS

FORCE CONTROLS

MAINTENANCE SCHEDULE

Every Month

lManuallyoperate door.If itis unbalanced or binding, call a trained door systems technician.

lCheck to be sure door opens and closes fully. Adjustlimits and/or force ifnecessary (see

pages28 and 29).

lRepeat the safety reverse test. Make any necessary adjustments(see Adjustment Step 3).

Two Times a Year

lCheck chain tension. Disconnect trolley first. Adjust if necessary (see page 9).

Every Year

lOil door rollers,bearingsand hinges.The opener does notrequire additional lubrication.Do

not grease the door tracks.

Operation

Having a Problem?

Bell Wire Sending Eye

Safety Reversing Sensor

(Amber Indicator Light)

Receiving Eye

Safety Reversing Sensor

(Green Indicator Light)

Safety Reversing

Sensor

“Learn”

Button

LED or

Diagnostic

LED

1. My door will not close and the light bulbs blink on my motor unit: The safety reversing

sensor must be connected and aligned correctly before the garage door opener will move

in the down direction.

lVerify the safety reversing sensors are properly installed, aligned and free of any obstructions.

Refer to Installation Step 13: Install The Protector System®.

lCheck diagnostic LED for flashes on the motor unit then refer to the Diagnostic Chart on the

following page.

2. My remotes will not activate the door:

lVerify your Multi-Function Door Control is not blinking. If it is blinking, deactivate the Lock Mode

following the instructions for Using the Multi-Function Door Control.

lReprogram remotesfollowing the programming instructions. Refer to Programming.

lIf remote will still not activate your door, check diagnostic LED for flashes on motor unit then

refer to Diagnostic Chart on the following page.

3. My door reverses for no apparent reason: Repeat safety reverse test after adjustments to

force or travel limits.The need for occasional adjustment for the force and limit settings is

normal. Weather conditions in particular can affectdoor travel.

lManually check door for balance or anybinding problems.

lRefer to Adjustment Step 2, Adjust the force.

4. My door reverses for no apparent reason after fully closing and touching the floor: Repeat

safety reverse test after adjustmentsto force or travel limits. The need for occasional

adjustment for the force and limit settings is normal. Weather conditions in particular can affect

door travel.

lRefer to Adjustment Step 1, Adjust the UP and DOWN Travel Limits.Decrease down travel by

turning down limit adjustment screw clockwise.

5. My lights will not turn off when door is open:

lThe garage door opener is equipped with a security light feature. This feature activates the

lighton when the safety reversing sensor beam has been obstructed.Refer to Operation

section; Using the Wall-Mounted Door Control, Light Feature.

6. My motor unit hums briefly:

lFirst verify that the trolley is against the stop bolt.

lRelease the door from the opener by pulling the EmergencyRelease Rope.

lManuallybring the door to a closed position.

lLoosen the chain by adjusting the outer nut 4 to 5 turns. This relieves the tension.

lRun the motor unitfrom the remote control or door control. The trolley should travel towards

the door and stop. If the trolley re-engages with the door, pull the Emergency Release Rope to

disengage.

lDecrease the UP travel by turning the UP Travel adjustment screw 2 full turns away from the

arrow.

lRe-tighten the outer nut so the chain isa 1/4" (6 mm) above the base ofthe rail. (When the

door is reconnected and closed, the chain will sag. This is normal.)

lIf the trolley does not move away from the bolt, repeat the steps above.

Operation

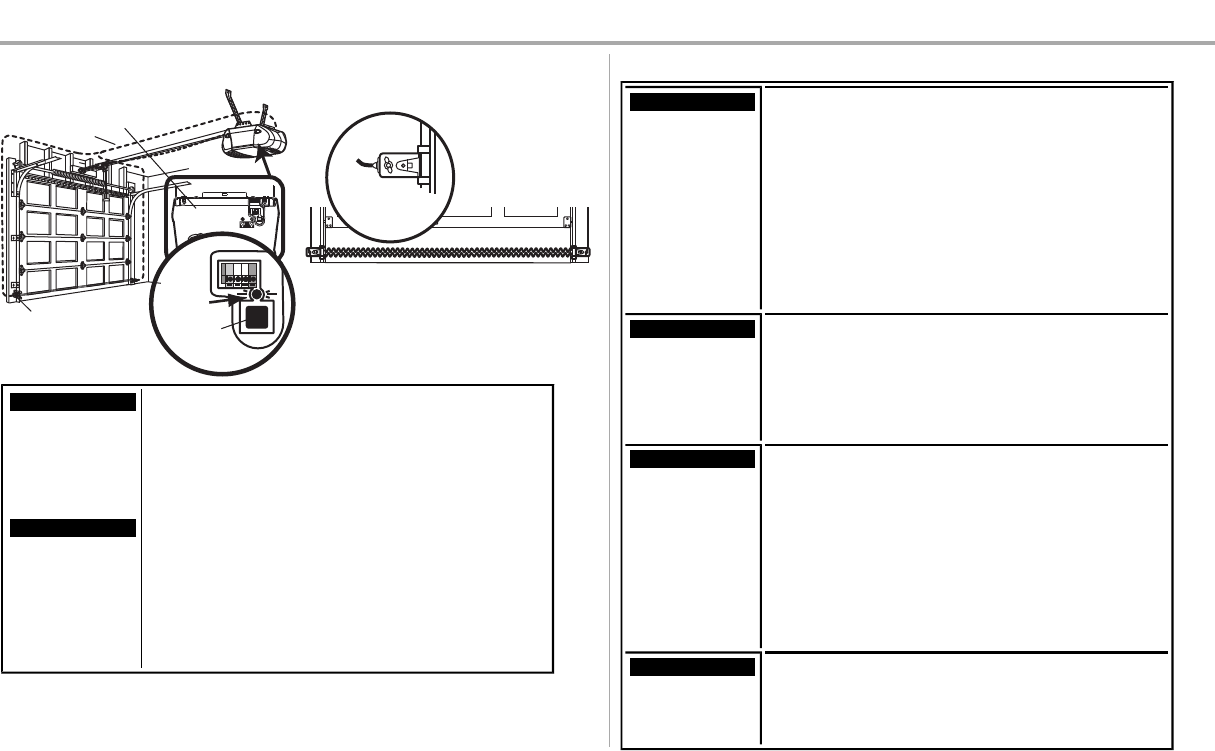

Diagnostic Chart

Your garage door opener is programmed with

self-diagnostic capabilities. The “Learn”

button/diagnostic LED will flash a number of times

then pause signifying it has found a potential issue.

Consult Diagnostic Chart below.

Installed

Safety Reversing

Sensor

“Learn”

Button

Safety Reversing

Sensor

Bell Wire

Diagnostics Located

on Motor Unit

LED or

Diagnostic

LED

1 Flash

Safety reversing

sensors wire open

(broken or

disconnected).

2 Flashes

Safety reversing

sensors wire shorted

or black/white wire

reversed.

Symptom: One or both of the Indicator lights on the safety

reversing sensors do not glow steady.

lInspect sensor wires for a short (staple in wire), correct

wiring polarity (black/ white wires reversed), broken or

disconnected wires,replace/attach as needed.

lDisconnect all wires from back of motor unit.

lRemove sensors from bracketsand shorten sensor wires

to 1-2 ft.(30-60 cm) from back each ofsensor.

lReattach sending eye to motor unit using shortened wires.

If sending eye indicator light glows steadily, attach the

receiving eye.

lAlign sensors, ifthe indicator lightsglow replace the wires

for the sensors. If the sensor indicator lights do not light,

replace the safetyreversing sensors.

3 Flashes

Door control or wire

shorted.

Symptom: LED is not lit on door control.

lInspect door control/wires for a short (staple in wire),

replace as needed.

lDisconnect wires at door control, touch wires together. If

motor unit activates,

replace door control.

lIf motor unit does not activate, disconnect door control

wires from motor unit.

Momentarilyshort acrossred and white terminalswith

jumper wire. Ifmotor unit

activates, replace door control wires.

4 Flashes

Safety reversing

sensors slightly

misaligned (dim or

flashing LED).

Symptom: Sending indicator light glows steadily, receiving

indicator light is dim or flashing.

lRealign receiving eye sensor, clean lens and secure

brackets.

lVerify door track is firmly secured to wall and does not

move.

5 Flashes

Motor overheated or

possible RPM sensor

failure. Unplug to

reset.

Symptom: Motor has over heated; the motor unit does not

operate or trolley is stuck on stop bolt = Motor unit hums briefly;

RPM Sensor = Short travel 6-8" (15-20 cm).

lUnplug unit to reset. Try to operate motor unit, check

diagnostic code.

lIf it is still flashing 5 times and motor unit moves 6-8" (15-20

cm), replace RPM sensor.

lIf motor unit doesn’t operate, motor unit is overheated. Wait

30 minutesand retry.

If motor unit still will not operate replace logic board.

6 Flashes

Motor Circuit Failure.

Replace Receiver

LogicBoard.

Symptom: Motor unit doesn’t operate.

lReplace logic board because motor rarely fails.

Operation

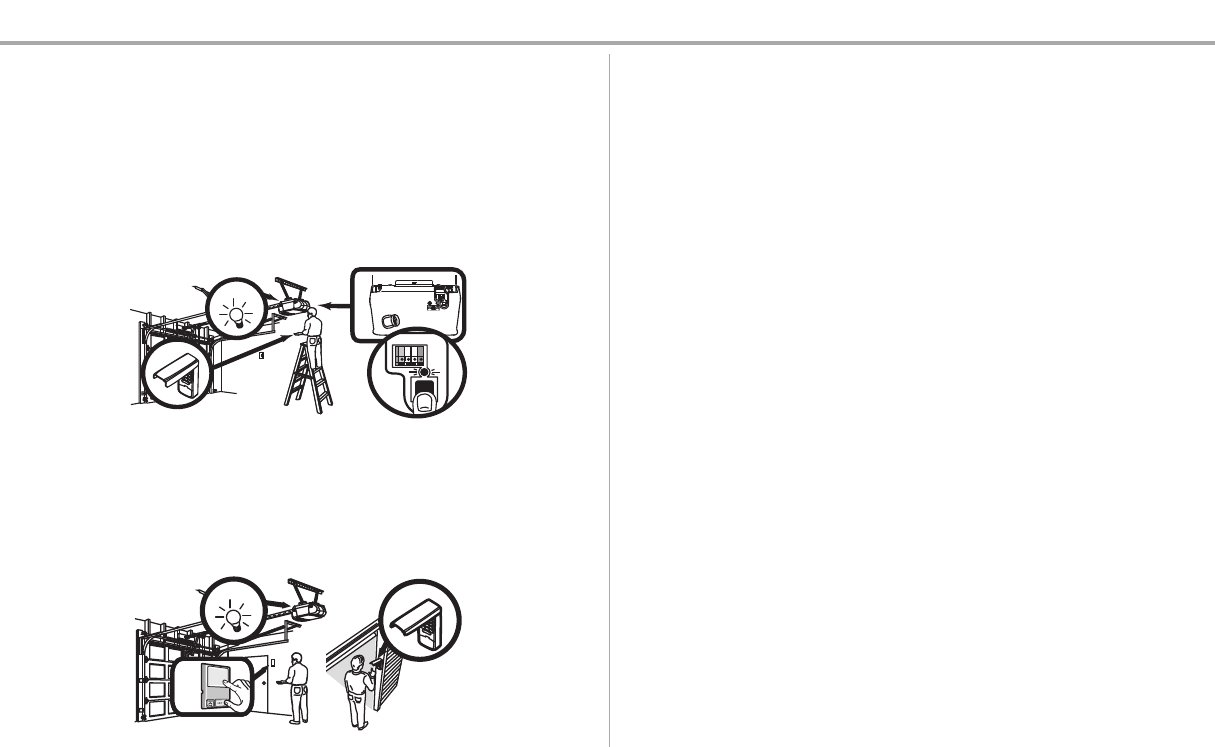

Programming

NOTICE: If this Security+®garage door opener is operated with a non-rolling code transmitter, the

technical measure in the receiver of the garage door opener, which provides security against code-theft

devices, will be circumvented. The owner of the copyright in the garage door opener does not authorize

the purchaser or supplier of the non-rolling code transmitter to circumvent that technical measure.

PROGRAM A REMOTE CONTROL USING THE LEARN BUTTON

1. Locate the Learn Button.

2. Press and immediately release the Learn button. The Learn LEDwill glow steady for 30

seconds. Within 30 seconds...

3. Press and hold the button on the remote control that you wish to use.

Release the button when the garage door opener lightsblink or two clicks are heard.

When replacing the light lens cover, ensure the antenna wires are hanging straight down.

LEARN LED

LEARN

Button

“click”

PROGRAMAREMOTECONTROLUSING THE MULTI-FUNCTION DOOR CONTROL

1. Press and hold the button on the hand-held remote* that you wish to operate your garage

door.

2. While holding the remote button, pressand hold the LIGHT button on the Multi-Function Door

Control. Continue holding both buttons while you press the push bar on the Multi-Function

Door Control (all three buttons are held).

3. Release buttons when the motor unit lights blink. It has learned the code. If light bulbs are not

installed, two clicks will be heard.

1OR OR

To Erase the Memory

ERASE ALL REMOTE CONTROLS AND KEYLESS ENTRIES

1. Pressand hold the learn button on garage door opener until the learn LEDgoesout

(approximately 6 seconds). All remote control and keyless entry codes are now erased.

Reprogram any accessory you wish to use.

*3-BUTTON REMOTES

If provided with your garage door opener,the large button is factory programmed to operate it. Additional

buttons on any Security+®3-Button remote or compactremote can be programmed to operate other

Security+®garage door openers.

Operation

Programming

To Add, Reprogram or Change a Keyless Entry PIN

NOTE: Your new Keyless Entry must be programmed to operate your garage door opener.

USING THE “LEARN” BUTTON

1. Press and release the “learn” button on motor unit.The learn indicator light will glow steadily

for 30 seconds.

2. Within 30 seconds,enter a four digitpersonal identification number (PIN) of your choice on the

keypad.Then press and hold the ENTER button.

3. Release the button when the motor unit lightsblink.It has learned the code. Iflightbulbs are

not installed,two clickswill be heard.

USING THE MULTI-FUNCTION DOOR CONTROL

1. Enter a four digit personal identification number (PIN) of your choice on the keypad. Then

press and hold ENTER.

2. While holding the ENTER button, pressand hold the LIGHTbutton on the Multi-Function Door

Control. Continue holding the ENTER and LIGHTbuttons while you press the push bar on the

Multi-Function Door Control (all three buttons are held).

3. Release buttons when the motor unit lights blink. It has learned the code. If light bulbs are not

installed, two clicks will be heard.

To change an existing, known PIN

If the existing PINis known, it may be changed by one person without using a ladder.

1. Press the four buttonsfor the present PIN,then press and hold the # button.

The opener light will blink twice. Release the # button.

2. Press the new 4-digitPINyou have chosen, then press Enter. The motor unit lightswill blink

once when the PIN has been learned.

Test by pressing the new PIN, then press Enter. The door should move.

To set a temporary PIN

You may authorize access by visitors or service people with a temporary 4-digit PIN. After a programmed

number ofhours or number ofaccesses, this temporary PIN expires and will no longer open the door. It

can be used to close the door even after it has expired.To set a temporaryPIN:

1. Press the four buttons for your personal entry PIN (not the last temporary PIN), then press and

hold the * button.

The opener light will blink three times. Release the button.

2. Press the temporary 4-digit PIN you have chosen, then press Enter.

The opener lightwill blink four times.

3. To set the number of hours this temporary PIN will work, press the number of hours (up to

255), then press *.

1. To set the number of times this temporary PIN will work,pressthe number oftimes (up to 255),

then press #.

The opener light will blink once when the temporary PIN has been learned.

Test by pressing the four buttons for the temporary PIN, then press Enter. The door should move. If the

temporary

PINwas set to a certain number of openings,remember that the test has used up one opening.To clear

the temporary password, repeat steps 1-3, setting the number ofhours or times to 0 in step 3.

One Button Close: Opener can be closed by pressing only the ENTER button if the one button close

feature has been activated. This feature has been activated at the factory. To activate or deactivate this

feature press and hold buttons 1 and 9 for 10 seconds. The keypad will blink twice when the one button

close is active. The keypad will blink four times when one button close is deactivated.

Operation

The Remote Control Battery

To prevent possible SERIOUS INJURY or DEATH:

• NEVER allow small children near batteries.

• If battery is swallowed, immediately notify doctor.

To reduce risk of fire, explosion or chemical burn:

• Replace ONLY with 3V2032 coin batteries.

• DO NOT recharge, disassemble, heat above 212°F (100°C) or incinerate.

The lithium battery should produce power for up to 5 years.

To replace battery,use the visor clip or screwdriver blade to pry open the

case as shown. Insertbattery positive side up (+).

NOTICE: To comply with FCC and or IndustryCanada (IC)rules, adjustment ormodificationsof thisreceiver and/ortransmitterare

prohibited, except for changing the code setting orreplacing the battery. THEREARENOOTHER USER SERVICEABLEPARTS.

Tested to Comply with FCCStandards FOR HOME OR OFFICE USE. Operation is subjectto the

following two conditions: (1) this device may not cause harmful interference, and (2) this device must

acceptany interference received, including interference that may cause undesired operation.

7702CB Outside Quick Release:

Required for a garage with

NO access door.

41A5281 CLSS1 953D

7708CB 8 Foot (2.4 m) Rail

Extension:

10 Foot (3 m) Rail

Extension:

To allow an 8 foot (2.4 m) door

to open fully.

To allow an 10 foot (3 m) door

to open fully.

Laser Parking Assistant:

Park in the right spot every time!

A laser beam is activated by

your garage door opener and

projected on to the dashboard

of your vehicle to guide perfect

parking.

Installation Upgrade Kit:

The Installation Upgrade Kit

includes all components

needed to hang garage door

openers up to 24" (61 cm)

from the ceiling.

CLLAD CLDM1 956D

7710CB CLLP1 BIK01 940D

Extension Brackets:

(Optional) For safety reversing

sensor installation onto the wall

or floor.

Remote Light Control :

(Optional) For safety reversing

sensor installation onto the wall

or floor.

Garage Door Monitor:

Monitors the status of your

garage door from inside

your home.

System Surge Protector:

The Garage Door Opener

Surge Protector is designed to

protect Chamberlain garage

door openers against damage

from lighting and power

surges. Easy to install.

SECURITY✚® 3-Button Remote

Control :

Includes visor clip.

SECURITY✚® 3-Button Mini-Remote

Control :

With key ring and fastening strip.

SECURITY✚® Keyless Entry :

Enables homeowner to operate garage

door opener from outside by entering a

password on a specially designed

keyboard. Also can add a temporary

password for visitors or service persons.

This temporary password can be limited

to a programmable number of hours or

entries.

Accessories

Warranty

CHAMBERLAIN 1 YEAR LIMITED WARRANTY

6 YEAR MOTOR LIMITED WARRANTY PD210D, PD212D, 248730, LW2000 & HD200D

The Chamberlain Group, Inc. (“Seller”) warrants to the first retail purchaser of this product, for the residence in which

this product is originally installed, that it is free from defect in materials and/or workmanship for a period of 1 YEAR

from the date of purchase and that the MOTOR is free from defect in materials and/or workmanship for a period of 6

YEARS from the date of purchase. The proper operation of this product is dependent on your compliance with the

instructions regarding installation, operation, maintenance and testing. Failure to comply strictly with those instructions

will void this limited warranty in its entirety.

If, during the limited warranty period, this product appears to contain a defect covered by this limited warranty, call

1-800-528-9131, toll free, before dismantling this product. Then send this product, pre-paid and insured, to our service

center for warranty repair. You will be advised of shipping instructions when you call. Please include a brief description

of the problem and a dated proof-of-purchase receipt with any product returned for warranty repair. Products returned

to Seller for warranty repair, which upon receipt by Seller are confirmed to be defective and covered by this limited

warranty, will be repaired or replaced (at Seller’s sole option) at no cost to you and returned pre-paid. Defective parts

will be repaired or replaced with new or factory-rebuilt parts at Seller’s sole option.

ALL IMPLIED WARRANTIES FOR THE PRODUCT, INCLUDING BUT NOT LIMITED TO ANY IMPLIED

WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN

DURATION TO THE 1 YEAR LIMITED WARRANTY PERIOD SET FORTH ABOVE EXCEPT THE IMPLIED

WARRANTIES WITH RESPECT TO THE MOTOR, WHICH ARE LIMITED IN DURATION TO THE 6 YEARS

LIMITED WARRANTY PERIOD FOR THE MOTOR, AND NO IMPLIED WARRANTIES WILL EXIST OR APPLY

AFTER SUCH PERIOD. Some States do not allow limitations on how long an implied warranty lasts, so the

above limitation may not apply to you.

THIS LIMITED WARRANTY DOES NOT COVER NON-DEFECT DAMAGE, DAMAGE CAUSED BY IMPROPER

INSTALLATION, OPERATION OR CARE (INCLUDING, BUT NOT LIMITED TO ABUSE, MISUSE, FAILURE

TO PROVIDE REASONABLE AND NECESSARY MAINTENANCE, UNAUTHORIZED REPAIRS OR ANY

ALTERATIONS TO THIS PRODUCT), LABOR CHARGES FOR REINSTALLING A REPAIRED OR

REPLACED UNIT, REPLACEMENT OF BATTERIES AND LIGHT BULBS OR UNITS INSTALLED FOR NON-

RESIDENTIAL USE. THIS LIMITED WARRANTY DOES NOT COVER ANY PROBLEMS WITH, OR RELATING

TO, THE GARAGE DOOR OR GARAGE DOOR HARDWARE, INCLUDING BUT NOT LIMITED TO THE

DOOR SPRINGS, DOOR ROLLERS, DOOR ALIGNMENT OR HINGES. THIS LIMITED WARRANTY ALSO

DOES NOT COVER ANY PROBLEMS CAUSED BY INTERFERENCE. ANY SERVICE CALL THAT

DETERMINES THE PROBLEM HAS BEEN CAUSED BY ANY OF THESE ITEMS COULD RESULT IN A FEE

TO YOU.

UNDER NO CIRCUMSTANCES SHALL SELLER BE LIABLE FOR CONSEQUENTIAL, INCIDENTAL OR

SPECIAL DAMAGES ARISING IN CONNECTION WITH USE, OR INABILITY TO USE, THIS PRODUCT. IN NO

EVENT SHALL SELLER’S LIABILITY FOR BREACH OF WARRANTY, BREACH OF CONTRACT,

NEGLIGENCE OR STRICT LIABILITY EXCEED THE COST OF THE PRODUCT COVERED HEREBY. NO

PERSON IS AUTHORIZED TO ASSUME FOR US ANY OTHER LIABILITY IN CONNECTION WITH THE SALE

OF THIS PRODUCT.

Some states do not allow the exclusion or limitation of consequential, incidental or special damages, so the above

limitation or exclusion may not apply to you. This limited warranty gives you specific legal rights, and you may also

have other rights which vary from state to state.

CHAMBERLAIN®1 YEAR LIMITED WARRANTY

LIFETIME MOTOR LIMITED WARRANTY PD610D & PD612D

The Chamberlain Group, Inc. (“Seller”) warrants to the first retail purchaser of this product, for the residence in which

this product is originally installed, that it is free from defect in materials and/or workmanship for a period of 1 YEAR

from the date of purchase and that the MOTOR is free from defect in materials and/or workmanship for the lifetime of the

product. The proper operation of this product is dependent on your compliance with the instructions regarding

installation, operation, maintenance and testing. Failure to comply strictly with those instructions will void this limited

warranty in its entirety.
