Owner's Manual
Contents
Safety Alert Symbols
Sectional Door Installation
One-Piece Door Installation
Carton Inventory
Hardware Kits
Assembly
Installation Section
Adjustment Section
Operation of Opener
Receiver & Remote Control Programming
Having a Problem?
Repair Parts
Accessories
Index
Warranty

The Chamberlain Group, Inc.

A DUCHOSSOIS ENTERPRISE

845 Larch Avenue

Elmhurst, Illinois 60126-1196

For Residential Use Only

Garage Door Opener

Owner’s Manual

Model M150

1/2 HP

Complies with UL 325

regulations effective

January 1, 1993

■Please read this manual and the enclosed safety materials carefully!

■Fasten the manual near the garage door after installation.

■The door WILL NOT CLOSE unless the Protector System®is connected and properly

aligned.

■Periodic checks of the opener are required to ensure safe operation.

■The model number label is located on the back of your opener.

Start by reviewing these important safety alert symbols:

Safety alert symbol review ...........................................2

Safety information and precautions ..............................3

Testing your garage door for binding & balance ..........3

Hardware supplied ........................................................3

Carton inventory ...........................................................4

Illustration of sectional door installation .....................5

Illustration of one-piece door installation.....................5

Assembly section - pages 6 – 7

Fasten rail to power unit .............................................6

Install the trolley .........................................................6

Attach the rail brackets ...............................................7

Installation safety instructions ....................................7

Installation section - pages 8 – 23

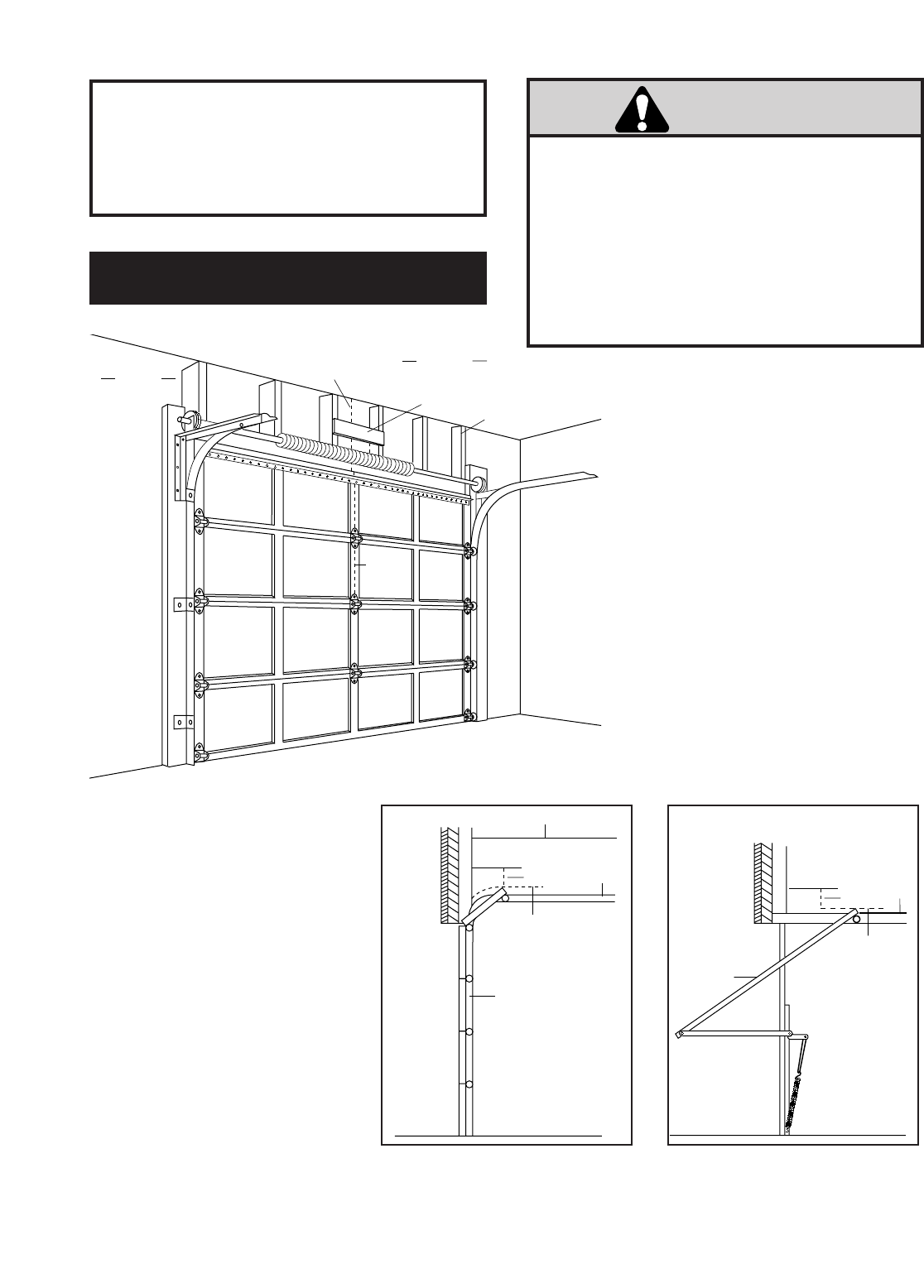

Determine the header bracket location

Sectional door ...........................................................8

One-piece door..........................................................9

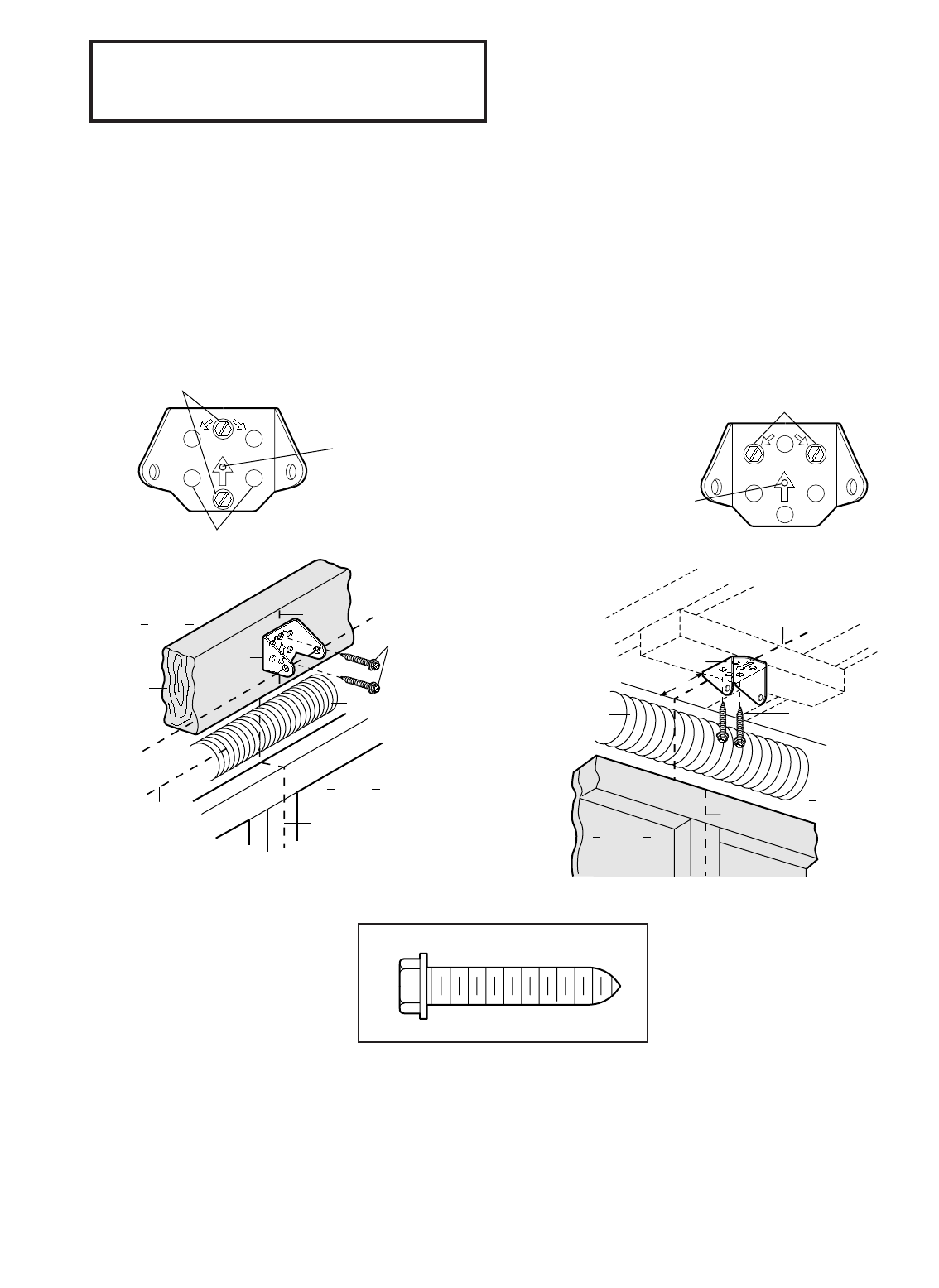

Install the header bracket ..........................................10

Attach the rail to the header bracket .........................11

The Protector System®.............................................12

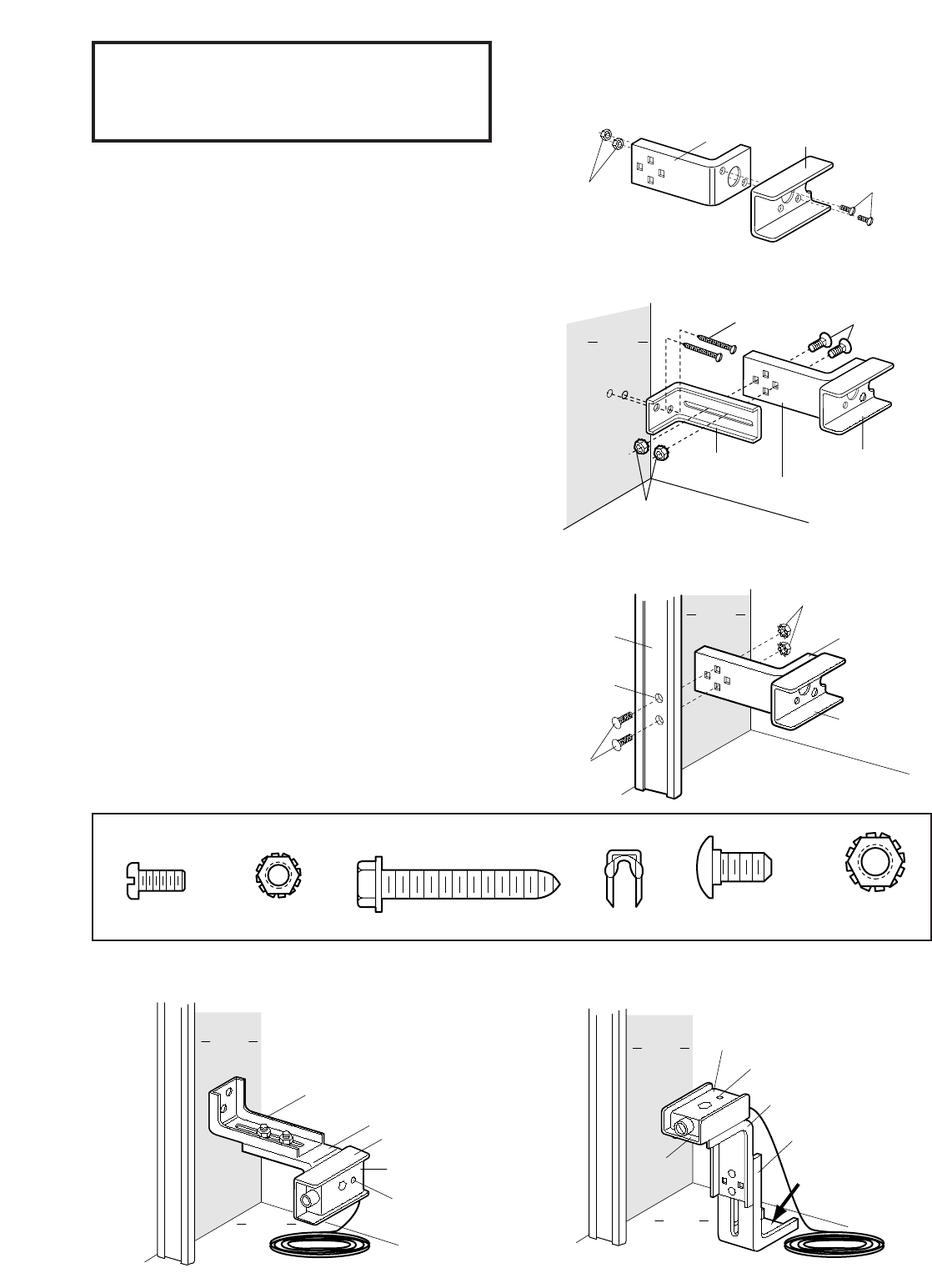

Install the safety reversing sensor.............................13

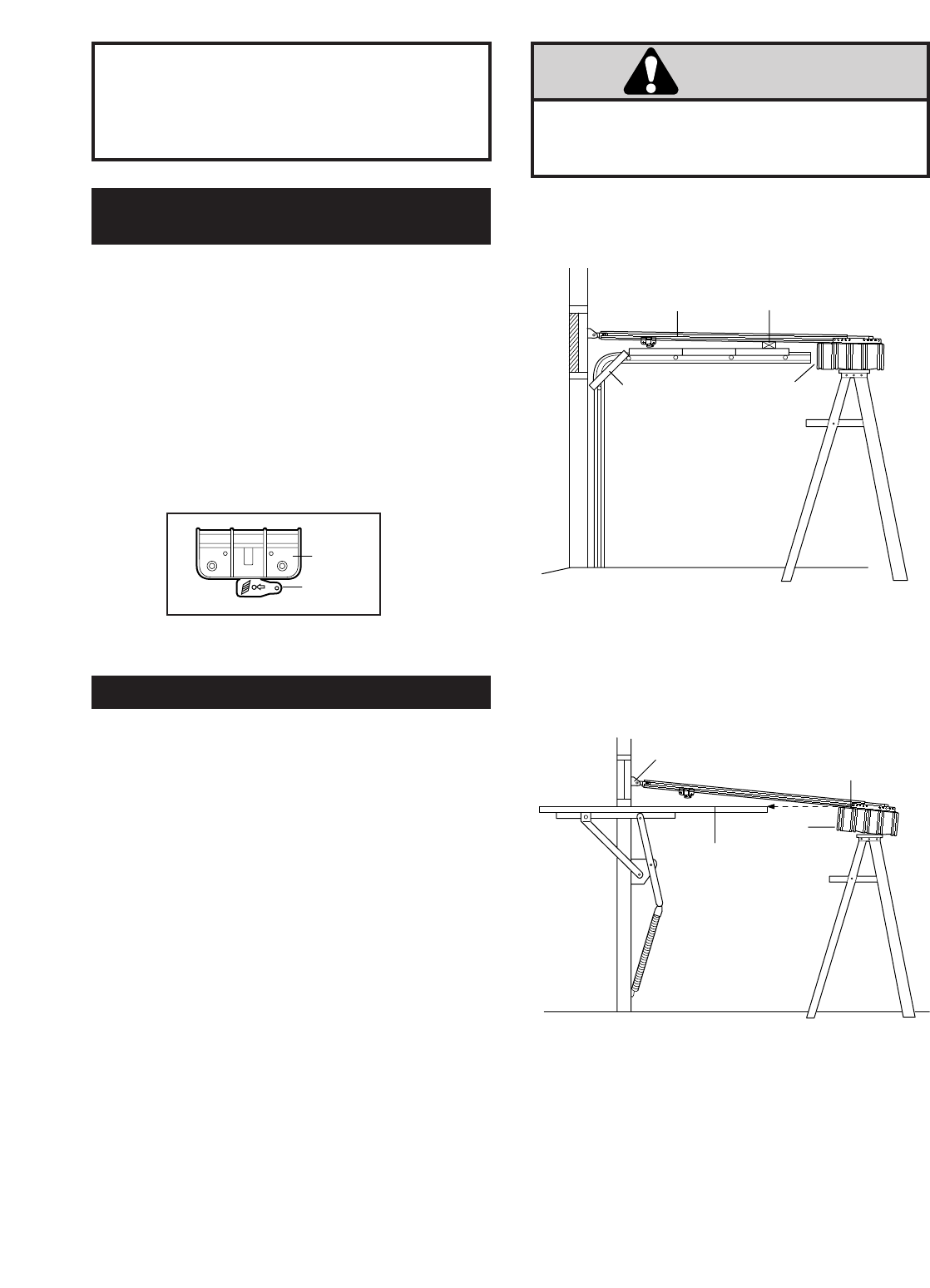

Position the opener....................................................15

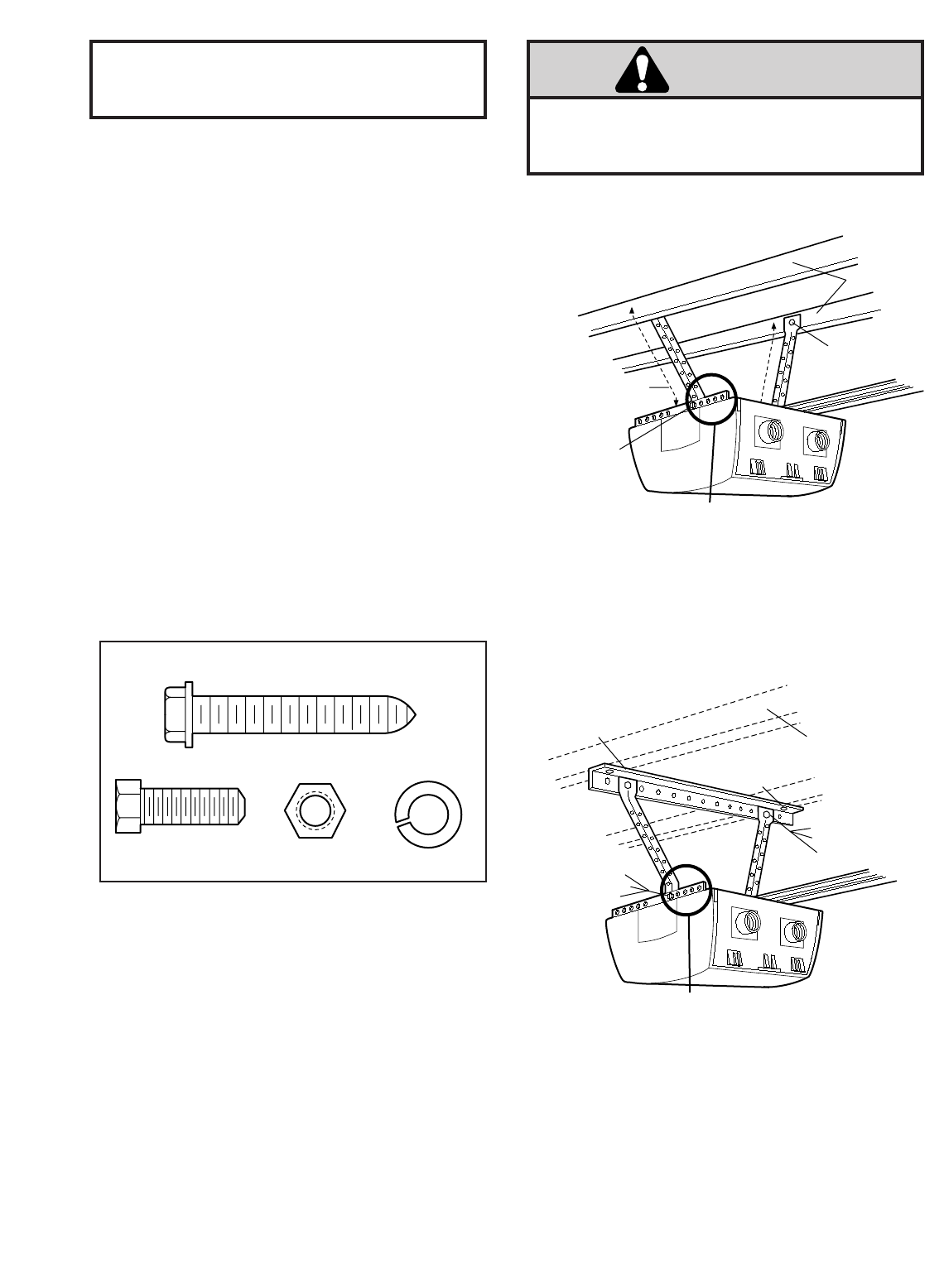

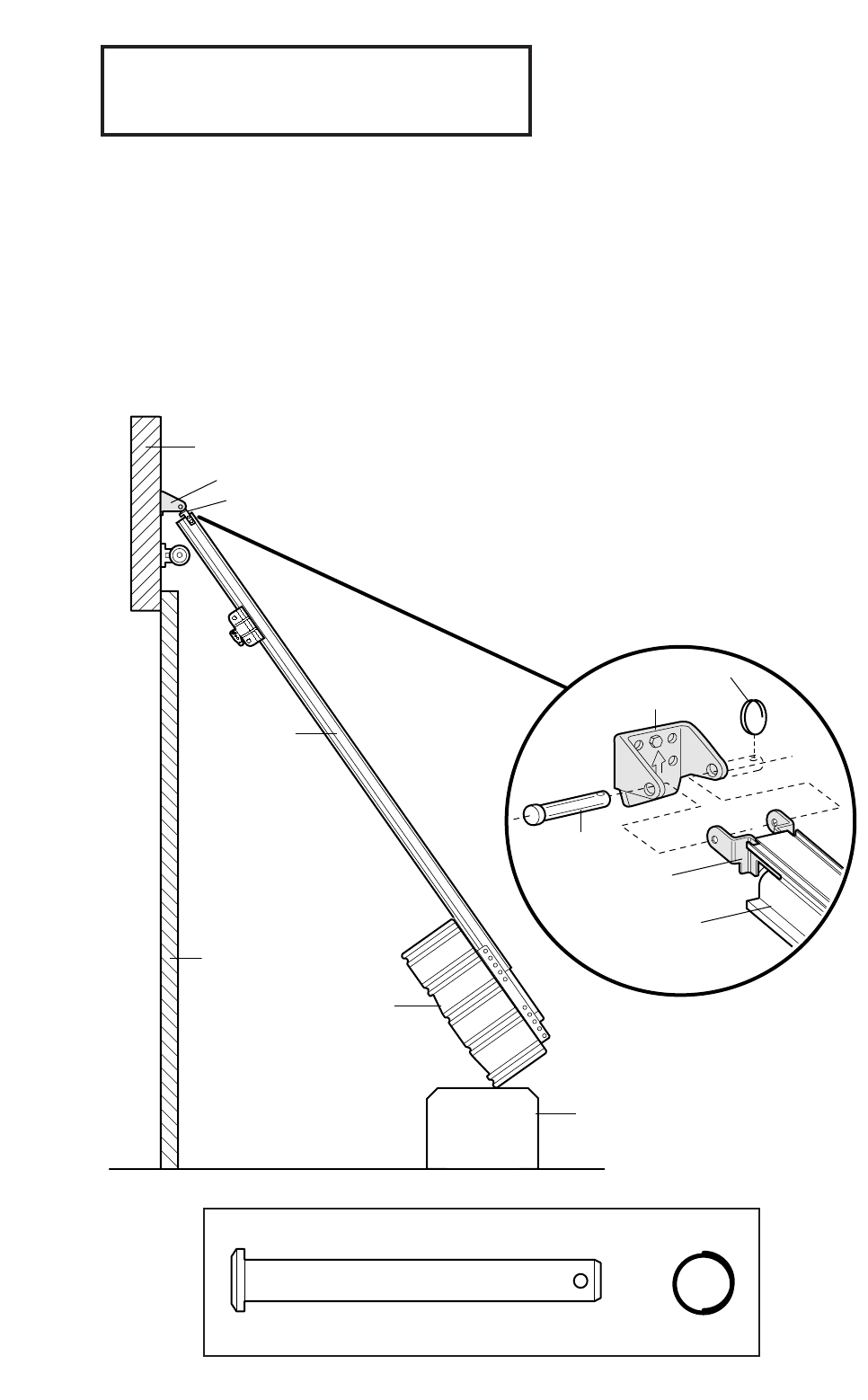

Hang the opener........................................................16

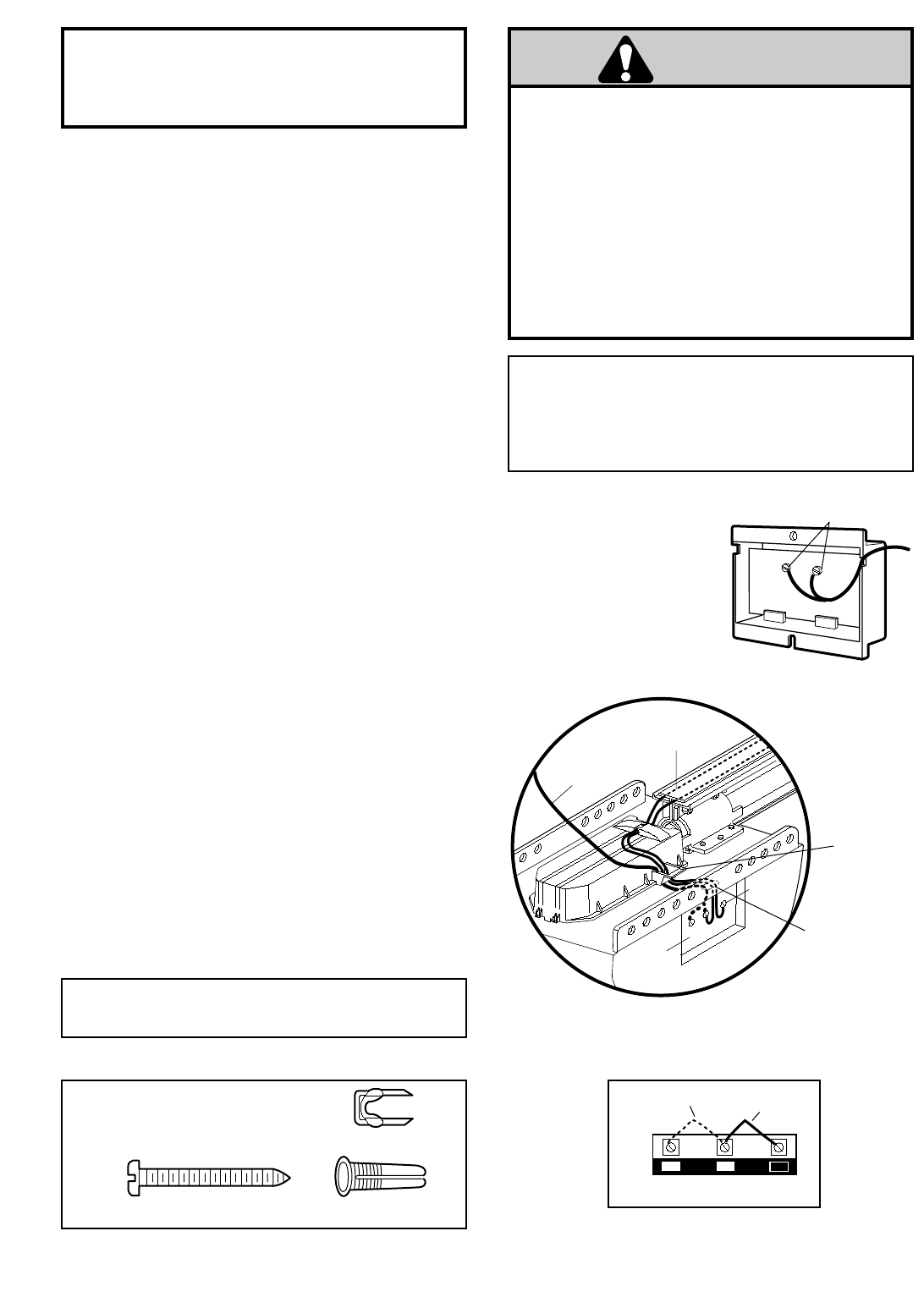

Install the door control and connect all wires...........17

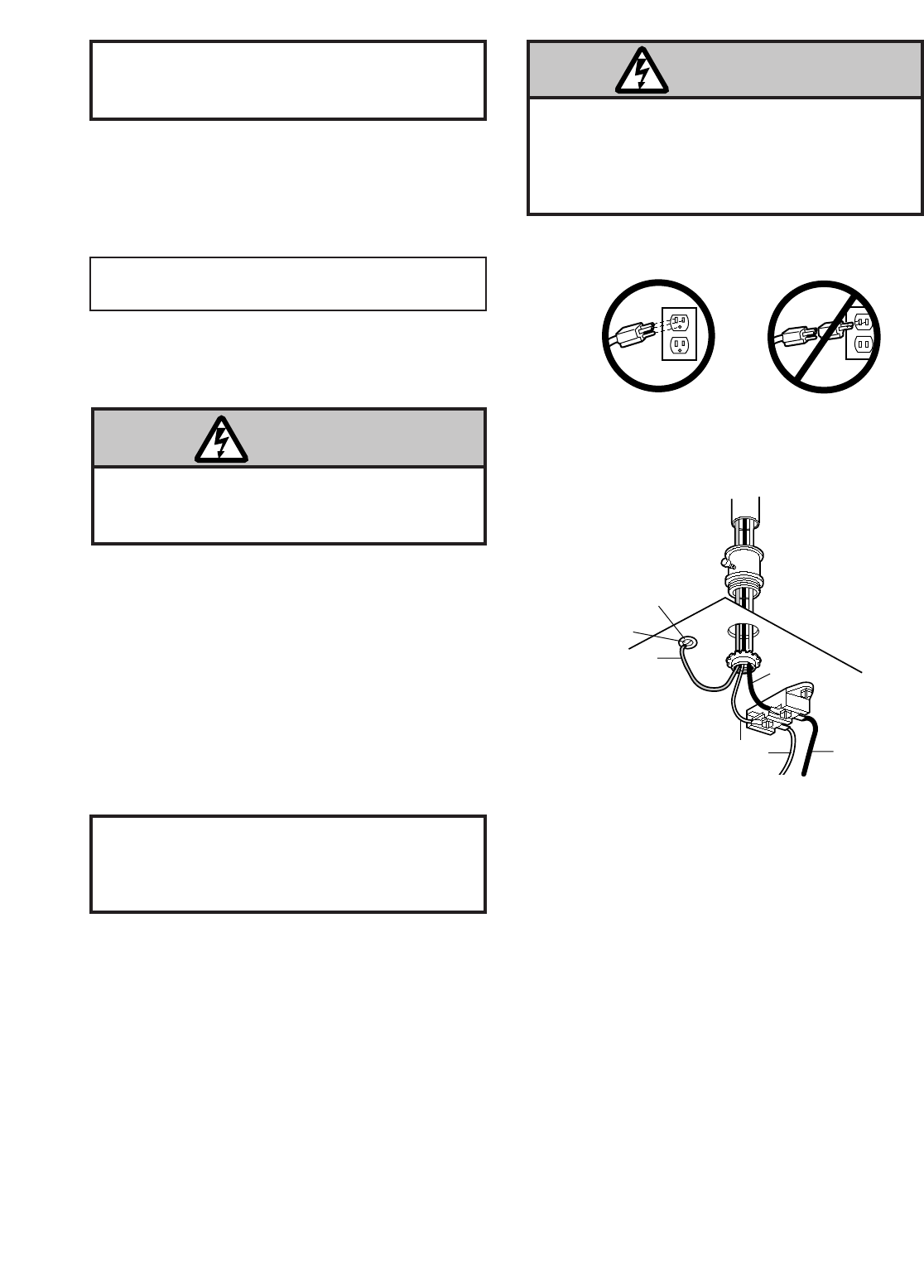

Electrical requirements .............................................18

Complete the safety reversing sensor installation.....18

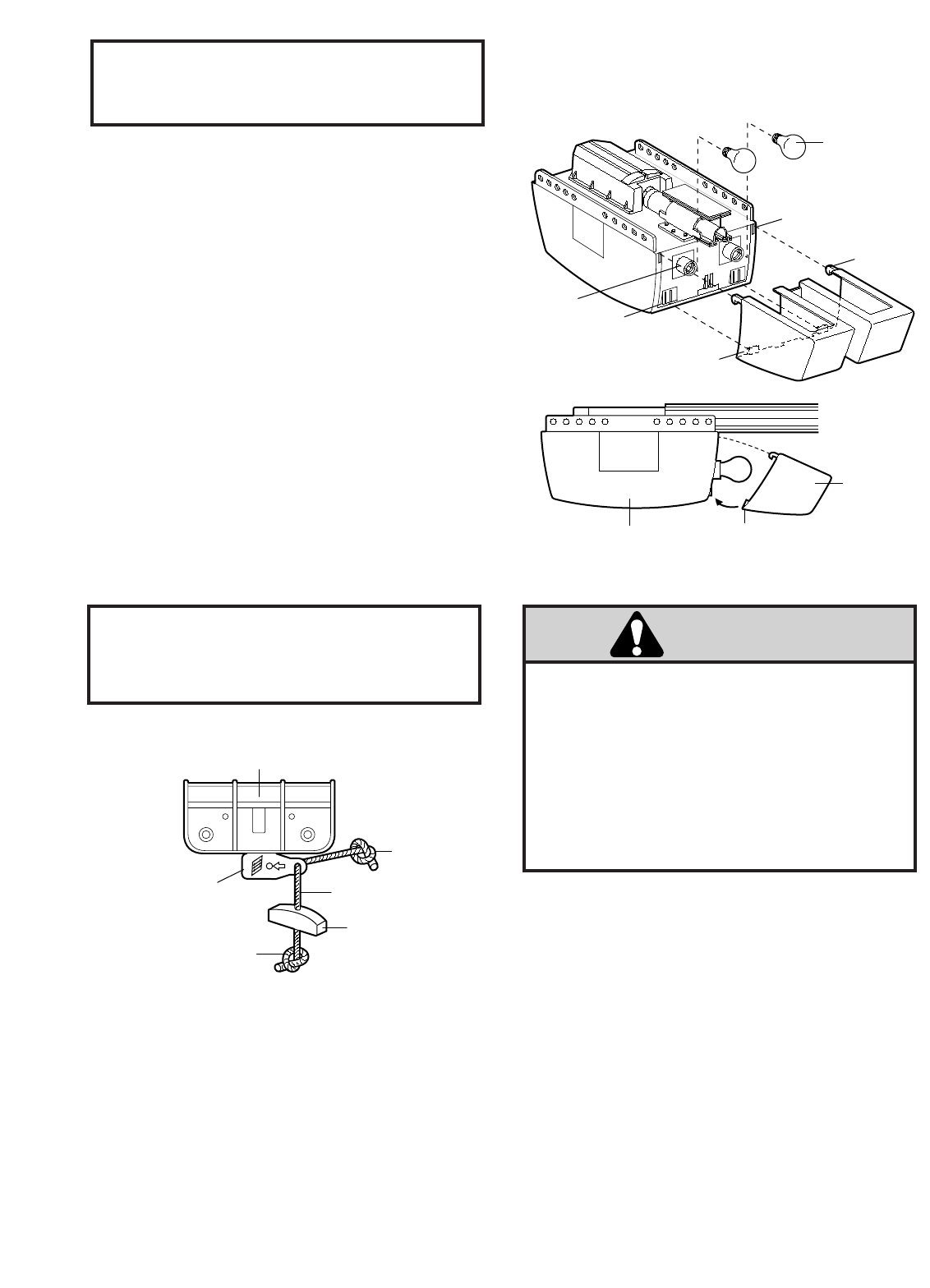

Install the lights and lens ..........................................19

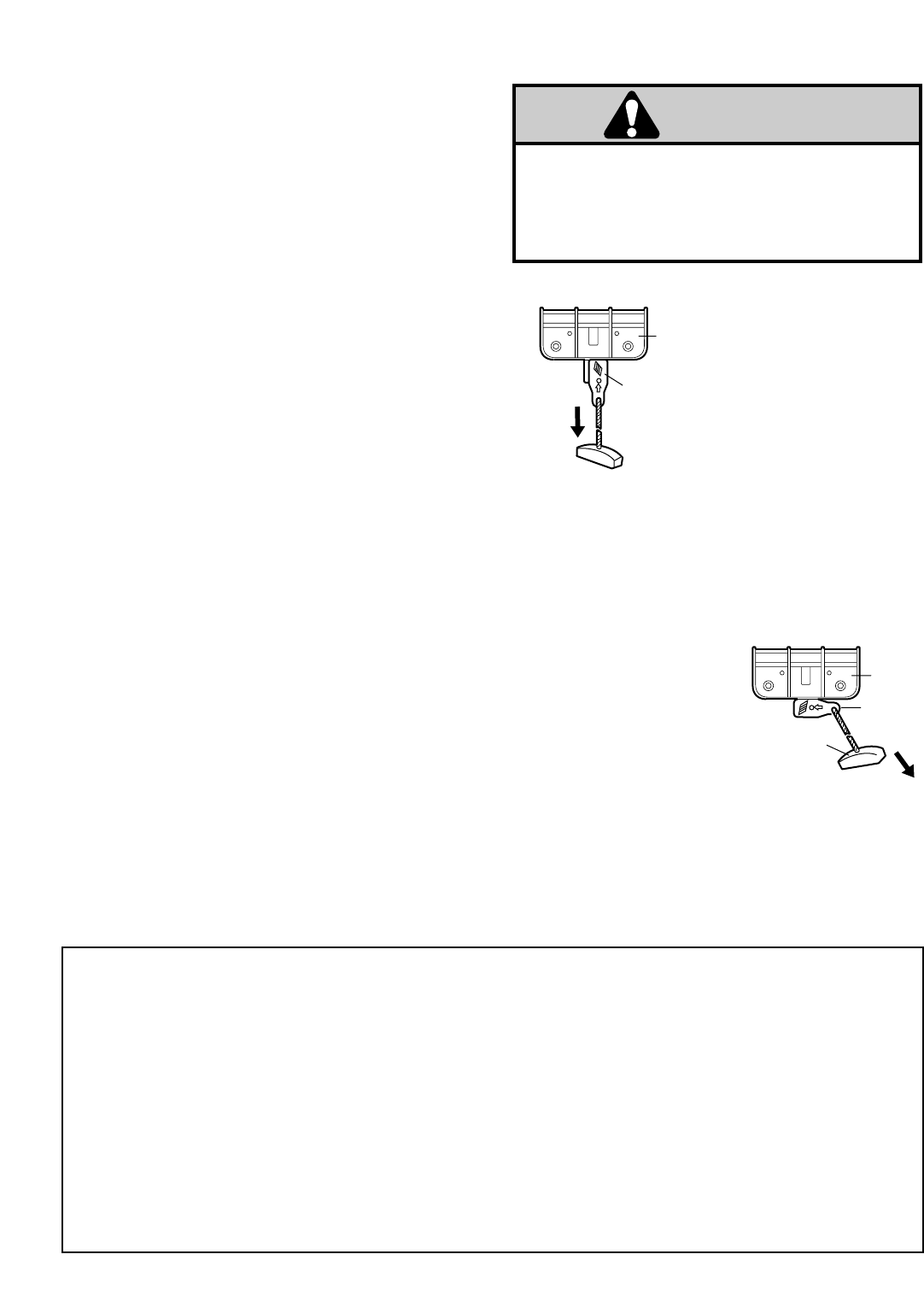

Attach the manual release rope and handle...............19

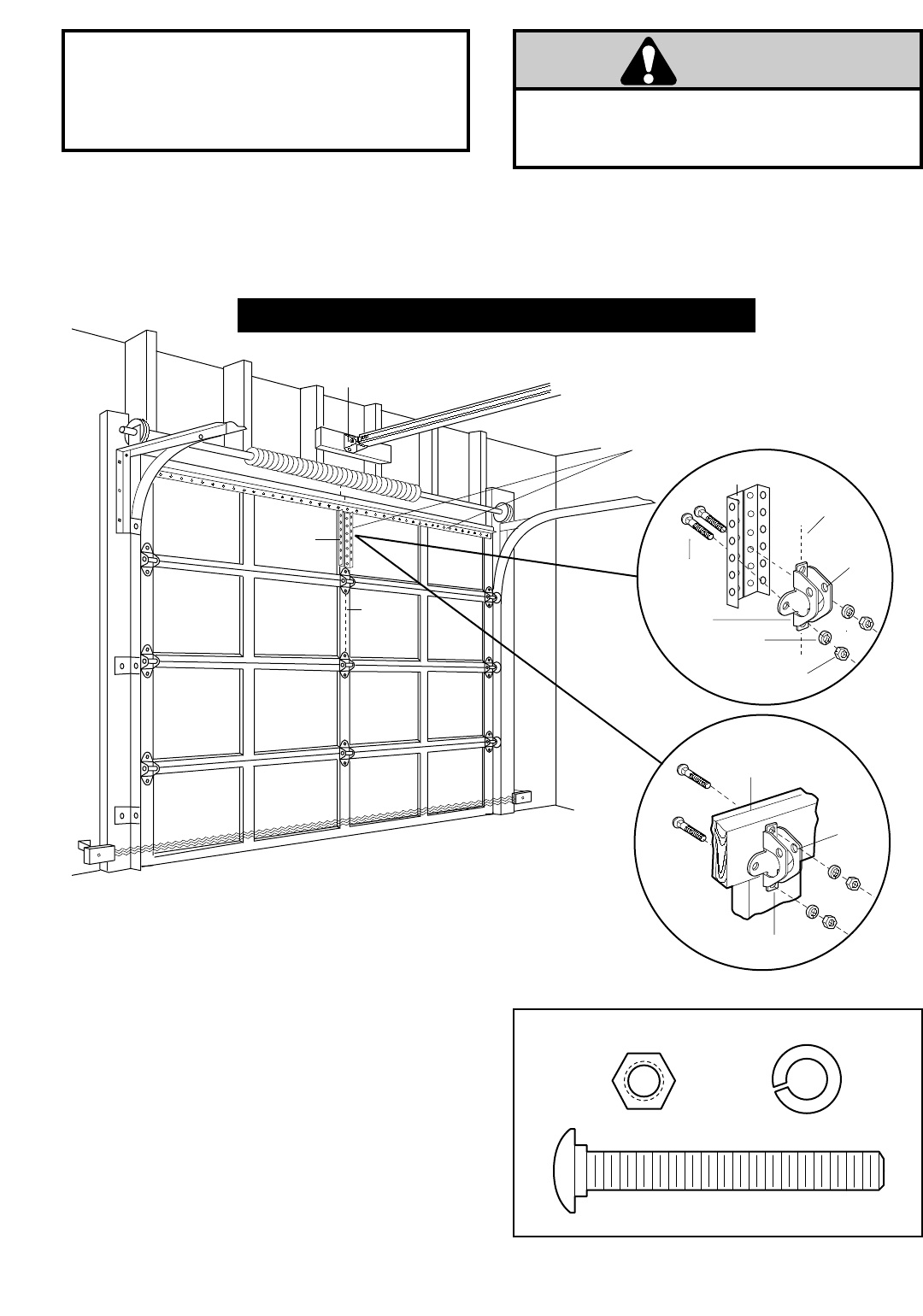

Fasten the door bracket (sectional door)...................20

Fasten the door bracket (one-piece door)..................21

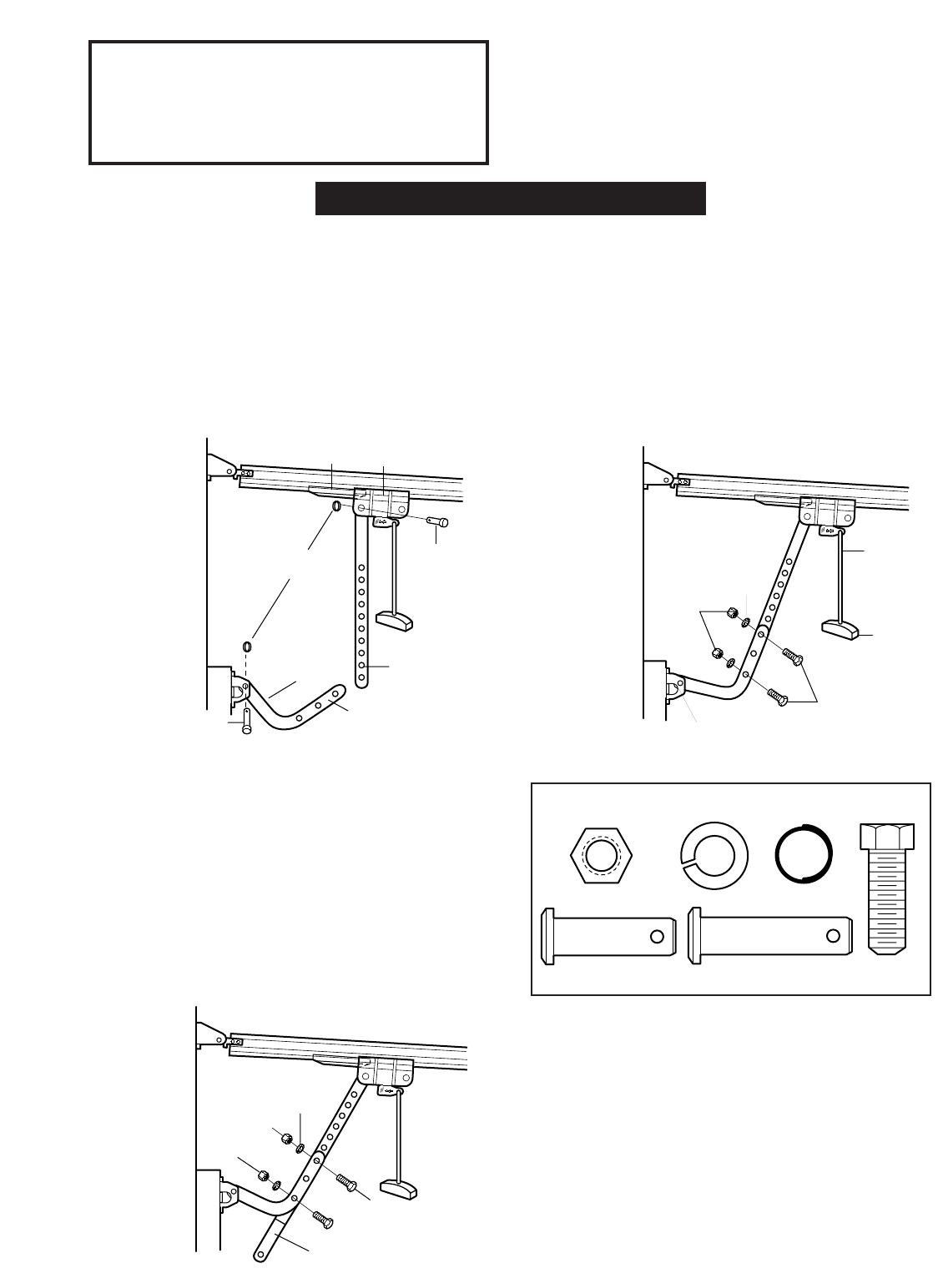

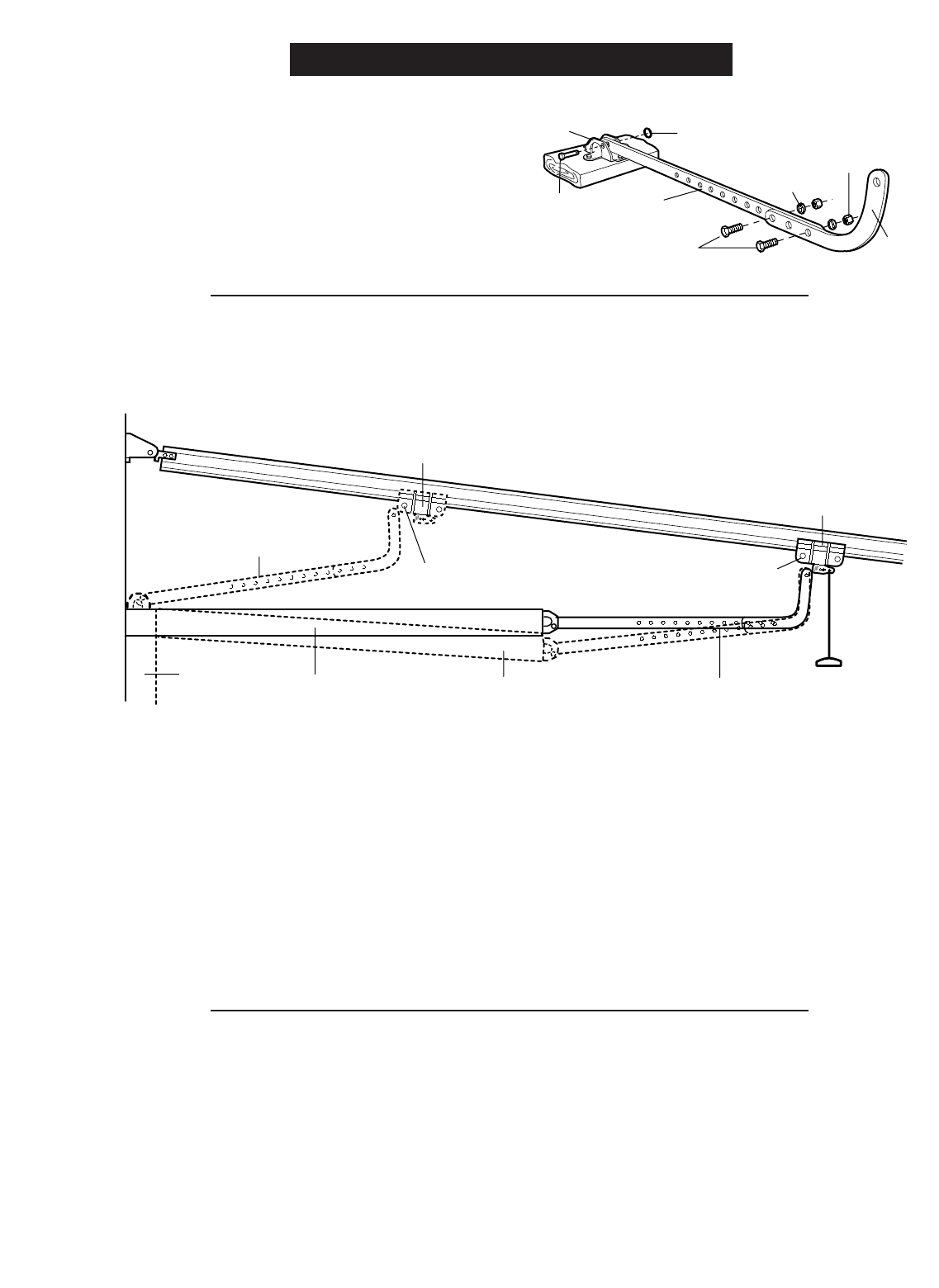

Connect door arm to trolley (sectional door)............22

Connect door arm to trolley (one-piece door)...........23

Adjustment section - pages 24 – 26

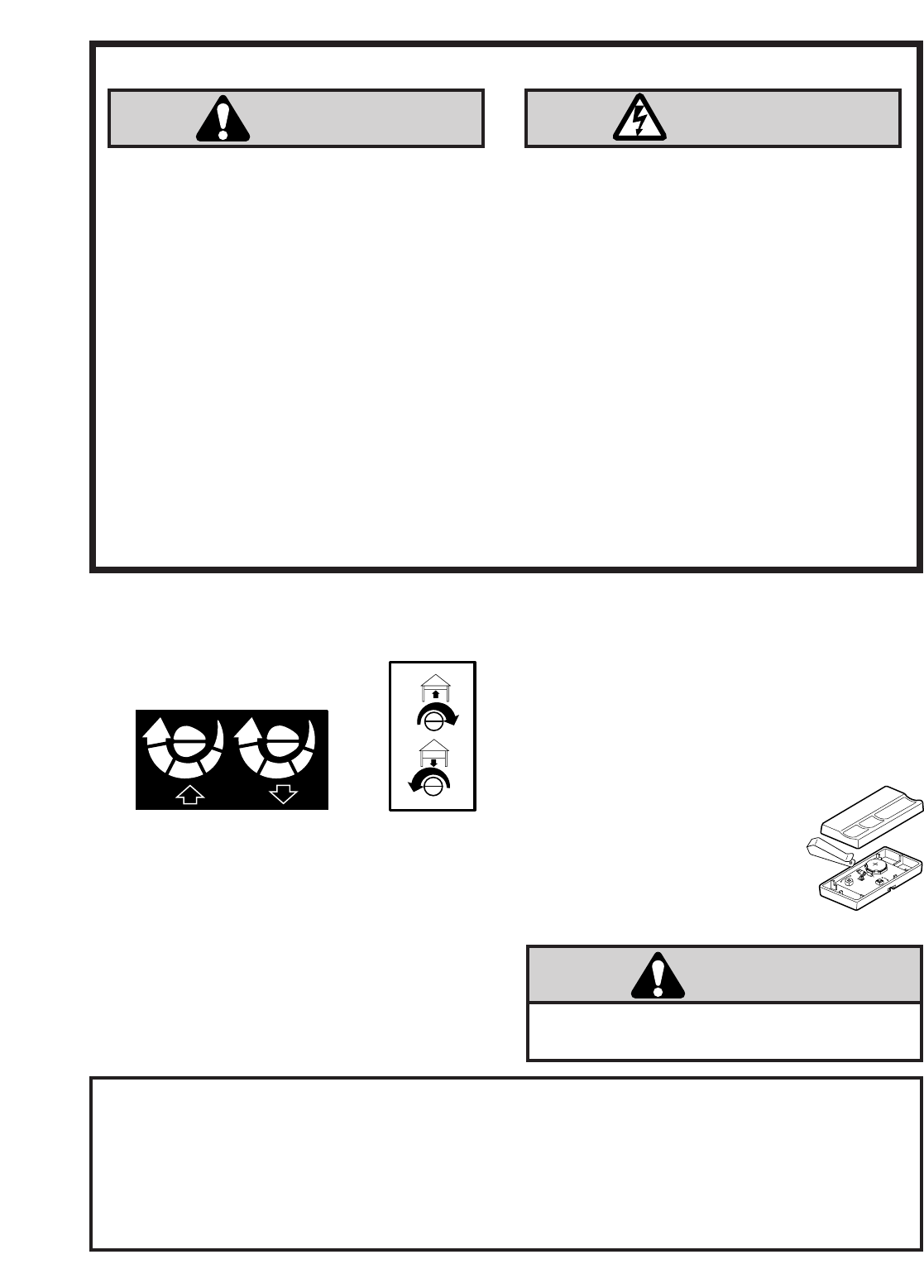

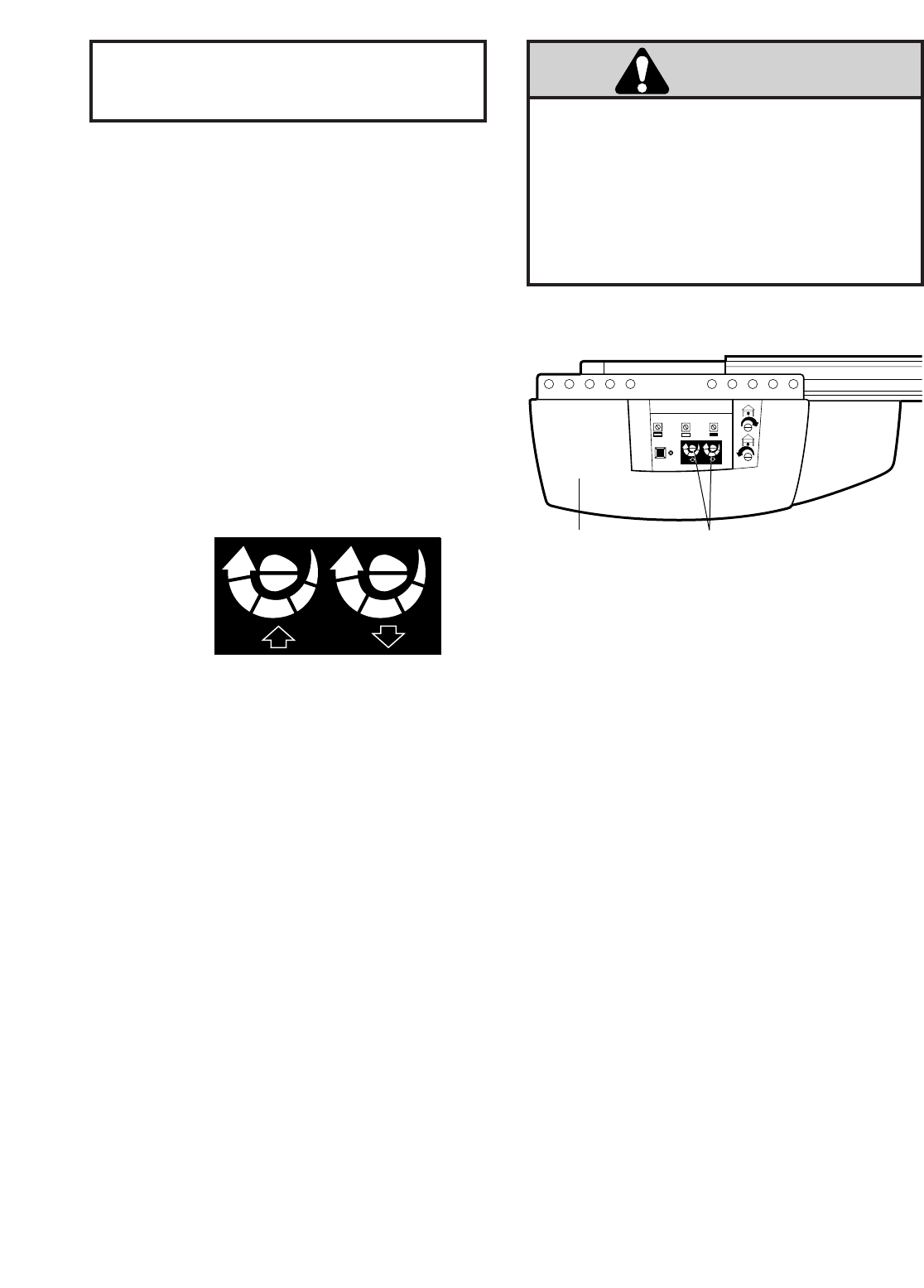

Travel limit adjustments............................................24

Force adjustments .....................................................25

Test the Protector System®........................................26

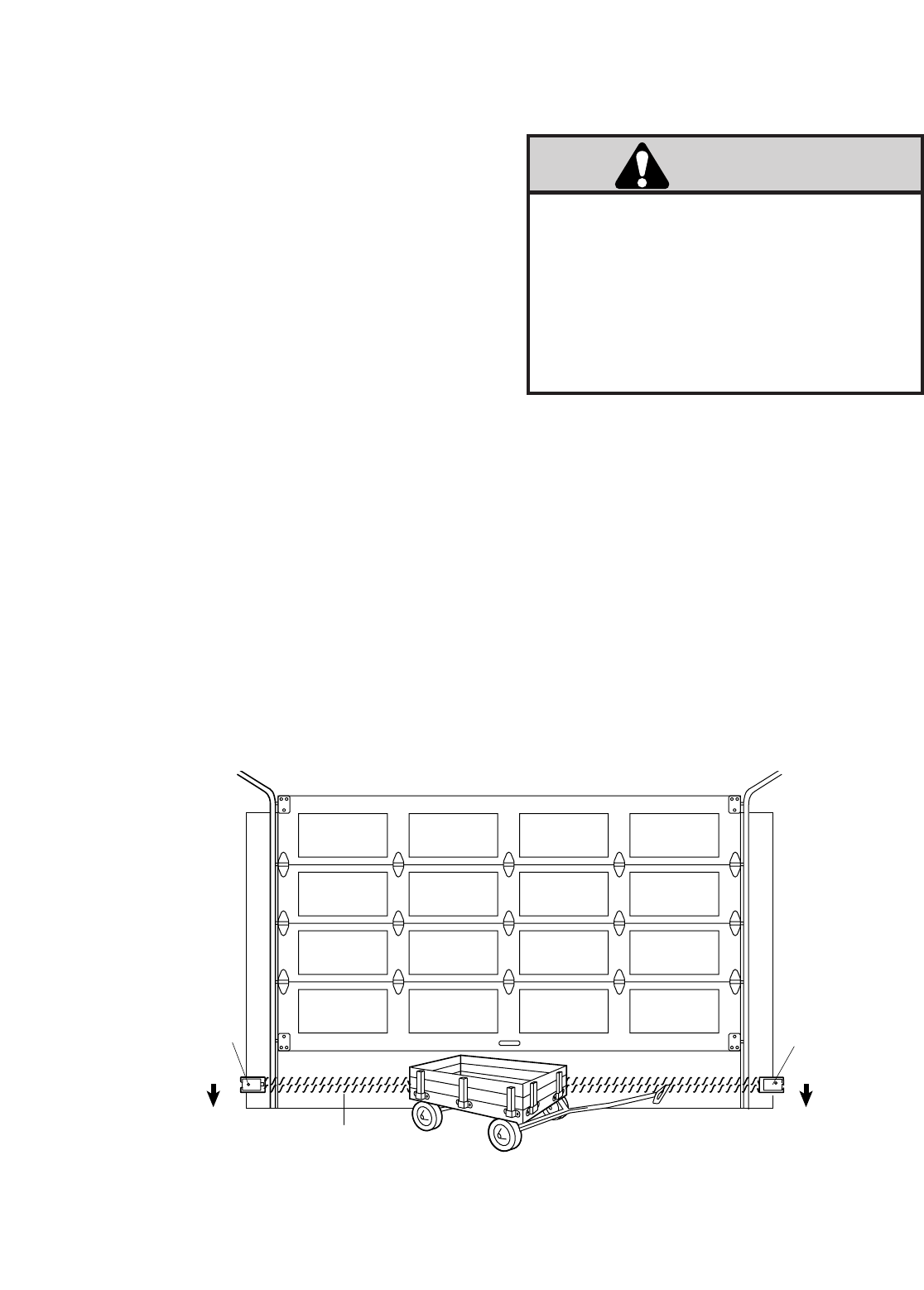

Test the safety reverse system ..................................26

Operation safety instructions ......................................27

Care of your opener ....................................................27

Maintenance schedule.................................................27

Operation of your opener............................................28

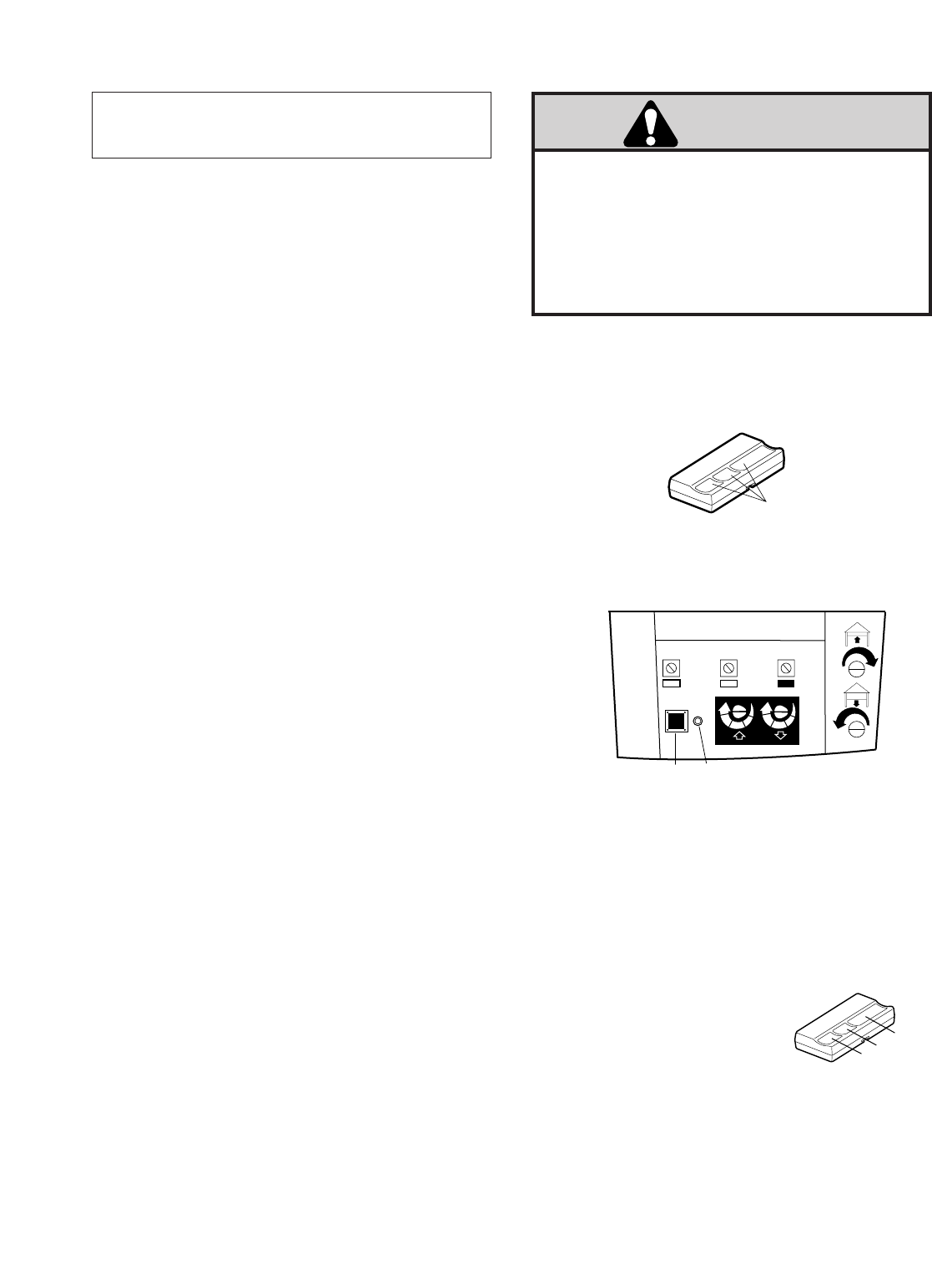

Receiver & remote control programming...................29

Having a problem?......................................................30

Repair parts, rail assembly..........................................32

Repair parts, installation .............................................32

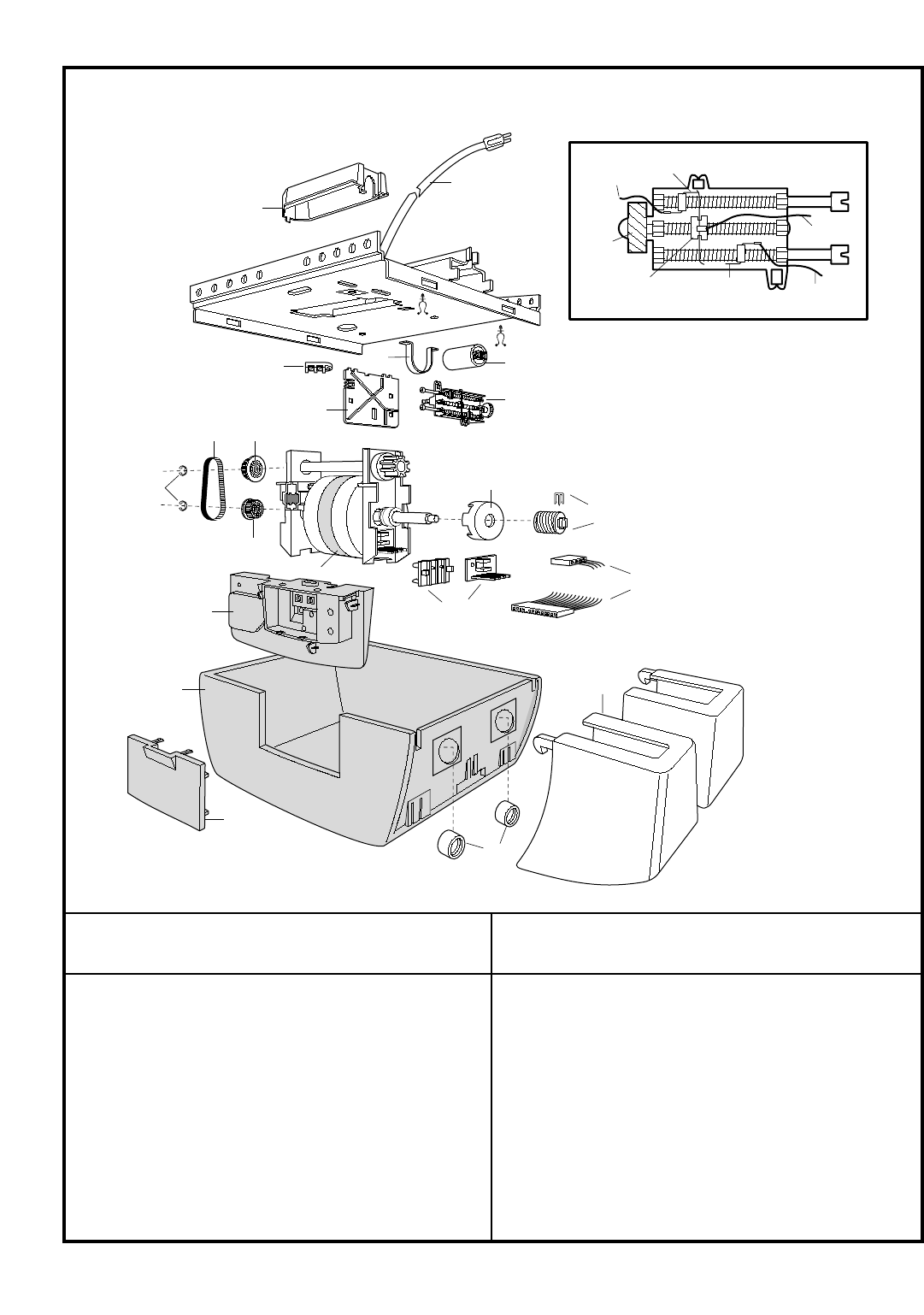

Repair parts, power unit..............................................33

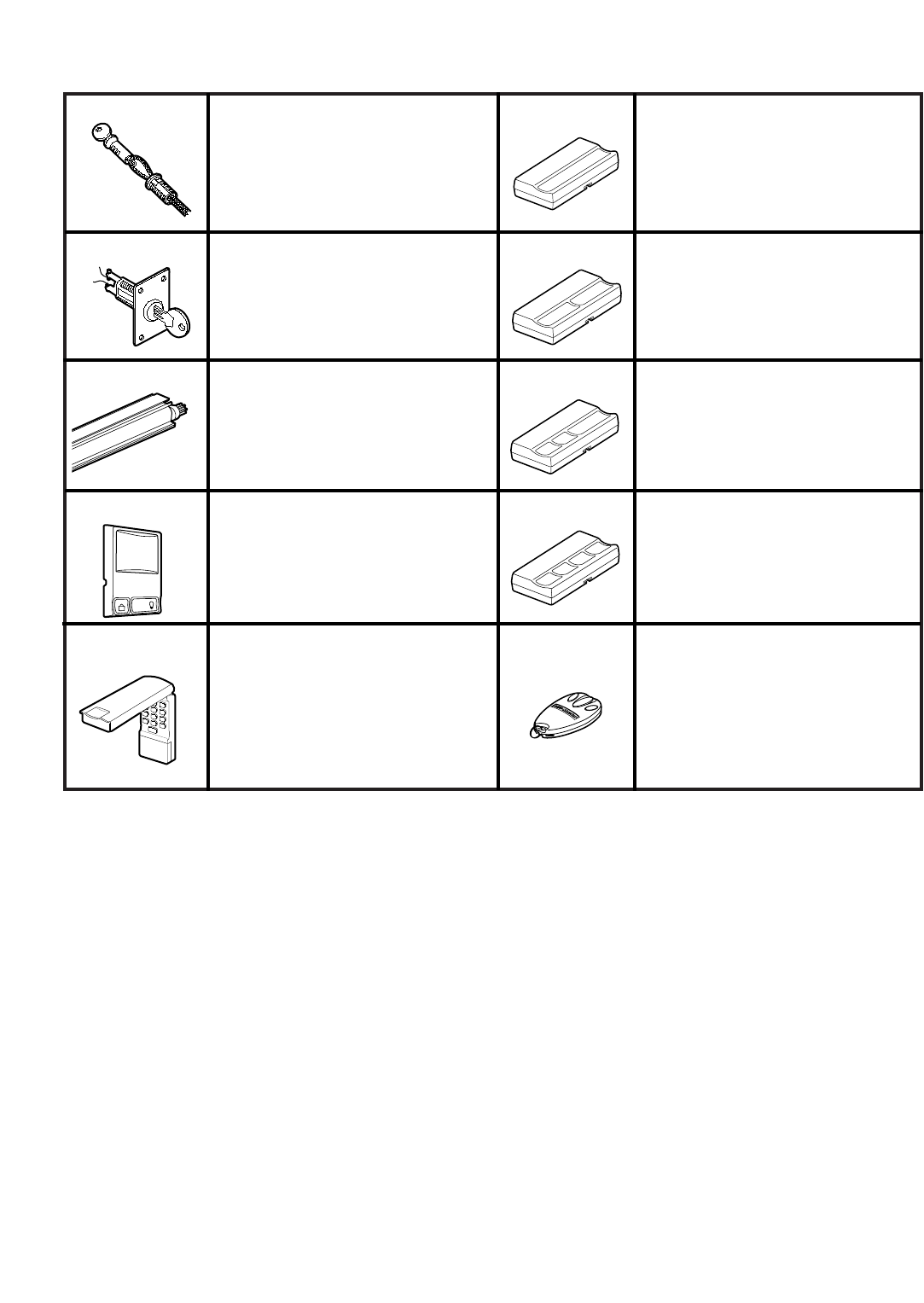

Accessories .................................................................34

Index ...........................................................................35

How to order repair parts............................................36

Warranty......................................................................36

When you see these Safety Symbols on the following pages, they will alert you to the possibility of serious injury

or death if you do not comply with the corresponding instructions. The hazard may come from something

mechanical or from electric shock. Read the instructions carefully.

When you see this Safety Symbol on the following pages, it will alert you to the possibility of damage to your

garage door and/or the garage door opener if you do not comply with the corresponding instructions. Read the

instructions carefully.

This garage door opener is designed and tested to offer safe service provided it is installed, operated, maintained

and tested in strict accordance with the safety instructions contained in this manual.

Mechanical Electrical

WARNING WARNING

CAUTIONCAUTION

Contents

An unbalanced garage door might not reverse when

required and someone under the door could be seriously

injured or killed.

If your garage door binds, sticks or is out of balance, call

for professional garage door service.

Garage doors, door

springs, cables, pulleys, brackets, and their hardware are

under extreme tension and can cause serious injury or

death.

Do not try to loosen, move or adjust them

yourself!

Ropes left on a garage door could cause someone to

become entangled and killed.

Remove all ropes

connected to the door before installing and operating the

opener.

To avoid damage to the garage door and opener, disable

locks before installing and operating the opener. Use a

wood screw or nail to hold locks in the "open" (unlocked)

position.

Operation at other than 120V 60 Hz will cause opener

malfunction and damage.

Identify the type and height of your door, any special

conditions that exist, and any additional materials that

may be required.

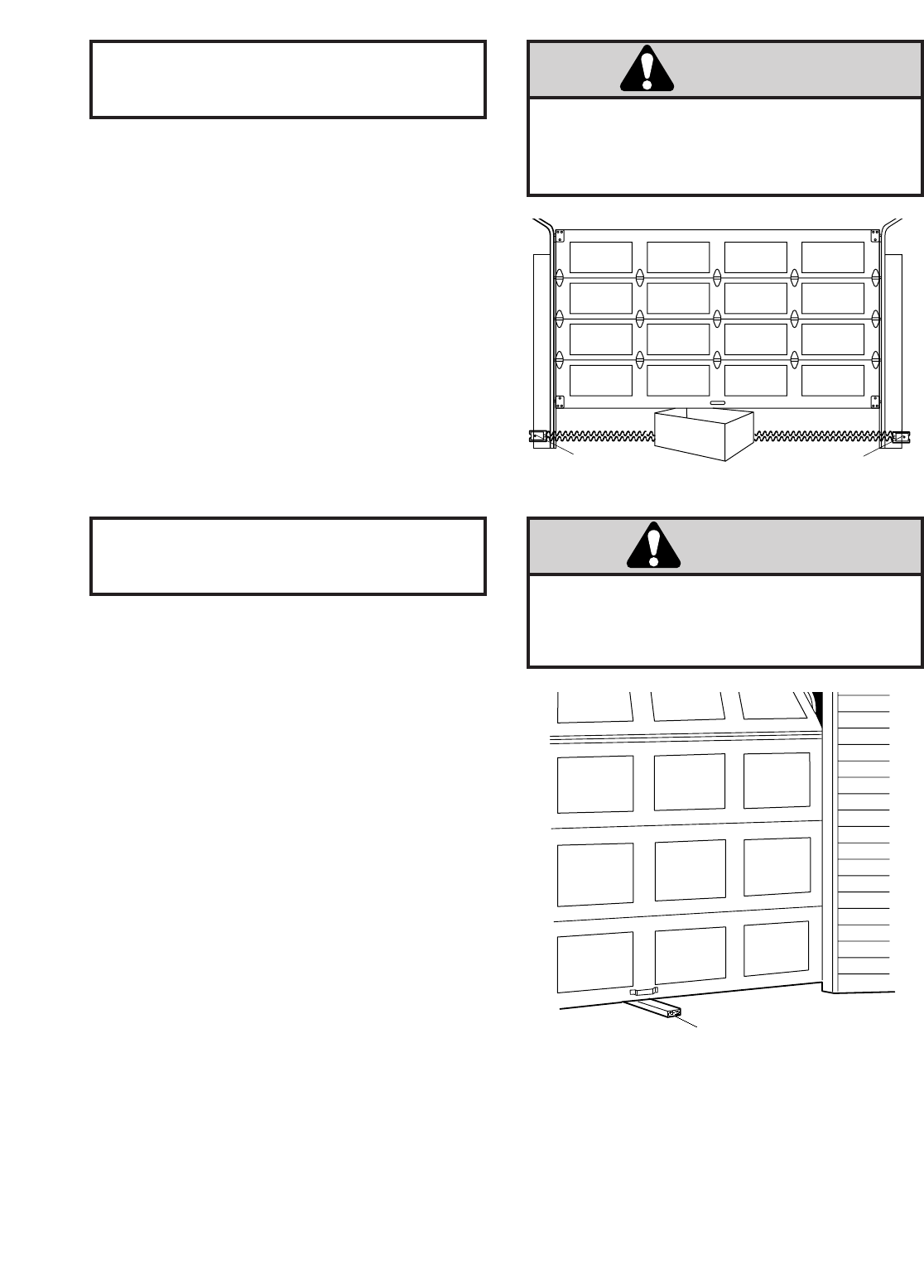

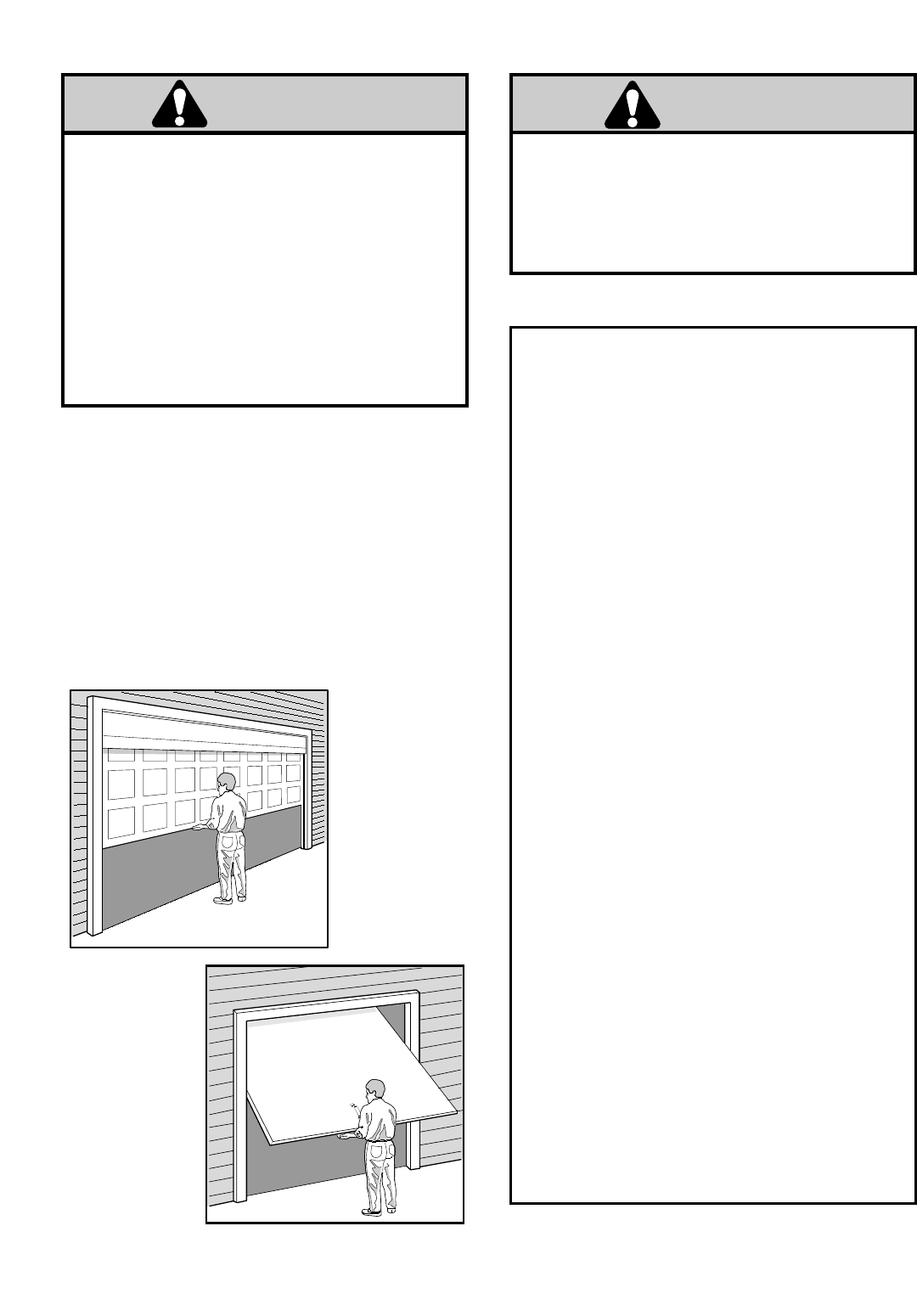

Test Your Door for Balance

Before you begin, complete the following test to make

sure your door is balanced, and is not sticking or

binding:

• Lift the door about halfway as shown. Release the door.

It should stay in place, supported entirely by its springs.

• Raise and lower the door to see if there is any binding

or sticking.

WARNING CAUTIONCAUTION

SECTIONAL DOOR

ONE-PIECE DOOR

Sectional

Door

One-Piece

Door

Safety Information and Precautions

Safety Reversing Sensor

Installation

Lag Screw #14-10 x 1-1/2" HH (4)

Hex Screw 1/4-20 x 1-1/2" (2)

Carriage Bolts 1/4" - 20 x 1/2" (4)

Screw #10 - 32 x 3/8" (4)

Lock Nut 1/4" - 20 (4)

Lock Nut #10 x 32 (4)

Wing Nut (2)

Insulated Staples (20)

Rail Assembly

Coupling Sleeve (1)

Hex Screw 1/4"-20 x 5/8" (4)

Nut 1/4" - 20 (4)

Opener Installation

Hex Screw 5/16"-18 x 7/8" (4)

Lag Screw 5/16"-9 x 1-5/8" (2)

Lag Screw 5/16"-18 x 1-7/8" (2)

Carriage Bolt 5/16"-18 x 2-1/2" (2)

Clevis Pin 5/16" x 2-3/4" (1)

Clevis Pin 5/16" x 1-1/4" (1)

Clevis Pin 5/16" x 1" (1)

Nut 5/16" - 18 (6)

Lock Washer 5/16" (6)

Screw 6AB x 1-1/4" (2)

Insulated Staples (10)

Ring Fastener (3)

Handle

Dry Wall Anchors (2)

Rope

Hardware Supplied

Straight Door

Arm Section

Curved Door

Arm Section

Header Bracket

CEILING MOUNT ONLY

Safety Reversing Sensor

Mounting Bracket

With Square Holes (2)

"C" Wrap (2)

Safety Reversing Sensor

Mounting Bracket

With Slot (2)

2-Conductor Bell Wire

White & White/Red

Sprocket Coupling

Light Lens

Rail Brackets

Remote Control

Transmitter Visor Clip

Rail

Assembly

Trolley

Safety Labels

and

Literature

(2) Safety Reversing Sensors

(1 Sending Eye and 1 Receiving Eye)

with

2-Conductor White & White/Black Bell Wire

attached

Door Bracket

SECURITY✚

3-Channel Remote Control

Multi-Function

Door Control Panel

LIGHT

LOCK

Your garage door opener is packaged in two cartons which contain the power unit and parts illustrated below.

Accessories will depend on model purchased. If anything is missing, carefully check the packing material. Parts may be

"stuck" in the foam. KEEP THE FOAM INTACT (see page 6). Hardware is listed on page 3.

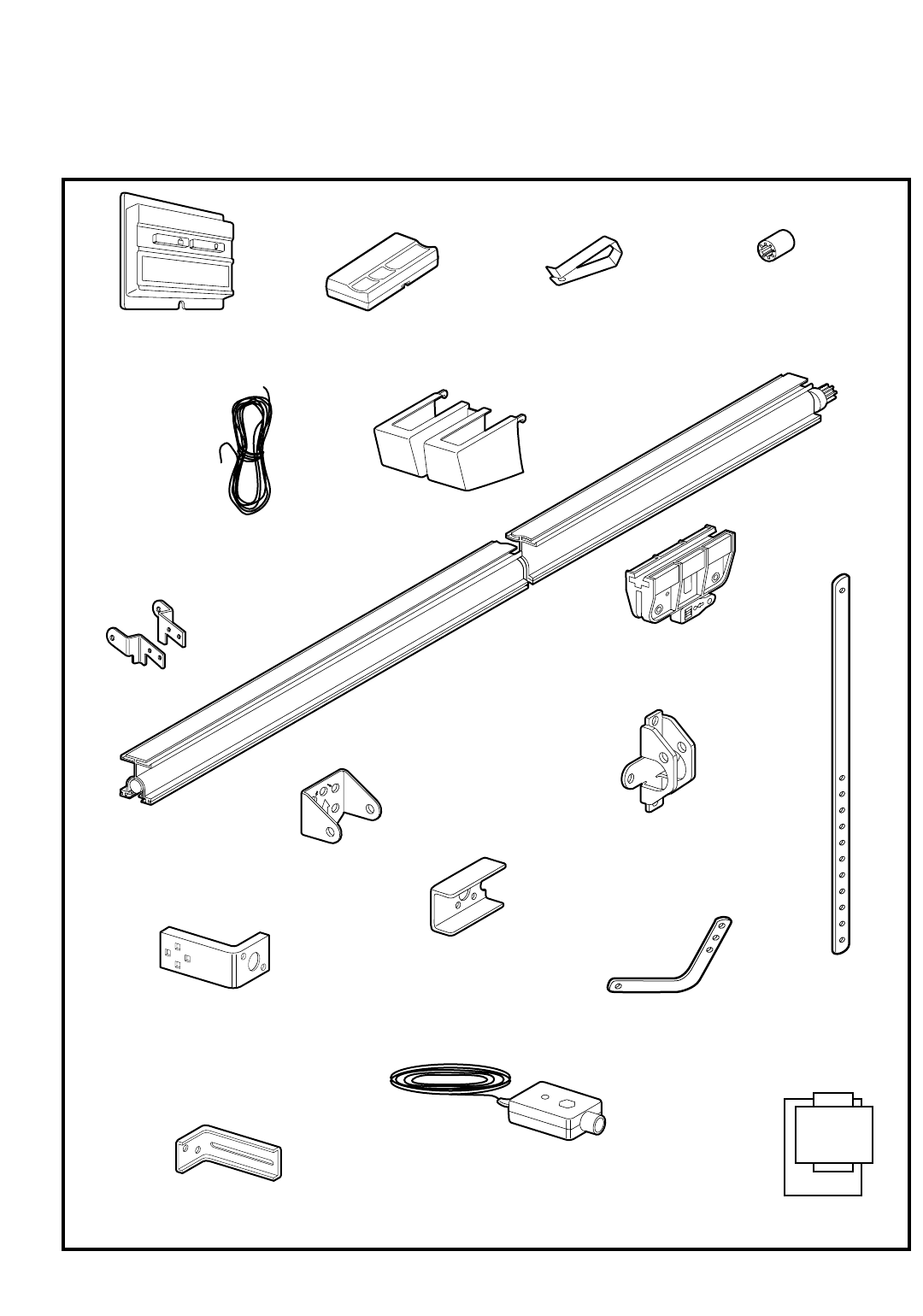

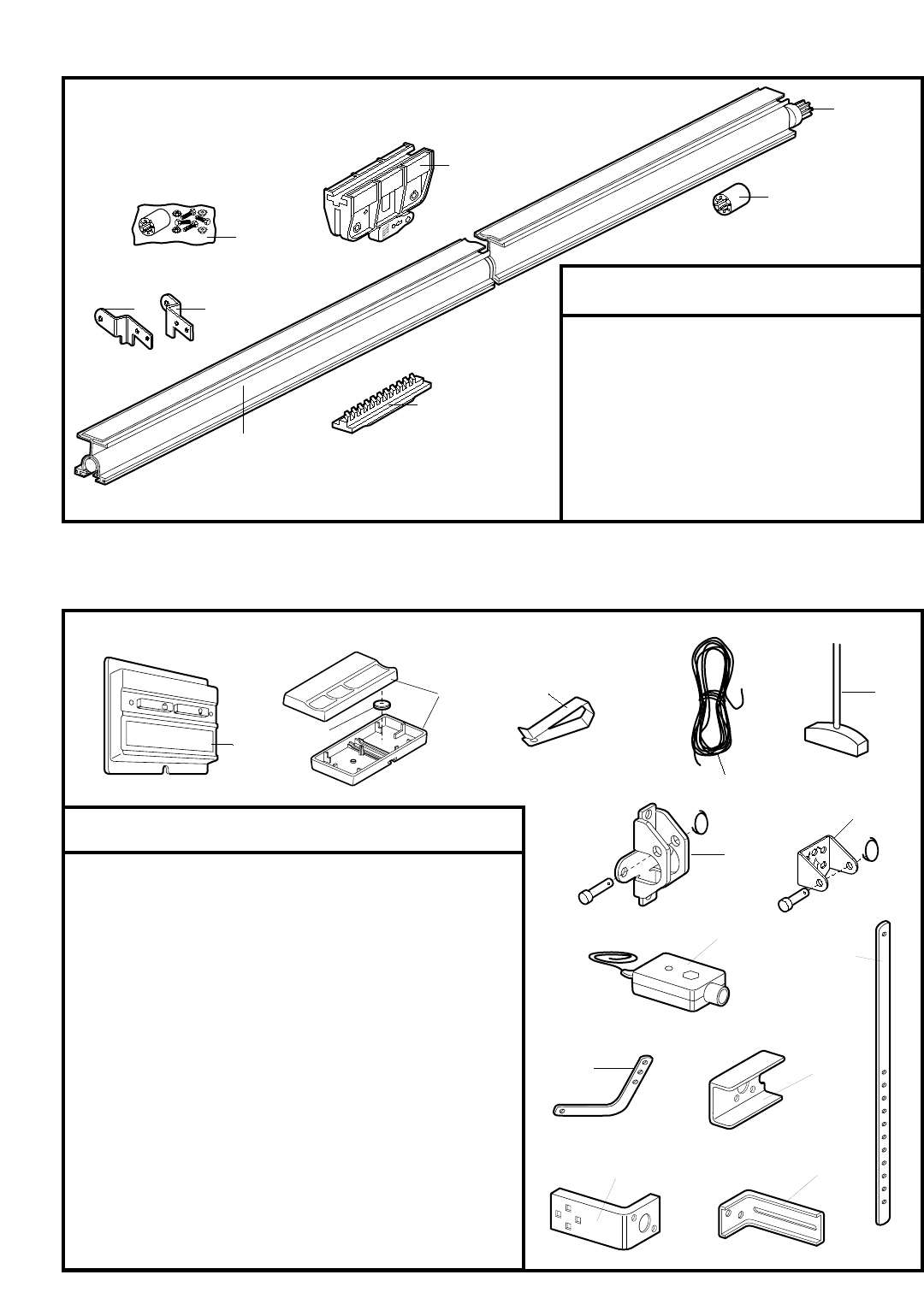

Carton Inventory

You may find it helpful to refer back to this page as you proceed with the installation of your opener.

Safety Reversing Sensor

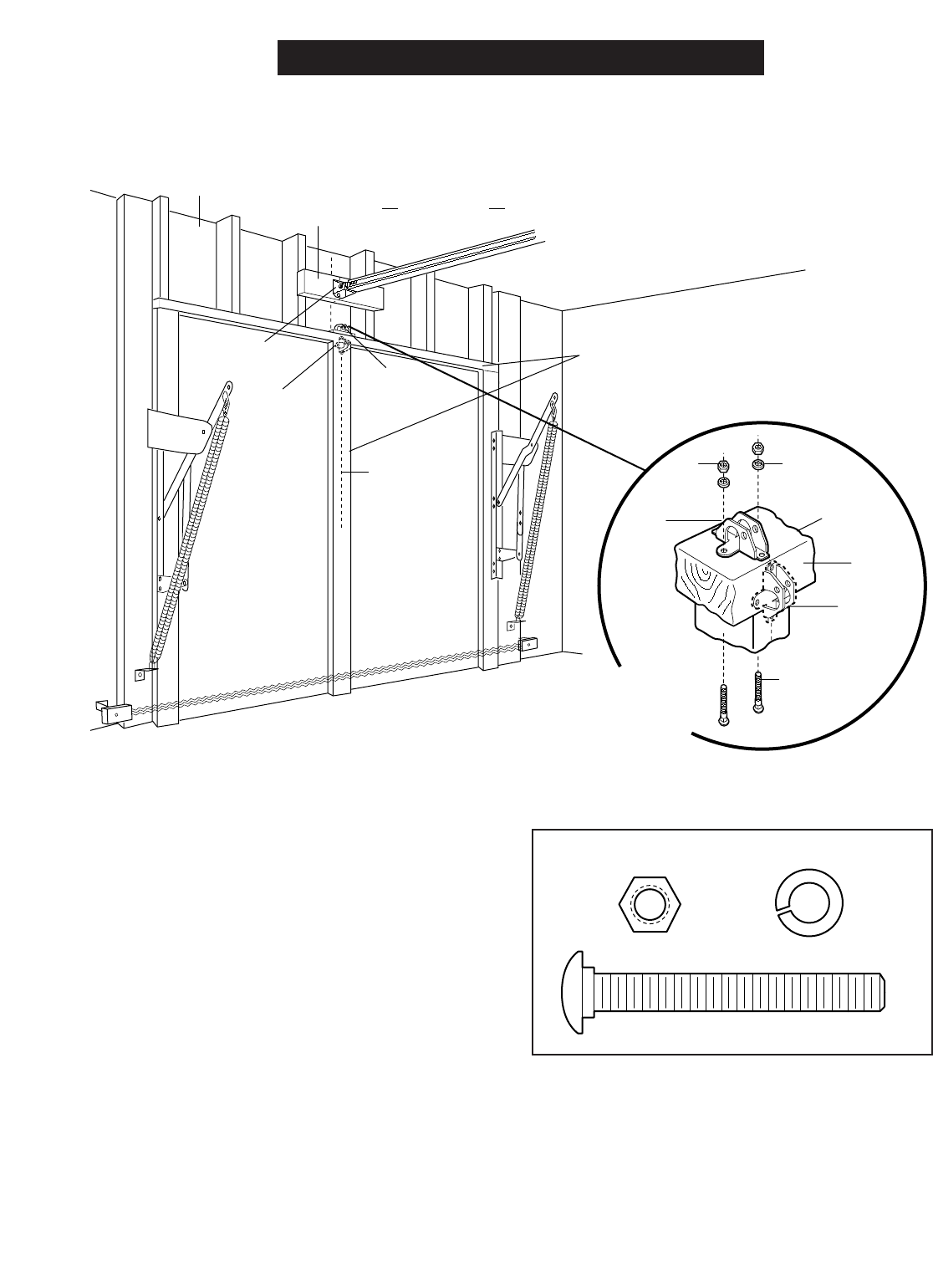

Horizontal and vertical reinforcement

is needed for lightweight garage doors

(fiberglass, steel, aluminum, door with glass panels, etc.).

See page 20 for details.

Support bracket &

fastening hardware

is required.

See page 13.

— — — — — — — —

Door Center

Header Wall

Safety

Reversing

Sensor

Floor must be level

across width of door

FINISHED CEILING

Extension Spring

Torsion Spring

Access Door

OR OR

One-Piece Door-Extension Spring

Header

Wall

Door

Track

Before you begin, survey your garage area to see whether any of the conditions below apply to

your installation.

SECTIONAL Door or

ONE-PIECE Door with Track Installation

Safet

Reversin

Sensor

FINISHED CEILING

Support bracket

& fastening

hardware is required.

See page 13.

Safety

Reversing

Sensor

Header

Wall

Access Door

Gap between floor and bottom of

door must not exceed 1/4".

ONE-PIECE Door Without Track Installation

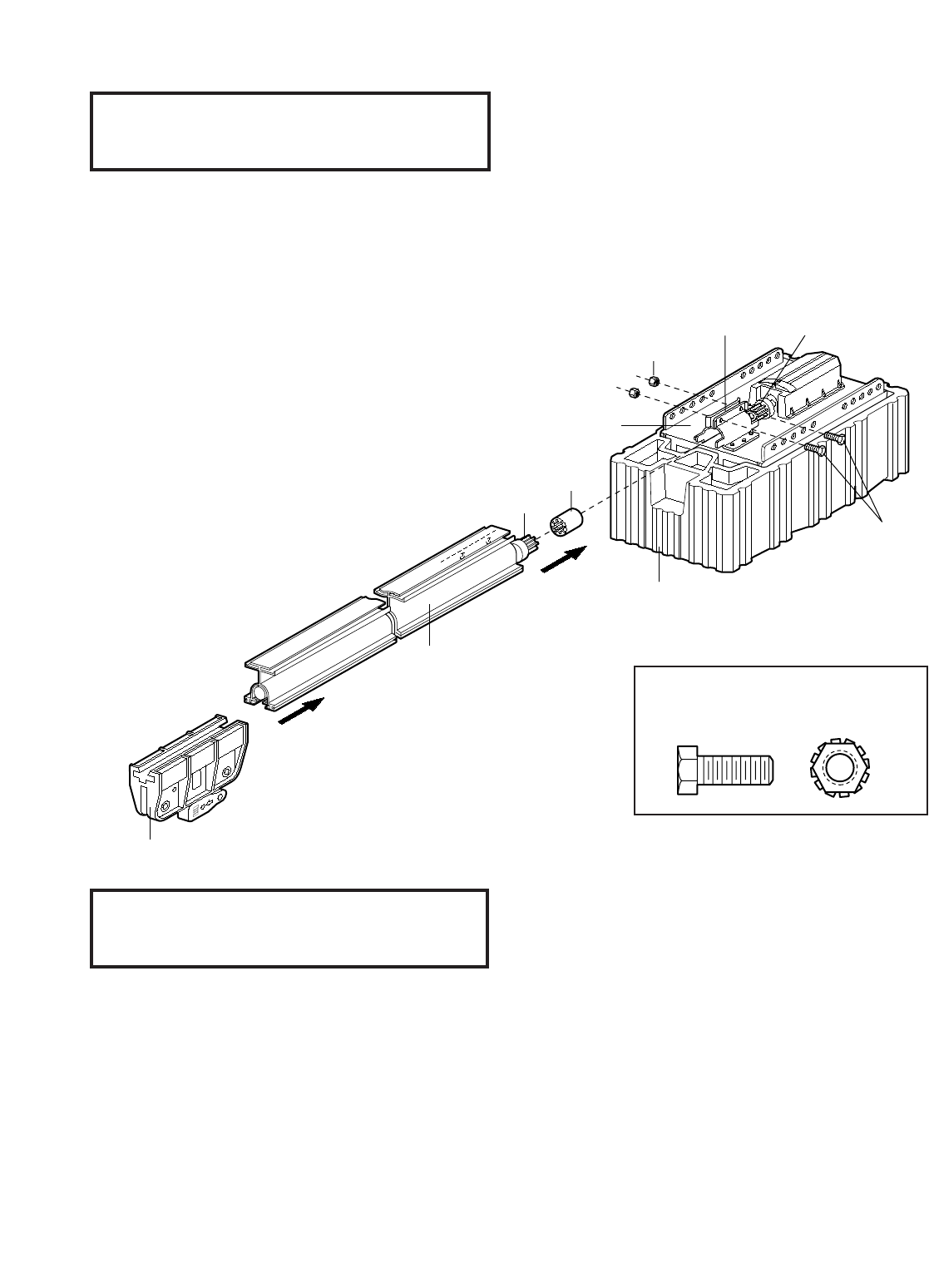

ASSEMBLY STEP 1

Fasten the Rail To the Power Unit

Rail

Sprocket

Rail

Assembly

Trolley

Coupling

Rail/Power Unit

Bracket

Lock Nuts

1/4"-20

Power Unit

Sprocket

Opener

Chassis

Foam Packaging

Hex Screws

1/4"-20x5/8"

ASSEMBLY STEP 2

Install the Trolley

As illustrated above, slide the trolley onto and along the

bottom of the rail until it snaps firmly in place. Be certain

to install it facing correctly: the trolley release arm must

be horizontal (lock position), with its arrow pointed

away from the power unit.

Assembly Section: Pages 6 - 7

1/4" - 20

Lock Nut

1/4" - 20 x 5/8"

Hex Screw

Hardware Shown Actual Size

• Working on a level surface, align the rail assembly with

the power unit, as shown.

• Slip the coupling over the rail sprocket.

• Slide the rail through the power unit bracket until the

coupling fits securely over the power unit sprocket.

• Align the two screw holes in the rail with those in the

power unit bracket. Insert two 1/4"-20x5/8" hex screws

and lock nuts. Tighten securely with a 7/16" socket

wrench.

NOTE: To aid in assembly and installation, replace

the foam packing around the power unit. Remove it

after Installation Step 5.

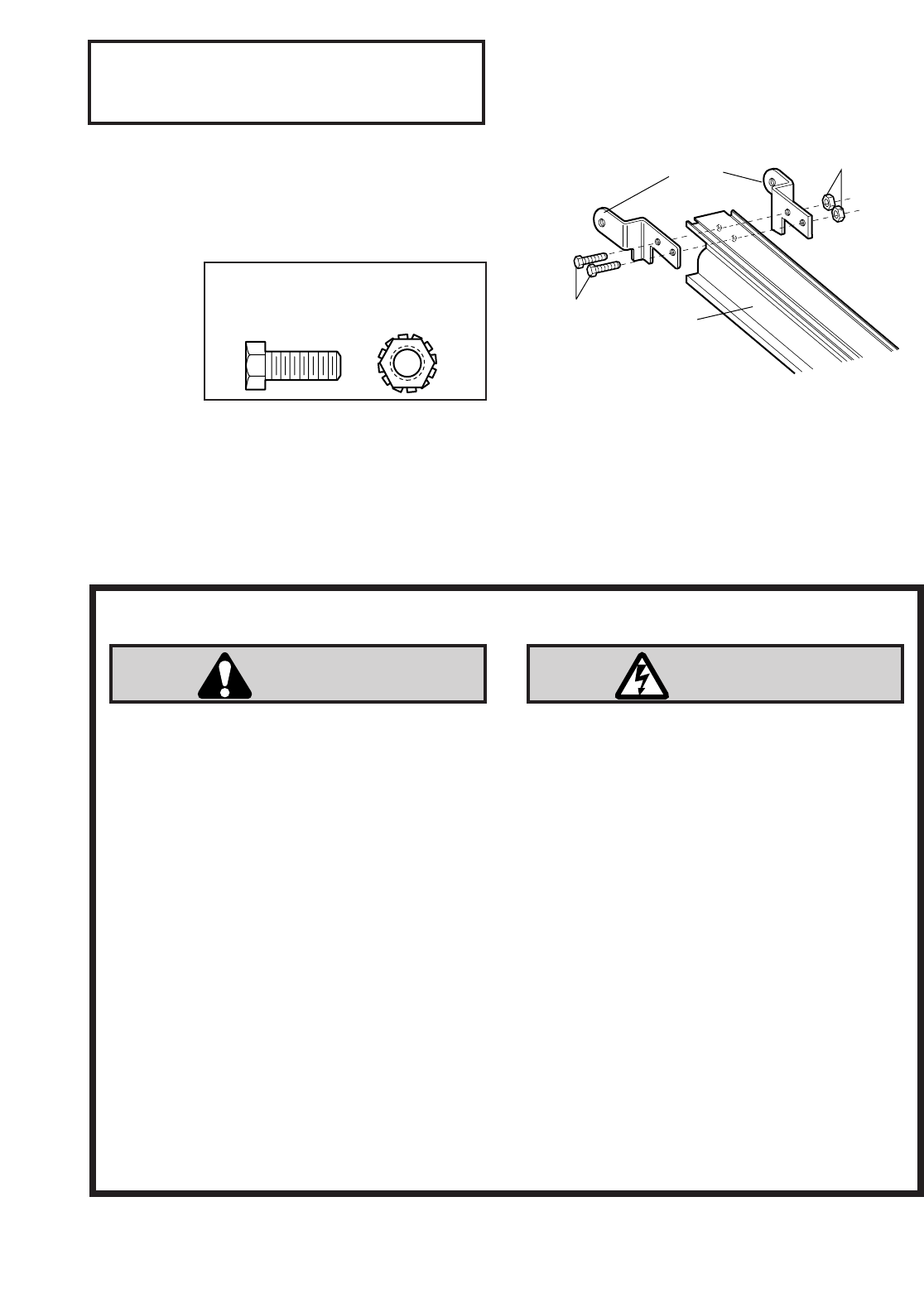

ASSEMBLY STEP 3

Attach the Rail Brackets

IMPORTANT INSTALLATION INSTRUCTIONS

To reduce the risk of severe injury or death to persons:

1. READ AND FOLLOW ALL INSTALLATION INSTRUCTIONS

2. Install only on a properly balanced and lubricated garage door. An improperly balanced door may not

reverse and could result in severe injury or death. Repairs to cables, spring assemblies and other

hardware must be made by a professional service person before installing opener.

3. Disable all locks and remove all ropes connected to the garage door before installing the opener. Ropes

connected to a garage door can cause entanglement and death.

4. If possible, install door opener 7 feet or more above floor with the manual release handle mounted 6

feet above the floor.

5. Do not connect the opener to power source until instructed to do so.

6. Locate the Door Control within sight of the door at a minimum height of 5 feet where small children

cannot reach and away from all moving parts of the door.

7. Install the User Safety Instruction Label on the wall adjacent to the control button and the

Maintenance Instruction Label in a prominent location on the inside of the garage door.

8. Upon completion of the installation, the door must reverse when it comes in contact with a one-inch

high object or a 2x4 laid flat on the floor.

9. Do not wear watches, rings or loose clothing while installing or servicing an opener. Jewelry or loose

clothing can be caught in the mechanism of the garage door or the opener.

• Align rail brackets to end of rail assembly, as shown.

• Insert two 1/4"-20 x 5/8" hex screws and lock nuts.

Tighten securely with a 7/16" socket.

Rail

Brackets

Rail

1/4"-20

Lock Nuts

1/4"-20x5/8

Hex

Screws

WARNING WARNING

You have now finished assembling your garage door opener. Please read the following warnings

before proceeding to the installation section:

1/4" - 20

Lock Nut

1/4" - 20 x 5/8"

Hex Screw

Hardware Shown Actual Size

• Open your door to the highest point

of travel as shown. Draw an inter-

secting horizontal line on the header

wall 3" above the high point. This

height will provide travel clearance

for the top edge of the door.

Header

Wall

Ceiling

Track

Highest Point

of Travel

Door

Track

3" Header

Wall

Highest Point

of Travel

Proceed to Step 2, page 10.

Vertical

Guideline

Finished

Ceiling

Vertical

Guideline

Header

Wall 2x4 Structural

Supports

SECTIONAL Door or

ONE PIECE Door with Track

• Close the door and mark the inside

vertical centerline of the garage door.

• Extend the line onto the header wall

above the door.

Remember, you can fasten the header

bracket within 2 feet of the left or right

of the door center only if a torsion

spring or center bearing plate is in the

way; or you can attach it to the ceiling

(refer to page 10) when clearance is

minimal. (It may be mounted on the

wall upside down if necessary, to gain

approximately 1/2".)

If you need to install the header bracket on

a 2x4 (on wall or ceiling), use lag screws

(not supplied) to securely fasten the 2x4 to

structural supports as shown here and on

page 9.

Installation Section: Pages 8 – 23

Sectional door

with curved track One-piece door

with horizontal track

Installation Step 1

Determine Header Bracket Location

Installation procedures vary according to garage

door types. Follow the instructions which apply to

your door.

If the header bracket is not rigidly fastened to a

structural support on the header wall or ceiling, the

safety reverse system may not work properly (see page

26).

The door might not reverse when required, and

could cause serious injury or death.

The garage door springs, cables, pulleys, brackets and

their hardware are under extreme tension.

Do not attempt

to loosen, move or adjust them yourself. Serious

personal injury or death could result.

Call for

professional garage door service.

WARNING

Header Wall Vertical

Centerline

Vertical

Centerline of

Garage Door

2x4

Unfinished

Ceiling

Structural Supports

2x4

Header Support

OPTIONAL CEILING MOUNT

FOR HEADER BRACKET

• Close the door and mark the inside

vertical centerline of your garage

door. Extend the line onto the

header wall above door.

If headroom clearance is minimal,

you can install the header bracket

on the ceiling. See page 10.

• If you need to install the header

bracket on a 2x4 (on wall or

ceiling), use lag screws (not

supplied) to securely fasten the 2x4

to structural supports as shown.

EXAMPLE

Distance from top of door

(at highest point of travel) to floor................................92"

Actual height of door...................................................-88"

Remainder.......................................................................4"

Add...............................................................................+8"

Bracket height on header wall....................................=12"

(Measure UP from top of CLOSED door.)

Proceed to Step 2, page 10.

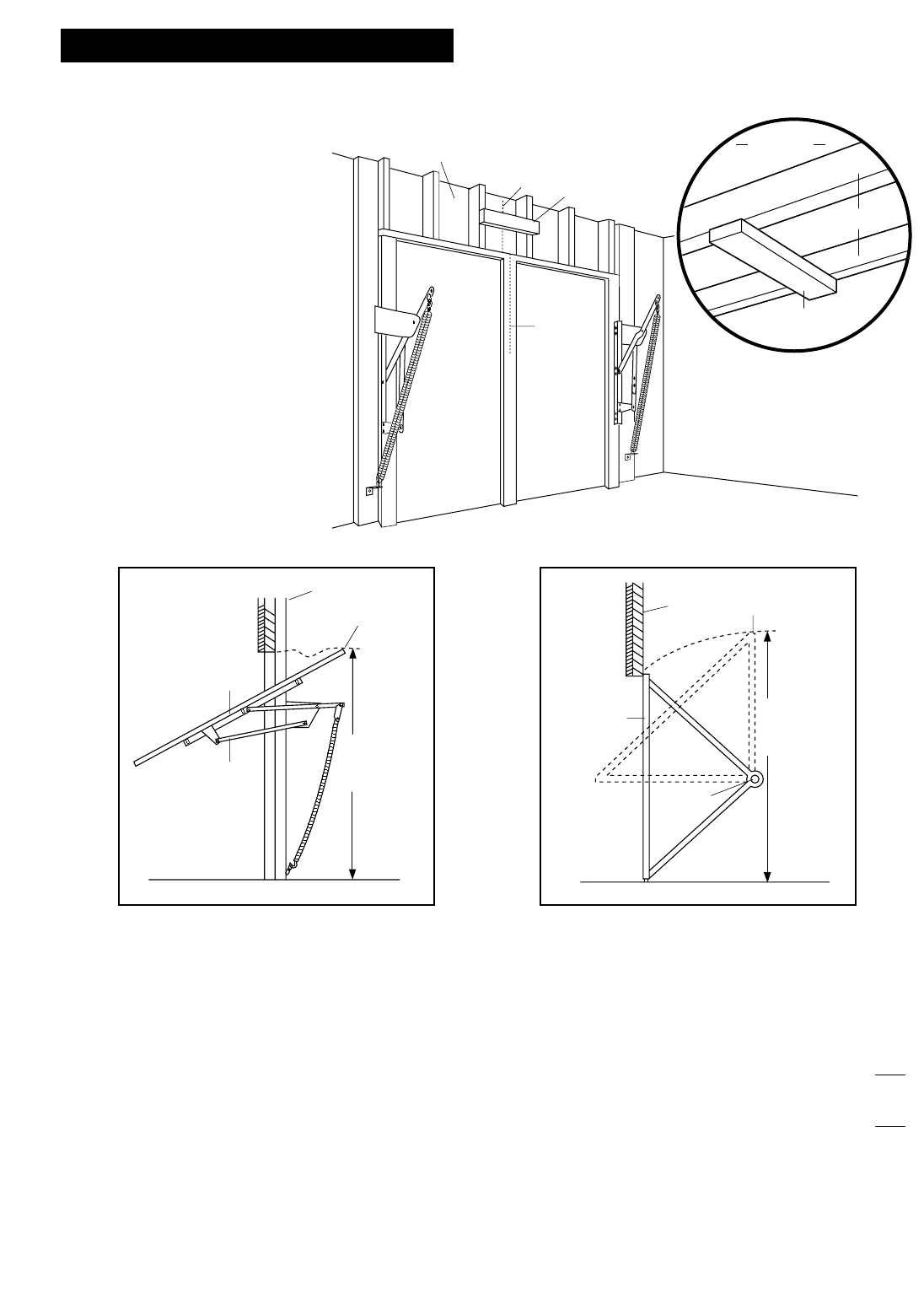

ONE-PIECE Door Without Track

• Open your door to the highest point of travel as shown.

Measure the distance from the top of the door to the

floor. Subtract the actual height of the door. Add 8" to

the remainder. (See Example).

• Close the door and draw an intersecting horizontal line

on the header wall at the determined height.

If the total number of inches exceeds the height

available in your garage, use the maximum height

possible, or refer to page 10 for ceiling installation.

Door

Highest Point

of Travel

Header

Wall

Pivot

Distance

Header Wall

Highest Point

of Travel

Door

Floor Floor

Distance

Jamb

Hardware

One-piece door without track

pivot hardware

One-piece door without track

jamb hardware

Read the Safety Instructions on page 8. They also apply to doors without tracks.

Lag Screws

5/16"x9x1-5/8"

Highest

Point of Travel

(of Garage Door)

Vertical

Center

Line

Header

Wall

Garage

Door

CEILING MOUNT ONLY

Wall

Mounting Holes

Optional

Wall Mounting

Holes

The nail hole is for

positioning only.

You must use lag screws

to mount the header bracket.

CEILING MOUNT ONLY

Door

Spring

Header

Bracket

2x4

Structural

Support

Vertical

Center

Line

You can attach the header bracket either to the wall

above the garage door, or to the ceiling. Follow the

instructions which will work best for your particular

requirements.

Fastening the Header Bracket to the Wall

• Center the bracket on the vertical guideline with the

bottom edge of the bracket on the horizontal line as

shown (with the arrow pointing toward the ceiling).

• Mark either set of bracket holes (do not use the holes

designated for ceiling mount). Drill 3/16" pilot holes

and fasten the bracket securely to a structural support

with the hardware provided.

• Extend the vertical guideline onto the ceiling as shown.

• Center the bracket on the vertical mark, no more than 6"

from the wall. Make sure the arrow is pointing toward

the wall. The bracket can be mounted flush against the

ceiling when clearance is minimal.

• Mark holes designated for ceiling mount only. Drill

3/16" pilot holes and fasten bracket securely to a

structural support with the hardware provided.

Fastening the Header Bracket to the Ceiling

Installation Step 2

Install the Header Bracket

CEILING MOUNT ONLY

Ceiling Mounting Holes

The nail hole is for

positioning only.

You must use lag screws

to mount the header bracket.

Lag Screws

5/16"x9x1-5/8"

Garage

Door

Vertical

Center Line

Header

Wall

– Finished Ceiling –

Header

Bracket

Maximum

Vertical

Center Line

Door

Spring

Lag Screw

5/16"-9 x 1-5/8"

Hardware Shown Actual Size

Header Bracket

Rail Bracket

Foam Packaging

Opener Carton or

Temporary

Support

Header Wall

Garage

Door

Rail

Clevis Pin

5/16" x 2-3/4" Ring Fastener

Clevis Pin

5/16"x2-3/4 "

Ring Fastener

Header Bracket

Rail

Bracket

Rail

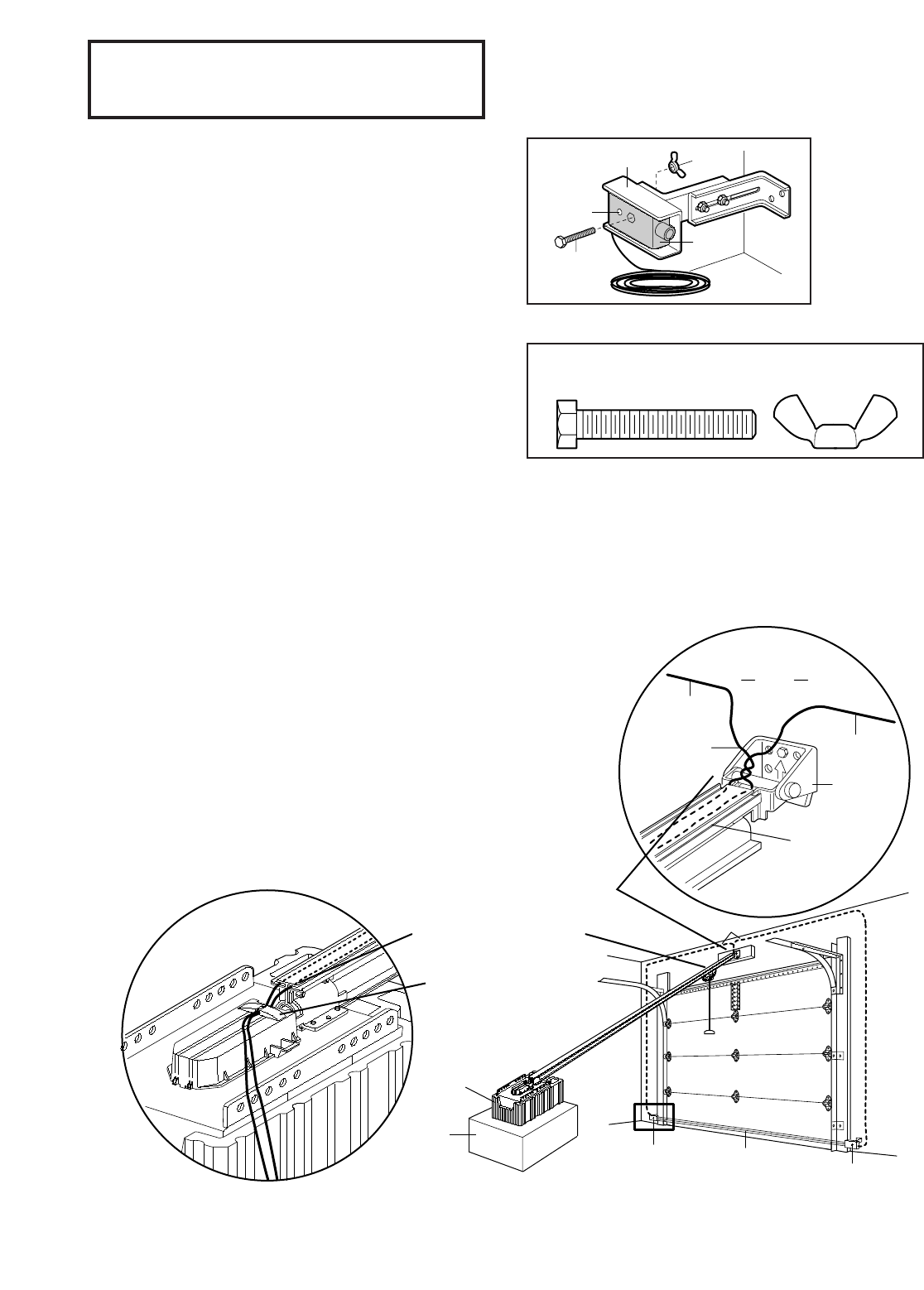

• Position the opener on the garage floor below the

header bracket. Use packing material as a protective

base.

If the door spring is in the way you’ll need help. Have

someone hold the opener securely on a temporary

support to allow the rail to clear the spring.

• Position the rail bracket against the header bracket.

• Align the bracket holes and join with a clevis pin as

shown.

• Insert a ring fastener to secure.

Installation Step 3

Attach the Rail to the Header Bracket

Hardware Shown Actual Size

The safety reversing sensor must be connected and

aligned correctly before the garage door opener will

move in the down direction. This is a required safety

device and cannot be disabled.

Installation procedures are the same for sectional and

one-piece doors.

Be sure power to the opener is disconnected.

The sending eye transmits an invisible light beam to the

receiving eye. The units can be installed on either side of

the garage door as long as the sun never shines directly

into the receiving eye lens.

Look at the label on the connector end of each case to

identify the sensors.

The brackets must be connected and fastened so that the

sending and receiving eyes face each other as shown.

If an obstruction breaks the light beam while the garage

door is closing, the door will stop and reverse to full open

position and the opener lights will flash for 5 seconds.

The brackets must be securely fastened to a solid surface

such as the studs on either side of the door, or add a piece

of wood at each location if installing in masonry

construction.

The invisible light beam path must be unobstructed. No

part of the garage door (or door tracks, springs, hinges,

rollers or other hardware) can interrupt the beam while

the door is closing. If it does, use a piece of wood to build

out each sensor mounting location to the minimum depth

required for light beam clearance.

Without a properly working safety reversing sensor,

persons (particularly children) could be injured or killed

by a closing garage door.

Read and follow all

instructions.

To protect small children, install the safety reversing

sensor so that the beam will be no higher than 4"-6"

above the garage floor.

Disconnect power to the garage door opener before

installing the safety reversing sensor.

Invisible Light Beam

Protection Area

Sensor

Beam

4-6" max.

above floor

Sensor

Beam

4-6" max.

above floor

Facing the door from inside the garage

The Protector System®

Information you'll need before you begin the installation of the safety reversing sensor

WARNING

#14-10x1-1/2" HH

Lag Screw

#10-32x3/8"

Screw 1/4"-20

Lock Nut

#10x32

Lock Nut Staples 1/4"-20x1/2"

Carriage Bolts

Installation Step 4

Install the Safety Reversing Sensor

(Receiving and Sending Eyes)

Mounting Bracket

With Square Holes

#10-32x3/8"

Screws

"C" Wrap

#10 - 32

Lock Nuts

Mounting Bracket

with Slot

1/4" - 20

Lock Nuts

#14-10 x 1-1/2" HH

Lag Screws 1/4-20 x 1/2" Carriage Bolts

(with square shoulder)

Inside

Garage

Wall

"C" Wrap

Mounting Bracket

with Square Holes

Inside

Garage

Wall

"C" Shaped

Wrap

Mounting Bracket

with Square Holes

1/4-20 x 1/2"

Carriage Bolts

1/4 " Lock Nuts

Drill 3/8"

Holes

Garage

Door Track

Garage DOOR Track Installation

Garage WALL or DOOR TRACK Installation

Garage WALL Installation

Figures 1, 2 and 3 show recommended assembly of

bracket(s) and "C" wrap based on the wall installation of

the sensors on each side of the garage door as shown on

page 12, or on the garage door tracks themselves.

Figures 4 and 5 are variations which may fit your

installation requirements better. Make sure the wraps

and brackets are aligned so the sensors will face each

other across the garage door.

Garage Wall or Door Track Installation Procedure

1. Fasten the "C" wraps to the mounting brackets having

square holes, using the hardware shown in Figure 1.

Garage Wall Installation Procedure

2. Connect each assembly to a slotted bracket, using the

hardware shown in Figure 2. Note alignment of

brackets for left and right sides of the door.

3. Finger tighten the lock nuts.

4. Use bracket mounting holes as a template to locate and

drill (2) 3/16" diameter pilot holes on both sides of the

garage door, 4"-6" above the floor but not exceeding

6" (see warning on page 12).

5. Attach bracket assemblies with #14-10x1-1/2" lag

screws as shown in Figure 2.

6. Adjust right and left side bracket assemblies to the

same distance out from mounting surface. Make sure

all door hardware obstructions are cleared. Tighten the

nuts securely.

Garage Door Track Installation Procedure

Discard slotted bracket. Drill 3/8" holes in each track and

fasten securely with hardware as shown in Figure 3.

"C" Wrap

Inside

Garage

Wall

Mounting Bracket

with Square Holes

Garage

Floor

Mounting Bracket

with Slot

Alternate Wall Mount

Sensor

with wire

Indicator Light

Inside

Garage

Wall

Alternate Floor Mount

Mounting Bracket

with Slot

Attach with

concrete anchors

(not provided)

Mounting Bracket

with Square Holes

"C" Wrap

Sensor with wire

Garage

Floor

Hardware Shown Actual Size

Figure 1

Figure 4 Figure 5

Figure 3

Figure 2

Figure 6

1/4-20 x 1-1/2"

Hex Bolt

"C" Wrap

Sensor

with Wire

Wing

Nut

Indicator

Light

1/4-20 x 1-1/2"

Hex Bolt Wing Nut

Hardware Shown Actual Size

Installation Step 4 (Continued)

Install the Safety Reversing Sensor

Invisible Light Beam

Protection Area Sensor

Sensor

Bell Wire

Foam

Packaging

Carton

2. Run wires along channels

to power unit and pull taut.

1. Run wires from sensors to end of rail

at the door header. Cross & twist here to

help contain wires in channels on

top

of rail.

3. Thread wires through tabs

on top of Drive Shaft Cover.

4. With screwdriver blade,

tuck wires snugly into channels.

Header

Bracket

Header

Wall

Sensor

Wire

Twist

Wires Sensor

Wire

Rail

Channel

Figure 7

7. Center each sensor unit in a “C”- wrap with lenses

pointing toward each other across the door (see

Figure 6).

8. Secure sensors with the hardware shown. Finger

tighten the wing nut on the receiving eye to allow for

final adjustment. Securely tighten the sending eye

wing nut.

Recommended Wire Routing

1. Using insulated staples, run the wires from both

sensors to the rail at the door header (see Figure 7).

2. Cross and twist the two wires where they meet the rail

(see inset A). Run the wires inside the channels at the

top of the rail, along each side, to the power unit and

pull taut (see inset B). Do not use the lower (trolley)

channels.

NOTE: If your access door is near the garage door,

you may choose to install the door control at this

time and run the door control wire along the rail

with the sensor wires. Use one rail channel for the

wall control wire and the other channel for both

sensor wires. If you choose this option, follow

instructions 1-3 on page 17 now.

3. Thread the wires through the tabs on top of the drive

shaft cover.

4. With your screwdriver tip, tuck the wires snugly into

the rail channels. You will complete the wiring in

Installation Step 7.

Installation Step 5

Position the Opener

Follow instructions which apply to your door

type as illustrated.

To prevent damage to steel, aluminum, fiberglass or

glass panel doors, do not rest the opener on the door

without using a 2x4.

SECTIONAL Door or

ONE-PIECE Door with Track

A 2x4 laid flat is convenient for setting an ideal door-

to-rail distance.

• Raise the opener onto a stepladder.

You will need help at this point if the ladder is not tall

enough.

• Open the door all the way and place a 2x4 laid flat on

the top section beneath the rail.

If the top panel hits the trolley when you raise the door,

pull down on the trolley release arm to disconnect the

inner and outer sections. The trolley can remain

disconnected until Step 12 is completed.

Rail 2x4

Door Foam

Packaging

ONE-PIECE Door without Track

• With the door fully open and parallel to the floor,

measure the distance from the floor to the top of the

door.

• Using a stepladder as a support, raise the opener to the

same distance as the door from the floor (it will be at a

slight angle as shown).

• The top of the door should be level with the top of the

opener. Do not position the opener more than 3" above

this point.

Top of Opener

Header

Bracket

Top of Door

Foam

Packaging

CAUTIONCAUTION

Trolley

Release Arm

Installation Step 6

Hang the Opener

Two representative installations are shown. Yours

may be different. Hanging brackets should be angled,

Figure 1, to provide rigid support. On finished ceilings,

Figure 2, attach a sturdy metal bracket to structural

supports before installing the opener. The bracket and

fastening hardware are not supplied.

• Measure the distance from each side of the opener to

the structural support.

• Cut both pieces of the hanging bracket to required

lengths.

• Drill 3/16" pilot holes in the structural supports.

• Attach one end of each bracket to a support with

5/16" - 18x1-7/8" lag screws.

• Fasten the opener to the hanging brackets with

5/16" - 18x7/8" screws, lock washers and nuts.

• Check to make sure the rail is centered over the door

(or in line with the header bracket if the bracket is not

centered above the door).

• Remove the 2x4. Operate the door manually. If the

door hits the rail, raise the header bracket.

Measure

Distance

Lag Screws

5/16"- 18x1-7/8"

Bracket

(Not Supplied)

Lag Screws

5/16"-18x1-7/8"

(Not Supplied)

5/16"-18x7/8" Screw

5/16" Lock Washer

5/16"-18 Nut

— FINISHED CEILING —

5/16"-18x7/8"

Hex Screws

5/16" Lock Washers

5/16"-18 Nuts

Hidden

Support

5/16"-18x7/8" Screw

5/16" Lock Washer

5/16"-18 Nut

Structural

Supports

CONTROL

CENTER

CONTROL

CENTER

Preferred Range of

Bracket Placement

Preferred Range of

Bracket Placement

The opener could fall and injure someone if it is not

properly secured.

Fasten the opener securely to

structural supports of the garage.

Figure 1

Figure 2

Lag Screw

5/16"-18 x 1-7/8"

Hex Screw

5/16"- 18 x 7/8" Nut 5/16" - 18 Lockwasher 5/16"

Hardware Shown Actual Size

WARNING

Door Control Panel

Terminal Screws

RED WHITE

Installation Step 7

Install the Door Control

and Connect all Wiring

Children operating or playing with a garage door opener

can injure themselves or others.

The garage door could

close and cause serious injury or death.

Install the door

control (or any additional push buttons) out of the reach

of children and away from all moving parts of the door

and door hardware,

but where the garage door is visible.

Do not allow children to operate the push button(s) or the

remote control transmitter(s).

A moving garage door could injure someone under it.

Activate the opener only when the door is properly

adjusted, you can see it clearly, and there are no

obstructions to door travel.

Install Door Control

Locate the door control within sight of the door at a

minimum height of 5 feet where small children cannot

reach, and away from all moving parts of the door and

door hardware.

1. Strip 1/4" of insulation from one end of the bell wire

and connect it to the two screw terminals on the back

of the door control by color: white to 2 and white/red

to 1 (see Figure 1).

2. Fasten the Multi-Function Door Control uses

6ABx1-1/4" screws. If installing into drywall, drill

5/32" holes and use the anchors provided.

3. Run the bell wire up the wall and across the ceiling to

the opener. Use insulated staples to secure the wire in

several places. Be careful not to pierce the wire with a

staple, creating a short. If your access door is near the

garage door, you may run this wire with the Safety

Reversing Sensor wires along the top of the rail. See

page 14.

4. Remove the Control Center door on the right panel of

the opener to access the terminal screws.

Connect Door Control and Sensor Wiring

5. Thread all wires through the opening at the base of the

drive shaft cover (see Figure 2).

6. Insert the remaining wire through the hole in the power

unit and strip 1/4" of insulation from each set of wires.

7. Connect the door control wire to the opener terminal

screws: white to 2 and white/red to 1. (See Figure 3.)

8. Separate the sensor white and white/black wires

sufficiently to connect to the opener terminal screws:

white to 2 and white/black to 3.

9. Attach the User Safety Instruction label to the wall

near the door control, and the Maintenance Instruction

label in a prominent location on the inside of the

garage door.

Page 28 explains how to operate the opener using the

door controls and the Lock & Light features available

on the Multi-Function Door Control Panel.

6ABx1-1/4" Screw

Multi-Function Door Control Panel

Insulated Staples

Dry Wall Anchors

Hardware Shown Actual Size

Outside Keylock Connections (see Accessories)

To opener terminal screws: white to 2; white/red to 1

WARNING

Do NOT connect the power and operate the opener at

this time. The trolley will travel to the full open

position but will not return to the close position

until the sensor beam is connected and properly

aligned. See Step 9 on page 18.

OPENER TERMINAL SCREWS

(In Control Center)

Sensor

Connections

Door Control

Connections

(dotted line)

123

Door

Control

Sensors

Terminal

Screws

Control

Center

Figure 1

Figure 3

Figure 2 WIRING TO CONTROL CENTER

Insert wires

through

opening in

Drive Shaft Cover

Push wiring

through hole in chassis

(above Control Center)

and connect to opener

terminal screws

To reduce the risk of electric shock, your garage door

opener has a grounding type plug with a third grounding

pin. This plug will only fit into a grounding type outlet.

If the plug doesn't fit into the outlet you have, contact a

qualified electrician to install the proper outlet.

If permanent wiring is required by your local code,

refer to the following procedure:

Right Wrong

Ground Tab

Green

Ground Screw

Ground Wire

Black

Wire

Permanent Wiring

Connection

White Wire

Black

Wire

Installation Step 8

Electrical Requirements

To make a permanent connection through the 7/8" diam.

hole in the top of the opener (according to local code):

• Remove the opener cover screws and set the cover aside.

• Remove the attached 3-prong cord.

• Connect the black (line) wire to the screw on the brass

terminal; the white (neutral) wire to the screw on the

silver terminal; and the ground wire to the green

ground screw. The opener must be grounded.

• Reinstall the cover.

To prevent electrocution or fire,

installation and wiring

must be in compliance with local electrical and building

codes.

Do NOT use an extension cord, 2-wire adapter, or change

the plug in any way to make it fit your outlet.

To avoid installation difficulties,

do not run the opener until Step 9 below.

To prevent electrocution,

remove power from the

garage door opener

and

from the circuit you plan to

use for the permanent connection.

WARNING

Installation Step 9

Complete Safety Reversing Sensor

Installation

Aligning the Safety Sensors

• Plug in the opener. Green indicator lights in both the

sending and receiving eyes will glow steadily if wiring

connections and alignment are correct.

The sending eye indicator light will glow regardless of

alignment or obstruction. If the indicator light is off, dim,

or flickering in the receiving eye (and the invisible light

beam path is not obstructed), alignment is required.

• Loosen the sending eye wing nut and re-adjust, aiming

directly at the receiving eye. Lock in place.

• Loosen the receiving eye wing nut and adjust sensor

vertically and/or horizontally until it receives the

sender’s beam. When the green indicator light glows

steadily, tighten the wing nut.

Trouble Shooting

1. If the sending eye indicator light does not glow

steadily after installation, check for:

• Electric power to the opener.

• A short in the white or white/black wires. These can

occur under staples or at screw terminal connections.

• Incorrect wiring between sensors and opener.

• An open wire (wire break).

2. If the sending eye indicator light glows steadily but

the receiving eye indicator light doesn't:

• Check alignment.

• Check for an open wire to the receiving eye.

3. If the receiving eye indicator light is dim, realign

either sensor.

NOTE: When the invisible beam path is obstructed or

misaligned while the door is closing, the door will

reverse. If the door is already open, it will not close. The

opener lights will flash 10 times. (If bulbs are not

installed, 10 clicks are audible.) See page 12.

Installation Step 10

Install the Lights and Lens

Installation Step 11

Attach the Manual Release

Rope and Handle

Do not use the red handle to pull the door open or

closed.

The rope knot could become untied and you

could fall.

Use the manual release only to disengage the

trolley and, if possible, only when the door is closed.

Garage doors are heavy. If the door is open when the

handle is pulled, the door could close inadvertently if it is

not properly balanced. Serious injury may result to

persons under the door. Make sure the doorway is clear

of persons and obstructions before pulling handle when

door is open.

• Thread one end of the rope through the hole in the top

of the red handle so “NOTICE” reads right side up as

shown. Secure with an overhand knot.

The knot should be at least 1" from the end of the

rope to prevent slipping.

• Thread the other end of the rope through the hole in the

release arm of the outer trolley.

• Adjust rope length so the handle is 6 feet above the

floor. Secure with an overhand knot .

If it is necessary to cut the rope, heat seal the cut end

with a match or lighter to prevent unraveling.

Trolley

NOTICE

Overhand

Knot

Manual

Release Handle

Rope

Overhand

Knot

Trolley

Release Arm

WARNING

• Install a 100 watt maximum light bulb in each socket.

The lights will turn ON and remain lit for

approximately 4-1/2 minutes when power is connected.

Then the lights will turn OFF.

• Insert bottom lens tabs into slots on chassis and tilt

towards chassis to engage top tabs, then drop down

gently into place. (See illustration.)

• To remove, lift lens up and gently tilt slightly outward

and down, then pull out to clear bulbs. Use care to

avoid snapping off bottom lens tabs.

• If the bulbs burn out prematurely, replace with standard

neck Garage Door Opener bulbs. (Fluorescent bulbs are

not recommended because of possible interference with

receiver/transmitter signals.)

100 Watt Max.

Light Bulb

Bottom Lens Tab

Top Lens Tab

Top Lens Slot

Bottom Lens Slot

Light Socket

Insert Bottom Lens Tabs First

Chassis

Lens

CONTROL

CENTER

CONTROL

CENTER

Installation Step 12

Fasten Door Bracket

Follow instructions which apply to your door type

as illustrated below or on page 21.

To prevent damage to steel, aluminum, fiberglass or

glass panel doors, always reinforce the inside of the door

both vertically and horizontally with an angle iron.

A horizontal brace should be long enough to be secured to 2 vertical supports. A vertical brace should cover the

height of the top panel.

The illustration shows one piece of angle iron as the horizontal brace. For the vertical brace, 2 pieces of angle iron

are used to create a U-shaped support. The best solution is to check with your garage door manufacturer for an

opener installation door reinforcement kit.

• Center the door bracket on the previously marked

vertical guideline used for the header bracket

installation. Note the correct UP placement, as

stamped inside the bracket.

• Position the bracket on the face of the door within the

following limits:

A) The top edge of the bracket 2-4" below the top edge

of the door.

B) The top edge of the bracket directly below any

structural support across the top of the door.

• Mark and drill 5/16" left and right fastening holes.

Secure the bracket as shown in Figure 1 if there is

vertical reinforcement.

If your installation doesn't require vertical reinforcement

but does need top and bottom fastening holes for the door

bracket, fasten as shown in Figure 2.

Door Bracket

Inside Edge

of Door or

Reinforcement Board

Door

Bracket

Nut

5/16"-18

Carriage Bolt

5/16"-18x2-1/2"

Lock

Washer

5/16"

Vertical

Guideline

Vertical

Reinforcement

Vertical

Guideline

Door

Bracket

Location

Header

Bracket

Horizontal and vertical reinforcement

is needed for lightweight garage doors

(fiberglass, aluminum, steel,

doors with glass panel, etc).

SECTIONAL Door Installation Procedure

Figure 1

Figure 2

Nut 5/16" - 18 Lockwasher 5/16"

Carriage Bolt

5/16"-18 x 2-1/2"

Hardware Shown Actual Size

CAUTIONCAUTION

Horizontal and vertical

reinforcement is needed for

lightweight garage doors

(fiberglass, aluminum, steel,

door with glass panel, etc.).

Header Wall

Vertical

Centerline of

Garage Door

Finished Ceiling

Optional

Placement

of Door

Bracket

Header

Bracket Door

Bracket

2x4 Support

For a door with no

exposed framing or for

the optional installation,

use 5/16"x1-1/2" lag

screws (not supplied)

to fasten door bracket.

Door

Bracket

Top of Door

(Inside Garage)

Carriage Bolt

5/16"-18x2-1/2"

Optional

Placement

Lock Washer

5/16"

Nut

5/16"-18

Top Edge

of Door

All ONE-PIECE Door Installation Procedure

• Center the bracket on the top of the door, in line with

the header bracket as shown. Mark holes.

• Drill 5/16" pilot holes and fasten the door bracket with

hardware supplied.

If the door has no exposed framing, drill 3/16" pilot holes

and fasten the bracket with 5/16"x1-1/2" lag screws (not

supplied) to the top of the door.

The door bracket may be installed on the top edge of

the door if required for your installation. (Refer to the

dotted line optional placement drawing.) Drill 3/16"

pilot holes and substitute 5/16"x1-1/2" lag screws (not

supplied) to fasten the bracket to the door.

Please read and comply with the warnings and reinforcement instructions on page 20. They apply

to one-piece doors also.

Nut 5/16" - 18 Lockwasher 5/16"

Carriage Bolt

5/16"-18 x 2-1/2"

Hardware Shown Actual Size

Installation Step 13

Connect Door Arm to Trolley

Follow instructions which apply to your door type

as illustrated below and on page 23.

Make sure garage door is fully closed. Pull the emergency release handle to disconnect the outer trolley from the

inner trolley. Slide the outer trolley back (away from the door) about 2" as shown in Figures 1, 2 and 3.

Figure 2:

• Bring arm sections together. Find two pairs of holes

that line up and join sections. Select holes as far apart

as possible to increase door arm rigidity.

Ring

Fastener

Door

Bracket

Straight

Door Arm

Curved

Door Arm

Inner

Trolley Outer

Trolley

Lock

Washers

5/16"

Nuts

5/16"-18

Door

Bracket

Screws

5/16"-18x7/8"

Manual

Release

Handle

Rope

Clevis Pin

5/16"x1"

Clevis Pin

5/16"x1-1/4"

Cut this end

Lock

Washers

5/16"

Nuts

5/16"-18

Screws

5/16"-18x7/8"

Figure 3:

• If holes in curved arm are above holes in straight arm,

disconnect straight arm. Cut about 6" from the solid

end. Reconnect to trolley with cut end down as shown.

• Bring arm sections together.

• Find two pairs of holes that line up and join with

screws, lock washers and nuts.

Proceed to Adjustment Step 1, page 24.

Trolley will re-engage automatically when the

opener is operated.

Figure 1:

• Fasten straight door arm section to outer trolley with

the 5/16"x1" clevis pin. Secure the connection with a

ring fastener.

• Fasten curved section to the door bracket in the same

way, using the 5/16"x1-1/4" clevis pin.

Figure 1 Figure 2

Figure 3

SECTIONAL Doors Only

Lock Washer 5/16"

Nut 5/16"-18 Ring Fastener

Hex Screw

5/16"-18x7/8"

Clevis Pin

5/16"x1" (Trolley)

Clevis Pin

5/16"x1-1/4" (Door Bracket)

Hardware Shown Actual Size

Hole Alignment Alternative

All ONE-PIECE Doors

Assemble the Door Arm:

• Fasten the straight and curved door arm sections

together to the longest possible length (with a 2 or 3

hole overlap).

• With the door closed, connect the straight door arm

section to the door bracket with the 5/16"x1-1/4"

clevis pin.

• Secure with a ring fastener.

Nuts

5/16"-18

Lock

Washers

5/16"

Ring

Fastener

Straight

Arm

Screws

5/16"-18x7/8

Door

Bracket

Clevis Pin

5/16"x1-1/4"

Curved

Door Arm

On one-piece doors, before connecting the door arm to the trolley the travel limits must be adjusted. Limit adjustment

screws are located on the right side panel as shown on page 24. Follow adjustment procedures below.

Door Arm

Fully Open

Trolley

Closed

Door Open Door Door with

Backward Slant

Door Arm

Connector Hole

Door Arm

Connector Hole

Fully Closed

Trolley

Door Arm

Adjustment Procedures for One-Piece Doors

Open Door Adjustment:

Decrease UP Travel Limit

• Turn the UP limit adjustment screw counter-clockwise

5 1/2 turns.

• Press the Door Control push bar or button. The trolley

will travel to the fully open position.

• Manually raise the door to the open position (parallel

to the floor), and lift the door arm to the trolley. The

arm should touch the trolley just in back of the door

arm connector hole. Refer to the fully open

trolley/door arm positions in the illustration. If the arm

does not extend far enough, adjust the limit further.

One full turn equals 2" of trolley travel.

Closed Door Adjustment:

Decrease DOWN Travel Limit

• Turn the DOWN limit adjustment screw clockwise

5 complete turns.

• Press the Door Control push bar or button. The trolley

will travel to the fully closed position.

• Manually close the door and lift the door arm to the

trolley. The arm should touch the trolley just ahead of

the door arm connector hole. Refer to the fully closed

trolley/door arm positions in the illustration. If the arm

is behind the connector hole, adjust the limit further.

One full turn equals 2" of trolley travel.

Connect the Door Arm to the Trolley:

• Close the door and join the curved arm to the connector hole in the trolley with the remaining clevis pin. It may be

necessary to lift the door slightly to make the connection.

• Secure with a ring fastener.

• Run the opener through a complete travel cycle. If the door has a slight "backward" slant in full open position as shown

in the illustration, decrease the UP limit until the door is parallel to the floor.

Adjustment Step 1

Adjust the UP and DOWN Limits

Do not make any limit adjustments until the safety

reversing sensors are completely installed.

Limit adjustment settings regulate the points at which the

door will stop when moving up or down.

The door will stop in the up direction if anything

interferes with door travel. The door will reverse in the

down direction if anything interferes with the door travel

(including binding or unbalanced doors).

To operate the opener, press the Door Control push bar.

Run the opener through a complete travel cycle.

• Does the door open and close completely?

• Does the door stay closed and not reverse

unintentionally when fully closed?

If your door passes both of these tests, no limit

adjustments are necessary unless the reversing test fails

(see page 26).

Adjustment procedures are outlined below. Run the

opener through a complete travel cycle after each

adjustment.

Repeated operation of the opener during adjustment

procedures may cause the motor to overheat and shut off.

Simply wait 15 minutes and try again.

Read the procedures carefully before proceeding to

Adjustment Step 2. Use a screwdriver to make limit

adjustments.

How and When to Adjust the Limits

If the door does not open completely but opens at least

five feet:

Increase up travel. Turn the UP limit adjustment screw

clockwise. One turn equals 2" of travel.

If door does not open at least 5 feet: Adjust the UP

(open) force as explained in Adjustment Step 2.

If the door does not close completely:

Increase down travel. Turn the DOWN limit adjustment

screw counterclockwise. One turn equals 2" of travel.

If door still won't close completely, try lengthening the

door arm. (Page 22.)

If you have adjusted the door arm to the maximum length

and the door still will not close completely, lower the

header bracket. See Installation Step 1, pages 8/9.

If the opener reverses in fully closed position:

Decrease down travel. Turn the DOWN limit adjustment

screw clockwise. One turn equals 2" of travel.

If the door reverses when closing and there is no

visible interference to travel cycle:

If the opener lights are flashing, the Safety Reversing

Sensors are either not installed, misaligned, or obstructed.

See Troubleshooting, page 18.

Test the door for binding: Pull the manual release handle.

Manually open and close the door. If the door is binding,

call for garage door service. If the door is not binding or

unbalanced, adjust the DOWN (close) force. See

Adjustment Step 2.

Adjustment Section: Pages 24 – 26

Improper adjustment of the travel limits will interfere with

the proper operation of the safety reverse system.

The

door might not reverse properly when required and could

seriously injure or kill someone under it.

Test the safety

reverse system monthly, and following all adjustments to

the travel limits. See page 26.

Travel Limit

Adjustment

Screws

LIMIT ADJUSTMENT

LABEL

Right Side Panel

Adjust UP Travel

Adjust DOWN Travel

321

Kg Kg

WARNING

Adjustment Step 2

Adjust the Force

Too much force on the door will interfere with the proper

operation of the safety reverse system.

The door might

not reverse properly when required and could seriously

injure or kill someone under it.

Do not increase the force

beyond the minimum amount required to close the door.

Do not use the force adjustments to compensate for a

binding or sticking garage door. Test the safety reverse

system monthly, and following all adjustments to force

levels. See page 26.

Force Adjustment Label

Right Side

Panel Force Adjustment

Controls

Kg Kg

321

How and When to Adjust the Forces

Test the DOWN (close) force

Grasp the door bottom when the door is about halfway

through DOWN (close) travel. The door should reverse.

Reversal halfway through down travel does not

guarantee reversal on a one-inch obstruction. See

page 26. If the door is hard to hold or doesn't reverse,

decrease the DOWN (close) force by turning the control

counterclockwise.

Make small adjustments until the door reverses normally.

After each adjustment, run the opener through a complete

cycle.

Test the UP (open) force

Grasp the door bottom when the door is about halfway

through UP (open) travel. The door should stop. If the

door is hard to hold or doesn't stop, decrease UP (open)

force by turning the control counterclockwise.

Make small adjustments until the door stops easily. After

each adjustment, run the opener through a complete

travel cycle.

If the door doesn't open at least 5 feet:

Increase UP (Open) force by turning the control

clockwise. Make small adjustments until door opens

completely. Readjust the UP limit if necessary. After each

adjustment, run the opener through a complete travel

cycle.

If the door reverses during the down (close) cycle and

the opener lights aren't flashing:

Increase DOWN (close) force by turning the control

clockwise. Make small adjustments until the door

completes a close cycle. After each adjustment, run the

opener through a complete travel cycle. Do not increase

the force beyond the minimum amount required to

close the door.

WARNING

Force adjustment controls are located on the right panel

of the opener. Force adjustment settings regulate the

amount of power required to open and close the door.

The door will stop in the up direction if anything

interferes with its travel. The door will reverse in the

down direction if anything interferes with its travel

(including binding or unbalanced doors).

If the forces are set too light, door travel may be

interrupted by nuisance reversals in the down direction

and stops in the up direction. Weather conditions can

affect the door movement, so occasional adjustment may

be needed.

The maximum force adjustment range is about 3/4 of a

complete turn. Do not force controls beyond that point.

Turn force adjustment controls with a screwdriver.

Adjustment Step 4

Test the Safety Reverse System

Test

• Place a one-inch board (or a 2x4 laid flat) on the floor,

centered under the garage door.

• Operate the door in the down direction. The door must

reverse on striking the obstruction.

Adjustment

If the door stops on the obstruction, it is not traveling far

enough in the down direction.

• Increase the DOWN limit by turning the DOWN limit

adjustment screw counterclockwise 1/4 turn.

• Repeat the test.

On a sectional door, make sure limit adjustments do

not force the door arm beyond a straight up and down

position. See the illustration on page 22.

• When the door reverses on the one-inch board, remove

the obstruction and run the opener through 3 or 4

complete travel cycles to test adjustment.

If the door will not reverse after repeated adjustment

attempts, call for professional garage door service.

Important Safety Check

Repeat Adjustment Steps 1-4 after:

• Each adjustment of door arm length, force controls or

limit controls.

• Any repair to or adjustment of the garage door

(including springs and hardware).

• Any repair to or buckling of the garage floor.

• Any repair to or adjustment of the opener.

1 Inch Obstruction

Failure to test and adjust the safety reverse system may

result in serious injury or death to persons trapped by a

closing garage door.

Repeat this test once a month and

adjust as needed.

Adjustment Step 3

Test The Protector System

• Press the remote control push button to open the door.

• Place the opener carton in the path of the door.

• Press the remote control push button to close the door.

The door will not move more than an inch, and the

opener light will flash for 5 seconds.

Professional service is required if the opener closes the

door when the safety reversing sensor is obstructed.

The garage door opener will not close from a remote if

the indicator light in either sensor is off (alerting you

to the fact that the sensor is misaligned or obstructed).

The garage door can be closed by pressing and holding the

Door Control push bar until down travel is completed.

Safety Reversing Sensor Safety Reversing Sensor

Without a properly working safety reversing sensor,

persons (particularly children) could be seriously injured

or killed if trapped by a closing garage door.

Repeat this

test once a month.

One-Inch board (or a 2x4 laid flat)

WARNING

The Remote Control Transmitter

The opener must learn the code of any new remote

control. Page 29 explains how to program your receiver

and how to erase all codes if required. Self service of

your receiver and remote controls is not recommended. If

service is needed, call the toll-free number listed on the

back page.

The Transmitter Battery

The lithium battery should produce

power for up to 5 years. To replace

battery, pry open case with visor clip or

screwdriver, as shown. Insert battery

positive side up.

Dispose of your old battery properly.

Once a Month

Manually operate door. If it is unbalanced or binding,

call for professional garage door service.

Check to be sure door opens & closes fully. Adjust

limits and/or force if necessary. (See pages 24 & 25.)

Repeat the safety reverse test. Make any necessary

adjustments (See page 26).

Once a Year

Oil door rollers, bearings and hinges. The opener does

not require additional lubrication. Do not grease the door

tracks.

Weather conditions may cause some minor changes in

door operation requiring some re-adjustments,

particularly during the first year of operation.

Pages 24 and 25 refer to the limit and force adjustments.

Only a screwdriver is required. Follow the instructions

carefully.

Repeat the safety reverse test (page 26) after any

adjustment of limits or force.

Care of Your Opener

IMPORTANT SAFETY INSTRUCTIONS

To reduce the risk of severe injury or death to persons:

1. READ AND FOLLOW ALL INSTRUCTIONS.

2. Do not permit children either to operate or to play with the opener. Keep remote control in a location

inaccessible to children.

3. Operate opener only when the door is in full view and free from any obstruction. Keep the door in sight

until it is completely closed. NO ONE SHOULD CROSS THE PATH OF THE MOVING DOOR.

4. Check safety reversal system monthly. See page 26. The garage door MUST reverse on contact with a one

inch object (or a 2x4 board laid flat) placed on the floor. If an adjustment is made to one of the controls

(either force or limits of travel), the other control may need to be adjusted also, and the safety reversal

system must be checked. Failure to properly adjust the opener may result in severe injury or death.

5. If possible, use the manual release only when the door is in a closed position. Caution should be taken

whenever the disconnect cord is actuated with the door open. Weak or broken springs may cause the door to

fall rapidly, causing injury or death to persons.

6. KEEP GARAGE DOORS PROPERLY BALANCED. See page 3. An improperly balanced door may not

reverse when required, and could result in severe injury or death. Repairs to cables, spring assemblies and

other hardware must be made by a professional garage door person.

7. Disconnect the electric power to the garage door opener before making any repairs or removing the covers.

SAVE THESE INSTRUCTIONS

FORCE CONTROLS

Kg Kg

LIMIT CONTROLS

WARNING WARNING

Force and Limit Adjustment Controls

Maintenance Schedule

Keep batteries away from small children. If

swallowed, promptly notify doctor.

WARNING

Activate the opener with any of the following:

• The Remote Control Transmitter. Hold push button down

until the door starts to move.

• The Door Control. Hold push bar down until the door starts

to move.

• The Outside Keylock or Keyless Entry. (See Accessories)

When the opener is activated with the safety reversing

sensor installed and correctly aligned:

1. If open, the door will close. If closed, it will open.

2. If closing, the door will reverse.

3. If opening, the door will stop (allowing space for entry and

exit of pets and for fresh air).

4. If the door has been stopped in a partially open position, it

will close.

5. If obstructed while closing, the door will reverse.

6. If obstructed while opening, the door will stop.

7. The garage door will reverse in the closing cycle, and the

opener lights will blink for 5 seconds, when the invisible

beam is broken. If fully open, the door will not close when

the beam is broken. The sensor has no effect in the opening

cycle.

If the sensor is not installed, or is not aligned correctly, the door

won't close from any remote transmitter. You can close the door

with the Door Control, the Outside Keylock, or Keyless Entry,

however, if you activate them until down travel is complete. If you

release them too soon, the door will reverse.

Opener Lights will turn on under the following conditions:

When the opener is initially plugged in; when the power is

interrupted; when the opener is activated. It will turn off

automatically after 4-1/2 minutes or provide constant light when

the Light feature on the Multi-Function Door Control is

activated. Bulb size is 100 watts maximum.

Lights will also turn on when someone walks through the open

garage door. With a Multi-Function Door Control, this feature

may be turned off as follows: With the opener lights off, press

and hold the light button for 10 seconds, until the light goes on

and off again. To restore this feature, start with the opener lights

on, then press and hold the light button for 10 seconds.

NOTICE

Manual

Release

Handle

(Pull at 45° angle)

Trolley

Release Arm

Lockout position

(Manual disconnect)

To reconnect

Weak or broken springs could allow an open door to fall

(either rapidly or unexpectedly), resulting in serious

injury, death or property damage.

If possible, use the

manual release rope and handle

only

when the door is

fully closed.

Operation of Your Opener

WARNING

Door Control Push Bar: Press to open or close the door.

Press again to reverse the door during the closing cycle or to

stop the door while it's opening.

Light Feature: Press the Light button. If the opener light is

off, it will turn on. If the opener light is on, (even in the 4-1/2

minute automatic cycle) it will turn off.

But if you use the Light button to turn the lights on and then

activate the opener, the lights will turn off after 4-1/2

minutes.

The Light button will not control the opener lights when the

door is in motion.

Lock Feature: The Lock feature is designed to prevent

operation of the door from remote controls. However, the

door will open and close from the Door Control push bar, the

Outside Keylock and the Keyless Entry Accessories.

To Activate: Press and hold the Lock button for

2 seconds. The push bar light will flash as long as the

Lock feature is on.

To turn off: Press and hold the Lock button again for 2

seconds. The push bar light will stop flashing. Normal

operation will resume. The Lock feature will also turn off

whenever the “Smart” button on the opener panel is

activated.

Operation of the Multi-Function Door Control

(See additional programming features, next page.)

To open the door manually:

The door should be fully

closed if possible. Pull down

on the manual release handle

(so that the trolley release arm

snaps into a vertical position)

and lift the door manually. The

lockout feature prevents the

trolley from reconnecting auto-

matically, and the door can be

raised and lowered manually as

often as necessary.

To reengage the trolley: Pull

the manual release handle

toward the opener at a 45

degree angle so that the trolley

release arm is horizontal. The

trolley will reconnect on the

next UP or DOWN operation,

either manually or by pressing

the Door Control push bar.

Trolley

NOTICE

Trolley

ReleaseArm

(in Manual

Disconnect

Position)

Children operating or playing with a garage door opener

can injure themselves or others.

The garage door could

close and cause serious injury or death.

Do not allow

children to operate the door controls or remote controls.

A moving garage door could injure or kill someone under

it.

Activate the opener only when you can see the door

clearly, it is free of obstructions, and is properly adjusted.

SECURITY✚

Your garage door opener receiver and remote control

transmitter have been set at the factory to a matching

code. The door will activate when you press the LARGE

remote control push button.

Your SECURITY✚opener will operate with:

• several SECURITY✚remote controls utilizing up to

8 functions. NOTE: Open/Close/Stop operation counts

as 1 function.

• one Keyless Entry System (with SECURITY✚logo)

Follow the instructions below to program your opener to

match any additional remotes you may purchase. See

Accessories on page 34.

To Add a Remote Control

Select a remote control push button to operate the opener.

The large button is recommended for use with a garage

door opener. See Figure 1.

1. Press and hold the remote control push button. See

Figure 1.

2. Press and release the “Smart” (learn) button on the

right side panel of the opener. See Figure 2. The

indicator light on the panel will begin to blink and the

opener lights will flash once.

3. Release the remote push button.

Now the opener will operate when the remote control

push button is pressed. Test by pressing the remote

button to see that the door goes up and down.

Adding a remote can also be done from the door

control, as follows:

1. With the door closed, press and hold a remote push

button.

2. Press and hold the Light button on the door control.

3. Press and hold the door control push bar.

4. After the opener lights flash, release all buttons.

Test by pressing the remote push button.

To Erase All Remote Control Codes

Press and hold the “Smart” button on the opener panel

until the indicator light turns off (about 6 seconds). All

transmitter codes are now erased. Then follow the steps

above to re-program each remote control.

To Control the Opener Lights

With SECURITY✚transmitters, a remote push button

can be programmed to operate the opener lights without

opening the door.

1. With the door closed, press and hold the remote button

that you want to control the light.

2. Press and hold the Light button on the door control.

3. Press and hold the Lock button on the door control.

4. After the opener lights flash, release all buttons.

Test by pressing the remote push button. The opener

lights should turn on or off but the door should not move.

SECURITY✚ 3-Channel

Remote Control

Select a

Push Button

Figure 1

WARNING

Receiver & Remote Control Programming

NOTICE: To comply with FCC rules, adjustment or modification of this

receiver and/or transmitter are prohibited, except for changing the code

setting or replacing the transmitter battery. THERE ARE NO OTHER

USER SERVICEABLE PARTS.

SECURITY✚

Garage Door Opener

"Smart" (learn)

Button Indicator

Light

321

Kg Kg

Code programming instructions are

also located on the opener panel.

Open/Close/Stop Operation

Your SECURITY✚remote control can be programmed

to operate one door using all 3 buttons: the large button

will only open the door, the middle button will only close

the door, and the third button will stop the door’s

movement. You may set up this feature as follows:

1. With the door closed, press and hold the

large remote push button.

2. Press and hold the Lock button

on the door control.

3. Press and hold the door control

push bar.

When the opener lights flash, release all buttons. Test by

pressing the large (Open) button on the remote. The door

should open. Press it again while the door is open and

nothing should happen. Press the middle (Close) button

and the door should close. Press the third (Stop) button

while the door is moving and it should stop immediately.

Model 976LG SECURITY✚Keyless Entry

Follow instructions on page 34 (Accessories).

Open

Stop

Figure 2

1. Does the opener have electric power? Plug a lamp into the outlet. If it doesn't light, check the

fuse box or the circuit breaker. (Some outlets are controlled by a wall switch.)

2. Have you disabled all door locks? Review installation instruction warnings on Page 7.

3. Is there a build-up of ice or snow under the door? The door may be frozen to the ground.

Remove any restriction.

4. The garage door spring may be broken. Have it replaced.

5. Repeated operation may have tripped the overload protector in the motor. Wait 15 minutes.

Try again.

Having a Problem?

Situation Probable Cause & Solution

The opener doesn't

operate from either

the door control or

the remote control:

Opener operates from

the remote control, but

not from the door

control:

1. Is the door control push bar lit? If not, Remove the bell wire from the opener terminal

screws. Short the red and white terminals by touching both terminals at the same time with

a piece of wire. If the opener runs, check for a faulty wire connection at the door control, a

short under the staples, or a broken wire.

2. Are the wiring connections correct? Review Installation Step 7, page 17.

The door operates from

the door control, but not

from the remote

control:

1. Is the door push bar flashing? If your model has the Lock feature, turn it off.

2. Your opener needs to re-learn a remote control code. Refer to instructions on the opener

panel.

3. Program the receiver to match the remote control code.

4. Repeat the receiver programming procedure with all remote controls.

The remote control has

short range:

The garage door

opens and closes by

itself:

1. Be sure that all remote control push buttons are off.

2. Remove the bell wire from the door control terminals and operate from the remote control

only. If this solves the problem, the door control is faulty (replace), or there is an

intermittent short on the wire between the door control and the opener.

3. Clear memory and reprogram all remote controls.

The door doesn't open

completely: 1. If the door has been working properly but now doesn't open all the way, increase the up

force. See page 25.

2. Is something obstructing the door? Remove the obstruction or repair the door.

3. If door opens at least 5 feet, the travel limits may need to be increased. One turn equals

2 inches of travel. See page 24.

Repeat the safety reverse test after the adjustment is complete.

The door stops but

doesn't close

completely:

Review the travel limits adjustment procedures on page 24.

Repeat the safety reverse test after any adjustment of door arm length, close force or down

limit.

1. Change the location of the remote control in your car.

2. Check to be sure the antenna on the right side panel of opener extends fully.

3. Some installations may have shorter range due to a metal door, foil backed insulation, or

metal garage siding.

Opener noise is

disturbing in living

quarters of home:

If operational noise is a problem because of proximity of the opener to the living quarters, the

Vibration Isolator Kit 41A3263 can be installed. This kit was designed to minimize vibration

to the house and is easy to install.

Having a Problem?

(continued)

Situation Probable Cause & Solution

The door reverses for no

apparent reason and

opener lights don't

blink:

The door reverses for no

apparent reason and

opener lights blink for

5 seconds after

reversing:

1. Is something obstructing the door? Pull the manual release handle. Operate the door

manually. If it is unbalanced or binding, call for professional garage door service.

2. Clear any ice or snow from the garage floor area where the door closes.

3. Review the force adjustment procedures on page 25.

4. If door reverses in the fully closed position, decrease the travel limits (page 24).

Repeat the safety reverse test after adjustments to force or travel limits. The need for

occasional adjustment of the force and limit settings is normal. Weather conditions in

particular can affect door travel.

The opener lights… don't turn on:

Replace the light bulb(s) (100 watts maximum). Use a standard neck garage door opener bulb

if regular bulb burns out.

don't turn off:

Is the Light feature on? Turn it off.

The opener strains or

maximum force is

needed to operate door:

The door may be out of balance or the springs are broken. Close the door and use the manual

release handle to disconnect the trolley. Open and close the door manually. A properly

balanced door will stay in any point of travel while being supported entirely by its springs. If

it does not, disconnect the opener and call for professional garage door service. Do not

increase the force to operate the opener.

The opener motor

hums briefly, then

won't work:

1. The garage door springs are broken. See above.

2. If the problem occurs on the first operation of the opener, door may be locked. Disable the

door lock.

Repeat the safety reverse test after the adjustment is complete.

The opener won't

operate due to power

failure:

1. Use the manual release handle to disconnect the trolley. The door can be opened and closed

manually. When power is restored, press the Door Control push bar or button and trolley

will automatically reconnect (unless trolley is in lockout position.) See page 28.

2. The Outside Quick Release accessory (for use on garages with no service door) disconnects

the trolley from outside the garage in case of power failure.

The door opens but

won't close: 1. If the opener lights blink, check the safety reversing sensor. See page 18.

2. If the opener lights do not blink and it is a new installation, check the down force. See

Adjustment Step 2, page 25. For an existing installation, see below.

Repeat the safety reverse test after the adjustment is complete.

Check the safety reversing sensor. Remove any obstruction or align the receiving eye. See

page 18.

CEILING MOUNT ONLY

NOTICE

13 14

LIGHT

LOCK

2 3

Rail Assembly Parts

Installation Parts

KEY PART

NO. NO. DESCRIPTION

1 41A4795 Hardware bag (Includes

sprocket coupling)

2 12B569-1 Left rail bracket

3 12B569-2 Right rail bracket

4 81C168 Rack

5 41C4677 Complete trolley assembly

6 1D4828-1 One-piece T-rail

7 41A4836 Drive sprocket kit

8 25A18 Sprocket coupling

KEY PART

NO. NO. DESCRIPTION

1 41A4202-12B Multi-function door control panel

2 10A20 3V2032 Lithium battery

3 41A5056-6 3-Channel remote control housing

(no circuit board)

4 29B137 Remote control visor clip

5 217A238 2-Conductor bell wire - white & white/red

6 41A2828 Manual release rope & handle assy.

7 41A5047 Door bracket w/clevis pin & fastener

8 41A4353 Header bracket w/clevis pin & fastener

9 41A4373A Safety sensor kit (receiving and sending eyes

with 3' 2-conductor bell wire attached)

10 178B34 Straight door arm section

11 12B483 C-wrap bracket

12 178B35 Curved door arm section

13 12B484 Square hole bracket

14 12B485 Slotted bracket

NOT SHOWN

41A4116 Safety sensor hardware

41A4675-4 Opener installation hardware bag (See page 3)

114A2390 Owner's manual

Repair Parts

ew Drive

Brown

Wire

(Down)

Contact LIMIT SWITCH ASSY.

Grey

Wire

Yellow

Wire

(Up)

Contact

Center Limit

Contact

Drive

Gear

Power Unit Parts

KEY PART

NO. NO. DESCRIPTION

1 31D426 Drive shaft cover

2 41B4245 Line cord

3 30B363 Capacitor – 1/2 HP

4 12A373 Capacitor bracket

5 41A3150 Terminal block w/screws

6 41D4671 Limit switch assembly

7 12D554 Limit switch bracket

8 41D4759 Complete Motor Drive Assy., with

8a 144B41 22T Pulley

8b 144B42 28T Pulley

8c 20C14 Drive Belt

8d 158A69 Retainer Ring

KEY PART

NO. NO. DESCRIPTION

9 41A4843 Interrupter cup

10 41A4837 Worm gear and retainer

11 41C4669 Wire harness assembly

12 41C4672 RPM sensor assembly

13 41D4674-19E Receiver logic board assembly

14 41D5285 Cover – 1/2 HP

15 1C4840-9 Control Center access door

16 175C123 Light socket

17 108D47 Light lens

LOCK

LIGHT

Accessories Available For Your Opener

Model 971AC

Model 974AC

Model 970LM

Model 1702 SECURITY✚Single-Function

Remote Control

Includes visor clip.

SECURITY✚2-Channel

Remote Control

Includes visor clip.

SECURITY✚3-Channel

Remote Control

Includes visor clip.

SECURITY✚4-Channel

Remote Control

Includes visor clip.

SECURITY✚3-Channel Mini

Remote Control

With key ring and Velco fastening

strip.

SECURITY✚Keyless Entry

Enables homeowner to operate garage door

opener from outside by entering code on

specially designed keyboard. Also can add

a temporary pass code for visitors or

service persons. This temporary code can

be limited to a programmable number of

hours or entries.

Outside Quick Release

Required for a garage with NO access

door. Enables homeowner to open

garage door manually from outside by

disengaging trolley.

8 foot Complete Rail

To allow an 8 foot door to open fully.

Multi-Function Door Control Panel

Provides a Lock Feature which

prevents operation of garage door

opener from portable remotes and a

Light Feature for constant light.

Outside Keylock

Operates the garage door automatically

from outside when remote control is

not handy.

Model 972AC

Model 973AC

Model 59

Model 88SD

Model 78LM

Model 976LG

We recommend that you program your code before you

install the Keyless Entry. You will not need assistance,

and you can test the reception at the mounting location

before installation.

1. Choose a 4-digit code using numbers from 0 to 9

(a number can be used more than once, for example,

4, 0, 4, 1).

2. Press the four buttons for the code, then press and hold

the Enter button. The indicator light on the door opener

panel will blink.

3. Press and release the “Smart” (learn) button on the

opener panel. After the opener lights flash, release the

Enter button.

Test by pressing the the code, then press Enter. The door

should begin to move.

You may also program the Keyless Entry from the

Multi-Function Door Control, as follows:

1. With the door closed, enter the four digit code desired,

then press and hold Enter.

2. Press and hold the light button on the door control.

3. Press and hold the door control push bar.

4. After the opener lights flash, release all buttons.

To Add the Keyless Entry

Index

Access Door/Outside Quick Release Accessory.........................................................................................................31, 34

Electrical Safety Warnings......................................................................................................................................7, 18, 27

Garage Door

Testing for balance, binding and sticking.................................................................................................................3, 24, 27

Determining high point of travel:

Sectional door....................................................................................................................................................................8

One-piece door..................................................................................................................................................................9

Disabling existing locks ...................................................................................................................................................3, 7

Force controls

Adjustment procedures....................................................................................................................................................25

Problems that might require force adjustments.........................................................................................................30, 31

Safety warnings.........................................................................................................................................................25, 27

Door hardware............................................................................................................................................3, 7, 8, 17, 27, 28

Maintenance .............................................................................................................................................................7, 24-27

Reinforcement requirements ....................................................................................................................................5, 20, 21

Removing of all ropes ......................................................................................................................................................3, 7

Possible door damage...............................................................................................................................................4, 15, 20

Travel limits

Adjustment procedures..............................................................................................................................................23, 24

Problems that might require limit adjustments .........................................................................................................30, 31

Safety warnings.........................................................................................................................................................24, 27

Manual Release Rope & Handle

Lockout feature .................................................................................................................................................................28

Manual disconnect.......................................................................................................................................................28, 31

Safety warnings.................................................................................................................................................7, 19, 27, 28

Opener Terminals

Door control connections ..................................................................................................................................................17

Safety reversing sensor connections .................................................................................................................................17

Outside Keylock accessory connections ...........................................................................................................................17

Protector System®.........................................................................................................................................................12, 26

Receiver & Remote Controls

Programming the receiver.................................................................................................................................................29

Erasing all codes................................................................................................................................................................29

Safety warning...................................................................................................................................................................29

Problems with remote control transmitter operation.........................................................................................................30

Safety Reverse Test Procedure..........................................................................................................................................26

Testing required.................................................................................................................................................7, 26, 30, 31

Safety reverse system problems

Securing header bracket to wall ........................................................................................................................................8

Adjusting travel limits.....................................................................................................................................................24

Applying excessive force on the door.............................................................................................................................25

Buckling or uneven floor...................................................................................................................................................5

Safety Warnings..........................................................................2, 3, 7, 8, 12, 15, 16, 17, 18, 19, 20, 24, 25, 26, 27, 28, 29

Troubleshooting............................................................................................................................................................30, 31

User Instruction Label for Garage Wall ......................................................................................................................7, 17

Vibration Noise (isolator kit).............................................................................................................................................30

ACCESS MASTER

SERVICE IS ON CALL

OUR LARGE SERVICE ORGANIZATION

SPANS AMERICA

INSTALLATION AND SERVICE INFORMATION IS AS

NEAR AS YOUR TELEPHONE SIX DAYS A WEEK.

SIMPLY DIAL OUR TOLL FREE NUMBER:

1-800-528-2817

HOURS: (Mountain Standard Time)

6:00 A.M. TO 6:00 P.M. Monday through Friday

7:00 A.M. TO 3:00 P.M. Saturday

Closed Sunday

For professional installation, parts and service,

contact your local ACCESS MASTER/ CHAMBERLAIN

dealer. Look for him in the Yellow Pages, or call our

service number for a list of dealers in your area.

HOW TO ORDER

REPAIR PARTS

Selling prices will be furnished on request or parts will

be shipped at prevailing prices and you will be billed

accordingly.

WHEN ORDERING REPAIR PARTS, ALWAYS GIVE

THE FOLLOWING INFORMATION:

• PART NUMBER

• PART NAME

• MODEL NUMBER

ADDRESS ORDERS TO:

THE CHAMBERLAIN GROUP, INC.

Pars and Service Department

2301 N. Forbes Boulevard, Suite 104

Tucson, Arizona 85745

SERVICE INFORMATION TOLL FREE NUMBER:

1-800-528-2817

ACCESS MASTER GARAGE DOOR OPENER ONE-YEAR LIMITED WARRANTY

Access Master/Chamberlain (“Seller”) warrants to the first retail purchaser of this product that it is free from defect in

materials and/or workmanship for a period of one year from the date of purchase. The proper operation of this

product is dependent on your compliance with the Owner’s Manual instructions regarding installation,

operation, maintenance and testing. Failure to comply strictly with those instructions will void this warranty in

its entirety. Please note that the safety reverse system, in order to operate properly with your garage door,

must be adjusted and periodically tested in accordance with the Owner’s Manual.

If, during the limited warranty period, it appears as though this product contains a defect which is covered by this

limited warranty, call our toll free service number, before dismantling this product, at 1-800-528-2817. Then send

this product, pre-paid and insured, to our service center for warranty repair. You will be advised of shipping instructions

when you call the toll free service number. Please include a brief description of the problem and a dated proof-of-

purchase receipt with any product that is returned for warranty repair.

Products returned to Seller for warranty repair, which upon receipt by Seller are confirmed to be defective and covered

by this limited warranty, will be repaired or replaced (at Seller’s sole option) at no cost to you and returned pre-paid.

Defective parts will be repaired or replaced with new or factory-rebuilt parts at Seller’s sole option.

THIS LIMITED WARRANTY IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY

IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR OTHERWISE,

AND OF ANY OTHER OBLIGATIONS OR LIABILITY ON SELLER’S PART. THIS LIMITED WARRANTY DOES

NOT COVER NON-DEFECT DAMAGE, DAMAGE CAUSED BY IMPROPER INSTALLATION, OPERATION OR

CARE (INCLUDING, BUT NOT LIMITED TO ABUSE, MISUSE, FAILURE TO PROVIDE REASONABLE AND

NECESSARY MAINTENANCE, OR ANY ALTERNATIONS TO THIS PRODUCT), LABOR CHARGES FOR

DISMANTLING OR REINSTALLING A REPAIRED OR REPLACED UNIT, OR REPLACEMENT BATTERIES.

UNDER NO CIRCUMSTANCES SHALL SELLER BE LIABLE FOR CONSEQUENTIAL, INCIDENTAL OR SPECIAL

DAMAGES ARISING IN CONNECTION WITH THE USE, OR INABILITY TO USE, THIS PRODUCT. IN NO EVENT

SHALL SELLER’S LIABILITY FOR BREACH OF WARRANTY, BREACH OF CONTRACT, NEGLIGENCE OR

STRICT LIABILITY EXCEED THE COST OF THE PRODUCT COVERED HEREBY. NO PERSON IS AUTHORIZED

TO ASSUME FOR US ANY OTHER LIABILITY IN CONNECTION WITH THE SALE OF THIS PRODUCT.

Some states do not allow the exclusion or limitation of consequential, incidental or special damages, so the above

limitation or exclusion may not apply to you. This limited warranty gives you specific legal rights, and you may also

have other rights which vary from state to state.

LIMITED WARRANTY ON MOTOR

The motor is fully warranted for the lifetime of the product to the first-time purchaser.

Chamberlain M150 Users Manual GDO ACM DOM

M150 A2390M

M150 to the manual 0b6c3e0d-05e7-a2f4-c1e0-d2e53970b3c9

Navigation menu

Versions of this User Manual:

Views

Navigation
