Champtek

IG300BT

C1/C2 Area image Barcode

Scanner

User’s Manual

Table of contents

1. Introduction............................................................ 1

1.1 Safety & caution............................................ 1

1.2 FCC warning................................................. 2

1.3 Labeling ........................

錯誤

尚未定義書籤。

2. General Description ............................................... 3

2.1 Product Description ...................................... 3

2.2 Illustration ..................................................... 3

3. Installation.............................................................. 4

3.1 Unpacking ................................................... 4

3.2 Mounting...................................................... 4

3.3 Set up Bluetooth Communication............. 6

4. Configuring ............................................................ 9

4.1 Preface......................................................... 9

4.2 Changing Scanner Settings with

Programming Codes .................................. 9

4.3 Changing Scanner Settings with Utility

Tool ............................................................ 10

4.4 Factory Default Settings .......................... 10

5. Operating Settings................................................ 11

5.1 Scanning Triggering................................. 11

5.2 Time Out .................................................... 13

5.3 Good Read Mode ...................................... 14

5.4 Buzzer Beep Tone..................................... 14

6. Imager Settings..................................................... 15

6.1 Imager Mode.............................................. 15

6.2 Firmware Version...................................... 16

6.2.1 Engine Firmware Version........................16

6.2.2Scanner Decoder Firmware Version.....16

6.2.3Cradle Decoder Firmware Version .......16

6.2.4Scanner Bluetooth MAC Address..........16

6.2.5Cradle Bluetooth MAC Address............16

7. Programming Codes ........................................... 17

7.1 Factory Default.......................................... 17

7.2 Bluetooth Setup for IG300BT series ....... 18

7.3 Bluetooth Cradle Setup............................ 20

7.4 Decoding Selection .................................. 27

7.5 Australian Post Settings .......................... 34

7.6 Aztec Settings........................................... 34

7.7 BPO Settings............................................. 35

7.8 Canada Post Settings............................... 35

7.9 Codabar Settings...................................... 35

7.10 Codablock Settings .................................. 37

7.11 Code 11 Settings....................................... 38

7.12 Code 39 Settings....................................... 38

7.13 Code 93 / Code 93i Settings..................... 40

7.14 Code 128 / GSI-128 Settings .................... 41

7.15 DataMatrix Settings .................................. 43

7.16 Dutch Post Settings.................................. 43

7.17 EAN /UPC Parameters Settings............... 44

7.18 GS1 Composite Settings.......................... 47

7.19 GS1 DataBar Settings............................... 49

7.20 Infomail Settings....................................... 49

7.21 Interleaved 2 of 5 Parameters.................. 50

7.22 Japan Post Settings ................................. 51

7.23 Matrix 2 of 5 Settings................................ 51

7.24 MaxiCode Settings.................................... 52

7.25 MicroPDF417 Settings.............................. 53

7.26 MSI code parameters Settings ................ 53

7.27 PDF417 Settings ....................................... 54

7.28 Planet settings .......................................... 56

7.29 Plessey Code Parameters........................ 57

7.30 Postnet Settings ....................................... 57

7.31 QR Code Settings ..................................... 58

7.32 Standard 2 of 5 Settings........................... 58

7.33 Sweden Post Settings .............................. 59

7.34 Telepen Settings....................................... 59

7.35 TLC 39 Settings......................................... 60

7.36 Miscellaneous Parameters....................... 61

7.37 Preambles and Postambles..................... 61

Appendixes ............................................................... 63

A. Decimal Value Table................................. 63

B. ASCII Table................................................ 64

C. Readable Symbologies ............................ 65

D. Technical Specifications.......................... 66

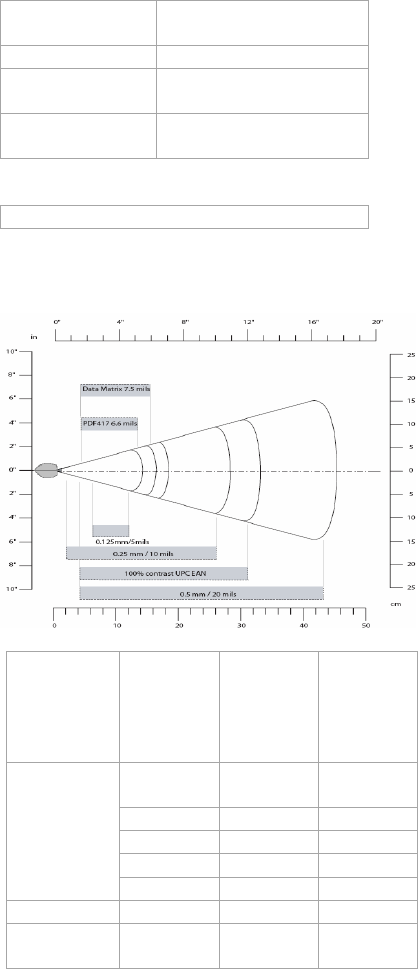

E. Scan Map................................................... 70

F. Test Symbologies..................................... 71

1. Introduction

Thank you for purchasing this brand-new designed 2D

imager hand held barcode scanner.

This is a cutting-edge gun-type Area Imaging barcode

scanner which is designed specifically for government

administration, custom control, shipping industry and

etc. That adds on more user friendly functions and has

replaceable cable that makes it more easily to be

operated by the customers.

This high performance gun-type scanner provides the

customer with the most cost effective solution in the

market. It is perfectly suitable and definitely the best

choice for you.

1.1 Safety & caution

1) Please read the following safety statement carefully.

2) Please preserve this user manual for reference

sometime.

3) Before cleaning the device, the users must cut off

all AC power. Do not use liquid or spray type of

detersive to clean the device. Please use dampish

cotton cloth to clean the device.

4) The outlet must set nearby the device for

connecting power easily.

5) Keep the device dry to avoid short circuit.

6) During installation you must fix the equipment at

solid table to avoid damage caused by falling.

7) Before inserting power please ensure the voltage is

healthy to the equipment.

8) For safety please tie wire well and don’t put

anything on the wire.

9) If you don’t use this equipment for long time,

please cut off the power to avoid damage from

surge power.

10) Don’t spray any liquid on this scanner because it

may cause a fire or short circuit.

11) Please do not open the equipment. For safety only

the qualified serviceman can open the equipment.

12) If there are the following situations please contact

with the qualified serviceman to check this

equipment.

13) The damage of wire or pin of power supply.

14) Some Liquid infiltrate into the equipment.

15) The equipment has been exposed to wet

environment.

16) The equipment can’t work well.

17) The equipment has any obvious damage, making

the device working abnormally.

18) Don’t storage the device at the temperature lower

than -20°C (-4°F) or higher than +70°C (158°F) to

avoid any damage.

1.2 FCC warning

This equipment complies with the requirements in

Part 15 of FCC.

Any operation must comply with the conditions

below:

1) The equipment will not cause any severe

interference.

2) The equipment can avoid any interference from

environment.

Statement:

This product is classified as B class product.

In environment this product may cause some

interference. In this situation the user may do

something to avoid interference.

2. General Description

2.1 Product Description

IG300BT is a high performance wireless 2D imager

barcode scanner supporting liner, area imager barcode

scanning.

This device is very easy to configure by this manual,

you can set up by scanning all necessary programming

codes one time that meet applications, the settings are

directly saved permanently, and all settings can be

disabled after scan reset factory default.

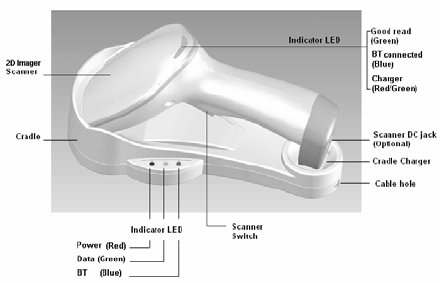

2.2 Illustration

IG-300BT Series

3. Installation

3.1 Unpacking

1) Take device and its accessories out of the box.

2) Remove the packing material.

3) Check the standard shipment packing list to make

sure you have received all of the items ordered.

z Wireless 2D Imager Scanner

z Bluetooth Cradle or Charger (optional)

z Power Adaptor (if applied)

z Communication Cable

z Skip resistant pad

z Iron panel of cradle and screw

z User Manual

4) Visually inspect the device and accessories for any

evidence of physical damage.

5) If anything is missing or appears to be damaged,

immediately contact your dealer.

ATTENTION:

Store the packing material and boxes: It should

be used whenever the device is transported for

servicing.

3.2 Mounting

Once you have unpacked all components, you can

start installing the device as below steps:

IG300BT Scanner

1) The Scanner must be charged for a minimum of

8 hours before the scanner can be placed in full

operation for the first time.

2) The cradle will indicate in red light when the

scanner is being charged.

3) Once the battery is full, green LED of scanner

will be ON. And green light will be OFF when

the scanner leaving from cradle. The battery

will over charged when battery full charged

again, red and green LED will flashing.

4) If the battery power capacity is too low, the

scanner will indicate with red LED and beeper

warning.

IG300BT Cradle

1) Connect the supplied communication cable at

the bottom side of the scanner and you will hear

a “click” when the connection is made.

2) Turn off the host system.

3) Connect the other side of the communication

cable to the right connector of your Host system.

4) Plug the external power supply into the power

jack on the bottom of the cradle.

5) Plug the power supply into the AC outlet.

6) Turn on your Host system.

7) To set up Bluetooth Communication between the

scanner and cradle. (see chapter 3.3)

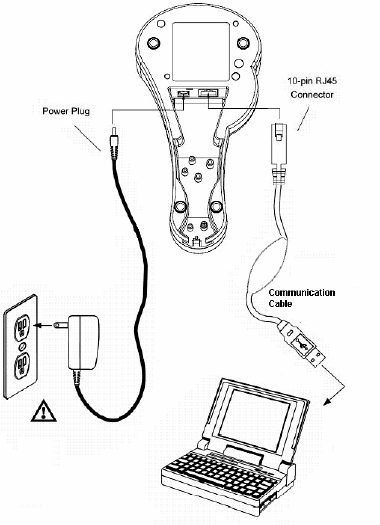

Cable installation

Connect cable and adaptor to Cradle. The other

end of cable will be connected with Host device.

Lock the iron panel of Cradle by screwdriver.

Skip resistant pad position

3.3 Set up Bluetooth Communication

Before the operation, Bluetooth Communication must

be set up between the scanner and cradle.

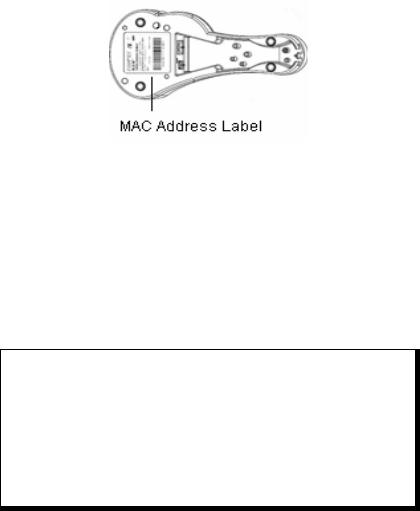

3.3.1. Pairing

Each scanner has to be linked or paired to a cradle by

scanning the unique Bluetooth MAC address code

located on the bottom of cradle. The pairing between

scanner and cradle is one to one that is one scanner

can be paired to a cradle only.

3.3.2. Set up Master Mode Communication

Please follow the steps to set up the communication

between the scanner and cradle.

1) The scanner must scan “Scanner Master Mode”

barcode, to set the scanner in Master mode.

2) Scan the Bluetooth MAC address code located on

the bottom of the cradle.

3) When the Bluetooth MAC address code was

successfully scanned, scanner will sound 2 short

beeps with blue and red LED flash once.

4) Wait approximately five seconds, for completing

the connection process with a long beep sound.

5) If successful, Blue LED of scanner will slow flash

and the cradle will be continued on.

6) If the connections failed the scanner indicates with

3 shot beeps and the cradle with blinking blue LED.

ATTENTION:

It is important to know that the scanner will only

communicate with the cradle with the unique Bluetooth

MAC address. Other scanner can not pair with that

cradle until the original connection is broken. If the

cradle pairs with another scanner, the cradle will

disconnect with the first scanner and then re-connect

with another scanner.

3.3.3. Set up Slave Mode Communication

Please follow the below steps to set up the

communication between the scanner and Bluetooth

application device.

1) The scanner must scan “Scanner Slave Mode”

barcode, to set the scanner in Slave mode.

2) Enter the pin code (default 000000) to setup

comport when control the Bluetooth device to

search the scanner.

3) When the scanner is successful connected,

scanner will sound 2 short beeps with blue and red

LED flash once.

4) If successful, Blue LED of scanner will slow flash.

5) If the connections failed the scanner indicates with

3 shot beeps.

3.3.4. Sleep Mode

The scanner is equipped with sleep mode function to

save battery energy when the scanner is not used for 1

minute or 10 minute (setting by scanning the according

programming code, please see chapter 7.). During

sleep mode, all the functions and connection will be

halted until pressing the trigger button of scanner to

wake up and reconnect the communication with the

cradle or Bluetooth device.

3.3.5. Batch Mode

This Batch mode function is enabled when you have

scanned “Memory ON” barcode. Scanning data is

stored in the memory of the scanner. This function is

disabled when you have scanned “Memory OFF”

barcode.

When the communication reconnected again, you can

scan the barcode “Memory read” barcode to transmit

the stored data to cradle immediately. Or scan the

“Memory clear” barcode to erase all stored memory.

The capacity of this memory depends on the scanned

data size, approximately 1,000 sets of data .

4. Configuring

4.1 Preface

How to configure this device: The Barcode

Programming Feature gives the possibility to change

the scanner settings with use programming codes.

4.2 Changing Scanner Settings with

Programming Codes

You can setup your device by scanning all necessary

programming codes for parameters that meet

applications. After these scans, the device will save

directly and permanently. To go back to the factory

default settings, just scans the programming code

factory default.

In order to change the scanner settings please follow

the sequence below:

1) Power-up the scanner.

2) Change scanner settings by scanning any of the

programming code that meet applications.

An Example:

For changing the Baud rate to 38400 only scan the

programming code that represents this.

After reading a valid programming code the scanner

will give a High beep and the green led indicator will

lights on.

At any moment, you can stop your programming and

read programming code factory default to go back to

default.

4.3 Changing Scanner Settings with

Utility Tool

Manufacturer has setup this scanner with the most

common used programming codes, It could be

possible that you need more advanced settings to use

the scanner without any problems into your application.

In this case you can setup your scanner by using the

advanced Utility Tool. This tool can be used with the

following operation systems: Windows98,

Windows2000, Windows XP en Windows Vista.

This Utility Tool can be delivered on request. Please

contact your dealer

4.4 Factory Default Settings

The factory default settings are shown with <> and

bold in the followings sections

The readable and default enable symbologies list,

please see Appendixes C.

5. Operating Settings

5.1 Scanning Triggering

<Level>

A reading session begins (lighting and decode

processing on) when beam is activated and stops

when beam is deactivated.

Continuous Scanning

When the scanner is turned on a continuous reading

session begins (lighting and decode processing on).

Note: The continue scanning mode doesn’t

support the IG-300BT series.

Pulse

A reading session begins when beam is activated and

stays on until a period of inactivity lasting the time

specified by the timeout.

After the timeout, the scan engine turns off.

Note: The pulse mode does not support the

IG-300BT series.

Continuous + Flashing

When the scan engine is turned on, a reading session

begins (no need to activate the beam).

After a period of inactivity lasting the time specified by

the timeout, the scan engine starts flashing, checking

for a barcode to be read.

When a barcode is detected, the lighting automatically

turns on and stays on until another period of inactivity

(timeout).

After the timeout the scan engine starts flashing again.

Level + Flashing

This mode allows you the switch between level and

flashing mode.

When the scanner is turned on it is in flashing mode

(see flashing mode for explanation).

You can automatically switch to level mode by

activating the beam line.

After a period of inactivity lasting the time specified by

the timeout the scan engine switches back to flashing

mode.

Flashing

Flashing mode allows power up the lighting and

decoding are on (no need to activate the trigger line)

and after a period of inactivity lasting the time specified

by the trigger timeout, the scanner starts flashing,

checking for a bar code to be read.

When a bar code is detected, the lighting and decoding

automatically turn on and stay on until another period

of inactivity (timeout), after the timeout the scanner

starts flashing again.

Autostand

This mode allows you to switch from Flashing trigger

mode to Level trigger mode.

Autostand begins in flashing mode: At power up the

lighting and decoding are on (no need to activate the

trigger line) and after a period of inactivity lasting the

time specified by the trigger timeout, the scanner starts

flashing.

To switch to Level trigger mode activate the trigger line

(press the trigger).

When in Level trigger mode, after a period of inactivity

lasting the time specified by the trigger timeout, the

scanner switches back to flashing mode.

Toggle

This mode allows lighting and decoding toggle when

the trigger line is activated.

First trigger activation = lighting and decoding on,

second trigger activation = lighting and decoding off.

Presentation

This mode allows power up lighting and decoding are

on. After a period of inactivity lasting the time specified

by the trigger timeout, the lighting turns off or is

dimmed. When a new bar code is presented the

lighting and decoding restart and stay on until another

period inactivity.

5.2 Time Out

<2 sec>

4 sec

6 sec

5.3 Good Read Mode

When active, the scan engine stops the reading

session after a successful decoding.

Note: This parameter is NOT used with continuous and

continuous + flashing modes.

Not Active

5.4 Buzzer Beep Tone

5.4.1 Beep Tone Setup

<High >

Medium

Low

5.4.2 Good Read Beeps

Two Beeps

None

5.4.3 Beep Duration

60 msec

<80 msec>

200 msec

Off

6. Imager Settings

6.1 Imager Mode

You can set the best reading performance depends on

the environment, your used application and type of

barcodes.

• Linear mode for decode 1D Barcodes.

• Area mode for decode 1D and 2D barcodes.

Area mode allows you to set the position of the VEGA

in any direction regardless of the orientation of the

barcode, and perform a good read on 1D and 2D

barcodes.

Linear mode allows you to increase your decoding

speed while scanning 1D barcodes. But, you need to

position the beam across all bars in the 1D barcode.

Linear imager

1D and 2D Codes, Bright Environment

1D and 2D Codes With

Reflective Surface

6.2 Firmware Version

Display the firmware version of the scanner, please

scan below barcode.

6.2.1EngineFirmwareVersion

6.2.2ScannerDecoderFirmwareVersion

6.2.3CradleDecoderFirmwareVersion

6.2.4ScannerBluetoothMACAddress

6.2.5CradleBluetoothMACAddress



7. Programming Codes

7.1 Factory Default

7.1.1 Scanner/Cradle parameters set to factory

default

Set Scanner /Cradle factory default

The scanner and cradle factory default settings are

shown with bold < > in the following pages.

Reset all configuration parameters to their factory

default setting. After this reset you must select all

required parameters that meet applications.

7.2 Bluetooth Setup for IG300BT series

7.4.1 Scanner Slave/Master Mode

Scanner Slave Mode

7.4.2 Sleep Mode

Sleep Mode 10 min. ON

Sleep Mode OFF

7.4.3 Batch Mode

Memory Mode ON

Memory Read

Memory Clear

7.4.4

7.4.5 Set Scanner Pin Code Mode

Set Default Security Code

(PINCODE = 000000)

Set Security Code ON

7.4.6 Set Pin Code Character

(PINCODE max. 6 digits/0-9and A-Z ASCII CODE)

Set Default Security Code Barcode

(PINCODE = 000000)

1) Begin to Set PINCODE

2) Go to the ASCII Tables in Appendixes; scan 6

labels that represent the PINCODE.

3) Complete to Set PINCODE

7.3 Bluetooth Cradle Setup

7.5.1 Set Cradle Security Mode

Set Default Security Code Barcode

(PINCODE = 000000)

Set Security ON

7.5.2 Set Cradle Pin Code

(PINCODE max. 6 digits ,0-9,A-Z ASCII CODE )

Set Default Security Code Barcode

(PINCODE = 000000)

1) Begin to Set PINCODE

2) Go to the ASCII Tables in Appendixes; scan 6

labels that represent the PINCODE.

3) Complete to Set Scanner BT PINCODE

7.5.3 Set Cradle Interface Barcode

Set Cradle KB Interface Barcode

Set Cradle RS232 Interface Barcode

Set Cradle USB HID Interface Barcode

7.5.4 Cradle Baud Rate

1200

2400

4800

9600

<19200>

38400

7.5.5 Cradle Data Bits

7 data bits

<8 data bits>

7.5.6 Cradle Stop bits

<1 bit>

2 bits

7.5.7 Cradle Parity

<None>

Even

Odd

Mark

Space

7.5.8 Cradle Hand Shaking

RTS/CTS Enable

ACK/NAK Enable

XON/XOFF Enable

< XON/XOFF Disable >

7.5.9 Cradle Keyboard Wedge Mode

Parameters

1) Terminal type

IBM PC/XT

IBM PS/2 25, 30

2) Upper/Lower Case

Upper Case

Lower Case

3) Send Character by ALT Method

Enable

4) Select Numerical Pad

<OFF>

5) Time out Between Characters

<0 ms>

5 ms

10 ms

25 ms

50ms

100ms

6) Language Selection

UK English

Italian

Spanish

French

German

Swedish

Switzerland

Hungarian

Japanese

Belgium

Portuguese

Denmark

Netherlands

Turkey

Reserved 1

7.4 Decoding Selection

7.6.1 Symbologies Selection

Australian Post ON

AZTEC ON

BPO ON

Canada Post ON

CODABAR ON

Codablock A ON

Codablock F ON

CODE 11 ON

CODE 39 OFF

CODE 93 ON

CODE 128 OFF

<GS1-128 ON>

GS1-128 OFF

DATAMATRIX OFF

Dutch Post ON

<EAN-8 ON>

EAN-8 OFF

<EAN-13 ON>

EAN-13 OFF

EAN 128 OFF

GS1 CC-A/B ON

GS1 CC-C ON

GS1 DataBar-Omni ON

GS1 DataBar Limited ON

GS1 DataBar Expanded ON

Infomail ON

Interleaved 2 of 5 ON

Japan Post ON

Matrix 2 of 5 ON

MaxiCode ON

MicroPDF417 ON

MSI ON

PDF417 OFF

Planet ON

PLESSEY ON

Postnet ON

QR Code ON

Standard 2 of 5 ON

Sweden Post ON

Telepen ON

TLC 39 ON

<UPC-A ON>

UPC-A OFF

<UPC-E ON>

UPC-E OFF

7.6.2 Disable All Symbologies.

If you want to disable all Symbologies, please

scan below programming code. Or you can scan

the “Off” option to disable individual symbologies.

Disable All Symbologies

Note: Do not reset individual parameters settings for

each symbology. When you enable a symbology, you

will recover the parameter settings stored in memory.

Anytime, you may reset to factory defaults by scanning

the programming code of “Set factory default” (please

see 7.1.1)

7.5 Australian Post Settings

7.7.1 Symbology Identifier

7.6 Aztec Settings

7.8.1 Structure Append Mode

Active

< Not Active>

7.8.2 Aztec Runes

Active

7.8.3 GS1-128 Emulation

Active

7.7 BPO Settings

7.9.1 Check Digit Transmission

Not Active

7.8 Canada Post Settings

7.9 Codabar Settings

7.11.1 Symbology Identifier

<UDSI-Default"B7">

7.11.2 Start/Stop

Transmitted-a,b,c,d

Transmitted-A,B,C,D

Transmitted-a,b,c,d/t,n,*,e

Transmitted-DC1,DC2,DC3,DC4

7.11.3 CLSI Library System

Active (insert spaces)

7.11.4 Check Digit Verification

Used

7.11.5 Check Digit Transmission

Transmitted

7.11.6 Concatenation

Transmit All Codes

(Single,Concatenated)

Transmit Concatenated Codes Only

Stop 1 = Start 2

ABC (American Blood

Commission)

7.10 Codablock Settings

<Codablock F

UDSI-Default"K1">

<Codablock F

Code Mark-Default"*">

7.11 Code 11 Settings

7.13.1 Symbology Identifier

<UDSI-Default"C1">

Check Digits

<1 Digit>

2 Digits

Checked but not

Transmitted

7.12 Code 39 Settings

7.14.1 Symbology Identifier

<UDSI-Default"B1">

7.14.2 Format

Full ASCII (Extended)

7.14.3 Start/Stop

Transmitted

7.14.4 Accepted Characters

<Only(Standard Code 39)>

$ Only(Trioptic Code 39)

$ and *

(Standard and Trioptic Code 39)

7.14.5 Check Digit Verification

Modulo 43

French CIP

Italian CPI

Check Digit Transmitted

7.14.6 Reading Range

Normal

7.14.7 Reading Tolerance

<High >

Medium

Low

7.13 Code 93 / Code 93i Settings

7.15.1 Symbology Identifier

<UDSI-Default"B6">

7.14 Code 128 / GSI-128 Settings

7.16.1 Symbology Identifier

<UDSI-Code 128-Default"B3">

<UDSI-GS1-128-Default"C9">

7.16.2 GS1-128 Identifier

Remove ]C1 Identifier

7.16.3 CIP 128 French Pharmaceutical Codes

Active

<FNC1 Separator Character

(GS1-128 norms)-<GS>(1Dh)>

7.16.4 Reading Tolerance

<High >

Medium

Low

7.16.5 ISBT 128

Active

Transmit Single

Transmit Concatenated

Codes Only

Transmit Single Codes/

Concatenated Codes

<Concatenate Authorized

ISBT 128 Code Pairs Only>

Concatenate All

ISBT 128 Code Pairs

7.16.6 GTIN Processing for GS1-128

Active

7.16.7 Unconventional GS1-128

Not Active

7.15 DataMatrix Settings

7.17.1 Symbology Identifier

<UDSI-Default"D0">

7.16 Dutch Post Settings

7.18.1 Symbology Identifier

<UDSI-Default"P4">

7.17 EAN /UPC Parameters Settings

7.19.1 Reading Type

<UPC-A Transmitted As EAN-13>

UPC-A Transmitted As UPC-A

<UPC-E Transmitted As UPC-E >

UPC-E Transmitted As UPC-A

EAN-8 Transmitted As EAN 8 >

EAN-8 Transmitted As EAN-13

ISBN – Active

ISMN – Active

ISSN – Active

GTIN Processing – Active

<GTIN Processing - Not

Active >

7.19.2 Supplemental Setup

<ADD-ON Digits Not Required

but Transmitted If Read>

ADD-ON Digits

Required and Transmitted

ADD-ON 2 ON

<ADD-ON 2 OFF >

ADD-ON 5 ON

<ADD-ON 5 OFF >

7.19.3 Check Digit Transmission

<UPC-A Check Digit

Transmission ON >

UPC-A Check Digit

Transmission OFF

<UPC-E Check Digit

Transmission ON >

UPC-E Check Digit

Transmission OFF

<EAN-8 Check Digit

Transmitted ON >

EAN-8 Check Digit

Transmission OFF

<EAN-13 Check Digit

Transmitted ON >

EAN-8 Check Digit

Transmission OFF

7.19.4 Symbology Identifier

<UDSI–UPC-A-Default"A0">

<UDSI–UPC-E-Default"E0">

<UDSI–EAN-8-Default"FF">

<UDSI–EAN-13-Default"F">

7.18 GS1 Composite Settings

7.20.1 EAN/UPC Composite Message

Decoding

<Auto-Discriminate >

Always Linked

Never Linked

7.20.2 Symbology Identifier

<UDSI–CC-A/B-Default"G0">

<UDSI–CC-C-Default"G1">

<Code Mark–CC-C-

Default"*">

7.20.3 Linear Transmission Only

Active

7.19 GS1 DataBar Settings

7.21.1 Symbology Identifier

<Omni-UDSI-Default"C3">

<Omni-Code Mark-

Default"*">

<Limited-UDSI-Default"C4">

<Limited-Code Mark-

Default"*">

<Expanded-UDSI-Default"C5">

<Expanded-Code Mark-

Default"*">

7.20 Infomail Settings

7.22.1 Symbology Identifier

<UDSI-Default"P8">

7.21 Interleaved 2 of 5 Parameters

7.23.1 Check Digit Verification

Modulo 10

French CIP

Transmitted

7.23.2 Symbology Identifier

<UDSI-Default"B2">

7.23.3 Reading Tolerance

<High >

Medium

Low

7.22 Japan Post Settings

7.24.1 Symbology Identifier

<UDSI-Default"P5">

7.24.2 Check Digit Transmission

Not Active

7.23 Matrix 2 of 5 Settings

7.25.1 Symbology Identifier

<UDSI-Default"B4">

Code Mark-China Post

7.24 MaxiCode Settings

7.26.1 Symbology Identifier

<UDSI-Default"D2">

7.26.2 Mode 0

Active

7.26.3 Header

<Regular(AIM)>

Extended

7.25 MicroPDF417 Settings

7.27.1 Symbology Identifier

<UDSI–Default"C8">

7.27.2 Code 128 Emulation

Active

7.26 MSI code parameters Settings

7.27.1 Symbology Identifier

<UDSI-Default"B8">

7.27.2 Check Digit Verification

Double Modulo 10

Check Digit Transmitted >

Check Digit Not

Transmitted

7.27 PDF417 Settings

7.29.1 Symbology Identifier

<UDSI-Default"C7">

7.29.2 Irregular PDF

Active

7.29.3 Control Header

Transmitted

7.29.4 Optional Fields

File Name Transmitted

<File Name

Not Transmitted >

Segment Count Transmitted

<Segment Count

Not Transmitted >

Time Stamp Transmitted

<Time Stamp

Not Transmitted >

Sender Transmitted

<Sender Not

Transmitted >

Addressee Transmitted

<Addressee

Not Transmitted >

File Size Transmitted

<File Size

Not Transmitted >

Checksum Transmitted

<Checksum Not

Transmitted >

7.28 Planet settings

7.30.1 Symbology Identifier

<UDSI-Default"P1">

7.30.2 Check Digit Transmission

Not Active

7.29 Plessey Code Parameters

7.31.1 Symbology Identifier

<UDSI–Default"C2">

7.31.2 Check Digit Transmission

Check Digit Transmitted

<Check Digit

Not Transmitted >

7.30 Postnet Settings

7.32.1 Symbology Identifier

<UDSI-Default"P0">

7.32.2 Check Digit Transmission

Not Active

7.31 QR Code Settings

7.33.1 Model 1 Control

Active

7.33.2 Symbology Identifier

<UDSI-Default"D1">

7.32 Standard 2 of 5 Settings

7.34.1 Symbology Identifier

<UDSI-Default"B5">

7.34.2 Format

Computer Identics

(4 start/stop bars)

7.34.3 Check Digit Verification

Modulo 10

Transmitted

Not Transmitted >

7.33 Sweden Post Settings

7.35.1 Symbology Identifier

<UDSI-Default"P7">

7.34 Telepen Settings

7.36.1 Symbology Identifier

<UDSI-Default"C6">

7.36.2 Format

<ASCII>

Numeric

7.35 TLC 39 Settings

7.37.1 Symbology Identifier

<UDSI-Default"H0">

7.37.2 Linear Transmission Only

Active

7.37.3 ECI security

<10>

7.36 Miscellaneous Parameters

7.38.1 Symbology Identifier

Symbology Identifier Transmitted

<Symbology Identifier

Not Transmitted>

With this function ON, a leading character will be

added to the output string while scanning codes, user

may refer to the following table to know what kind of

barcode is scanned.

Please refer to the table below for matching code

Symbology Identifier of codes read in.

ID Code Type ID

Aztec * Interleaved 2 of 5 I

Codabar D GS1 DataBar Omini *

Code 11 * GS1 DataBar Expanded *

Code 39 * GS1 DataBar Limited *

Code 93 D MSI code *

Code 128 D Plessey Code D

DataMatrix * PDF417 *

EAN-8 FF MicroPDF417 *

EAN-13 F UPC-A A

EAN-128 D UPC-E E

7.37 Preambles and Postambles

7.39.1 Preamble

The scanner can be programmed to output Barcode

data according to the following format: [PREAMBLE

STRING] [BAR CODE DATA]

Example:

To send a <STX> in front of the barcode, scan only

programming code <STX>.

As a result, the scanner will give the following barcode

output: [<STX>] [BAR CODE DATA]

<STX>

7.39.2 Postamble

The scanner can be programmed to output Barcode

data according to the following format: [BAR CODE

DATA] [POSTAMBLE STRING]

Example:

To send a <ETX> after the Barcode, scan only

programming code <ETX>.

As a result, the scanner will give the following barcode

data output:

[BAR CODE DATA] [<ETX>]

Postamble None

<CR+LF >

<ETX>

Appendixes

A. Decimal Value Table

B. ASCII Table

C. Readable Symbologies

1D Symbologies

Symbologies Readable Default

Enable

EAN/UPC ○ ○

UCC/EAN128 ○ ○

ISBN ○

ISBT ○

Code 11 ○

Code 39 ○ ○

Code 93/93i ○

Code 128 ○ ○

Interleaved 2 of

5 ○

Matrix 2 of 5 ○

Instustrial 2 of 5 ○

Standard 2 of 5 ○

Codabar ○

MSI ○

Plessey ○

Telepen ○

BPO ○

Codablock ○

Informail ○

Planet ○

TLC 39 ○

Postnet ○

Postal codes ○

GS1-128

○

GS1 CC-A/B/C ○

GS1 DataBar

Omnidirectional

○

GS1 DataBar

Limited ○

GS1 DataBar

Expanded ○

2D Symbologies

Symbologies Readable Default

Enable

Data Matrix ○

PDF417 ○ ○

MicroPDF417 ○

MaxiCode ○

QR code ○

Aztec ○

EAN.UCC

composite ○

D. Technical Specifications

D-1 Physical Characteristics

Weight

IG-300BT

Scanner

Cradle

Accessory

KBW cable

RS232 Cable

USB Cable

AC adaptor

Approx. 210g

Approx. 105g

Approx. 75g

Approx. 123g

Approx. 67g

Approx. 125g

Material ABS Plastic

Connector RJ 45C 10Pins

Cable Length 5Ft. (150mm)

Dimension

Scanner

Cradle 193x90x72mm

206x101x49mm

D-2 Performance

a) Scanner Characteristics

Light

source Visible Red light 650nm ±

10nm

Scan rate

200scans/sec auto

adaptive in linear mode

56 images/sec auto

adaptive in area mode

Optical

resolution 752 Horizontal x 480 Vertical

pixels, 256 gray levels

Scan Horizontal 70°±10% (Forward:

angle 20°/ Backward: 50°)

Vertical 80°±10% (Left 40°/

Right 40°)

Interface

IG-300BT

KBW, RS-232, USB (HID KBW)

b) Bluetooth Characteristics

(for IG-300BT series)

Bluetooth Module

Bluetooth V2.0

Standard

Frequency Band 2.402GHz ~ 2.480GHz

Modulation Method GFSK for 1Mbps

RF Output Power Under 4dBm (Class 2)

Bluetooth distance

range Class 2 up to 10M

Class 1 up to 100M

Data storage on BT

disconnect 50 scans

D-3 Indicator LED Status

a) IG-300 Series

Light Signal Status

Green 1 blink and 1

beep good read

and transmitted

b) IG-300BT Series

Cradle

Light Signal Status

Green

1 blink good read

and transmitted

continuous on power on

Red off power off

flash BT disconnect

Blue continuous on BT connected

Modulation Method

GFSK for 1Mbps; π/4-

DQPSK for 2Mbps;

8DPSK for 3Mbps

Scanner

Light Signal Status

good read

and transmitted

1 blink and 1 beep good read

and save on

memory

(BT disconnect)

Green

continue on battery charged

full

3 long blink and 3

long beeps memory full

4 blink and 4 beeps low Battery

warning

2 blink and 2 beeps good read

but transmit fail

Red

continue on in charging

3 blink and 3 beeps BT disconnect

fast flash twice

per 2 seconds on connecting

dark BT disconnect

before sleep

Blue

continuous on and 1

long beep BT connected

Red

Blue 1 blink at the same

time and 2 beeps setting ok

Red

Green

red and green light

flash alternately

three times start charging

Green

Red

Blue

1 blink taking turns 3

times battery changed

D-4 Electrical Characteristics

Operation

Voltage 5 VDC ±5%

Current

Operating 450 mA (max) @ 5

VDC

Current

Standby 37 mA typical @ 5

VDC

AC transforme 5.2 VDC @ 650 mA /

Input AC 100-

rs 240V

D-5 Environmental

Operating

Temp 0°C to 50°C

Storage Temp. -20°C to 70°C

Relative

Humidity 0 to 95% non-

condensing

Ambient light 100,000 Lux (direct

sunlight)

D-6 Regulatory of Compliance

FCC, CE, RoHs

E. Scan Map

Symbolog

y Density Minimu

Distance

(+/-

10%)

Maximu

Distance

(+/-

10%)

0.125

mm 5.2 cm 12.1 cm

0.20mm 2.0 cm 21.5 cm

0.25mm 2.4 cm 26 cm

0.5mm 4 cm 44 cm

Code 39

1mm 7 cm 82 cm

UPC / EAN 0.33 mm 4 cm 31 cm

Data

matrix 0.191

mm 5.3 cm 16.2 cm

0.254

mm 3.8 cm 21 cm

0.381

mm * 28 cm

0.16 mm 5.2 cm 14.4 cm

0.254

mm 3.5 cm 22 cm

PDF417

0.381

mm 3 cm 36 cm

F. Test Symbologies

Scan one or more of these barcodes to test barcode

symbologies you enabled.

Codabar

Code 39

Code 93

Code 128

DataMatrix

EAN 8

1234 5670

EAN13

1 234567 890128

EAN 128

Interleaved 2 of 5

MSI code

PDF417

GS1 DataBar

Omnidirectional

GS1 DataBar Omni Stacked

GS1 DataBar Expanded

GS1DataBar Expanded

Stacked

GS1 DataBar Limited

UPC A

12345 67890

UPC E

123456

This equipment has been tested and found to comply with the limits for a

class B digital device, pursuant to part 15 of the FCC rules. These limits are

designed to provide to provide reasonable protection against harmful

interference in a residential installation. This equipment generates, uses and

can radiate radio frequency energy and, if not installed and used in

accordance with the installation. , May cause harmful interference to radio

communication. However, there is no guarantee that interference

Will not occur in a particular installation. if this equipment does cause

harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is encouraged

to try to correct the interference by one or more of the following measures:

-Reorient or relocate the receiving antenna

-Increase the separation between the equipment and receiver

-Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected

-Consult the dealer or an experienced radio / TV technician for help

You are cautioned that changes or modifications not expressly approved

by the party responsible for compliance could void your authority to

operate the equipment.

This transmitter must not be co-located or operating in conjunction with any

other antenna or transmitter.

This device complies with part 15 of the FCC rules. Operation is subject to

the following two conditions

(1) This device may not cause harmful interference and

(2) This device must accept any interference received, including

interference that may cause undesired operation

1.this transmitter must not be co-located or operating in conjunction with any

other antenna or transmitter . 

2.this equipment complies with FCC RF radiation exposure limits ser forth for an

uncontrolled environment.

This equipment should be installed and operated with a minimum distance of

20 centimeters between the radiator and your body . 

0145-88E0041

V01

Chamk lnorated 090260831578 IG300BT C1/C2 Area image Barcode Scanner User Manual

Champtek lncorporated IG300BT C1/C2 Area image Barcode Scanner

user manual

Navigation menu

Namespaces

Views

Navigation
