(1M) 12/14 Printed in U.S.A.

DH5000 Single Source Gas

Hood-type Dishwashing Machine

Genesis

GENESIS HOOD-TYPE

STANDARD FEATURES

• ENERGY STAR® Qualified

• NEW Exclusive Built-in booster configured

for both 40° and 70° Rise

• Rinse Sentry – ensures 180°F final rinse

• Auto start – starts unit when hood is closed

• High efficiency 1 HP pump

• Up to 53 racks per hour

• Self draining pump

• Automatic tank fill

• Detergent/chemical connections

• Interchangeable upper and lower spray arm

• Automatic drain valve – drains wash tank when

power is off

• Vent fan control

• Bottom mounted digital controls

• PRV (Pressure Reducing Valve)

• Sloped hood keeps hot vapors away from operator

• Standard and Heavy Duty wash cycles

SPECIFIER STATEMENT

Specified unit will be Champion model Genesis, DH5000

single source gas hood-type dishwashing machine.

Features sloped hood, electronic controls, Rinse Sentry,

Auto start, interchangeable stainless steel wash and rinse

arms, up to 53 racks/hr., 0.83 US gals/rack.

1 year parts and labor warranty.

Champion Industries, Inc.

3765 Champion Blvd., Winston-Salem, NC 27105

Tel: 336/661-1556 Fax: 336/661-1979

www.championindustries.com

Project

Item No.

Quantity

OPTIONS & ACCESSORIES

: Drain Water Tempering Kit

: Direct Vent Option with Fan

: Racks

: Peg

: Flat

:Door Interlock

:Corner Operation Splash Baffle

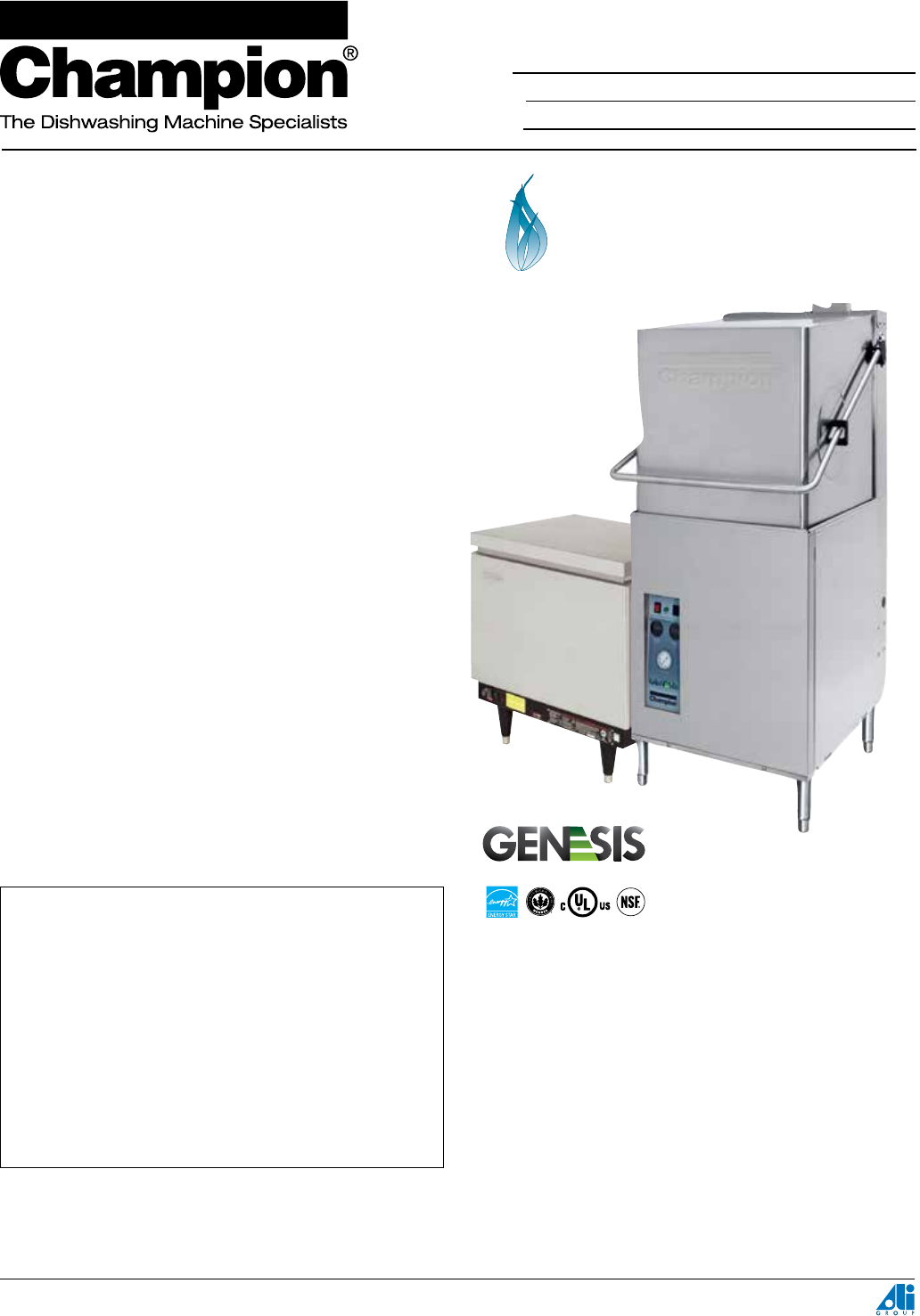

Photo is for general visual representation

only. Please refer to specifications for the

latest detailed product information.

Gas

Due to an ongoing value analysis program at Champion, specifications contained in this catalog are subject to change without notice.

Champion Industries, Inc., 3765 Champion Blvd., NC 27105 • 336/661-1556 • Fax: 336/661-1979 • www.championindustries.com

‘USGBC’ and related logo is a trademark owned by the U.S. Green Building Council and is used by permission.

DH5000 Single Source Gas

Hood-type Dishwashing Machine

GENESIS

GENESIS HOOD-TYPE

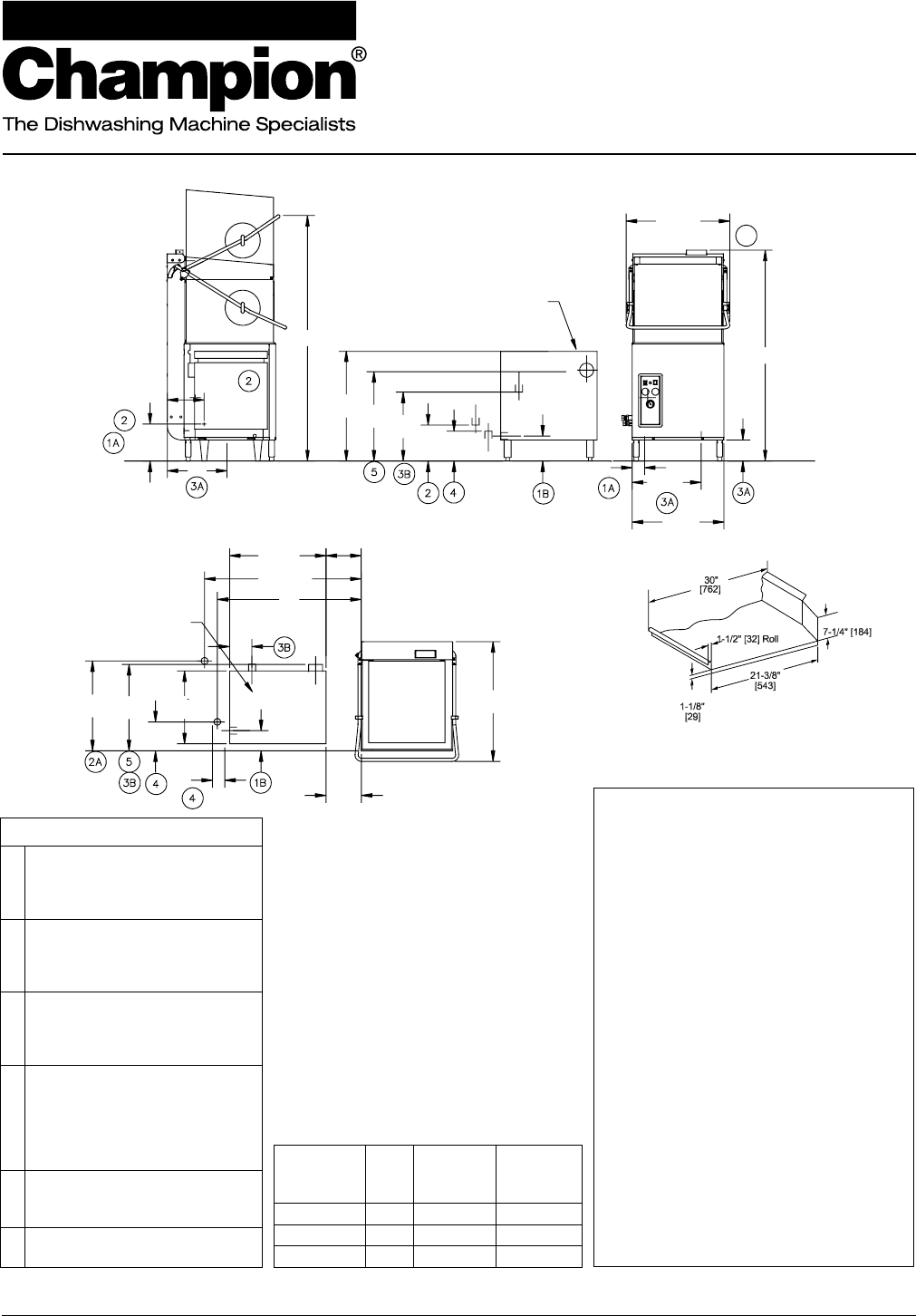

Shipping weight crated: 300 lbs. Dimensions shown in inches and [mm]

Typical Table Construction

SPECIFICATIONS

Capacities

Racks per hr. (NSF rated) 53

Wash tank (gal.) 9.5

Motor horsepower

1 HP

Water consumption

Gal. per hr. (max. use) 44

Gal. per rack 0.83

Temperature °F

Wash 150

Rinse 180

Gas Heating

PMG-60 (40°F rise) 58,000 BTU/hr

PMG-100 (70°F rise) 105,000 BTU/hr

Time cycle in seconds

Standard Extended

Wash 35 65

Rinse 10 10

Sanitary Dwell 15 15

Total cycle 60 90

Warning: Plumbing, electrical connections

should be made by qualified personnel who will

observe all the applicable plumbing, sanitary and

safety codes and the National Electrical Code.

Utilities

1Electrical

Machine Connection (See Electrical Box)

Gas Booster Connection 15 AMPs

120V/60/1

2Hot Water

3/4" NPT Hot Water 140°F for 40°F Rise

3/4" NPT Hot Water 110°F for 70°F Rise

20-22 PSI Flow pressure

3 Drain

2" OD Machine Drain Connection

3/4" NPT Relief Valve to Open Drain

1/2" NPT Vent to Open Drain

4Natural Gas

40°F Rise Requires 58,000BTU/hr

70°F Rise Requires 105,000BTU/hr

PMG-60 Requires 1/2" NPT

PMG-100 Requires 3/4" NPT

See Gas Piping Note

5Gas Flue Exhaust

See Gas Flue Ventilation Note

4" Diameter Rear of Booster

6 Exhaust

250 CFM Hood Required

Voltage Rated

Amps

Minimum

Supply

Circuit

Ampacity

Maximum

Overcurrent

Protective

Device

208-240/60/1 15 20 20

208-240/60/3 815 15

460-480/60/3 415 15

Front ViewSide View

25-5/16"

25-5/8"

27-1/2"

34-1/8"

5-3/4"

10"

44-5/8"

41"

6-3/8"

24-5/8"20-3/4"

8-1/4"

3-1/4"

Gas Booster

6

69-3/4"

Gas Booster

10-1/2"

10-1/2"

31-3/8"

17"

25-7/16"

19-5/8"

60-1/8"

29-1/2"

26-1/8"

19-5/8"

3-1/2"

7-1/8"

8-1/2"

10-1/4"

6"

25-5/16"

25-5/8"

27-1/2"

34-1/8"

5-3/4"

10"

44-5/8"

41"

6-3/8"

24-5/8"20-3/4"

8-1/4"

3-1/4"

Gas Booster

6

69-3/4"

Gas Booster

10-1/2"

10-1/2"

31-3/8"

17"

25-7/16"

19-5/8"

60-1/8"

29-1/2"

26-1/8"

19-5/8"

3-1/2"

7-1/8"

8-1/2"

10-1/4"

6"

Plan View

25-5/16"

25-5/8"

27-1/2"

34-1/8"

5-3/4"

10"

44-5/8"

41"

6-3/8"

24-5/8"20-3/4"

8-1/4"

3-1/4"

Gas Booster

6

69-3/4"

Gas Booster

10-1/2"

10-1/2"

31-3/8"

17"

25-7/16"

19-5/8"

60-1/8"

29-1/2"

26-1/8"

19-5/8"

3-1/2"

7-1/8"

8-1/2"

10-1/4"

6"
