Champion Power Equipment 100155 Owners Manual 100155_manual English_2 5 15

: Champion-Power-Equipment Champion-Power-Equipment--100155-Owners-Manual-802544 champion-power-equipment--100155-owners-manual-802544 champion-power-equipment pdf

Open the PDF directly: View PDF .
Page Count: 32

U.S. Patent No. D710,802

OWNER’S MANUAL & OPERATING INSTRUCTIONS

12039 Smith Ave.

Santa Fe Springs CA 90670

USA / 1-877-338-0999

www.championpowerequipment.com

SAVE THESE INSTRUCTIONS

Important Safety Instructions

are included in this manual.

MADE IN CHINA

REV 100155-20150205

100155

MODEL NUMBER

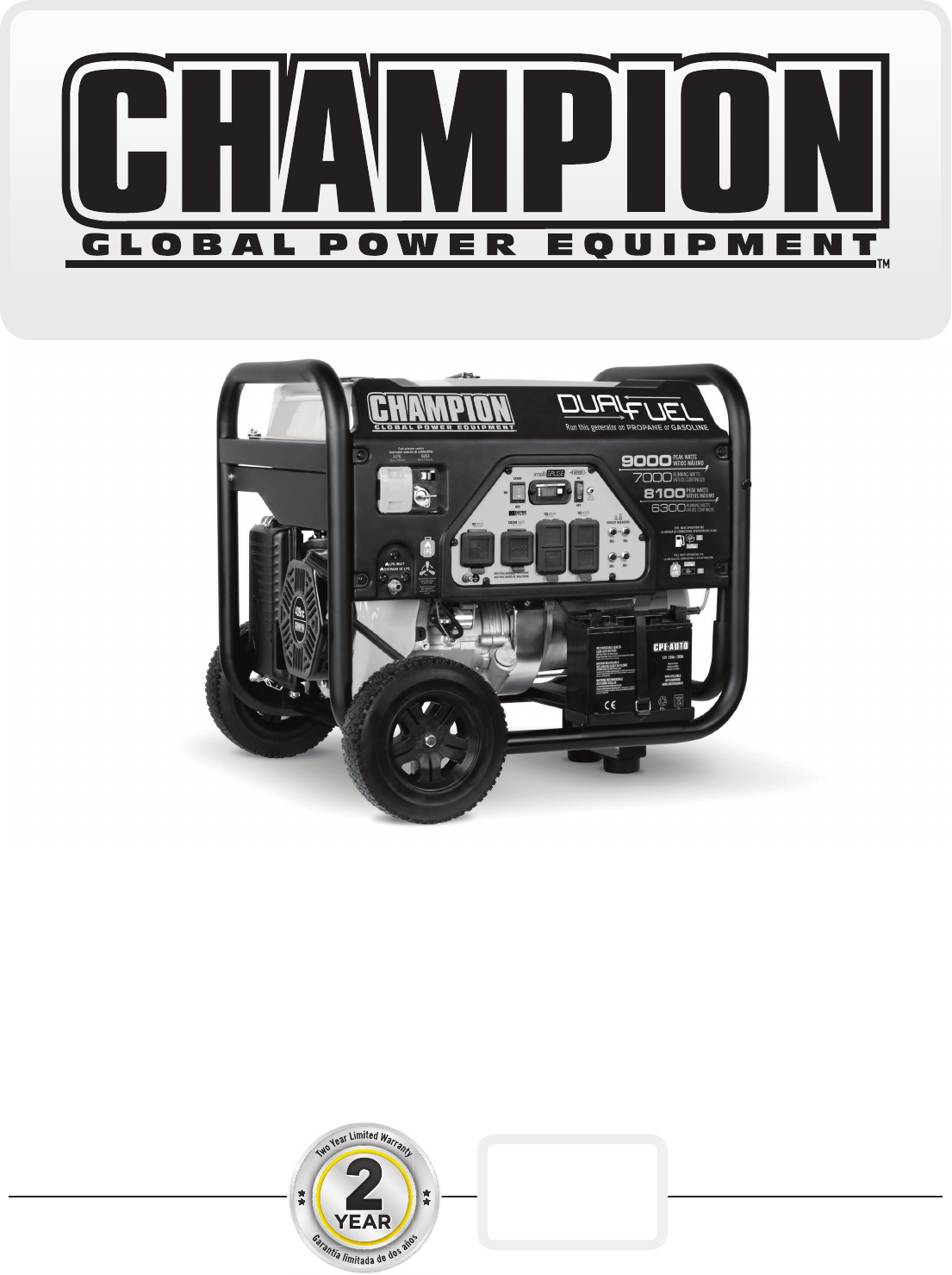

8100 Peak Watts/6300 Running Watts (LPG)

9000 Peak Watts/7000 Running Watts (Gasoline)

DUAL FUEL GENERATOR

Electric Start

*We are always working to improve our products. Therefore, the enclosed product may differ slightly from the image on the cover.

Have questions or need assistance?

Do not return this product to the store!

WE ARE HERE TO HELP!

Visit our website:

www.championpowerequipment.com

for more info:

• Product Info & Updates

• Frequently Asked Questions

• Tech Bulletins

• Product Registration

– or –

Call our Customer Care Team Toll-Free at:

1-877-338-0999

AN IMPORTANT MESSAGE ABOUT TEMPERATURE:

Your Champion Power Equipment product is designed and rated for continuous operation at ambient temperatures up to

40°C (104°F). When your product is needed your product may be operated at temperatures ranging from -15°C (5°F) to

50°C (122°F) for short periods. If the product is exposed to temperatures outside this range during storage, it should be

brought back within this range before operation. In any event, the product must always be operated outdoors, in a

well-ventilated area and away from doors, windows and other vents.

WARNING:

The Engine Exhaust from this product contains chemicals known to the State of California

to cause cancer, birth defects or other reproductive harm.

100155

TABLE OF CONTENTS

Introduction ............................. 1

Introduction ........................... 1

Portable Power Generator .................. 1

Accessories ........................... 1

This Booklet ........................... 1

Manual Conventions. . . . . . . . . . . . . . . . . . . . . . . . 2

Safety Rules ............................. 3

Fuel Safety ........................... 5

Controls and Features ...................... 6

Generator ............................. 6

Generator Panel ........................ 7

Parts Included ......................... 8

Wheel Kit .......................... 8

Other ............................. 8

Assembly ............................... 9

Remove the Generator from the Shipping Carton .. 9

Install the Wheel Kit ..................... 9

Install the Support Leg ................... 9

Connect the Battery ..................... 9

Add Engine Oil ........................ 10

Add Fuel (Gasoline) ..................... 11

Connecting Liquid Petroleum Gas

(LPG) Cylinder ....................... 12

Grounding ........................... 12

Operation .............................. 13

Generator Location ..................... 13

Grounding ........................... 13

Surge Protection ....................... 13

Fuel Selector Switch .................... 14

Starting the Engine ..................... 14

Gasoline ......................... 14

LPG ............................ 15

Stopping the Engine .................... 16

Connecting Electrical Loads ............... 16

GFCI ............................... 16

Do Not Overload Generator ................ 17

Capacity .......................... 17

Power Management ................... 17

Operation at High Altitude ............. 17

Smart Charger ..................... 18

Maintenance and Storage ................... 19

Engine Maintenance .................... 19

Oil .............................. 19

Spark Plugs ........................ 19

Air Filter .......................... 19

Spark Arrester ...................... 20

Cleaning .......................... 20

Adjustments ........................ 20

Maintenance Schedule ................ 20

Generator Maintenance .................. 20

Storage ............................. 21

Generator Storage .................... 21

Generator Battery .................... 21

Disconnect the Battery ................ 21

Charge the Battery ................... 21

Specifications ........................... 22

Engine Specifications ................... 22

Generator Specifications ................. 22

Fuel ............................... 22

Spark Plugs .......................... 22

Maintenance Valve Clearance .............. 22

An Important Message About Temperature .... 22

Oil ................................ 22

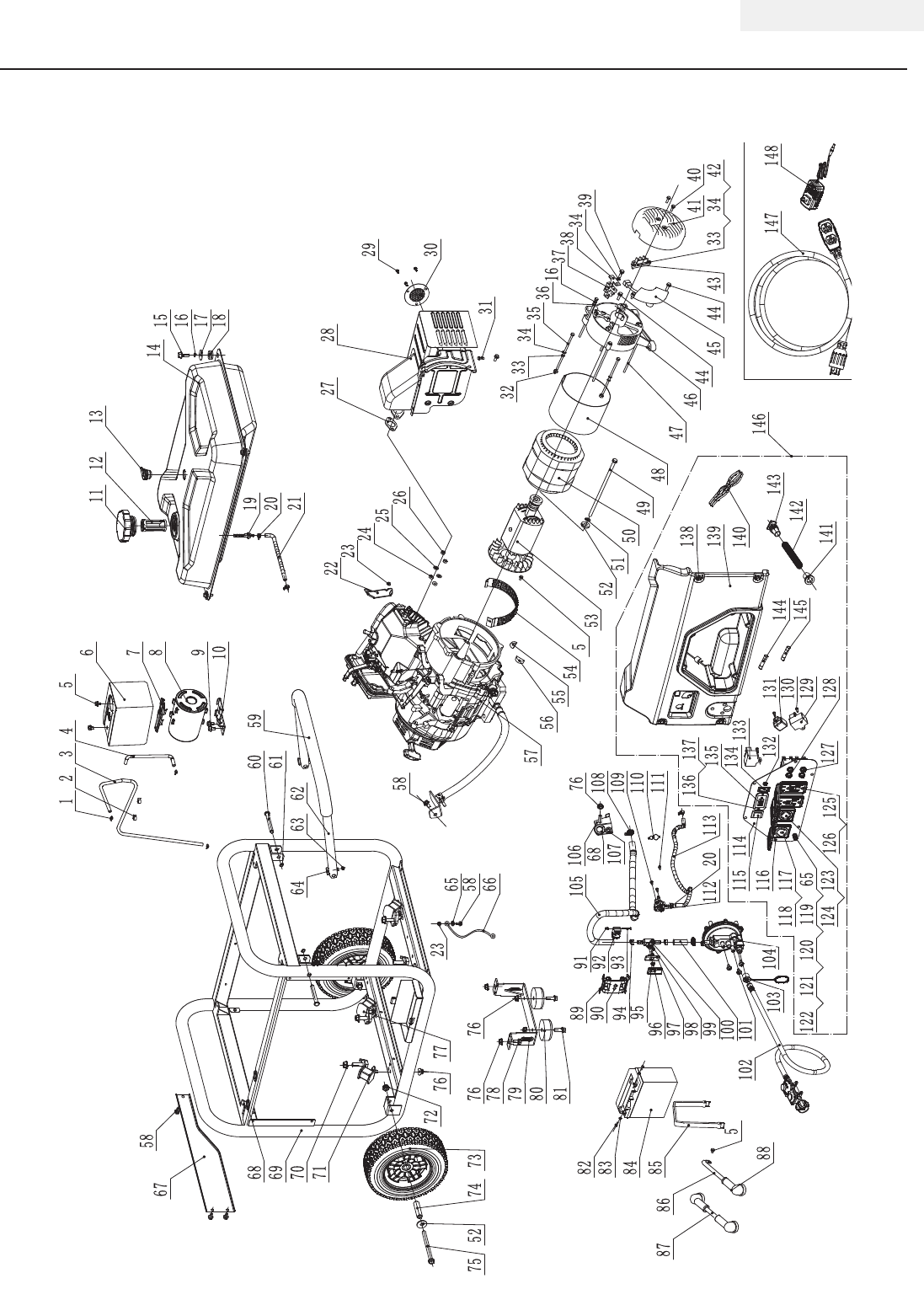

Parts Diagram ........................ 23

Parts List ............................ 24

Engine Parts Diagram ................... 25

Engine Parts List ...................... 26

Wiring Diagram ........................ 27

Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . 28

Warranty .............................. 29

Warranty Qualifications .................. 29

Repair/Replacement Warranty .............. 29

Do Not Return The Unit To

The Place Of Purchase .................. 29

Warranty Exclusions .................... 29

Normal Wear ....................... 29

Installation, Use and Maintenance ........ 29

Other Exclusions ..................... 29

Limits of Implied Warranty

and Consequential Damage ............. 29

Contact Information. . . . . . . . . . . . . . . . . . . . . 29

Address ........................... 29

Customer Service .................... 29

Technical Service .................... 29

Electric Start

DUAL FUEL GENERATOR

8100 Peak Watts/6300 Running Watts (LPG)

9000 Peak Watts/7000 Running Watts (Gasoline)

1

ENGLISH 100155

Introduction

Congratulations on your purchase of a Champion

Power Equipment generator. CPE designs and builds

generators to strict specifications. With proper use and

maintenance, this generator will bring years of satisfying

service.

Portable Power Generator

This unit is a gasoline or LPG engine driven, alternating

current (AC) generator. It is designed to supply electrical

power for lighting, appliances, tools and similar

equipment.

Record the model and serial numbers as well as date and place of purchase for future reference. Have this

information available when ordering parts and when making technical or warranty inquiries.

Accessories

Champion Power Equipment manufactures and sells

accessories designed to help you get the most from your

purchase. To find out more about our covers and power

cables, please visit our web site at:

www.championpowerequipment.com

This Booklet

Every effort has been made to ensure the accuracy and

completeness of the information in this manual. We reserve

the right to change, alter and/or improve the product and

this document at any time without prior notice.

Champion Power Equipment Support

Model Number

Serial Number

Date of Purchase

Purchase Location

1-877-338-0999

100155

For Oil Type see ‘Add Engine Oil‘ section. For Fuel Type see ‘Add Fuel‘ section.

INTRODUCTION

2

100155 ENGLISH

MANUAL CONVENTIONS

This manual uses the following symbols to help differentiate between different kinds of information. The safety symbol

is used with a key word to alert you to potential hazards in operating and owning power equipment.

Follow all safety messages to avoid or reduce the risk of serious injury or death.

CAUTION indicates a potentially hazardous

situation which, if not avoided, may result in minor

or moderate injury.

CAUTION

CAUTION used without the safety alert symbol

indicates a potentially hazardous situation which, if

not avoided, may result in property damage.

CAUTION

DANGER indicates an imminently hazardous

situation which, if not avoided, will result in death

or serious injury.

DANGER

WARNING indicates a potentially hazardous

situation which, if not avoided, could result in

death or serious injury.

WARNING

If you have questions regarding your generator, we can

help. Please call our help line at 1-877-338-0999

NOTE

3

ENGLISH 100155

SAFETY RULES

Generator exhaust contains carbon monoxide, a

colorless, odorless, poison gas. Breathing carbon

monoxide will cause nausea, dizziness, fainting or

death. If you start to feel dizzy or weak, get to fresh

air immediately.

Operate generator outdoors only in a well ventilated

area.

DO NOT operate the generator inside any building,

including garages, basements, crawlspaces and

sheds, enclosure or compartment, including the

generator compartment of a recreational vehicle.

DO NOT allow exhaust fumes to enter a confined

area through windows, doors, vents or other

openings.

DANGER CARBON MONOXIDE: using a generator

indoors CAN KILL YOU IN MINUTES.

DANGER

Rotating parts can entangle hands, feet, hair,

clothing and/or accessories.

Traumatic amputation or severe laceration can result.

Keep hands and feet away from rotating parts.

Tie up long hair and remove jewelry.

Operate equipment with guards in place.

DO NOT wear loose-fitting clothing, dangling

drawstrings or items that could become caught.

DANGER

Generator produces powerful voltage.

DO NOT touch bare wires or receptacles.

DO NOT use electrical cords that are worn, damaged

or frayed.

DO NOT operate generator in wet weather.

DO NOT allow children or unqualified persons to

operate or service the generator

Use a ground fault circuit interrupter (GFCI) in damp

areas and areas containing conductive material such

as metal decking.

Use approved transfer equipment to isolate generator

from your electric utility and Notify your utility

company before connecting your generator to your

power system.

DANGER

Sparks can result in fire or electrical shock.

When servicing the generator:

Disconnect the spark plug wire and place it where it

cannot contact the plug.

DO NOT check for spark with the plug removed.

Use only approved spark plug testers.

WARNING

Running engines produce heat. Severe burns can

occur on contact.

Combustible material can catch fire on contact.

DO NOT touch hot surfaces.

Avoid contact with hot exhaust gases.

Allow equipment to cool before touching.

Maintain at least 3 ft. (91.4 cm) of clearance on all

sides to ensure adequate cooling.

Maintain at least 5 ft. (1.5 m) of clearance from

combustible materials.

WARNING

The engine exhaust from this product contains

chemicals known to the state of California to cause

cancer, birth defects, or other reproductive harm.

WARNING

Read this manual thoroughly before operating your

generator. Failure to follow instructions could result

in serious injury or death.

WARNING

4

100155 ENGLISH

SAFETY RULES

Improper treatment or use of the generator can

damage it, shorten its life and void your warranty.

Use the generator only for intended uses.

Operate only on level surfaces.

DO NOT expose generator to excessive moisture,

dust, or dirt.

DO NOT allow any material to block the cooling slots.

If connected devices overheat, turn them off and

disconnect them from the generator.

DO NOT use the generator if:

– Electrical output is lost

– Equipment sparks, smokes or emits flames

– Equipment vibrates excessively

CAUTION

Rapid retraction of the starter cord will pull hand and

arm towards the engine faster than you can let go.

Unintentional startup can result in entanglement,

traumatic amputation or laceration.

Broken bones, fractures, bruises or sprains could result.

When starting engine, pull the starter cord slowly

until resistance is felt and then pull rapidly to avoid

kickback.

DO NOT start or stop the engine with electrical

devices plugged in.

WARNING

Exceeding the generator’s running capacity can

damage the generator and/or electrical devices

connected to it.

DO NOT overload the generator.

Start the generator and allow the engine to stabilize

before connecting electrical loads.

Connect electrical equipment in the off position,

and then turn them on for operation.

Turn electrical equipment off and disconnect before

stopping the generator.

DO NOT tamper with the governed speed.

DO NOT modify the generator in any way.

CAUTION

Medical and Life Support Uses.

In case of emergency, call 911 immediately.

NEVER use this product to power life support

devices or life support appliances.

NEVER use this product to power medical devices

or medical appliances.

Inform your electricity provider immediately if you

or anyone in your household depends on electrical

equipment to live.

Inform your electrical provider immediately if a

loss of power would cause you or anyone in your

household to experience a medical emergency.

WARNING

For the GFCI receptacles to work properly the

neutral wire must be bonded to ground or to

the generator frame. Your Champion generator

comes with the neutral wire already bonded to

the frame. If the bonding wire is removed then

the GFCI receptacles will no longer function as

designed. If the neutral bonding wire is removed

to accommodate a transfer switch installation for

connection to a house or building, then the transfer

switch must not switch off the neutral connection

to ground within the building. Champion Power

Equipment recommends that you consult with

a licensed, local electrician. Due to the variety

of local codes, we cannot specifically advise

you regarding modifications to the wiring of your

portable generator.

WARNING

Operation of this equipment may create sparks that

can start fires around dry vegetation.

A spark arrestor may be required. The operator

should contact local fire agencies for laws or

regulations relating to fire prevention requirements.

WARNING

5

ENGLISH 100155

Gasoline and Gasoline Vapors (Gas):

– GASOLINE IS HIGHLY FLAMMABLE AND

EXPLOSIVE.

– Gasoline can cause a fire or explosion if ignited.

– Gasoline is a liquid fuel but it’s vapors can ignite.

– Gasoline is a skin irritant and needs to be cleaned up

immediately if spilled on skin or clothes.

– Gas has a distinctive odor, this will help detect

potential leaks quickly.

– In any gas fire, flames should not be extinguished

unless by doing so the fuel supply valve can be

turned OFF. This is because if a fire is extinguished

and a supply of fuel is not turned OFF, then an

explosion hazard could be created.

– Gas expands or contracts with ambient temperatures.

Never fill the gas tank to full capacity, as gas needs

room to expand if temperatures rise.

Liquefied Petroleum Gas (LPG):

– LPG IS HIGHLY FLAMMABLE AND EXPLOSIVE.

– Flammable gas under pressure can cause a fire or

explosion if ignited.

– LPG is heavier than air and can settle in low places

while dissipating.

– LPG has a distinctive odor added to help detect

potential leaks quickly.

– In any petroleum gas fire, flames should not be

extinguished unless by doing so the fuel supply

valve can be turned OFF. This is because if a fire is

extinguished and a supply of fuel is not turned OFF,

then an explosion hazard could be created.

– When exchanging LPG cylinders, be sure the cylinder

valve is of the same type.

– Always keep the LPG cylinder in an upright position.

– LPG will burn skin if it comes in contact with it.

Keep any and all LPG away from skin at all times.

SAFETY RULES

Fuel Safety

GASOLINE, GASOLINE VAPORS AND LIQUID

PETROLEUM GAS (LPG) ARE HIGHLY

FLAMMABLE AND EXPLOSIVE.

Fire or explosion can cause severe burns or death.

Unintentional startup can result in entanglement,

traumatic amputation or laceration.

DANGER

When adding or removing Gasoline:

Turn the generator off and let it cool for at least two

minutes before removing the fuel cap. Loosen the cap

slowly to relieve pressure in the tank.

Only fill or drain fuel outdoors in a well-ventilated area.

DO NOT pump gas directly into the generator at the gas

station. Use an approved container to transfer the fuel to

the generator.

DO NOT overfill the fuel tank.

Always keep fuel away from sparks, open flames, pilot

lights, heat and other sources of ignition.

DO NOT light or smoke cigarettes.

When starting the generator:

DO NOT attempt to start a damaged generator.

Make certain that the gas cap, air filter, spark plug, fuel

lines and exhaust system are properly in place.

Allow spilled fuel to evaporate fully before attempting to

start the engine.

Make certain that the generator is resting firmly on level

ground.

When operating the generator:

DO NOT move or tip the generator during operation.

DO NOT tip the generator or allow fuel or oil to spill.

When transporting or servicing the generator:

Make certain that the fuel shutoff valve is in the off

position and the fuel tank is empty.

Make certain that a LPG cylinder is not attached to

generator and is securely stowed away.

Disconnect the spark plug wire.

When storing the generator:

Store away from sparks, open flames, pilot lights, heat

and other sources of ignition.

Do not store generator, gas or LPG cylinder near

furnances, water heaters, or any other appliances that

produce heat or have automatic ignitions.

Never use a gas container, LPG connector hose,

gas tank, LPG cylinder or any other fuel item that is

damaged or appears damaged.

WARNING

6

100155 ENGLISH

Read this owner’s manual before operating your generator. Familiarize yourself with the location and function of the

controls and features. Save this manual for future reference.

Generator

CONTROLS AND FEATURES

1

4

5

3

2

8

7

6

9

10

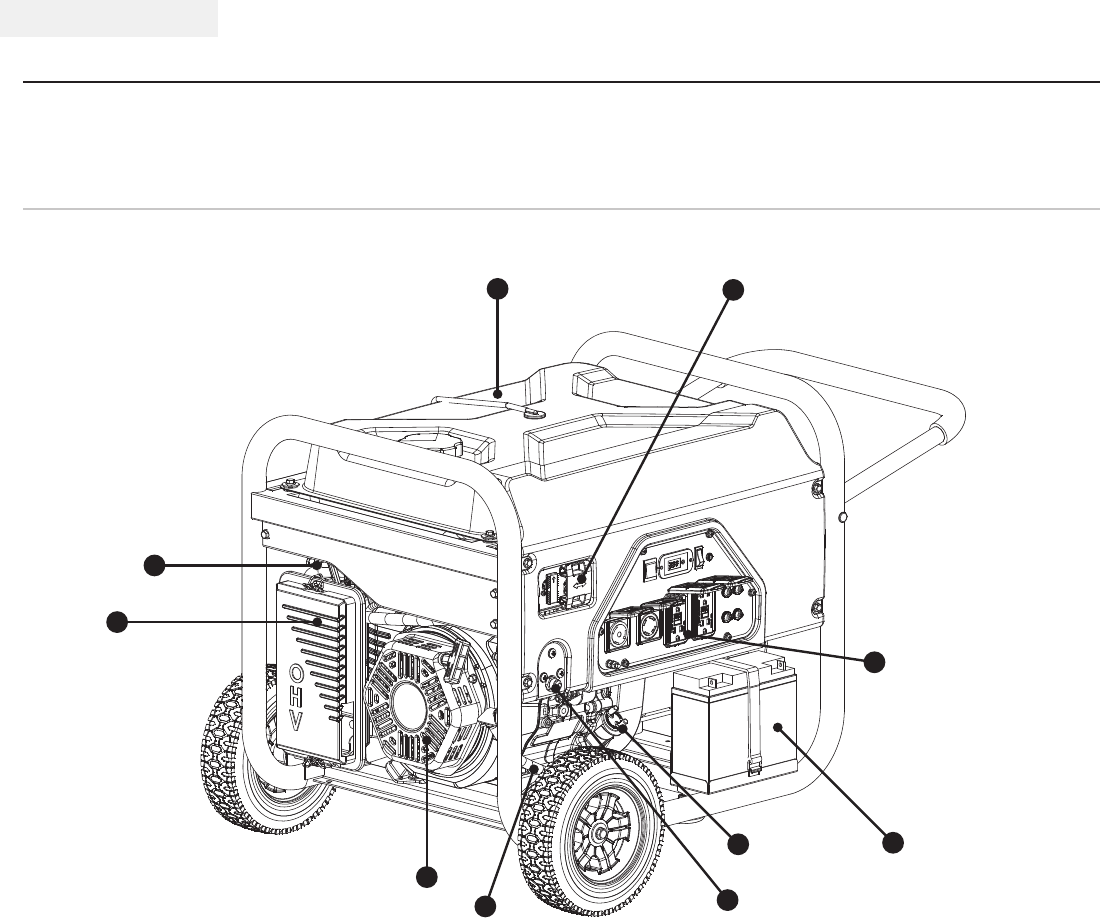

(1) Gas Fuel Tank – 6.1 gallon (23 L) capacity fuel

tank.

(2) Choke – Used to start the engine.

(3) Air Cleaner – Protects the engine by filtering dust

and debris from the intake air.

(4) Recoil Starter – Used to manually start the engine.

(5) Quick Drain Tube – Used to easily and quickly

drain oil from the engine.

(6) LPG Hose Connector

(7) Oil Filler Cap – Check and fill engine oil level.

(8) Battery – Used to start the engine electrically.

(9) Power Panel – See “Power Panel” section.

(10) Fuel Selector Switch – Used to select fuel source.

7

ENGLISH 100155

Generator Panel

1 2 3 4

6 987 11

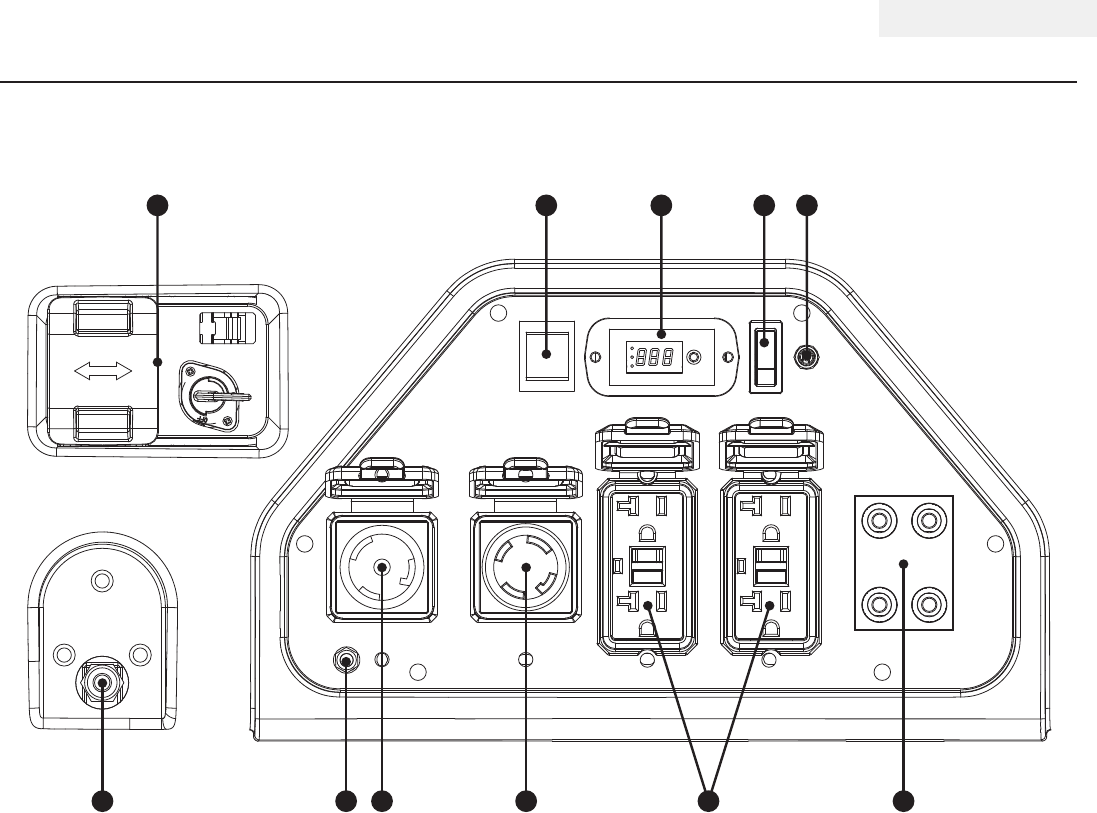

(1) Fuel Selector Switch – Used to select and turn on

gasoline or LPG fuel source.

(2) Ignition Switch – Used to start or stop the

generator.

(3) Intelligauge – Three mode digital meter for

displaying running hours, voltage and hertz.

(4) Battery Switch – Enables/disables starting

electrically.

(5) 12V DC Input

(6) LPG Hose Connector – Used to connect LPG hose

to generator.

(7) Ground Terminal – Consult an electrician for local

grounding regulations.

(8) 120 Volt AC, 30 Amp Twist-Lock Receptacle

(NEMA L5-30R) – May be used to supply electrical

power for the operation of 120 Volt AC, single

phase 60 Hz electrical loads.

(9) 120/240 Volt AC, 30 Amp Twist-Lock Receptacle

(NEMA L14-30R) – May be used to supply

electrical power for the operation of 120 and/or

240 Volt AC, single phase 60 Hz electrical loads.

(10) 120 Volt AC, 20 Amp Duplex (2)

(GFCI 5-20R) – May be used to supply electrical

power for the operation of 120 Volt AC, single

phase 60 Hz electrical loads.

(11) Circuit Breakers

CONTROLS AND FEATURES

5

10

8

100155 ENGLISH

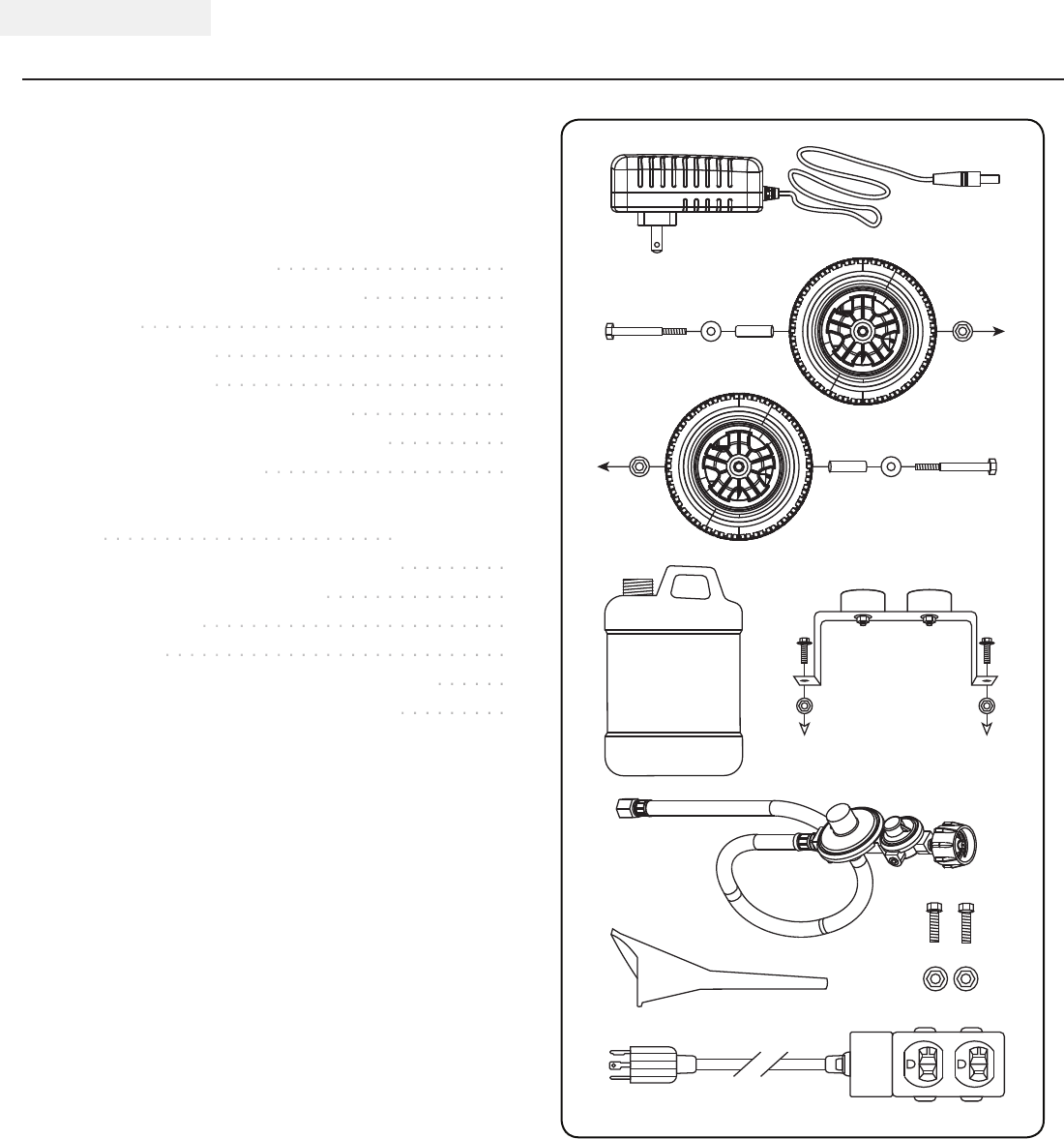

Parts Included

Your 100155 dual fuel generator ships with the following

parts:

Wheel Kit

– 9.5 in. (24.1 cm) Wheel ...................2

– Flange Bolt (M10x120 for Wheel) ............2

– Bushing ..............................2

– Flat Washer ø10 ........................2

– Lock Nut (M10) ........................2

– Support Leg w/Vibration Mounts .............1

– Flange Bolt (M8x16 for Support Leg) ..........2

– Flange Lock Nut (M8) ....................2

Other

– Oil ........................ 1.2 qt. (1.1 L)

– LPG Hose With Regulator 3.3 ft. (1 m) .........1

– Generator Cord 25 ft. (7.6 m) ...............1

– Smart Charger .........................1

– Oil Funnel ............................1

– Flange Bolt (M5x10 for Battery Terminals) ...... 2

– Flange Nut (M5 for Battery Terminals) .........2

CONTROLS AND FEATURES

(Battery Bolts)

9

ENGLISH 100155

ASSEMBLY

Your generator requires some assembly. This unit ships

from our factory without oil. It must be properly serviced

with fuel and oil before operation.

If you have any questions regarding the assembly of your

generator, call our help line at 1-877-338-0999. Please

have your serial number and model number available.

Remove the Generator from the Shipping Carton

1. Set the shipping carton on a solid, flat surface.

2. Remove everything from the carton except the

generator.

3. Carefully cut each corner of the box from top to

bottom. Fold each side flat on the ground to provide a

surface area to install the wheel kit and support leg.

Install the Wheel Kit

You will need the following tools to install the wheels:

• 17 mm wrench OR adjustable wrench (not included)

• Socket wrench with a 16 mm socket (not included)

• Pliers (not included)

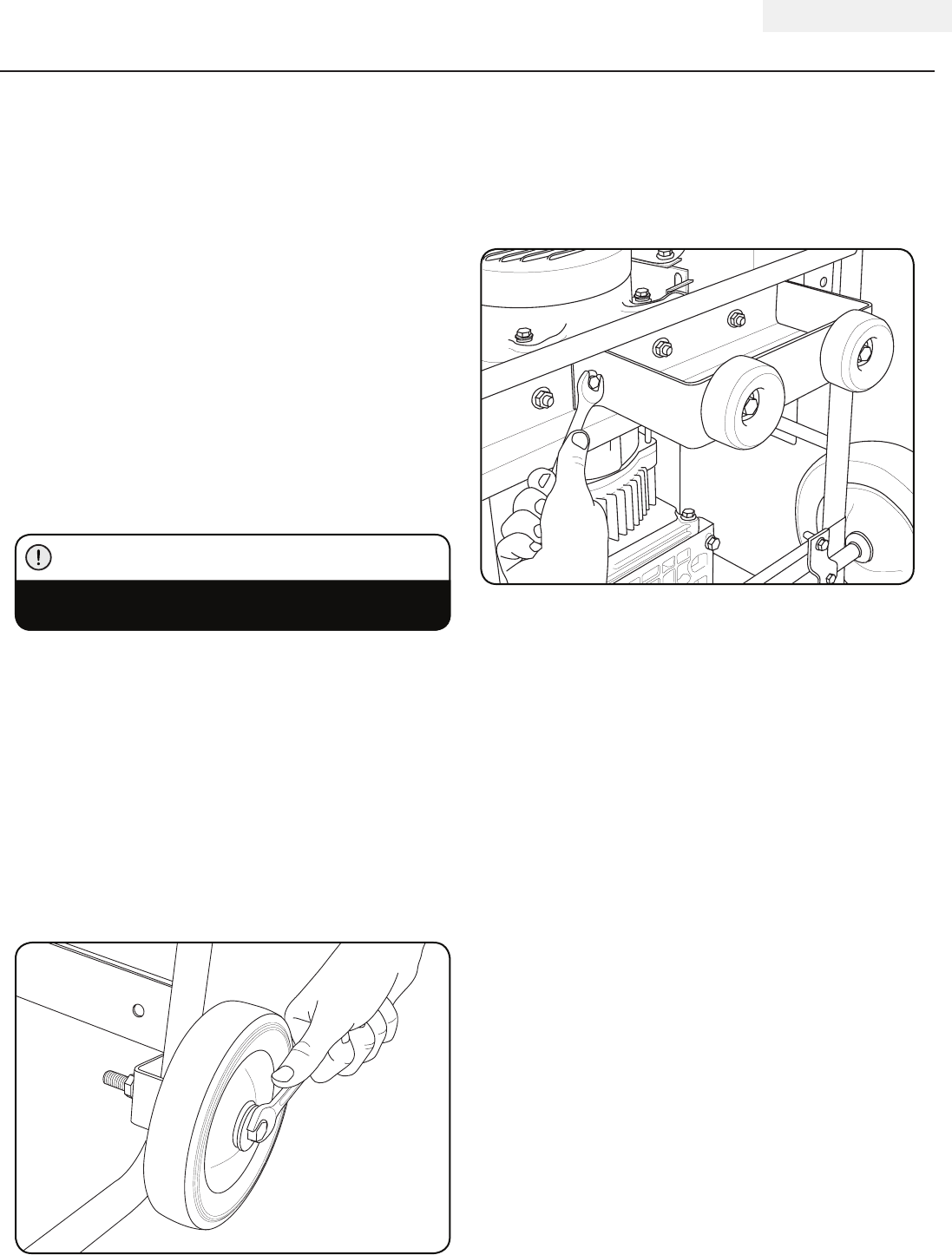

1. Before adding fuel and oil, tip the generator on it’s side.

2. Slide the M10x120 wheel bolt through the flat

washer ø10, bushing and wheel.

3. Slide the bolt through the mount point on the frame.

4. Fasten securely with the M10 lock nut.

5. Repeat steps 2-4 to attach the second wheel.

Install the Support Leg

1. Attach the support leg to the generator frame with

flange bolt (M8x16) and flange lock nuts (M8).

2. Tip the generator slowly so that it rests on the

wheels and support leg.

The wheel kit is not intended for over-the-road use.

CAUTION

Connect the Battery

1. Remove the protective cover from the red (+) lead on

the battery.

2. Attach the red (+)lead to the red (+) terminal on the

battery with the flange bolt (M5x10) and secure with

the flange nut (M5).

3. Repeat steps 1-2 for the black (–) battery lead.

10

100155 ENGLISH

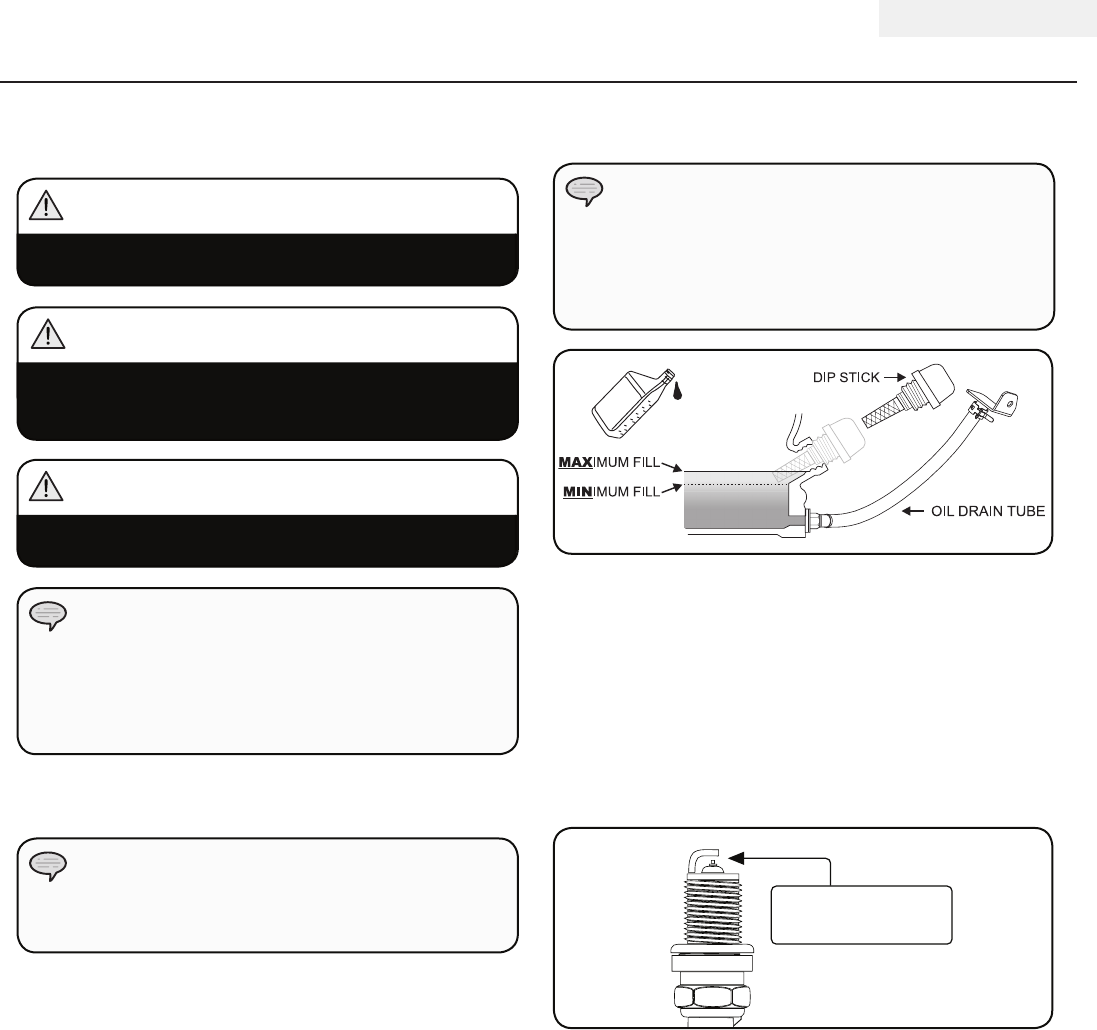

Add Engine Oil

ASSEMBLY

Add Engine Oil Cont’d.

1. Place the generator on a fl at, level surface.

2. Remove oil fi ll cap/dipstick to add oil.

3. Add up to 1.2 qt. (1.1 L) of oil (included) and replace

oil fi ll cap/dipstick. DO NOT OVERFILL.

4. Check engine oil level daily and add as needed.

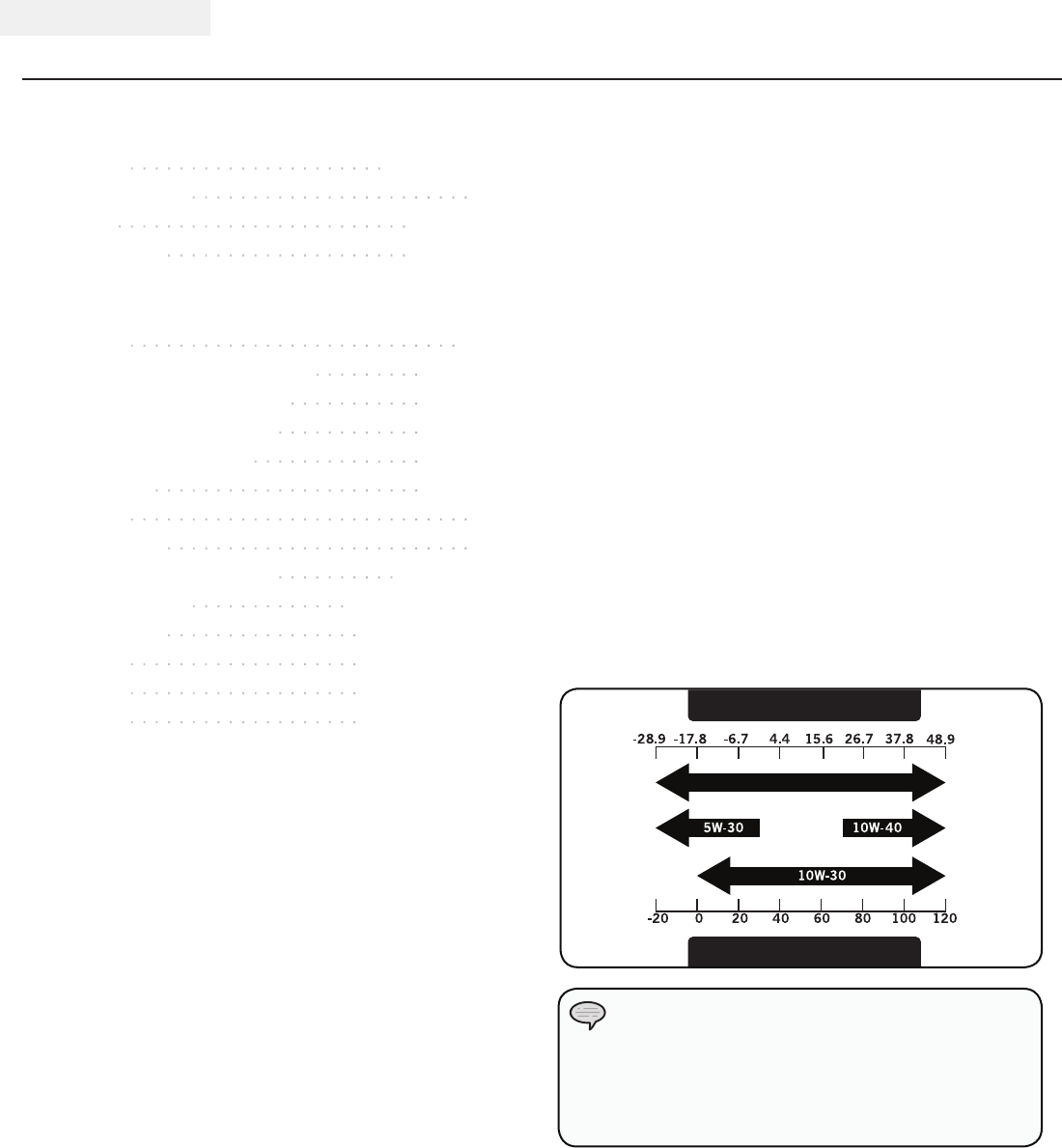

Full Synthetic 5W-30

Degrees Celsiusº (Outside)

(Outside)

Degrees Fahrenheitº

The engine is equipped with a low oil shut-off and

will stop when the oil level in the crankcase falls

below the threshold level.

CAUTION

DO NOT attempt to crank or start the engine before

it has been properly fi lled with the recommended

type and amount of oil. Damage to the generator as

a result of failure to follow these instructions will

void your warranty.

CAUTION

The generator rotor has a sealed, pre-lubricated ball

bearing that requires no additional lubrication for

the life of the bearing.

NOTE

The recommended oil type is 10W-30 automotive oil.

NOTE

Synthetic oil may be used after the 5 hour initial

break-in period. Using synthetic oil does not

increase the recommended oil change interval.

NOTE

We consider the fi rst 5 hours of run time to be

the break-in period for the unit. During the break

in period stay at or below 50% of the running

watt rating and vary the load occasionally to allow

stator windings to heat and cool. Adjusting the

load will also cause engine speed to vary and help

seat piston rings. After the 5 hour break-in period,

change the oil.

NOTE

Once oil has been added, a visual check should show

oil about 1-2 threads from running out of the fi ll hole.

If using the dipstick to check oil level, DO NOT screw

in the dipstick while checking.

NOTE

Weather will affect engine oil and engine

performance. Change the type of engine oil used

based on weather conditions to suit the engine

needs.

NOTE

Check oil often during the break-in period. Refer to the

Maintenance section for recommended service intervals.

NOTE

11

ENGLISH 100155

ASSEMBLY

Add Fuel (Gasoline) Cont’d.

Our engines work well with 10% or less ethanol

blend fuels. When using blended fuels there are

some issues worth noting:

– Ethanol-gasoline blends can absorb more water

than gasoline alone.

– These blends can eventually separate, leaving

water or a watery goo in the tank, fuel valve and

carburetor.

– With gravity-fed fuel supplies, this compromised

fuel can be drawn into the carburetor and cause

damage to the engine and/or potential hazards.

– There are only a few suppliers of fuel stabilizer

that are formulated to work with ethanol blend

fuels.

– Any damages or hazards caused by using

improper fuel, improperly stored fuel, and/

or improperly formulated stabilizers, are not

covered by manufacture’s warranty.

It is advisable to always shut off the fuel supply,

run the engine to fuel starvation and drain the tank

when the equipment is not in use for more than 30

days.

NOTE

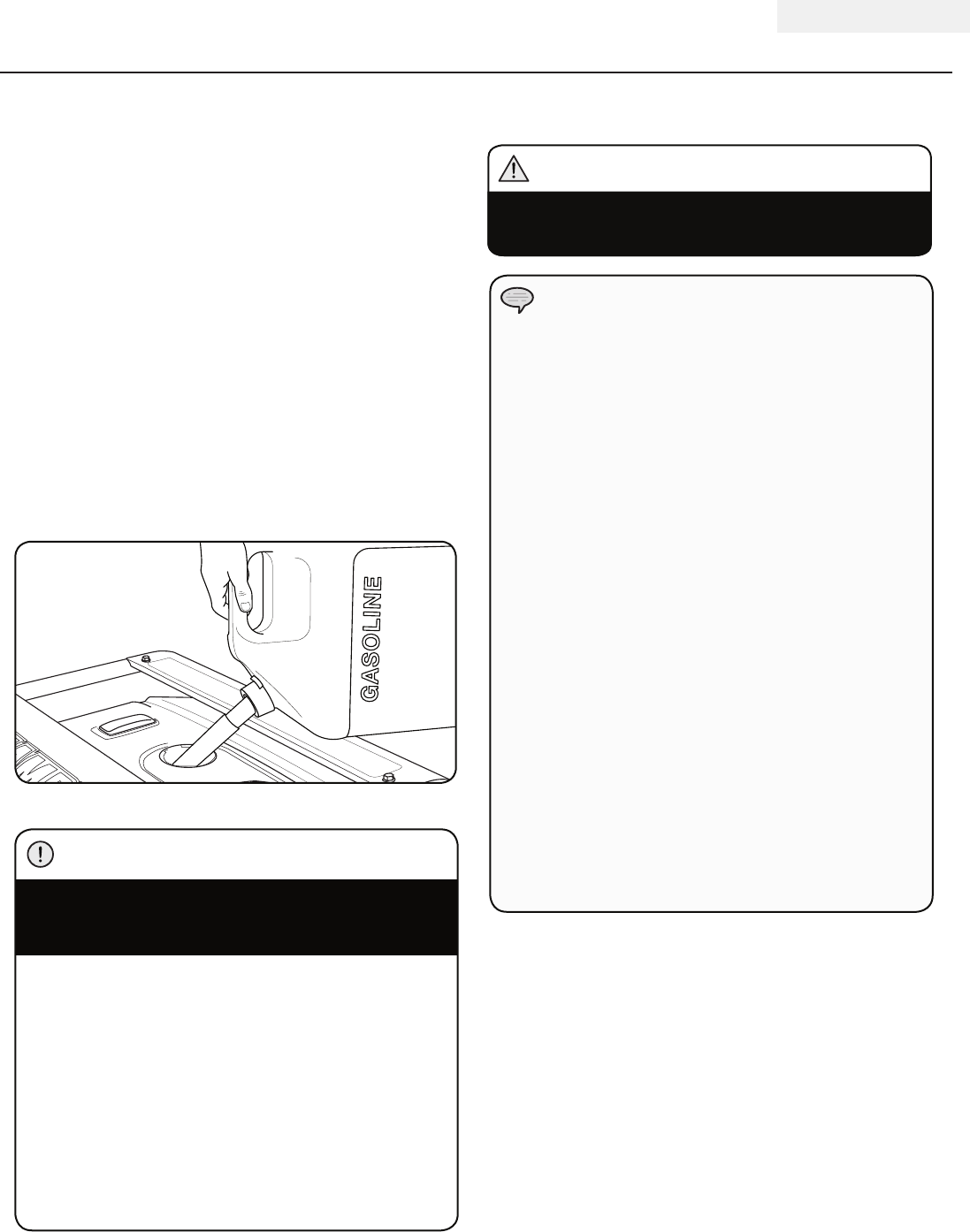

Add Fuel (Gasoline)

1. Use clean, fresh, regular unleaded fuel with a

minimum octane rating of 85 and an ethanol content

of less than 10% by volume.

2. DO NOT mix oil with fuel.

3. Clean the area around the fuel cap.

4. Remove the fuel cap.

5. Slowly add fuel to the tank. DO NOT OVERFILL.

Fuel can expand after filling. A minimum of

¼ in. (6.4 mm) of space left in the tank is required

for fuel expansion, more than ¼ in. (6.4 mm) is

recommended. Fuel can be forced out of the tank as

a result of expansion if it is overfilled, and can affect

the stable running condition of the product. When

filling the tank, it is recommended to leave enough

space for the fuel to expand.

6. Screw on the fuel cap and wipe away any spilled fuel.

Use regular unleaded gasoline with a minimum

octane rating of 85.

Do not mix oil and gasoline.

Fill tank to approximately ¼ in. (6.4 mm) below the

top of the tank to allow for fuel expansion.

DO NOT pump gas directly into the generator at the

gas station. Use an approved container to transfer

the fuel to the generator.

DO NOT fill fuel tank indoors.

DO NOT fill fuel tank when the engine is running or hot.

DO NOT overfill the fuel tank.

DO NOT light cigarettes or smoke when filling the

fuel tank.

CAUTION

Pouring fuel too fast through the fuel screen may

result in blow back of fuel at the operator while filling.

WARNING

12

100155 ENGLISH

ASSEMBLY

Do not allow children to tamper or play with the

cylinder or hose connections.

CAUTION

Use approved LPG cylinders equipped with an

OPD (overfilling prevention device) valve. Always

keep the cylinder in a vertical position with the

valve on top and installed at ground level on a flat

surface Cylinders must not be installed near any

heat source and should not be exposed to sun, rain,

and dust. When transporting and storing, turn off

the cylinder valve and fuel valve, and disconnect

the cylinder. Plug the outlet, usually by a plastic

protective cap, if one is available. Keep cylinders

away from heat and ventilated when in a vehicle.

CAUTION

Connecting LPG Cylinder Cont’d.

Grounding

Your generator must be properly connected to an

appropriate ground to help prevent electric shock.

A ground terminal connected to the frame of the generator

has been provided on the power panel. For remote

grounding, connect of a length of heavy gauge

(12 AWG minimum) copper wire between the generator

ground terminal and a copper rod driven into the ground.

We strongly recommend that you consult with a qualified

electrician to ensure compliance with local electrical codes.

Failure to properly ground the generator can result

in electric shock.

WARNING

– Use only standard 20 or 30 pound capacity LP

tanks with Type 1, right hand Acme threads.

– Verify the requalification date on the tank has

not expired.

– All new cylinders must be purged of air and

moisture prior to filling. Used cylinders that have

not been plugged or kept closed must also be

purged.

– The purging process should be done by a LPG

supplier. (Cylinders from an exchange supplier

should have been purged and filled properly

already).

– Always position the cylinder so the connection

between the valve and the gas inlet won’t cause

sharp bends or kinks in the hose.

NOTE

Connecting Liquid Petroleum Gas (LPG) Cylinder

1. Make sure the LPG fuel valve on the generator is in

the off position.

2. Attach the LPG hose (included) to the LPG hose

connector on the side of the generator and tighten

with a 19 mm or adjustable wrench.

Important: DO NOT use tape or any other type of

sealant to seal LPG hose connection.

3. Remove the safety plug or cap from the cylinder

valve.

4. Attach the other end of the hose to the LPG

connector on the cylinder and hand tighten.

5. Check all connections for leaks by wetting the fittings

with a solution of soap and water. Bubbles which

appear or bubbles which grow indicate that a leak

exists. If a leak exists at a fitting then turn off the

gas valve at the tank and tighten the fitting. Turn the

gas back on and recheck the fitting with the soap

and water solution. If the leak continues or if the leak

is not at a fitting then do not use the generator and

contact customer service.

If there is a strong smell of gas: Close off the gas

supply at the cylinder. Use soapy water, which will

produce a large bubble at the point of any leak, to

check the hose, and connections on the cylinder valve

and the generator. Do not smoke or light a cigarette,

or check for leaks using a match, open flame source

or lighter. Contact a qualified technician to inspect

and repair the LPG system if a leak is found, before

using the generator.

WARNING

13

ENGLISH 100155

OPERATION

Generator Location

NEVER operate the generator inside any building,

including garages, basements, crawlspaces and sheds,

enclosure or compartment, including the generator

compartment of a recreational vehicle. Please consult

your local authority. In some areas, generators must

be registered with the local utility. Generators used at

construction sites may be subject to additional rules and

regulations. Generators should be on a flat, level surface

at all times. (Even while not in operation) Generators

must have at least 5 ft. (1.5 m) of clearance from all

combustible material. In addition to clearance from

all combustible material, generators must also have

at least 3 ft. (91.4 cm) of clearance on all sides to

allow for adequate cooling, maintenance and servicing.

Generators should never be started or operated in the

back of a SUV, camper, trailer, in the bed of a truck

(regular, flat or otherwise), under staircases/stairwells,

next to walls or buildings, or in any other location that

will not allow for adequate cooling of the generator

and/or the muffler. DO NOT contain generators during

operation. Allow generators to properly cool before

transport or storage.

Place the generator in a well-ventilated area. DO NOT

place the generator near vents or intakes where exhaust

fumes could be drawn into occupied or confined

spaces. Carefully consider wind and air currents when

positioning generator.

Failure to follow proper safety precautions may void

manufacturer’s warranty.

Do not operate or store the generator in rain, snow,

or wet weather.

Using a generator or electrical appliance in wet

conditions, such as rain or snow, or near a pool or

sprinkler system, or when your hands are wet, could

result in electrocution.

WARNING

WARNING

During operation the muffler and exhaust fumes

produced will become hot. If adequate cooling and

breathing space are not supplied, or if the generator

is blocked or contained, temperatures can become

extremely heated and may lead to fire.

Surge Protection

Electronic devices, including computers and many

programmable appliances use components that are

designed to operate within a narrow voltage range and

may be affected by momentary voltage fluctuations.

While there is no way to prevent voltage fluctuations, you

can take steps to protect sensitive electronic equipment.

1. Install UL1449, CSA-listed, plug-in surge suppressors

on the outlets feeding your sensitive equipment.

Surge suppressors come in single- or multi-outlet

styles. They’re designed to protect against virtually

all short-duration voltage fluctuations.

Voltage fluctuation may impair the proper

functioning of sensitive electronic equipment.

CAUTION

Grounding

The generator system ground connects the frame to the

ground terminals on the power panel. The system ground is

connected to the AC neutral wire.

14

100155 ENGLISH

OPERATION

The fuel selector switch cover is specifically

designed not to slide to either side while a specific

fuel has been selected and the valve is in the “ON”

position. Only when the fuel valves are in the “OFF”

position can the cover slide side to side.

NOTE

The fuel selector is locked into place once a

“CLICK” sound is made. Only then can a fuel valve

be turned to the vertical position.

NOTE

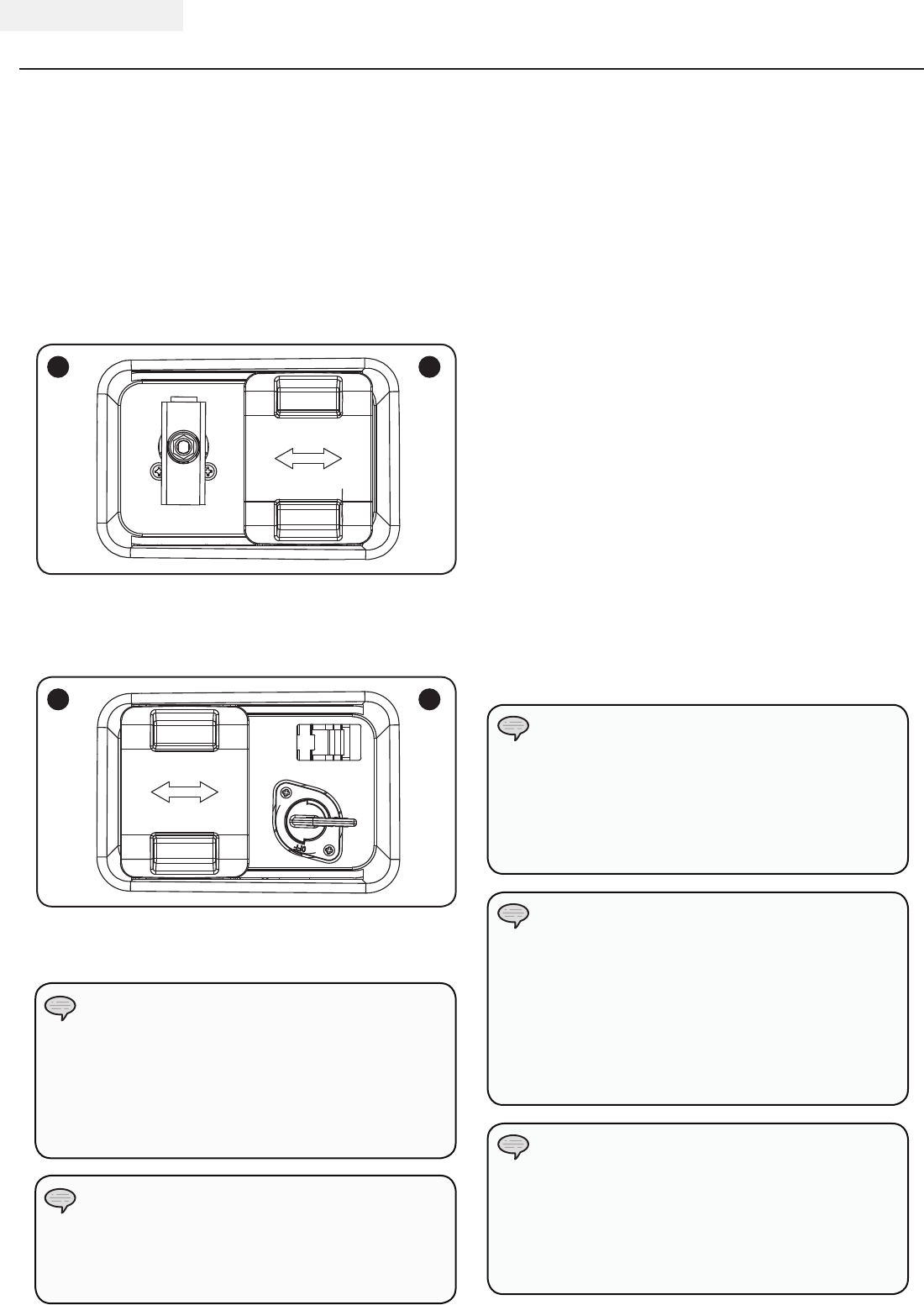

Fuel Selector Switch

The fuel selector switch on the front panel of the generator

is designed specifically to choose between the fuel source

desired, LPG or Gasoline.

To select a fuel source simply slide the switch cover to either

the right or left, and this will uncover the fuel valve of the

fuel selected.

The LPG fuel valve (A) is to the left of the switch cover.

The gasoline fuel valve (B) is to the right of the switch cover.

1A

2B

Once a fuel source has been selected, the user must turn

the fuel valve to the vertical position to open the fuel valve.

(1)

To turn a fuel valve to the off position the valve must be in

the horizontal position. (2)

Starting the Engine in ambient > 15°C (59°F)

Gasoline

1. Make certain the generator is on a flat, level surface.

2. Disconnect all electrical loads from the generator.

Never start or stop the generator with electrical

devices plugged in or turned on.

3. Turn the gasoline fuel valve to the “ON” position.

4. Move the choke lever to the “100% CHOKE” detent

position.

a. For restarting a warm engine, move the choke

lever to the “75% CHOKE” detent position.

5. Push the battery switch to the “ON” position.

6. Push the ignition switch to the “ON” position.

7. ELECTRIC START: Press and hold the ignition switch

to the “START” position. Release as the engine begins

to start. If the engine fails to start within five seconds,

release the switch and wait at least ten seconds before

attempting to start the engine again.

8. RECOIL START: Pull the starter cord slowly until

resistance is felt and then pull rapidly.

9. Do not over-choke. As soon as engine starts, gradually

move the choke lever to the “RUN” position over a 2-5

second duration.

Keep choke lever in “Choke” position for only 1

pull of the recoil starter. After first pull, move choke

lever to the “Run” position for up to the next 3

pulls of the recoil starter. Too much choke leads to

sparkplug fouling/engine flooding due to the lack of

incoming air. This will cause the engine not to start.

NOTE

For restarts with hot engine in hot ambient > 30°C

(86°F) Keep choke lever in “75% Choke” detent

position for only 1 pull of the recoil starter. After

first pull, move choke lever to the “Run” position

for up to the next 3 pulls of the recoil starter. Too

much choke leads to sparkplug fouling/engine

flooding due to the lack of incoming air. This will

cause the engine not to start.

NOTE

For gasoline starting in in cold ambient < 15°C

(59°F) the choke must be in the 100% “CHOKE”

detent position for both electric and recoil start

procedures. Do not over-choke. As soon as engine

starts, gradually move the choke lever to the “RUN”

position over a 5-20 second duration.

NOTE

15

ENGLISH 100155

OPERATION

If the engine starts but does not run make certain that

the generator is on a flat, level surface. The engine

is equipped with a low oil sensor that will prevent the

engine from running when the oil level falls below a

critical threshold.

NOTE

When the battery switch is in the “ON” position, the

switch will light up if the battery is sending out a

charge. If the switch does not light up while in the “ON”

position, check that the battery connection is still good.

NOTE

The supplied 12V 15AH battery does re-charge while the

engine is running, but it is also recommended that the

battery be fully charged at least once per month.

NOTE

Starting the Engine Cont’d.

If the ignition switch is held down in the “Start” position

longer than 5 seconds it could damage the starter.

CAUTION

LPG

1. Make certain the generator is on a flat, level surface.

2. Disconnect all electrical loads from the generator.

Never start or stop the generator with electrical

devices plugged in or turned on.

3. Fully open the LPG cylinder fuel knob.

4. Turn the LPG fuel valve to the “ON” position.

5. Push the battery switch to the “ON” position.

6. Push the ignition switch to the “ON” position.

7. ELECTRIC START: Move the choke lever to the “75%

Choke” detent position.

a. For restarting a warm engine, move the choke

lever to the “75% CHOKE” detent position.

8. Press and hold the ignition switch to the “START”

position. Release as the engine begins to start. If the

engine fails to start within five seconds, release the

switch and wait at least ten seconds before attempting

to start the engine again.

9. Do not over-choke. As soon as engine starts, gradually

move the choke lever to the “RUN” position over a 2-5

second duration.

10. RECOIL START: Move the choke lever to the “100%

Choke” detent position.

a. For restarting a warm engine, move the choke

lever to the “100% CHOKE” detent position.

11. PULL-TO-PRIME: Pull the starter cord slowly until

resistance is felt and then pull rapidly. Pull with

“100% Choke” 1-2 times until you feel a few

combustion pulses that indicates that the engine

momentarily started.

12. Move the choke lever to the “RUN” position.

13. Pull the starter cord slowly until resistance is felt and

then pull rapidly.

14. If engine fails to start in 1-pull with choke in the

“RUN”, then move choke to “100% Choke” and

repeat the PULL-TO-PRIME step.

For LPG starting in cold ambient < 15°C (59°F)

Move the choke lever to the “75% Choke” position

for electric starting and “100% Choke” for recoil

start. For electric start, gradually move the choke

lever to the “RUN” position over a 2-10 second

duration. To pull to prime for recoil start Pull with

“100% Choke” 1-3 times until you feel a few

combustion pulses that indicates that the engine

momentarily started.

NOTE

NOTE

Observing frost on LPG containers and regulators

is common during operation and normally is not

an indication of a problem. As LPG vaporizes and

travels from the tank to the generator engine it

expands. The amount of frost that forms can be

affected by the size of the container, the amount of

fuel being used, the humidity of the air and other

operating conditions. In unusual situations this

frost may eventually restrict the flow of gas to the

generator resulting in deteriorating performance.

For example, if the tank temperature is reduced

to a very low level then the rate at which the LPG

vaporizes is also reduced and may not provide

sufficient fuel flow to the engine. This is not an

indication of a problem with the generator but

only a problem with the flow of gas from the LPG

container. If generator performance seems to be

deteriorating at the same time that ice formation is

observed on tank valve, hose or regulator then some

actions may be taken to eliminate this symptom.

In these rare situations it can be helpful to reduce

or eliminate the cold fuel system effects by doing

one of the following:

– Exchanging fuel tanks to allow the first tank to

warm up, repeating as necessary

– Placing the LPG container at the end of the

generator near the handle, where engine fan air

flows out from the generator. This air is slightly

heated by flowing over the engine. The container

should not be placed in the path of the muffler

outlet.

– The container can be temporarily warmed by

pouring warm water over the top of the tank.

16

100155 ENGLISH

OPERATION

GFCI

Your generator is equipped with two (2) Ground Fault

Circuit Interrupter (GFCI) duplexes. In the event of a

ground fault, a GFCI trips automatically to stop the

flow of electricity and prevent serious injury. The green

indicating light on the receptacle will also turn off. Press

the reset button located on the front of the receptacle to

restore flow of electricity. (A) The green indicating light

will also turn back on. GFCI does not protect against

circuit overloads.

Connecting Electrical Loads

1. Let the engine stabilize and warm up for a few

minutes after starting

2. Plug in and turn on the desired 120/240 Volt AC

single phase, 60 Hz electrical loads.

– DO NOT connect 3-phase loads to the generator.

– DO NOT connect 50 Hz loads to the generator.

– DO NOT overload the generator.

Connecting a generator to your electric utility company’s

power lines or to another power source may be against

the law. In addition this action, if done incorrectly, could

damage your generator and appliances and could cause

serious injury or even death to you or a utility worker who

may be working on nearby power lines. If you plan to run a

portable electric generator during an outage, please notify

your electric utility company immediately and remember

to plug your appliances directly into the generator. Do not

plug the generator into any electric outlet in your home.

Doing so could create a connection to the utility company

power lines. You are responsible for ensuring that your

generator’s electricity does not feed back into the electric

utility power lines.

If the generator will be connected to a building electrical

system, consult your local utility company or a qualified

electrician. Connections must isolate generator power from

utility power and must comply with all applicable laws and

codes.

NOTE

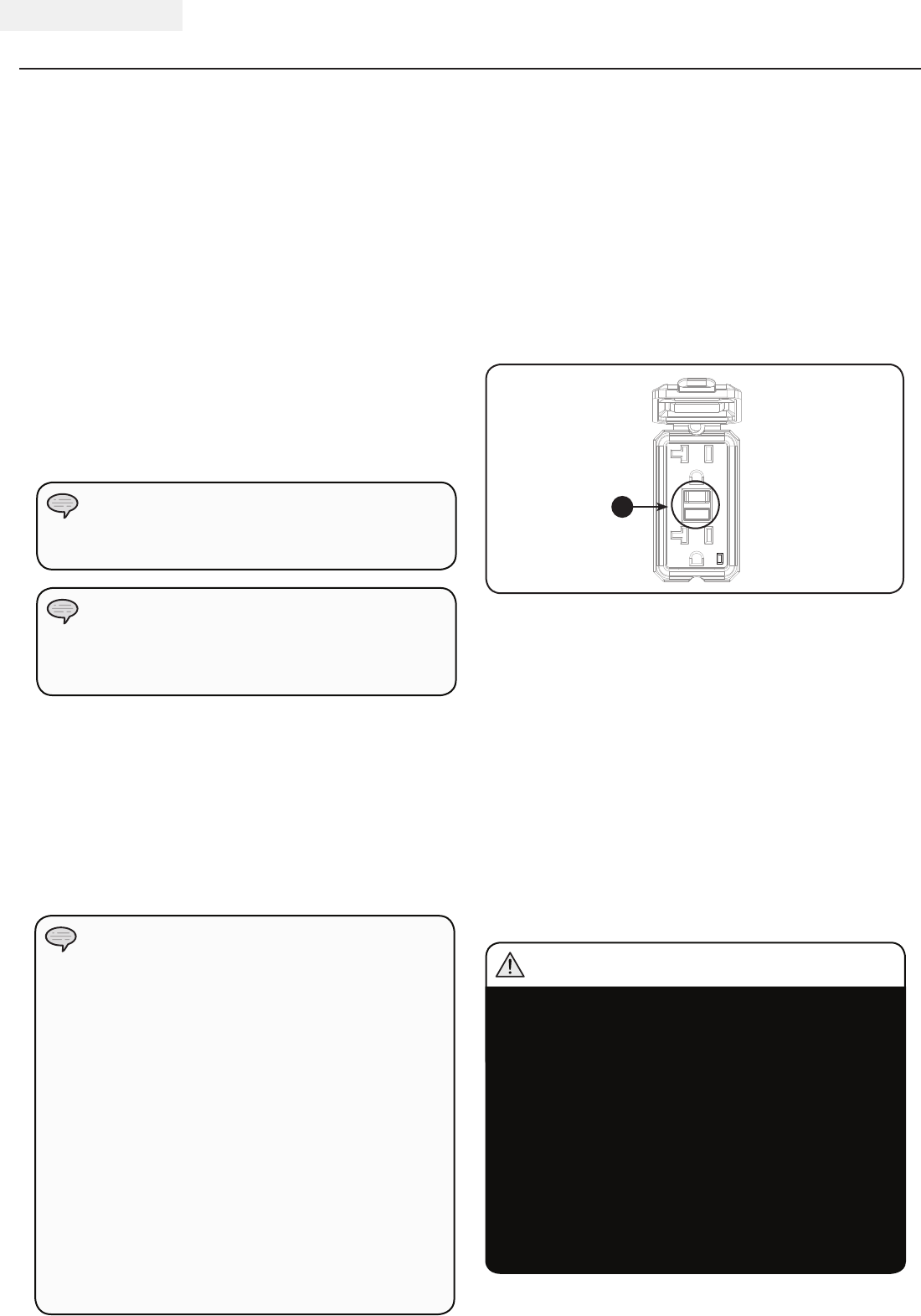

To ensure proper operation of the GFCI duplex, perform

this test monthly:

1. With the generator running, plug a lamp into the

GFCI receptacle. Turn the lamp on.

2. Press the “Test” button located on the front of

the receptacle to trip the device. (A) This should

immediately stop the flow of electricity and shut off

the lamp. If the electricity is not stopped, do not use

this receptacle until is has been serviced or replaced.

3. Press the “Reset” button located on the front of the

receptacle to restore the flow of electricity. If the

indicator light does not go out and come back on or

if the GFCI cannot be reset then it must be replaced.

A

Stopping the Engine

1. Turn off and unplug all electrical loads. Never start

or stop the generator with electrical devices plugged

in or turned on.

2. Let the generator run at no-load for several minutes

to stabilize internal temperatures of the engine and

generator.

3. Turn the Gasoline Fuel Valve to the “OFF” position if

operating by gas.

4. Turn the LPG cylinder knob to the “CLOSE” or off

position if operating by LPG.

5. Let the engine run until fuel starvation has stopped

the engine. This usually takes a few minutes.

6. Press the ignition switch to the “OFF” position.

7. Turn battery switch to the “Off” Position.

Important: Always ensure that the Fuel Valve and the

Ignition Switch are in the “OFF” position when the

engine is not in use.

When turning off the generator after LPG operation, make

sure the LPG cylinder knob is in the fully closed position.

NOTE

If the engine will not be used for a period of two (2) weeks

or longer, please see the Storage section for proper engine

and fuel storage.

NOTE

For the GFCI receptacles to work properly the neutral wire

must be bonded to ground or to the generator frame. Your

Champion generator comes with the neutral wire already

bonded to the frame. If the bonding wire is removed then

the GFCI receptacles will no longer function as designed.

If the neutral bonding wire is removed to accommodate

a transfer switch installation for connection to a house

or building, then the transfer switch must not switch off

the neutral connection to ground within the building.

Champion Power Equipment recommends that you consult

with a licensed, local electrician. Due to the variety of

local codes, we cannot specifically advise you regarding

modifications to the wiring of your portable generator.

WARNING

17

ENGLISH 100155

Operation using the alternative main jet at

elevations lower than the recommended minimum

altitude can damage the engine. For operation at

lower elevations, the standard main jet must be

used. Operating the engine with the wrong engine

configuration at a given altitude may increase

its emissions and decrease fuel efficiency and

performance.

WARNING

Carburetor

Code Main Jet Part Number Altitude

P28-4-Z

Standard 47. 1310 17. 2 1. Z

5500 Feet

(1676 Meters)

Altitude 47.131017.21.01.Z

P28-4-H

Standard 47. 1310 17. 2 1. H

Altitude 47.131017.21.01.H

Operation at High Altitude

The density of air at high altitude is lower than at sea

level. Engine power is reduced as the air mass and air-

fuel ratio decrease. Engine power and generator output

will be reduced approximately 3½% for every 1000

feet of elevation above sea level. This is a natural trend

and cannot be changed by adjusting the engine. At high

altitudes increased exhaust emissions can also result

due to the increased enrichment of the air fuel ratio.

Other high altitude issues can include hard starting,

increased fuel consumption and spark plug fouling.

To alleviate high altitude issues other than the natural

power loss, Champion Power Equipment can provide a

high altitude carburetor main jet. The alternative main

jet and installation instructions can be obtained by

contacting Customer Support. Installation instructions

are also available in the Technical Bulletin area of the

Champion Power Equipment internet site.

The part number and recommended minimum altitude

OPERATION

Do Not Overload Generator

Capacity

Follow these simple steps to calculate the running and

starting watts necessary for your purposes.

1. Select the electrical devices you plan on running at

the same time.

2. Total the running watts of these items. This is

the amount of power you need to keep your items

running.

3. Identify the highest starting wattage of all devices

identified in step 1. Add this number to the number

calculated in step 2. Surge wattage is the extra

burst of power needed to start some electric driven

equipment. Following the steps listed under “Power

Management” will guarantee that only one device will

be starting at a time.

Power Management

Use the following formula to convert voltage and

amperage to watts:

Volts x Amps = Watts

To prolong the life of your generator and attached

devices, follow these steps to add electrical load:

1. Start the generator with no electrical load attached

2. Allow the engine to run for several minutes to stabilize.

3. Plug in and turn on the first item. It is best to attach

the item with the largest load first.

4. Allow the engine to stabilize.

5. Plug in and turn on the next item.

6. Allow the engine to stabilize.

7. Repeat steps 5-6 for each additional item.

Never exceed the specified capacity when adding

loads to the generator.

NOTE

Operation at High Altitude Cont’d.

for the application of the high altitude carburetor main

jet is listed in the table below.

In order to select the correct high altitude main jet

it is necessary to identify the carburetor model. For

this purpose, a code is stamped on the side of the

carburetor. Select the correct main jet part number

corresponding to the carburetor code found on your

particular carburetor.

18

100155 ENGLISH

OPERATION

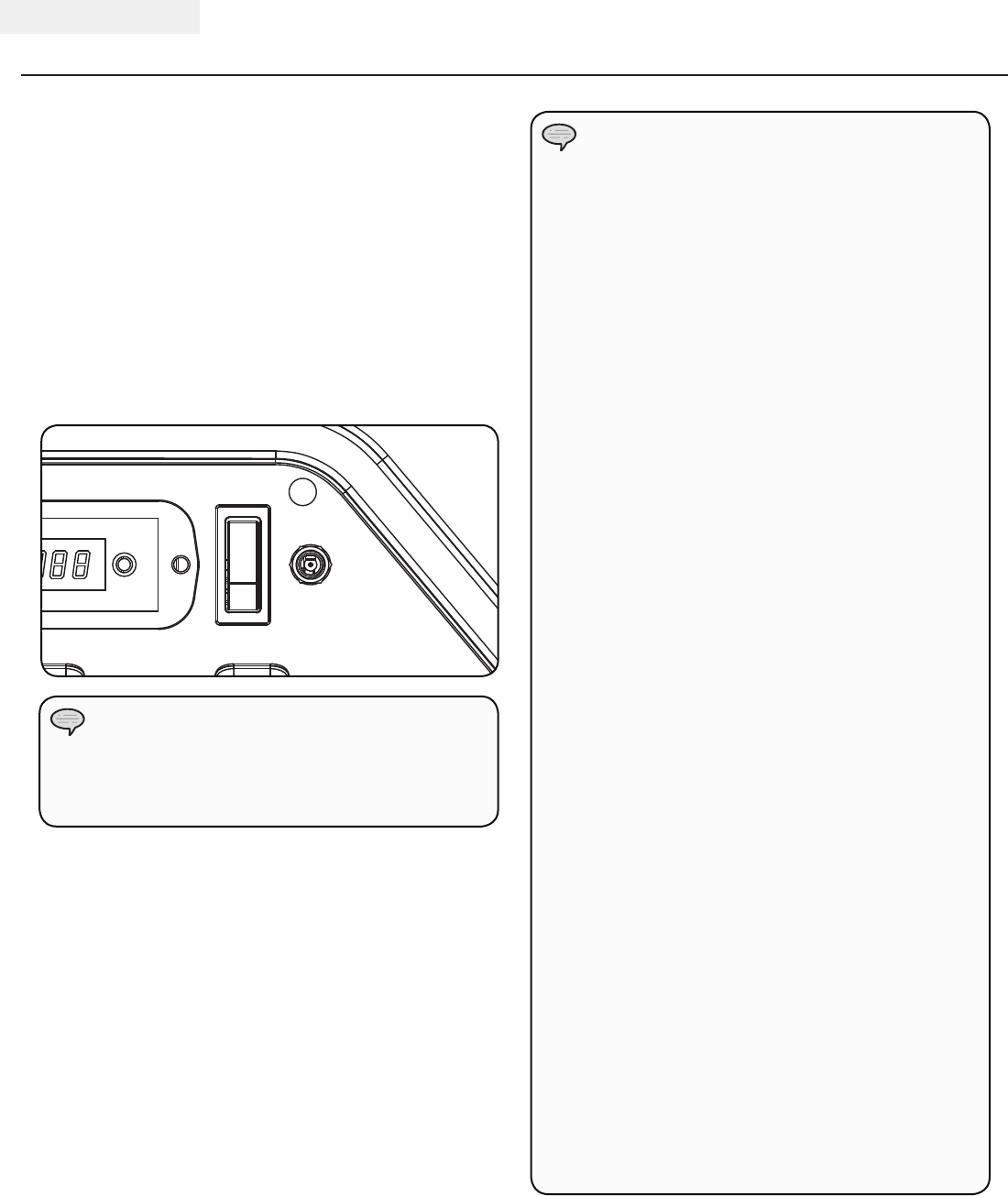

Smart Charger

The smart charger (included) is a device that is used to

charge the generator battery. The smart charger plugs

into the generator, into the DC input on the front panel,

and then into a household outlet power source. There

is a light on the charger. If the battery is in need of a

charge or charging then the red light will light up. If

the battery is good and not in need of charging or has

completed charging then the green light will light up.

The smart charger is programmed not to charge or to

stop charging when the light is green. This is a safety

feature that will help prevent damage to the battery and

generator.

INPUT

DC 12V

If the battery is completely dead, and won’t hold a

charge, then the smart charger can be plugged into

a power source to enable power to the choke.

NOTE

FCC Statement

1. This battery charger complies with Part 15

of the FCC Rules. Operation is subject to the

following two conditions: (1) This battery charger

may not cause harmful interference.(2) This

battery charger must accept any interference

received, including interference that may cause

undesired operation.

2. Changes or modifications not expressly approved

by the party responsible for compliance

could void the user’s authority to operate the

equipment.

This battery charger has been tested and found to

comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits

are designed to provide reasonable protection

against harmful interference in a residential

installation. This battery charger generates uses

and can radiate radio frequency energy and, if

not installed and used in accordance with the

instructions, may cause harmful interference

to radio communications. However, there is no

guarantee that interference will not occur in a

particular installation. If this battery charger does

cause harmful interference to radio or television

reception, which can be determined by turning the

battery charger off and on, the user is encouraged

to try to correct the interference by one or more of

the following measures:

– Reorient or relocate the receiving antenna.

– Increase the separation between the battery

charger and receiver.

– Connect the battery charger into an outlet on a

circuit different from that to which the receiver

is connected.

Consult the dealer or an experienced radio/TV

technician for help.

NOTE

19

ENGLISH 100155

MAINTENANCE AND STORAGE

The owner/operator is responsible for all periodic

maintenance.

Complete all scheduled maintenance in a timely manner.

Correct any issue before operating the generator.

Never operate a damaged or defective generator.

Tampering with the factory set governor will void

your warranty.

Air Filter

1. Remove the snap-on cover holding the air fi lter to

the assembly.

2. Remove the foam element.

3. Wash in liquid detergent and water. Squeeze

thoroughly dry in a clean cloth.

4. Saturate in clean engine oil.

5. Squeeze in a clean, absorbent cloth to remove all

excess oil.

6. Place the fi lter in the assembly.

7. Reattach the air fi lter cover and snap in place.

Spark Plugs

1. Remove the spark plug cable from the spark plug.

2. Use the spark plug tool (not included) to remove the

plug.

3. Inspect the electrode on the plug. It must be clean and

not worn to produce the spark required for ignition.

4. Make certain the spark plug gap is 0.7 - 0.8 mm or

(0.028 - 0.031 in.).

5. Refer to the spark plug recommendation chart when

replacing the plug.

6. Carefully thread the plug into the engine.

7. Use the spark plug tool (not included) to fi rmly install

the plug.

8. Attach the spark plug wire to the plug.

For service or parts assistance, contact our help

line at 1-877-338-0999

NOTE

Maintenance, replacement, or repair of emission

control devices and systems may be performed

by any non-road engine repair establishment or

individual.

NOTE

WARNING

WARNING

Improper maintenance will void your warranty.

WARNING

Oil Cont’d.

0.7 - 0.8 mm

0.028 - 0.031 in.

Once oil has been added, a visual check should show

oil about 1-2 threads from running out of the fi ll hole.

If using the dipstick to check oil level, DO NOT screw

in the dipstick while checking.

NOTE

Engine Maintenance

To prevent accidental starting, remove and ground spark

plug wire before performing any service.

Oil

Change oil when the engine is warm. Refer to the oil

specifi cation to select the proper grade of oil for your

operating environment.

1. Remove oil fi ll cap/dipstick.

2. Use pliers to slide the spring clamp down the oil

drain hose and pull the hose off the plug bracket.

3. Point the hose into a drain pan and allow the oil to

drain completely. Note: The hose end must be lower

than the engine base to allow the oil to drain.

4. Replace oil drain hose onto plug bracket and slide

spring clamp back into position.

5. Add up to 1.2 qt. (1.1 L) of oil and replace oil fi ll

cap/dipstick. DO NOT OVERFILL.

6. Dispose of used oil at an approved waste

management facility.

20

100155 ENGLISH

Adjustments

The air-fuel mixture is not adjustable. Tampering with

the governor can damage your generator and your

electrical devices and will void your warranty. CPE

recommends that you contact our service line at

1-877-338-0999 for all other service and/or adjustment

needs.

Maintenance Schedule

Follow the service intervals indicated in the following

maintenance schedule.

Service your generator more frequently when operating

in adverse conditions.

Contact our helpline at 1-877-338-0999 to locate the

nearest Champion Power Equipment certified service

dealer for your generator or engine maintenance needs.

Use a damp cloth to clean exterior surfaces of the engine.

Use a soft bristle brush to remove dirt and oil.

Use an air compressor (25 PSI) to clear dirt and debris

from the engine.

Cleaning

DO NOT spray engine with water.

CAUTION

Water can contaminate the fuel system.

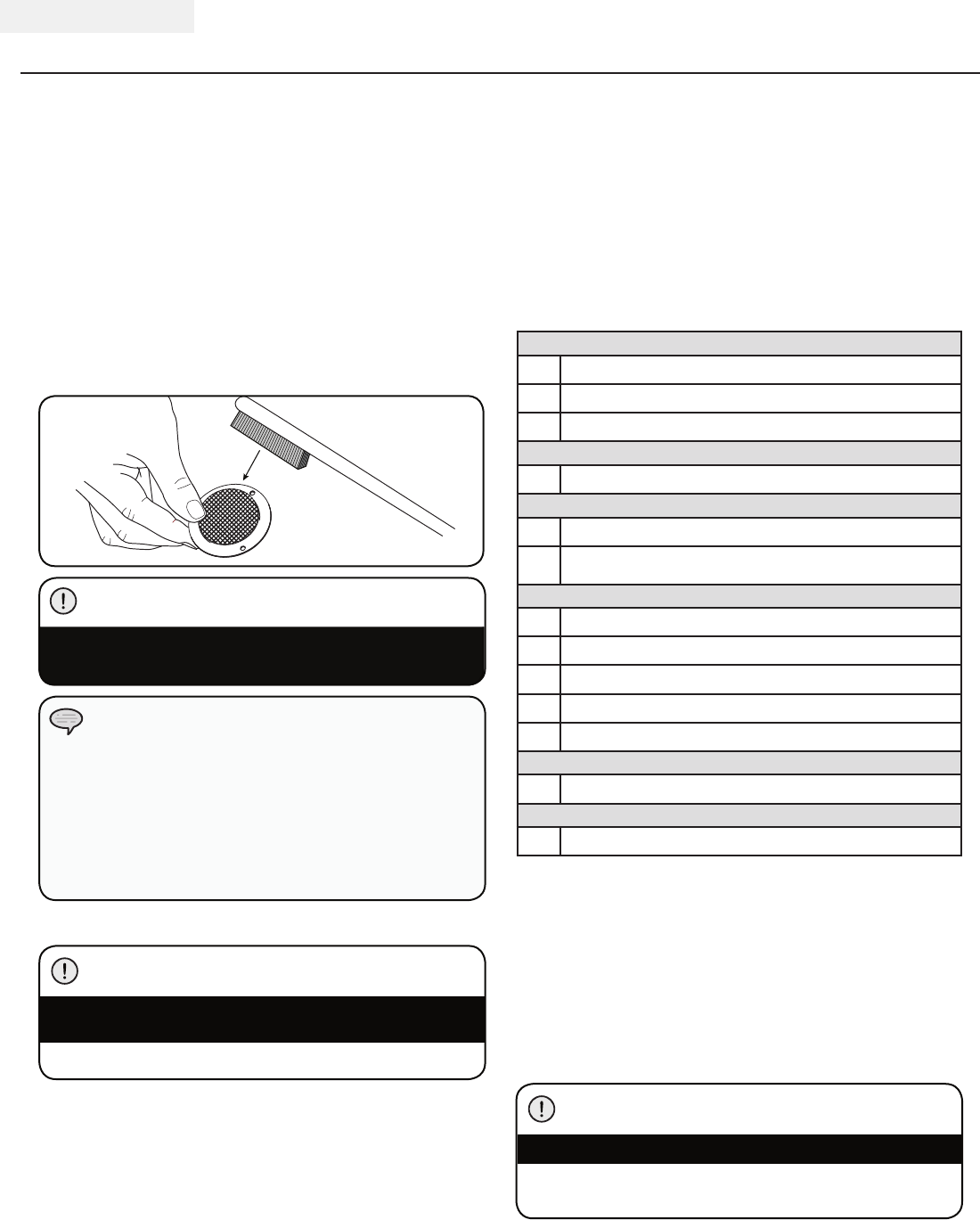

Spark Arrester

1. Allow the engine to cool completely before servicing

the spark arrester.

2. Remove the three (3) screws holding the cover plate

which retains the end of the spark arrester to the

muffler.

3. Remove the spark arrester screen.

4. Carefully remove the carbon deposits from the spark

arrester screen with a wire brush.

5. Replace the spark arrester if it is damaged.

6. Position the spark arrester in the muffler and attach

with the three (3) screws.

Failure to clean the spark arrester will result in degraded

engine performance.

CAUTION

Federal and local laws and administrative requirements

indicate when and where spark arresters are required.

When ordered, spark arresters are required for operation

of this generator in National Forest lands. In California,

this generator must not be used on any forest- covered

land, brush-covered land, or grass- covered land unless

the engine is equipped with a spark arrester.

NOTE

*To be performed by knowledgeable, experienced owners or

Champion Power Equipment certified dealers.

Generator Maintenance

Make certain that the generator is kept clean and stored

properly. Only operate the unit on a flat, level surface in

a clean, dry operating environment. DO NOT expose the

unit to extreme conditions, excessive dust, dirt, moisture

or corrosive vapors.

Use a damp cloth to clean exterior surfaces of the generator.

Use a soft bristle brush to remove dirt and oil.

Use an air compressor (25 PSI) to clear dirt and debris

from the generator.

Inspect all air vents and cooling slots to ensure that they

are clean and unobstructed.

DO NOT use a garden hose to clean the generator.

Water can enter the generator through the cooling

slots and damage the generator windings.

CAUTION

Every 8 hours or daily

Check oil level

Clean around air intake and muffler

Check hoses for leaks

First 5 hours

Change oil

Every 50 hours or every season

Clean air filter

Change oil if operating under heavy load or in hot

environments

Every 100 hours or every season

Change oil

Clean/Adjust spark plug

Check/Adjust valve clearance*

Clean spark arrester

Clean fuel tank and filter*

Every 250 hours

Clean combustion chamber*

Every 3 years

Replace fuel line and LPG hose

MAINTENANCE AND STORAGE

21

ENGLISH 100155

MAINTENANCE AND STORAGE

Storage

The generator should be started at least once every 14

days and allowed to run for at least 20 minutes. For

longer term storage, please follow these guidelines.

Generator Storage

1. Add a properly formulated fuel stabilizer to the tank.

2. Be sure all appliances are disconnected from the

generator.

3. Run the generator for a few minutes so the treated

fuel cycles through the fuel system and carburetor.

4. Turn the fuel valve to the “Off” position.

5. Let the generator run until fuel starvation has

stopped the engine. This usually takes a few minutes.

6. The generator needs to cool completely before

cleaning and storage.

7. Clean the generator according to the maintenance

section.

8. Change the oil.

9. Remove the spark plug and pour about 1⁄2 ounce

(14.8 mL) of oil into the cylinder. Crank the engine

slowly to distribute the oil and lubricate the cylinder.

10. Reattach the spark plug.

11. Store the unit in a clean, dry place out of direct

sunlight.

Generator exhaust contains odorless and colorless

carbon monoxide gas.

To avoid accidental or unintended ignition of your

remote start generator during periods of storage,

the following precautions should be followed:

– When storing the generator for short periods of

time make sure that the Ignition Switch, the Fuel

Valve and the Battery Switch are set in the OFF

position.

– When storing the generator for extended periods

of time make sure that the Ignition Switch, the

Fuel Valve and the Battery Switch are set in the

the the OFF position and the battery leads have

been disconnected from the battery.

DANGER

Generator Battery

This product is equipped with an automatic battery

charging circuit. The battery will receive charging

voltage when the engine is running. The battery will

maintain a proper charge if the unit is used on a regular

basis (about once every two weeks). If it is used less

frequently, the battery should be connected to a trickle

charger (not included) or battery maintainer (not

included) to keep the battery properly charged. If the

battery is not able to start the engine, it can be started

by manually pulling the engine recoil cord. If the battery

voltage is extremely low, the charging circuit may not be

able to re-charge the battery. In this case, the battery

must be connected to a standard automotive style

battery charger for re-charging before it can be used.

Disconnect the Battery

1. Remove the protective cover from the black/negative

battery lead.

2. Disconnect the black/negative lead from the black/

negative terminal on the battery and store the cap

screw (M5x10) and nut (M5).

3. Repeat steps 1-2 for the red/positive battery lead.

4. Store the battery in a cool, dry place.

A Float Charger will maintain the battery condition

over long storage periods.

NOTE

Charge the Battery

For a generator equipped with batteries for electric

starting, proper battery maintenance and storage should

be followed. An automatic battery charger (included)

with automatic trickle charging capability should be used

to charge the battery. Maximum charging rate should not

exceed 1.5 amps. Follow the instructions included with

the battery charger. The battery should be fully charged

at least once per month.

22

100155 ENGLISH

Oil

Use 10W-30 automotive oil.

Oil capacity is up to 1.2 qt. (1.1 L).

DO NOT OVERFILL.

Please reference the following chart for recommended

oil types for use in the generator.

Fuel

Fuel (Gasoline) capacity is 6.1 gal. (23 L).

– Use regular unleaded gasoline with a minimum

octane rating of 85 and an ethanol content of less

than 10% by volume.

– Use only an approved LPG cylinder equipped with an

OPD valve.

Engine Specifications

– Model .....................YF190FD-2-L_G

– Displacement .......................439cc

– Type ........................4-Stroke OHV

– Start Type ....................Electric Start

Generator Specifications

– Model ...........................100155

– Running Wattage (Gasoline) .........7000 Watts

– Peak Wattage (Gasoline) ...........9000 Watts

– Running Wattage (LPG) ............6300 Watts

– Peak Wattage (LPG) ..............8100 Watts

– AC Load ...................... 120/240 V

– Phase ............................Single

– Frequency .........................60 Hz

– Fuel Capacity (Gasoline) ..........6.1 gal. (23 L)

– Gross Weight .............224.4 lb. (101.8 kg)

– Net Weight ................202.4 lb. (91.8 kg)

– Height ................... 26.4 in. (67.1 cm)

– Width ...................28.7 in. (72.9 cm)

– Length. . . . . . . . . . . . . . . . . . . 27.8 in. (70.3 cm)

Maintenance Valve Clearance

– Intake: 0.13 – 0.17 mm (0.005 – 0.007 in.)

– Exhaust: 0.18 – 0.22 mm (0.007 – 0.009 in.)

Note: Tech bulletin regarding the valve adjustment

procedure is on www.championpowerequipment.com.

Spark Plugs

OEM spark plug: NHSP F6RTC

Replacement spark plug: NGK BPR6ES or equivalent

Make certain the spark plug gap is 0.7 - 0.8 mm or

(0.028 - 0.031 in.).

An Important Message About Temperature

Your Champion Power Equipment product is designed

and rated for continuous operation at ambient

temperatures up to 40°C (104°F). When your product is

needed your product may be operated at temperatures

ranging from -15°C (5°F) to 50°C (122°F) for short

periods. If the product is exposed to temperatures

outside this range during storage, it should be brought

back within this range before operation. In any event,

the product must always be operated outdoors, in a

well-ventilated area and away from doors, windows and

other vents.

Full Synthetic 5W-30

Degrees Celsiusº (Outside)

(Outside)

Degrees Fahrenheitº

SPECIFICATIONS

Weather will affect engine oil and engine

performance. Change the type of engine oil used

based on weather conditions to suit the engine

needs.

NOTE

23

ENGLISH 100155

SPECIFICATIONS

Parts Diagram

22

23

24

25

26

27 2 8

29

30

31

32 3 3 3 4 35 36

37 3 8 3 4 39

4041

33 3 4 42434445

46

47

48

49

50

51

52

53

54

55

56

57

66

23

82

83

84

85

8687

88

44

65

1 2 4 5

6

7

8

9

10

11 1 2 13

14 1 5

16

17

18

19

20

21

5

5

16

59

626 364

60

61

67

68

69

70

71

72

737475

76 77

78

79

80

81

76

89

90

91

92

93

95

97

98

99

94

100

103 104

105 1 0 6

68

107

76

109

11 2

11 1

113

12 9

131

133

130

14 1

142

14 3

52

3

20

13 8

13 9

58

58

11 0

96

10110 2

10 8

14 4

145

11411 5

11 6

11711 8

6511 912 01 2 112 2

12 31 2 4 12512 6 1 2 7 128

134

13 5

13 6 1 37

140

146

58

76

132 1 4 7 148

24

100155 ENGLISH Parts List

#Part Number Description Qty

12.06.006 Clamp (Ø7×Ø1) 3

22.05.001 Clamp (Ø8×6.5) 2

3152.070014.05 Pipe, Reversal Valve (810 mm) 1

4152.070013.03 Pipe, Air Cleaner, 135MM 1

51.5789.0608 Flange Bolt M6×8 4

6152.070018.02 Board, Heat Insulation 1

7152.070702.06 Support Arm, Top 1

8152.070700.02 Carbon Canister (650cc) 1

91.16674.0812 Flange Bolt M8×12 2

10 152.070702.05 Support Arm, Bottom 1

11 122.070100.07 Fuel Tank Cap 1

12 122.070300.03 Fuel Filter Assembly 1

13 24.070800.00 Reversal Valve 1

14 152.071000.31.48 Fuel Tank, Yellow 1

15 1.5789.0620.2 Flange Bolt M6×20 4

16 1.93.06 Lock Washer Ø6 8

17 2.03.004 Washer (Ø24×Ø6.5×1.5) 4

18 122.070015.01 Mount Vibration, Fuel Tank 4

19 21.070600.01 Connect, Copper 1

20 2.06.016 Clamp (Ø8.7×b8) 4

21 152.070011.08 Pipe, Fuel (265mm) 1

22 45.090006.20 Holder, Air Cleaner 1

23 1.6177.1.06 Flange Lock Nut M6 3

24 1.848.08 Washer Ø8 2

25 1.93.08 Lock Washer Ø8 2

26 1.6175.08 Nut M8 2

27 46.100001.07 Gasket, Exhaust 1

28 46.101000.01.2 Muffler Assembly 1

29 1.9074.4.0510 Screw/Washer Assembly M5×10 3

30 46.101300.00 Spark Arrester Assembly 1

31 1.16674.0 820 Flange Bolt M8×20 2

32 1.6175.05 Nut M5 2

33 1.97.1.05 Washer Ø5 4

34 1.93.05 Lock Washer Ø5 5

35 2.08.071 Bolt M5×229 2

36 1.97.1.06 Washer Ø6 4

37 152.190300.00 Carbon Brush Assembly 1

38 122.190004.01 Pinch, Carbon Brush 1

39 1.5783.0520 Bolt M5×20 1

40 1.16674.0512.2 Flange Bolt M5×12 2

41 152.190003.00.48 Generator End Cover, Yellow 1

42 1.5783.0516 Bolt M5×16 2

43 122.190400.00 Terminal Block 1

44 1.16674.0516 Flange Bolt M5×16 3

45 153.190200.03 AVR, Large 1

46 152.190002.00 End Housing 1

47 2.08.069 Flange Bolt M6×194 4

48 153.191002.00 Stator Cover 1

49 2.08.070 Flange Bolt M10×280 1

50 153.191200.20 Stator Assembly, Al, 158 mm,

DC12V, THD<5% 1

51 1.7244.10 Lock Washer Ø10 1

52 1.96.10 Flat Washer Ø10 3

53 153.191100.20 Rotor Assembly, Al, 158 mm,

THD<5% 1

54 152.192300.01 Air Guide 1

55 152.190005.00 Rubber, Fore- Cover, A 1

56 152.190005.01 Rubber, Fore-Cover, B 1

57 47.691 Engine 1

58 1.5789.0612 Flange Bolt M6×12 4

59 152.200702.02 Cover, Handle 1

60 152.200703.03 Long Pin, Handle 2

61 1.894.1.10 Circlip Ø10 2

62 152.200701.14 Handle, U Style 1

63 1.894.1.08 Circlip Ø8 2

64 152.200703.02 Short Pin, Handle 2

65 1.862.06 Toothed Lock Washer Ø6 2

66 5.1900.026 Grounding Line 150 mm 1

67 152.200800.09.2 Decorative Plate 1

68 152.070031.00 Jacket, LPG Hose 3

69 6.5.250.420.2 Frame 1

70 1.6177.1.10 Flange Lock Nut M10 4

71 152.201200.03 Motor Mount, I 2

72 1.6182.10 Lock Nut M10 2

73 152.201701.09 9.5 in. PU Wheel 2

74 122.200016.01 Bushing (Ø16×Ø10.5×59) 2

75 1.5782.10120 Bolt M10 ×120 2

76 1.6177.1.08 Flange Lock Nut M8 9

#Part Number Description Qty

77 152.201200.04 Motor Mount, II 2

78 1.5789.0816 Flange Bolt M8×16 2

79 152.200002.01.2 Support Leg, 84MM 1

80 152.201400.00 Rubber, Support 2

81 1.5789.0825 Flange Bolt M8×25 2

82 1.9 074.3.0510 Screw/Washer Assembly M5×10 2

83 1.6177.1.05 Flange Lock Nut M5 2

84 9.1000.150 Battery 12V15AH 1

85 152.200904.00 Strap, Battery 1

86 5.1900.014 Black Wire, Battery, 320mm 1

87 5.1900.021 Red Wire, Battery, 480mm 1

88 152.200013.01 Jacket, Wire 3

89 152.201004.00 Lock Catch 2

90 152.200019.00.48 Switch Handle, Yellow 1

91 1.6170.03 Nut M3 1

92 5.1050.000 Switch 1

93 1.819.1.0330 Screw M3×30 1

94 2.06.032 Clip (Ø17) 2

95 1.6182.05 Lock Nut M5 1

96 122.070032.00 Sleeve, Knob 1

97 122.070025.02 Knob 1

98 1.823.0408 Screw M4×8 2

99 122.074000.01 Cut-off Valve, B 1

100 152.070012.05 Pipe (40 mm) 1

101 2.08.055 Bolt M6×14 3

102 47.130021.01 LPG Hose with regulator 3.3 ft. (1 m) 1

103 9.1500.002 Sleeve, Connector 1

104 47.136000.01 Pressure Reducing Valve 1

105 152.070012.06 Pipe (750 mm) 1

106 152.200018.00 Supporter 1

107 152.070031.01 Jacket, Fuel Hose 1

108 2.06.023 Clip Ø20 2

109 1.845.4816 Screw ST4.8×16 2

110 2.06.050 Clip (Ø8×Ø18) 1

111 1.845.3513 Screw ST3.5×13 1

112 122.070400.06 Fuel Valve 1

113 152.070011.09 Pipe, Fuel (480mm) 1

114 152.199.04.2 Control Panel 1

115 5.1000.001.3 Ignition Switch, Red 1

116 1.9074.4.0514.1 Screw/Washer Assembly M5×14,

Black 6

117 5.1120.0 08 Receptacle L5-30R 1

118 5.1870.006 Receptacle Cover, Receptacle

L5-30R 1

119 1.5783.0622.3 Bolt M6×22, Green 1

120 1.6175.06.3 Nut M6, Green 2

121 1.97.1.06.3 Washer Ø6, Green 2

122 1.93.06.3 Lock Washer Ø6, Green 2

123 5.1120.009 Receptacle L14-30R 1

124 5.1870.003 Receptacle Cover, Receptacle

L14-30R 1

125 5.1120.050 Receptacle 5-20R, Duplex, GFCI 2

126 5.1870.005 Receptacle Cover, Receptacle 5-20R,

Duplex, GFCI 2

127 5.1210.920 AC 20A Breaker, Push button 2

128 5.1210.930 AC 30A Breaker, Push button 2

129 5.1810.003 VFO Diode 1

130 1.823.0514 Screw M5×14 3

131 5.1800.004 Rectifier 1

132 5.1110.006 Receptacle (Battery Charger) 1

133 5.1820.001 Charger 1

134 5.1000.000.3 Battery Switch, Red 1

135 5.1430.002 Intelligauge 1

136 1.9074.4.0414.1 Screw/Washer Assembly M4×14,

Black 2

137 1.6177.1.04.1 Flange Lock Nut M4, Black 10

138 1.5789.0615.1 Flange Bolt M6×15, Black 4

139 152.210002.17 Control Box 1

140 100153.21.10 Wire Assembly 1

141 122.210003.01 Wire Jacket, Control Box 1

142 5.1330.017 Sheath, Wire, (Ø16×300mm) 1

143 152.210003.02 Plug, Control Box 1

144 5.1280.003 Fuse, 10A 1

145 5.1280.008 Fuse (5A) 1

146 100155.21 Control Panel Assembly 1

147 9.1600.019 25ft. Generator Cable 1

148 9.1700.004 Smart Charger 1

25

ENGLISH 100155

SPECIFICATIONS

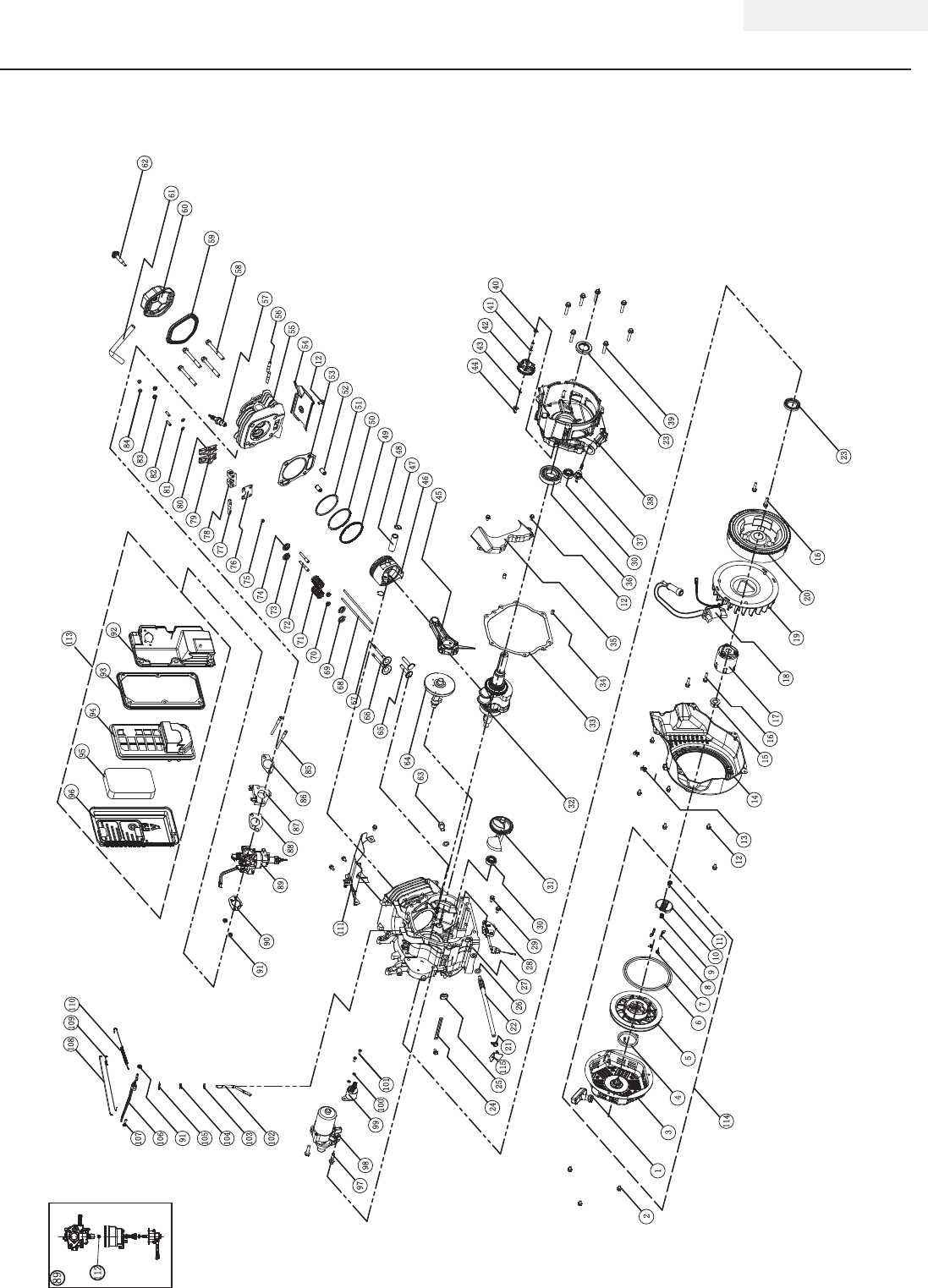

Engine Parts Diagram

45

64

40

102

103

104

105

91

106

107

110

109

108

85

10

1

2

3

4

5

6789

11

12 13

14

15 16 17

18

19

20

16

24

25

26 27 28 29 30

31

33

34

35

12 36 30 37

38

23 39

41

42

43

44

46

47

48

49

50

51

52

53

12

54

55

57

58

59

60

61

62

65

66

68

69

70

71

72

73

74

75

76

77

78

79

80

81

82

86

87

88

67

83

84

56

94

95

96

111

89

97 98

99 100101

23

93

89

112

63

32

92

113

114

90

91

11521 22

26

100155 ENGLISH

#Part Number Description Qty

121.061300.00 Recoil Handle 1

21.5789.0608 Flange Bolt M6×8 3

346.061100.00.2 Recoil Starter Cover, Black 1

445.060005.00 Recoil Starter Spring 1

545.061102.00 Recoil Starter Reel 1

62.10.003 Rope (Ø5×1550) 1

745.060003.00 Spring, Ratchet 2

845.060002.00 Starter Ratchet (Iron) 2

945.060009.00 Spring, Ratchet Guide 1

10 45.060007.00 Ratchet Guide 1

11 45.060008.00 Screw, Ratchet Guide 1

12 1.5789.0612 Flange Bolt M6×12 12

13 2.05.009 Clamp (12.5×7) 2

14 47.080100.01.48 Fan Cover, Yellow 1

15 2.02.007 Nut M16x1.5 1

16 1.5789.0629 Flange Bolt M6×29 4

17 45.060001.00 Pulley, Starter 1

18 46.123000.03 Ignition Coil 1

19 47.080001.00 Cooling Fan 1

20 46.120100.05 Flywheel, Electric Start 1

21 2.06.013 Clamp (Ø13.5×b10) 1

22 45.032000.00 Oil Drain Hose Assembly 1

23 2.11.007 Oil Seal (Ø35×Ø52×8) 2

24 2.05.050 Wire Clip, 100 mm 1

25 45.030032.00 Sheath, Wire 1

26 2.03.023 Washer (Ø12.5×Ø20×2) 2

27 47.030100.01 Crankcase 1

28 45.127000.02 Oil Level Sensor 1

29 1.5789.0615 Flange Bolt M6×15 2

30 1.276.6202 Bearing 6202 2

31 47.050006.00 Weight Balancer 1

32 47.050100.01 Crankshaft 1

33 46.030008.00 Gasket, Crankcase Cover 1

34 2.04.001 Dowel Pin (Ø9×14) 2

35 46.080600.00 Air Guide, Right Side 1

36 1.276.6207 Bearing 6207 1

37 46.031000.01.48 Oil Dipstick Assembly, Yellow 1

38 45.030007.00 Cover, Crankcase 1

39 1.5789.0840.0.8 Flange Bolt M8×40 7

40 2.03.021.1 Washer (Ø6.4×Ø13×1), Black 1

41 45.110013.00 Shaft, Governor Gear 1

42 45.110100.00 Governor Gear 1

43 21.110011.00 Clip, Governor Gear 1

44 45.110012.00 Bushing, Governor Gear 1

45 47.050200.00 Connecting Rod 1

46 47.050005.01 Piston 1

47 2.09.004 Circlip (Ø21×Ø1) 2

48 45.050003.00 Pin, Piston 1

49 46.050303.02 Ring, Oil 1

50 46.050302.02 Ring, Second Piston 1

51 46.050301.02 Ring, First Piston 1

52 2.04.004 Dowel Pin (Ø12×20) 2

53 46.030009.02 Gasket, Cylinder Head 1

54 46.080400.00 Air Guide, Lower 1

55 47.010100.01 Cylinder Head, 439cc 1

56 2.01.010 Stud Bolt M8×35 2

57 2.15.002(F6RTC) Spark Plug (F6RTC) 1

58 2.08.014 Flange Bolt M10×80 4

#Part Number Description Qty

59 46.020002.00 Gasket, Cylinder Head Cover 1

60 47.021000.00 Cylinder Head Cover (CPE) 1

61 45.020001.02 Breather Tube 1

62 47.020100.00 Bolt, Cylinder Head Cover 1

63 2.08.039 Bolt, Drain (M12×1.5×15) 1

64 47.041000.01 Camshaft (EPA) 1

65 47.040004.00 Valve Lifter 2

66 47.040002.00 Intake Valve 1

67 47.040006.00 Exhaust Valve 1

68 46.040005.00 Push Rod 2

69 45.040015.00 Retainer, Valve Spring 2

70 45.040017.00 Oil Seal, Valve 2

71 45.040003.00 Spring, Valve 2

72 23.040010.00 Bolt, Rocker Arm 2

73 45.040001.00 Retainer, Intake Valve Spring 1

74 45.040007.00 Retainer, Exhaust Valve Spring 1

75 45.040008.00 Rotator, Exhaust Valve 1

76 46.040004.00 Guide Plate, Push Rod 1

77 46.040016.00 Shaft, Rocker Arm 1

78 46.040201.00 Retainer, Rocker Arm 1

79 46.040009.00 Rocker Arm, Intake Valve 1

80 46.040018.00 Rocker Arm, Exhaust Valve 1

81 1.97.1.06 Washer Ø6 2

82 22.040012.00 Screw, Valve Adjustment 2

83 1.6177.1.06 Flange Lock Nut M6 2

84 21.040021.00 Nut, Lock (M6×0.5) 2

85 2.01.008 Stud Bolt (M6×M8×105) 2

86 46.130002.20 Insulator Gasket 1

87 45.130001.00 Carburetor Insulator 1

88 46.130003.20 Carburetor Gasket 1

89 47.131000.25 Carburetor 1

90 46.130004.20 Gasket, Air Cleaner 1

91 1. 617 7. 0 6 Flange Nut M6 3

92 46.091100.03 Base, Air Cleaner 1

93 45.091002.20 Seal, Air Cleaner 1

94 45.091001.20 Separator, Air Cleaner 1

95 45.091003.20 Element, Air Cleaner 1

96 46.091200.04 Cover, Air Cleaner 1

97 1.5789.0835 Flange Bolt M8×35 2

98 45.125100.00 Starter Motor Assembly 1

99 45.125200.03 Relay, Starter (Three Gear) 1

100 1.93.05 Lock Washer Ø5 2

101 1.16674.0516 Flange Bolt M5×16 2

102 45.110001.00 Shaft, Governor Arm 1

103 2.03.019 Washer (Ø8.2×Ø17×0.8) 1

104 2.11.0 06 Oil Seal (Ø7×Ø14×5) 1

105 45.110008.00 Pin, Shaft 1

106 45.110003.00 Governor Arm 1

107 2.08.040 Bolt, Governor Arm (M6×21) 1

108 45.110006.00 Governor Rod 1

109 45.110005.00 Spring, Throttle Return 1

110 45.110007.00 Governor Spring 1

111 46.080300.20 Air Guide, Upper 1

112 47.1 310 17. 2 1 Standard Main Jet 1

47.131017.21.01 Altitude Main Jet /

113 46.091000.03 Air Cleaner Assembly 1

114 46.061000.00 Recoil Assembly 1

115 45.030200.00 Support 1

27

ENGLISH 100155

SPECIFICATIONS

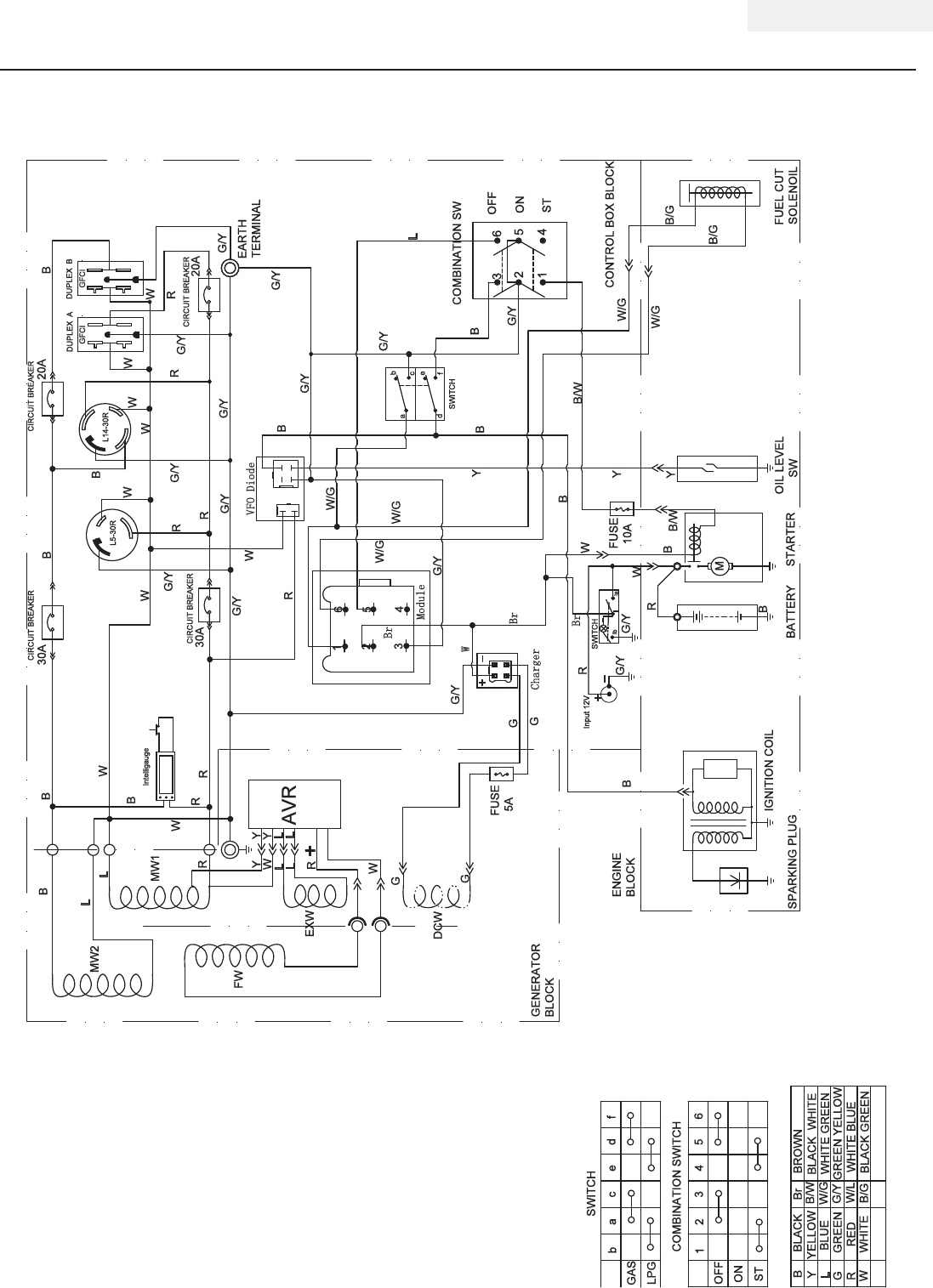

Wiring Diagram

B

Y

ENGINE

BLOCK

GENERATOR

BLOCK

SPARKING PLUG

IGNITION COILOIL LEVEL

SW

CONTROL BOX BLOCK

COMBINATION SW

M

W

B

BATTERY STARTER

R

B

34

2

16

5

OFF

ON

ST

COMBINATION SWITCH

6

5

4

3

2

1

B/W

B/W

ST

ON

FUSE

10AY

VFO Diode

SWITCH

AVR

W

R

Y

W

L

L

R

W

+

MW1

FW

EXW

MW2

B

L

Y

Y

L

L

L

B

R

B

R

DCW

FUEL CUT

SOLENOIL

B/G

B/G

W/G

W/G

G

OFF

G/Y

G/Y

G/Y

34

5

2

16

G/Y

＋−

Charger

Br

G/Y

SWITCH

lb lla

G/Y

EARTH

TERMINAL

G/Y

G/Y

L14-30R

L5-30R

GFCI

B

W

W

R

R

RG/Y

B

B

W

G/Y

WW

CIRCUIT BREAKERCIRCUIT BREAKER

CIRCUIT BREAKERCIRCUIT BREAKER

30A

30A20A

20A

R

G/Y

W

DUPLEX ADUPLEX B

Module L

B

W

B

G

G

G

G/Y

Br

W/G

W/G

W

RB

B

G/Y

G/Y

Y

W/G

W

FUSE

5A

GAS

LPG

SWITCH

a

c

df

b

e

c e

a

bf

d

Br

L

W

G

B

Y

R

YELLOW

BLACK

BLUE

GREEN

RED

WHITE

Br

WHITE BLUE

GREEN YELLOW

WHITE GREEN

BROWN

BLACK WHITE

B/W

W/L

G/Y

W/G

B/G BLACK GREEN

+_

Input 12V R

G/Y

GFCI

W

Intelligauge

28

100155 ENGLISH

For further technical support:

Technical Service

Mon – Fri 8:30 AM – 5:00 PM (PST/PDT)

Toll Free: 1-877-338-0999

tech@championpowerequipment.com

Problem Cause Solution

Generator will not start No fuel Add fuel

Faulty spark plug Replace spark plug

Unit loaded during start up Remove load from unit

Generator will not start;

Generator starts but runs roughly

Low oil level Fill crankcase to the proper level

Place generator on a flat, level surface

Choke in the wrong position Adjust choke

Spark plug wire loose Attach wire to spark plug

Generator will not start electrically Generator battery is dead Recharge generator battery

Battery switch is in the “OFF” position Turn battery switch to “ON” position

Generator shuts down during operation Out of fuel Fill the gasoline tank or fill LPG cylinder

Low oil level Fill crankcase to the proper level. Place

generator on a flat, level surface

Generator cannot supply enough power or

overheating

Generator is overloaded Review load and adjust. See “Power

Management”

Insufficient ventilation Check for air restriction. Move to a well

ventilated area

No AC output GFCI duplex is tripped Press Reset Button on duplex

Cable not properly connected Check all connections

Connected device is defective Replace defective device

Circuit breaker is open Reset circuit breaker

Faulty brush assembly Replace brush assembly (Service Center)

Faulty AVR (auto voltage regulator) Replace AVR (Service Center)

Loose wiring Inspect and tighten wiring connections

Other Contact the help line

Repeated circuit breaker tripping Overload Review load and adjust. See “Power

Management”

Faulty cords or device Check for damaged, bare or frayed wires.

Replace defective device

TROUBLESHOOTING

29

ENGLISH 100155

WARRANTY

CHAMPION POWER EQUIPMENT

2 YEAR LIMITED WARRANTY

Warranty Qualifications

Champion Power Equipment (CPE) will register this

warranty upon receipt of your Warranty Registration Card

and a copy of your sales receipt from one of CPE’s retail

locations as proof of purchase.

Please submit your warranty registration and your proof

of purchase within ten (10) days of the date of purchase.

Repair/Replacement Warranty

CPE warrants to the original purchaser that the

mechanical and electrical components will be free of

defects in material and workmanship for a period of

one year (parts and labor) and two years (parts) from

the original date of purchase (90 days (parts and

labor) and 180 days (parts) for commercial & industrial

use). Transportation charges on product submitted

for repair or replacement under this warranty are the

sole responsibility of the purchaser. This warranty only

applies to the original purchaser and is not transferable.

Do Not Return The Unit To The Place Of Purchase

Contact CPE’s Technical Service and CPE will

troubleshoot any issue via phone or e-mail. If the

problem is not corrected by this method, CPE will, at its

option, authorize evaluation, repair or replacement of the

defective part or component at a CPE Service Center.

CPE will provide you with a case number for warranty

service. Please keep it for future reference. Repairs

or replacements without prior authorization, or at an

unauthorized repair facility, will not be covered by this

warranty.

Warranty Exclusions

This warranty does not cover the following repairs and

equipment:

Normal Wear

Generators need periodic parts and service to perform well.

This warranty does not cover repair when normal use has

exhausted the life of a part or the equipment as a whole.

Installation, Use and Maintenance

This warranty will not apply to parts and/or labor if this

generator is deemed to have been misused, neglected,

involved in an accident, abused, loaded beyond the

generator’s limits, modified, installed improperly or

connected incorrectly to any electrical component.

Installation, Use and Maintenance Cont’d.

Normal maintenance such as spark plugs, air filters,

adjustments, fuel system cleaning and obstruction due

to buildup is not covered by this warranty.

Other Exclusions

This warranty excludes:

– Cosmetic defects such as paint, decals, etc.

– Wear items such as filter elements, o-rings, etc.

– Accessory parts such as starting batteries, and

storage covers.

– Failures due to acts of God and other force majeure

events beyond the manufacturer’s control.

– Problems caused by parts that are not original

Champion Power Equipment parts.

This warranty does not apply to generators used for

prime power in place of a utility.

Limits of Implied Warranty and Consequential Damage

Champion Power Equipment disclaims any obligation to

cover any loss of time, use of this product, freight, or

any incidental or consequential claim by anyone from

using this generator. THIS WARRANTY IS IN LIEU OF

ALL OTHER WARRANTIES, EXPRESS OR IMPLIED,

INCLUDING WARRANTIES OF MERCHANTABILITY OR

FITNESS FOR A PARTICULAR PURPOSE.

A unit provided as an exchange will be subject to the

warranty of the original unit. The length of the warranty

governing the exchanged unit will remain calculated by

reference to the purchase date of the original unit.

This warranty gives you certain legal rights which may

change from state to state. Your state may also have

other rights you may be entitled to that are not listed

within this warranty.

Contact Information

Address

Champion Power Equipment, Inc.

Customer Service

12039 Smith Ave.

Santa Fe Springs, CA 90670

www.championpowerequipment.com

Customer Service

Mon – Fri 8:30 AM – 5:00 PM (PST/PDT)

Toll Free: 1-877-338-0999

info@championpowerequipment.com

Fax no.: 1-562-236-9429

Technical Service

Mon – Fri 8:30 AM – 5:00 PM (PST/PDT)

Toll Free: 1-877-338-0999

tech@championpowerequipment.com

24/7 Tech Support: 1-562-204-1188

WARRANTY
