Champion Power Equipment 100156 Owners Manual

: Champion-Power-Equipment Champion-Power-Equipment--100156-Owners-Manual-802578 champion-power-equipment--100156-owners-manual-802578 champion-power-equipment pdf

Open the PDF directly: View PDF .
Page Count: 29

12039 Smith Ave.

Santa Fe Springs CA 90670 USA

1-877-338-0999

www.championpowerequipment.com

PORTABLE INVERTER GENERATOR

SAVE THESE INSTRUCTIONS

Important Safety Instructions

are included in this manual.

MADE IN CHINA

REV 100156-20141230

2800 Rated Watts / 3100 Max Watts

OWNER’S MANUAL & OPERATING INSTRUCTIONS

100156

MODEL NUMBER

*We are always working to improve our products. Therefore, the enclosed product may differ slightly from the image on the cover.

WARNING:

The Engine Exhaust from this product contains chemicals known to the State of California

to cause cancer, birth defects or other reproductive harm.

FCC Statement

1. This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference.

(2) This device must accept any interference

received, including interference that may cause

undesired operation.

2. Changes or modifications not expressly approved by

the party responsible for compliance could void the

user’s authority to operate the equipment.

NOTE: This equipment has been tested and found to

comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits

are designed to provide reasonable protection against

harmful interference in a residential installation.

This equipment generates uses and can radiate radio

frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful

interference to radio communications. However, there

is no guarantee that interference will not occur in a

particular installation. If this equipment does cause

harmful interference to radio or television reception,

which can be determined by turning the equipment

off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

– Reorient or relocate the receiving antenna.

– Increase the separation between the equipment and

receiver.

– Connect the equipment into an outlet on a

circuit different from that to which the receiver is

connected.

Consult the dealer or an experienced radio/TV technician

for help.

Have questions or need assistance?

Do not return this product to the store!

WE ARE HERE TO HELP!

Visit our website:

www.championpowerequipment.com

for more info:

s Product Info & Updates

s Frequently Asked Questions

s Tech Bulletins

s Product Registration

– or –

Call our Customer Care Team Toll-Free at:

1-877-338-0999

100156

2800 Rated Watts / 3100 Max Watts

PORTABLE INVERTER GENERATOR

TABLE OF CONTENTS

Introduction ............................ 1

Introduction .......................... 1

Portable Power Generator . ................ 1

Accessories .......................... 1

This Booklet . ......................... 1

Manual Conventions . ...................... 2

Safety Rules . ........................... 3

Controls and Features ..................... 5

Generator . ........................... 5

Parts Included ........................ 5

Power Panel .......................... 6

Assembly .............................. 7

Remove the Generator from the Shipping Carton . 7

Add Engine Oil ........................ 7

Add Fuel ............................ 8

Grounding ........................... 8

Operation . ............................. 9

Generator Location ..................... 9

Grounding ........................... 9

Starting the Engine ..................... 9

Economy Control Switch . ................ 10

Connecting Electrical Loads .............. 10

12V DC Outlet ....................... 11

Stopping the Engine ................... 11

GFCI .............................. 11

Do Not Overload Generator . .............. 11

Capacity ......................... 11

Power Management . ................. 11

Overload Operation .................... 11

Operation at High Altitude ............... 12

Maintenance and Storage .................. 13

Engine Maintenance ................... 13

Oil ............................. 13

Spark Plugs ....................... 13

Air Filter ......................... 14

Cleaning ......................... 14

Spark Arrester Cleaning ............... 14

Adjustments . ...................... 14

Maintenance Schedule . ............... 14

Generator Maintenance ................. 15

Storage ............................ 15

Generator Storage ................... 15

Specifications . ......................... 16

Engine Specifications .................. 16

Generator Specifications ................ 16

Fuel .............................. 16

Oil ............................... 16

Spark Plugs ......................... 16

Maintenance Valve Clearance ............. 16

An Important Message About Temperature .... 16

Parts Diagram . ....................... 17

Parts List . .......................... 18

Engine Parts Diagram .................. 19

Engine Parts List ..................... 20

Wiring Diagram ....................... 21

Troubleshooting . ........................ 22

Warranty ............................. 23

Warranty Qualifications ................. 23

Repair/Replacement Warranty . ............ 23

Do Not Return The Unit To

The Place Of Purchase . ................. 23

Warranty Exclusions. . . . . . . . . . . . . . . . . . . . 23

Normal Wear ...................... 23

Installation, Use and Maintenance . ....... 23

Other Exclusions . ................... 23

Limits of Implied Warranty

And Consequential Damage ............ 23

Contact Information . ................... 23

Address . ......................... 23

Customer Service ................... 23

Technical Service ................... 23

1

ENGLISH 100156

Introduction

Congratulations on your purchase of a Champion Power

Equipment inverter generator. CPE designs and builds

generators to strict specifications. With proper use and

maintenance, this generator will bring years of satisfying

service.

Portable Power Generator

This unit is a gasoline engine driven, alternating current

(AC) generator. It is designed to supply electrical power

for lighting, appliances, tools and similar equipment.

Record the model and serial numbers as well as date and place of purchase for future reference. Have this

information available when ordering parts and when making technical or warranty inquiries.

Accessories

Champion Power Equipment manufactures and sells

accessories designed to help you get the most from

your purchase. To find out more about our covers, power

cables and storm kits, please visit our web site at:

www.championpowerequipment.com

This Booklet

Every effort has been made to ensure the accuracy and

completeness of the information in this manual. We reserve

the right to change, alter and/or improve the product and

this document at any time without prior notice.

Champion Power Equipment Support

Model Number

Serial Number

Date of Purchase

Purchase Location

1-877-338-0999

100156

For Oil Type see ‘Add Engine Oil‘ section. For Fuel Type see ‘Add Fuel‘ section.

INTRODUCTION

2

100156 ENGLISH

This manual uses the following symbols to help differentiate between different kinds of information. The safety symbol

is used with a key word to alert you to potential hazards in operating and owning power equipment.

Follow all safety messages to avoid or reduce the risk of serious injury or death.

MANUAL CONVENTIONS

CAUTION indicates a potentially hazardous

situation which, if not avoided, may result in minor

or moderate injury.

CAUTION

CAUTION used without the safety alert symbol

indicates a potentially hazardous situation which, if

not avoided, may result in property damage.

CAUTION

DANGER indicates an imminently hazardous

situation which, if not avoided, will result in death

or serious injury.

DANGER

WARNING indicates a potentially hazardous

situation which, if not avoided, could result in

death or serious injury.

WARNING

If you have questions regarding your generator, we can

help. Please call our help line at 1-877-338 -0999

NOTE

3

ENGLISH 100156

SAFETY RULES

Generator exhaust contains carbon monoxide, a

colourless, odourless, poison gas. Breathing carbon

monoxide will cause nausea, dizziness, fainting or

death. If you start to feel dizzy or weak, get to fresh

air immediately.

Operate generator outdoors only in a well ventilated

area.

DO NOT operate the generator inside any building,

including garages, basements, crawlspaces and

sheds, enclosure or compartment, including the

generator compartment of a recreational vehicle.

DO NOT allow exhaust fumes to enter a confined

area through windows, doors, vents or other

openings.

DANGER CARBON MONOXIDE: using a generator

indoors CAN KILL YOU IN MINUTES.

DANGER

Generator produces powerful voltage.

DO NOT touch bare wires or receptacles.

DO NOT use electrical cords that are worn, damaged

or frayed.

DO NOT operate generator in wet weather.

DO NOT allow children or unqualified persons to

operate or service the generator

Use a ground fault circuit interrupter (GFCI) in damp

areas and areas containing conductive material such

as metal decking.

Use approved transfer equipment to isolate generator

from your electric utility and notify your utility

company before connecting your generator to your

power system.

DANGER

Sparks can result in fire or electrical shock.

When servicing the generator:

Disconnect the spark plug wire and place it where it

cannot contact the plug.

DO NOT check for spark with the plug removed.

Use only approved spark plug testers.

WARNING

Running engines produce heat. Severe burns can

occur on contact.

Combustible material can catch fire on contact.

DO NOT touch hot surfaces.

Avoid contact with hot exhaust gases.

Allow equipment to cool before touching.

Maintain at least 3 ft. (91.4 cm) of clearance on all

sides to ensure adequate cooling.

Maintain at least 5 ft. (1.5 m) of clearance from

combustible materials.

WARNING

Medical and Life Support Uses.

In case of emergency, call 911 immediately.

NEVER use this product to power life support

devices or life support appliances.

NEVER use this product to power medical devices

or medical appliances.

Inform your electricity provider immediately if you

or anyone in your household depends on electrical

equipment to live.

Inform your electrical provider immediately if a

loss of power would cause you or anyone in your

household to experience a medical emergency.

WARNING

The engine exhaust from this product contains

chemicals known to the state of California to cause

cancer, birth defects, or other reproductive harm.

WARNING

Read this manual thoroughly before operating your

generator. Failure to follow instructions could result

in serious injury or death.

WARNING

For the GFCI receptacles to work properly the

neutral wire must be bonded to ground or to

the generator frame. Your Champion generator

comes with the neutral wire already bonded to

the frame. If the bonding wire is removed then

the GFCI receptacles will no longer function as

designed. If the neutral bonding wire is removed

to accommodate a transfer switch installation for

connection to a house or building, then the transfer

switch must not switch off the neutral connection

to ground within the building. Champion Power

Equipment recommends that you consult with

a licensed, local electrician. Due to the variety

of local codes, we cannot specifically advise

you regarding modifications to the wiring of your

portable generator.

WARNING

4

100156 ENGLISH

SAFETY RULES

Improper treatment or use of the generator can

damage it, shorten its life and void your warranty.

Use the generator only for intended uses.

Operate only on level surfaces.

DO NOT expose generator to excessive moisture,

dust, or dirt.

DO NOT allow any material to block the cooling slots.

If connected devices overheat, turn them off and

disconnect them from the generator.

DO NOT use the generator if:

– Electrical output is lost

– Equipment sparks, smokes or emits flames

– Equipment vibrates excessively

CAUTION

Operation of this equipment may create sparks that

can start fires around dry vegetation.

A spark arrestor may be required. The operator

should contact local fire agencies for laws or

regulations relating to fire prevention requirements.

WARNING

Rapid retraction of the starter cord will pull hand and

arm towards the engine faster than you can let go.

Unintentional startup can result in entanglement,

traumatic amputation or laceration.

Broken bones, fractures, bruises or sprains could result.

When starting engine, pull the starter cord slowly

until resistance is felt and then pull rapidly to avoid

kickback.

DO NOT start or stop the engine with electrical

devices plugged in.

WARNING

Exceeding the generator’s running capacity can

damage the generator and/or electrical devices

connected to it.

DO NOT overload the generator.

Start the generator and allow the engine to stabilize

before connecting electrical loads.

Connect electrical equipment in the off position,

and then turn them on for operation.

Turn electrical equipment off before stopping the

generator.

DO NOT tamper with the governed speed.

DO NOT modify the generator in any way.

CAUTION

Rotating parts can entangle hands, feet, hair,

clothing and/or accessories.

Traumatic amputation or severe laceration can result.

Keep hands and feet away from rotating parts.

Tie up long hair and remove jewelry.

Operate equipment with guards in place.

DO NOT wear loose-fitting clothing, dangling

drawstrings or items that could become caught.

DANGER

Fuel and fuel vapours are highly flammable and

extremely explosive.

Fire or explosion can cause severe burns or death.

Unintentional startup can result in entanglement,

traumatic amputation or laceration.

When adding or removing fuel:

Turn the generator off and let it cool for at least two

minutes before removing the fuel cap. Loosen the

cap slowly to relieve pressure in the tank.

Only fill or drain fuel outdoors in a well-ventilated area.

DO NOT pump gas directly into the generator at the

gas station. Use an approved container to transfer

the fuel to the generator.

DO NOT overfill the fuel tank.

Always keep fuel away from sparks, open flames,

pilot lights, heat and other sources of ignition.

DO NOT light or smoke cigarettes.

When starting the generator:

DO NOT attempt to start a damaged generator.

Make certain that the gas cap, air filter, spark plug,

fuel lines and exhaust system are properly in place.

Allow spilled fuel to evaporate fully before

attempting to start the engine.

Make certain that the generator is resting firmly on

level ground.

When operating the generator:

DO NOT move or tip the generator during operation.

DO NOT tip the generator or allow fuel or oil to spill.

When transporting or servicing the generator:

Make certain that the fuel shutoff valve is in the off

position and the fuel tank is empty.

Disconnect the spark plug wire.

When storing the generator:

Store away from sparks, open flames, pilot lights,

heat and other sources of ignition.

DANGER

5

ENGLISH 100156

Read this owner’s manual before operating your generator. Familiarize yourself with the location and function of the

controls and features. Save this manual for future reference.

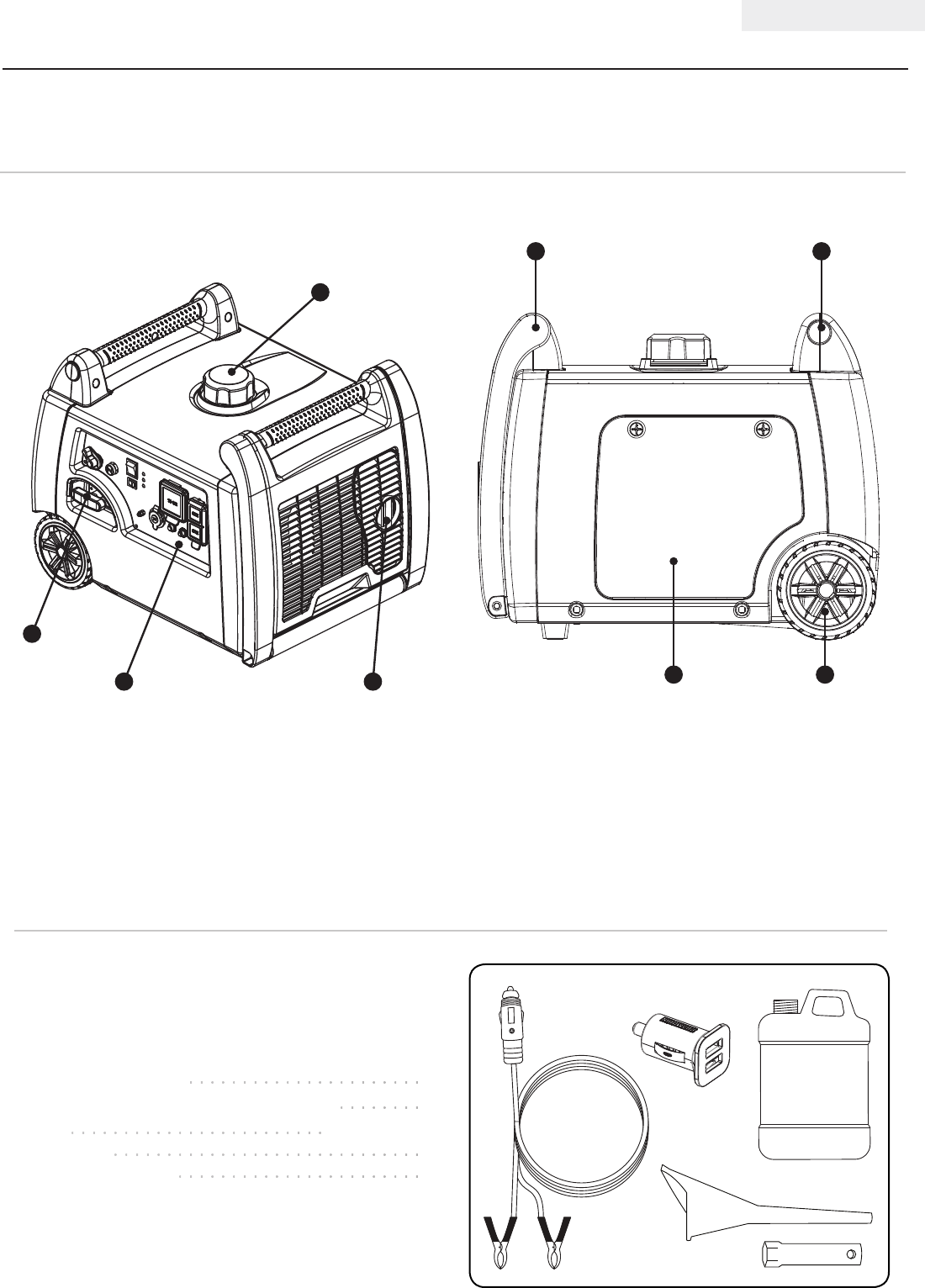

(1) Fuel Cap – Remove to add fuel.

(2) Recoil Starter – Used to start the engine.

(3) Power Panel

(4) Muffler

(5) Maintenance Cover

(6) Never Flat Wheels

(7) Carrying Handle

Inverter

CONTROLS AND FEATURES

Parts Included

Your 100156 Gasoline Powered Generator ships with the

following parts:

– Automotive style USB adapter

(2.1A and 1A ports) . ..................... 1

– Automotive style battery charger cables ........ 1

– Oil ........................ 0.6 qt. (0.6 L)

– Oil funnel . ............................ 1

– Spark plug socket ....................... 1

7 7

3 4

2

1

5 6

6

100156 ENGLISH

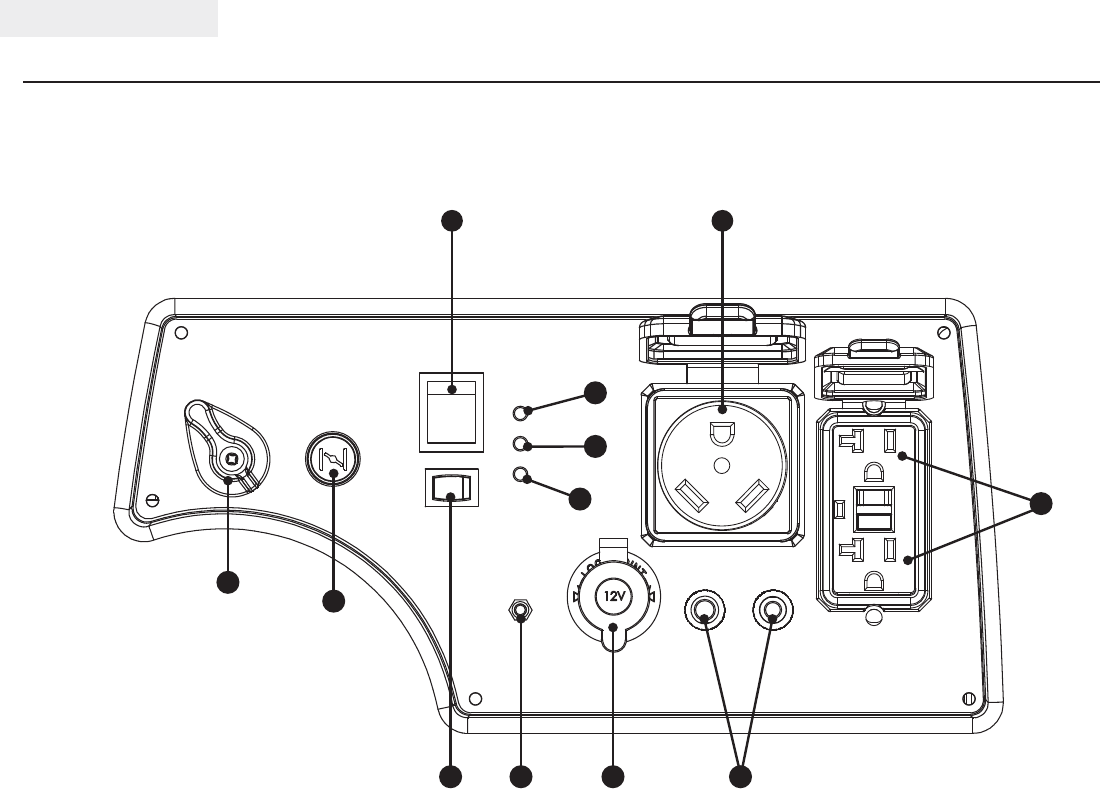

Power Panel

(1) Fuel Valve Knob

(2) Choke

(3) Economy Control Switch

(4) Ground Terminal – Consult an electrician for local

grounding regulations.

(5) 12V DC Outlet*

(6) Circuit Breaker (Push button) – Protects the

generator against electrical overload.

(7) 120 Volt AC, Duplex (GFCI 5-20R) – May be used

to supply electrical power for the operation of 120

Volt AC, single phase 60 Hz electrical loads.

CONTROLS AND FEATURES

12 8

3 4 5 6

2

1

(8) 120 Volt AC, Receptacle (NEMA TT-30R)

– May be used to supply electrical power for the

operation of 120 Volt AC, single phase 60 Hz

electrical loads.

(9) Oil Warning Light – Check oil level when this light

turns on. Engine will not run when indicator is lit.

(10) Overload Indicator Light – This light turns ON

when the generator is overloaded and will cut

power to the receptacles.

(11) Output Light – Remains ON during normal

operating conditions. Shuts OFF when generator is

overloaded.

(12) Engine Switch

*Warning: Do not operate a device while it is plugged into the 12V DC outlet. Prolonged exposure to engine exhaust can cause

serious injury or death. While charging a device do no place on the exhaust side of the generator. Extreme heat caused by exhaust

can damage the device, and cause a potential fire hazard.

7

11

9

10

7

ENGLISH 100156

Your generator requires some assembly. This unit ships

from our factory without oil. It must be properly serviced

with fuel and oil before operation.

If you have any questions regarding the assembly of your

generator, call our help line at 1-877-338-0999. Please

have your serial number and model number available.

Remove the Generator from the Shipping Carton

1. Set the shipping carton on a solid, flat surface.

2. Remove everything from the carton except the

generator.

3. Using the carrying handles of the unit, carefully

remove the generator from the box. (two people lifting

is recommended)

ASSEMBLY

1. Place the generator on a flat, level surface.

2. Loosen the cover screws and remove the

maintenance cover.

5. Check engine oil level daily and add as needed.

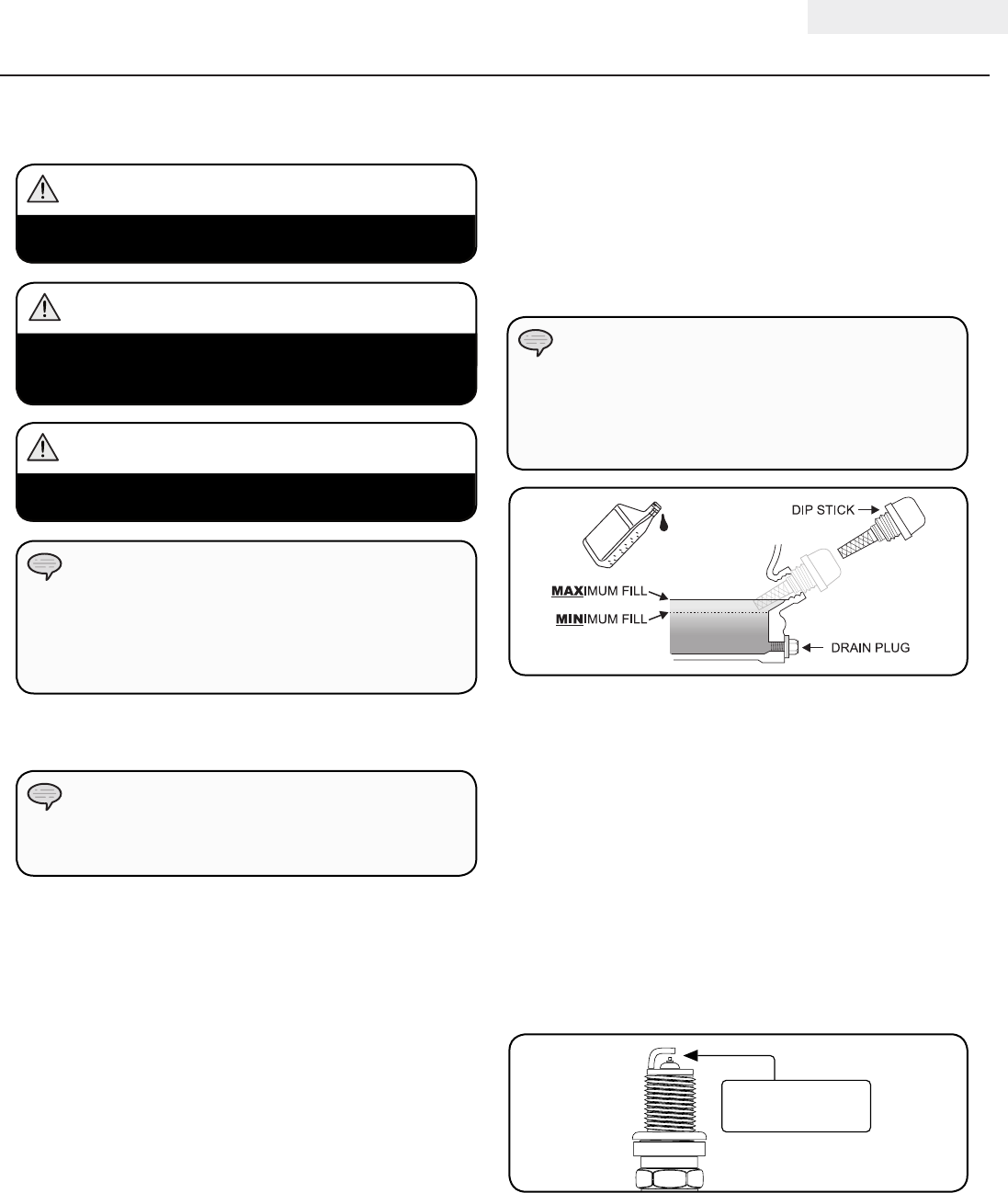

3. Remove oil fill cap/dipstick to add oil.

4. Add up to 0.6 L (0.6 qt.) of oil and replace oil fill

cap/dipstick. DO NOT OVERFILL.

The recommended oil type is 10W-30 automotive oil.

NOTE

Add Engine Oil

DO NOT attempt to crank or start the engine before it

has been properly filled with the recommended type and

amount of oil. Damage to the generator as a result of

failure to follow these instructions will void your warranty.

CAUTION

Add Engine Oil Cont’d.

The engine is equipped with a low oil shut-off and will

stop when the oil level in the crankcase falls below the

threshold level.

CAUTION

Check oil often during the break-in period. Refer to the

Maintenance section for recommended service intervals.

NOTE

The generator rotor has a sealed, pre-lubricated ball

bearing that requires no additional lubrication for the life

of the bearing.

NOTE

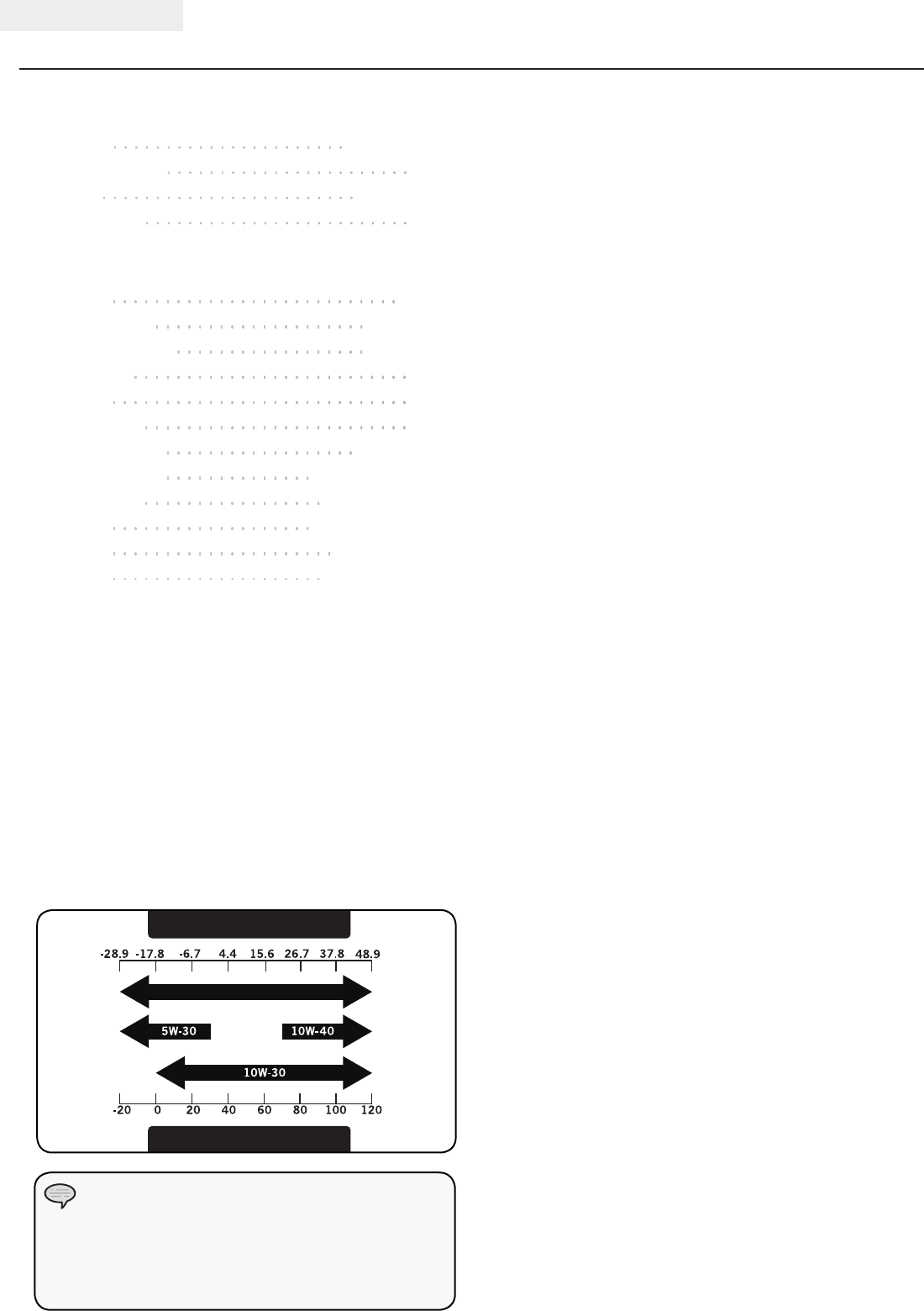

Full Synthetic 5W-30

Degrees Celsiusº (Outside)

(Outside)

Degrees Fahrenheitº

Synthetic oil may be used after the 5 hour initial break-

in period. Using synthetic oil does not increase the

recommended oil change interval. Full synthetic 5W-30

oil will aid in starting in cold ambient <5ºC (41ºF)

NOTE

We consider the first 5 hours of run time to be the break-

in period for the unit. During the break in period stay at

or below 50% of the running watt rating and vary the

load occasionally to allow stator windings to heat and

cool. Adjusting the load will also cause engine speed to

vary and help seat piston rings. After the 5 hour break-in

period, change the oil.

NOTE

Once oil has been added, a visual check should show oil

about 1-2 threads from running out of the fill hole.

If using the dipstick to check oil level, DO NOT screw in

the dipstick while checking.

NOTE

Weather will affect engine oil and engine performance.

Change the type of engine oil used based on weather

conditions to suit the engine needs.

NOTE

8

100156 ENGLISH

ASSEMBLY

Grounding

Your generator must be properly connected to an

appropriate ground to help prevent electric shock.

A ground terminal connected to the frame of the generator

has been provided on the power panel. For remote

grounding, connect of a length of heavy gauge (12 AWG

minimum) copper wire between the generator ground

terminal and a copper rod driven into the ground. We

strongly recommend that you consult with a qualified

electrician to ensure compliance with local electrical codes.

Failure to properly ground the generator can result

in electric shock.

WARNING

Add Fuel

1. Use clean, fresh, regular unleaded fuel with a

minimum octane rating of 85 and an ethanol

content of less than 10% by volume.

2. DO NOT mix oil with fuel.

3. Clean the area around the fuel cap.

4. Remove the fuel cap.

5. Slowly add fuel to the tank. DO NOT OVERFILL. Fuel

can expand after filling. A minimum of

1/4 in. (6.4 mm) of space left in the tank is required

for fuel expansion, more than 1/4 in. (6.4 mm) is

recommended. Fuel can be forced out of the tank as a

result of expansion if it is overfilled, and can affect the

stable running condition of the product. When filling

the tank, it is recommended to leave enough space for

the fuel to expand.

6. Screw on the fuel cap and wipe away any spilled

fuel.

Use regular unleaded gasoline with a minimum

octane rating of 85.

Do not mix oil and gasoline.

Fill tank to approximately 1/4 in. (6.4 mm) below

the top of the tank to allow for fuel expansion.

DO NOT pump gas directly into the generator at the

gas station. Use an approved container to transfer

the fuel to the generator.

DO NOT fill fuel tank indoors.

DO NOT fill fuel tank when the engine is running or hot.

DO NOT overfill the fuel tank.

DO NOT light cigarettes or smoke when filling the

fuel tank.

CAUTION

Pouring fuel too fast through the fuel screen may

result in blow back of fuel at the operator while filling.

WARNING

Our engines work well with 10% or less ethanol

blend fuels. When using blended fuels there are

some issues worth noting:

– Ethanol-gasoline blends can absorb more water

than gasoline alone.

– These blends can eventually separate, leaving

water or a watery goo in the tank, fuel valve and

carburetor.

– With gravity-fed fuel supplies, this compromised

fuel can be drawn into the carburetor and cause

damage to the engine and/or potential hazards.

– There are only a few suppliers of fuel stabilizer

that are formulated to work with ethanol blend

fuels.

– Any damages or hazards caused by using

improper fuel, improperly stored fuel, and/

or improperly formulated stabilizers, are not

covered by manufacture’s warranty.

It is advisable to always shut off the fuel supply,

run the engine to fuel starvation and drain the tank

when the equipment is not in use for more than 30

days.

NOTE

Add Fuel Cont’d.

9

ENGLISH 100156

Starting the Engine

1. Make certain the generator is on a flat, level surface.

2. Disconnect all electrical loads from the generator.

Never start or stop the generator with electrical

devices plugged in or turned on.

3. Turn the fuel valve to the “On” position.

4. Pull choke lever out to the “Choke” position.

5. Turn the engine switch to the “On” position.

6. Pull the starter cord slowly until resistance is felt

and then pull rapidly.

7. As engine warms up, push the choke lever in to the

“Run” position.

OPERATION

Generator Location

NEVER operate the generator inside any building,

including garages, basements, crawlspaces and sheds,

enclosure or compartment, including the generator

compartment of a recreational vehicle. Please consult

your local authority. In some areas, generators must

be registered with the local utility. Generators used at

construction sites may be subject to additional rules and

regulations. Generators should be on a flat, level surface

at all times (even while not in operation). Generators

must have at least 5 ft. (1.5 m) of clearance from all

combustible material. In addition to clearance from all

combustible material, generators must also have at least

3 ft. (91.4 cm) of clearance on all sides to allow for

adequate cooling, maintenance and servicing. Generators

should never be started or operated in the back of a

SUV, camper, trailer, in the bed of a truck (regular, flat

or otherwise), under staircases/stairwells, next to walls

or buildings, or in any other location that will not allow

for adequate cooling of the generator and/or the muffler.

DO NOT contain generators during operation. Allow

generators to properly cool before transport or storage.

Place the generator in a well-ventilated area. DO NOT

place the generator near vents or intakes where exhaust

fumes could be drawn into occupied or confined spaces.

Carefully consider wind and air currents when positioning

generator.

Failure to follow proper safety precautions may void

manufacturer’s warranty.

Do not operate or store the generator in rain, snow,

or wet weather.

Using a generator or electrical appliance in wet

conditions, such as rain or snow, or near a pool or

sprinkler system, or when your hands are wet, could

result in electrocution.

WARNING

WARNING

During operation the muffler and exhaust fumes

produced will become hot. If adequate cooling and

breathing space are not supplied, or if the generator

is blocked or contained, temperatures can become

extremely heated and may lead to fire.

Grounding

The generator system ground connects the frame to the

ground terminals on the power panel. The system ground is

connected to the AC neutral wire.

10

100156 ENGLISH

Economy Control Switch

The Economy Control switch can be activated in order to

minimize fuel consumption and noise while operating the

unit during times of reduced electrical output, allowing

the engine speed to idle during periods of non-use. The

engine speed returns to normal when an electrical load is

connected. When the economy switch is off, the engine

runs at normal speed continuously.

Connecting a generator to your electric utility

company’s power lines or to another power source

may be against the law. In addition this action,

if done incorrectly, could damage your generator

and appliances and could cause serious injury or

even death to you or a utility worker who may be

working on nearby power lines. If you plan to run a

portable electric generator during an outage, please

notify your electric utility company immediately

and remember to plug your appliances directly

into the generator. Do not plug the generator into

any electric outlet in your home. Doing so could

create a connection to the utility company power

lines. You are responsible for ensuring that your

generator’s electricity does not feed back into the

electric utility power lines.

If the generator will be connected to a building

electrical system, consult your local utility company

or a qualified electrician. Connections must isolate

generator power from utility power and must comply

with all applicable laws and codes.

NOTE

OPERATION

Starting the Engine Cont’d. Connecting Electrical Loads

1. Let the engine stabilize and warm up for a few

minutes after starting

2. Plug in and turn on the desired 120 Volt AC single

phase, 60 Hz electrical loads.

– DO NOT connect 3-phase loads to the generator.

– DO NOT connect 50 Hz loads to the generator.

– DO NOT overload the generator.

For periods of high electrical load or momentary

fluctuations, the Economy Control Switch should be

turned OFF.

WARNING

While charging a device do not place on the

exhaust side of the generator. Extreme heat caused

by exhaust can damage the device, and cause a

potential fire hazard.

WARNING

Do not operate a device while it is plugged in to the

12V DC outlet.

Prolonged exposure to engine exhaust can cause

serious injury or death.

WARNING

If the engine starts but does not continue to run

make certain that the generator is on a flat, level

surface. The engine is equipped with a low oil

sensor that will prevent the engine from running

when the oil level falls below a critical threshold.

NOTE

Keep choke lever in “Choke” position for only 1

pull of the recoil starter. After first pull, move choke

lever to the “Run” position for up to the next 3

pulls of the recoil starter. Too much choke leads to

spark plug fouling/engine flooding due to the lack of

incoming air. This will cause the engine not to start.

NOTE

11

ENGLISH 100156

OPERATION

Stopping the Engine

1. Turn off and unplug all electrical loads. Never start

or stop the generator with electrical devices plugged

in or turned on.

2. Let the generator run at no-load for several minutes

to stabilize internal temperatures of the engine and

generator.

3. Turn the Fuel Valve to the “OFF” position.

4. Let the engine run until fuel starvation has stopped

the engine. This usually takes a few minutes.

5. Turn the engine switch to the “Off” position.

Important: Always ensure that the Fuel Valve and the

Engine Switch are in the “OFF” position when the

engine is not in use.

If the engine will not be used for a period of two (2)

weeks or longer, please see the storage section for proper

engine and fuel storage.

NOTE

12V DC Outlet

1. Before connecting the battery charging cable to a

battery that is installed in a vehicle, disconnect the

vehicle battery ground cable from the negative (–)

battery terminal.

2. Plug the battery charging cable into the DC

receptacle of the generator.

3. Connect the red (+) battery charger lead to the red

(+) battery terminal.

4. Connect the black (–) battery charger lead to the

black (–) battery terminal.

5. Start the generator.

The 12V DC outlet is ONLY to be used with the supplied

12V battery charging cable. The DC output is unregulated

and will damage other 12V DC products. When using the

DC outlet, turn the Economy switch to the “OFF” position.

Be sure all electric devices including the lines and plug

connections are in good condition before connection to

the generator.

NOTE

Do not start the vehicle while the battery charging cable is

connected and the generator is running. It will not give the

battery a boost of power. The vehicle or the generator may

be damaged. Charge only vented wet lead acid batteries.

Other types of batteries may burst, causing personal injury

or damage.

CAUTION

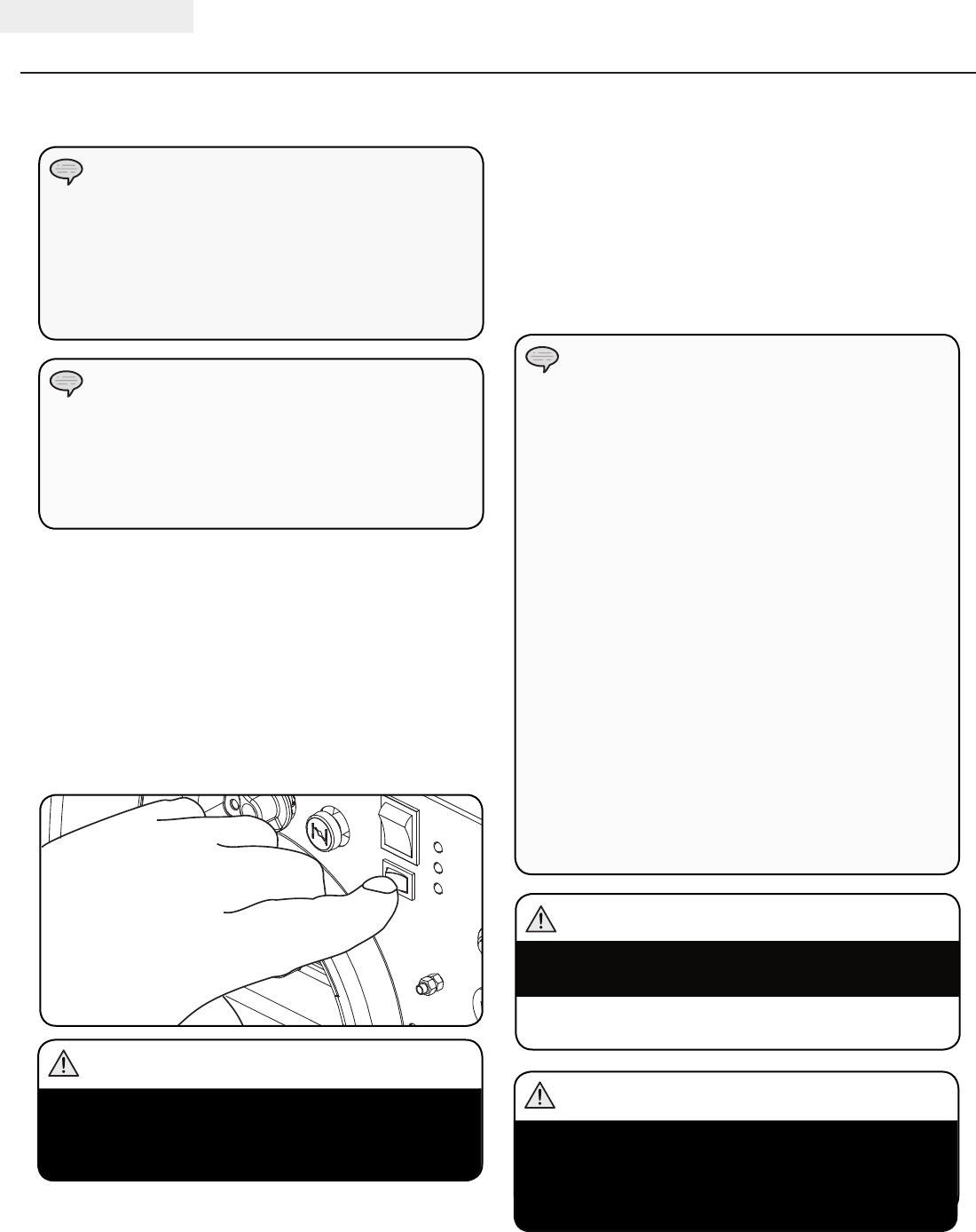

GFCI

Your generator is equipped with two (2) Ground Fault

Circuit Interrupter (GFCI) duplexes. In the event of a

ground fault, a GFCI trips automatically to stop the

flow of electricity and prevent serious injury. The green

indicating light on the receptable will also turn off. Press

the reset button located on the front of the receptacle

to restore flow of electricity. (A) The green indicating

lightwill also turn back on. GFCI does not protect against

circuit overloads.

To ensure proper operation of the GFCI duplex, perform

this test monthly:

1. With the generator running, plug a lamp into the

GFCI receptacle. Turn the lamp on.

2. Press the “Test” button located on the front of

the receptacle to trip the device. (A) This should

immediately stop the flow of electricity and shut off

the lamp. If the electricity is not stopped, do not

use this receptacle until is has been serviced or

replaced.

3. Press the “Reset” button located on the front of

the receptacle to restore the flow of electricity. If

the indicator light does not go out and come back

on or if the GFCI cannot be reset then it must be

replaced.

A

For the GFCI receptacles to work properly the neutral wire

must be bonded to ground or to the generator frame. Your

Champion generator comes with the neutral wire already

bonded to the frame. If the bonding wire is removed then

the GFCI receptacles will no longer function as designed.

If the neutral bonding wire is removed to accommodate

a transfer switch installation for connection to a house

or building, then the transfer switch must not switch off

the neutral connection to ground within the building.

Champion Power Equipment recommends that you consult

with a licensed, local electrician. Due to the variety of

local codes, we cannot specifically advise you regarding

modifications to the wiring of your portable generator.

WARNING

12

100156 ENGLISH

OPERATION

Do Not Overload Generator

Capacity

Follow these simple steps to calculate the running and

starting watts necessary for your purposes.

1. Select the electrical devices you plan on running at

the same time.

2. Total the running watts of these items. This is

the amount of power you need to keep your items

running.

3. Identify the highest starting wattage of all devices

identified in step 1. Add this number to the number

calculated in step 2. Surge wattage is the extra

burst of power needed to start some electric driven

equipment. Following the steps listed under “Power

Management” will guarantee that only one device

will be starting at a time.

Power Management

Use the following formula to convert voltage and

amperage to watts:

Volts x Amps = Watts

To prolong the life of your generator and attached

devices, follow these steps to add electrical load:

1. Start the generator with no electrical load attached.

2. Allow the engine to run for several minutes to

stabilize.

3. Plug in and turn on the first item. It is best to

attach the item with the largest load first.

4. Allow the engine to stabilize.

5. Plug in and turn on the next item.

6. Allow the engine to stabilize.

7. Repeat steps 5-6 for each additional item.

Never exceed the specified capacity when adding

loads to the generator.

NOTE

Overload Operation

The overload indicator light will turn on when the rated

load is exceeded. When the maximum load is reached,

the LED will blink and cut power to the receptacles. To

recover the power, shut down the engine, wait until the

light turns off and restart the generator.

Operation at High Altitude

The density of air at high altitude is lower than at sea

level. Engine power is reduced as the air mass and air-

fuel ratio decrease. Engine power and generator output

will be reduced approximately 3½% for every 1000

feet of elevation above sea level. This is a natural trend

and cannot be changed by adjusting the engine. At high

altitudes increased exhaust emissions can also result

due to the increased enrichment of the air fuel ratio.

Other high altitude issues can include hard starting,

increased fuel consumption and spark plug fouling.

To alleviate high altitude issues other than the natural

power loss, Champion Power Equipment can provide a

high altitude carburetor main jet. The alternative main

jet and installation instructions can be obtained by

contacting Customer Support. Installation instructions

are also available in the Technical Bulletin area of the

Champion Power Equipment internet site.

The part number and recommended minimum altitude

for the application of the high altitude carburetor main

jet is listed in the table below.

In order to select the correct high altitude main jet

it is necessary to identify the carburetor model. For

this purpose, a code is stamped on the side of the

carburetor. Select the correct main jet part number

corresponding to the carburetor code found on your

particular carburetor.

Operation using the alternative main jet at elevations

lower than the recommended minimum altitude can

damage the engine. For operation at lower elevations, the

standard main jet must be used. Operating the engine

with the wrong engine configuration at a given altitude

may increase its emissions and decrease fuel efficiency

and performance.

WARNING

Carburetor

Code Main Jet Part Number Altitude

P20-2-H

Standard 83.131017.01.H 3500 Feet

(1067 Meters)

Altitude 83.131017.01.01.H

13

ENGLISH 100156

The owner/operator is responsible for all periodic

maintenance.

Complete all scheduled maintenance in a timely manner.

Correct any issue before operating the generator.

Tampering with the factory set governor will void

your warranty.

Engine Maintenance

To prevent accidental starting, remove and ground spark

plug wire before performing any service.

Oil

Change oil when the engine is warm. Refer to the oil

specification to select the proper grade of oil for your

operating environment.

1. Set the generator on top of a work bench or table.

2. Loosen the cover screws and remove the

maintenance cover.

3. Pop up the rubber maintenance plug, from below

the drain bolt.

4. Remove the oil drain plug with a 12 mm socket and

extension.

5. Tilt the generator on its side and allow the oil to

drain completely.

Spark Plugs

1. Remove the maintenance cover.

2. Remove the spark plug cable from the spark plug.

3. Use the spark plug tool that shipped with your

generator to remove the plug.

4. Remove the spark plug.

5. Inspect the electrode on the plug. It must be clean

and not worn to produce the spark required for

ignition.

6. Make certain the spark plug gap is 0.7 - 0.8 mm

(0.028 - 0.031 in.).

7. Carefully thread the plug into the engine.

8. Use the spark plug tool to firmly install the plug.

9. Attach the spark plug cap to the plug.

10. Reinstall the spark plug access cap, and

maintenance cover.

For service or parts assistance, contact our help

line at 1-877-338- 0999

NOTE

Maintenance, replacement, or repair of emission

control devices and systems may be performed

by any non-road engine repair establishment or

individual.

NOTE

Never operate a damaged or defective generator.

WARNING

WARNING

Improper maintenance will void your warranty.

WARNING

Oil Cont’d.

0.7-0.8 mm

0.028-0.031 in.

MAINTENANCE AND STORAGE

Once oil has been added, a visual check should show

oil about 1-2 threads from running out of the fill hole.

If using the dipstick to check oil level, DO NOT screw

in the dipstick while checking.

NOTE

6. Add upt to 0.6 L (0.6 qt.) of oil and replace oil fill

cap/dipstick. DO NOT OVERFILL.

7. Reinstall the maintenance cover and tighten the

cover screws.

8. Dispose of used oil at an approved waste

management facility.

14

100156 ENGLISH

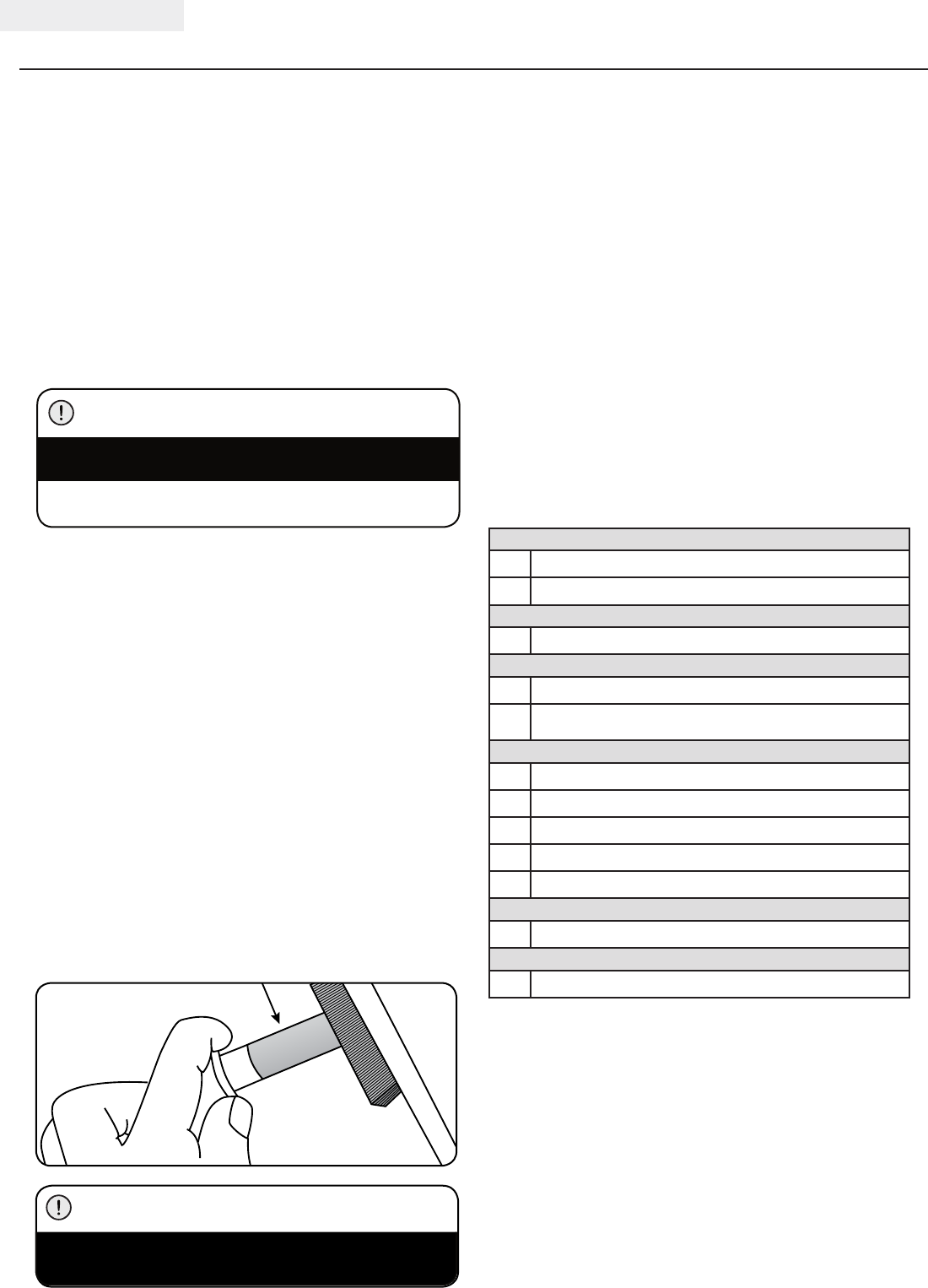

Air Filter

1. Remove the maintenance cover.

2. Locate the air filter plastic cover.

3. Unsnap the locking hinge on the cover.

4. Remove the old filter.

5. Place the new filter in the assembly.

6. Re-snap the hinge on the air filter cover.

7. Reinstall the maintenance cover and tighten the

cover screw securely.

Use a damp cloth to clean exterior surfaces of the engine.

Use a soft bristle brush to remove dirt and oil.

Use an air compressor (25 PSI) to clear dirt and debris

from the engine.

Cleaning

DO NOT spray engine with water.

CAUTION

Water can contaminate the fuel system.

MAINTENANCE AND STORAGE

Adjustments

The air-fuel mixture is not adjustable. Tampering with

the governor can damage your generator and your

electrical devices and will void your warranty. CPE

recommends that you contact our service line at

1-877-338- 0999 for all other service and/or adjustment

needs.

Maintenance Schedule

Follow the service intervals indicated in the following

maintenance schedule.

Service your generator more frequently when operating

in adverse conditions.

Contact our help line at 1-877-338- 09 99 to locate the

nearest Champion Power Equipment certified service

dealer for your generator or engine maintenance needs.

Spark Arrester

1. Allow the engine to cool completely before servicing

the spark arrester.

2. Remove the two screws holding the cover plate

which retains the end of the spark arrester to the

muffler.

3. Remove the spark arrester screen.

4. Carefully remove the carbon deposits from the spark

arrester screen with a wire brush.

5. Replace the spark arrester if it is damaged.

6. Position the spark arrester in the muffler and attach

with the two screws.

Failure to clean the spark arrester will result in

degraded engine performance.

CAUTION

*To be performed by knowledgeable, experienced owners or

Champion Power Equipment certified dealers.

Every 8 hours or daily

Check oil level

Clean around air intake and muffler

First 5 hours

Change oil

Every 50 hours or every season

Clean air filter

Change oil if operating under heavy load or in hot

environments

Every 100 hours or every season

Change oil

Clean/Adjust spark plug

Check/Adjust valve clearance*

Clean spark arrester

Clean fuel tank and filter*

Every 250 hours

Clean combustion chamber*

Every 3 years

Replace fuel line

15

ENGLISH 100156

Storage

The generator should be started at least once every 14

days and allowed to run for at least 20 minutes. For

longer term storage, please follow these guidelines.

Generator Storage

1. Add a properly formulated fuel stabilizer to the tank.

2. Be sure all appliances are disconnected from the

generator.

3. Run the generator for a few minutes so the treated

fuel cycles through the fuel system and carburetor.

4. Turn the fuel valve to the “Off” position.

5. Let the generator run until fuel starvation has

stopped the engine. This usually takes a few

minutes.

6. The generator needs to cool completely before

cleaning and storage.

7. Remove the spark plug cap, then pull the recoil grip 3

times to drain the gasoline from the carburetor jets.

8. Change the engine oil.

9. Remove the spark plug and pour about a tablespoon

of oil into the cylinder. Crank the engine slowly to

distribute the oil and lubricate the cylinder.

10. Reattach the spark plug.

11. Store the unit in a clean, dry place out of direct

sunlight.

MAINTENANCE AND STORAGE

Generator Maintenance

Make certain that the generator is kept clean and stored

properly. Only operate the unit on a flat, level surface in

a clean, dry operating environment. DO NOT expose the

unit to extreme conditions, excessive dust, dirt, moisture

or corrosive vapours.

Use a damp cloth to clean exterior surfaces of the generator.

Use a soft bristle brush to remove dirt and oil.

Use an air compressor (25 PSI) to clear dirt and debris

from the generator.

Inspect all air vents and cooling slots to ensure that they

are clean and unobstructed.

DO NOT use a garden hose to clean the generator.

Water can enter the generator through the cooling

slots and damage the generator windings.

CAUTION

Generator exhaust contains odorless and colorless

carbon monoxide gas.

To avoid accidental or unintended ignition of your

generator during periods of storage, the following

precautions should be followed:

– When storing the generator for short or extended

periods of time make sure that the Engine

Switch and the Fuel Valve are set in the OFF

position.

DANGER

16

100156 ENGLISH

Oil

Use 10W-30 automotive oil.

Oil capacity is up to 0.6 L (0.6 qt.).

DO NOT OVERFILL

Please reference the following chart for recommended

oil types for use in the generator.

Fuel

Fuel capacity is 1.6 gal. (6 L). Use regular unleaded

gasoline with a minimum octane rating of 85 and an

ethanol content of less than 10% by volume.

SPECIFICATIONS

Maintenance Valve Clearance

– Intake: 0.06 - 0.12 mm (0.002 - 0.005 in.)

– Exhaust: 0.08 - 0.14 mm (0.003 - 0.006 in.)

Note: Tech bulletin regarding the valve adjustment

procedure is on www.championpowerequipment.com.

Generator Specifications

– Model ........................... 100156

– Rated Load .................... 2800 Watts

– Maximum Load . ................. 3100 Watts

– AC Load .......................... 120 V

– Phase ............................ Single

– Frequency ......................... 60 Hz

– Fuel Capacity .................. 1.6 gal. (6 L)

– Gross Weight .............. 96.3 lb. (43.7 kg)

– Net Weight . ................ 83.1 lb. (37.7 kg)

– Height . .................. 18.3 in. (46.4 cm)

– Width ..................... 17.3 in. (44 cm)

– Length. . . . . . . . . . . . . . . . . . . . 22.4 in. (57 cm)

Engine Specifications

– Model ...................... YF166FD-331

– Displacement ....................... 171cc

– Type ........................ 4-Stroke OHV

– Start Type ......................... Recoil

Spark Plugs

OEM spark plug: NHSP F6RTC

Replacement spark plug: NGK BPR6ES or equivalent

Make certain the spark plug gap is 0.7 - 0.8 mm or

(0.028 - 0.031 in.).

An Important Message About Temperature

Your Champion Power Equipment product is designed

and rated for continuous operation at ambient

temperatures up to 40°C (104°F). When your product is

needed your product may be operated at temperatures

ranging from -15°C (5°F) to 50°C (122°F) for short

periods. If the product is exposed to temperatures

outside this range during storage, it should be brought

back within this range before operation. In any event,

the product must always be operated outdoors, in a

well-ventilated area and away from doors, windows and

other vents.

Weather will affect engine oil and engine

performance. Change the type of engine oil used

based on weather conditions to suit the engine

needs.

NOTE

Full Synthetic 5W-30

Degrees Celsiusº (Outside)

(Outside)

Degrees Fahrenheitº

17

ENGLISH 100156

Parts Diagram

SPECIFICATIONS

1

1

3

4

5

2

8

9

10 15 16 17 18

11

12

14

19 20

22

23

24

31

32

33

34

35

36

37

38

25

26

27

30

28

39

40

42

43

44

46 47 48 49 50 51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

70

69

72

73

74

76

77

80

81

82

83

84

85

86

87

88

89

90

91

92

6

7

94

95

96

97

9899

100

105

107

108

109

112

71

75

110

111

13

104

45

113

2

2

2

15

5

5

5

7

7

11

28

42

42

43

70

71 89

101

102

103

35

41

35

21

93

106

29

34

47

47

138

70

78

79

139

116

117118

119

120

121

122

123

125

126

128

129

130

127

115

131

132

133134135

136

137

114

124

118

18

100156 ENGLISH Parts List

# Part Number Description Qty

11.9074.4.0516.1 Screw M5×16, Black 4

22.08.052.1 Bolt (M6×16) 10

383.200200.01.2 Cover, Left, Black 1

483.201600.03 Supporter, Left 1

51.5789.0612 Flange Bolt M6×12 10

683.200701.02.2 Handle, Left, Black 1

71.9074.4.0512.1 Screw/Washer Assembly M5×12, Black 11

883.200500.01.2 Cover, Top, Black 1

983.200502.01 Spillway, Fuel Tank 1

10 83.070100.01 Fuel Tank Cap 1

11 2.06.016 Clamp (Ø8.7×b8) 3

12 83.070011.01 Fuel Pipe, Fuel Tank To Fuel Valve 1

13 2.06.018 Clip (Ø10.5×b8) 1

14 111.070300.01 Inline Fuel Filter Assembly 1

15 2.08.068.2 Flange Bolt M5×13 6

16 83.071000.01 Fuel Tank 1

17 83.070300.01 Fuel Filter Assembly 1

18 83.070014.01 Pipe, Fuel Tank To Canister 1

19 1.845.4213 Screw ST4.2×13 6

20 83.081400.01 Muffler Protector Assembly, Upper 1

21 83.081004.01 Plate 1

22 2.02.001 Nut (M6), Long 2

23 83.100001.01 Gasket, Exhaust 1

24 83.101100.02 Muffler Assembly 1

25 46.101300.08 Spark Arrester Assembly 1

26 46.101503.08 Plate, Spark Arrester 1

27 1.9074.4.0514 Screw/Washer Assembly M5×14 2

28 1.845.4816 Screw ST4.8×16 6

29 1.845.4219 Screw ST4.2×19 1

30 83.081500.01 Muffler Protector Assembly, Lower 1

31 83.100501.01 Tube, Secondary Air Intake Valve 1

32 2.06.013 Clamp (Ø13.5×b10) 2

33 1.16674.0616 Flange Bolt M6×16 2

34 1.93.06 Lock Washer Ø6 3

35 1.5789.0620 Flange Bolt M6×20 6

36 83.100500.01 Supporter, Secondary Air Intake Valve 1

37 24.100003.03 Gasket, Air Supply Valve 1

38 24.100300.03 Secondary Air Intake Valve 1

39 2.08.055.1 Bolt, Maintenance Cover, Black 2

40 83.200402.01.2 Protector, Rear Cover, Black 1

41 83.200401.01.2 Supporter, Rear Cover, Black 1

42 2.02.014 Nut (M6), Square 12

43 2.02.010 Cage Nut (M5) 8

44 83.200701.03.2 Handle, Left, Black 1

45 83.200704.01.2 Bracket, Left, Black 1

46 83.201600.05 Supporter, Right 1

47 1.5789.0615 Flange Bolt M6×15 9

48 1.6187.1.08 Flange Lock Nut M8 2

49 2.13.001 Bushing Ø13.3×Ø19.3×8 2

50 1.5789.0612.1 Flange Bolt M6×12, Black 4

51 83.200704.02.2 Bracket, Right, Black 1

52 2.03.001 Bushing (Ø13.3×Ø19.3×2) 2

53 2.03.002 Washer (Ø13×Ø20×2.5) 2

54 2.08.002 Bolt (M8×28) 2

55 83.200701.04.2 Handle, Right, Black 1

56 2.02.002 Nut (M6), T-Style 2

57 83.200705.01.2 Handle, Upper, Black 1

58 83.200705.02.2 Handle, Lower, Black 1

59 1.9074.3.0512.1 Screw M5×12, Black 3

60 1.5789.0635.1 Flange Bolt M6×35, Black 2

61 83.190006.01 Rubber Sleeve, End Cover 1

62 83.190003.01 Generator End Cover 1

63 83.190001.01 Generator Fan 1

64 2.02.006 Nut M14×1.5 1

65 83.191100.01 Rotor Assembly 1

66 1.5789.0645 Flange Bolt M6×45 4

67 83.191200.01 Stator Assembly 1

68 83.190002.01 End Cover, Motor 1

69 83.401 Engine 1

70 1.6177.1.08 Flange Lock Nut M8 12

# Part Number Description Qty

71 2.05.050 Wire Clip, 100mm 2

72 83.201600.02 Supporter, Left 1

73 83.201600.01 Supporter, Right 1

74 83.201200.01 Motor Mount 4

75 83.200607.01 Plug 1

76 1.6182.06 Lock Nut M6 6

77 83.200601.01 Base Setting Component 1

78 83.200609.02 Steel Plate (II) 2

79 83.200609.01 Steel Plate (I) 2

80 83.201400.01 Rubber 2

81 83.201702.01 Plug, Wheel 2

82 1.894.1.12 Retaining Ring Ø12 2

83 1.848.12 Washer Ø12 2

84 83.201701.01 Wheel, Left 1

85 83.201500.01 Axle 1

86 83.201701.02 Wheel, Right 1

87 83.200305.01 Spring Patch 5

88 83.200304.01 Rubber Seal Sleeve 1

89 1.845.3595 Screw ST3.5×9.5 9

90 83.200303.01.2 Cover, Right Muffler, Black 1

91 83.200701.01.2 Handle, Right, Black 1

92 83.200302.01.2 Cover, Right Side, Black 1

93 2.08.075.1 Bolt M6×20 2

94 81.220002.00 Mount Rubber, Control Unit 2

95 81.220001.00 Protector, Control Unit 2

96 83.220003.01 Pinch, Control Unit 2

97 83.221000.00 Control Unit (120V/60Hz) 1

98 1.5783.0520 Bolt M5×20 1

99 1.93.05 Lock Washer Ø5 1

100 5.1800.003 Rectifier 1

101 83.070013.01 Pipe, Canister To Air Cleaner 1

102 46.070700.00 Carbon Canister (150CC) 1

103 83.070702.01 Support Arm 1

104 83.070011.02 Fuel Pipe, Fuel Valve To Carburetor 1

105 1.845.4819 Screw ST4.8×19 2

106 1.97.1.05 Washer Ø5 2

107 83.070400.01 Fuel Valve 1

108 83.200101.01.2 Front Cover, Black 1

109 83.200106.01 Protector 1

110 83.061200.01.2 Guide, Rope, Black 1

111 1.823.0408.1 Screw M4×8, Black 2

112 83.070001.01 Fuel Valve Knob 1

113 83.130200.01 Pull Chock Assembly 1

114 100156.21 Control Panel Assembly 1

115 83.01.24.2 Control Panel, Black 1

116 5.1210.920 A.C 20A Breaker, Push Button 1

117 1.9074.4.0414.1 Screw/Washer Assembly M4×14, Black 2

118 1.6177.1.04.1 Flange Lock Nut M4, Black 6

119 5.1120.050 Receptacle 5-20R Duplex, GFCI 1

120 5.1870.005 Receptacle Cover, Receptacle 5-20R, Duplex, GFCI 1

121 122.210003.01 Wire Jacket, Control Box 1

122 83.210002.02 Control Box 1

123 100156.21.10 Wire Assembly 1

124 1.9074.4.0535 Screw M5×35 2

125 1.818.0514.3 Screw M5×14, Green 2

126 5.1870.004 Receptacle Cover, Receptacle TT-30R 1

127 5.1120.036 Receptacle TT-30R 1

128 5.1000.002.1 Ignition Switch, Black 1

129 83.210016.00 Speed Limiter 1

130 5.1010.001.1 Switch, Economy 1

131 1.5783.0514.3 Bolt M5×14, Green 1

132 1.862.05 Lock Washer Ø5 1

133 1.97.1.05.3 Washer Ø5, Green 2

134 1.93.05.3 Lock Washer Ø5, Green 2

135 1.6170.05.3 Nut M5, Green 2

136 5.1110.005 Receptacle (DC.12V) 1

137 5.1200.110.1 Breaker (10A) 1

138 9.1700.003 Plug (USB 5V/2.1A) 1

139 9.1600.012 Cables, 12V, 2m 1

19

ENGLISH 100156

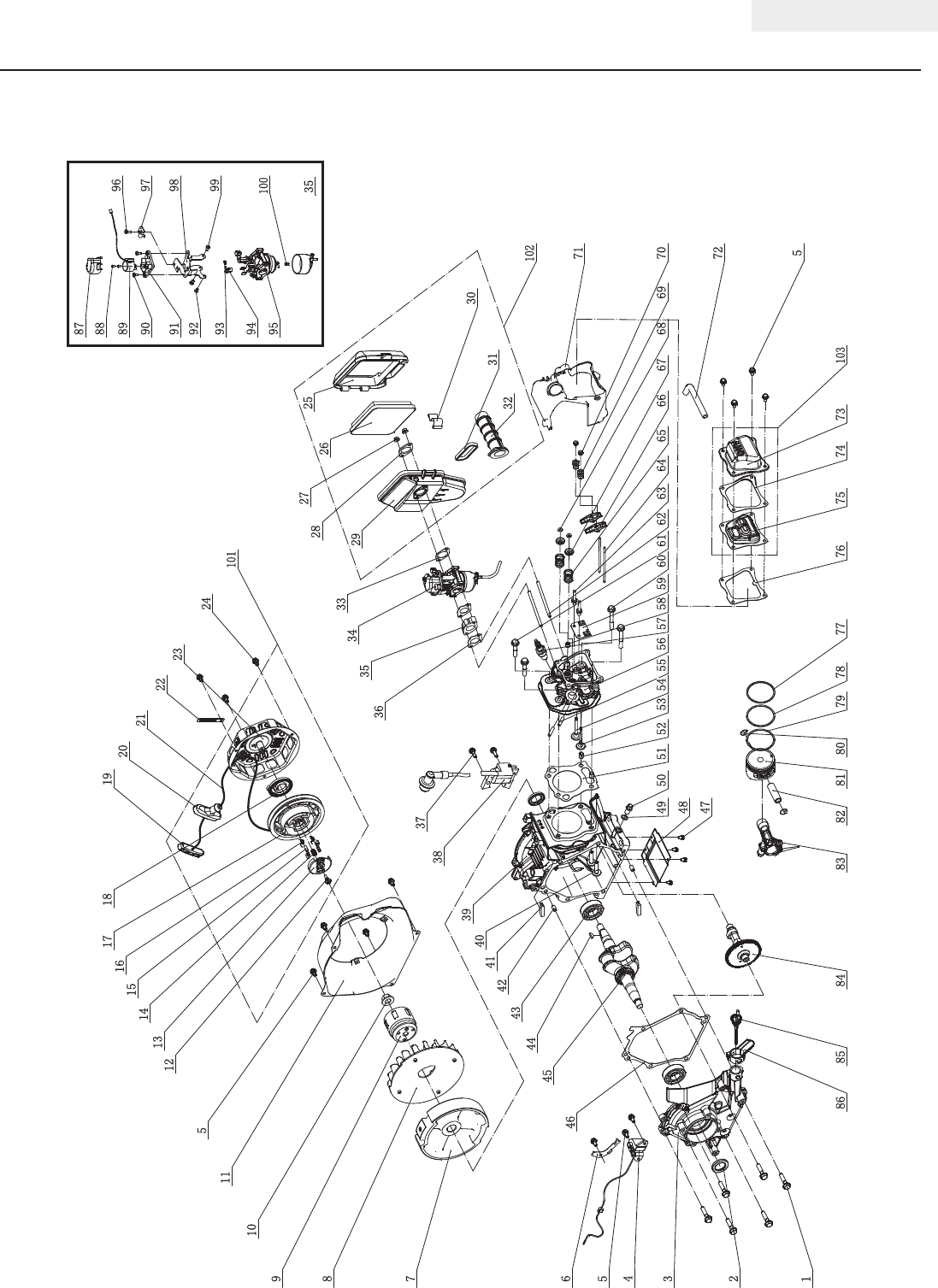

Engine Parts Diagram

SPECIFICATIONS

97

96

86 85 84 81 80 76 75 74 73

72

47

48

49 50 51 53 55 56 57 58 6160 62 63 65 67 68

71

32

31

29

30

28 26

25

46

45

44

43

42

41

40

39

37

36

35

95

92

99

98

91

90

89

88

87

24

23

21

20

19

1817

16

15

14

13

12

1

2

3

4

5

6

7

8

9

10

11

38

33

59

77

78

798283

54

5

5

22

93

94

27

34

103

102

101

6664 69 70

35

100

52

20

100156 ENGLISH Engine Parts List

# Part Number Description Qty

11.5789.0835 Flange Bolt M8×35 6

22.11.014 Oil Seal (Ø25×Ø40×7) 2

383.030007.01 Cover, Crankcase 1

483.127000.01 Oil Level Sensor 1

51.5789.0612 Flange Bolt M6×12 11

683.030010.01 Plate, Coil 1

783.120100.01 Flywheel 1

883.080001.01 Cooling Fan 1

983.060001.01 Pulley, Starter 1

10 2.02.006 Nut M14×1.5 1

11 83.080100.01.2 Fan Cover, Black 1

12 45.060008.00 Screw, Ratchet Guige 1

13 45.060007.00 Ratchet Guide 1

14 45.060009.00 Spring, Ratchet Guide 1

15 45.060002.00 Starter Ratchet (Iron) 2

16 45.060003.00 Spring, Ratchet 2

17 21.061001.01 Recoil Starter Reel 1

18 21.061005.00 Recoil Starter Spring 1

19 81.061010.01 Rope Button 1

20 81.061006.00 Grip, Starter 1

21 2.10.001 Rope (Ø4×1570) 1

22 2.05.050 Wire Clip, 100mm 1

23 83.061100.01.2 Recoil Starter Cover, Black 1

24 1.5789.0608 Flange Bolt M6×83

25 83.091200.01 Cover, Air Cleaner 1

26 83.091300.01 Element, Air Cleaner 1

27 1.6177.1.06 Flange Lock Nut M6 2

28 83.090001.01 Flange 1

29 83.091100.01 Base, Air Cleaner 1

30 83.091006.01 Buckle 1

31 83.091002.02 Seal 1

32 83.090004.01 Pipe, Air Cleaner 1

33 83.130004.01 Gasket, Air Cleaner 1

34 83.130000.01 Carburetor Assembly 1

35 83.130001.01 Insulator, Carburetor 1

36 83.130002.01 Gasket, Insulator 2

37 1.5789.0620 Flange Bolt M6×20 2

38 83.123000.01 Ignition Coil 1

39 83.030100.01 Crankcase 1

40 83.040013.01 Lifter, Valve 2

41 83.030013.01 Seal Strip, Crankcase Cover 2

42 2.04.002 Dowel Pin (Ø8×14) 2

43 1.276.6205 Bearing 6205 2

44 2.14.017 Woodruff Key (4×6.5×16) 1

45 83.050100.01 Crankshaft 1

46 83.030008.01 Gasket, Crankcase Cover 1

47 1.9074.4.0510 Screw/Washer Assembly M5×10 4

48 83.080014.01 Air Guide Board 1

49 2.03.016 Washer, Drain Bolt (Ø10×Ø16×1.5) 1

50 2.08.037 Bolt, Drain (M10×1.25×25) 1

51 83.030009.01 Gasket, Cylinder Head 1

52 2.04.003 Dowel Pin (Ø10×14) 2

# Part Number Description Qty

53 83.040006.01 Valve, Exhaust 1

54 83.040002.01 Valve, Intake 1

55 2.01.017 Stud Bolt (M6×32) 2

56 83.010100.01 Cylinder Head 1

57 2.15.002(F6RTC) Spark Plug (F6RTC) 1

58 83.040017.01 Oil Seal, Valve 1

59 83.040004.01 Guide Plate, Push Rod 1

60 1.5789.0865 Flange Bolt M8×65 2

61 1.5789.0845 Flange Bolt M8×45 2

62 2.01.020 Stud Bolt (M6×97) 2

63 83.040010.01 Bolt, Rocker Arm 2

64 83.040005.01 Push Rod 2

65 83.040003.01 Spring, Valve 2

66 83.040009.01 Rocker Arm 2

67 83.040001.01 Retainer, Valve Spring 2

68 83.040014.01 Valve Collar 2

69 21.040020.00 Adjusting Nut, Valve 2

70 21.040021.00 Nut, Lock (M6×0.5) 2

71 83.080200.01 Air Shroud, Cylinder 1

72 23.020001.01 Breather Tube 1

73 83.021101.01 Cover, Cylinder Head 1

74 83.021001.01 Gasket, Cylinder Head Element 1

75 83.021200.01 Element Component, Head Cover. 1

76 83.020002.01 Gasket, Cylinder Head Cover 1

77 83.050301.01 Ring, First Piston 1

78 83.050302.01 Ring, Second Piston 1

79 83.050303.01 Ring, Oil 1

80 2.09.002 Circlip (Ø16×Ø1) 2

81 83.050005.01 Piston 1

82 83.050003.01 Piston Pin 1

83 83.050200.01 Connecting Rod 1

84 83.040100.01 Camshaft 1

85 83.031000.01.2 Oil Dipstick Assembly, Black 1

86 83.030035.01 Oil Nipple 1

87 81.132001.00 Cover, Stepper Motor 1

88 1.818.0306 Screw M3×62

89 81.132200.00 Stepper Motor 1

90 1.9074.1.0408 Screw M4×82

91 82.132100.00 Stepper Motor Base 1

92 1.819.0508 Screw M5×81

93 81.130010.00 Spring, Connecter 1

94 81.130008.00 Connecter, Choke Valve Axis 1

95 83.131000.01 Carburetor 1

96 1.9074.3.0512 Screw/Washer Assembly M5×12 1

97 81.130007.00 Clamp Board, Choke Control Line 1

98 83.130005.01 Support, Stepper Motor 1

99 1.9074.3.0508 Screw/Washer Assembly M5×82

100 83.131017.01 Standard Main Jet 1

83.131017.01.01 Altitude Main Jet /

101 83.061000.01 Recoil Assembly 1

102 83.091000.01 Air Cleaner Assembly 1

103 83.021000.01 Cylinder Head Cover 1

21

ENGLISH 100156

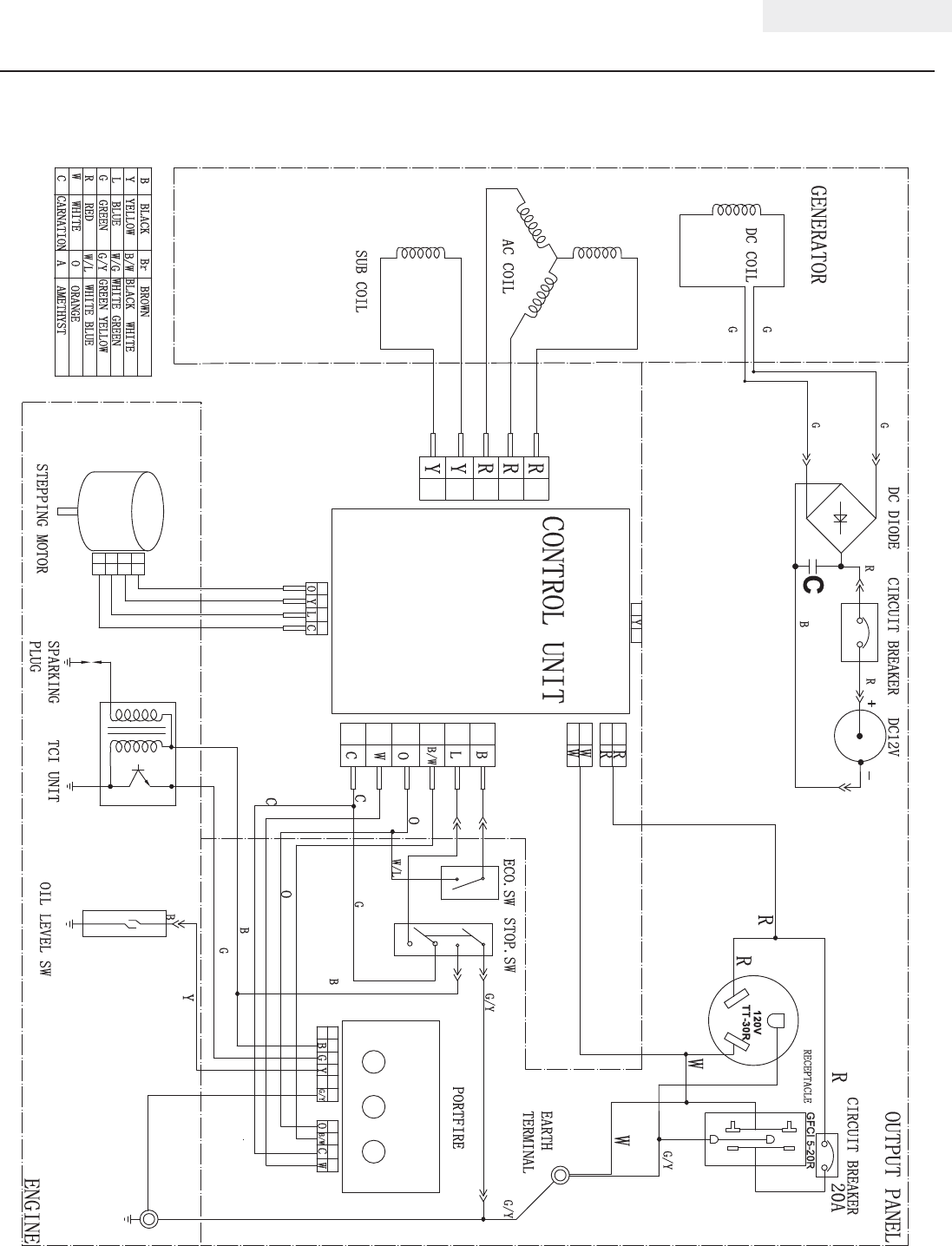

Wiring Diagram

SPECIFICATIONS

DC COIL

Y

CONTROL UNIT

PORTFIRE

ECO.SW

EARTH

TERMINAL

OIL LEVEL SW

STEPPING MOTORSPARKING

PLUG

STOP.SW

L

W

G

B

Y

R

YELLOW

BLACK

BLUE

GREEN

RED

WHITE

Br

WHITE BLUE

GREEN YELLOW

WHITE GREEN

BROWN

BLACK WHITE

B/W

W/L

G/Y

W/G

GENERATOR

ENGINE

G

RECEPTACLE

AC COIL

SUB COIL

W

B/W

O

OB/WCW

Y

O Y L C B

G

G

R

R

R

Y

Y

R

W

B

L

TCI UNIT

G/Y

G/Y

G/Y

C CARNATION A AMETHYST

OORANGE

OUTPUT PANEL

Y

120V

TT-30R

GFCI 5-20R

R

W

R

R

R

W

G/Y

B

B

G

B

O

O

W/L

G

CC

C

CIRCUIT BREAKER

20A

DC DIODE

_

+

DC12V

CIRCUIT BREAKER

RR

B

C

G

G

W

22

100156 ENGLISH

TROUBLESHOOTING

For further technical support:

Technical Service

Mon – Fri 8:30 AM – 5:00 PM (PST/PDT)

Toll Free: 1-877-338- 0999

tech@championpowerequipment.com

Problem Cause Solution

Generator will not start No fuel Add fuel

Faulty spark plug Replace spark plug

Unit loaded during start up Remove load from unit

Generator will not start;

Generator starts but runs roughly

Low oil level Fill crankcase to the proper level

Place generator on a flat, level surface

Choke in the wrong position Adjust choke

Spark plug wire loose Attach wire to spark plug

Generator shuts down during operation Out of fuel Fill fuel tank

Low oil level Fill crankcase to the proper level. Place

generator on a flat, level surface

Generator cannot supply enough power or

overheating

Generator is overloaded Review load and adjust. See “Power

Management”

Insufficient ventilation Check for air restriction. Move to a well

ventilated area

No AC output Cable not properly connected Check all connections

Connected device is defective Replace defective device

Circuit breaker is open Reset circuit breaker

Loose wiring Inspect and tighten wiring connections

Other Contact the help line

Repeated circuit breaker tripping Overload Review load and adjust. See “Power

Management”

Faulty cords or device Check for damaged, bare or frayed wires.

Replace defective device

23

ENGLISH 100156

WARRANTY

WARRANTY

CHAMPION POWER EQUIPMENT

2 YEAR LIMITED WARRANTY

Warranty Qualifications

Champion Power Equipment (CPE) will register this

warranty upon receipt of your Warranty Registration Card

and a copy of your sales receipt from one of CPE’s retail

locations as proof of purchase.

Please submit your warranty registration and your proof

of purchase within ten (10) days of the date of purchase.

Repair/Replacement Warranty

CPE warrants to the original purchaser that the

mechanical and electrical components will be free of

defects in material and workmanship for a period of one

year (parts and labour) and two years (parts) from the

original date of purchase (90 days (parts and labour)

and 180 days (parts) for commercial and industrial

use). Transportation charges on product submitted

for repair or replacement under this warranty are the

sole responsibility of the purchaser. This warranty only

applies to the original purchaser and is not transferable.

Do Not Return The Unit To The Place Of Purchase

Contact CPE’s Technical Service and CPE will

troubleshoot any issue via phone or e-mail. If the

problem is not corrected by this method, CPE will, at its

option, authorize evaluation, repair or replacement of the

defective part or component at a CPE Service Centre.

CPE will provide you with a case number for warranty

service. Please keep it for future reference. Repairs

or replacements without prior authorization, or at an

unauthorized repair facility, will not be covered by this

warranty.

Warranty Exclusions

This warranty does not cover the following repairs and

equipment:

Normal Wear

Generators need periodic parts and service to perform well.

This warranty does not cover repair when normal use has

exhausted the life of a part or the equipment as a whole.

Installation, Use and Maintenance

This warranty will not apply to parts and/or labour if this

generator is deemed to have been misused, neglected,

involved in an accident, abused, loaded beyond the

generator’s limits, modified, installed improperly or

connected incorrectly to any electrical component.

Installation, Use and Maintenance Cont’d.

Normal maintenance such as spark plugs, air filters,

adjustments, fuel system cleaning and obstruction due

to buildup is not covered by this warranty.

Other Exclusions

This warranty excludes:

– Cosmetic defects such as paint, decals, etc.

– Wear items such as filter elements, o-rings, etc.

– Accessory parts such as starting batteries, and

storage covers.

– Failures due to acts of God and other force majeure

events beyond the manufacturer’s control.

– Problems caused by parts that are not original

Champion Power Equipment parts.

This warranty does not apply to generators used for

prime power in place of a utility.

Limits of Implied Warranty and Consequential Damage

Champion Power Equipment disclaims any obligation to

cover any loss of time, use of this product, freight, or

any incidental or consequential claim by anyone from

using this generator. THIS WARRANTY IS IN LIEU OF

ALL OTHER WARRANTIES, EXPRESS OR IMPLIED,

INCLUDING WARRANTIES OF MERCHANTABILITY OR

FITNESS FOR A PARTICULAR PURPOSE.

A unit provided as an exchange will be subject to the

warranty of the original unit. The length of the warranty

governing the exchanged unit will remain calculated by

reference to the purchase date of the original unit.

This warranty gives you certain legal rights which may

change from province to province. Your province may

also have other rights you may be entitled to that are not

listed within this warranty.

Contact Information

Address

Champion Power Equipment, Inc.

Customer Service

12039 Smith Ave.

Santa Fe Springs, CA 90670

www.championpowerequipment.com

Customer Service

Mon – Fri 8:30 AM – 5:00 PM (PST/PDT)

Toll Free: 1-877-338- 0999

info@championpowerequipment.com

Fax no.: 1-562-236-9429

Technical Service

Mon – Fri 8:30 AM – 5:00 PM (PST/PDT)

Toll Free: 1-877-338- 0999

tech@championpowerequipment.com

24/7 Tech Support: 1-562-204-1188

Champion Power Equipment, Inc. (CPE),

The United States Environment Protection Agency (U.S. EPA.) and the California Air Resources Board (CARB)

Emission Control System Warranty

Your Champion Power Equipment (CPE) engine complies with both the U.S. EPA and state of California Air

Resources Board (CARB) emission regulations.

YOUR WARRANTY RIGHTS AND OBLIGATIONS:

The US EPA, California Air Resources Board, and CPE are pleased to explain the Federal and California Emission

Control Systems Warranty on your 2015 small off-road engine and engine powered equipment. In California, new,

small off-road engines and new equipment that use small off-engines must be designed, built and equipped to meet

the State’s stringent anti smog standards. In the other states, new engines and equipment must be designed, built

and equipped, at the time of sale, to meet U.S. EPA regulations for small non-road engines. CPE warrants the

emission control system on your small off-road engine and equipment for the period of time listed below, provided

there has been no abuse, neglect, unapproved modification, or improper maintenance of your equipment.

Your emission control system may include parts such as the carburetor, fuel-injection system, the ignition system,

catalytic converter and fuel lines. Also included may be hoses, belts, connectors and other emission related

assemblies. Where a warrantable condition exits, CPE will repair your small off-road engine at no cost to you

including diagnosis, parts and labor. For engines less than or equal to 80cc, only the fuel tank and fuel line is

subject to the evaporative emission control warranty requirements of this section.

MANUFACTURER’S EMISSION CONTROL SYSTEM WARRANTY COVERAGE:

This emission control system is warranted for two years, subject to provisions set forth below. If, during the

warranty period, emission related part on your engine is defective in materials or workmanship, the part will be

repaired or replaced by CPE.

OWNER WARRANTY RESPONSIBILITIES:

As the small off-road engine owner, you are responsible for the performance of the required maintenance listed in

your Owner’s Manual. CPE recommends that you retain all your receipts covering maintenance on your small off-

road engine, but CPE cannot deny warranty solely for the lack of receipts or for your failure to ensure the

performance of all scheduled maintenance.

As the small off-road engine owner, you should however be aware that CPE may deny you warranty coverage if

your small, off-road engine or a part has failed due to abuse, neglect, improper maintenance or unapproved

modifications.

You are responsible for presenting your small off-road engine to an Authorized CPE service outlet or alternate

service outlet as described in (3)(f.) below, CPE dealer or CPE, Santa Fe Springs, Ca. as soon as a problem exists.

The warranty repairs should be completed in a reasonable amount of time, not to exceed 30 days.

If you have any questions regarding your warranty rights and responsibilities, you should contact:

Champion Power Equipment, Inc.

Customer Service

12039 Smith Ave.

Santa Fe Springs, CA 90670

1-877-338-0999

tech@championpowerequipment.com

EMISSION CONTROL SYSTEM WARRANTY

The following are specific provisions relative to your Emission Control System (ECS) Warranty Coverage.

1. APPLICABILITY: This warranty shall apply to 1995 and later model year California small off-road engines (for

other states, 1997 and later model year engines). The ECS Warranty Period shall begin on the date the new engine

or equipment is delivered to its original, end-use purchaser, and shall continue for 24 consecutive months

thereafter.

2. GENERAL EMISSIONS WARRANTY COVERAGE

CPE warrants to the original, end-use purchaser of the new engine or equipment and to each subsequent

purchaser that each of its small off-road engines is:

a. Designed, built and equipped so as to conform to U.S. EPA emissions standards for spark-ignited

engines at or below 19 kilowatts and all applicable regulations adopted by the California Air Resources Board

and

b. Free from defects in materials and workmanship that cause the failure of a warranted part to be identical

in all material respects to the part as described in the engine manufacturer’s application for certification for a period

of two years.

3. THE WARRANTY ON EMISSION-RELATED PARTS WILL BE INTERPRETED AS FOLLOWS:

a. Any warranted part that is not scheduled for replacement as required maintenance in the Owners

Manual shall be warranted for the ECS Warranty Period. If any such part fails during the ECS Warranty Period, it

shall be repaired or replaced by CPE according to Subsection “d” below. Any such part repaired or replaced under

the ECS Warranty shall be warranted for any remainder of the ECS Warranty Period.

b. Any warranted, emissions-related part which is scheduled only for regular inspection as specified in the

Owners Manual shall be warranted for the ECS Warranty Period. A statement in such written instructions to the

effect of “repair or replace as necessary”, shall not reduce the ECS Warranty Period. Any such part repaired or

replaced under the ECS Warranty shall be warranted for the remainder of the ECS Warranty Period.

c. Any warranted, emissions-related part which is scheduled for replacement as required maintenance in

the Owner’s Manual shall be warranted for the period of time prior to the first scheduled replacement point for that

part. If the part fails prior to the first scheduled replacement, the part shall be repaired or replaced by CPE

according to Subsection “d” below. Any such emissions-related part repaired or replaced under the ECS Warranty,

shall be warranted for the remainder of the ECS Warranty Period prior to the first scheduled replacement point for

such emissions-related part.

d. Repair or replacement of any warranted, emissions-related part under this ECS Warranty shall be

performed at no charge to the owner at a CPE Authorized Service Outlet.

e. The owner shall not be charged for diagnostic labor which leads to the determination that a part covered

by the ECS Warranty is in fact defective, provided that such diagnostic work is performed at a CPE Authorized

Service Outlet.

f. CPE shall pay for covered emissions warranty repairs at non-authorized service outlets under the

following circumstances:

i. The service is required in a population center with a population over 100,000 according to U.S.

Census 2000 without a CPE Authorized Service Outlet AND

ii. The service is required more than 100 miles from a CPE Authorized Service Outlet. The 100 mile

limitation does not apply in the following states: Alaska, Arizona, Colorado, Hawaii, Idaho, Montana, Nebraska,

Nevada, New Mexico, Oregon, Texas, Utah and Wyoming.

g. CPE shall be liable for damages to other original engine components or approved modifications

proximately caused by a failure under warranty of an emission-related part covered by the ECS Warranty.

h. Throughout the ECS Warranty Period, CPE shall maintain a supply of warranted emission-related parts

sufficient to meet the expected demand for such emission-related parts.

i. Any CPE Authorized and approved emission-related replacement part may be used in the performance of

any ECS Warranty maintenance or repair and will be provided without charge to the owner. Such use shall not

reduce CPE’s warranty obligation.

j. Unapproved add-on or modified parts may not be used to modify or repair a CPE engine. Such use voids

this ECS Warranty and shall be sufficient grounds for disallowing an ECS Warranty claim. CPE shall not be liable

hereunder for failures of any warranted parts of a CPE engine caused by the use of such an unapproved add-on or

modified part.

EMISSION-RELATED PARTS INCLUDE THE FOLLOWING: (using those portions of the list applicable to the

engine)

Systems covered by this

warranty

Parts Description

Fuel Metering System

Fuel regulator, Carburetor and internal parts

Air Induction System

Air cleaner, Intake manifold

Ignition System

Spark plug and parts, Magneto ignition system

Exhaust System

Exhaust manifold, catalytic converter

Miscellaneous Parts

Tubing, Fittings, Seals, Gaskets, and Clamps associated with these listed

systems.

Evaporative Emissions

Fuel Tank, Fuel Cap, Fuel Line, Fuel Line Fittings, Clamps, Pressure

Relief Valves, Control Valves, Control Solenoids, Electronic Controls,

Vacuum Control Diaphragms, Control Cables, Control Linkages, Purge

Valves, Vapor Hoses, Liquid/Vapor Separator, Carbon Canister, Canister

Mounting Brackets, Carburetor Purge Port Connector

TO OBTAIN WARRANTY SERVICE:

You must take your CPE engine or the product on which it is installed, along with your warranty registration card or

other proof of original purchase date, at your expense, to any Champion Power Equipment dealer who is

authorized by Champion Power Equipment, Inc. to sell and service that CPE product during his normal business

hours. Alternate service locations defined in Section (3)(f.) above must be approved by CPE prior to service. Claims

for repair or adjustment found to be caused solely by defects in material or workmanship will not be denied because

the engine was not properly maintained and used.

If you have any questions regarding your warranty rights and responsibilities, or to obtain warranty

service, please write or call Customer Service at Champion Power Equipment, Inc.

Champion Power Equipment, Inc.

12039 Smith Ave.

Santa Fe Springs, CA 90670

1-877-338-0999

Attn.: Customer Service

tech@championpowerequipment.com
