Champion Power Equipment 100216 Owners Manual

: Champion-Power-Equipment Champion-Power-Equipment--100216-Owners-Manual-802543 champion-power-equipment--100216-owners-manual-802543 champion-power-equipment pdf

Open the PDF directly: View PDF .
Page Count: 28

OWNER’S MANUAL & OPERATING INSTRUCTIONS

MADE IN CHINA

REV 100216-20150331

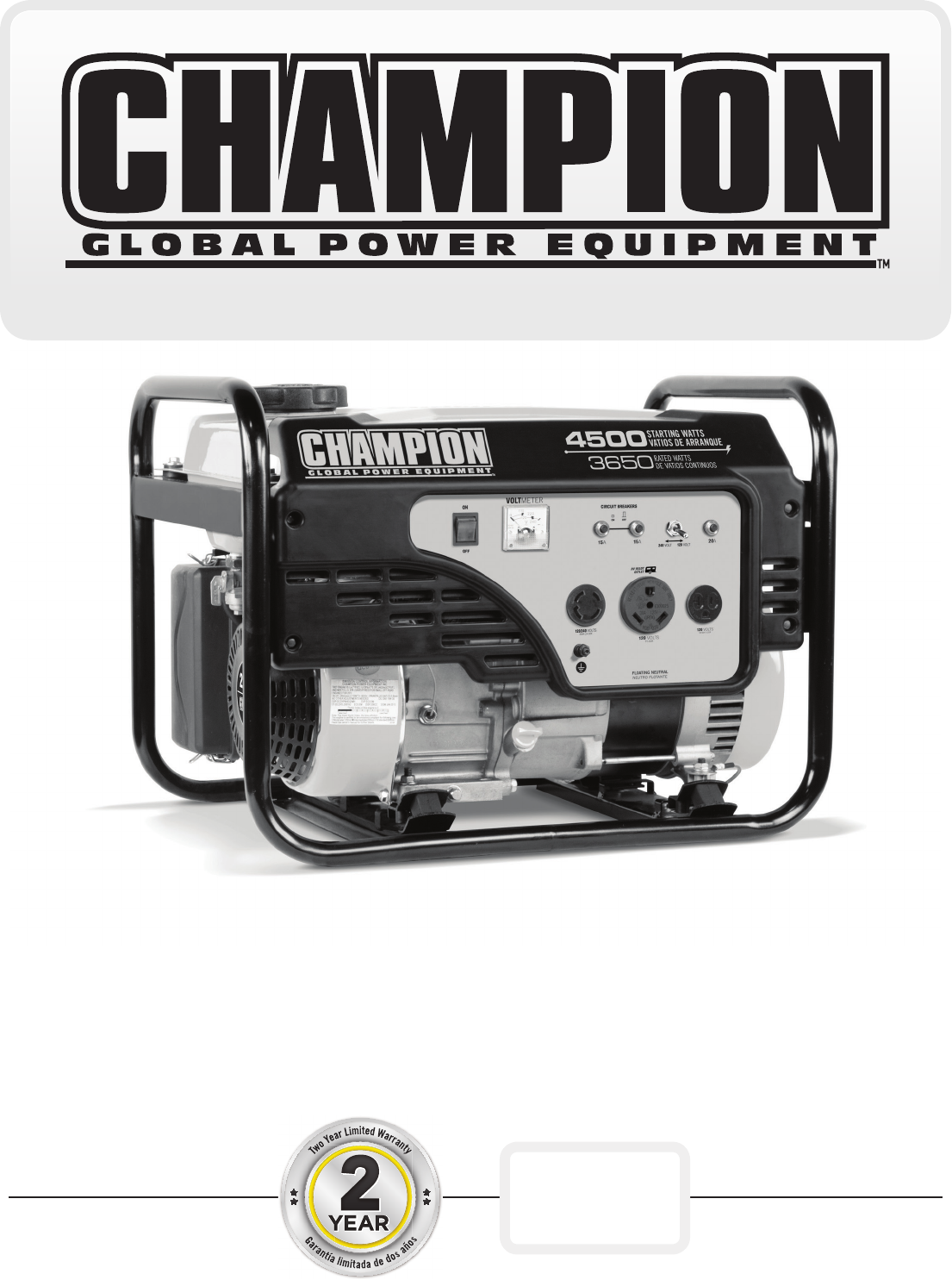

4500 Starting Watts / 3650 Rated Watts

PORTABLE GENERATOR

Recoil Start

12039 Smith Ave.

Santa Fe Springs CA 90670

USA / 1-877-338-0999

www.championpowerequipment.com

SAVE THESE INSTRUCTIONS

Important Safety Instructions

are included in this manual.

100216

MODEL NUMBER

*We are always working to improve our products. Therefore, the enclosed product may differ slightly from the image on the cover.

Have questions or need assistance?

Do not return this product to the store!

WE ARE HERE TO HELP!

Visit our website:

www.championpowerequipment.com

for more info:

• Product Info & Updates

• Frequently Asked Questions

• Tech Bulletins

• Product Registration

– or –

Call our Customer Care Team Toll-Free at:

1-877-338-0999

For residents of California:

WARNING: This product contains chemicals known to the State of California to cause cancer or birth defects

and other reproductive harm.

AN IMPORTANT MESSAGE ABOUT TEMPERATURE:

Your Champion Power Equipment product is designed and rated for continuous operation at ambient temperatures up to

40°C (104°F). When your product is needed your product may be operated at temperatures ranging from -15°C (5°F) to

50°C (122°F) for short periods. If the product is exposed to temperatures outside this range during storage, it should be

brought back within this range before operation. In any event, the product must always be operated outdoors, in a

well-ventilated area and away from doors, windows and other vents.

100216

TABLE OF CONTENTS

Introduction ............................. 1

Manual Conventions. . . . . . . . . . . . . . . . . . . . . . . . 2

Safety Rules ............................. 3

Controls and Features ...................... 5

Generator ............................. 5

Power Panel ........................... 6

Parts Included ......................... 6

Other ............................. 6

Assembly ............................... 7

Remove the Generator from the Shipping Carton .. 7

Add Engine Oil ......................... 7

Add Fuel ............................. 8

Grounding ............................ 8

Operation ............................... 9

Generator Location ...................... 9

Surge Protection ........................ 9

Starting the Engine ...................... 9

Connecting Electrical Loads ............... 10

Stopping the Engine .................... 10

Grounding ........................... 10

Do Not Overload Generator ................ 10

Capacity .......................... 10

Power Management ................... 10

Operation at High Altitude ................ 11

Maintenance and Storage ................... 12

Engine Maintenance .................... 12

Oil .............................. 12

Spark Plugs ........................ 12

Air Filter .......................... 12

Spark Arrester ...................... 13

Cleaning .......................... 13

Adjustments ........................ 13

Maintenance Schedule ................ 14

Generator Maintenance .................. 14

Storage ............................. 14

Generator Storage .................... 14

Specifications ........................... 15

Engine Specifications ................... 15

Generator Specifications ................. 15

Fuel ............................... 15

Oil ................................ 15

Spark Plugs .......................... 15

Maintenance Valve Clearance .............. 15

An Important Message About Temperature .... 15

Wiring Diagram ........................ 16

Parts Diagram ........................ 17

Parts List ............................ 18

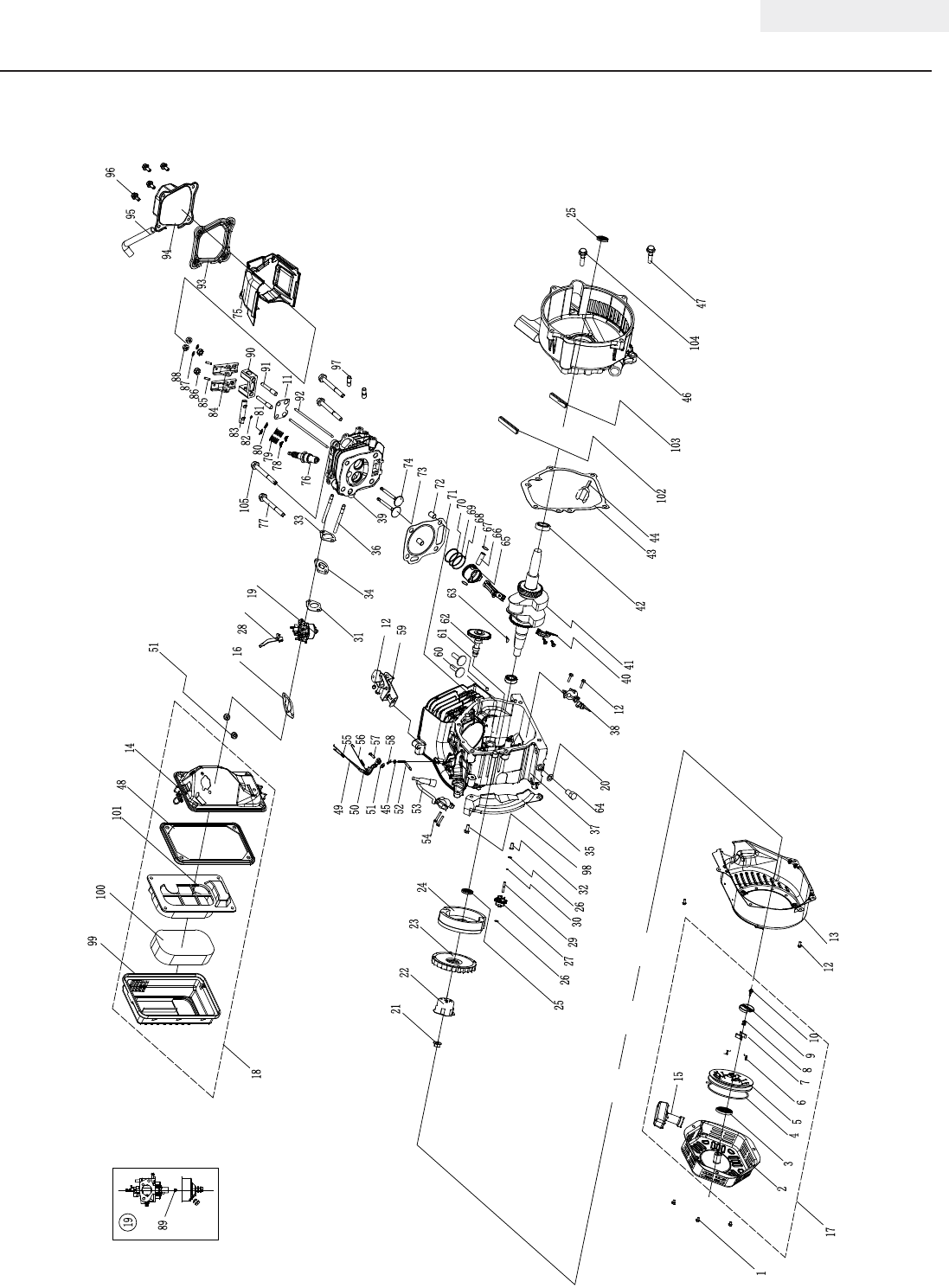

Engine Parts Diagram ................... 19

Engine Parts List ...................... 20

Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . 21

Warranty .............................. 22

Warranty Qualifications .................. 22

Repair/Replacement Warranty .............. 22

Do Not Return The Unit To

The Place Of Purchase .................. 22

Warranty Exclusions .................... 22

Normal Wear ....................... 22

Installation, Use and Maintenance ........ 22

Other Exclusions ..................... 22

Limits of Implied Warranty

and Consequential Damage ............. 22

Contact Information. . . . . . . . . . . . . . . . . . . . . 22

Address ........................... 23

Customer Service .................... 22

Technical Service .................... 22

Recoil Start

PORTABLE GENERATOR

4500 Starting Watts / 3650 Rated Watts

1

ENGLISH 100216

Record the model and serial numbers as well as date and place of purchase for future reference. Have this

information available when ordering parts and when making technical or warranty inquiries.

Champion Power Equipment Support

Model Number

Serial Number

Date of Purchase

Purchase Location

1-877-338-0999

100216

For Oil Type see ‘Add Engine Oil‘ section. For Fuel Type see ‘Add Fuel‘ section.

INTRODUCTION

Introduction

Congratulations on your purchase of a Champion Power Equipment product. Champion Power Equipment and

Champion Engine Technology designs, builds, and supports all of our products to strict specifications and guidelines.

With proper product knowledge, safe use, and regular maintenance, this product should bring years of satisfying

service.

Every effort has been made to ensure the accuracy and completeness of the information in this manual, and we

reserve the right to change, alter and/or improve the product and this document at any time without prior notice.

Since CPE/CET highly value how our products are designed, manufactured, operated and are serviced, and also

highly value your safety and the safety of others, we would like you to take the time to review this product manual

and other product materials thoroughly and be fully aware and knowledgeable of the assembly, operation, dangers

and maintenance of the product before use. Fully familiarize yourself, and make sure others who plan on operating

the product fully familiarize themselves too, with the proper safety and operation procedures before each use. Please

always exercise common sense and always error on the side of caution when operating the product to ensure no

accidents, property damage, or injury occurs. We want you to continue to use and be satisfied with your CPE/CET

product for years to come.

2

100216 ENGLISH

MANUAL CONVENTIONS

This manual uses the following symbols to help differentiate between different kinds of information. The safety symbol

is used with a key word to alert you to potential hazards in operating and owning power equipment.

Follow all safety messages to avoid or reduce the risk of serious injury or death.

CAUTION indicates a potentially hazardous

situation which, if not avoided, may result in minor

or moderate injury.

CAUTION

CAUTION used without the safety alert symbol

indicates a potentially hazardous situation which, if

not avoided, may result in property damage.

CAUTION

DANGER indicates an imminently hazardous

situation which, if not avoided, will result in death

or serious injury.

DANGER

WARNING indicates a potentially hazardous

situation which, if not avoided, could result in

death or serious injury.

WARNING

If you have questions regarding your generator, we can

help. Please call our help line at 1-877-338-0999

NOTE

3

ENGLISH 100216

SAFETY RULES

Generator exhaust contains carbon monoxide, a

colorless, odorless, poison gas. Breathing carbon

monoxide will cause nausea, dizziness, fainting or

death. If you start to feel dizzy or weak, get to fresh

air immediately.

Operate generator outdoors only in a well ventilated

area.

DO NOT operate the generator inside any building,

including garages, basements, crawlspaces and

sheds, enclosure or compartment, including the

generator compartment of a recreational vehicle.

DO NOT allow exhaust fumes to enter a confined

area through windows, doors, vents or other

openings.

DANGER CARBON MONOXIDE: using a generator

indoors CAN KILL YOU IN MINUTES.

DANGER

Rotating parts can entangle hands, feet, hair,

clothing and/or accessories.

Traumatic amputation or severe laceration can result.

Keep hands and feet away from rotating parts.

Tie up long hair and remove jewelry.

Operate equipment with guards in place.

DO NOT wear loose-fitting clothing, dangling

drawstrings or items that could become caught.

DANGER

Generator produces powerful voltage.

DO NOT touch bare wires or receptacles.

DO NOT use electrical cords that are worn, damaged

or frayed.

DO NOT operate generator in wet weather.

DO NOT allow children or unqualified persons to

operate or service the generator

Use a ground fault circuit interrupter (GFCI) in damp

areas and areas containing conductive material such

as metal decking.

Use approved transfer equipment to isolate generator

from your electric utility and Notify your utility

company before connecting your generator to your

power system.

DANGER

Sparks can result in fire or electrical shock.

When servicing the generator:

Disconnect the spark plug wire and place it where it

cannot contact the plug.

DO NOT check for spark with the plug removed.

Use only approved spark plug testers.

WARNING

Running engines produce heat. Severe burns can

occur on contact.

Combustible material can catch fire on contact.

DO NOT touch hot surfaces.

Avoid contact with hot exhaust gases.

Allow equipment to cool before touching.

Maintain at least 3 ft. (91.4 cm) of clearance on all

sides to ensure adequate cooling.

Maintain at least 5 ft. (1.5 m) of clearance from

combustible materials.

WARNING

Medical and Life Support Uses.

In case of emergency, call 911 immediately.

NEVER use this product to power life support

devices or life support appliances.

NEVER use this product to power medical devices

or medical appliances.

Inform your electricity provider immediately if you

or anyone in your household depends on electrical

euipment to live.

Inform your electrical provider immediately if a

loss of power would cause you or anyone in your

household to experience a medical emergency.

WARNING

The engine exhaust from this product contains

chemicals known to the state of California to cause

cancer, birth defects, or other reproductive harm.

WARNING

Read this manual thoroughly before operating your

generator. Failure to follow instructions could result

in serious injury or death.

WARNING

4

100216 ENGLISH

SAFETY RULES

Improper treatment or use of the generator can

damage it, shorten its life and void your warranty.

Use the generator only for intended uses.

Operate only on level surfaces.

DO NOT expose generator to excessive moisture,

dust, or dirt.

DO NOT allow any material to block the cooling slots.

If connected devices overheat, turn them off and

disconnect them from the generator.

DO NOT use the generator if:

– Electrical output is lost

– Equipment sparks, smokes or emits flames

– Equipment vibrates excessively

CAUTION

Operation of this equipment may create sparks that

can start fires around dry vegetation.

A spark arrestor may be required. The operator

should contact local fire agencies for laws or

regulations relating to fire prevention requirements.

WARNING

Rapid retraction of the starter cord will pull hand and

arm towards the engine faster than you can let go.

Unintentional startup can result in entanglement,

traumatic amputation or laceration.

Broken bones, fractures, bruises or sprains could result.

When starting engine, pull the starter cord slowly

until resistance is felt and then pull rapidly to avoid

kickback.

DO NOT start or stop the engine with electrical

devices plugged in.

WARNING

Fuel and fuel vapors are highly flammable and

extremely explosive.

Fire or explosion can cause severe burns or death.

Unintentional startup can result in entanglement,

traumatic amputation or laceration.

When adding or removing fuel:

Turn the generator off and let it cool for at least two

minutes before removing the fuel cap. Loosen the

cap slowly to relieve pressure in the tank.

Only fill or drain fuel outdoors in a well-ventilated area.

DO NOT pump gas directly into the generator at the

gas station. Use an approved container to transfer

the fuel to the generator.

DO NOT overfill the fuel tank.

Always keep fuel away from sparks, open flames,

pilot lights, heat and other sources of ignition.

DO NOT light or smoke cigarettes.

When starting the generator:

DO NOT attempt to start a damaged generator.

Make certain that the gas cap, air filter, spark plug,

fuel lines and exhaust system are properly in place.

Allow spilled fuel to evaporate fully before

attempting to start the engine.

Make certain that the generator is resting firmly on

level ground.

When operating the generator:

DO NOT move or tip the generator during operation.

DO NOT tip the generator or allow fuel or oil to spill.

When transporting or servicing the generator:

Make certain that the fuel shutoff valve is in the off

position and the fuel tank is empty.

Disconnect the spark plug wire.

When storing the generator:

Store away from sparks, open flames, pilot lights,

heat and other sources of ignition.

DANGER

Exceeding the generator’s running capacity can

damage the generator and/or electrical devices

connected to it.

DO NOT overload the generator.

Start the generator and allow the engine to stabilize

before connecting electrical loads.

Connect electrical equipment in the off position,

and then turn them on for operation.

Turn electrical equipment off and disconnect before

stopping the generator.

DO NOT tamper with the governed speed.

DO NOT modify the generator in any way.

CAUTION

5

ENGLISH 100216

Read this owner’s manual before operating your generator. Familiarize yourself with the location and function of the

controls and features. Save this manual for future reference.

Generator

CONTROLS AND FEATURES

(1) Fuel Tank – 3.4 gal. (13 L) capacity fuel tank.

(2) Choke – Used to start the engine.

(3) Fuel Valve – Used to turn fuel supply on and off to

engine.

(4) Air Filter – Protects the engine by filtering dust

and debris from the intake air.

(5) Recoil Starter – Used to manually start the engine.

(6) Oil Filler Cap – Check and fill engine oil level.

(7) Power Panel – See “Power Panel” section.

1

2

3

4

5

6

7

6

100216 ENGLISH

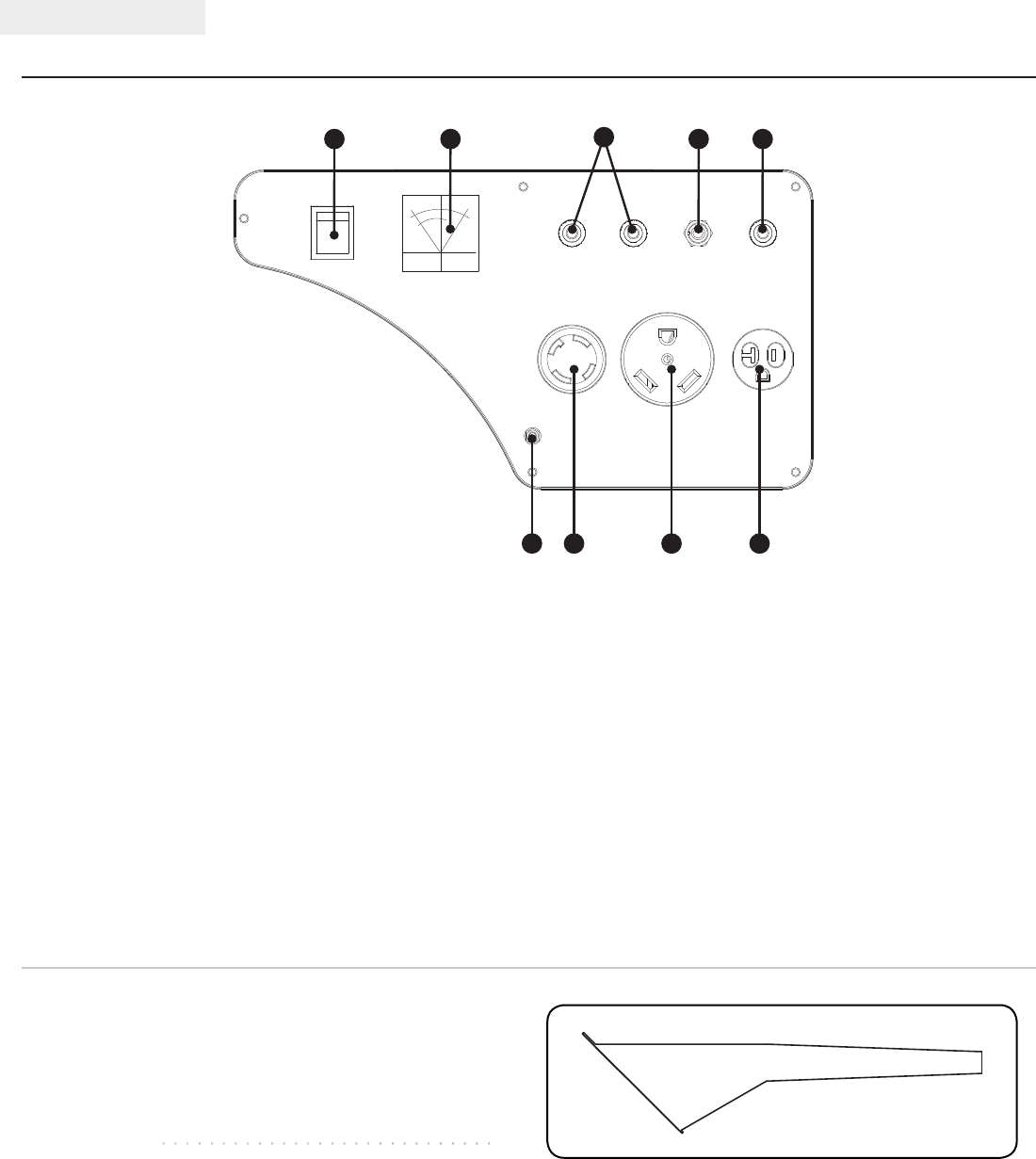

Power Panel 3

CONTROLS AND FEATURES

1 2 34

75

(1) Engine Switch – Used to turn the generator on and

off.

(2) Voltmeter – Used to display generator output

voltage.

(3) Circuit Breakers – Protects the generator against

electrical overloads. Push to reset breaker.

(4) Voltage switch – Choose between 120V or 240V

(5) Ground Terminal – Consult an electrician for local

grounding regulations.

(6) 120/240 Volt AC, 30 Amp Twist-Lock Receptacle

(NEMA L14-30R) – May be used to supply

electrical power for the operation of 120

and/or 240 Volt AC, 30 Amp, single phase 60 Hz

electrical loads.

(7) 120 Volt AC, 30 Amp Receptacle

(NEMA TT-30R) – May be used to supply electrical

power for the operation of 120 Volt AC, single phase

60 Hz electrical loads.

(8) 120 Volt AC, 20 Amp Receptacle

(NEMA 5-20R) – May be used to supply electrical

power for the operation of 120 Volt AC, single phase

60 Hz electrical loads.

6 8

Parts Included

Your 100216 Gasoline Powered Generator ships with the

following parts:

Other

– Oil Funnel ............................1

7

ENGLISH 100216

ASSEMBLY

Your generator requires some assembly. This unit ships

from our factory without oil. It must be properly serviced

with fuel and oil before operation.

If you have any questions regarding the assembly of your

generator, call our help line at 1-877-338-0999. Please

have your serial number and model number available.

Remove the Generator from the Shipping Carton

1. Set the shipping carton on a solid, flat surface.

2. Remove everything from the carton except the

generator.

3. Carefully cut each corner of the box from top to

bottom.

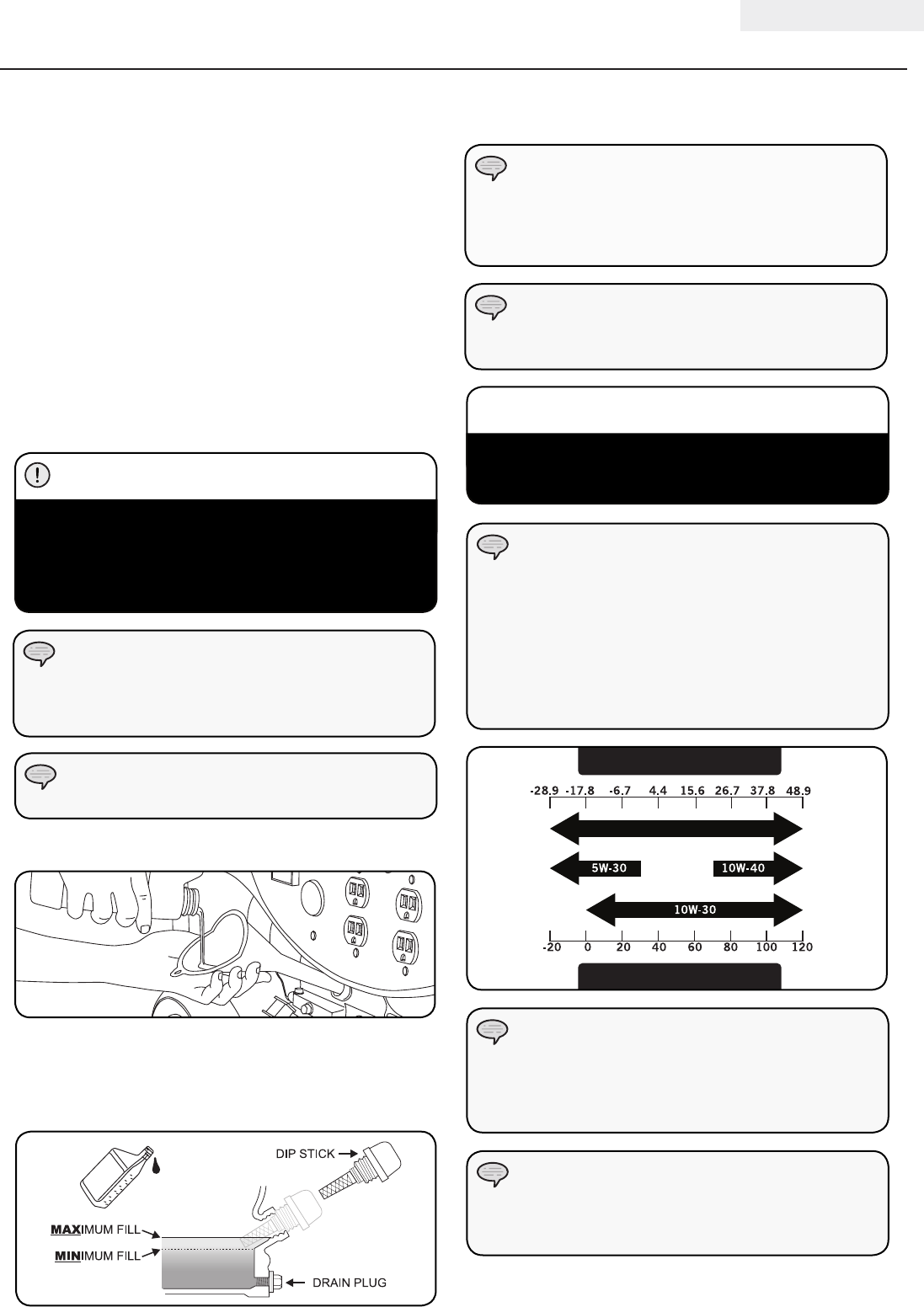

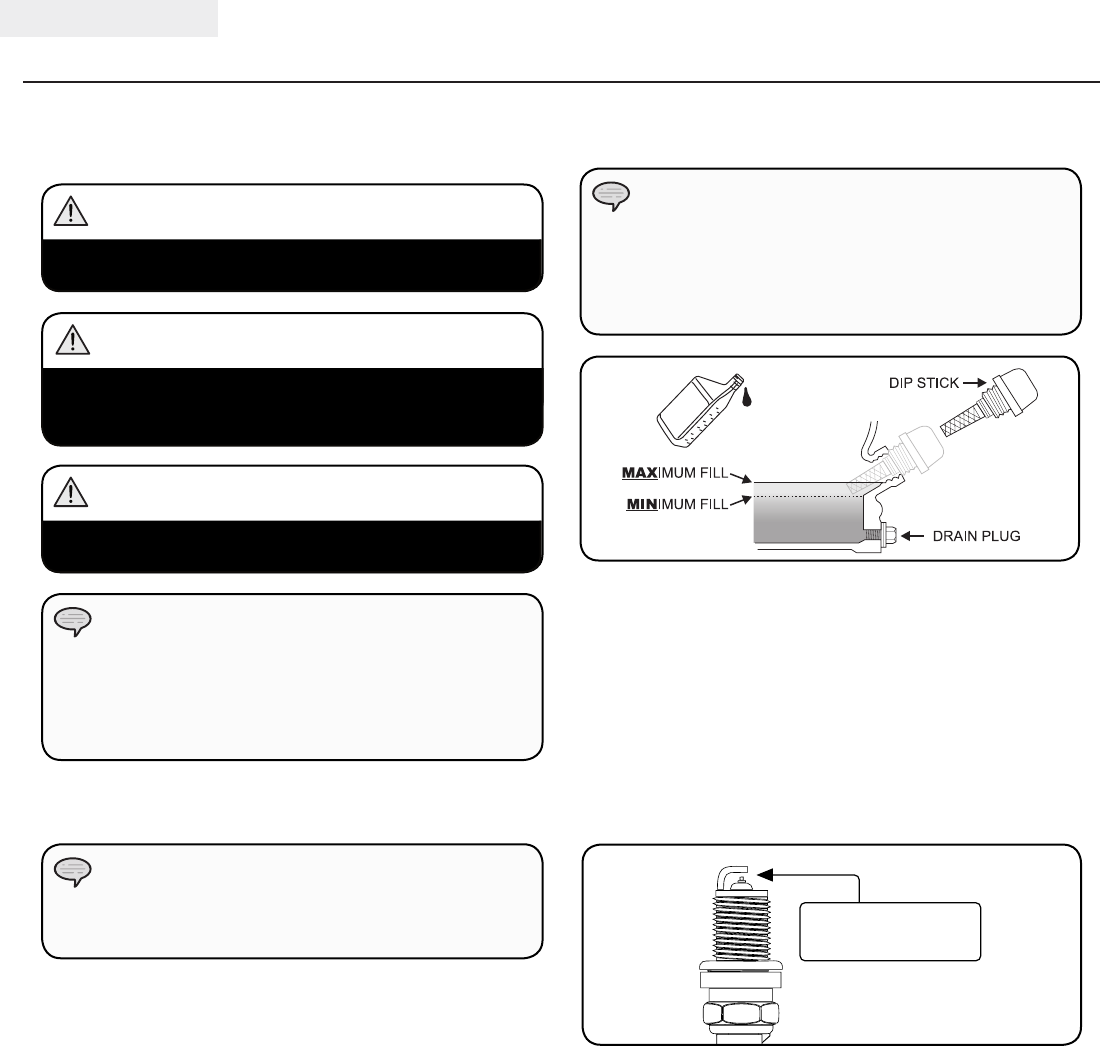

Add Engine Oil

Add Engine Oil Cont’d.

1. Place the generator on a flat, level surface.

2. Remove oil fill cap/dipstick to add oil.

3. Add up to 0.6 qt. (0.6 L) of oil (not included) and

replace oil fill cap/dipstick. DO NOT OVERFILL.

4. Check engine oil level daily and add as needed.

The engine is equipped with a low oil shut-off and

will stop when the oil level in the crankcase falls

below the threshold level.

CAUTION

DO NOT attempt to crank or start the engine before

it has been properly filled with the recommended

type and amount of oil. Damage to the generator as

a result of failure to follow these instructions will

void your warranty.

CAUTION

The generator rotor has a sealed, pre-lubricated ball

bearing that requires no additional lubrication for

the life of the bearing.

NOTE

The recommended oil type is 10W-30 automotive oil.

NOTE

Once oil has been added, a visual check should show

oil about 1-2 threads from running out of the fill hole.

If using the dipstick to check oil level, DO NOT screw

in the dipstick while checking.

NOTE

Check oil often during the break-in period. Refer to the

Maintenance section for recommended service intervals.

NOTE

Full Synthetic 5W-30

Degrees Celsiusº (Outside)

(Outside)

Degrees Fahrenheitº

Synthetic oil may be used after the 5 hour initial

break-in period. Using synthetic oil does not

increase the recommended oil change interval.

NOTE

We consider the first 5 hours of run time to be

the break-in period for the unit. During the break

in period stay at or below 50% of the running

watt rating and vary the load occasionally to allow

stator windings to heat and cool. Adjusting the

load will also cause engine speed to vary and help

seat piston rings. After the 5 hour break-in period,

change the oil.

NOTE

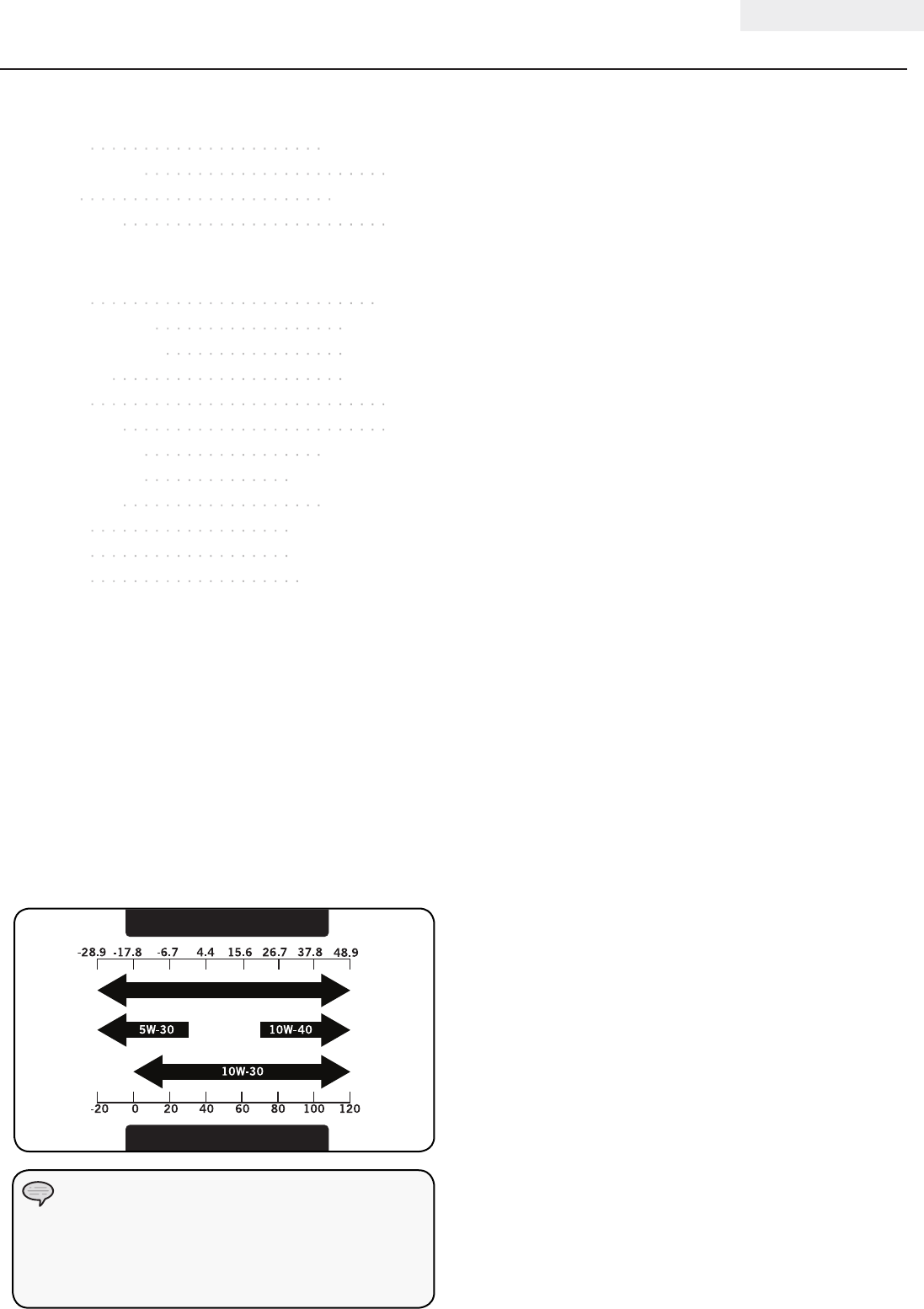

Weather will affect engine oil and engine

performance. Change the type of engine oil used

based on weather conditions to suit the engine

needs.

NOTE

8

100216 ENGLISH

ASSEMBLY

Add Fuel Cont’d.

Grounding

Your generator must be properly connected to an

appropriate ground to help prevent electric shock.

A ground terminal connected to the frame of the generator

has been provided on the power panel. For remote

grounding, connect of a length of heavy gauge

(12 AWG minimum) copper wire between the generator

ground terminal and a copper rod driven into the ground.

We strongly recommend that you consult with a qualified

electrician to ensure compliance with local electrical codes.

Failure to properly ground the generator can result

in electric shock.

WARNING

Our engines work well with 10% or less ethanol

blend fuels. When using blended fuels there are

some issues worth noting:

– Ethanol-gasoline blends can absorb more water

than gasoline alone.

– These blends can eventually separate, leaving

water or a watery goo in the tank, fuel valve and

carburetor.

– With gravity-fed fuel supplies, this compromised

fuel can be drawn into the carburetor and cause

damage to the engine and/or potential hazards.

– There are only a few suppliers of fuel stabilizer

that are formulated to work with ethanol blend

fuels.

– Any damages or hazards caused by using

improper fuel, improperly stored fuel, and/

or improperly formulated stabilizers, are not

covered by manufacture’s warranty.

It is advisable to always shut off the fuel supply,

run the engine to fuel starvation and drain the tank

when the equipment is not in use for more than 30

days.

NOTE

Use regular unleaded gasoline with a minimum

octane rating of 85.

Do not mix oil and gasoline.

Fill tank to approximately ¼ in. (6.4 mm) below the

top of the tank to allow for fuel expansion.

DO NOT pump gas directly into the generator at the

gas station. Use an approved container to transfer

the fuel to the generator.

DO NOT fill fuel tank indoors.

DO NOT fill fuel tank when the engine is running or hot.

DO NOT overfill the fuel tank.

DO NOT light cigarettes or smoke when filling the

fuel tank.

CAUTION

Pouring fuel too fast through the fuel screen may

result in blow back of fuel at the operator while filling.

WARNING

Add Fuel

1. Use clean, fresh, regular unleaded fuel with a

minimum octane rating of 85 and an ethanol content

of less than 10% by volume.

2. DO NOT mix oil with fuel.

3. Clean the area around the fuel cap.

4. Remove the fuel cap.

5. Slowly add fuel to the tank. DO NOT OVERFILL.

Fuel can expand after filling. A minimum of

¼ in. (6.4 mm) of space left in the tank is required

for fuel expansion, more than ¼ in. (6.4 mm) is

recommended. Fuel can be forced out of the tank as

a result of expansion if it is overfilled, and can affect

the stable running condition of the product. When

filling the tank, it is recommended to leave enough

space for the fuel to expand.

6. Screw on the fuel cap and wipe away any spilled fuel.

9

ENGLISH 100216

OPERATION

Generator Location

NEVER operate the generator inside any building,

including garages, basements, crawlspaces and sheds,

enclosure or compartment, including the generator

compartment of a recreational vehicle. Please consult

your local authority. In some areas, generators must

be registered with the local utility. Generators used at

construction sites may be subject to additional rules and

regulations. Generators should be on a flat, level surface

at all times. (Even while not in operation) Generators

must have at least 5 ft. (1.5 m) of clearance from all

combustible material. In addition to clearance from

all combustible material, generators must also have

at least 3 ft. (91.4 cm) of clearance on all sides to

allow for adequate cooling, maintenance and servicing.

Generators should never be started or operated in the

back of a SUV, camper, trailer, in the bed of a truck

(regular, flat or otherwise), under staircases/stairwells,

next to walls or buildings, or in any other location that

will not allow for adequate cooling of the generator

and/or the muffler. DO NOT contain generators during

operation. Allow generators to properly cool before

transport or storage.

Place the generator in a well-ventilated area. DO NOT

place the generator near vents or intakes where exhaust

fumes could be drawn into occupied or confined

spaces. Carefully consider wind and air currents when

positioning generator.

Failure to follow proper safety precautions may void

manufacturer’s warranty.

Do not operate or store the generator in rain, snow,

or wet weather.

Using a generator or electrical appliance in wet

conditions, such as rain or snow, or near a pool or

sprinkler system, or when your hands are wet, could

result in electrocution.

WARNING

WARNING

During operation the muffler and exhaust fumes

produced will become hot. If adequate cooling and

breathing space are not supplied, or if the generator

is blocked or contained, temperatures can become

extremely heated and may lead to fire.

Surge Protection

Electronic devices, including computers and many

programmable appliances use components that are

designed to operate within a narrow voltage range and

may be affected by momentary voltage fluctuations.

While there is no way to prevent voltage fluctuations, you

can take steps to protect sensitive electronic equipment.

1. Install UL1449, CSA-listed, plug-in surge suppressors

on the outlets feeding your sensitive equipment.

Surge suppressors come in single- or multi-outlet

styles. They’re designed to protect against virtually

all short-duration voltage fluctuations.

Voltage fluctuation may impair the proper

functioning of sensitive electronic equipment.

CAUTION

Starting the Engine

1. Make certain the generator is on a flat, level surface.

2. Disconnect all electrical loads from the generator.

Never start or stop the generator with electrical

devices plugged in or turned on.

3. Turn the fuel valve to the “ON” position.

4. Flip the engine switch to the “ON” position.

5. Move the choke lever to the “CHOKE” position.

6. Pull the starter cord slowly until resistance is felt and

then pull rapidly

7. Do not over-choke. As as soon as engine starts, move

the choke lever to the “RUN” position.

If the engine starts but does not run make certain

that the generator is on a flat, level surface. The

engine is equipped with a low oil sensor that will

prevent the engine from running when the oil level

falls below a critical threshold.

NOTE

Keep choke lever in “Choke” position for only 1

pull of the recoil starter. After first pull, move choke

lever to the “Run” position for up to the next 3

pulls of the recoil starter. Too much choke leads to

sparkplug fouling/engine flooding due to the lack of

incoming air. This will cause the engine not to start.

NOTE

10

100216 ENGLISH

OPERATION

Connecting Electrical Loads

1. Let the engine stabilize and warm up for a few

minutes after starting

2. Plug in and turn on the desired 120 or 240 Volt AC

single phase, 60 Hz electrical loads.

– DO NOT connect 3-phase loads to the generator.

– DO NOT connect 50 Hz loads to the generator.

– DO NOT overload the generator.

Connecting a generator to your electric utility company’s

power lines or to another power source may be against

the law. In addition this action, if done incorrectly, could

damage your generator and appliances and could cause

serious injury or even death to you or a utility worker

who may be working on nearby power lines. If you plan

to run a portable electric generator during an outage,

please notify your electric utility company immediately

and remember to plug your appliances directly into the

generator. Do not plug the generator into any electric

outlet in your home. Doing so could create a connection

to the utility company power lines. You are responsible

for ensuring that your generator’s electricity does not

feed back into the electric utility power lines.

If the generator will be connected to a building electrical

system, consult your local utility company or a qualified

electrician. Connections must isolate generator power

from utility power and must comply with all applicable

laws and codes.

NOTE

Stopping the Engine

1. Turn off and unplug all electrical loads. Never start

or stop the generator with electrical devices plugged

in or turned on.

2. Let the generator run at no-load for several minutes

to stabilize internal temperatures of the engine and

generator.

3. Turn the fuel valve to the “OFF” position.

4. Let the engine run until fuel starvation has stopped

the engine. This usually takes a few minutes.

5. Press the engine switch to the “OFF” position.

Important: Always ensure that the fuel valve and the

engine switch are in the “OFF” position when the engine

is not in use.

If the engine will not be used for a period of two (2) weeks

or longer, please see the Storage section for proper engine

and fuel storage.

NOTE

Do Not Overload Generator

Capacity

Follow these simple steps to calculate the running and

starting watts necessary for your purposes.

1. Select the electrical devices you plan on running at

the same time.

2. Total the running watts of these items. This is

the amount of power you need to keep your items

running.

3. Identify the highest starting wattage of all devices

identified in step 1. Add this number to the number

calculated in step 2. Surge wattage is the extra

burst of power needed to start some electric driven

equipment. Following the steps listed under “Power

Management” will guarantee that only one device will

be starting at a time.

Power Management

Use the following formula to convert voltage and

amperage to watts:

Volts x Amps = Watts

To prolong the life of your generator and attached

devices, follow these steps to add electrical load:

1. Start the generator with no electrical load attached

2. Allow the engine to run for several minutes to stabilize.

3. Plug in and turn on the first item. It is best to attach

the item with the largest load first.

4. Allow the engine to stabilize.

5. Plug in and turn on the next item.

6. Allow the engine to stabilize.

7. Repeat steps 5-6 for each additional item.

Never exceed the specified capacity when adding

loads to the generator.

NOTE

Grounding

The generator system ground connects the frame to the

ground terminals on the power panel.

– The generator (stator winding) is isolated from the

frame and from the AC receptacle ground pin.

– Electrical devices that require a grounded receptacle

pin connection will not function if the receptacle

ground pin is not functional.

11

ENGLISH 100216

OPERATION

Operation at High Altitude

The density of air at high altitude is lower than at sea

level. Engine power is reduced as the air mass and air-

fuel ratio decrease. Engine power and generator output

will be reduced approximately 3½% for every 1000

feet of elevation above sea level. This is a natural trend

and cannot be changed by adjusting the engine. At high

altitudes increased exhaust emissions can also result

due to the increased enrichment of the air fuel ratio.

Other high altitude issues can include hard starting,

increased fuel consumption and spark plug fouling.

To alleviate high altitude issues other than the natural

power loss, Champion Power Equipment can provide a

high altitude carburetor main jet. The alternative main

jet and installation instructions can be obtained by

contacting Customer Support. Installation instructions

are also available in the Technical Bulletin area of the

Champion Power Equipment internet site.

The part number and recommended minimum altitude

for the application of the high altitude carburetor main

jet is listed in the table below.

In order to select the correct high altitude main jet

it is necessary to identify the carburetor model. For

this purpose, a code is stamped on the side of the

carburetor. Select the correct main jet part number

corresponding to the carburetor code found on your

particular carburetor.

Operation using the alternative main jet at elevations

lower than the recommended minimum altitude can

damage the engine. For operation at lower elevations, the

standard main jet must be used. Operating the engine

with the wrong engine configuration at a given altitude

may increase its emissions and decrease fuel efficiency

and performance.

WARNING

Carburetor

Code Main Jet Part Number Altitude

P22-2-H

Standard 27.131017.01. H

3500 Feet

(1067 Meters)

Altitude 27.131017.01.01.H

P22-2-Z

Standard 2 7.131017. 01. Z

Altitude 27.131017.01.01.Z

12

100216 ENGLISH

MAINTENANCE AND STORAGE

The owner/operator is responsible for all periodic

maintenance.

Complete all scheduled maintenance in a timely manner.

Correct any issue before operating the generator.

Never operate a damaged or defective generator.

Tampering with the factory set governor will void

your warranty.

Engine Maintenance

To prevent accidental starting, remove and ground spark

plug wire before performing any service.

Oil

Change oil when the engine is warm. Refer to the oil

specification to select the proper grade of oil for your

operating environment.

1. Remove the oil drain plug with a 12 mm socket and

extension.

2. Allow the oil to drain completely.

3. Replace the drain plug.

4. Remove oil fill cap/dipstick to add oil.

5. Add up to 0.6 qt. (0.6 L) of oil and replace oil fill

cap/dipstick. DO NOT OVERFILL.

6. Dispose of used oil at an approved waste

management facility.

Air Filter

1. Remove the snap-on cover holding the air filter to

the assembly.

2. Remove the foam element.

3. Wash in liquid detergent and water. Squeeze

thoroughly dry in a clean cloth.

4. Saturate in clean engine oil.

5. Squeeze in a clean, absorbent cloth to remove all

excess oil.

6. Place the filter in the assembly.

7. Reattach the air filter cover and snap in place.

Spark Plugs

1. Remove the spark plug cable from the spark plug.

2. Use a spark plug tool (not included) to remove the

plug.

3. Inspect the electrode on the plug. It must be clean and

not worn to produce the spark required for ignition.

4. Make certain the spark plug gap is 0.7 - 0.8 mm or

(0.028 - 0.031 in.).

5. Refer to the spark plug recommendation chart when

replacing the plug.

6. Carefully thread the plug into the engine.

7. Use a spark plug tool (not included) to firmly install

the plug.

8. Attach the spark plug wire to the plug.

For service or parts assistance, contact our help

line at 1-877-338-0999

NOTE

Maintenance, replacement, or repair of emission

control devices and systems may be performed

by any non-road engine repair establishment or

individual.

NOTE

WARNING

WARNING

Improper maintenance will void your warranty.

WARNING

Oil Cont’d.

Once oil has been added, a visual check should show

oil about 1-2 threads from running out of the fill hole.

If using the dipstick to check oil level, DO NOT screw

in the dipstick while checking.

NOTE

0.7 - 0.8 mm

0.028 - 0.031 in.

13

ENGLISH 100216

Failure to clean the spark arrester will result in degraded

engine performance.

CAUTION

Federal and local laws and administrative

requirements indicate when and where spark

arresters are required. When ordered, spark

arresters are required for operation of this generator

in National Forest lands. In California, this

generator must not be used on any forest-covered

land, brush-covered land, or grass-covered land

unless the engine is equipped with a spark arrester.

NOTE

Use a damp cloth to clean exterior surfaces of the engine.

Use a soft bristle brush to remove dirt and oil.

Use an air compressor (25 PSI) to clear dirt and debris

from the engine.

Cleaning

DO NOT spray engine with water.

CAUTION

Water can contaminate the fuel system.

Adjustments

The air-fuel mixture is not adjustable. Tampering with

the governor can damage your generator and your

electrical devices and will void your warranty. CPE

recommends that you contact our service line at

1-877-338-0999 for all other service and/or adjustment

needs.

Maintenance Schedule

Follow the service intervals indicated in the following

maintenance schedule.

Service your generator more frequently when operating

in adverse conditions.

Contact our helpline at 1-877-338-0999 to locate the

nearest Champion Power Equipment certified service

dealer for your generator or engine maintenance needs.

*To be performed by knowledgeable, experienced owners or

Champion Power Equipment certified dealers.

MAINTENANCE AND STORAGE

Every 8 hours or daily

Check oil level

Clean around air intake and muffler

First 5 Hours

Change oil

Every 50 hours or every season

Clean air filter

Change oil if operating under heavy load or in hot

environments

Every 100 hours or every season

Change oil

Clean/Adjust spark plug

Check/Adjust valve clearance*

Clean spark arrester

Clean fuel tank and filter*

Every 250 hours

Clean combustion chamber*

Every 3 years

Replace fuel line

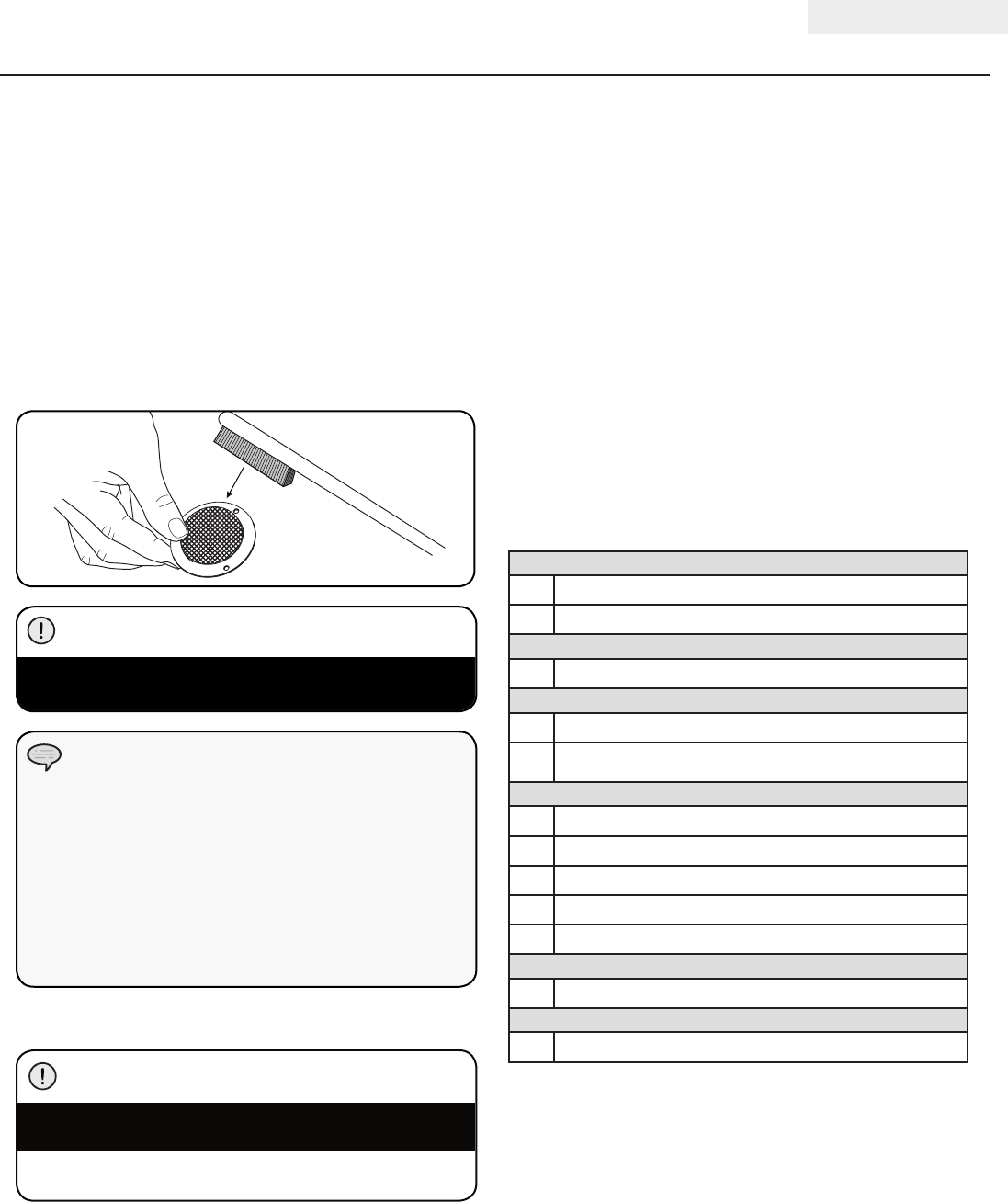

Spark Arrester

1. Allow the engine to cool completely before servicing

the spark arrester.

2. Remove the three (3) screws holding the cover plate

which retains the end of the spark arrester to the

muffler.

3. Remove the spark arrester screen.

4. Carefully remove the carbon deposits from the spark

arrester screen with a wire brush.

5. Replace the spark arrester if it is damaged.

6. Position the spark arrester in the muffler and attach

with the three (3) screws.

14

100216 ENGLISH

MAINTENANCE AND STORAGE

Generator Maintenance

Make certain that the generator is kept clean and stored

properly. Only operate the unit on a flat, level surface in

a clean, dry operating environment. DO NOT expose the

unit to extreme conditions, excessive dust, dirt, moisture

or corrosive vapors.

Use a damp cloth to clean exterior surfaces of the generator.

Use a soft bristle brush to remove dirt and oil.

Use an air compressor (25 PSI) to clear dirt and debris

from the generator.

Inspect all air vents and cooling slots to ensure that they

are clean and unobstructed.

DO NOT use a garden hose to clean the generator.

Water can enter the generator through the cooling

slots and damage the generator windings.

CAUTION

Generator exhaust contains odorless and colorless

carbon monoxide gas.

To avoid accidental or unintended ignition of your

generator during periods of storage, the following

precautions should be followed:

– When storing the generator for short or extended

periods of time make sure that the Engine

Switch and the Fuel Valve are set in the OFF

position.

DANGER

Storage

The generator should be started at least once every 14

days and allowed to run for at least 20 minutes. For

longer term storage, please follow these guidelines.

Generator Storage

1. Add a properly formulated fuel stabilizer to the tank.

2. Be sure all appliances are disconnected from the

generator.

3. Run the generator for a few minutes so the treated

fuel cycles through the fuel system and carburetor.

4. Turn the fuel valve to the “Off” position.

5. Let the generator run until fuel starvation has

stopped the engine. This usually takes a few minutes.

6. The generator needs to cool completely before

cleaning and storage.

7. Clean the generator according to the maintenance section.

8. Change the oil.

9. Remove the spark plug and pour about 1⁄2 ounce

(14.8 mL)of oil into the cylinder. Crank the engine

slowly to distribute the oil and lubricate the cylinder.

10. Reattach the spark plug.

11. Store the unit in a clean, dry place out of direct

sunlight.

Our engines work well with 10% or less ethanol

blend fuels. When using blended fuels there are

some issues worth noting:

– Ethanol-gasoline blends can absorb more water

than gasoline alone.

– These blends can eventually separate, leaving

water or a watery goo in the tank, fuel valve and

carburetor.

– With gravity-fed fuel supplies, this compromised

fuel can be drawn into the carburetor and cause

damage to the engine and/or potential hazards.

– There are only a few suppliers of fuel stabilizer

that are formulated to work with ethanol blend

fuels.

– Any damages or hazards caused by using

improper fuel, improperly stored fuel, and/

or improperly formulated stabilizers, are not

covered by manufacture’s warranty.

It is advisable to always shut off the fuel supply,

run the engine to fuel starvation and drain the tank

when the equipment is not in use for more than 30

days.

NOTE

Generator Storage Cont’d.

15

ENGLISH 100216

SPECIFICATIONS

Engine Specifications

– Model ...................... YF172FD-010

– Displacement .......................224cc

– Type ........................4-Stroke OHV

– Start Type .........................Recoil

Oil

Use 10W-30 automotive oil.

Oil capacity is up to 0.6 qt. (0.6 L).

DO NOT OVERFILL.

Please reference the following chart for recommended

oil types for use in the generator.

Generator Specifications

– Model ...........................100216

– Rated Wattage ..................3650 Watts

– Starting Wattage .................4500 Watts

– AC Load ...................... 120/240 V

– Phase ............................Single

– Frequency .........................60 Hz

– Fuel Capacity .................3.4 gal. (13 L)

– Gross Weight ..............104.7 lb. (47.5 kg)

– Net Weight ................... 97 lb. (44 kg)

– Height ................... 19.6 in. (49.9 cm)

– Width ................... 18.1 in. (46.1 cm)

– Length. . . . . . . . . . . . . . . . . . . . 23.2 in. (59 cm)

Fuel

Fuel capacity is 3.4 gal. (13 L). Use regular unleaded

gasoline with a minimum octane rating of 85 and an

ethanol content of less than 10% by volume.

An Important Message About Temperature

Your Champion Power Equipment product is designed

and rated for continuous operation at ambient

temperatures up to 40°C (104°F). When your product is

needed your product may be operated at temperatures

ranging from -15°C (5°F) to 50°C (122°F) for short

periods. If the product is exposed to temperatures

outside this range during storage, it should be brought

back within this range before operation. In any event,

the product must always be operated outdoors, in a

well-ventilated area and away from doors, windows and

other vents.

Full Synthetic 5W-30

Degrees Celsiusº (Outside)

(Outside)

Degrees Fahrenheitº

Weather will affect engine oil and engine

performance. Change the type of engine oil used

based on weather conditions to suit the engine

needs.

NOTE

Maintenance Valve Clearance

– Intake: 0.13 – 0.17 mm (0.005 – 0.007 in.)

– Exhaust: 0.18 – 0.22 mm (0.007 – 0.009 in.)

Note: Tech bulletin regarding the valve adjustment

procedure is on www.championpowerequipment.com.

Spark Plugs

OEM spark plug: NHSP F6RTC

Replacement spark plug: NGK BPR6ES or equivalent

Make certain the spark plug gap is 0.7 - 0.8 mm or

(0.028 - 0.031 in.).

16

100216 ENGLISH

SPECIFICATIONS

Wiring Diagram

AVR

L

W

G

B

Y

R

YELLOW

BLACK

BLUE

GREEN

RED

WHITE

Br

GREENYELLOW

BROWN

G/Y

+

MW1

FW

EXW

EARTH

TERMINAL

ENG. SW.

100216

MW2

Br

R

5-20R

TT30R

L14-30R

V

~

W

W

W

ENGINE BLOCK SPARKING PLUG

L

15A

15A

Br

W

G/Y

G/Y G/Y G/Y

Br

WW

L

LL

L

Br

Br

Br

Br

Br Br Br

Br

Br

Br

L

L

WW

L

Y

Y

Br Y

Y

L

L

R

W

R

W

DAET:03/01/2015

OIL LEVEL SW

Transition

CIRCUIT

BREAKER

CIRCUIT

BREAKER

R

W

GENERATOR BLOCK

20A

W

VOLTAGE SWITCH

17

ENGLISH 100216

SPECIFICATIONS

Parts Diagram

1

282930

31

323334

35

36

37

38

39

40

41

4243

44

45

46

47

81

82

83

2

3

4

5

67

8

9

10

11

12

13

14

15

16

17 18 19 20

14

21

17 18

22

23

13

5051

52

53

54

55

56

57

58

60

61

62

63

24

25

27 26

59

80

84

49

48

64

65

66

67

68

69

70

71 76

77

78

79

72

73

74

75

49

49

18

100216 ENGLISH

#Part Number Description Qty

127. 4 0 4 Engine 1

2122.190005.00 Rubber, Fore-Cover, B 1

3122.190005.01 Rubber, Fore-Cover, A 1

4124.191100.02 Rotor Assembly, Al,

Ø95 x 130 mm 1

52.08.109 Flange Bolt M8×252 1

61.96.08 Big Washer Ø8 1

71.7244.08 Big Lock Washer Ø8 1

8124.191200.17 Stator Assembly, Al,

Ø160 x 130 mm 1

9124.191002.01 Cover, Stator 1

10 122.190002.00 End Housing 1

11 2.08.032 Flange Bolt M6 x 179 4

12 1.97.1.06 Washer Ø6 4

13 1.93.06 Lock Washer Ø6 8

14 1.16674.0512.2 Flange Bolt M5 x 12 3

15 122.190400.00 Terminal Block 1

16 1.97.1.05 Washer Ø5 2

17 1.93.05 Lock Washer Ø5 3

18 1.5783.0516 Bolt M5 x 16 3

19 122.190200.03 AVR 1

20 1.16674.0516 Flange Bolt M5 x 16 2

21 122.190003.00.48 End Cover, Generator, Yellow 1

22 122.190004.01 Pinch, Carbon Brush 1

23 122.190300.00 Carbon Brush Assembly 1

24 1.5789.0612 Flange Bolt M6 x 12 3

25 27.100100.01 Bracket, Muffler 1

26 1.823.0406 Screw M4 x 6 3

27 27.101300.00 Spark Arrester Assembly 1

28 27.101000.01.2 Muffler Assembly 1

29 1.6175.08 Nut M8 2

30 1.93.08 Lock Washer Ø8 2

31 1.848.08 Washer Ø8 2

32 26.100001.00 Gasket, Exhaust 1

33 1.5789.0608 Flange Bolt M6 x 8 1

34 23.090006.21 Holder, Air Cleaner 1

35 122.071000.31.48 Fuel Tank, Yellow 1

36 122.070015.01 Mount Vibration, Fuel Tank 4

37 2.03.004.1 Washer Ø24 x Ø6.5 x 1.5,

Black 4

38 1.5789.0620.1 Flange Bolt M6 x 20, Black 4

39 24.070800.00 Reversal Valve 1

40 2.06.006 Clamp Ø7 x Ø1 1

41 24.070030.00 Hole, Breather Tube 1

42 122.070014.02 Pipe, Reversal Valve, 670 mm 1

#Part Number Description Qty

43 122.070100.07 Cap, Fuel Tank 1

44 122.070300.03 Fuel Filter 1

45 2.06.007 Clamp Ø8 x b6 2

46 23.070011.04 Fuel Pipe Ø4.5 x Ø8.5 x 155 1

47 122.070400.05 Fuel Valve 1

48 122.201400.01 Rubber, Frame 4

49 1.6177.1.08 Lock Nut M8, Flange 12

50 62315.2.16.2 Frame 1

51 2.05.001 Clamp Ø8 x 6.5 2

52 122.201200.02 Mount 2, Motor 2

53 122.201200.03 Mount 1, Motor 2

54 1.6177.1.06 Lock Nut M6, Flange 1

55 5.1900.029 Grounding Line 150 mm 1

56 1.862.06 Lock Washer Ø6, Toothed 1

57 1.5789.0612 Flange Bolt M6 x 12 1

58 122.210002.26 Control Box 1

59 1.5789.0615.1 Bolt M6 x 15, Black 4

60 1.818.0514.2 Screw M5 x 14 1

61 5.1810.001 Over Voltage Protector 1

62 122.20.5.2 Control Panel, Black 1

63 1.9074.4.0512.1 Screw/Washer Assembly

M5 x 12, Black 5

64 5.1000.004.3 Ignition Switch, Red 1

65 5.1400.003 Voltage Meter 1

66 1.848.03.2 Washer Ø3 4

67 1.859.03.2 Lock Washer Ø3 4

68 1.6175.03.2 Nut M3 4

69 5.1200.215 15Amp Circuit Breaker, Push

Button 2

70 5.1120.009 Receptacle L14-30R 1

71 1.6177.1.04.1 Nut M4 6

72 1.5783.0514.3 Bolt M5 x 14, Green 1

73 1.6170.05.3 Nut M5, Green 2

74 1.97.1.05.3 Washer Ø5, Green 1

75 1.862.05 Lock Washer Ø5, Toothed 1

76 5.1120.034 Receptacle TT-30R 1

77 5.1120.030 Receptacle 5-20R 1

78 5.1210.920 20Amp Circuit Breaker, Push

Button 1

79 5.1020.002 Voltage Selection Switch, 12

Terminal 1

80 100216.21.10 Wire Assembly 1

81 122.210003.01 Wire Jacket, Control Box 1

82 5.1330.001 Sheath,Wire 1

83 122.210003.03 Plug, End Cover 1

84 100216.21 Control Panel Assembly 1

19

ENGLISH 100216

SPECIFICATIONS

Engine Parts Diagram

1

2345678910

12 13

25 26 27 29 30 32 35 37

38 12 40 41

42 43 44

46

47

21 22 23 24

31 34 36 39

53

52

45

51

50

49 55

56

57

58

54

60 62

61 63

65

66

67

68

69

7071

72

74

25

93

94

95

92

91

90

97

78

79

80

82

83

8485

86

87

88

76

59

12

77

96

33

81

73

15

20

48 14

101

51

100

64

16

99

89

19

11

18

17

19

28

98

75

103

102

104

26

105

20

100216 ENGLISH Parts List

#Part Number Description Qty

11.5789.0608 Flange Bolt M6 × 8 3

222.061100.00.2 Cover, Recoil Starter, Black 1

321.061005.00 Spring, Recoil Starter 1

42.10.003 Rope Ø5 × 1550 1

521.061001.01 Reel, Recoil Starter 1

645.060003.00 Spring, Ratchet 2

745.060002.00 Starter Ratchet, Steel 2

845.060009.00 Spring Guide, Ratchet 1

945.060007.00 Ratchet Guide 1

10 45.060008.00 Screw, Ratchet Guide 1

11 24.040004.00 Guide Plate, Push Rod 1

12 1.5789.0612 Flange Bolt M6 × 12 8

13 27.080100.02.48 Fan Cover, Yellow 1

14 24.091100.21 Base, Air Cleaner 1

15 21.061300.00 Handle, Recoil, Soft 1

16 24.130004.20 Gasket, Air Cleaner 1

17 22.061000.00 Recoil Assembly 1

18 27.091000.02 Air Cleaner Assembly 1

19 27.131000.01 Carburetor 1

27.131000.06

20 2.03.016 Washer, Drain Bolt,

Ø10 × Ø16 × 1.5 1

21 2.02.006 Nut M14 × 1.5 1

22 83.060001.01 Pulley, Starter 1

23 27.080001.00 Cooling Fan 1

24 24.120100.06 Flywheel 1

25 2.11.001 Oil Seal Ø25 × Ø41.3 × 6 2

26 2.03.020.1 Washer Ø6.2 × Ø15 × 0.5,

Black 2

27 21.110100.00 Gear, Governor 1

28 23.130100.20 Choke Lever 1

29 21.110013.00 Shaft, Governor Gear 1

30 21.110 011.00 Clip, Governor Gear 1

31 22.130003.00 Gasket, Carburetor 1

32 21.110012.01 Bushing, Govornor Gear, Steel 1

33 24.130002.00 Gasket, Insulator 1

34 27.130001.00 Insulator, Carburetor 1

35 23.080600.00 Air Guide, Right Side 1

36 2.01.003 Stud Bolt M6 × 90 2

37 27.030100.01 Crankcase 1

38 21.127000.02 Oil Level Sensor 1

39 26.010100.01 Cylinder Head, 224cc 1

40 27.050200.00 Connecting Rod 1

41 27.050100.00 Crankshaft 1

42 1.276.6205 Bearing, 6205 2

43 24.030008.00 Gasket, Crankcase Cover 1

44 22.031000.00.48 Oil Dipstick Assembly, Yellow 1

45 2.03.021.1 Washer Ø6.4 × Ø13 × 1,

Black 1

46 27. 03 0 0 0 7.01 Cover, Crankcase 1

47 1.5789.0832.0.8 Flange Bolt M8 × 32 5

48 23.091002.21 Seal, Air Cleaner 1

49 23.110006.00 Rod, Governor 1

50 27.110003.00 Arm, Governor 1

51 1. 6177. 0 6 Flange Nut M6 3

52 21.110001.00 Shaft, Governor Arm 1

53 22.123000.01 Ignition Coil, Silicon Rubber 1

#Part Number Description Qty

54 1.5789.0625 Flange Bolt M6 × 25 2

55 23.110005.01 Spring, Throttle Return 1

56 23.110007.00 Spring, Governor 1

57 2.08.040 Bolt, Governor Arm, M6 × 21 1

58 21.110008.00 Pin, Shaft 1

59 27.111000.20 Control Assembly 1

60 25.040013.00 Lifter, Valve 2

61 2.04.001 Dowel Pin, Ø9 × 14 2

62 27.041000.00 Camshaft 1

63 2.14.012 Woodruff Key, 4 × 7.5 × 19 1

64 2.08.037 Drain Bolt, M10 × 1.25 × 25 1

65 27.050005.00 Piston 1

66 23.050003.00 Pin, Piston 1

67 2.09.001 Circlip Ø18 × Ø1 2

68 27.050303.00 Ring, Oil 1

69 27.050302.00 Ring, Second Piston 1

70 27.050301.00 Ring, First Piston 1

71 27.030009.01 Gasket, Cylinder Head 1

72 2.04.003 Dowel Pin, Ø10 × 14 2

73 23.040002.02 Valve, Intake 1

74 23.040006.02 Valve, Exhaust 1

75 27.080200.00 Air Shroud, Cylinder 1

76 2.15.002(F6RTC) Spark Plug, F6RTC 1

77 1.5789.0865 Flange Bolt M8 × 65 3

78 23.040017.00 Oil Seal, Valve, Steel 2

79 21.040003.00 Spring, Valve 2

80 21.040007.00 Retainer, Exhaust Valve Spring 1

81 21.040001.00 Retainer, Intake Valve Spring 1

82 21.040008.00 Rotator, Exhaust Valve 1

83 24.040202.00 Shaft, Rocker Arm 1

84 22.040009.00 Rocker Arm 2

85 22.040012.00 Screw, Valve Adjustment 2

86 21.040021.00 Nut M6 × 0.5, Lock 2

87 1.97.1.06 Washer Ø6 2

88 1.6177.1.06 Flange Nut M6, Lock 2

89 27.131017.01 Main Jet, Standard 1

27.131017.01.01 Main Jet, Altitude /

90 24.040201.00 Retainer, Rocker Arm 1

91 23.040010.00 Bolt, Rocker Arm 2

92 27.040005.00 Push Rod 2

93 21.020002.01 Gasket, Cylinder Head Cover 1

94 24.021000.00 Cover, Cylinder Head 1

95 23.020001.02 Breather Tube, 112 + 35 mm 1

96 1.5789.0615 Flange Bolt M6 × 15 4

97 2.01.010 Stud Bolt M8 × 35 2

98 1.5789.0620 Flange Bolt M6 × 20 1

99 27.091200.01 Cover, Air Cleaner 1

100 23.091003.21 Element, Air Cleaner 1

101 23.091001.21 Separator, Air Cleaner 1

102 27.030013.00 Seal Strip, Crankcase Cover,

Long 1

103 27.030013.01 Seal Strip, Crankcase Cover,

Short 1

104 2.08.123 Flange Bolt M8 × 40 1

105 2.08.121 Flange Bolt M10 × 65 1

21

ENGLISH 100216

TROUBLESHOOTING

For further technical support:

Technical Service

Mon – Fri 8:30 AM – 5:00 PM (PST/PDT)

Toll Free: 1-877-338-0999

tech@championpowerequipment.com

Problem Cause Solution

Generator will not start No fuel Add fuel

Faulty spark plug Replace spark plug

Unit loaded during start up Remove load from unit

Generator will not start;

Generator starts but runs roughly

Low oil level Fill crankcase to the proper level

Place generator on a flat, level surface

Choke in the wrong position Adjust choke

Spark plug wire loose Attach wire to spark plug

Generator shuts down during operation Out of fuel Fill fuel tank

Low oil level Fill crankcase to the proper level. Place

generator on a flat, level surface

Generator cannot supply enough power or

overheating

Generator is overloaded Review load and adjust. See “Power

Management”

Insufficient ventilation Check for air restriction. Move to a well

ventilated area

No AC output Cable not properly connected Check all connections

Connected device is defective Replace defective device

Circuit breaker is open Reset circuit breaker

Faulty brush assembly Replace brush assembly (Service Center)

Faulty AVR (auto voltage regulator) Replace AVR (Service Center)

Loose wiring Inspect and tighten wiring connections

Other Contact the help line

Generator gallops Engine governor defective Contact the help line

Repeated circuit breaker tripping Overload Review load and adjust. See “Power

Management”

Faulty cords or device Check for damaged, bare or frayed wires.

Replace defective device

22

100216 ENGLISH

WARRANTY

WARRANTY

CHAMPION POWER EQUIPMENT

2 YEAR LIMITED WARRANTY

Warranty Qualifications

Champion Power Equipment (CPE) will register this

warranty upon receipt of your Warranty Registration Card

and a copy of your sales receipt from one of CPE’s retail

locations as proof of purchase.

Please submit your warranty registration and your proof

of purchase within ten (10) days of the date of purchase.

Repair/Replacement Warranty

CPE warrants to the original purchaser that the

mechanical and electrical components will be free of

defects in material and workmanship for a period of

two years (parts and labor) from the original date of

purchase (180 days (parts and labor) for commercial

& industrial use). Transportation charges on product

submitted for repair or replacement under this warranty

are the sole responsibility of the purchaser. This

warranty only applies to the original purchaser and is not

transferable.

Do Not Return The Unit To The Place Of Purchase

Contact CPE’s Technical Service and CPE will

troubleshoot any issue via phone or e-mail. If the

problem is not corrected by this method, CPE will, at its

option, authorize evaluation, repair or replacement of the

defective part or component at a CPE Service Center.

CPE will provide you with a case number for warranty

service. Please keep it for future reference. Repairs

or replacements without prior authorization, or at an

unauthorized repair facility, will not be covered by this

warranty.

Warranty Exclusions

This warranty does not cover the following repairs and

equipment:

Normal Wear

Generators need periodic parts and service to perform well.

This warranty does not cover repair when normal use has

exhausted the life of a part or the equipment as a whole.

Installation, Use and Maintenance

This warranty will not apply to parts and/or labor if this

generator is deemed to have been misused, neglected,

involved in an accident, abused, loaded beyond the

generator’s limits, modified, installed improperly or

connected incorrectly to any electrical component.

Installation, Use and Maintenance Cont’d.

Normal maintenance such as spark plugs, air filters,

adjustments, fuel system cleaning and obstruction due

to buildup is not covered by this warranty.

Other Exclusions

This warranty excludes:

– Cosmetic defects such as paint, decals, etc.

– Wear items such as filter elements, o-rings, etc.

– Accessory parts such as starting batteries, and

storage covers.

– Failures due to acts of God and other force majeure

events beyond the manufacturer’s control.

– Problems caused by parts that are not original

Champion Power Equipment parts.

This warranty does not apply to generators used for

prime power in place of a utility.

Limits of Implied Warranty and Consequential Damage

Champion Power Equipment disclaims any obligation to

cover any loss of time, use of this product, freight, or

any incidental or consequential claim by anyone from

using this generator. THIS WARRANTY IS IN LIEU OF

ALL OTHER WARRANTIES, EXPRESS OR IMPLIED,

INCLUDING WARRANTIES OF MERCHANTABILITY OR

FITNESS FOR A PARTICULAR PURPOSE.

A unit provided as an exchange will be subject to the

warranty of the original unit. The length of the warranty

governing the exchanged unit will remain calculated by

reference to the purchase date of the original unit.

This warranty gives you certain legal rights which may

change from state to state. Your state may also have

other rights you may be entitled to that are not listed

within this warranty.

Contact Information

Address

Champion Power Equipment, Inc.

Customer Service

12039 Smith Ave.

Santa Fe Springs, CA 90670

www.championpowerequipment.com

Customer Service

Mon – Fri 8:30 AM – 5:00 PM (PST/PDT)

Toll Free: 1-877-338-0999

info@championpowerequipment.com

Fax no.: 1-562-236-9429

Technical Service

Mon – Fri 8:30 AM – 5:00 PM (PST/PDT)

Toll Free: 1-877-338-0999

tech@championpowerequipment.com

24/7 Tech Support: 1-562-204-1188

Champion Power Equipment, Inc. (CPE),

United States Environment Protection Agency (U.S. EPA)

Emission Control System Warranty

Your Champion Power Equipment (CPE) engine complies with U.S. EPA emission regulations.

YOUR WARRANTY RIGHTS AND OBLIGATIONS:

The US EPA AND CPE are pleased to explain the Federal Emission Control Systems Warranty on your 2015 small

off-road engine and engine powered equipment. New engines and equipment must be designed, built and

equipped, at the time of sale, to meet U.S. EPA regulations for small non-road engines. CPE warrants the emission

control system on your small off-road engine and equipment for the period of time listed below, provided there has

been no abuse, neglect, unapproved modification, or improper maintenance of your equipment.

Your emission control system may include parts such as the carburetor, fuel-injection system, the ignition system,

catalytic converter and fuel lines. Also included may be hoses, belts, connectors and other emission related

assemblies. Where a warrantable condition exits, CPE will repair your small off-road engine at no cost to you

including diagnosis, parts and labor.

MANUFACTURER’S EMISSION CONTROL SYSTEM WARRANTY COVERAGE:

This emission control system is warranted for two years, subject to provisions set forth below. If, during the

warranty period, emission related part on your engine is defective in materials or workmanship, the part will be

repaired or replaced by CPE.

OWNER WARRANTY RESPONSIBILITIES:

As the small off-road engine owner, you are responsible for the performance of the required maintenance listed in

your Owner’s Manual. CPE recommends that you retain all your receipts covering maintenance on your small off-

road engine, but CPE cannot deny warranty solely for the lack of receipts or for your failure to ensure the

performance of all scheduled maintenance.

As the small off-road engine owner, you should however be aware that CPE may deny you warranty coverage if

your small, off-road engine or a part has failed due to abuse, neglect, improper maintenance or unapproved

modifications.

You are responsible for presenting your small off-road engine to an Authorized CPE service outlet or alternate

service outlet as described in (3)(f.) below, CPE dealer or CPE, Santa Fe Springs, Ca. as soon as a problem exists.

The warranty repairs should be completed in a reasonable amount of time, not to exceed 30 days.

If you have any questions regarding your warranty rights and responsibilities, you should contact:

Champion Power Equipment, Inc.

Customer Service

12039 Smith Ave.

Santa Fe Springs, CA 90670

1-877-338-0999

tech@championpowerequipment.com

EMISSION CONTROL SYSTEM WARRANTY

The following are specific provisions relative to your Emission Control System (ECS) Warranty Coverage.

1. APPLICABILITY: This warranty shall apply to 1997 and later model year small off-road engines. The ECS

Warranty Period shall begin on the date the new engine or equipment is delivered to its original, end-use

purchaser, and shall continue for 24 consecutive months thereafter.

2. GENERAL EMISSIONS WARRANTY COVERAGE

CPE warrants to the original, end-use purchaser of the new engine or equipment and to each subsequent

purchaser that each of its small off-road engines is:

a. Designed, built and equipped so as to conform to U.S. EPA emissions standards for spark-ignited

engines at or below 19 kilowatts.

b. Free from defects in materials and workmanship that cause the failure of a warranted part to be identical

in all material respects to the part as described in the engine manufacturer’s application for certification for a period

of two years.

3. THE WARRANTY ON EMISSION-RELATED PARTS WILL BE INTERPRETED AS FOLLOWS:

a. Any warranted part that is not scheduled for replacement as required maintenance in the Owners

Manual shall be warranted for the ECS Warranty Period. If any such part fails during the ECS Warranty Period, it

shall be repaired or replaced by CPE according to Subsection “d” below. Any such part repaired or replaced under

the ECS Warranty shall be warranted for any remainder of the ECS Warranty Period.

b. Any warranted, emissions-related part which is scheduled only for regular inspection as specified in the

Owners Manual shall be warranted for the ECS Warranty Period. A statement in such written instructions to the

effect of “repair or replace as necessary”, shall not reduce the ECS Warranty Period. Any such part repaired or

replaced under the ECS Warranty shall be warranted for the remainder of the ECS Warranty Period.

c. Any warranted, emissions-related part which is scheduled for replacement as required maintenance in

the Owner’s Manual shall be warranted for the period of time prior to the first scheduled replacement point for that

part. If the part fails prior to the first scheduled replacement, the part shall be repaired or replaced by CPE

according to Subsection “d” below. Any such emissions-related part repaired or replaced under the ECS Warranty,

shall be warranted for the remainder of the ECS Warranty Period prior to the first scheduled replacement point for

such emissions-related part.

d. Repair or replacement of any warranted, emissions-related part under this ECS Warranty shall be

performed at no charge to the owner at a CPE Authorized Service Outlet.

e. The owner shall not be charged for diagnostic labor which leads to the determination that a part covered

by the ECS Warranty is in fact defective, provided that such diagnostic work is performed at a CPE Authorized

Service Outlet.

f. CPE shall pay for covered emissions warranty repairs at non-authorized service outlets under the

following circumstances:

i. The service is required in a population center with a population over 100,000 according to U.S.

Census 2000 without a CPE Authorized Service Outlet AND

ii. The service is required more than 100 miles from a CPE Authorized Service Outlet. The 100 mile

limitation does not apply in the following states: Alaska, Arizona, Colorado, Hawaii, Idaho, Montana, Nebraska,

Nevada, New Mexico, Oregon, Texas, Utah and Wyoming.

g. CPE shall be liable for damages to other original engine components or approved modifications

proximately caused by a failure under warranty of an emission-related part covered by the ECS Warranty.

h. Throughout the ECS Warranty Period, CPE shall maintain a supply of warranted emission-related parts

sufficient to meet the expected demand for such emission-related parts.

i. Any CPE Authorized and approved emission-related replacement part may be used in the performance of

any ECS Warranty maintenance or repair and will be provided without charge to the owner. Such use shall not

reduce CPE’s warranty obligation.

j. Unapproved add-on or modified parts may not be used to modify or repair a CPE engine. Such use voids

this ECS Warranty and shall be sufficient grounds for disallowing an ECS Warranty claim. CPE shall not be liable

hereunder for failures of any warranted parts of a CPE engine caused by the use of such an unapproved add-on or

modified part.

EMISSION-RELATED PARTS INCLUDE THE FOLLOWING: (using those portions of the list applicable to the

engine)

Systems covered by this

warranty

Parts Description

Fuel Metering System

Fuel regulator, Carburetor and internal parts

Air Induction System

Air cleaner, Intake manifold

Ignition System

Spark plug and parts, Magneto ignition system

Exhaust System

Exhaust manifold, catalytic converter

Miscellaneous Parts

Tubing, Fittings, Seals, Gaskets, and Clamps associated with these listed

systems.

Evaporative Emissions

Fuel Tank, Fuel Cap, Fuel Line, Fuel Line Fittings, Clamps, Pressure

Relief Valves, Control Valves, Control Solenoids, Electronic Controls,

Vacuum Control Diaphragms, Control Cables, Control Linkages, Purge

Valves, Vapor Hoses, Liquid/Vapor Separator, Carbon Canister, Canister

Mounting Brackets, Carburetor Purge Port Connector

TO OBTAIN WARRANTY SERVICE:

You must take your CPE engine or the product on which it is installed, along with your warranty registration card or

other proof of original purchase date, at your expense, to any Champion Power Equipment dealer who is

authorized by Champion Power Equipment, Inc. to sell and service that CPE product during his normal business

hours. Alternate service locations defined in Section (3)(f.) above must be approved by CPE prior to service. Claims

for repair or adjustment found to be caused solely by defects in material or workmanship will not be denied because

the engine was not properly maintained and used.

If you have any questions regarding your warranty rights and responsibilities, or to obtain warranty

service, please write or call Customer Service at Champion Power Equipment, Inc.

Champion Power Equipment, Inc.

12039 Smith Ave.

Santa Fe Springs, CA 90670

1-877-338-0999

Attn.: Customer Service

tech@championpowerequipment.com
